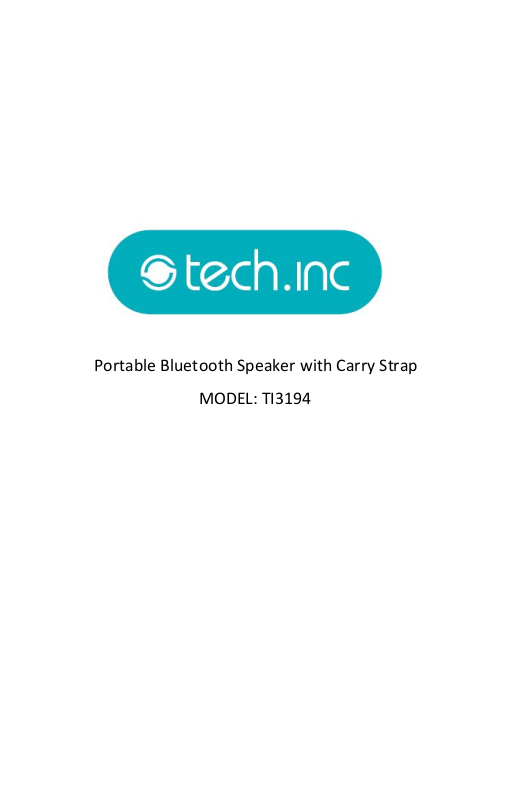

Portable Bluetooth Speaker with Carry Strap
MODEL: TI3194
Thanks you for purchasing this Tech Inc product.
The TI3194 Bluetooth speaker was designed and created
by Tech Inc to provide the user with a high quality
product experience. This speaker can be used for various
occasions that require crisp and powerful music
environment.
Please read the following user guide in full before
operating this product.
Please retain this guide for any future reference
User Manual Contents
1. Important Safety Instruc ons
2. Product Accessories and Contents
3. Product Mind Map
4. Prepara on to use
5. General product Opera on
6. Maintenance and Cleaning
7. Trouble shoo ng guide
8. Product Specifica ons
9. Warranty Informa on
- 1 -
Important Safety Instructions
1. Read, Keep and Follow these instructions, heeding all
2. Keep out of reach of young children. This apparatus is
3. This appliance is not intended for use by persons
4. WARNING. Do not insert any objects into any
5. WARNING. Do not touch any moving parts of any
6. WARNING! Where the mains plug or an appliance
7. WARNING. Do not use this apparatus near water. To
8. WARNING. No objects filled with liquid, such as vases,
When using any electrical apparatus always observe
safety regulations and use basic safety precautions to
reduce the risk of fire, electric shock and personal injury,
including the following.
Warnings.
not suitable for use by young children or infirm persons
without supervision. Young children must be supervised
to ensure that they do not play with the apparatus.
(including young children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
openings of an electrical apparatus.
electrical apparatus.
coupler is used as the disconnect device, the disconnect
device shall remain readily operable
avoid the risk of fire or electric shock, do not expose this
apparatus to rain or moisture. The apparatus shall not be
exposed to dripping or splashes.
shall be placed on any electrical apparatus.
- 2 -
9. Do not immerse in any liquid whilst in use or in
cleaning. Clean only with a damp cloth, dry with a dry
10. DO NOT block any ventilation openings. Keep away
11. DO NOT install near any heat sources such as
12. WARNING. Do not place any naked flame source,
13. WARNING! Connect to a suitable 230-240V ~ 50 Hz
14. Always unplug from the power source when any
15. Do not abuse or damage a power cord. If any power
16. Only use attachments/accessories specified by the
17. Unplug this apparatus during lightening storms or
18. Attention is drawn to the environmental aspects of
towel. Do not use harsh abrasives as these may damage
plastic parts.
from curtains, newspapers and restricted areas. Install in
accordance with any specific manufacturer’s instructions.
Always allow a sufficient gap around the apparatus to
avoid overheating.
radiators, gas heaters, stoves or other apparatus
(including amplifiers) that produce heat. Do not leave in
direct sunlight.
such as lighted candles on any electrical apparatus.
power supply only. If a class 1 product it must be
connected to a suitably earthed mains socket.
electrical apparatus is not in use.
cord is damaged, it must be replaced by the
manufacturer, its service agent or a similarly qualified
person in order to avoid a hazard. A replaceable cord
must be replaced with an authorised replacement from
an authorised service agent only.
manufacturer.
when unused for long periods of time.
disposing of any battery.
- 3 -
19. Refer all servicing to qualified personnel. Servicing is
required when the apparatus has been damaged in any
20. Do not attempt to service any double insulated
21. WARNING. Do not use any electrical apparatus
22. For household use only, this apparatus is not
23. This appliance is intended to be used in household
- staff kitchen areas in shops, offices and other working
- farm houses
- by clients in hotels, motels and other residential type
-
bed and breakfast type environments
24. If the apparatus is provided with a replaceable or non
-
CAUTION: Danger of explosion if the battery is
25. Warning! Dispose of batteries according to the
way, such as when the power supply cord or plug is
damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been
dropped.
apparatus. Double insulated apparatus requires
specialist servicing and knowledge to retain the safety of
the apparatus.
outdoors. If any electrical apparatus is to be used
outdoors, use a suitable Isolating transformer or Electrical
Safety Switch (RCD).
intended for commercial use.
and similar applications such as
environments;
environments
replaceable Lithium battery, the following applies
incorrectly replaced. Replace only with the same or
equivalent type.
manufacturers instructions.
- 4 -
26. If this apparatus is to be used by a third party, please
supply these instructions with it.
27. No liability will be accepted for any personal injury or
damage caused by failure to follow these instructions.
Product Accessories and Contents
The TI3194 Bluetooth speaker is equipped and
accessorized with the following products
1 x TI3194
1 x Power Adapter
1 x Carry Strap
1 x AUX Cable
- 5 -
Product Mind Map
All physical features of TI3194 are illustrated below
- 6 -
Preparation to Use
Ensure that all accessories illustrated previously have
The product will come with battery life, use the
Recharge once battery indicates low
Do not leave product with no charge or little charge.
Always place in stable, secure and unexposed
Before beginning to use your TI3194 Bluetooth speaker
there is some steps you should take to ensure the best
life and use of this product.
been provided
product until low battery signal is indicated.
environments whilst in use.
Carry Strap;
This TI3194 speaker model is equipped with a carry strap
that can be used with or without this strap. If you wish to
attach the carry strap this can be simply attached by
hooking each end of the strap onto the strap hooks on the
front and rear of the speaker. Please ensure that each
end of the strap is securely hooked before moving.
- 7 -
General Product Operation
Product Controls;
The TI3194 main product controls are located on the top
of the speaker. There is five key buttons which you will
need to become familiar with to use this product.
Whilst in AUX press
AUX
AUX
to transfer to
Bluetooth mode
When a bluetooth
connection is
established. Press
and Hold to cancel
current connection.
Volume minimize
and maximize.
Volume on
connected device
also synchronized.
Volume minimize
and maximize.
Volume on
connected device
also synchronized
Bluetooth Pair
Volume Control
Mode
Bluetoot
h Mode
Mode
Bluetoot
h Mode
- 8 -
AUX
AUX
Mute/Un-mute
When a Bluetooth
connection is
established. The
play and pause
button will be
effective and
synchronized with
connected device.
Press and Hold to
Power on/off the
speaker
Press and Hold to
Power on/off the
speaker
Mode
Bluetoot
h Mode
Mode
Bluetoot
h Mode
Speaker Connections;
The TI3194 bluetooth speaker has two main ways in
which it may disperse your music from your selected
external device. Depending on the specification of your
external device you may either make a bluetooth
connection, AUX connection or both.
Making a Bluetooth Connection
Once the TI3194 speaker is powered on the BT Pair
button will repeatedly and automatically flash. The
flashing indicates the speaker is looking for external
Bluetooth compatible devices. On you external device
- 9 -
enter your Bluetooth settings and search for Bluetooth
device "TI3194". Once the speaker is identified, select
and proceed to establishing a connection. Once the
connection is established the BT Pair button will remain
sold light.
（1）If you wish to switch to another external Bluetooth
device, long press the BT pairing key to cancel current
connection. To connect another device follow the steps
as above.
（2）If the Bluetooth speaker is turned off, the speaker
will automatically connect the last successful paired
device when turned on again.
（3）Both volume controls are functional. Ensure
volume is adjust on both external device and speaker to
get ideal speaker volume.
Making an NFC Bluetooth Connection
Once the TI3194 is powered on the BT Pair button will
repeatedly and automatically flash. To make an NFC
connection, turn on the NFC function of external device
such as phone or tablet and move the device against or
right next to the NFC induction zone of the TI3194
speaker. When connecting for the first time the device
will indicate a connected prompt, please select “yes” to
pair.
- 10 -
Making a AUX Connection
Once the TI3194 speaker is powered on you can proceed
to establishing an AUX connection between your speaker
and external device. To make an AUX connection insert
the supplied AUX cable into the rear AUX input on the
speaker and the selected external device.
（1）Volume control is functional in AUX mode.
Play/Pause is not functional or synchronized with
connected devices.
Charging
To charge the TI3194 Speaker please use the power
supply supplied. Any other power supplies used with this
device may damage the speaker.
To charge the device connect the adapter to the speaker
and adapter to the suitable AC outlet.
When charging has been established the power ON/OFF
key will fade in and out (breathe) a red light. When the
speaker is fully charged the red light will remain solid red.
- 11 -
When the battery of the speaker is low the power
ON/OFF key will flash red. Please proceed to charge in
this state.
AVOID: Leaving speaker in a low battery/zero battery
state as it will affect the life of your battery.
Maintenance and Cleaning;
For any maintenance or repairs of the TI3194 speaker
please contact technical support. Please DO NOT attempt
to repair this speaker yourself as this may avoid any
product warranty given.
IF cleaning the TI3194 speaker the speaker must be
turned off before you begin. Do not use volatile solvents
(such as ethanol, rosin, toluene solvent) to clean the
machine. This type of chemicals may damage the
machine. Only use light soaped and slightly damp cotton
or microfiber cleaning cloth. If the cotton or cloth is too
wet it may drop water droplets into the product panels
and speakers causing malfunction.
- 12 -
Troubleshooting
Ensure the speaker has some
Adjust the volume on the
Please ensure the AUX cable is
Please make sure that the
Please check the power
Please check whether machine
Pair again after reboot;
Ensure that the machine and
Please ensure that no
In the event that you encounter any problems using this
product, please refer to the below table before
contacting customer support.
Problem Solution
The speaker has
no sound
No power or
Not charging
Bluetooth
pairing fail
Bluetooth mode
voice
interrupted
charger
speaker and any connect
devices.
connected correctly.
adapter and the host is
connected correctly;
adapter voltage and current
demand;
is in the pairing state(BT pairing
key flashes) or not; If not,
please long press BT pairing
key and pair again;
Bluetooth devices to connect
at a distance of 10 meters；
obstruction between the
machine and the Bluetooth
device, or try another
Bluetooth device to play;
- 13 -
NFC Pairing fail
Ensure that the Bluetooth
Please check whether machine
In the first pairing, please
Remove mobile phone
Plug the adapter, then power
Use a toothpick or needle to
The keys have
no function
device supports NFC function
and has been in the state of
opening;
is in the pairing state (BT
pairing key flashes) or not;
ensure the Bluetooth device
touches NFC induction zone of
machine and perform the
pairing operation;
protection shell and try NFC
pairing again;
on;
press the reset hole, then
power on;
- 14 -
Product Specification
For all technical information and specification please
refer to the below specification table;
Model TI3194
2 x 1 inch dome
Speakers Configuration
Frequency response 60Hz-20KHz (-10dB)
Power amplifier Class D @ 15W × 2CH
THD < 1%
SNR >75dB(A)
Sound pressure level 92dB± 3dB (500mV@1M)
Playback Connections Bluetooth and AUX IN
Power Adapter DC 15V,1.2A
Battery Specification
Product size 310mm x 160mm x 80mm
Bluetooth version
tweeter, 8ohm + 2 x 3 inch
woofer, 4ohm
Lithium battery. Capacity:
2200mAh, 11.1V
BT4.0
HSP+HFP+A2DP+AVRCP&N
FC
- 15 -
Loading...
