TechBrands CW2900 User Manual
9
S=5mm
A
If the monitor is automatically
sagged after it is installed, adjust
the force value to “+”;
if the monitor is installed, it will
automatically go up, and adjust to
“-” to decrease the force value.

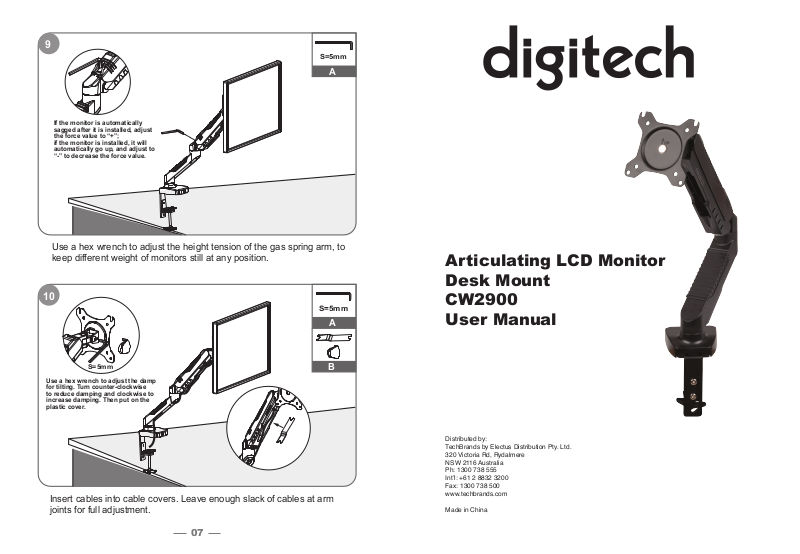

Use a hex wrench to adjust the height tension of the gas spring arm, to
keep different weight of monitors still at any position.
10
S=5mm
A
Articulating LCD Monitor
Desk Mount
CW2900
User Manual
S=5mm
Use a hex wrench to adjust the damp
for tilting. Turn counter-clockwise
to reduce damping and clockwise to
increase damping. Then put on the
plastic cover.
B
Insert cables into cable covers. Leave enough slack of cables at arm
joints for full adjustment.
07
Distributed by:
TechBrands by Electus Distribution Pty. Ltd.
320 Victoria Rd, Rydalmere
NSW 2116 Australia
Ph: 1300 738 555
Int’l: +61 2 8832 3200
Fax: 1300 738 500
www.techbrands.com
Made in China

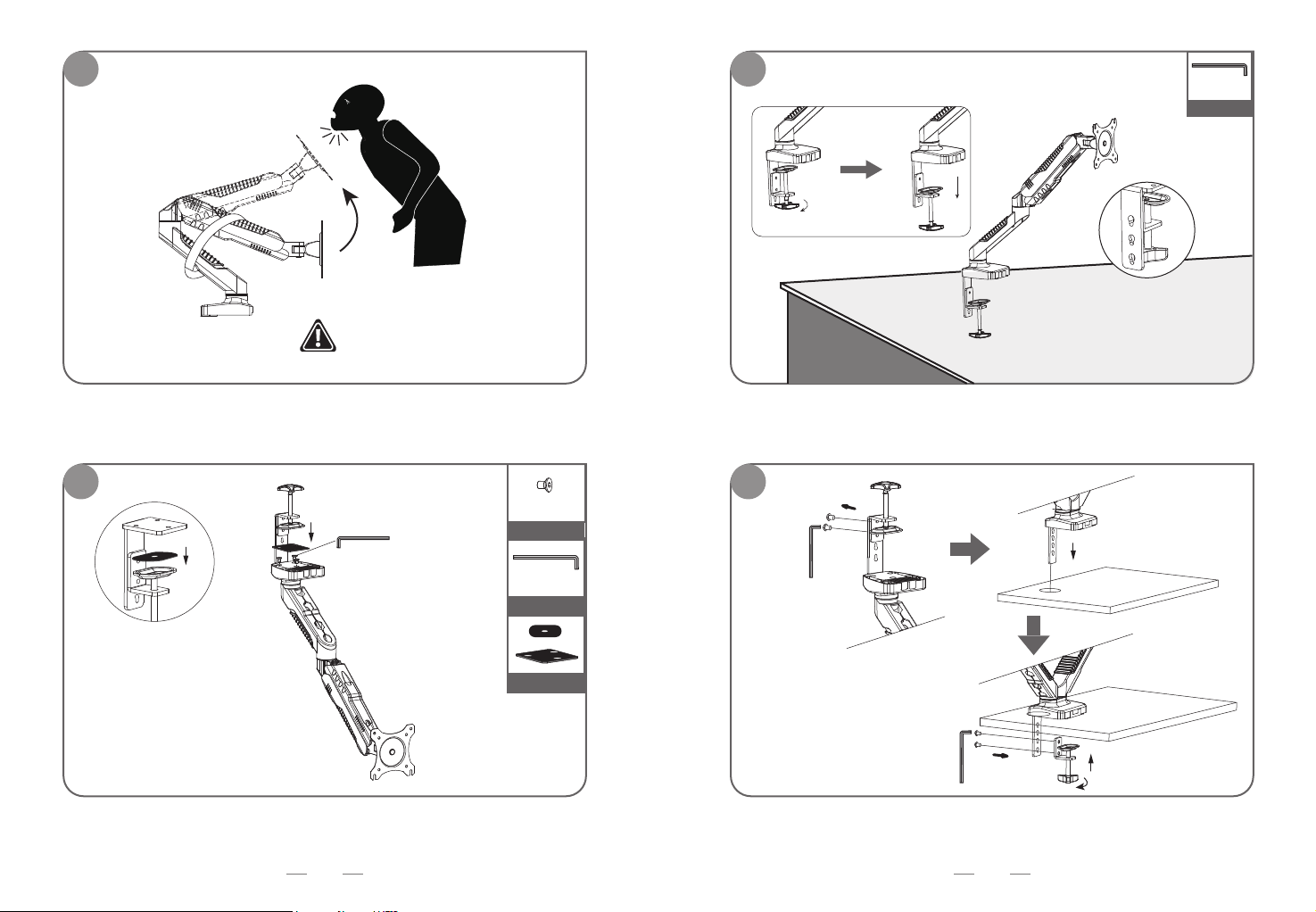

SAFETY
Warning
Prior to the installation of this product, the installation instruction
must be read and completely understood. Failure to do so may
result in personal injury, property damage or voiding of factory
warranty.
Do not install on a structure that is prone to vibration, movement
or chance of impact. Reinforce the structure as required before
installation.
The desk clamp can support a maximum thickness of 9 cm.
Confirm the desk edge before installation.
Pay attention to the weight capacity of the mount. Exceeding the
limitation can result in function unworkable or even serious
personal injury and property damage.
7
OR
M4x20
12x5.5x6
A
Never operate the mount if parts are missing or damaged.
Contact your local service center for warranty service.
PRODUCT DIAGRAM
180mm/7.1” Max.340mm/13.4”
360

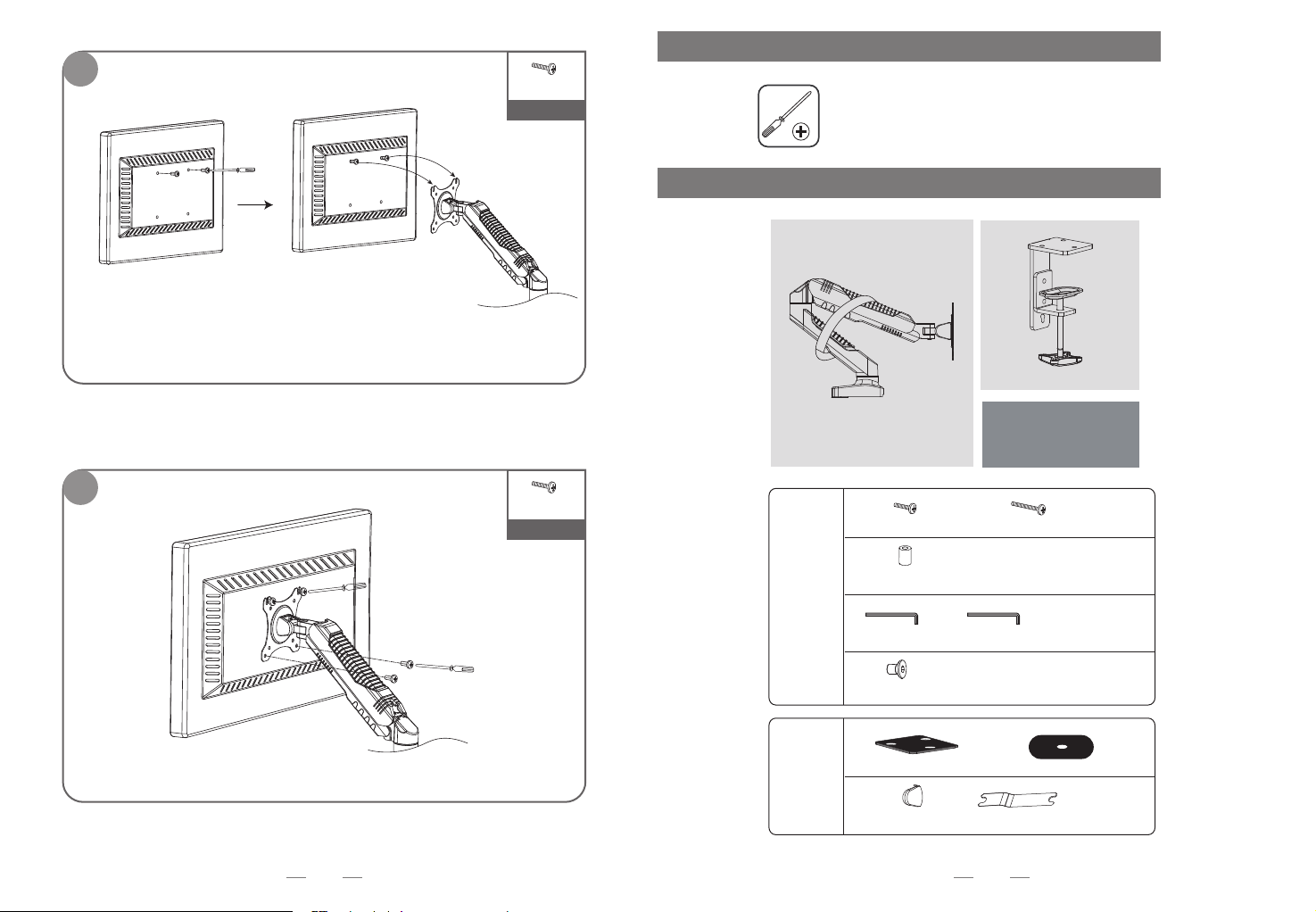

Recessed surface installation:Put spacers between headplate and
monitor. Install the upper two screws and don't screw them tight. Leave
some space and hang the monitor on the head plate.
8
90
360
140-390mm/5.5-13.4”
85
180
45 45
Recessed surface installation:Put spacers between headplate and
monitor. Install the lower two screws and fasten the upper two screws.
01 06
M4x20
12x5.5x6
A
