TECC arc4 User Manual

USER MANUAL

TECC_Arc4_Compliant_Manual(2).indd 1 03/11/2016 13:58

2

Congratulations on purchasing
your new arc 4 Electronic Cigarette.

The arc 4 is the latest product in the hugely successful arc range. Retaining the style,
ergonomics and exceptional ease of use that made its predecessors real game changers,
the arc 4 has variable wattage providing power of up to 40W, and can be used with atomizer
resistances down to 0.4ohm. Included in the kit is the dependable CS Air 2 Tank which
provides the user with a 2ml e-liquid capacity and adjustable airflow. The arc 4 combines its
functionality and 2200mAh battery in a sleek yet exceptionally compact package.

TECC_Arc4_Compliant_Manual(2).indd 2 03/11/2016 13:58

3

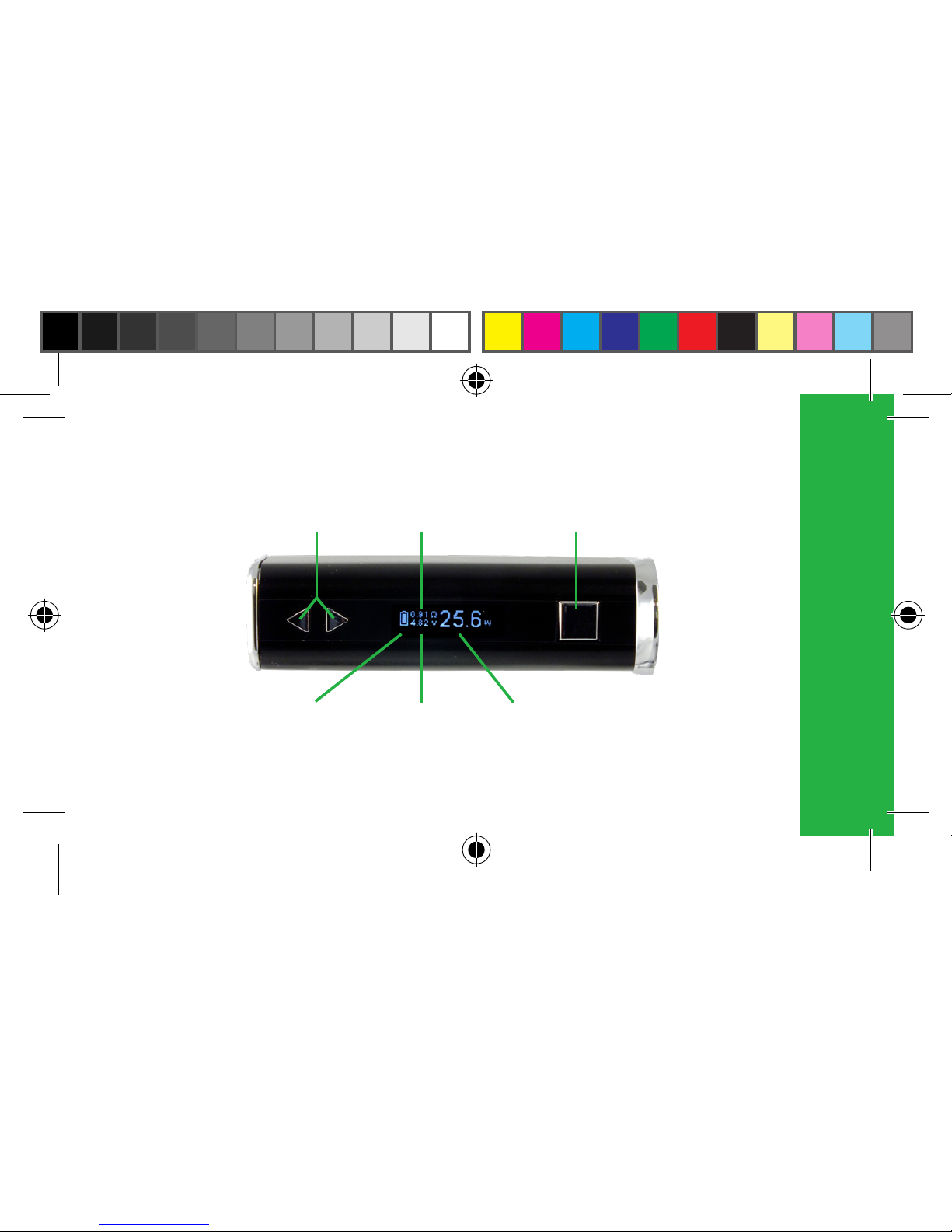

Up/down

adjustment

buttons

Charge

status

Ohms

resistance

Power
output
(volts)

Power
button

Power
output

(watts)

TECC_Arc4_Compliant_Manual(2).indd 3 03/11/2016 13:58

4

Using your arc 4

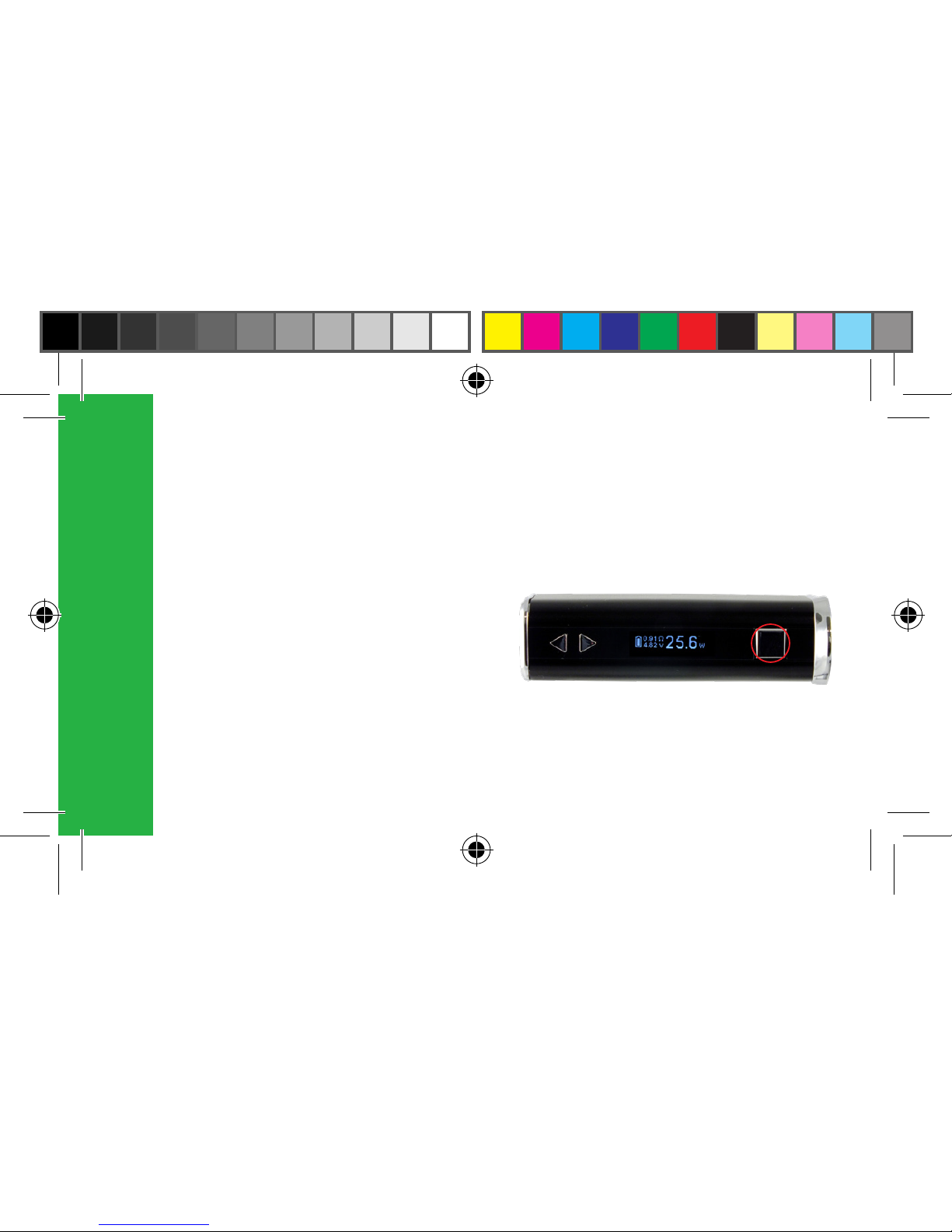

Power On and Off:

The arc 4 uses a 5-click on/off function.
To switch the device on, quickly press
the power button 5 times. The screen will
illuminate, indicating that the device is
powered on. Once the arc 4 is powered
on the user can press the button 5 times to
switch the device off.

TECC_Arc4_Compliant_Manual(2).indd 4 03/11/2016 13:58

5

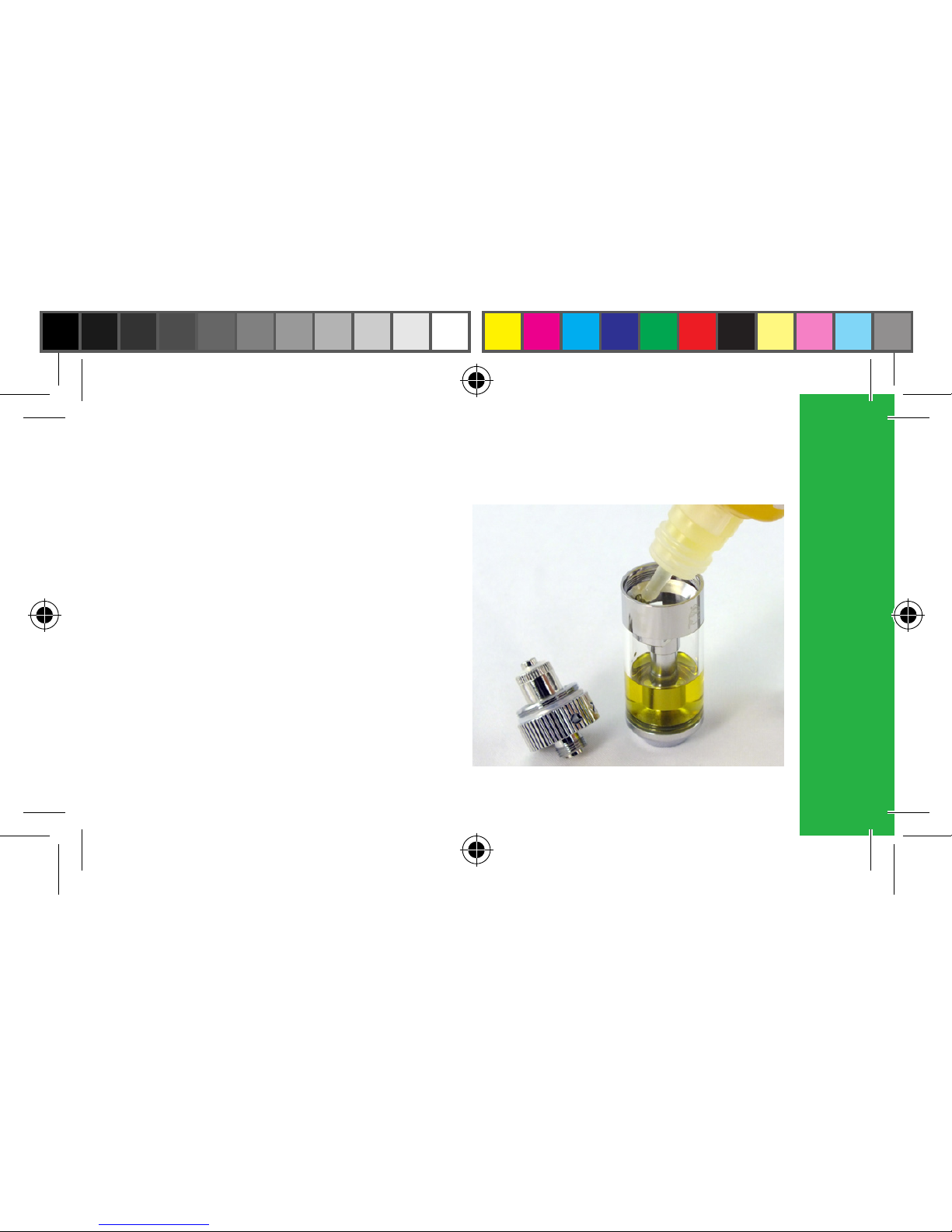

Filling the Tank:

Remove the CS Air 2 Tank from the arc 4
battery by unscrewing at the atomizer base.
Invert the tank, unscrew and remove the
atomizer base. Refill the tank through one
of the apertures either side of the central
air tube. Do not place liquid in the central
tube. Refit the atomizer base and screw the
assembled tank back onto the arc battery.

Maximum refill nozzle diameter: 2.8mm

Using your arc 4

TECC_Arc4_Compliant_Manual(2).indd 5 03/11/2016 13:58

6

Vaping:

Simply press the power button as you
inhale.

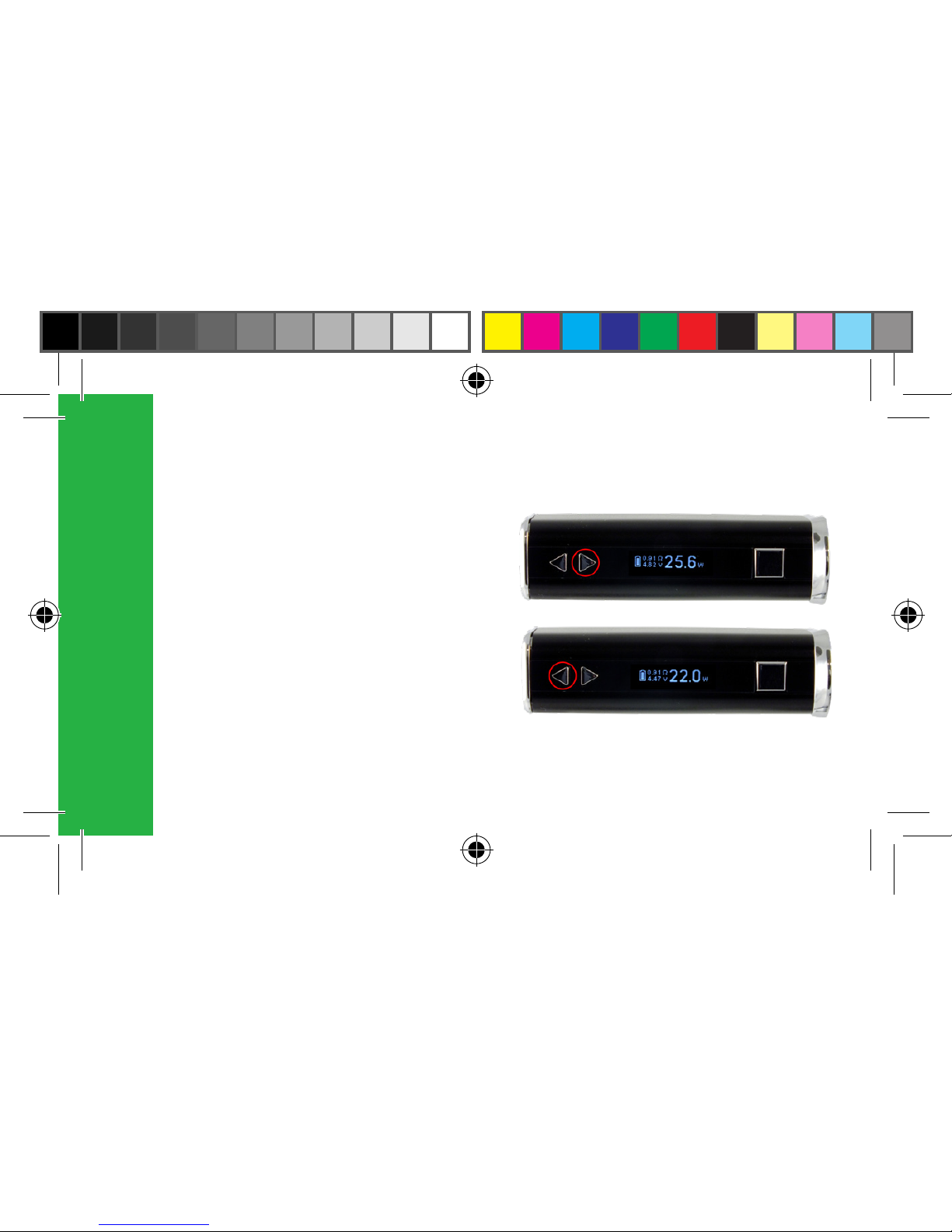

Adjusting Wattage:

Use the up or down adjustment buttons to
increase or decrease the level of wattage
respectively. The available wattage range
is 1W – 40W.

Using your arc 4

TECC_Arc4_Compliant_Manual(2).indd 6 03/11/2016 13:58

7

Adjusting Airflow:

Using a suitable screwdriver, airflow can
be decreased or increased by turning
the screw clockwise or anticlockwise
respectively.

Charging the Battery:

Charge the arc 4 via the USB cable when
connected to a powered USB port or
suitable wall adapter. The indicator on the
display will indicate the battery status.

Replacing the Atomizer Head:

To replace the atomizer head, remove
the CS Air 2 Tank from the arc battery by
unscrewing at the atomizer base. Invert the
tank and unscrew the atomizer base from
the tank tube. Unscrew the CS atomizer
head from the atomizer base and replace.
Reassemble the tank and screw the
assembled tank back onto the arc battery.

Using your arc 4

TECC_Arc4_Compliant_Manual(2).indd 7 03/11/2016 13:58

8

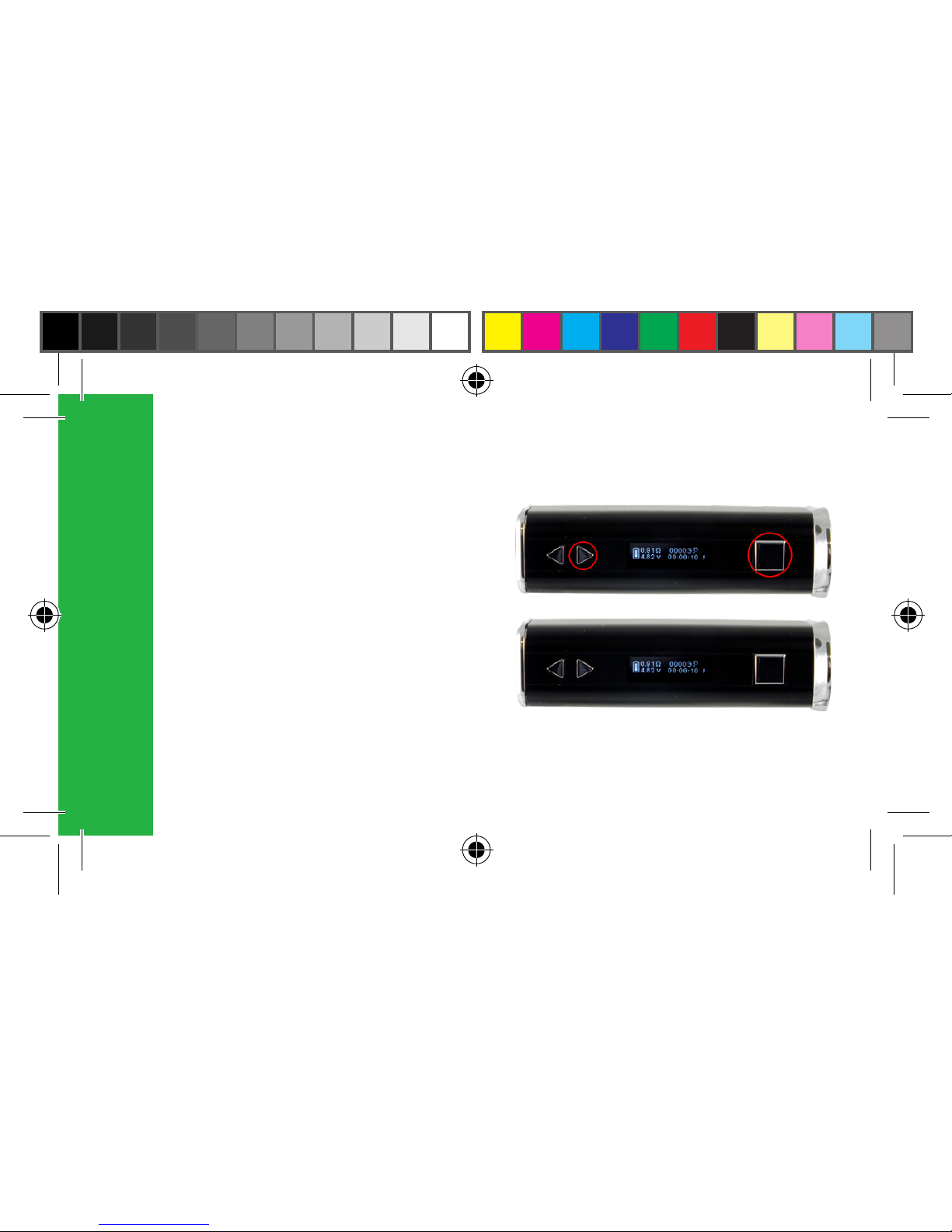

Puff & Puff Duration Counter:

To display the puff counter, quickly press
the power button 4 times. The puff counter
is displayed on the first row, and the puff
duration counter is displayed on the second
row. To reset the number of puffs recorded
to zero, hold the power button and up
adjustment button whilst the puff counter
display is active. To reset the puff duration
to zero, hold the power button and down
adjustment button whilst the puff duration
counter display is active. Quickly press the
button 4 times to return to wattage display.

Using your arc 4

TECC_Arc4_Compliant_Manual(2).indd 8 03/11/2016 13:58

9

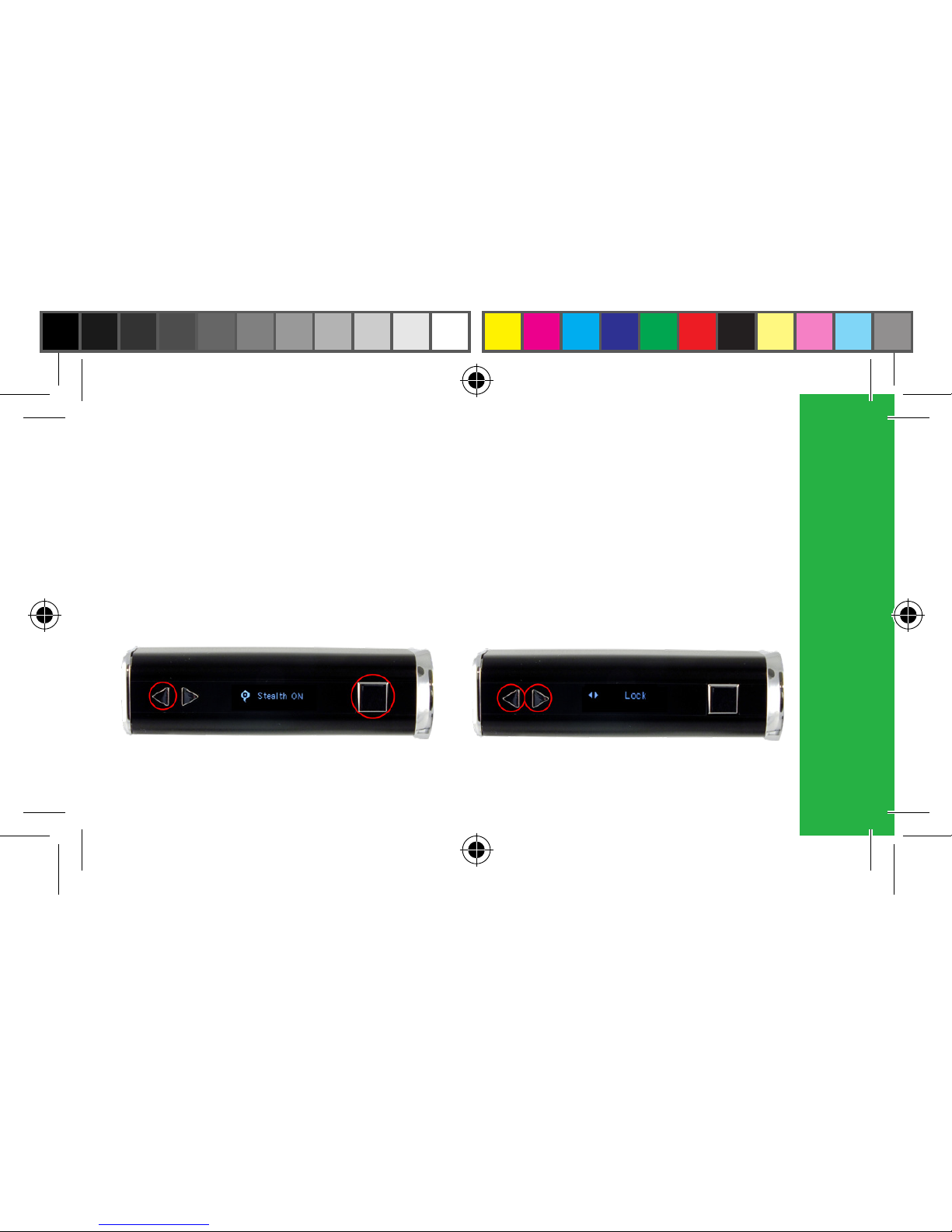

Stealth Mode:

When powered on, simultaneously hold
the power button and the down adjustment
button to activate stealth mode. Repeat the
process to deactivate stealth mode.

Key Lock Mode:

When powered on, simultaneously hold the
two adjustment buttons for 3 seconds to
activate key lock mode. Repeat the process
to deactivate key lock mode.

Using your arc 4

TECC_Arc4_Compliant_Manual(2).indd 9 03/11/2016 13:58

10

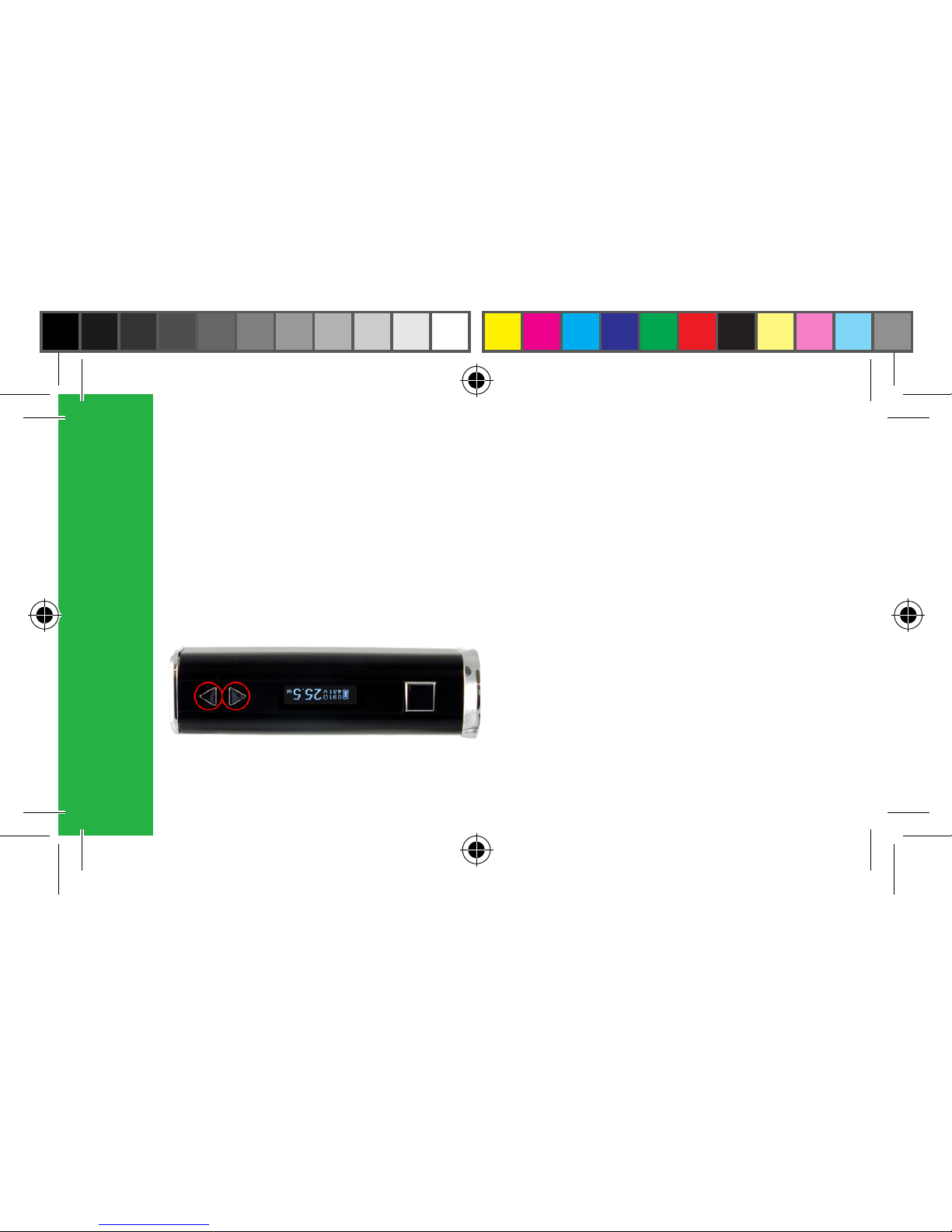

Display Modes:

When powered off, hold both adjustment
buttons to turn the display orientation
upside down.

Short Circuit & No Atomizer Protection:

If a short circuit occurs, ‘Atomizer Short’ will
be displayed on the screen and the device
will not fire. If no atomizer is detected, ‘No
Atomizer’ will be displayed on the screen.
Replace the atomizer head to continue.

Atomizer Protection:

If the power button is pressed for
longer than 10 seconds, the output will
automatically cease and the message
‘Over 10s’ will be displayed.

Using your arc 4

TECC_Arc4_Compliant_Manual(2).indd 10 03/11/2016 13:58

11

Low Voltage Protection:

When the battery voltage is below 3.3V,
‘Lock’ will be displayed on the screen.
Recharge the battery to unlock the device
and begin vaping again.

Low Battery Alert:

When the battery reaches lower than 10%
capacity, the power symbol on the screen
will flash continuously.

Temperature Alert:

If the temperature of the device exceeds
the maximum safe operating temperature,
‘Device Too Hot’ will be displayed on
the screen and the output will shut off
automatically. Allow to cool before use.

Using your arc 4

TECC_Arc4_Compliant_Manual(2).indd 11 03/11/2016 13:58

12

1 x arc 4 Body
1 x CS Air 2 Tank
1 x CS atomizer head (1.5ohm fitted)
1 x USB cable
1 x User manual

Kit Contents

TECC_Arc4_Compliant_Manual(2).indd 12 03/11/2016 13:58

13

Specications

arc 4 Body

Dimensions: 77mm x 32.5mm x 23mm
Weight: 90g
Wattage Range: 1W – 40W
Voltage Range: 0.5 – 8V
Thread Type: 510 Connector
Battery Capacity: 2200mAh
Atomizer Resistance Compatibility: >

0.4ohm

CS Air 2 Tank

Dimensions: 16.5mm Diameter x 64mm

Length (fitted)
Weight: 36g
Tank Capacity: 2ml
Thread Type: 510 Connector
Atomizer Resistance: 1.5ohm
Airflow Type: Bottom - Adjustable
Maximum refill nozzle diameter: 2.8mm

TECC_Arc4_Compliant_Manual(2).indd 13 03/11/2016 13:58

14

There are no reported medical side effects with this product. If you believe you experience a
side effect, please contact the manufacturer.

Additional product information

• Store the arc 4 e-cigarette and its accessories away from children whilst not in use.

• Please only use the charging cable provided.

• Please dispose of dead batteries in accordance with your country’s appropriate
legislation.

• Do not charge the battery in a damp environment, or in temperatures under 0°C or
above 45°C.

• Do not use the device in temperatures under -10°C or above 60°C.

• Do not carry batteries in a pocket or bag with other metallic objects.

• Do not attempt to repair a faulty arc 4 battery as these are sealed units with no
serviceable parts. Attempted repairs will void the warranty.

Product storage and battery precautions

TECC_Arc4_Compliant_Manual(2).indd 14 03/11/2016 13:58

15

arc 4 components have a 28-day parts warranty with the exception of atomizer heads
which are consumable items and are covered by our ‘Dead on Arrival’ warranty only. The
USB cable supplied has a 12-month warranty. If any parts are found to be faulty within
this time please contact our customer service team, whose details are on the back page
of this booklet and we will arrange for a replacement. We may require the goods to be
returned for further investigation.

Warranty

TECC_Arc4_Compliant_Manual(2).indd 15 03/11/2016 13:58

Manufactured in China under the authority of

UK Vapour Brands Limited, Unit 1, Elder Court,

Lions Drive, Blackburn, Lancashire, BB1 2QS.
