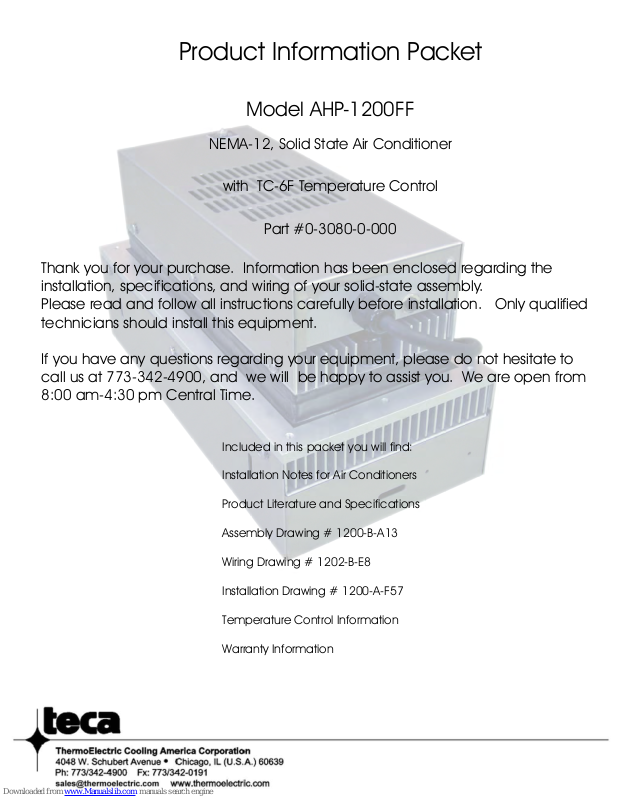

Page 1
ProductInformationPacket
ModelAHP-1200FF
NEMA-12,SolidStateAirConditioner
withTC-6FTemperatureControl
Part#0-3080-0-000
Thankyouforyourpurchase.Informationhasbeenenclosedregardingthe
installation,specifications,andwiringofyoursolid-stateassembly.
Pleasereadandfollowallinstructionscarefullybeforeinstallation.Onlyqualified
techniciansshouldinstallthisequipment.
Ifyouhaveanyquestionsregardingyourequipment,pleasedonothesitateto
callusat773-342-4900,andwewillbehappytoassistyou.Weareopenfrom
8:00am-4:30pmCentralTime.
Includedinthispacketyouwillfind:
InstallationNotesforAirConditioners
ProductLiteratureandSpecifications
AssemblyDrawing#1200-B-A13

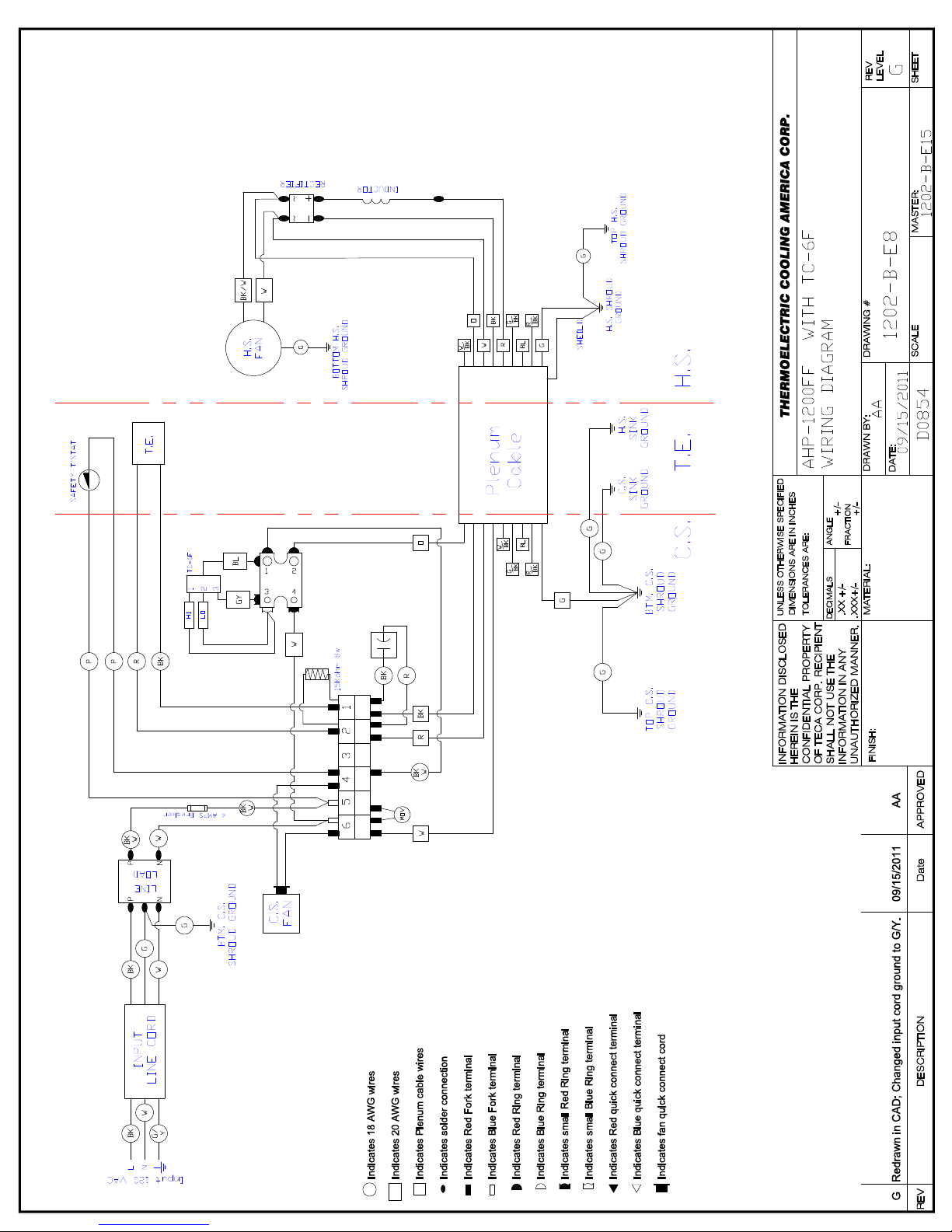

WiringDrawing#1202-B-E8

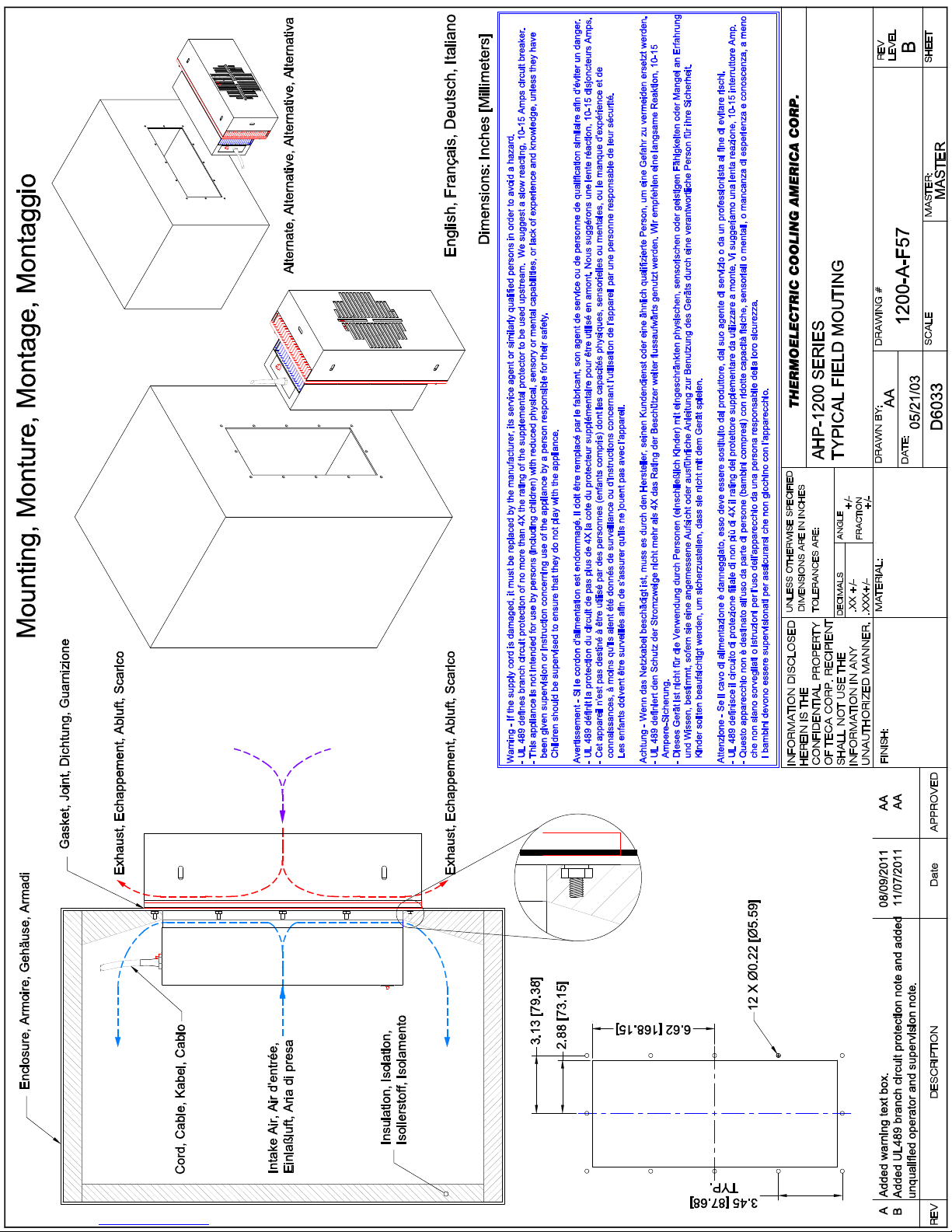

InstallationDrawing#1200-A-F57
TemperatureControlInformation
WarrantyInformation
Page 2
ImportantInstallationNotesforAirConditioners
MountingStyles:
positionedinanyorientationandonanyenclosuresurface.Itisimportant
toconsiderinteriorairflowpatternswhendeterminingthemounting
location.Alsoofimportanceisanunrestrictedflowofambientairthru
thehotsideheatexchanger.Easeofaccessandinspectionmust
beconsideredforthoseapplicationsinparticularlysevere
environmentswhichmayrequireoccasionalmaintenance.
Vertical(Side/Front/Back)Mounting:
Verticalmountingreferstotheverticaldirectionofthecold
sideorinteriorfinsandisrecommendedforapplicationswith
highhumidity,poorandincompletecabinetsealsorany
conditionwhichmaycausethecoldsidefinstobemaintained
attemperaturesbelowthedewpointforlongperiodsoftime
allowingfortheformationofcondensation.Theverticalfin
directionprovidesadrippathwhereuponcondensationcanbe
collectedviaamoistureremovalsystem(standardonFHPunits)oradrippanpositionedbelowthecoldsidefins.Drippansare
optionalforthrumountunits.
Both‘thrumount’and‘flushmount’unitscanbe
Ambient
Air
Path
Enclosure
InternalAir
Path
Seal
CondensateRemovalSystem:
AllFHP-SeriesandAHP-1400airconditionerscontainabuilt-incondensateremovalsystem.Thecondensatekit
consistsofaantifungalspongewithacondensatewick.PVCtubingisalsoprovidedfordrainage.Drippansare
optionalforthrumountunitswhichmustbeevaluatedonanindividualbasis.Equationsdefiningarelationshipbetween
thecoldsidefinandenclosuretemperaturesareprovidedtoassistintheevaluation.
TopMounting:
Thoughoftentheeasiestlocationtomountitisoftenthemostdifficulttoprotectfromcondensationinthisorientation
duetothefinorientation,gravityandanysusceptiblecomponentsbelow.Ifadrippanisemployedbytheenduseruse
cautiontoplacethepanfarenoughawayfromtheinternalfantominimizetherestrictionofairflow.Thepanshould
coverthefinendsaswellasthefanarea.Whenthereisachoice,theverticalorientationispreferredbymost
users.
Maintenance:
Sincethetechnologyissolid-state,therearenofilters,compressors,orfluorocarbonstomaintain.Theonlymoving
partsarethefans.Itisrecommendedforharshordirtyenvironmentsthattheheatsinksbecleanedfromtimeto
time.ThiscanbeaccomplishedbydirectingcompressedairovertheexternalfinsoronNEMA4versionsbyhosing
theunitdown.Thiswillincreasetheoveralllifeandperformanceofthesystem.
Cautions:
Takecarewhenmountingnottodamagethesealbetweenthehotandcoldsidesinks.Donotattempttomountaunit
toawarpedsurfaceortrytomaketheunitsmountingsurfaceconformtoanunflatsurface.Donotpinchordamage
anyleadswhenmounting.Donotovertightenanyinstallationscrew,usereasonableforce.Alwaysmountwithany
condensatedraindown.Donotcompressthecoldsidebetweenthehotsideandanyothersurface.Donotobstruct
theairflowoneitherside.Whenmountingconsiderthenaturalairflowsoftheenclosure.Connectpoweronlyafterthe
installationiscomplete.
Notesoncondensation:
Condensationoccursat thecoldsidefinswhenthesurfacetemperaturegoesbelowthedewpoint.Toreduceor
removecondensate,considerthefollowing:
•RegulatetheFinTemperatureabovetheDewpoint.
•KeepEnclosureClosedandSealedfromOutsideHumidity.
•UseDesiccant(MoistureabsorbingGranules.)
•EmployCondensateRemovalSystem/DripPans.
Ifyouhaveanyquestionsregardingyourinstallation,Pleasefeelfreetocontactourtechnicaldepartmentforassistance
at773-342-4900.
Page 3
FEATURES
• Compact, (only 15”L X 7.35”W X 8.17”D)
• Weighs only 21 lbs. (9.5 kg)
• Excels in high ambient temperatures
• Environmentally safe
• Dual voltage versions available
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Versions to withstand corrosive environments,
shock and vibration
• Mounts and operates in any orientation
AHP-1200 Air Conditioner
Air Cooled 120 VAC, 240 VAC Input
Thru Mount
NEMA-12, 4,4X
SPECIFICATIONS
OPERATING OPERATING
PERFORMANCE VOLTAGE CURRENT WEIGHT TEMP. AMBIENT ENCLOSURE AGENCY
MODEL PART NUMBER RATING VAC AMPS. LBS.(KG) CONTROL TEMPERATURE TEMPERATURE APPROVALS
BTU/HR 50/60HZ AMBIENT °C RANGE °C
AHP-1200FF 0-3090-0-000 500-550 120 4.0 21(9.5) None -40/+70 -10/+60 UL1995/CSA22.2
AHP-1200FF 0-3080-0-000 500-550 120 4.0 21(9.5) TC-6F -40/+70 -10/+60 UL1995/CSA22.2
AHP-1200FF 0-30F0-0-000 500-550 120 4.0 21(9.5) 85°F (30°C) -40/+70 -10/+60 UL1995/CSA22.2
AHP-1200FF 0-3050-0-000 500-550 120 4.0 21(9.5) EXT* -40/+70 -10/+60 UL1995/CSA22.2
AHP-1200FFHC 0-3030-1-000 500-550 120 4.0 21(9.5) TC-3F -40/+70 -10/+60 UL1995/CSA22.2
AHP-1200FFHC 0-3050-1-000 500-550 120 4.0 21(9.5) EXT* -40/+70 -10/+60 UL1995/CSA22.2
AHP-1201FF 0-3081-0-000 500-550 120/240 4.0/2.2 29(13.2) TC-6F -40/+70 -10/+60 UL1995/CSA22.2
AHP-1201FF 0-3051-0-000 500-550 120/240 4.0/2.2 29(13.2) EXT* -40/+70 -10/+60 UL1995/CSA22.2
AHP-1201FF 0-30F1-0-000 500-550 120/240 4.0/2.2 29(13.2) 85°F (30°C) -40/+70 -10/+60 UL1995/CSA22.2
AHP-1201FFHC 0-3031-1-000 500-550 120/240 4.0/2.2 29(13.2) TC-3F -40/+70 -10/+60 UL1995/CSA22.2
AHP-1201FFHC 0-3051-1-000 500-550 120/240 4.0/2.2 29(13.2) EXT* -40/+70 -10/+60 UL1995/CSA22.2
AHP-1200XE 0-3080-4-000 500-550 120 5.0 23(10.4) TC-6F -40/+70 -10/+60 UL1995/CSA22.2
AHP-1200XE 0-3050-4-000 500-550 120 5.0 23(10.4) EXT* -40/+70 -10/+60 UL1995/CSA22.2
AHP-1200XE 0-30F0-4-000 500-550 120 5.0 23(10.4) 85°F (30°C) -40/+70 -10/+60 UL1995/CSA22.2
AHP-1200XEHC 0-3030-5-000 500-550 120 5.0 23(10.4) TC-3F -40/+70 -10/+60 UL1995/CSA22.2
AHP-1200XEHC 0-3050-5-000 500-550 120 5.0 23(10.4) EXT* -40/+70 -10/+60 UL1995/CSA22.2
AHP-1202XE 0-3082-4-000 500-550 240 2.5 30(13.6) TC-6F -40/+70 -10/+60 UL1995/CSA22.2
AHP-1202XE 0-3052-4-000 500-550 240 2.5 30(13.6) EXT* -40/+70 -10/+60 UL1995/CSA22.2
AHP-1202XE 0-30F2-4-000 500-550 240 2.5 30(13.6) 85°F (30°C) -40/+70 -10/+60 UL1995/CSA22.2
AHP-1202XEHC 0-3032-5-000 500-550 240 2.5 30(13.6) TC-3F -40/+70 -10/+60 UL1995/CSA22.2
AHP-1202XEHC 0-3052-5-000 500-550 240 2.5 30(13.6) EXT* -40/+70 -10/+60 UL1995/CSA22.2
AHP-1200X 0-3090-2-000 500-550 120 4.0 23(10.4) None -40/+70 -10/+60 UL1995/CSA22.2
AHP-1200X 0-3080-2-000 500-550 120 4.0 23(10.4) TC-6F -40/+70 -10/+60 UL1995/CSA22.2
AHP-1200X 0-3050-2-000 500-550 120 4.0 23(10.4) EXT* -40/+70 -10/+60 UL1995/CSA22.2
AHP-1200X 0-30F0-2-000 500-550 120 4.0 23(10.4) 85°F (30°C) -40/+70 -10/+60 UL1995/CSA22.2
AHP-1200XHC 0-3030-3-000 500-550 120 4.0 23(10.4) TC-3F -40/+70 -10/+60 UL1995/CSA22.2
AHP-1200XHC 0-3050-3-000 500-550 120 4.0 23(10.4) EXT* -40/+70 -10/+60 UL1995/CSA22.2
AHP-1200XM 0-3080-2-100 500-550 120 4.0 23(10.4) TC-6F -40/+70 -10/+60 UL1995/CSA22.2
AHP-1200XM 0-3050-2-100 500-550 120 4.0 23(10.4) EXT* -40/+70 -10/+60 UL1995/CSA22.2
AHP-1200XMHC 0-3030-3-001 500-550 120 4.0 23(10.4) TC-3F -40/+70 -10/+60 UL1995/CSA22.2
AHP-1200XMHC 0-3050-3-001 500-550 120 4.0 23(10.4) EXT* -40/+70 -10/+60 UL1995/CSA22.2
* Unit is set for 5-32 VDC external signal, relay(s) included
32
TECA
1-888-TECA-USA (832-2872) www.teca-usa.com
INCLUDES
• Adjustable temperature control
• Gasket and mounting hardware
• Power input line cord
N
E
M
A
12
N
E
M
A
4
N
E
M
A
4X
OPTIONS
• Other temperature settings for single set point controls
• Custom finishes
Page 4
DIMENSIONS
33
www.teca-eu.com
1-888-TECA-USA (832-2872) TECA
PERFORMANCE CURVE
Equation of line: y=⌬T(°C) x=Capacity (Watts)
Ambient Temp 20°C 40°C 60°C
Enclosure Air y=.266x-39.5 y=.266x-41.0 y=.266x-42.5
Cold Sink y=.173x-39.5 y=.173x-41.0 y=.173x-42.5
MOUNTING STYLE
Thru Mount
ENVIRONMENTS SERVED
NEMA-12 IP 52
NEMA-4,4X IP 56
RATING (TRADITIONAL)
530 BTU/hr @ 0 °F ⌬T
670 BTU/hr @ +20 °F ⌬T
RATING (DIN 3168)
154 Watts L35 L35
100 Watts L35 L50
See page 10
AHP-1200
Air Conditioner - Air Cooled
*
*
Air Flow Pattern
Page 5
Page 6
Page 7
Page 8
Page 9
LIMITEDWARRANTY
IntheeventadefectinmaterialorworkmanshipisdiscoveredinanyofTECA’s
productswithinoneyearafterthedatetheyaredeliveredtoBuyer,:(a)
andif
TECAisnotifiedofthedefectinwritingbycertifiedmailwithin14daysofthe
dateofdiscovery;(b)TECAmaytheneither,atitssolediscretion,inspectthe
productatBuyer’slocation,orrequirethattheproductbemadeavailableat
Buyer’sexpenseatTECA’spremisesforTECA’sinspectionwithin14daysof
thedateofnotification;and(c)theproductsaredefectiveandthedefects
resultfromfaultymaterialsand/orworkmanshipandnotinanywayfrom
accident,misuse,misapplication,mishandling,modification,oralterationbythe
Buyerortheshipper,TECAshall,atitssoleoption,repairorexchange
then
defectiveproductsfreeofchargetoBuyer,orcredittobuyerthepriceofthe
defectiveproducts.ALLOTHERWARRANTIES,EXPRESSORIMPLIED,ARE
EXCLUDED,INCLUDINGBUTNOTLIMITEDTOTHEIMPLIED
WARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICULAR
PURPOSE.INNOEVENTSHALLTECABELIABLEFORANYCLAIMBASED
UPONBREACHOFEXPRESSORIMPLIEDWARRANTYORANYOTHER
DAMAGESWHETHERSPECIAL,INDIRECT,INCIDENTAL,
CONSEQUENTIAL,LOSTPROFITS,BUSINESSINTERRUPTION,ORLOSS
OFBUSINESSORCUSTOMERRELATIONSHIPS.
RETURNEDGOODS,RESTOCKINGCHARGES
Inordertoreturnmerchandiseforanyreason(repair,replacement,orcredit)a
returnauthorizationnumbermustbeissuedbyTECA.Newmerchandisemay
notbereturnedforcreditbeyond60daysfromshipment.Chargesfor
incidentalorotherdamagesmayalsobemade.Allreturnedgoodsmustbe
sentfreightprepaid.Arestockingchargeof15%willapply.Onspecial
equipmentandcustommodifiedequipmentorders,additionalincremental
cancellationchargesmaybemade.
