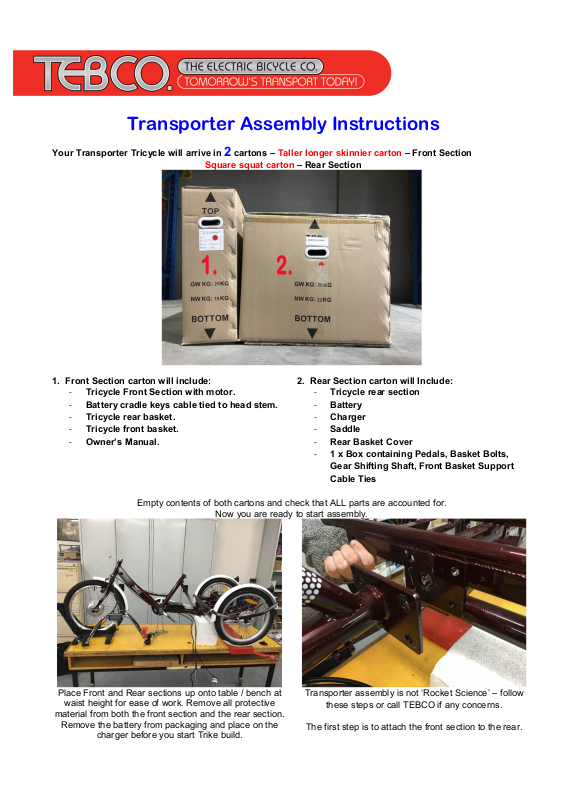

Transporter Assembly Instructions

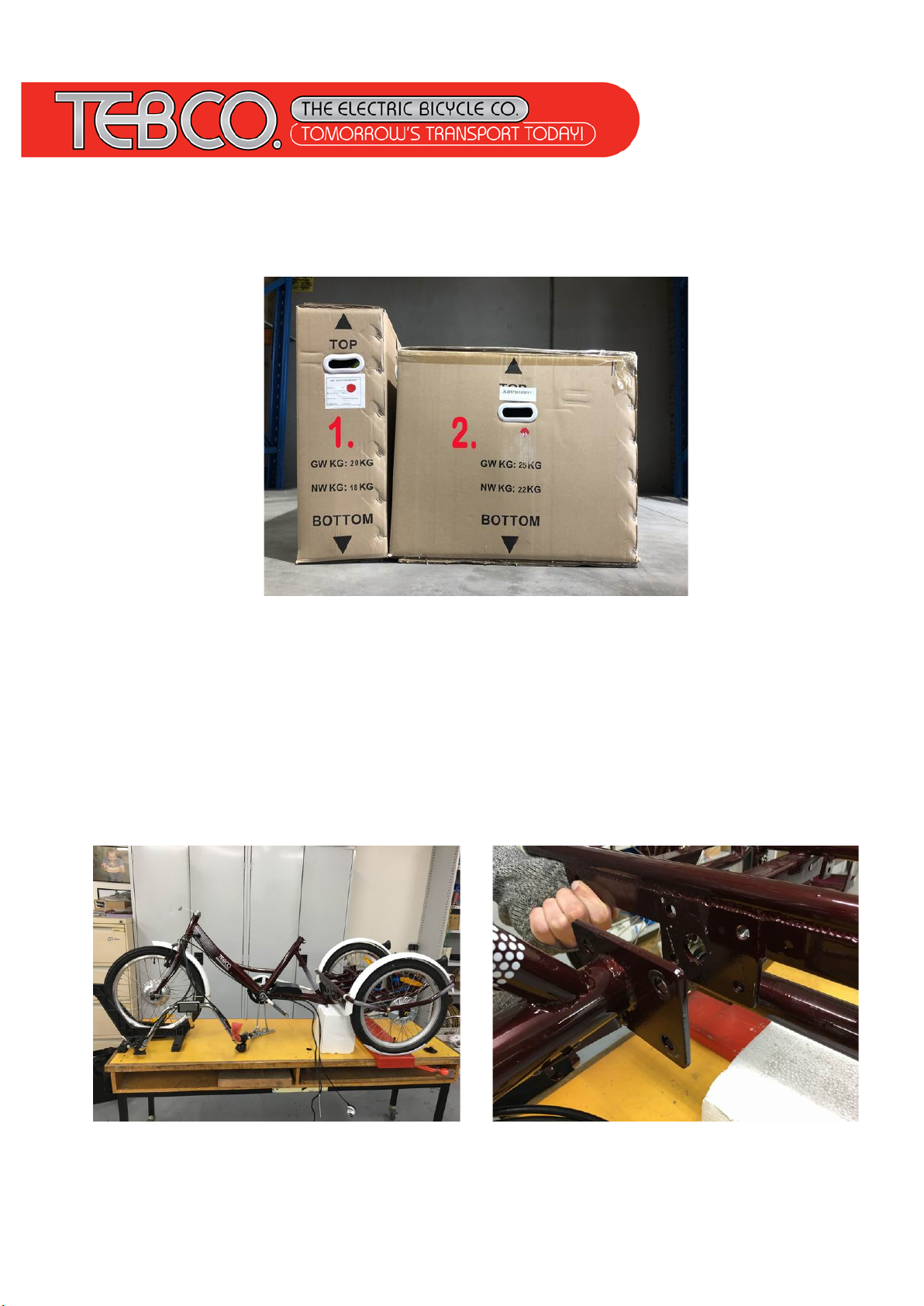

Your Transporter Tricycle will arrive in 2 cartons – Taller longer skinnier carton – Front Section
Square squat carton – Rear Section
1. Front Section carton will include:
- Tricycle Front Section with motor.
- Battery cradle keys cable tied to head stem.
- Tricycle rear basket.
- Tricycle front basket.
- Owner’s Manual.
Empty contents of both cartons and check that ALL parts are accounted for.
Now you are ready to start assembly.
2. Rear Section carton will Include:
- Tricycle rear section
- Battery
- Charger
- Saddle
- Rear Basket Cover
- 1 x Box containing Pedals, Basket Bolts,
Gear Shifting Shaft, Front Basket Support
Cable Ties
Place Front and Rear sections up onto table / bench at
waist height for ease of work. Remove all protective
material from both the front section and the rear section.
Remove the battery from packaging and place on the
charger before you start Trike build.
Transporter assembly is not ‘Rocket Science’ – follow
these steps or call TEBCO if any concerns.
The first step is to attach the front section to the rear.
Page 2
An easy way to stop the rear section from moving around
line
up perfectly.
while trying to attach is to support rear section with foam
block or box etc

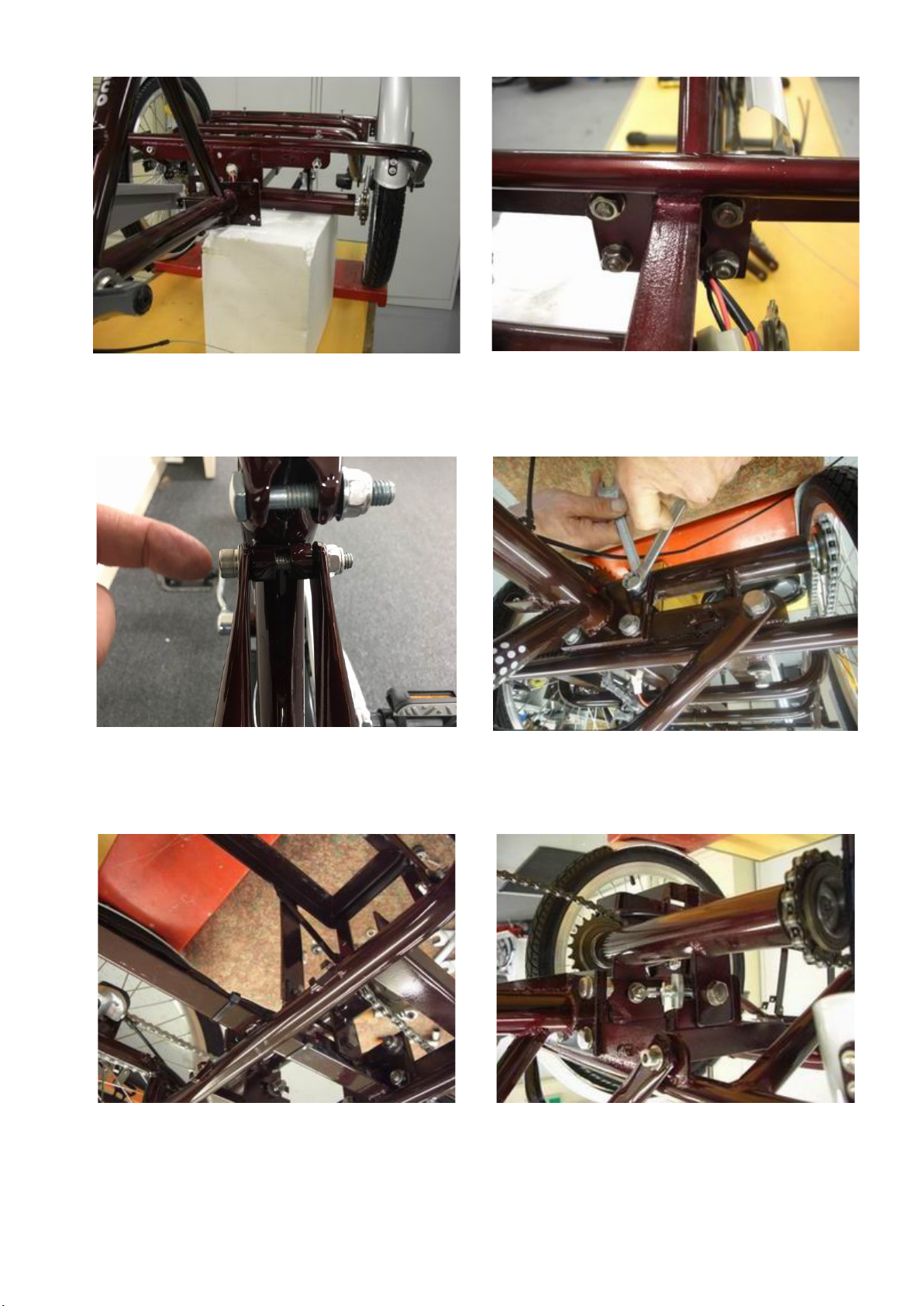

MOST IMPORTANT: When fitting 4 main frame bolts
plus A-Frame bolts lubricate threads with “Dry-Lube” or
grease
Now attach the A Shaped Stabilizer arm, Tighten top bolt
to seat tube as shown and 2 bolts attaching to rear
section of frame.
It’s important to tighten the A-Frame before the 4 centre
bolts as this ensures the front section and rear section
Do not tighten these 4 main bolts at this time.
IMPORTANT NOTE: When fitting 4 main frame bolts and
A-Frame bolts – heads to front of tricycle then flat washer
– nut to rear of frame with flat then Nylock nuts
Now tighten the 4 centre bolts.
Once the two sections are securely joined, it’s a good
time to secure power supply cable to underside rear
frame using frame guides and zip ties supplied.
Fit the front section chain, and check the tension of both
chains. You may need to adjust the transfer axle to
achieve this.
Page 3
You may also need to adjust the back left hand wheel
correctly tension the rear brake
find it in the bag of
cable ties.
accordingly to ensure both chains are equal tension.

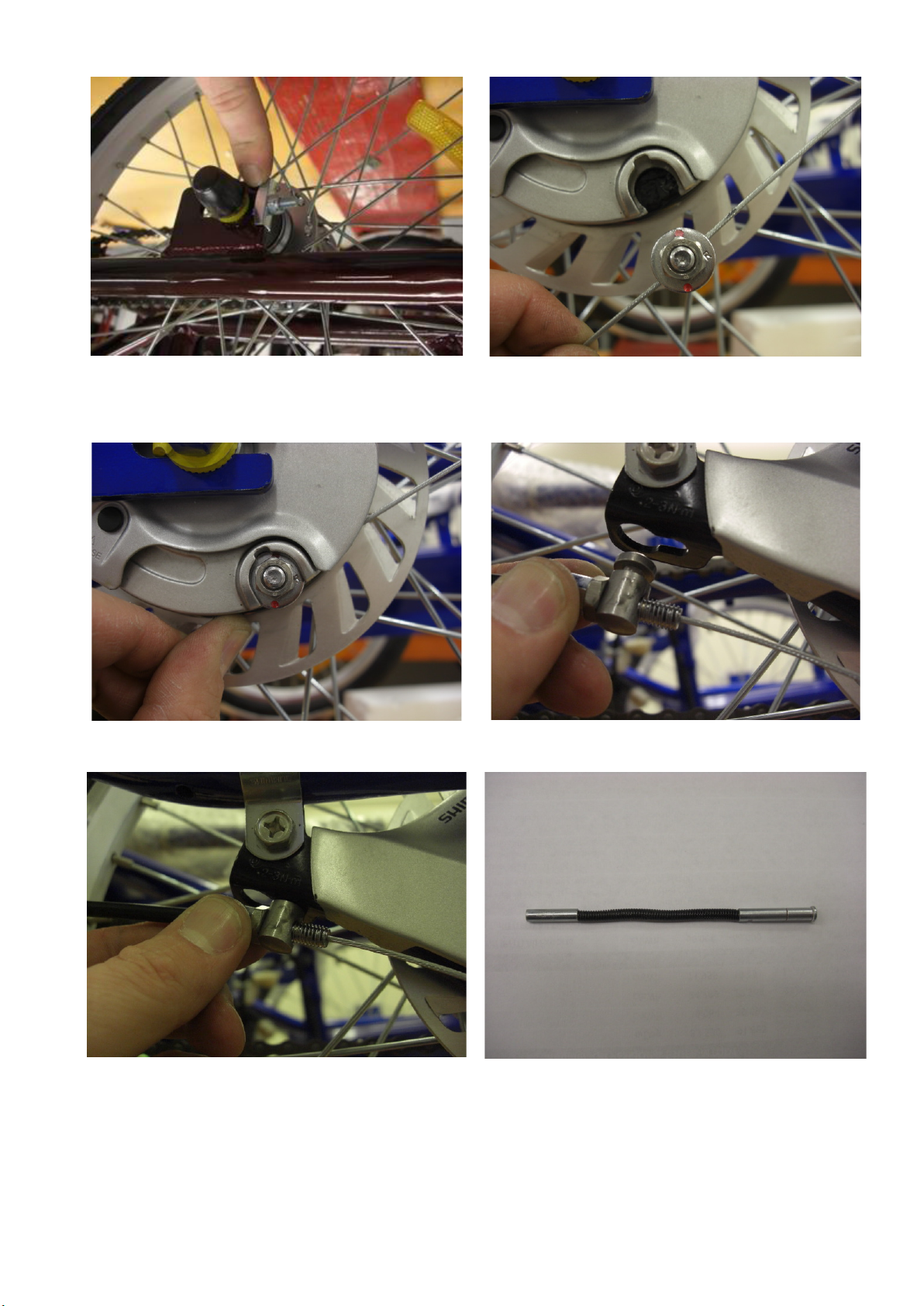

Now is a good time to connect the cables for the rear
brake. These are the new Shimano Roller Brake. The
brake cable is already set to the correct length.
The brake anchorage bolt will slot in to the actuator. The adjuster anchorage point will fit in to the eyelet
This will then lock in to place. Use this adjuster to

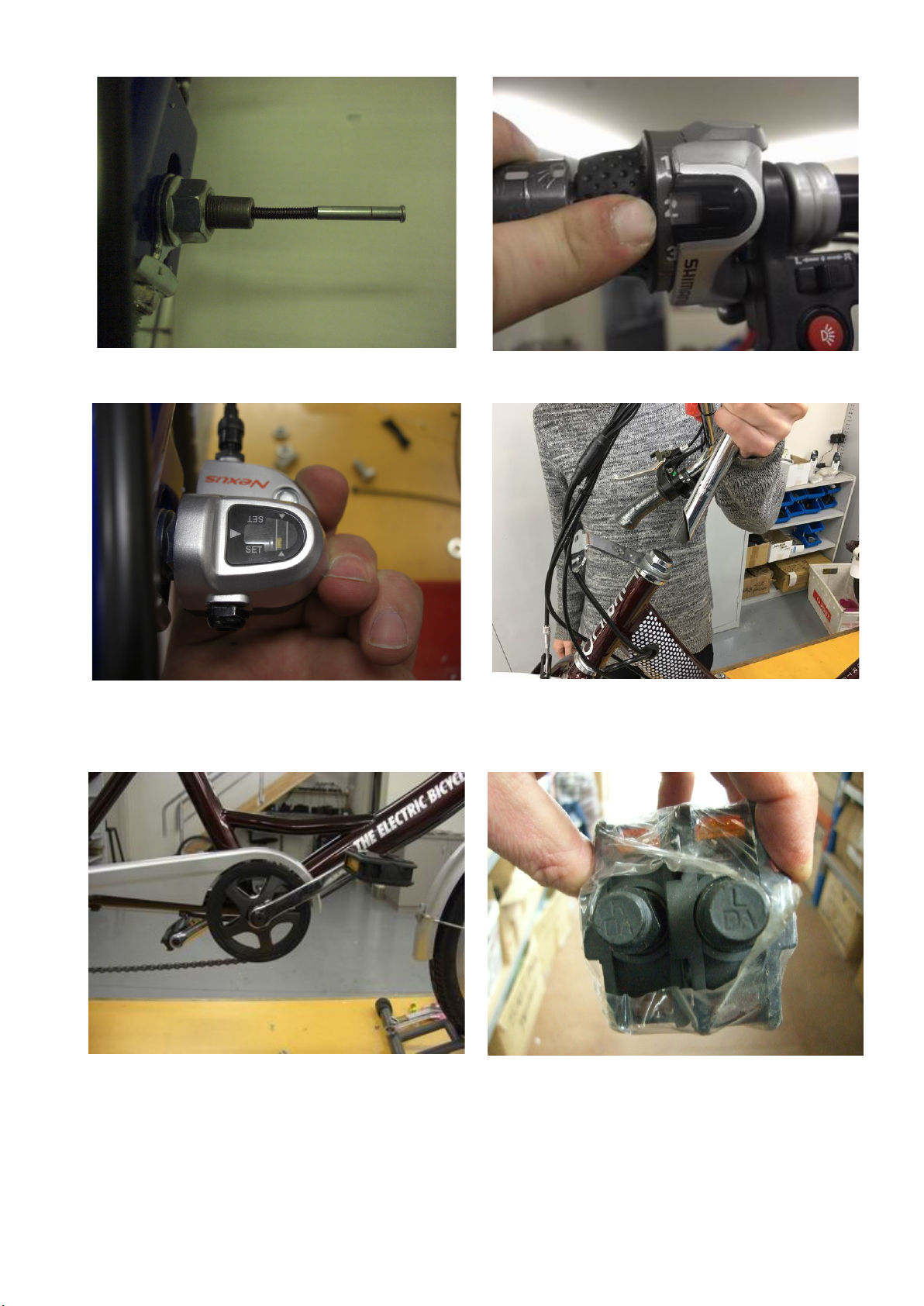

The gears are next, This is the internal push rod. You will
Page 4
The push rod fits in to the centre of the axle.
Confirm that the selector is locked in to 2nd gear.
The Thick yellow line must sit between the two thin white
lines when in 2nd gear. This will correctly align the 3
gears.
Insert head stem and partially tighten. Final up / down
adjustment can be completed later when Transporter at
ground level or when final adjustment pre-test riding.
Check the tightness of the cranks with 8mm Hex key.
Fit the Pedals.
Pay attention to the pedals. They are marked left and
right (L R). Please note that the Left Hand Pedal has a
Left Hand Thread (Counter-clockwise)
Page 5

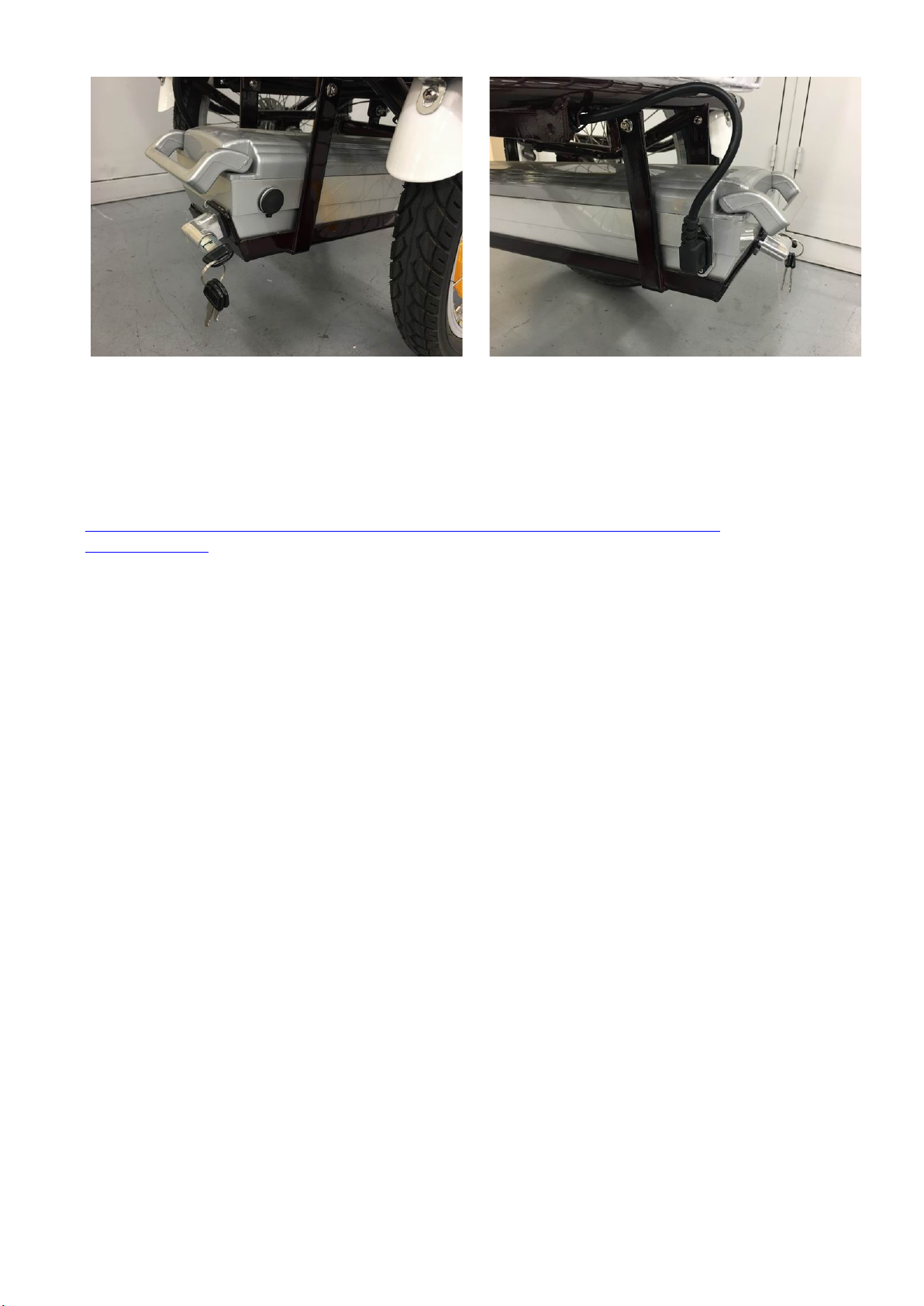

Attach the rear battery lock
Adjust the front brakes using a 5mm Alan Key.

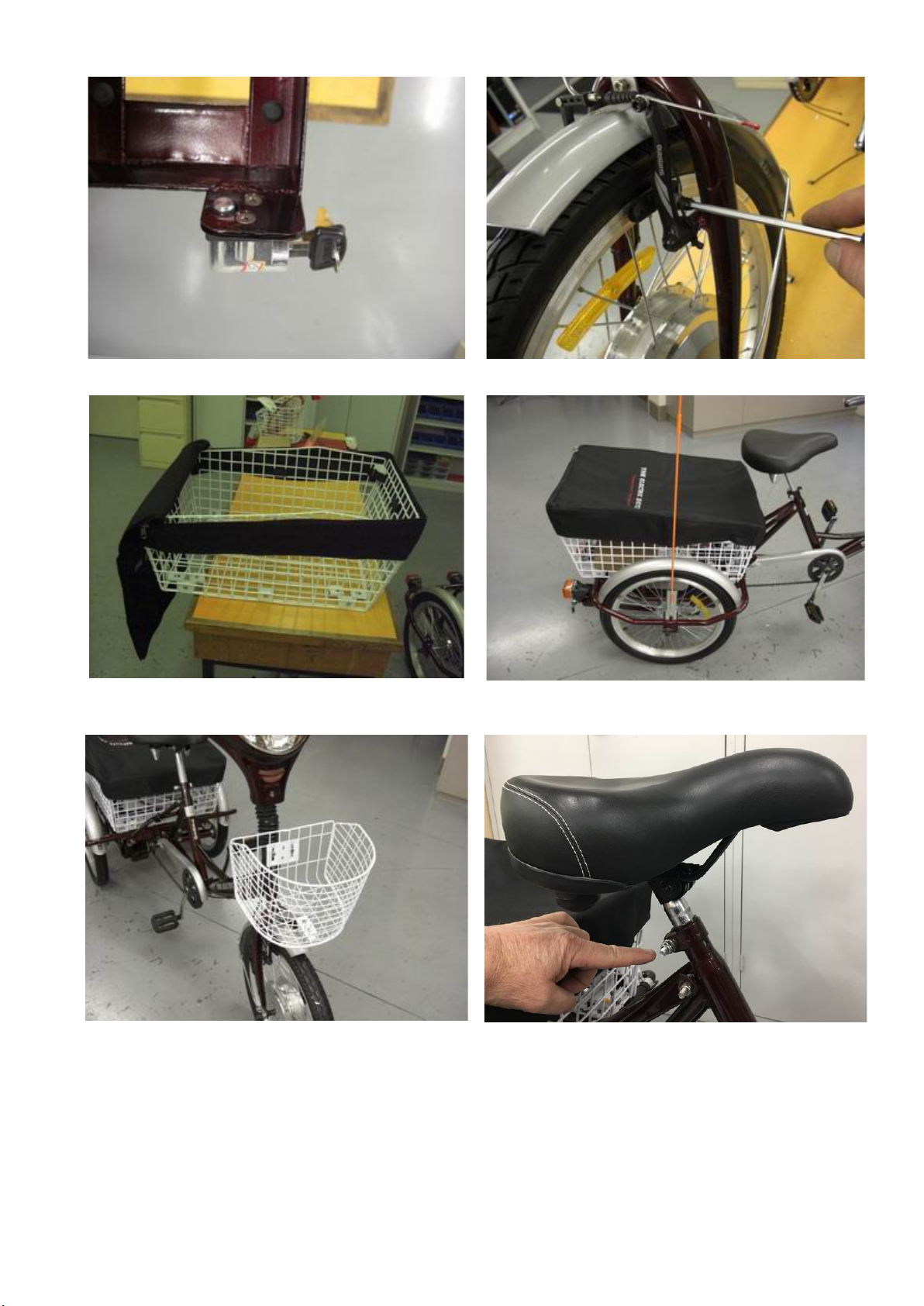

Assemble the Rear Basket. You’ll find it easier if you fit
the basket cover to the basket before you fit the basket
to the bike
Attach the front basket Fit saddle and tighten to desired height.
Using the four 5mm bolts attach the rear baskets to the
trike.
Page 6
Replace the battery and lock into position Plug battery power supply cable into socket on side
NOTE: Seat height
, head
stem insertion, handlebar
til
t etc ALL subject to rider suit
ability.
battery case and take for a TEST RIDE
A colour version of these Assembly Instructions can be viewed online or downloaded from the
TEBCO web site – here is the link:
http://www.electricbicycle.com.au/assembly-instructions/Transporter-AssemblyInstructions.pdf
