10.1” LCD Monitor
Model: 10N-DL
User Manual
10N-DL
2017.02 2 0.92
Index of Contents
1. Introduction ................................................................................................................................... 3
2. Features ............................................................................................................................................ 3
3. Control Panel .................................................................................................................................... 3
4. OSD Function .................................................................................................................................. 3
5. Product spec. .................................................................................................................................... 5
6. Installation Instructions ................................................................................................................... 5
7. OS setting ......................................................................................................................................... 7
Attention
1. This manual contains important information. Please read in advance carefully
before use of the products.
2. This manual shall apply only to the product(s) coming along with it inside.
10N-DL
2017.02 3 0.92
1. Introduction
10N-DL is colored TFT LCD monitor, integrated with projected capacitive touch.
2. Features
- LCD Resolution 1024 x 600
- VESA 75 x 75 mm wall mount
- Optional wall mount kit
- Light weight, only 585g physically
3. Control Panel
Push Button
Description of Function
Menu
OSD menu
Down/Up
Change setting
4. OSD Function
Menu
Down
UP
10N-DL
2017.02 4 0.92
- Win8.1

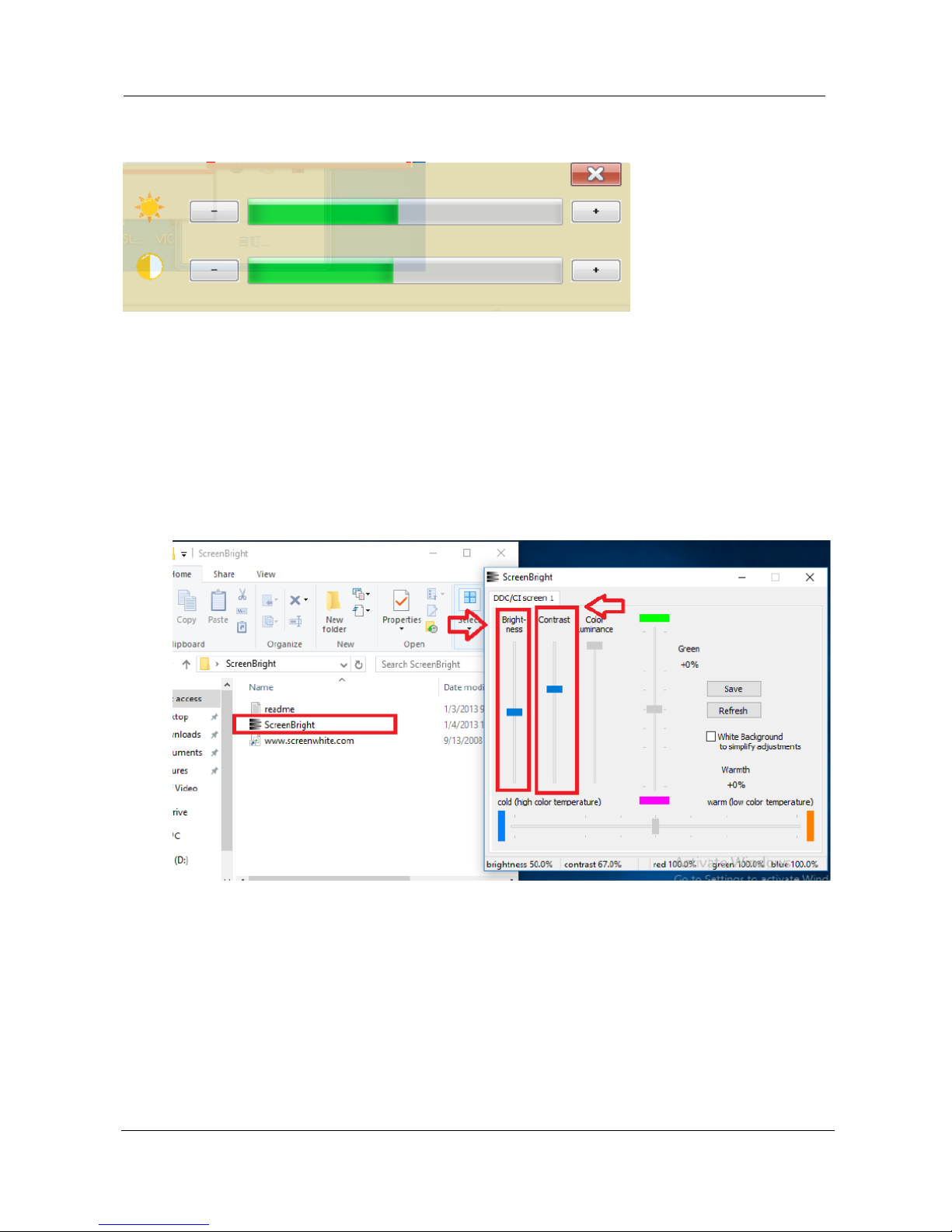

- Adjust Brightness and Contrast
- Press [MENU] button to enter submenu.
- Brightness: Press [UP] and [DOWN] button to adjust, press [MENU] button to next item
and save.
- Contrast : Press [UP] and [DOWN] button to adjust, press [MENU] to save and exit.
- Win10
- Adjust Brightness and Contrast
- Select the ScreenBright AP and double click ScreenBright.exe
10N-DL
2017.02 5 0.92
5. Product Spec.
Model Name
10N-DL
Display Size
10.1”
LCD Touch Panel
Projected Capacitive Touch
Resolution
1024 x 600
Brightness
250cd/m2
Contrast Ratio
600:1
Response Time
Trt=16msec
Viewing Angle
140。(H) / 130。(V)
Extension I/O
6pin connector
1
Optional
Touch panel
USB
Environment
Temperature
Operation: 0℃ ~ 40℃ ( 32F ~104F)
Storage: -20℃ ~ 70℃ (- 4F ~158F)
Humidity
Operation: 20% ~ 80%
Storage: 10% ~ 90%
Power
12V DC in
Form MB
OS Supported
Windows 8 and Higher Version, Linux , Android
Certificate
CE,FCC Class B
Weight
585g
Dimension (WxHxD)
260x163x64mm
6. Installation Instructions
Installing the top mount 10N-DL
You must install the top mount of 10N-DL to the top 6pin connector of the top cover on the
15S POS terminal. Before installing the 10N-DL, you must remove the top cover of 15S.
10N-DL
2017.02 6 0.92
Step1: Remove the two screws that secure the top cover, and you will see a cable connector of
15S POS terminal.
Step2: Connect the 2nd display to 15S POS terminal as below:
Step3: Secure the holder with the screw.
10N-DL
2017.02 7 0.92
Step4: Integration completed.
7. OS setting
Integrate the top mount of 10N-DL with touch function with 15S POS terminal, you must set
touch function in OS.
Step1: Please link keyboard to 15S POS terminal.

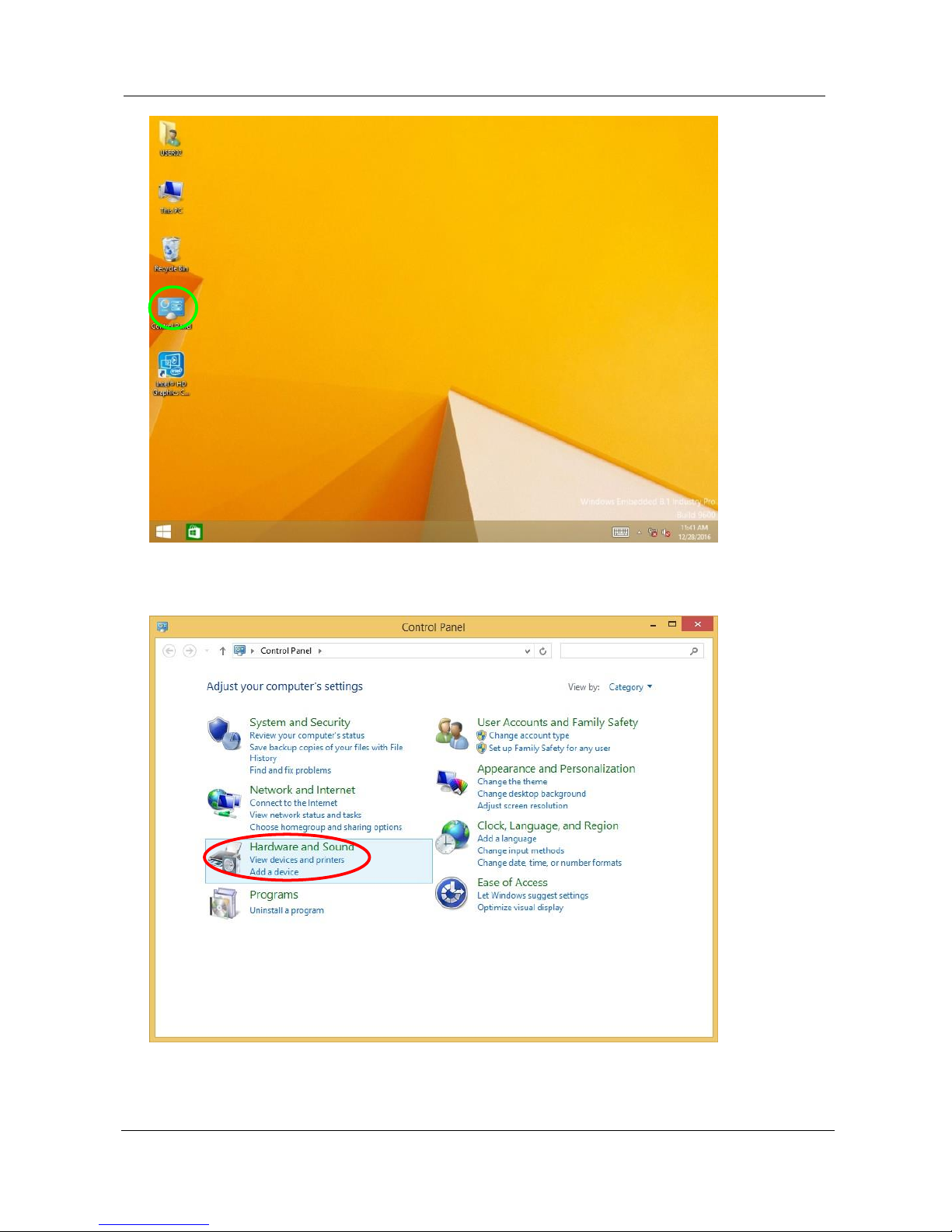

Step2: Please select control panel.
10N-DL
2017.02 8 0.92
Step3: Please select “Hardware and Sound” in the control panel.
Step4: Please select “Tablet PC Settings”.
10N-DL
2017.02 9 0.92
Step5: Please select ”Setting”.

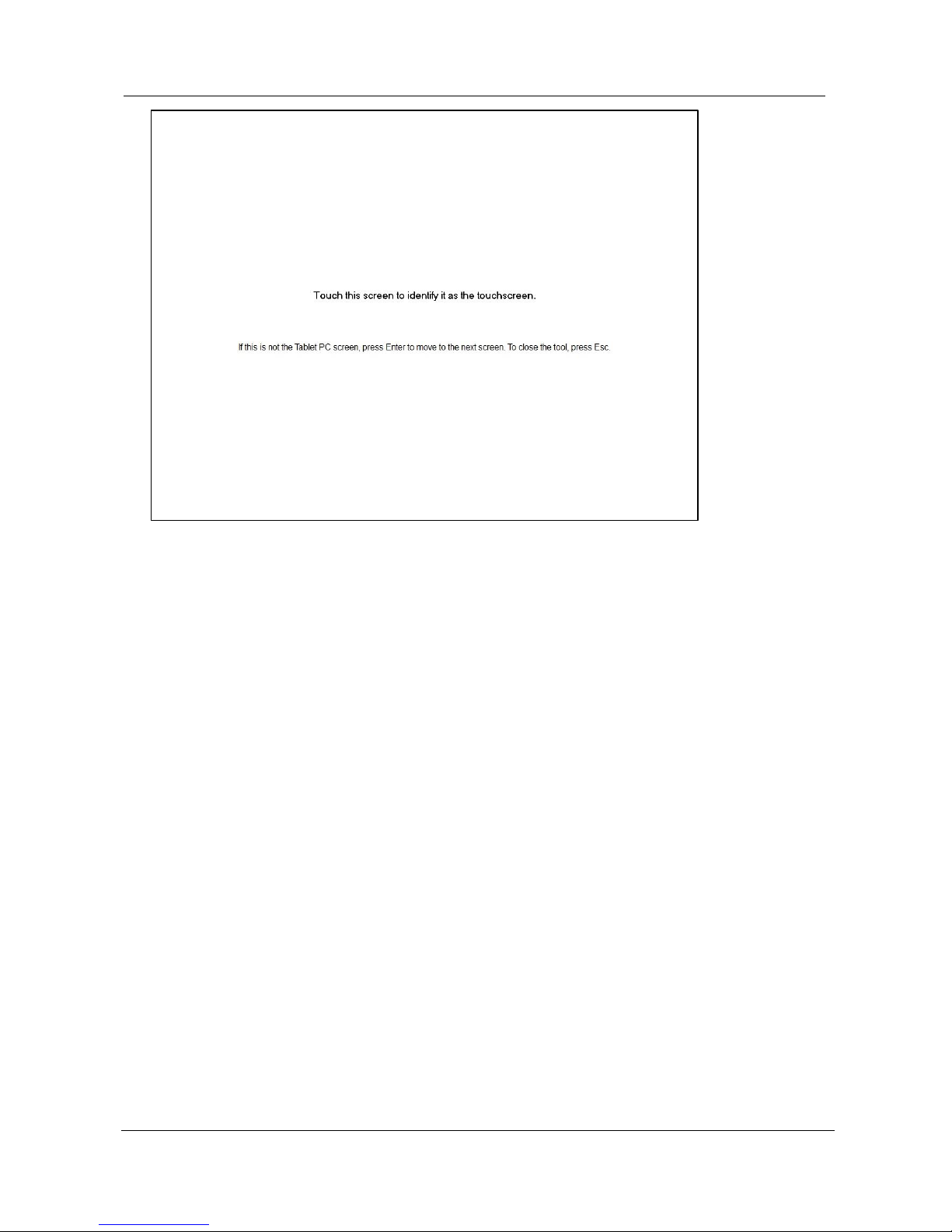

Step6: Please touch 15” screen than use keyboard to press “Enter” key to next screen to setting
or press “ ESC” key to close the tool.
10N-DL
