Team Losi Racing TLR04009 User guide

TM

TM

2

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC.
For up-to-date product literature, visit horizonhobby.com or towerhobbies.com and click on the support or resources tab for this
product.

MEANING OF SPECIAL LANGUAGE

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this
product:

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and
serious injury OR create a high probability of superfi cial injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of
serious injury.

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility
of injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating.
Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and requires
some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to
the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with
incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC.
This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and
warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

SAFETY PRECAUTIONS AND WARNINGS

Read and follow all instructions and safety precautions before use. Improper use can result in fi re, serious injury and damage to
property.

Components

Some electronic components can become
hot while in use. Do not touch parts
until cool. Use only with compatible
components. Should any compatibility
questions exist, please refer to the product
instructions, the component instructions or
contact Horizon Hobby, LLC.

Batteries

Always follow the manufacturer’s
instructions when using and disposing
of any batteries. Mishandling of Li-Po
batteries can result in fi re causing serious
injury and damage.

Small Parts

This kit includes small parts and should
not be left unattended near children as
choking and serious injury could result.

Safe Operating Recommendations

• Inspect your model before every run to make sure it is track worthy.

• Be aware of any other radio frequency user who may present an interference problem.

• Always be courteous and respectful of other users of your selected driving area.

• Choose an area clear of obstacles and large enough to safely accommodate your driving activity.

• Make sure this area is clear of friends and spectators prior to running your vehicle.

• Be aware of other activities in the vicinity of your path that could cause potential confl ict.

Important Safety Notes

• Select an area for assembly that is away from the reach of small children. Some parts in this vehicle are
small and can be swallowed by children, causing choking and possible internal injury; PLEASE USE CAUTION!

• The shock fl uid and greases supplied should be kept out of children’s reach. They are not intended for human consumption!

• Exercise care when using any hand tools, sharp instruments, or power tools during construction.

• Carefully read all manufacturer’s warnings and cautions for any chemicals, glues, or paints that may be used for assembly
and operating purposes.

Age Recommendation: Not for Children under 14 years. This is not a toy.

2

3

HINWEIS

Allen Anweisungen, Garantien und anderen zugehörigen Dokumenten sind Änderungen nach Ermessen von Horizon Hobby,
LLC vorbehalten. Aktuelle Produktliteratur fi nden Sie unter www.horizonhobby.com oder www.towerhobbies.com im Support­Abschnitt für das Produkt.

ERKLÄRUNG DER BEGRIFFE

Die folgenden Begriffe werden in der gesamten Produktliteratur verwendet, um auf unterschiedlich hohe Gefahrenrisiken beim
Betrieb dieses Produkts hinzuweisen:

WARNUNG: Wenn diese Verfahren nicht korrekt befolgt werden, ergeben sich wahrscheinlich Sachschäden, Kollateralschäden
und schwere Verletzungen ODER mit hoher Wahrscheinlichkeit oberfl ächliche Verletzungen.

ACHTUNG: Wenn diese Verfahren nicht korrekt befolgt werden, ergeben sich wahrscheinlich Sachschäden UND die Gefahr von
schweren Verletzungen.

HINWEIS: Wenn diese Verfahren nicht korrekt befolgt werden, können sich möglicherweise Sachschäden UND geringe oder

keine Gefahr von Verletzungen ergeben.
WARNUNG: Lesen Sie sorgfältig die gesamte Bedienungsanleitung durch und machen sich vor dem Betrieb mit

dem Produkt vertraut. Falscher und oder nicht sachgemäßer Umgang kann zu Beschädigungen am Produkt, eigenen
und fremden Eigentum und ernsthaften Verletzungen führen. Bitte beachten Sie, dass dieses Produkt ein hoch entwickeltes Hobby
Produkt und kein Spielzeug ist. Es erfordert bei dem Betrieb

Aufmerksamkeit und grundlegende mechanische Fähigkeiten. Falscher, nicht sachgemäßer Umgang kann zu Beschädigungen
an eigenem oder fremden Eigentum oder zu Verletzungen an sich selbst oder Dritter führen. Verwenden Sie das Produkt nicht
mit inkompatiblen Komponenten oder verändern es in jedweder Art ausserhalb der von Horizon Hobby, LLC vorgegebenen
Anweisungen. Dieses Produkt ist nicht für den Gebrauch von Kindern ohne direkte Aufsicht durch ihre Eltern bestimmt. Die
Bedienungsanleitung enthält Anweisungen und wichtige Informationen für die Sicherheit und Betrieb. Es ist daher notwendig,
allen darin enthaltenen Anweisungen und Warnungen Folge zu leisten und diese Anleitung vor dem Zusammenbau und
Inbetriebnahme sorgfältig durch zu lesen.

SICHERHEITSHINWEISE UND WARNUNGEN

Bitte lesen und befolgen Sie allen Anweisungen und Sicherheitswarnungen. Nicht sachgemäßer oder falscher Gebrauch kann zu Feuer,
schweren Verletzungen oder Beschädigungen an Eigentum führen.

Komponenten

Einige elektrische Komponenten
können während des Betriebs heiß
werden. Fassen Sie diese Teile nicht an
bevor sie abgekühlt sind. Verwenden
Sie diese Teile nur mit geeigenten
Komponenten. Sollten Sie Fragen zur
Kompatibilität haben, sehen Sie bitte
in der Bedienungsanleitung nach oder
kontakten den Service von Horizon
Hobby.

Empfehlungen Zum Sicheren Betrieb

• Bitte überpüfen Sie vor dem Einsatz ob das Modell sich in einem einwandfreien Zustand befi ndet.

• Stellen Sie sicher dass kein anderer Fahrer auf der gleichen Frequenz wie sie fährt.

• Gehen Sie höfl ich und respektvoll mit anderen Fahrern auf ihrer Strecke um.

• Suchen Sie sich einen Platz der groß genug und frei von Hindernissen ist.

• Stellen Sie sicher, dass die Fahrstrecke frei von Freunden und Zuschauern ist.

• Haben Sie evtl. andere Aktivitäten im Blick die auf der Strecke zum Konfl ikt führen könnten.

Wichtige Sicherheitshinweise

• Wählen Sie für den Zusammenbau einen Ort außerhalb der Reichweite von kleinen Kindern. Einige Bauteile in diesem Fahrzeug
sind klein und können von Kindern verschluckt werden, was Erstickungen und mögliche innere Verletzungen auslösen kann;
BITTE GEBEN SIE ACHT!

• Die im Lieferumfang enthaltene Stoßdämpferfl üssigkeit und Fette sollten außerhalb der Reichweite von Kindern aufbewahrt
werden. Sie sind nicht für den menschlichen Verzehr bestimmt!

• Seien Sie achtsam, wenn Sie Handwerkzeuge, scharfe Instrumente oder Elektrowerkzeuge während dem Aufbau verwenden.

• Lesen Sie gründlich alle Warn- und Sicherheitshinweise des Herstellersfür jegliche Chemikalien, Kleber oder Lacke,
die für den Zusammenbau oder Betriebszwecke eventuell verwendet werden.

Nicht geeignet für Kinder unter 14 Jahren. Dies ist kein Spielzeug.

Akkus

Befolgen Sie zum Betrieb und zur
Entsorgung immer die Anweisungen
des Herstellers. Falscher oder nicht
sachgemäßer Umgang kann zu
Feuer, ernsten Verletzungen und
Sachbeschädigung führen.

Kleinteile

Dieser Bausatz enthält Kleinteile und
darf nicht in der Nähe von Kleinkindern
gelangen, da die Gefahr von Verschlucken
und ernsthaften Verletzungen besteht.

3

4

REMARQUE

Toutes les instructions, garanties et autres documents de garantie sont sujets à la seule discrétion de Horizon Hobby, LLC. Veuillez,
pour une littérature produits bien à jour, visiter www.horizonhobby.com ou www.towerhobbies.com et cliquer sur l’onglet de
support de ce produit.

SIGNIFICATION DE CERTAINS TERMES SPÉCIFIQUES

Les termes suivants servent, tout au long de la littérature produits, à désigner différents niveaux de blessures potentielles lors de
l’utilisation de ce produit :

AVERTISSEMENT: procédures qui, si elles ne sont pas suivies correctement, peuvent entraîner des dégâts matériels, des
dommages collatéraux et des blessures graves OU engendrer une probabilité élevée de blessure superfi cielle.

ATTENTION: procédures qui, si elles ne sont pas suivies correctement, peuvent entraîner des dégâts matériels ET des
blessures graves.

REMARQUE: procédures qui, si elles ne sont pas suivies correctement, peuvent entraîner des dégâts matériels ET
éventuellement un faible risque de blessures.

AVERTISSEMENT: Lisez la TOTALITE du manuel d’utilisation afi n de vous familiariser avec les caractéristiques du
produit avant de l’utiliser. Une utilisation incorrecte du produit peut causer des dommages au produit lui-même, aux
biens voire entraîner des blessures graves.

Ceci est un produit de loisirs perfectionné et NON PAS un jouet. Il doit être manipulé avec prudence et bon sens et requiert
quelques aptitudes de base à la mécanique. L’incapacité à manipuler ce produit de manière sûre et responsable peut provoquer
des blessures ou des dommages au produit ou à d’autres biens. Ce produit n’est pas destiné à être utilisé par des enfants sans la
surveillance directe d’un adulte. N’essayez pas de modifi er ou d’utiliser ce produit avec des composants incompatibles hors des
instructions fournies par Horizon Hobby, LLC. Ce manuel comporte des instructions de sécurité, de mise en oeuvre et d’entretien. Il
est capital de lire et de respecter toutes les instructions et avertissements du manuel avant le montage, le réglage ou l’utilisation
afi n de manipuler le Produit correctement et d’éviter les dommages ou les blessures graves.

PRÉCAUTIONS ET AVERTISSEMENTS LIÉS À LA
SÉCURITÉ

Lisez et respectez toutes les instructions et précautions de sécurité avant utilisation. L’utilisation incorrecte peut entraîner un incendie,
des blessures graves et des dommages aux biens.

Eléments

Certains composants électroniques
peuvent être très chauds pendant
l’utilisation. Ne touchez pas les pièces
avant qu’elles aient refroidi. N’utilisez
qu’avec des composants compatibles. Pour
toute question de compatibilité, consultez
les instructions concernant le produit,
celles concernant le composant ou prenez
contact avec Horizon Hobby, LLC.

Recommandations de sécurité d’utilisation

• Contrôlez votre modèle avant chaque utilisation pour vous assurer qu’il est en état de rouler.

• Prenez garde à tout autre utilisateur de fréquence radio pouvant créer des problèmes d’interférences.

• Restez toujours courtois et respectueux des autres utilisateurs sur le lieu choisi pour la conduite.

• Choisissez une zone sans obstacles et suffi samment grande pour accueillir en toute sécurité les évolutions de conduite.

• Assurez-vous que cette zone est dégagée de tous amis et spectateurs avant le démarrage de votre véhicule.

• Prenez garde aux autres activités dans le voisinage de votre trajectoire pouvant créer des confl its potentiels.

Batteries

Toujours respecter les instructions
du fabricant lors de l’élimination des
batteries. La manutention incorrecte
des batteries Li-Po peut conduire à
un incendie, à des blessures et
dommages graves.

Petites pièces

Ce kit contient de petites pièces qui
ne doivent pas être laissées à la portée
des enfants sous peine d’étouffement
ou de blessure grave.

Notes de Securité Importantes

• Pour le montage, choisissez une zone hors de portée des enfants en bas âge. Certaines pièces de ce véhicule sont très petites et
peuvent être avalées par des enfants, provoquant un étouffement et des blessures internes. AGISSEZ AVEC PRECAUTION!

• Le fl uide et les graisses destinés aux amortisseurs doivent être tenus hors de portée des enfants. Ils ne sont pas destinés à la
consommation humaine!

• Faites attention lorsque vous utilisez des outils à main, des instruments coupants ou des outils électriques lors de la construction.

• Lisez attentivement tous les avertissements du fabricant concernant les produits chimiques, les colles ou les peintures pouvant
être utilisés pour le montage ou l’utilisation.

14 ans et plus. Ceci n’est pas un jouet.

4

5

AVVISO

Tutte le istruzioni, le garanzie e gli altri documenti pertinenti sono soggetti a cambiamenti a totale discrezione di Horizon Hobby,
LLC. Per una documentazione aggiornata sul prodotto, visitare il sito horizonhobby.com o towerhobbies.com e fare clic sulla
sezione Support del prodotto.

SIGNIFICATO DEI TERMINI PARTICOLARI

Nella documentazione relativa al prodotto vengono utilizzati i seguenti termini per indicare i vari livelli di pericolo potenziale
durante l’uso del prodotto:

AVVERTENZA: indica procedure che, se non debitamente seguite, determinano il rischio di danni alle cose, danni collaterali e
gravi lesioni alle persone O il rischio elevato di lesioni superfi ciali alle persone.

ATTENZIONE: indica procedure che, se non debitamente seguite, determinano il rischio di danni alle cose E di gravi lesioni
alle persone.

AVVISO: indica procedure che, se non debitamente seguite, possono determinare il rischio di danni alle cose E il rischio minimo
o nullo di lesioni alle persone.

AVVERTENZA: Leggere TUTTO il manuale di istruzioni e familiarizzare con le caratteristiche del prodotto, prima
di farlo funzionare. Un utilizzo scorretto del prodotto può causare danni al prodotto stesso, alle persone o alle cose,
causando gravi lesioni.

Questo è un prodotto sofi sticato di hobbistica e NON è un giocattolo. Esso deve essere manipolato con cautela, con giudizio
e richiede delle conoscenze basilari di meccanica. L’utilizzo improprio o irresponsabile del modello potrebbe causare lesioni,
danni al prodotto stesso o nei confronti di terzi. Questo prodotto non è concepito per essere usato dai bambini senza la diretta
supervisione di un adulto. Non usare componenti non compatibili o alterare il prodotto in nessuna maniera al di fuori delle
istruzioni fornite da Horizon Hobby, LLC. Questo manuale contiene le istruzioni per la sicurezza, l’utilizzo e la manutenzione del
prodotto. È fondamentale leggere e seguire tutte le istruzioni e le avvertenze nel manuale prima di montare, impostare o usare il
prodotto, al fi ne di usarlo correttamente e di evitare danni.

PRECAUZIONI PER LA SICUREZZA E AVVERTENZE

Leggere e seguire le istruzioni e le precauzioni di sicurezza prima dell’uso. Un utilizzo improprio può risultare in un incendio,
in gravi lesioni o danni a cose.

Componenti

Alcuni componenti elettronici possono
diventare caldi durante il loro uso.
Non toccarli fi nché non si raffreddano.
Usare solo componenti compatibili. Se
ci sono delle domande in relazione alla
compatibilità bisogna riferirsi alle istruzioni
del prodotto, alle istruzioni dei componenti
o contattare Horizon Hobby, LLC.

Raccomandazioni per un utilizzo sicuro

• Controllare il modello prima di ogni corsa per vedere se funziona correttamente.

• Essere al corrente di altri utenti con frequenze radio che potrebbero interferire.

• Essere sempre cortesi e rispettosi verso gli altri utenti della pista di guida.

• Scegliere un’area senza ostacoli abbastanza grande per consentirvi di guidare in sicurezza.

• Accertarsi che quest’area sia priva di persone e spettatori, prima di guidare il veicolo.

• Essere consapevoli di altre attività vicine al percorso che possono causare potenziali confl itti.

Note Importanti di Sicurezza

• Scegliere un’area per il montaggio che non sia facilmente raggiungibile dai bambini. Alcuni pezzi di questo veicolo sono piccoli
e possono essere inghiottiti dai bambini causando soffocamento e possibili lesioni agli organi interni; PRESTARE ATTENZIONE!

• L’olio e il grasso per gli ammortizzatori dovrebbero essere tenuti lontani dalla portata dei bambini. Tali elementi non
sono commestibili!

• Durante il montaggio, prestare attenzione quando si usano utensili, strumenti affi lati o alimentati da energia elettrica.

• Leggere attentamente tutti gli avvertimenti e i consigli dettati dal produttore relativi alle sostanze chimiche, alla colla,
agli smalti e a tutti gli elementi di montaggio e di funzionamento del veicolo.

Almeno 14 anni. Non è un giocattolo.

Batterie

Seguire sempre le istruzioni del
produttore quando si smaltiscono le
batterie. Se si manipolano le batterie Li­Po in maniera errata si può verifi care un
incendio serie lesioni e danni.

Minuterie

Il kit include delle minuteria e non
deve essere lasciato incustodito vicino
ai bambini, che potrebbero inghiottirli
e farsi davvero male.

5

6

EN WELCOME TO TEAM LOSI RACING

To be the best, you have to drive the best and the Team Losi Racing® 8IGHT™ platform is second to none. With multiple ROAR national titles and major international wins, the
8IGHT represents a championship-winning heritage. The original 8IGHT took 1/8th-scale racing by storm and now the future of racing is hitting the track—the 8IGHT-XT/E
Nitro/Electric Truggy. This is a brand new, completely redefi ned racing platform crafted from the ground up. Designed to be the best of all possible worlds for drivers, it features a
new wider chassis, potent drivetrain, and major updates to the suspension package and geometry.

Race On!
—Team Losi Racing

Register your Team Losi Racing Product Online

Register your Team Losi Racing product online at TLRACING.com and follow the product registration link to stay connected.

™

1/8

DE WILLKOMMEN BEI TEAM LOSI RACING

Um zu den Besten zu gehören, muss man die Besten fahren: Die Plattform Team Losi Racing® 8IGHT™ ist unübertroffen. Dank einer Vielzahl von Titeln bei den ROAR National
Championships repräsentiert der 8IGHT eine Tradition der Meisterschaftssiege. Der original 8IGHT eroberte die Rennen im Maßstab 1:8 im Sturm, und aktuell geht die Zukunft des
Rennsports in Gestalt des 8IGHT-XT/E™ 1:8-Nitro-/Elektrotruggy auf die Strecke. Es handelt sich um eine brandneue, völlig neu defi nierte Rennplattform, die von Grund auf neu
entwickelt wurde. Entworfen, um die beste aller möglichen Welten für Fahrer zu sein, bietet sie ein neues, breiteres Fahrwerk, einen leistungsstarken Antriebsstrang und wichtige
Updates für das Fahrwerkspaket und die Geometrie.

Viel Glück und ein gutes Rennen!
—Team Losi Racing

Registrieren Sie Ihr Team Losi Racing Produkt online

Registrieren Sie Ihr Produkt online bei TLRACING.com, und folgen Sie dem Link zur Produktregistrierung, um auf dem Laufenden zu bleiben mit Team Losi Racing.

FR BIENVENUE CHEZ TEAM LOSI RACING

Les meilleurs doivent conduire ce qu’il y a de mieux et la plateforme Team Losi Racing® 8IGHT™ est sans égale. Avec plusieurs titres nationaux ROAR et d’importantes victoires
internationales, la 8IGHT représente un héritage de victoire de championnat. La 8IGHT originale a fait sensation dans la course à l’échelle 1/8 et l’avenir de la course entre
maintenant sur la piste : le truggy nitro/électrique 1/8 8IGHT-XT/E™. C’est une toute nouvelle plateforme de course entièrement redéfi nie, construite de A à Z. Conçue pour offrir
une association du meilleur des mondes possibles aux conducteurs, elle comporte un nouveau châssis plus large, un puissant motopropulseur et des mises à jour importantes de la
géométrie et de l’ensemble de suspension.

C’est parti!
—Team Losi Racing

Enregistrez votre produit Team Losi Racing en ligne

Enregistrez votre produit auprès de la Team Losi Racing sur la page TLRACING.com

IT BENVENUTO NEL TEAM LOSI RACING

Per essere i migliori, bisogna poter guidare il meglio e la piattaforma Team Losi Racing® 8IGHT™ non è seconda a nessuno. I titoli nazionali ROAR e le importanti vittorie
internazionali ottenute dall’8IGHT ne dimostrano l’eredità da grande campione in pista. L’8IGHT originale ha preso d’assalto la scala 1/8 e ora il futuro delle corse è sceso in pista
con il Truggy nitro/elettrico 8IGHT-XT/E™ 1/8. Questa è una piattaforma da corsa completamente nuova e ricreata da zero. Progettata per essere il meglio per qualunque tipo di
pilota, presenta un nuovo telaio più ampio, una trasmissione potente e importanti aggiornamenti al gruppo e alla geometria delle sospensioni.

Buona fortuna e buona corsa!
—Team Losi Racing

Registrazione online del prodotto Team Losi Racing

Registrando online il prodotto a TLRACING.com e seguire il link di registrazione del prodotto per essere sempre aggiornati con Team Losi Racing.

6

7

EN KIT  MANUAL ORGANIZATION

The kit is composed of different bags marked A through J, Manual and Options/Tool. It is essential that you open only one bag at a time and follow the correct assembly sequence.
The Tuning Parts bag has addition tuning-option parts; if you are building your 8IGHT-XT/E™ truggy to the kit setup, you will not need parts from this bag for the assembly.

DE KIT  AUFBAU DER ANLEITUNG

Das Kit besteht aus verschiedenen Tüten, die von A bis j markiert sind, Handbuch und Optionen/Werkzeug. Es ist wichtig, dass Sie stets immer nur eine Tüte öffnen und die richtige
Montagereihenfolge unbedingt einhalten. Der Tuning-Teilebeutel verfügt über zusätzliche Bauteile für die Tuningoption. Falls Sie den 8IGHT-XT/E™ Truggy nach dem Bausatz
zusammenbauen, so benötigen Sie dafür keine Bauteile aus diesem Satz.

FR ORGANISATION DU KIT  MANUEL

Ce kit se compose de différents sachets, marqués A à J, d’un manuel et d’options/outil. Vous devez absolument ouvrir un seul sachet à la fois et respecter l’ordre de montage. Le sachet
des pièces de réglage contient des pièces de l’option de réglage supplémentaire ; si vous assemblez votre truggy 8IGHT-XT/E™ dans la confi guration d’origine, vous n’aurez pas besoin
des pièces de ce sachet.

IT KIT  MANUALE ORGANIZZAZIONE

Il kit include diverse bustine contrassegnate con le lettere da A a J, un manuale e parti opzionali/utensile. È fondamentale aprire una bustina alla volta e seguire la corretta sequenza
di montaggio. La bustina dei componenti per il tuning presenta parti aggiuntive opzionali per il tuning. Se si sta effettuando il montaggio del truggy 8IGHT-XT/E™ seguendo il setup
originale, le parti incluse in questa bustina non sono necessarie per il montaggio.

TOOLS REQUIRED  ERFORDERLICHE WERKZEUGE 
OUTILS NÉCESSAIRES  UTENSILI NECESSARI

ENGLISH DEUTSCH FRANÇAIS ITALIANO

.050" Hex Wrench .050"-Inbusschlüssel Clé hexagonale, .050" Chiave esagonale da .050"

1.5mm Hex Wrench 1,5mm-Inbusschlüssel Clé hexagonale, 1,5mm Chiave esagonale da 1,5mm

2mm Hex Wrench 2mm-Inbusschlüssel Clé hexagonale, 2mm Chiave esagonale da 2mm

2.5mm Hex Wrench 2,5mm-Inbusschlüssel Clé hexagonale, 2,5mm Chiave esagonale da 2,5mm

3mm Hex Wrench 3mm-Inbusschlüssel Clé hexagonale, 3mm Chiave esagonale da 3mm

Body Scissors Lexanschere Ciseaux à lexan corpo forbici

Needle-Nose Pliers Spitzzange Pince à bec Pinze a becchi lungh

Regular Pliers Normale Zange Pince ordinaire Pinze normali

Hobby Knife Hobbymesser Cutter Cutter da modellismo

Completed Kit Specifi cations

12.8–13.0 in (326.0–329.0mm) Wheelbase // Radstand // Empattement // Interasse

12.1 in (307.3mm) Front Track Width // Spurbreite vorne // Largeur de la voie avant // Larghezza zona anteriore

12.1 in (307.3mm) Rear Track Width // Spurbreite hinten // Largeur de la voie arrière // Larghezza zona posteriore

17.1 in (180.0mm) Overall Height // Höhe // Hauteur totale // Altezza generale

19.6 in (497.8mm) Overall Length with Tires // Länge über alles mit Reifen // Longueur avec pneus // Lunghezza totale con gli pneumatici

7

8

ICON KEY  SYMBOLSCHLÜSSEL 

L

x2

LÉGENDE DES ICÔNES  RIFERIMENTO ICONA

ENGLISH DEUTSCH FRANÇAIS ITALIANO

TLR-LOK

GLUE

CLEAR

GREASE

OIL

CUT

Apply TLR-Lok™ Threadlock

- TLR76004

Apply High Pressure
Black Grease - TLR77000

Apply CA Glue CA-Kleber auftragen Appliquer de la colle CA Applicare colla CA

Apply Clear
Grease

Degrease with Motor Spray

-DYN5500

Fill With Silicone Oil Mit Silikonöl füllen Remplir d’huile silicone Riempire con olio al silicone

Pay Special
Attention

Cut/Trim

TLR-Lok auftragen

Schwarzes Hochdruckfett
auftragen

Farbloses Schmierfett
auftragen

Mit Motorspray
entfetten

Besonders aufpassen

Schneiden/
Abgleichen

Appliquer du
frein fi let TLR-Lok

Appliquer de la graisse
haute-pression noire

Appliquer de la graisse
Clear Grease (transparente)

Dégraisser au nettoy ant
moteur

Faire particulièrement
attention

Couper/ébavurer Tagliare / regolare

Applicare TLR-Lok

Applicare grasso nero
ad alta pressione

Applicare grasso
trasparente

Togliere il grasso non
lo spray per motori

Prestare molta attenzione

L

L

L
R

R

x2

Ensure Free
Movement

Ensure Free Rotation Freigängigkeit sicherstellen Vérifi er la libre rotation Assicurare un movimento libera

Ensure Proper
Orientation

Push Firm Fest drücken Pousser fermement Spingere forte

Side Shown Seite dargestellt Côté présenté Mostrato lateralmente

Assemble Other
Side the Same

Repeat/Build Multiple

Screw Partially Provisorisch anschrauben Visser partiellement Avvitare parzialmente

Leichtgängigkeit
sicherstellen

Passende Ausrichtung
sicherstellen

Andere Seite gleich
zusammenbauen

Wiederholen/
mehrfachbauen

Vérifi er la liberté
de mouvement

Vérifi er l’orientation
correcte

Monter l’autre côté
à l’identique

Répéter/assembler
plusieurs fois

Assicurare un
movimento libero

Assicurare un corretto
orientamento

Assemblare l’altro
Lo stesso per l’altro lato

Ripetere/costruire multiplo

DO NOT Over­Tighten/Snug Tight

Tighten Festziehen Serrer Stringere

8

KEINESFALLS zu stark/bis
zum Anschlag anziehen

NE PAS serrer excessivement
(serrer juste assez)

NON stringere troppo
(stringere suffi cientemente)

9

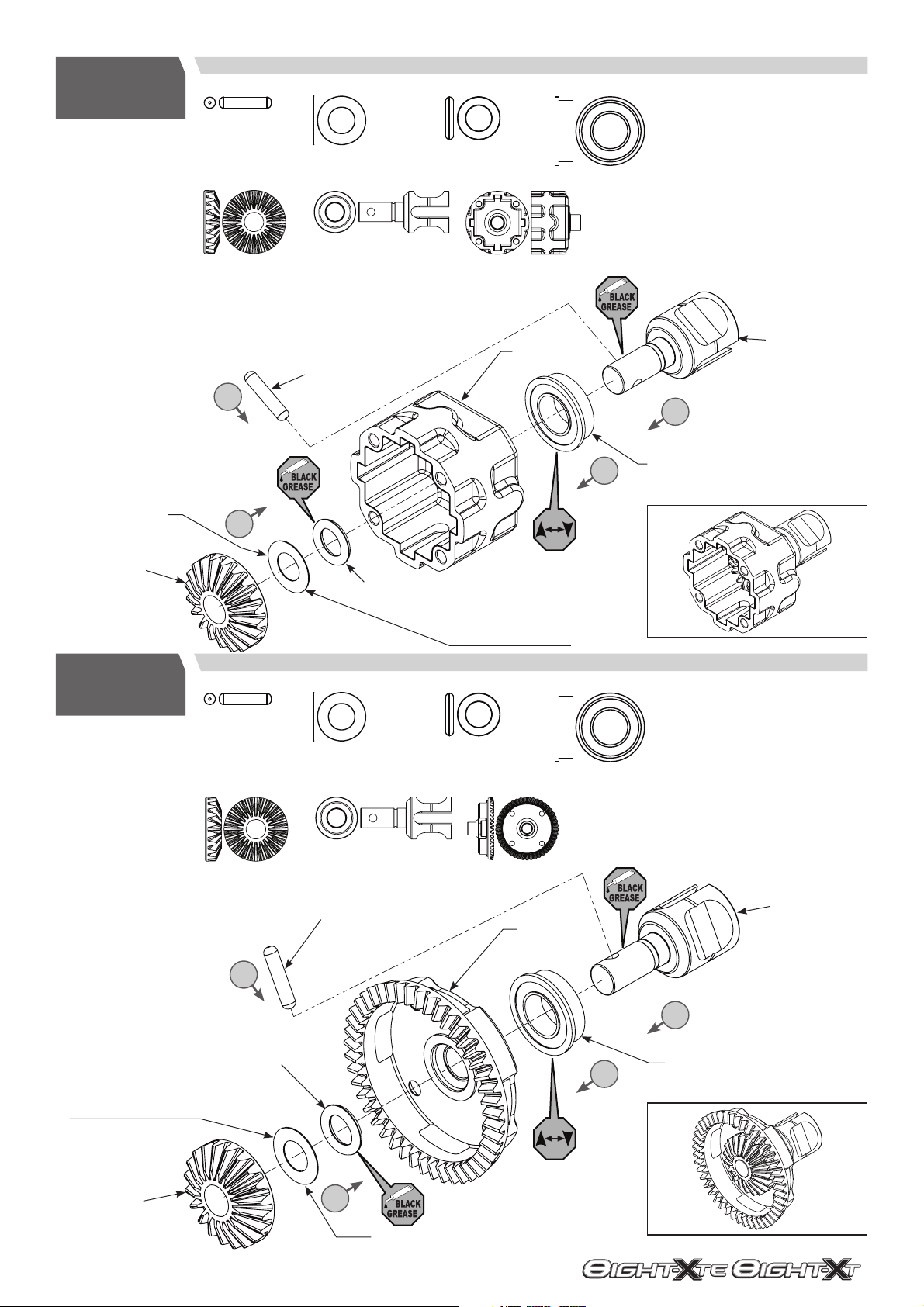

A1

LOSA3518 x1 LOSA3501 x1 LOSA3505 x1 LOSA6948 x1

2.5 x 12.8mm

LOSA3502 x1 TLR242033 x1 LOSA3500 x1

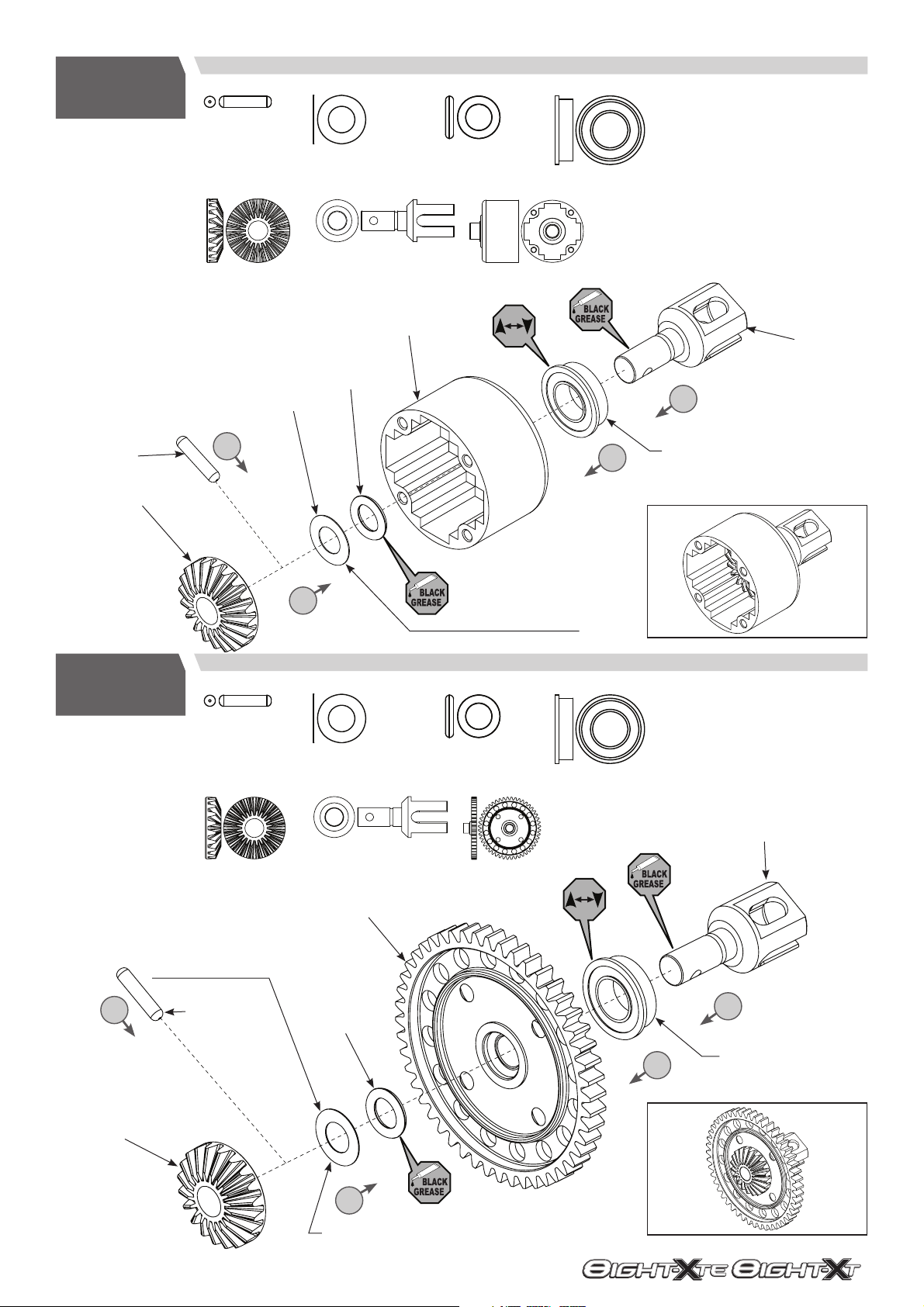

EN Rear Differential Assembly
DE Montage des hinteren Differenzials
FR Assemblage du différentiel arrière
IT Gruppo differenziale posteriore

LOSA3518

3

6 x 11 x 0.2mm

LOSA3500

8 x 14 x 4mm FL

TLR242033

2

LOSA3501

LOSA3502

A2

1

4

LOSA3505

EN Optional
DE Optional
FR Facultatif
IT Opzionale

LOSA3518 x1 LOSA3501 x1 LOSA3505 x1 LOSA6948 x1

2.5 x 12.8mm

6 x 11 x 0.2mm

LOSA3502 x1 TLR242033 x1 TLR242039 x1

LOSA3518

TLR242039

LOSA6941

8 x 14 x 4mm FL

TLR242033

EN Optional
DE Optional
FR Facultatif
IT Opzionale

LOSA3502

3

LOSA3505

4

LOSA3501

2

1

LOSA6948

9

10

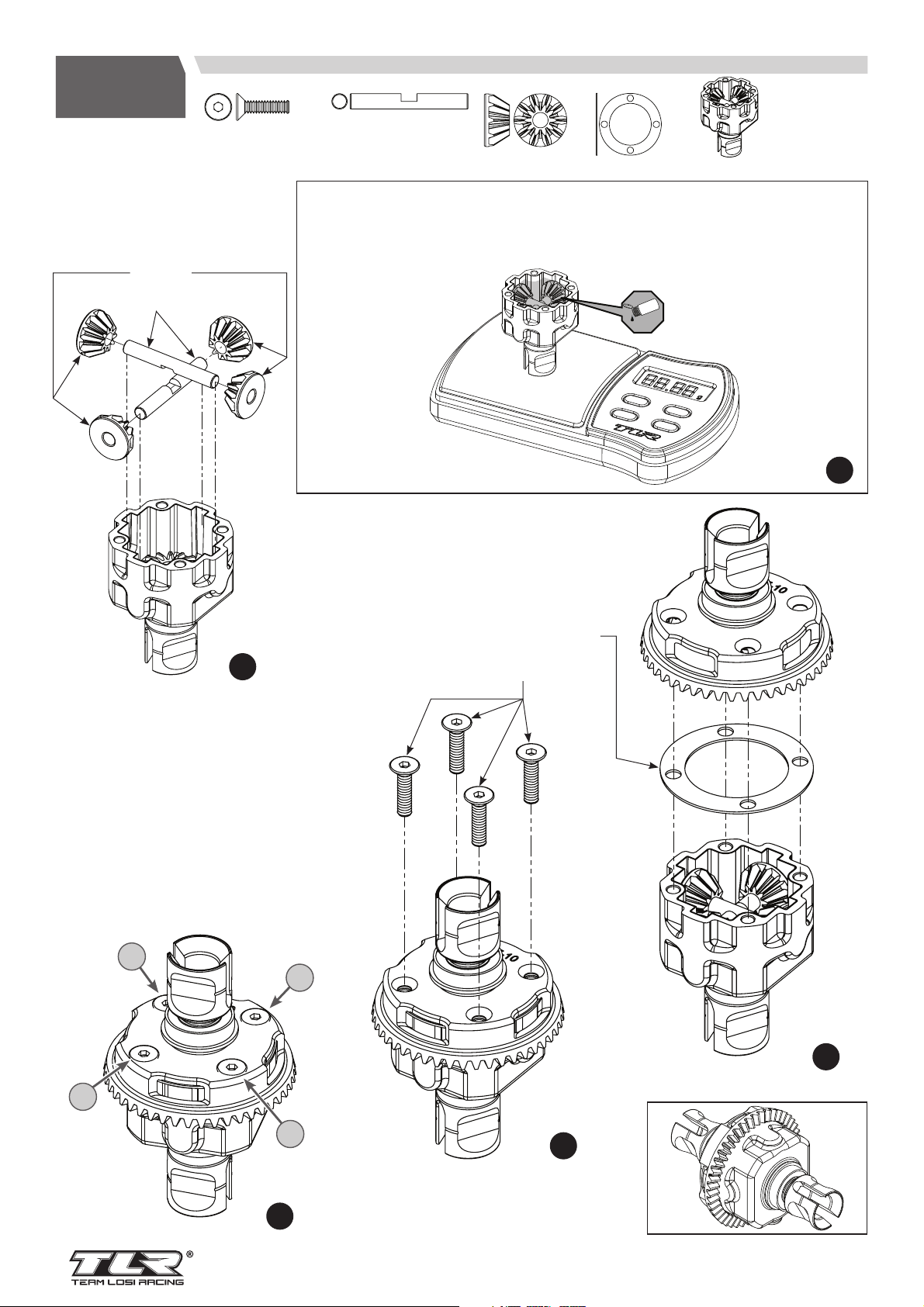

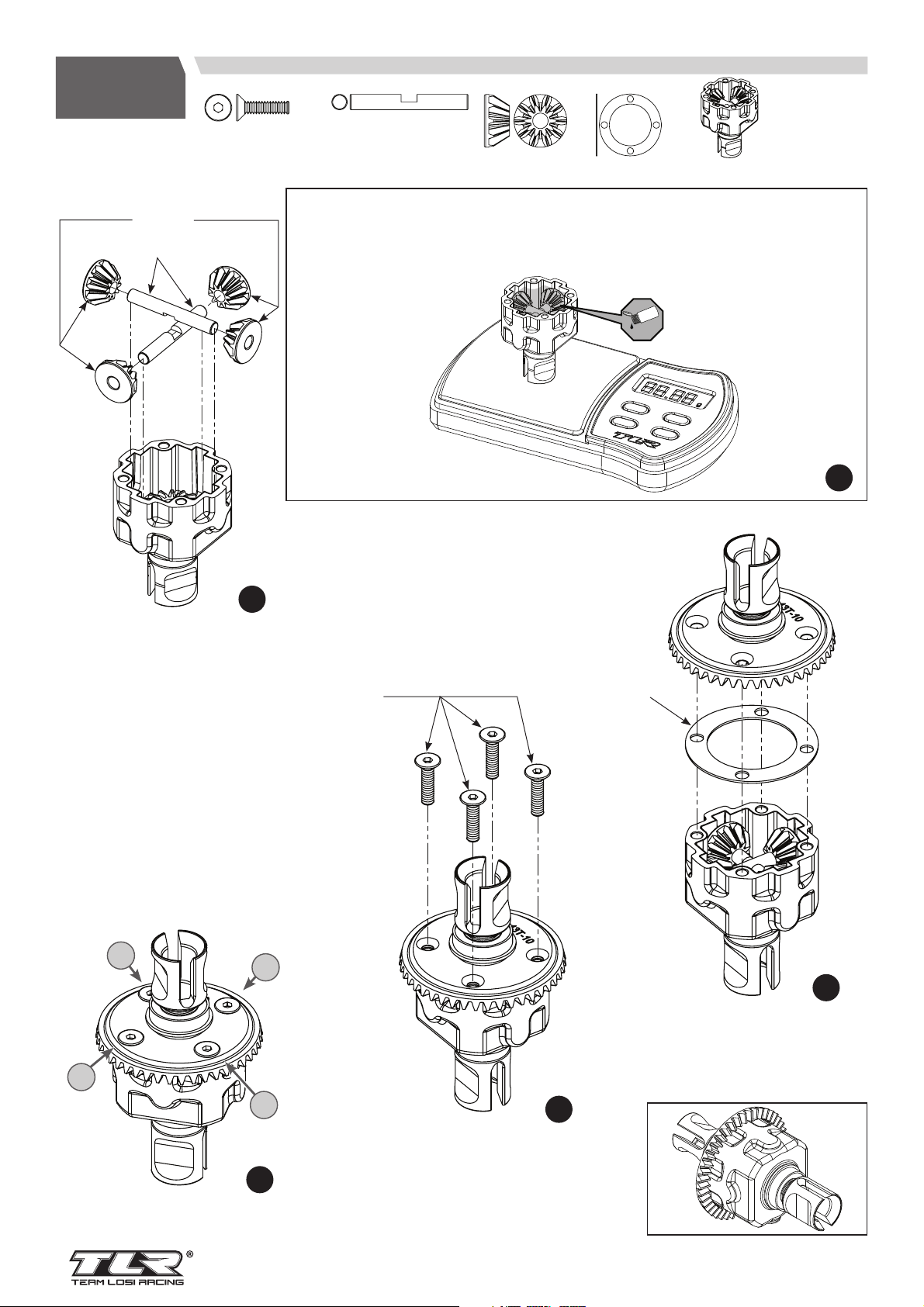

A3

LOSA3502

TLR3501

TLR5963 x4 TLR3501 x2 LOSA3502 x4 LOSA3505 x1

M3 x 12mm FH

EN Fill with 5000 wt oil to a weight of 40g. Use a scale accurate to .01g.
DE Remplir d’huile 5,000 wt à un poids de 40g. Utilisez une échelle précise à 0,01 g.
FR Remplir d’huile 5,000 wt à un poids de 40g. Utilisez une échelle précise à 0,01 g.
IT Riempire con olio 5,000 wt fi no a un peso di 40g. Utilizzare una bilancia precisa

fi no a 0,01 g.

OIL

2

1

EN Tightening Order
DE Reihenfolge beim Festziehen
FR Ordre de serrage
IT Ordine di serraggio

1

LOSA3505

TLR5963

3

3

4

2

4

5

10

11

A4

LOSA3502

LOSA3518 x1 LOSA3501 x1 LOSA3505 x1 LOSA6948 x1

2.5 x 12.8mm

LOSA3502 x1 TLR242032 x1 LOSA3500 x1

EN Front Differential Assembly
DE Montage des vorderen Differenzials
FR Assemblage du différentiel avant
IT Gruppo differenziale anteriore

LOSA3518

6 x 11 x 0.2mm

8 x 14 x 4mm FL

TLR242032

LOSA3502

A5

3

LOSA3505

1

4

LOSA3500

LOSA3501

LOSA3518 x1 LOSA3501 x1 LOSA3505 x1 LOSA6948 x1

2.5 x 12.8mm

6 x 11 x 0.2mm

LOSA3502 x1 TLR242032 x1 TLR242038 x1

2

LOSA6948

8 x 14 x 4mm FL

3

LOSA3502

LOSA3518

LOSA3501

TLR242038

4

LOSA3505

TLR242032

2

1

LOSA6948

11

12

A6

LOSA3502

TLR3501

TLR5963 x4 TLR3501 x2 LOSA3502 x4 LOSA3505 x1

M3 x 12mm FH

EN Fill with 7000 wt oil to a weight of 40.5g. Use a scale accurate to .01g.
DE Remplir d’huile 7,000 wt à un poids de 40,5g. Utilisez une échelle précise à 0,01 g.
FR Remplir d’huile 7,000 wt à un poids de 40,5g. Utilisez une échelle précise à 0,01 g.
IT Riempire con olio 7,000 wt fi no a un peso di 40,5g. Utilizzare una bilancia precisa

fi no a 0,01 g.

OIL

2

1

EN Tightening Order
DE Reihenfolge beim Festziehen
FR Ordre de serrage
IT Ordine di serraggio

1

3

TLR5963

LOSA3505

3

4

2

4

5

12

13

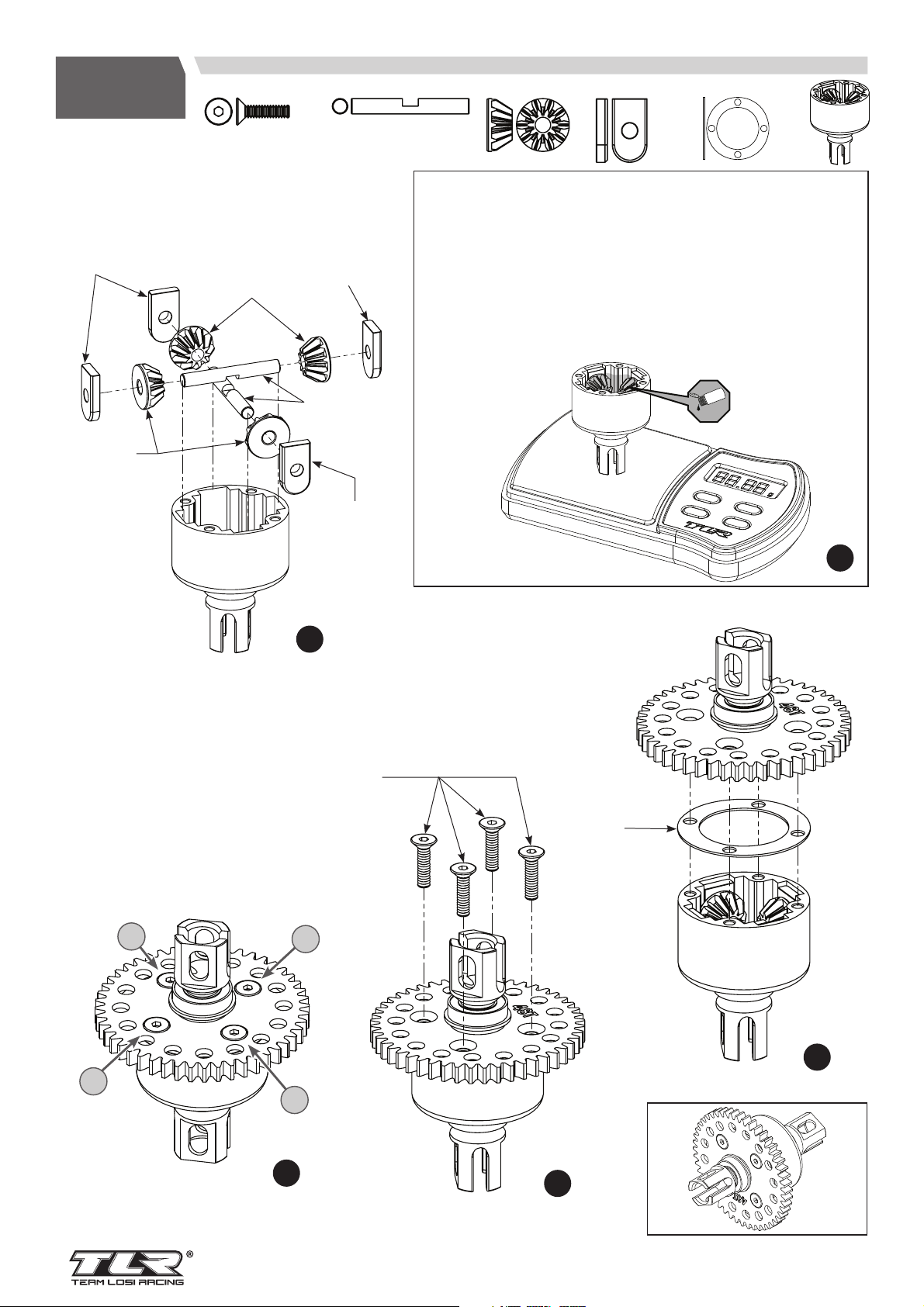

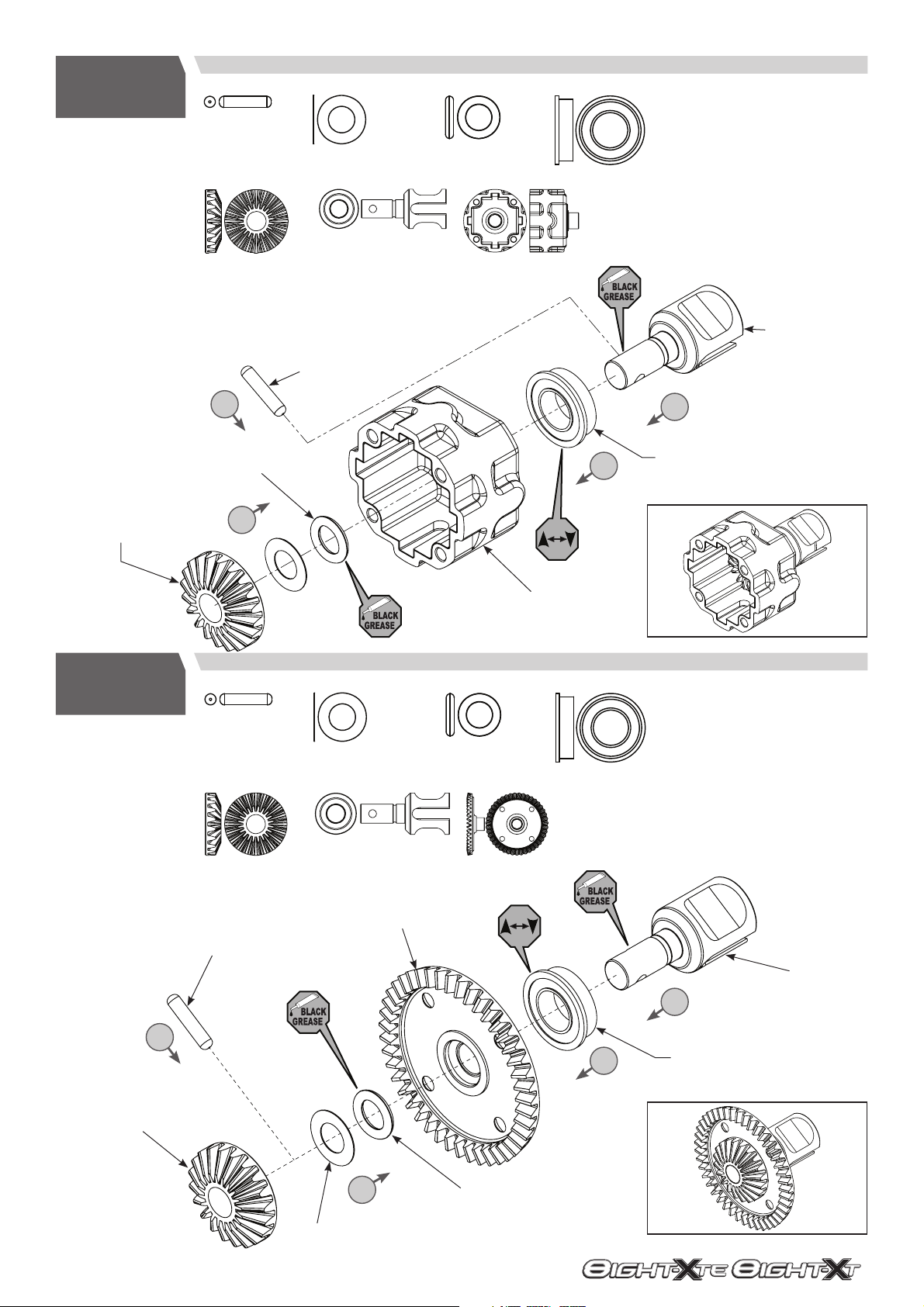

A7

LOSA3518 x1 LOSA3501 x1 LOSA3505 x1 LOSA6948 x1

2.5 x 12.8mm

LOSA3502 x1 LOSA3554 x1 LOSB3528 x1

EN Center Differential Assembly
DE Montage des mittleren Differenzials
FR Assemblage du différentiel central
IT Gruppo differenziale centrale

LOSA3501

6 x 11 x 0.2mm

8 x 14 x 4mm FL

LOSB3528

LOSA3554

LOSA3505

2

LOSA3518

LOSA3502

A8

3

1

EN Optional
DE Optional

4

FR Facultatif
IT Opzionale

LOSA3518 x1 LOSA3501 x1 LOSA3505 x1 LOSA6948 x1

2.5 x 12.8mm

6 x 11 x 0.2mm

LOSA3502 x1 LOSA3554 x1 LOSA3556 x1

LOSA6948

8 x 14 x 4mm FL

LOSA3554

3

LOSA3502

EN Optional
DE Optional
FR Facultatif
IT Opzionale

LOSA3518

LOSA3556

LOSA3505

4

LOSA3501

2

1

LOSA6948

13

14

A9

LOSB3528

TLR5963 x4 TLR3501 x2 LOSA3502 x4 LOSB3528 x4 LOSA3505 x1

M3 x 12mm FH

EN Fill with 12500 wt oil to a weight of 46.8g. Use a scale

accurate to .01g.

DE Remplir d’huile 12,500 wt à un poids de 46,8g. Utilisez une

échelle précise à 0,01 g.

FR Remplir d’huile 12,500 wt à un poids de 46,8g. Utilisez une

LOSA3502

LOSB3528

échelle précise à 0,01 g.

IT Riempire con olio 12,500 wt fi no a un peso di 46,8g.

Utilizzare una bilancia precisa fi no a 0,01 g.

LOSA3502

EN Tightening Order
DE Reihenfolge beim Festziehen
FR Ordre de serrage
IT Ordine di serraggio

TLR3501

LOSB3528

1

TLR5963

OIL

2

LOSA3505

1

3

3

4

2

5

14

4

x2

x2

15

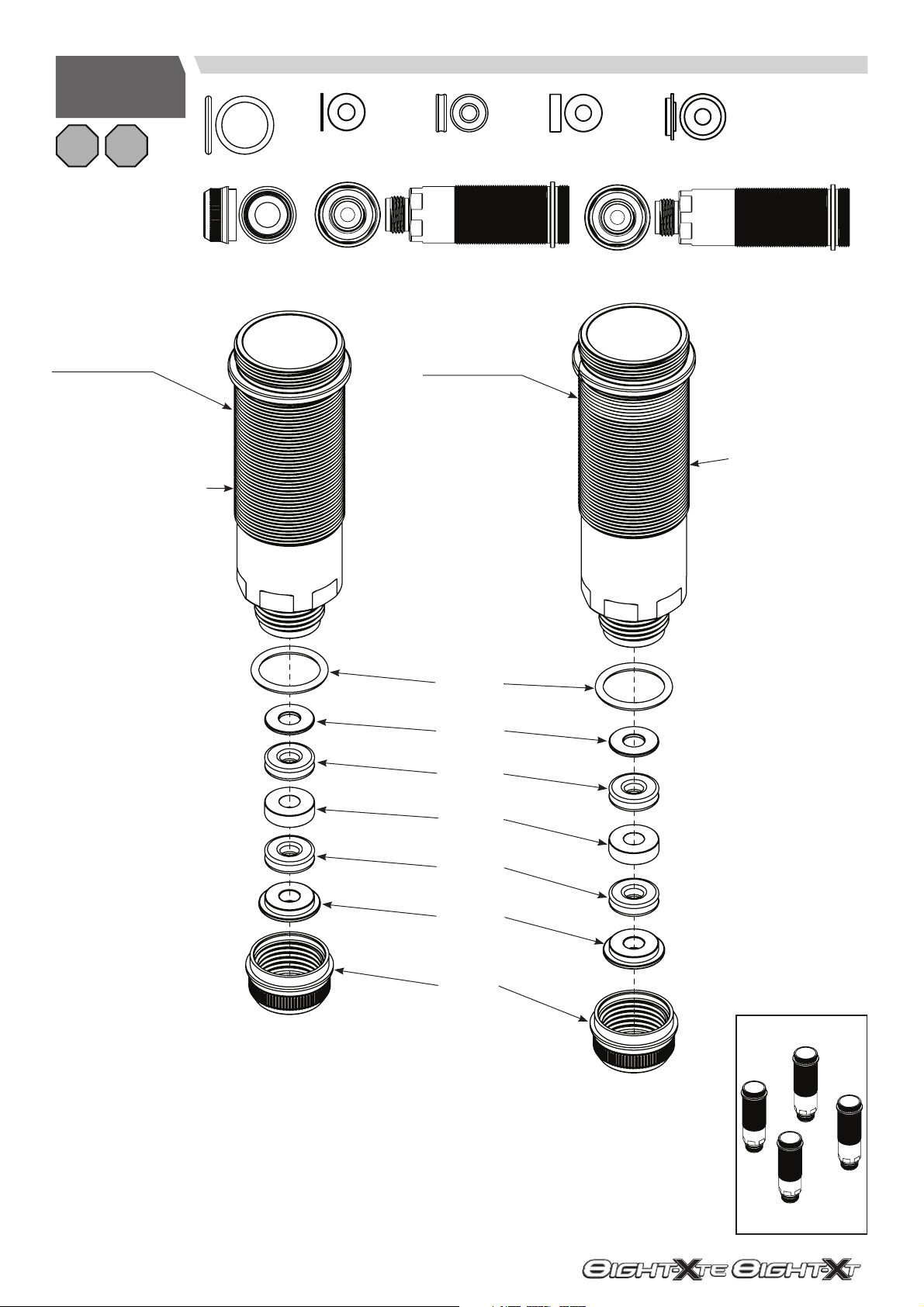

B1

L
R

R

TLR243024 x4 TLR344032 x4 TLR344033 x8 TLR344032 x4 TLR344032 x4

L

LOSA5421 x1 TLR244073 x2 TLR244074 x2

EN Front
DE Front
FR Avant
IT Davanti

EN Rear
DE Heck
FR Arrière
IT Dietro

TLR244074

TLR244073

TLR243024

TLR344032

TLR344033

TLR344032

TLR344033

TLR344032

LOSA5421

15

x2

x2

x2

16

B2

L
R

R

L

TLR243046 x4 TLR243046 x4 TLR243046 x4TLR244067 x4

M2 x 6mm BH

2.2 x 6 x 0.7mm
3 x 7 x 0.4mm

TLR344031 x2

TLR244066 x2

EN Taper Down
DE Spitz zulaufend
FR Cône vers le bas
IT Rastremato

TLR244067

TLR243046

TLR344031

TLR243046

TLR243046

TLR244067

TLR243046

TLR244066

EN Taper Down
DE Spitz zulaufend
FR Cône vers le bas
IT Rastremato

B3

x2

EN Front
DE Front
FR Avant
IT Davanti

EN Rear
DE Heck
FR Arrière
IT Dietro

L
R

R

L

TLR243032 x2 TLR243032 x2

TLR243032

TLR243038 x4 TLR243038 x4

EN Front
DE Front
FR Avant
IT Davanti

TLR243038

TLR243038

16

EN Rear
DE Heck
FR Arrière
IT Dietro

x2

x2

x2

17

B4

L
R

R

L

TLR233043 x4 TLR233043 x4 TLR243033 x4 TLR243039 x4 TLR243040 x4

2.5 x 4.2mm
M2.5 x 3mm BH

TLR243040

2

1

TLR243033

TLR233043

TLR243039

37wt

OIL

EN Front
DE Front
FR Avant
IT Davanti

32wt

OIL

EN Rear
DE Heck
FR Arrière
IT Dietro

B5

x2

TLR243045

L

L
R

R

2

TLR244064 - FR
TLR244065 - RR

TLR255002 x4 TLR243045 x4 TLR243045 x4 TLR243038 x4

M2.5 x 10mm BH

TLR244064 x2 TLR244065 x2

3

TLR255002

4

1

OIL

TLR243038

17

x2

x2

x2

18

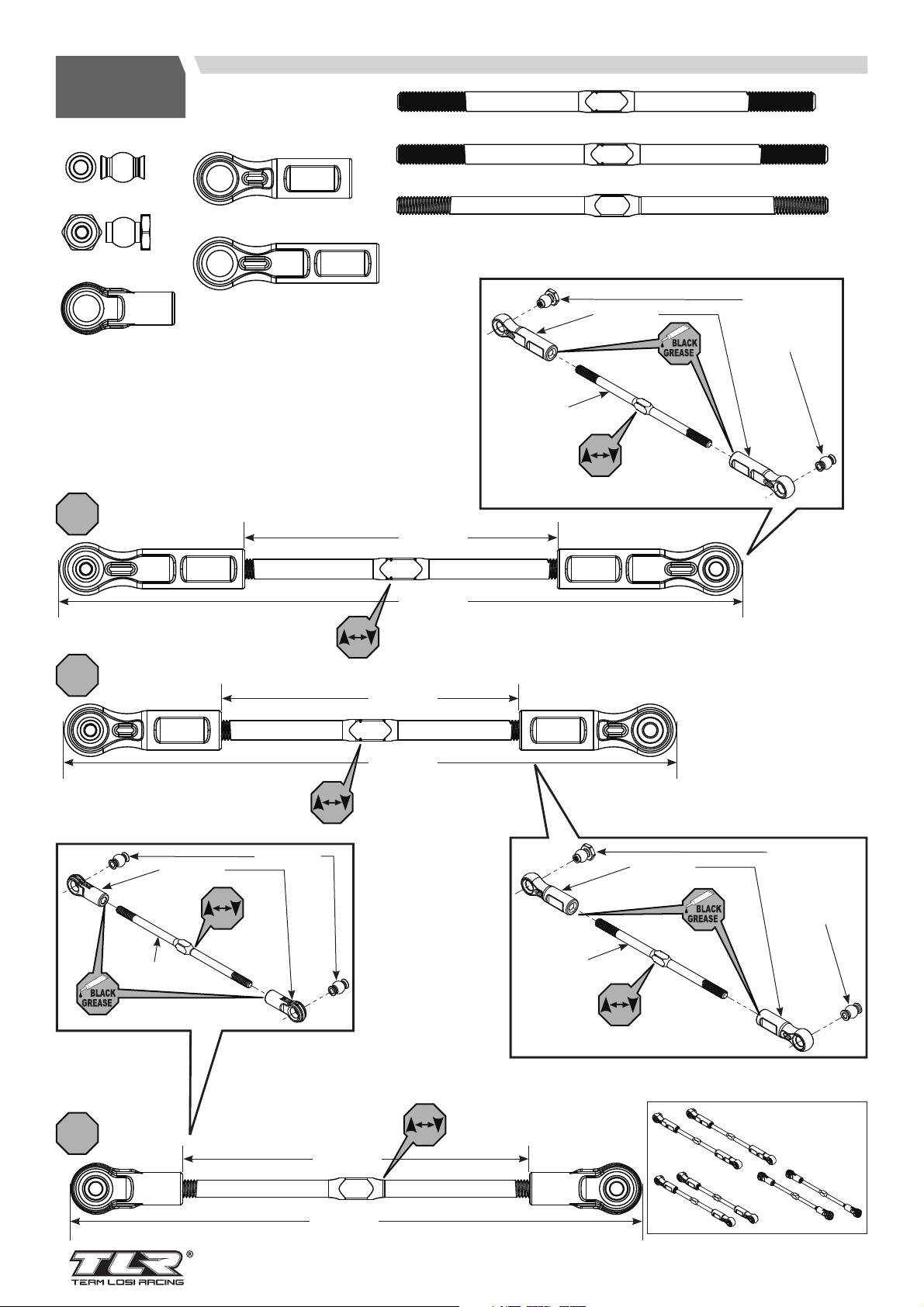

C1

TLR244052 x4

TLR244051 x4

TLR244068 x4

RH Reverse

x2

TLR244068 x4

TLR244068 x4

TLR244075 x2

M4.5 x 95mm

TLR244076 x2

M4.5 x 98mm

TLR244077 x2

M4 x 98mm

TLR244051

TLR244068

TLR244052

TLR244076

71.15mm

x2

RH Reverse

TLR244077

TLR244068

TLR244052

155.50mm

67.40mm

139.40mm

TLR244051

TLR244068

TLR244052

TLR244075

RH Reverse

x2

78.50mm

130.00mm

18

19

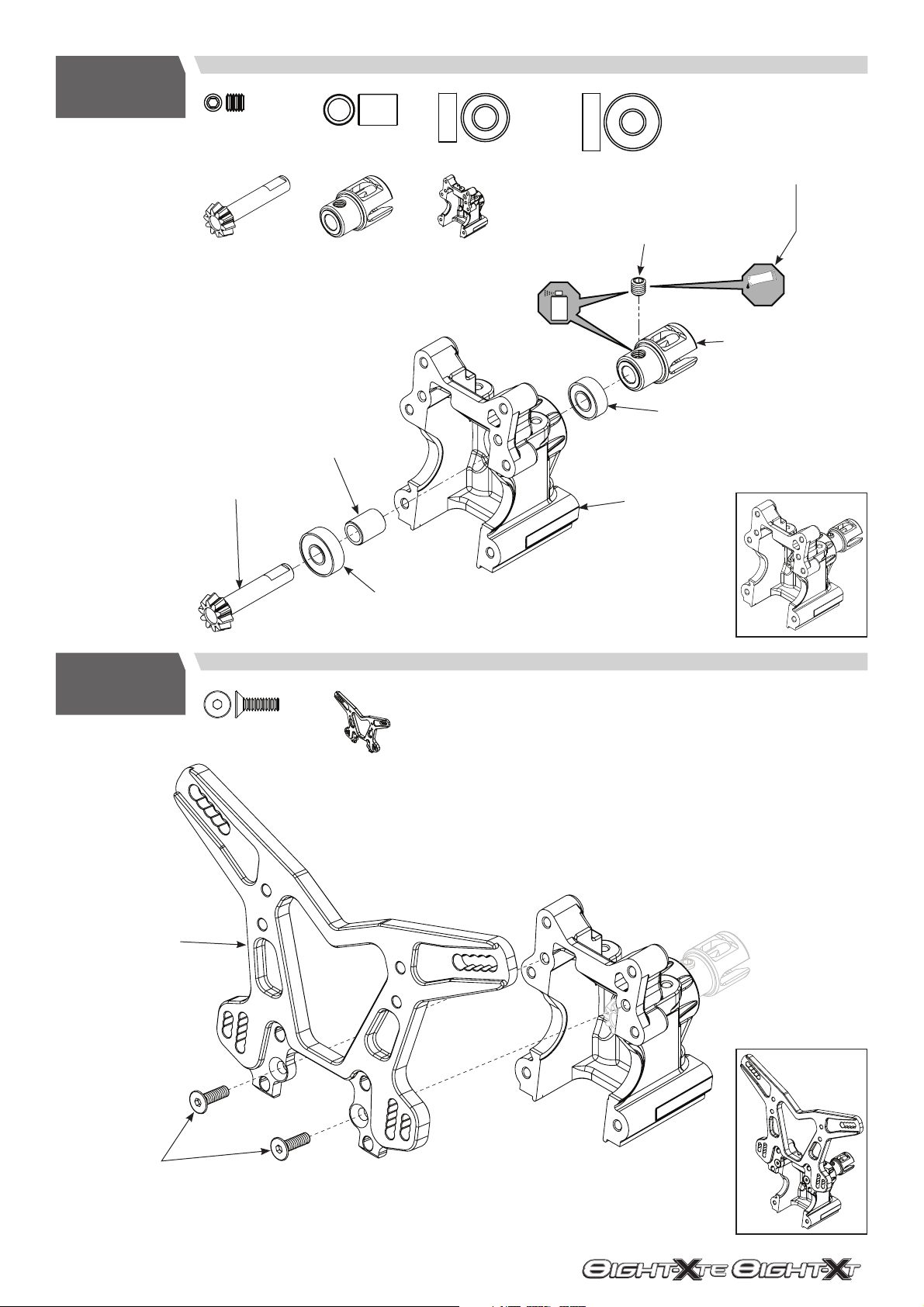

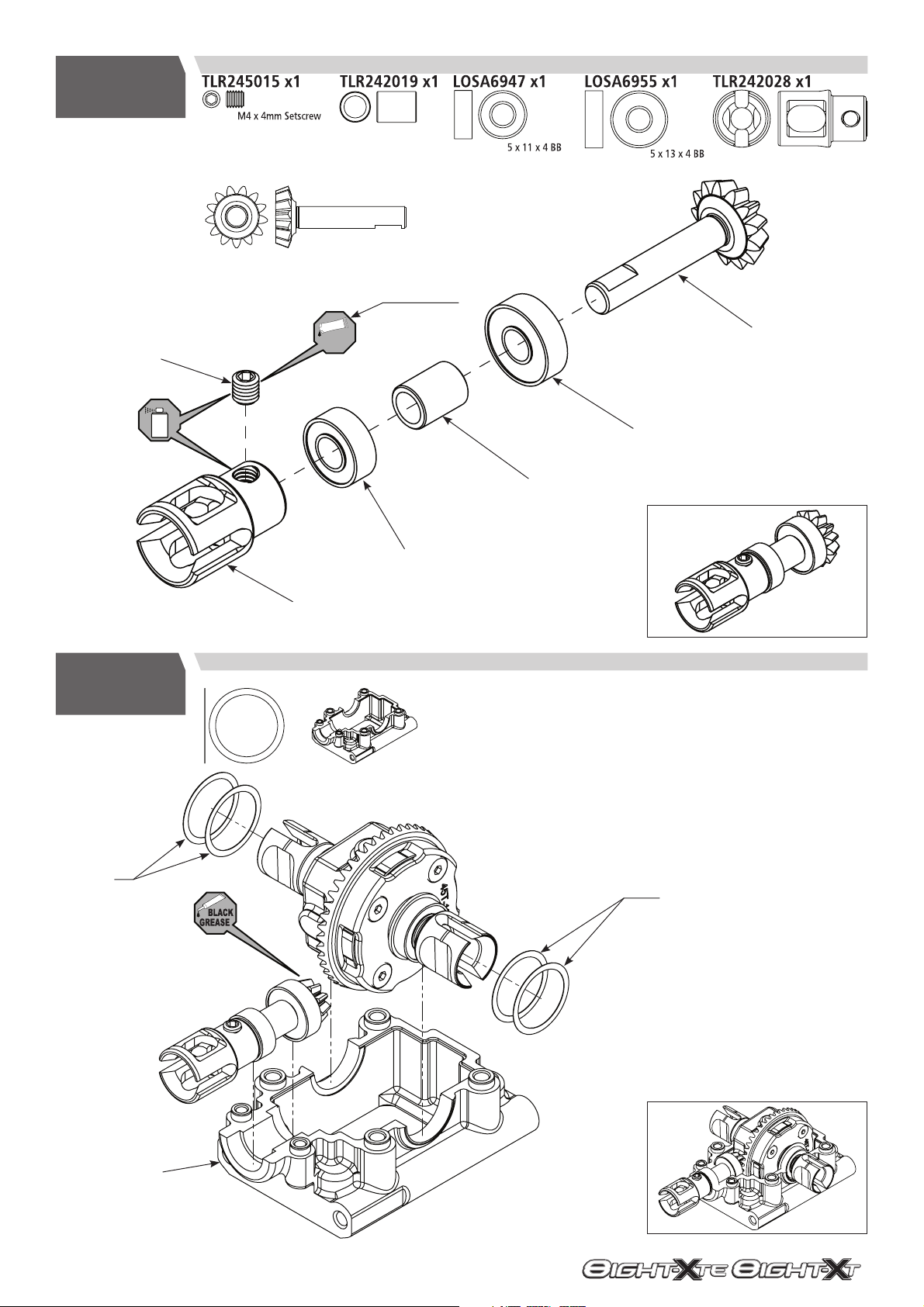

D1

TLR245015 x1 TLR242019 x1 LOSA6947 x1 LOSA6955 x1

M4 x 4mm Setscrew

5 x 11 x 4mm

5 x 13 x 4mm

TLR242038 x1 TLR242028 x1 TLR242025 x1

TLR245015

LOSA6947

TLR242019

TLR-LOK

TLR242028

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

D2

TLR242038

LOSA6955

TLR5962 x2 TLR244071 x1

M3 x 10mm FH

TLR242025

TLR244071

TLR5962

19

20

D3

TLR5934 x2 TLR242025 x1

M3 x 16mm CH

TLR242025

TLR5934

D4

20

21

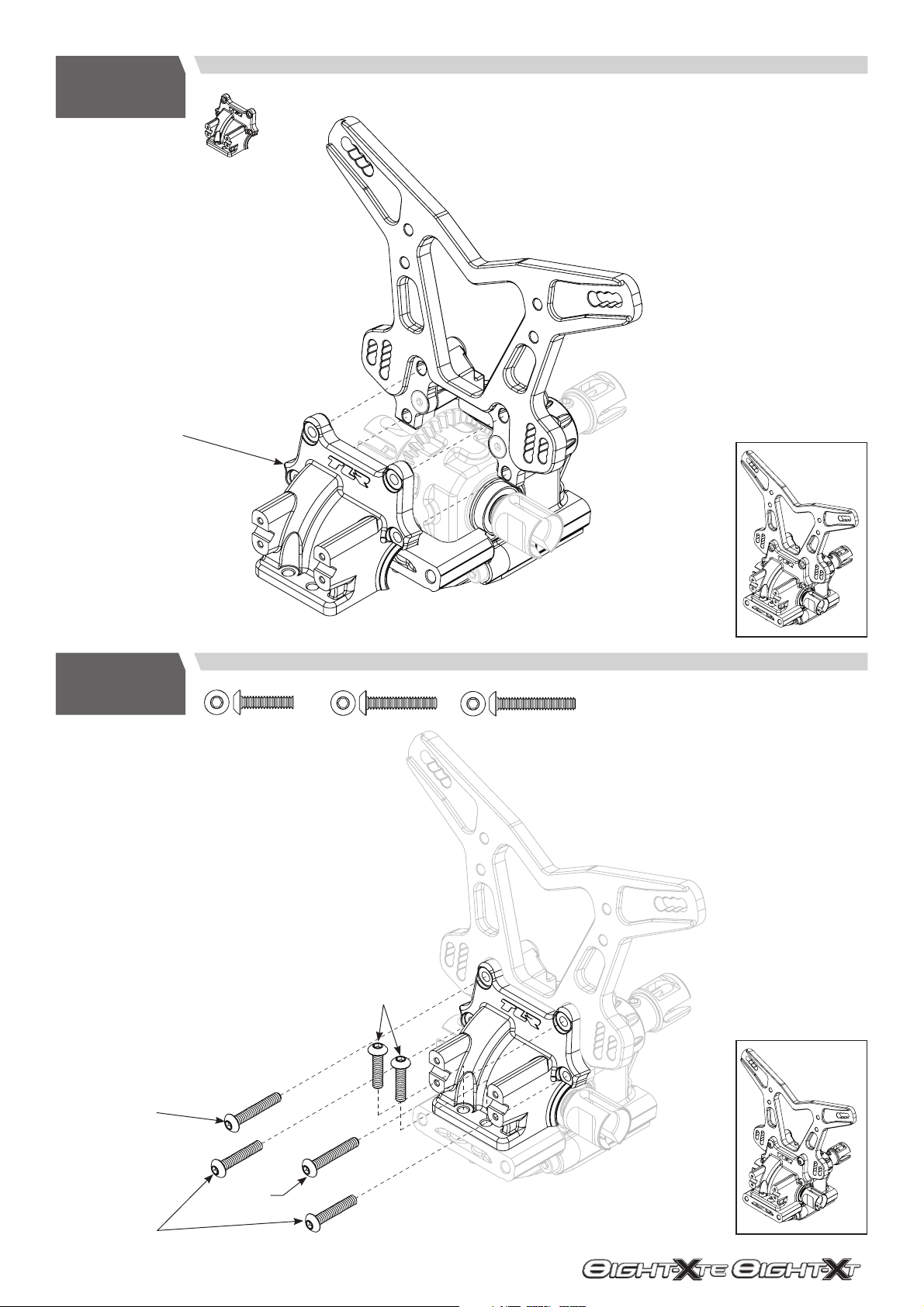

D5

TLR242025

TLR242025 x1

D6

TLR5905

TLR5904 x2 TLR5909 x2 TLR5905 x2

M3 x 12mm BH M3 x 16mm BH M3 x 18mm BH

TLR5904

TLR5909

TLR5905

21

L

22

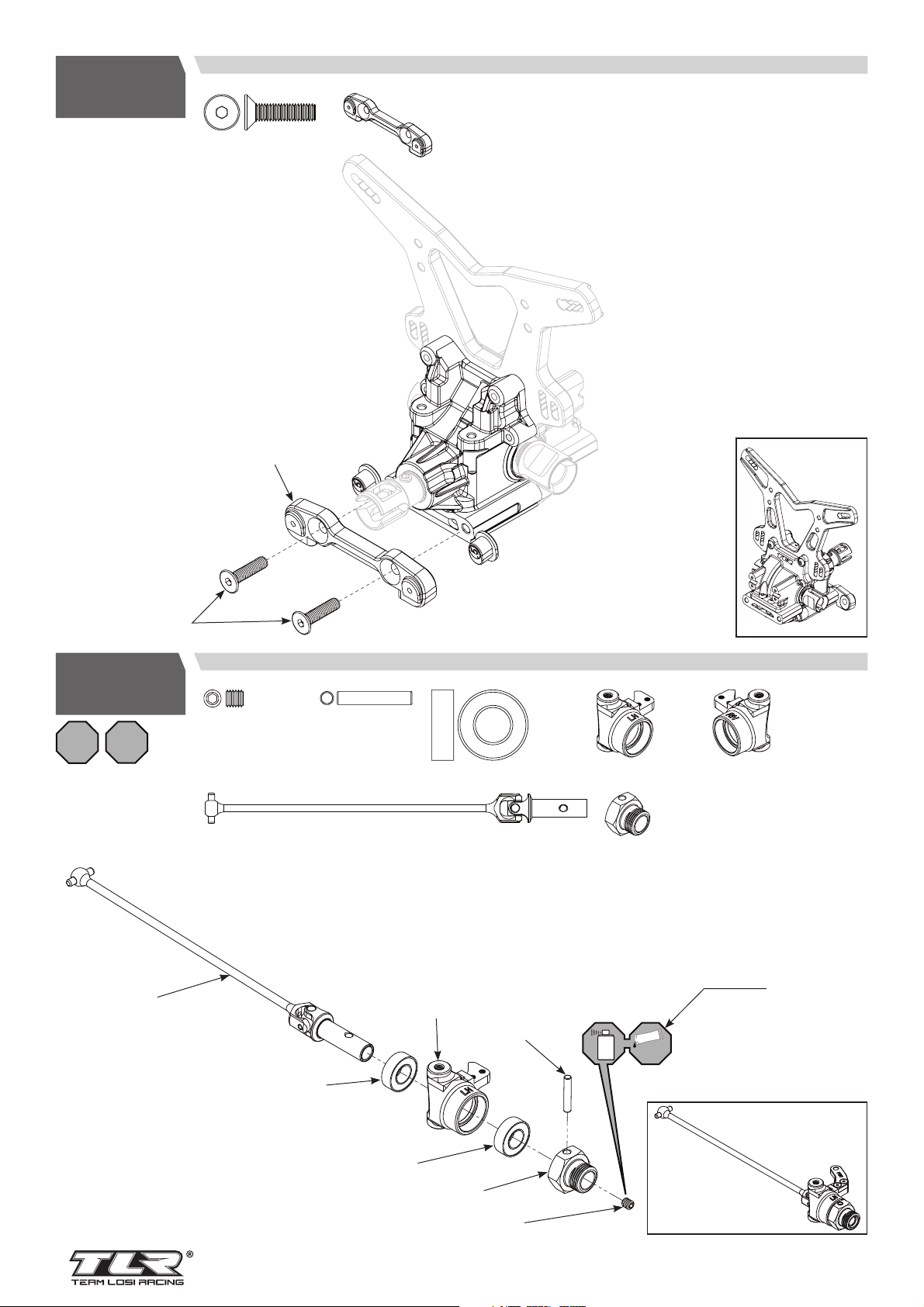

D7

LOS255017 x2 TLR244049 x1

M4 x 16mm FH

TLR244049

D8

L

L

R

R

TLR242040

LOS255017

L

TLR245015 x2 LOSA3518 x2 TLR244057 x1LOSA6942 x4

M4 x 4mm Setscrew

8 x 16 x 5mm

LR

TLR242040 x2 TLR242041 x2

TLR244057

LOSA3518

TLR-LOK

TLR244057 x1

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

LOSA6942

LOSA6942

TLR242041

TLR245015

22

L

L

L

23

L

R

R

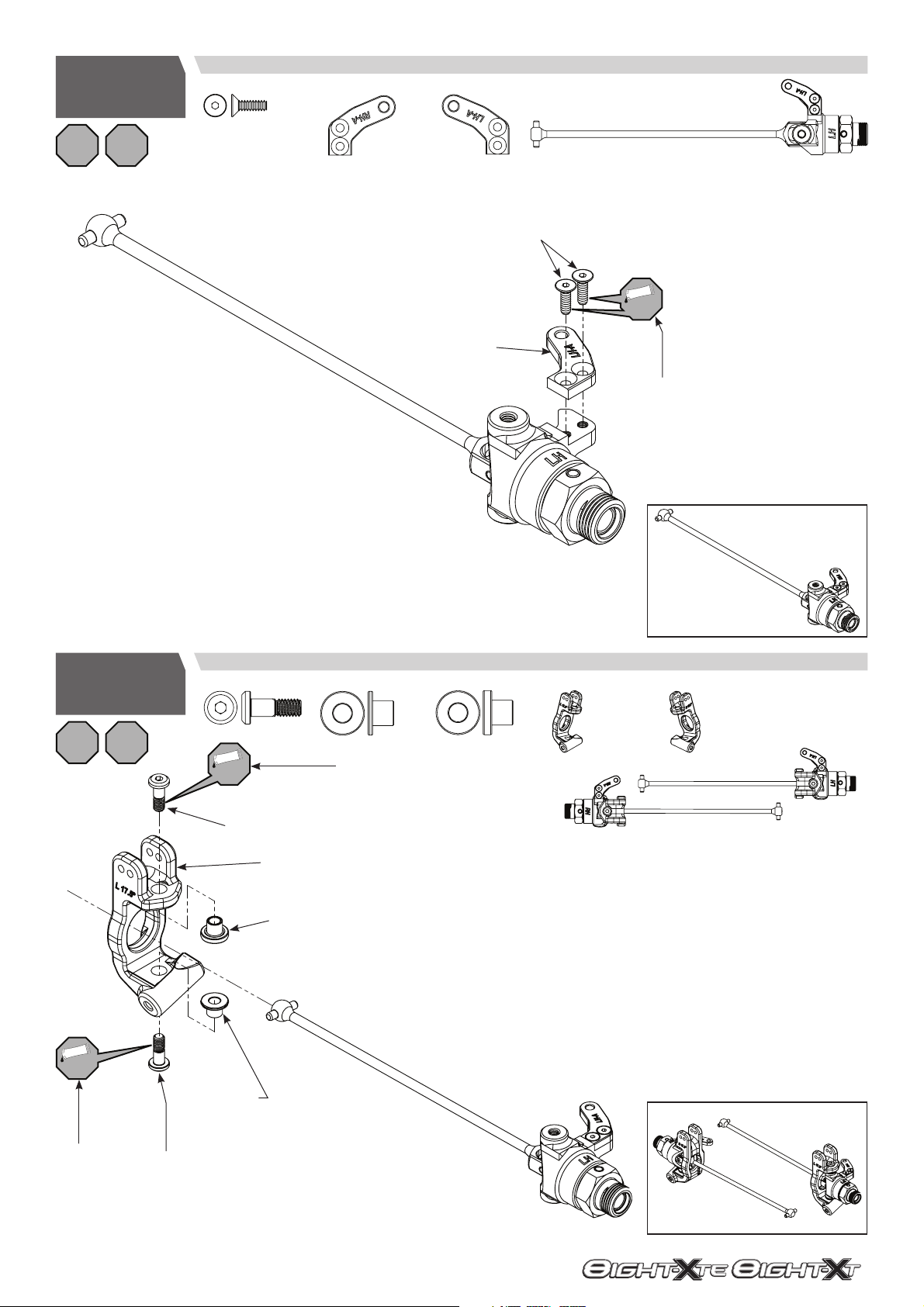

D9

L

LOS235009 x4 TLR244059 x1

M2.5 x 8mm FH

RL

TLR244059 x1

LOS235009

TLR-LOK

D10

L

L

R

R

L

TLR244059

TLR244045 x4 TLR244046 x2 TLR244046 x2 TLR244042 x1

TLR-LOK

TLR244045

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

1mm 2mm

LR

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

TLR244042 x1

TLR-LOK

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

TLR244045

TLR244046

1mm

TLR244042

TLR244046

2mm

23

L

L

24

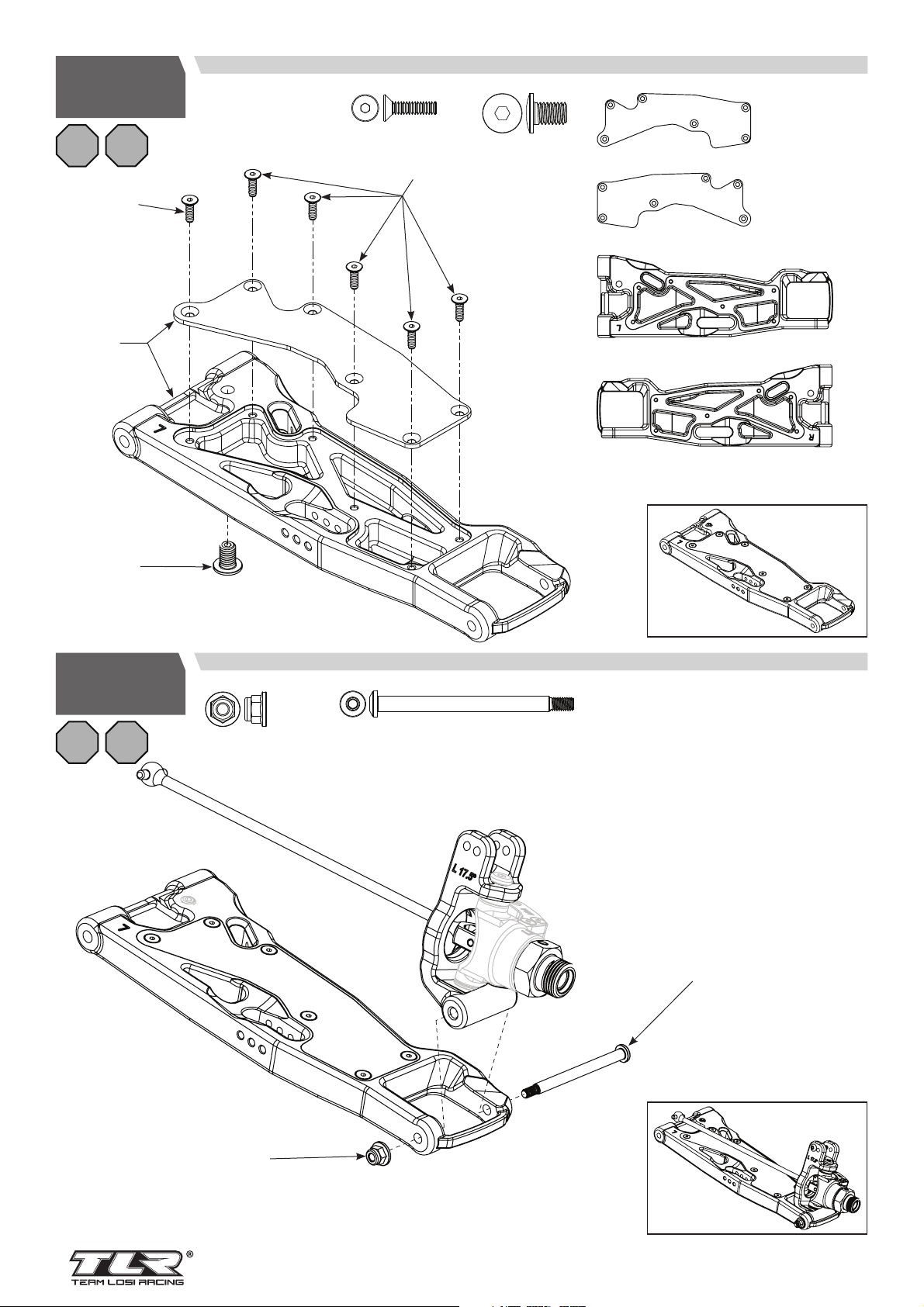

D11

L

L

R

R

L

LOS235009

LOS235009 x12 TLR245000 x2 TLR244069 x1

M2.5 x 8mm FH

LOS235009

TLR244069 x1

TLR244069 x1

L

R

TLR244069

TLR245000

D12

L

L

R

R

L

L

TLR244069 x1

R

TLR245016 x2 TLR244044 x2

M3 Flanged

TLR244044

TLR245016

24

25

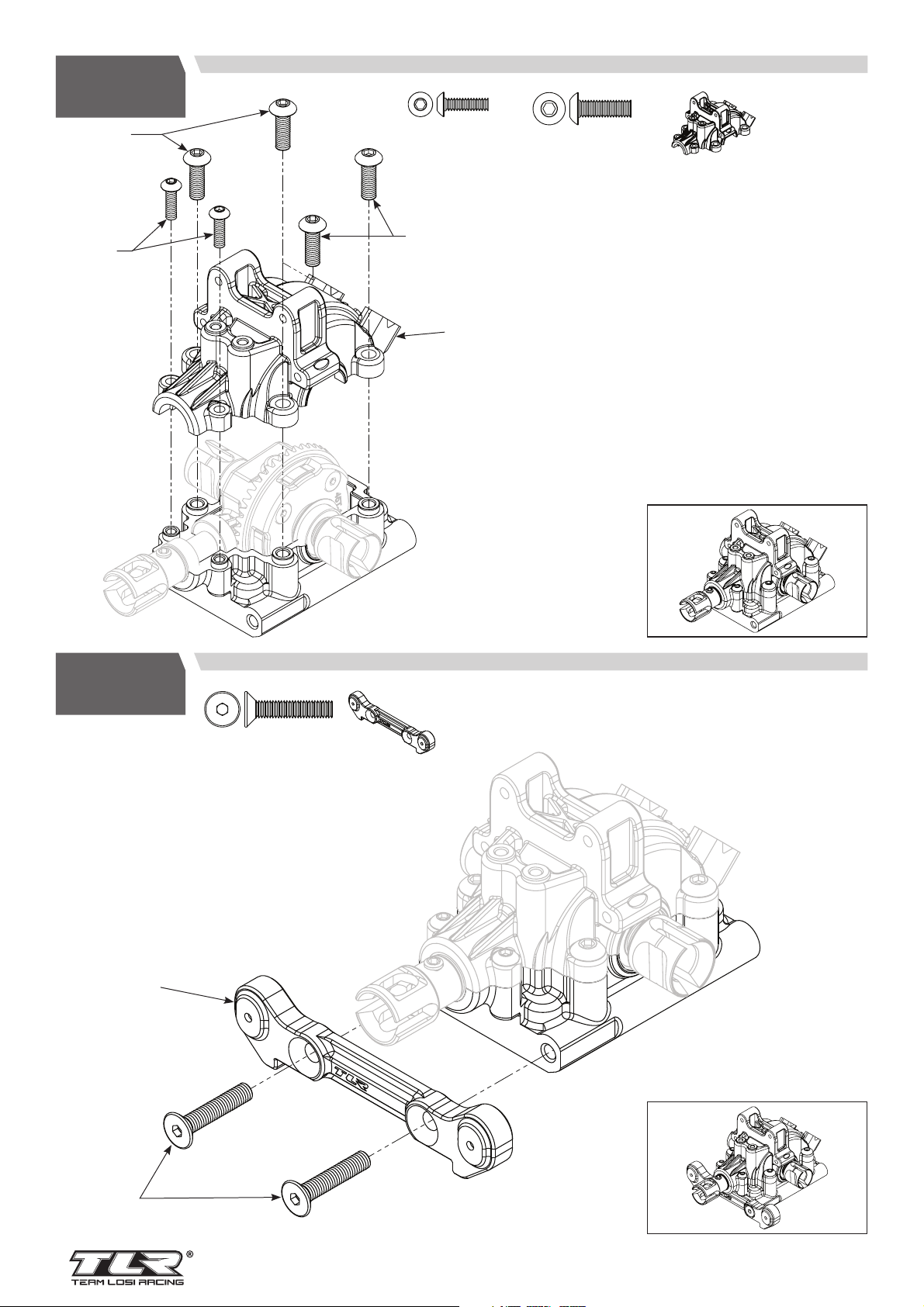

D13

TLR244049

1 Down

LOS255017

TLR244049 x2 TLR244049 x2 LOS255017 x2

TLR244043 x2 TLR244049 x1

TLR244043

TLR244043

TLR244049

TLR244049

1 Down

M4 x 16mm FH

TLR244049

.5 Up

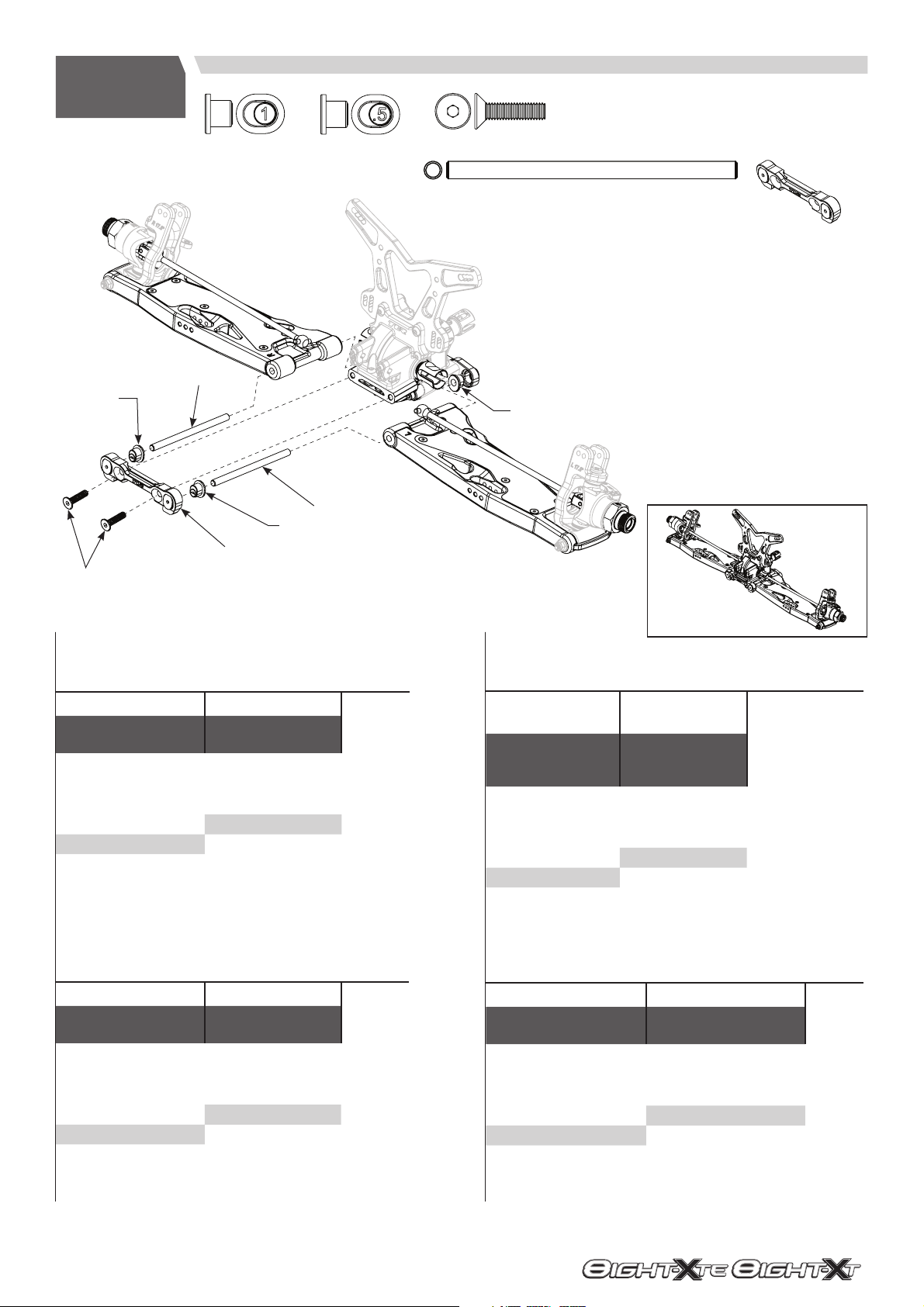

EN

Front Kick-Up Angle Adjustment

Outer Front Brace Inner Front Brace

Insert
Position

Up 1° Down 1° 14°

Up 0.5° Down 0.5° 13°
Middle 0° Middle 0° 12°
Down 0.5° Up 0.5° 11°
Down 1° Up 1° 10°

Insert
Number

Insert
Position

Insert
Number

DE

Total
Kick-Up

Winkel Einstellung Front Kick-Up

Halter Aussen Halter Innen

Einsatz
Position

Oben 1° Unten 1° 14°

Oben 0.5° Unten 0.5° 13°
Mitte 0° Mitte 0° 12°
Unten 0.5° Oben 0.5° 11°
Unten 1° Oben 1° 10°

Einsatz
Nr.

Einsatz
Position

Einsatz
Nr.

Gesamt
Kick-Up

FR

Réglage de l’angle d’anti-plongée avant

Renfort avant
extérieur

Position
de l’insert

Haut 1° Bas 1° 14°

Haut 0.5° Bas 0.5° 13°
Milieu 0° Milieu 0° 12°
Bas 0.5° Haut 0.5° 11°
Bas 1° Haut 1° 10°

Numéro
de l’insert

IT

Renfort avant
intérieur

Position
de l’insert

Numéro
de
l’insert

Angle d’anti­plongée total

Regolazione Angolo Anteriore

Supporto esterno anter. Supporto interno anter.

Posizione
inserim.

superiore 1° inferiore 1° 14°

superiore 0.5° inferiore 0.5° 13°
centrale 0° centrale 0° 12°
inferiore 0.5° superiore 0.5° 11°
inferiore 1° superiore 1° 10°

Numero
inserim.

Posizione
inserim.

Numero
inserim.

Angolo
totale

25

26

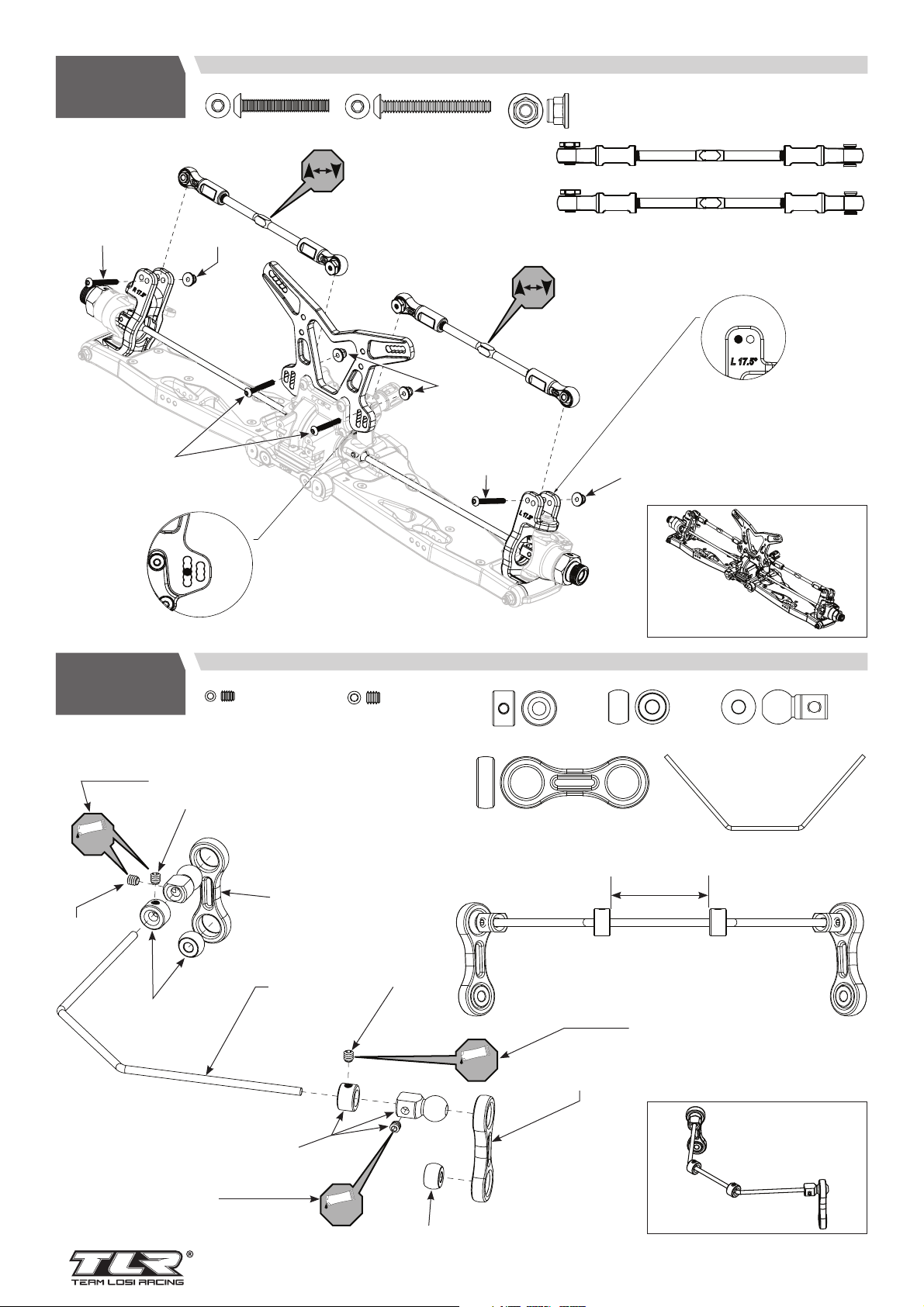

D14

TLR5911 x2 LOS235024 x2 TLR245016 x2

M3 x 20mm BH M3 x 25mm BH

M3 Flanged

LOS235024

D15

TLR5911

TLR245016

TLR245016

LOS235024

TLR245016

TLR244041 x2 TLR244041 x2 TLR244041 x2 TLR244041 x2 TLR244041 x2

M2.5 x 3mm Setscrew M2.5 x 3mm Setscrew

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

TLR-LOK

TLR244041

TLR244041

TLR244041

TLR244041

TLR334039

2.4mm

TLR244041

TLR244041

TLR244041 x2

TLR-LOK

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

TLR244041

TLR334039 x1

≈29.5mm

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

26

TLR-LOK

TLR244041

27

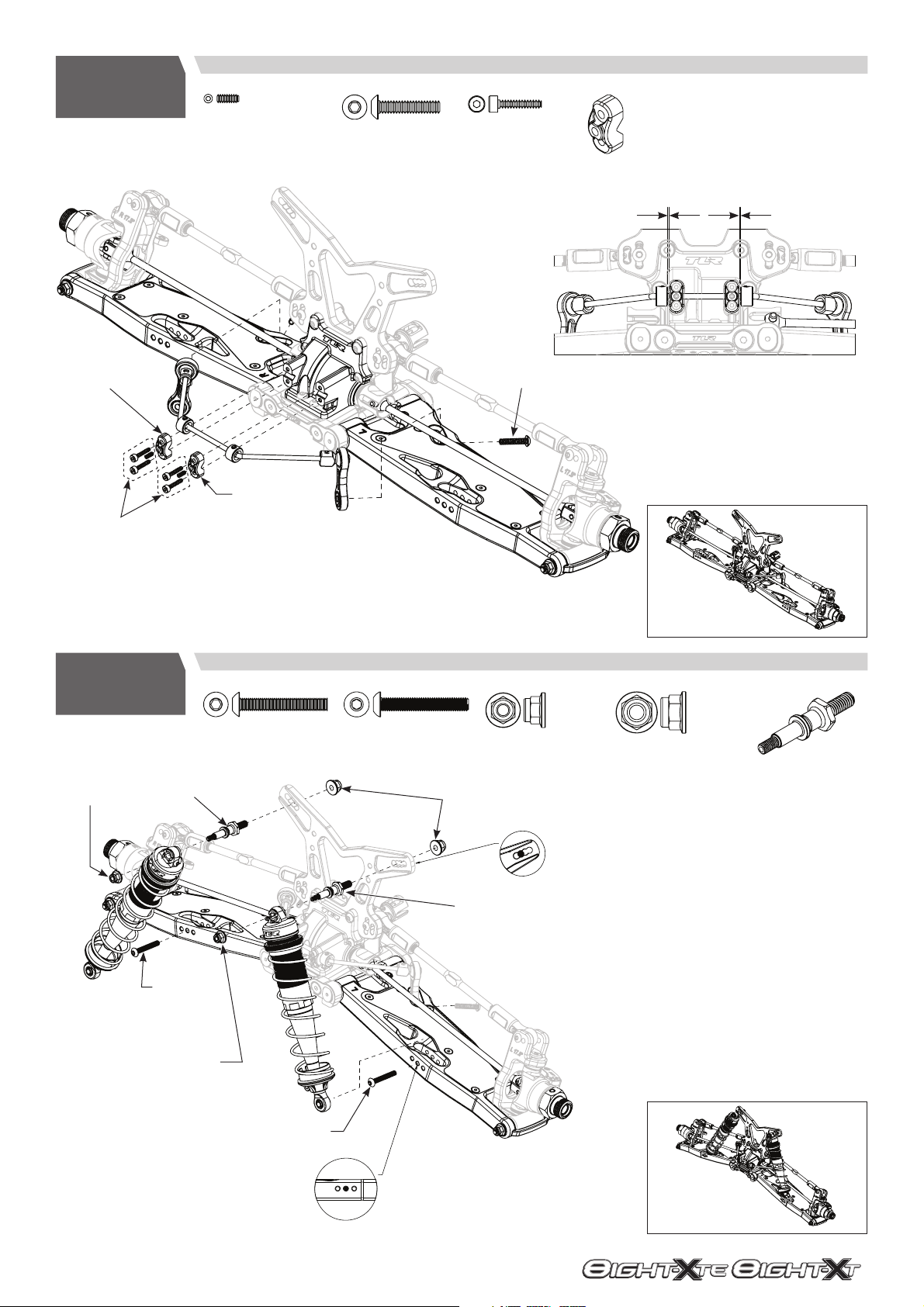

D16

TLR244041 x2 TLR5910 x2 TLR244041 x2 TLR242025 x2

M2.5 x 5mm Setscrew

M3 x 14mm BH

M2 x 10mm CH

0.5mm0.5mm

TLR242025

TLR244041

D17

TLR245016

TLR5910

TLR242025

TLR245006 x1 TLR5911 x1 TLR245016 x2 TLR245017 x2 TLR244056 x2

M3 x 20mm BH
(Left-Hand Silver)

TLR244056

M3 x 20mm BH

TLR245017

M3 Flanged

M4 Flanged

TLR245006

Silver

TLR245016

TLR5911

TLR244056

27

28

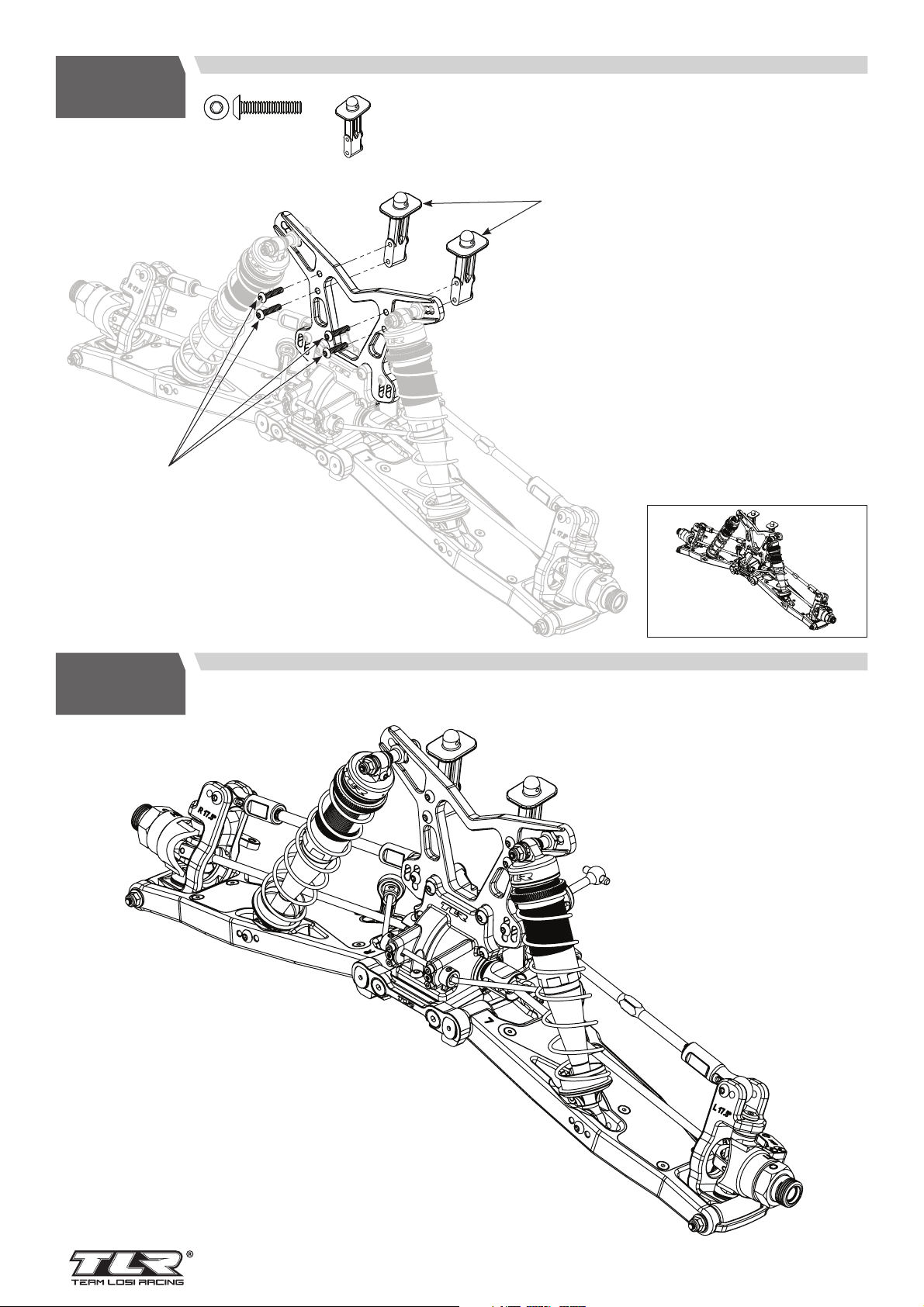

D18

TLR5910

TLR5910 x4 LOSA4433 x2

M3 x 14mm BH

LOSA4433

D19

28

29

E1

TLR242039 x1

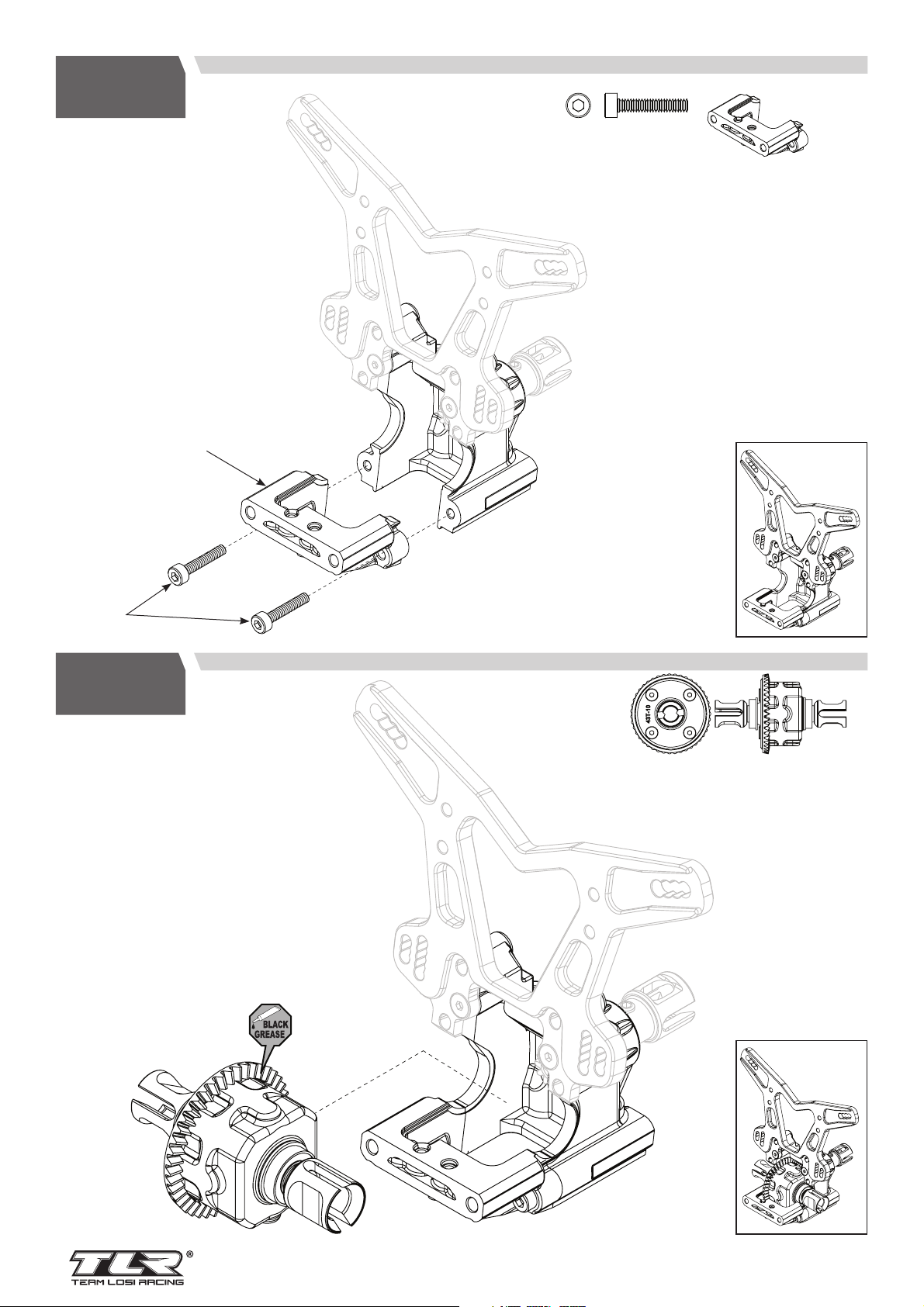

EN Rear Clip Assembly
DE Zusammenbau der Hinterachse
FR Installation du train arrière
IT Assemblaggio clip posteriore

TLR245015

E2

LOSA4452 x4 TLR242043 x1

TLR-LOK

TLR242028

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

LOSA6947

TLR242039

LOSA6955

TLR242019

EN Shim as necessary to achieve the correct gear

mesh

DE Unterlegscheibe zum Erreichen des korrekten

Zahneingriffs nach Bedarf erforderlich

FR Calez de manière appropriée pour obtenir le

bon engrènement

IT Inserire i rasamenti necessari per ottenere gli

ingranaggi corretti

LOSA4452

0.1mm

TLR242043

LOSA4452

0.1mm

29

30

E3

TLR255007

TLR5903 x2 TLR255007 x4 TLR242043 x1

M3 x 10mm BH

M4 x 12mm BH

TLR5903

E4

TLR255007

TLR242043

TLR255014 x2 TLR241063 x1

TLR241063

M4 x 20mm FH

30

TLR255014

L

L

L

31

L

R

R

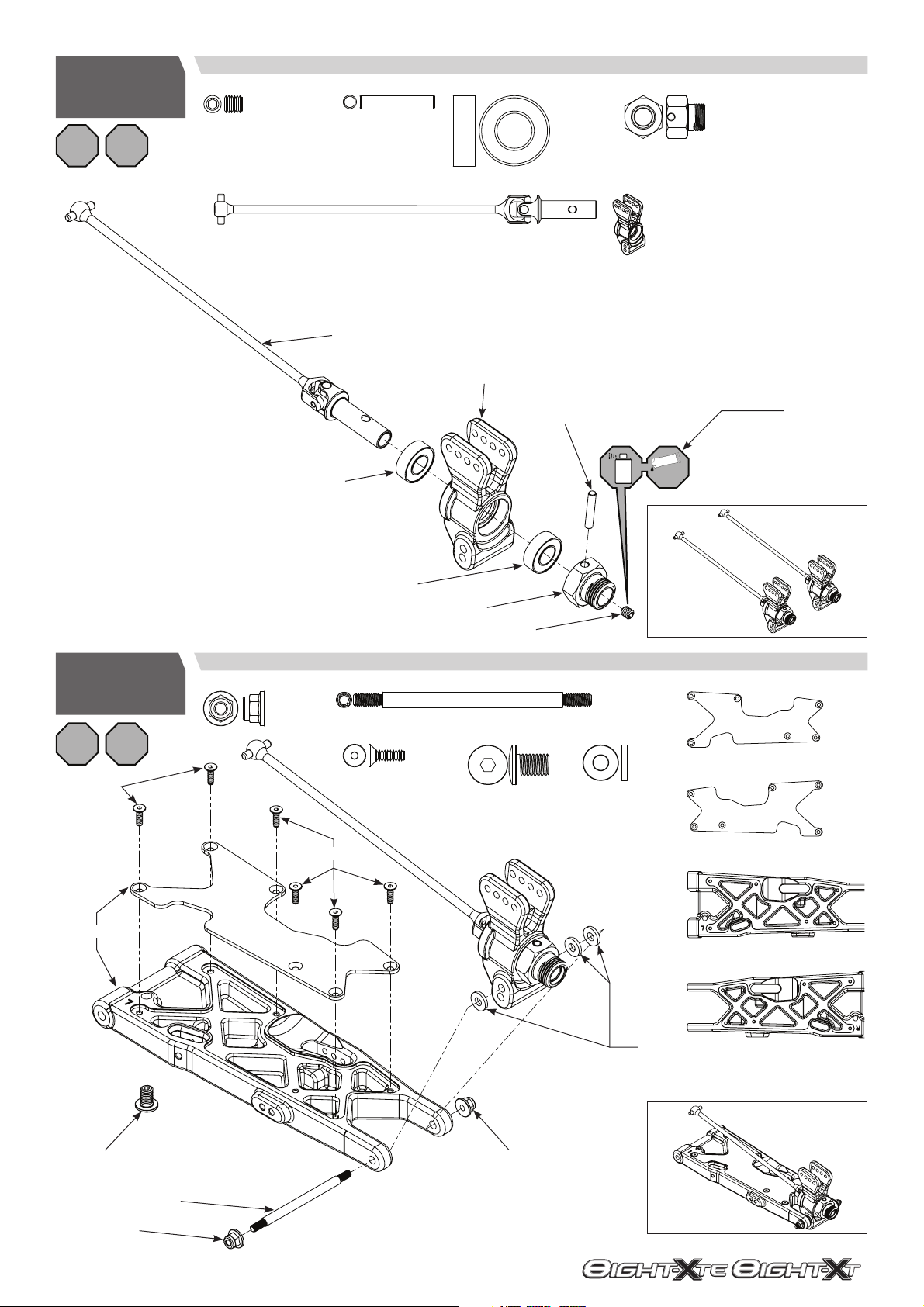

E5

L

TLR245015 x2 LOSA3518 x2 LOSA6942 x4 TLR242042 x2

M4 x 4mm Setscrew

8 x 16 x 5mm

TLR242040 x2 TLR244037 x2

TLR242040

E6

L

L

R

R

TLR235009

L

LOSA6942

LOSA6942

TLR245016 x4 TLR244044 x2

M3 Flanged

TLR235009 x12 TLR245000 x2 TLR244070 x6

M2.5 x 8 FH

TLR244037

TLR242042

TLR245015

LOSA3518

TLR-LOK

TLR244070 x1

TLR244070 x1

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

L

TLR244070

TLR245000

TLR244044

TLR245016

TLR235009

TLR245016

TLR244070 x1

TLR244070 x1

TLR244070

R

31

32

E7

TLR5904 x2 TLR255014 x2 TLR241063 x2 TLR241063 x2 TLR241063 x1

TLR244043

M3 x 12mm BH

TLR241062

TLR241063

0.5 Down

M4 x 20mm FH

TLR244043 x2 TLR241062 x1

TLR5904

TLR241063

0

TLR255014

TLR241063

TLR241063

0

TLR244043

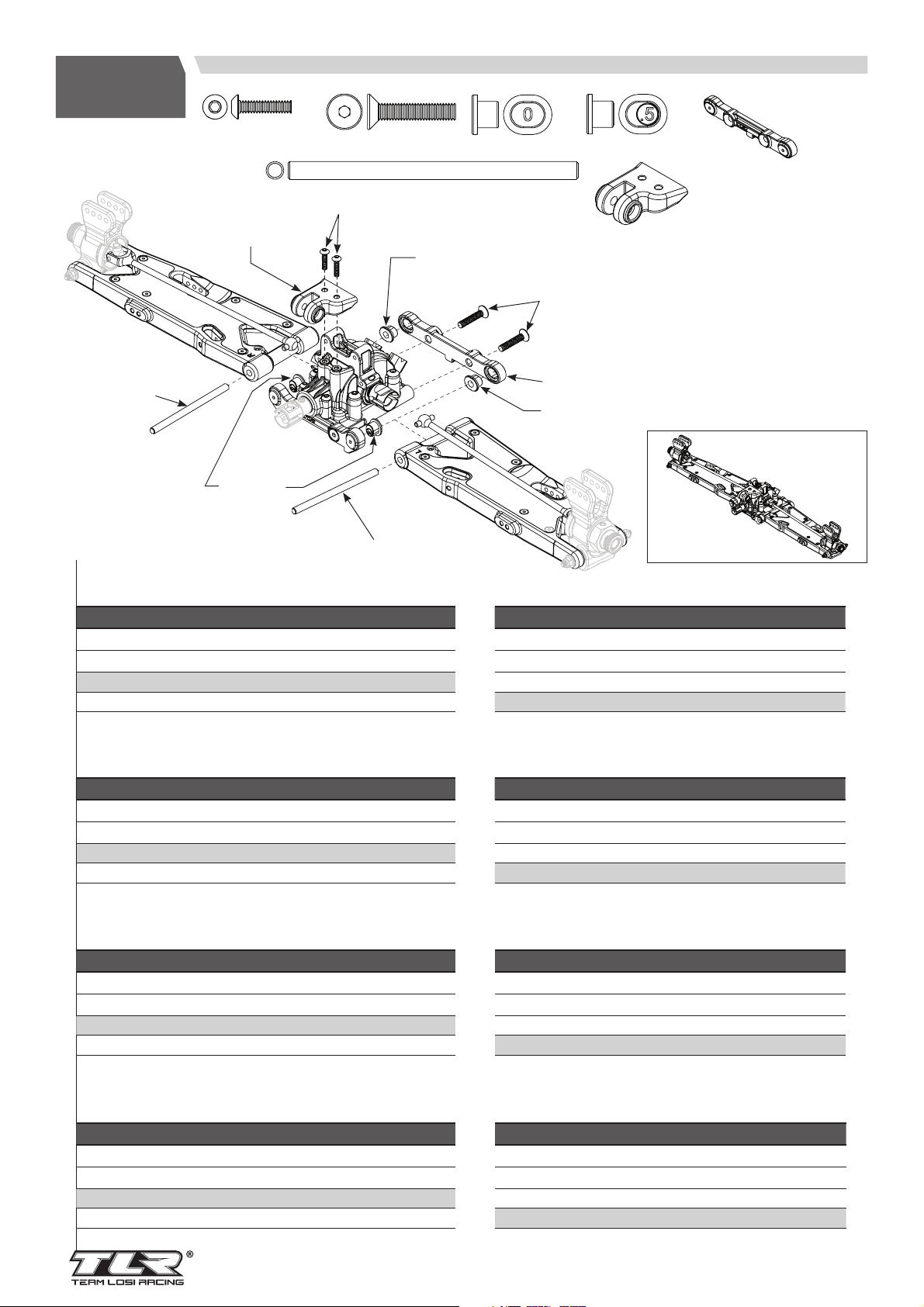

Rear Toe-In Adjustment

Insert Position Insert Number Total Toe-In

Inside 1 2°

Inside 0.5 2.5°

Middle 0 3°
Outside 0.5 3.5°
Outside 1 4°

DE

Spureinstellung Hinten

Einsatz Position Einsatz Nr. Vorspur

Innen 1 2°

Innen 0.5 2.5°

Mitte 0 3°
Aussen 0.5 3.5°
Aussen 1 4°

FR

Réglage du pincement arrière

Position de l’insert Numéro de l’insert Pincement arrière total

Intérieur 1 2°

Intérieur 0.5 2.5°

Milieu 0 3°
Extérieur 0.5 3.5°
Extérieur 1 4°

IT

Regolazione Convergenza Posteriore

Posizione inserim. Numero inserim. Convergenza tot.

Interno 1 2°

Interno 0.5 2.5°

Centrale 0 3°
Esterno 0.5 3.5°
Esterno 1 4°

Rear Anti-Squat Adjustment

Insert Position Insert Number Total Anti-Squat

Up 1 3°

Up 0.5 2.5°

Middle 0 2°
Down 0.5 1.5°
Down 1 1°

Anti Squat Einstellung hinten

Einsatz Position Einsatz Nr. Anti Squat

Oben 1 3°

Oben 0.5 2.5°

Mitte 0 2°
Unten 0.5 1.5°
Unten 1 1°

Réglage de l’anti-cabrage

Position de l’insert Numéro de l’insert Anti-cabrage total

Haut 1 3°

Haut 0.5 2.5°

Milieu 0 2°
Bas 0.5 1.5°
Bas 1 1°

Regolazione Anti Squat Posteriore

Posizione inserim. Numero inserim. Anti-Squat tot.

Superiore 1 3°

Superiore 0.5 2.5°

Centrale 0 2°
Inferiore 0.5 1.5°
Inferiore 1 1°

32

33

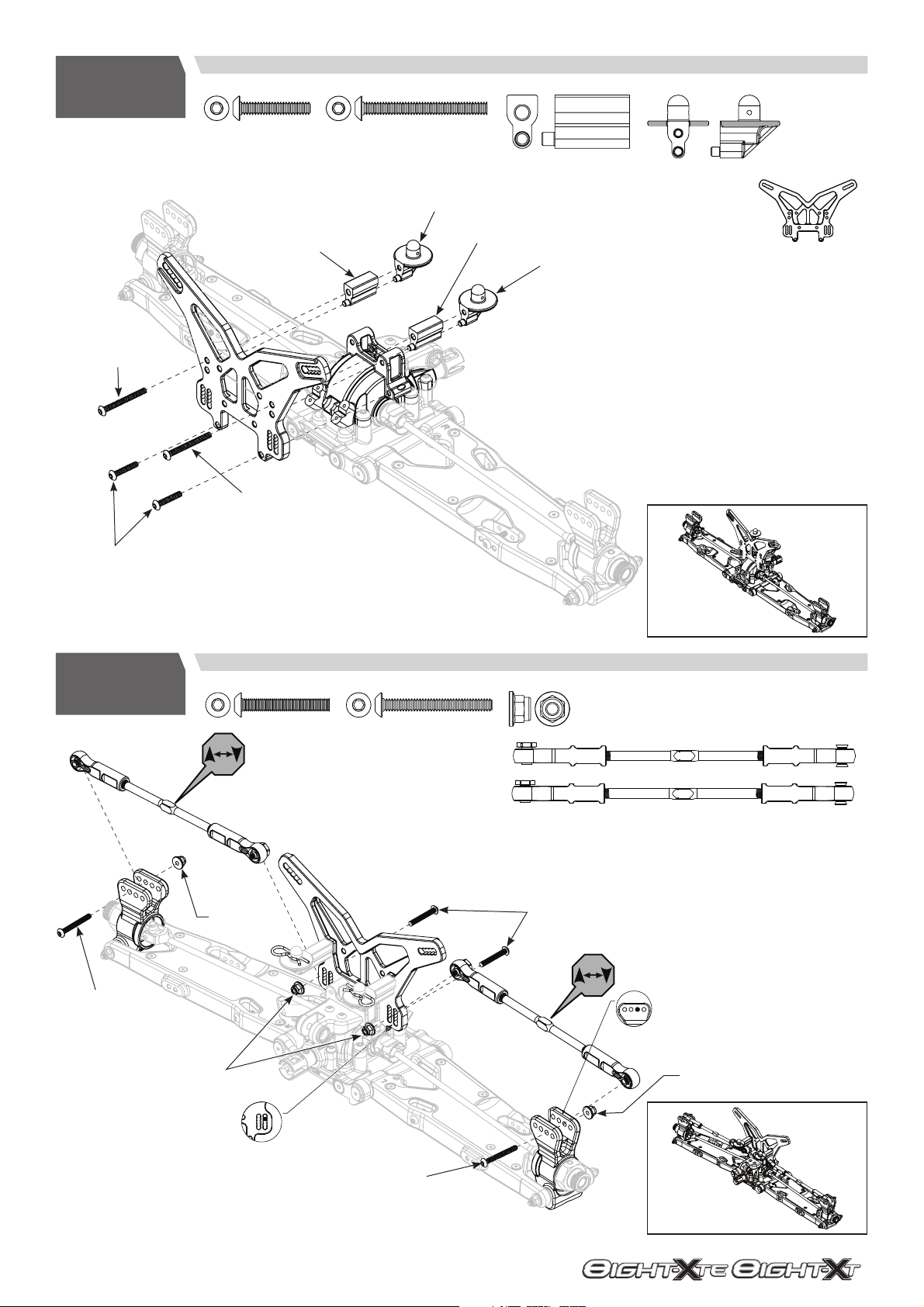

E8

LOS235025

TLR5905 x2 LOS235025 x2 TLR241031 x2 LOSA4433 x2

M3 x 16mm BH M3 x 30mm BH

LOSA4433

TLR241031

TLR241031

LOS235025

LOSA4433

TLR244072 x1

TLR5905

E9

LOS235024

TLR5911 x2 LOS235024 x2 TLR245016 x4

M3 x 20mm BH M3 x 25mm BH

TLR245016

M3 Flanged

TLR5911

TLR245016

LOS235024

TLR245016

33

34

E10

TLR244041 x2 TLR244041 x2TLR244041 x2 TLR244041 x2

M2.5 x 3mm Setscrew

TLR344039 x1

TLR244041

TLR244041

TLR244041 x1

TLR-LOK

TLR-LOK

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

E11

TLR334039

2.8mm

TLR-LOK

Center

TLR244041 x2 TLR244041 x4 TLR5910 x2 TLR242043 x2

M2.5 x 5mm Setscrew

M2.5 x 10mm CH

M3 x 14mm BH

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

TLR242043

TLR244041

34

TLR5910

TLR5910

TLR242043

35

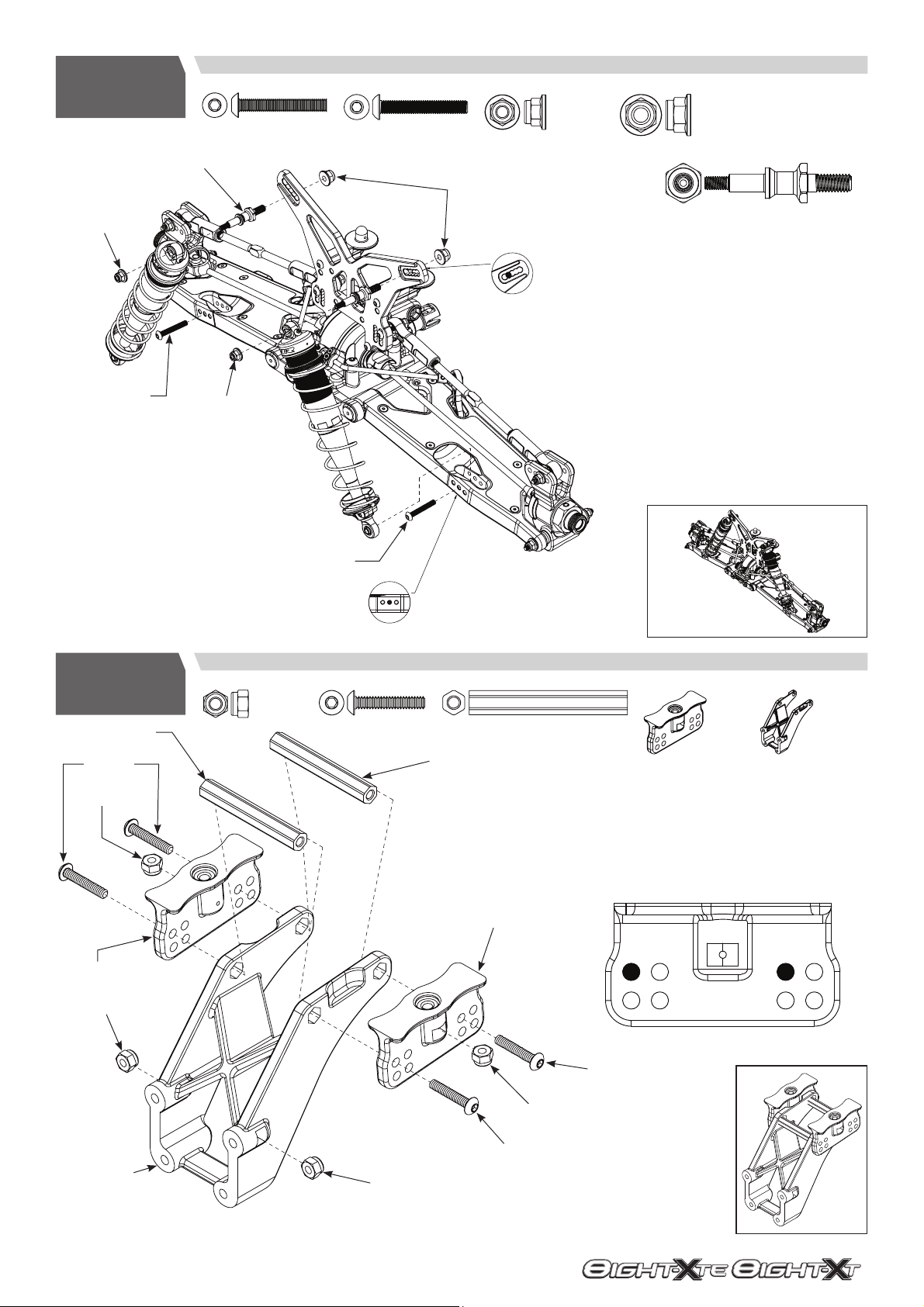

E12

TLR245016

TLR245006 x1 TLR5911 x1 TLR245016 x2 TLR245017 x2

M3 x 20mm BH
Left-Hand (Silver)

TLR244056

M3 x 20mm BH

TLR245017

M3 Flanged

M4 Flanged

TLR244056 x2

TLR245006

Silver

E13

TLR240016

TLR5909

TLR6313

TLR245016

TLR5911

TLR6313 x4 TLR5909 x4 TLR240016 x2 TLR240016 x2 TLR240016 x1

M3 Locknut

M3 x 16mm BH

TLR240016

TLR240016

TLR6313

TLR240016

TLR6313

TLR240016

TLR5909

TLR6313

TLR5909

35

36

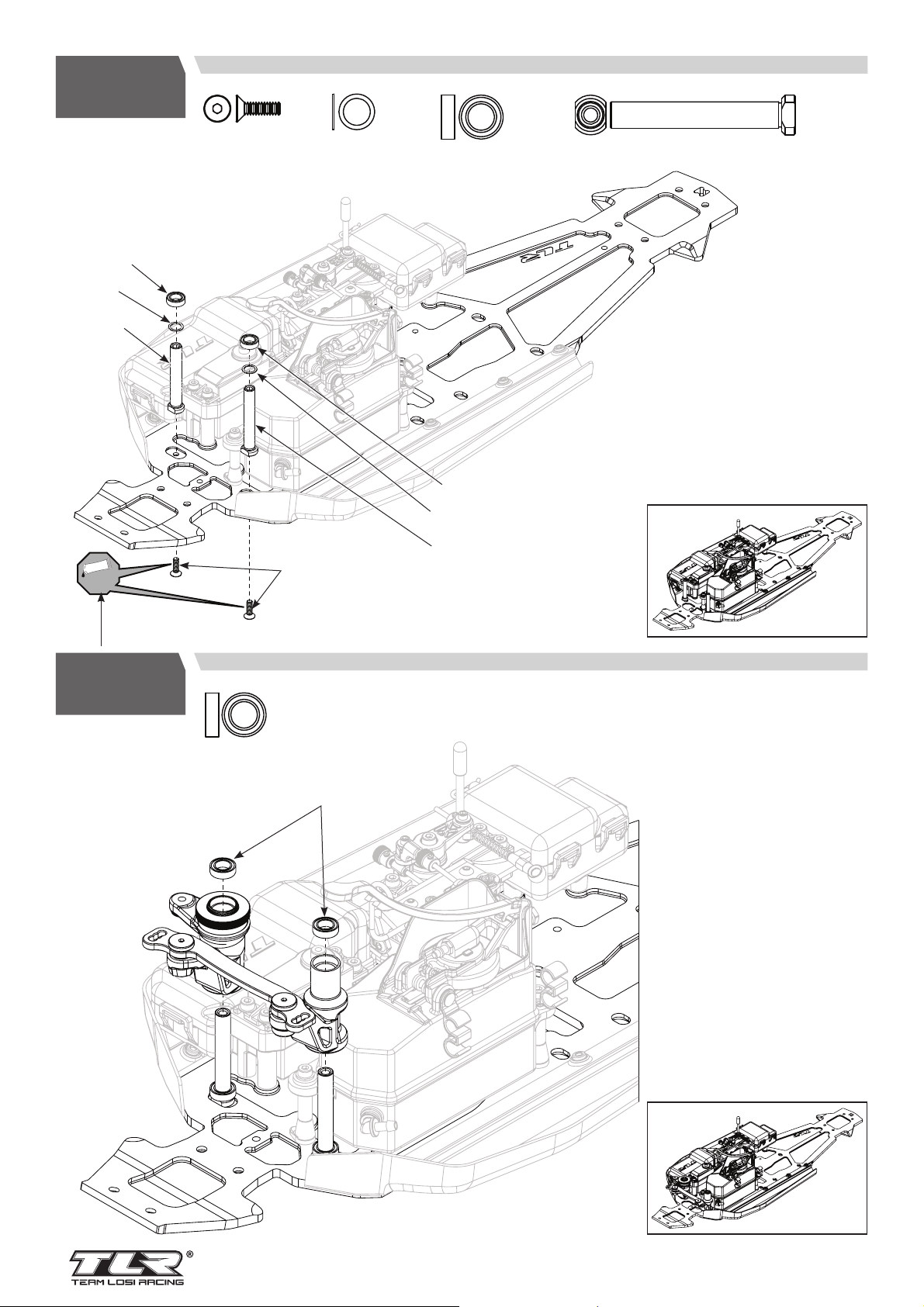

E14

TLR240010 x4 TLR240010 x4 TLR240010 x1 TLR240010 x1

M2 x 6mm BH

M2 Locknut

TLR240010

TLR240010

E15

TLR240010

TLR240010

TLR5904 x2 TLR5911 x2 TLR5964 x2 TLR240010 x2

M3 x 12mm BH M3 x 20mm BH M3 x 16mm FH

TLR5964

TLR240010

TLR5904

TLR5911

36

37

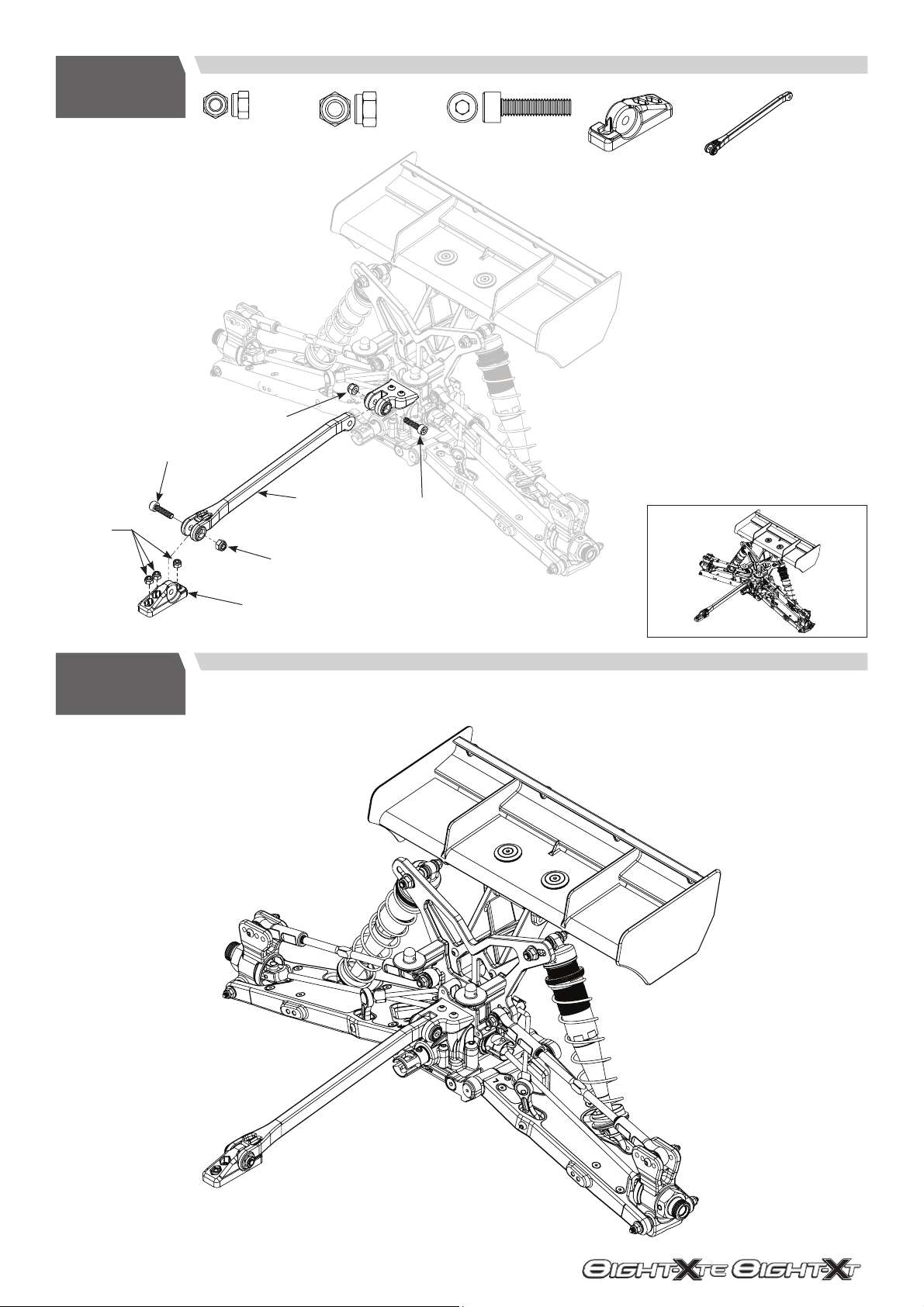

E16

TLR245009

TLR6313 x3 TLR256005 x2 TLR245009 x2 TLR241062 x1 TLR241062 x1

M3 Locknut

TLR256005

M4 Locknut

M4 x 16mm CH

TLR6313

E17

TLR256005

TLR241062

TLR241062

TLR245009

37

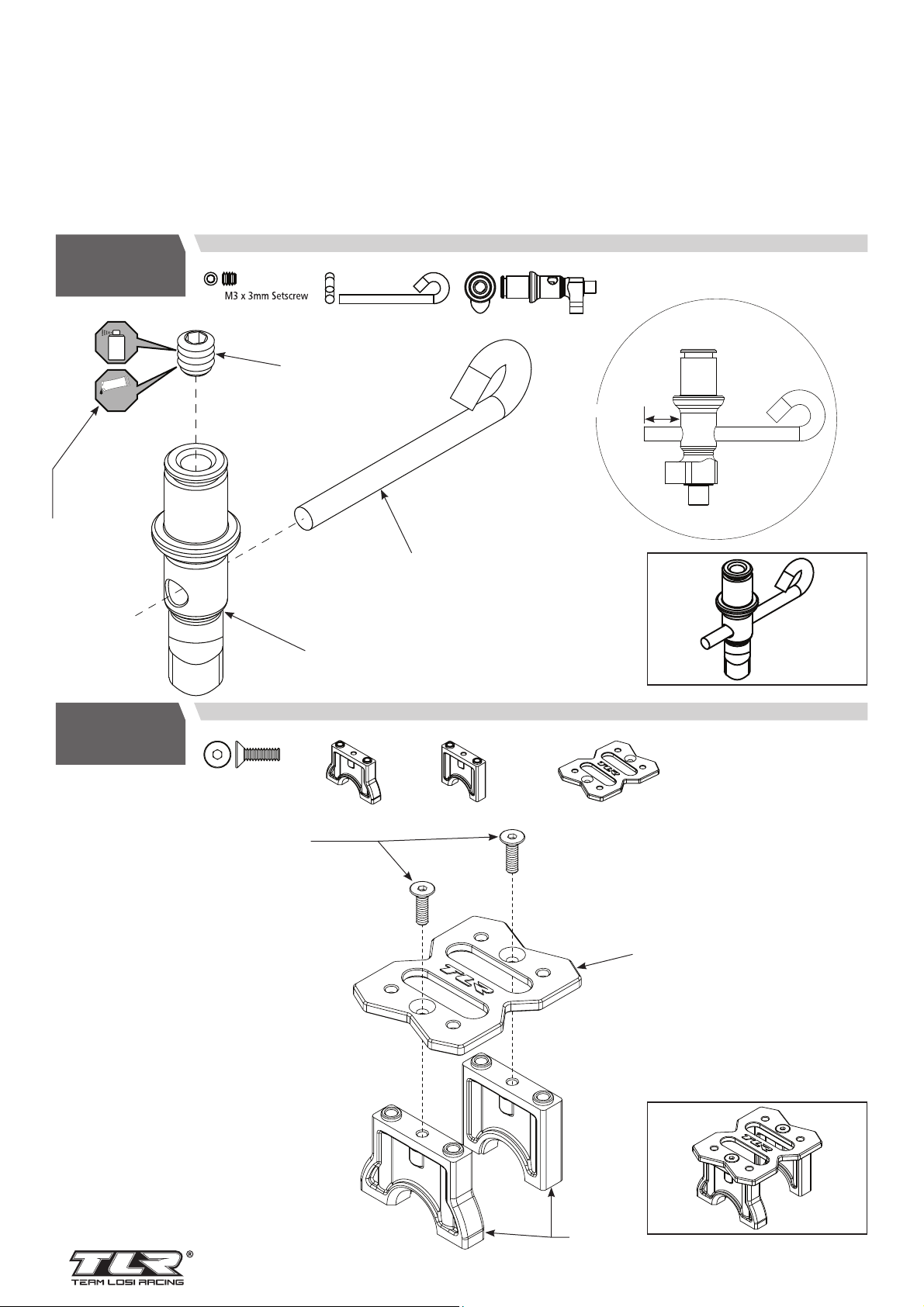

EN The 8IGHT-XT can be assembled in either a Nitro or an Electric confi guration. Assembly steps labeled with an “N”, such

38

as F1-N, indicate Nitro and “E”, such as F1-E, indicate Electric.

DE Der 8IGHT-XT kann entweder in der Nitro- oder der Elektro-Konfi guration zusammengebaut werden. Die

Montageschritte mit einem „N“ wie etwas F1-N weisen auf Nitro hin, während „E“ wie F1-E die Elektro-Version
meinen.

FR Le 8IGHT-XT peut être assemblé en confi guration nitro ou électrique. Les étapes d’assemblage indiquées avec un « N »,

comme F1-N, correspondent au nitro, et celles avec un « E », comme F1-E, correspondent à l’électrique.

IT Il modello 8IGHT-XT può essere montato sia nella confi gurazione nitro che in quella elettrica. Le fasi di montaggio

contrassegnate dalla lettera “N”, come ad esempio F1-N, indicano la confi gurazione nitro, mentre quelle
contrassegnate dalla lettera “E”, come ad esempio F1-E, indicano la confi gurazione elettrica.

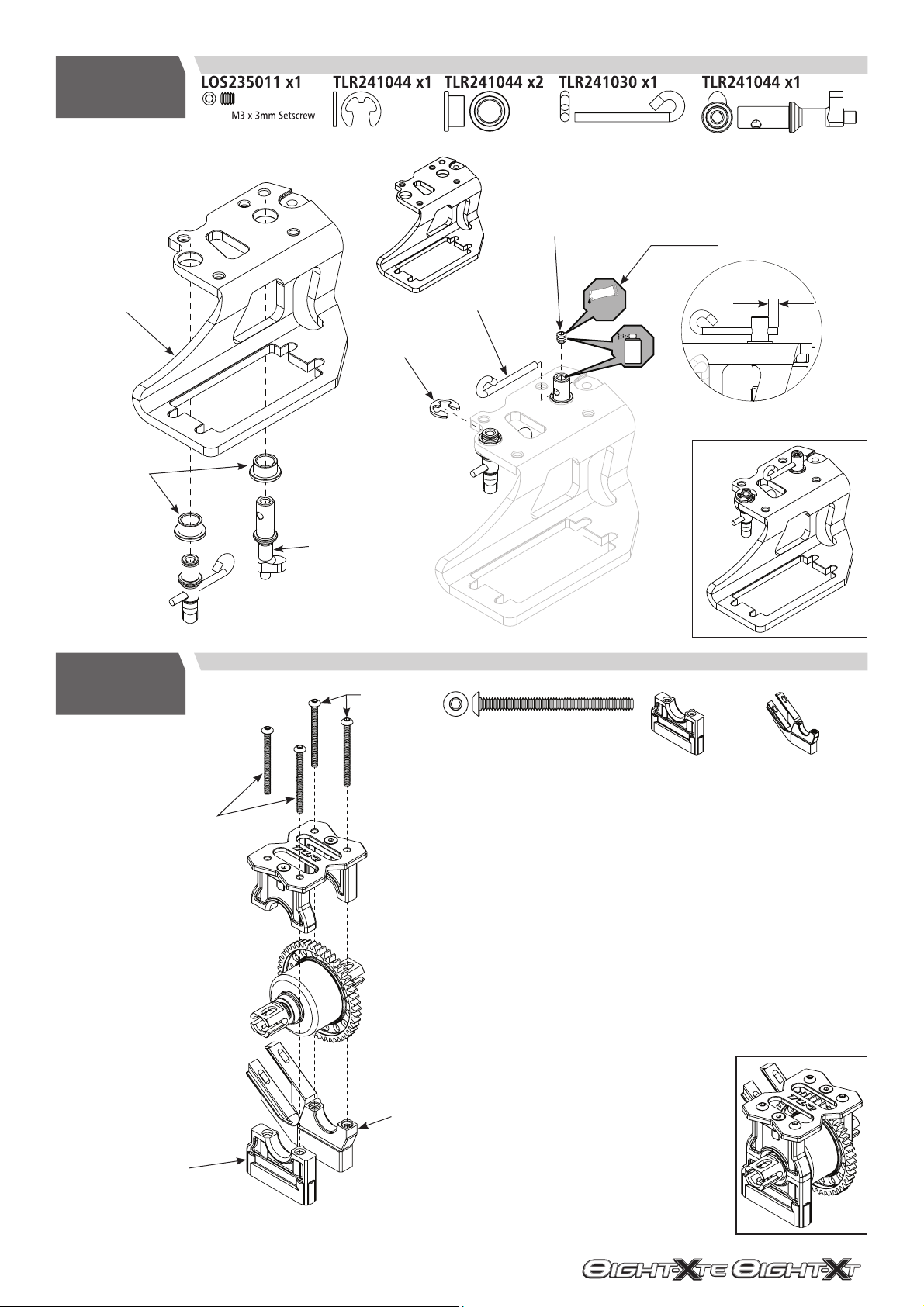

F1-N

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

LOS235011 x1 TLR241030 x1 TLR241044 x1

LOS235011

TLR-LOK

5.00mm

TLR241030

TLR241044

F1-E

TLR5961 x2 TLR241066 x1 TLR241066 x1 TLR241066 x1

M3 x 8mm FH

TLR5961

EN May require parts from

E-Truggy Bag

DE Kann Teile aus dem Beutel

für E-Truggy erfordern

FR Peut nécessiter des pièces

du sachet E-Truggy

IT Possono essere necessarie

parti incluse nella bustina
E-Truggy

TLR241066

TLR241066

38

39

F2-N

TLR241042 x1

LOS235011

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

TLR241042

TLR241044

F2-E

TLR241044

TLR241044

TLR5906

TLR241030

TLR-LOK

2.50mm

TLR5906 x4 TLR241066 x1 TLR241067 x1

M3 x 35mm BH

TLR5906

TLR241066

EN Skip to Step F12-E on Page 45 when building the 8IGHT-XTE.
DE Weiter mit Schritt F12-E auf Seite 45 für den Zusammenbau des

8IGHT-XTE.

FR Passez à l’étape F12-E à la page 45 lors de l’assemblage du

8IGHT-XTE.

IT Passare alla fase F12-E a pagina 45 se si sta realizzando il

modello 8IGHT-XTE.

TLR241067

39

40

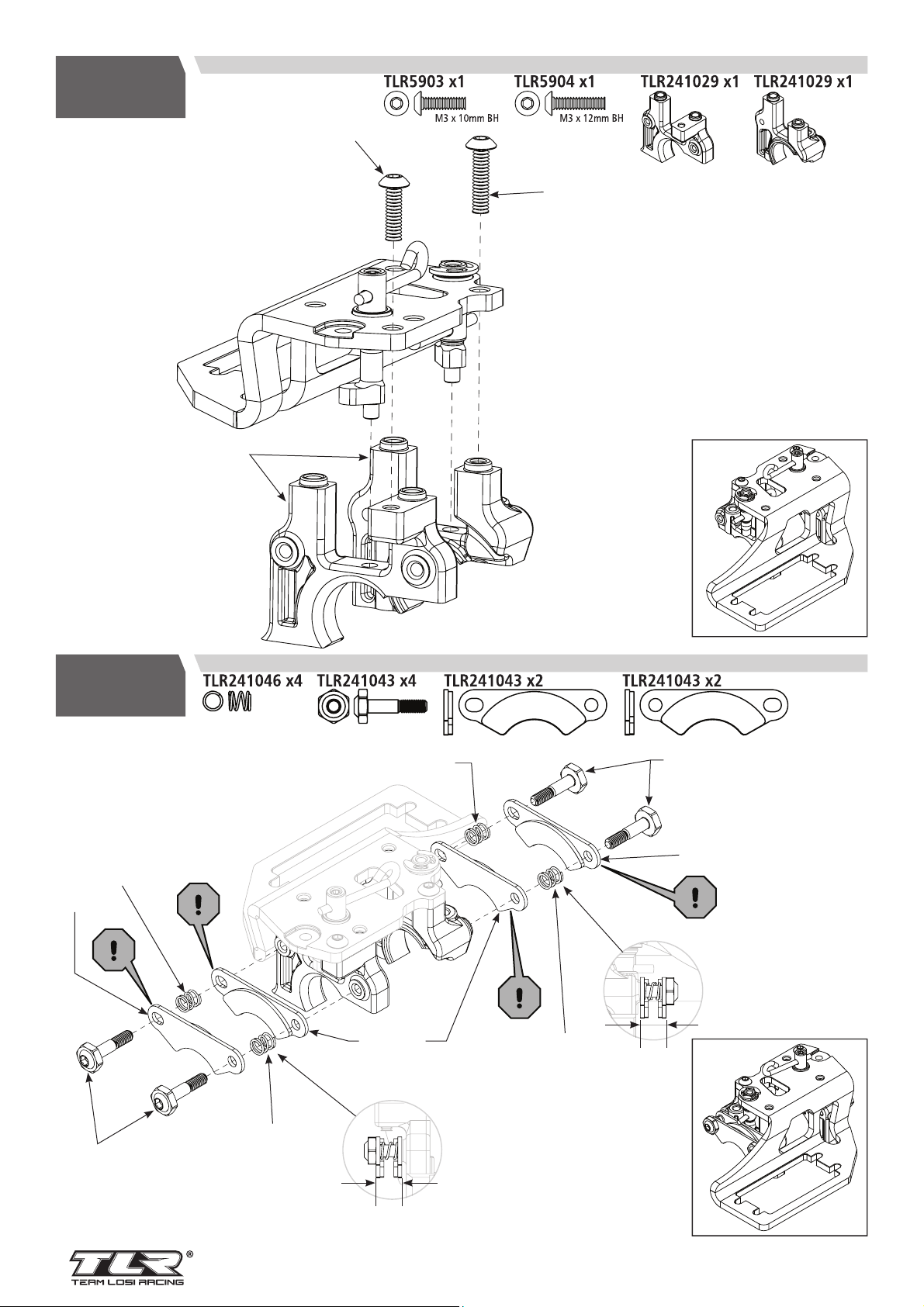

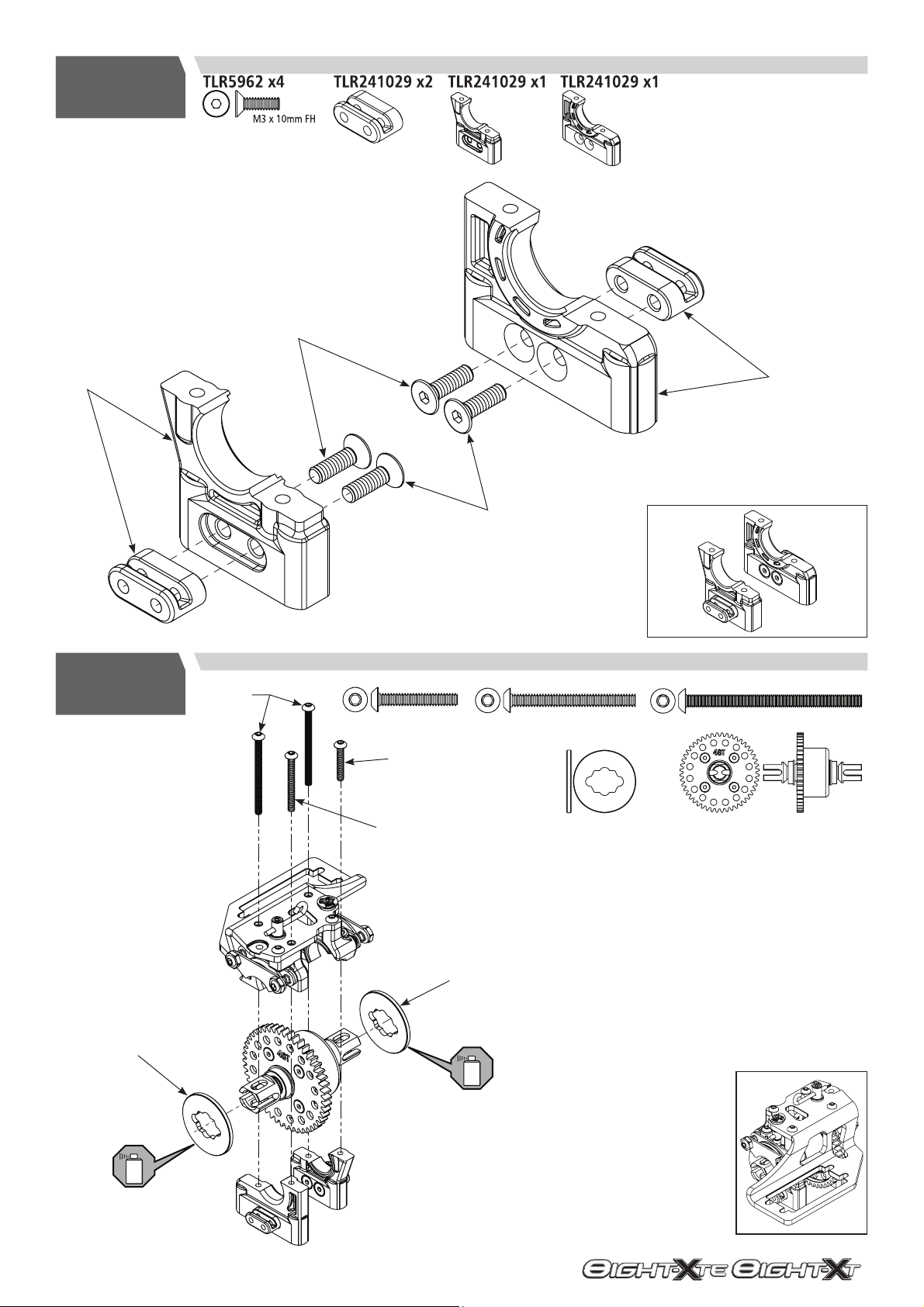

F3-N

TLR5903

TLR5904

TLR241029

F4-N

TLR241046

TLR241043

TLR241046

TLR241046

TLR241046

TLR241043

TLR241043

TLR241043

6.50mm

TLR241046

6.50mm

40

41

F5-N

TLR5962

TLR241029

F6-N

TLR241029

TLR5962

TLR5904 x1 LOS235025 x1 TLR5907 x2

TLR5907

M3 x 18mm BH M3 x 30mm BH M3 x 40mm BH

TLR241045 x2

TLR5904

TLR241045

LOS235025

TLR241045

41

42

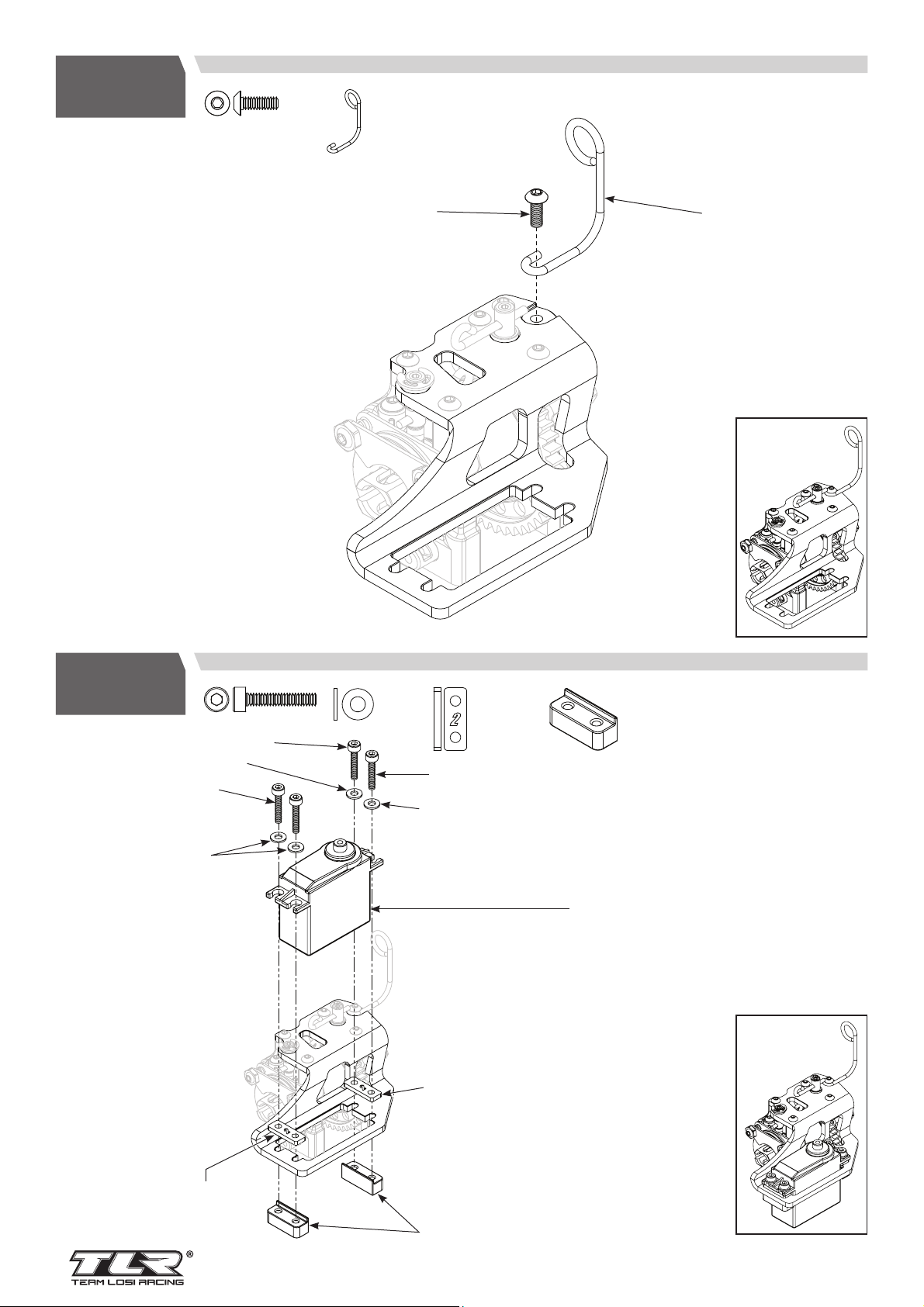

F7-N

TLR5902 x1 TLR241039 x1

M3 x 8mm BH

TLR5903

TLR241039

F8-N

TLR5934 x4 TLR241030 x2 TLR241030 x2TLR6352 x4

M3 x 16mm CH

TLR5934

TLR6352

TLR5934

TLR6352

TLR5934

TLR6352

EN Not included
DE Nicht enthalten
FR Non fourni
IT Non inclusa

TLR241030

TLR241030

TLR241030

42

F9-N

43

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

TLR241030

TLR-LOK

TLR-LOK

TLR-LOK

TLR241030

TLR241030

TLR241030

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

F10-N

TLR247000

LOSA6294 x1 LOSA6236 x1 TLR241030 x2 TLR241030 x1 TLR247000 x2 TLR241030 x1

LOSA6236

LOSA6294

TLR241030

TLR241030

TLR247000

TLR241030

43

44

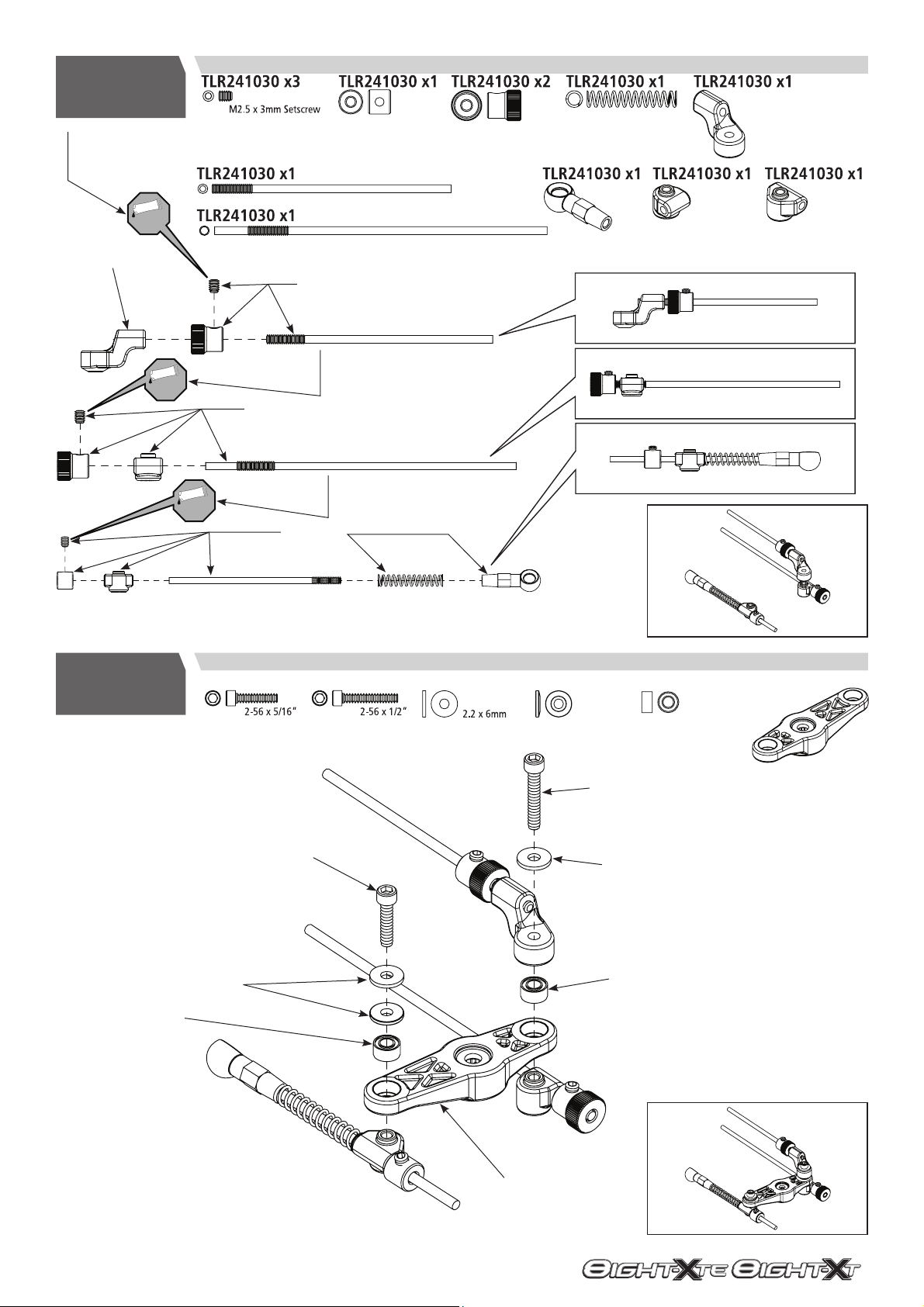

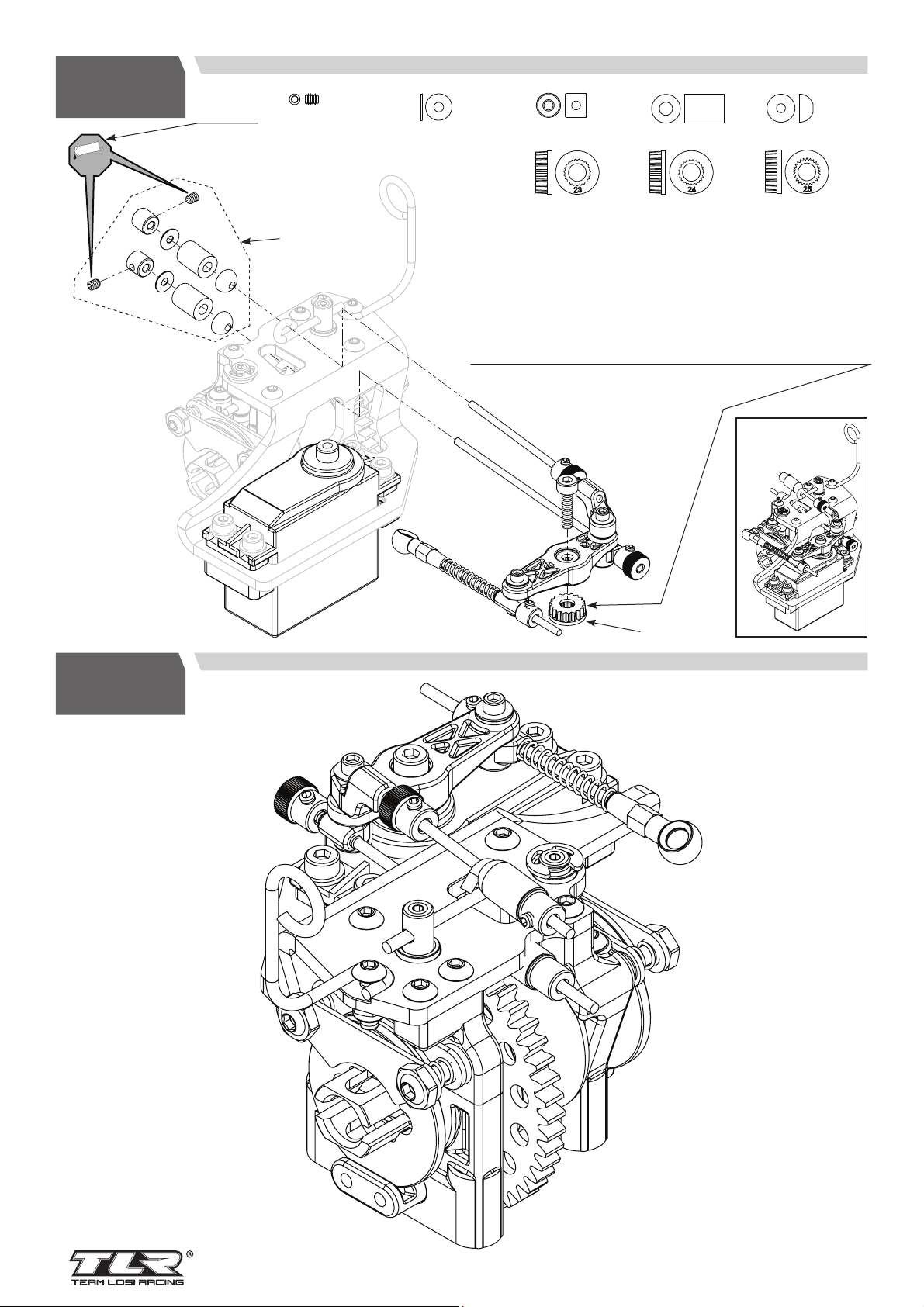

F11-N

TLR-LOK

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

TLR241030 x2 TLR241030 x2 TLR241030 x2 TLR241030 x2 TLR241030 x2

M2.5 x 3mm Setscrew

M2.5 x 6mm

TLR241030 x1 TLR241030 x1 TLR241030 x1

TLR241030

EN Use correct insert for servo spline.
DE Verwendung des richtigen Einsatzes für die

Servoverzahnung.

FR Utilisez la bonne insertion pour la cannelure du servo.
IT Utilizzare l’inserto adatto per la scanalatura del servo.

F12-N

TLR241030

44

45

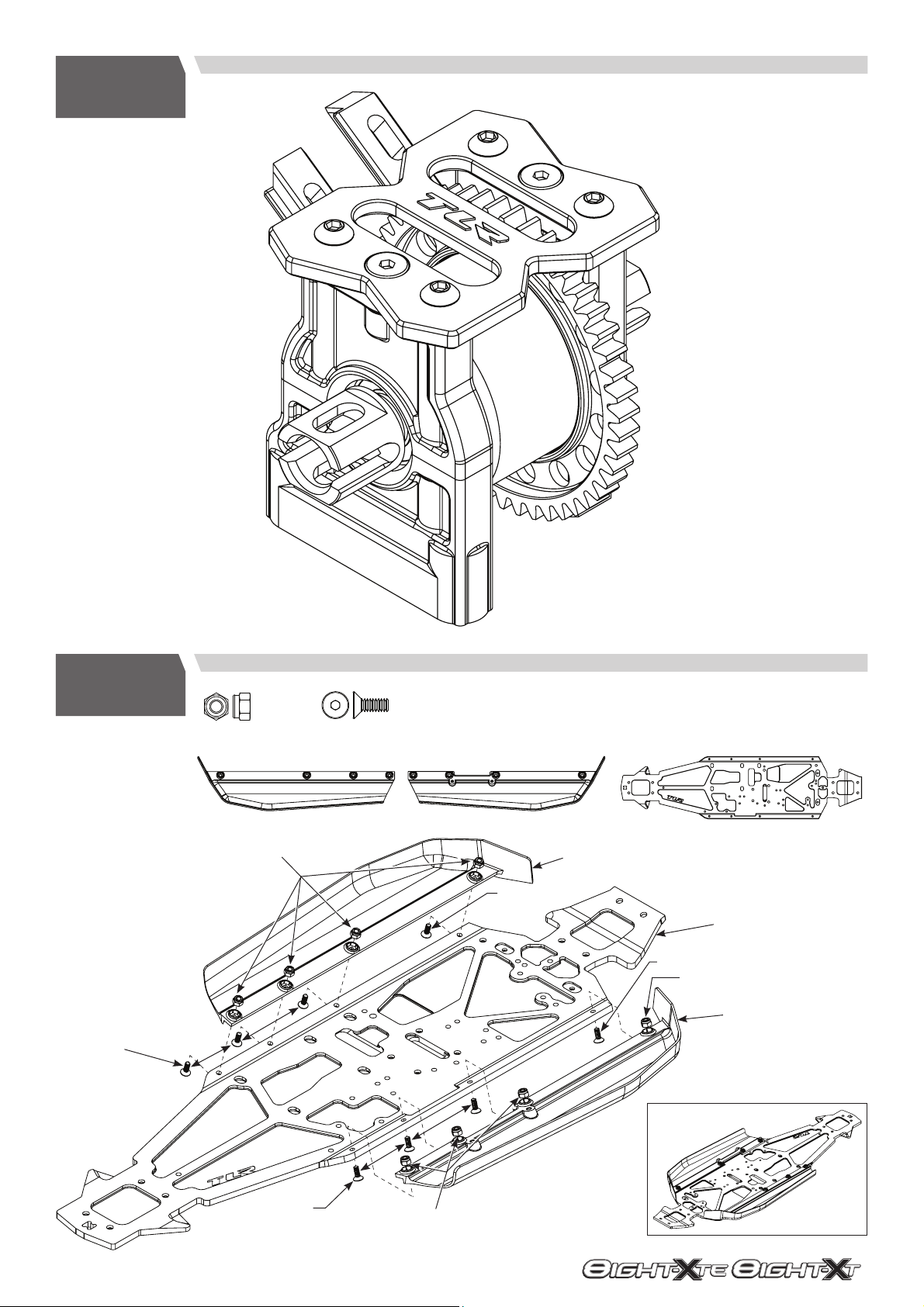

F12-E

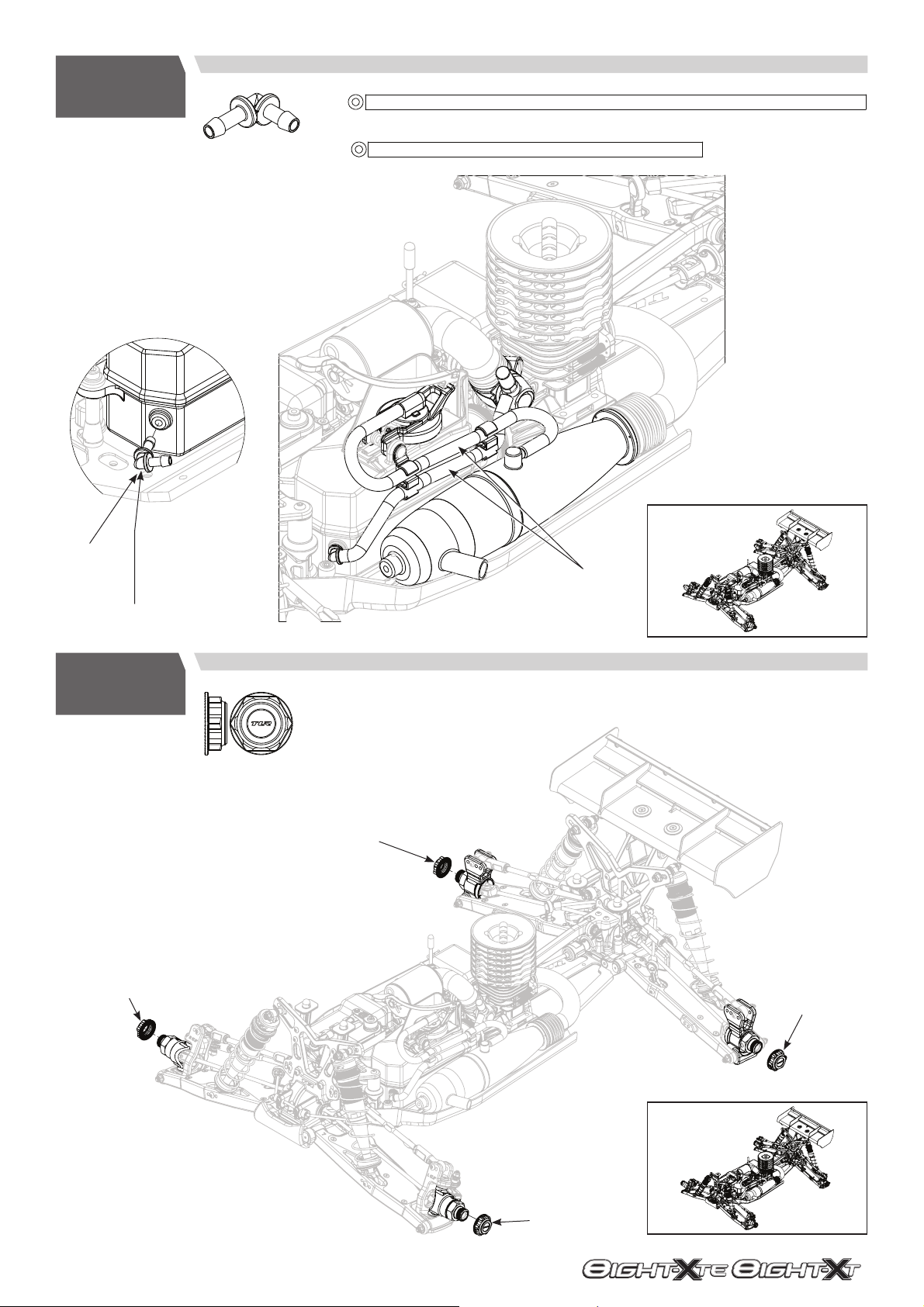

G1-N/E

TLR5961

TLR6313 x8 TLR5961 x8

M3 Locknut

M3 x 8mm FH

TLR241034 x1 TLR241034 x1 TLR241065 x1

TLR6313

TLR5961

TLR241034

TLR5961

TLR6313

TLR241065

TLR241034

TLR5961

TLR6313

45

46

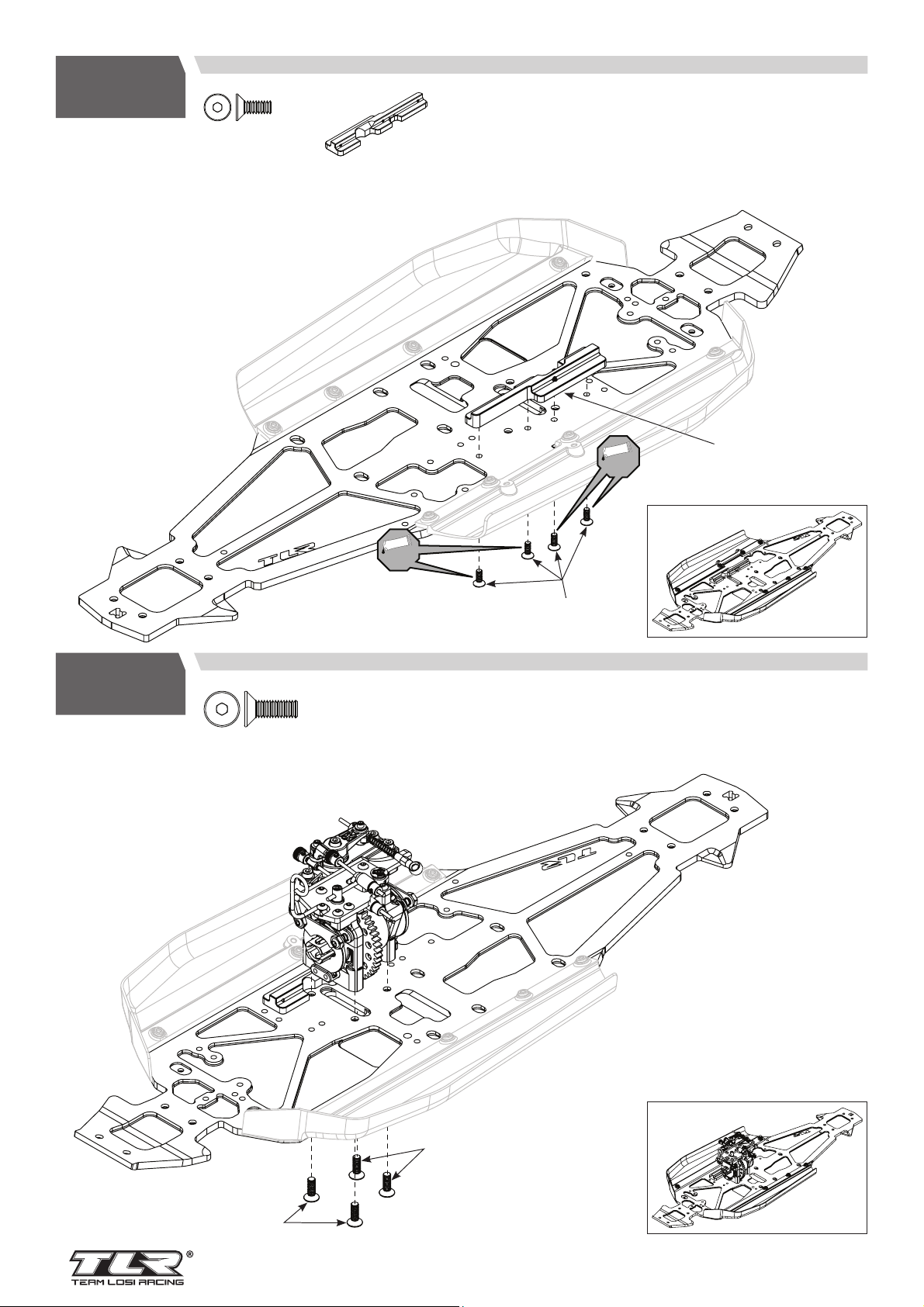

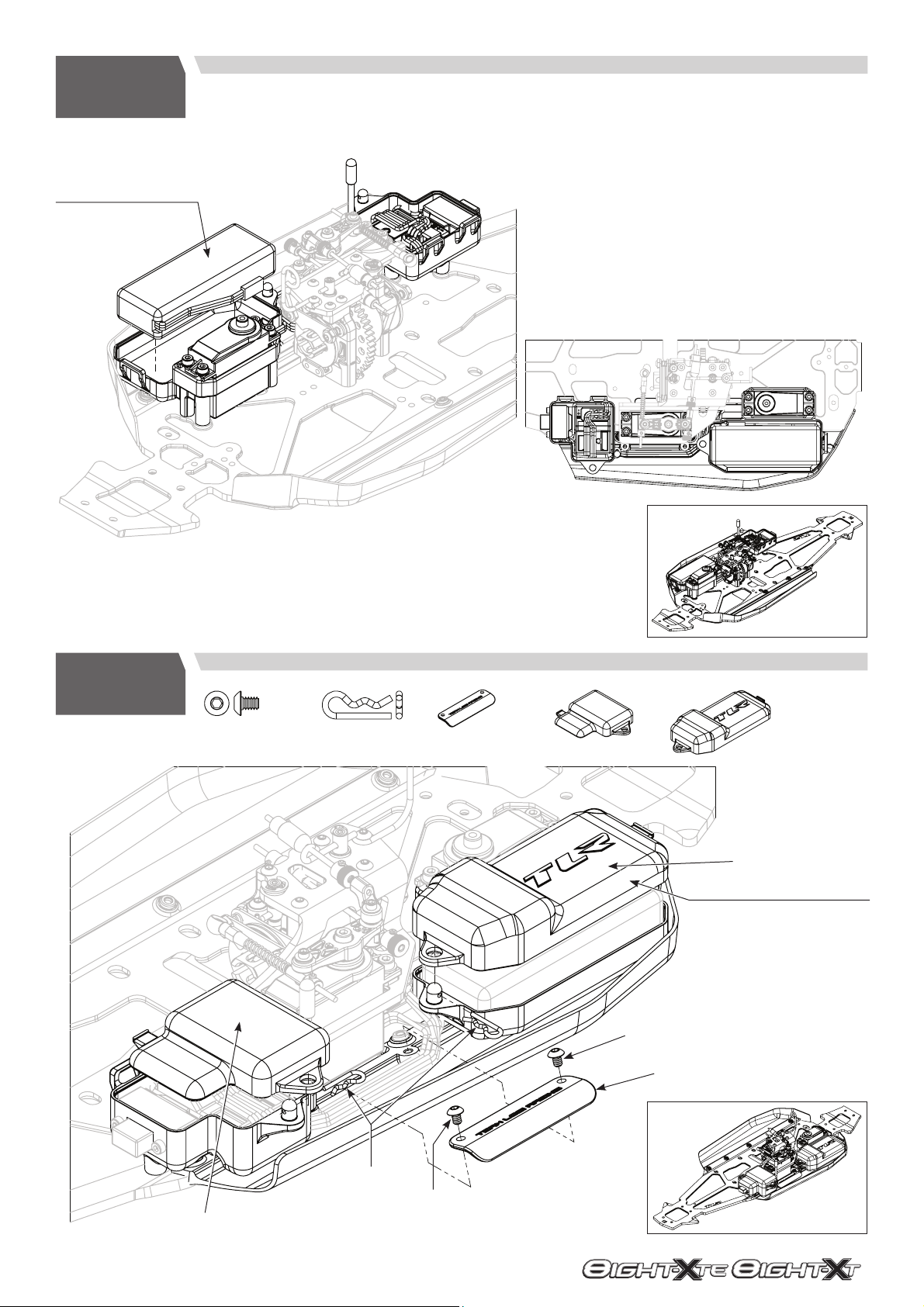

G2-N

TLR5961 x4 TLR241054 x1

M3 x 8mm FH

TLR241054

TLR-LOK

G3-N

TLR-LOK

TLR5961

TLR255013 x4

M4 x 12mm FH

TLR255013

TLR255013

46

47

G3-E

TLR255013 x4

M4 x 12mm FH

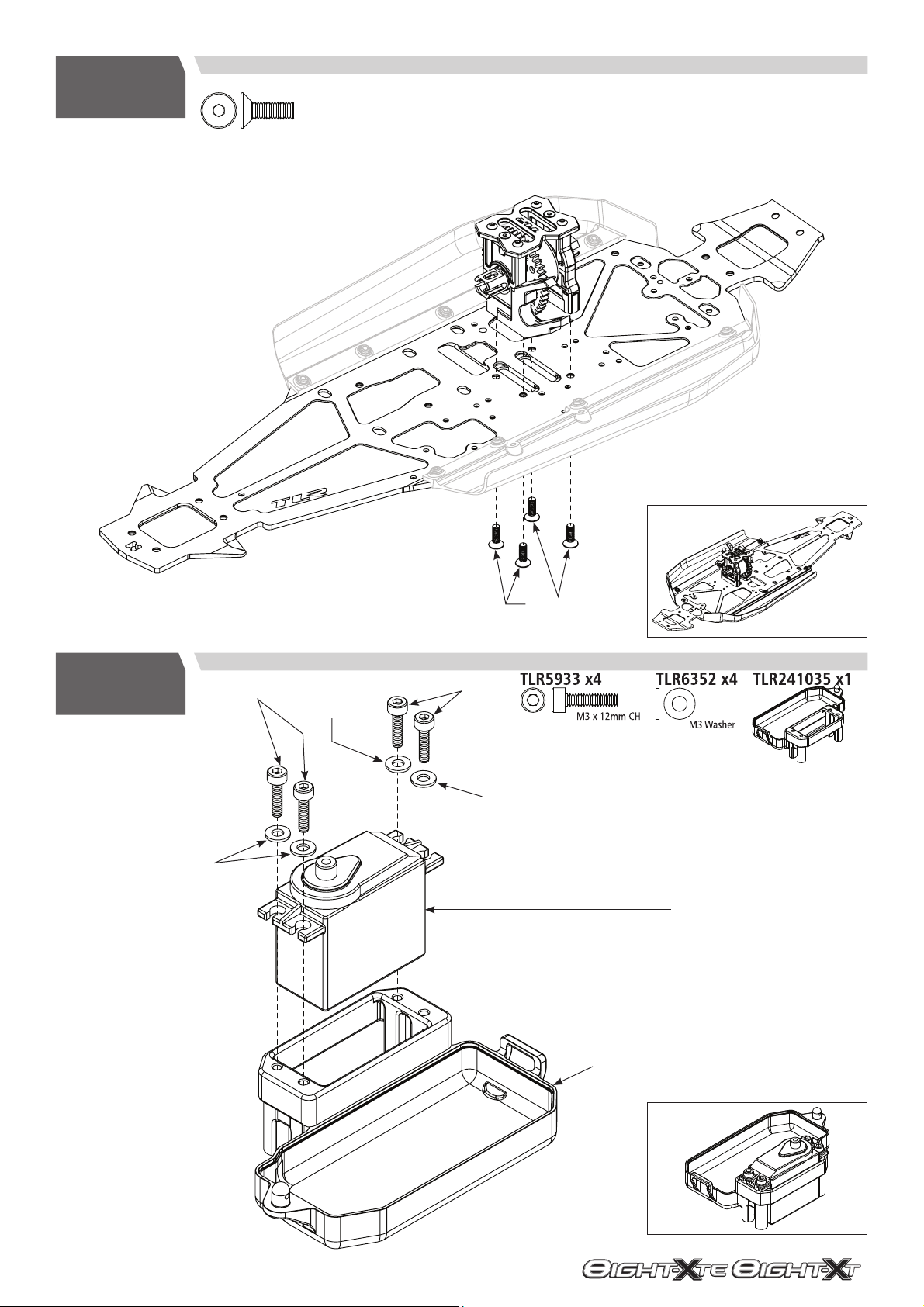

G4-N/E

TLR6352

TLR5933

TLR255013

TLR5933

TLR6352

TLR6352

EN Not included
DE Nicht enthalten
FR Non fourni
IT Non inclusa

TLR241035

47

48

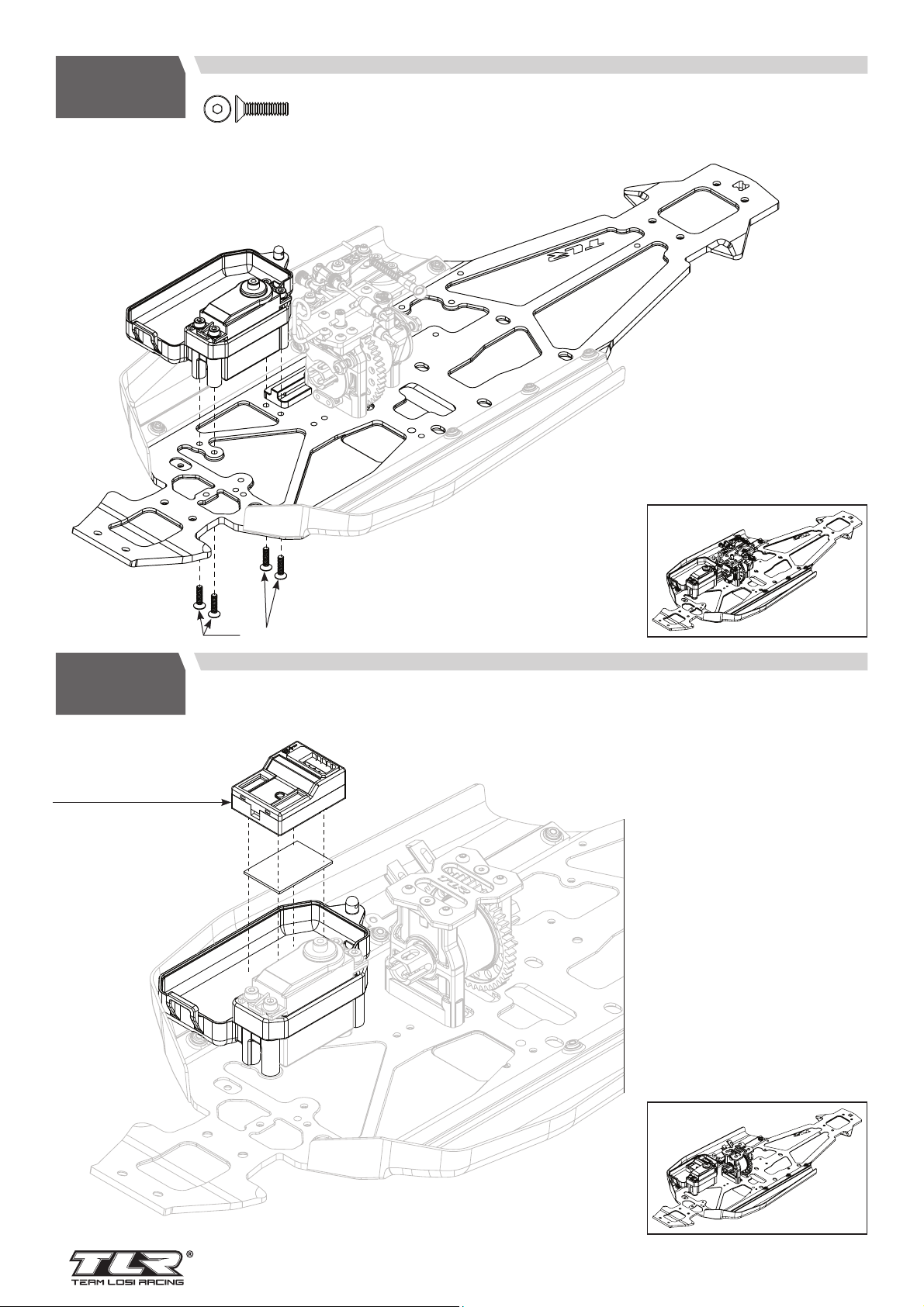

G5-N/E

TLR5963 x4

M3 x 12mm FH

G5-E

EN Not included
DE Nicht enthalten
FR Non fourni
IT Non inclusa

TLR5963

48

49

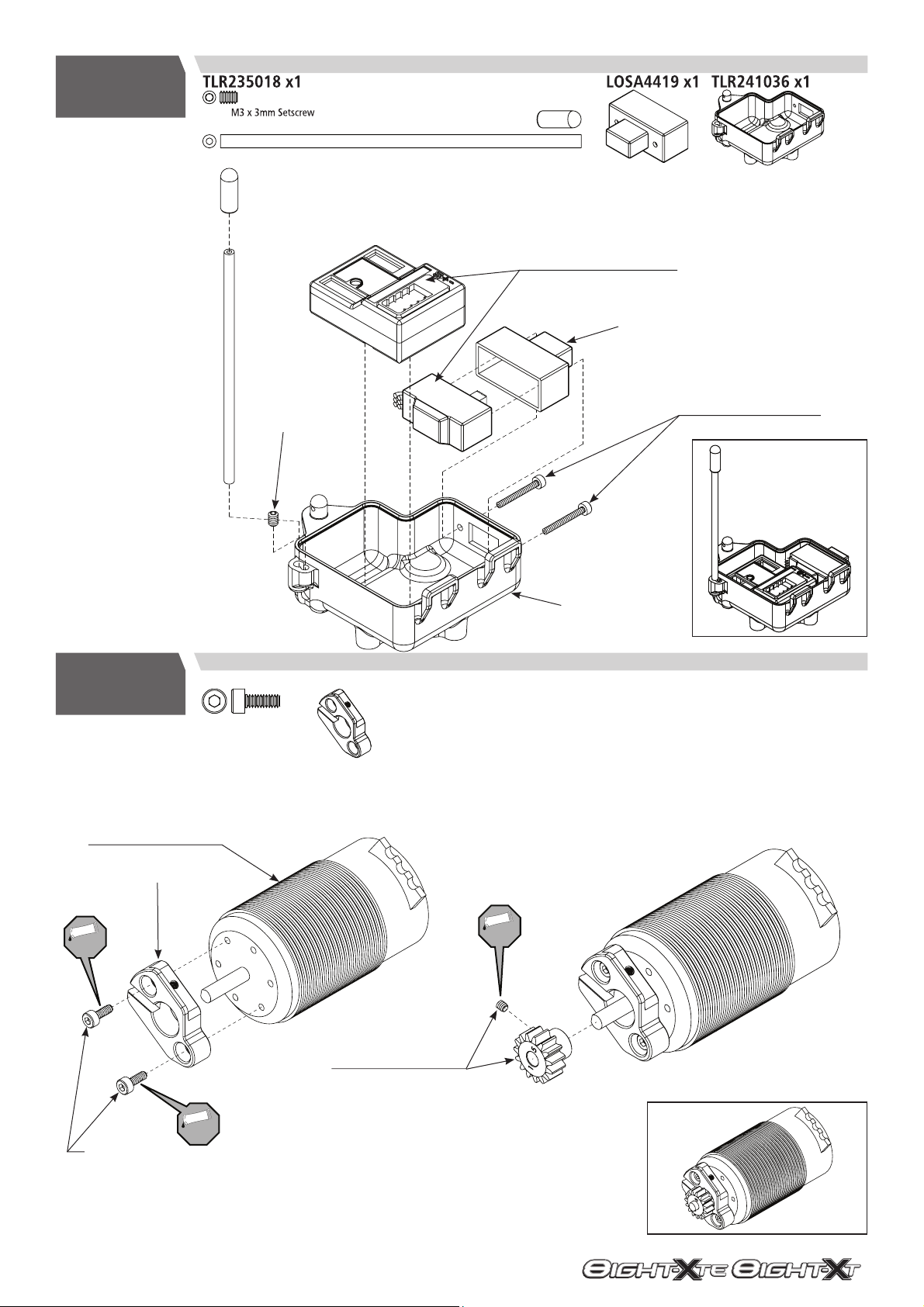

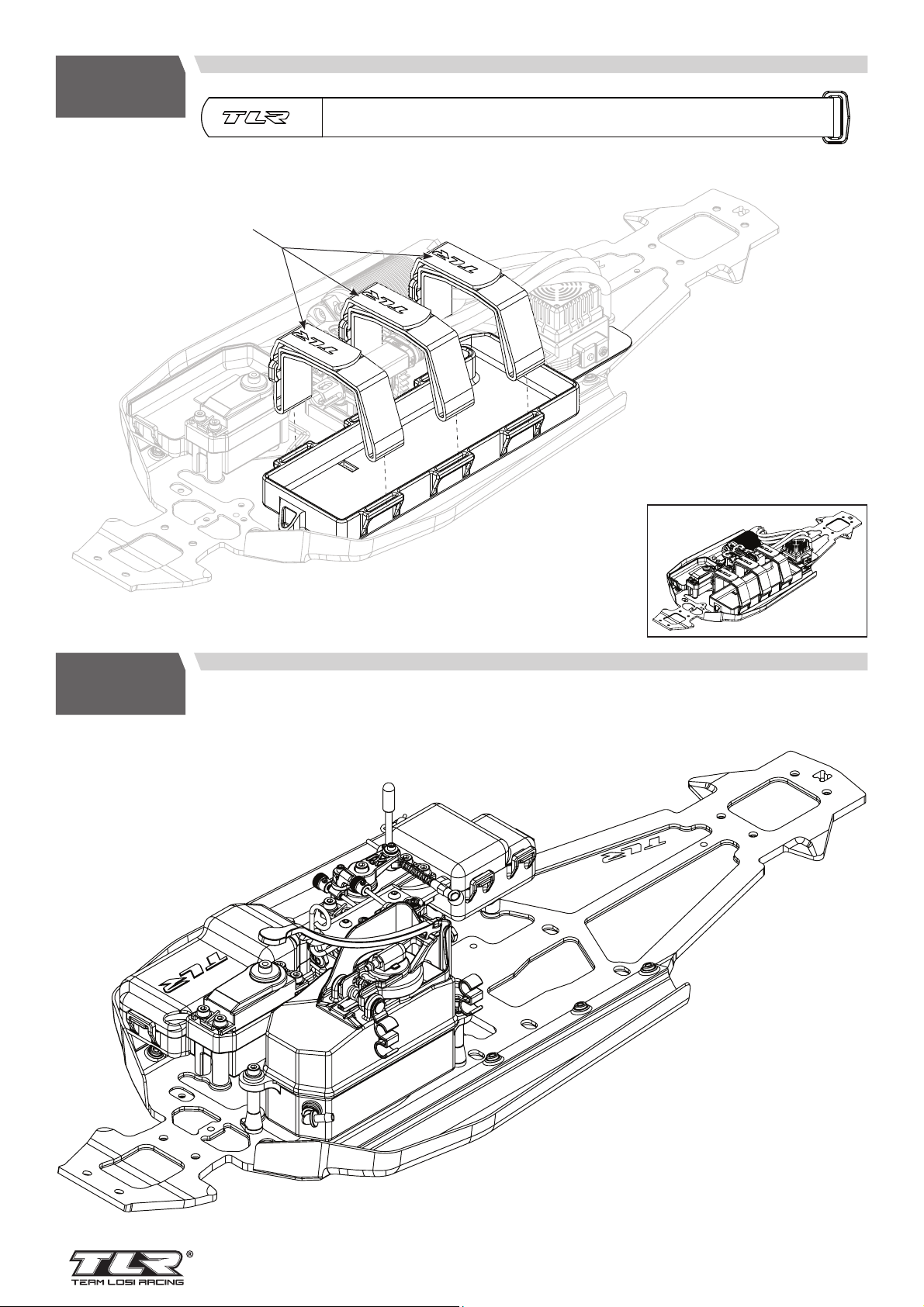

G6-N

EN Not included
DE Nicht enthalten
FR Non fourni
IT Non inclusa

LOSA4419

EN Not included
DE Nicht enthalten
FR Non fourni
IT Non inclusa

TLR235018

G6-E

EN Not included
DE Nicht enthalten
FR Non fourni
IT Non inclusa

TLR241067

TLR-LOK

TLR241036

TLR245003 x2 TLR241067 x1

M4 x 10 CH

TLR-LOK

TLR245003

TLR-LOK

EN Not included
DE Nicht enthalten
FR Non fourni
IT Non inclusa

49

50

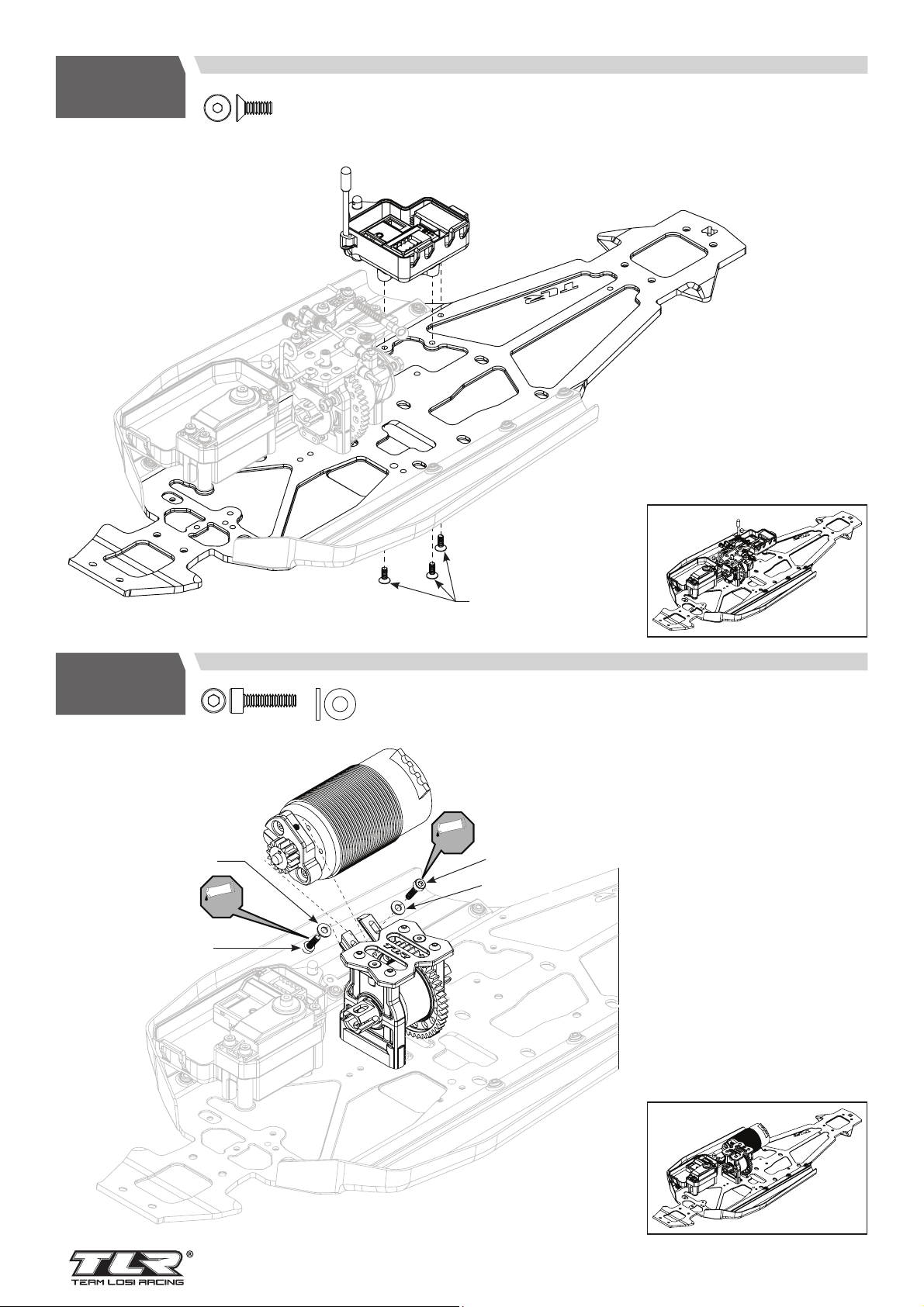

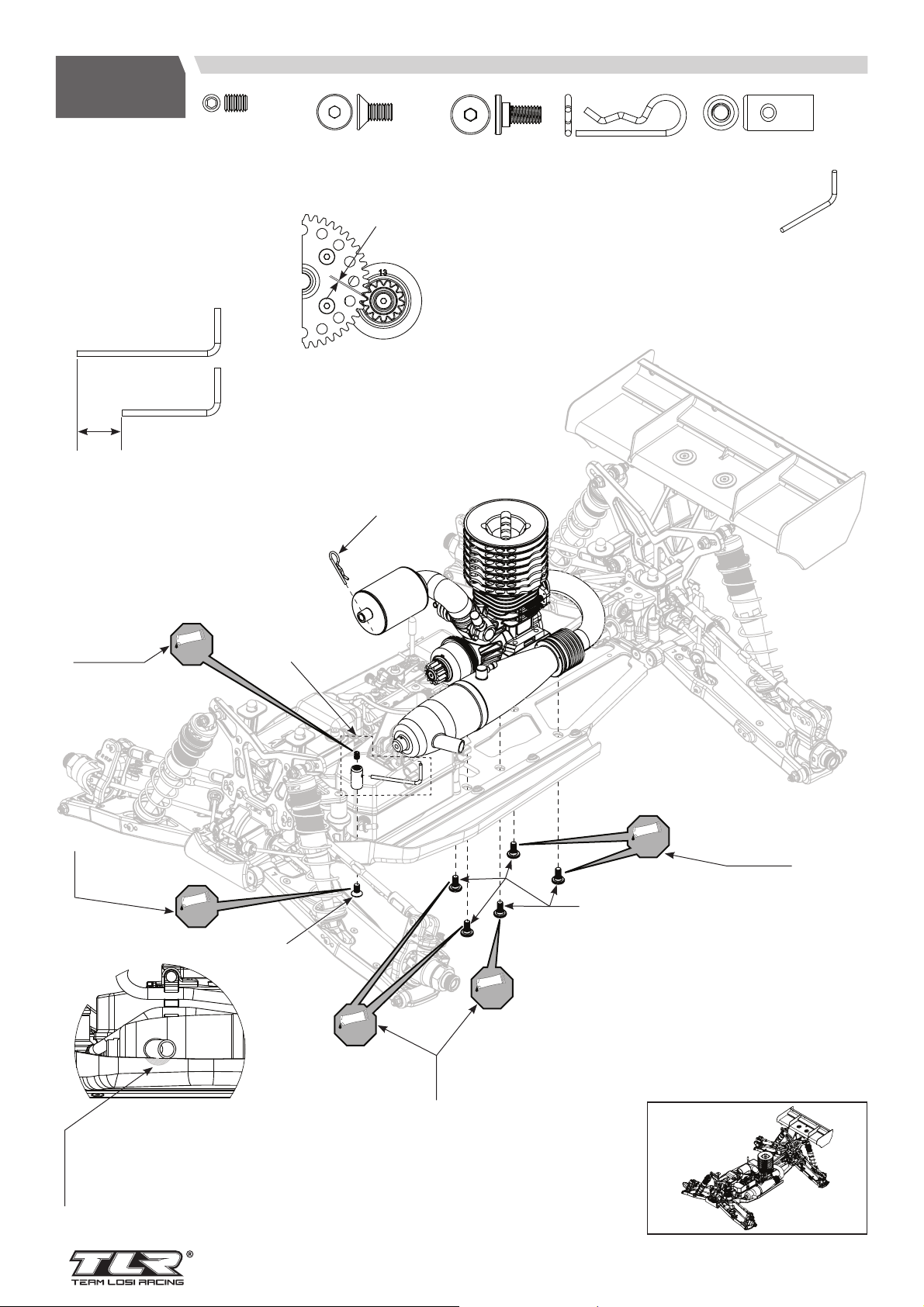

G7-N

TLR5961 x3

M3 x 8mm FH

G7-E

TLR5932 x2 TLR6352 x2

M3 x 10 CH

TLR6352

TLR-LOK

TLR5932

TLR5961

TLR-LOK

TLR5932

TLR6352

50

51

G8-N

EN Not included
DE Nicht enthalten
FR Non fourni
IT Non inclusa

G9-N/E

TLR5900 x2 TLR245007 x2 TLR241034 x1 TLR241036 x1 TLR241035 x1

M3 x 5mm BH

TLR241035

EN Place on for E-Truggy
DE Für E-Truggy

einsetzen

FR Placez dessus pour le

E-Truggy

IT Posizionare per

la confi gurazione

TLR5900

TLR241034

E-Truggy

TLR241036

TLR245007

TLR5900

51

52

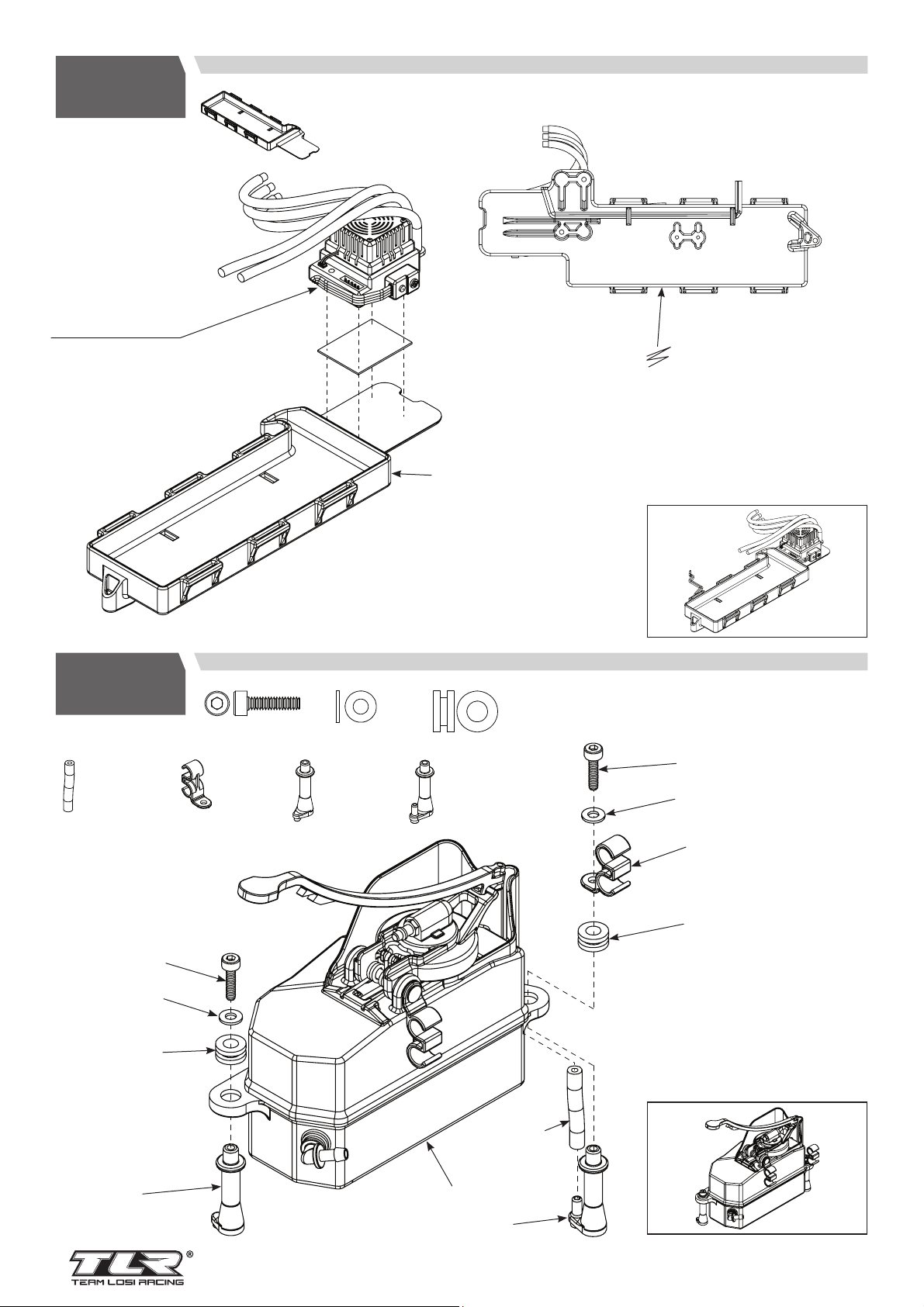

G9-E

EN Not included
DE Nicht enthalten
FR Non fourni
IT Non inclusa

TLR241066 x1

T1

TLR241066

G10-N

TLR5933 x2 TLR6352 x2 TLR241064 x2

M3 x 12mm CH

TLR241064 x1 TLR241064 x1 TLR241031 x1 TLR241031 x1

TLR5933

TLR6352

TLR241064

TLR241064

TLR5933

TLR6352

TLR241064

TLR241064

52

TLR241031

TLR241064

TLR241031

53

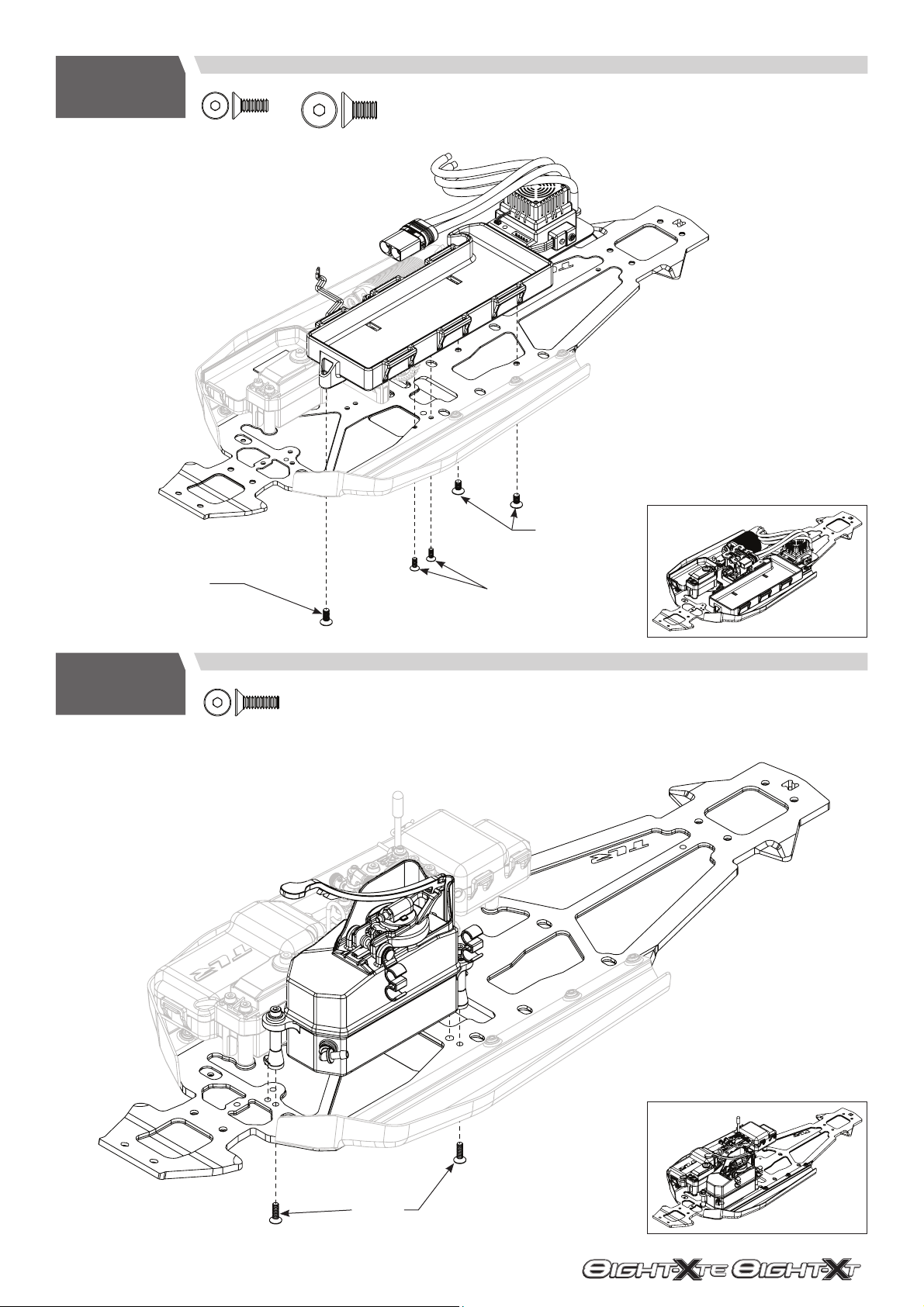

G10-E

TLR5961 x2 TLR245010 x3

M3 x 8 FH

M4 x 8 FH

TLR245010

TLR245010

EN From Step I9
DE Von Schritt I9
FR À partir de l’étape I9
IT Dalla fase I9

G11-N

TLR5961

TLR5962 x2

M3 x 10mm FH

TLR5962

53

54

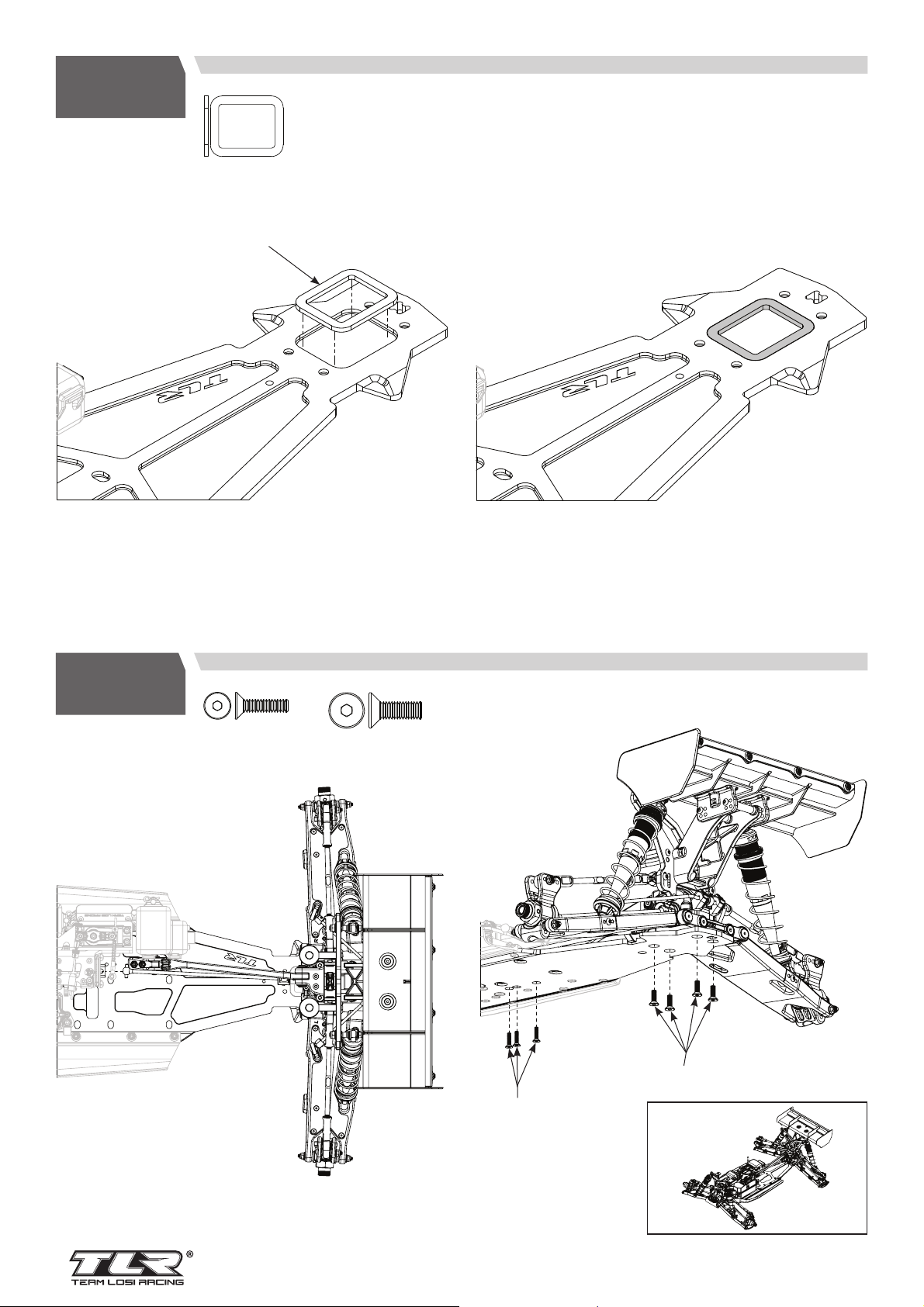

G11-E

TLR241013 x3

TLR241013

G12-N

54

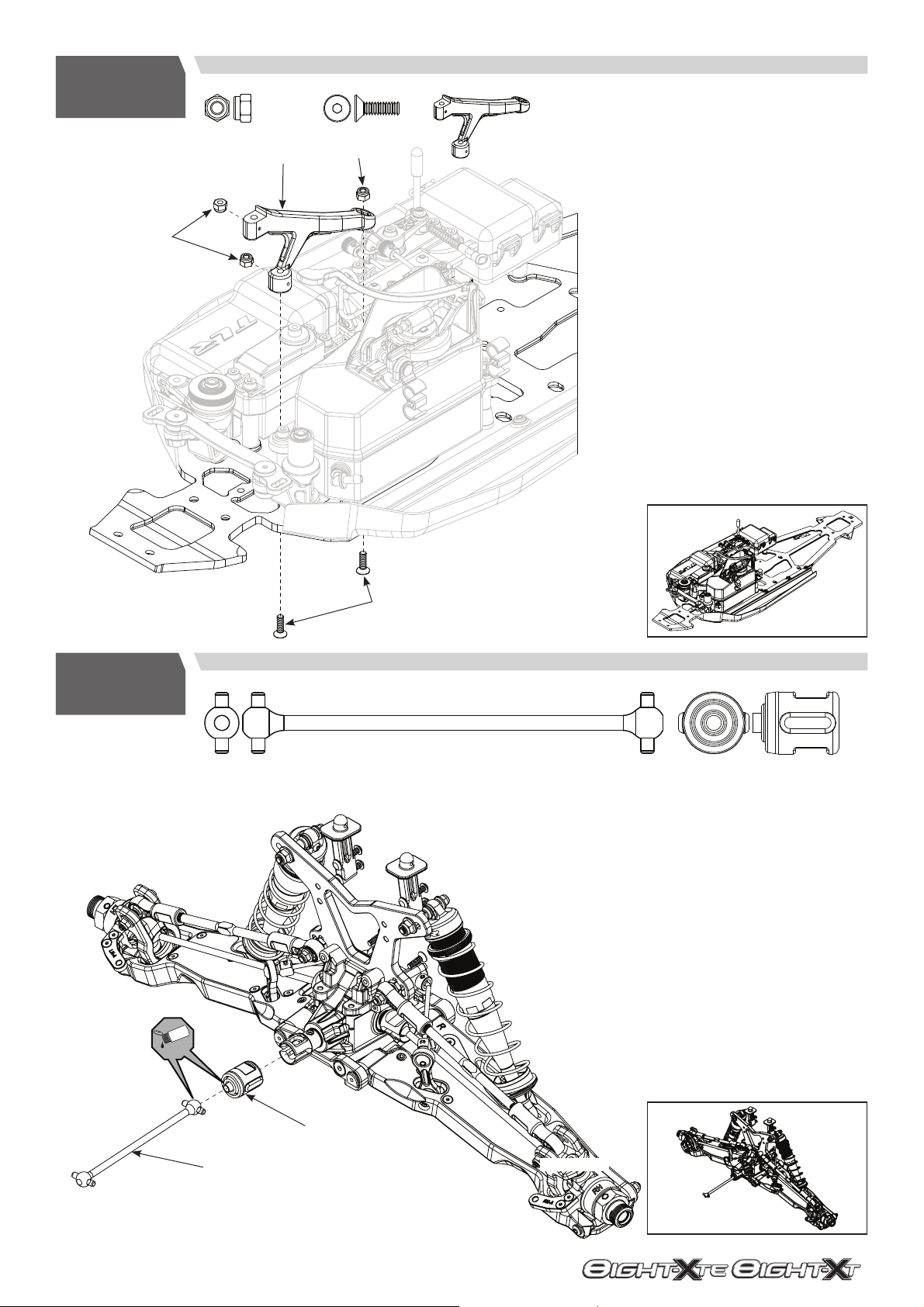

H1

55

TLR241038

2.0–2.5mm

TLR241038

TLR-LOK

TLR241040

TLR241040

TLR241040

TLR6313

TLR241038

TLR241040

TLR6313

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

55

56

H2

TLR5962 x2 LOSA6356 x2 LOSA6946 x2 TLR241050 x2

LOSA6946

LOSA6356

TLR241050

TLR-LOK

M3 x 10mm FH

6 x 10 x 3mm

LOSA6946

LOSA6356

TLR241050

TLR5962

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

H3

LOSA6946 x2

6 x 10 x 3mm

LOSA6946

56

57

H4

TLR6313 x3 TLR5963 x2 TLR241028 x1

M3 Locknut

M3 x 12 FH

TLR6313

TLR241028

TLR6313

H5

TLR5963

TLR242009 x1 TLR242018 x1

OIL

TLR242009

TLR242018

TLR5963

57

58

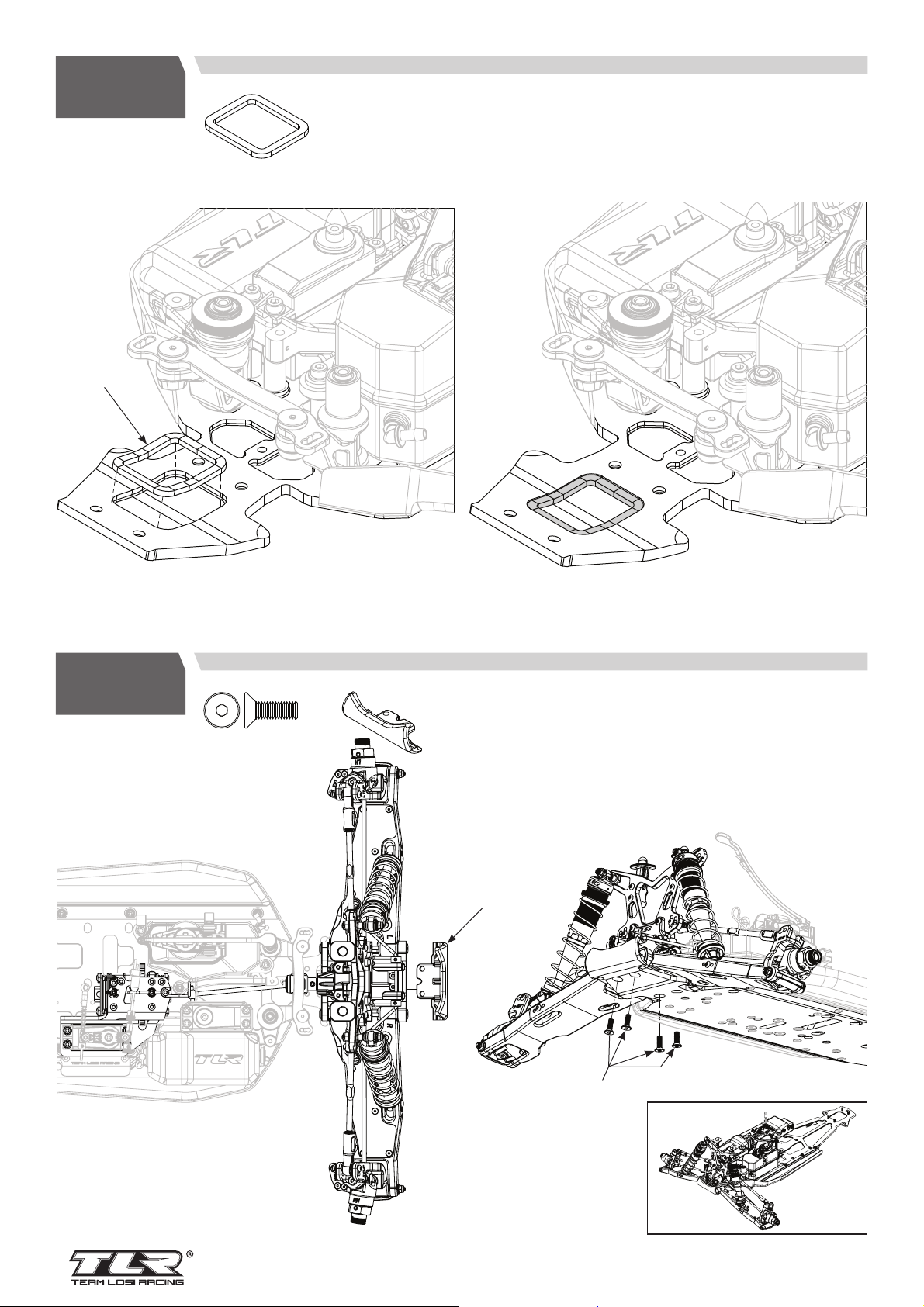

H6

TLR241068

TLR241068 x1

H7

TLR255013 x4 TLR241033 x1

M4 x 12mm FH

TLR241033

TLR255013

58

59

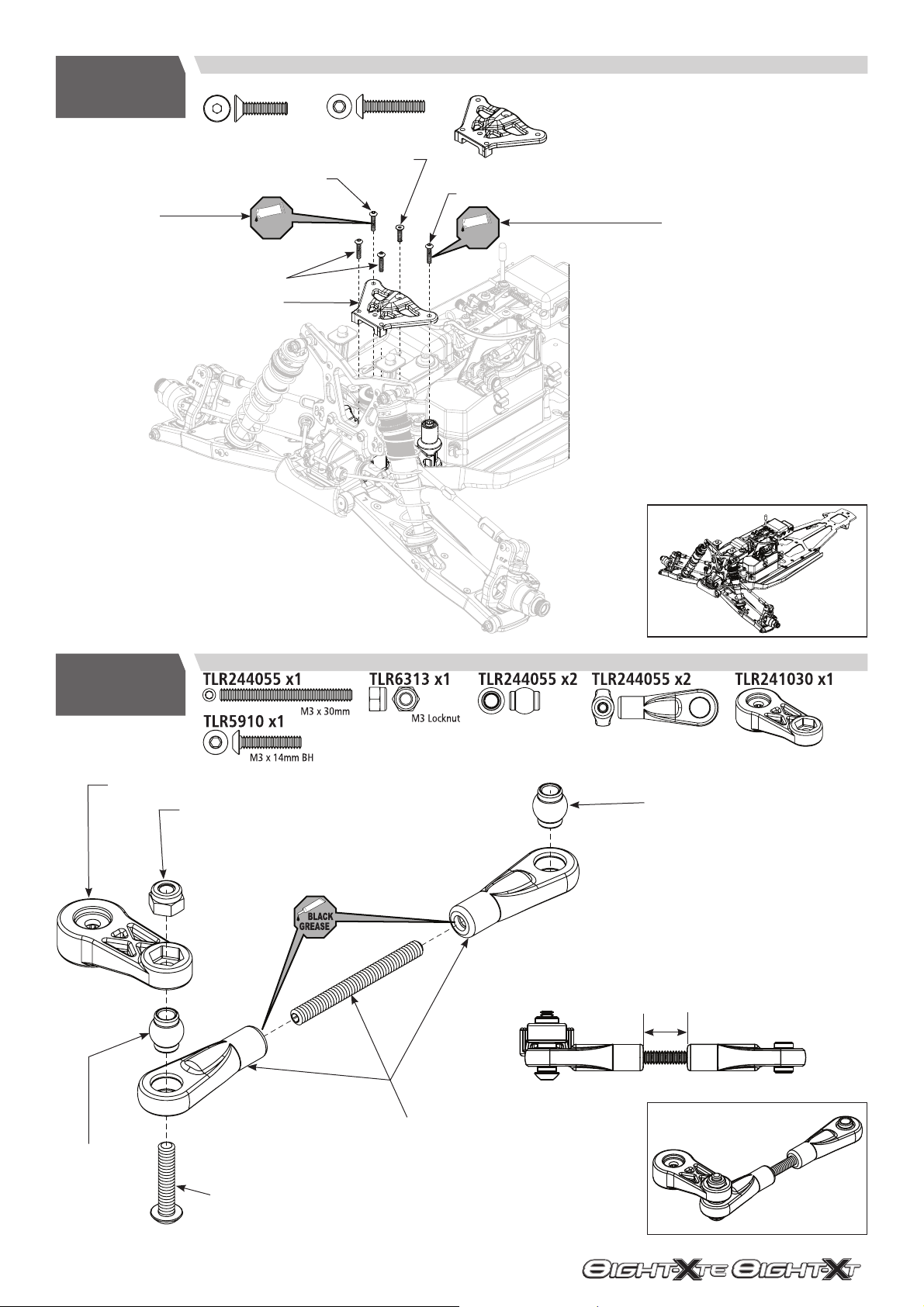

H8

TLR5963 x1 TLR5910 x4 TLR241028 x1

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

M3 x 12mm FH

TLR-LOK

TLR5910

TLR241028

TLR5910

M3 x 14mm BH

TLR5963

TLR5910

TLR-LOK

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

H9

TLR241030

TLR6313

TLR244055

≈10.0mm

TLR244055

TLR244055

TLR5910

59

L

60

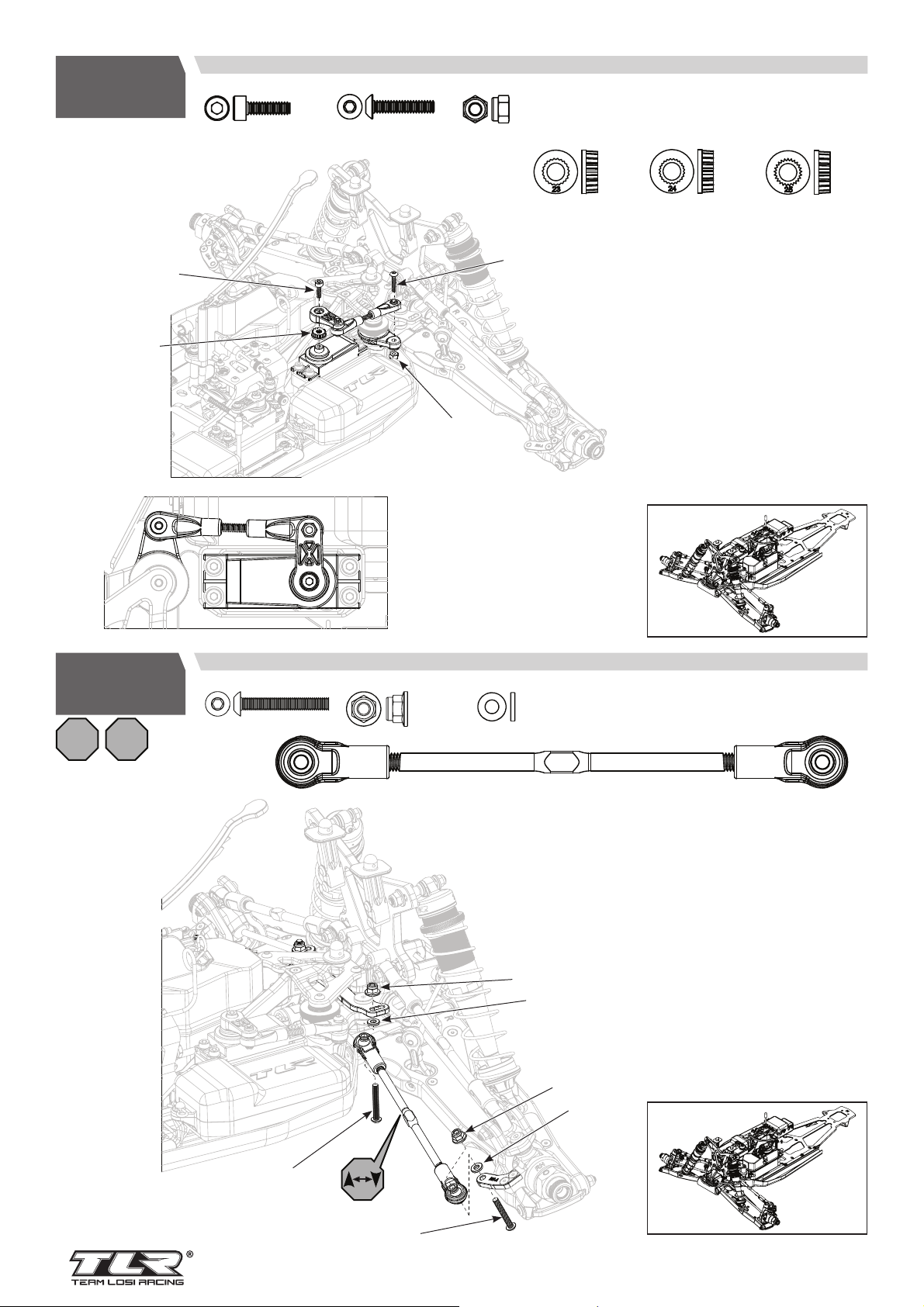

H10

TLR5932 x1 TLR5910 x1 TLR6313 x1

TLR5932

TLR241030

M3 x 10mm CH

M3 x 14mm BH

TLR6313

M3 Locknut

TLR241030 x1 TLR241030 x1 TLR241030 x1

EN Use correct insert for servo spline.
DE Verwendung des richtigen Einsatzes

TLR5910

für die Servoverzahnung.

FR Utilisez la bonne insertion pour la

cannelure du servo.

IT Utilizzare l’inserto adatto per la

scanalatura del servo.

H11

L

L

R

R

L

TLR5911 x4 TLR245016 x4 TLR336007 x4

M3 x 20mm BH

M3 Flanged

2mm

TLR245016

TLR336007

TLR245016

x2

TLR336007

TLR5911

TLR5911

60

61

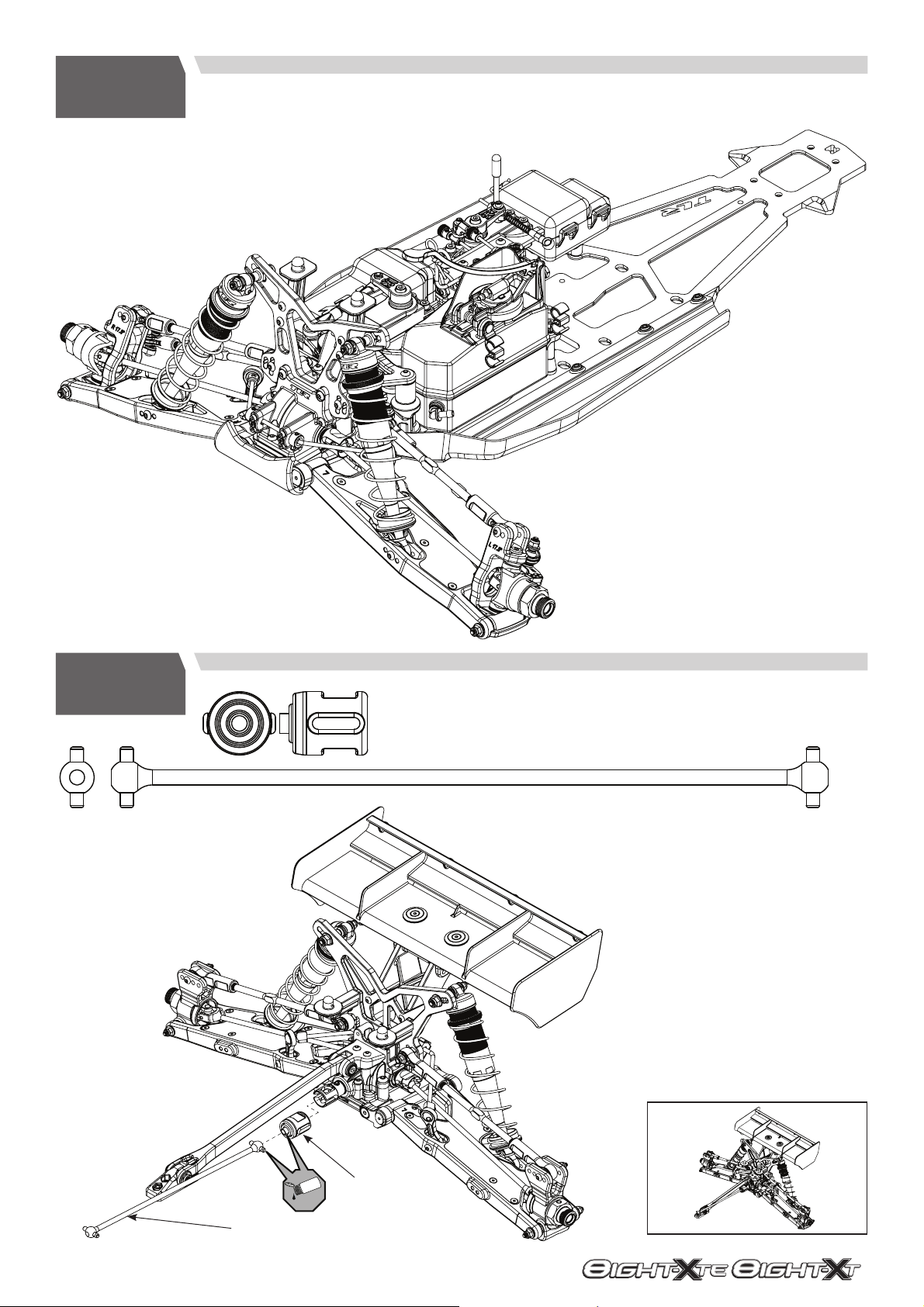

H12

I1

TLR242044 x1

TLR242018 x1

TLR242044

OIL

TLR242018

61

62

I2

TLR241068 x1

TLR241068

I3

TLR5963 x3 TLR255013 x4

M3 x 12mm FH

M4 x 12mm FH

TLR255013

TLR5963

62

63

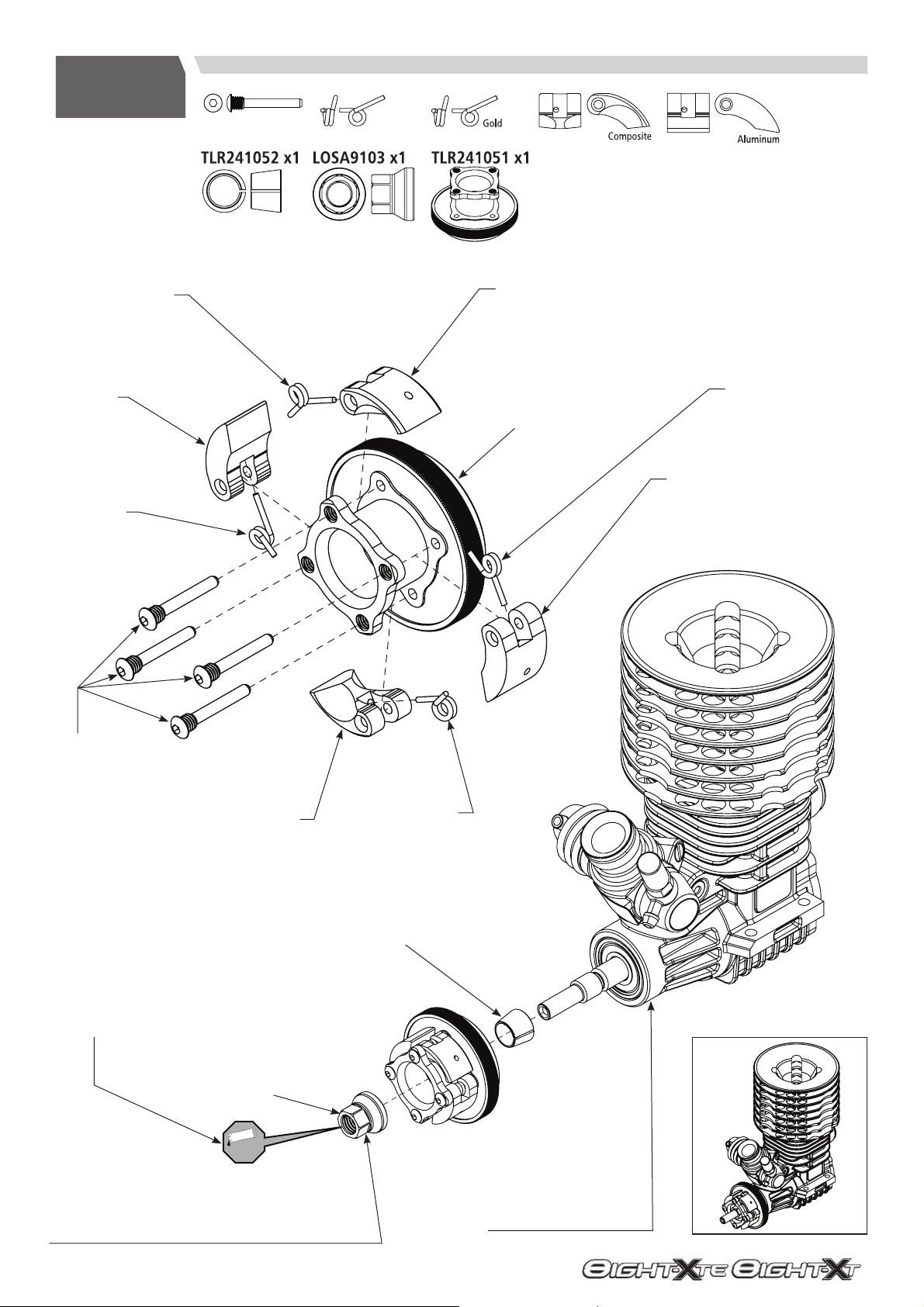

I4-N

TLR241053 x4 LOSA9115 x2 LOSA9114 x2 LOSA9107 x2 LOSA9108 x2

Silver

LOSA9107

EN Carbon
DE Kohlefaser
FR Carbone
IT Nerofumo

LOSA9114

EN Gold
DE Gold
FR Or
IT Oro

LOSA9115

EN Silver
DE Silber
FR Argent
IT Argento

LOSA9108

EN Aluminium
DE Aluminium
FR Aluminium
IT Alluminio

TLR241051

LOSA9114

EN Gold
DE Gold
FR Or
IT Oro

LOSA9107

EN Carbon
DE Kohlefaser
FR Carbone
IT Nerofumo

TLR241053

LOSA9108

EN Aluminium
DE Aluminium
FR Aluminium
IT Alluminio

TLR241052

EN 1 drop - Optional
DE 1 Tropfen - Optional
FR 1 goutte - Facultatif
IT 1 goccia - Opzionale

LOSA9103

TLR-LOK

EN MUST tighten to 15Nm or 120 in.lb.
DE MUSS auf 15 Nm festgezogen werden.
FR Serrage NÉCESSAIRE à 15 Nm ou 120 po lb.
IT SERRARE a 15 Nm o 120 in.lb.

LOSA9115

EN Silver
DE Silber
FR Argent
IT Argento

EN Not included
DE Nicht enthalten
FR Non fourni
IT Non inclusa

63

64

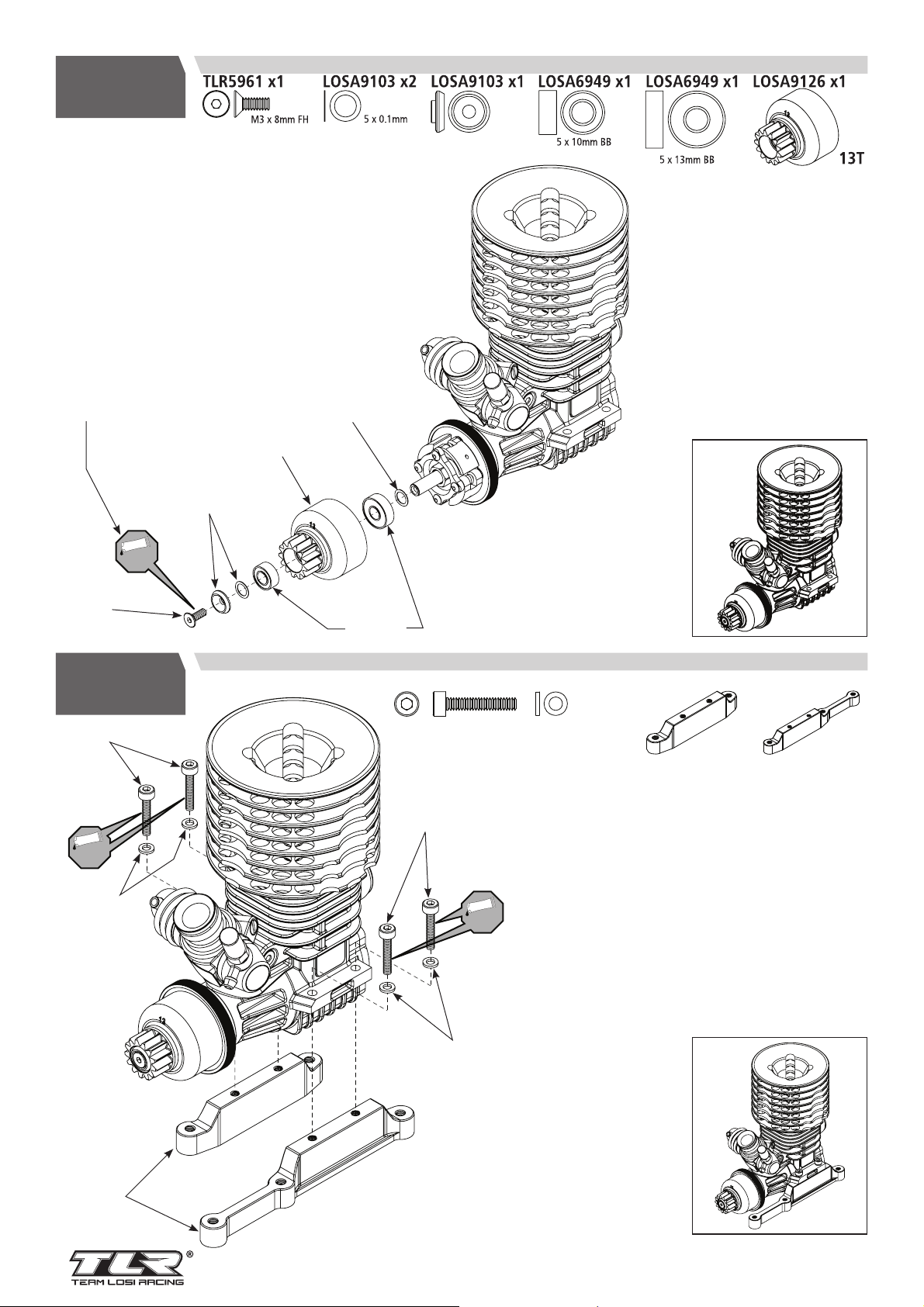

I5-N

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

TLR5961

TLR5934

TLR-LOK

TLR-LOK

I6-N

LOSA9103

LOSA9126

LOSA9103

LOSA6949

TLR5934 x2

M3 x 16mm CH

TLR5934

LOSA6350 x4 TLR241047 x1 TLR241047 x1

LOSA6350

TLR241047

64

TLR-LOK

LOSA6350

65

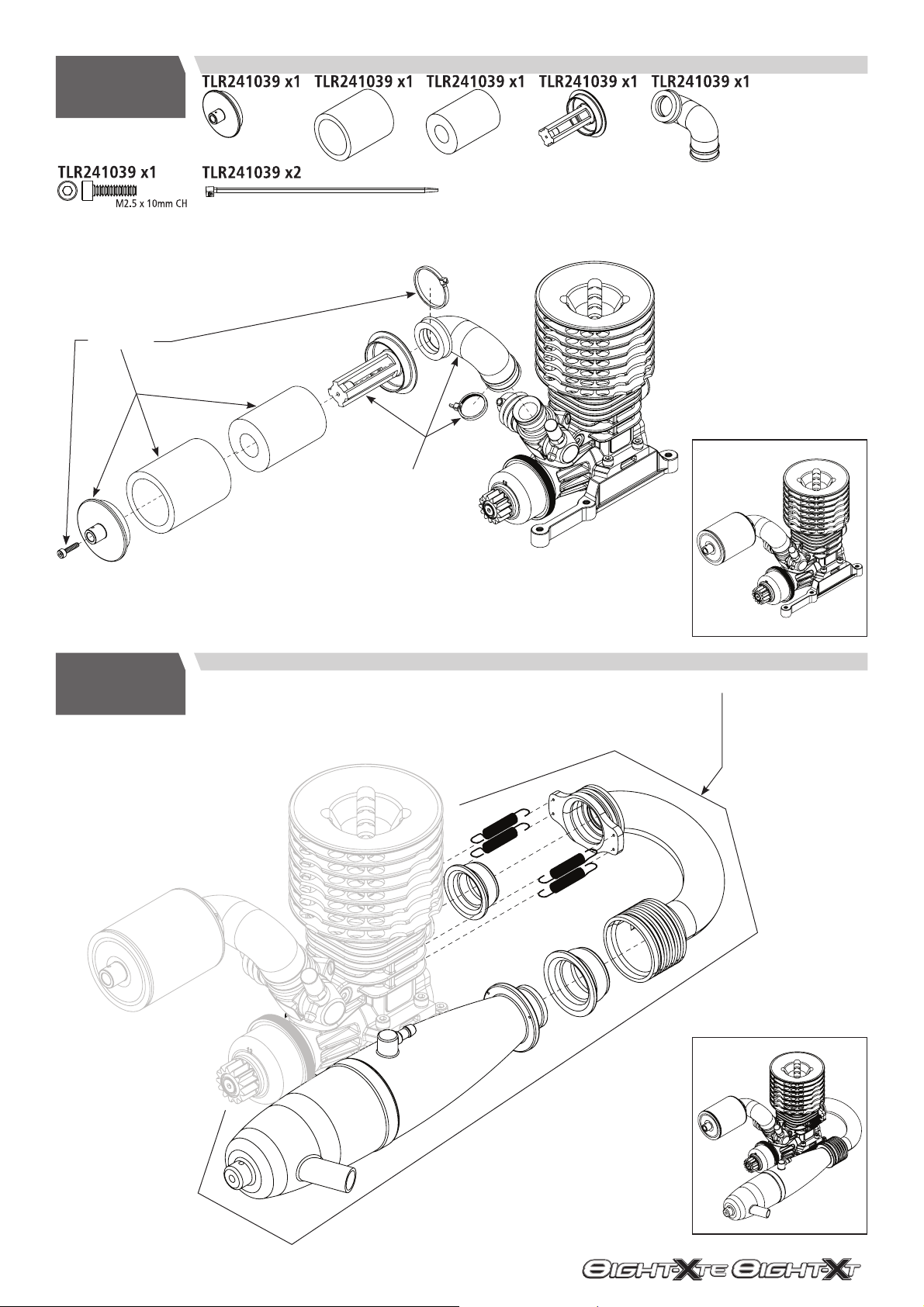

I7-N

TLR241039

TLR241039

I8-N

EN Not included
DE Nicht enthalten
FR Non fourni
IT Non inclusa

65

x

66

I9-N

TLR241048 x1 TLR245010 x1 TLR245005 x5 TLR8202 x1 TLR241048 x1

M4 x 4 Setscrew

EN Trim as required
DE Trimmung nach Bedarf
FR Compenser au besoin
IT Correzione come richiesto

M4 x 8mm FH

TLR241048

.20-.35mm (.008 - .014”)

TLR8202

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

TLR-LOK

TLR-LOK

TLR241048

TLR245010

TLR-LOK

TLR-LOK

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

TLR245005

TLR-LOK

EN 1 drop
DE 1 Tropfen
FR 1 goutte
IT 1 goccia

EN Trim as required
DE Trimmung nach Bedarf
FR Compenser au besoin
IT Correzione come richiesto

66

67

I10-N

TLR241064 x1 LOSA9314 x1

LOSA9314 x1

TLR241064

TLR3538

EN Optional
DE Optional
FR Facultatif
IT Opzionale

J1

LOSA9314

TLR3538 x4

TLR3538

TLR3538

TLR3538

67

68

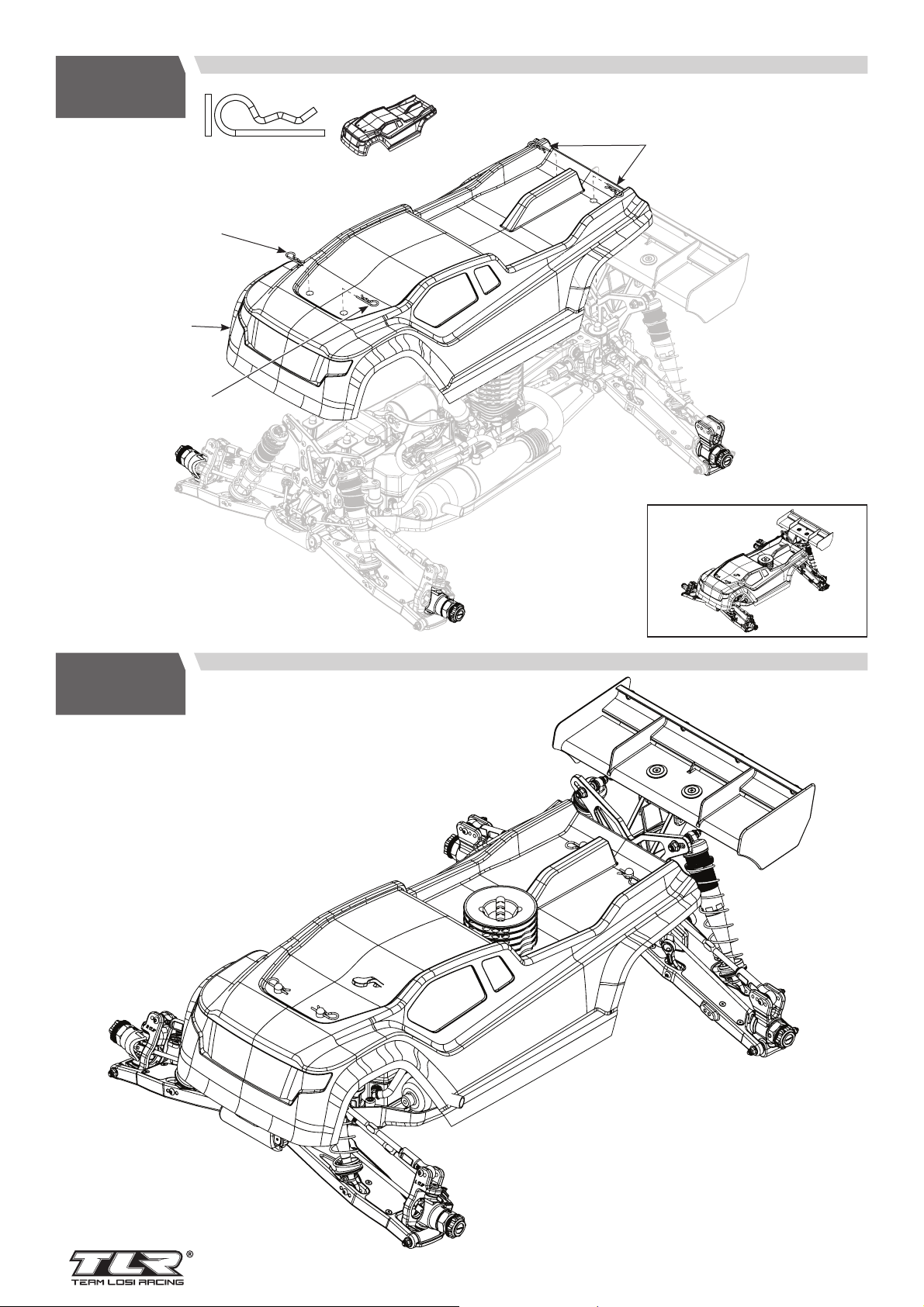

J2

TLR240017

TLR8202 x4 TLR240017 x1

TLR8202

TLR8202

TLR8202

J3

68

Setup Guide 8IGHT-XT/E

69

Overview

It is time to start making some setup adjustments to the TLR 8ight-XT/E! Before making
changes, there are a few decisions to make.

• Tires - Tires have a tremendous impact on performance. Before making changes to
chassis setup, observe fast cars at the track and try to obtain information about the tire
tread, compound, and inserts being used.

• Feel – Setup adjustment outcomes will vary based on the driver’s personal “feel”.

• One at a Time - It is suggested to only make one setup change at a time. If the change
does not improve the handling, return to the previous position and try a different
change.

• Recording - It is a great idea to record setup changes by recording change and the
result observed. Even if the change was not a positive, it can aid future setup decisions.

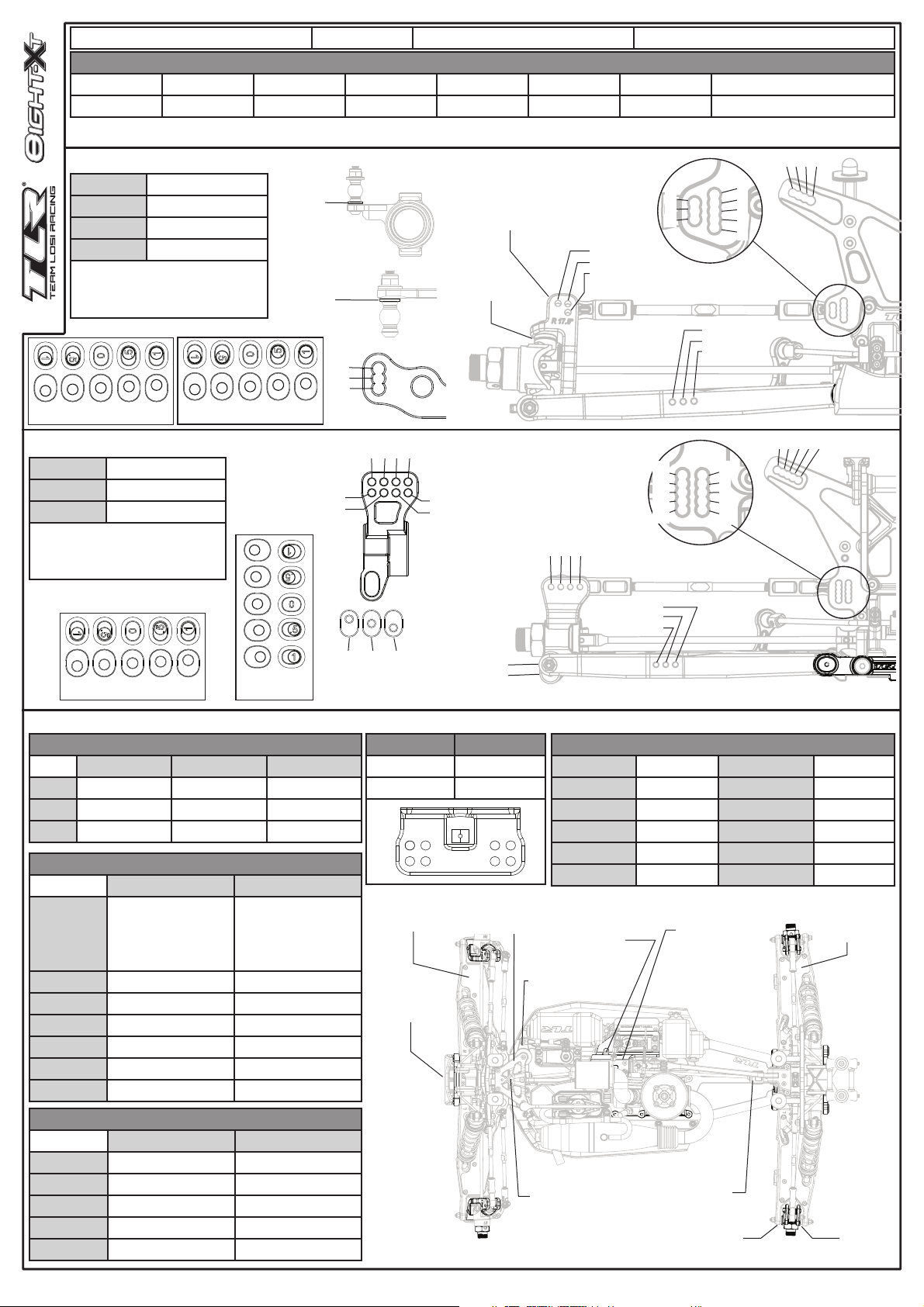

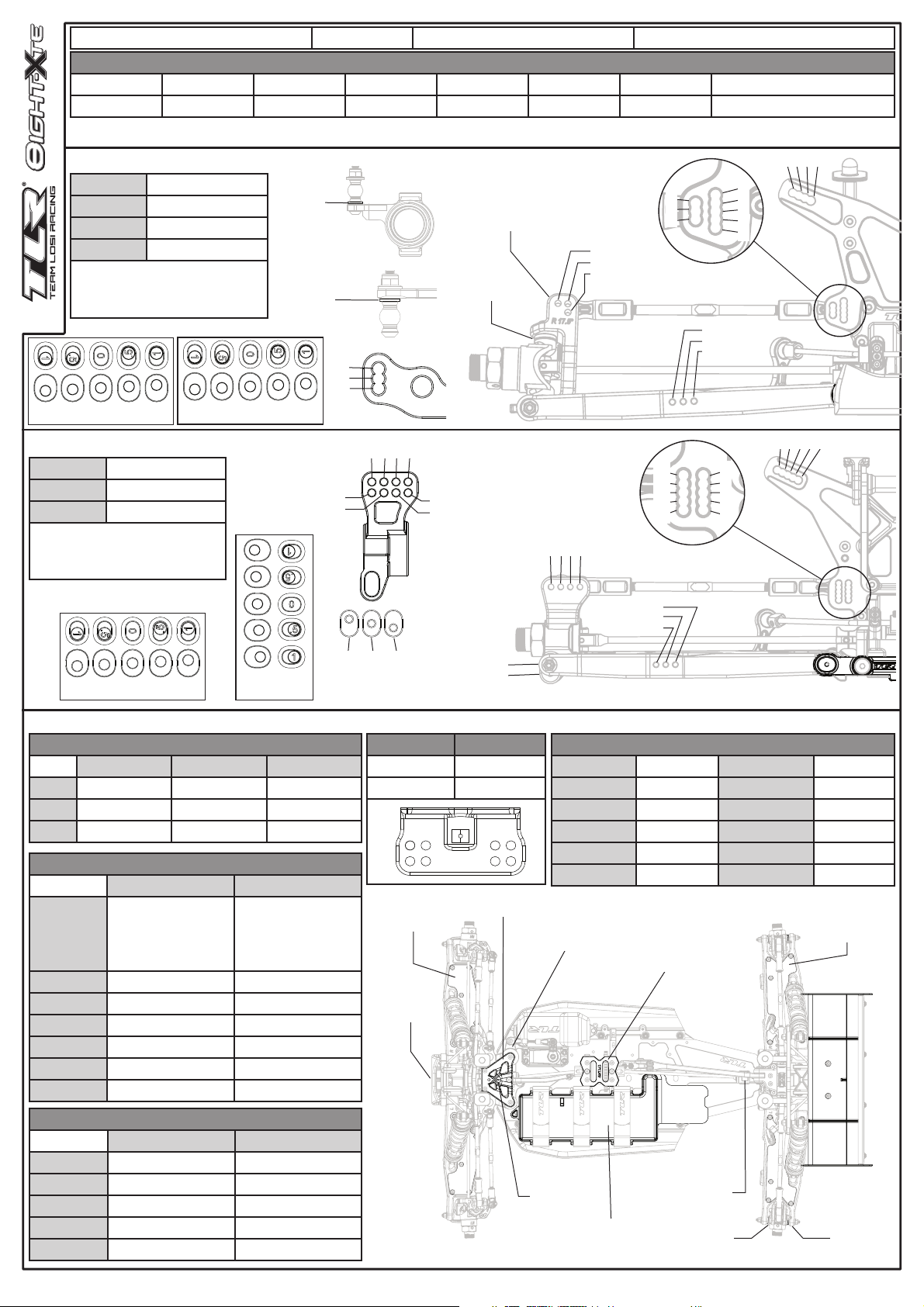

• The normal/typical setting suggested for all setup options is the setting listed on the kit
setup sheet, included in this instruction manual.

• Track Ready – Whenever checking any of the table top settings (camber, toe, ride
height, etc.), do so with the car track ready, including the body, wing, tires, wheels, and
battery pack or half tank of fuel.

• Kit Setup - The Team Losi Racing development team put in time to develop the kit
setup. After making some changes, if the “handle” or “feel” of the vehicle becomes
poor, return to the kit setup. Kit setups are posted to www.TLRacing.com.

• Optional Setups - Other setups that have worked well for the race team are posted to
www.TLRacing.com. When trying any setup, make sure to try the setup in its entirety.
Each setup item works together to make a well driving vehicle. If only parts of a setup
are used, it likely will not produce the desired results.

• Race Team – If a TLR team driver is present at the local track, and help is need – ask
them.

Please check the Team Losi Racing web site and the Team Losi Racing blog periodically
to fi nd new setup information. There are many ways to set up a car. The results of setup
changes can be different based on many factors including driving style, track conditions,
and traction levels. Try things and fi nd a setup that works well.

Pre-Run Checklist

• ESC controls motor as it should or Engine is tuned correctly.

• Battery pack or receiver pack is charged.

• Droop measurement is set as desired.

• Ride height is set as desired.

Check each of these before each run. If of these settings has changed drastically, it is a
sign something is wrong. For example, if ride height is set to 27mm Front, 27mm Rear and
it has been correct fi ve times, then when check again it is 25mm F/27mm R, something
is wrong. Check the vehicle to be sure there is not a bent shock shaft or hinge pin, and
nothing else is broken or damaged.

Power and Drivetrain Settings

Engine Tuning

Follow the engine manufacturer’s instructions and suggested settings.

General Notes:

• Turning the needle valve clockwise, the fuel mixture becomes leaner, meaning the
engine will draw less fuel. A leaner mix will run hotter engine temperatures and have
better fuel mileage.

• Turning the needle value counterclockwise, the fuel mixture becomes richer, meaning
the engine will draw more fuel. A richer mix will run cooler engine temperatures and
have worse fuel mileage.

• The high speed needle affects the fuel mixture from mid to full throttle. The low speed
needle affects the fuel mixture from idle to low throttle.

To Stop the Engine

There are two ways to stop a nitro engine.

• Plug the exhaust pipe.

• Stop the fl ywheel, by using a wrench or plastic handled tool.

Once the engine is stopped, move the fl ywheel to move the piston away from top dead
center (TDC) while it cools. TDC is the tightest point of the engine’s compression. This will
help the engine last longer by not prematurely diminishing engine compression.

ESC Tuning

Follow the ESC manufacturer’s instructions and suggested settings.

General Notes:

• For the fi rst few runs, monitor the temperature of your ESC and motor to ensure they
are staying cool enough

• Many ESCs will have a type of punch or torque setting which you will want to adjust
to your liking

• Make sure to adjust your brakes down to the level needed as ESCs can provide near
instant brakes and that is hard to drive and also hard on the drive train.

The Battery

The battery or receiver battery is an important part of electric-powered and nitro-powered
vehicles. A battery with low voltage can cause loss of vehicle control and/or weak and
slowed throttle and steering response. Battery life with depend on motor and servo used
and battery ratings. Always fully charge the battery to start each run. Make sure your
battery is not swollen and is balanced properly.

Clutch

Build Tips:

• Use steel wool or fi ne sandpaper to clean the inner surface of the clutch bell.

• Clean the inside of the clutch bell with nitro cleaner to remove all oil and debris.

• It is recommended to use nitro cleaner to spray the grease out of the inner clutch
bearing (5x13x4mm). If it is not cleaned out, the grease may move into the clutch
assembly.

• Do NOT use thread-lock on the clutch pins.

• Check for proper clutch shoe movement by pulling out each installed clutch shoe 1mm
and allow it to snap back into place.

• Ensure clutch bell has .25 to .50mm of movement on the crank shaft and spins freely.

• Break-in – hold vehicle fi rmly down (all four tires and chassis plate on ground), apply ½
throttle for two seconds. Lift vehicle clear out engine. Repeat for a total of three times.

Clutch Springs:

• 8IGHT Clutch Springs, Soft to Stiff: Black, Green, Gold, Silver

• Softer springs - engage at a lower RPM, smoother power, easier to drive, decreases
wheel spin.

• Stiffer springs - engage at a higher RPM, hit harder, feels like more bottom end, good
for high traction or hard to clear jumps.

• If the engine lacks low end power, stiff springs should help. If the springs are too stiff,
the clutch may slip more.

Clutch Shoes:

• 8IGHT Clutch Shoes, Least Grab to Most: Composite, Silver Aluminum, Blue Aluminum

• Two composite and two blue aluminum shoes works best for most tracks.

• Four composite shoes allow more slip for smoother acceleration, and work best for
loose, rough tracks without hard to clear jumps.

• Four blue aluminum shoes provide the most punch but is not good for slick or rough
tracks.

• Silver Long-Wear aluminum shoes (LOSA9109) fall between composite and blue shoes.
They slip more than blue aluminum shoes but less than composite shoes.

Gearing

• Gearing Up – installing a larger pinion/clutch bell or smaller spur gear decreases
bottom end and increases top end speed. Better for larger, sweeping tracks.

• Gearing Down - installing a smaller pinion/clutch bell or larger spur increases bottom
end and reduces top end speed. Better for clearing jumps (when wheel spin is not the
issue).

• Kit gearing for the 8IGHT-XTE is no pinion and a 48 tooth spur gear, ?/48. Different
options available are as below.

• Pinions – 16, 17, 18

• Spur Gears – 46, 47, 48

• Kit gearing for the 8IGHT-XT is a 13 tooth clutch bell and a 48 tooth spur gear, 13/48.
Different options available are as below.

• Clutch Bells – 12, 13, 14

• Spur Gears – 47, 48, 50

Fuel Tank

Fuel tanks include a preinstalled fuel tank insert to meet ROAR and IFMAR 150cc fuel
capacity rules. The insert can be modifi ed to push closer to the 150cc limit at the racer’s
discretion. When racing where these rules are not applied, remove the insert for an
additional 3cc and longer run times.

An EFRA Fuel Kit is also included with the vehicle and should be used at all EFRA races.
The EFRA Fuel Kit ensures the fuel line and clunk do not come out of the tank, illegally
increasing fuel volume.

Brake Setup

Brake bias is adjusted easily using the two red thumb screws. The top thumb screw
controls front brake and the bottom thumb screw controls rear brake.

• Less Front Brake, More Rear Brake – increases vehicle rotation.

• More Front Brake, Less Rear Brake – increases stability under braking.

Differential Oils

Front Oil:

• Thinner - increases steering corner entry. If oil is too thin, steering will be grabby and
inconsistent.

• Thicker - increases off-power stability and on-power steering, especially corner exit.

69

Center Oil:

70

• Thinner - decreases acceleration, increases off-power steering, unloads front more
under acceleration, easier to drive on rough and slick tracks.

• Thicker - increases acceleration, decreases off-power steering, increases on-power
steering, better on smooth and high traction tracks.

Rear Oil:

• Thinner - increases corning traction, increases steering corner entry to mid corner

• Thicker - decreases steering mid corner, increases forward traction corner exit.

Tabletop Adjustments

Ride Height

Ride height is the height of the chassis from the ground/pit board. Ride height is measured
with the body on and vehicle ready to run.

• It is best to measure on a fl at level surface, such as a pit board.

• Drop the vehicle from 12 in (30cm) and allow the suspension to settle.

• Measure from the fl at surface to the bottom of the chassis plate using a ride height
gauge

• Front - Measure behind the bend in the chassis

• Rear – Measure under the rear gear box

• Use shock collars to lower or raise the ride height, adjusting left and right equally.

• Recheck

When the front ride height is adjusted, it can affect the rear ride height and vice-versa.
Once one end is adjusted, always check the height at both ends again.

• Front - higher decreases steering, increases weight transfer to the rear on-power. Lower
increases steering, decreases weight transfer to the rear on-power.

• Rear - higher decreases rear traction, increases steering. Lower increases rear traction,
decreases steering.

• Both – higher improves handling on bumpy tracks. Lower increases corner speed and
stability for smoother tracks.

Camber

Camber is the angle a wheel/tire leans in/out from bottom to top. It is adjusted by
changing the length of the camber link turnbuckle. It is adjusted at ride height with vehicle
ready to run.

More Negative Camber:

• Front - increases steering and responsiveness.

• Rear – decreases rear traction corner entry, increases on-power steering, less grabby in
bumps.

Less Negative Camber:

• Front – decreases steering, smoother feel.

• Rear – increases rear traction and make the rear end stay fl atter, but if traction is lost it
will be more abrupt.

*After adjusting front camber, recheck front toe in/out.

Front Toe

Toe is the angle of the tires compared to the centerline of the chassis. To check and set
front toe, the steering assembly needs to be centered and the vehicle needs to be at ride
height. Adjust the toe by shortening or lengthening the steering turnbuckles. Always set
the steering turnbuckles to equal lengths, then adjust equally.

• Toe In - front tires point inward. This will have a – or negative value (-2°). Toe in
decreases steering response entering and mid corner, increases on-power steering.

• Toe Out - front tires point outward. This will have a + or positive value (+2°). Toe out
increases steering response at corner entry, increases straight-line stability, decreases
on-power steering, smoother corner exit.

Droop

Droop is the measurement of how far the tires fall at full suspension extension. Droop is
measured on the 8IGHT vehicles by removing the tires and wheels, placing the chassis
on droop blocks, then using a ride height gauge to measure from the fl at surface to
the underside of the threads on the wheel hex. TLR 1/8 Droop Blocks (TLR72004) are
recommended or any droop blocks that are 36mm.

To reduce droop (higher measurement number), turn the droop screw for the suspension
arm clockwise. To increase droop (lower measurement number) turn the droop screw
for the suspension arm counterclockwise. After making an adjustment, compress the
suspension by hand, then allow it to settle before measuring again.

More droop (lower number)

• Front - Decreases on-power steering, increases rear traction corner exit by allowing
more weight transfer to the rear.

• Rear - Increases off-power steering by allowing more weight transfer to the front. Less
stable under braking.

• Both – Accelerates better in bumps when straight but can traction roll in rutted corners
easier.

Less droop (higher number)

• Front – Increases on-power steering with more static weight on the front by allowing
less weight transfer to the rear.

• Rear – Increases stability under braking. Decreases side to side weight transfer on
higher speed/smooth tracks.

• Both - Slides over bumps better in corners. Stays fl atter to carry more corner speed on
high speed and high traction tracks.

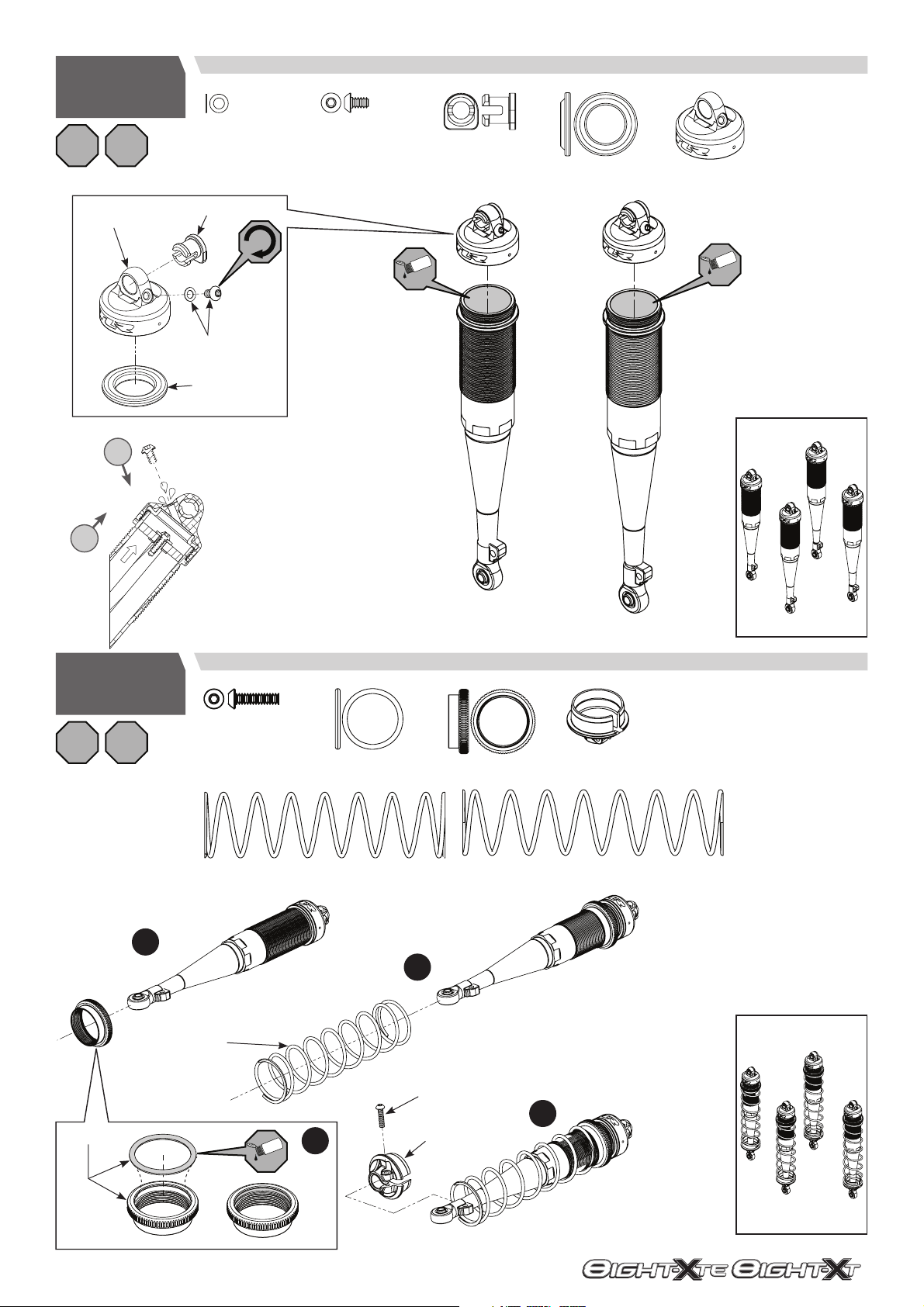

Shocks

Shocks

Shocks have several options for tuning, such as piston, oil, and spring. The piston and oil
work together to make up the shock dampening.

Front

• Thicker dampening decreases steering.

• Thinner dampening increases steering.

Rear

• Thicker dampening decreases rear traction.

• Thinner dampening increases rear traction.

*When dampening settings are outside the window it will result in decreased traction
front or rear.

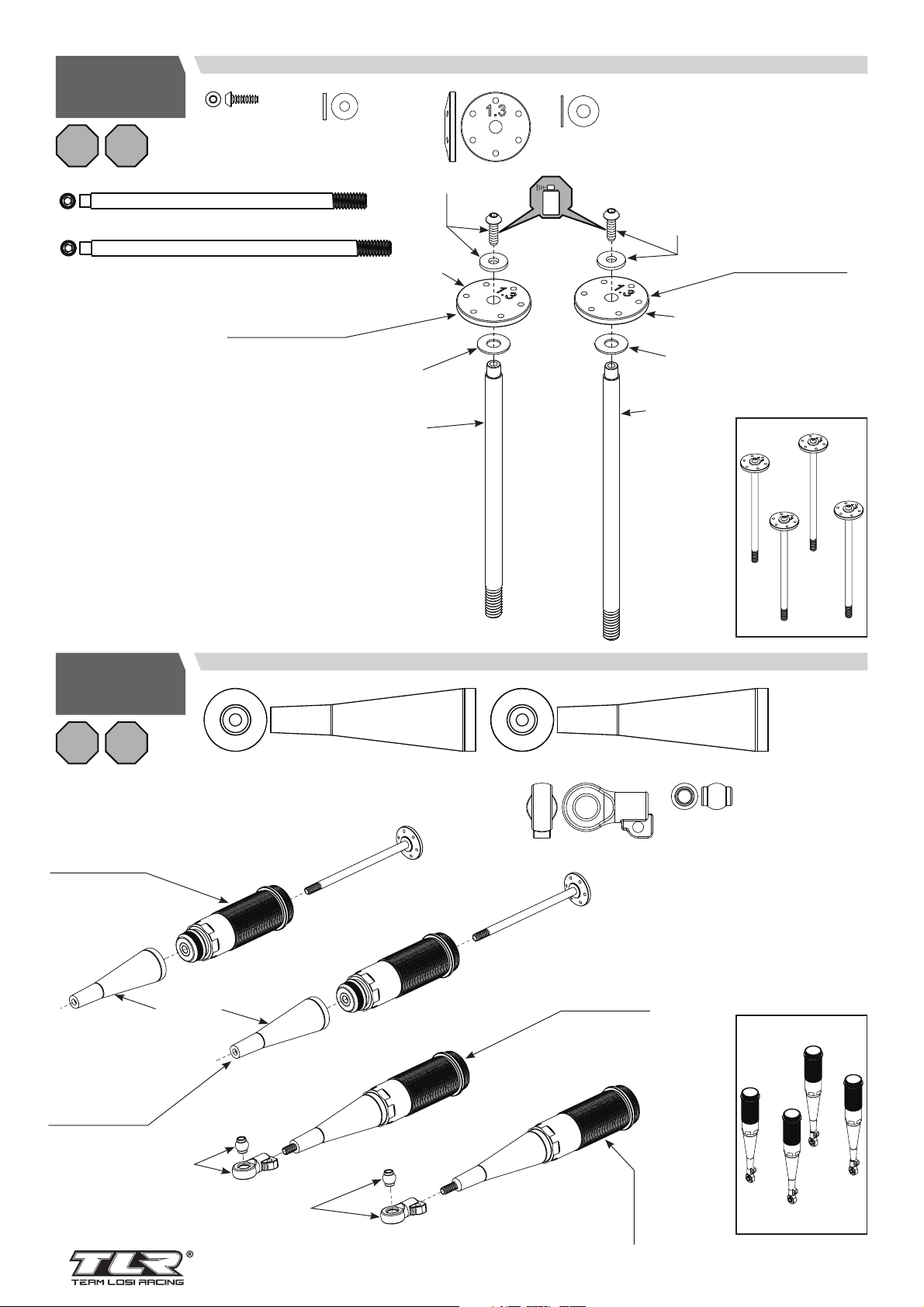

Pistons

Pistons have three key design variations that affect dampening: size of the valving holes,
quantity of valving holes, and piston shape (fl at or tapered).

• Smaller sized or decreased quantities of valving holes provide thicker dampening.
Smaller hole pistons (1.2mm) slow weight transfer and responsiveness but improve
large jump landing.

• Larger sized or increased quantities of valving holes provide thinner damping. Large
hole pistons (1.3mm) increases traction, quicken weight transfer and responsiveness,
but do not land large jumps as well.

• Tapered pistons provide different speeds for compression and rebound. The taper face
is typically run down to increase the rebound speed. Quicker rebound speed helps the
tire maintain contact with the ground better, providing more overall traction.

Shock Oil

• Thinner oil provides thinner dampening which increases overall traction and reacts
quicker.

• Thicker oil provides thicker dampening which decreases overall traction and reacts
slower. Better for high traction, smooth tracks.

• Drastic ambient temperature changes (20–25°F, 10-15°C) require adjustment to shock
oil to maintain the same dampening. Colder temperatures require thinner shock oil,
hotter temperatures require thicker shock oil.

Springs

Springs are available in many different spring rates, which measure the force to compress
over a fi xed distance.

General

• Stiffer spring rate decreases weight transfer, decreases roll, quickens rebound,
decreases overall traction, keeps chassis fl atter.

• Softer spring rate increases weight transfer, increases roll, slows rebound, increases
overall traction.

Front

• Softer – increases off-power steering, smooths steering response.

• Stiffer – decreases off-power steering, quickens steering response.

Rear

• Softer – increases rear traction on-power corner exit, increases mid corner rotation.

• Stiff – increases straight-line forward drive, increases mid corner stability.

Shock Mounting Locations

Arm Position

• Inside – softer suspension, increases responsiveness, increases traction.

• Outside – increases stability, increases side traction, easier to drive.

Tower Position

• Inside – increases responsiveness, stiffer/thicker shocks feel, decreases side traction.

• Outside – increases initial chassis roll, increases side traction, more forgiving.

• Front – inside on the tower is easier to drive, slows steering response. Outside on the
tower increases lift off jumps, improves bump handling.

• Rear – inside on the tower increases mid corner traction. Outside on the tower
increases traction corner entry.

70

Roll Centers

71

Roll Center (RC)

Roll center is the point in space that a vehicle rolls at or around based on complete vehicle
settings. Roll centers can be affected by a lot of different items. Typically, a lower roll
center produces more traction and will cause the roll effect to produce more downward
force. A higher roll center helps the rear end to square up better and helps reduce traction
rolling on high traction surfaces. Balance of the front and rear roll centers is key for a well
handling vehicle. Adjustments below noted with RC are all adjustments that affect roll
centers.

Front Camber Link (RC)

The front camber link mounting points can be adjusted up and down on the inside and
outside (with option parts) as well as moved in and out.

Tower

• Lower – increases camber gain (camber change through suspension travel), higher roll
center, increases off-power steering, increases aggressiveness, decreases consistency,
good on small, tight, or bumpy tracks.

• Upper – decreases camber gain camber gain, lower roll center.

• Longer – decreases roll, increases high speed steering.

• Shorter – increases roll, decreases stability.

Spindle

• Lower – lower roll center.

• Upper – higher roll center.

Rear Camber Links (RC)

The rear camber link mounting positions can be adjusted up and down on the inside and
outside (with option parts) as well as moved in and out.

Tower

• Lower – increases camber gain, higher roll center, improves bump handling, increases
traction corner entry, decreases traction rolling.

• Upper – decreases camber gain, lower roller center, increases traction corner exit,
decreases traction corner entry.

• Longer – decreases roll, increases stability, increases traction.

• Short – increases roll, increases steering, improves bump handling.

Hub

• Longer – increases stability corner entry, increases steering corner exit.

• Shorter – increases steering corner entry, increases traction corner exit.

A/B Block (RC)

By changing of the pills in both the A and B block together, the front roll center is raised
and lowered. It also changes bone plunge and camber gains. When lowering the pills, also
lower the inner front camber link one hole to match, vice-versa for raising the pills.

• Lower - lower roll center, increases front traction, increases steering.

• Higher – higher roll center, decreases front traction, make the front not feel “into the
track”.

Rear Hub Height (RC)

The rear hub can be raised (B) or lowered (A) relative to the suspension arm, moving the
axle up or down.

• A – lower roll center, increases rear side traction.

• B – higher roll center, increases forward traction.

When changing hub height, different inner camber link locations may be required. The 8X
Aluminum Rear Hub Set (TLR334034) provides settings between A and B for fi ner tuning.

Front Spindle Height (RC)

By changing of the spindle shims, the spindle can be raised and lowered. This can change
bone plunge, bump steer, and droop.

• High - lower roll center, increases front traction, increases steering, less traction rolling.

• Low – higher roll center, decreases front traction, make the front not feel “into the
track”.

Others

Front Kick-Up

Front Kick-Up is adjusted by changing the pills in the A and/or B blocks. Kick up is the
angle of the inner front hinge pins relative to the fl at chassis plane. With 0/0 pills in the
A/B blocks, the kick up is 12°.

• More Kick-Up – increases weight transfer on/off the front end when braking/
accelerating, increases off-power steering and forward traction, improves absorption
of bumps.

• Less Kick Up – decreases weight transfer on/off the front end when braking/
accelerating, decreases off-power steering and forward traction, worsens absorption of
bumps.

Caster

Caster is the angle kingpins are displaced from the vertical axis of the front wheels. Caster
on this vehicle is the combination of the kick-up angle and the spindle carrier angle.

Example

0/0 pills in the A & B blocks = 12°

17.5° Spindle Carrier = 17.5°
12° + 17.5° = 29.5° caster

• More Caster - decreases initial steering, good on bumpy tracks.

• Less Caster - increases steering, allows freer suspension movement.

Bump Steer

Bump Steer is the change in front toe throughout the front suspension travel. Bump steer
is affected by caster changes also. Bump steer is adjusted by the washer height between
the rod end and drag link and/or the rod end and the steering arm. More washer height
(steering turnbuckle more parallel to suspension arm) has less bump out. Less washer
height, more bump out.

• More Bump Out – smoother steering, decreases steering corner exit, good for bumpy
tracks.

• Less Bump Out – more direct steering, increases steering corner exit.

Ackerman

Ackerman is the difference in steering angle between the inside tire and outside tire
turning throughout the steering throw. Ackerman is adjusted by changing the mounting
hole used on the drag link for the steering turnbuckle.

• Ackerman, least to most – Front, Middle, Rear holes on draglink

• Less Ackerman – decreases initial steering, increases steering mid corner to corner exit.

• More Ackerman - increases initial steering, decreases steering mid corner to corner exit.

Rear Toe:

Rear Toe In is adjusted by changing pills in the D block.

• Less Toe In - increases wheelbase, decreases rear traction, increases top speed.

• More Toe In - increases forward traction corner exit, increases off-power steering,
increases braking stability.

Rear Anti-Squat

Anti-squat is adjusted changing pills in the C block. Anti-squat is the angle of the inner
rear hinge pins relative to the fl at chassis plane.

• More Anti-Squat – decreases side-to-side roll on the rear, improves height off jumps,
improves rear traction under acceleration.

• Less Anti-Squat – decreases off-power steering and side-to-side roll on the rear,
improves acceleration in small bumps, increases rear traction off-throttle.

Wheelbase:

Wheelbase is adjusted by moving the rear hub spacing within the rear arm. Hubs forward
for a shorter wheelbase or hubs rearward for a longer wheelbase.

• Shorter Wheelbase – increases on-power rear traction, increases off-power steering,
increases rear weight transfer, generally better on tight or slick tracks

• Longer Wheelbase – increases on-power steering, decreases off-power steering,
increases stability, improves bump handling

*Wheelbase characteristics can sometimes also be affected by the type rear driveshafts.
When changing rear driveshaft types, test wheelbase settings again.

Track Width:

Track width is adjusted by changing the width of the wheel hexes, front and/or rear.

Wider:

• Front – slows steering response, decreases front traction, decreases traction rolling.

• Rear – quickens steering response, increases front traction.

Narrower:

• Front – increases traction corner exit, decreases high speed stability.

• Rear – increases traction corner entry, increases high speed stability.

Sway Bars:

Sway bars help control the side to side sway (roll) of the chassis and distribute load from
the inside wheel to the outside wheel.

Front

• Thinner - increases off-power traction, decreases on-power steering.

• Thicker - decreases off-power traction, smoother steering corner entry, increases on­power steering.

Rear

• Thinner - increases traction, decreases on-power steering.

• Thicker - increases stability mid corner, increases on-power steering, increases stability
on high speed, high traction tracks.

71

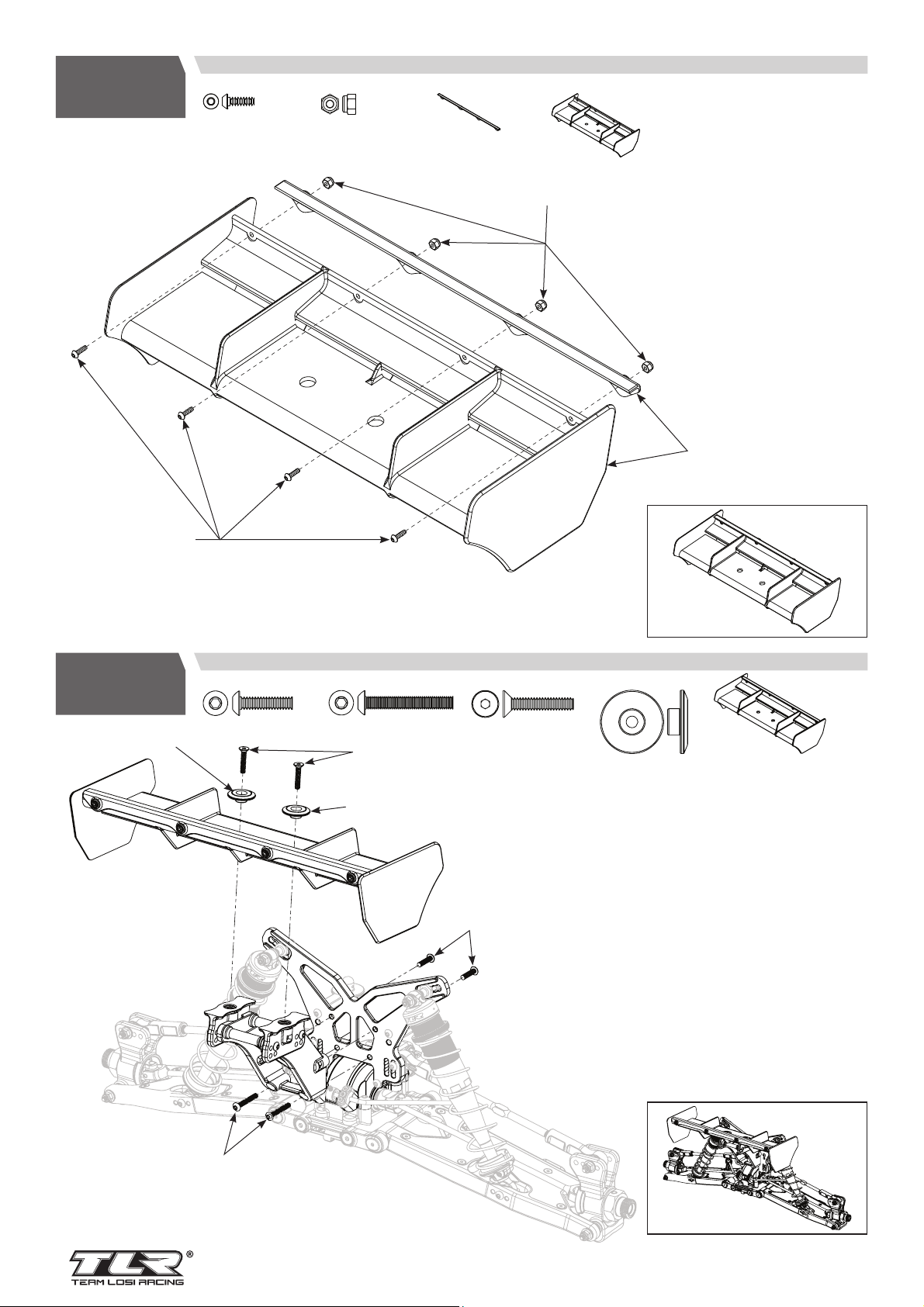

Rear Wing:

72

The wing mount can mount the wing higher or lower, forward or rearward.

• High – increases traction at high speed and on-power.

• Low – increases stability at low speed from the lower center of gravity.

• Forward – decreases rotation, decreases rear swing weight

• Back – increases rotation corner exit, increases forward traction at high speed.

Arm Inserts:

Arm inserts help to control the amount a suspension arm fl exes. Arms can use no insert,
composite insert, or carbon insert and that is the order from most fl exible to least fl exible.

Front

• More Flex – more defl ection off of bumps, increases steering.

• Less Flex – decreases steering, more consistent bump handling.

Rear

• More Flex - increases lateral traction, less consistent line.

• Less Flex – less lateral traction, ability to choose line more consistently.

Chassis Flex:

Chassis fl ex can be altered by changing the chassis rib or changing the engine mount. The
engine mount can be run with the 5th screw or most forward screw in or with it out, or
with the right side mount on the left or fi nger removed.

Chassis Rib

• None – most fl ex, most lateral traction, least consistent lines, jump landing decreases.

• Carbon – middle fl ex, good lateral traction, good consistent lines, good jump landing.

• Aluminum – least fl ex, ok lateral traction, best jump landing.

Engine Mount

• 5th screw in – least fl ex, consistent jump landing, ok lateral traction

• 5th screw out/fi nger removed – good lateral traction

Battery Position:

Battery position can be moved forward and rearward in the battery mounting area.

• Forward – Decreases swing weight, more steering from front end.

• Rearward – Increase swing weight, increases rotation at exit of corner.

72

Shocks

Differentials

Tires

Wing

Engine and Clutch

Track Conditions

Name: Kit Setup Date: Event: Track:

73

Track Conditions

 Indoor  Tight  Smooth  Hard Packed  Blue Groove  Wet  Low Bite  High Bite

 Outdoor  Open  Rough  Loose/Loamy  Dry  Dusty  Med Bite  Other

Front Suspension

Ride Ht 38 Body On

Camber -1.5˚

Toe 1.5 Out

Sway Bar 2.4mm

Notes: _______________________
_____________________________
_____________________________



A Pivot

Rear Suspension

Ride Ht 39 Body On

Camber -1.5˚

Sway Bar 2.8mm

Notes: _______________________
_____________________________
_____________________________

B Pivot



 0mm
 1mm

 2mm

 0mm
 1mm

 2mm



Low D
Low C

3
2
1



D C B A

Low A
Low B

 Pl  Al
 17.5  20

 1mm
 2mm



D C B A



B
A
Low A

Inside
Middle
Outside

10
9
8
7
6

4 3 2 1

5



Inside
Middle
Outside

4
3
2
1



8
7
6



5 4 3 2 1



5
4
3
2
1





C Pivot

D Pivot, LR

Chassis

Differentials

Front Center Rear

Fluid 7,000 12,500 5,000

Pins  AL  STL  AL  STL  AL  STL

Case  STD  HD  STD  HD  STD  HD

Shocks

Front Rear

 Bladder

Shock Type

 Re Bladder
 Emulsion
 Vented

Shaft Dia  3.5  4.0  3.5  4.0

Piston 6 x 1.3 Taper Down 6 x 1.3 Taper Down

Oil 37 32

Spring Orange Red

Stroke

Droop 27 20

 Bladder
 Re Bladder
 Emulsion
 Vented

A C B

Wing

Brand TLR

 Wicker Bill .250

F



 None
 Composite

 Carbon

 Wing

 A
 B

 Composite
 Aluminum

 Composite
 Aluminum



Engine and Clutch

Engine Fuel

Glow Plug Head Clearance

Pipe/Header Gearing

Clutch Shoes Clutch Springs

Th Servo St Servo

Rx Pack Flywheel  AL  STL

 None

 None
 Carbon

 Aluminum

 Aluminum
 Carbon

 Composite
 Carbon

Tires

Brand

Tread

Compound

Insert

Sauce

Front Rear

 20g
 40g

 20g
 40g

 1
 2
 3

 1
 2

 3

73

Shocks

Differentials

Tires

Electronics

Track Conditions

Name: Kit Setup Date: Event: Track:

Wing

74

Track Conditions

 Indoor  Tight  Smooth  Hard Packed  Blue Groove  Wet  Low Bite  High Bite

 Outdoor  Open  Rough  Loose/Loamy  Dry  Dusty  Med Bite  Other

Front Suspension

Ride Ht 38 Body On

Camber -1.5˚

Toe 1.5 Out

Sway Bar 2.4mm

Notes: _______________________
_____________________________
_____________________________



A Pivot

Rear Suspension

Ride Ht 39 Body On

Camber -1.5˚

Sway Bar 2.8mm

Notes: _______________________
_____________________________
_____________________________

B Pivot



 0mm
 1mm

 2mm

 0mm
 1mm

 2mm



Low D
Low C

3
2
1



D C B A

Low A
Low B

 Pl  Al
 17.5  20

 1mm
 2mm



D C B A



B
A
Low A

Inside
Middle
Outside

10
9
8
7
6

4 3 2 1

5



Inside
Middle
Outside

5
4
3
2
1

4
3
2
1



5 4 3 2 1



8
7
6







C Pivot

D Pivot, LR

Chassis

Differentials

Front Center Rear

Fluid 7,000 12,500 5,000

Pins  AL  STL  AL  STL  AL  STL

Case  STD  HD  STD  HD  STD  HD

Shocks

Front Rear

 Bladder

Shock Type

Shaft Dia  3.5  4.0  3.5  4.0

Piston 6 x 1.3 Taper Down 6 x 1.3 Taper Down

Oil 37 32

Spring Orange Red

Stroke

Droop 27 20

 Re Bladder
 Emulsion
 Vented

 Bladder
 Re Bladder
 Emulsion
 Vented

A C B

Wing

Brand TLR

 Wicker Bill .250

F



 None
 Composite

 Carbon

 Wing

 A
 B

 Composite
 Aluminum

 Composite
 Aluminum



Electronics

Radio Servo

ESC Battery

Motor Pinion/Spur

Initial Brake Drag Brake

Thro Prof Timing Adv

Thro Expo Steering Expo

 Composite
 Carbon

 None
 Composite

 Carbon

Tires

Brand

Tread

Compound

Insert

Sauce

74

Front Rear

 20g
 40g

Battery Position __FWD___

 20g
 40g

 1
 2
 3

 1
 2

 3

Shocks

Differentials

Tires

Wing

Engine and Clutch

Track Conditions

Name: Date: Event: Track:

75

Track Conditions

 Indoor  Tight  Smooth  Hard Packed  Blue Groove  Wet  Low Bite  High Bite

 Outdoor  Open  Rough  Loose/Loamy  Dry  Dusty  Med Bite  Other

Front Suspension

Ride Ht

Camber

Toe

Sway Bar

Notes: _______________________
_____________________________
_____________________________

A Pivot

Rear Suspension

Ride Ht

Camber

Sway Bar

Notes: _______________________
_____________________________
_____________________________

B Pivot

 0mm
 1mm
 2mm

 0mm
 1mm
 2mm

Low D
Low C

3
2
1

D C B A

Low A
Low B

 Pl  Al
 17.5  20

 1mm
 2mm

D C B A

B
A
Low A

Inside
Middle
Outside

10
9
8
7
6

4 3 2 1

5

Inside
Middle
Outside

4
3
2
1

8
7
6

5 4 3 2 1

5
4
3
2
1

C Pivot

D Pivot, LR

Chassis

Differentials

Front Center Rear

Fluid

Pins  AL  STL  AL  STL  AL  STL

Case  STD  HD  STD  HD  STD  HD

Shocks

Front Rear

 Bladder

Shock Type

 Re Bladder
 Emulsion
 Vented

Shaft Dia  3.5  4.0  3.5  4.0

Piston

Oil

Spring

Stroke

Droop

 Bladder
 Re Bladder
 Emulsion
 Vented

A C B

Wing

Brand

 Wicker Bill

F

 None
 Composite
 Carbon

 Wing

 A
 B

 Composite
 Aluminum

 Composite
 Aluminum

Engine and Clutch

Engine Fuel

Glow Plug Head Clearance

Pipe/Header Gearing

Clutch Shoes Clutch Springs

Th Servo St Servo

Rx Pack Flywheel  AL  STL

 None

 None
 Carbon
 Aluminum

 Aluminum
 Carbon

 Composite
 Carbon

Tires

Brand

Tread

Compound

Insert

Sauce

Front Rear

 20g
 40g

 20g
 40g

 1
 2
 3

 1
 2
 3

75

Shocks

Differentials

Tires

Electronics

Track Conditions

Name: Date: Event: Track:

Wing

76

Track Conditions

 Indoor  Tight  Smooth  Hard Packed  Blue Groove  Wet  Low Bite  High Bite

 Outdoor  Open  Rough  Loose/Loamy  Dry  Dusty  Med Bite  Other

Front Suspension

Ride Ht

Camber

Toe

Sway Bar

Notes: _______________________
_____________________________
_____________________________

A Pivot

Rear Suspension

Ride Ht

Camber

Sway Bar

Notes: _______________________
_____________________________
_____________________________

B Pivot

 0mm
 1mm
 2mm

 0mm
 1mm
 2mm

Low D
Low C

3
2
1

D C B A

Low A
Low B

 Pl  Al
 17.5  20

 1mm
 2mm

D C B A

B
A
Low A

Inside
Middle
Outside

10
9
8
7
6

4 3 2 1

5

Inside
Middle
Outside

4
3
2
1

8
7
6

5 4 3 2 1

5
4
3
2
1

C Pivot

D Pivot, LR

Chassis

Differentials

Front Center Rear

Fluid

Pins  AL  STL  AL  STL  AL  STL

Case  STD  HD  STD  HD  STD  HD

Shocks

Front Rear

 Bladder

Shock Type

 Re Bladder
 Emulsion
 Vented

Shaft Dia  3.5  4.0  3.5  4.0

Piston

Oil

Spring

Stroke

Droop

 Bladder
 Re Bladder
 Emulsion
 Vented

A C B

Wing

Brand

 Wicker Bill

F

 None
 Composite
 Carbon

 Wing

 A
 B

 Composite
 Aluminum

 Composite
 Aluminum

Electronics

Radio Servo

ESC Battery

Motor Pinion/Spur

Initial Brake Drag Brake

Thro Prof Timing Adv

Thro Expo Steering Expo

 Composite
 Carbon

 None
 Composite
 Carbon

Tires

Brand

Tread

Compound

Insert

Sauce

76

Front Rear

 20g
 40g

Battery Position __________

 20g
 40g

 1
 2
 3

 1
 2
 3

Shocks

Differentials

Tires

Wing

Engine and Clutch

Track Conditions

Name: Date: Event: Track:

77

Track Conditions

 Indoor  Tight  Smooth  Hard Packed  Blue Groove  Wet  Low Bite  High Bite

 Outdoor  Open  Rough  Loose/Loamy  Dry  Dusty  Med Bite  Other

Front Suspension

Ride Ht

Camber

Toe

Sway Bar

Notes: _______________________
_____________________________
_____________________________

A Pivot

Rear Suspension

Ride Ht

Camber

Sway Bar

Notes: _______________________
_____________________________
_____________________________

B Pivot

 0mm
 1mm
 2mm

 0mm
 1mm
 2mm

Low D
Low C

3
2
1

D C B A

Low A
Low B

 Pl  Al
 17.5  20

 1mm
 2mm

D C B A

B
A
Low A

Inside
Middle
Outside

10
9
8
7
6

4 3 2 1

5

Inside
Middle
Outside

4
3
2
1

8
7
6

5 4 3 2 1

5
4
3
2
1

C Pivot

D Pivot, LR

Chassis

Differentials

Front Center Rear

Fluid

Pins  AL  STL  AL  STL  AL  STL

Case  STD  HD  STD  HD  STD  HD

Shocks

Front Rear

 Bladder

Shock Type

 Re Bladder
 Emulsion
 Vented

Shaft Dia  3.5  4.0  3.5  4.0

Piston

Oil

Spring

Stroke

Droop

 Bladder
 Re Bladder
 Emulsion
 Vented

A C B

Wing

Brand

 Wicker Bill

F

 None
 Composite
 Carbon

 Wing

 A
 B

 Composite
 Aluminum

 Composite
 Aluminum

Engine and Clutch

Engine Fuel

Glow Plug Head Clearance

Pipe/Header Gearing

Clutch Shoes Clutch Springs

Th Servo St Servo

Rx Pack Flywheel  AL  STL

 None

 None
 Carbon
 Aluminum

 Aluminum
 Carbon

 Composite
 Carbon

Tires

Brand

Tread

Compound

Insert

Sauce

Front Rear

 20g
 40g

 20g
 40g

 1
 2
 3

 1
 2
 3

77

Shocks

Differentials

Tires

Electronics

Track Conditions

Name: Date: Event: Track:

Wing

78

Track Conditions

 Indoor  Tight  Smooth  Hard Packed  Blue Groove  Wet  Low Bite  High Bite

 Outdoor  Open  Rough  Loose/Loamy  Dry  Dusty  Med Bite  Other

Front Suspension

Ride Ht

Camber

Toe

Sway Bar

Notes: _______________________
_____________________________
_____________________________

A Pivot

Rear Suspension

Ride Ht

Camber

Sway Bar

Notes: _______________________
_____________________________
_____________________________

B Pivot

 0mm
 1mm
 2mm

 0mm
 1mm
 2mm

Low D
Low C

3
2
1

D C B A

Low A
Low B

 Pl  Al
 17.5  20

 1mm
 2mm

D C B A

B
A
Low A

Inside
Middle
Outside

10
9
8
7
6

4 3 2 1

5

Inside
Middle
Outside

4
3
2
1

8
7
6

5 4 3 2 1

5
4
3
2
1

C Pivot

D Pivot, LR

Chassis

Differentials

Front Center Rear

Fluid

Pins  AL  STL  AL  STL  AL  STL

Case  STD  HD  STD  HD  STD  HD

Shocks

Front Rear

 Bladder

Shock Type

 Re Bladder
 Emulsion
 Vented

Shaft Dia  3.5  4.0  3.5  4.0

Piston

Oil

Spring

Stroke

Droop

 Bladder
 Re Bladder
 Emulsion
 Vented

A C B

Wing

Brand

 Wicker Bill

F

 None
 Composite
 Carbon

 Wing

 A
 B

 Composite
 Aluminum

 Composite
 Aluminum

Electronics

Radio Servo

ESC Battery

Motor Pinion/Spur

Initial Brake Drag Brake

Thro Prof Timing Adv

Thro Expo Steering Expo

 Composite
 Carbon

 None
 Composite
 Carbon

Tires

Brand

Tread

Compound

Insert

Sauce

78

Front Rear

 20g
 40g

Battery Position __________

 20g
 40g

 1
 2
 3

 1
 2
 3

Shocks

Differentials

Tires

Wing

Engine and Clutch

Track Conditions

Name: Date: Event: Track:

79

Track Conditions

 Indoor  Tight  Smooth  Hard Packed  Blue Groove  Wet  Low Bite  High Bite

 Outdoor  Open  Rough  Loose/Loamy  Dry  Dusty  Med Bite  Other

Front Suspension

Ride Ht

Camber

Toe

Sway Bar

Notes: _______________________
_____________________________
_____________________________

A Pivot

Rear Suspension

Ride Ht

Camber

Sway Bar

Notes: _______________________
_____________________________
_____________________________

B Pivot

 0mm
 1mm
 2mm

 0mm
 1mm
 2mm

Low D
Low C

3
2
1

D C B A

Low A
Low B

 Pl  Al
 17.5  20

 1mm
 2mm

D C B A

B
A
Low A

Inside
Middle
Outside

10
9
8
7
6

4 3 2 1

5

Inside
Middle
Outside

4
3
2
1

8
7
6

5 4 3 2 1

5
4
3
2
1

C Pivot

D Pivot, LR

Chassis

Differentials

Front Center Rear

Fluid

Pins  AL  STL  AL  STL  AL  STL

Case  STD  HD  STD  HD  STD  HD

Shocks

Front Rear

 Bladder

Shock Type

 Re Bladder
 Emulsion
 Vented

Shaft Dia  3.5  4.0  3.5  4.0

Piston

Oil

Spring

Stroke

Droop

 Bladder
 Re Bladder
 Emulsion
 Vented

A C B

Wing

Brand

 Wicker Bill

F

 None
 Composite
 Carbon

 Wing

 A
 B

 Composite
 Aluminum

 Composite
 Aluminum

Engine and Clutch

Engine Fuel

Glow Plug Head Clearance

Pipe/Header Gearing

Clutch Shoes Clutch Springs

Th Servo St Servo

Rx Pack Flywheel  AL  STL

 None

 None
 Carbon
 Aluminum

 Aluminum
 Carbon

 Composite
 Carbon

Tires

Brand

Tread

Compound

Insert

Sauce

Front Rear

 20g
 40g

 20g
 40g

 1
 2
 3

 1
 2
 3

79

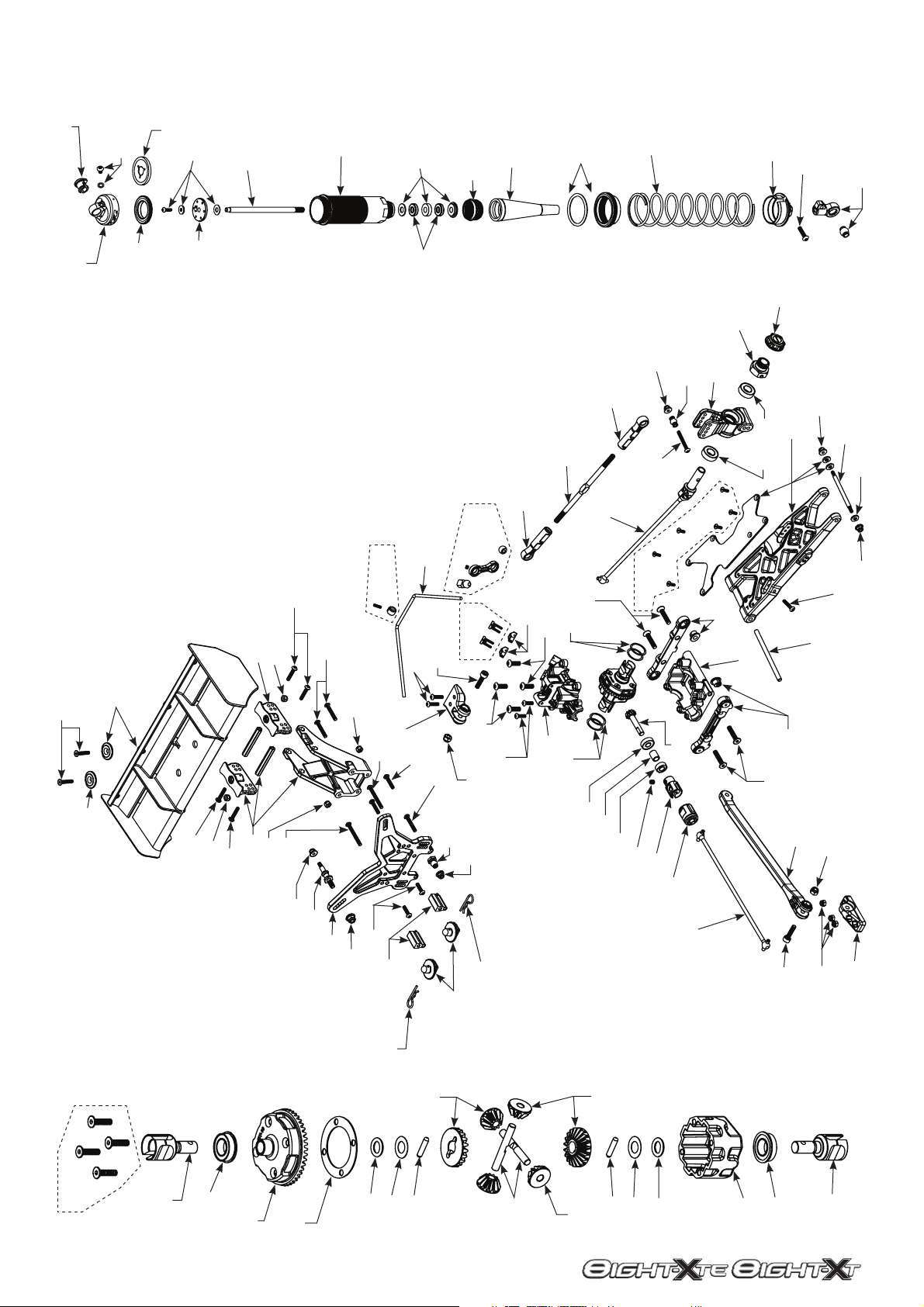

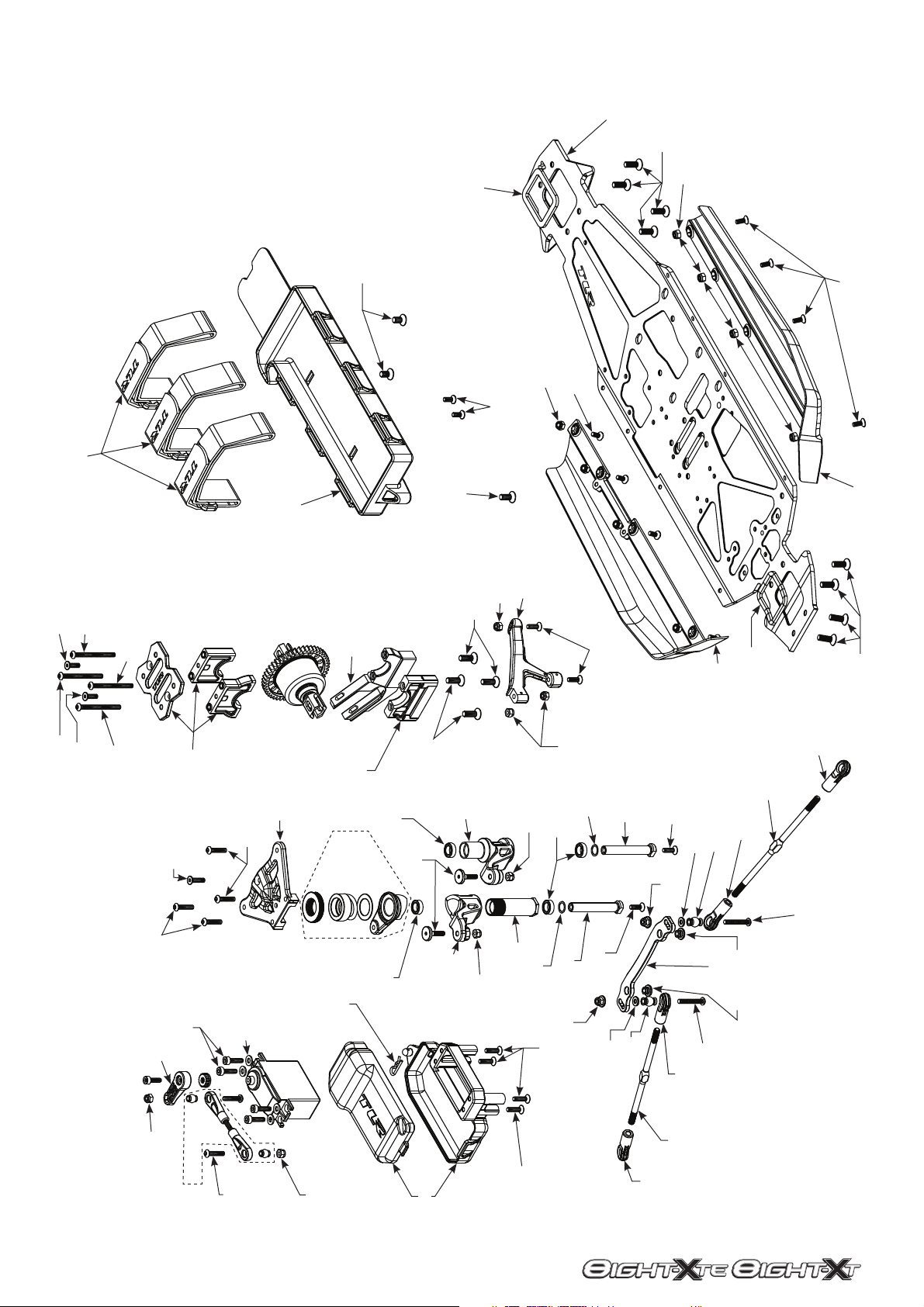

PARTS DIAGRAM • EXPLOSIONSZEICHNUNG • VUE ÉCLATÉE DES PIÈCES •

80

ESPLOSO DEL MODELLO CON REFERENZA PEZZI

TLR243033

TLR243040

TLR8202

LOSA4433

TLR244061

TLR233043

TLR243039

TLR243046

TLR244067

TLR245016

TLR344031

TLR244051 TLR242009

TLR242018

TLR242028

TLR245015

TLR244073

LOSA6947

TLR244075

TLR244068

LOS255017

TLR344032

TLR344033

TLR244068

TLR244052

LOSA5421

TLR244046

TLR245016

LOS235024

TLR243032

LOS235009

TLR244045

TLR244042

TLR243045

TLR245016

TLR336007

TLR242040

TLR244059

TLR5911

LOSA3518

TLR244064

TLR244057

TLR244046

TLR244045

TLR243038

LOSA6942

TLR5910

TLR244069

TLR255002

TLR3538

TLR245015

TLR244044

TLR244069

TLR243038

TLR242041

TLR245016

TLR245017

TLR244071

TLR244056

TLR245016

TLR5910

TLR5904

TLR242025

TLR5905

TLR5911

TLR5962

TLR244041

TLR244049

TLR242025

TLR5905

TLR5909

TLR242025

TLR244041

TLR244041

TLR334039

TLR242025

TLR242025

LOSA3502

LOSA6955

TLR242038

TLR5934

TLR244049

TLR3501

LOS255017

TLR5934

LOSA3502

LOS235009

TLR244049

LOS255017

TLR241033

TLR244043

TLR244049

TLR5911

TLR245000

TLR245006

LH - Silver

TLR5963

TLR242032

LOSA3505

LOSA6948

TLR242038

80

LOSA3505

LOSA3501

LOSA3518

LOSA3502

LOSA3501

LOSA3518

LOSA3505

LOSA6948

LOSA3500

TLR242032

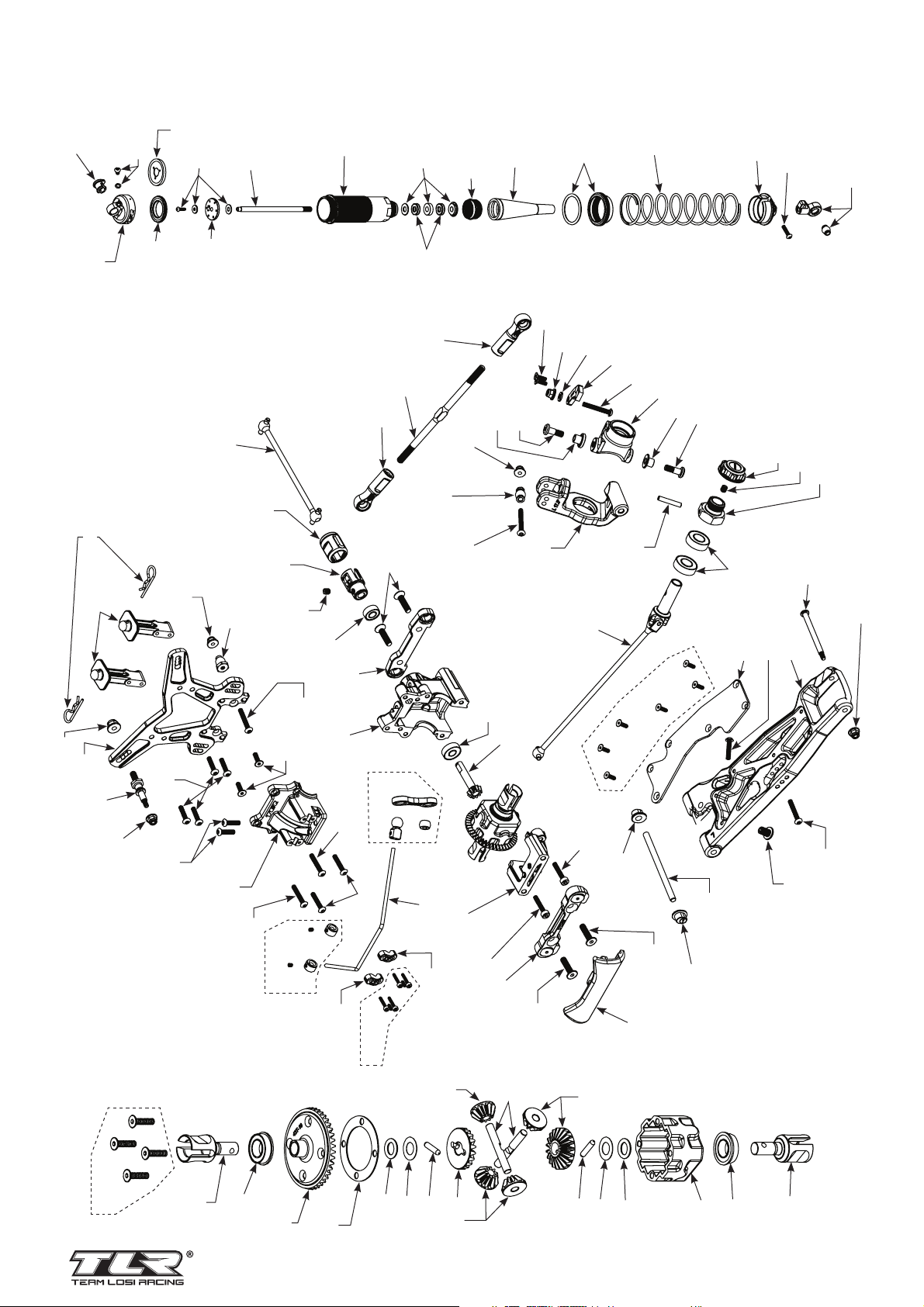

PARTS DIAGRAM • EXPLOSIONSZEICHNUNG • VUE ÉCLATÉE DES PIÈCES •

81

ESPLOSO DEL MODELLO CON REFERENZA PEZZI

TLR243033

TLR243040

TLR5964

TLR233043

TLR243039

TLR240010

TLR244061

TLR243046

TLR244067

TLR244066

TLR240016

TLR6313

TLR5909

TLR244074

TLR5911

TLR6313

TLR344032

TLR344033

TLR244041

TLR5904

TLR344039

TLR245009

LOSA5421

TLR244041

TLR244041

TLR243032

TLR244068

TLR242043

TLR255007

TLR243045

TLR244076

TLR242040

TLR255014

LOSA4452

TLR244065

TLR244068

LOS235009

TLR245016

TLR244052

LOS235024

TLR242042

TLR244037

TLR241063

TLR242043

TLR243038

TLR3538

TLR244070

LOSA6942

TLR255002

TLR245016

TLR5910

TLR244043

TLR243038

TLR244044

TLR244070

TLR245016

TLR240010

TLR5909

TLR6313

TLR240016

TLR5909

TLR6313

LOS235025

TLR245016

TLR244056

TLR244072

LOS235025

TLR5904

TLR245017

TLR241031

TLR241062

TLR5905

TLR8202

TLR5911

TLR244051

LOSA4433

LOSA3502

TLR255007

TLR5903

TLR256005

TLR245016

TLR8202

LOSA4452

TLR242043

LOSA6955

TLR242019

LOSA6947

LOSA3502

TLR245015

TLR242028

TLR242018

TLR242039

TLR242044

TLR241063

TLR255014

TLR241062

TLR245009

TLR256005

TLR6313

TLR241062

TLR5963

TLR242033

LOSA6948

TLR242039

LOSA3505

LOSA3505

LOSA3501

LOSA3518

TLR3501

LOSA3502

LOSA3501

LOSA3518

LOSA3505

LOSA6948

LOSA3500

TLR242033

81

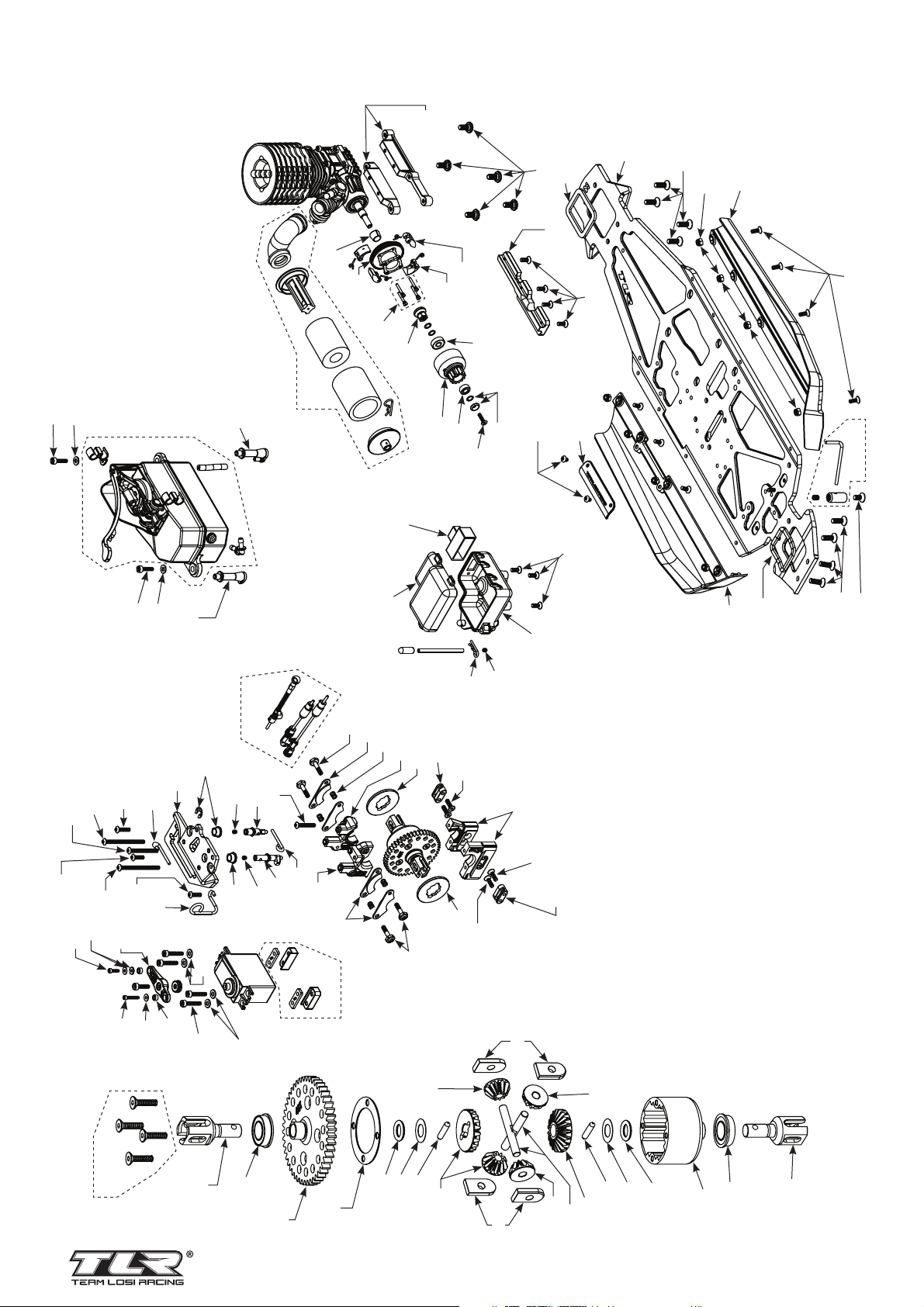

PARTS DIAGRAM • EXPLOSIONSZEICHNUNG • VUE ÉCLATÉE DES PIÈCES •

82

ESPLOSO DEL MODELLO CON REFERENZA PEZZI

TLR5933

TLR6352

TLR241064

TLR241031

TLR241052

TLR241039

TLR241051

TLR241053

TLR241047

LOSA9103

LOSA4419

LOSA9107

LOSA9108

LOSA9126

LOSA6949

TLR5961

LOSA6949

LOSA9103

TLR241068

TLR245005

TLR241054

TLR5900

TLR5961

TLR5961

TLR241034

TLR241065

TLR255013

TLR6313

TLR241034

TLR5961

TLR241048

LOS235025

TLR5903

LOSA6294

TLR5904

TLR5907

TLR5907

TLR241030

TLR241030

LOSA6236

TLR5933

TLR6352

TLR241030

TLR5902

TLR241039

TLR247000

TLR241030

TLR241031

TLR241044

TLR241042

TLR6352

TLR5934

TLR241030

LOS235011

TLR241044

TLR241044

LOS235011

TLR6352

TLR5904

TLR241030

TLR241044

TLR241043

TLR241029

TLR241043

TLR241030

TLR241036

TLR241043

TLR241046

TLR241029

TLR241043

TLR241029

TLR241045

TLR241045

TLR8202

TLR5962

TLR5962

TLR241036

TLR235018

TLR241029

LOSB3528

TLR5962

TLR241029

TLR241068

TLR241034

TLR255013

TLR245010

LOSA3502

TLR5963

LOSA3554

LOSA6948

LOSA3556

82

LOSA3505

LOSA3505

LOSA3501

LOSA3518

LOSA3502

LOSB3528

LOSA3502

TLR3501

LOSA3502

LOSA3502

LOSA3501

LOSA3518

LOSA3505

LOSA6948

LOSB3528

LOSA3554

PARTS DIAGRAM • EXPLOSIONSZEICHNUNG • VUE ÉCLATÉE DES PIÈCES •

83

ESPLOSO DEL MODELLO CON REFERENZA PEZZI

TLR241013

TLR241066

TLR245010

TLR241068

TLR5961

TLR245010

TLR6313

TLR5961

TLR241065

TLR255013

TLR6313

TLR5961

TLR241034

TLR5961

TLR5906

TLR5906

TLR5961

TLR5906

TLR5906

TLR5963

TLR5910

TLR5933

TLR241030

TLR241066

TLR5910

TLR6352

TLR241028

TLR241067

TLR241066

TLR241038

TLR245007

LOSA6946

TLR241040

LOSA6946

TLR255013

TLR241038

TLR241038

TLR6313

TLR255013

TLR6313

TLR241028

TLR6313

TLR241038

LOSA6356

TLR5963

TLR6313

LOSA6356

LOSA6946

TLR241050

TLR245016

TLR5963

TLR5962

TLR336007

TLR241050

TLR244052

TLR5962

TLR336007

TLR245016

TLR5911

TLR244068

TLR241068

TLR241034

TLR244068

TLR244052

TLR241040

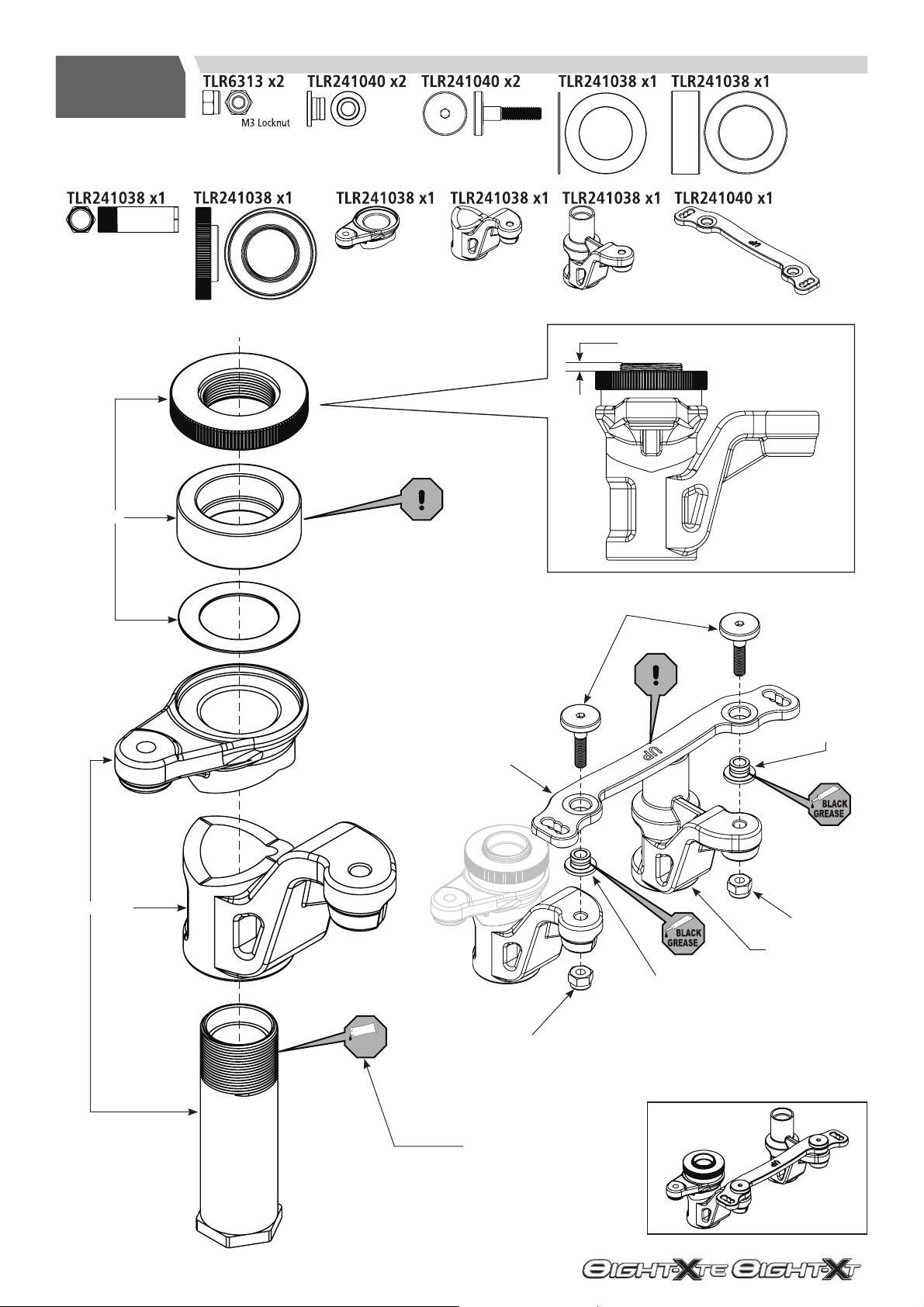

TLR241040

TLR255013

TLR244068

TLR244077

TLR5911

TLR6313

TLR244055

TLR5910

TLR6313

TLR241035

TLR5963

TLR244077

TLR244068

83

84

REPLACEMENT PARTS • ERSATZTEILE • PIÈCES DE RECHANGE • PEZZI DI RICAMBIO

Part # English Deutsch Français Italiano

LOS235002 Cap Head Screws M2.5 x 10mm (10) Inbusschrauben M2,5 x 10mm (10)

LOS235007 Button Head Screws M3 x 12mm (10) Rundkopfschrauben M3 x 12mm (10) Vis à tête bombée, M3 x 12mm (10) Viti a testa tonda, M3 x 12mm (10)

LOS235009 Flat Head Screws M2.5 x 8mm (10) Flachkopfschrauben M2,5 x 8mm (10) Vis à tête plate M2.5 x 8mm (10) Viti a testa piatta, M2.5 x 8mm (10)

Vis d’assemblage creuses M2.5 x
10mm (10)

Viti testa a brugola, M2.5 x 10mm
(10)

LOS235011 Set Screws M3 x 3mm Cup Point (10)

LOS235012 Set Screws M4 x 4mm Cup Point (10)

LOS235014 Lock Nut, M2 x 0.4 x4mm (10)

LOS235018 Setscrew, M3 x 3mm (10) Stellschraube, M3 x 3mm (10) Vis de fi xation, M3 x 3mm (10) Grani, M3 x 3mm (10)

LOS235024 Button Head Screws M3 x 25mm (10) Rundkopfschraube, M3 x 25mm (10) Vis à tête bombée M3 x 25mm (10) Viti a testa tonda, M3 x 25mm (10)

LOS235025 Button Head Screws M3 x 30mm (10) Rundkopfschraube, M3 x 30mm (10) Vis à tête bombée M3 x 30mm (10) Viti a testa tonda, M3 x 30mm (10)

LOS236000 E-Clips, 2.5mm (12) E-Klemmen, 2,5mm (12) Attaches en E, 2,5mm (12) E-Clip, 2,5mm (12)

LOS255014

LOS255017

LOSA1756

LOSA3500 Differential Housing F/R/C: 8B, 8T Differentialgehäuse F/R/C: 8B, 8T Boîtier de différentiel F/R/C: 8B, 8T

LOSA3501

LOSA3502 Differential Gear and Shaft Set: 8B, 8T

LOSA3505

LOSA3518 Drive Pin Set: 8B, 8T Mitnehmerbolzensatz: 8B, 8T

LOSA3554

LOSA3556

Button Head Screws, Steel, Black
Oxide, M4 x 14mm (10)

Flat Head Screws, Stainless, BO, M4 x
16mm (10)

Adjustable Hinge Pin Brace Inserts:
8B, 8T

Differential Shims, 6 x 11 x .2mm: 8B

2.0 (12)

Differential Seal Set: 8B, 8T, LST, XXL,
3XL-E

Center HD Lightened Differential
Outdrives (2)

Center Differential 48T Spur Gear,
LW: 8B, 8T

Stellschrauben M3 x 3mm
Ringschneide (10)

Stellschrauben M4 x 4mm
Ringschneide (10)

Sicherungsmutter, M2 x 0,4 x 4mm
(10)

Rundkopfschrauben, Stahl,
Schwarzoxid, M4 x 14 mm (10)

Flachkopfschrauben, Stl, BO, M4 x
16mm (10)

Anpassbare
Scharnierstiftklammereinsätze 8B, 8T

Differentialdichtscheiben, 6 x 11 x
2mm 8B 2.0 (12)

Differentialgetriebe und -wellensatz:
8B, 8T

Differentialdichtungsset: 8B, 8T, LST,
XXL, 3XL-E

Heavy Duty Antriebsklauen für
Mitteldifferential, Leichtbau (2)

Mitteldifferential Stirnrad 48T, LW
8B, 8T

Vis de fi xation M3 x 3mm Bout
cuvette (10)

Vis de fi xation M4 x 4mm Bout
cuvette (10)

Contre-écrou, M2 x 0,4 x 4mm (10)

Vis à tête bombée, acier, brunie, M4 x
14 mm (10)

Vis à tête plate, Inoxydable, BO, M4 x
16mm (10)

Insertions de support d’axe de
charnière ajustables : 8B, 8T

Cales de différentiel, 6 x 11 x 0,2mm:
8B 2.0 (12)

Ensemble d’arbre et d’engrenage
différentiel: 8B, 8T

Ensemble de joint de différentiel: 8B,
8T, LST, XXL, 3XL-E

Ensemble de broche d’entraînement:
8B, 8T

Entraînements extérieurs différentiels
allégés ultra-résistants centraux (2)

Engrenage cylindrique 48T différentiel
central, LW: 8B, 8T

Grani, M3 x 3mm, punta tonda (10)

Grani, M3 x 4mm, punta tonda (10)

Dadi autobloccanti, M2 x 0,4 x 4mm
(10)

Viti a testa tonda, acciaio, ossido
nero, M4 x 14 mm (10)

Viti a testa piatta, inossidabili, BO, M4
x 16mm (10)

Inserti supporto regolabile perno
cerniera: 8B, 8T

Alloggiamento differenziale A/P/C:
8B, 8T

Rasamenti differenziale, 6 x 11 x
2mm: 8B 2.0 (12)

Set ingranaggio e albero differenziale:
8B, 8T

Set guarnizioni differenziale: 8B, 8T,
LST, XXL, 3XL-E

Kit perno trasmissione: 8B, 8T

Bicchierini differenziale centrale,
leggeri, HD (2)

Corona 48T differenziale centrale,
leggera: 8B, 8T

LOSA4003 Antenna Caps Losi Antennen Kappe Capuchons d’antenne (8) Tappi antenna

LOSA4419 Switch Cover and Foam Pad: 8B, 8T

LOSA4452 Gear Box Shims (20): 8B 2.0

LOSA5421 15mm Shock Caps Bottom (2): 8B, 8T

LOSA6106 E-Clips, 4mm (12) E-Klemmen, 4mm (12) Attaches en E, 4mm (12) E-Clip, 4 mm (12)

LOSA6236 Button Head Cap Screws,2-56x1/2 2-56 x 1/2 Halbrund schrauben Vis à tête bombée 2-56 x 1/2 Viti testa bombata 2-56 x 1/2

LOSA6255 2-56 x 1/4" Button Head Screws (10)

84

Schalterabdeckung und
Schaumstoffpolster: 8B, 8T

Unterlegscheiben Getriebebox (20):
8B 2.0

15mm Stoßdämpferkappen unten
(2): 8B, 8T

Losi 2-56 x 1/4 Rundkopfschrauben
(10)

Couverture d’interrupteur et coussin
en mousse: 8B, 8T

Cales de boîte à engrenage(20):
8B 2.0

Capuchons d’amortisseurs bas 15mm
(2): 8B, 8T

Vis à tête bombée 2-56 x 1/4 (10) 2-56 x 1/4” viti a testa tonda (10)

Copertura interruttori e gommapiuma:
8B, 8T

Rasamenti riduttore (20): 8B 2.0

Tappi inferiori ammortizzatore 15 mm
(2): 8B, 8T

85

REPLACEMENT PARTS • ERSATZTEILE • PIÈCES DE RECHANGE • PEZZI DI RICAMBIO

Part # English Deutsch Français Italiano

LOSA6294 2-56 x 5/16" Cap Screw (6) 2-56 x 5/16 Kopfschraube (6) Vis d’assemblage 2-56 x 5/16po (6) Vite a brugola 2-56 x 5/16" (6)

LOSA6350 #4 and 1/8" Hardened Washers

LOSA6937 5 x 10mm Shielded Ball Bearing (2)

LOSA6942 8 x 16mm Sealed Ball Bearing (4)

LOSA6946 6 x 10 x 3mm Rubber Sealed BB (4)

LOSA6947

LOSA6948

LOSA6949 Clutch Bearing Set: 8B, 8T Kupplungslagersatz 8B, 8T

LOSA6955

LOSA9103

LOSA9107 Clutch Shoes (2) Composite: 8B, 8T

LOSA9108

5 x 11 x 4 Rubber Sealed Ball Bearing
(4)

8 x 14 x 4mm Flanged Rubber Seal
BB (4)

5 x 13mm HD Clutch Bearings (2):
8B/8T

Clutch Nut and Hardware, 4 Shoe:
8B, 8T

Clutch Shoes, Lightened Aluminum
(2): 8B, 8T

#4 und 1/8 inch gehärtete
Unterlegscheiben (24)

5 x 10mm abgedichtetes Kugellager
(2)

8 x 16mm abgedichtetes Kugellager
(4)

6 x 10x3mm gummiversiegeltes
Kugellager (4)

5 x 11 x 4 Kugellager gekapselt (2) Roulement étanche 5 x 11 x 4 (2)

8 x 14x4 Flanschgummidichtung (4)

Losi 5 x 13mm HD Kupplungslager
(2):8B/8T

Kupplungsmutter und Hardware, 4
Backen: 8B, 8T

Kupplungsbacken (2) aus
Verbundstoff: 8B, 8T

Kupplungsbacken, Aluminium,
Leichtbau (2): 8B, 8T

Rondelles n°4 et 1/8 (24) Rondella indurita #4 e 1/8-inch (24)

Roulement à billes blindé 5 x 10mm
(2)

Roulement à billes hermétique 8 x
16mm (4)

Roulement à billes hermétique en
caoutchouc 6 x 10 x 3mm (4)

Roulement à billes hermétique en
caoutchouc à collet 8 x 14 x 4 (4)

Ensemble de roulement à embrayage:
8B, 8T

8B/8T - Roulements renforcés 5 x
13mm

Écrou d’embrayage et matériel, 4
patins: 8B, 8T

Patins d’embrayage (2) Composites:
8B, 8T

Patins d’embrayage, Aluminium allégé
(2): 8B, 8T

Cuscinetti a sfera schermati 5 x
10mm (2)

Cuscinetti a sfera sigillati 8 x 16mm
(4)

Cuscinetti a sfera sigillati in gomma 6
x 10 x 3mm (4)

Cuscinetto a sfere sigillato 5 x 11 x
4 (2)

Cuscinetti a sfera sigillati in gomma
fl angiati 8 x 14 x 4 mm (4)

Set cuscinetto frizione: 8B, 8T

5 x 13mm HD Cuscinetti frizione (2):
8B/8T

Dadi frizione e viteria, 4 ceppi: 8B, 8T

Ceppi frizione in composito (2): 8B, 8T

Ceppi frizione in alluminio alleggerito
(2): 8B, 8T

LOSA9114 Clutch Springs, Gold (4): 8B, 8T Kupplungsfedern, gold (4): 8B, 8T Ressorts d’embrayage, Or (4): 8B, 8T Molle frizione, oro (4): 8B, 8T

LOSA9115 Clutch Springs, Silver (4): 8B, 8T Kupplungsfedern, silber (4): 8B, 8T

LOSA9126 High-Endurance Clutch Bell, 13T: 2.0

LOSA9151 Air Filter Foams, Pre-Oiled: 8B, 8T Luftfi lterschaumstoff, vorgeölt: 8B, 8T

LOSA9314 Ultra Fuel Tubing, 5' Ultra-Kraftstoffl eitung, 5 Fuß Tube de carburant ultra, 5pieds Tubo carburante ultra, 5’

LOSA99040

LOSA99041

LOSA99042

LOSA99043

LOSB3528

TLR233043 Shock Hardware, G3 (4) Stoßdämpfer-Hardware, G3 (4) Matériel d’amortisseur, G3 (4) Bulloneria ammortizzatore, G3 (4)

Metal Servo Arm Insert, 23 Spline,
AIR (2)

Metal Servo Arm Insert, 23 Spline,
JR (2)

Metal Servo Arm Insert, 24 Spline,
HRC (2)

Metal Servo Arm Insert, 25 Spline,
FUT (2)

Heavy-Duty Differential Case: 8, 8T,
LST, XXL, 2.0, 3.0

Kupplungsglocke, hohe Standzeit,
13T: 2.0

Metall-Servoarmeinsatz, 23
Verzahnung, AIR (2)

Metall-Servoarmeinsatz, 23
Verzahnung, JR (2)

Metall-Servoarmeinsatz, 24
Verzahnung, HRC (2)

Metall-Servoarmeinsatz, 25
Verzahnung, FUT (2)

Robustes Differentialgehäuse: 8, 8T,
LST, XXL, 2.0, 3.0

Ressorts d’embrayage, argent (4):
8B, 8T

Cloche d’embrayage hautement
résistante, 13T: 2.0

Mousses de fi ltre à air, pré-huilées:
8B, 8T

Insertion de bras de servo métallique,
Cannelure 23, AIR (2)

Insertion de bras de servo métallique,
Cannelure 23, JR (2)

Insertion de bras de servo métallique,
Cannelure 24, HRC (2)

Insertion de bras de servo métallique,
Cannelure 25, FUT (2)

Boîtier de différentiel hautement
résistant: 8, 8T, LST, XXL, 2.0, 3.0

Molle frizione, argento (4): 8B, 8T

Campana frizione alta resistenza,
13T: 2.0

Spugne fi ltri aria, preoliati: 8B, 8T

Inserto metallico squadretta servo, 23
scanalature, AIR (2)

Inserto metallico squadretta servo, 23
scanalature, JR (2)

Inserto metallico squadretta servo, 24
scanalature, HRC (2)

Inserto metallico squadretta servo, 25
scanalature, FUT (2)

Scatola differenziale per impieghi
gravosi: 8, 8T, LST, XXL, 2.0, 3.0

TLR235008 Flat Head Screws, M3 x 6mm (10) Flachkopfschrauben, M3 x 6mm (10) Vis à tête fraisée M3 x 6mm (10) Viti a testa piatta M3 x 6mm (10)

TLR240011 Wing, White, IFMAR Flügel, Weiß, IFMAR Aile, blanche, IFMAR Alettone, IFMAR, bianco

TLR240016 Wing Mount: 8XT Flügelhalterung: 8XT Support d’aile: 8XT Montante alettone: 8XT

TLR240017 Body: 8XT Karosserie: 8XT Carrosserie : 8XT Carrozzeria: 8XT

85

86

REPLACEMENT PARTS • ERSATZTEILE • PIÈCES DE RECHANGE • PEZZI DI RICAMBIO

Part # English Deutsch Français Italiano

TLR241028 Chassis Braces: 8X Karosseriestreben: 8X Supports de carrosserie: 8X Supporti telaio: 8X

TLR241029

TLR241030 Throttle/Brake Linkage: 8X Gashebel/Bremsgestänge: 8X Tringlerie de gaz/frein: 8X Rinvio freno/motore: 8X

TLR241031 Body Posts and Tank Mount: 8X

TLR241033 Front Bumper: 8X Frontstoßstange: 8X Pare-chocs avant: 8X Paraurti anteriore: 8X

TLR241034 Side Guards: 8X Seitenschutze: 8X Protections latérales: 8X Protezioni laterali: 8X

TLR241035 Servo Mount, Battery Box: 8X Servohalterung, Akku-Box: 8X

TLR241036 Receiver Box: 8X Empfängerbox: 8X Boîtier de récepteur: 8X Scatola ricevitore: 8X

TLR241038 Bellcrank Set: 8X Umlenkhebelsatz: 8X Ensemble de levier coudé: 8X Set leva a squadra: 8X

TLR241039 Air Filter Set: 8X Luftfi ltersatz: 8X Ensemble de fi ltre à air: 8X Set fi ltro aria: 8X

TLR241040 Drag Link: 8X Lenkzwischenstange: 8X Barre d’accouplement: 8X Tirante: 8X

TLR241042

Center Differential Mount/Shock
Tool: 8

Center Differential Top Brace,
Aluminum: 8X

Mitteldifferentialhalterung/
Stoßdämpferwerkzeug: 8

Gehäusepfosten und Tankhalterung: 8XPoteaux de carrosserie et support de

Obere Mitteldifferentialstrebe,
Aluminium: 8X

Support différentiel central/Outil
d’amortisseur: 8

réservoir: 8X

Support de servo, boîtier de batterie:
8X

Support supérieur différentiel central,
aluminium: 8X

Strumento ammortizzatore/supporto
differenziale centrale: 8

Supporti carrozzeria e montanti
serbatoio: 8X

Montante servo, scatola batterie: 8X

Supporto superiore differenziale
centrale, alluminio: 8X

TLR241043 Brake Pads and Screws (4): 8X Bremsbeläge und Schrauben (4): 8X Plaquettes de frein et vis (4): 8X Pastiglie e viti freno (4): 8X

TLR241044 Brake Cams: 8X Bremsnocken: 8X Cames de frein: 8X Camme freno: 8X

TLR241045 Brake Rotor (2): 8X Bremsrotor (2): 8X Rotor de frein (2): 8X Rotori freni (2): 8X

TLR241046 Brake Springs (4): 8X Bremsfedern (4): 8X Ressorts de frein (4): 8X Molle freni (4): 8X

TLR241047 Engine Mount Set: 8X Motorhalterungssatz: 8X Ensemble de support du moteur: 8X Set supporto motore: 8X

TLR241048 Tuned Pipe Mount and Hardware: 8X

TLR241049 Pipe Wire (2): 8X Drahtrohr (2): 8X Câble de tube (2): 8X Filo marmitta (2): 8X

TLR241050 Steering Post (2): 8X Lenksäule (2): 8X Colonne de direction (2): 8X Supporto sterzo (2): 8X

TLR241051 Flywheel and Collet, Aluminum: 8X

TLR241052 Collet (2): 8X, 8 Klemmbuchse (2): 8X, 8 Bague de serrage (2): 8X, 8 Pinza (2): 8X, 8

TLR241053 Clutch Pins and Hardware: 8X Kupplungsstifte und Hardware: 8X Broches d’embrayage et matériel: 8X Perni frizione e viteria: 8X

Resonanzrohrhalterung und
Hardware: 8X

Schwungrad und Klemmbuchse,
Aluminium: 8X

Support de tube calibré et matériel: 8XSupporto scarico marmitta con

accessori: 8X

Volant d’inertie et bague de serrage,
aluminium: 8X

Volano e pinza in alluminio: 8X

TLR241054 Chassis Rib Brace: 8X Karosserierippenstrebe: 8X Support de nervure de carrosserie: 8X Trapezio centina telaio: 8X

TLR241062 Chassis Brace, Rear: 8XT Karosseriestrebe, hinten: 8XT Support de carrosserie, arrière : 8XT Bretella telaio, Posteriore: 8XT

Anpassbare Heck

TLR241063 Adj Rr Hinge Pin Brace w/Ins:8X

TLR241064 Fuel Tank: 8XT Kraftstofftank: 8XT Réservoir de carburant: 8XT Serbatoio carburante: 8XT

86

Scharnierstiftklammer mit Einsätzen:
8X

Support d’axe de charnière arrière
ajustable avec insertions: 8X

Supporto regolabile perno cerniera
posteriore con inserti: 8X

87

REPLACEMENT PARTS • ERSATZTEILE • PIÈCES DE RECHANGE • PEZZI DI RICAMBIO

Part # English Deutsch Français Italiano

TLR241065 Chassis: 8XT Karosserie: 8XT Carrosserie: 8XT Telaio: 8XT

TLR241066 Battery Tray,Center Diff Mnt:8X

TLR241067 Motor Mount w/Adapter: 8XT Motorhalter mit Adapter: 8XT Support moteur avec adaptateur: 8XT Supporto motore con adattatore: 8XT

TLR242009 Center Dog Bone: 8E 3.0 (R), 8X (F) Antriebsknochen: 8E 3.0 (R), 8X (F) Dogbone central: 8E 3.0 (R), 8X (F) Cardano centrale: 8E 3.0 (P), 8X (A)

TLR242018 Axle Boot Set: 8, 8T 4.0 Achsmanschettensatz: 8, 8T 4.0

TLR242019 Spacer, Pinion Bearings (4): 8, 8T 4.0

TLR242025 Front Gear Box: 8X Vordere Getriebebox: 8X Boîte à engrenage avant: 8X Riduttore anteriore: 8X

TLR242028 Center Drive Coupler: 8X Zentrale Antriebskupplung: 8X Coupleur d’entraînement central: 8X

TLR242032 FF HD Lightened Outdrive Set (2): 8 Frontantriebssatz, Leichtbau (2): 8

TLR242033 RR HD Light Outdrive Set (2): 8X Heckantriebssatz, Leichtbau (2): 8X

TLR242038 Front Diff Ring & Pinion Gr:8XT

TLR242039 Rear Diff Ring & Pinion Gear:8X Triebling und Tellerrad Diff hinten:8X

TLR242040 Universal Driveshaft (2): 8XT Universal-Antriebswelle (2): 8XT

Akkufach, Zentraldifferentialhalterung: 8XSupport de batterie, support de

différentiel central : 8X

Ensemble du souffl et d’essieu: 8,
8T 4.0

Abstandhalter, Zahnradlager (4): 8,
8T 4.0

Ring vorderes Differential und
Zahnradgetriebe: 8XT

Entretoise, roulements à pignon (4):
8, 8T 4.0

Ensemble d’entraînement extérieur
allégé ultra-résistant avant (2): 8

Ensemble d’entraînement extérieur
allégé ultra-résistant arrière (2): 8X

Pignon d’attaque et couronne de
différentiel avant : 8XT

Pignon d’attaque et couronne de
différentiel arrière:8X

Arbre de transmission universelle
(2): 8XT

Alloggiamento batteria, Supporto
differenziale centrale: 8X

Set perno ruota: 8, 8T 4.0

Distanziale, cuscinetti pignone (4):
8, 8T 4.0

Accoppiamento trasmissione centrale:
8X

Set bicchierino alleggerito anteriore
HD (2): 8

Set bicchierino alleggerito posteriore
HD (2): 8X

Corona e pignone del differenziale
anteriore: 8XT

Set anello e pignone posteriore:8X

Albero di trasmissione universale
(2): 8XT

TLR242041 Wheel Hex, Front: 8XT Sechskant, vorn: 8XT Hexagone de roue avant : 8XT Esagono ruota, Anteriore: 8XT

TLR242042 Wheel Hex, Rear: 8XT Sechskant, Heck: 8XT Hexagone de roue arrière : 8XT Esagono ruota, Posteriore: 8XT

TLR242043 Rear Gear Box: 8XT Hintere Getriebebox: 8XT Boîte à engrenage arrière: 8XT Riduttore posteriore: 8XT

TLR242044 Center Dogbone, Rear: 8XT Mittiger Dogbone, Heck: 8XT Dogbone central, arrière : 8XT Cardano centrale, Posteriore: 8XT

TLR243004 16mm Shock Bladders (4): 8B 3.0 16mm Dämpfermembrane (4): 8B 3.0

TLR243014

TLR243033 Shock Cap Bushing (4): 8, 8T 4.0 Stoßdämpferkappen (4): 8, 8T 4.0

TLR243038 Shock Plastics: 8X Stoßdämpfer Kunststoff: 8X Plastiques de l’amortisseur: 8X Plastiche ammortizzatore: 8X

TLR243039 16mm Shock Seals, Emulsion (4): 8 16mm Stoßdämpfer, Emulsion (4): 8

TLR243040

TLR243045 16mm Shock Nuts and O-Rings (4): 8 16mm Dichtringe und O-Ringe(4): 8

TLR243046 Shock Washer, Screw (4): 8X

16mm Shock Piston Washer (8): 8B

3.0

16mm Bleed Shock Cap, Aluminum
(2): 8

16mm Unterlegscheibe
Stoßdämpferkolben (8): 8B 3.0

16mm Stoßdämpferkappen
Aluminium (2): 8

Unterlegscheibe Stoßdämpfer,
Schraube (4): 8X

Amortisseurs à poche 16mm (4):
8B 3.0

Rondelle de piston d’amortisseur
16mm (8): 8B 3.0

Bague de capuchon d’amortisseur
(4): 8, 8T 4.0

Joints d’amortisseurs 16mm,
Émulsion (4): 8

Capuchon d’amortisseur avec purgeur
16mm, aluminium (2): 8

Écrous d’amortisseur et joints toriques
16mm (4): 8

Rondelle d’amortisseur, vis (4): 8X Rondella ammortizzatore, vite (4): 8X

Membrane ammortizzatore 16 mm
(4): 8B 3.0

Rondella pistone ammortizzatore 16
mm (8): 8B 3.0

Boccole tappi ammortizzatore (4): 8,
8T 4.0

Guarnizioni ammortizzatore 16mm,
emulsione (4): 8

Tappo sfi ato ammortizzatore,
alluminio, 16 mm (2): 8

Dadi ammortizzatore e O-ring 16
mm (4): 8

TLR244037 Rear Hub (2): 8X Hintere Nabe (2): 8X Moyeu arrière (2): 8X Mozzo posteriore (2): 8X

TLR244041 Sway Bar Set: 8X Schwingen-Set: 8X Ensemble de barre stabilisatrice: 8X Set barra oscillante: 8X

87

88

REPLACEMENT PARTS • ERSATZTEILE • PIÈCES DE RECHANGE • PEZZI DI RICAMBIO

Part # English Deutsch Français Italiano

TLR244042 Spindle Carrier Set, 20°: 8X Spindelträgersatz, 20°: 8X Ensemble de support d’axe, 20°: 8X Set guida fuso, 20°: 8X

TLR244043

TLR244044

TLR244045 King Pin Bolt (4): 8X Sattelzapfenbolzen (4): 8X Boulon de broche pivot (4): 8X Bullone kingpin (4): 8X

TLR244046 Spindle Shim (4): 8X Unterlegscheibe Spindel (4): 8X Cale d’axe (4): 8X Rasamento fuso (4): 8X

TLR244049

TLR244051

TLR244052 Suspension Ball, 6.8mm (4): 8X Kugelkopf, 6,8mm (4): 8X Rotule de suspension, 6,8mm (4): 8X Sfera di sospensione, 6,8mm (4): 8X

TLR244055 Steering Link: 8X Lenkstange: 8X Tringlerie de direction: 8X Rinvio sterzo: 8X

TLR244056 Shock Stand Off (4): 8X Stoßdämpfer-Standoff (4): 8X

TLR244057 Spindle, Aluminum: 8X Spindel, Aluminium: 8X Axe, Aluminium: 8X Fuso, alluminio: 8X

TLR244059 Ackerman Arm, A (2): 8X Ackerman Arm, A (2): 8X Bras Ackerman, A (2): 8X Braccetto Ackerman, A (2): 8X

Hinge Pins, 4 x 66mm, Electro Nickel
(2): 8

Out Hinge Pins, 3.5mm, Electro Nickel
(2): 8

Adjustable Front Hinge Pin Brace w/
Inserts: 8

Suspension Ball, 6.8mm, Flanged
(4): 8X

Scharnierbolzen, 4 x 66mm,
Chemisch-Nickel (2): 8

Äußere Scharnierbolzen, 3,5mm,
Chemisch-Nickel (2): 8

Anpassbare Front
Scharnierstiftklammer mit Einsätzen: 8

Kugelkopf mit Flansch, 6,8mm (4): 8X

Broches de charnière, 4 x 66mm,
Électro Nickel (2): 8

Broches de charnière externe, 3,5mm,
Électro Nickel (2): 8

Support d’axe de charnière avant
ajustable avec insertions : 8

Rotule de suspension, 6,8mm, à collet
(4): 8X

Dispositif d’espacement d’amortisseur
(4): 8X

Perni cerniera, 4 x 66 mm,
elettronichelati (2): 8

Perni cerniera esterna, 3,5 mm,
elettronichelati (2): 8

Supporto regolabile perno cerniera
anteriore con inserti: 8

Sfera di sospensione, 6,8mm,
fl angiata (4): 8X

Standoff ammortizzatore (4): 8X

TLR244064 Spring Set, Front: 8XT Federnsatz, Vorn: 8XT Ensemble ressort, avant : 8XT Kit molle, Anteriore: 8XT

TLR244065 Spring Set, Rear: 8XT Federnsatz, Heck: 8XT Ensemble ressort, arrière : 8XT Kit molle, Posteriore: 8XT

TLR244066 Shock, Shaft, Rear, 3.5mm, 8XT Kolbenstange, Heck, 3,5mm: 8XT

TLR244067

TLR244068 HD Rod End Set:8X HD-Stangenkopfsatz: 8X

TLR244069 Front Arms, Inserts (2): 8XT Vordere Arme, Einsätze (2): 8XT Bras avant, insertions (2): 8XT Bracci anteriori, inserti (2): 8XT

TLR244070 Rear Arms, Mud Guard,Inserts(2): 8X

TLR244071 Shock Tower, Front: 8XT Stoßdämpferbrücke, vorn: 8XT Tour d’amortisseur, avant : 8XT Torre ammortizzatore, Anteriore: 8XT

TLR244072 Shock Tower, Rear: 8XT Stoßdämpferbrücke, Heck: 8XT Tour d’amortisseur, arrière : 8XT Torre ammortizzatore, Posteriore: 8XT

TLR244073 Shock Body, Front(2): 8XT Stoßdämpfergehäuse, Front (2) 8XT

TLR244074 Shock Body, Rear(2): 8XT Stoßdämpfergehäuse, Heck (2): 8XT

16mm Shock Piston,Tapered 6 x

1.3(4): 8X

16 mm Stoßdämpferkolben, konisch 6
x 1,3 (4): 8X

Hintere Arme, Einsätze, Aluminium
(2): 8X

Bras d’amortisseur, arrière, 3,5mm:
8XT

Piston d’amortisseur 16 mm, conique
6 x 1,3(4) : 8X

Ensemble embout de bielle
ultrarésistant : 8X

Bras arrière, insertions, protections
(2): 8X

Carrosserie d’amortisseur, avant (2):
8XT

Carrosserie d’amortisseur, arrière
(2): 8XT

Albero ammortizzatore, posteriore,
3,5mm: 8XT

Pistone ammortizzatore 16 mm,
Rastremato 6 x 1,3(4): 8X

Set teste a snodo per impiego
gravoso: 8X

Bracci posteriori, inserti, protezioni
(2): 8X

Corpo ammortizzatore, anteriore (2):
8XT

Corpo ammortizzatore, posteriore
(2): 8XT

TLR244075 Turnbuckle, Front(2): 8XT Spannschraube, vorn (2): 8XT Ridoir, avant (2) : 8XT Tenditore, Anteriore (2): 8XT

TLR244076 Turnbuckle, Rear(2): 8XT Spannschraube, Heck (2): 8XT Ridoir, arrière (2) : 8XT Tenditore, Posteriore (2): 8XT

TLR245000 Droop Screw (4): 8B 3.0 Ausfederungsbegrenzer (4): 8B 3.0 Vis d’abaissement (4): 8B 3.0 Viti abbassamento (4): 8B 3.0

TLR245005 Motor Mount Screws (8): 8X Schrauben Motorhalterung (8): 8X Vis de support moteur (8): 8X Viti supporto motore (8): 8X

88

89

REPLACEMENT PARTS • ERSATZTEILE • PIÈCES DE RECHANGE • PEZZI DI RICAMBIO

Part # English Deutsch Français Italiano

TLR245006

TLR245007 Body Clips, Small (12) Gehäuseklemmen, klein (12) Clips de carrosserie, petits (12) Clip carrozzeria, piccole (12)

LH Button Head Screws, M3 x 20mm
(4)

LH Rundkopfschrauben, M3x20mm
(4)

Vis à tête bombée LH, M3 x 20mm (4)

Viti a testa tonda, leggere, M3 x
20mm, SX (4)

TLR245008 Cap Head Screws, M2 x 10mm (10) Inbusschrauben M2 x 10mm (10)

TLR245009 Cap Head Screws, M4 x 16mm (10) Inbusschrauben, M4 x 16mm (10)

TLR245010 Flat Head Screws, M4 x 8mm (10) Rundkopfschrauben, M4 x 8mm (10) Vis à tête plate, M4 x 8mm (10) Viti a testa piatta, M4 x 8mm (10)

TLR245011 Button Head Screws, M2 x 6mm (10) Rundkopfschrauben, M2x6mm (10) Vis à tête bombée, M2 x 6mm (10) Viti a testa tonda, M2 x 6mm (10)

TLR245012

TLR245014

TLR245015 Flat Point Set Screws, M4 x 4mm (10)

TLR245016 M3 Flanged Lock Nuts (10)

TLR245017 M4 Flanged Lock Nuts (10)

TLR247000 3/32" x 3/16" x 3/32" Sealed BB (2)

TLR255002

Button Head Screws, M2.5 x 4mm
(10)

Cup Point Set Screws M2.5 x 3mm
(10)

Button Head Screws, M2.5 x 10mm
(10)

Rundkopfschrauben, M2,5x4mm
(10)

Stellschraube mit Ringschneide,
M2,5x3mm (10)

Madenschrauben mit Kegelkuppe, M4
x 4mm (10)

M3 Sicherungsmuttern mit Flansch
(10)

M4 Sicherungsmuttern mit Flansch
(10)

3/32Zoll x 3/16Zoll x 3/32Zoll
versiegeltes Kugellager (2)

Rundkopfschrauben, M2,5x10mm
(10)

Vis d’assemblage creuses, M2 x
10mm (10)

Vis d’assemblage creuses, M4 x
16mm (10)

Vis à tête bombée, M2,5 x 4mm (10) Viti a testa tonda, M2,5 x 4mm (10)

Vis de fi xation à bout cuvette M2,5 x
3mm (10)

Vis de fi xation à bout plat, M4 x
4mm (10)

Contre-écrous à collet M3 (10) Dadi autobloccanti fl angiati M3 (10)

Contre-écrous à collet M4 (10) Dadi autobloccanti fl angiati M4 (10)

Roulement à billes hermétique
3/32po x 3/16po x 3/32po (2)

Vis à tête bombée, M2.5 x 10mm (10) Viti a testa tonda, M2.5 x 10mm (10)

Viti testa a brugola, M2 x 10mm (10)

Viti testa a brugola, M4 x 16mm (10)

Grani a punta tonda, M2,5 x 3mm
(10)

Grani a punta piatta, M4 x 4mm (10)

Cuscinetti a sfera sigillati 3/32" x
3/16" x 3/32" (2)

TLR255013 Flat Head Screws, M4 x 12mm (10) Rundkopfschrauben, M4 x 12mm (10) Vis à tête plate, M4 x 12mm (10) Viti a testa piatta, M4 x 12mm (10)

TLR255014 Flat Head Screws, M4 x 20mm (10) Rundkopfschrauben, M4 x 20mm (10) Vis à tête plate, M4 x 20mm (10) Viti a testa piatta, M4 x 20mm (10)

TLR256005 Nylock Nut, M4 (10) Nylock-Mutter, M4 (10) Contre-écrou Nylock, M4 (10) Dado Nylock, M4 (10)

TLR336007

TLR344031 Shock Shaft, Rear, 3.5mm: 8X Kolbenstange, Heck, 3,5mm: 8X

TLR344032

TLR344033 X-Ring Seals (8), 3.5mm: 8X X-Ring-Dichtungen (8), 3,5mm: 8X Joints toriques X (8), 3,5mm: 8X Guarnizioni X-Ring (8), 3,5mm: 8X

TLR3538

TLR5280 Silicone Diff Fluid, 5000CS TLR Silikon Diff Öl ,5.000CS

TLR5281 Silicone Diff Fluid, 7000CS TLR Silikon Diff Öl ,7.000CS

TLR5900 Button Head Screws, M3 x 5mm (10)

TLR5902 Button Head Screws, M3 x 8mm (10)

TLR5903 Button Head Screws, M3 x 10mm (10)

TLR5905 Button Head Screws, M3 x 18mm (10)

M3 Caster Block Alum Washer Set,
Black (4ea)

Shock Guide and Bushing Set, 3.5mm: 8Dämpferschutz- und Hülsensatz,

Covered 17mm Wheel Nuts,
Aluminum: 8B, 8

M3 Radblock, Unterlegscheiben-Satz,
Aluminium, schwarz (je 4)

3,5mm: 8

Radmuttern geschlossen 17mm,
Aluminium: 8B 8

TLR Rundkopfschraube, M3 x 5mm
(10)

TLR Rundkopfschraube, M3 x 8mm
(10)

TLR Rundkopfschraube, M3 x 10mm
(10)

TLR Rundkopfschraube, M3 x 18mm
(10)

Ensemble de rondelles en aluminium
pour bloc de roulettes M3, noir (4ea)

Bras d’amortisseur, arrière, 3,5mm: 8XAlbero ammortizzatore, posteriore,

Ensemble de guide d’amortisseur et
bague, 3,5mm: 8

Écrous de roue couverts 17mm,
aluminium: 8B, 8

Graisse silicone pour différentiel,
5000CS

Graisse silicone pour différentiel,
7000CS

Vis à tête bombée M3 x 5mm (10) Viti testa tonda, M3 x 5mm (10)

Vis à tête bombée M3 x 8mm (10) Viti testa tonda, M3 x 8mm (10)

Vis à tête bombée M3 x 10mm (10) Viti testa tonda, M3 x 10mm (10)

Vis à tête bombée M3 x 18mm (10) Viti testa tonda, M3 x 18mm (10)

Set rondella alluminio blocco ghisa
M3, nero (4ea)

3,5mm: 8X

Set boccola e guida ammortizzatore,
3,5mm: 8

Dadi ruota 17mm, ricoperti, in
alluminio: 8B, 8

Fluido silicone diff, 5,000CS

Fluido silicone diff, 7,000CS

89

REPLACEMENT PARTS • ERSATZTEILE • PIÈCES DE RECHANGE • PEZZI DI RICAMBIO

Part # English Deutsch Français Italiano

TLR5907 Button Head Screws, M3 x 40mm (10)

TLR5909 Button Head Screws, M3 x 16mm (10)

TLR5910 Button Head Screws, M3 x 14mm (10)

TLR5911 Button Head Screws, M3 x 20mm (10)

TLR5932 Cap Head Screws, M3 x 10mm (10)

TLR5933 Cap Head Screws, M3 x 12mm (10)

TLR5934 Cap Head Screws, M3 x 16mm (10)

TLR5961 Flat Head Screw, M3 x 8mm (10)

TLR5962 Flat Head Screw, M3 x 10mm (10)

TLR5963 Flat Head Screw, M3 x 12mm (10)

TLR5964 Flat Head Screw, M3 x 16mm (10)

TLR6313 Locknut, M3 x .5 x 5.5mm (10)

TLR Rundkopfschraube, M3 x 40mm
(10)

TLR Rundkopfschraube, M3 x 16mm
(10)

TLR Rundkopfschrauben M3 x 14mm
(10)

TLR Rundkopfschrauben M3 x 20mm
(10)

TLR Zylinderkopfschraube, M3 x
10mm (10)

TLR Zylinderkopfschraube, M3 x
12mm (10)

TLR Zylinderkopfschraube, M3 x
16mm (10)

TLR Flachkopfschrauben, M3 x 8mm
(10)

TLR Flachkopfschrauben, M3 x 10mm
(10)

TLR Flachkopfschrauben, M3 x 12mm
(10)

TLR Flachkopfschrauben, M3 x 16mm
(10)

TLR Mutter selbstsichernd M3 x .5 x

5.5mm (10)

Vis à tête bombée M3 x 40mm (10) Viti testa tonda, M3 x 40mm (10)

Vis à tête bombée M3 x 16mm (10) Viti testa tonda, M3 x 16mm (10)

Vis à tête bombée M3x14mm (10) Viti a testa tonda, M3 x 14mm (10)

Vis à tête bombée M3x20mm (10) Viti a testa tonda, M3 x 20mm (10)

Vis BTR M3 x 10mm (10) Viti testa a brugola, M3 x 10mm (10)

Vis BTR M3 x 12mm (10) Viti testa a brugola, M3 x 12mm (10)

Vis BTR M3 x 16mm (10) Viti testa a brugola, M3 x 16mm (10)

Vis à tête fraisée M3 x 8mm (10) Vite a testa piatta, M3 x 8mm (10)

Vis à tête fraisée M3 x 10mm (10) Vite a testa piatta, M3 x 10mm (10)

Vis à tête fraisée M3 x 12mm (10) Vite a testa piatta, M3 x 12mm (10)

Vis à tête fraisée M3 x 16mm (10) Vite a testa piatta, M3 x 16mm (10)

Ecrou M3 x 0,5 x 5,5mm (10)

Dado autobloccante, M3 x .5 x

5.5mm (10)

TLR6352 Washers, M3 (10) TLR U-Scheibe, M3 (10) Rondelles M3 (10) Rodelle, M3 (10)

TLR74007 Silicone Shock oil, 32.5wt, 2oz Silikonstoßdämpferöl, 32.5wt, 2 oz

TLR74009 Silicone Shock Oil, 37.5wt, 2oz Silikonstoßdämpferöl, 37.5wt, 2 oz

TLR75005 Silicone Differential Fluid, 12,500CS

TLR8202 Body Clips, Black (12): 22

Differential-Silikonfl üssigkeit,
12,500CS

TLR Karosserieklammern Schwarz
(12): 22

Huile silicone d’amortisseur, 32,5wt,
60 ml

Huile silicone d’amortisseur, 37.5wt,
60 ml

Liquide silicone pour différentiel,
12,500CS

22 - Clips de carrosserie noirs (12) Clips carrozzeria, neri (12): 22

Olio silicone ammortizzatori, 32.5wt,
2oz

Olio silicone ammortizzatori, 37.5wt,
2oz

Olio al silicone per differenziale,

12.500CS

91

OPTIONAL PARTS • OPTIONALE TEILE • PIÈCES OPTIONNELLES • PARTI OPZIONALI

Part # English Deutsch Français Italiano

LOSA9109

LOSA9112 Clutch Springs, Black (4): 8B, 8T Kupplungsfedern, schwarz (4): 8B, 8T

LOSA9113 Clutch Springs, Green (4): 8B, 8T Kupplungsfedern, grün (4): 8B, 8T Ressorts d’embrayage, vert (4): 8B, 8T Molle frizione, verde (4): 8B, 8T

LOSA9116 Clutch Bell 13T: 8B, 8T Kupplungsglocke 13T: 8B, 8T Cloche d’embrayage 13T: 8B, 8T Campana frizione 13T: 8B, 8T

LOSA9118 Clutch Bell 15T: 8B, 8T Kupplungsglocke 15T: 8B, 8T Cloche d’embrayage 15T: 8B, 8T Campana frizione 15T: 8B, 8T

Long-Wear Aluminum Clutch Shoes
(4): 8B, 8T

Langlebige Aluminium­Kupplungsbacken (4): 8B, 8T

Patins d’embrayage en aluminium
résistant (4): 8B, 8T

Ressorts d’embrayage, noir (4): 8B,
8T

Ceppi frizione in alluminio a lunga
durata (4): 8B, 8T

Molle frizione, nere (4): 8B, 8T

LOSA9125 High Endurance Clutch Bell, 12T: 2.0

LOSA9127 High Endurance Clutch Bell, 14T: 2.0

LOSA99070 Speed-Shot Fuel Gun Speed Shot Tankpistole Pistolet de carburant Speed-Shot Pistola riempimento rapido carburante

LOSA99172 Camber Gauge Sturzmesser Jauge de carrossage Misuratore camber

LOSA99173 Ride Height Gauge Fahrzeughöhenmesser Cale de mesure de garde au sol Misuratore di altezza

LOSA99174 Car Stand: 8IGHT/T Autoständer Support de voiture Supporto auto

TLR240011 Wing, White, IFMAR Flügel, Weiß, IFMAR Aile, blanche, IFMAR Alettone, IFMAR, bianco

TLR240012 Wing, Yellow, IFMAR Flügel, Gelb, IFMAR Aile, jaune, IFMAR Alettone, IFMAR, giallo

TLR242004 Wheel Hexes, +1mm (4): 8B 3.0 Sechskantrad, +1mm (4): 8B 3.0

TLR243010

TLR243011

TLR243012 16mm Shock Piston, Split (2): 8B 3.0

TLR243029

TLR243030

TLR336004 M3 Aluminum Lock Nuts, Black (10)

TLR336005

TLR340004 PC Wing, Pre-Cut Clear: 8, E, T 4.0

TLR341008 Aluminum Servo Horn, 23T: 8X Aluminium-Servohorn, 23T: 8X

TLR341009 Aluminum Servo Horn, 25T: 8X Aluminium-Servohorn, 25T: 8X

16mm Shock Piston, 1.2mm (2): 8B

3.0

16mm Shock Piston, 1.3mm (2): 8B

3.0

16mm Shock Piston Set Tapered 1.3
Sp: 8 3.0

16mm Shock Piston Set
Tapered1.4/1.5: 8T, E 3.0

M3 Flanged Aluminum Lock Nuts,
Black (10)

Kupplungsglocke, hohe Standzeit,
12T: 2.0

Kupplungsglocke, hohe Standzeit,
14T: 2.0

16mm Stoßdämpferkolben, 1,2mm
(2): 8B 3.0

16mm Stoßdämpferkolben, 1,3mm
(2): 8B 3.0

16mm Stoßdämpferkolben, Split (2):
8B 3.0

16mm Stoßdämpferkolbensatz,
konisch, Split 1,3: 8 3.0

16mm Stoßdämpferkolbensatz,
konisch 1,4/1,5: 8T, E 3.0

M3 Aluminum Stopmmuttern Schwarz
(10)

M3 Aluminium Stopmmutter mit Bund
Schwarz (10)

PC-Flügel, vorgefertigt, farblos: 8, E,
T 4.0

Cloche d’embrayage hautement
résistante, 12T: 2.0

Cloche d’embrayage hautement
résistante, 14T: 2.0

Hexagones de roues, +1mm (4):
8B 3.0

Piston d’amortisseur 16mm, 1,2mm
(2): 8B 3.0

Piston d’amortisseur 16mm, 1,3mm
(2): 8B 3.0

Piston d’amortisseur 16mm, partagé
(2): 8B 3.0

Ensemble de piston d’amortisseur
conique 16mm 1.3 Sp: 8 3.0

Ensemble de piston d’amortisseur
conique 16mm 1.4/1.5: 8T, E 3.0

Écrou auto-freiné M3 en aluminium,
noir (10)

Écrou auto-freiné épaulé M3 en
aluminium, noir (10)

Aile PC, transparente prédécoupée:
8, E, T 4.0

Renvoi de commande du servo en
aluminium, 23T: 8X

Renvoi de commande du servo en
aluminium, 25T: 8X

Campana frizione alta resistenza,
12T: 2.0

Campana frizione alta resistenza,
14T: 2.0

Esagoni ruote, +1mm (4): 8B 3.0

Pistone ammortizzatore 16mm,
1,2mm (2): 8B 3.0

Pistone ammortizzatore 16mm,
1,3mm (2): 8B 3.0

Pistone ammortizzatore 16mm,
scomponibile (2): 8B 3.0

Set pistoni ammortizzatore 16mm,
conici, 1.3 Sp: 8 3.0

Set pistoni ammortizzatore 16mm,
conici, 1.4/1.5: 8T, E 3.0

Dadi autobloccanti allum. M3, neri
(10)

Dadi autobloccanti allum. fl angiati
M3, neri (10)

Alettone pretagliato e trasparente:
8, E, T 4.0

Squadretta servo, alluminio, 23T: 8X

Squadretta servo, alluminio, 25T: 8X

TLR341010 Brass Ballast: 8X Messing-Ballast: 8X Lest en laiton: 8X Pesi: 8X

91

92

OPTIONAL PARTS • OPTIONALE TEILE • PIÈCES OPTIONNELLES • PARTI OPZIONALI

Part # English Deutsch Français Italiano

TLR341011 Servo Saver Arm, Aluminum: 8X Servo-Saver-Arm, Aluminium: 8X

TLR341012 Front Brace, Aluminum: 8X Frontstrebe, Aluminium: 8X Support avant, aluminium: 8X Supporto anteriore, alluminio: 8X

Bras économiseur de servo,
aluminium: 8X

Braccio salva servo, alluminio: 8X

TLR341013 Clamping Servo Saver Nut: 8X Servo-Saver-Spannmutter: 8X

TLR341014 Aluminum Front Chassis Brace: 8X

TLR341015

TLR341016

TLR341018 Quick Change Engine Mount Only: 8X

TLR341019 Quick Change Engine Mount Set: 8X

TLR341020 Center Diff Top Brace,Carbon: 8

TLR342007 Magnetic Wheel Nuts (4): 8B/8T Magnetische Radmuttern (4): 8B/8T

TLR342012

TLR342013

TLR342014

TLR342016 Flywheel and Collet, Steel, 4 Shoe: 8

TLR342017 Wheel Hexes, +2mm Wider (2): 8X Sechskantrad, +2mm breiter (2): 8X

TLR342020

TLR342021

TLR342022

Aluminum Servo Horn, Throttle, 23T: 8XAluminium-Servohorn, Gashebel,

Aluminum Servo Horn, Throttle, 25T: 8XAluminium-Servohorn, Gashebel,

Vented, High Endurance Clutch Bell,
12T

Vented, High Endurance Clutch Bell,
13T

Prebuilt Clutch, 4 Shoe, Ha Aluminum: 8Vorgefertigte Kupplung, 4 Backen, Ha

16mm EVO Front Shock Spring Set,

5.3, Violet (2): 8B 4.0

16mm EVO Front Shock Spring Set,

5.5, Gray (2): 8B 4.0

16mm EVO Front Shock Spring Set,

3.6, Brown (2): 8B 4.0

Vordere Karosseriestrebe, Aluminium: 8XSupport de carrosserie avant en

23T: 8X

25T: 8X

Nur Schnellwechsel-Motorhalterung: 8XChangement rapide du support

Schnellwechsel-Motorhalterungssatz: 8XEnsemble de changement rapide du

Obere Mitteldifferentialstrebe,
Kohlenstoff: 8X

Belüftete Kupplungsglocke, hohe
Standzeit, 12T

Belüftete Kupplungsglocke, hohe
Standzeit, 13T

Aluminium: 8

Schwungrad und Klemmbuchse, Stahl,
4 Backen: 8

16mm EVO Vorderer Stoßdämpfer­Federnsatz, 5,3, lila (2): 8B 4.0

16mm EVO Vorderer Stoßdämpfer­Federnsatz, 5,5, grau (2): 8B 4.0

16mm EVO Vorderer Stoßdämpfer­Federnsatz, 3,6, braun (2): 8B 4.0

Écrou de blocage économiseur de
servo: 8X

aluminium: 8X

Renvoi de commande du servo, gaz,
23T: 8X

Renvoi de commande du servo, gaz,
25T: 8X

moteur uniquement: 8X

support moteur: 8X

Support supérieur différentiel central,
carbone : 8X

Écrous de roues magnétiques (4):
8B/8T

Cloche d’embrayage hautement
résistante, ventilée, 12T

Cloche d’embrayage hautement
résistante, ventilée, 13T

Embrayage préconstruit, 4patins, Ha
Aluminium: 8

Volant d’inertie et bague de serrage,
acier, 4 patins: 8

Hexagones de roues, +2mm plus
larges (2): 8X

Ensemble de ressorts d’amortisseur
avant EVO 16mm, 5.3, violet (2):
8B 4.0

Ensemble de ressorts d’amortisseur
avant EVO 16mm, 5.5, gris (2): 8B

4.0
Ensemble de ressorts d’amortisseur

avant EVO 16mm, 3.6, marron (2):
8B 4.0

Dado di serraggio salva servo: 8X

Supporto telaio anteriore in alluminio:
8X

Squadretta servo in alluminio, motore,
23T: 8X

Squadretta servo in alluminio, motore,
25T: 8X

Solo supporto motore cambio rapido:
8X

Set supporto motore cambio rapido:
8X

Differenziale centrale, bretella
superiore, carbonio: 8X

Dadi ruota magnetici (4): 8B/8T

Campana frizione alta resistenza,
ventilata, 12T

Campana frizione alta resistenza,
ventilata, 13T

Frizione premontata, 4 ceppi,
alluminio anodizzato: 8

Volano e pinza in acciaio, 4 ceppi: 8

Esagoni ruote, +2 mm più larghi
(2): 8X

Set molle ammortizzatori anteriori
EVO 16mm, 5.3, viola (2): 8B 4.0

Set molle ammortizzatori anteriori
EVO 16mm, 5.5, grigi (2): 8B 4.0

Set molle ammortizzatori anteriori
EVO 16mm, 3.6, marroni (2): 8B 4.0

TLR344029 Ackerman Arm, B (2): 8X Ackerman Arm, B (2): 8X Bras Ackerman, B (2): 8X Braccetto Ackerman, B (2): 8X

TLR344034 Rear Hub, Aluminum: 8X Hintere Nabe, Aluminium: 8X Moyeu arrière, aluminium: 8X Mozzo posteriore in alluminio: 8X

TLR344035 3.5mm Shock Shaft Conversion: 8 3,5mm Kolbenstangenumbau: 8

TLR344039 Sway Bars, FF 2.2/2.4, RR 2.6/2.8: 8X Schwingen, FF 2,2/2,4, RR 2,6/2,8: 8X

TLR344040

TLR344041 Aluminum Spindle Carrier Set, 20: 8X Aluminium-Spindelträgersatz, 20: 8X

92

Aluminum Spindle Carrier Set, 17.5: 8XAluminium-Spindelträgersatz, 17,5: 8XEnsemble de support d’axe en

Conversion de bras d’amortisseur
3,5mm: 8

Barres stabilisatrices, FF 2.2/2.4, RR

2.6/2.8: 8X

aluminium, 17.5: 8X

Ensemble de support d’axe en
aluminium, 20: 8X

Conversione albero ammortizzatore
3,5 mm: 8

Barre oscillanti AA 2.2/2.4, PP

2.6/2.8: 8X

Set guida fuso in alluminio, 17,5: 8X

Set guida fuso in alluminio, 20: 8X

93

OPTIONAL PARTS • OPTIONALE TEILE • PIÈCES OPTIONNELLES • PARTI OPZIONALI

Part # English Deutsch Français Italiano

TLR346000 Starter Box Plate: 8X Starterboxplatte: 8X Plaque du boîtier de démarrage: 8X Piastra scatola starter: 8X

TLR3501

TLR5277 Silicone Differential Fluid, 1000CS Differential-Silikonfl üssigkeit, 1000CS

TLR5278 Silicone Differential Fluid, 2000CS Differential-Silikonfl üssigkeit, 2000CS

TLR5279 Silicone Differential Fluid, 3000CS Differential-Silikonfl üssigkeit, 3000CS

TLR5282 Silicone Differential Fluid, 10,000CS

TLR5283 Silicone Differential Fluid, 15,000CS

TLR5284 Silicone Differential Fluid, 20,000CS

TLR5285 Silicone Differential Fluid, 30,000CS

TLR5288 Silicone Differential Fluid, 125,000CS

TLR70000 Twist Lock Glow Igniter Glühzünder mit Drehverriegelung

TLR70001

TLR70003 17mm Magnetic Wheel Wrench

TLR74000 Silicone Shock Oil, 15 wt., 2oz.

TLR74001 Silicone Shock Oil, 17.5 wt., 2oz.

TLR74002 Silicone Shock Oil, 20 wt., 2oz.

TLR74003 Silicone Shock Oil, 22.5 wt., 2oz.

TLR74005 Silicone Shock oil, 27.5wt, 2oz Silikonstoßdämpferöl, 27,5wt, 2 oz

TLR74006 Silicone Shock oil, 30wt, 2oz Silikon Stoßdämpfer Öl, 30wt, 2oz

TLR74008 Silicone Shock oil, 35wt, 2oz Silikonstoßdämpferöl, 35wt, 2 oz

TLR74010 Silicone Shock oil, 40wt, 2oz Silikonstoßdämpferöl, 40wt, 2 oz

TLR74011 Silicone Shock Oil, 42.5wt, 2oz Silikonstoßdämpferöl, 42.5wt, 2 oz

TLR74012 Silicone Shock Oil, 45 wt., 2oz.

TLR74013 Silicone Shock Oil, 50 wt., 2oz.

Differential Shaft Set, Aluminum (6):
8B, 8T

Twist Lock Glow Igniter/Charger
Combo

Differentialwellensatz, Aluminium (6):
8B, 8T

Differential-Silikonfl üssigkeit,

10.000CS

Differential-Silikonfl üssigkeit,

15.000CS

Differential-Silikonfl üssigkeit,

20.000CS

Differential-Silikonfl üssigkeit,

30.000CS

Differential-Silikonfl üssigkeit,

125.000CS

Glühzünder mit Drehverriegelung/
Ladegerät Kombi

17mm Magnetischer
Radschraubenschlüssel

Stoßdämpfer-Silikonöl, 15wt, 59ml
(2oz)

Stoßdämpfer-Silikonöl, 17,5wt, 59ml
(2oz)

Stoßdämpfer-Silikonöl, 20wt, 59ml
(2oz)

Stoßdämpfer-Silikonöl, 22,5wt, 59ml
(2oz)

Stoßdämpfer-Silikonöl, 45wt, 59ml
(2oz)

Stoßdämpfer-Silikonöl, 50wt, 59ml
(2oz)

Ensemble d’arbre de différentiel,
aluminium (6): 8B, 8T

Liquide silicone pour différentiel,
1000CS

Liquide silicone pour différentiel,
2000CS

Liquide silicone pour différentiel,
3000CS

Liquide silicone pour différentiel,
10,000CS

Liquide silicone pour différentiel,
15,000CS

Liquide silicone pour différentiel,
20,000CS

Liquide silicone pour différentiel,
30,000CS

Liquide silicone pour différentiel,
125,000CS

Allumeur à décharge verrouillé par
rotation

Chargeur/allumeur à décharge
verrouillé par rotation combinés

Clé de roue magnétique 17mm Chiave ruote, magnetica, 17mm

Huile de silicone pour amortisseur,
15wt, 2onces.

Huile de silicone pour amortisseur,
17,5wt, 2onces.

Huile de silicone pour amortisseur,
20wt, 2onces.

Huile de silicone pour amortisseur,
22,5wt, 2onces.

Huile silicone d’amortisseur, 27,5wt,
60 ml

Huile silicone d’amortisseur, 30wt,
60 ml

Huile silicone d’amortisseur, 35wt,
60 ml

Huile silicone d’amortisseur, 40wt,
60 ml

Huile silicone d’amortisseur, 42.5wt,
60 ml

Huile de silicone pour amortisseur,
45wt, 2onces.

Huile de silicone pour amortisseur,
50wt, 2onces.

Set albero differenziale in alluminio
(6): 8B, 8T

Olio al silicone per differenziale,
1000CS

Olio al silicone per differenziale,
2000CS

Olio al silicone per differenziale,
3000CS

Olio al silicone per differenziale,

10.000CS

Olio al silicone per differenziale,

15.000CS

Olio al silicone per differenziale,

20.000CS

Olio al silicone per differenziale,

30.000CS

Olio al silicone per differenziale,

125.000CS

Accendicandela con aggancio

Accendicandela con aggancio e
caricatore

Olio al silicone per ammortizzatore,
15 wt, 60 ml

Olio al silicone per ammortizzatore,
17,5 wt, 60 ml

Olio al silicone per ammortizzatore,
20 wt, 60 ml

Olio al silicone per ammortizzatore,
22,5 wt, 60 ml

Olio silicone ammortizzatori, 27.5wt,
2oz

Olio silicone ammortizzatore, 30wt,
2oz

Olio silicone ammortizzatori, 35wt,
2oz

Olio silicone ammortizzatori, 40wt,
2oz

Olio silicone ammortizzatori, 42.5wt,
2oz

Olio al silicone per ammortizzatore,
45 wt, 60 ml

Olio al silicone per ammortizzatore,
50 wt, 60 ml

TLR76000 Tire Glue, Standard Reifenklebemittel, Standard Colle de pneu, standard Colla pneumatici, standard

93

94

OPTIONAL PARTS • OPTIONALE TEILE • PIÈCES OPTIONNELLES • PARTI OPZIONALI

Part # English Deutsch Français Italiano

TLR76002 Off-Road Tire Gluing Kit Offroad-Reifenklebe-Kit Kit de colle de pneu tout terrain Kit incollaggio gomme fuoristrada

TLR76004 TLR Lok, Threadlock, Blue TLR Lok, Schraubensicherung, blau Verrou TLR, frein-fi let, bleu TLR Lok, frenafi letti, blu

TLR76006 Tire Glue, 1oz, THIN Reifenklebemittel, 28 g (1 oz) DÜNN Colle de pneu, 28 g (1 oz), FINE Colle de pneu, 28 g (1 oz), FINE

TLR99059 8IGHT/8IGHT-T 3.0/4.0 Starter Box 8IGHT/8IGHT-T 3.0/4.0 Starter Box

TLR99101 Shock Shaft Pliers Kolbenstangenzange Pinces de bras d’amortisseurs Pinze albero ammortizzatore

TLR99102 Turnbuckle Wrench

Stellschlüssel für Gewindestift, 3.5,
4, 5mm

Boîtier de démarrage 8IGHT/8IGHT-T

3.0/4.0

Clé à biellettes 3.5mm, 4mm, 5mm Chiave per tenditore

Scatola starter 8IGHT/8IGHT-T 3.0/4.0

94

95

LIMITED WARRANTY

What this Warranty Covers

Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship for a period of
2 years from the date of purchase.

What is Not Covered

This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper
use, installation, operation or maintenance, (iii) modifi cation of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center,
(v) Product not purchased from an authorized Horizon dealer, (vi) Product not compliant with applicable technical regulations, or (vii) use that violates any applicable laws, rules, or
regulations.

OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER
ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE.

Purchaser’s Remedy

Horizon’s sole obligation and purchaser’s sole and exclusive remedy shall be that Horizon will, at its option, either (i) service, or (ii) replace, any Product determined by Horizon to
be defective. Horizon reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or replacement decisions are at the sole discretion of Horizon. Proof of
purchase is required for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY.

Limitation of Liability

HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY,
REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted. As
Horizon has no control over use, setup, fi nal assembly, modifi cation or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup
or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser is advised
to return the Product immediately in new and unused condition to the place of purchase.

Law

These terms are governed by Illinois law (without regard to confl ict of law principals). This warranty gives you specifi c legal rights, and you may also have other rights which vary
from state to state. Horizon reserves the right to change or modify this warranty at any time without notice.

WARRANTY SERVICES
Questions, Assistance, and Services

Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must contact your
local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or
assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service
Contact Information section to speak with a Product Support representative.

Inspection or Services

If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process
found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original
boxes may be included, but are not designed to withstand the rigors of shipping without additional protection. Ship via a carrier that provides tracking and insurance for lost or
damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our facility. An Online Service Request is available at http://www.horizonhobby.
com/content/_service-center_render-service-center. If you do not have internet access, please contact Horizon Product Support to obtain a RMA number along with instructions for
submitting your product for service. When calling Horizon, you will be asked to provide your complete name, street address, email address and phone number where you can be
reached during business hours. When sending product into Horizon, please include your RMA number, a list of the included items, and a brief summary of the problem. A copy of
your original sales receipt must be included for warranty consideration. Be sure your name, address, and RMA number are clearly written on the outside of the shipping carton.

NOTICE: Do not ship LiPo batteries to Horizon. If you have any issue with a LiPo battery, please contact the appropriate
Horizon Product Support offi ce.

Warranty Requirements

For Warranty consideration, you must include your original sales receipt verifying the proof-of-purchase date. Provided warranty

conditions have been met, your Product will be serviced or replaced free of charge. Service or replacement decisions are at the sole discretion of Horizon.

Non-Warranty Service

Should your service not be covered by warranty, service will be completed and payment will be required without notifi cation
or estimate of the expense unless the expense exceeds 50% of the retail purchase cost. By submitting the item for service you are agreeing

to payment of the service without notifi cation. Service estimates are available upon request. You must include this request with your item submitted for service. Non-warranty
service estimates will be billed a minimum of ½ hour of labor. In addition you will be billed for return freight. Horizon accepts money orders and cashier’s checks, as well as Visa,
MasterCard, American Express, and Discover cards. By submitting any item to Horizon for service, you are agreeing to Horizon’s Terms and Conditions found on our website http://
www.horizonhobby.com/content/_service-center_render-service-center.

ATTENTION: Horizon service is limited to Product compliant in the country of use and ownership. If received, a non-compliant
Product will not be serviced. Further, the sender will be responsible for arranging return shipment of the un-serviced
Product, through a carrier of the sender’s choice and at the sender’s expense. Horizon will hold non-compliant Product for a
period of 60 days from notifi cation, after which it will be discarded.

10/2015

95

96

GARANTIE UND SERVICE INFORMATIONEN

Garantiezeitraum

Exklusive Garantie Horizon Hobby LLC (Horizon) garantiert, dass dasgekaufte Produkt frei von Material- und Montagefehlern ist. Der Garantiezeitraum entspricht den gesetzlichen
Bestimmung des Landes, in dem das Produkt erworben wurde. In Deutschland beträgt der Garantiezeitraum 6 Monate und der Gewährleistungszeitraum 18 Monate nach dem
Garantiezeitraum.

Einschränkungen der Garantie

(a) Die Garantie wird nur dem Erstkäufer (Käufer) gewährt und kann nicht übertragen werden. Der Anspruch des Käufers besteht in der Reparatur oder dem Tausch im
Rahmen dieser Garantie. Die Garantie erstreckt sich ausschließlich auf Produkte, die bei einem autorisierten Horizon Händler erworben wurden. Verkäufe an dritte werden
von dieser Garantie nicht gedeckt. Garantieansprüche werden nur angenommen, wenn ein gültiger Kaufnachweis erbracht wird. Horizon behält sich das Recht vor, diese
Garantiebestimmungen ohne Ankündigung zu ändern oder modifi zieren und widerruft dann bestehende Garantiebestimmungen.

(b) Horizon übernimmt keine Garantie für die Verkaufbarkeit des Produktes, die Fähigkeiten und die Fitness des Verbrauchers für einen bestimmten Einsatzzweck des Produktes. Der
Käufer allein ist dafür verantwortlich, zu prüfen, ob das Produkt seinen Fähigkeiten und dem vorgesehenen Einsatzzweck entspricht.

(c) Ansprüche des Käufers ¬ Es liegt ausschließlich im Ermessen von Horizon, ob das Produkt, bei dem ein Garantiefall festgestellt wurde, repariert oder ausgetauscht wird. Dies sind
die exklusiven Ansprüche des Käufers, wenn ein Defekt festgestellt wird.

Horizon behält sich vor, alle eingesetzten Komponenten zu prüfen, die in den Garantiefall einbezogen werden können. Die Entscheidung zur Reparatur oder zum Austausch liegt
nur bei Horizon. Die Garantie schließt kosmetische Defekte oder Defekte, hervorgerufen durch höhere Gewalt, falsche Behandlung des Produktes, falscher Einsatz des Produktes,
kommerziellen Einsatz oder Modifi kationen irgendwelcher Art aus.

Die Garantie schließt Schäden, die durch falschen Einbau, falsche Handhabung, Unfälle, Betrieb, Service oder Reparaturversuche, die nicht von Horizon ausgeführt wurden aus.
Ausgeschlossen sind auch Fälle die bedingt durch (vii) eine Nutzung sind, die gegen geltendes Recht, Gesetze oder Regularien verstoßen haben. Rücksendungen durch den Käufer

direkt an Horizon oder eine seiner Landesvertretung bedürfen der Schriftform.

Schadensbeschränkung

Horizon ist nicht für direkte oder indirekte Folgeschäden, Einkommensausfälle oder kommerzielle Verluste, die in irgendeinem Zusammenhang mit dem Produkt stehen
verantwortlich, unabhängig ab ein Anspruch im Zusammenhang mit einem Vertrag, der Garantie oder der Gewährleistung erhoben werden. Horizon wird darüber hinaus keine
Ansprüche aus einem Garantiefall akzeptieren, die über den individuellen Wert des Produktes hinaus gehen. Horizon hat keinen Einfl uss auf den Einbau, die Verwendung oder
die Wartung des Produktes oder etwaiger Produktkombinationen, die vom Käufer gewählt werden. Horizon übernimmt keine Garantie und akzeptiert keine Ansprüche für in der
folge auftretende Verletzungen oder Beschädigungen. Mit der Verwendung und dem Einbau des Produktes akzeptiert der Käufer alle aufgeführten Garantiebestimmungen ohne
Einschränkungen und Vorbehalte.

Wenn Sie als Käufer nicht bereit sind, diese Bestimmungen im Zusammenhang mit der Benutzung des Produktes zu akzeptieren, werden Sie gebeten, dass Produkt in unbenutztem
Zustand in der Originalverpackung vollständig bei dem Verkäufer zurückzugeben.

Sicherheitshinweise

Dieses ist ein hochwertiges Hobby Produkt und kein Spielzeug. Es muss mit Vorsicht und Umsicht eingesetzt werden und erfordert einige mechanische wie auch mentale
Fähigkeiten. Ein Versagen, das Produkt sicher und umsichtig zu betreiben kann zu Verletzungen von Lebewesen und Sachbeschädigungen erheblichen Ausmaßes führen. Dieses
Produkt ist nicht für den Gebrauch durch Kinder ohne die Aufsicht eines Erziehungsberechtigten vorgesehen. Die Anleitung enthält Sicherheitshinweise und Vorschriften sowie
Hinweise für die Wartung und den Betrieb des Produktes. Es ist unabdingbar, diese Hinweise vor der ersten Inbetriebnahme zu lesen und zu verstehen. Nur so kann der falsche
Umgang verhindert und Unfälle mit Verletzungen und Beschädigungen vermieden werden.

Fragen, Hilfe und Reparaturen

Ihr lokaler Fachhändler und die Verkaufstelle können eine Garantiebeurteilung ohne Rücksprache mit Horizon nicht durchführen. Dies gilt auch für Garantiereparaturen. Deshalb
kontaktieren Sie in einem solchen Fall den Händler, der sich mit Horizon kurz schließen wird, um eine sachgerechte Entscheidung zu fällen, die Ihnen schnellst möglich hilft.

Wartung und Reparatur

Muss Ihr Produkt gewartet oder repariert werden, wenden Sie sich entweder an Ihren Fachhändler oder direkt an Horizon.
Rücksendungen / Reparaturen werden nur mit einer von Horizon vergebenen RMA Nummer bearbeitet. Diese Nummer erhalten Sie oder ihr Fachhändler vom technischen Service.

Mehr Informationen dazu erhalten Sie im Serviceportal unter www. Horizonhobby.de oder telefonisch bei dem technischen Service von Horizon.
Packen Sie das Produkt sorgfältig ein. Beachten Sie, dass der Originalkarton in der Regel nicht ausreicht, um beim Versand nicht beschädigt zu werden. Verwenden Sie einen

Paketdienstleister mit einer Tracking Funktion und Versicherung, da Horizon bis zur Annahme keine Verantwortung für den Versand des Produktes übernimmt. Bitte legen Sie dem
Produkt einen Kaufbeleg bei, sowie eine ausführliche Fehlerbeschreibung und eine Liste aller eingesendeten Einzelkomponenten. Weiterhin benötigen wir die vollständige Adresse,
eine Telefonnummer für Rückfragen, sowie eine Email Adresse.

Garantie und Reparaturen

Garantieanfragen werden nur bearbeitet, wenn ein Originalkaufbeleg von einem autorisierten Fachhändler beiliegt, aus dem der Käufer und das Kaufdatum hervorgeht. Sollte sich
ein Garantiefall bestätigen wird das Produkt repariert oder ersetzt. Diese Entscheidung obliegt einzig Horizon Hobby.

Kostenpfl ichtige Reparaturen

Liegt eine kostenpfl ichtige Reparatur vor, erstellen wir einen Kostenvoranschlag, den wir Ihrem Händler übermitteln. Die Reparatur wird erst vorgenommen, wenn wir die Freigabe
des Händlers erhalten. Der Preis für die Reparatur ist bei Ihrem Händler zu entrichten. Bei kostenpfl ichtigen Reparaturen werden mindestens 30 Minuten Werkstattzeit und die
Rückversandkosten in Rechnung gestellt. Sollten wir nach 90 Tagen keine Einverständniserklärung zur Reparatur vorliegen haben, behalten wir uns vor, das Produkt zu vernichten
oder anderweitig zu verwerten.

ACHTUNG: Kostenpfl ichtige Reparaturen nehmen wir nur für Elektronik und Motoren vor. Mechanische Reparaturen,
besonders bei Hubschraubern und RC-Cars sind extrem aufwendig und müssen deshalb vom Käufer selbst vorgenommen
werden.

10/2015

96

97

GARANTIE ET RÉPARATIONS

Durée de la garantie

Garantie exclusive – Horizon Hobby, LLC (Horizon) garantit que le Produit acheté
(le « Produit ») sera exempt de défauts matériels et de fabrication à sa date d’achat par l’Acheteur. La durée de garantie correspond aux dispositions légales du pays dans lequel le
produit a été acquis. La durée de garantie est de 6 mois et la durée d’obligation de garantie de 18 mois à l’expiration de la période de garantie.

Limitations de la garantie

(a) La garantie est donnée à l’acheteur initial (« Acheteur ») et n’est pas transférable. Le recours de l’acheteur consiste en la réparation ou en l‘échange dans le cadre de cette
garantie. La garantie s’applique uniquement aux produits achetés chez un revendeur Horizon agréé. Les ventes faites à des tiers ne sont pas couvertes par cette garantie. Les
revendications en garantie seront acceptées sur fourniture d’une preuve d’achat valide uniquement. Horizon se réserve le droit de modifi er les dispositions de la présente garantie
sans avis préalable et révoque alors les dispositions de garantie existantes.

(b) Horizon n’endosse aucune garantie quant à la vendabilité du produit ou aux capacités et à la forme physique de l’utilisateur pour une utilisation donnée du produit. Il est de la
seule responsabilité de l’acheteur de vérifi er si le produit correspond à ses capacités et à l’utilisation prévue.

(c) Recours de l’acheteur – Il est de la seule discrétion d‘Horizon de déterminer si un produit présentant un cas de garantie sera réparé ou échangé. Ce sont là les recours exclusifs
de l’acheteur lorsqu’un défaut est constaté.

Horizon se réserve la possibilité de vérifi er tous les éléments utilisés et susceptibles d’être intégrés dans le cas de garantie. La décision de réparer ou de remplacer le produit est
du seul ressort d’Horizon. La garantie exclut les défauts esthétiques ou les défauts provoqués par des cas de force majeure, une manipulation incorrecte du produit, une utilisation
incorrecte ou commerciale de ce dernier ou encore des modifi cations de quelque nature qu’elles soient.

La garantie ne couvre pas les dégâts résultant d’un montage ou d’une manipulation erronés, d’accidents ou encore du fonctionnement ainsi que des tentatives d’entretien ou de
réparation non effectuées par Horizon. Les retours effectués par le fait de l’acheteur directement à Horizon ou à l’une de ses représentations nationales requièrent une confi rmation
écrite.

Limitation des dommages

Horizon ne saurait être tenu pour responsable de dommages conséquents directs ou indirects, de pertes de revenus ou de pertes commerciales, liés de quelque manière que ce soit
au produit et ce, indépendamment du fait qu’un recours puisse être formulé en relation avec un contrat, la garantie ou l’obligation de garantie. Par ailleurs, Horizon n’acceptera pas
de recours issus d’un cas de garantie lorsque ces recours dépassent la valeur unitaire du produit. Horizon n’exerce aucune infl uence sur le montage, l’utilisation ou la maintenance
du produit ou sur d’éventuelles combinaisons de produits choisies par l’acheteur. Horizon ne prend en compte aucune garantie et n‘accepte aucun recours pour les blessures ou les
dommages pouvant en résulter. Horizon Hobby ne saurait être tenu responsable d’une utilisation ne respectant pas les lois , les règles ou règlementations en vigueur.

En utilisant et en montant le produit, l’acheteur accepte sans restriction ni réserve toutes les dispositions relatives à la garantie fi gurant dans le présent document. Si vous n’êtes
pas prêt, en tant qu’acheteur, à accepter ces dispositions en relation avec l’utilisation du produit, nous vous demandons de restituer au vendeur le produit complet, non utilisé et
dans son emballage d’origine.

Indications relatives à la sécurité

Ceci est un produit de loisirs perfectionné et non un jouet. Il doit être utilisé avec précaution et bon sens et nécessite quelques aptitudes mécaniques ainsi que mentales.
L’incapacité à utiliser le produit de manière sûre et raisonnable peut provoquer des blessures et des dégâts matériels conséquents. Ce produit n’est pas destiné à être utilisé
par des enfants sans la surveillance par un tuteur. La notice d’utilisation contient des indications relatives à la sécurité ainsi que des indications concernant la maintenance et le
fonctionnement du produit. Il est absolument indispensable de lire et de comprendre ces indications avant la première mise en service. C’est uniquement ainsi qu’il sera possible
d’éviter une manipulation erronée et des accidents entraînant des blessures et des dégâts. Horizon Hobby ne saurait être tenu responsable d’une utilisation ne respectant pas les
lois , les règles ou règlementations en vigueur.

Questions, assistance et réparations

Votre revendeur spécialisé local et le point de vente ne peuvent effectuer une estimation d’éligibilité à l’application de la garantie sans avoir consulté Horizon. Cela vaut également
pour les réparations sous garantie. Vous voudrez bien, dans un tel cas, contacter le revendeur qui conviendra avec Horizon d’une décision appropriée, destinée à vous aider le plus
rapidement possible.

Maintenance et réparation

Si votre produit doit faire l’objet d’une maintenance ou d‘une réparation, adressez-vous soit à votre revendeur spécialisé, soit directement à Horizon. Emballez le produit
soigneusement. Veuillez noter que le carton d‘emballage d’origine ne suffi t pas, en règle générale, à protéger le produit des dégâts pouvant survenir pendant le transport. Faites
appel à un service de messagerie proposant une fonction de suivi et une assurance, puisque Horizon ne prend aucune responsabilité pour l’expédition du produit jusqu’à sa
réception acceptée. Veuillez joindre une preuve d’achat, une description détaillée des défauts ainsi qu’une liste de tous les éléments distincts envoyés. Nous avons de plus besoin
d’une adresse complète, d’un numéro de téléphone (pour demander des renseignements) et d’une adresse de courriel.

Garantie et réparations

Les demandes en garantie seront uniquement traitées en présence d’une preuve d’achat originale émanant d’un revendeur spécialisé agréé, sur laquelle fi gurent le nom de
l’acheteur ainsi que la date d’achat. Si le cas de garantie est confi rmé, le produit sera réparé. Cette décision relève uniquement de Horizon Hobby.

Réparations payantes

En cas de réparation payante, nous établissons un devis que nous transmettons à votre revendeur. La réparation sera seulement effectuée après que nous ayons reçu la confi rmation
du revendeur. Le prix de la réparation devra être acquitté au revendeur. Pour les réparations payantes, nous facturons au minimum 30 minutes de travail en atelier ainsi que les frais
de réexpédition. En l’absence d’un accord pour la réparation dans un délai de 90 jours, nous nous réservons la possibilité de détruire le produit ou de l’utiliser autrement.

ATTENTION: nous n’effectuons de réparations payantes que pour les composants électroniques et les moteurs. Les réparations
touchant à la mécanique, en particulier celles des hélicoptères et des voitures radiocommandées, sont extrêmement
coûteuses et doivent par conséquent être effectuées par l’acheteur lui-même.

10/2015

97

98

GARANZIA

Periodo di garanzia

Garanzia esclusiva - Horizon Hobby, LLC (Horizon) garantisce che il prodotto acquistato (il “Prodotto”) sarà privo di difetti relativi ai materiali e di eventuali errori di montaggio alla
data di acquisto. Il periodo di garanzia è conforme alle disposizioni legali del paese nel quale il prodotto è stato acquistato. Tale periodo di garanzia ammonta a 6 mesi e si estende
ad altri 18 mesi dopo tale termine.

Limiti della garanzia

(a) La garanzia è limitata all’acquirente originale (Acquirente) e non è cedibile a terzi. L’acquirente ha il diritto a far riparare o a far sostituire la merce durante il periodo di questa
garanzia. La garanzia copre solo quei prodotti acquistati presso un rivenditore autorizzato Horizon. Altre transazioni di terze parti non sono coperte da questa garanzia. La prova di
acquisto è necessaria per far valere il diritto di garanzia. Inoltre, Horizon si riserva il diritto di cambiare o modifi care i termini di questa garanzia senza alcun preavviso e di escludere
tutte le altre garanzie già esistenti.

(b) Horizon non si assume alcuna garanzia per la disponibilità del prodotto, per l’adeguatezza o l’idoneità del prodotto a particolari previsti dall’utente. è sola responsabilità
dell’acquirente il fatto di verifi care se il prodotto è adatto agli scopi da lui previsti.

(c) Richiesta dell’acquirente – spetta soltanto a Horizon, a propria discrezione riparare o sostituire qualsiasi prodotto considerato difettoso e che rientra nei termini di garanzia.
queste sono le uniche rivalse a cui l’acquirente si può appellare, se un prodotto è difettoso.

Horizon si riserva il diritto di controllare qualsiasi componente utilizzato che viene coinvolto nella rivalsa di garanzia. Le decisioni relative alla sostituzione o alla riparazione
avvengono solo in base alla sono a discrezione di Horizon. Questa garanzia non copre dei danni superfi ciali o danni per cause di forza maggiore, uso errato del prodotto, un utilizzo
che viola qualsiasi legge, regolamentazione o disposizione applicabile, negligenza, uso ai fi ni commerciali, o una qualsiasi modifi ca a qualsiasi parte del prodotto.

Questa garanzia non copre danni dovuti ad una installazione errata, ad un funzionamento errato, ad una manutenzione o un tentativo di riparazione non idonei a cura di soggetti
diversi da Horizon. La restituzione del prodotto a cura dell’acquirente, o da un suo rappresentante, deve essere approvata per iscritto dalla Horizon.

Limiti di danno

Horizon non si riterrà responsabile per danni speciali, diretti, indiretti o consequenziali; perdita di profi tto o di produzione; perdita commerciale connessa al prodotto,
indipendentemente dal fatto che la richiesta si basa su un contratto o sulla garanzia. Inoltre la responsabilità di Horizon non supera mai in nessun caso il prezzo di acquisto del
prodotto per il quale si chiede la responsabilità. Horizon non ha alcun controllo sul montaggio, sull’utilizzo o sulla manutenzione del prodotto o di combinazioni di vari prodotti.
Quindi Horizon non accetta nessuna responsabilità per danni o lesioni derivanti da tali circostanze. Con l’utilizzo e il montaggio del prodotto l’utente acconsente a tutte le
condizioni, limitazioni e riserve di garanzia citate in questa sede.

Qualora l’utente non fosse pronto ad assumersi tale responsabilità associata all’uso del prodotto, si suggerisce di
di restituire il prodotto intatto, mai usato e immediatamente presso il venditore.

Indicazioni di sicurezza

Questo è un prodotto sofi sticato di hobbistica e non è un giocattolo. Esso deve essere manipolato con cautela, con giudizio e richiede delle conoscenze basilari di meccanica e delle
facoltà mentali di base. Se il prodotto non verrà manipolato in maniera sicura e responsabile potrebbero risultare delle lesioni, dei gravi danni a persone, al prodotto o all’ambiente
circostante. Questo prodotto non è concepito per essere usato dai bambini senza una diretta supervisione di un adulto. Il manuale del prodotto contiene le istruzioni di sicurezza, di
funzionamento e di manutenzione del prodotto stesso. È fondamentale leggere e seguire tutte le istruzioni e le avvertenze nel manuale prima di mettere in funzione il prodotto. Solo
così si eviterà un utilizzo errato e di preverranno incidenti, lesioni o danni.

Domande, assistenza e riparazioni

Il vostro negozio locale e/o luogo di acquisto non possono fornire garanzie di assistenza o riparazione senza previo colloquio con Horizon. questo vale anche per le riparazioni in
garanzia. Quindi in tale casi bisogna interpellare un rivenditore, che si metterà in contatto subito con Horizon per prendere una decisione che vi possa aiutare nel più breve tempo
possibile.

Manutenzione e riparazione

Se il prodotto deve essere ispezionato o riparato, si prega di rivolgersi ad un rivenditore specializzato o direttamente ad Horizon. il prodotto deve essere Imballato con cura. Bisogna
far notare che i box originali solitamente non sono adatti per effettuare una spedizione senza subire alcun danno. Bisogna effettuare una spedizione via corriere che fornisce una
tracciabilità e un’assicurazione, in quanto Horizon non si assume alcuna responsabilità in relazione alla spedizione del prodotto. Inserire il prodotto in una busta assieme ad una
descrizione dettagliata degli errori e ad una lista di tutti i singoli componenti spediti. Inoltre abbiasmo bisogno di un indirizzo completo, di un numnero di telefono per chiedere
ulteriori domande e di un indirizzo e-mail.

Garanzia a riparazione

Le richieste in garanzia verranno elaborate solo se è presente una prova d’acquisto in originale proveniente da un rivenditore specializzato autorizzato, nella quale è ben visibile la
data di acquisto. Se la garanzia viene confermata, allora il prodotto verrà riparato o sostituito. Questa decisione spetta esclusivamente a Horizon Hobby.

Riparazioni a pagamento

Se bisogna effettuare una riparazione a pagamento, effettueremo un preventivo che verrà inoltrato al vostro rivenditore. La riparazione verrà effettuata dopo l’autorizzazione da
parte del vostro rivenditore. La somma per la riparazione dovrà essere pagata al vostro rivenditore. Le riparazioni a pagamento avranno un costo minimo di 30 minuti di lavoro e in
fattura includeranno le spese di restituzione. Qualsiasi riparazione non pagata e non richiesta entro 90 giorni verrà considerata abbandonata e verrà gestita di conseguenza.

ATTENZIONE: Le riparazioni a pagamento sono disponibili solo sull’elettronica e sui motori. Le riparazioni a livello meccanico,
soprattutto per gli elicotteri e le vetture RC sono molto costose e devono essere effettuate autonomamente dall’acquirente.

10/2015

98

99

WARRANTY AND SERVICE CONTACT INFORMATION
GARANTIE UND SERVICE KONTAKTINFORMATIONEN
COORDONNÉES DE GARANTIE ET RÉPARATIONS
GARANZIA E ASSISTENZA INFORMAZIONI PER I CONTATTI

Country of Purchase Horizon Hobby Contact Information Address

United States of America

EU

Horizon Service Center
(Repairs and Repair Requests)

Horizon Product Support
(Product Technical Assistance)

Sales

Horizon Technischer Service [email protected]
Sales: Horizon Hobby GmbH [phone]

servicecenter.horizonhobby.com/RequestForm/

[email protected].
877-504-0233
[email protected]
800-338-4639

2904 Research Rd
Champaign, Illinois, 61822 USA

Hanskampring 9
D 22885 Barsbüttel, Germany

EN Instructions for disposal of WEEE by users in the

European Union

This product must not be disposed of with other waste. Instead, it is the
user’s responsibility to dispose of their waste equipment by handing it over
to a designated collections point for the recycling of waste electrical and

electronic equipment. The separate collection and recycling of your waste
equipment at the time of disposal will help to conserve natural resources and ensure
that it is recycled in a manner that protects human health and the environment. For
more information about where you can drop off your waste equipment for recycling,
please contact your local city offi ce, your household waste disposal service or where you
purchased the product.

FR Instructions relatives àl’élimination des D3E pour les

utilisateurs résidant dans l’Union Européenne

Ce produit ne doit pas être éliminé avec d’autres déchets. Il est de la

responsabilité de l’utilisateur d’éliminer les équipements rebutés en les

remettant àun point de collecte désigné en vue du recyclage des déchets

d’équipements électriques et électroniques. La collecte et le recyclage
séparés de vos équipements usagés au moment de leur mise au rebut aideront
àpréserver les ressources naturelles et àassurer le recyclage des déchets de manière
àprotéger la santé humaine et l’environnement. Pour plus d’informations sur les points
de collecte de vos équipements usagés en vue du recyclage, veuillez contacter votre
mairie, votre service de collecte des ordures ménagères ou le magasin dans lequel vous
avez acheté le produit.

DE Anweisungen zur Entsorgung von Elektro- und

Elektronik-Altgeräten für Benutzer in der Europäischen
Union

Dieses Produkt darf nicht zusammen mit anderem Abfall entsorgt werden.
