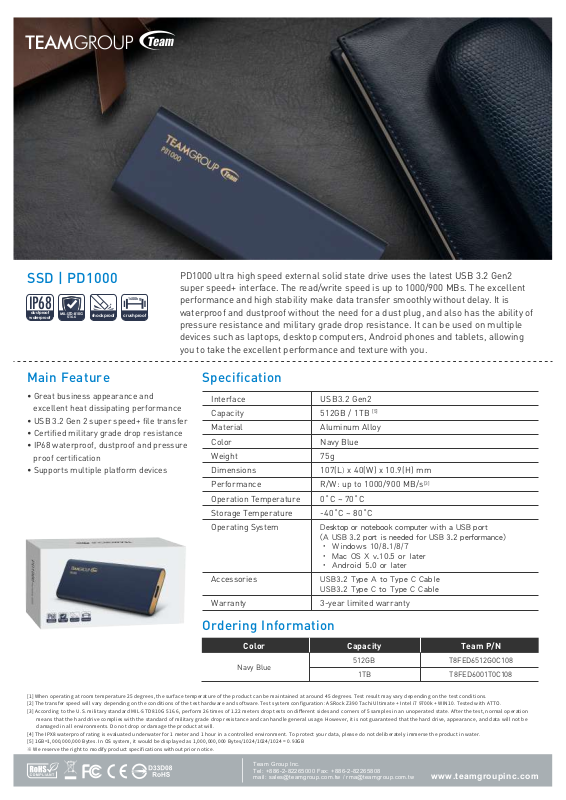

TeamGroup PD1000 User Manual

SSD | PD1000

IP68

dustproof

waterproof

MIL-STD-810G

516.6

shockproof

1600kg

crushproof

PD1000 ultra high speed external solid state drive uses the latest USB 3.2 Gen2
super speed+ interface. The read/write speed is up to 1000/900 MBs. The excellent
performance and high stability make data transfer smoothly without delay. It is
waterproof and dustproof without the need for a dust plug, and also has the ability of
pressure resistance and military grade drop resistance. It can be used on multiple
devices such as laptops, desktop computers, Android phones and tablets, allowing
you to take the excellent performance and texture with you.

SpecificationMain Feature

• Great business appearance and

excellent heat dissipating performance

• USB 3.2 Gen 2 super speed+ file transfer

• Certified military grade drop resistance

• IP68 waterproof, dustproof and pressure

proof certification

• Supports multiple platform devices

Interface

Capacity

Material

Color

Weight

Dimensions

Performance

Operation Temperature

Storage Temperature

Operating System

USB3.2 Gen2

512GB / 1TB

Aluminum Alloy

Navy Blue

75g

107(L) x 40(W) x 10.9(H) mm

R/W: up to 1000/900 MB/s

0˚C ~ 70˚C

-40˚C ~ 80˚C

Desktop or notebook computer with a USB port
(A USB 3.2 port is needed for USB 3.2 performance)

• Windows 10/8.1/8/7

• Mac OS X v.10.5 or later

• Android 5.0 or later

Accessories

USB3.2 Type A to Type C Cable
USB3.2 Type C to Type C Cable

Warranty

3-year limited warranty

Ordering Information

Navy Blue

[5]

[3]

CapacityColor Team P/N

512GB

1TB

T8FED6512G0C108

T8FED6001T0C108

[1] When operating at room temperature 25 degrees, the surface temperature of the product can be maintained at around 45 degrees. Test result may vary depending on the test conditions.
[2] The transfer speed will vary depending on the conditions of the test hardware and software. Test system configuration: ASRock Z390 Tachi Ultimate + Intel i7 9700k + WIN10. Tested with ATTO.
[3] According to the U.S. military standard MIL-STD 810G 516.6, perform 26 times of 1.22 meters drop tests on different sides and corners of 5 samples in an unoperated state. After the test, normal operation

means that the hard drive complies with the standard of military grade drop resistance and can handle general usage. However, it is not guaranteed that the hard drive, appearance, and data will not be

damaged in all environments. Do not drop or damage the product at will.
[4] The IPX8 waterproof rating is evaluated underwater for 1 meter and 1 hour in a controlled environment. To protect your data, please do not deliberately immerse the product in water.
[5] 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
※ We reserve the right to modify product specifications without prior notice.
