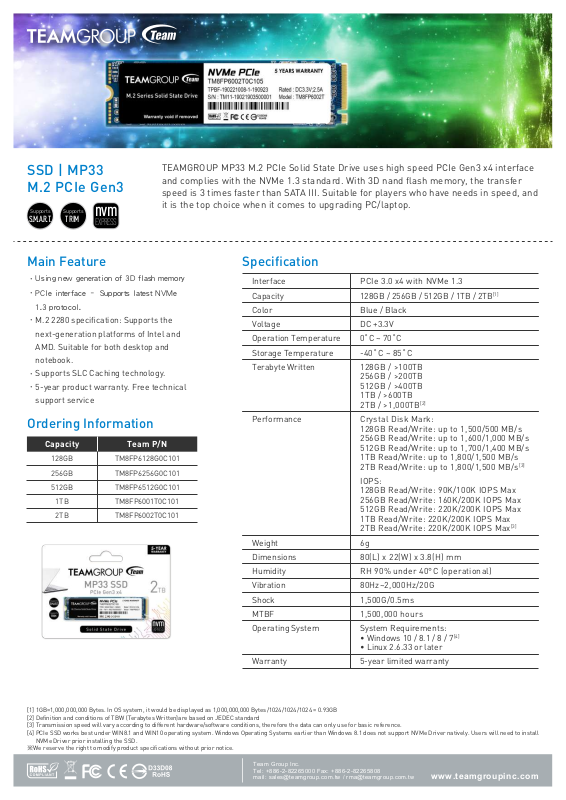

TeamGroup MP33 User Manual

SSD | MP33

TEAMGROUP MP33 M.2 PCIe Solid State Drive uses high speed PCIe Gen3 x4 interface
and complies with the NVMe 1.3 standard. With 3D nand flash memory, the transfer

M.2 PCIe Gen3

Supports

S.M.A.R.T.

•

•

•

•

•

Supports

TRIM

nvm

EXPRESS

Using new generation of 3D flash memory

PCIe interface – Supports latest NVMe

1.3 protocol.

M.2 2280 specification: Supports the
next-generation platforms of Intel and
AMD. Suitable for both desktop and
notebook.
Supports SLC Caching technology.
5-year product warranty. Free technical
support service

speed is 3 times faster than SATA III. Suitable for players who have needs in speed, and
it is the top choice when it comes to upgrading PC/laptop.

Ordering Information

Team P/NCapacity

128GB

256GB

512GB

1TB

2TB

TM8FP6128G0C101

TM8FP6256G0C101

TM8FP6512G0C101

TM8FP6001T0C101

TM8FP6002T0C101

SpecificationMain Feature

Interface

Capacity

Color

Voltage

Operation Temperature

Storage Temperature

Terabyte Written

Performance

Weight

Dimensions

Humidity

Vibration

Shock

MTBF

Operating System

Warranty

PCIe 3.0 x4 with NVMe 1.3

128GB / 256GB / 512GB / 1TB / 2TB

[1]

Blue / Black

DC +3.3V

0˚C ~ 70˚C

-40˚C ~ 85˚C

128GB / >100TB
256GB / >200TB
512GB / >400TB
1TB / >600TB
2TB / >1,000TB

[2]

Crystal Disk Mark:
128GB Read/Write: up to 1,500/500 MB/s
256GB Read/Write: up to 1,600/1,000 MB/s
512GB Read/Write: up to 1,700/1,400 MB/s
1TB Read/Write: up to 1,800/1,500 MB/s
2TB Read/Write: up to 1,800/1,500 MB/s

[3]

IOPS:
128GB Read/Write: 90K/100K IOPS Max
256GB Read/Write: 160K/200K IOPS Max
512GB Read/Write: 220K/200K IOPS Max
1TB Read/Write: 220K/200K IOPS Max
2TB Read/Write: 220K/200K IOPS Max

[3]

6g

80(L) x 22(W) x 3.8(H) mm

RH 90% under 40°C (operational)

80Hz~2,000Hz/20G

1,500G/0.5ms

1,500,000 hours

System Requirements:

• Windows 10 / 8.1 / 8 / 7

[4]

• Linux 2.6.33 or later

5-year limited warranty

[1] 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
[2] Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard
[3] Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
[4] PCIe SSD works best under WIN8.1 and WIN10 operating system. Windows Operating Systems earlier than Windows 8.1 does not support NVMe Driver natively. Users will need to install

NVMe Driver prior installing the SSD.

We reserve the right to modify product specifications without prior notice.

※
