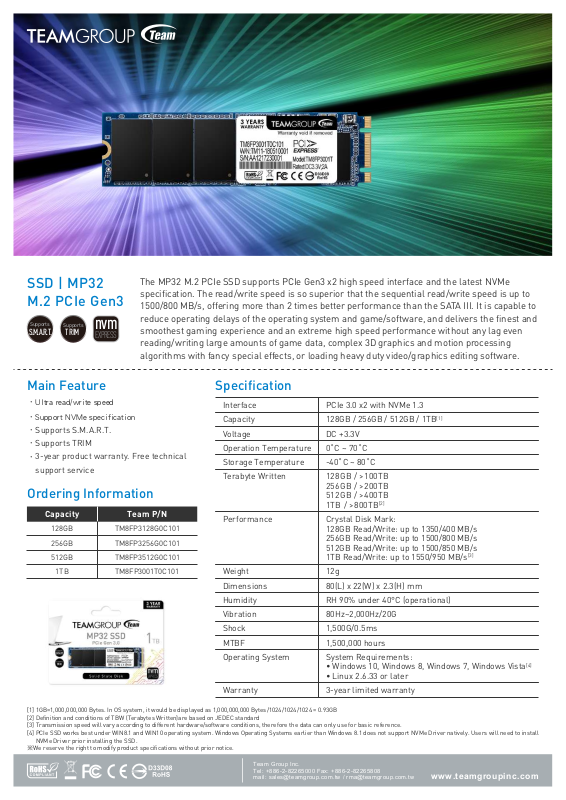

TeamGroup MP32 User Manual
SSD | MP32
The MP32 M.2 PCIe SSD supports PCIe Gen3 x2 high speed interface and the latest NVMe
specification. The read/write speed is so superior that the sequential read/write speed is up to
M.2 PCIe Gen3
Supports
S.M.A.R.T.
Supports
TRIM
nvm
EXPRESS
1500/800 MB/s, offering more than 2 times better performance than the SATA III. It is capable to
reduce operating delays of the operating system and game/software, and delivers the finest and
smoothest gaming experience and an extreme high speed performance without any lag even
reading/writing large amounts of game data, complex 3D graphics and motion processing
algorithms with fancy special effects, or loading heavy duty video/graphics editing software.
Ultra read/write speed
•
Support NVMe specification
•
Supports S.M.A.R.T.
•
Supports TRIM
•
3-year product warranty. Free technical
•
support service
Ordering Information
Team P/NCapacity
128GB
256GB
512GB
1TB
TM8FP3128G0C101
TM8FP3256G0C101
TM8FP3512G0C101
TM8FP3001T0C101
SpecificationMain Feature
Interface
Capacity
Voltage
Operation Temperature
Storage Temperature
Terabyte Written
Performance
Weight
Dimensions
Humidity
Vibration
Shock
MTBF
Operating System
Warranty
PCIe 3.0 x2 with NVMe 1.3
128GB / 256GB / 512GB / 1TB
[1]
DC +3.3V
0˚C ~ 70˚C
-40˚C ~ 80˚C
128GB / >100TB
256GB / >200TB
512GB / >400TB
1TB / >800TB
[2]
Crystal Disk Mark:
128GB Read/Write: up to 1350/400 MB/s
256GB Read/Write: up to 1500/800 MB/s
512GB Read/Write: up to 1500/850 MB/s
1TB Read/Write: up to 1550/950 MB/s
[3]
12g
80(L) x 22(W) x 2.3(H) mm
RH 90% under 40°C (operational)
80Hz~2,000Hz/20G
1,500G/0.5ms
1,500,000 hours
System Requirements:
• Windows 10, Windows 8, Windows 7, Windows Vista
• Linux 2.6.33 or later
3-year limited warranty
[4]
[1] 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
[2] Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard
[3] Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
[4] PCIe SSD works best under WIN8.1 and WIN10 operating system. Windows Operating Systems earlier than Windows 8.1 does not support NVMe Driver natively. Users will need to install
NVMe Driver prior installing the SSD.
We reserve the right to modify product specifications without prior notice.
※
Team Group Inc.
Tel: +886-2-82265000 Fax: +886-2-82265808
mail: sales@teamgroup.com.tw / rma@teamgroup.com.tw
www.teamgroupinc.com
