Team Corally SSX10 Instruction Manual

2018-V2

CHECK FOR THE LATEST

VERSION OF THIS

INSTRUCTION MANUAL

2

C-52002

# C-53003-1

• For sensored and sensorless motors

• Manufactured with the highest grade components

• Ultra compact design

• Aluminium case for improved heat dissipation

• Built in power switch

• Advanced boost & turbo timing system
for improved acceleration performance

• Enhanced throttle & brake control function.

• 10 programmed profiles can be stored in the ESC

• BEC voltage 6.0V 3A Current

• Powerful TC Link software to test motor timing
and advise the best ESC timing setting

• Ultra High Speed

• High Voltage 6 - 8.4V

• Coreless Motor

• Titanium Gears

• 6,2 Kg Torque/cm @ 7.4V

• Speed 0.07 sec/60°

• 35.5 x 15 x 33mm

Features

• Precision machined T6 aluminium motor can

• High purity copper windings maximizes conductivity

• High power solder tabs

• Removable and replaceable rotor

• Powerful sintered Neodymium magnet

• Improved stator design for higher efficiency

• Dual Sensor Port

• Adjustable Timing

• Compatible with all Sensored/ Sensorless ESC

• Compliant with EFRA, BRCA, IFMAR, ROAR rules

RECOMMENDED

ACCESSORIES

To obtain the maximum performance out of your SSX10
we recommend the following accessories

S TAY

TUNED...

https://www.facebook.com/Team.Corally

# C-52003

HIGH SPEED MINI

HIGH V0LTAGE SERV0

DYNOSPEED
SPEC 3.0

"CS 3007" SERVO

CONTROLLER "CERIX 160 PRO"

3

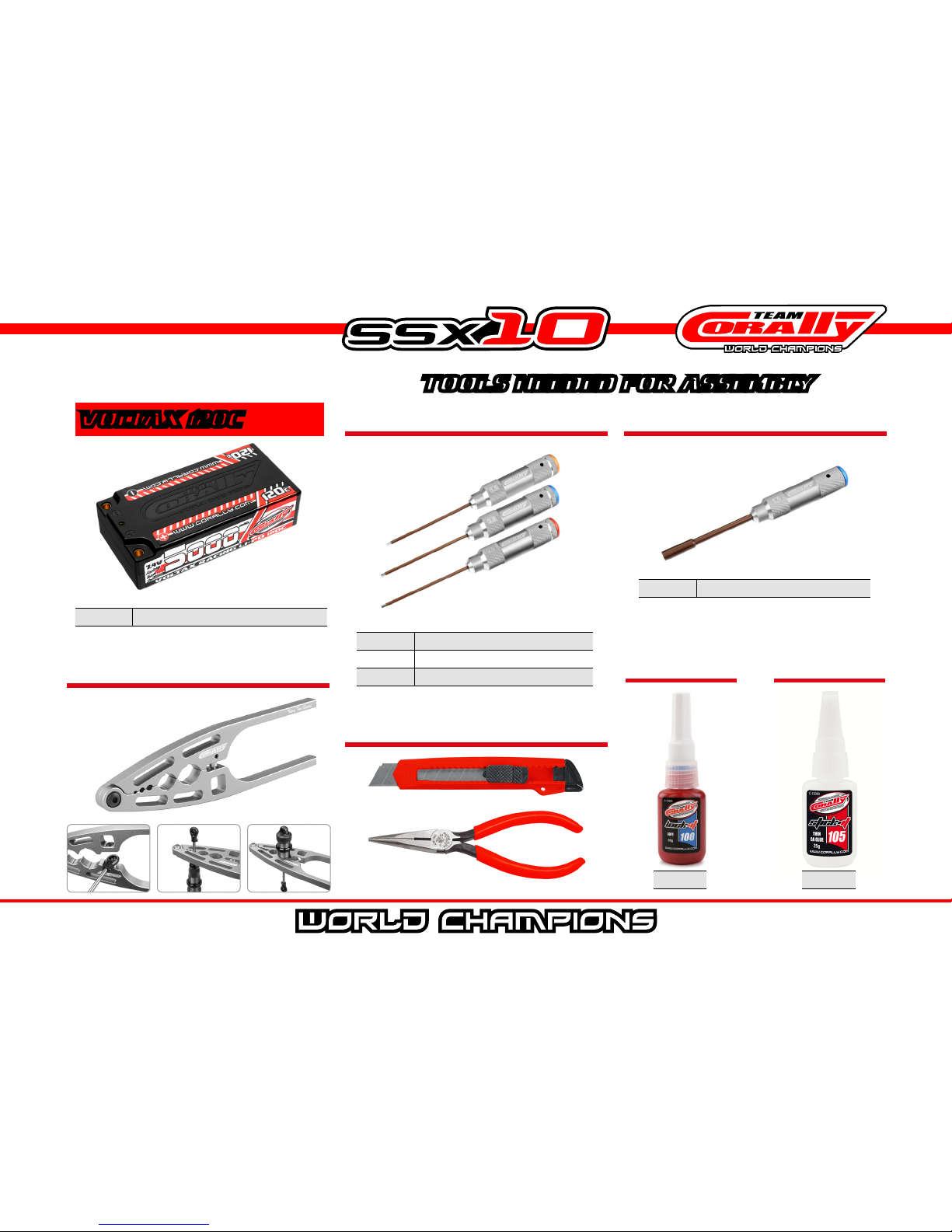

# C-16300

Voltax 120C LiPo Battery

C-49505

5000mAh - 7.4V - Shorty 2S

VOLTAX 120C

Hex Drivers

Aluminium handle • Hardened tool tip

TC Shock Pliers

For use with 1/12 - 1/10 - 1/8 Shocks

Nut Drivers

Aluminium handle • Hardened tool tip

C-16130 Factory Pro Tool - Hex Driver 1.5 mm
C-16131 Factory Pro Tool - Hex Driver 2.0 mm
C-16132 Factory Pro Tool - Hex Driver 2.5 mm

C-16161 Factory Pro Tool - Nut Driver 5.5 mm

C-13094 C-13090

100 Lock-It

Screwlock - Soft

105 Stick-It

Thin - CA Glue

Cutter Knife - Needle Nose Plier

For plastic parts and circlips

TOOLS NEEDED FOR ASSEMBLY

50 10 15 20

4

Socket Head Screw Button Head Screw Flat Head Screw

1

REAR POWER POD ASSEMBLY

C-00120-016

Alu 7075 T6
Rear Bulkhead Right

C-00120-015

Alu 7075 T6

Rear Bulkhead Left

C-00100-024

Alum. Ball 4.25mm - M3
(2pcs)

C-30050

Flat Head Screw M3x6

C-30050

Flat Head Screw M3x6

C-30051

Flat Head Screw M3x8
(4pcs)

C-00110-004

Rear Pod Lower Plate -

Carbon 2.5mm

50 10 15 20

5

2

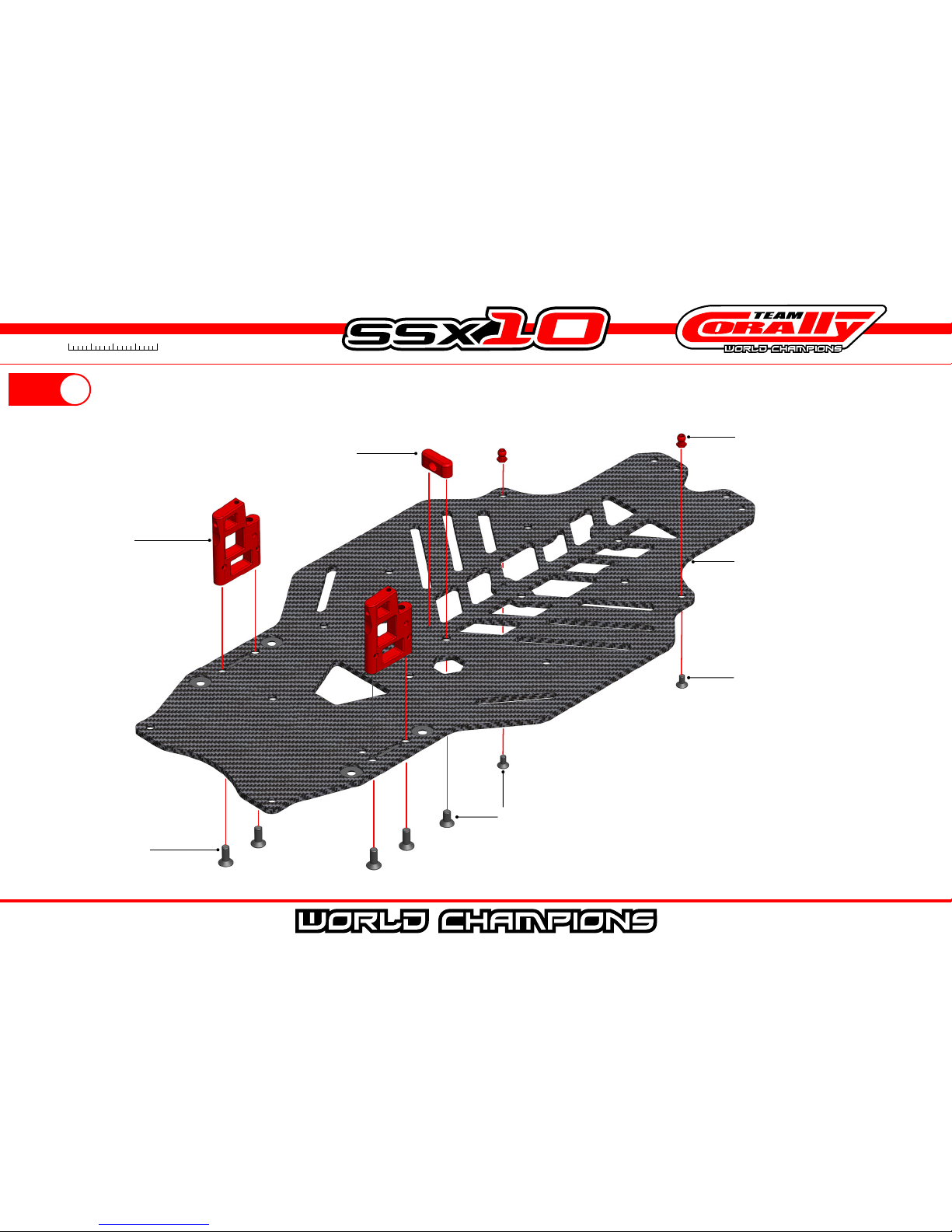

CHASSIS ASSEMBLY

C-30050

Flat Head Screw M3x6

(2pcs)

C-30050

Flat Head Screw M3x6

C-30051

Flat Head Screw M3x8
(4pcs)

C-00110-014

Alu 7075 T6
Alum. Front Bulkhead
(2pcs)

C-00110-001

Chassis - Carbon 2.5mm

C-00100-016

Alum. Battery Backstop

C-00100-024

Alum.Ball 4.25mm - M3
(2pcs)

50 10 15 20

6

Socket Head Screw Button Head Screw Flat Head Screw

3

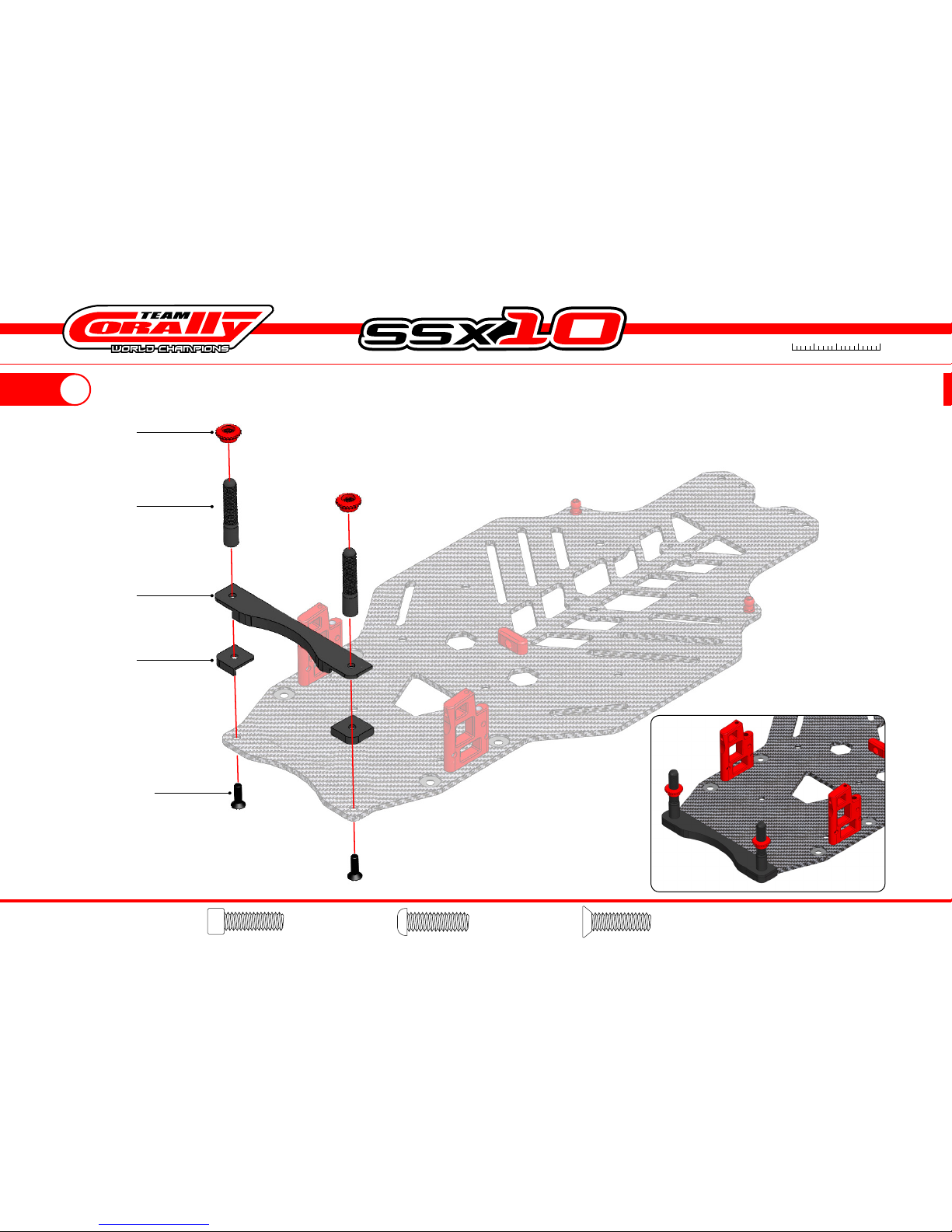

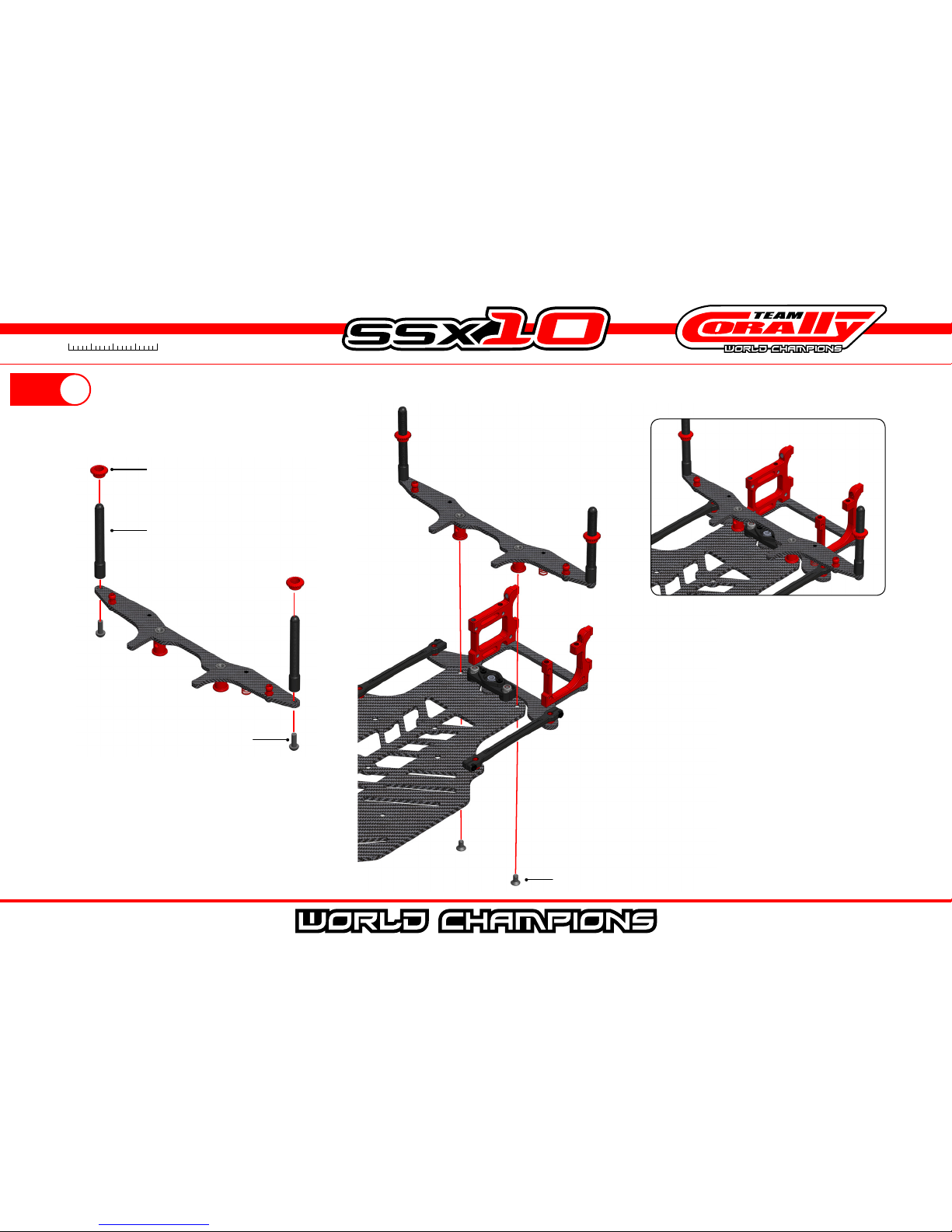

FRONT CHASSIS PROTECTOR ASSEMBLY

C-00100-054

Chassis Protector

C-00100-052

Threaded Body Mount
(2pcs)

C-00100-053

Alu. Body Mount Nut
(2pcs)

C-30052

Flat Head Screw M3x10
(2pcs)

C-00100-055

Chassis Corner Protector
(2pcs)

50 10 15 20

7

4

REAR POWER POD ASSEMBLY

C-00100-056

Composite Pivot Brace - A+B

C-00100-056

Composite Pivot Brace - A+B

C-00100-079

Alum. Pivot Ball - Hard-coated

C-30018

Hex Socket Head Screw M2 X 4mm (2pcs)

C-31002

Steel Nylstop Nut M3 - Black
(2pcs)

C-30052

Flat Head Screw M3x10
(2pcs)

Do not tighten fully

for the moment.

Do not overtighten the

screws, the Pivot Ball must

move freely.

50 10 15 20

8

Socket Head Screw Button Head Screw Flat Head Screw

REAR POWER POD INSTALLATION

5

C-30051

Flat Head Screw
M3x8

Make sure that the REAR-POD moves

freely but without excessive play.

Now tighten the screws fully.

50 10 15 20

9

6

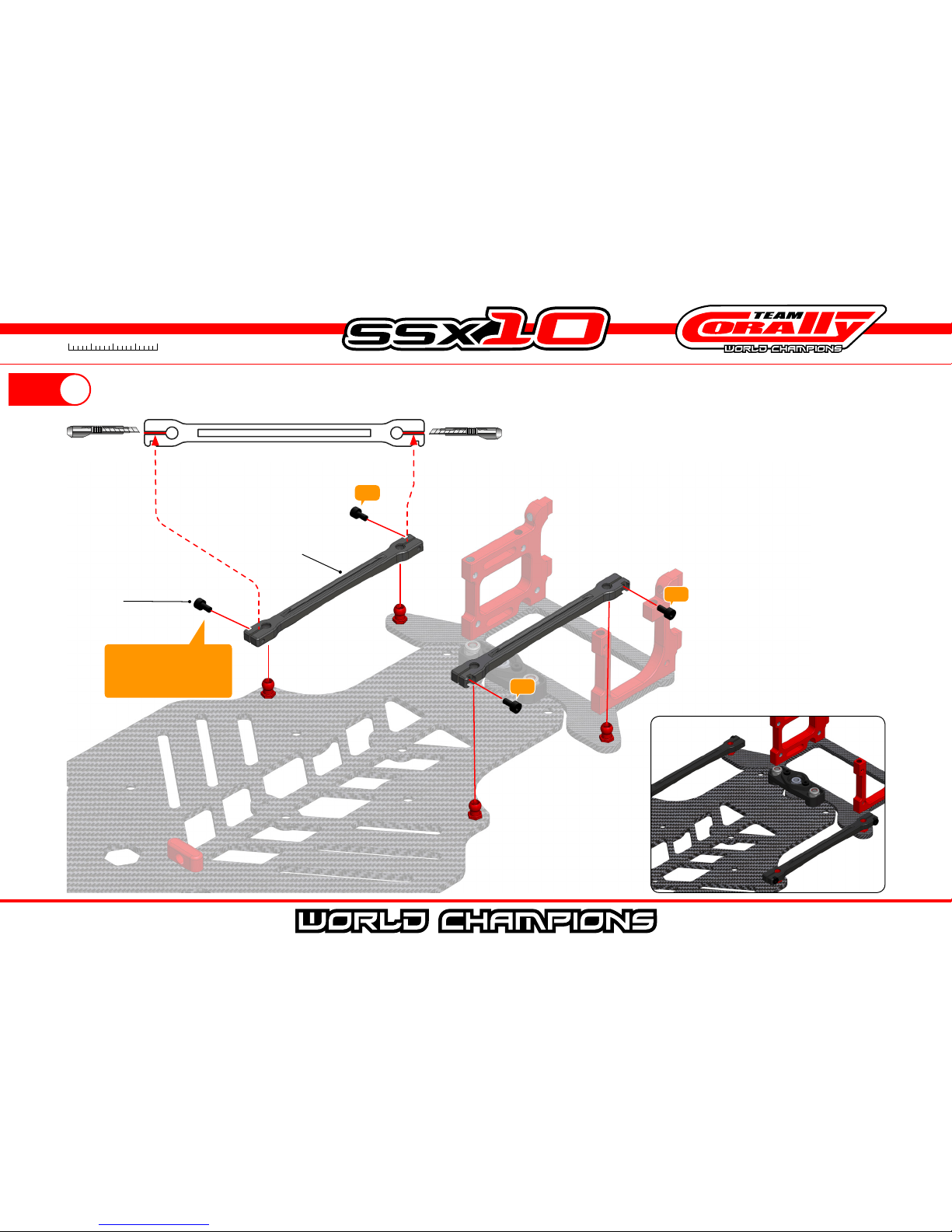

SIDE POD LINK ASSEMBLY

CUT CUT

C-30018

Hex Socket Head Screw
M2 X 4mm (4pcs)

Do not tighten the screws

fully otherwise the Pod

Link will not move freely.

C-00100-041

Composite Pod Link
(2pcs)

50 10 15 20

10

Socket Head Screw Button Head Screw Flat Head Screw

7

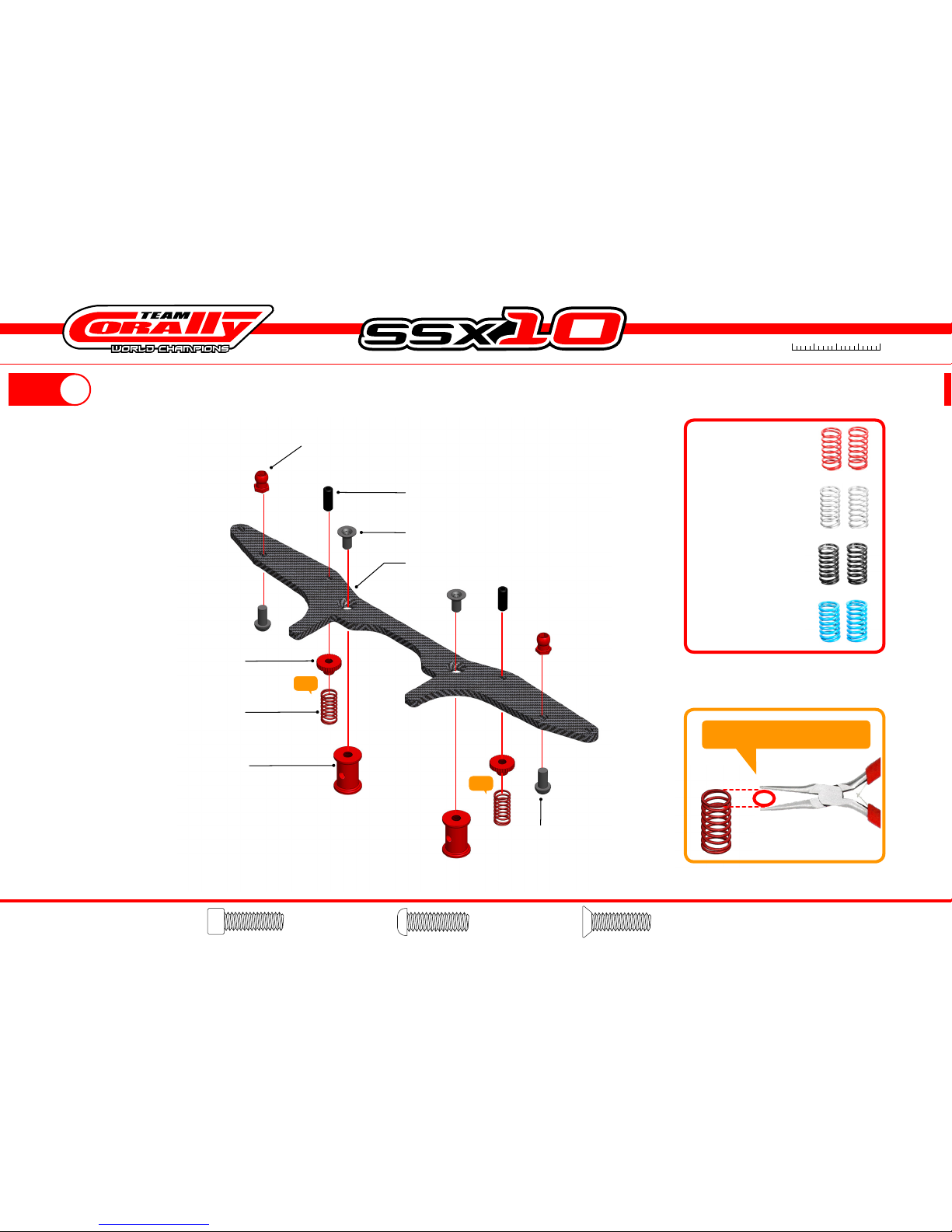

REAR POWER POD ASSEMBLY

C-00100-012

Alum. Rear Brace
(2pcs)

C-30100

Hex Button Head Screw
M3x6 - (2pcs)

C-00100-036

Side Spring -
Red 0,5mm - Soft (2pcs)

C-00100-014

Alu. Side Spring Holder
(2pcs)

C-00100-024

Alu. Ball 4.25mm - M3 (2pcs)

C-30152

Set Screw M3x8 (2pcs)

C-30050

Flat Head Screw M3x6 (2pcs)

C-00110-003

Rear Brace - Carbon

C-00100-103 OPTIONAL

Side Spring Silver -
Soft-Medium - 0.6mm

C-00100-104

OPTIONAL

Shock Spring Black -
Medium - 0.7mm

C-00100-108

OPTIONAL

Shock Spring Blue -
Hard - 0.8mm

C-00100-036

Side Spring Red -
Soft - 0.5mm

Make the first spiral oval so that the

spring fits on the support

50 10 15 20

11

REAR POWER POD INSTALLATION

8

C-30050

Flat Head Screw M3x6 (2pcs)

C-30100

Hex Button Head Screw M3x6

C-00100-051

Composite Pod Link
(2pcs)

C-00100-053

Alu. Body Mount
Cambered Nut - (2pcs)

50 10 15 20

12

Socket Head Screw Button Head Screw Flat Head Screw

9

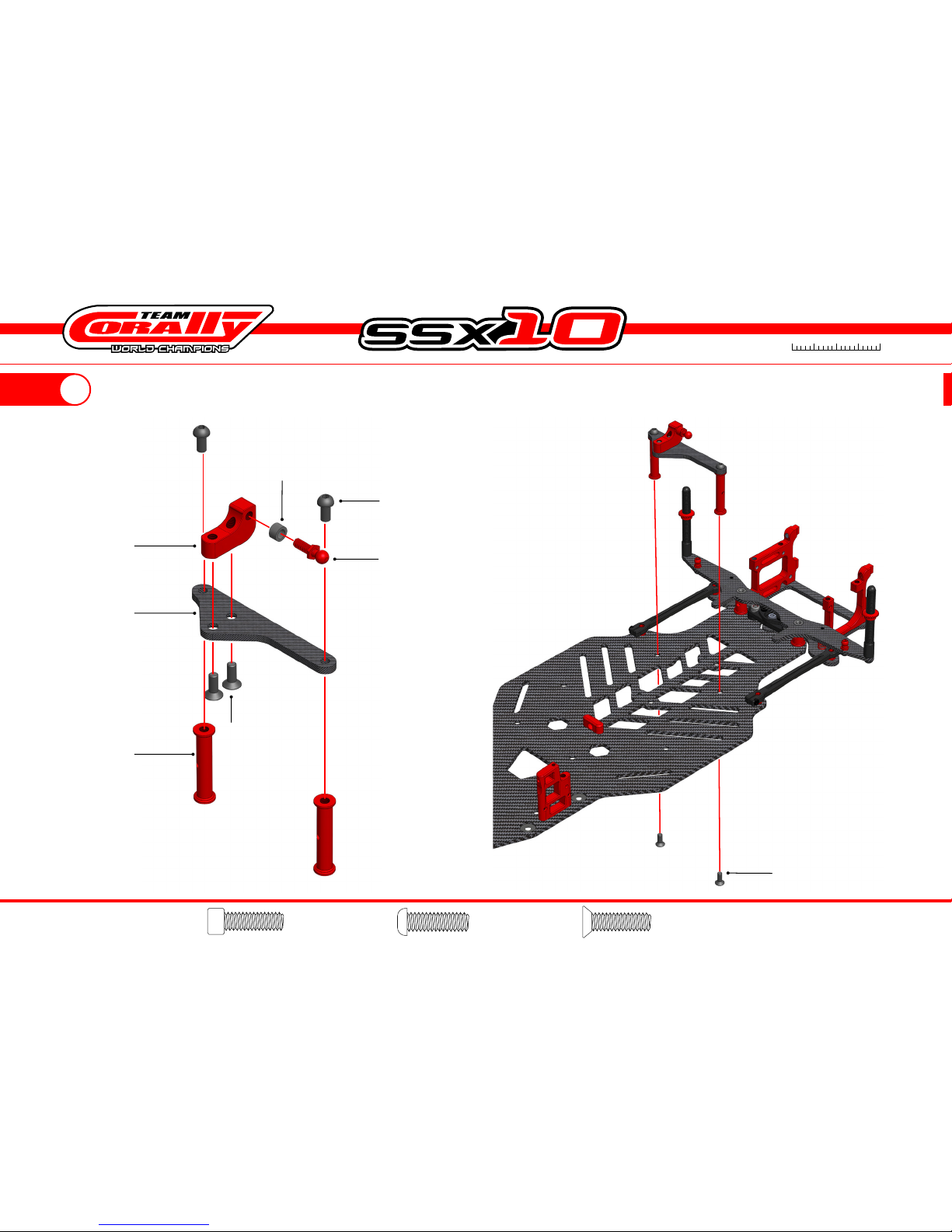

REAR BRACE ASSEMBLY

C-30100

Hex Button Head Screw M3x6
(2pcs)

C-00110-005

Body Mount Plate

C-00120-029

Alum. Spacer Holder

- 27mm (2pcs)

C-00120-028

Damper Holder

C-00100-082

Alum. Threaded Ball

4.25mm

C-00100-083

Shim Ø 3.2-5 Ep3mm

C-30050

Flat Head Screw M3x6
(2pcs)

C-30050

Flat Head Screw
M3x6 (2pcs)

50 10 15 20

13

10

REAR BRACE INSTALLATION

C-30100

Button Head Screw M3x6

C-30100

Button Head Screw M3x6
(4pcs)

C-30100

Button Head Screw M3x6 (3pcs)

C-00110-0021

Rear Pod Upper Plate­Carbon 2.5mm

C-00100-024

Alu. Ball 4.25mm - M3 (3pcs)

50 10 15 20

14

Socket Head Screw Button Head Screw Flat Head Screw

SIDE LINK DAMPER ASSEMBLY

11

C-00100-050

Composite Ball Joint

C-30152

Set Screws M3 X 8mm

C-00100-072

Composite Damper Tube Rod

C-00100-029

Alum. Side Linkage Damper Tube

C-00100-049

Composite Ball Joint - Alum. Side Linkage Damper Tube

SILICONE

OIL

IMPORTANT:

• Add silicone oil only in the slot, not on
the whole Damper Tube Rod.

• After assembling, check if it is move
smoothly.

• Use different oil thickness to change the
dampening.

• Replace the oil after each race.

C-81515 Shock Syrup - Ultra Pure Silicone - 15.000 CPS
C-81530 Shock Syrup - Ultra Pure Silicone - 30.000 CPS
C-81550 Shock Syrup - Ultra Pure Silicone - 50.000 CPS
C-81575 Shock Syrup - Ultra Pure Silicone - 75.000 CPS

* Not Included

TIP

For HIGH GRIP use SOFTER oils
For LOW GRIP use HARDER oils

50 10 15 20

15

SIDE LINK DAMPER INSTALLATION

12

Make sure the Ball Links are aligned

and moves smoothly

50 10 15 20

16

Socket Head Screw Button Head Screw Flat Head Screw

C-81230 Shock Oil -

300

CPS

C-81235 Shock Oil -

350

CPS

C-81240 Shock Oil -

400

CPS

C-81245 Shock Oil -

450

CPS

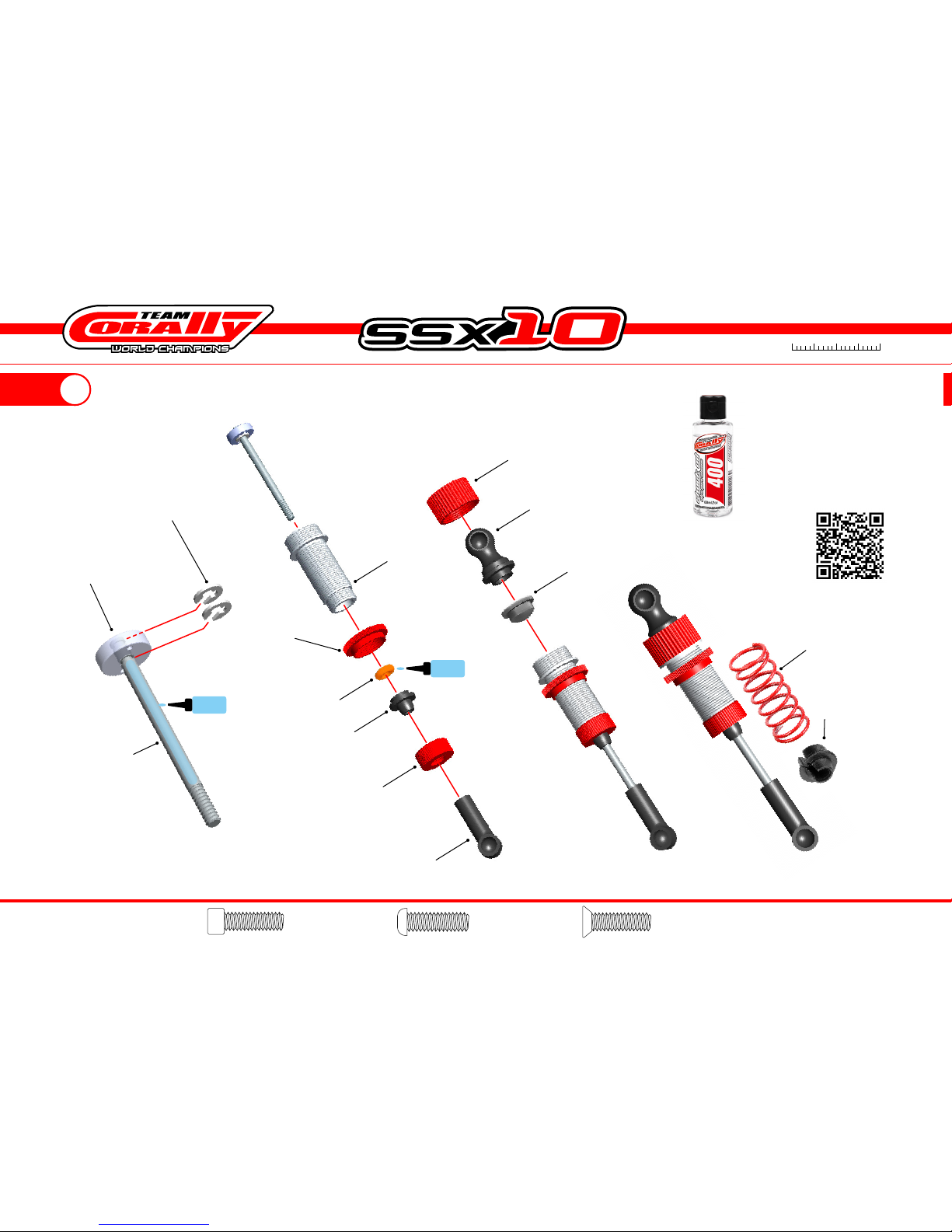

SHOCK ABSORBER ASSEMBLY

13

C-00100-046

Composite Shock Piston

C-00100-044

Composite Lower
Ball Joint - Shock

C-00100-031

Alum. Lower
Shock Body Cap

C-00100-042

Composite
Washer Shock Body

C-00100-048

Silicone Shock O-Ring

C-00100-033

Alum. Shock Spring
Adjustment Nut

C-00100-034

Alum. Shock Body

C-00100-032

Alum. Upper Shock Body Cap

C-00100-045

Composite Upper
Ball Joint - Shock

C-00100-047

Silicone Shock Membrane

C-32150

E-clips Ø1,5mm

C-00100-035

Shock Shaft - Steel

SILICONE

OIL

SILICONE

OIL

* Not Included

C-00100-030

Shock Spring -

1.1mm

C-00100-043

Shock Spring
Holder

50 10 15 20

17

SILICONE

OIL

50%

WAIT TIGHTEN TIGHTEN

FULLY

5min

FILL MOVE

UP

3-4x

MOVE

UP

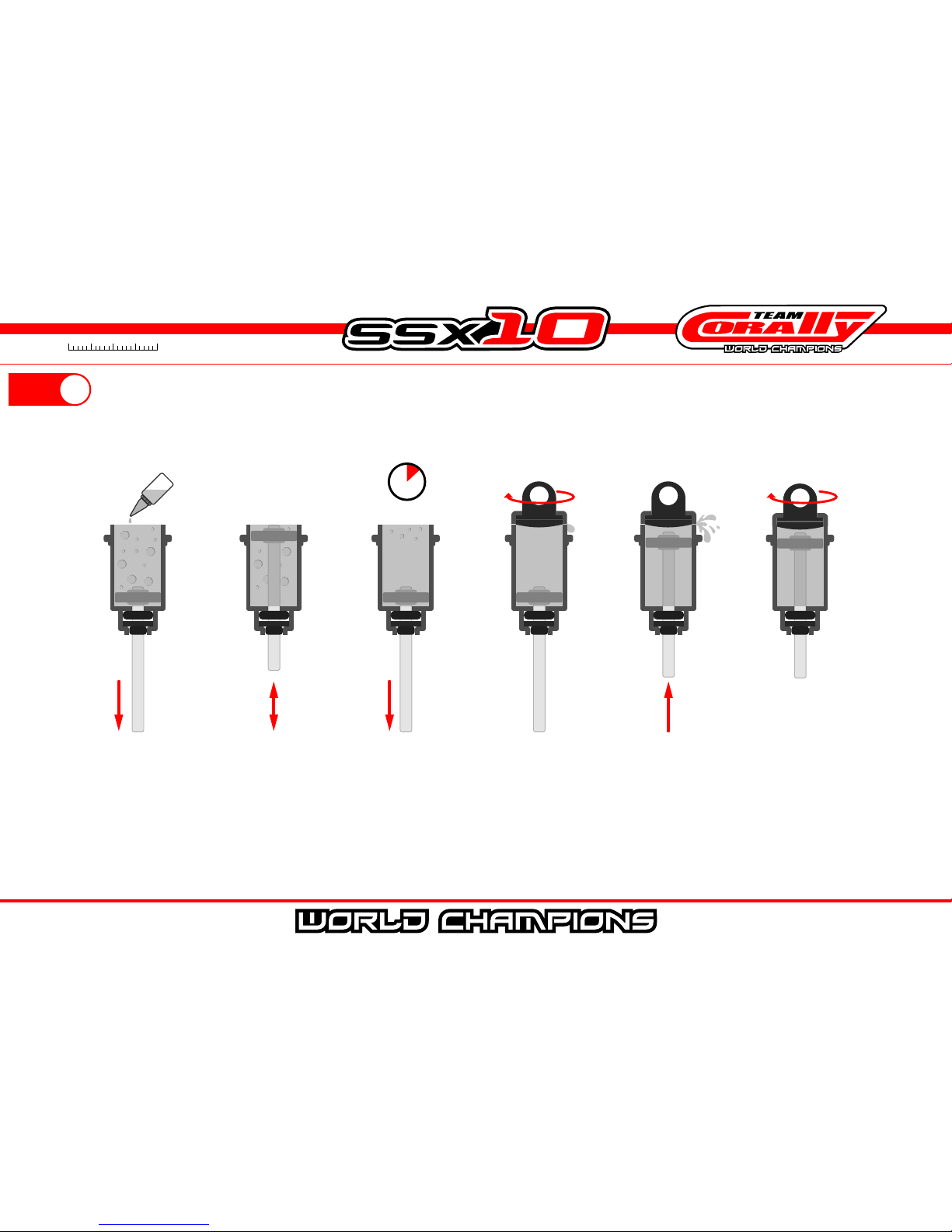

SHOCK ABSORBER FILLING

14

• Pull the Shock shaft
down.

• Fill the shock body with
silicone oil.

• Move the piston

up&down
(3-4x) to release the air
bubbles in the silicone
oil.

• Pull the Shock shaft
down.

• Install the shock absorb­er vertically and let it sit
for a few minutes until
the bubbles rise to the
surface.

• Install the silicone mem­brane in the shock cap.

• Tighten slightly the
shock cap on the shock
body.

• A little oil will flow out of
the shock absorber.

• Gently move the piston
in upper position.

• The excess will flow out
of the shock absorber.

• Allow the piston in the
upper position.

• Tighten the cap fully but
not too much otherwise
the membrane will be
deformed.

50 10 15 20

18

Socket Head Screw Button Head Screw Flat Head Screw

15

SHOCK ABSORBER INSTALLATION

C-00100-101 OPTIONAL

Shock Spring Blue -
Medium - 1.0mm

C-00100-102

OPTIONAL

Shock Spring Black -
Soft - 0.9mm

C-00100-030

Shock Spring Red ­Hard - 1.1mm

50 10 15 20

19

16

FRONT SUSPENSION ASSEMBLY

C-00100-058

Composite Suspension Arm - Front Lower - Right

C-00100-059

Composite Suspension Arm -
Front Lower - Left

C-00110-016

Alum. Lower Arm Cap - A
(4pcs)

C-00100-018

Alum. Upper Arm Cap (4pcs)

C-00110-002

Front Stiffener Plate ­Carbon

C-3002-30-14

Flat Head Screw
M3x14 (4pcs)

C-00110-018 OPTIONAL

Alum. Lower Cap - C -

-2.0mm

C-00110-017 OPTIONAL

Alum. Lower Cap - B -

-1.0mm

C-00110-016

Alum. Lower Cap - A -

0.0mm

C-00110-019 OPTIONAL

Alum. Lower Cap - D -

-3.0mm

C-00110-020 OPTIONAL

Alum. Lower Cap - E -

+1.0mm

C-30100

Button Head Screw M3x6 (3pcs)

50 10 15 20

20

Socket Head Screw Button Head Screw Flat Head Screw

17

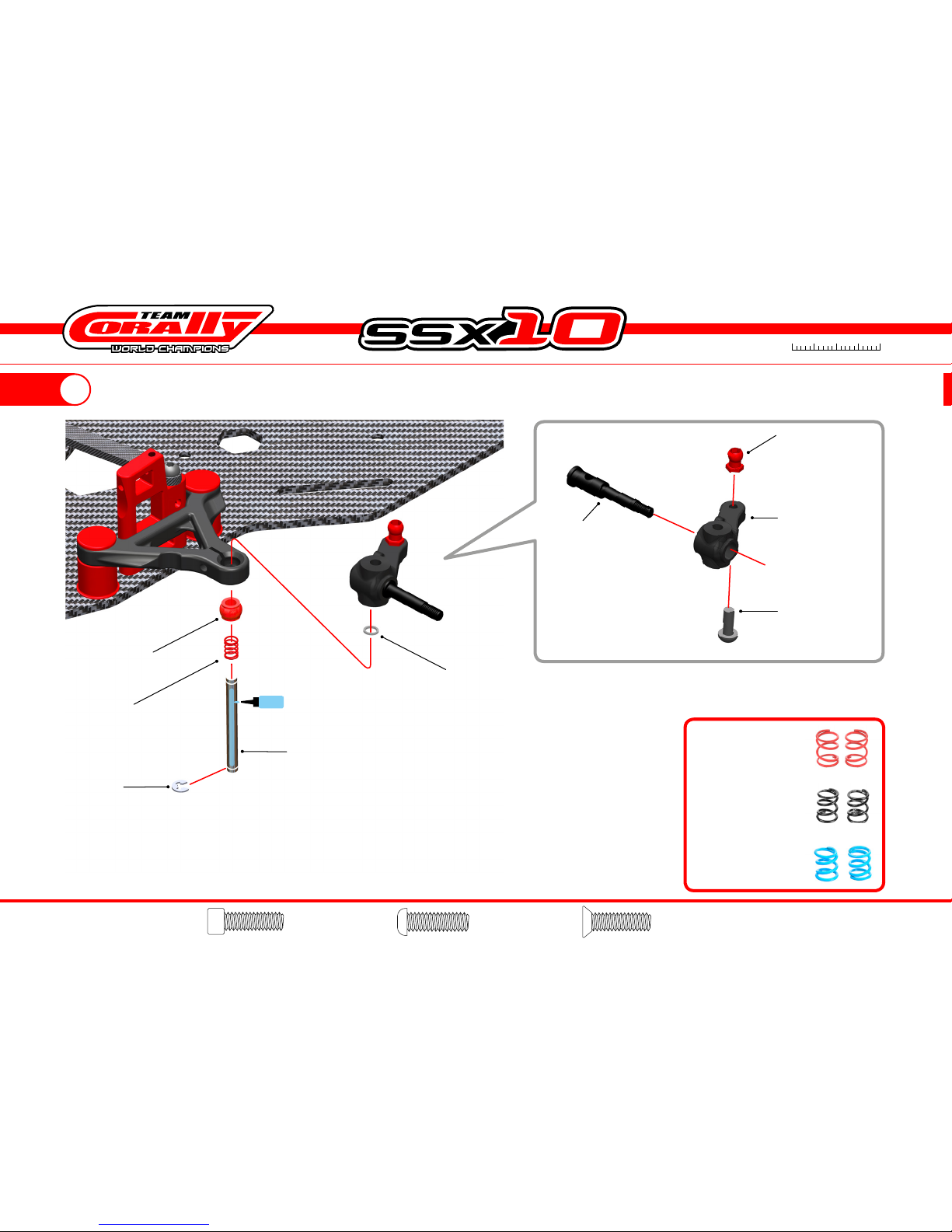

FRONT SUSPENSION ASSEMBLY

C-00100-024

Alum. Steering Ball

4.25mm - M3

C-00110-013

Front Wheel Axle

- Steel

C-00100-067

Alum. Shim Ring - ID 3mm ­OD 4mm - 1.0mm

C-32151-T

Circlips Ø2.3mm

C-00100-037

Front Spring Coils - Red

0.4mm - Soft

C-00110-012

Composite Steering
Knuckle

C-00110-015

King Pin - Steel

SILICONE

OIL

C-30100

Hex Button Head
Screw M3x6

C-00100-064

Alum. Ball Ø6mm -
for Lower Susp. Arms

C-00100-106 OPTIONAL

Side Spring Black -
Medium - 0.5mm

C-00100-105

OPTIONAL

Shock Spring Blue -
Hard - 0.6mm

C-00100-037

Side Spring Red -
Soft - 0.4mm

50 10 15 20

21

18

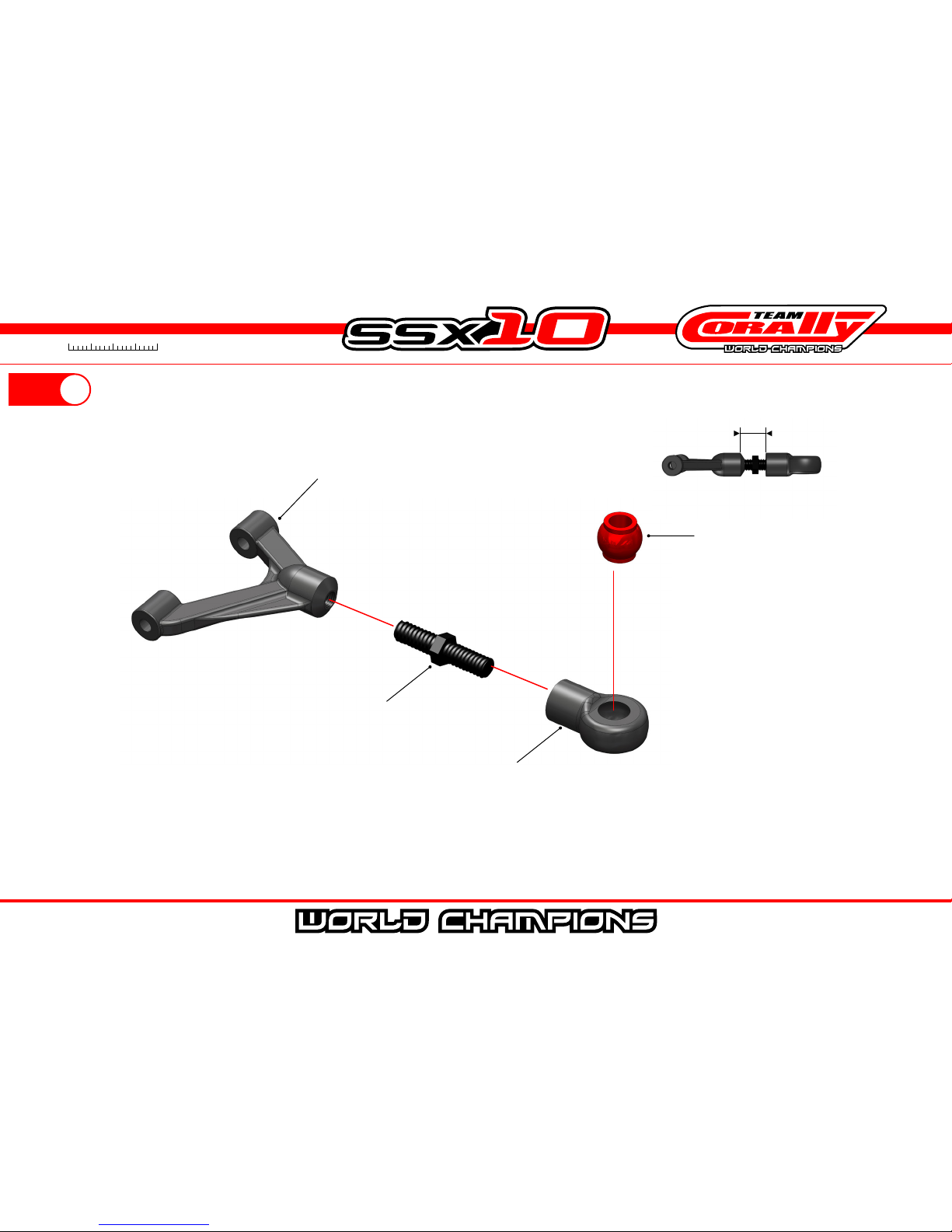

FRONT SUSPENSION ASSEMBLY

C-00100-064

Alum. Ball Dia. 6mm -
for Lower Susp. Arms

C-00100-060

Composite Suspension Arm - Front Upper

C-00100-061

Turnbuckle M3 x 15mm - Steel

C-00100-062

Composite Ball Joint - Ø6mm -
Front Upper Arm

5,5mm

50 10 15 20

22

Socket Head Screw Button Head Screw Flat Head Screw

19

FRONT SUSPENSION ASSEMBLY

After assembly, make sure the Upper

Arm moves freely.

C-32151-T

Circlips Ø2,3mm

C-00100-067

Alum. Shim Ring - ID 3mm ­OD 4mm - 1.0mm (2pcs)

C-00100-068

Composite Clip 1.0mm
(Set)

C-00100-068

Composite Clip 1.5mm
(Set)

C-30149

Set Screw M3x4

C-00100-026

Front Upper Arm
Pivot Pin - Steel

C-31000

Steel Nylstop
Nut M2

C-30022

Hex Socket Head Screw
M2x12

50 10 15 20

23

20

STEERING LINKAGE ASSEMBLY

34mm

C-00110-011

Turnbuckle 46mm
(2pcs)

C-00100-050

Composite Ball Joint
(4pcs)

2X

50 10 15 20

24

Socket Head Screw Button Head Screw Flat Head Screw

21

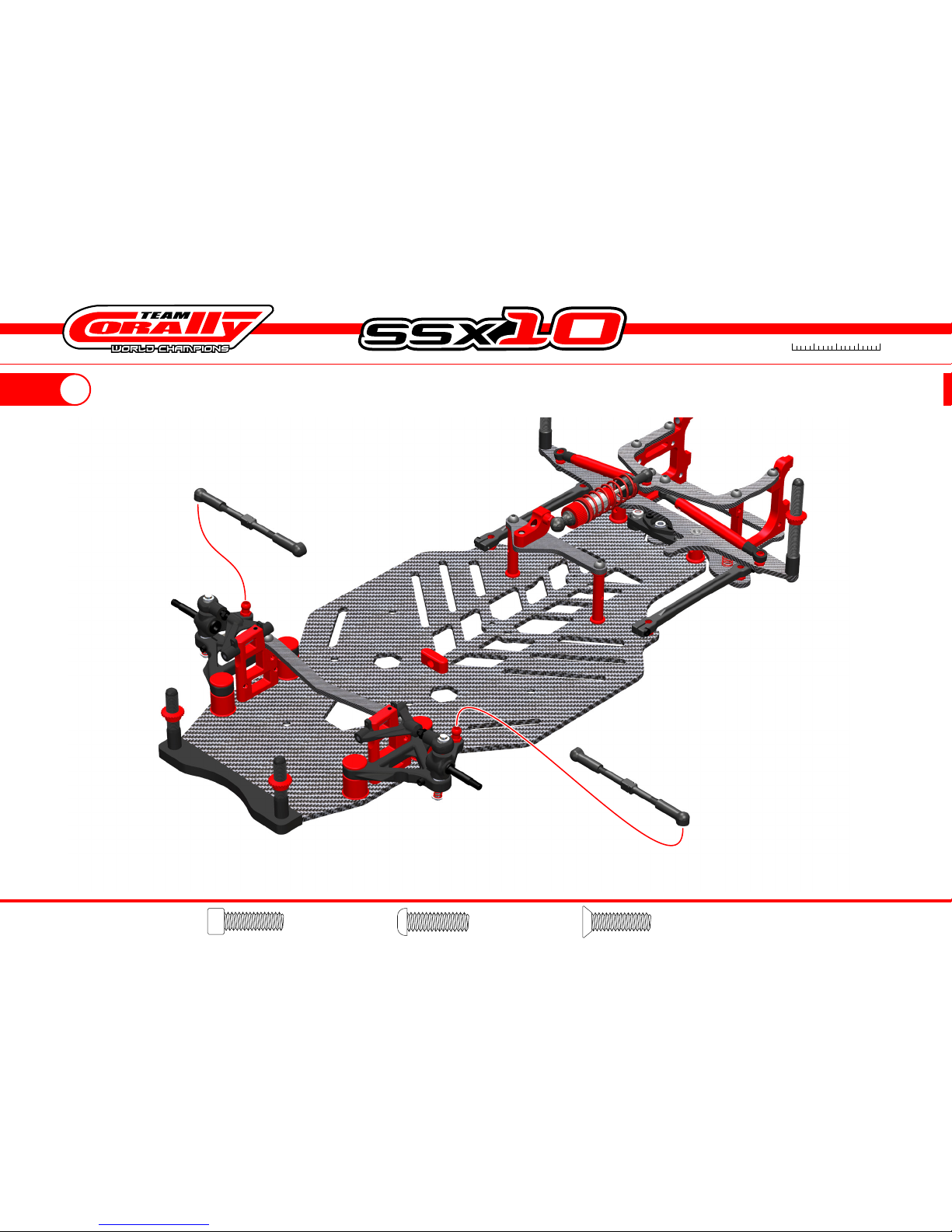

STEERING LINKAGE INSTALLATION

50 10 15 20

25

22

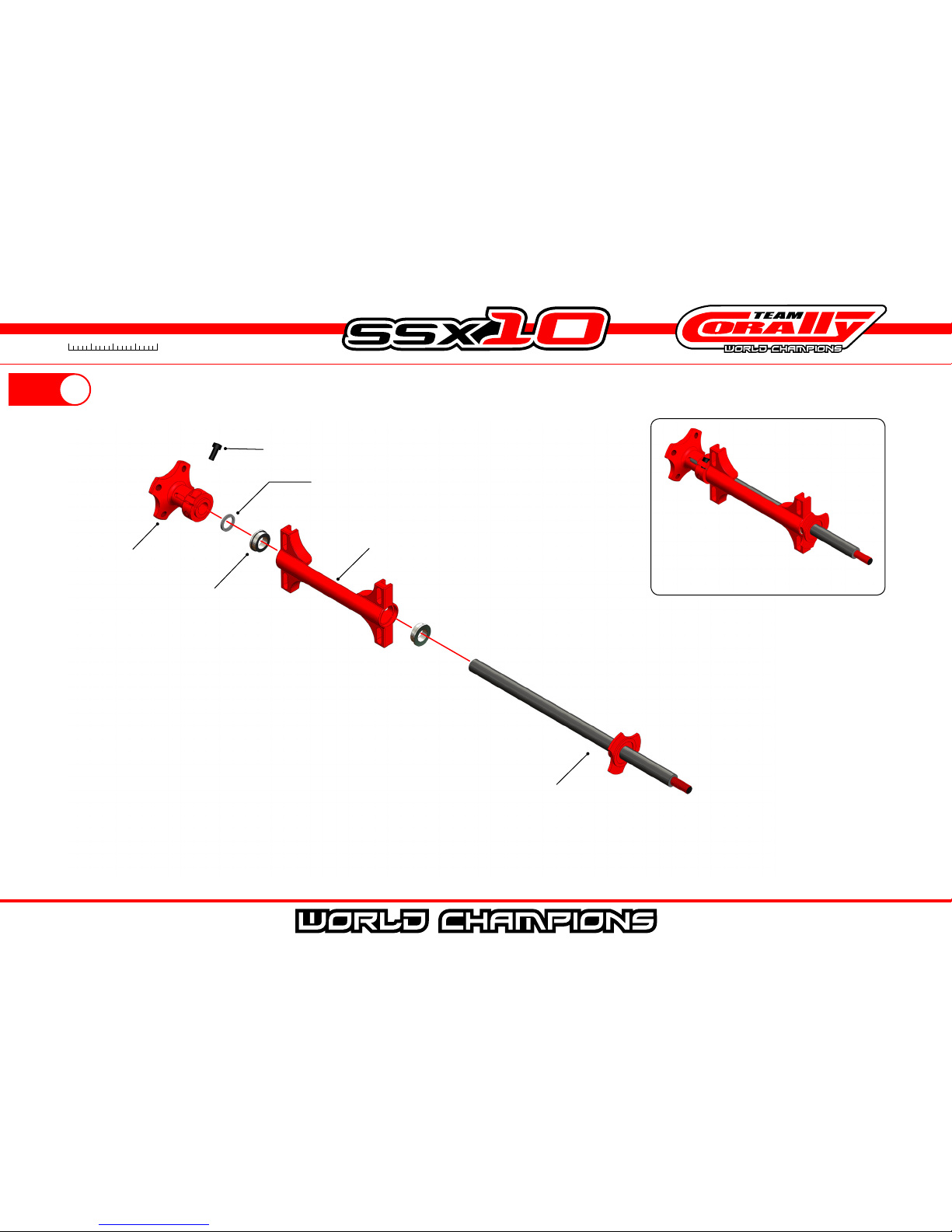

DRIVE AXLE ASSEMBLY

C-00100-007

Alum. Bulkhead Brace - 7075 T6

C-391438

Ball Bearing ABEC 3 ­1/4 x 3/8 - Flanged (2pcs)

C-00110-006

Alum. Rear Wheel Hub

- Left

C-00110-010

Carbon Rear Axle shaft

C-30030

Hex Socket Head Screw M2,5x6

C-00100-077

Alum. Shim Ring - ID 6.35mm - 0.4mm

50 10 15 20

26

Socket Head Screw Button Head Screw Flat Head Screw

23

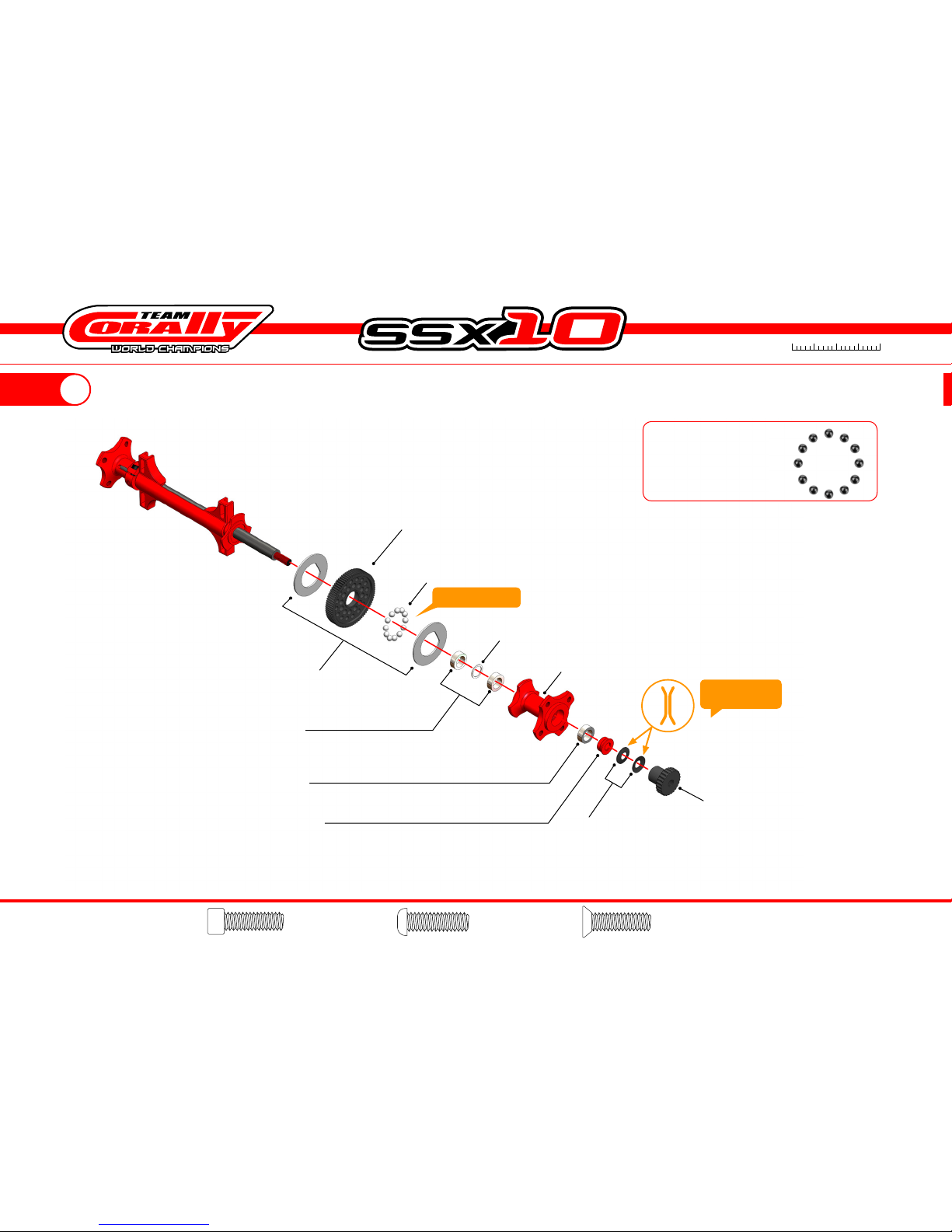

DRIVE AXLE & BALL DIFFERENTIAL ASSEMBLY

C-00100-073

D-Lock Diff Plate ­Steel (2pcs)

C-75090

Delrin CNC-Cut Spur Gear 90T - 64DP

C-391438

Ball Bearing ABEC 3 - 1/4 x 3/8 - Flanged

C-00110-008

Diff. Bearing Insert

C-381438

Ball Bearing
ABEC 3 - 1/4 x 3/8 - (2pcs)

C-00110-007

Alum. Rear Wheel Hub - Right

C-00100-075

Belleville Washer - Steel

C-38010

Precision Diff. Balls - Chrome Steel

C-00100-077

Alum. Shim Ring - ID 6.35mm - 0.4mm

C-00110-009

Composite Lock Nut

OPTIONAL

C-38020

Precision Diff. Balls ­Ceramic - 12 pcs

DIFF GREASE

NOTE

THE ORIENTATION

50 10 15 20

27

24

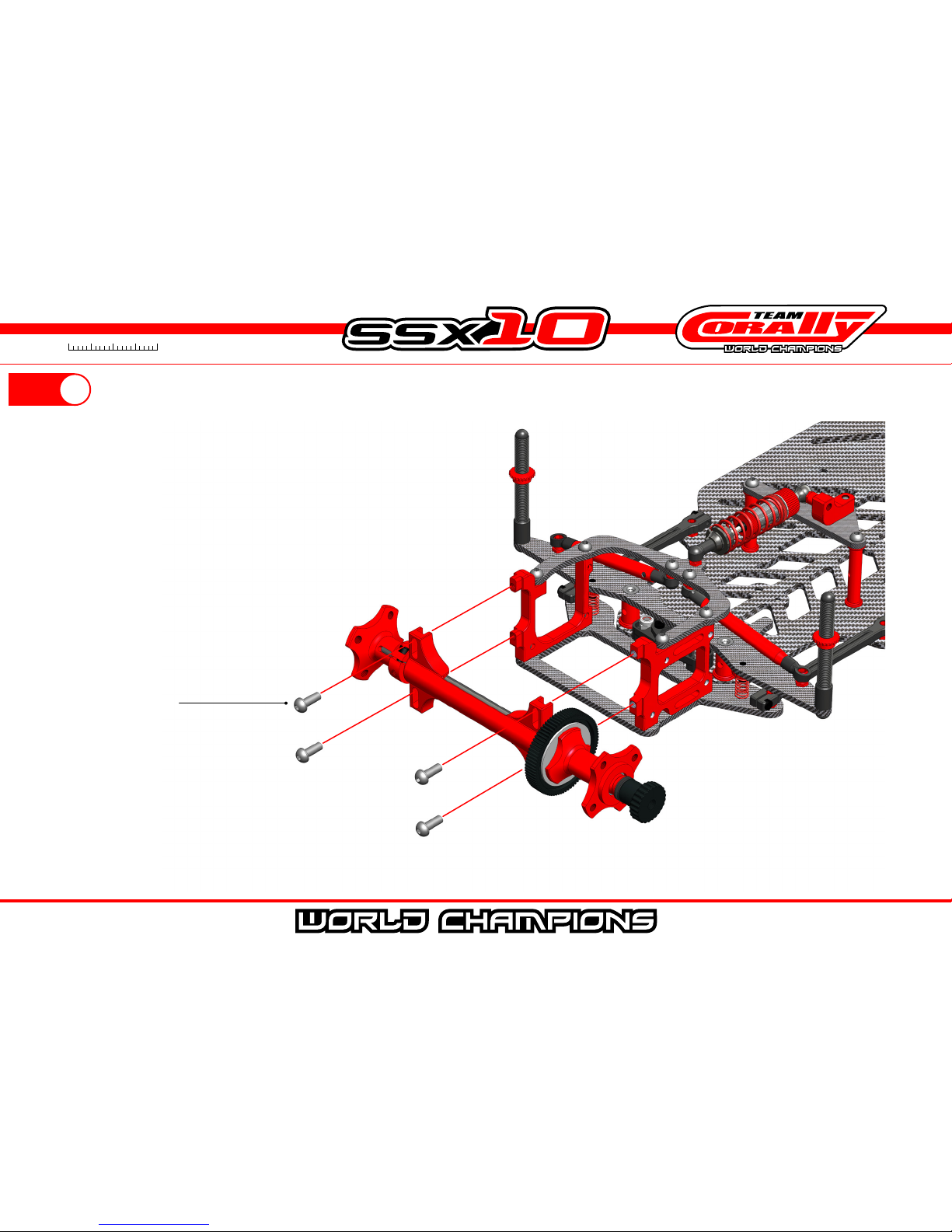

DRIVE TRAIN INSTALLATION

C-30101

Hex Button Head Screw M3x8
(4pcs)

50 10 15 20

28

Socket Head Screw Button Head Screw Flat Head Screw

25

SERVO-SAVER INSTALLATION

Servo

(Not included)

C-10114

Servo Saver Small - 25T Spline

C-00120-027

Alum. Servo Mount Post (2pcs)

C-00100-015

Alum. Antenna Mount

C-30100

Hex Button Head Screw M3x6
(2pcs)

C-30050

Flat Head Screw M3x6
(3pcs)

C-30100

Hex Button Head Screw M3x6 (3pcs)

C-00100-024

Alum. Steering Ball

4.25mm - M3
(2pcs)

50 10 15 20

29

26

ELECTRONICS INSTALLATION

ESC

(Not included)

Receiver

(Not included)

Double-Side Tape

(Not included)

Double-Side Tape

(Not included)

50 10 15 20

30

Socket Head Screw Button Head Screw Flat Head Screw

27

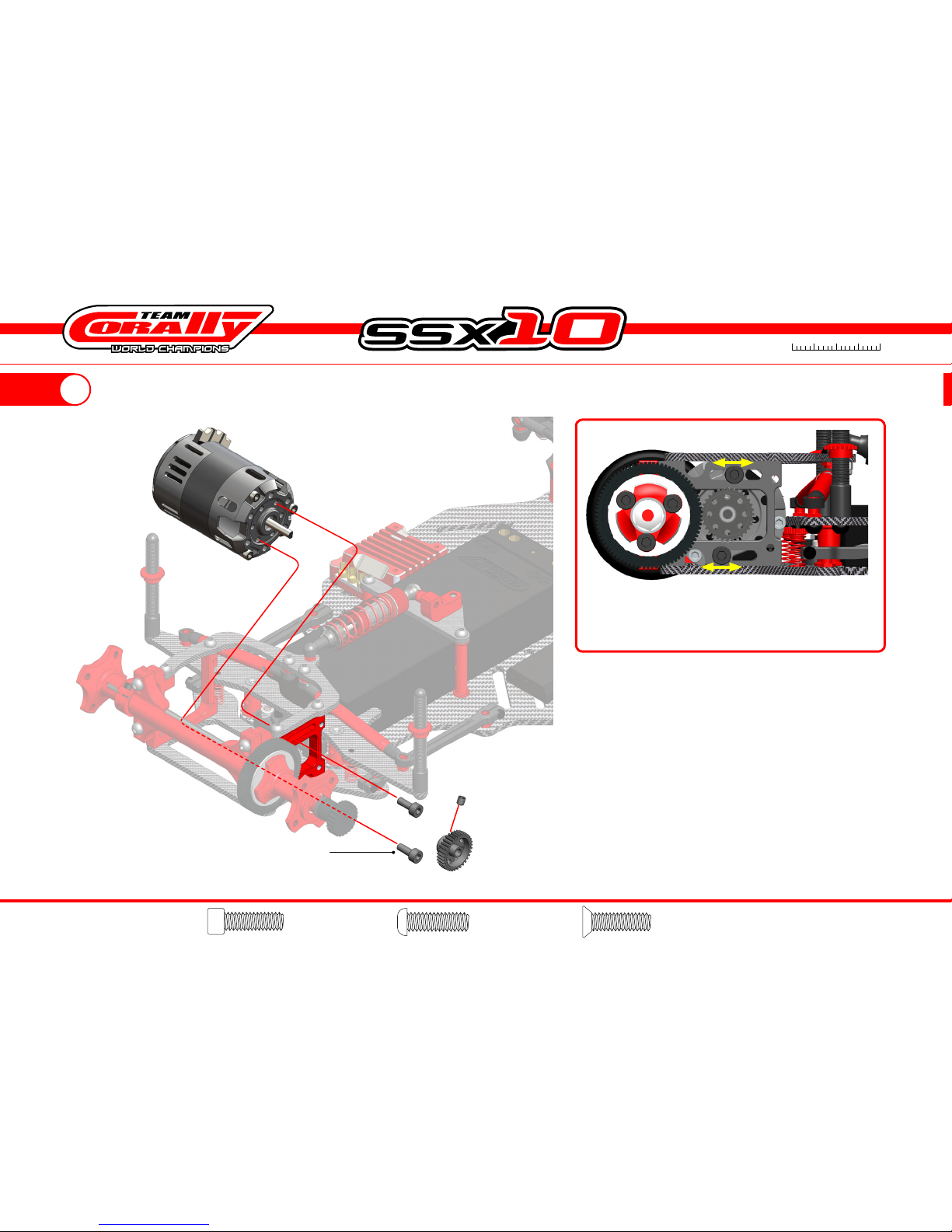

MOTOR INSTALLATION

Adjust the gear mesh so there is appropriate space between

the spur gear and pinion teeth.

There should be a very small amount of freeplay.

Brusless Motor

(Not included)

Motor Pinion

(Not included)

C-30001

Flat Head Screw M3x8
(2pcs)

50 10 15 20

31

28

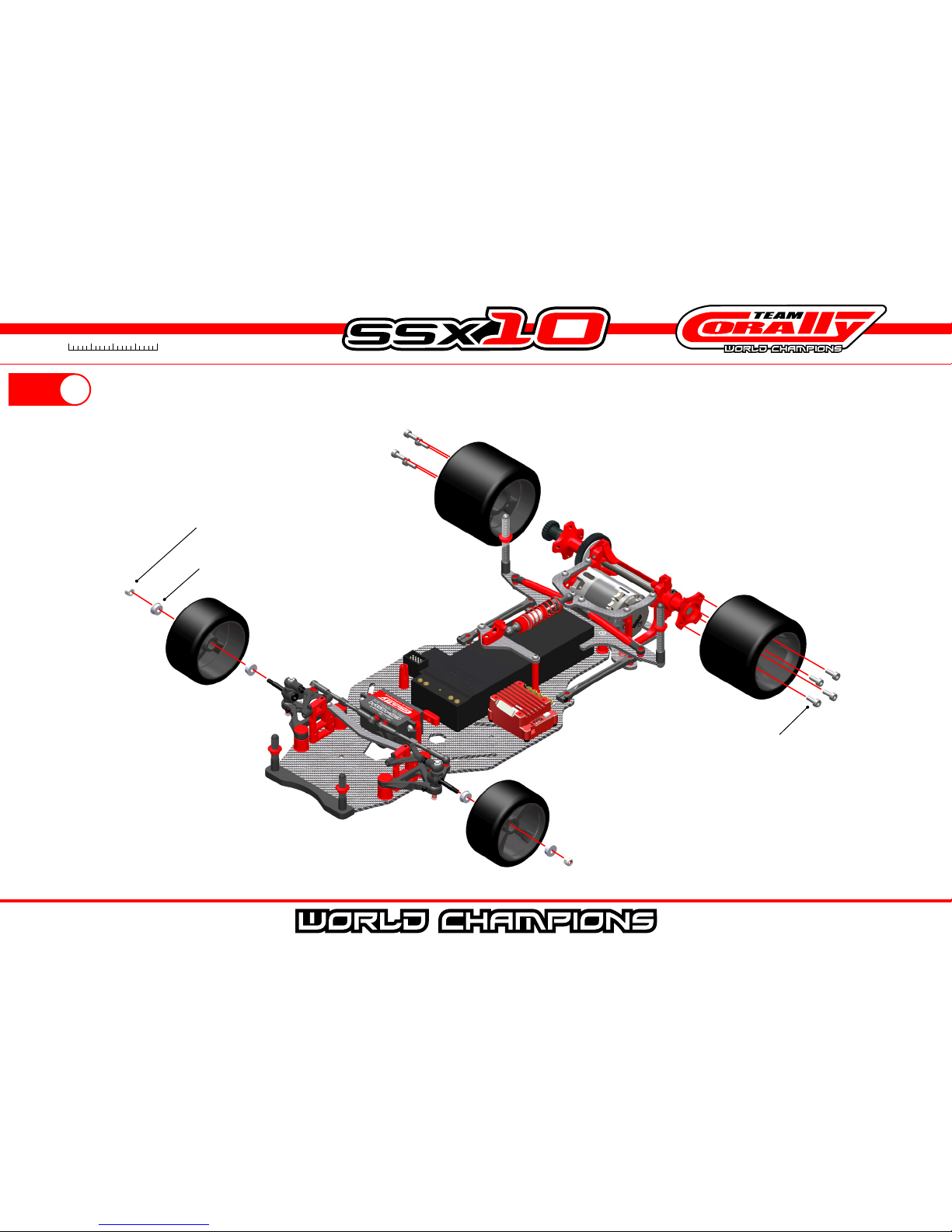

WHEELS INSTALLATION

C-30001

Hex Socket Head
Screw M3x8
(8pcs)

C-3918516

Ball Bearing ABEC 3 - 1/8 x 5/16 - Flanged (4pcs)

C-31002

Steel Nylstop Nut M3 (2pcs)

Tyres

(Not included)

50 10 15 20

32

Socket Head Screw Button Head Screw Flat Head Screw

29

BATTERY INSTALLATION

1

1

2

33

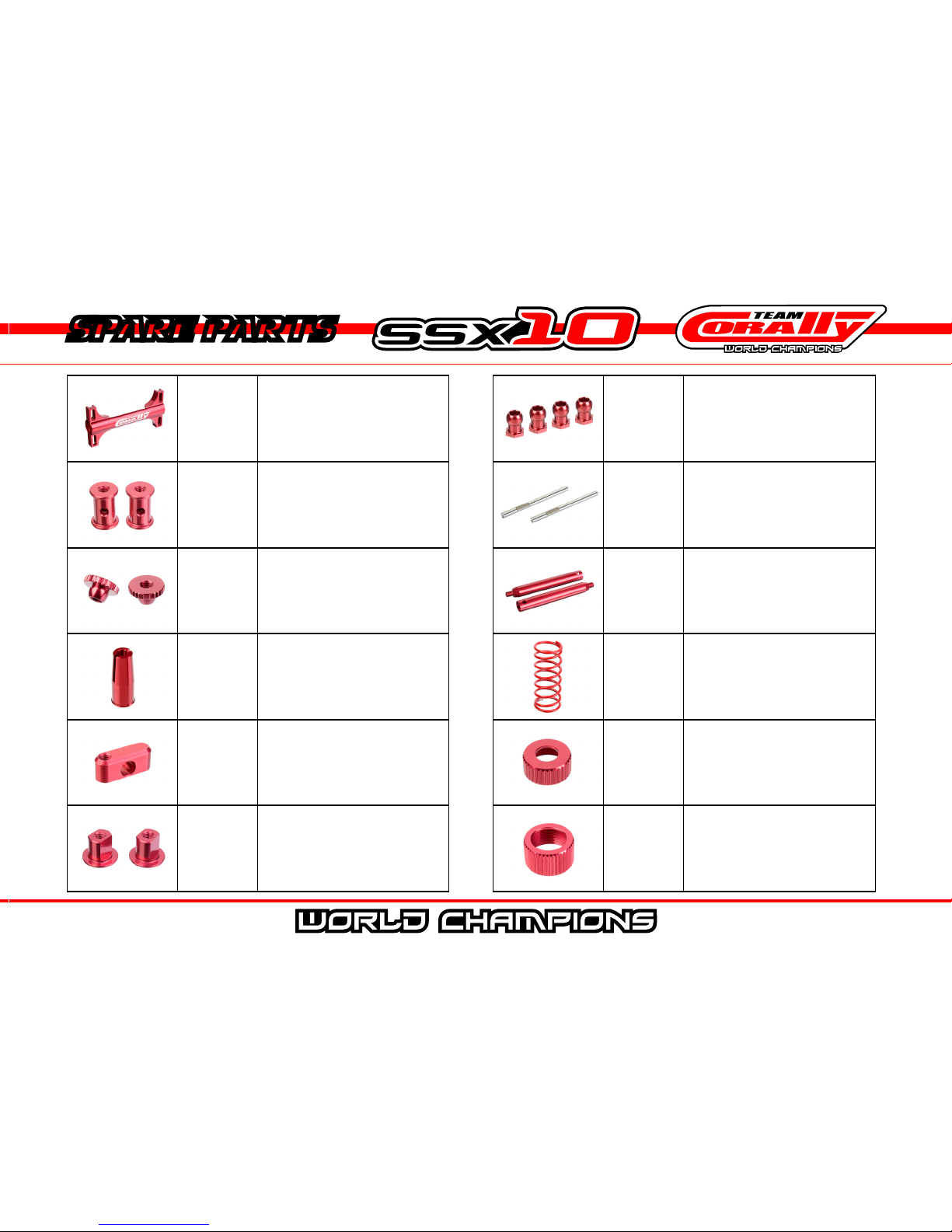

SPARE PARTS

C-00100-007

Alum. Bulkhead Brace - 7075 T6

- 1 pc

C-00100-012 Alum. Rear Brace Mount - 2 pcs

C-00100-014 Alum. Side Spring Holder - 2 pcs

C-00100-015 Alum. Antenna Mount - 1 pc

C-00100-016 Alum. Battery Backstop - 1 pc

C-00100-018 Alum. Upper Arm Cap - 2 pcs

C-00100-024

Alum. Steering Ball 4.25mm - M3

- 4 pcs

C-00100-026

Front Upper Arm Pivot Pin - Steel

- 2 pcs

C-00100-029

Alum. Side Linkage Damper Tube

- 2 pcs

C-00100-030

Shock Spring - Red 1.1mm - Hard

- 1 pc

C-00100-031 Alum. Lower Shock Body Cap - 1 pc

C-00100-032 Alum. Upper Shock Body Cap - 1 pc

34

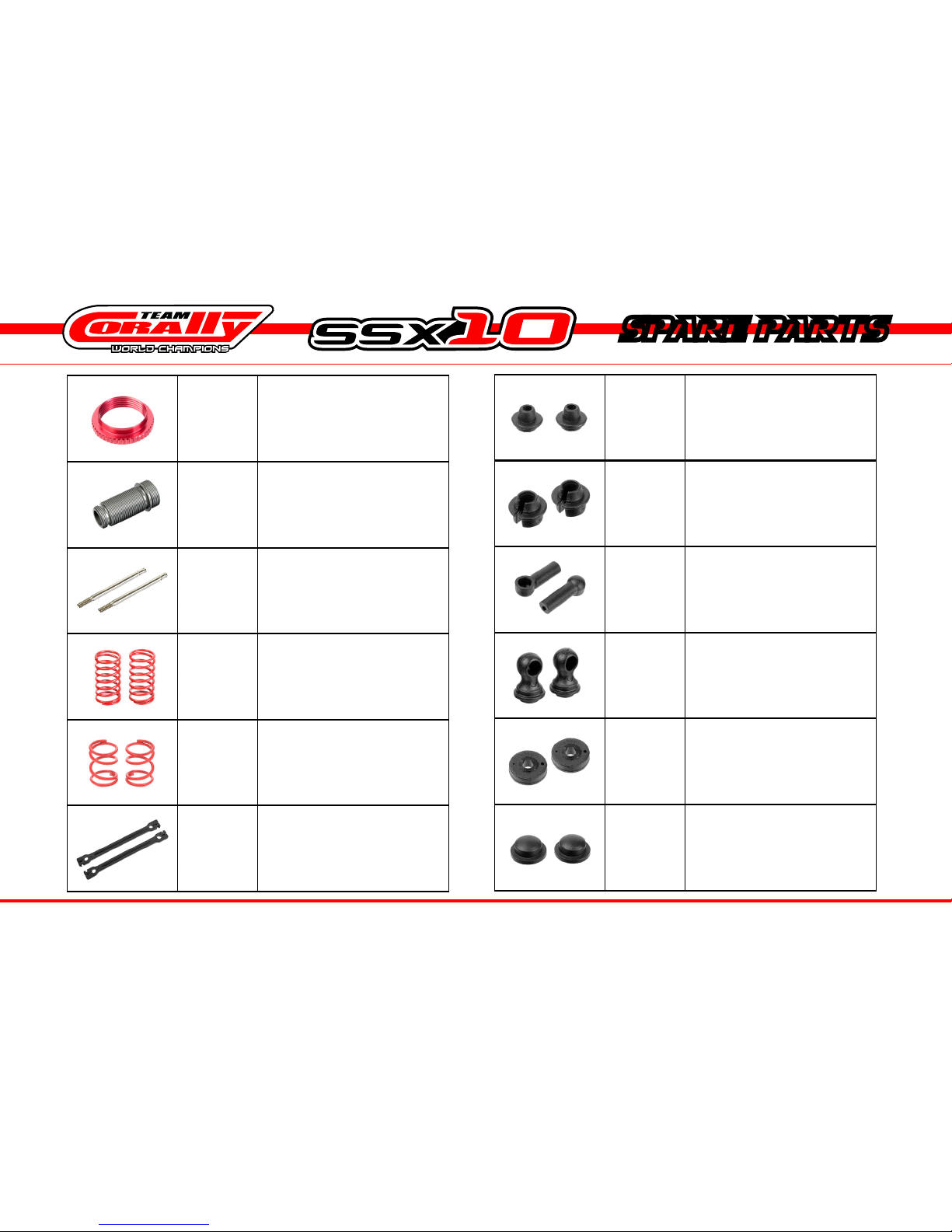

SPARE PARTS

C-00100-033

Alum. Shock Spring Adjustment Nut

- 1 pc

C-00100-034

Alum. Threaded Shock Body - Hard­coated - 1 pc

C-00100-035 Shock Shaft - Steel - 2 pcs

C-00100-036

Side Springs - Red 0.5mm - Soft

- 2 pcs

C-00100-037

Front Spring Coils - Red 0.4mm - Soft

- 2 pcs

C-00100-041 Composite Pod Link - 2 pcs

C-00100-042

Composite Washer Shock Body

- 2 pcs

C-00100-043

Composite Shock Spring Holder

- 2 pcs

C-00100-044

Composite Lower Ball Joint - Shock

- 2 pcs

C-00100-045

Composite Upper Ball Joint - Shock

- 2 pcs

C-00100-046 Composite Shock Piston - 2 pcs

C-00100-047 Silicone Shock Membrane - 2 pcs

35

SPARE PARTS

C-00100-048 Silicone Shock O-Ring - 2 pcs

C-00100-049

Composite Ball Joint - Alum. Side
Linkage Damper Tube - 4 pcs

C-00100-050 Composite Ball Joint - 4 pcs

C-00100-051

Composite Body Mount - Long ­Threaded - 2 pcs

C-00100-052

Composite Body Mount - Short ­Threaded - 2 pcs

C-00100-053

Alum. Body Mount Cambered Nuts

- 4 pcs

C-00100-054 Composite Chassis Protector - 1 pc

C-00100-055

Composite Chassis Corner Protector

- 2 pcs

C-00100-056 Composite Pivot Brace - A+B - 1 set

C-00100-058

Composite Suspension Arm - Front
Lower - Right - 1 pc

C-00100-059

Composite Suspension Arm - Front
Lower - Left - 1 pc

C-00100-060

Composite Suspension Arm - Front
Upper - 2 pcs

36

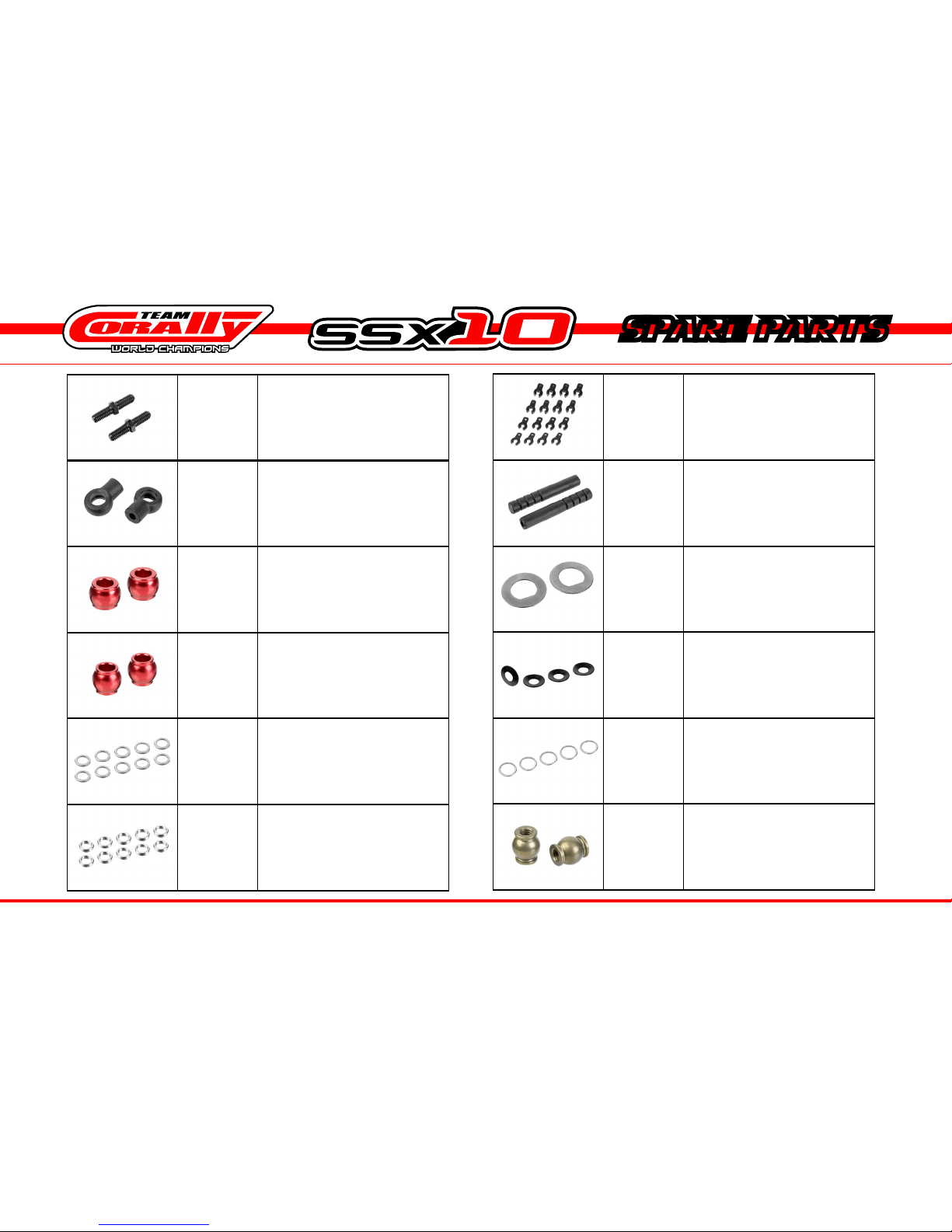

SPARE PARTS

C-00100-061

Turnbuckle M3 x 15mm - Steel

- 2 pcs

C-00100-062

Composite Ball Joint - Dia 6mm ­Front Upper Arm - 2 pcs

C-00100-064

Alum. Ball Dia. 6mm - for Lower Susp.
Arms - 2 pcs

C-00100-065

Alum. Ball Dia. 6mm - for Ball Joint

- 2 pcs

C-00100-066

Alum. Shim Ring - ID 3mm - OD 4mm

- 0.5mm - 10 pcs

C-00100-067

Alum. Shim Ring - ID 3mm - OD 4mm

- 1.0mm - 10 pcs

C-00100-068

Composite Clip 0.5 - 1 - 1.5 - 2.0mm

- 4 pcs each

C-00100-072 Composite Damper Tube Rod - 2 pcs

C-00100-073

D-Lock Diff Plate - Carbon Steel

- 2 pcs

C-00100-075 Belleville Washer - Steel - 4 pcs

C-00100-077

Alum. Shim Ring - ID 6.35mm -

0.4mm - 5 pcs

C-00100-079 Alum. Pivot Ball - Hardcoated - 2 pcs

37

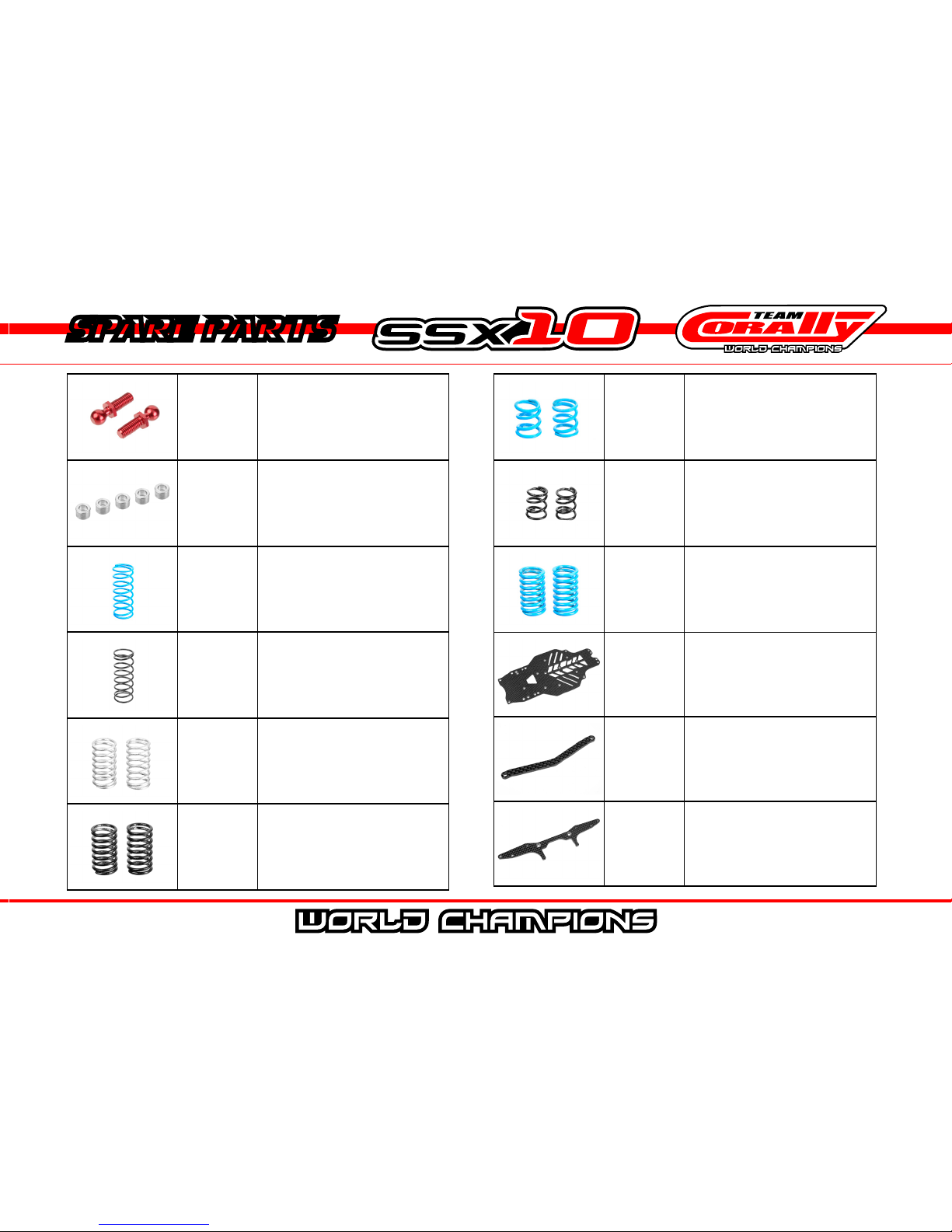

SPARE PARTS

C-00100-082 Alum. Threaded Ball 4.25mm - 2 pcs

C-00100-083

Alum. Shim Ring - ID 3mm - OD 5mm

- 3mm - 5 pcs

C-00100-101

Shock Spring - Blue 1.0mm - Medium

- 1 pc

OPTIONAL

C-00100-102

Shock Spring - Black 0.9mm - Soft

- 1 pc

OPTIONAL

C-00100-103

Side Springs - Silver 0.6mm -
Soft-Medium - 2 pcs

OPTIONAL

C-00100-104

Side Springs - Black 0.7mm -
Medium - 2 pcs

OPTIONAL

C-00100-105

Front Spring Coils - Blue 0.6mm ­Hard - 2 pcs

OPTIONAL

C-00100-106

Front Spring Coils - Black 0.5mm ­Medium - 2 pcs

OPTIONAL

C-00100-108

Side Springs - Blue 0.8mm -
Hard - 2 pcs

OPTIONAL

C-00110-001

Chassis SSX-10 - Carbon 2.5mm

- 1 pc

C-00110-002

Front stiffener Plate - Carbon 2.5mm

- 1 pc

C-00110-003 Rear Brace - Carbon 2.5mm - 1 pc

38

SPARE PARTS

C-00110-004

Rear Pod Lower Plate - Carbon

2.5mm - 1 pc

C-00110-005

Shock Absorber Support Plate -
Carbon 2.5mm - 1 pc

C-00110-006 Alum. Rear Wheel Hub - Left - 1 pc

C-00110-007 Alum. Rear Wheel Hub - Right - 1 pc

C-00110-008 Alum. Diff. Ball Bearing Insert - 1 pc

C-00110-009 Composite Lock Nut - 1 pc

C-00110-010 Rear Axle Shaft - Carbon - 1 pc

C-00110-011 Turnbuckles 46mm - 2 pcs

C-00110-012 Composite Steering Knuckle - 2 pcs

C-00110-013 Front Wheel Axle - Steel - 2 pcs

C-00110-014 Alum. Front Bulkhead - 7075 T6 - 1 pc

C-00110-015 King Pin - Steel - 2 pcs

39

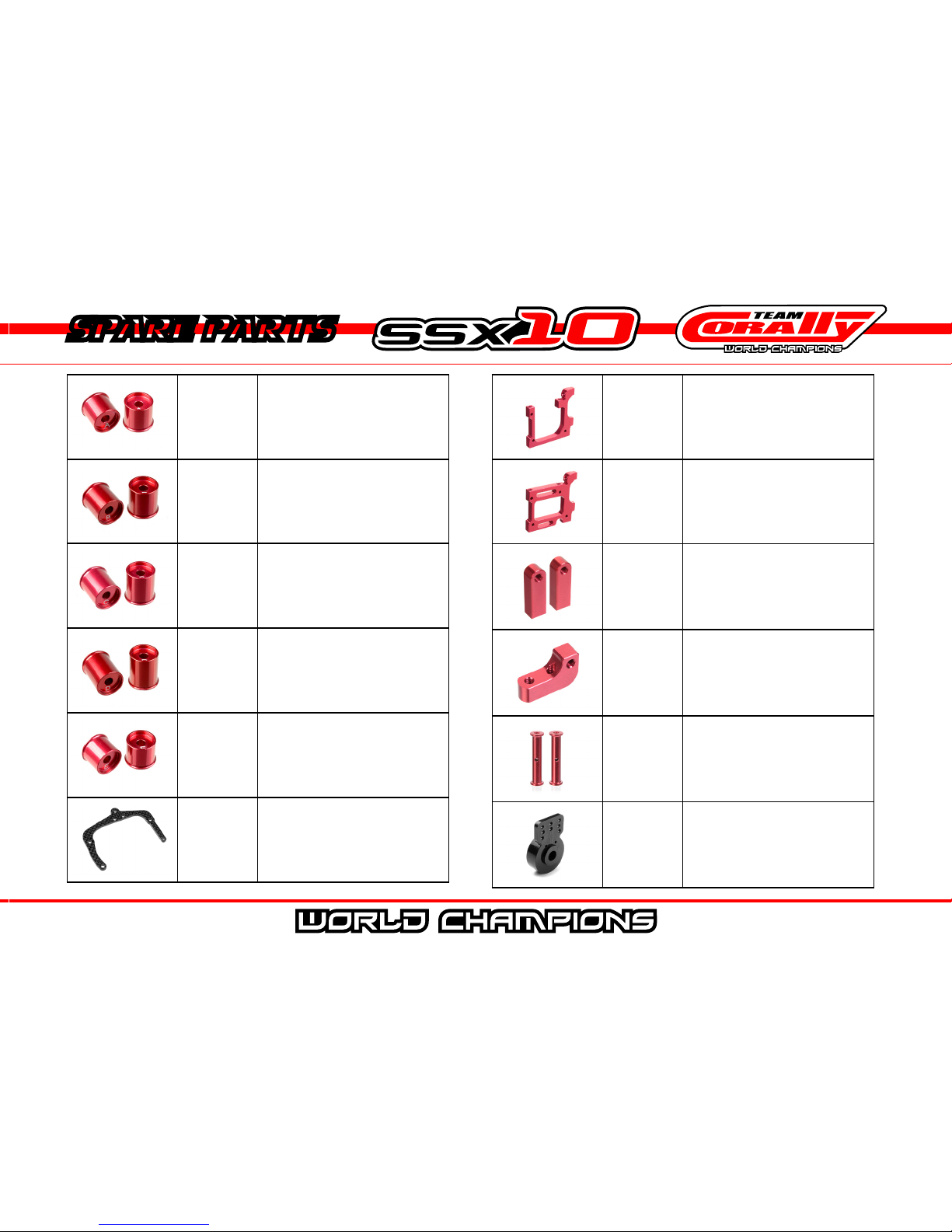

SPARE PARTS

C-00110-016

Alum. Lower Arm Cap - A • 0.0mm

- 2 pcs

C-00110-017

OPTION

Alum. Lower Arm Cap - B • -1.0mm

- 2 pcs

C-00110-018

OPTION

Alum. Lower Arm Cap - C • -2.0mm

- 2 pcs

C-00110-019

OPTION

Alum. Lower Arm Cap - D • -3.0mm

- 2 pcs

C-00110-020

OPTION

Alum. Lower Arm Cap - E • +1.0mm

- 2 pcs

C-00110-021

Rear Pod Upper Plate- Graphite

2.5mm - 1 pc

C-00120-015

Alum. Rear Bulkhead Motor - Left ­7075 T6 - 1 pc

C-00120-016

Alum. Rear Bulkhead Motor - Right ­7075 T6 - 1 pc

C-00120-027 Alum. Servo Mount Post - 2 pcs

C-00120-028 Alum. Damper Holder - 1 pc

C-00120-029 Alum. Spacer Holder - 27mm - 2 pcs

C-10114 Servo Saver Small - 25T Spline - 1 pc

40

SPARE PARTS

C-38010

Precision Diff. Balls 1/8 - Chrome

- 12 pcs

C-38020

Precision Diff. Balls 1/8 - Ceramic

- 12 pcs

OPTIONAL

C-381438

Ball Bearing ABEC 3 - 1/4 x 3/8

- 4 pcs

C-391438

Ball Bearing ABEC 3 - 1/4 x 3/8 ­Flanged - 4 pcs

C-3918516

Ball Bearing ABEC 3 - 1/8 x 5/16 ­Flanged - 4 pcs

C-75090

Delrin CNC-Cut Spur Gear 90T - 64DP

- 1 pc

C-30050
Steel Screws M3 X 6mm - Hex Flat Head - 10 pcs

C-30051
Steel Screws M3 X 8mm - Hex Flat Head - 10 pcs

C-30052
Steel Screws M3 X 10mm - Hex Flat Head - 10 pcs

C-3002-30-14
Steel Screws M3 X 14mm - Hex Flat Head - 10 pcs

C-30100
Steel Screws M3 X 6mm - Hex Button Head - 10 pcs

C-30101
Steel Screws M3 X 8mm - Hex Button Head - 10 pcs

C-30018
Steel Screws M2 X 4mm - Hex Socket Head - 10 pcs
C-30022

Steel Screws M2 X 12mm - Hex Socket Head - 10 pcs
C-30030

Steel Screws M2,5 X 6mm - Hex Socket Head - 10 pcs

C-30001
Steel Screws M3 X 8mm - Hex Socket Head - 10 pcs

C-30149
Steel Set Screws M3 X 4mm - Hex - 10 pcs

C-30152
Steel Set Screws M3 X 8mm - Hex - 10 pcs

41

SPARE PARTS

C-31000
Steel Nylstop Nut M2 - 10pcs

C-31002
Steel Nylstop Nut M3 - 10pcs

C-31015
Alum. Nylstop Nut M2 - Red - 10 pcs

C-31025
Alum. Nylstop Nut M3 - Red - 10 pcs

C-32150
E-Clips Dia. 1.5mm - 10 pcs

C-32151
E-Clips Dia. 2.3mm - 10 pcs

42

TIRE TRACTION COMPOUNDS

Tire Juice 22

GREEN 100ml

C-13760 Tire Juice 22

RUBBER - ASPHALT

Tire Juice 33

RED 100ml

C-13761 Tire Juice 33

FOAM - ASPHALT

Tire Juice 44

YELLOW 100ml

C-13762 Tire Juice 44

RUBBER - CARPET

Tire Juice 55

BLUE 100ml

C-13763 Tire Juice 55

FOAM - CARPET

TC TIRE JUICE 22 - GREEN : is ideally suited to rubber tires on asphalt but also works well on foam tires.

TC TIRE JUICE 33 - RED : is ideally suited for foam tires on asphalt but also works well on rubber tires.

TC TIRE JUICE 44 - YELLOW : is ideally suited for rubber tires on carpet but also works well on foam tires.

TC TIRE JUICE 55 - BLUE : is ideally suited for foam tires on carpet but also works well on rubber tires.

43

This manual is an edition of Team Corally, Geelseweg 80, B-2250 OLEN (Belgium). This manual is protected by a copyright and nothing from this edition may be reproduced or used without any prior
written authorisation. Whilst every effort has been made to ensure the accuracy of the information in this catalogue, errors do creep in and Team Corally can accept no responsibility for failures, wrong

specications, accuracy of colours, losses or damages caused. Team Corally denies any responsibility claims or damages caused by use of our products. Team Corally is not responsible for product
changes or availability of our products. The products of dangerous nature included in this manual are submissive to special handling and storage specications. Please check with your local authorities

for existing legislation.

www.corally.com

Team Corally • Geelseweg 80 • 2250 Olen • Belgium

Tel: [phone] • [email protected] • www.corally.com
