尺寸：
TM2 V2
Length …………………………………………………………………………400mm
Width …………………………………………………………………………250mm
Height …………………………………………………………………………145mm
長度
寬度
高度
Dimensions
Instruction manual
www.teamcracing.net
1:10 SCALE RADIO CONTROLLED ELECTRIC
POWERED 2wd RACING BUGGY
9
8
7
6
10
11
12
13
14
Transmitter Preparation
調整遙控器
1
2
3
GLG20
2.4GHz
4
5
1 Control Panel
2 Steering Wheel
3 Throttle Trigger
控制面板
轉向輪
油門板扣
4 Battery Compartment
5 Charging Jack
充電接口
6 Sterring Servo Reverse
7 Power LED
8 Steering Trim
9 Bind Button
電源指示燈
轉向调節
設定按扭
10 Throttle Servo Reverse
11 Battery Voltage
12 Steering Dual Rate
13 Power Switch
14 Throttle Trim
電池電壓
轉向大小微調
電源開關
油門微調
電池盒
轉向正逆轉開關
油門正逆轉開關
Transmitter Battery Installation
遙控器電池安裝
Open battery cover at the bottom of transmitter.
Install batteries. Follow the direction of batteries
designated in the inside of battery box.
在遙控器的底部打開電池蓋子,安裝電池。
跟隨電池的指示在電池盒裡面指定。
Battery Cover
電池蓋
AA Alkaling Batteries
4X
AA 堿性電池
Transmitter Preparation
Battery Charger
(Not Included)
Battery
Servo
Motor
Electronic Speed
Controller / Switch
Receiver
Note: When done driving Turn Off the
ESC and THEN Transmitter
Install Transmitter Batteries1.
Connect Battery to ESC2.
Switch on Transmitter First3.
Switch on ESC Second4.
安裝發射電池
連接電池到電調
首先接通發射機
其次接通電調
注意：當停止駕駛首先要關掉電調
其次再關掉發射機
電池
充電器（不包括）
馬達
伺服
接收機
電子變速器
调整遥控器
Tools required
组裝需要的工具
Needie Nose Pllers
尖嘴钳
Differential Grease
差速油
Molybdenum Grease(Black)
钼油(黑)
Hex Wrench
六角扳手
Awl
锥
Hex Wrench
十字套筒
Grease
润滑油
H154
Body Reamer
车壳绞刀
No need to pre-drill precise holes
(1mm to 15mm)can be drilled
可以对预钻的孔准确的钻1mm-15mm
Screw Cement
螺丝胶水
Wire Cutters
钢丝钳
Sharp Hobby knife
美工刀
H162
Instant Glue
瞬间胶水
H096
ROUND CUTTER
剪刀
For trimming bodies!
用于修剪車壳！
Front Suspension
1
前悬吊系统
F
R
TU0226OR
Front Hinge Pin Brace
前摆臂固定片
T02056
2.3 E-ring
2.3 E扣
TU0222OR
Front Arm Mount
前下摆臂座
TU0222OR
M3x3 Screw
M3x3螺丝
T02016
Front Lower Arm
前下摆臂
TU0222OR
M3x3 Screw
M3x3螺丝
..............................................2
T02056 2.3 E-ing
2.3 E扣
................................................4
T02056 3x34.5 Hinge Pin Front-Inner
3x34.5前摆臂轴-内
...............2
Front Suspension
2
前悬吊系统
T02056
3x34.5 Hinge Pin Front-Inner
3x34.5前摆臂轴-内
TS4042
Ball Stud-Long
球头-长
T02015
Front Upper Suspension Arm Mount
前上摆臂座
TU0222OR
Copper Base
铜座
FS315/T08807
M3x15螺丝
M3x15 Screw
........4
TS4042 Ball Stud-Long
球头-长
.................2
T02008
Front Chassis Plate
前底盤
T02185
Front Bumper
前防撞板
FS315/T08807
M3x15 Screw
M3x15螺丝
1
Buffer
3
缓冲
T02043OR 4.0 E-ring
1
3
4.0 E扣
…………….................1
B0306025/T02080
3x6x2.5 Ball Bearing
3x6x2.5轴承
…………….............4
T02061 Ball Stud-Silver
球头-银色
…………….............1
B0306025/T02080
2
B0306025/T02080
3x6x2.5 Ball Bearing
3x6x2.5轴承
3
T02023
Servo Saver-L
缓冲臂-L
10
9
3x6x2.5 Ball Bearing
3x6x2.5轴承
T02043OR
Buffer Nut
缓冲调解螺帽
T02043OR
Buffer Spring
缓冲弹簧
2
1
T02043OR
4.0 E-ring
8
5
T02061
Ball Stud-Silver
球头-银色
4.0 E扣
T02023
T02043OR
Buffer Column-B
Servo Saver Upper
缓冲臂上
转向缓冲器-B
4
B0306025/T02080
3x6x2.5 Ball Bearing
3x6x2.5轴承
7
T02023
Servo Saver Lower
缓冲臂下
6
4.0mm
T02043OR
Buffer Column-A
转向缓冲器-A
11
B0306025/T02080
3x6x2.5 Ball Bearing
3x6x2.5轴承
Buffer
4
缓冲
T02044 Block Carrier
轴套
……………............2
T02044 M3x10 Screw
M3x10螺丝
………...2
TS4043 Ball Stud-Short
球头-短
…………….......2
T02044 3x7x0.8 Washer
3x7x0.8垫片
T02044
Block Carrier
轴套
T02044
M3x10 Screw
M3x10螺丝
TS4043
Ball Stud-Short
球头-短
T02044
3x7x0.8 Washer
3x7x0.8垫片
T02024
Steering Rack
缓冲连接片
…………….2
2
Chassis/Side Plate
5
底盘/侧板
T02176
Front Chassis Mount
前底盘固定座
FS308/T01119
M3x8 Screw
M3x8螺丝
T02175
Reinforcing Bars
侧边补强条
T02241
Main Chassis
主底盘
Glue
Front Suspension
6
前悬吊系统
T02147
Front Brace Mount
前支撐座
BS310/T01115
M3x10 Screw
M3x10螺丝
BS308/T01114
M3x8 Screw
M3x8螺丝
FS308/T01119
M3x8螺丝
M3x8 Screw
..............10
Screw
Cement
Apply threadlocker(screw cement)
Screw
Cement
打螺丝胶水
BS308/T01114
M3x8 Screw
M3x8螺丝
T02147
M3x25 Screw
M3x25螺丝
BS308/T01114
M3x8螺丝
M3x8 Screw
.................................6
BS310/T01115
M3x10 Screw
M3x10螺丝
...............................2
T02147
M3x25 Screw
M3x25螺丝
..........1
3
Front Suspension
7
前悬吊系统
T02054 2.3 E-ring
T02042 4.0 E-ring
T02042 2x9.8 Pin
2.3 E 扣
……………8
4.0 E 扣
………….2
2x9.8钢针
………2
T02054 3X27.5 Hinge Pin Front-Outer
TS4043
B051004/T02100
前摆臂销-外
………............4
Ball Stud-Short
球头-短
…………............................4
5x10x4 Ball Bearing
5x10x4轴承
………...........................4
T02011
C-Type Holder-L
C型座-L
T02054
2.3 E-ring
2.3 E 扣
TS4043
Ball Stud-Short
球头-短
T02042
4.0 E-ring
4.0 E 扣
T02042
Front Wheel Axle
前轮轴
T02054
3X27.5 Hinge Pin Front-Outer
3X27.5前摆臂销-外
T02012
Steering Block-L
转向臂-L
B051004/T02100
5x10x4 Ball Bearing
5x10x4轴承
T02245
M2x5 Screw
M2x5螺丝
T02042
2x9.8 Pin
2x9.8钢针
T02245
Hex Mount
六角座
Turnbuckle
8
拉杆
T04107
3x45 Turnbuckle
3x45拉杆
4mm
T04014
4.8mm Ball End-Long
4.8mm球头座-长
1:1 x1
1:1 x1
1:1 x2
1:1 x2
Front Upper-L
前上拉杆-左
Front Upper-R
前上拉杆-右
Steering Tip
转向拉杆
Rear Upper
后上拉杆
approx.28mm
大约28mm
▲Projection.Note direction
注意方向
approx.28mm
大约28mm
▲Projection.Note direction
注意方向
approx 24mm
大约24mm
▲Projection.Note direction
注意方向
approx 22.5mm
大约22.5mm
▲Projection.Note direction
注意方向
T04107 3x45 Turnbuckle
3x45拉杆
...................6
T04014 4.8mm Ball End-Long
4.8mm球头座-长
..................................12
4
Front Suspension
9
前悬吊系统

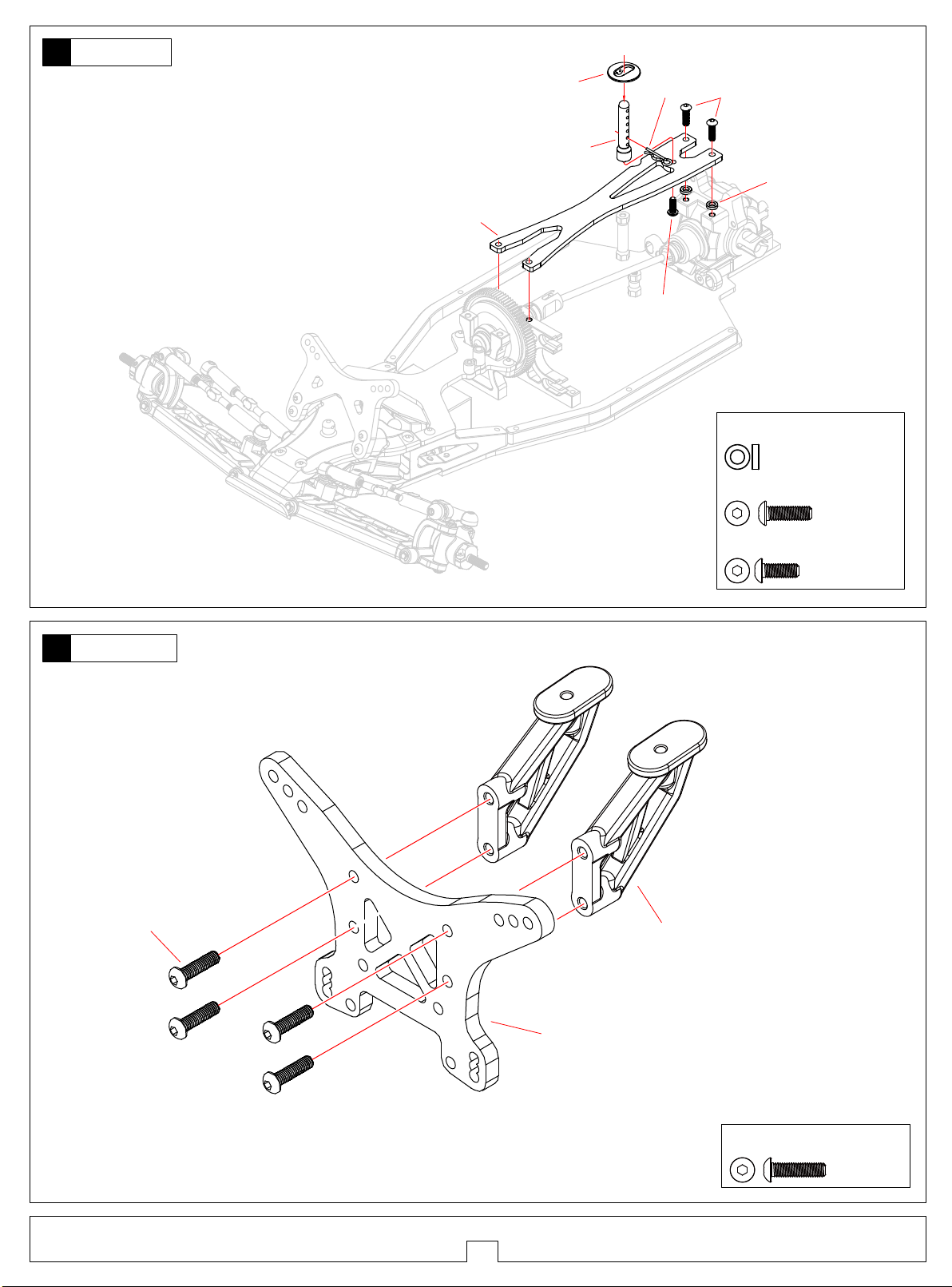

Front Suspension
10
前悬吊系统
BS310/T01115
M3x10 Screw
M3x10螺丝
TU0240
Front Shock Tower
前避震器架
BS310/T01115
M3x10 Screw
M3x10螺丝
......................4
5
Steering Servo
11
转向伺服系统
BS308/T01114
M3x8 Screw
M3x8螺丝
W3708/T02081
3x7x0.8 Washer
3x7x0.8垫片
Servo
伺服机
X
Select for your servo
根据伺服器选择
Steering Servo-H(24T)
转向伺服臂H(24T)
Sanwa servo
SANWA
T02028
T02035
T02030
4.8 Ball End-Short
球头座-短
.................2
T02061 Ball Stud-Silver
球头-银色
.....................1
Steering Servo-S(23T)
转向伺服臂S(23T)
W3708/T02081
3x7x0.8垫片
3x7x0.8 Washer
...............................4
BS308/T01114
M3x8螺丝
M3x8 Screw
......................5
T02030
FS308/T01119
M3x8螺丝
T02061
Ball Stud-Silver
球头-银色
M3x8 Screw
................2
T02027
FS308/T01119
M3x8 Screw
M3x8螺丝
SS310
M3x10 Screw
M3x10螺丝
................1
12
Motor Mount
马达座
T02197
Center Diff Mount
中差座
T02196
Motor Mount
马达座
FS308/T01119
M3x8 Screw
M3x8螺丝
Must be purchased separately
X
需另购物品
Apply threadlocker(screw cement)
Screw
Cement
打螺丝胶水
FS308/T01119
M3x8螺丝
M3x8 Screw
................5
6
Upper Deck-Front
13
二楼板-前
BS308/T01114
M3x8 Screw
M3x8螺丝
T02242
Front Top Deck
前二楼板
T04055
Antenna Pipe Mount
天线管座
Mid Gear
14
中齿轮
T02177
Center Bearing Insert
中差培林座
B101504
10x15x4 Ball Bearing
10x15x4轴承
T04022
Spring Buckle
弹簧扣
T02182
Mid Connecting Hub-F
中接杯-前
BS305/T08788
M3x5螺丝
M3x5 Screw
...........................2
P210/T04032 2x9.8 Pin
2x9.8钢针
.............................4
B101504/T02099
10x15x4 Ball Bearing
10x15x4轴承
T04020
Slipper Hub-F
扭限座-前
P210
2x9.8 Pin
2x9.8钢针
T04019
Slipper Spring
扭限弹簧
T04023
Center Shaft
中轴
T04018
Slipper Nut
扭限螺母
3.5mm
T04020
Slipper Hub-R
扭限座-后
T04036
Slipper Pad
扭限摩擦片
TR4027
Supr Gear-85T
减速齿-85T
BS308/T01114
M3x8螺丝
M3x8 Screw
......................5
BS305/T08788
M3x5 Screw
M3x5螺丝
Loosen for more slippage
当不易抓地的時候，请按此方向调整螺母。
..................2
Apply threadlocker(screw cement)
Screw
Cement
打螺丝胶水
Aften first run, re-adjust to around 3.5mm
运行后再调整到3.5mm
Tighten for less slippage when traction grip
当容易抓地的時候，请按此方向调整螺母。
7
Diff
15
差速器
TS4040 3.0 E-ing
3.0 E扣
.....................................2
T04039
5.1x13x0.2 Washer
5.1x13x0.2垫片
..........................2
T04040 4.8x1.6 O-Ring
4.8x1.6 O环
..............................2
B101504/T02099
10x15x4 Ball Bearing
10x15x4轴承
TS4039
Gear-16T
齿轮-16T
TS4039
5.1x13x0.2 Washer
5.1x13x0.2垫片
TS4040
3.0 E-ing
3.0 E扣
T04040
4.8x1.6 O-ring
4.8x1.6 O环
T04040
Diff Housing
差速壳
T04041
10x12x0.2 Washer
10x12x0.2垫片
B101504/T02099
10x15x4 Ball Bearing
10x15x4轴承
TS4039
Gear-16T
齿轮-16T
TS4039
5.1x13x0.2 Washer
5.1x13x0.2垫片
TS4040
3.0 E-ing
3.0 E扣
T04040
Diff Pads
差速垫片
T04040
4.8x1.6 O-ring
4.8x1.6 O环
T04041
Gear-40T
齿轮-40T
T04041
10x12x0.2 Washer
10x12x0.2垫片
B101504/T02099
10x15x4 Ball Bearing
10x15x4轴承
T04041
Diff
16
差速器
TS4039
Gear-10T
齿轮-10T
...................2
10x12x0.2 Washer
10x12x0.2垫片
..........................3
TS4039
Diff Shaft
差速轴
TS4040
Diff Connecting Cup
差速接杯
T04040
M2.5x6 Screw
M2.5x6螺丝
Oil
5000# for Front diff
2000# for Rear diff
High grip:
Suggest using 7000#
differential oil for front,
Suggest using 3000#
differential oil for rear;
Low grip:
Suggest using 3000#
differential oil for front,
Suggest using 1000#
differential oil for rear.
，
．
TS4040
Diff Connecting Cup
差速接杯
5000#用於前差速器，2000#
用於後差速器。
高抓地力：
前面建議使用7000#差速油，
後面建議使用3000#差速油；
低抓地力：
前面建議使用3000#差速油，
後面建議使用1000#差速油。
Assemble as many times as specified
x2
需組裝數量
Apply threadlocker(screw cement)
Screw
Cement
8
TS4039
T04040
Diff Shaft
差速轴
.....................2
M2.5x6 Screw
M2.5x6螺丝
......................4
Rear Gear-box
17
后齿轮箱
T04140
Rear Gear-box-Lower
后齿轮箱-底座
T04041
Gear-16T
齿轮-16T
B051004/T02100
5x10x4 Ball Bearing
T04129
Arm Mount-RF
5x10x4轴承
摆臂固定座-RF
T04044
83mm Center CVD
83中CVD
W5802/86000
5x8x0.2 Washer
5x8x0.2垫片
FS312/T08805
M3x12 Screw
M3x12螺丝
BS310/T01115
M3x10螺丝
B051004/T02100
5x10x4 Ball Bearing
5x10x4轴承
M3x10 Screw
.....................2
FS308/T01119
M3x8 Screw
M3x8螺丝
Bettery Colunm
18
电池柱
BS310/T01115
M3x10 Screw
M3x10螺丝
T02181
Battery Post-Short
电池档柱
T04140
Rear Gear-box-Cover
后齿轮箱-上盖
T02178
Battery Post
电池柱
W5802/86000
5x8x0.2垫片
..................................2
FS312/T08805
M3x12螺丝
FS308/T01119
M3x8螺丝
........…………..2
5x8x0.2 Washer
M3x12 Screw
.....................2
M3x8 Screw
.........................1
FS308/T01119
M3x8 Screw
M3x8螺丝
9
FS308/T01119
M3x8螺丝
M3x8 Screw
................4
Rear Gear-box
19
后齿轮箱
FS315/T08807
M3x15 Screw
M3x15螺丝
FS308/T01119
M3x8 Screw
M3x8螺丝
FS315/T08807
M3x15螺丝
FS308/T01119
M3x8螺丝
................4
M3x15 Screw
......2
M3x8 Screw
20
Center Gear
中齿轮
10
Upper Deck-Rear
21
二楼板-后
T02243
Rear Top Deck
后二楼板
T02189
Body Mount
车壳座
T02189
Body Post
车壳柱
T02189
Small Clip
车身固定夹
BS308/T01119
M3x8 Screw
M3x8螺丝
BS310/T01115
M3x10 Screw
M3x10螺丝
W35515
3x5.5x1.5 Washer
3x5.5x1.5垫片
Rear Shock Tower
22
后避震架
W35515
3x5.5x1.5 Washer
3x5.5x1.5垫片
.................................2
BS310/T01115
M3x10 Screw
M3x10螺丝
......................2
BS308/T01119
M3x8螺丝
M3x8 Screw
......................1
BS312/T01116
M3x12 Screw
M3x12螺丝
11
T04136
Rear Shock Tower
后避震器架
T04145
Wing Mount
尾翼架
BS312/T01116
M3x12螺丝
M3x12 Screw
..................4
Rear Shock Tower
23
后避震架
BS310/T01115
M3x10 Screw
M3x10螺丝
Spur Gear Cover
24
减速齿轮盖
BS310/T01115
M3x10 Screw
M3x10螺丝
T02247
Center Gear-box-Cover
中齿轮箱-上盖
BS312/T01116
M3x12 Screw
M3x12螺丝
BS310/T01115
M3x10螺丝
......................4
M3x10 Screw
Assemble both Left and Right
L
组装左和右
R
12
BS312/T01116
M3x12螺丝
BS310/T01115
M3x10螺丝
......................2
M3x12 Screw
..................2
M3x10 Screw
Rear Hub Carrier
25
后轮座
B051304
5x13x4 Ball Bearing
5x13x4轴承
B051304
B051004/T02100
5x13x4 Ball Bearing
5x13x4轴承
5x10x4 Ball Bearing
5x10x4轴承
........………..2
T04134
Rear Hub
后轮座
B051004/T02100
5x10x4 Ball Bearing
5x10x4轴承
T04156
62mm Front CVD
62mm前CVD
P210/T04032
2x9.8 Pin
2x9.8钢针
T02244
M2x5 Screw
M2x5螺丝
T02244
Hex Mount-14mm
六角座-14mm
........…………...2
T02244
P210/T04032 2x9.8 Pin
26
M2x5 Screw
M2x5螺丝
...........…………...2
2x9.8钢针
.............................2
Rear Lower Arm
后下摆臂
SS308/T01095
M3x8 Screw
M3x8螺丝
T04112
Wheelbase Washer
轴距垫片
< L >
< R >
SS303/T01122
M3x3 Screw
M3x3螺丝
Assemble both Left and Right
L
组装左和右
R
T04112
Rear Lower Arm
后下摆臂
13
T04105
3x32Arm PIN
3x32摆臂轴
T04112 Wheelbase Washer
SS303/T01122
SS308/T01095
轴距垫片
............................4
M3x3螺丝
................................2
M3x8螺丝
M3x3 Screw
M3x8 Screw
.......................2
Rear Suspension Arm
27
后摆臂
T04130
Arm Mount-RR
摆臂固定座-RR
T04139
Projection Control Block-1
投影调节块-1
T04035 3x51 Arm PIN
3x51摆臂轴
.............2
T04139
Squat Adjustment Block-0
防蹲调节块-0
FS312/T08805
M3x12螺丝
M3x12 Screw
.......................2
T04035
FS312/T08805
M3x12 Screw
M3x12螺丝
A N T I - S Q UA T
R F R R F F F F
3x51 Arm Pin
3x51摆臂轴
( °)
=2 °
=1 °
=3 °
=3 °
=2 °
=4 °
=1 °
R O L L - C E N T E R
T O E - I N
R F R R
( m m )
=+ 0 . 9 m m
=0 m m
=- 0 . 9 m m
( ° )
=2 . 5 °
=3 . 5 °
=0 °
=2 °
=1 . 5 °
14
Rear Turnbuckle
29
后拉杆
T02084
M3 Nylon Nut
M3尼龙螺母
TS4042
Ball Stud-Long
球头-长
30
Rear Swaybar
后防倾杆
T02084 M3 Nylon Nut
TS4042 Ball Stud-Long
M3尼龙螺母
.............................2
球头-长
…………..4
x2
T04150
M3x10 Screw
M3x10螺丝
T04150
4.8mm Ball End-Short
4.8mm球头座-短
T04109
Swaybar Ball Stud
防倾杆球头
15
Rear Swaybar
31
后防倾杆
T04109
M3x3 Screw
M3x3螺丝
SS303
M3x3 Screw
M3x3螺丝
SS303/T04109
M3x3螺丝
M3x3 Screw
................................4
FS2506
M2.5x6 Screw
M2.5x6螺丝
.......................2
Shock Absorber
32
避震器
TU0250-8
Spring
弹簧
...........…………......4
TU0250-8 1mm Washer-Black
1mm压垫-黑色
...........…………...4
TU0250-8 1mm Washer-White
1mm压垫-白色
...........…………..4
TU0250-8 2.5mm Washer-White
2.5mm压垫-白色
...........…………..4
TU0250-8 2.8x1.9 O-ring
2.8x1.9 O环
FS2506
M2.5x6 Screw
M2.5x6螺丝
T04140
Sway Bar Adjustment
防倾杆调整座
TU0250-8
Spring
弹簧
TU0250-8
1mm Washer-Black
1mm压垫-黑色
TU0250-8
2.8x1.9 O-ring
2.8x1.9 O环
TU0250-8
2.5mm Washer-White
2.5mm压垫-白色
TU0250-8
2.8x1.9 O-ring
2.8x1.9 O环
TU0250-8
1mm Washer-White
1mm压垫-白色
TU0250-8
9x1 O-ring
9x1 O环
T04152
Swaybar-1.2
防倾杆-1.2
F
x2
R
T04158
Front Shock Absorber Body-Short
前避震器筒身-短
T04159
Rear Shock Absorber Body-Long
后避震器筒身-长
TU0250-8 9x1 O-ring
9x1 O环
...........………...8
...........……….....8
TU4160
Shock Below Cover
避震下盖
16
Shock Absorber
33
避震器
TU0250-1/TU0250-2 2.3 E-ring
2.3 E扣
TU0250-7
Front Piston-Black
Rear Piston-White
前活塞-黑色
后活塞-白色
F
x2
R
..................................8
TU0250-7 Front Piston-Black
前活塞-黑色
.........................2
TU0250-7 Rear Piston-White
后活塞-白色
.........................2
TU0250-8 12x1 O-ring
12x1 O环
.........................4
T02187 5.8 Ball End
5.8球头座
............................4
T02062 5.8 Ball Stud
5.8球头
......................................4
TU0250-1/TU0250-2
2.3 E-ring
2.3 E扣
TU0250-1/TU0250-2
2.3 E-ring
2.3 E扣
TU0250-1
Front Shock Absorber Shaft
前避震器轴
TU0250-2
Rear Shock Absorber Shaft
后避震器轴
T02187
5.8 Ball stud
5.8球头座
Front For Short
前面用短
Rear For Long
后面用长
TU0250-8
12x1 O-ring
12x1 O环
Front For Short
前面用短
Rear For Long
后面用长
T02062
5.8 Ball stud
5.8球头
Shock Absorber
34
避震器
Please locking the screw.
将螺丝锁紧。
TU0266-7
M2.5x4 Screw
M2.5x4螺丝
200#
TU0266-7
Shock Upper Cover
避震上盖
Front For Short
前面用短
Rear For Long
后面用长
400#
F
x2
R
TU0266-7
Below Spring Mount End
弹簧下座
TU0266-7
M2.5x4 Screw
M2.5x4螺丝
Front For Short
前面用短
Rear For Long
后面用长
TU0250-8
14x1.5 O-ring
14x1.5 O环
T04161
Spring Adjuster
弹簧调节座
TU0250-10F
Front Shock Absorber Spring-Medium
前避震器弹簧-中
TU0250-10R
Rear Shock Absorber Spring-Medium
后避震器弹簧-中
TU0266-7
M2.5x4 Screw
M2.5x4螺丝
……………............4
TU0250-8 14x1.5 O-ring
14x1.5 O环
Please loosing the screw.
将螺丝松开。
.....................4
17
Front Shock Absorber
35
前避震器
T04141
Shock Ball Stud
带牙避震上球珠
T02084
M3 Nylon Nut
M3尼龙螺母
BS315/T08793
M3x15 Screw
M3x15螺丝
Rear Shock Absorber
36
后避震器
T04041 Shock Ball Stud
T02084 M3 Nylon Nut
带牙避震上球珠
M3尼龙螺母
.........................................4
BS312/T01116
M3x12 Screw
M3x12螺丝
..............................2
........................2
T04041 Shock Ball Stud
T02084 M3 Nylon Nut
带牙避震上球珠
M3尼龙螺母
.........................................4
BS315/T08793
M3x15螺丝
M3x15 Screw
.........................2
T02084
M3 Nylon Nut
M3尼龙螺母
T04141
Shock Ball Stud
带牙避震上球珠
........................2
18
BS312/T01116
M3x12 Screw
M3x12螺丝
37
T02053
CS310
Motor
马达
T02053
Pinion Gear-21T
马达齿-21T
M3x3 Screw
M3x3螺丝
..............................1
M3x10 Screw
M3x10螺丝
T02053
M3x3 Screw
M3x3螺丝
..............2
Motor
马达
X
CS310
M3x10 Screw
M3x10螺丝
Gear Ratio
齿 轮 比
Pinion Gear
马 达 齿
Motor
38
马达
12.5
17T
11.8
18T
11.18
19T
10.63
20T
10.12
21T
9.66
22T
9.24
23T
Please install the motor, and then lock the screw.
请将马达装进后把螺丝锁紧！
8.85
24T
8.5
25T
8.19
26T
Must be purchased separately
X
需另购物品
19
Tighten the screws with one sheet of paper
inserted between both gears.
两齿轮之间的间隙大约为一张普通纸的厚度。
ESC/Receiver
39
电子变速器/接收机
T02087
Antenna Casing
天线套管
T02087
Antenna Cap
天线管帽
ESC
电子变速器
X
Receiver
接收机
T02087
Double-sided Tape
雙面膠
X
40
Battery
电池
T04110
M3x10 Screw
M3x10螺丝
T04110
Adjustment Nut
调车尺螺帽
Battery
电池
X
T02246
Battery Holder
电池压板
Must be purchased separately
X
需另购物品
Assemble both Left and Right
L
组装左和右
R
20
Assemble as many times as specified
x2
需组装数量
T04110
M3x10 Screw
M3x10螺丝
..........2
41
Wheel
轮胎
< Front >
X
x2
X
T02032
Front Rim-12mm
前轮框-12mm
< Rear >
X
x2
X
TU0444W
Rear Wheel-14mm
后轮框-14mm
F
x2
R
After fitting wheels to tyres,
apply instant glue as shown
轮胎裝好后如图打胶水
Glue
膠水
Glue
膠水
42
Wheel
轮胎
T02084
M4 Flanged Nylon Nut
M4带边尼龙螺母
T02084 M4 Flanged Nylon Nut
M4带边尼龙螺母
21
..........................4
Wing
43
尾翼
FS310/T01120
M3x10螺丝
T04145 Tail Gasket
尾翼垫片
M3x10 Screw
..........2
..........2
FS310/T01120
M3x10 Screw
M3x10螺丝
T04145
Tail Gasket
尾翼垫片
T04164
Wling-Lexan
尾翼
Body-Velcro Tape
44
车壳-魔鬼粘
TR4053
TR4053
Velcro Tape
Velcro Tape
魔鬼粘
魔鬼粘
TR4053
TR4053
Velcro Tape
Velcro Tape
魔鬼粘
魔鬼粘
22
45
Body
车壳
T02192
x2
T02086
TR4053
Velcro Tape
魔鬼粘
23

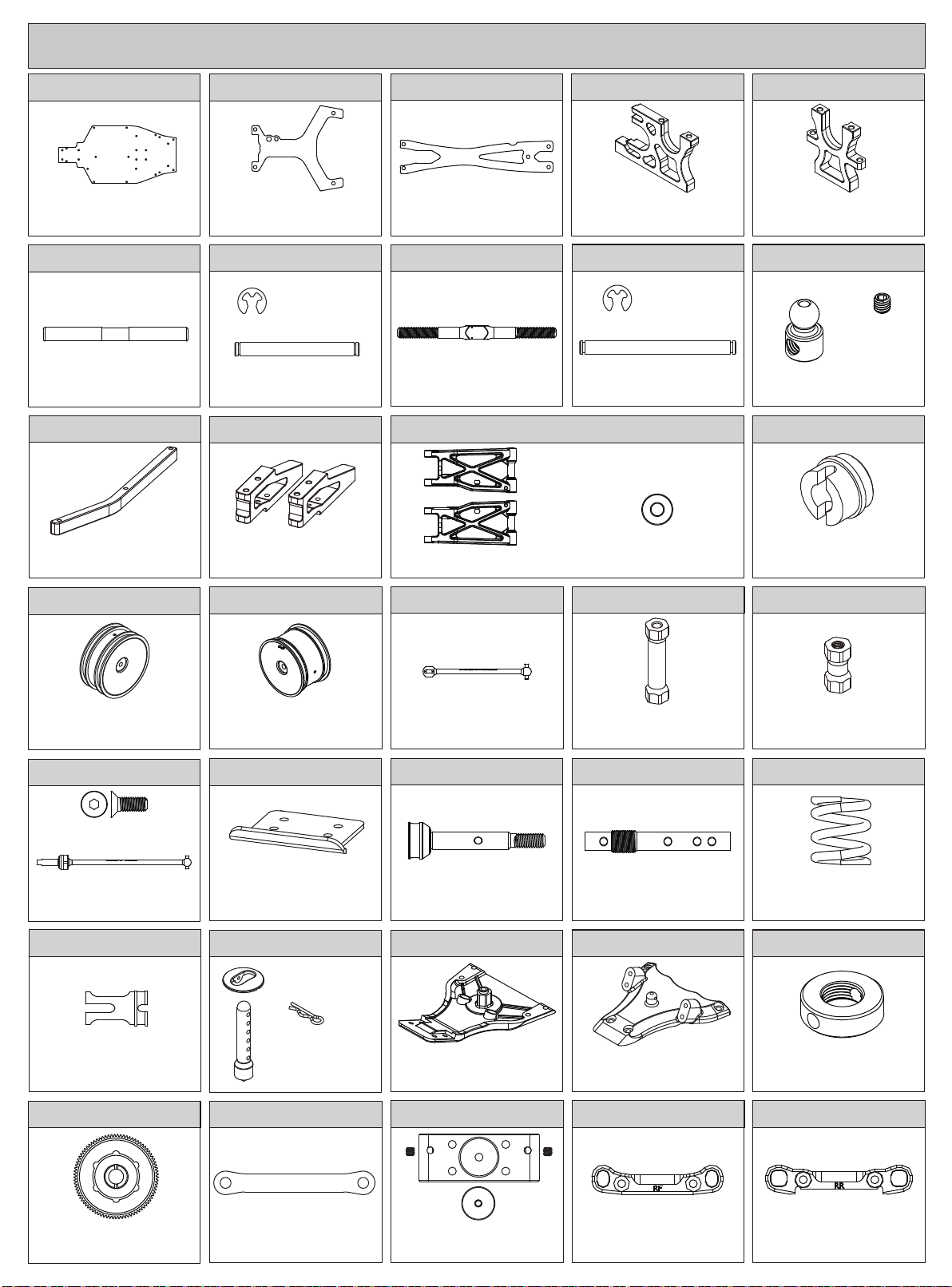

T02008
W3708
TU0226OR
TU0222OR
BS308
BS308
BS308
T02242
T02176
T02015
T02043OR
B0306025
B0306025
BS308
T04055
TS4042
T02024
T02043OR
T04044
T02023
T02023
T02175
BS310
TS4043
FS312
TU0240
T02024
B0306025
T02061
T02087
TS4043
T02147
T02043OR
B0306025
BS305
T02177
W5802
B051004
T02084
CS310
B101504
T04020
T04036
BS310
T02196
TR4027
BS308
T04036
T02197
T02053
BS308
W35515
T04020
TR4016
B101504
BS310
T02243
BS310
BS312
Exploded View
爆炸圖
T02189
FS315
T02084
TU0250-7
TU0250-8
T02062
T02187
BS312
T02016
TU0250-8
T04158
TU0250-1
TU0250-8
TU0250-10F
T02054
T02054
B051004
B051004
T04161
T02056
T02054
T02042
T02245
T02056
T02011
T02012
TS4043
TU0266-7
T04160
T04014
T02054
T02042
TU0250-8
T04107
T04014
TU0266-7
T04141
T04014
TS4043
T04107
BS308
T02147
BS308
BS308
T02030
BS308
W3708
T04014
T02185
T02027
T02061
BS308
T02028
T02084
T02084
T02032
T04105
T04139
SS303
TU0444W
T04035
T04112
P210
T04150
SS308
T04112
T02244
TS4040
T04109
T04014
T04139
B051304
B101504
FS308
T04107
TS4042
T04134
T04112
T04014
B051004
TS4039
T04041
T04156
TS4040
T04040
T04129
T04140
T02241
FS315
T04159
T04110
T02246
T02178
T04110
T02084
TU0250-7
TU0250-8
TU0250-2
TU0250-8
T04160
TU0250-8
T04161
TU0250-10R
T02178
T04041
BS312
T02062
TU0250-8
T02181
T02187
TU0266-7
TS4040
B101504
T04040
T04040
T04041
BS310
TU0266-7
T04141
B051004
T04041
FS308
T04140
T04152
BS312
T04140
FS2506
T04130
TS4042
BS310
T04136
T04019
T04023
T04018
SS303
FS312
T02084
T04145
T04110
T02182
P210
T04022
BS305
FS310
T04145
25
Parts list for TM2 V2 off-road buggy - 1 TM2 V2配件包-1
T02241
Main Chassis
主底盘 1pcs
T04105
3x32 Arm Pin
3x32摆臂轴 2pcs
T02175
Reinforcing Bars
侧边补强条 2pcs
T02242
Front Top Deck
前二楼板 1pcs
T02054
2.3 E-ring
2.3 E扣 4pcs
3x27.5 Hinge Pin Front-Outer
3x27.5前摆臂销-外 2pcs
T02176
Front Chassis Mount
前底盘固定座 1pcs
T02243
Rear Top Deck
后二楼板 1pcs
T04107
3x45 Turnbuckle
3x45拉杆 2pcs
T04112
Left 1pcs
Right 1pcs
Rear Lower Arm
后下摆臂
T02196 T02197
Motor Mount
马达座 1pcs
Center Diff Mount
中差座 1pcs
T02056 T04109
2.3 E-ring
2.3 E扣 4pcs
3x34.5 Hinge Pin Front-Inner
3x34.5前摆臂销-内 2pcs
Swaybar Ball Stud
防倾杆球头 2pcs
T02177
Wheelbase Washer
轴距垫片 4pcs
Center Bearing Insert
中差培林座 1pcs
M3x3 Screw
螺丝 2pcs
T02032
Front Rim-12mm
前轮框-12mm 2pcs
T04044
M3x8 Screw
螺丝 1pcs
83mm Center CVD
83mm中CVD 1pcs
T02182
Mid Connecting Hub-F
中接杯-前 1pcs
TU0444W
Rear Wheel-14mm
后轮框-14mm 2pcs
T02185
Front Bumper
前防撞板 1pcs
T02189
1pcs
1pcs
2pcs
Body Mount
车壳柱组
T04114
62mm Rear CVD Bone
62mm后CVD骨 2pcs
T04119
Rear CVD Axle
后CVD轴 2pcs
T02008
Front Chassis Plate
前底盘 1pcs
T02178 T02181
Battery Post
电池柱 2pcs
Battery Post -Short
电池档柱 2pcs
T04023 T04019
Center Shaft
中轴
T02019
Front Brace Mount
前支撑座
1pcs
1pcs
Slipper Spring
扭限弹簧 1pcs
T04018
Slipper Nut
扭限螺母
1pcs
TR4027
Spur Gear-85T
减速齿-85T 1pcs
TU0226OR
Front Hinge Pin Brace
前摆臂固定片 1pcs
TU0222OR
Front Arm Mount
前摆臂固定座 1set
T04129 T04130
Arm Mount-RF
摆臂固定座-RF 1pcs
Arm Mount-RR
摆臂固定座-RR 1pcs
Parts list for TM2 V2 off-road buggy - 2 TM2 V2配件包-2
H134
Small Clip
小号插销
6pcs
T02012
T02023
Servo Saver Upper
缓冲臂上
Servo Saver Lower
缓冲臂下
Servo Saver - L
缓冲臂-L
Small Clip Holder
小号插销
6pcs
固定座
Left 1pcs
Right 1pcs
Steering Block
转向臂
1pcs
1pcs
1pcs
T02011
Right 1pcs
C-type Holder
C型座
T04134
Left 1pcs
T02024
Steering Rack
缓冲连接片 1pcs
Left 1pcs
Rear Hub
后轮座
Right 1pcs
T02015
Front Upper Suspension
Arm Mount
前上摆臂座 1pcs
TU0240
Front Shock Tower
前避震器架 1pcs
T04139
Projection Control Block-0
投影调节块-0 2pcs
Squat Adjustment Block-0
防蹲调节块-0 6pcs
T02087 T02016
Antenna Cap
Double-sided Tape
双面胶 1pcs
Antenna Casing
天线套管 1pcs
天线管帽 1pcs
T04136 T02027
Rear Shock Tower
后避震器架 1pcs
Projection Control Block-1
投影调节块-1 2pcs
Squat Adjustment Block-1
Projection Control Block-2
投影调节块-2 2pcs
防蹲调节块-1 6pcs
Front Lower Arms
前下摆臂 2pcs
Steering Servo
Horn-F
转向伺服臂-F 1pcs
Steering Servo
Horn-H
转向伺服臂-H 1pcs
Steering Servo
Horn-S
转向伺服臂-S 1pcs
T04140
1pcs
Rear Gear-box
后齿轮箱
T02042
4.0 E-ring
4.0 E扣 2pcs
2x9.8 pin
钢针 2pcs
Front Wheel Axle
前轮轴 2pcs
T02043OR
Buffer Column-A
转向缓冲器-A 1pcs
Buffer Spring
缓冲弹簧 1pcs
1pcs
Sway Bar Adjustment
防倾杆调整座 1pcs
T02246
Battery Holder
电池压板 1pcs
Buffer Column-B
转向缓冲器-B 1pcs
Buffer Nut
缓冲调整螺帽 1pcs
4.0 E-ring
4.0 E扣 1pcs
T02044
Block Carrier
缓冲钢套 2pcs
3x7x0.8 Washer
3x7x0.8垫片 2pcs
T04145
Tail Gasket
尾翼垫片 2pcs
尾翼架 2pcs
T02030
M3x10 Screw
M3x10螺丝 1pcs
4.8 Ball End - Short
球头座-短 2pcs
3x10 Screw
螺丝 2pcs
Wing Mount
T04141 T02244
Shock Ball Stud
帶牙避震器上球珠 4pcs
T02028 T02035
1.0 Servo Spacer
伺服机座垫片 2pcs
Servo Plate
伺服机座 2pcs
1.5 Servo Spacer
伺服机座垫片 2pcs
T04014 T04150
M3x10 Screw
螺丝 4pcs
4.8mm Ball End-Long
4.8mm球头座-长 6pcs
4.8mm Ball End-Short
4.8mm球头座-短 8pcs
2x5 Screw
螺丝 2pcs
Hex Mount-14mm
六角座-14mm 2pcs
W35515
3x5.5x1.5 Washer
3x5.5x1.5垫片 10pcs
T04151
1.1 1pcs
Swaybar
防倾杆 2pcs
T04152
1.2 1pcs
Swaybar
防倾杆 2pcs
T04153 T04154
1.3 1pcs
Swaybar
防倾杆 2pcs
1.4 1pcs
Swaybar
防倾杆 2pcs
Parts list for TM2 V2 off-road buggy - 3 TM2 V2配件包-3
T02061
Ball Stud -Silver
球头-银色 2pcs
TU0250-1
2.3 E-ring
2.3 E扣 4pcs
Front Shock Absorber Shaft
前避震器轴
2pcs
T04159
Rear Shock Absorber Body
后避震器筒身
2pcs
T04156
62mm Rear CVD
62mm后CVD 2pcs
TU0250-2
2.3 E-ring
2.3 E扣 4pcs
Rear Shock Absorber Shaft
后避震器轴
2pcs
TU0250-5
Below Spring Mount End
弹簧下座
4pcs
TS4039
Diff Gear Set
差速齿轮组
T04158
Front Shock Absorber Body
前避震器筒身
2pcs
TU0250-8
1mm Washer-White
1mm压垫-白色
4pcs
1mm Washer-Black
1mm压垫-黑色
4pcs
2.5mm Washer-White
2.5mm压垫-白色 4pcs
T02084
M4 Flanged
Nylon Nut
带边尼龙螺母 6pcs
M3 Nylon Nut
尼龙螺母 6pcs
TS4040
3.0 E-ring
3.0 E扣 2pcs
Diff Connecting Cup
差速接杯 2pcs
B051004/T02100 B101504/T02099
5x10x4 Ball Bearing
5x10x4轴承 6pcs
Spring
弹簧
4pcs
2.8x1.9 O-Ring
2.8x1.9 O环
4pcs
10x15x4 Ball Bearing
10x15x4轴承 6pcs
9x1 O-Ring
9x1 O环
4pcs
12x1 O-Ring
12x1 O环
4pcs
14x1.5 O-Ring
14x1.5 O环
4pcs
TU0250-7
Front Piston-Black
前活塞-黑色
2pcs
Rear Piston-White
后活塞-白色
2pcs
T04040
Diff Housing
差速壳 1pcs
M2.5x6 Screw
M2.5x6螺丝 4pcs
TU0262-F
2pcs
Front Shock Absorber Spring-Soft
前避震器弹簧-软
TU0250-10F
2pcs
Front Shock Absorber Spring-Medium
前避震器弹簧-中
4.8x1.6 O-ring
4.8x1.6 O环
1pcs
10x12x0.2 Washer
10x12x0.2垫片 2pcs
Diff Pads
差速垫片 1pcs
TU0262-R
2pcs
Rear Shock Absorber Spring-Soft
后避震器弹簧-软
TU0250-10R
2pcs
Rear Shock Absorber Spring-Medium
后避震器弹簧-中
T04041
16T Gear
16T齿轮 1pcs
40T Gear
40T齿轮 1pcs
TU0260-F
2pcs
Front Shock Absorber Spring-Hard
前避震器弹簧-硬
T04160
Shock Below Cover
避震下盖
4pcs
10x12x0.2 Washer
10x12x0.2垫片
2pcs
4.8x1.6 O-ring
4.8x1.6 O环
1pcs
TU0260-R
Rear Shock Absorber Spring-Hard
后避震器弹簧-硬
2pcs
T04161
Spring Adjuster
弹簧调节座
T04164
Wing-Lexan
T02187
5.8 Ball End
球头座 4pcs
尾翼
4pcs
1pcs
T02053 TS4042
3x3 Screw
1pcs
Pinion
Gear-21T
马达齿-21T 1pcs
Ball Stud-Long
球头-长 6pcs
T04055
Antenna Pipe Mount
天线管座 1pcs
TS4043 B0306025/T02080
Ball Stud-Short
球头-短 6pcs
3x6x2.5 Ball Bearing
3x6x2.5轴承 4pcs
Parts list for TM2 V2 off-road buggy - 4 TM2 V2配件包-4
TU0266-7
Below Spring Mount
end-Plastic
弹簧下座-尼龙 4pcs
Shock Absorber Top
cover
-Plastic
避震器上盖-尼龙 4pcs
M2.5x4 Screw
M2.5x4螺丝 4pcs
BS305/T08788
M3x5 Screw
M3x5螺丝 8pcs
BS315/T08793
M3x15 Screw
M3x15螺丝 8pcs
T04022
Spring Buckle
弹簧扣 1pcs
BS308/T01114
M3x8 Screw
M3x8螺丝 10pcs
FS315/T08807
M3x15 Screw
M3x15螺丝 10pcs
T01057
2x9.8 pin
钢针 4pcs
CVD Shaft
CVD轴 4pcs
BS310/T01115
M3x10 Screw
M3x10螺丝 10pcs
CS310
M3x10 Screw
M3x10螺丝 10pcs
T02147 T04020
Front Brace Mount
1pcs
M3x25
1pcs
Front Chassis Plate
1pcs
Slipper Hub-F
扭限座-前 1pcs
Slipper Hub-R
扭限座-后 1pcs
FS308/T01119 FS310/T01120
M3x8 Screw
M3x8螺丝 10pcs
M3x10 Screw
M3x10螺丝 10pcs
SS303/T01122 SS308/T01095
M3x3 Screw
M3x3螺丝 10pcs
M3x8 Screw
M3x8螺丝 10pcs
P210/T04032
2x9.8 Pin
2x9.8钢针 6pcs
W5802/86000
5x8x0.2 Washer
5x8x0.2垫片 6pcs
T02245
M2x5 Screw
螺丝 2pcs
Hex mount
六角座 2pcs
5.1x8x0.2 Washer
垫片 6pcs
T04036
Slipper Pad
扭限摩擦片 2pcs
T04110
Adjustment Nut
调车尺螺帽 2pcs
M3x10 Screw
M3x10螺丝 2pcs
W3708/T02081
3x7x0.8 Washer
3x7x0.8垫片 10pcs
T02247
Center Gear-box-Cover
中齿轮箱
1pcs
BS312/T01116
M3x12 Screw
M3x12螺丝 10pcs
T02062
5.8 Ball Stud
球头 4pcs
B051304 W101202/TR4057
5x13x4 Ball Bearing
5x13x4轴承 6pcs
10x12x0.2 Washer
10x12x0.2垫片 8pcs
FS2506 T04035
M2.5x6 Screw
M2.5x6螺丝 10pcs
3x51 Arm Pin
3x51摆臂轴 2pcs
T04162 T04163
Front Shock Absorber
前避震器
Rear Shock Absorber
后避震器
BS322
M3x22 Screw
M3x22螺丝 10pcs
FS325
M3x25 Screw
M3x25螺丝 10pcs
SS310
M3x10 Screw
M3x10螺丝 10pcs
FS312/T08805 T02248
M3x12 Screw
M3x12螺丝 8pcs
Body-Lexan
车壳
1pcs
Driver
TM2 V2
SETUP SHEET for the TeamC TM2 V2
Conditions
High traction
Clay
Front Suspension
3
2
1
Ride height
Smooth
Sandy
Wet
Shock Mounting&Camber link
# Washers
mm
1
2
1
Camber
2
Track / City
Event
Bumpy
Soft dirt
Dry
Toe-in (+)/Out (-) °
Bump Steep Spacer
°
1
2
# Washers
mm
Date
Low traction
Grass
Dusty
Caster
25°
30°
1
2
/
Med traction
Hard soil
Other
Front Shocks
Spring(color)
mm
mm
Oil wt
Piston #
/
Black
Rear Suspension
3
2
1
1
2
3
Ride height
Diff
Brand
Oil wt
Batteries
Shock Mounting&Camber link
Anti-roll bar:
Camber
1
1
2
mm
°
2
3
Wheelbase
Front Tires&Wheels
Front Tires
WheelsInserts
Motor
Long
Medium
Short
Rear Shocks
FF
FR
RF
mm
RR
mm
Front Tires&Wheels
Front Tires
Other
Spring(color)
Black
Oil wt
Piston #
WheelsInserts
Servo
Esc
Batteries
Comments
Notes
Motor
Pinion/Spur
Wing
/
Wing Angle 4° 10°
www.teamcracing.net
Loading...
