尺寸：
TM2 SC
Length …………………………………………………………………………380mm
Width …………………………………………………………………………250mm
Height …………………………………………………………………………150mm
長度
寬度
高度
Dimensions
Instruction manual
www.teamcracing.net
1:10 SCALE RADIO CONTROLLED ELECTRIC
POWERED 2wd RACING BUGGY
Transmitter Preparation
Battery Charger
(Not Included)
Battery
Servo
Motor
Electronic Speed
Controller / Switch
Receiver
Note: When done driving Turn Off the
ESC and THEN Transmitter
Install Transmitter Batteries1.
Connect Battery to ESC2.
Switch on Transmitter First3.
Switch on ESC Second4.
安裝發射電池
連接電池到電調
首先接通發射機
其次接通電調
其次再關掉發射機
電池
馬達
伺服
接收機
電子變速器
調整遙控器
Tools required
組裝需要的工具
Needie Nose Pllers
尖嘴鉗
Differential Grease
差速油
Molybdenum Grease(Black)
鉬油(黑)
Hex Wrench
六角扳手
Awl
錐
Hex Wrench
十字套筒
Grease
潤滑油
H154
Body Reamer
車殼絞刀
No need to pre-drill precise holes
(1mm to 15mm)can be drilled
可以對預鑽的孔準確地鑽1mm-15mm
Screw Cement
螺絲膠水
Wire Cutters
鋼絲鉗
Sharp Hobby knife
美工刀
H162
Instant Glue
瞬間膠水
H096
ROUND CUTTER
剪刀
For trimming bodies!
用于修剪車殼！
Front Suspension
1
前懸吊系統
F
R
TU0226
Front Hinge Pin Brace
前擺臂固定片
Bag-A
T02056
2.3 E-ring
2.3 E扣
TU0222
Front Arm Mount
前下擺臂座
TU0222
M3x3 Screw
M3x3機米螺絲
TG2003
Front Lower Arm
前下擺臂
TU0222 M3x3 Screw
T02056 2.3 E-ring
T02056 3x34.5 Hinge Pin Front Inner
2
M3x3機米螺絲
……………...........………2
2.3 E扣
……………….........………4
3x34.5 前擺臂軸
…………………..............……2
Front Suspension
前懸吊系統
Bag-A
T02056
3x34.5 Hinge Pin Front Inner
3x34.5 前擺臂軸
TS4042 4.8x7 Ball Stud
4.8X7 球頭
T02015
Front Upper Suspension Arm Mount
前上擺臂座
TU0222
Copper Base
銅座
T02083 M3x15 Screw
TS4042 4.8x7 Ball stud
Assemble both Left and Right
L
組裝左和右
R
螺絲
……………4
球頭
……………………2
T02008
Front Chassis Plate
前底盤
TS2023
Front Bumper Mount
前防撞板座
T02083 M3x15 Screw
M3X15螺絲
1
3
Buffer
緩沖
1
2
3
T02043 4.0 E-ring
E 扣
…………………………1
T02080 3x6x2.5 Ball Bearing
軸承
………………………4
T02061 4.8x4.5 Ball stud
球頭
………………………1
Bag-A
T02080
3x6x2.5 Ball Bearing
3
3x6x2.5 軸承
T02023
Servo Saver -L
緩沖臂-L
T02043
Buffer Bolumn-B
轉向緩沖器B
4
T02080
3x6x2.5 Ball Bearing
3x6x2.5 軸承
4.0mm
12
T02043
4.0 E-ring
4.0 E扣
T02080
3x6x2.5 Ball Bearing
10
3x6x2.5 軸承
T02043
Buffer Nut
9
緩沖調解螺帽
T02043
Buffer Spring
緩沖彈簧
T02061
8
5
T02023
4.8x4.5 Ball Stud
4.8x4.5 球頭
Servo Saver Upper
緩沖臂-上
7
T02023
Servo Saver Lower
緩沖臂-下
6
T02043
Buffer Column-A
轉向緩沖器A
11
T02080
3x6x2.5 Ball Bearing
3x6x2.5 軸承
4
Buffer
緩沖
Bag-A
T02044 4.5x5.4 Block Carrier
4.5x5.4 軸套
……………………………2
T02044 M3x10 Screw
M3x10 螺絲
………………2
TS4043 4.8x5 Ball Stud
4.8x5 球頭
………………………2
T02044 3x7x0.8 Washer
3x7x0.8 墊片
……………………2
T02044 4.5x5.4 Block Carrier
TS4043 4.8x5 Ball Stud
4.8x5 球頭
T02044 M3x10 Screw
4.5x5.4 軸套
M3x10 螺絲
TS4043 4.8x5 Ball Stud
4.8x5 球頭
T02044 4.5x5.4 Block Carrier
4.5x5.4 軸套
T02024
Steering Rack
緩沖連接片
T02044 3x7x0.8 Washer
3x7x0.8 墊片
2
Front Suspension
5
前懸吊系統
Bag-A
T02082 M3x10 Screw
M3x10螺絲
……………2
T02147 M3x25 Screw
M3x25螺絲
......1
T02082 M3x10 Screw
M3x10螺絲
T02147
Front brace mount
前支撐座
T02147 M3x25 Screw
M3x25螺絲
Front Suspension
6
前懸吊系統
TU0254
T02054 2.3 E-ring
T02042 4.0 E-ring
2x5 Screw
2x5螺絲
…………1
2.3 E扣
…………8
4.0 E扣
…………2
L
T02054 3x27.5 Hinge pin front outer
T02100 5x10x4 all bearing
Bag-A
R
3x27.5前擺臂軸-外
5x10x4軸承
………………………4
…………4
T02011
TS4043
T02054 2.3
T02054 2.3
T02042 4.0
T02042
T02054 2.3
T02054 3x27.5
T02100 5x10x4
T02054 3x27.5
TS4043
T02012
T02042 2x9.8
TU0254
T02100 5x10x4
TU0254
T02054 2.3
T02042 2x9.8 Shaft
L
R
2x9.8鋼針
…………2
Assemble Both Left And Right
組裝左和右
TS4043 Ball stud-Short
球頭-短
……………………………4
3
7
T04014
Turnbuckle
拉桿
Bag-A
4.0mm
TS4035 3x56
3x56 Turnbuckle
3x56 Turnbuckle
3x56 Turnbuckle
Projection.Note direction
注意方向
approx. 35.3mm
大約35.3mm
Projection.Note direction
注意方向
approx. 35.3mm
大約35.3mm
Projection.Note direction
注意方向
approx.36.5mm
大約36.5mm
Front Upper-Left
前上拉桿-左
x1
1:1
Front Upper-Right
前上拉桿-右
x1
1:1
Steering Tip
轉向拉桿
x2
1:1
T04014 4.8mm Ball End(Long)
8
4.8球頭座（長）
….....…8
Front Suspension
前縣吊系統
TS4035 3x56 Turnbuckle
3x56拉桿
…………4
Bag-A
Front Suspension
9
前縣吊系統
T02082 M3x10 Screw
1:1
M3x10螺絲
……4
Ture-to -scale diagram
圖形比例
Bag-A
T02082 M3x10
x1
TG2005
Front Shock Tower
前避震支架
Assemble as many times as specified
需組裝次數
4
Front Suspension
10
前縣吊系統
TS2024 M3x10
Bag-A
TS2024
TS2024 M3x10 Screw
M3x10螺絲
…………2
TS2024 M3x12 Screw
M3x12螺絲
…………4
TS2024 M3x12
Front Suspension
11
前縣吊系統
TS2023 M3x8 Screw
M3x8螺絲
…………4
TS2023 M3x10 Screw
M3x10螺絲
TS2024 M3x12 Screw
M3x12螺絲
TS2024 M3x15 Screw
M3x15螺絲
TS2023
………2
………2
……2
Bag-A
TS2023
Screw
Cement
TS2023 M3x10
TS2023 M3x8
TS2024 M3x12
TS2024
TS2023
TS2024 M3x15
Screw
Cement
TS2023 M3x8
Apply threadlocker(screw cement)
Screw
Cement
打螺絲膠水
5
Side Plate
12
側板
T02176
Front Chassis Mount
前底盤固定座-R
Bag-B
T02175
Reinforcing Bars
側邊補強條
T02195
Chassis
底盤
T02176
Front Chassis Mount
前底盤固定座-L
Front Suspension
13
前懸吊系統
Bag-B
Screw
Cement
T02082
Screw
M3x10 Screw
Cement
M3x10 螺絲
T02083 M3x8 Screw
M3x8螺絲
T02083 M3x8 Screw
M3x8螺絲
……………10
T02082 M3x8 Screw
M3x8 螺絲
………………4
T02082 M3x10 Screw
M3x10 螺絲
………………2
Apply threadlocker(screw cement)
Screw
Cement
打螺絲膠水
T02082 M3x8 Screw
Screw
Cement
M3x8 螺絲
6

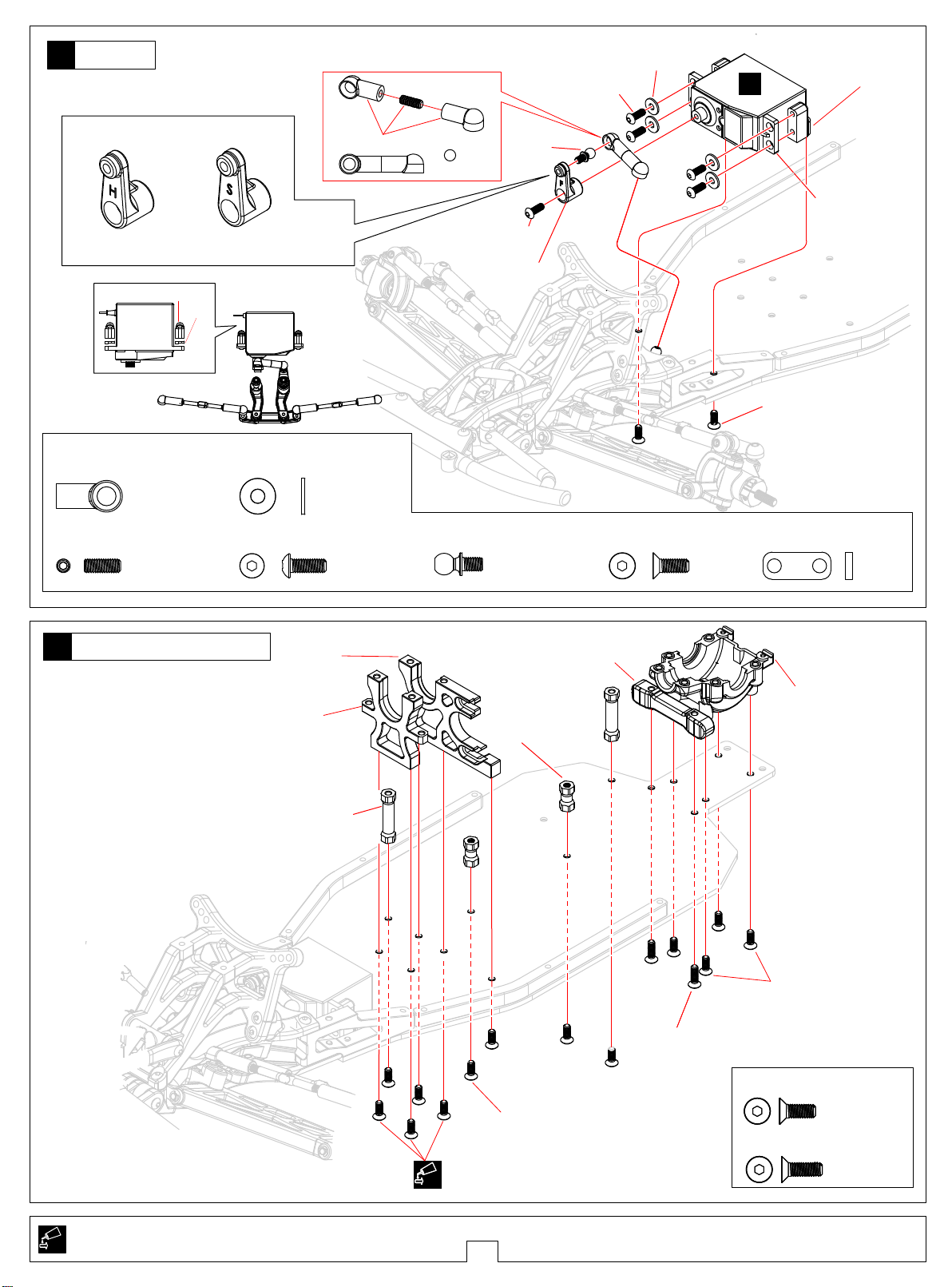

Steering Servo
14
轉向伺服系統
Select for your servo
根據伺服器選擇
Steering Servo-H(24T)
轉向伺服臂H(24T)
Sanwa servo
SANWA
Bag-B
Steering Servo-S(23T)
轉向伺服臂S(23T)
TU0224
T02035
T02030
T02081
T02082
1
T02061
X
T02028
Servo Mount
伺服機固定座
T02035
1.5 Servo spacer
1.5 伺服機座墊片
T02082
T02027
Steering Servo Horn -F
轉向伺服臂-F
T02083
T02030 4.8 Ball End(Short)
球頭座(短)
……………2
T02030 M3x10 Screw
螺絲
……………1
15
Motor Mount/
馬達座/
Center Diff Mount
中差座/
後齒輪箱-底座
Bag-B
T02081 3x7x0.8 Washer
T02082 M3x8 Screw
/Rear Gear-box-lower
T02197
Center Diff Mount
中差座
………………4
螺絲
T02196
Motor Mount
馬達座
T02178
Battery Post
電池柱
墊片
…………5
T02061 4.8x4.5 Ball stud
球頭
…………………1
TR4010
Rear Arm Mount-F
後擺臂固定座-前
T02181
Battery Post -Short
電池檔柱
T02083 M3x8 Screw
螺絲
……2
T02035 1.5 Servo spacer
伺服機座墊片
……2
TR4003
Rear Gear-box-lower
Rear Gear-box-lower
後齒輪箱-底座
後齒輪箱-底座
Apply threadlocker(screw cement)
Screw
Cement
打螺絲膠水
Screw
Cement
T02083 M3x8
7
T02083 M3x10
T02083 M3x8
T02083 M3x8 Screw
螺絲
……………13
T02083 M3x10 Screw
螺絲
……………2
Upper Deck-Front
16
二樓板-前
Bag-B
T02082
Screw
M3x8 Screw
Cement
M3x8螺絲
T02194
Top Deck-F
二樓板-F
T04055
Antenna Pipe Mount
天線管座
T02082
M3x8 Screw
M3x8螺絲
Mid Gear
17
中齒輪
T02177
Center Bearing Insert
中差培林座
T02099
T04022
Spring Buckle
彈簧扣
T02182
Mid Connecting Hub-F
中接杯-前
T04032 2x9.8 Pin
2x9.8鋼針
Bag-C
……………4
T04020
Slipper Hub-F
扭限座-前
T04032
T02099
T04019
Slipper Spring
扭限彈簧
T04023
Center Shaft
中軸
T04018
Slipper Nut
扭限螺母
T04020
Slipper Hub-R
扭限座-後
T04036
Slipper Pad
扭限摩擦片
T04032
TR4027
Supr Gear -85T
減速齒-85T
T04036
Slipper Pad
扭限摩擦片
T02082 M3x8 Screw
M3x8螺絲
………5
T02082
T04032
T02082
T02082 M3x5 Screw
M3x5螺絲
………………2
T02099 10x15x4 Ball Bearing
10x15x4 軸承
…………2
Apply threadlocker(screw cement)
Screw
Cement
打螺絲膠水
3.5mm
Aften first run, re-adjust to around 3.5mm
運行後再調整到3.5mm
Loosen for more slippage
當不易抓地的時候，請按此方向調整螺母。
Tighten for less slippage when traction grip
當容易抓地的時候，請按此方向調整螺母
8
18
Diff
差速器
Bag-C
TS4040 3.0 E-ring
3.0 E扣
………………………2
TS4039 5.1x13x0.2 Washer
5.1x13x0.2墊片
…………………2
T04040 4.8x1.6 O-ring
4.8x1.6 O
……………..……2
T02099 10x15x4 Ball Bearing
10x15x4軸承
……………2
TS4039 Diff shaft
差速軸
……………2
T04041 10x12x0.2 Washer
10x12x0.2墊片
TS4039
16T gear
16T
TS4039
5.1x13x0.2
TS4040
T04040
4.8x1.6
T04040
Diff housing
差速殼
T02099
10x15x4
TS4040
Diff connecting cup
差速接杯
TS4039
16T gear
16T
TS4039
5.1x13x0.2
TS4040
T04040
Diff pads
T04040
4.8x1.6
T04041
40T gear
40T
T04041
10x12x0.2
T02099
10x15x4
TS4040
Diff connecting cup
差速接杯
TS4039
10T gear
10T
TS4039
Diff shaft
Diff / Mid Rear CVD
19
差速器/中後
………………2
CVD
Bag-C
T04040
M2.5x6
2000#
T04040 M2.5x6 Screw
M2.5x6螺絲
…………4
86000
5.1x8x0.2
TS4033 M3x8 Screw
M3x8螺絲
......…2
TS4033
105mm center rear CVD
105mm中後CVD
T02100 5x10x4 Ball Bearing
5x10x4軸承
…………2
86000 5.1x8x0.2 Washer
5.1x8x0.2墊片
………………2
Apply threadlocker(screw cement)
Screw
Cement
打螺絲膠水
Screw
Cement
TS4033
M3x8
T04041
16T gear
16T齒輪
T02100 5x10x4
2.0mm
9
Rear Gear-Box
20
後齒輪箱
Bag-C
T02082
M3x8 Screw
M3x8螺絲
TR4003
Rear Gear-box-Top Cover
後齒輪箱-上蓋
21
Center Gear
中齒輪
T02082 M3x8 Screw
M3x8螺絲
………2
Bag-C
10
Upper Deck-Rear / Rear Upper Suspension Arm Mount
二樓板－後、後上擺臂座
22
T02082
M3x10 Screw
M3x10螺絲
TR4016
Center Diff Upper Plate
中差頂板
Bag-C
T02082
M3x12 Screw
M3x12螺絲
T02193
Top Deck-R
二樓板-後
T02082
M3x12 Screw
M3x12螺絲
TS4042
4.8x7 Ball Stud
4.8X7 球頭
T02184
Upper Suspension Arm Mount-R
上擺臂座-後
Rear hub carriers
23
後輪座
TS4027 M3x3
L
Bag-D
R
T02183
Rear bearing collar
後輪軸套
T02100
5x10x4
TS4042
TS4031
78mm rear CVD
78mm後CVD
T02082 M3x12 Screw
M3x12螺絲
………………5
T02082 M3x10 Screw
M3x10 螺絲
………………2
TS4042 4.8x7 Ball stud
球頭
……………………2
TS4042 Ball stud-Long
球頭-長
…………2
TS4027 M3x3 Screw
M3x3螺絲
………………………2
TS4027 2X9.8 Pin
2X9.8鋼針
…………………2
T02183 Rear bearing collar
後輪軸套
TS4027
Hex Mount
六角座
Assemble both Left and Right
L
組裝左和右
R
T02100
5x10x4
TS4027
2x9.8
TR4011
Rear hub carriers-L
後輪座-左
……………2
T02100 5x10x4 Ball bearing
5x10x4軸承
……………4
11
Rear Suspension Arm
24
後擺臂
L
L
R
Bag-D
R
TR4011 2.5x6x1 Washer
2.5x6x1墊片
…………………4
T02191 M2.5x4 Screw
M2.5x4螺絲
…………………2
TR4046 2.5x30 Arm Pin
2.5x30擺臂軸
………………2
< R >
< L >
TR4011 2.5x6x1
TR4046
TS4013
Rear Lower Arm-L
後下擺臂-左
T02191 M2.5x4
Rear Suspension Arm
25
後擺臂
Bag-D
TR4010
Rear Arm Mount-Rear
後擺臂固定座-後
T02083 M3x10 Screw
T04035 3x51 Arm Pin
螺絲
……………2
3x51擺臂軸
………………2
L
R
T02083
M3x10 Screw
M3x10螺絲
T04035 3x51 Arm Pin
3x51擺臂軸
Assemble both Left and Right
L
組裝左和右
R
12
26
L
R
Rear Turnbuckle
後拉桿
Bag-D
T04014 4.8mm Ball End(Long)
TS4035 3x56 Turnbuckle
27
4.8球頭座（長）
3x56 拉桿
Rear Swaybar
後防傾桿
……4
…………2
Bag-D
TS4026
Ball End - Short
球頭座-短
TS4035 3x56 Turnbuckle
4.0mm
3x56 拉桿
TS4026
4.8mm Swaybar Ball Stud
4.8mm 防傾桿球珠
Rear upper Rod 後上拉桿
33mm
x21:1
3x56 Turnbuckle
▲Projection.Note direction
注意方向
x2
TS4026
M3x10 Screw
Assemble both Left and Right
L
組裝左和右
R
Ture-to -scale diagram
1:1
圖形比例
13
Assemble as many times as specified
x2
需組裝數量
Rear Swaybar
28
後防傾桿
Bag-D
TS4018
Rear bumper stick-below
後防撞架-下
T08795 M3x18
TS4026 M3x3 Screw
M3x3螺絲
……………………2
TS4025 M2x6 Screw
M2x6螺絲
………………2
Rear suspension
29
後懸吊系統
Screw
Cement
TS4041
1.8 Swaybar
1.8防傾桿
Bag-D
TS4026
M3x3
TS4025
Swaybar mount
防傾桿座
T08795 M3x18 Screw
M3x18螺絲
……2
TS4025 M2x6
TS4018
Rear bumper stick-L
後防撞架-左
T02082 M3x12
T02082
M3x10
T02082 M3x10
TS4018
Rear bumper stick-R
後防撞架-右
TS4011
Rear Shock Tower
後避震架
T02082 M3x12
T02082 M3x12
T02082 M3x10 Screw
M3x10螺絲
………2
T02082 M3x12 Screw
M3x12螺絲
……6
Apply threadlocker(screw cement)
Screw
Cement
打螺絲膠水
14
Shock Absorber
30
避震器
TU0250-8
2.5mm Washer-
2.5mm 墊片-白色
TU0250-8
TU0250-8
1mm Washer-Black
1mm 墊片-黑色
TU0250-8
2.8x1.9 O-ring
2.8x1.9 O環
White
TU0250-8
2.8x1.9 O-ring
2.8x1.9 O環
TU0250-8
1mm Washer-
1mm 墊片-白色
TU0250-8
9x1 O-ring
9x1 O環
White
F
x2
R
Bag-E
T02233/T02234
Front For Short
前面用短
Rear For Long
後面用長
TU0250-7
Front Shock Piston-
前避震活塞-黑色
Rear Shock Piston-
後避震活塞-白色
TU0266-1/TU0266-2
Front For Short
前面用短
Rear For Long
後面用長
Black
White
TU0266-1/TU0266-2
2.3 E-ring
2.3 E扣
T02231
Shock Below Cover
避震下蓋
TU0250-8 2.8x1.9 O-ring
TU0250-7
31
2.8x1.9 O環
……………………8
Front Shock Piston-
前避震活塞-黑色
Shock Absorber
避震器
………………2
Black
F
x2
R
Front For Short
前面用短
Rear For Long
後面用長
TU0250-8 1mm Washer-
TU0250-7 Rear Shock Piston-
1mm 墊片-白色
……………………4
後避震活塞-白色
………………2
Bag-E
TU0250-8
12x1 O-ring
12x1 O環
White
White
TU0250-8 2.5mm Washer-
TU0250-8 Spring
2.5mm 墊片-白色
……………………4
彈簧扣
…………………4
Front For Short
前面用短
Rear For Long
後面用長
White
TU0250-8 1mm Washer-Black
TU0266-1/TU0266-2 2.3 E-ring
1mm 墊片-黑色
……………4
T02062
5.8 Ball Stud
5.8 球頭
2.3 E扣
……………………8
TU0250-8 9x1 O-ring
9x1 O環
…………8
TU0250-8 12x1 O-ring
x2
12x1 O環
………4
Assemble as many times as specified
需組裝次數
T02062 5.8 Ball Stud
5.8 球頭
…………………4
F
R
Assemble front and rear sides the same way
前後裝法相同
15
T02187
Shock Absorber
32
避震器
F
x2
R
Bag-E
TU0250-8
14x1.5 O-ring
14x1.5 O環
500#
TU0266-7
Shock Upper Cover
避震上蓋
Front For Short
前面用短
Rear For Long
後面用長
500#
T02232
Spring Adjuster
彈簧調節座
T02198
Front Spring-Medium
前彈簧-中
T02199
Rear Spring-Medium
後彈簧-中
TU0266-7
Below Spring Mount End
弹簧下座
TU0266-7
M2.5x4 Screw
M2.5x4 螺絲
Front For Short
前面用短
Rear For Long
後面用長
TU0266-7
TU0250-8 14x1.5 O-ring
M2.5x4 Screw
M2.5x4螺絲
………4
14x1.5 O環
………4
Front Shock Absorber
33
前避震器
L
R
Bag-E
T02082 M3x15 Screw
M3x15螺絲
………2
T02082 M3x22 Screw
M3x22螺絲
………2
TU0250-6 3.1x5.5x2 Aluminium Washer
3.1x5.5x2鋁墊片
……………………2
T02084 M3 Nylon Nut
M3尼龍螺母
………………2
TU0250-6 Shock Cap Ball
避震蓋球頭
…………2
T02084
M3 Nylon Nut
M3 尼龍螺母
TU0250-6
Shock Cap Ball
避震蓋球頭
TU0250-6
3.1x5.5x2 Aluminium Washer
3.1x5.5x2鋁墊片
T02082
M3x22 Screw
M3x22螺絲
T02082
M3x15 Screw
M3x15螺絲
Assemble both Left and Right
L
組裝左和右
R
Assemble as many times as specified
x2
需組裝數量
16
Rear Shock Absorber
34
後避震器
Bag-E
T02082
M3x12 Screw
M3x12螺絲
L
R
TU0250-6
3.1x5.5x2 Aluminium Washer
3.1x5.5x2鋁墊片
T02084 M3
TU0250-6
Shock cap ball
避震蓋球頭
T02082
M3x25 Screw
M3x25螺絲
T02082 M3x12 Screw
T02082 M3x25 Screw
TU0250-6 3.1x5.5x2 Aluminium Washer
35
M3x12螺絲
M3x25螺絲
3.1x5.5x2鋁墊片
……………………2
Rear bumper set
後防撞組
……2
………2
Bag-F
T02084 M3 Nylon Nut
M3尼龍螺母
………………2
TU0250-6 Shock Cap Ball
避震蓋球頭
…………2
T02082
M3x12 Screw
M3x12螺絲
TS2026
Rear Bumper Buffer
後防撞架
TS2026 M3x12
T02081 3x7x0.8 Washer
TS2008 M3x10 Screw
TS2026 M3x12 Screw
L
3x7x0.8墊片
……………………4
M3x10螺絲
…………4
M3x12螺絲
…………4
Assemble both Left and Right
組裝左和右
R
TS2026
Rear Bumper Buffer
後防撞架
17
TS2008 M3x10
T02081
3x7x0.8
TS2008
Rear fender plates
後擋泥板
Rear bumper set
36
後防撞組
Bag-F
T02082 M3x10
T02082 M3x15
Body mount
37
車殼柱
Bag-F
T02229
Body mount
車殼柱
T02229
Small Body washer
小號車殼墊
T02082 M3x12
T02082 M3x10 Screw
M3x10螺絲
……………2
T02082 M3x15 Screw
M3x15螺絲
…………2
T02082 M3x12
T02229
Small Clip
小號固定夾
18
TS4019
Body mount
車殼柱
TS4019
Body washer
車殼墊
TS4019
Mid clip
中號固定夾
T02229
Small Clip
小號固定夾
…………2
TS4019
T02082 M3x12 Screw
Mid Clip
中號固定夾
…………2
M3x12螺絲
…………4
Motor
38
馬達
H479
19T Pinion Gear
19T馬達齒
Bag-G
H479 M3x3
Motor
馬達
X
TH479 M3x3 Screw
M3x3螺絲
……………………1
T02083 M3x8 Screw
39
Motor
馬達
M3x8螺絲
Bag-G
……………2
T02083 M3x8
Gear Ratio
齒 輪 比
Pinion Gear
馬 達 齒
Tighten the screws with one sheet of paper
inserted between both gears.
两齒輪之間的間隙大約為一張普通紙的厚度。
M3x8螺絲
12.5
17T
11.8
18T
11.18
19T
10.63
20T
10.12
21T
9.66
22T
9.24
23T
Must be purchased separately
X
需另購物品
Please install the motor, and then lock the screw.
請將馬達裝進後把螺絲鎖緊！
19
40
Battery
電池
Bag-G
T02230
M3x12 Screw
M3x12螺絲
T02230
Adjustment nut
調車尺螺帽
Battery
電池
X
T02228
Battery Bars
電池壓條
T02230 M3x12 Screw
M3x12螺絲
…………2
ESC / Receiver
41
電子變速器/接收機
Receiver
接收機
X
T02087
Antenna Cap
天線帽
T02087
Antenna Tube
天線管
ESC
電子變速器
X
T02087
Double-sided Tape
雙面膠
Must be purchased separately
X
需另購物品
20
42
Tyre
輪胎
x4
43
Tyre
輪胎
TS2028
Rim
輪框
L
R
TS2029
Tyre Sponge
X
輪胎海綿
X
TS2029
Tyre
輪胎
Glue
膠水
T02084 M4 Flanged Nylon Nut
M4带邊尼龍螺母
……………4
T02084
M4 Flanged Nylon Nut
M4带邊尼龍螺母
Assemble both Left and Right
L
R
組裝左和右
Assemble as many times as specified
x4
需組裝數量
21
Must be purchased separately
X
需另購物品
44
Body
車殼
5mm
11mm
3mm
TS4024
Body-Lexan
車殼-PC
3mm
11mm
3mm
3mm
45
Body
車殼
TS4024
Mask sticker
遮蓋貼紙
Mask the windows from the inside.
在車窗內壁貼上遮蓋貼紙。
Paint the body shell from the inside
using spray colors.
在車殼內壁噴漆。
22
46
Body
車殼
L
R
< R >
47
T08660
T08660
Body
車殼
Small Clip
小号固定夹
……………2
Mid Clip
中号固定夹
………2
< L >
TS4024 M3x8
TS4024
T08660
Small Clip
小号固定夹
TS4024 M3
T08660
Mid Clip
中号固定夹
TS4024 M3x8 Screw
TS4024 M3 Nylon Nut
M3x8螺丝
…………8
M3尼龙螺母
………………8
Assemble Both Left And Right
L
组装左和右
R
23
TG2005
TS2023
TS2023
TS2024
T02054
T02012
T02100
TU0254
TS2029
TS2024
TS2023
TS2023
T02054
T02100
TS2028
TS2023
T04014
TG2003
TS4035
T02082
TS4043
T02054
T02011
T02042
TS4043
TU0254
TS2024
T02083
T02176
T02083
T02197
T02083
H479
TS2024
T02229
T02229
T02083
T02083
T02083
T02196
T02082
T02147
T02082
T02176
T02175
T02175
T02083
TR4010
T04035
T02084
TU0250-8
TU0266-1
T02198
TU0250-7
TU0266-1
T02232
T02084
T04035
TR4010
TR4003
T04040
T04041
T02056
TU0226
T02015
TU0222
T02008
TS4042
T02082
T02027
T02061
T02082
T02030
T02082
T02177
T02195
T02081
T02028
T02099
T04020
T04036
TS4033
86000
T02099
T02100
TS4040
T04041
TS4033
T04041
T02082
TU250-6
T02082
TS2024
T02082
爆炸圖
Exploded View
T02084
T02147
T02082
T02087
T02044
T02024
T02194
T02082
T02082
TR4027
T04036
T04020
T04023
TR4016
T02099
T04019
T04032
T04018
T04022
T02044
TS4043
T02043
T02023
T02043
T02080
TS4043
T02080
T02043
T02023
T02087
T04055
T02082
T02178
T02082
T02193
T02181
T02043
T02061
T02230
T02080
T02230
T02228
TS4026
T02082
T02182
T02082
TS4041
TS4026
T02082
TS4042
TR4003
T02184
TS4039
TU0266-7
T02062
TU0266-7
T02231
TU0250-8
T02187
T02233
TU0250-8
TS4031
TS4013
T02100
T04014
TS4035
TS4042
T02183
T04040
TS4040
T04040
TS4040
TS4039
T04040
TS4019
T02082
TS4011
T02082
TS4039
TS4019
T02099
TU0250-6
T02082
TS4025
T02084
TS4040
TS2028
TR4046
TS4027
T02191
T04014
TR4011
T02100
TU0266-2
T02199
TU0250-7
TU0266-2
T02087
TU0250-8
T02232
T02082
TU0266-7
T02084
TU0266-7
TS4018
T08795
TS4018
TS2008
TS2026
T02082
TS2008
TS2029
T02187
TU0266-7
T02062
T02084
T02082
T02231
TU0250-8
T02234
TU0250-8
TS2026
TS2026
24
Parts list for TM2 SC off-road buggy - 1
TM2 SC配件包-1
T02193
To p Deck-R
二樓板-R
T02198
Front Spring-Medium
前彈簧-中
T02229
Small Body washer
小號車殼墊
Body Mount Set
1pcs
車殼柱
1pcs
2pcs
2pcs
Small Clip
小號固定夾
2pcs
T02194
To p Deck-F
二樓板-F
T02199
Rear Spring-Medium
後彈簧-中
T02230
Adjustment nut
調車尺螺帽
M3x12 Screw
M3x12螺絲
1pcs
2pcs
2pcs
1pcs
T02195
Chassis
底盤
T02226
12mm Front Big Bore
12mm前大避震
T02231
Shock Below Cover
避震下蓋
1pcs
4pcs
2pcs
T02196
Motor Mount
馬達座
T02227
12mm Rear Big Bore
12mm後大避震
T02232
Spring Adjuster
彈簧調節座
1pcs
4pcs
2pcs
T02197
Center Diff Mount
中差座
1pcs
T02228
Battery Bars
電池壓條
1pcs
T02233
Front Shock Absorber Body
前避震器筒身
2pcs
T02234
Rear Shock Absorber Body
後避震器筒身
2pcs
T02019
Front brace mount
(前支撐座)
1PCS
T02030
3x10 Screw
4.8 Ball End - Short
(球頭座-短)
2PCS
(螺絲)
1PCS
T02008
Front chassis plate
(前底盤)
1PCS
T02023
Servo saver upper
(緩沖臂上)
Servo saver lower
(緩沖臂下)
Servo saver - L
(緩沖臂-L)
T02035
1.0 Servo spacer
(伺服機座墊片)
1.5 Servo spacer
(伺服機座墊片)
2PCS
2PCS
1PCS
1PCS
1PCS
T02011
C-type holder L
(C型座-L)
1PCS
T02024
Steering Rack
(緩沖連接片)
1PCS
T02042
C-type holder R
(C型座-R)
1PCS
4.0 E-ring
(E
扣)
2PCS
2x9.8 Pin
2PCS
(鋼針)
Front wheel axle
(前輪軸)
2PCS
T02012
Steering block-L
Steering block-R
(轉向臂-R)
T02027
Steering
Servo horn-F
(轉向伺服臂F)
Steering servo
horn-H
(轉向伺服臂H)
Steering
Servo horn-S
(轉向伺服臂S)
T02043OR
Buffer
column-A
(轉向緩沖器
支柱A)
1PCS
(緩沖彈簧)
(轉向臂-L)
1PCS
1PCS
1PCS
1PCS
1PCS
Buffer
Spring
1PCS
T02015
Front upper suspension
arm mount
(前上擺臂座)
T02028
Buffer
column-B
(轉向緩沖器
1PCS
支柱B)
1PCS
Servo plate
(伺服機座)
2PCS
Buffer Nut
(緩沖調整螺帽)
1PCS
4.0 E-ring
(E
1PCS
扣)
T02044
Block Carrier
(緩沖鋼套)
3x7x0.8 Washer
2PCS
(墊片)
3x10 Screw
2PCS
(螺絲)
2PCS
T02054
2.3 E-ring
(E
扣)
4PCS
3x27.5 Hinge pin front outer
(前擺臂銷-外)
2PCS
T02056
2.3 E-ring
(E
扣)
4PCS
3x34.5 Hinge pin front inner
(前擺臂銷-內)
2PCS
T02061 T02062
Ball stud -silver
(球頭-銀色)
2PCS
5.8x6 Ball stud
(球頭)
4PCS
Parts list for TM2 SC off-road buggy - 2
TM2 SC配件包-2
T02080
3x6x2.5 Ball Bearing
T02083
(軸承)
4PCS
(螺絲)
(螺絲)
3x15 Screw
(螺絲)
(螺絲)
T02099
10x15x4 Ball Bearing
(軸承)
6PCS
3x8 Screw
8PCS
3x10 Screw
8PCS
8PCS
3x8 Screw
8PCS
T02081
3x7x0.8 Washer
(墊片)
10PCS
T02084
M4 Flanged Nylon
(帶邊尼龍螺母)
Nut
6PCS
M3 Nylon Nut
(尼龍螺母)
6PCS
T02100
5x10x4 Ball Bearing
(軸承)
6PCS
T02082
T02085
T02147
M3x25
1pcs
2.3 E-ring
(E
扣)
8PCS
4 E-ring
(E
扣)
8PCS
Front brace mount
Front chassis plate
1pcs
1pcs
3x5 Screw
8PCS
3x8 Screw
8PCS
3x22 Screw
8PCS
3x25 Screw
8PCS
T08660
Small Clip
小号固定夹
Mid Clip
中号固定夹
T02175
(螺絲)
(螺絲)
(螺絲)
(螺絲)
8pcs
8pcs
Reinforcing Bars
側邊補強條
2pcs
3x15 Screw
3x12 Screw
3x10 Screw
2.6x8 Screw
T02087
Double-sided tape
1PCS
(雙面膠)
Antenna pipe set
(天線套管)
T02176
Front Chassis Mount
前底盤固定座
8PCS
8PCS
8PCS
8PCS
Antenna pipe
set cover
(天線管帽)
1PCS
1PCS
1pcs
(螺絲)
(螺絲)
(螺絲)
(螺絲)
T02177
Center Bearing Insert
中差培林座
1pcs
T02184
Rear
1pcs
Upper Suspension Arm Mount
後上擺臂座
T04019
Slipper Spring
扭限弹簧
1pcs
T02178
Battery Post
T02187
5.8 Ball End
球頭座
T04020
Slipper Hub-F
扭限座-前
電池柱
1pcs
2pcs
4pcs
Slipper Hub-R
扭限座-後
1pcs
T02181
Battery Post -Short
電池檔柱
T02191
M2.5x4 Screw
M2.5x4螺絲
T04022
Spring Buckle
弹簧扣
2pcs
1pcs
8pcs
T02182
Mid Connecting Hub-F
中接杯-前
1pcs
T04014
4.8mm Ball End - Long
4.8mm球頭座-長
6pcs
T04023
Center Shaft
1pcs
中軸
T02183
Rear Bearing Collar
後輪軸套 2pcs
T04018
Slipper Nut
扭限螺母
T04032
2x9.8 Pin
2x9.8鋼針
1pcs
6pcs
T04035
3x51 Arm Pin
3x51擺臂軸
2pcs
T04036
Slipper Pad
扭限摩擦片
2pcs
T04040
4.8x1.6 O-ring
4.8x1.6 O環
1pcs
Diff Housing
差速殼
1pcs
M2.5x6 Screw
M2.5x6螺絲
2pcs
10x12x0.2 Washer
10x12x0.2墊片
Diff Pads
差速墊片
1pcs
4pcs
T04041
16T Gear
1pcs
16T齒輪
4.8x1.6 O-ring
4.8x1.6 O環
2pcs
10x12x0.2 Washer
10x12x0.2墊片
40T Gear
40T齒輪
1pcs
1pcs
T04055
Antenna Pipe Mount
天線管座
1pcs
Parts list for TM2 SC off-road buggy - 3
TM2 SC配件包-3
TR4003
Rear Gear-box
後齒輪箱
TR4046
2.5x30 Arm Pin
2.5x30擺臂軸
TS2026
Rear Bumper Set-B
後防撞組-B
1pcs
1pcs
2pcs
TR4010
Front - 1pcs
Rear - 1pcs
Rear Arm Mount
後擺臂固定座
TR4057
8pcs
10x12x0.2 Washer
10x12x0.2墊片
TR4011
1pcs 1pcs
Rear Hub Carriers
後輪座
TS2008
Rear Fender Plates 1Set
後擋泥板
TS2028 TS2029
Rim
輪框
2pcs
Tyre
輪胎
2pcs 2pcs
4pcs
Tyre Sponge
輪胎海綿
TR4016
1pcs
Center Gear-box
中齒輪箱
TS2023
Front Bumper Set-A
前防撞組-A
TS4011
Front shock tower
前避震器架
Rear shock tower
後避震器架
1pcs
1pcs
1pcs
TR4027
TS2024
Front Bumper Set-B
前防撞組-B
TS4013
1pcs
Supr Gear-85T
减速齒-85T
Rear lower arm
後下擺臂
1pcs
Left
1pcs
Right
1pcs
TS4018
1pcs
1pcs
Rear bumper stick
後防撞架
TS4027
4pcs
Hex mount
六角座
TS4040
3.0 E-ring
3.0 E扣
Diff Connecting Cup
差速接杯
4pcs
2pcs
2pcs
1pcs
4pcs
TS4019
Body mount
車殼柱
TS4031
78mm rear CVD
78mm後CVD
TS4041
2pcs
2pcs
1.6 1pcs
1.8 1pcs
2.0 1pcs
2pcs
1pcs
Swaybar
防傾桿
TS4024
Body-Lexan
車殼-PC
1pcs
TS4033
M3x8 Screw
M3x8螺絲
105mm center rear CVD
105mm中後CVD
1pcs
TS4042
Ball stud-long
球頭-長
6pcs
1pcs
TS4025
Swaybar mount
防傾桿座 2pcs
TS4035
3x56 Turnbuckle
3x56拉桿
TS4043
Ball stud-short
球頭-短
M2x6 Cap head
M2x6圓柱頭螺絲
4pcs
2pcs
6pcs
TS4026
2pcs
2pcs
2pcs
Swaybar ball set
防傾桿球頭組
TS4039
5.1x13X0.2
Gear Set
齒輪組
Tu0222
Front arm mount 1Set
前擺臂固定座
2pcs
2pcs
M3x3
Tu0226
Front hinge pin brace
前擺臂固定片
1pcs
TU0250-6
4pcs
3.1x5.5x2.0 Aluminium Washer
3.1x5.5x2.0铝墊片
Shock cap ball
避震蓋球頭
4pcs
TU0250-8
1mm Washer-White
1mm压墊-白色
4pcs
1mm Washer-Black
1mm压墊-黑色
4pcs
2.5mm Washer-White
2.5mm压墊-白色
4pcs
Spring
弹簧
4pcs
2.8x1.9 O-Ring
2.8x1.9 O環
4pcs
9x1 O-Ring
9x1 O環
4pcs
12x1 O-Ring
12x1 O環
4pcs
14x1.5 O-Ring
14x1.5 O環
4pcs
Parts list for TM2 SC off-road buggy - 4
TM2 SC配件包-4
TU0250-7
Front Piston-Black
前活塞-黑色
2pcs
Rear Piston-White
後活塞-白色
2pcs
86000
5.1x8x0.2 Washer
5.1x8x0.2墊片
6pcs
Tu0220
C-Type-Holder
30 Degree - L
30°C型座-L 30°C型座-R
C-Type-Holder
30 Degree - R
TU0254
2x5 Screw
螺絲
5.1x8x0.2 Washer
TG2005
Front shock tower
前避震支架
OP
Tu0224
4pcs
Hex mount
六角座
墊片
12pcs
1pcs
Servo mount 2pcs
伺服機固定座
4pcs
OP
TU0266-7
Below Spring mount
end-plastic
彈簧下座-尼龍
Shock Absorber Top
-plastic
cover
避震器上蓋-尼龍
M2.5x4 Screw
M2.5x4螺絲
4pcs
4pcs
4pcs
TG2003
Front lower arms
前下擺臂
Tu0243
Carbon Front Shock Tower-Truck
碳纤前避震架-卡車
2pcs
OP
1pcs
TU0266-1
2.3 E-Ring
2.3 E扣
4pcs
Front Shock Absorber Shaft
前避震器軸
2pcs
T08795
M3x18 Button head hex screw
M3x18半圓頭內六角螺絲
8pcs
TU0250-5
Below Spring mount end
弹簧下座
4pcs
OP
TU0266-2
2.3 E-Ring
2.3 E扣
4pcs
Rear Shock Absorber Shaft
後避震器軸
2pcs
Tu0219
C-Type-Holder
25 Degree - L
25°C型座-L
C-Type-Holder
25 Degree - R
25°C型座-R
TU0262-F
2pcs
Front Shock Absorber Spring-Soft
前避震器弹簧-软
OP
OP
TU0422
Rear Hub Carriers
後輪座
H477
Aluminium Motor Gear - 17T
鋁合金馬達齒 - 17T
H482
Aluminium Motor Gear - 22T
鋁合金馬達齒 - 22T
OP
2pcs
Washer
4pcs
2pcs
OP
3x3 Screw
1pcs
1pcs
OP
3x3 Screw
1pcs
1pcs
TU0423
8pcs
Rear Arm Mount-Ball
後擺臂固定座-球珠
H478
3x3 Screw
1pcs
Aluminium Motor Gear - 18T
鋁合金馬達齒 - 18T
1pcs
OP
OP
TU0418
Front 1pcs
Rear 1pcs
Rear Arm Mount
後擺臂固定座
4pcs
H479
3x3 Screw
1pcs
Aluminium Motor Gear - 19T
鋁合金馬達齒 - 19T
OP
H475
Aluminium Motor Gear - 15T
鋁合金馬達齒 - 15T
OP
H479
Aluminium Motor Gear - 19T
1pcs
鋁合金馬達齒 - 19T
OP
3x3 Screw
1pcs
1pcs
3x3 Screw
1pcs
1pcs
H476
Aluminium Motor Gear - 16T
鋁合金馬達齒 - 16T
OP
H480
Aluminium Motor Gear - 20T
鋁合金馬達齒 - 20T
OP
3x3 Screw
1pcs
1pcs
OP
3x3 Screw
1pcs
1pcs
Driver
TM2 SC
SETUP SHEET for the TeamC TM2 SC
Conditions
High traction
Clay
Front Suspension
3
2
1
Ride height
Smooth
Sandy
Wet
Shock Mounting&Camber link
1
2
1
2
Camber
1
2
Track / City
Event
Bumpy
Soft dirt
Dry
Toe-in (+)/Out (-) °
Bump Steep Spacer
°
Low traction
Grass
Dusty
Caster
25°
30°
1
2
Date
Front Shocks
mm
/
Spring(color)
Oil
Piston #
/
Med traction
Hard soil
Other
Black
Rear Suspension
3
2
1
2
1
Ride height
Front Tires&Wheels
Front Tires
Diff
Shock Mounting&Camber link
Anti-roll bar:
Camber
1
2
1
2
WheelsInserts
mm
°
Radio/Batteries
Wheelbase
Long
Medium
Short
Rear Tires&Wheels
Rear Tires
Rear Shocks
Spring(color)
mm
Oil wt
Piston #
WheelsInserts
Motor
Black
Brand
Oil wt
Comments
Notes
Servo
Esc
Batteries
Motor
Pinion/Spur /
www.teamcracing.net
Loading...
