INSTRUCTION MANUAL
組立說明書
Length …………………………………………………………………………………………400mm
Width …………………………………………………………………………………………325mm
Height …………………………………………………………………………………………150mm
長度
寬度
高度
1:10 Scale Radio Controlled Electric Powered 2WD Truck
1:10電動遙控兩驅卡車
Page 2
電池蓋
調整遙控器
剎車
更換晶片可以改變頻率
注意︰ 你也必須改變接收機晶片﹗
標準的電池
低電的電池(電燈閃爍)
電池標準指示燈
天線
天線拉的越長性能越好
發射機晶片
接收機晶片
DIGITAL
PROPORTIONAL
RADIO CONTROL
SYSTEM
DIGITAL
PROPORTIONAL
RADIO CONTROL
SYSTEM
在遙控器的底部打開電池蓋子，安裝電池。
跟隨電池的指示在電池盒裡面指定
AA 鹼性電池
這個開關用於選擇部分
用來調整转向伺服
用於調整油門中立點
油門前進/後退(剎車)調整
用於調整轉向中立點
方向調整
用於操作油門
豎直(中立)
向左旋轉
向右旋轉
遙控器電池安裝
油門啟動
反向開關
工廠安裝(当转向/油门反向时调整用)
轉向舵角量
第三動作開關
電源開關
27MHz 發射機晶片(TX)
Transmitter Preparation
27MHzTransmitter Crystal （TX）
Transmitter crystal(TX)
Power Switch
ON
OFF
Antenna
Extend the antenna to the maximum
Length for best performance
The crystal can be replaced to change frequencies.
Note : You must also change receiver crystals!
Do not use AM crystals
Receiver crystal(RX)
Steering Trim
To be used for trimming the steering
operation
Throttle Trim
Steering Dual Rate
To be used to adjust steering servo throw
AA Alkaling Batteries
8X
Open battery cover at the bottom of transmitter.
Install batteries. Follow the direction of batteries
designated in the inside of battery box.
Transmitter Battery Installation
This switch is used for optional parts.
3ch Switch
Reverse Switch
Low Batteries(Light Blinks)
Good Batteries
Battery Level Indicator
Left turn
Straight (neutral)
Right turn
Brake
Forward
Stop(Neutral)
前进
停止位置
To be used for throttle operation
Throttle Trigger
Battery Cover
Servo Factory Settings
1
1
2
3
2
To be used for trimming the throttle
operation
3
4
4
1
Page 3
調整遙控器
Transmitter Preparation
在使用之前，一個新電池必須先充電。詳情請參考充電器說明書。
如下圖所示安裝接收機控制系統
電池
馬達
電子加速控制器
發送機
伺服機
接收機
開關
Battery
A new Ni-MH battery must be charged before it is used.Refer to the charger instruction manual for charging.
Set up the radio control system as indicated below。
6
5
8
Servo
Receiver
Transmitter
10
4
Switch
7
9
Electronic Speed
Controller
Motor
DIGITAL
PROPORTIONAL
RADIO CONTROL
SYSTEM
11
2
ON
OFF
6
10
ON
OFF
5
8
1
開始
結束
安裝電池(發送機)
拉出天線(發送機)
連接電池
3
拉出天線(接收機)
中心對整齊
開關(發送機)
開關(接收機)
確定控制伺服機
關閉開關(接收機)
關閉開關(發送機)
收回天線(發送機)
組裝需要的工具
Tools required
Needie Nose Pllers
Awi
Grease
潤滑油
Screw Cement
螺絲膠水
瞬間膠水
Instant Glue
Hex Wrench
六角扳手
Ball differential Grease(Clear)
差速滾珠油(清澈)
Molybdenum Grease(Black)
鉬油(黑)
錐
尖嘴鉗
Hex Wrench
十字套筒
SP KINFE EDGE REAMER
刀刃 絞刀
No need to pre-drill precise holes
(1mm to 15mm)can be drilled
可以對預鑽的孔準確的鑽深
1mm-15mm,不需要穿透
Wire Cutters
鋼絲鉗
Sharp Hobby knife
美工刀
ROUND CUTTER&SANDER
剪刀&挫刀
For trimming bodies!
用於修剪車殼！
2
1
8
7
2
5
3
4
6
9
10
11
Start
Finish
Install batteries.(Transmitter)
Extend the antenna.(Transmitter)
Connect the battery
Extend the antenna.(Reveiver)
Center the trims.
Switch on.(Transmitter)
Switch on.(Reveiver)
Make sure the servos are in command.
Switch off.(Reveiver)
Switch off.(Transmitter)
Retract the antenna(Transmitter)
1
8
7
2
5
3
4
6
9
10
11
Page 4
1
L
R
2
3
3
1
3
2
1
2
4
5

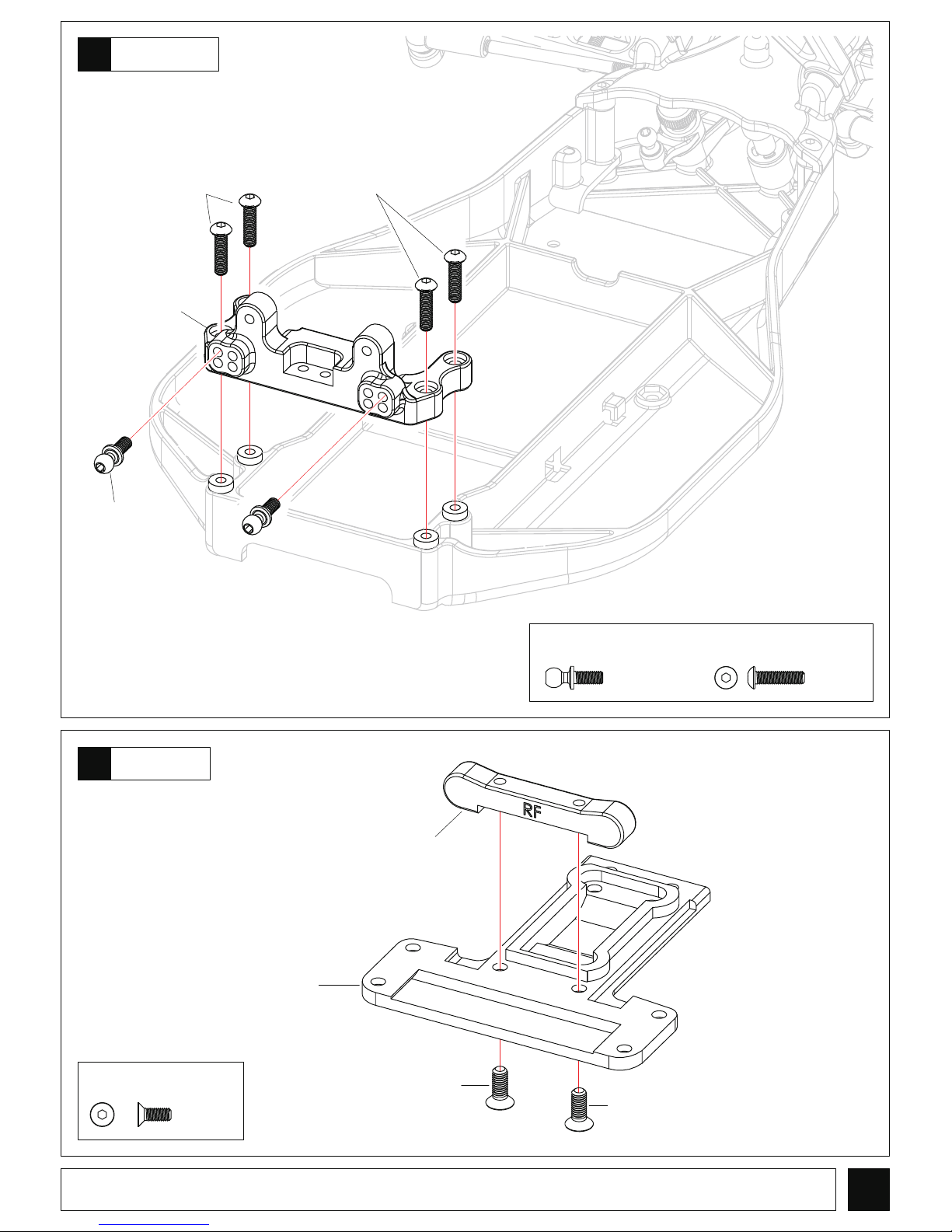

Front Suspension
前橋
Front Suspension
T02056 3x34.5 Hinge pin front inner
………………………………4
………………………………2
T02056 2.3 E-ring
……………4
T02083 M3x15 Screw
T02092 Ball stud - long
……………………2
3
1
2
按順序組裝
Assemble in the specified order
L
R
左右裝法相同
Assemble left and right sides the same way
E 扣
前擺臂軸
前橋
螺絲
球頭-長
T02083
T02092
T02092
T02008
T02026
T02015
T02014
T02037
T02056
T02056
T02056
T02056
T02056
T02056
TG2003
Page 5
4.0mm
4
4
3
3
1
2
31
4
2
5
6
11
7
8
9
10
T02043 4.0 E-ring
…………………………1
………………………4
T02080 3x6x2.5 Ball Bearing
T02044 4.5x5.4 Block Carrier
T02044 M3x10 Screw
……………………………2
………………2
T02093 Ball stud - short
………………………2
T02061 Ball stud - silvery
………………………1
……………………2
T02044 3x7x0.8 Washer
3
1
2
按順序組裝
Assemble in the specified order
Buffer
緩沖
Buffer
緩沖
E 扣
軸承
球頭-銀色
軸套
螺絲
球頭-短
墊片
T02043
T02043
T02043
T02043
T02043
T02080
T02080
T02061
T02080
T02080
T02023
T02023
T02023
T02044
T02044
T02044
T02044
T02093
T02093
T02024
Page 6
5
5
6
L
R
3
1
2
3
1
2
4
5
3
1
2
T02082 M3x8 Screw
………………2
T02082 M3x10 Screw
………………6
……………8
T02054 2.3 E-ring
T02093 Ball stud - short
………………………4
…………2
T02100 5x10x4 Ball Bearing
…………………4
T02054 3x27.5 Hinge pin front outer
…………4
T02042 2x9.8 Shaft
…………2
3
1
2
按順序組裝
Assemble in the specified order
Front Suspension
前橋
Front Suspension
前橋
L
R
左右裝法相同
Assemble left and right sides the same way
螺絲
球頭-短
軸承
軸
前擺臂軸
E 扣
螺絲
T02042 4.0 E-ring
E 扣
1
2
4
3
5
6
7
8
T02054
T02054
T02042
T02100
T02034
T02093
T02093
T02011
T02012
T02042
T02042
T02054
T02054
T02054
<Right>
<右>
<Left>
<左>
T02082(3x8)
T02082(3x10)
T02082(3x10)
T02082(3x10)
T02019
TG2002
Page 7
6
7
9
T02029 4.8mm Ball End(Long)
TG2024 3x68 Adjust Rod
…………8
……4
………4
T02082 M3x10 Screw
……2
T02082 M3x22 Screw
T02063 5mm Ball stud
……………2
Front Suspension
前橋
Front Suspension
前橋
球頭座(長)
正反牙
螺絲
螺絲
上球頭
TG2024
T02029
T02029
T02082(M3x22)
T02082(M3x10)
T02063
Front Upper(Right)
Front Upper (Left)
Steering Tip
前上拉桿(右)
前上拉桿(左)
轉向拉桿
8
Front Suspension
前橋
1:1
1:1
1:1
x2
x1
x1
x1
需組裝次數
Assemble as many times as specified
1:1
圖形比例
Ture-to -scale diagram
Projection.Note direction
注意方向
Projection.Note direction
注意方向
Projection.Note direction
注意方向
………2
T02082 M3x12 Screw
螺絲
T02082(M3x12)
TG2005
TG2008
T02092
T02092
T02093
T02093
T02093
T02093
approx.51mm
approx.51mm
approx.46mm
大約46mm
大約51mm
大約51mm
Page 8
7
T02007 M2.5x25 Screw
……1
T02048 2.37mm Ball
………………12
T02098 5x8x2.5 Ball Bearing
T02007 M2.5 Nylon Nut
……………2
……………1
T02099 10x15x4 Ball Bearing
……………2

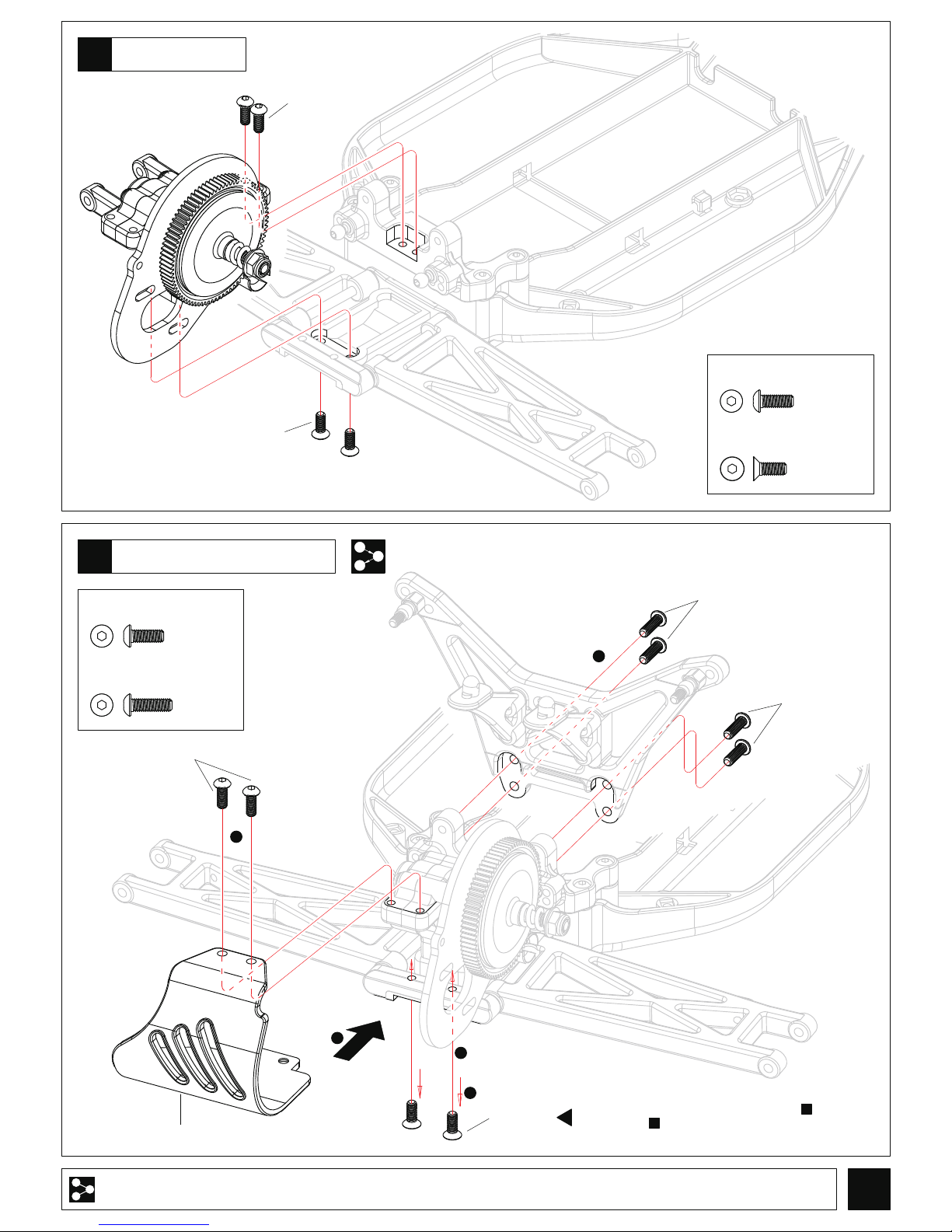

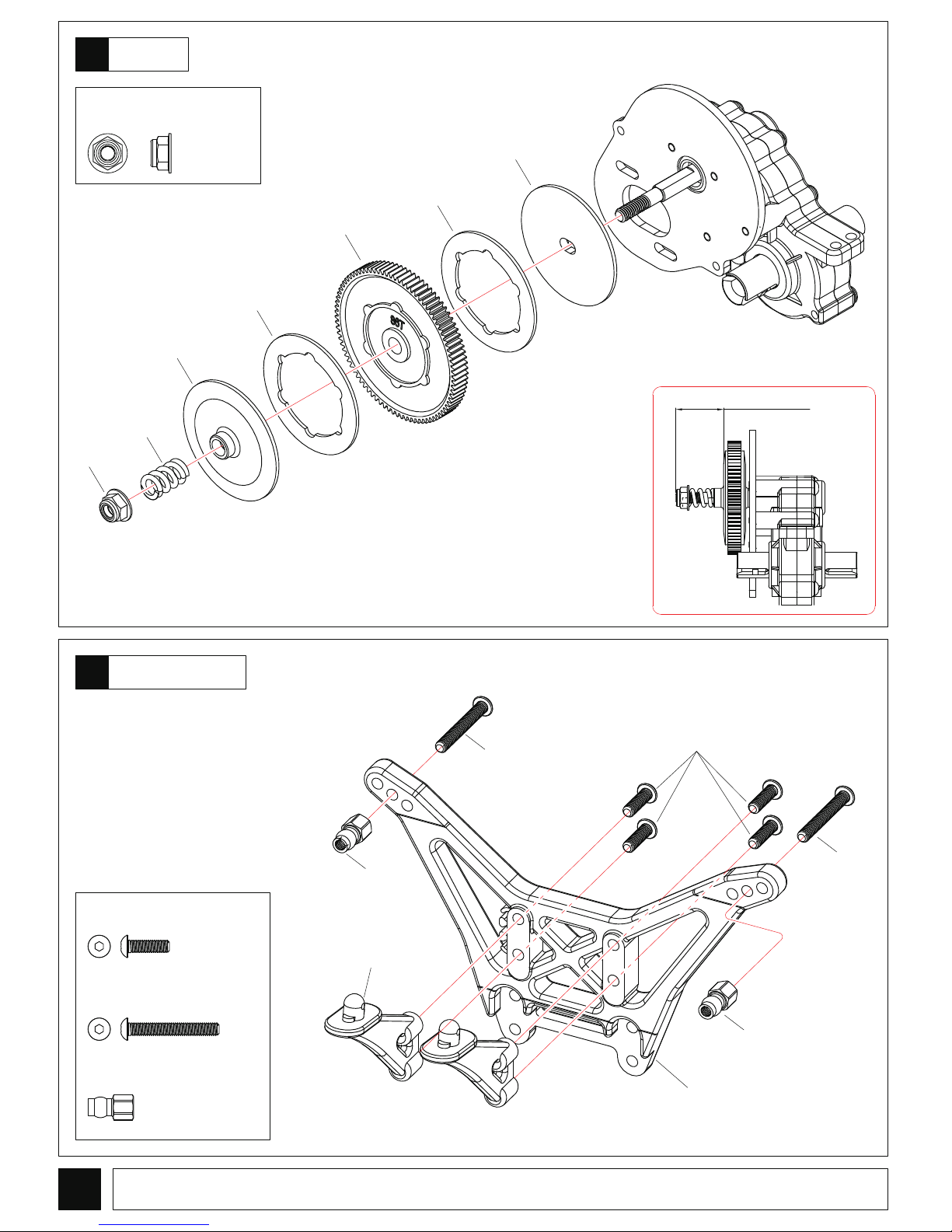

Differential Gear
差速齒輪
塗油脂
Apply grease
螺絲
軸承
鋼珠
尼龍螺母
軸承
T02049 17x23x1 Washer
墊片
……………2
T02007(2.5x25)
T02098(5x8x2.5)
T02099(10x15x4)
T02099(10x15x4)
T02007
T02007(M2.5)
T02047
T02046
T02046
T02098(5x8x2.5)
T02049(17x23x1)
T02049(17x23x1)
T02048(2.37)
T02004
10
T02050(2.6x6x3)
Page 9
8
12
11
<Right>
<Left>
T02100 5x10x4 Ball Bearing
…………………4
T02051 5x16.8 idler gear shaft
T02041 5x8x6.7 Top shaft spacer
…………………1
……………………1
…………1
T02082 M3x12 Screw
………4
T02082 M3x25 Screw
塗油脂
Apply grease
Screw
Cement
Screw
Cement
Screw
Cement
打螺絲膠水
Apply threadlocker(screw cement)

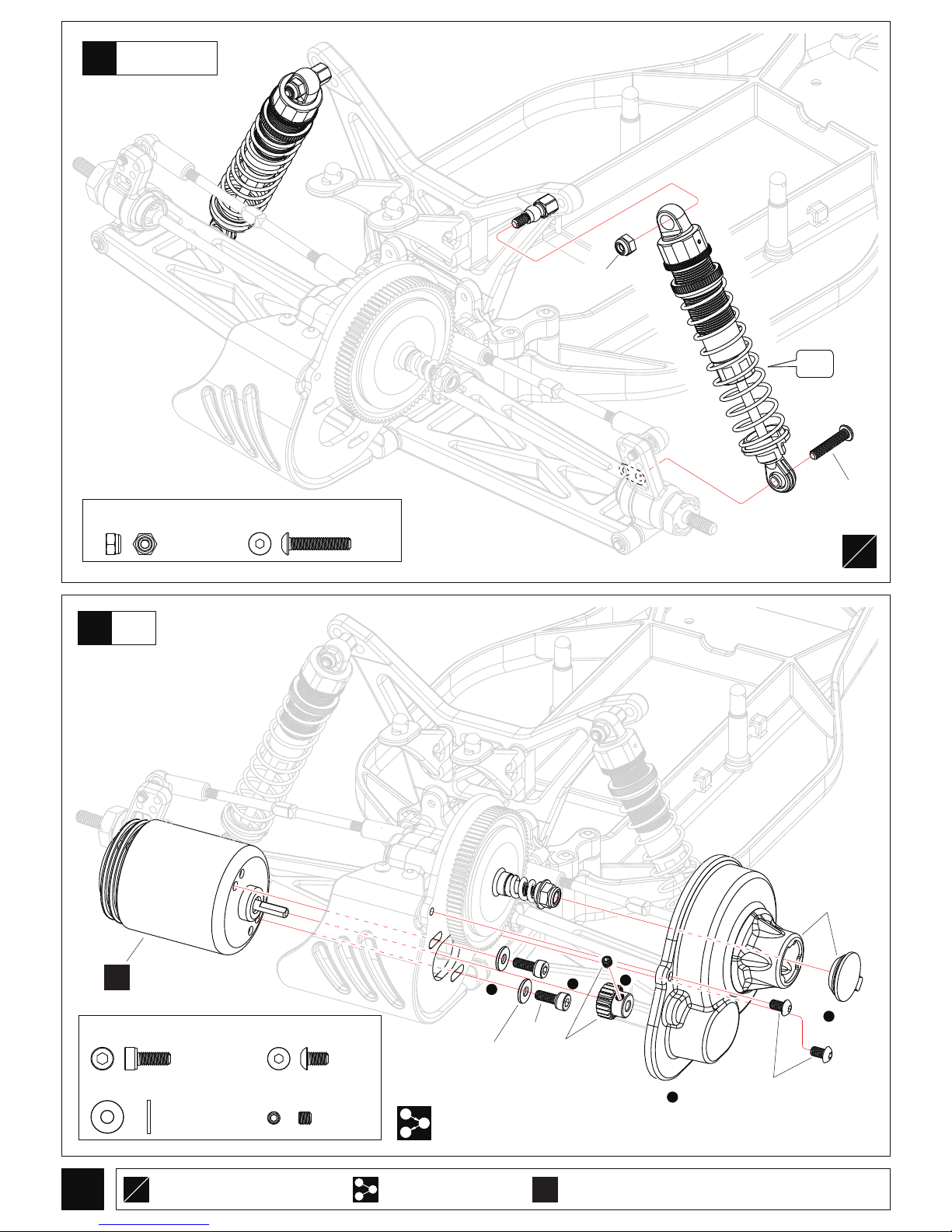

Transmission
差速箱
Motor mounts
電機固定座
軸承
減速齒輪軸
襯套
螺絲
螺絲
右
左
T02082(3x12)
T02006
T02006
T02100
T02100
T02003
T02100
T02100
T02052
T02041
T02051
T02082(3x25)
T02082(3x25)
T02036
Page 10
approx.18mm
9
14
13
T02084 M4 Flanged Nylon Nut
…………1
T02082 M3x10 Screw
螺絲
………………4
……2
T02063 5mm Ball stud
………………………2
Main Gear
主齒輪
Rear Damper Stay
後避震板
T02082(M3x22)
T02063
帶邊尼龍螺母
T02082 M3x22 Screw
螺絲
T02082(M3x10)
T02082(M3x22)
T02063
TG2008
大約18mm
T02084
T02040
T02039
T02039
T02038
T02038
TG2001(86T)
TG2006
上球頭
Page 11
10
16
15
T02092 Ball stud - long
球頭-長
……………2
…………4
T02082 M3x10 Screw
螺絲
…………2
T02083 M3x8 Screw
螺絲
Rear Bulkhead
後支撐座
後底盤
Rear Chassis
T02014
T02009
T02083
T02083
T02092
T02082
T02082
T02018
Page 12
11
18
17
L
R
………………………………2
T02083 M3x8 Screw
螺絲

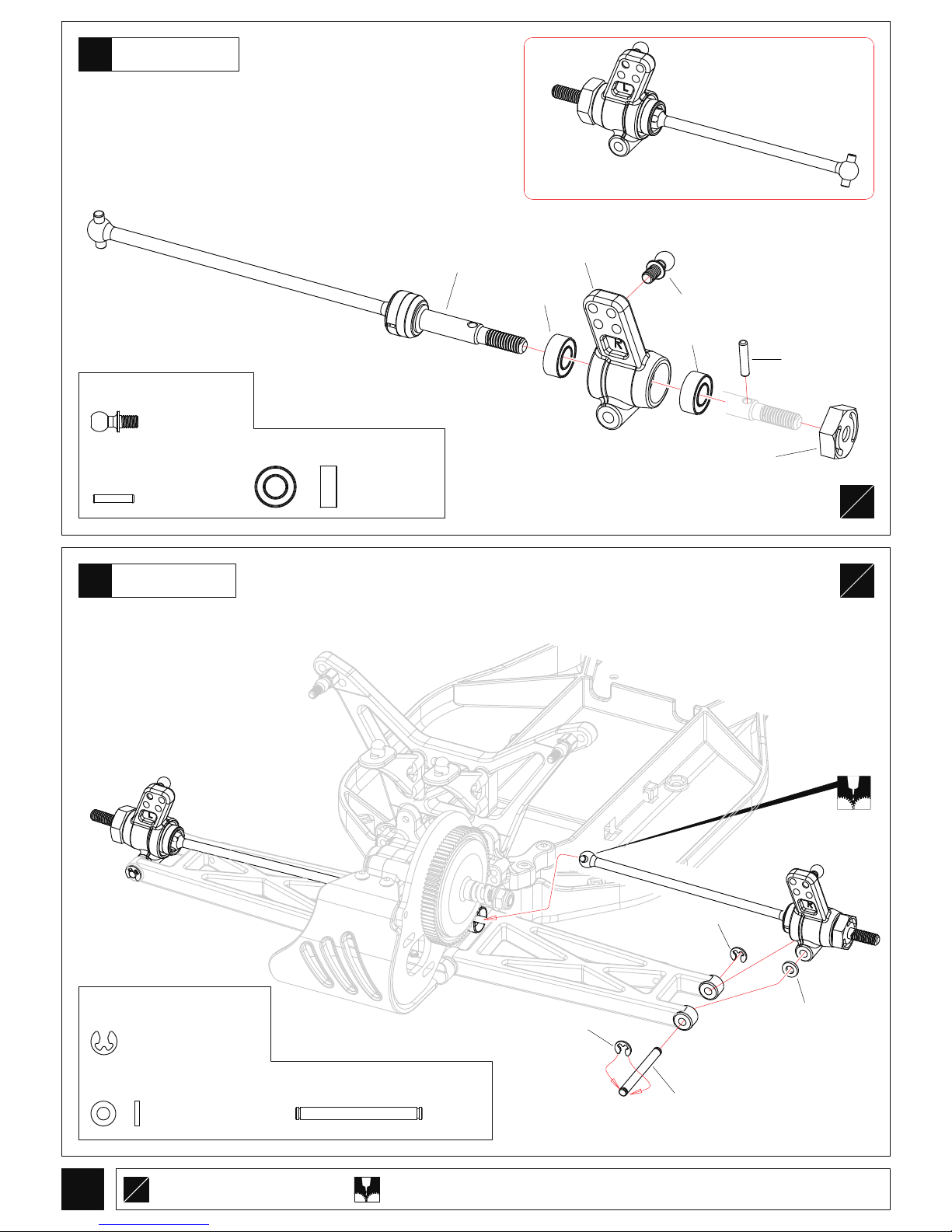

T02055 3x48 Hinge pin Rear inner
後擺臂軸
……2
…………2
T02083 M3x10 Screw
螺絲

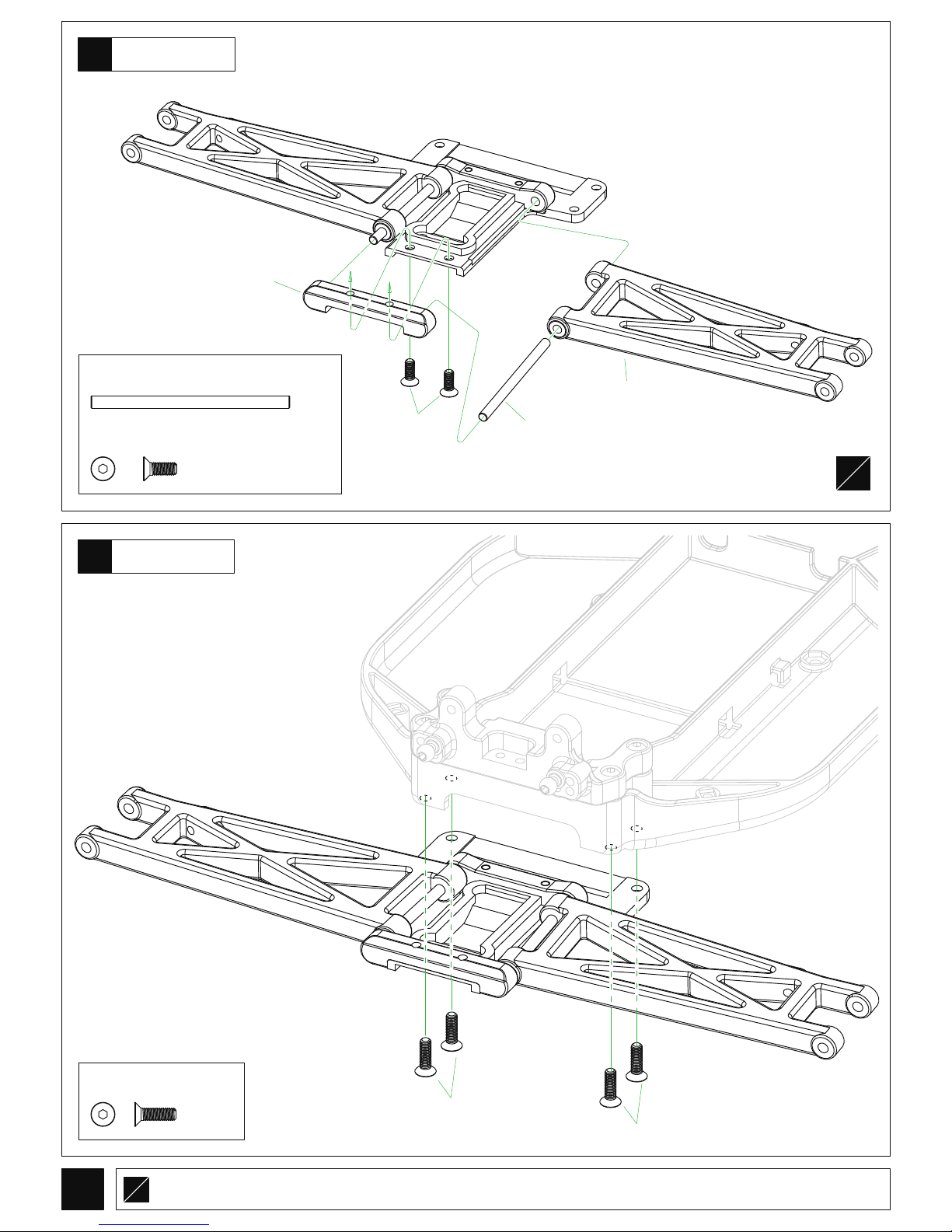

Rear Suspension
後橋
後橋
Rear Suspension
L
R
左右裝法相同
Assemble left and right sides the same way
T02055
T02083
T02014
TG2004
T02083
T02083
Page 13
12
19
20
3
1
2
1
3
2
4
……………2
螺絲
T02082 M3x10 Screw
螺絲
……………2
T02082 M3x8 Screw
螺絲
…………2
T02082 M3x10 Screw
螺絲
…………4
後避震板 & 後防撞板
Rear Shock Stay & Rear Fender
3
1
2
按順序組裝
Assemble in the specified order
用第11頁步驟 鎖緊的螺絲
Screws which were semi tightened in P11
17
T02083 M3x8 Screw
17
T02082
T02083
T02082(3x8)
T02082(3x10)
T02083(3x8)
T02026
T02082(3x10)
5
後差速箱
Rear Transmission
Page 14
L
R
21
<Right>
22
<Left>
13
L
R
T02093 Ball stud - short
球頭-短
…………………2
T02034 2x9.8 Shaft
軸
T02100 5x10x4 Ball Bearing
軸承
……………4
T02057 3x30.5 Hinge pin Rear outer
後擺臂軸
…………………………4
…………2
T02057 2.3 E-ring
E扣
T02013 3.1x6x1 Plastic Washer
塑膠墊片
………………………2
Rear Suspension
後橋
L
R
左右裝法相同
Assemble left and right sides the same way
塗油脂
Apply grease
Rear Suspension
後橋
T02013
<右>
<左>
TG2012
T02100
T02100
T02034
T02034
…………………2
T02093
T02013
T02057
T02057
T02057
Page 15
23
25
14
T02029 4.8mm Ball End(Long)
球頭座(長)

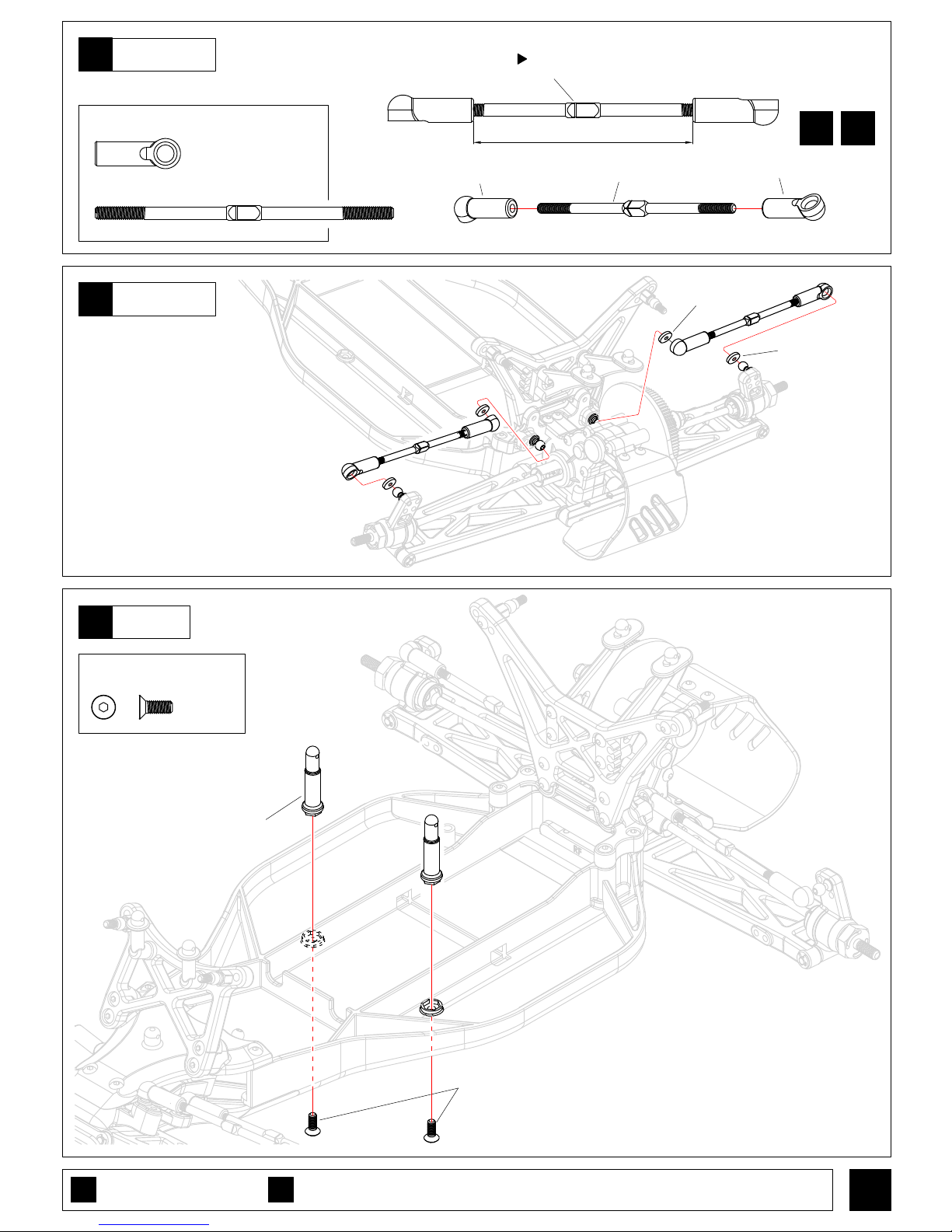

TG2014 3x72 Adjust Rod
正反牙
…………………………4
…………………………2
…………2
T02083 M3x8 Screw
螺絲
Rear Suspension
後橋
主底盤
Main Chassis
T02029
T02083(3x8)
TG2008
T02029
TG2014
1:1
x2
24
Rear Suspension
後橋
Projection.Note direction
注意方向
x2
需組裝次數
Assemble as many times as specified
1:1
圖形比例
Ture-to -scale diagram
Rear Upper
後上拉桿
T02093
T02093
approx.53mm
大約53mm
Page 16
26
Front
27
15
x2
x2
F
R
x2
Front
x2
x2
3
2
1
3
4

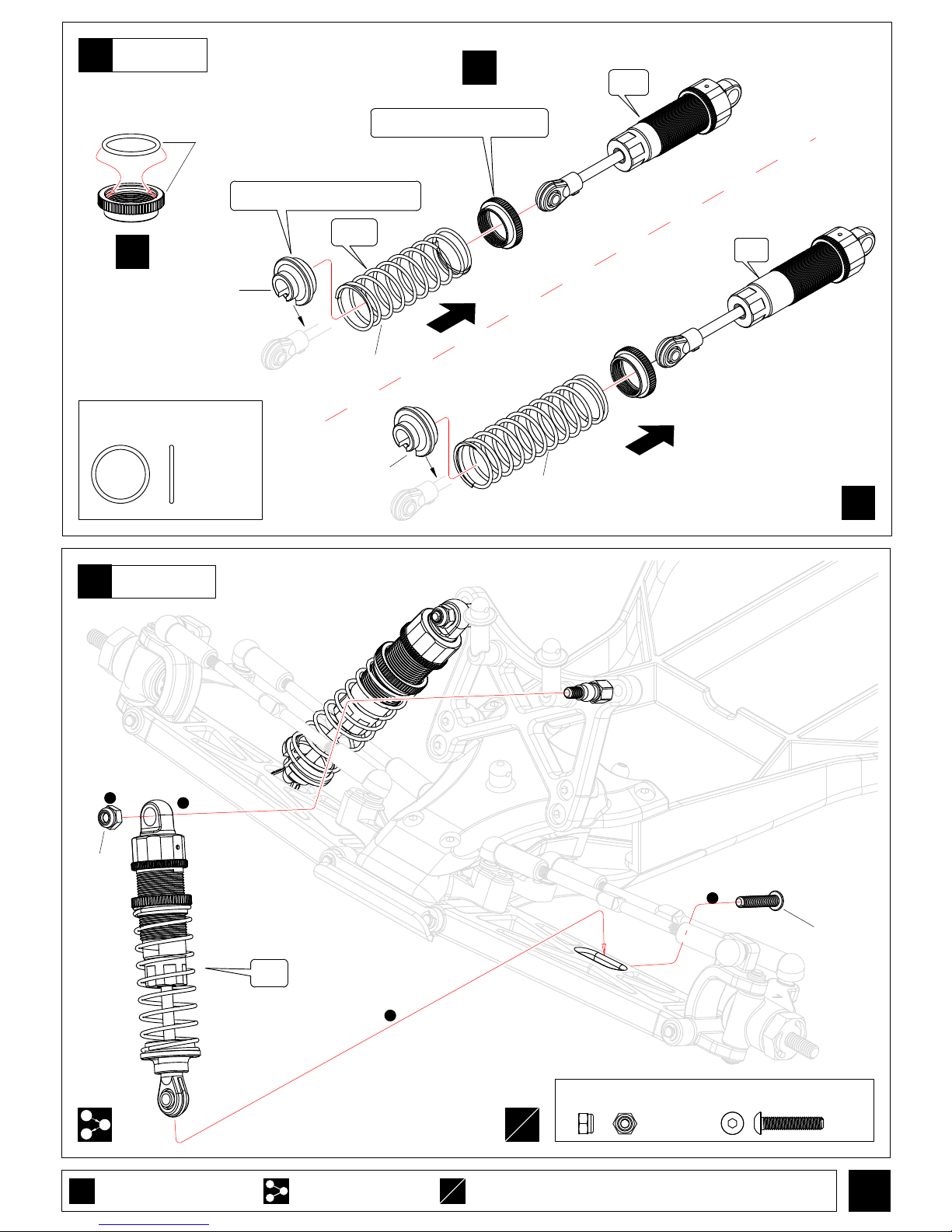

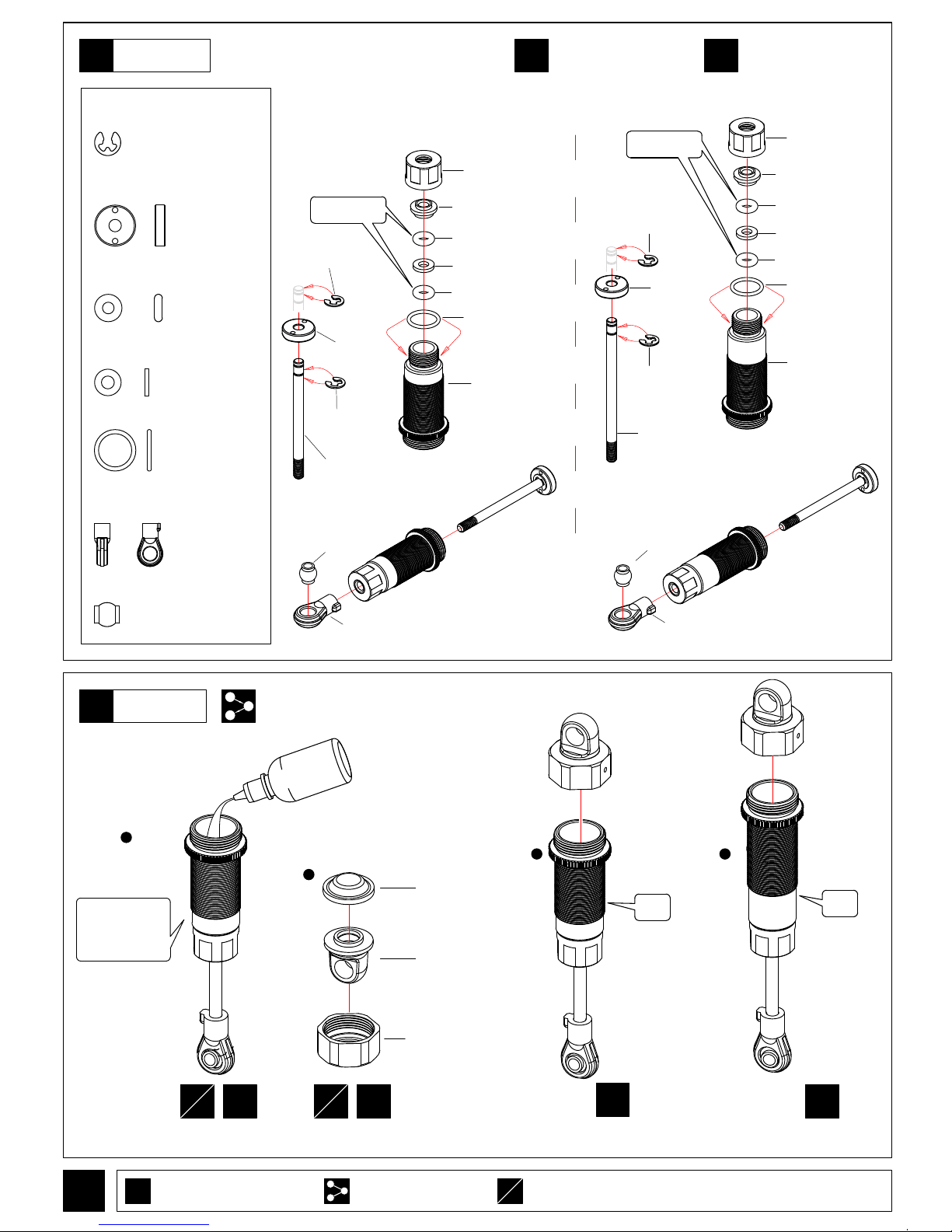

避震器
Shock Absorber
避震器
Shock Absorber
F
R
前後裝法相同
Assemble front and rear sides the same way
3
1
2
按順序組裝
Assemble in the specified order
x2
需組裝次數
Assemble as many times as specified
前
Rear
後
前
Rear
後
Short
短
Long
長
O環
……………………4
…………………………8
TG2013(TG2014) 2.3 E-ring
E扣
T02096 9.9x2.5 Shock Piston
避震器活塞
…………………4
T02097 2.8x1.9 O-ring
…………………8
墊片
T02097 3.1x1mm Washer
T02062 5.8x6 Ball stud
球頭座
T02031 5.8 Ball End
…………………4
球頭
…………………………4
TG2025&TG2026 8x1 O-ring
O環
TG2013(Short)
Put a little oil
Put a little oil
涂点油
短
涂点油
TG2014(Long)
長
T02096
TG2013
TG2013
TG2014
TG2014
T02096
T02097(2.8x1.9)
T02097(3x1mm)
T02062
T02031
T02097(2.8x1.9)
T02097
TG2026
TG2026
……………………4
TG2026(Long)
長
T02097(2.8x1.9)
T02097(3x1mm)
T02097(2.8x1.9)
T02097
TG2025
TG2025
TG2025(Short)
短
T02062
T02031
2
1
Shock Absorber
Oil
Put the oil
前面用(短)
後面用(長)
for Front(Short)
for Rear(Long)
倒油
(避震器油)
T02031
TG2025 & TG2026
T02073
F
R
x2
Page 17
29
16
3
2
1
1
2
3
L
R
T02084 M3 Nylon Nut
尼龍螺母
…………2
……2
T02082 M3x15 Screw
螺絲
3
1
2
按順序組裝
Assemble in the specified order
x2
需組裝次數
Assemble as many times as specified
L
R
左右裝法相同
Assemble left and rear sides the same way
Front Suspension
前橋
Short
短
T02084
T02082
1
28
x2
x2
x4
TG2025&TG2026 12x1 O - ring
O環
…………4
避震器
Shock Absorber
調整彈簧松緊
for adjusting the spring tension
壓縮彈簧後安裝
Compress the spring and install
Front
前
Rear
後
Short
短
Long
長
Short
短
TG2025 & TG2026
TG2018(Long)
長
TG2017(Short)
短
T02031
T02031
Page 18
31
17
T02081 3x7x0.8 Washer
墊片
T02083 M3x8 Screw
螺絲
T02082 M3x5 Screw
螺絲
TG2011 M3x3 Screw
螺絲
………………2
……………2
…………1
………2
L
R
左右裝法相同
Assemble left and rear sides the same way
3
2
1
3
1
2
按順序組裝
Assemble in the specified order
1
2
3
4
5
Motor
馬達
T02081
TG2011
T02082
T02005
30
L
R
T02084 M3 Nylon Nut
尼龍螺母
…………2
……2
T02082 M3x15 Screw
螺絲
Rear Suspension
後橋
Long
長
T02082
T02084
T02083
X
另購物品
Must be purchased separately
X
馬達
Motor
Page 19
32
33
18

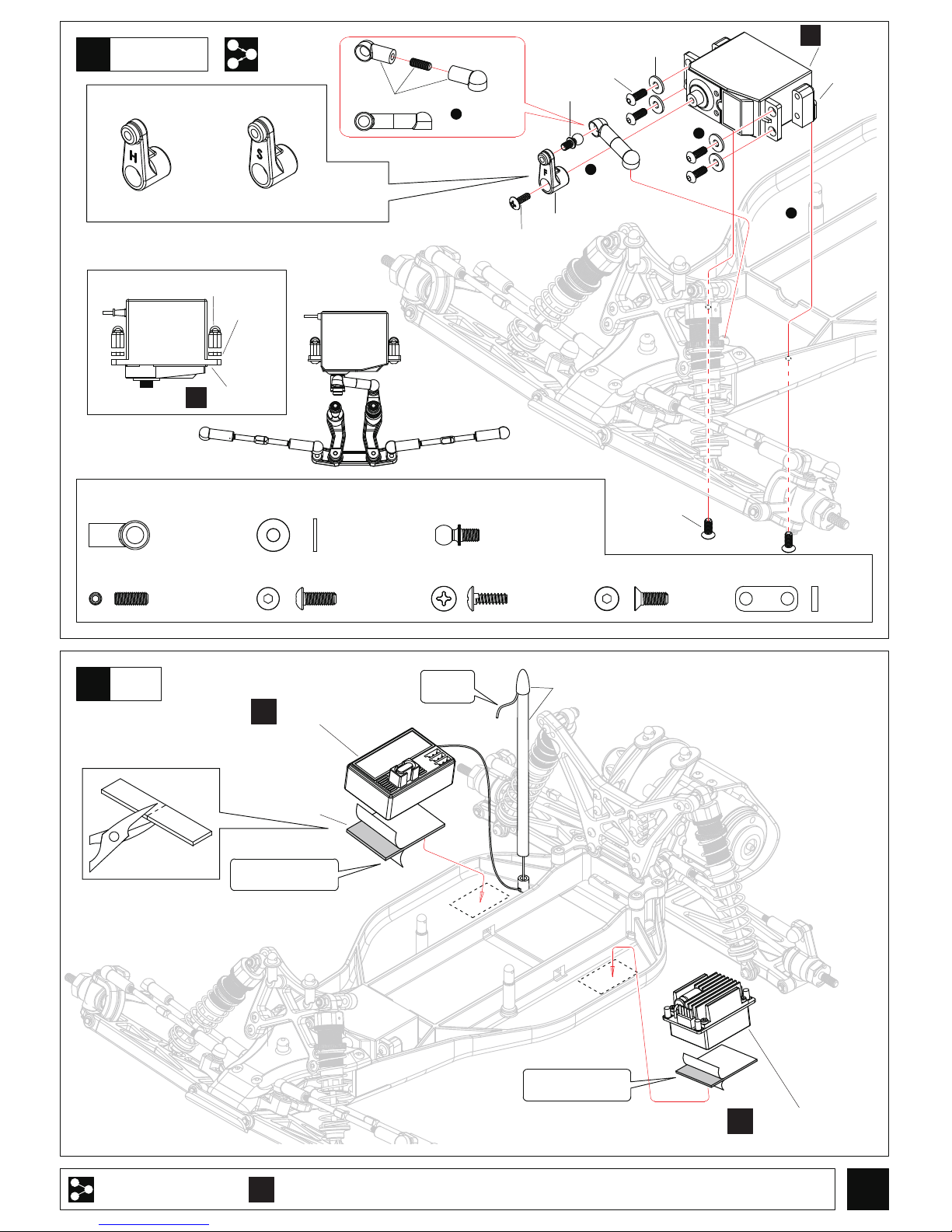

Steering Servo
轉向伺服系統
3
2
1
1
3
4
3
1
2
按順序組裝
Assemble in the specified order
Radio
接收機
電子變速器
Electronic speed controller
天線
Antenna
T02087
接收機
Receiver
雙面膠
Double-sided Tape
T02030
T02027(25T)
T02028
T02061
T02081
T02082
雙面膠
Double-sided Tape
2
T02083
SANWA
T02035
Steering Servo-H(24T)
Steering Servo-S(23T)
轉向伺服臂H(24T)
轉向伺服臂S(23T)
Select for your servo
根據伺服器選擇
Sanwa servo
T02028
T02087
T02030 4.8 Ball End(Short)
球頭座(短)
……………2
T02030 M3x10 Screw
螺絲
……………1
T02081 3x7x0.8 Washer
墊片
………………4
T02082 M3x8 Screw
螺絲
…………4
T02061 Ball stud - silvery
球頭-銀色
…………………1
……2
T02083 M3x8 Screw
螺絲
T02035 1.5 Servo spacer
伺服機座墊片
……2
T02082 M2.6x8 Screw
螺絲
…………1
T02082(2.6x8)
X
另購物品
Must be purchased separately
X
X
伺服機
Steering Servo
X
伺服機
Steering Servo
X
Page 20
34
35
19

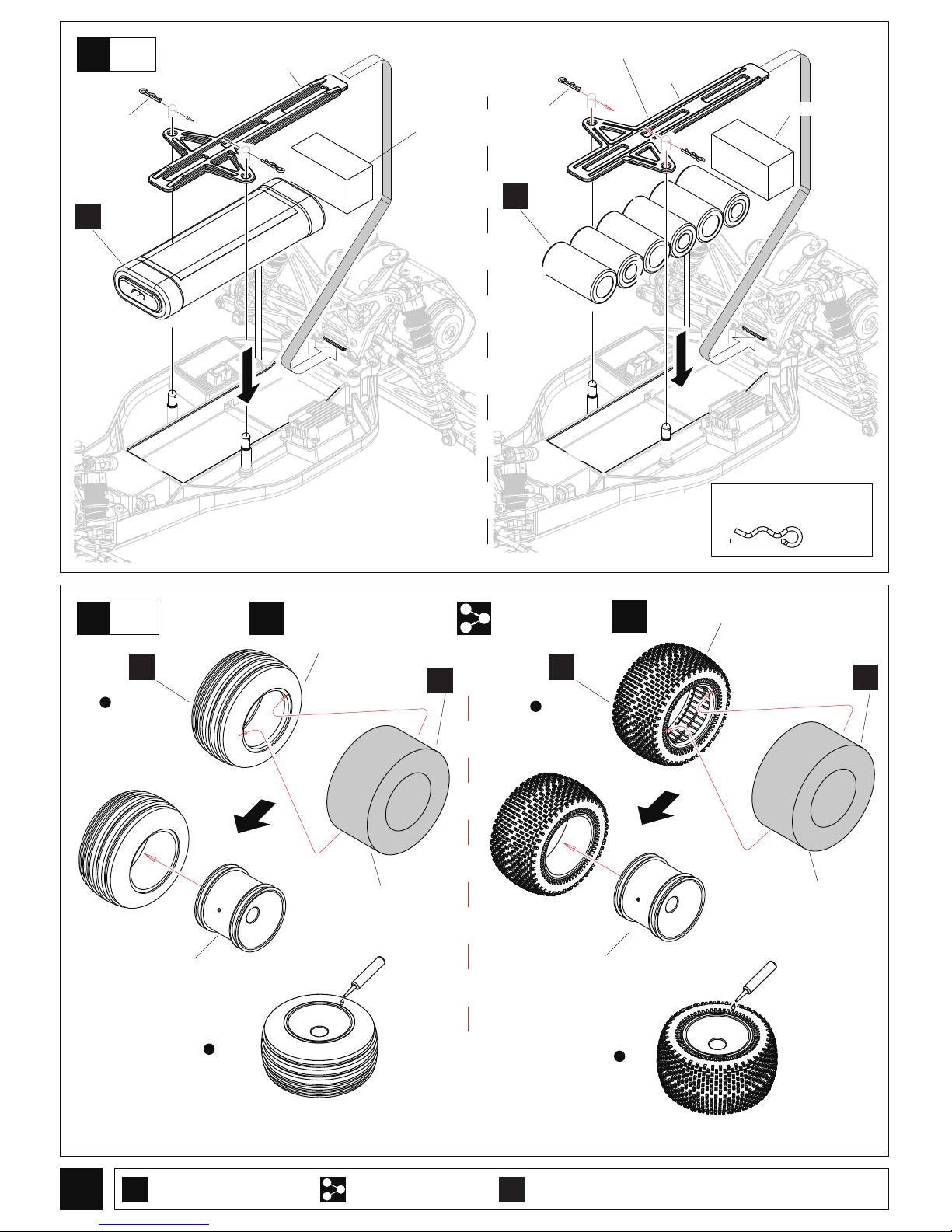

After fitting wheels to tyres,apply instant glue as shown
Front
x2
x2
輪胎裝好後請按圖示打膠水
車身固定夾(小)
…………2
Battery
電池
Wheels
輪胎
x2
需組裝次數
Assemble as many times as specified
海綿
3
2
1
3
1
2
按順序組裝
Assemble in the specified order
T02086 Small clip
前
Rear
後
TG2020(Sponge)
海綿
TG2019(Sponge)
TG2019
TG2020
TG2009
TG2009
Glue
Glue
1
2
3
4
Battery
電池
TG2007
T02086
TG2007
TG2007(Sponge)
海綿
海綿
T02086
If using loose battery cells
Please put the battery panel conversely
TG2007(Sponge)
X
另購物品
Must be purchased separately
X X
X
X
X
Battery
電池
X
Page 21
36
37
20
T02086 Small clip
車身固定夾(小)
……………5
T02084 M4 Flanged Nylon Nut
……………4
x2
需組裝次數
Assemble as many times as specified
3°
3°
+3 deg
-3 deg

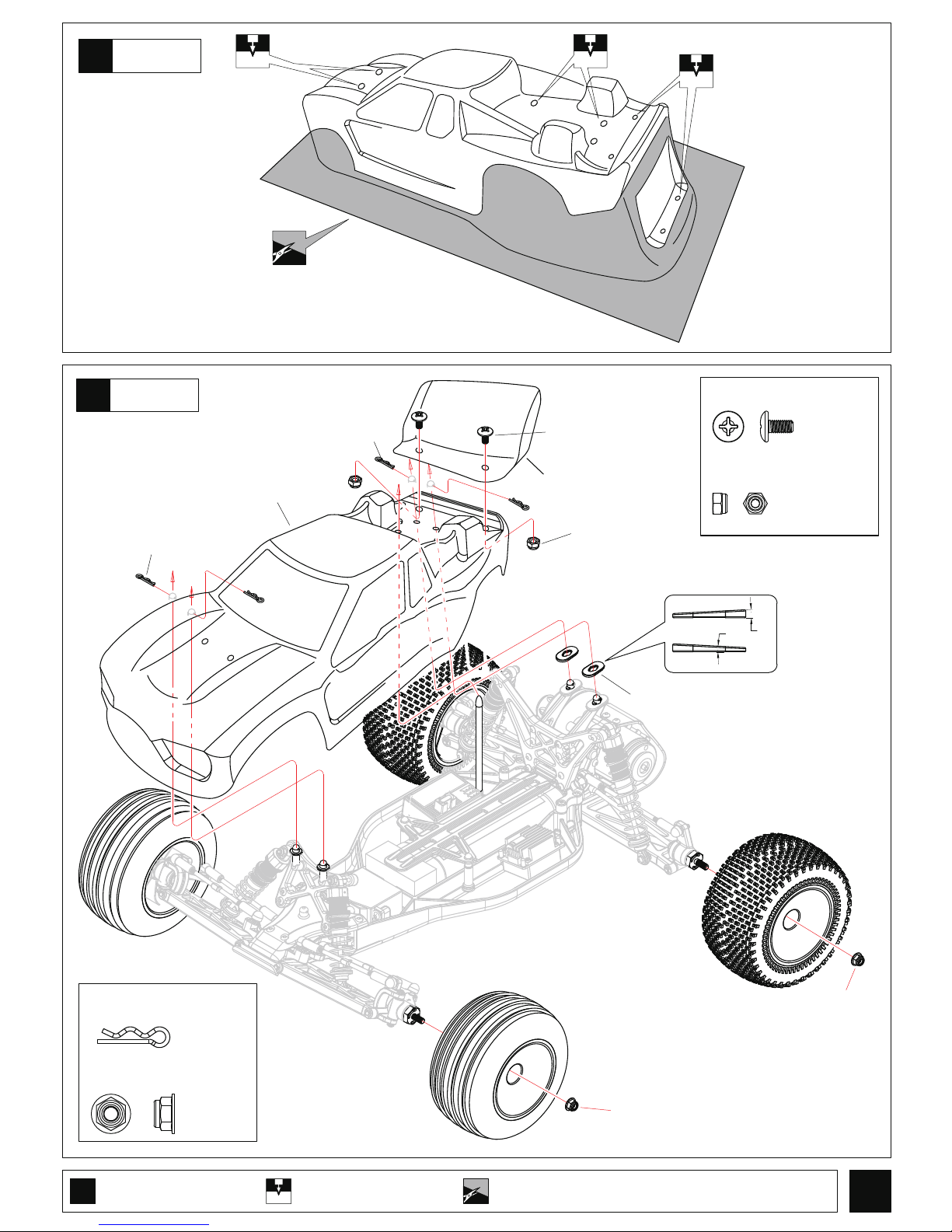

Body Mounting
車殼
Body Mounting
車殼
6mm
按指定直徑鑽孔
Drill holes with the specified diameter
剪掉陰影部分
Cut off shaded portion
6mm
3mm
帶邊尼龍螺母
6mm
TG2021
T02086
TG2008
T02084
T02084
T02086
TG2021 M3x6 Screw
螺絲
……………2
TG2021 M3 Nylon Nut
……………………2
尼龍螺母
TG2021
TG2021
TG2021
Page 22

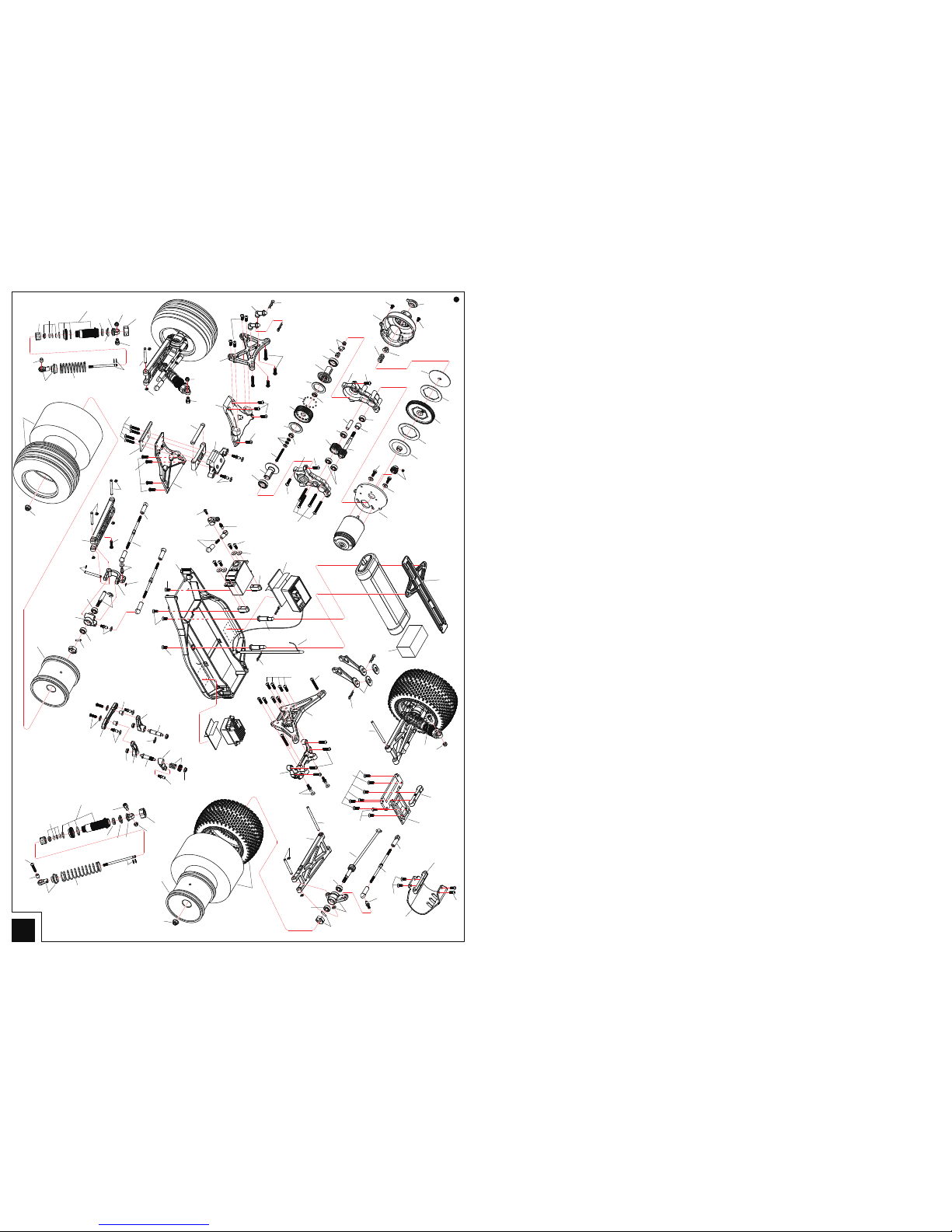

Exploded View
爆炸圖
T02005
T02040
T02082
T02082
T02005
TG2001
T02003
T02004
T02006
T02006
T02007
T02007
T02008
T02009
TG2002
T02011
T02012
T02013
T02014
T02014
T02015
TG2003
TG2004
T02018
T02019
TG2005
TG2006
TG2007
T02023
T02023
T02023
T02024
TG2008
TG2008
TG2008
T02026
T02026
T02027
T02028
T02029
T02029
T02030
T02031
T02031
T02031
T02031
TG2009
TG2009
T02034
T02036
T02037
T02038
T02038
T02039
T02041
T02042
T02042
T02043
T02043
T02043
T02043
T02044
T02044
TG2024
TG2024
T02046
T02046
T02047
T02048
T02049
T02049
T02050
T02051
T02052
TG2011
T02054
T02055
T02055
T02056
T02057
TG2012
T02092
T02093
T02061
T02093
T02054
T02054
T02092
T02093
T02061
T02062
T02062
T02063
TG2014
TG2013
TG2025
TG2025
T02096
T02073
TG2025
T02063
T02097
TG2017
TG2018
T02097
TG2026
TG2019
TG2020
TG2007
T02082
T02082
T02082
T02082
T02082
T02082
T02082
T02082
T02081
T02082
T02014
T02082
T02082
T02082
T02082
T02082
T02082
T02082
T02082
T02083
T02039
T02086
T02086
T02086
T02084
T02084
T02083
T02083
T02084
T02063
T02081
T02073
T02096
T02084
T02084
TG2026
T02083
T02056
T02056
T02063
T02084
T02087
T02084
T02080
T02080
T02100
T02100
T02099
T02099
T02098
T02098
T02100
T02100
T02100
T02100
T02100
T02083
T02083
T02083
T02083
T02093
T02087
21
Page 23
T02014
TG2001
T02005
Gear Cover
T02006
1PCS
Differential-L
T02007
1PCS
T02003 T02004
1PCS
52T Gear
T02008
1PCS
Front chassis plate
T02009
TG2002
1PCS
Main Chassis plate
T02011
1PCS
C-type holder L
T02012
1PCS
Steering block-R
T02013
-L
Rear hub carriers
1PCS
Rear arm mount-R
T02015 TG2003
2PCS
Front lower arms
TG2004
2PCS
Rear lower arms
T02018
1PCS
Rear brace mount
T02019 TG2005
1PCS
(前避震支架)
TG2006
TG2007
1PCS
Battery plate
T02023 T02024
1PCS
Steering Rack
1PCS
Gear Cover Button
1PCS
1PCS
Differential-R
M2.5x25 Screw
M2.5 Nylon Nut
1PCS
1PCS
1PCS
Rear chassis plate
1PCS
Steering block-L
1PCS
Rear hub carriers
1PCS
1PCS
Rear arm mount-F
1PCS
Servo saver lower
1PCS
Servo saver upper
3.1x6x1 Plastic Washer
4PCS
Differential Nut Mount
1PCS
Front upper suspension
arm mount
Front alight suspension
arm mount

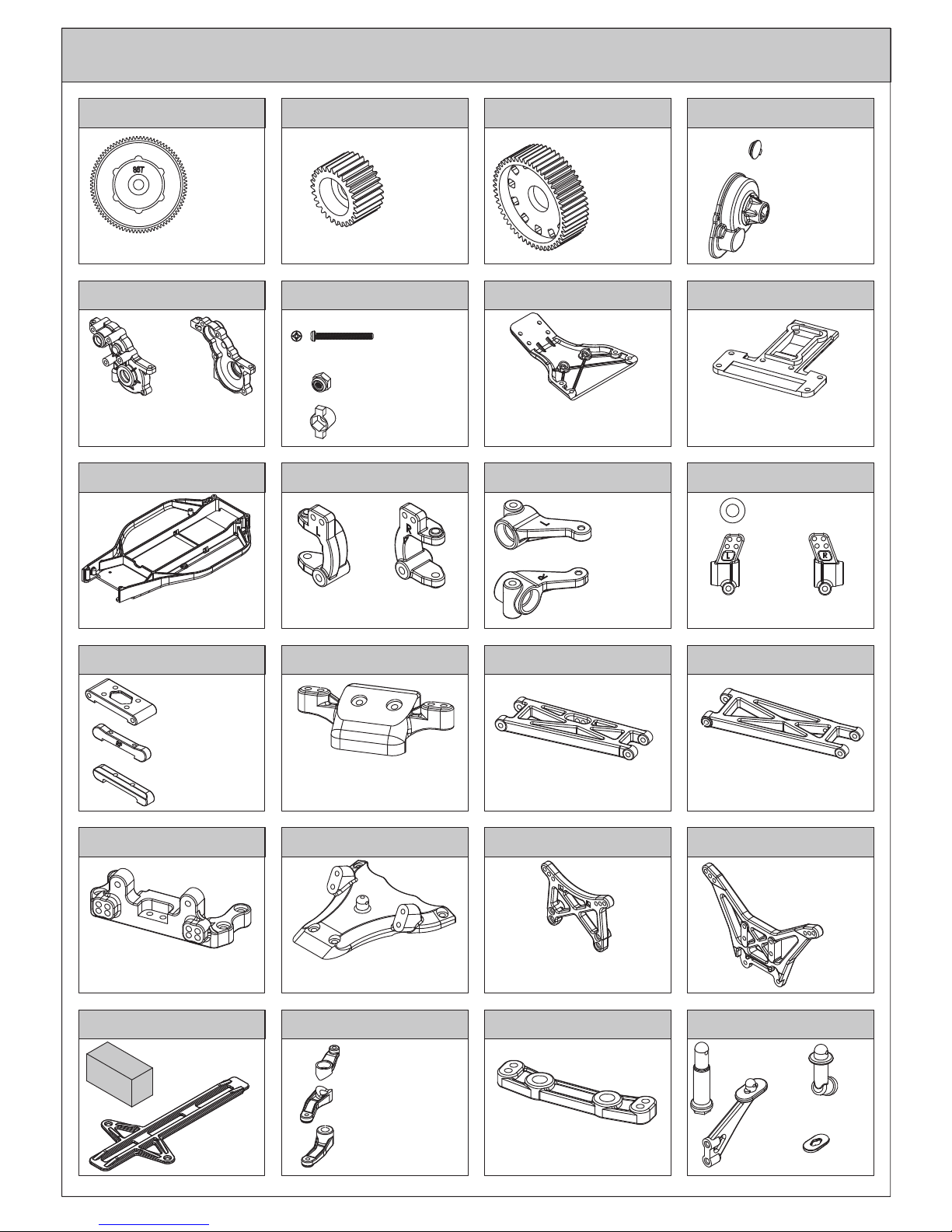

Parts list for TC02T-Pro truck - 1 (TC02T-Pro - 1)
配件包
1PCS
28T Spur Gear
(減速齒) (齒輪)
(齒輪蓋塞)
(齒輪蓋)
(差速箱-L) (差速箱-R)
(螺絲)
(尼龍螺母)
(滾差螺帽座)
(前底盤)
(後底盤)
(主底盤)
(C型座-L)
1PCS
C-type holder R
(C型座-R)
(轉向臂-L)
(轉向臂-R)
(塑膠墊片)
1PCS
(後輪座-L)
-R
(後輪座-R)
(前下擺臂座)
(後擺臂固定座-F)
(後擺臂固定座-R) (前上擺臂座)
(前下擺臂)
(後下擺臂)
(後支撐座)
1PCS
Front brace mount
(前支撐座)
Front shock tower
1PCS
(後避震支架)
Rear shock tower
(電池壓板)
(緩沖臂上)
(緩沖臂下)
1PCS
Servo saver - L
(緩沖臂-L)
(緩沖連接片)
1PCS
86T Spur Gear
(減速齒)
Sponge
(海綿)
1PCS
TG2008
2PCS
2PCS
2PCS
Wing angie shim
(鳳翼架)
Wing bracket
Battery column
(電池扣支柱)
(鳳翼調整片)
2PCS
Front body mount
(前車殼柱)
Page 24

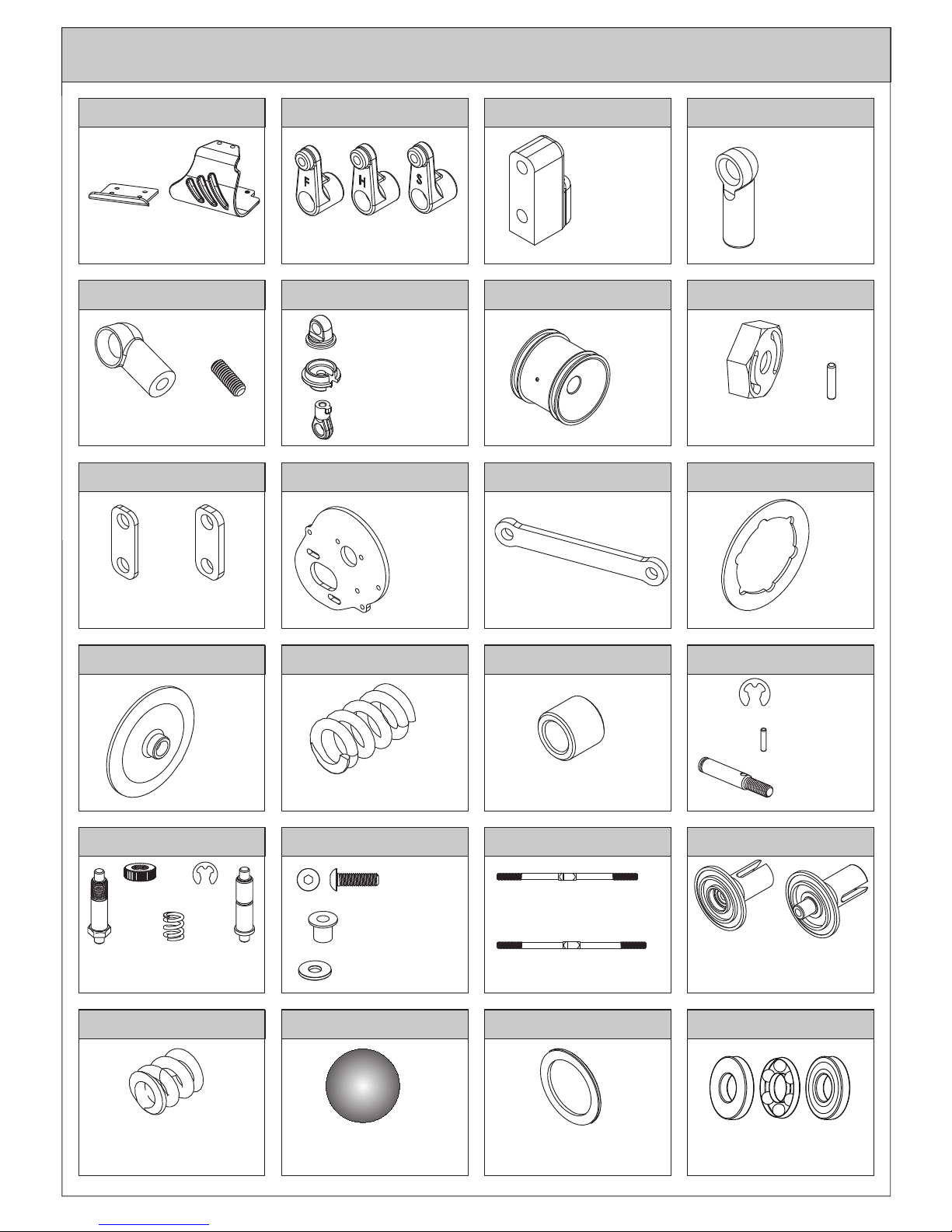

Parts list for TC02T-Pro truck - 2 (TC02T-Pro - 2)
T02026
1PCS
Motor guard
T02029
4.8 Ball End - Long
T02030 T02031
2PCS
T02027
1PCS
Steering
T02028
2PCS
Servo plate
TG2009
2PCS
(輪框)
T02034
4PCS
Hexagonal
T02035
2PCS
1.0 Servo spacer
T02036
1PCS
Motor plate
T02037
1PCS
Front hinge pin brace
T02038
2PCS
Slipper pad
T02039 T02040
T02041
1PCS
5x8x6.7 Top shaft spacer
T02042
T02043
1PCS
Buffer
T02044
2PCS
Block Carrier
TG2024
T02046
T02047 T02048
12PCS
2.37mm Ball
6PCS
2PCS
4.8 Ball End - Short
2PCS
1.5 Servo spacer
2PCS
1PCS
Front bumper
3x10 Screw
1PCS
5.8 Ball End
Spring Mount
Upper cover nylon cap
2PCS
Slipper hub
2PCS
Front wheel axle
1PCS
Buffer
1PCS
Buffer Nut
column-A
column-B
1PCS
Spring
3x7x0.8 Washer
2PCS
4PCS
3x68 Adjust Rod
1PCS
Differential connecting
1PCS
Differential Spring
4PCS
2x9.8 Pin
Buffer
hub - Short
1PCS
Differential connecting
hub - Long
Servo horn-F
1PCS
Steering Servo
horn-H
1PCS
Steering
Servo horn-S
2PCS
2x9.8 Pin
3x10 Screw
2PCS
配件包
(前防撞板)
(馬達罩)
(轉向伺服臂F) (轉向伺服臂H) (轉向伺服臂S)
(伺服機座)
(球頭座-長)
(球頭座-短) (螺絲)
(上蓋尼龍帽)
(彈簧固定座)
(球頭座)
2PCS
rim
(六角座) (鋼針)
(伺服機座墊片) (伺服機座墊片)
(馬達座)
(前擺臂固定片)
(扭限摩擦片)
(扭限座)
1PCS
Slipper Spring
(扭限彈簧)
(襯套)
4.0 E-ring
(E
扣)
2PCS
(前輪軸)
(鋼針)
4.0 E-ring
(E
扣)
1PCS
(轉向緩沖器
支柱A)
(緩沖彈簧) (轉向緩沖器
支柱B)
(緩沖調整螺帽)
(螺絲)
(緩沖鋼套)
(墊片)
(正反牙螺桿)
(滾差接杯-短)
(滾差接杯-長)
(滾差調整彈簧) (鋼珠)
2PCS
3x72 Adjust Rod
(正反牙螺桿)
T02049
2PCS
(墊片)
T02050
17x23x1 Washer
1PCS
2.6x6x3 Stop push ball bearing
(止推軸承)

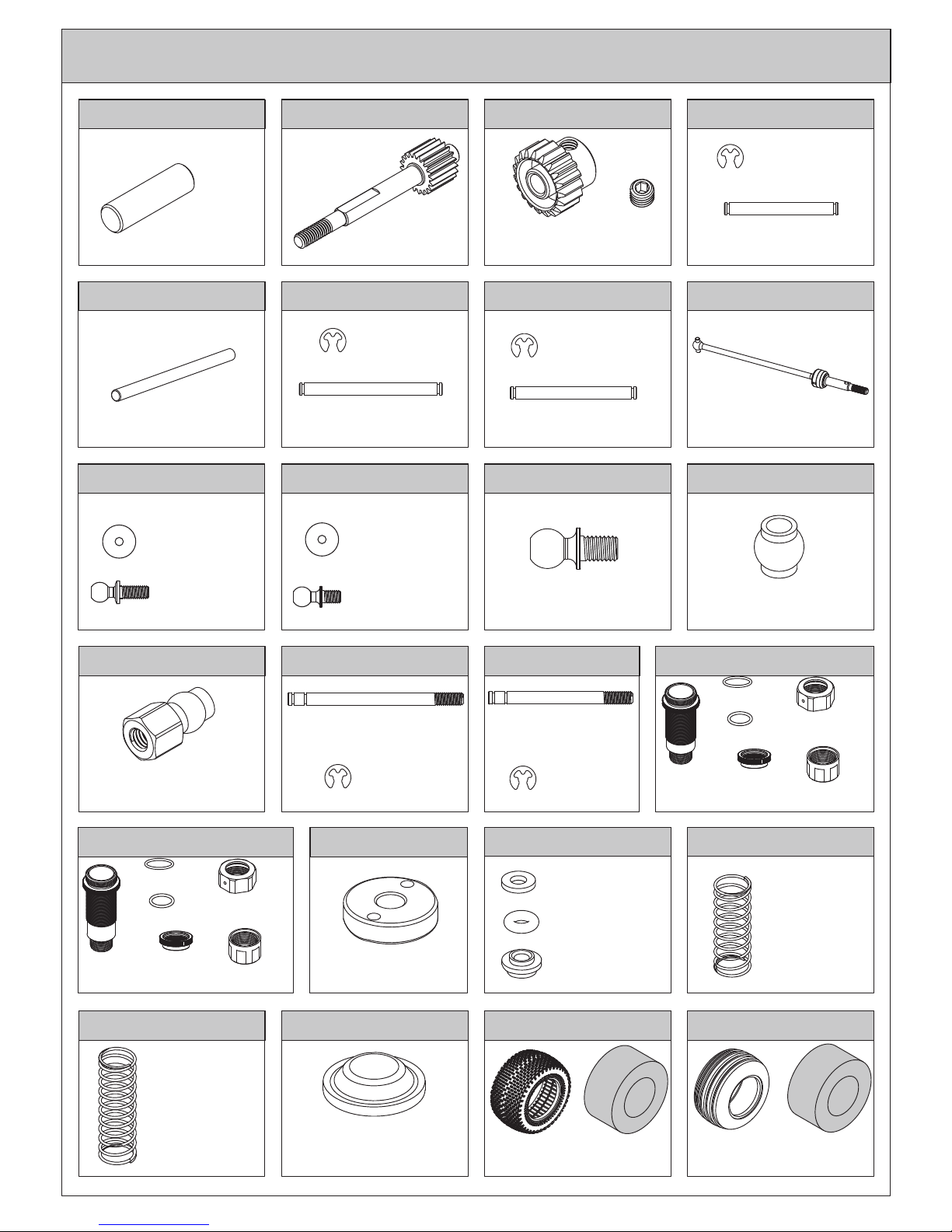

Page 25
2.3 E-ring
TG2011 T02054
T02055
T02051
1PCS
idler gear shaft
T02052
1PCS
Gear 20T
T02056
T02057
TG2012
2PCS
Rear CVD
T02092 T02093
T02061 T02062
4PCS
5.8x6 Ball stud
T02063 TG2013
2PCS
3x44.5 Front Shock Absorber
TG2014
2PCS
3x53.5 Rear Shock Absorber
TG2025
2PCS
case
TG2026 T02096
4PCS
Shock piston
T02097 TG2017
2PCS
Front Shock Absorber
TG2018 T02073
4PCS
(氣室)
2PCS
(前擺臂銷-外)
(後擺臂銷-內)
2PCS
2PCS
3x30.5 Hinge pin Rear outer
2PCS
Ball stud - silvery
1PCS
(馬達齒)
1PCS
(螺絲)
3x34.5 Hinge pin front inner
2PCS
4PCS
5mm Ball stud
2PCS
12x1 O-ring
2PCS
Shock Absorber
adjuster
Spring
3.5 Press washer
8PCS
2.8x1.9 O-ring
top cover
Front damper
2PCS
Parts list for TC02T-Pro truck - 3 (TC02T-Pro - 3)
配件包
(減速齒輪軸) (入力齒)
Pinion Gear 19T
3x3 Screw
(E
扣)
4PCS
3x27.5 Hinge pin front outer
3x48 Hinge pin Rear inner
2.3 E-ring
(E
扣)
4PCS
(前擺臂銷-內)
2.3 E-ring
(E
扣)
4PCS
(後擺臂銷-外) (後CVD 萬向傳動軸)
(球頭-銀色)
(球頭)
(球頭)
(前避震器軸)
2.3 E-ring
(E
扣)
4PCS
(後避震器軸)
2.3 E-ring
(E
扣)
4PCS
(避震器上蓋)
(前油筒)
(O
環)
(彈簧調節座)
2PCS
case
Rear damper
(後油筒)
(避震活塞)
(O
環)
4PCS
(壓墊)
(前避震器彈簧)
Spring
2PCS
Rear Shock Absorber
(後避震器彈簧)
Spring
Diaphragm
Shaft
2PCS
Shock Absorber
below cover
(避震器下蓋)
2PCS
8x1 O-ring
(O
環)
2PCS
12x1 O-ring
2PCS
Shock Absorber
adjuster
Spring
top cover
2PCS
(避震器上蓋)
(O
環)
(彈簧調節座)
2PCS
Shock Absorber
below cover
(避震器下蓋)
2PCS
8x1 O-ring
(O
環)
4PCS
3.1x1mm Washer
(墊片)
Ball stud - long
2PCS
Ball stud - short
5PCS
(球頭-長)
(球頭-短)
Ball stud sponge
2PCS
(球頭海綿)
Ball stud sponge
5PCS
(球頭海綿)
Shaft
TG2019
TG2020
2PCS
Wheels Sponge
2PCS
Rear-tyre
2PCS
(輪胎海綿)
2PCS
Front-tyre
(後輪胎)
Wheels Sponge
(輪胎海綿)
(前輪胎)
Page 26

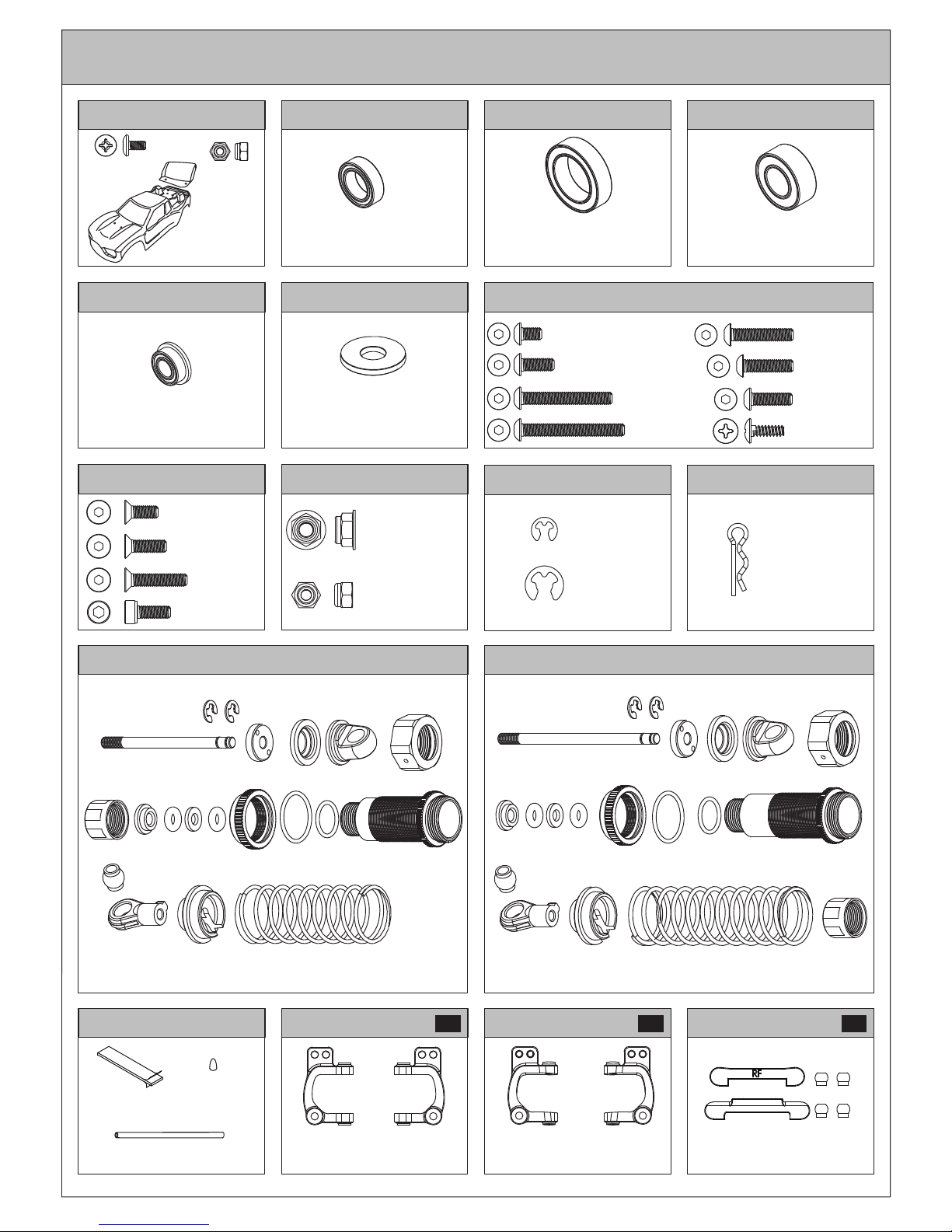

Parts list for TC02T-Pro truck - 4 (TC02T-Pro - 4)
T02098
T02099 T02100
T02087
TG2021
T02080
4PCS
3x6x2.5 Ball Bearing
T02081
T02082
T02084 T02085 T02086
TG2027 TG2028
6PCS
5x10x4 Ball Bearing
6PCS
6PCS
(軸承)
3x7x0.8 Washer
10PCS
3x15 Screw
3x8 Screw
3x10 Screw
3x8 Screw
8PCS
8PCS
8PCS
8PCS
M4 Flanged Nylon
(帶邊尼龍螺母)
M3 Nylon Nut
6PCS
2.3 E-ring
4 E-ring
Small clip
8PCS
Front Shock Absorber
2PCS
T02083
(墊片)
配件包
5x8x2.5 Ball Bearing
10x15x4 Ball Bearing
(軸承) (軸承)
(軸承)
(螺絲)
(螺絲)
(螺絲)
(螺絲)
6PCS
(尼龍螺母)
Nut
(E
8PCS
扣)
(E
8PCS
扣)
車身固定夾(小)
(前避震器)
Rear Shock Absorber
2PCS
(後避震器)
1PCS
車殼
Body shell
3x6 Screw
2PCS
(螺絲)
M3 Nylon Nut
2PCS
(尼龍螺母)
(天線套管)
Antenna pipe set
(天線管帽)
Antenna pipe
set cover
1PCS
1PCS
Double-sided tape
(雙面膠)
1PCS
3x25 Screw
3x10 Screw
3x12 Screw
3x15 Screw
3x5 Screw
3x8 Screw
3x22 Screw
8PCS
8PCS
8PCS
8PCS
8PCS
8PCS
8PCS
(螺絲)
(螺絲)
(螺絲)
(螺絲)
(螺絲)
(螺絲)
(螺絲)
2.6x8 Screw
8PCS
(螺絲)
Tu0219
Tu0220 Tu0221
25 Degree - L
C-Type-Holder
25 Degree - R
C-Type-Holder
30 Degree - L
C-Type-Holder
30 Degree - R
C-Type-Holder
Rear arm mount F/R 1Set
後擺臂固定座 前/後
25°C型座-L 25°C型座-R 30°C型座-L 30°C型座-R
OP OP OP

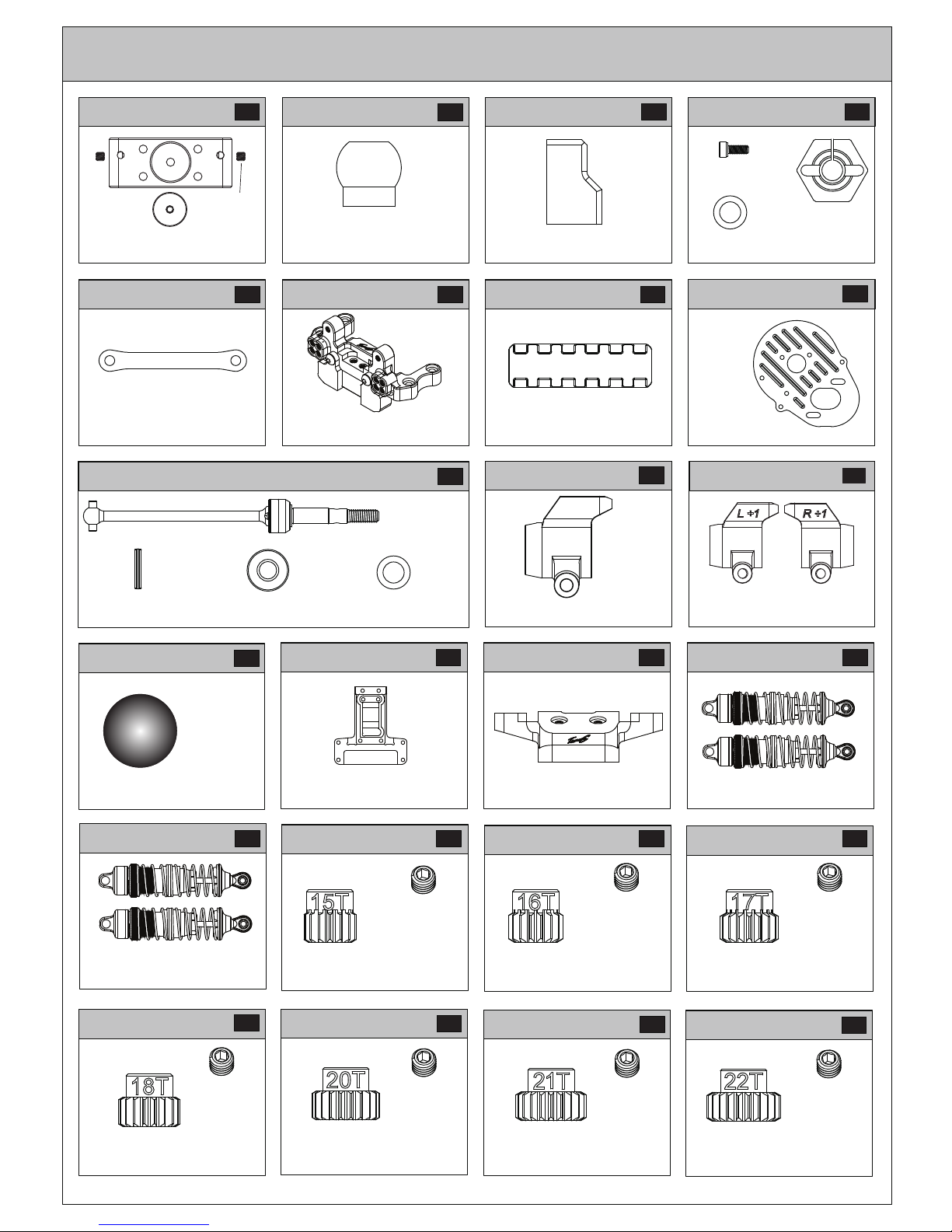

Page 27
配件包
Tu0222
Servo mount 2pcs
Hex mount
5.1x8x0.2 Washer
六角座
伺服機固定座
2x5 Screw
墊片
螺絲
Front hinge pin brace
前擺臂固定片
Brass battery tray 1pcs
電池銅座
Motor mount
馬達固定座
Aluminium Motor Gear - 15T
鋁合金馬達齒 - 15T
Tu0228
Tu0226
Tu0225Tu0224
Tu0229
4pcs
4pcs
4pcs
1pcs
1pcs
1pcs
3x3 Screw
H475 H476 H477
H478
H480
H481
H482
1pcs
3x3 Screw
1pcs
3x3 Screw
1pcs
3x3 Screw
1pcs
3x3 Screw
1pcs
3x3 Screw
1pcs
3x3 Screw
1pcs
Aluminium Motor Gear - 16T
鋁合金馬達齒 - 16T
1pcs
Aluminium Motor Gear - 17T
鋁合金馬達齒 - 17T
1pcs
Aluminium Motor Gear - 18T
鋁合金馬達齒 - 18T
1pcs
Aluminium Motor Gear - 22T
鋁合金馬達齒 - 22T
1pcs
Aluminium Motor Gear - 21T
鋁合金馬達齒 - 21T
1pcs
Aluminium Motor Gear - 20T
鋁合金馬達齒 - 20T
1pcs
Tu0236
Rear hub carriers
後輪座
2pcs
OP
OP
OP
OPOP
OP
OP
OPOPOP
OP
OP
OP
5.1x8x0.2 Washer
墊片
CVD for ae rim
美式CVD
1.6x11 Spring Pin
彈簧銷
Aluminum Washer
鋁墊片
Tu0234
4pcs
2pcs
2pcs
2pcs
OP
OP
Tu0238
Ceramic Ball 2.37mm
陶瓷珠
12pcs
OP
Tu0223
Rear arm mount -Ball 8pcs
後擺臂固定座-球珠
OP
Parts list for TC02T-Pro truck - 5 (TC02T-Pro - 5)
Front arm mount 1Set
前摆臂固定座
Tu0237
Rear Hub 1 Degree
后轮座1°
1pcs
1pcs
M3x3
OP
TU0227
Rear Brace Mount w/20g Weight
后支撑座 重量w/20g
1set
OP
Tu0239
Carbon rear chassis
碳纖後底盤
1pcs
OP
Tu0248
OP
Front Castle Block
前上擺臂座
1pcs
Tu0266
OP
Tu0268
OP
Rear Big Bore For Truck
後大避震-卡車
Front Big Bore For Truck
前大避震-卡車
Page 28
Loading...
