尺寸：
TC02C EVO
Length …………………………………………………………………………410mm
Width …………………………………………………………………………250mm
Height …………………………………………………………………………150mm
長度
寬度
高度
Dimensions
Instruction manual
www.teamcracing.net
1:10 SCALE RADIO CONTROLLED ELECTRIC
POWERED 2wd RACING BUGGY
9
8
7
6
10
11
12
13
14
Transmitter Preparation
調整遙控器
1
2
3
GLG20
2.4GHz
4
5
1 Control Panel
2 Steering Wheel
3 Throttle Trigger
控制面板
轉向輪
油門板扣
4 Battery Compartment
5 Charging Jack
充電接口
6 Sterring Servo Reverse
7 Power LED
8 Steering Trim
9 Bind Button
電源指示燈
轉向调節
設定按扭
10 Throttle Servo Reverse
11 Battery Voltage
12 Steering Dual Rate
13 Power Switch
14 Throttle Trim
電池電壓
轉向大小微調
電源開關
油門微調
電池盒
轉向正逆轉開關
油門正逆轉開關
Transmitter Battery Installation
遙控器電池安裝
Open battery cover at the bottom of transmitter.
Install batteries. Follow the direction of batteries
designated in the inside of battery box.
在遙控器的底部打開電池蓋子,安裝電池。
跟隨電池的指示在電池盒裡面指定。
Battery Cover
電池蓋
AA Alkaling Batteries
4X
AA 堿性電池

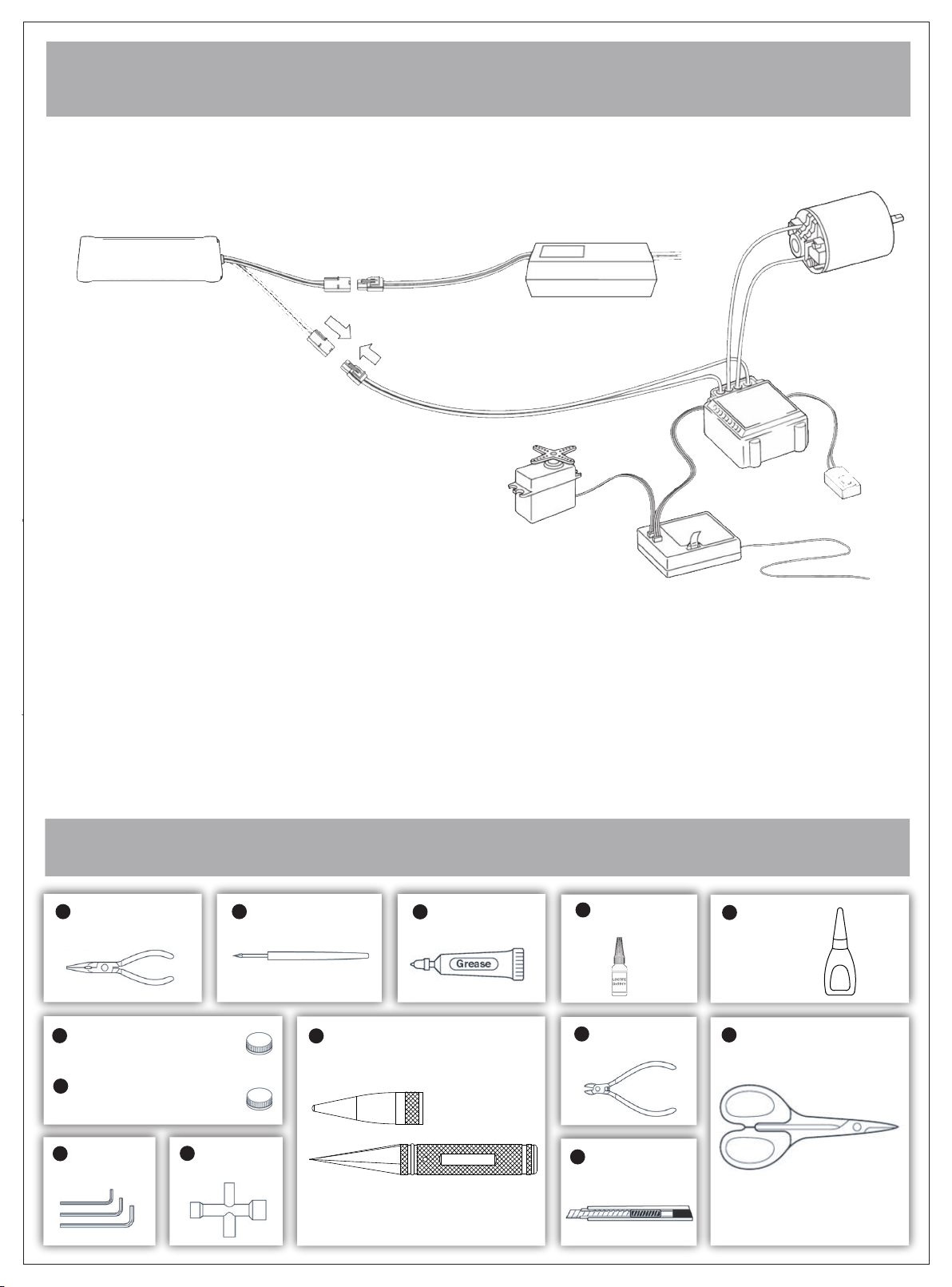

Transmitter Preparation
Battery Charger
(Not Included)
Battery
Servo
Motor
Electronic Speed
Controller / Switch
Receiver
Note: When done driving Turn Off the
ESC and THEN Transmitter
Install Transmitter Batteries1.
Connect Battery to ESC2.
Switch on Transmitter First3.
Switch on ESC Second4.
安裝發射電池
連接電池到電調
首先接通發射機
其次接通電調
注意：當停止駕駛首先要關掉電調
其次再關掉發射機
電池
充電器（不包括）
馬達
伺服
接收機
電子變速器
调整遥控器
Tools required
组裝需要的工具
Needie Nose Pllers
尖嘴钳
Differential Grease
差速油
Molybdenum Grease(Black)
钼油(黑)
Hex Wrench
六角扳手
Awl
锥
Hex Wrench
十字套筒
Grease
润滑油
H154
Body Reamer
车壳绞刀
No need to pre-drill precise holes
(1mm to 15mm)can be drilled
可以对预钻的孔准确的钻1mm-15mm
Screw Cement
螺丝胶水
Wire Cutters
钢丝钳
Sharp Hobby knife
美工刀
H162
Instant Glue
瞬间胶水
H096
ROUND CUTTER
剪刀
For trimming bodies!
用于修剪車壳！
Front Suspension
1
前悬吊系统
L
Bag-A
R
TU0226OR
Front Hinge Pin Brace
前摆臂固定片
T02056
2.3 E-ring
2.3 E扣
TU0222OR
Front Arm Mount
前下摆臂座
TU0222OR
M3x3 Screw
M3x3螺丝
T02016
Front Lower Arm
前下摆臂
TU0222OR
T02056 2.3 E-ing
T02056 3x34.5 Hinge Pin Front-Inner
Front Suspension
2
前悬吊系统
M3x3 Screw
M3x3螺丝
..............................................2
2.3 E扣
................................................4
3x34.5前摆臂轴-内
...............2
Bag-A
T02056
3x34.5 Hinge Pin Front-Inner
3x34.5前摆臂轴-内
TS4042
Ball Stud-Long
球头-长
T02015
Front Upper Suspension Arm Mount
前上摆臂座
FS315
M3x15 Screw
M3x15螺丝
........4
TS4042 Ball Stud-Long
L
球头-长
.................2
Assemble both Left and Right
組裝左和右
R
T02008
Front Chassis Plate
前底盤
T02185
Front Bumper
前防撞板
FS315
M3x15 Screw
M3x15螺丝
1
Buffer
3
缓冲
T02043OR 4.0 E-ring
Bag-A
4.0 E扣
1
2
3
B0306025
3x6x2.5 Ball Bearing
3x6x2.5轴承
3
T02023
Servo Saver-L
缓冲臂-L
10
9
B0306025
3x6x2.5 Ball Bearing
3x6x2.5轴承
T02043OR
Buffer Nut
缓冲调解螺帽
T02043OR
Buffer Spring
缓冲弹簧
2
1
T02043OR
4.0 E-ring
8
5
T02061
Ball Stud-Silver
球头-银色
4.0 E扣
T02023
T02043OR
Buffer Column-B
Servo Saver Upper
缓冲臂上
转向缓冲器-B
4
B0306025
3x6x2.5 Ball Bearing
3x6x2.5轴承
7
T02023
Servo Saver Lower
缓冲臂下
6
…………….................1
B0306025
3x6x2.5 Ball Bearing
3x6x2.5轴承
…………….............4
T02061 Ball Stud-Silver
球头-银色
…………….............1
Buffer
缓冲
Bag-A
轴套
4
T02044 Block Carrier
4.0mm
T02044
Block Carrier
轴套
T02043OR
Buffer Column-A
转向缓冲器-A
11
B0306025
3x6x2.5 Ball Bearing
3x6x2.5轴承
TS4043
Ball Stud-Short
球头-短
……………............2
T02044 M3x10 Screw
M3x10螺丝
………...2
TS4043 Ball Stud-Short
球头-短
…………….......2
T02044 3x7x0.8 Washer
3x7x0.8垫片
…………….2
T02044
M3x10 Screw
M3x10螺丝
T02024
Steering Rack
缓冲连接片
T02044
3x7x0.8 Washer
3x7x0.8垫片
2

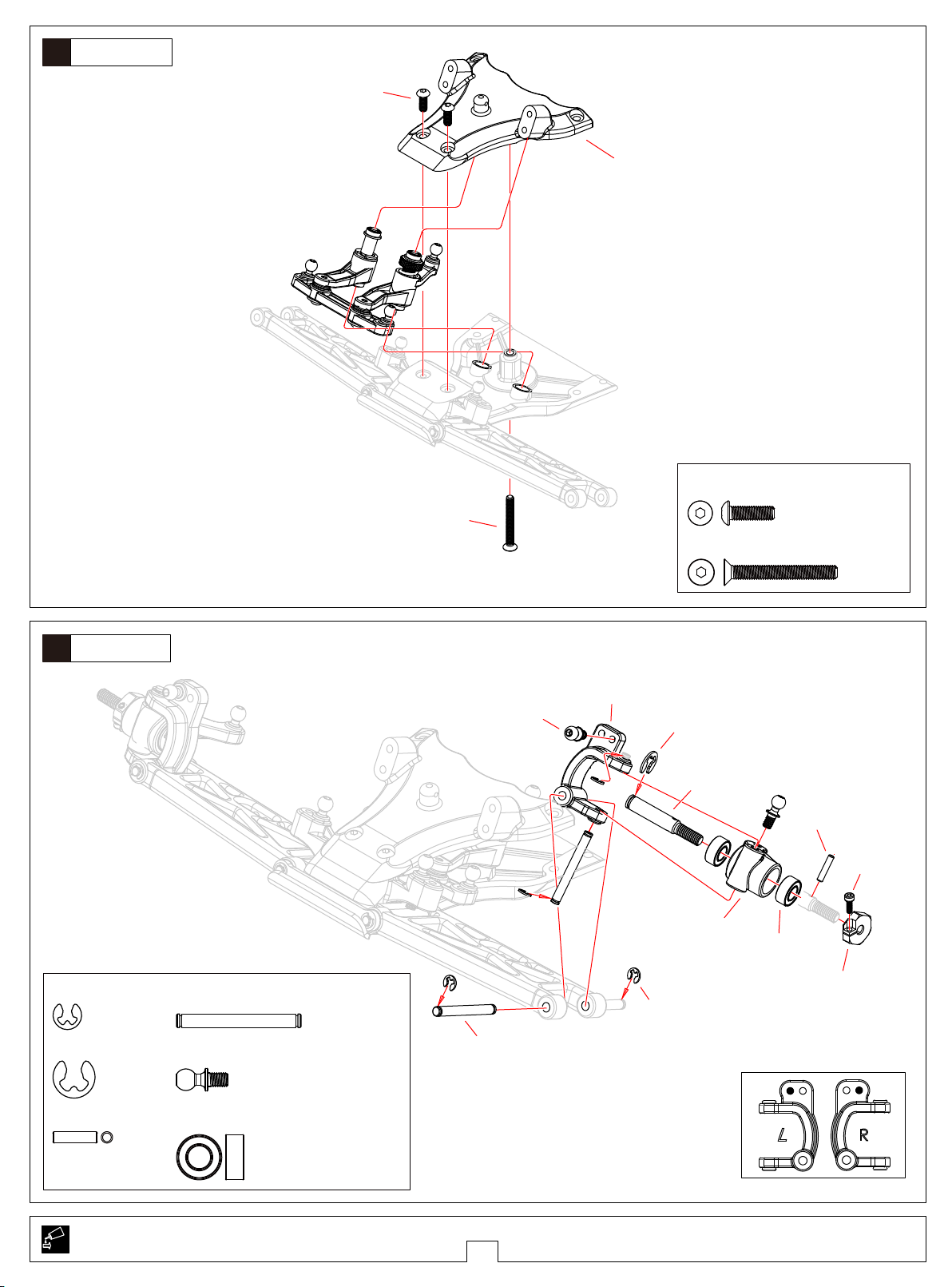

Front Suspension
5
前悬吊系统
Bag-A
BS310
M3x10 Screw
M3x10螺丝
FS325
M3x25 Screw
M3x25螺丝
T02019
Front Brace Mount
前支撐座
BS310
FS325
M3x10 Screw
M3x10螺丝
...............................2
M3x25 Screw
M3x25螺丝
..........1
Front Suspension
6
前悬吊系统
T02054 2.3 E-ring
2.3 E 扣
……………8
T02042 4.0 E-ring
4.0 E 扣
………….2
T02042 2x9.8 Pin
2x9.8钢针
………2
Bag-A
T02054 3X27.5 Hinge Pin Front-Outer
TS4043
B051004
前摆臂销-外
………............4
Ball Stud-Short
球头-短
…………............................4
5x10x4 Ball Bearing
5x10x4轴承
T02011
TS4043
Ball Stud-Short
球头-短
C-Type Holder-L
C型座-L
T02054
3X27.5 Hinge Pin Front-Outer
3X27.5前摆臂销-外
T02042
4.0 E-ring
4.0 E 扣
T02012
Steering Block-L
转向臂-L
T02054
2.3 E-ring
2.3 E 扣
T02042
Front Wheel Axle
前轮轴
B051004
5x10x4 Ball Bearing
5x10x4轴承
T02042
2x9.8 Pin
2x9.8钢针
T02245
Hex Mount
六角座
T02245
M2x5 Screw
M2x5螺丝
Apply threadlocker(screw cement)
Screw
Cement
打螺丝胶水
………...........................4
3
7
Turnbuckle
拉杆
Bag-A
4mm
1:1 x1
1:1 x1
1:1 x2
Front Upper-L
前上拉杆-左
Front Upper-R
前上拉杆-右
Steering Tip
转向拉杆
approx.28mm
大约28mm
▲Projection.Note direction
注意方向
approx.28mm
大约28mm
▲Projection.Note direction
注意方向
approx 24mm
大约24mm
T04107
3x45 Turnbuckle
3x45拉杆
T04107 3x45 Turnbuckle
8
3x45拉杆
Front Suspension
前悬吊系统
Bag-A
T04014
4.8mm Ball End-Long
4.8mm球头座-长
...................4
T04014 4.8mm Ball End-Long
4.8mm球头座-长
..................................8
▲Projection.Note direction
注意方向
Ture-to-scale diagram
1:1
圖形比例
Assemble as many times as specified
x1
需組裝數量
Assemble as many times as specified
x2
4
需組裝數量
Front Suspension
9
前悬吊系统
TU0250-6
Shock Cap Ball
避震盖球头
Bag-A
TU0250-6
3.1x5.5x2.0 Aluminium Washer
3.1x5.5x2.0铝垫片
BS310
M3x10 Screw
M3x10螺丝
T02020
Front Shock Tower
前避震器架
BS322
M3x22 Screw
M3x22螺丝
BS322
M3x22 Screw
M3x22螺丝
......2
BS310
M3x10 Screw
M3x10螺丝
...................4
TU0250-6 Shock Cap Ball
避震盖球头
...................2
TU0250-6 3.1x5.5x2
Aluminium Washer
3.1x5.5x2铝垫片
...........................2
Differential
10
差速器
W101202
Bag-B
10x12x0.2
10x12x0.2垫片
Washer
..................2
B101504
10x15x4 Ball Bearing
10x15x4轴承
..................1
T02154 2x8.8 Pin
2x8.8钢针
............................1
T02156
4.8x1.6 O-ring
4.8x1.6
O环
............................1
T02154 5.1x13x0.2 Washer
5.1x13x0.2
垫片
.........................1
T02154
28T Gear
28T齿轮
T02154
5.1x13x0.2 Washer
5.1x13x0.2垫片
T02154
2x8.8 Pin
2x8.8钢针
T02156
4.8x1.6 O-ring
4.8x1.6 O环
T02152
52T Diff Gear
52T差速齿轮
W101202
10x12x0.2 Washer
10x12x0.2垫片
B101504
10x15x4 Ball Bearing
10x15x4轴承
T02155
Diff Connecting Cup
差速接杯
T02154
14T Gear
14T齿轮
T02157
Diff Gear Shaft
差速齿轮轴
5

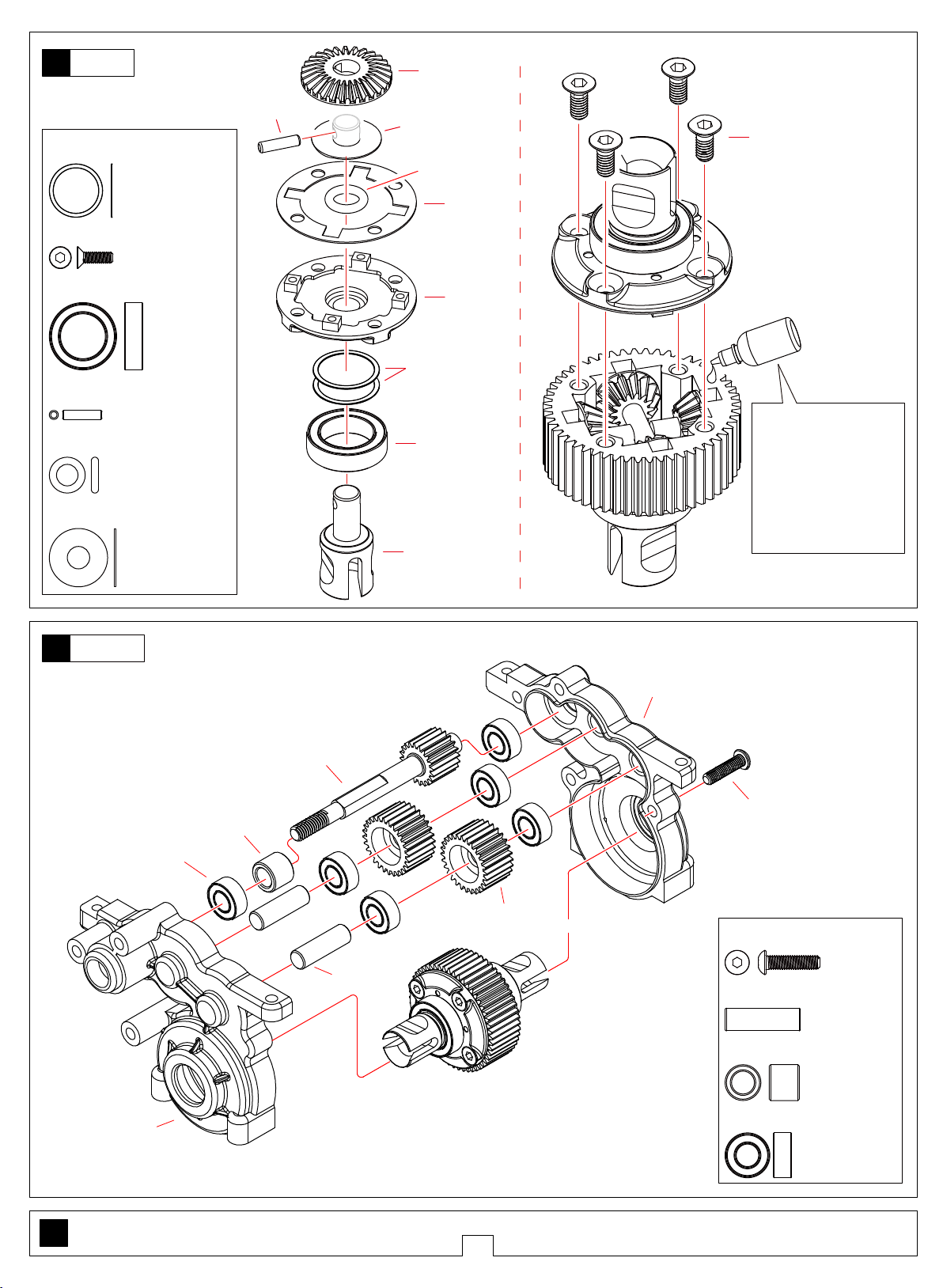

Differential
11
差速器
W101202
Bag-B
10x12x0.2
10x12x0.2垫片
..................2
T02152 M2.5x8 Screw
M2.5x8螺丝
.......................4
B101504
10x15x4 Ball Bearing
10x15x4轴承
Washer
T02154
2x8.8 Pin
2x8.8钢针
T02154
28T Gear
28T齿轮
T02154
5.1x13x0.2 Washer
5.1x13x0.2垫片
T02156
4.8x1.6 O-ring
4.8x1.6 O环
T02153
Diff Pads
差速垫片
T02152
52T Diff Gear Cover
52T差速齿轮盖
T02152
M2.5x8 Screw
M2.5x8螺丝
..................1
T02154 2x8.8 Pin
2x8.8钢针
............................1
T02156
4.8x1.6 O-ring
4.8x1.6
O环
............................1
T02154 5.1x13x0.2 Washer
5.1x13x0.2
垫片
.........................1
12
Transmission
差速箱
Bag-B
T02052
Gear-20T
入力齿-20T
W101202
10x12x0.2 Washer
10x12x0.2垫片
B101504
10x15x4 Ball Bearing
10x15x4轴承
T02155
Diff Connecting Cup
差速接杯
T02251
Gear Box-R
齿轮箱-右
1000#
High grip:
Suggest using 1500#-2000#
differential oil;
Low grip:
Suggest using 500#-700#
differential oil.
高抓地力：
建議使用1500#-2000#差速油；
低抓地力：
建議使用500#-700#差速油。
B051004
5x10x4 Ball Bearing
5x10x4轴承
T02251
Gear Box-L
齿轮箱-左
Must be purchased separately
X
需另购物品
T02041
Top Shaft Spacer
衬套
T02051
Idler Gear Shaft
减速齿轮轴
TU0258
28T Spur Gear-Alumimum
28T减速齿-铝
6
BS312
M3x12 Screw
M3x12螺丝
BS312
M3x12 Screw
M3x12螺丝
................1
T02051 Idler Gear Shaft
减速齿轮轴
....................2
T02041 Top Shaft Spacer
衬套
....................1
B051004
5x10x4 Ball Bearing
5x10x4轴承
....................6
13
Rear Chassis
后底盘
Bag-B
T02250
Rear Chassis
后底盘
FS312
M3x12 Screw
M3x12螺丝
FS312
M3x12 Screw
M3x12螺丝
...............4
14
Motor Mount
马达座
Bag-B
T02252
Motor Mount
马达座
BS328
M3x28 Screw
M3x28螺丝
BS328
M3x28 Screw
M3x28螺丝
.........3
7
Spur Gear
15
减速齿轮
T02084 M4 Flanged Nylon Nut
Bag-B
M4带边尼龙螺母
..........................1
T02211
5x7 Top Shaft Spacer
轴套
T02039
Slipper Hub
扭限座
T02038
Slipper Pad
扭限摩擦片
T02001
Spur Gear-80T
减速齿-80T
T02038
Slipper Pad
扭限摩擦片
T02039
Slipper Hub
扭限座
18
T02040
Slipper Spring
扭限弹簧
T02084
M4 Flanged Nylon Nut
M4带边尼龙螺母

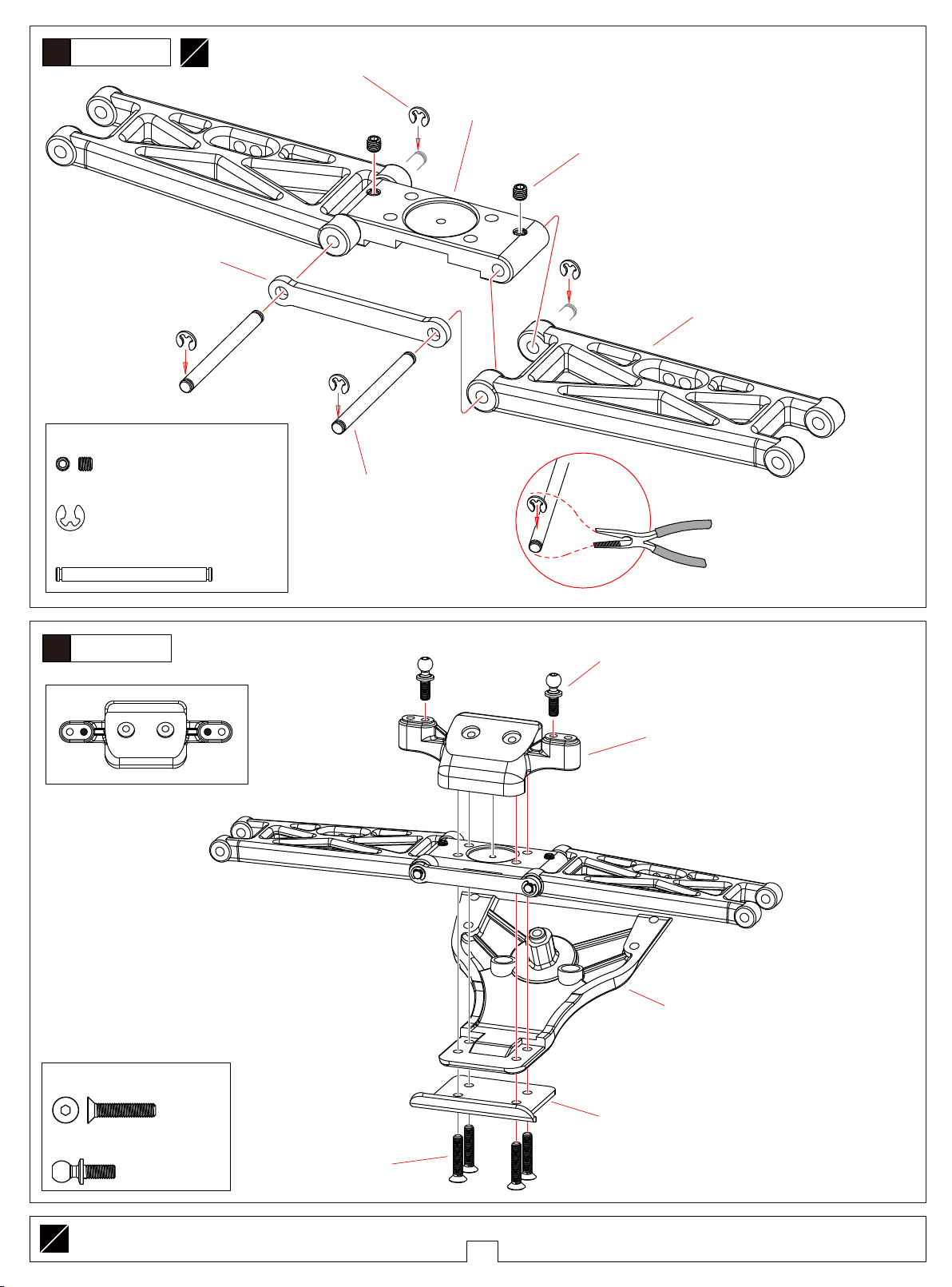

Rear Suspension
16
后悬吊系统
TS4042 Ball Stud-Long
球头-长
Bag-C
…………..2
FS314
M3x14 Screw
M3x14螺丝
.....................2
FS308
M3x8 Screw
M3x8螺丝
.........................2
T02055 3x48 Hinge Pin Rear-Inner
3x48后摆臂轴-内
.........................2
TS4042
Ball Stud-Long
球头-长
T02254
Rear Shock Tower Mount
后避震架固定座
T02204
Arm Mount-RR
摆臂固定座-RR
FS314
M3x14 Screw
M3x14螺丝
FS308
M3x8 Screw
M3x8螺丝
T04008
Rear Lower Arm-R
后下摆臂-右
T02055
3x48 Hinge Pin Rear-Inner
3x48后摆臂销-内
8

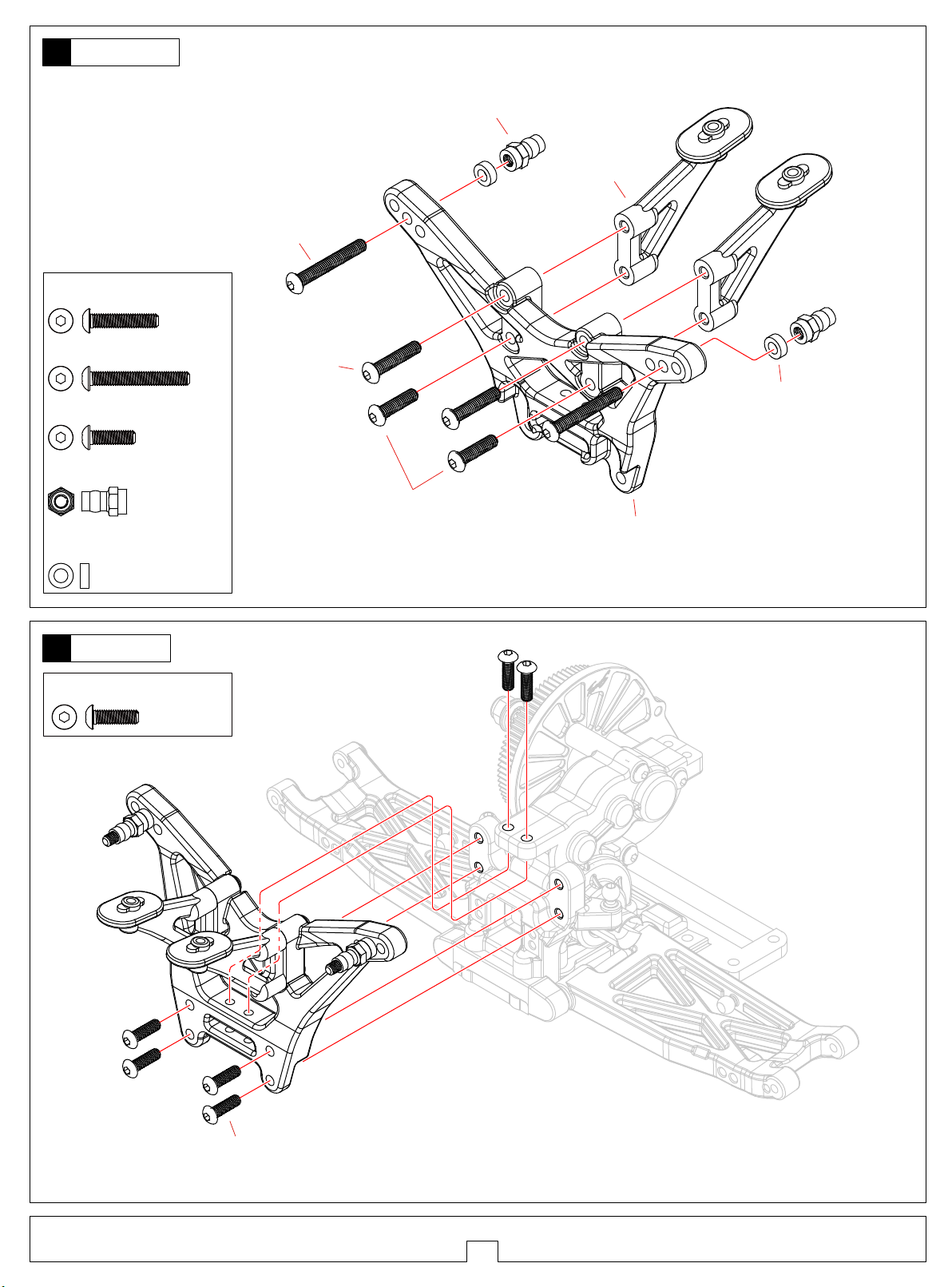

Rear Shock Tower
17
后避震架
BS315
M3x15 Screw
M3x15螺丝
BS322
M3x22 Screw
M3x22螺丝
BS310
M3x10 Screw
M3x10螺丝
...................2
TU0250-6 Shock Cap Ball
避震盖球头
Bag-C
......2
......2
BS322
M3x22 Screw
M3x22螺丝
BS315
M3x15 Screw
M3x15螺丝
TU0250-6
Shock Cap Ball
避震盖球头
T04012
Wing Bracket
尾翼架
TU0250-6
3.1x5.5x2.0 Aluminium Washer
3.1x5.5x2.0铝垫片
...................2
TU0250-6 3.1x5.5x2
18
BS310
Aluminium Washer
3.1x5.5x2铝垫片
...........................2
Rear Suspension
后悬吊系统
M3x10 Screw
M3x10螺丝
Bag-C
..............6
BS310
M3x10 Screw
M3x10螺丝
T02257
Rear Shock Tower
后避震器架
BS310
M3x10 Screw
M3x10螺丝
9

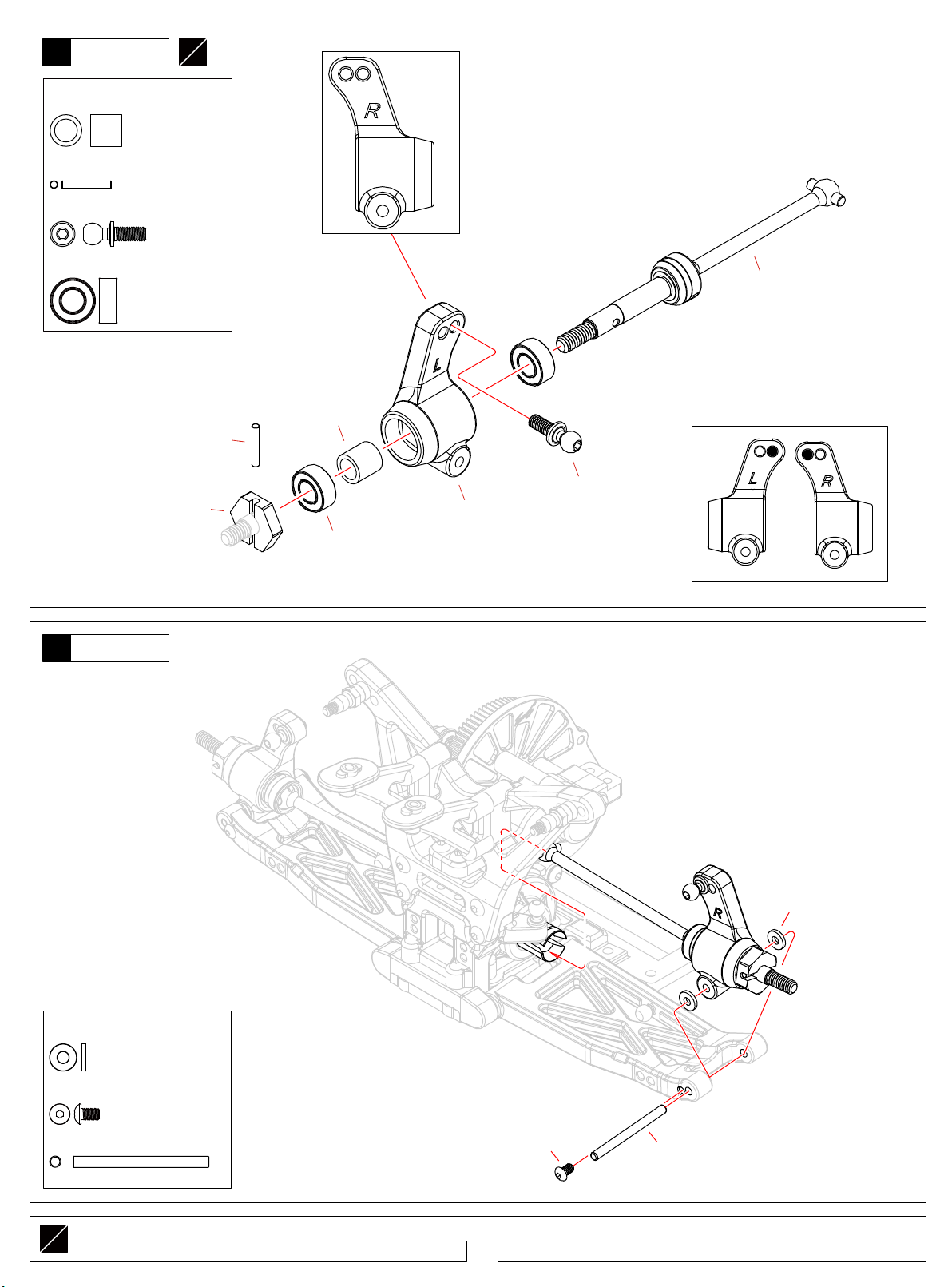

Rear Hub Carrier
19
后轮座
T02183 Rear Bearing Collar
T02262 1.7x11 Pin
TS4042 Ball Stud-Long
B051004
后轮轴套
1.7x11钢针
球头-长
5x10x4 Ball Bearing
5x10x4轴承
L
................2
......................2
..............2
.....................4
T02262
1.7x11 Pin
1.7x11钢针
Bag-C
R
< R >
T02263
65mm Rear CVD
65mm后CVD
T02183
Rear Bearing Collar
后轮轴套
Rear Suspension
20
后悬吊系统
T02173
Rear Hex Mount
后六角座
Bag-C
B051004
5x10x4 Ball Bearing
5x10x4轴承
TR4011
Rear Hub-L
后轮座-左
TS4042
Ball Stud-Long
球头-长
TR4011
2.5x6x1 Washer
2.5x6x1垫片
TR4011 2.5x6x1
BS2504
TR4046 2.5x30 Arm Pin
L
2.5x6x1垫片
M2.5x4螺丝
2.5x30摆臂轴
Assemble both Left and Right
組裝左和右
R
Washer
......................4
M2.5x4 Screw
......................2
......................2
10
BS2504
M2.5x4 Screw
M2.5x4螺丝
TR4046
2.5x30 Arm Pin
2.5x30摆臂轴
21
Turnbuckle
拉杆
Bag-C
T02255
3x40 Turnbuckle
3x40拉杆
4mm
T04014
4.8mm Ball End-Long
4.8mm球头座-长
1:1 x1
1:1 x1
Rear Upper-L
后上拉杆-左
Rear Upper-R
后上拉杆-右
approx 17.5mm
大约17.5mm
▲Projection.Note direction
注意方向
approx 17.5mm
大约17.5mm
▲Projection.Note direction
注意方向
T02255 3x40 Turnbuckle
22
3x40拉杆
Rear Suspension
后悬吊系统
Bag-C
...................2
T04014 4.8mm Ball End-Long
4.8mm球头座-长
..................................4
Ture-to-scale diagram
1:1
圖形比例
Assemble as many times as specified
x1
需組裝數量
11
Rear Swaybar
23
后防倾杆
Bag-C
x2
T04150
M3x10 Screw
M3x10螺丝
T04150
4.8mm Ball End-Short
4.8mm球头座-短
T04109
Swaybar Ball Stud
防倾杆球头
Rear Swaybar
24
后防倾杆
Bag-C
T02259
Swaybar Mount Upper
防倾杆座上
T02259
M3x3 Screw
M3x3螺丝
T02259
M2.5x10 Screw
M2.5x10螺丝
T02259
Swaybar Mount Lower
防倾杆座下
T04152
Swaybar-1.2
防倾杆-1.2
T04109
M3x3 Screw
M3x3螺丝
T02259/T04109
T02259
M3x3螺丝
................................4
M2.5x10 Screw
M2.5x10螺丝
M3x3 Screw
...................2
Assemble as many times as specified
x2
需組裝數量
12

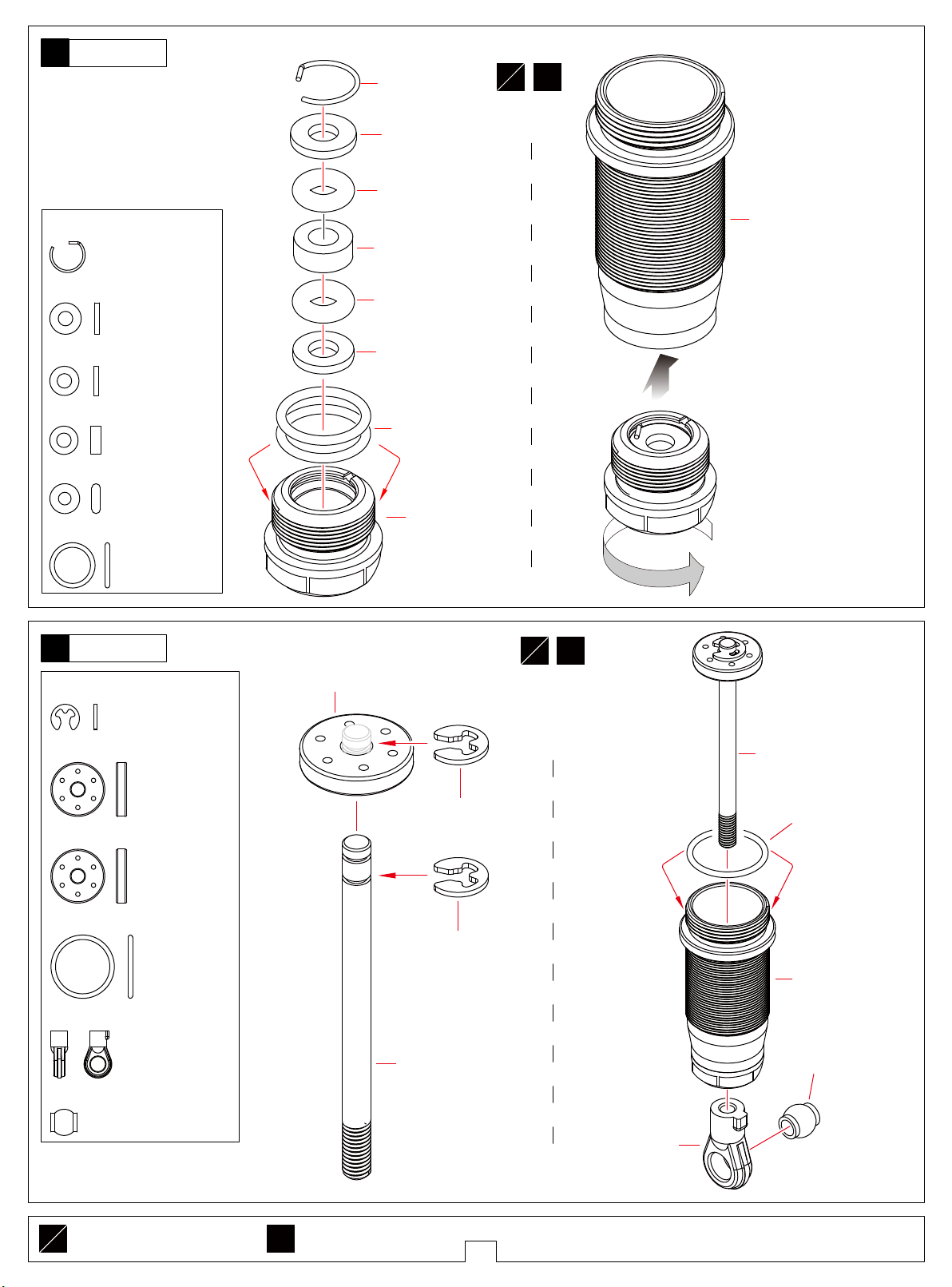

Shock Absorber
25
避震器
Bag-D
TU0250-8
Spring
弹簧
TU0250-8
1mm Washer-Black
1mm压垫-黑色
F
x2
R
TU0250-8
TU0250-8 1mm Washer-Black
TU0250-8 1mm Washer-White
TU0250-8 2.5mm Washer-White
TU0250-8 2.8x1.9 O-ring
TU0250-8 9x1 O-ring
26
TU0250-1/TU0250-2 2.3 E-ring
Spring
弹簧
...........…………......4
1mm压垫-黑色
...........…………...4
1mm压垫-白色
...........…………..4
2.5mm压垫-白色
...........…………..4
2.8x1.9 O环
...........……….....8
9x1 O环
...........………...8
Shock Absorber
避震器
2.3 E扣
Bag-D
TU0250-7
Front Piston-Black
Rear Piston-White
前活塞-黑色
后活塞-白色
TU0250-8
2.8x1.9 O-ring
2.8x1.9 O环
TU0250-8
2.5mm Washer-White
2.5mm压垫-白色
TU0250-8
2.8x1.9 O-ring
2.8x1.9 O环
TU0250-8
1mm Washer-White
1mm压垫-白色
TU0250-8
9x1 O-ring
9x1 O环
TU4160
Shock Below Cover
避震下盖
T04158
Front Shock Absorber Body-Short
前避震器筒身-短
T04159
Rear Shock Absorber Body-Long
后避震器筒身-长
F
x2
R
..................................8
TU0250-7 Front Piston-Black
TU0250-7 Rear Piston-White
TU0250-8 12x1 O-ring
T02187 5.8 Ball End
T02062 5.8 Ball Stud
前活塞-黑色
.........................2
后活塞-白色
.........................2
12x1 O环
.........................4
5.8球头座
............................4
5.8球头
......................................4
TU0250-1/TU0250-2
2.3 E-ring
2.3 E扣
TU0250-1/TU0250-2
2.3 E-ring
2.3 E扣
TU0250-1
Front Shock Absorber Shaft
前避震器轴
TU0250-2
Rear Shock Absorber Shaft
后避震器轴
T02187
5.8 Ball stud
5.8球头座
Front For Short
前面用短
Rear For Long
后面用长
TU0250-8
12x1 O-ring
12x1 O环
Front For Short
前面用短
Rear For Long
后面用长
T02062
5.8 Ball stud
5.8球头
Assemble both front and rear
F
組裝前面和後面
R
Assemble as many times as specified
x2
需組裝數量
13

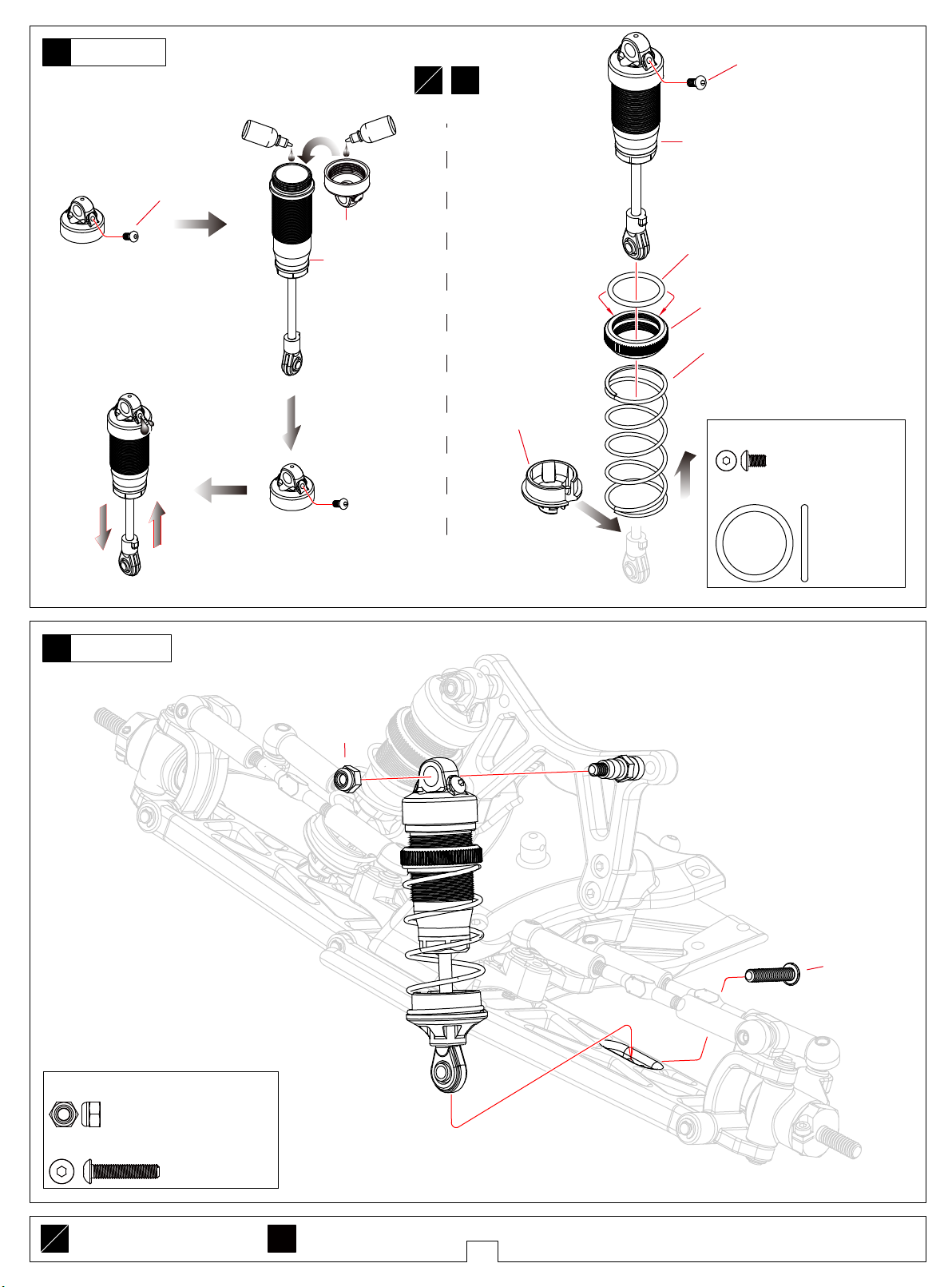

Shock Absorber
27
避震器
Bag-D
TU0266-7
F
x2
R
M2.5x4 Screw
M2.5x4螺丝
TU0266-7
M2.5x4 Screw
M2.5x4螺丝
Please locking the screw.
将螺丝锁紧。
400#
TU0266-7
Shock Upper Cover
避震上盖
Front For Short
前面用短
Rear For Long
后面用长
Please loosing the screw.
将螺丝松开。
400#
TU0266-7
Below Spring Mount End
弹簧下座
Front For Short
前面用短
Rear For Long
后面用长
TU0250-8
14x1.5 O-ring
14x1.5 O环
T04161
Spring Adjuster
弹簧调节座
TU0250-12F
Front Shock Absorber Spring-Medium
前避震器弹簧-中
TU0250-10R
Rear Shock Absorber Spring-Medium
后避震器弹簧-中
TU0266-7
M2.5x4 Screw
M2.5x4螺丝
……………............4
TU0250-8 14x1.5 O-ring
14x1.5 O环
.....................4
Front Suspension
28
前悬吊系统
T02084 M3 Nylon Nut
M3尼龙螺母
.........................................2
BS315
M3x15 Screw
M3x15螺丝
Bag-D
T02084
M3 Nylon Nut
M3尼龙螺母
BS315
M3x15 Screw
M3x15螺丝
.........................2
Assemble both front and rear
F
組裝前面和後面
R
Assemble as many times as specified
x2
需組裝數量
14
Rear Suspension
29
后悬吊系统
Bag-D
T02084
M3 Nylon Nut
M3尼龙螺母
T02084 M3 Nylon Nut
BS312
30
M3尼龙螺母
.........................................2
M3x12 Screw
M3x12螺丝
Front Suspension
前悬吊系统
BS312
M3x12 Screw
M3x12螺丝
..............................2
Bag-E
BS310
M3x10 Screw
M3x10螺丝
......................6
Assemble both Left and Right
L
组装左和右
R
BS310
M3x10 Screw
M3x10螺丝
15
T02249
Main Chassis
主底盘
Rear Suspension
31
后悬吊系统
Bag-E
FS310
M3x10 Screw
M3x10螺丝
32
W3708
T02053
CS308
BS305
Motor
Bag-E
马达
3x7x0.8 Washer
3x7x0.8垫片
..............................2
M3x3 Screw
M3x3螺丝
..............................1
M3x8 Screw
M3x8螺丝
M3x5 Screw
M3x5螺丝
......................2
....................2
Motor
马达
X
W3708
3x7x0.8 Washer
3x7x0.8垫片
CS308
M3x8 Screw
M3x8螺丝
T02053
Pinion Gear-21T
马达齿-21T
T02053
M3x3 Screw
M3x3螺丝
FS310
BS305
M3x5 Screw
M3x5螺丝
M3x10 Screw
M3x10螺丝
T02005
Gear Cover
齿轮盖
T02005
Gear Cover Button
齿轮盖塞
..........6
16
Tighten the screws with one sheet of paper
inserted between both gears.
两齿轮之间的间隙大约为一张普通纸的厚度。

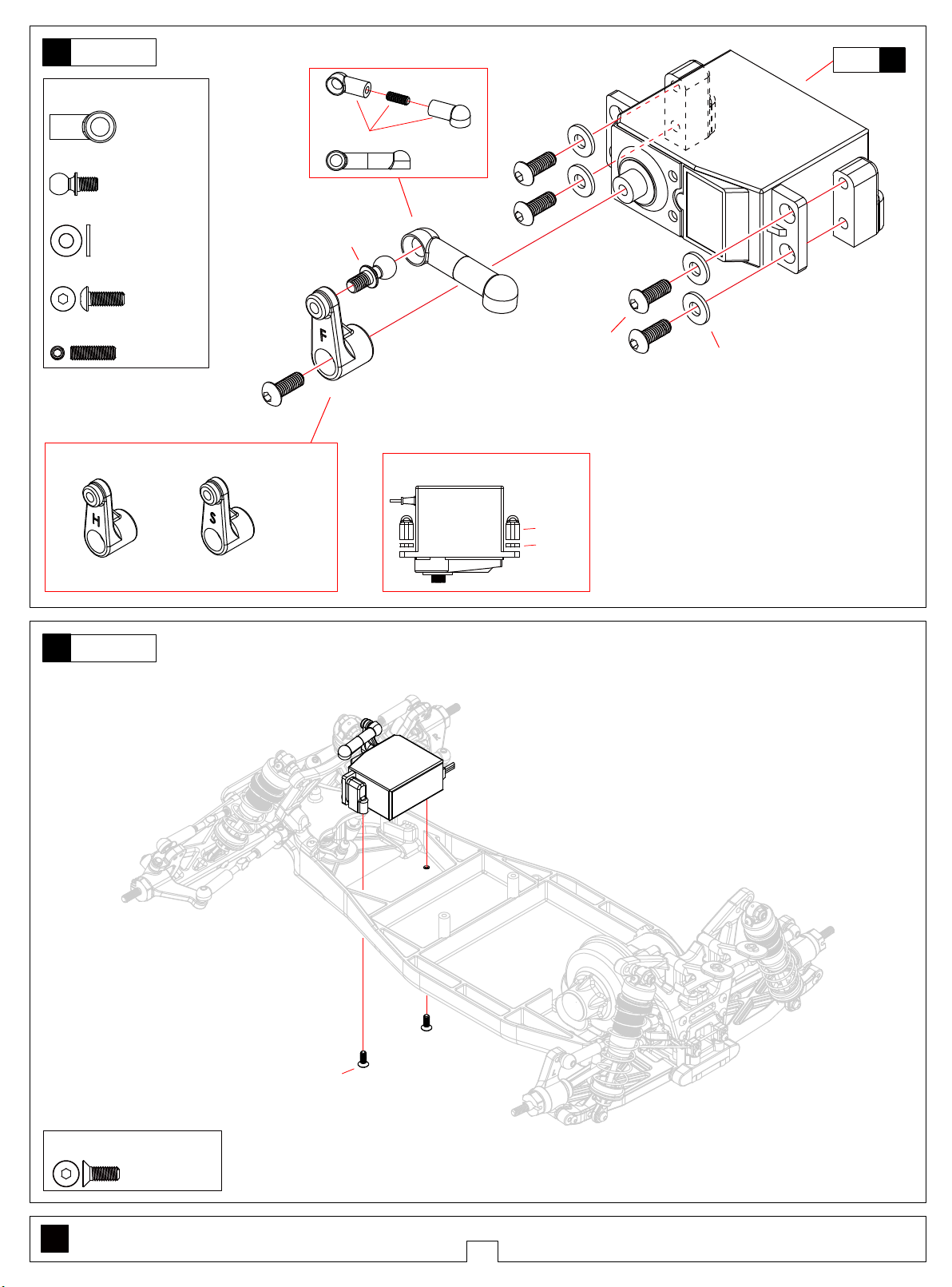

Steering Servo
33
转向伺服系统
T02030
Bag-E
4.8 Ball End-Short
球头座-短
Servo
伺服机
X
T02061 Ball Stud-Silver
W3708
BS308
T02030
Select for your servo
根据伺服器选择
Steering Servo-H(24T)
转向伺服臂H(24T)
.................2
球头-银色
.....................1
3x7x0.8 Washer
3x7x0.8垫片
....................4
M3x8 Screw
M3x8螺丝
................5
M3x10 Screw
M3x10螺丝
................1
T02061
Ball Stud-Silver
球头-银色
Steering Servo-S(23T)
转向伺服臂S(23T)
T02030
Sanwa servo
SANWA
BS308
M3x8 Screw
M3x8螺丝
T02028
T02035
W3708
3x7x0.8 Washer
3x7x0.8垫片
Steering Servo
34
转向伺服系统
Bag-E
FS308
M3x8 Screw
M3x8螺丝
FS308
M3x8 Screw
M3x8螺丝
................2
Must be purchased separately
X
需另購物品
17

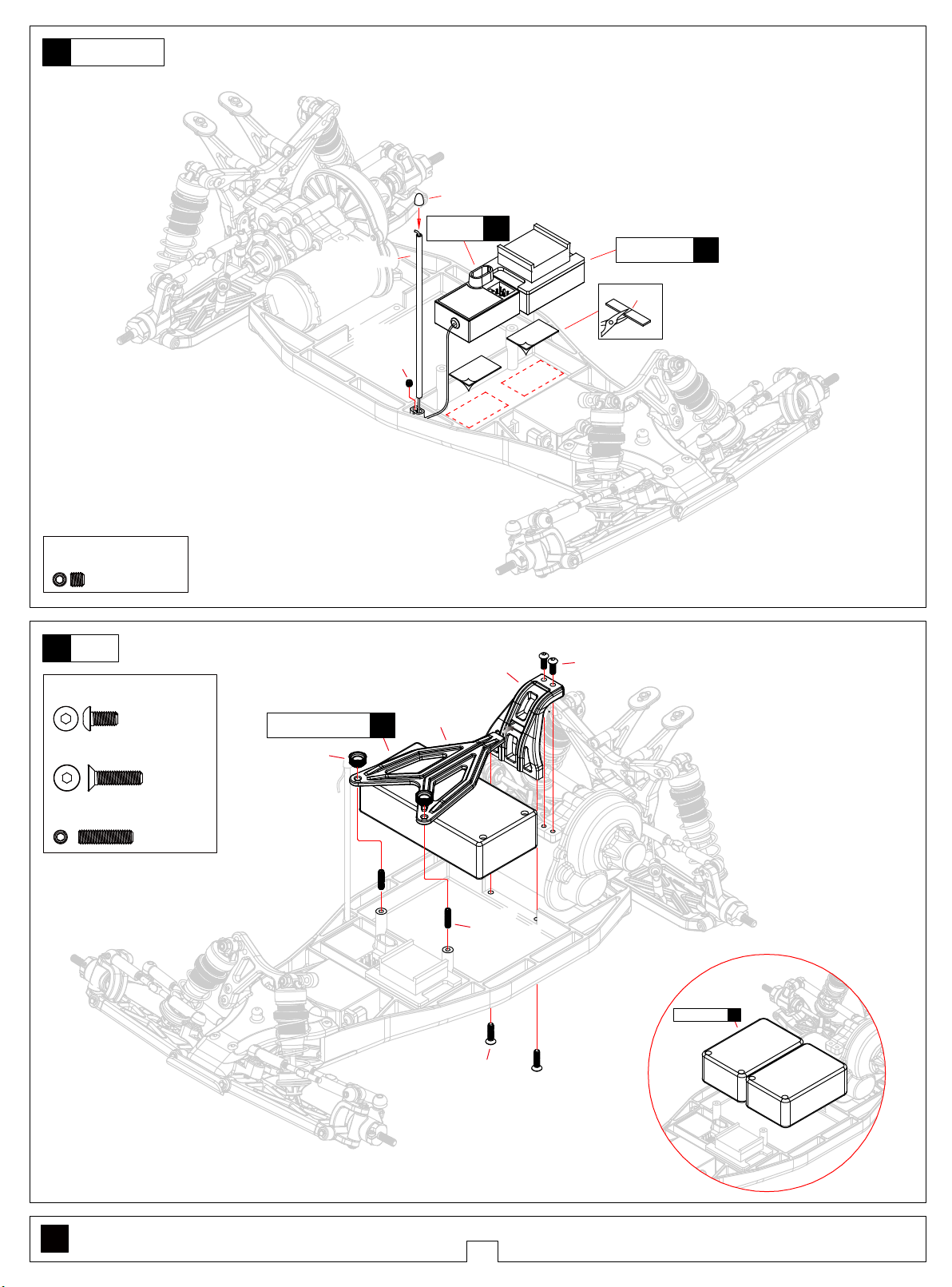

ESC/Receiver
35
电子变速器/接收机
Bag-E
T02087
Antenna Casing
天线套管
SS303
M3x3 Screw
M3x3螺丝
T02087
Antenna Cap
天线管帽
Receiver
接收机
X
ESC
电子变速器
T02087
Double-sided Tape
双面胶
X
SS303
36
BS306
FS312
SS312
M3x3 Screw
M3x3螺丝
.......................1
Battery
电池
Bag-E
M3x6 Screw
M3x6螺丝
M3x12 Screw
M3x12螺丝
M3x12 Screw
M3x12螺丝
................2
.............2
..........2
Short Pack Battery
短电
T04110
Nut
螺帽
T02258
Battery Holder
电池压板
X
T02253
Rear Brace Mount
后支撑座
SS312
M3x12 Screw
M3x12螺丝
BS306
M3x6 Screw
M3x6螺丝
Must be purchased separately
X
需另購物品
FS312
M3x12 Screw
M3x12螺丝
18
Saddle Pack Battery
分体电
X
37
FS310
Wing
Bag-E/G
尾翼
M3x10 Screw
M3x10螺丝
..........2
FS310
M3x10 Screw
M3x10螺丝
T04012
Wing Screw Washer
尾翼螺丝垫片
T04012
Wing Angie Shim
尾翼调整片
T04164
Wing-Lexan
尾翼
38
Tyre
轮胎
Bag-F
< Front >
X
x2
X
T02032
Front Rim
前轮框
< Rear >
X
x2
X
T02033
Rear Rim
后轮框
F
x2
R
After fitting wheels to tyres,
apply instant glue as shown
轮胎裝好后如图打胶水
Glue
膠水
Glue
膠水
Assemble both front and rear
F
組裝前面和後面
R
Assemble as many times as specified
x2
需組裝數量
19
Must be purchased separately
X
需另購物品
39
Tyre
轮胎
Bag-E
40
Body
车壳
Bag-G
T02256
Body
车壳
6mm
T02084
M4 Flanged Nylon Nut
M4带边尼龙螺母
T02084 M4 Flanged Nylon Nut
M4带边尼龙螺母
..........................4
20
41
Body
车壳
Bag-G
Mask the windows from the inside.
在车窗內壁贴上遮盖贴纸。
Body-Velcro Tape
42
车壳-魔鬼粘
Bag-G
TR4053
Velcro Tape
魔鬼粘
Paint the body shell from the inside
using spray colors.
在车壳内壁喷漆。
L
21
43
Body
车壳
H134
22
F
T02062
T02187
T02008
T02023
T02023
TU0226OR
B0306025
B0306025
T02061
TU0222OR
T02044
T02043OR
SS303
T02015
TS4042
TS4043
T02087
T04110
BS310
T02020
TS4043
T02044
BS308
BS308
W3708
T02027
T02030
T02028
T02019
T02061
BS308
BS322
W3708
T02041
BS310
T02052
B051004
BS310
T02251
TU0258
B051004
T02051
T02156
BS328
BS312
T02155
T02152
BS310
B101504

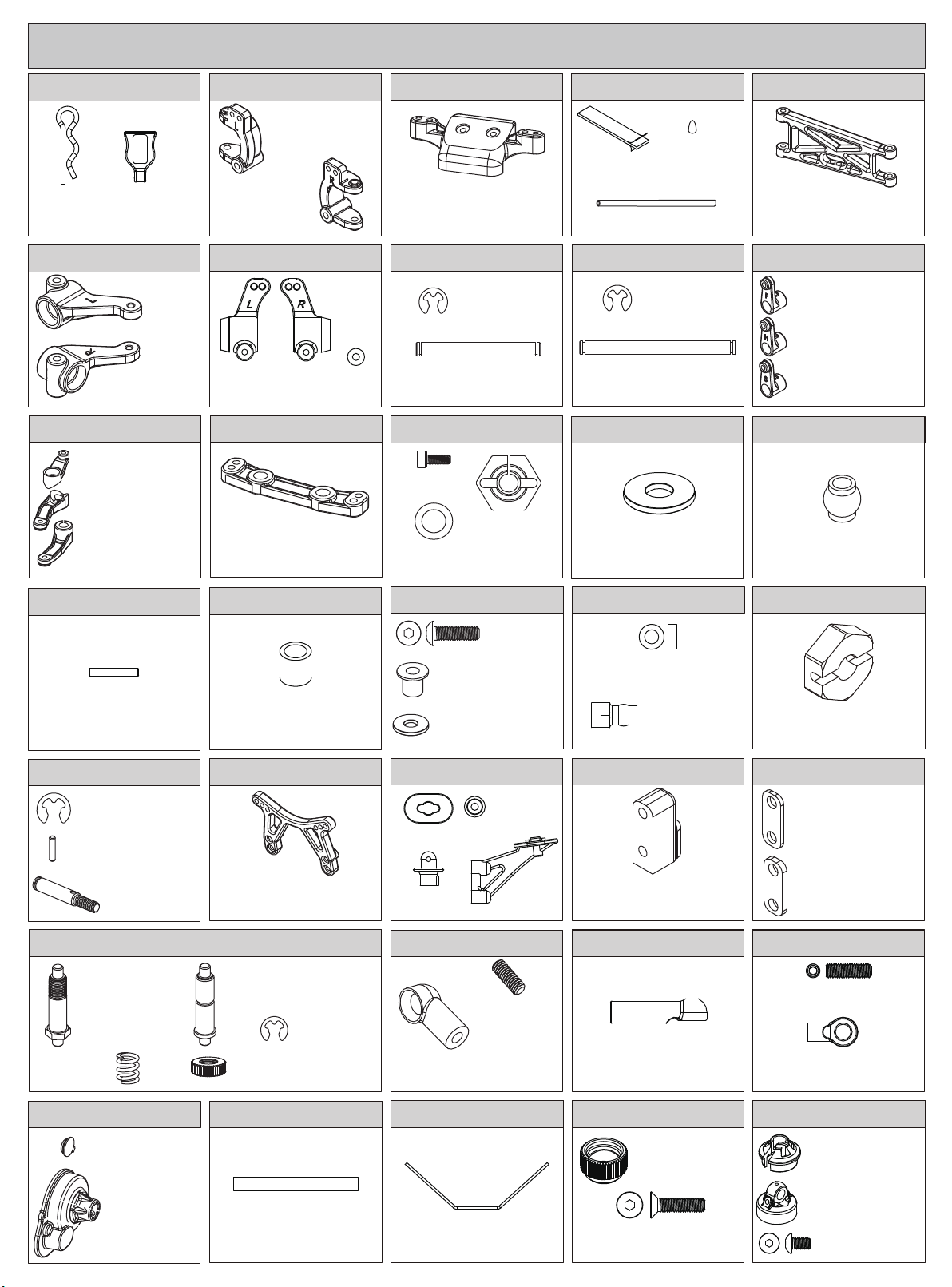

Exploded View
爆炸圖
B0306025
T02043OR
B0306025
T02043OR
T02249
T02185
T04107
T04014
TU0266-7
T04014
TS4043
T04014
T04107
FS315
BS310
FS325
BS310
FS308
T02084
TU0250-1
T04161
T02056
T02054
T02042
B051004
T02245
TU0250-7
TU0250-6
T04160
TU0250-8
T02056
T02011
T02012
TS4043
TU0250-8
T04014
T02054
T02042
BS315
T04158
TU0266-7
T02016
TU0250-8
TU0250-12F
T02054
T02054
B051004
TU0250-8
T02084
T02062
TU0250-8
T02187
T04159
BS312
SS312
T02258
T02032
T04150
T02055
TR4011
FS310
T04008
B051004
T02173
T02262
T04109
T02263
TR4011
TS4042
T02183
T02255
T04014
T02253
CS308
T04014
T02053
T02038
T02039
T02040
T02084
TU0250-6
TU0250-7
TU0250-8
TU0250-2
T04161
TU0250-10R
TU0266-7
TU0250-8
TU0250-8
T04160
TU0266-7
T02084
TR4046
BS2504
W3708
BS306
T02001
T02211
T02038
T02252
T02251
BS315
BS310
BS310
B101504
T02155
BS310
BS322
T02157
T02154
T02153
T02152
T02257
T04012
FS310
T04012
T02033
T02084
BS305
T02005
FS312
23
FS308
FS314
T02250
T02204
T02254
TS4042
T02259
T02259
T04164
Parts list for TC02C EVO off-road buggy - 1 TC02C EVO配件包-1
T02249
Main Chassis
主底盘 1pcs
T02254
Rear Shock Tower Mount
后避震架固定座 1pcs
TR4046
2.5x30 Arm Pin
2.5x30摆臂轴 2pcs
T02250
Rear Chassis
后底盘 1pcs
T02255
3x40 Turnbuckle
3x40拉杆 2pcs
T02055
3x48 Hinge Pin Rear-Inner
3x48后摆臂销-内 2pcs
T02251
Left 1pcs
T02256
T04008
Rear Lower Arm
Gear Box
齿轮箱
Body
车壳 1pcs
后下摆臂
Right 1pcs
Left 1pcs
Right 1pcs
T02252 T02253
Motor Mount
马达座 1pcs
T02257
Rear Shock Tower
后避震器架 1pcs
T02211
5x7 Top Shaft Spacer
轴套 1pcs
Rear Brace Mount
后支撑座 1pcs
T02258
Battery Holder
电池压板 1pcs
TU0258
28T Spur Gear-Aluminum
28T减速齿-铝 1pcs
T02032
T02039
Slipper Hub
扭限座 2pcs
T02052
Front Rim
前轮框 2pcs
Gear-20T
入力齿-20T 1pcs
T02033
Rear Rim
后轮框 2pcs
T02185
Front Bumper
前防撞板 1pcs
T04109
Swaybar Ball Stud
防倾杆球头 2pcs
M3x3 Screw
螺丝 2pcs
T02263
65mm Rear CVD
65mm后CVD 2pcs
T02040
Slipper Spring
扭限弹簧 1pcs
T02008
Front Chassis Plate
前底盘 1pcs
T04107
3x45 Turnbuckle
3x45拉杆 2pcs
T02038
Slipper Pad
扭限摩擦片 2pcs
T02041 T02051
Top Shaft Spacer
衬套 1pcs
T02019
Front Brace Mount
前支撑座
1pcs
Idler Gear Shaft
减速齿轮轴 1pcs
T02204
Arm Mount-RR
摆臂固定座-RR 1pcs
T02001
Spur Gear-80T
减速齿-80T 1pcs
TU0226OR
Front Hinge Pin Brace
前摆臂固定片 1pcs
TU0222OR
Front Arm Mount
前摆臂固定座 1set
T02259 T02085
2pcs
2pcs
2pcs
2pcs
Swaybar Mount
防倾杆座
2.3 E-ring
2.3
E扣 8pcs
4.0 E-ring
4.0
E扣 8pcs
Parts list for TC02C EVO off-road buggy - 2 TC02C EVO配件包-2
H134
Small Clip
小号插销
6pcs
T02012
T02023
Servo Saver Upper
缓冲臂上
Servo Saver Lower
缓冲臂下
Servo Saver - L
缓冲臂-L
Small Clip Holder
小号插销
6pcs
固定座
Left 1pcs
Right 1pcs
Steering Block
转向臂
1pcs
1pcs
1pcs
T02011
Right 1pcs
C-type Holder
C型座
TR4011
1pcs
Rear Hub
后轮座
T02024
Steering Rack
缓冲连接片 1pcs
Left 1pcs
1pcs
4pcs
T02015
Front Upper Suspension
Arm Mount
前上摆臂座 1pcs
T02054
2.3 E-ring
2.3 E扣 4pcs
3x27.5 Hinge Pin Front-Outer
3x27.5前摆臂销-外 2pcs
T02245
M2x5 Screw
螺丝 2pcs
Hex mount
六角座 2pcs
5.1x8x0.2 Washer
垫片 6pcs
T02087 T02016
Antenna Cap
Double-sided Tape
双面胶 1pcs
Antenna Casing
天线套管 1pcs
T02056
3x34.5 Hinge Pin Front-Inner
3x34.5前摆臂销-内 2pcs
W3708/T02081
3x7x0.8 Washer
3x7x0.8垫片 10pcs
天线管帽 1pcs
2.3 E-ring
2.3 E扣 4pcs
Front Lower Arms
T02027
Steering Servo
转向伺服臂-F 1pcs
Steering Servo
转向伺服臂-H 1pcs
Steering Servo
转向伺服臂-S 1pcs
T02062
前下摆臂 2pcs
Horn-F
Horn-H
Horn-S
5.8 Ball Stud
球头 4pcs
T02262
1.7x11 Pin
1.7x11钢针 4pcs
T02042
4.0 E-ring
4.0 E扣 2pcs
2x9.8 pin
钢针 2pcs
Front Wheel Axle
前轮轴 2pcs
T02043OR
Buffer Column-A
转向缓冲器-A 1pcs
Buffer Spring
缓冲弹簧 1pcs
T02183
Rear Bearing Collar
后轮轴套 2pcs
T02020
Front Shock Tower
前避震器架 1pcs
Buffer Column-B
转向缓冲器-B 1pcs
Buffer Nut
缓冲调整螺帽 1pcs
4.0 E-ring
4.0 E扣 1pcs
T02044
Block Carrier
缓冲钢套 2pcs
3x7x0.8 Washer
3x7x0.8垫片 2pcs
T04012
Wing Screw Washer
尾翼螺丝垫片
Wing Angie Shim
尾翼调整片 2pcs
Front Body Mount
前车壳柱 1pcs
2pcs
T02030
M3x10 Screw
M3x10螺丝 1pcs
4.8 Ball End - Short
球头座-短 2pcs
3x10 Screw
螺丝 2pcs
Wing Bracket
尾翼架 2pcs
TU0250-6 T02173
3.1x5.5x2.0 Aluminium Washer
3.1x5.5x2.0铝垫片
4pcs
Shock Cap Ball
避震盖球头
4pcs
Rear Hex Mount
后六角座 4pcs
T02028 T02035
1.0 Servo Spacer
伺服机座垫片 2pcs
Servo Plate
伺服机座 2pcs
1.5 Servo Spacer
伺服机座垫片 2pcs
T04014 T04150
M3x10 Screw
4.8mm Ball End-Long
4.8mm球头座-长 6pcs
4.8mm Ball End-Short
4.8mm球头座-短 8pcs
螺丝 4pcs
T02005
Gear Cover Button
齿轮盖塞 1pcs
Gear Cover
齿轮盖 1pcs
TR4053
Velcro Tape
魔鬼粘 1set
T04152
1.2 1pcs
Swaybar
防倾杆 2pcs
T04110
M3x12 Screw
M3x12螺丝 2pcs
Nut
螺帽 2pcs
TU0266-7
Below Spring Mount
end-Plastic
弹簧下座-尼龙 4pcs
Shock Absorber Top
cover
避震器上盖-尼龙 4pcs
M2.5x4 Screw
M2.5x4螺丝 4pcs
-Plastic
Parts list for TC02C EVO off-road buggy - 3 TC02C EVO配件包-3
T02061
Ball Stud -Silver
球头-银色 2pcs
TU0250-1
2.3 E-ring
2.3 E扣 4pcs
Front Shock Absorber Shaft
前避震器轴
2pcs
T04159
Rear Shock Absorber Body
后避震器筒身
2pcs
P210/T04032
2x9.8 Pin
2x9.8钢针 6pcs
TU0250-2
2.3 E-ring
2.3 E扣 4pcs
Rear Shock Absorber Shaft
后避震器轴
2pcs
TU0250-5
Below Spring Mount End
弹簧下座
4pcs
T02154
14T/28T Gear Set
14T/28T齿轮组
T04158
Front Shock Absorber Body
前避震器筒身
2pcs
TU0250-8
1mm Washer-White
1mm压垫-白色
4pcs
1mm Washer-Black
1mm压垫-黑色
4pcs
2.5mm Washer-White
2.5mm压垫-白色 4pcs
T02084
M4 Flanged
Nylon Nut
带边尼龙螺母 6pcs
M3 Nylon Nut
尼龙螺母 6pcs
T02155
Diff Connecting Cup
差速接杯 2pcs
B051004/T02100 B101504/T02099
5x10x4 Ball Bearing
5x10x4轴承 6pcs
Spring
弹簧
4pcs
2.8x1.9 O-Ring
2.8x1.9 O环
4pcs
10x15x4 Ball Bearing
10x15x4轴承 6pcs
9x1 O-Ring
9x1 O环
4pcs
12x1 O-Ring
12x1 O环
4pcs
14x1.5 O-Ring
14x1.5 O环
4pcs
TU0250-7
Front Piston-Black
前活塞-黑色
2pcs
Rear Piston-White
后活塞-白色
2pcs
T02152
52T Diff Gear Cover
52T差速齿轮盖 1pcs
TU0250-13F
Front Shock Absorber Spring-Soft
前避震器弹簧-软
TU0250-12F
Front Shock Absorber Spring-Medium
前避震器弹簧-中
52T Diff Gear
52T差速齿轮 1pcs
TU0262-R
2pcs
Rear Shock Absorber Spring-Soft
后避震器弹簧-软
2pcs
M2.5x8 Screw
M2.5x8螺丝 4pcs
4.8x1.6 O-ring
4.8x1.6 O环 2pcs
2pcs
TU0250-10R
2pcs
Rear Shock Absorber Spring-Medium
后避震器弹簧-中
T02153
Diff Pads
差速垫片 1pcs
TU0250-11F
2pcs
Front Shock Absorber Spring-Hard
前避震器弹簧-硬
T04160
Shock Below Cover
避震下盖
4pcs
T02157
Diff Gear Shaft
差速齿轮轴 2pcs
TU0260-R
Rear Shock Absorber Spring-Hard
后避震器弹簧-硬
2pcs
T04161
Spring Adjuster
弹簧调节座
T04164
Wing-Lexan
T02187
5.8 Ball End
4pcs
尾翼
1pcs
球头座 4pcs
T02053 TS4042
3x3 Screw
1pcs
Pinion
Gear-21T
马达齿-21T 1pcs
Ball Stud-Long
球头-长 6pcs
T02156
4.8x1.6 O-ring
4.8x1.6 O环 4pcs
TS4043 B0306025/T02080
Ball Stud-Short
球头-短 6pcs
3x6x2.5 Ball Bearing
3x6x2.5轴承 4pcs
Parts list for TC02C EVO off-road buggy - 4 TC02C EVO配件包-4
T02260
SS312
M3x12 Screw
M3x12螺丝 10pcs
Front Shock Absorber
前避震器 2set
BS305
M3x5 Screw
M3x5螺丝 10pcs
T02261
BS308
M3x8 Screw
M3x8螺丝 10pcs
SS303
SS310
Rear Shock Absorber
后避震器 2set
M3x10 Screw
M3x10螺丝 10pcs
BS310 BS312
M3x10 Screw
M3x10螺丝 10pcs
M3x12 Screw
M3x12螺丝 10pcs
M3x3 Screw
M3x3螺丝 10pcs
BS315
M3x15 Screw
M3x15螺丝 8pcs
FS310
M3x10 Screw
M3x10螺丝 10pcs
FS325
M3x25 Screw
M3x25螺丝 10pcs
BS322
M3x22 Screw
M3x22螺丝 8pcs
FS312
M3x12 Screw
M3x12螺丝 8pcs
BS2504
M2.5x4 Screw
M2.5x4螺丝 8pcs
BS328
M3x28 Screw
M3x28螺丝 8pcs
FS314
M3x14 Screw
M3x14螺丝 8pcs
BS306
M3x6 Screw
M3x6螺丝 10pcs
FS2508 FS308
M2.5x8 Screw
M2.5x8螺丝 10pcs
FS315 CS308
M3x15 Screw
M3x15螺丝 10pcs
W101202/TR4057
10x12x0.2 Washer
10x12x0.2垫片 8pcs
M3x8 Screw
M3x8螺丝 10pcs
M3x8 Screw
M3x8螺丝 10pcs
Driver
TC02C EVO
SETUP SHEET for the TeamC TC02C EVO
Conditions
High traction
Clay
Front Suspension
3
2
1
Ride height
Smooth
Sandy
Wet
Shock Mounting&Camber link
# Washers
1
2
mm
1
Camber
2
Track / City
Event
Bumpy
Soft dirt
Dry
Toe-in (+)/Out (-) °
Bump Steep Spacer
°
1
2
# Washers
mm
Date
Low traction
Grass
Dusty
Caster
25°
30°
1
2
/
Med traction
Hard soil
Other
Front Shocks
Spring(color)
mm
mm
Oil wt
Piston #
/
Black
Rear Suspension
3
2
1
Ride height
Diff
Brand
Oil wt
Batteries
Shock Mounting&Camber link
Anti-roll bar:
Camber
1
2
1
mm
°
Front Tires&Wheels
Front Tires
WheelsInserts
Motor
Rear Shocks
Wheelbase
Long
Medium
Short
2
mm
mm
Spring(color)
Black
Oil wt
Piston #
Front Tires&Wheels
Front Tires
WheelsInserts
Other
Servo
Esc
Batteries
Comments
Notes
Motor
Pinion/Spur
Wing
/
Wing Angle 4° 10°
www.teamcracing.net
Loading...
