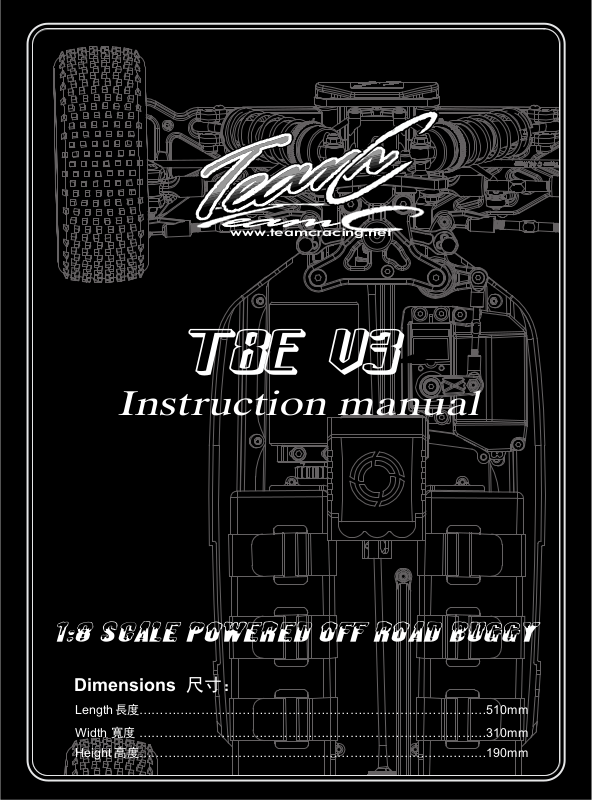

www.teamcracing.net
T8E V3
Instruction manual
1:8 Scale POWERED OFF ROAD BUGGY
Dimensions
Length …………………………………………………………………………510mm
Width …………………………………………………………………………310mm
Height …………………………………………………………………………190mm
長度
寬度
高度
尺寸：
9
8
7
6
10
11
12
13
14
Transmitter Preparation
調整遙控器
1
2
3
GLG20
2.4GHz
4
5
1 Control Panel
2 Steering Wheel
3 Throttle Trigger
控制面板
轉向輪
油門板扣
4 Battery Compartment
5 Charging Jack
充電接口
6 Sterring Servo Reverse
7 Power LED
8 Steering Trim
9 Bind Button
電源指示燈
轉向调節
設定按扭
10 Throttle Servo Reverse
11 Battery Voltage
12 Steering Dual Rate
13 Power Switch
14 Throttle Trim
電池電壓
轉向大小微調
電源開關
油門微調
電池盒
轉向正逆轉開關
油門正逆轉開關
Transmitter Battery Installation
遙控器電池安裝
Open battery cover at the bottom of transmitter.
Install batteries. Follow the direction of batteries
designated in the inside of battery box.
在遙控器的底部打開電池蓋子,安裝電池。
跟隨電池的指示在電池盒裡面指定。
Battery Cover
電池蓋
AA Alkaling Batteries
4X
AA 堿性電池
Transmitter Preparation
Battery Charger
(Not Included)
Battery
Servo
Motor
Electronic Speed
Controller / Switch
Receiver
Note: When done driving Turn Off the
ESC and THEN Transmitter
Install Transmitter Batteries1.
Connect Battery to ESC2.
Switch on Transmitter First3.
Switch on ESC Second4.
安裝發射電池
連接電池到電調
首先接通發射機
其次接通電調
其次再關掉發射機
電池
馬達
伺服
接收機
電子變速器
調整遙控器
Tools required
組裝需要的工具
Needie Nose Pllers
尖嘴鉗
Differential Grease
差速油
Molybdenum Grease(Black)
鉬油(黑)
Hex Wrench
六角扳手
Awl
錐
Hex Wrench
十字套筒
Grease
潤滑油
H154
Body Reamer
車殼絞刀
No need to pre-drill precise holes
(1mm to 15mm)can be drilled
可以對預鑽的孔準確地鑽1mm-15mm
Screw Cement
螺絲膠水
Wire Cutters
鋼絲鉗
Sharp Hobby knife
美工刀
H162
Instant Glue
瞬間膠水
H096
ROUND CUTTER
剪刀
For trimming bodies!
用于修剪車殼！
Servo Saver Turnbuckle
1
伺服拉杆
T08643
3x40 Turnbuckle
3x40拉杆
Bag-A
1:1 x1
Approx.23mm
大约23mm
Select the servo horn matching the servo being used.
根据伺服机选择伺服臂
T08606
T08606
T08666 M3 Nylon Nut
T08674
2
5.8 Ball End
5.8球头座
5.8 Ball Stud
5.8球头
M3尼龙螺母
M3x15 Screw
M3x15螺丝
Buffer
缓冲
…….......1
……........2
...........................2
...........................1
Bag-A
…….....1
T08606
5.8 Ball End
5.8球头座
▲Projection.Note direction
注意方向
T08643
3x40 Turnbuckle
3x40拉杆
4mm
T08606
5.8 Ball Stud
5.8球头
Futaba-25T Hitec-24T Sanwa/JR/KO-23T
T08666
T08620
Steering Servo Horn-F
转向伺服臂-F
T08674
M3x15 Screw
M3x15螺丝
1mm
T08651
W3708
T08666 M3 Nylon Nut
T08674
Buffer Screw
缓冲螺丝
3x7x0.8 Washer
3x7x0.8垫片
............................2
M3尼龙螺母
...........................1
M3x14 Screw
M3x14螺丝
…….....1
T08953
Servo Saver-Bottom
缓冲座-下
……2
T08954
Servo Saver Body
缓冲筒身
T08953
Servo Saver-Top
缓冲座-上
T08956
Servo Saver Spring
缓冲弹簧
T08954
Servo Saver Nut
缓冲螺母
T08666
M3 Nylon Nut
M3尼龙螺母
T08674
M3x14 Screw
M3x14螺丝
T08651
Steering Rack
转向缓冲连接板
T08651
Buffer Screw
缓冲螺丝
W3708
3x7x0.8 Washer
3x7x0.8垫片
T08953
Servo Saver-Left
缓冲座-左
Ture-to -scale diagram
1:1
图形比例
Assemble as many times as specified
x1
需組裝數量
1
Servo Saver Post/Side Plate
3
缓冲柱/侧板
T08680
Side Plate-Right
侧板-右
Bag
-
A/B
T08950
Chassis
底盘
Buffer
4
缓冲
B061003
T08674
M3x8 Screw
M3x8螺丝
Bag
-
A
T08612
Front Body Mount
前车壳柱
T08673
M3x10 Screw
M3x10螺丝
6x10x3 Washer
6x10x3垫片
T08674
M4x10 Screw
M4x10螺丝
T08941
Buffer Plate-Plastic
缓冲顶板-塑胶
T08955
Servo Saver Post
缓冲柱
T08680
Side Plate-Left
侧板-左
T08674
M3x14 Screw
M3x14螺丝
T08674
M4x10 Screw
M4x10螺丝
T08666
M3 Nylon Nut
M3尼龙螺母
T08674
T08674
M3x8 Screw
M3x8螺丝
…….............8
M4x10 Screw
M4x10螺丝
……......2
……...............4
T08673
T08674
T08674
T08674
T08666 M3 Nylon Nut
T08674
M3x10 Screw
M3x10螺丝
…….........1
M3x10 Screw
M3x10螺丝
…….............1
M3x12 Screw
M3x12螺丝
……........1
M4x10 Screw
M4x10螺丝
……......2
M3尼龙螺母
...........................2
M3x14 Screw
M3x14螺丝
…….....1
B061003
6x10x3 Ball Bearing
6x10x3轴承
T08674
M3x10 Screw
M3x10螺丝
2
T08681
Front Chassis Stiffener
前支撑杆
T08674
M3x12 Screw
M3x12螺丝
Front/Rear Differential
5
前/后差速器
W61102
T08600
x2
T08633
20T Diff Gear
20T差速齿轮
T08633
2.5x11.5 Pin
2.5x11.5钢针
Bag
-C
T08633
10T Diff Gear
10T差速齿轮
T08633
Diff Shaft
差速轴
W41202
T08633
2.5x11.5 Pin
2.5x11.5钢针
T08633
20T Diff Gear
20T差速齿轮
W61102
T08600
Differential Pads
差速垫片
T08636
T08636
M3x12 Screw
M3x12螺丝
T08634
Diff Connecting Cup
差速接杯
T08600/T08636
6
5.8x1.9 O环
…………………4
Front Differential Case
前差速箱
T08600
Differential Housing
差速壳
B081605
8x16x5 Ball Bearing
8x16x5轴承
5.8x1.9 O-Ring
Bag
W41202
-C/D
T08641
M5x4 Screw
M5x4螺丝
5000# for Front
2000# for Rear
4x12x0.2 Washer
4x12x0.2垫片
…………8
T08641
84mm Center Front CVD
84mm中前CVD
Oil
W61102
6x11x0.2 Washer
6x11x0.2垫片
…………4
B081605
8x16x5 Ball Bearing
8x16x5轴承
T08634
Diff Connecting Cup
差速接杯
B081605
T08636
43T Diff Gear
43T差速齿轮
8x16x5 Ball Bearing
8x16x5轴承
………4 ……8
T08636
M3x12 Screw
M3x12螺丝
B061305
6x13x5 Ball Bearing
6x13x5轴承
T08601
Differential Case
差速箱
T08636
10T Gear
10T齿轮
Assemble as many times as specified
x2
需组装数量
T08673
M3x16 Screw
M3x16螺丝
W131602
13x16x0.2 Washer
13x16x0.2垫片
3
T08601
Differential Case
差速箱
B061305 6x13x5 Ball Bearing
6x13x5轴承
………….2
W131602 13x16x0.2 Washer
13x16x0.2垫片
…………..2
T08673
M3x16 Screw
M3x16螺丝
……..2
T08641
M5x4 Screw
M5x4螺丝
………………..1
Front Swaybar
7
前防倾杆
T08606
x2
Bag-
D
T08606
M3x3 Screw
M3x3螺丝
T08601
M2.5x8 Screw
M2.5x8螺丝
T08601
M3x3 Screw
M3x3螺丝
Front Hub Carrie
8
前轮座
T08601
Swaybar Mount
防倾杆固定座
L
Bag-
R
T08774
95mm Drive Shaft
95mm传动轴
D
T08774
2.5x12.8 Pin
2.5x12.8钢针
T08647
Front Swaybar
前防倾杆
T08772
CVD Connecting Cup
CVD接杯
Left
T08603
Front Hub Carriers 12 Degree
前轮座12度
Right
T08601
T08606/T08601
T08606
T08606
T08606
M2.5x8 Screw
M2.5x8螺丝
……………....3
M3x3螺丝
………………………4
6.8 Ball Stud
6.8球头
…………………2
6.8 Ball Stud
6.8球头
……………………….2
6.8 Ball End
6.8球头座
Left
T08604
Steering Block
转向臂
M3x3 Screw
……………...2
Right
T08774
B131904
B081605
L
2.5x12.8 Pin
2.5x12.8钢针
………………2
13x19x4 Ball Bearing
13x19x4轴承
8x16x5 Ball Bearing
8x16x5轴承
Assemble both Left and Right
组装左和右
R
………2
………2
T08774
5x8.5
5x8.5
T08774
T08603
T08649
T08675
T08673
Shaft
轴
5x8.5 Shaft
5x8.5轴
……………………2
King Pin Bushing
大王销轴套
……….4
2.5x16.8 Pin
2.5x16.8钢针
……………2
M4x4 Screw
M4x4螺丝
………………….2
M4x14 Screw
M4x14螺丝
……4
Assemble as many times as specified
x2
需组装数量
T08673
M4x14 Screw
M4x14螺丝
4
B131904
13x19x4 Ball Bearing
13x19x4轴承
T08603
King Pin Bushing
大王销轴套
B081605
8x16x5 Ball Bearing
8x16x5轴承
T08649
Wheel Hex Hub
六角轮座
T08649
2.5x16.8 Pin
2.5x16.8钢针
T08675
M4x4 Screw
M4x4螺丝
Front Hub Carrie
9
前轮座
L
R
Bag-D
T08675
M4x10 Screw
M4x10螺丝
T08607
Front Hub Carrier Bushing
前轮座轴套
T08607
T08675
T08673
Front Suspension
10
前悬吊系统
Front Hub Carrier Bushing
前轮座轴套
……….4
M4x10 Screw
M4x10 螺丝
…………….2
M4x16 Screw
M4x16 螺丝
……4
Bag-D
T08673
M3x16 Screw
M3x16螺丝
T08607
Front Lower Arm
前下摆臂
TU0839
Arm Mount-FR
摆臂固定座-FR
T08673
M4x16 Screw
M4x16螺丝
T08674
M3x15 Screw
M3x15螺丝
T08645
T08674
T08674
4x73 Arm
4x73摆臂轴
M3x35 Screw
M3x35 螺丝
M3x15 Screw
M3x15 螺丝
Shaft
………….2
…….2
……….2
Assemble both Left and Right
L
组装左和右
R
T08674
M3x35 Screw
M3x35螺丝
T08763
Arm Mount-FF
摆臂固定座-FF
T08645
4x73 Arm Shaft
4x73摆臂轴
5
T08673
M3x16 Screw
M3x16 螺丝
…….2
Front Shock Tower
11
前避震架
Bag
-
T08622
Shock Top Ball Stud
避震上球头
T08674
M3x12 Screw
M3x12螺丝
D
T08673
M3.5x25 Screw
M3.5x25螺丝
T08631
Front Shock Tower
前避震架
T08674
12
M3x12 Screw
M3x12 螺丝
Front Upper Turnbuckle
前上拉杆
T08606
7.8 Ball End-Front Upper
7.8球头座-前上
………4
T08606
7.8 Ball Stud
7.8球头
T08673
Bag
-
D
5mm
T08643
5x58 Turnbuckle
5x58拉杆
M3.5x25 Screw
M3.5x25 螺丝
………2
T08606
7.8 Ball Stud
7.8球头
T08622
1:1 x1
1:1 x1
Shock Top Ball Stud
避震上球头
……..2
Front Upper-Left
前上-左
Front Upper-Right
前上-右
Approx.32mm
大约32mm
▲Projection.Note direction
注意方向
Approx.32mm
大约32mm
▲Projection.Note direction
注意方向
T08643
1:1
5x58 Turnbuckle
5x58拉杆
Ture-to -scale diagram
圖形比例
T08606
………2 ……………2 ……………2
Assemble as many times as specified
x1
需组装数量
7.8 Ball Stud
7.8球头
6
T08606
7.8 Ball Stud
7.8球头
T08606
7.8 Ball End-Front Upper
7.8 球头座-前上
…………4
13
Steering
转向拉杆
T08606
6.8 Ball Stud
6.8球头
Turnbuckle
Bag-D
T08643
4x53 Turnbuckle
4x53拉杆
5mm
T08606
6.8 Ball End-Steering
6.8 球头座-转向
T08606
6.8 Ball Stud
6.8球头
1:1 x1
1:1 x1
Steering-Left
转向-左
▲Projection.Note direction
Steering-Right
转向-右
▲Projection.Note direction
Approx.27mm
大约27mm
注意方向
Approx.27mm
大约27mm
注意方向
T08643
14
Front Upper Turnbuckle-Right
前上拉杆-右
4x53 Turnbuckle
4x53拉杆
Front Upper/Steering
前上/转向拉杆
Turnbuckle
T08606
………2 ……………4
Bag-D
T08674
M3x16 Screw
M3x16螺丝
T08666
M3 Nylon Nut
M3尼龙螺母
6.8 Ball Stud
6.8球头
Steering Turnbuckle-Right
转向拉杆-右
T08606 6.8 Ball End-Steering
6.8 球头座-转向
……………4
Front Upper Turnbuckle
前上拉杆-左
-Left
T08676
M3x25 Screw
M3x25螺丝
T08674
1:1
M3x16 Screw
M3x16 螺丝
Ture-to -scale diagram
图形比例
……2
T08676
M3x18 Screw
M3x18螺丝
T08666 M3 Nylon Nut
M3尼龙螺母
…………6
Assemble as many times as specified
x1
需组装数量
T08676
M3x25 Screw
M3x25 螺丝
7
Steering Turnbuckle-Left
转向拉杆-左
T08676
……2
M3x18 Screw
M3x18 螺丝
……2
Front Suspension
15
前悬吊系统
T08674
M3x16 Screw
M3x16 螺丝
Bag
-D
T08666
M3 Nylon Nut
M3尼龙螺母
T08674
M4x10 Screw
M4x10螺丝
T08674
M3x16 Screw
M3x16螺丝
T08674
T08674
T08666 M3 Nylon Nut
16
T08600
W41202
W61102
B081605
M4x10 Screw
M4x10 螺丝
M4x14 Screw
M4x14 螺丝
M3尼龙螺母
...........................2
Center Differential
中央差速器
5.8x1.9 O-Ring
5.8x1.9 O环
…………………1
4x12x0.2 Washer
4x12x0.2垫片
…………........4
6x11x0.2 Washer
6x11x0.2垫片
…………........1
8x16x5 Ball Bearing
8x16x5轴承
.........2
.............2
...........4
Bag
T08611
Front Bumper
前防撞板
-C
W61102
6x11x0.2 Washer
6x11x0.2垫片
T08633
20T Diff Gear
20T差速齿轮
T08633
2.5x11.5 Pin
2.5x11.5钢针
T08600
5.8x1.9 O-ring
5.8x1.9 O环
T08600
Differential Housing
差速壳
B081605
8x16x5 Ball Bearing
8x16x5轴承
T08674
M4x14 Screw
M4x14螺丝
T08633
10T Diff Gear
10T差速齿轮
T08633
Diff Shaft
差速轴
W41202
4x12x0.2 Washer
4x12x0.2垫片
5000#
………..1
T08635
Center
Diff Connecting Cup
中差差速接杯
8
Center Differential
17
中央差速器
Bag
-
C
T08636
W61102
B081605
T08916
5.8x1.9 O-Ring
5.8x1.9 O环
…………………1
6x11x0.2 Washer
6x11x0.2垫片
…………........1
8x16x5 Ball Bearing
8x16x5轴承
………..1
M3x12 Screw
M3x12螺丝
……..........4
T08633
2.5x11.5 Pin
2.5x11.5钢针
T08636
5.8x1.9 O-ring
5.8x1.9 O环
T08633
20T Diff Gear
20T差速齿轮
W61102
6x11x0.2 Washer
6x11x0.2垫片
T08600
Differential Pads
差速垫片
T08916
Center Diff Gear Mount
中差齿轮座
T08914
44T Center Diff Gear-Plastic
44T中差齿轮-塑胶
B081605
8x16x5 Ball Bearing
8x16x5轴承
T08635
Center
Diff Connecting Cup
中差差速接杯
T08916
M3x12 Screw
M3x12螺丝
Center Differential Mount
18
中央差速器固定座
T08681
M3x8 Screw
M3x8螺丝
…….........4
Bag
-
C
T08681
M3x8 Screw
T08681
Center Differential Plate
中央差速器固定板
M3x8螺丝
T08952
Center Differential Mount
中央差速器固定座
T08952
Motor Mount
马达固定座
9
19
T08952
T08952
T08952
Motor
马达
Bag-
M3x14 Screw
M3x14螺丝
M4x14 Screw
M4x14螺丝
3x7x0.8 Washer
3x7x0.8垫片
C
…….2
……...2
Motor
马达
T08952
M4x14 Screw
M4x14螺丝
X
T08952
Motor Mount
马达固定座
H396
M4x4 Screw
M4x4螺丝
T08952
3x7x0.8 Washer
3x7x0.8垫片
Tighten the screws with one sheet of paper
inserted between both gears.
两齿轮之间的间隙大约为一张普通纸的厚度。
H396
Motor Gear-16T
马达齿-16T
T08952
M3x14 Screw
M3x14螺丝
H396
M4x4 Screw
Center Differential
20
中央差速器
………………..2
M4x4 螺丝
…………………1
Bag-
C
T08681
Motor Mount
马达扶持座
Must be purchased separately
X
需另購物品
T08674
M3x8 Screw
M3x8螺丝
10
T08674
M4x10 Screw
M4x10螺丝
T08674
T08674
M3x8 Screw
M3x8螺丝
…….............2
M4x10 Screw
M4x10螺丝
……......4
Rear
21
后差速器
T08601
Differential Case
差速箱
T08636
10T Gear
10T齿轮
Differential
Bag
-
C/E
T08642
M5x4 Screw
M5x4螺丝
B061305
6x13x5 Ball Bearing
6x13x5轴承
T08673
M3x16 Screw
M3x16螺丝
T08642
110mm Center Rear CVD
110mm中后CVD
W131602
13x16x0.2 Washer
13x16x0.2垫片
T08601
Differential Case
差速箱
B061305 6x13x5 Ball Bearing
W131602 13x16x0.2 Washer
T08673
T08642
6x13x5轴承
………….2
13x16x0.2垫片
…………..2
M3x16 Screw
M3x16螺丝
M5x4 Screw
M5x4螺丝
………………..1
……..2
Rear Swaybar
22
后防倾杆
T08601
T08606/T08601
T08606
T08606
T08606
M2.5x8 Screw
M2.5x8螺丝
M3x3螺丝
………………………4
6.8 Ball Stud
6.8球头
…………………2
6.8 Ball Stud
6.8球头
……………………….2
6.8 Ball End
6.8球头座
T08606
x2
Bag-
……………....3
M3x3 Screw
……………...2
E
T08606
M3x3 Screw
M3x3螺丝
T08601
M2.5x8 Screw
M2.5x8螺丝
T08601
M3x3 Screw
M3x3螺丝
Assemble as many times as specified
x2
需组装数量
T08601
Swaybar Mount
防倾杆固定座
11
T08647
Rear
Swaybar
后
防倾杆
Rear Hub Carrie
23
后轮座
Left
L
Bag-
R
E
Right
T08773
94mm Drive Shaft
94mm传动轴
T08675
M4x4 Screw
M4x4螺丝
Rear Hub Carrie
24
后轮座
T08605
Rear Hub Carriers
后轮座
T08649
2.5x16.8 Pin
2.5x16.8钢针
T08649
Wheel Hex Hub
六角轮座
L
Bag-
R
E
B081605
8x16x5 Ball Bearing
8x16x5轴承
T08773
5x8.5
Shaft
5x8.5
T08773
轴
2.5x12.8 Pin
2.5x12.8钢针
B131904
13x19x4 Ball Bearing
13x19x4轴承
T08772
CVD Connecting Cup
CVD接杯
T08773
T08649
T08675
T08773
B131904
B081605
5x8.5 Shaft
5x8.5轴
……………………2
2.5x16.8 Pin
2.5x16.8钢针
……………2
M4x4 Screw
M4x4螺丝
………………….2
2.5x12.8 Pin
2.5x12.8钢针
………………2
13x19x4 Ball Bearing
13x19x4轴承
………2
8x16x5 Ball Bearing
8x16x5轴承
………2
T08666 M3 Nylon Nut
T08675
T08605 Washer
M3尼龙螺母
.............................2
M4x10 Screw
M4x10 螺丝
……………...2
垫片
……..............4
T08666
M3 Nylon Nut
M3尼龙螺母
T08605
Washer
垫片
T08608
Rear Lower Arm-Left
后下摆臂-左
T08675
M4x10 Screw
M4x10螺丝
T08779
3x51.5 Arm Shaft
3x51.5摆臂轴
Assemble both Left and Right
L
组装左和右
R
12
Rear Suspension
25
后悬吊系统
Bag
T08673
M3x16 Screw
M3x16螺丝
T08945
4x71 Arm Shaft
4x71摆臂轴
-E
T08942
Arm Mount-RF
摆臂固定座-RF
T08674
M3x12 Screw
M3x12螺丝
T08608
Washer
垫片
T08944
0 Degree Bushing-Right
0度轴套-右
T08944
1 Degree Bushing
1度轴套
T08943
Arm Mount-RR
摆臂固定座-RR
T08674
M3x35 Screw
M3x35螺丝
T08944
0 Degree Bushing-Left
0度轴套-左
0°
0°
RR
RF
RR
X2 X2
1°
X2 X2
1°
1°
=3.5°
=2.5°
X2
T08674
T08673
M3x12 Screw
M3x12 螺丝
M3x16 Screw
M3x16 螺丝
……….2
…….2
ANTI -SQUAT
=2.5°
=1.5°
T08674
T08945
M3x35 Screw
M3x35 螺丝
4x71 Arm
4x71摆臂轴
Shaft
……...........................2
……2
=1.5°
=0.5°
RF
RF
=4°
TOE -IN
=3°
13
=2°
Rear Shock Tower
26
后避震架
T08674
T08673
T08673
T08673
M3x10 Screw
M3x10 螺丝
………..........2
M3x6 Screw
M3x6 螺丝
………..........4
M3x10 Screw
M3x10 螺丝
………..........1
M3.5x25 Screw
M3.5x25 螺丝
Bag
-E
T08673
M3.5x25 Screw
M3.5x25螺丝
T08612
Rear Body Mount
后车壳柱
T08622
Ball stud
球头
T08673
M3x10 Screw
M3x10螺丝
T08632
Rear Shock Tower
后避震架
T08674
M3x10 Screw
M3x10螺丝
T08622
27
Shock Top Ball Stud
避震上球头
Wing Mount
尾翼固定架
Bag
……...2
……....2
-E
T08611
Dirtcover Rear-Right
后挡泥板-右
T08673
M3x6 Screw
M3x6螺丝
T08611
Dirtcover Rear-Left
后挡泥板-左
T08612
Wing Mount
尾翼固定座
T08673
M3x16 Screw
M3x16螺丝
T08673
M3x18 Screw
M3x18螺丝
T08666
M3 Nylon Nut
M3尼龙螺母
14
T08666 M3 Nylon Nut
T08673
T08673
M3尼龙螺母
...........................2
M3x16 Screw
M3x16 螺丝
M3x18 Screw
M3x18 螺丝
……..6
……2
Rear Upper Turnbuckle
28
后上拉杆
T08606
7.8 Ball End-Rear Upper
7.8 球头座-后上
T08606
7.8 Ball Stud
7.8球头
Bag-E
5mm
T08643
5x40 Turnbuckle
5x40拉杆
T08606
7.8 Ball Stud
7.8球头
1:1 x1
1:1 x1
Rear Upper-Left
后上-左
▲Projection.Note direction
注意方向
Rear Upper-Right
后上-右
▲Projection.Note direction
注意方向
Approx.14mm
大约14mm
Approx.14mm
大约14mm
T08643
29
5x40 Turnbuckle
5x40拉杆
Rear Upper Turnbuckle
后上拉杆
………2 ……………2 ……………2 …………4
Bag-E
T08666
M3 Nylon Nut
M3尼龙螺母
T08673
M4x22 Screw
M4x22螺丝
T08953
Rear Chassis Stiffener Mount
后支撑杆固定座
T08606
T08674
M4x12 Screw
M4x12螺丝
7.8 Ball Stud
7.8球头
Rear Upper Turnbuckle-Right
后上拉杆-右
T08606
7.8 Ball Stud
7.8球头
T08606
7.8 Ball End-Rear Upper
7.8 球头座-后上
Rear Upper Turnbuckle-Left
后上拉杆-左
T08619
Rear Chassis Stiffener
后支撑杆
Ture-to -scale diagram
1:1 x1
图形比例
T08666
M4 Nylon Nut
M4尼龙螺母
T08674
M4x12 Screw
M4x12 螺丝
……2
T08666 M3 Nylon Nut
M3尼龙螺母
……4
Assemble as many times as specified
需组装数量
15
T08676
T08666 M4 Nylon Nut
M3x25 Screw
M3x25 螺丝
M4尼龙螺母
……2
……1
T08676
T08673
T08676
M3x25 Screw
M3x25螺丝
M3x18 Screw
M3x18 螺丝
M4x22 Screw
M4x22 螺丝
…….....2
….1
Rear Suspension
30
后悬吊系统
Bag-E
T08666
M3 Nylon Nut
M3尼龙螺母
T08674
M3x10 Screw
M3x10螺丝
…….............1
T08674
T08674
T08666 M3 Nylon Nut
M3x12 Screw
M3x12螺丝
M4x14 Screw
M4x14螺丝
M3尼龙螺母
...........................1
Shock
31
T08627
避震器
Bag-F
2.75mm Plastic Washer
2.75mm塑胶垫片
…………………4
T08627
1mm Plastic Washer
1mm塑胶垫片
…………………......4
T08627
3.3x1.9 O-ring
3.3x1.9 O环
………………….....8
T08625/T08626
9x1.0 O环
9x1.0 O-ring
……........1
……......4
T08674
M4x14 Screw
M4x14螺丝
T08625/T08626
Shock Bottom Cover
避震下盖
T08627
2.75mm Plastic Washer
2.75mm塑胶垫片
T08627
3.3x1.9 O-ring
3.3x1.9 O环
T08627
1mm Plastic Washer
1mm塑胶垫片
T08674
M3x12 Screw
M3x12螺丝
T08674
M3x10 Screw
M3x10螺丝
F
x2
R
T08666
M2.5 Nylon Nut
M2.5尼龙螺母
T08627
Shock Piston
Front-Short
前-短
Rear-Long
后-长
避震活塞
W275805
2.7x5.8x0.5 Washer
2.7x5.8x0.5垫片
…………………..4
W275805
2.7x5.8x0.5 Washer
2.7x5.8x0.5垫片
………………….....4
T08624
M2.5 Nylon Nut
M2.5尼龍螺母
………………..4
T08624
6.8 Ball Stud
6.8球头
………………............4
Assemble both Front and Rear
F
组装前和后
R
T08625/T08626
9x1.0 O-ring
9x1.0 O环
T08625
Front Shock Body-Short
前避震筒身-短
T08626
Rear Shock Body-Long
后避震筒身-长
Assemble as many times as specified
x2
需组装数量
16
TU0880
Front Shock
Shaft-Titan Coated
前避震轴-镀钛
TU0882
Rear Shock
Shaft-Titan Coated
后避震轴-镀钛
T08622
6.8 Ball End
6.8球头座
T08622
6.8 Ball Stud
6.8球头
32
Shock
避震器
Bag
F
-
F
x2
R
T08623
Shock Boot
避震防尘套
450#
Front-Short
前-短
Rear-Long
后-长
T08625/T08626
Shock Top Cover
避震上盖
T08627
Diaphragm
气室
Front-Short
前-短
Rear-Long
后-长
Front-Short
前-短
Rear-Long
后-长
T08625/T08626
18.5x1.5 O-ring
18.5x1.5 O环
T08625/T08626
Spring Adjuster
弹簧调节座
T08687
Front Shock Spring-Short
前避震弹簧-短
Rear Shock Spring-Long
后避震弹簧-长
T08622
Spring Mount
弹簧固定座
T08625/T08626 18.5x1.5 O-Ring
18.5x1.5 O环
……………4
Front Shock
33
前避震器
T08666 M3.5 Nylon Nut
T08622 Plastic Bushing
W3591 3.5x9x1 Washer
T08673 M3x18 Screw
M3.5尼龙螺母
塑胶衬套
……......................2
3.5x9x1垫片
M3x18螺丝
L
……................2
……...............2
R
Bag
……2
-
F
T08666
M3.5 Nylon Nut
M3.5尼龙螺母
W3591
3.5x9x1 Washer
3.5x9x1垫片
T08622
Plastic Bushing
塑胶轴套
T08673
M3x18 Screw
M3x18螺丝
Assemble both Front and Rear
F
组装前和后
R
Assemble as many times as specified
x2
需组装数量
17
Assemble both Left and Right
L
组装左和右
R
34
Rear Shock
后避震器
L
Bag
-
R
F
T08666 M3.5 Nylon Nut
T08622 Plastic Bushing
W3591 3.5x9x1 Washer
T08673 M3x18 Screw
35
W3708
T08673
M3.5尼龙螺母
……................2
塑胶衬套
……......................2
3.5x9x1垫片
……...............2
M3x18螺丝
Receiver/Servo
接收机/伺服机
3x7x0.8 Washer
3x7x0.8垫片
………………..4
M3x8 Screw
M3x8螺丝
……2
Bag
-
B/J
T08666
M3.5 Nylon Nut
M3.5尼龙螺母
Receiver
接收机
W3591
3.5x9x1 Washer
3.5x9x1垫片
X
T08674
M3x8 Screw
M3x8螺丝
T08622
Plastic Bushing
塑胶轴套
T08673
M3x18 Screw
M3x18螺丝
T08822
Receiver Cover
接收机盖
T02087
Antenna Pipe
天线管
…………..1
T08793
T08674
T08675
L
M3x15 Screw
M3x15螺丝
M3x8 Screw
M3x8螺丝
…………….1
M3x5 Screw
M3x5螺丝
…………………1
W3708
3x7x0.8 Washer
3x7x0.8垫片
Servo
伺服机
Assemble both Left and Right
组装左和右
R
……..4
X
T08793
M3x15 Screw
M3x15螺丝
T08822
Servo Spacer
伺服
垫片
Must be purchased separately
X
X
需另購物品
T08675
M3x5 Screw
M3x5螺丝
T08822
Receiver Box
接收机盒
T08822
Servo Mount
伺服机座
18
Receiver/Servo
36
接收机/伺服机
Bag
-
B
T08674 M3
M3x10螺丝
x10 Screw
……………4
X
T08674
M3x10 Screw
M3x10螺丝
37
Battery
电池
T08681
Battery Mount
电池固定座
x2
Battery
电池
T08681
Velcro Tape
魔鬼粘
Bag
X
-
B
Must be purchased separately
X
需另购物品
Assemble as many times as specified
x2
需组装数量
19
38
Battery
电池
Bag
-
B
T08674
M3x8 Screw
M3x8螺丝
................8
T08674
M3x8 Screw
M3x8螺丝
Electronic speed controller
39
电子变速器
Bag
-
J
T02087
Double-sided Tape
双面胶
ESC
电子变速器
X
Must be purchased separately
X
需另购物品
20
40
T08674
Wing
尾翼
M3x12 Screw
M3x12螺丝
Bag
-
……………2
G
T08674
M3x12 Screw
M3x12螺丝
T08940
Wing Screw Washer
尾翼螺丝垫片
T08940
Wing
尾翼
41
Tyre
轮胎
x4
Bag
-
H
Tyre
X
轮胎
Sponge
海绵
X
T08648
Rim
轮框
Glue
胶水
Assemble as many times as specified
x4
x4
需組裝數量
Must be purchased separately
X
需另购物品
21
42
Tyre
轮胎
L
Bag
-
R
D/E
T08649 17mm Hex Nut
17mm六角螺帽
……4
43
Body
车壳
Bag
T08648
17mm Hex Nut
17mm六角螺帽
-
I
T08951
Body
车壳
Assemble both Left and Right
L
组装左和右
R
22
44
Body
车壳
Bag
-J
Mask the windows from the inside.
在车窗內壁贴上遮盖贴纸。
Paint the body shell from the inside
using spray colors.
在车壳内壁喷漆。
Body
45
T08660
T08673 M3x6 Screw
车壳
Mid Clip
中号固定夹
M3x6螺丝
Bag
………………1
-J
…..2
T08660
Mid Clip
中号固定夹
T08673
M3x6 Screw
M3x6螺丝
23
T08674
Exploded View
T08940
T08952
T08681
T02087
T08673
T08822
爆炸圖
T08674
T08635
B081605
W3708
T08673
T08676
T08673
T08622
T08600
T08633
T08673
T08600
T08634
T08633
T08612
T08600
T02087
T08675
T08612
T08676
T08632
T08612
T08633
T08669
B081605
T08916
B061003
T08674
T08680
T08914
T08916
B081605
T08952
T08945
T08673
T08673
T08660
T08636
T08633
T08635
T08952
T08666
T08954
T08674
T08666
T08606
T08666
T08620
T08674
T08651
T08651
T08822
T08673
T08666
T08643
H396
W3708
T08666
T08606
B081605
T08600
T08680
T08952
T08606
T08674
T08953
T08674
T08676
T08666
T08640
T08636
T08950
T08674
T08643
T08606
T08606
T08943
T08944
T08601
T08601
T08634
T08674
B061003
W3708
T08666
T08953
T08647
T08673
T08605
T08606
W131602
T08636
T08953
T08674
T08681
T08649
T08673
T08675
T08666
T08673
T08953
T08943
B081605
B061305
B061305
T08619
24
T08675
T08666
B061003
T08956
T08648
T08779
T08666
T08612
T08674
T08606
T08954
T08608
T08673
T08601
T08642
T08643
T08660
T08943
T08666
T08611
T08673
T08944
T08606
T08681
T08674
T08942
T08674
T08606
T08666
T08941
T08955
T08673
T08673
T08639
T08649
W3591
T08622
T08666
T08606
T08674
T08601
T08666
T08626
T08604
T08603
T08607
W275805
T08666
B081605
T08675
TU0839
T08641
B061305
T08634
W131602
T08623
T08649
B061305
T08636
T08636
B081605
T08626
T08627
T08681
T08673
T08623
T08625
T08622
T08600
TU0882
B131904
T08673
W3591
T08633
T08636
T08673
T08622
T08687
T08675
T08607
T08673
T08633
T08601
T08645
T08631
T08673
T08625
T08627
W275805
T08666
T08669
T08647
T08676
T08622
T08626
T08687
TU0880
T08673
T08627
T08600
T08674
T08626
T08648
T08622
T08625
T08634
B081605
T08645
T08763
T08649
T08627
T08674
T08601
T08625
T08611
Parts list for T8E V3 off-road buggy-1 T8E V3越野车配件包-1
T08680
Side Plate-Right
侧板-右 1pcs
Side Plate-Left
侧板-左 1pcs
T08600
Differntial Housing
差速壳 1pcs
O-ring
O环 1pcs
T08605
Left 1pcs
Rear Hub Carriers
Differntial Pads
差速垫片 1pcs
Washer
垫片 4pcs
后轮座
Right 1pcs
T08950
Chassis
底盘
T08601
1pcs
Differential Case
差速箱
T08607
Front Hub Carrier Bushing
前轮座轴套 4pcs
1pcs
1pcs
Left 1pcs
Right 1pcs
Front Lower Arm
前下摆臂
T08641
M5x4 Screw
螺丝 1pcs
84mm Center Front CVD
84mm中前CVD
1pcs
M3x3 Screw
螺丝 2pcs
M2.5x8 Screw
螺丝 3pcs
Swaybar Mount
防倾杆固定座
T08608
Washer
垫片 2pcs
Left 1pcs
Right 1pcs
Rear Lower Arm
后下摆臂
1pcs
T08642
H396
M5x4 Screw
螺丝 1pcs
110mm Center Rear CVD
110mm中后CVD
1pcs
Motor Gear-16T
马达齿-16T 1pcs
T08603 T08604
King Pin Bushing
大王销轴套 4pcs
1pcs
Front Hub Carriers 12 Degree
前轮座12度
1pcs
Left 1pcs
Steering Block
T08612
Left
1pcs
Right
1pcs
Wing Mount&Body Mount
尾翼固定座&车壳柱
Right
1pcs
转向臂
Left
1pcs
M4x4 Screw
1pcs
Right 1pcs
2pcs
Front
1pcs
Rear
1pcs
T08606
6.8 Ball End-Swaybar
6.8 球头座-防倾杆
T08620
1pcs 1pcs 1pcs
T08627
Diaphragm
气室 4pcs
1mm Plastic Washer
1mm 塑胶垫片 4pcs
2.75mm Plastic Washer
2.75mm 塑胶垫片 4pcs
3.3x1.9 O-ring
3.3x1.9 O环 8pcs
Shock Piston
避震活塞 4pcs
5.8 Ball End-Steering Servo
5.8 球头座-转向伺服
1pcs 1pcs 1pcs
Servo Arm
伺服臂
T08622
Ball Stud
4pcs
球头 4pcs
Spring Mount
弹簧固定座 4pcs
T08688
Ball End
球头座 4pcs
6.8 Ball Stud
6.8 球头 4pcs
7.8 Ball End-Rear Upper
7.8 球头座-后上
6.8 Ball End-Steering
6.8 球头座-转向
7.8 Ball End-Front Upper
7.8 球头座-前上
T08623
4pcs
Shock Boot
避震器防尘套
T08611 T08619
Dirtcover Rear-Left
后挡泥板-左 1pcs
Dirtcover Rear-Right
后挡泥板-右 1pcs
Front Bumper
前防撞板 1pcs
T08625 T08626
2pcs
2pcs
2pcs
2pcs
2pcs
Front Shock Body
前避震筒身
2pcs
2pcs
Rear Shock Body
后避震筒身
T08689
Front Chassis Stiffener
前支撑杆
Rear Chassis Stiffener
后支撑杆
2pcs
2pcs
2pcs
2pcs
2pcs
T08687
Front Shock Spring
前避震弹簧 2pcs
Rear Shock Spring
后避震弹簧 2pcs
Front Shock Absorber
前避震器 2set
Rear Shock Absorber
后避震器 2set
Parts list for T8E V3 off-road buggy-2 T8E V3越野车配件包-2
T08631
Front Shock Tower
前避震架
1pcs
T08635
Center Diff Connecting Cup
中差速接杯
2pcs
T08640
M4x4 Screw
螺丝 2pcs
94mm Rear CVD
94mm后CVD
2pcs
T08632
Rear Shock Tower
后避震架
T08636
M3x12 Screw
M3x12螺丝 4pcs
O-ring
O环 1pcs
10T Gear
10T齿轮 1pcs
T08643
Turnbuckle Set
拉杆组
1pcs
43T Diff Gear
43T差速伞齿 1pcs
3x40 1pcs
4x53 2pcs
5x40 2pcs
5x58 2pcs
T08633
20T Diff Gear
20T差速齿轮 2pcs
10T Diff Gear
10T差速齿轮 4pcs
T08637
2.5x16.8 Pin
2.5x16.8销子
T08645
4x73 Arm Shaft
4x73摆臂轴
4x12x0.2 Washer
4x12x0.2垫片 4pcs
Diff Shaft
差速轴 2pcs
4pcs
2pcs
T08634
6x11x0.2 Washer
6x11x0.2垫片 2pcs
2.5x11.5 Pin
2.5x11.5钢针 2pcs
Diff Connecting Cup
差速接杯
T08914 T08639
M4x4 Screw
螺丝 2pcs
44T Center Diff Gear-Plastic
44T中差速齿轮-塑胶
1pcs
95mm Front CVD
95mm前CVD
T08916 T08647
M3x12 Screw
螺丝 4pcs
Center Diff Gear Mount
中差齿轮座
1pcs
Front/Rear Swaybar
2pcs
2pcs
1pcs
1pcs
前后防倾杆
T08648
Rim
轮框
2pcs
B061305/T08663
6x13x5 Ball Bearing
轴承 6pcs
W41202/T08668
4x12x0.2 Washer
4x12x0.2垫片 6pcs
T08649
Wheel Hex Hub
六角轮座 4pcs
17mm Hex Nut
17mm六角螺帽 4pcs
4pcs
2.5x16.8 Pin
2.5x16.8钢针
B081605/T08664
8x16x5 Ball Bearing
轴承 6pcs
W61102/T08669
6x11x0.2 Washer
6x11x0.2垫片 12pcs
T08651
Buffer Screw
缓冲螺丝 2pcs
Steering Rack
转向缓冲转接板 1pcs
B131904/T08665
13x19x4 Ball Bearing
轴承 6pcs
W3591/T08670
3.5x9x1 Washer
3.5x9x1垫片 6pcs
T08660 B061003/T08662
Small Clip
小号固定夹 8pcs
Mid Clip
中号固定夹 8pcs
6x10x3 Ball Bearing
轴承 6pcs
W275805/T08667 T08666
6pcs
2.7x5.8x0.5 Washer
2.7x5.8x0.5垫片 6pcs
M2.5 Nylon Nut
M2.5尼龙螺母
M3 Nylon Nut
M3尼龙螺母 6pcs
M3.5 Nylon Nut
M3.5尼龙螺母
M4 Nylon Nut
M4尼龙螺母 6pcs
T08675 T08678
M3x3 Screw
M3x3 螺丝 8pcs
M3x5 Screw
M3x5 螺丝 8pcs
M4x4 Screw
M4x4 螺丝 8pcs
M4x10 Screw
M4x10 螺丝 8pcs
M5x4 Screw
M5x4 螺丝 8pcs
5.8x1.9 Diff O-ring
5.8x1.9差速O环 6pcs
6pcs
T08673
M3x5 Screw
螺丝 8pcs
M3x6 Screw
螺丝 8pcs
M3x8 Screw
螺丝 8pcs
M3x10 Screw
螺丝 8pcs
M3x12 Screw
螺丝 8pcs
M3x16 Screw
螺丝 8pcs
M3x18 Screw
螺丝 8pcs
M3x30 Screw
螺丝 8pcs
M3.5x25 Screw
螺丝 8pcs
M4x10 Screw
螺丝 8pcs
M4x14 Screw
螺丝 8pcs
M4x16 Screw
螺丝 8pcs
M4x22 Screw
螺丝 8pcs
Parts list for T8E V3 off-road buggy-3 T8E V3越野车配件包-3
T08674
M2.5x8 Screw
螺丝 8pcs
M3x12 Screw
螺丝 8pcs
M3x16 Screw
螺丝 8pcs
M4x10 Screw
螺丝 8pcs
M3x8 Screw
螺丝 8pcs
M3x10 Screw
螺丝 8pcs
T08676
M2.5x8 Screw
螺丝 8pcs
M3x10 Screw
螺丝 8pcs
M3x12 Screw
螺丝 8pcs
W131602/T08304
13x16x0.2 Washer
13x16x0.2垫片 6pcs
T08753
M2.5x18 Screw
螺丝 8pcs
W3708/T02081
3x7x0.8 Washer
3x7x0.8垫片 10pcs
T08754
M3x14 Screw
螺丝 8pcs
M3x15 Screw
螺丝 8pcs
M3x14 Screw
螺丝 8pcs
M3x18 Screw
螺丝 8pcs
M3x20 Screw
螺丝 8pcs
T08750
3x7x0.8 Washer
3x7x0.8垫片 2pcs
T08755
M3x25 Screw
螺丝 8pcs
Buffer Screw
缓冲螺丝
2pcs
M3x18 Screw
螺丝 8pcs
M3x35 Screw
螺丝 8pcs
T08679 T02087
1mm Plastic Washer
1mm 塑胶垫片 4PCS
2.75mm Plastic Washer
2.75mm 塑胶垫片 4PCS
3.3x1.9 O-ring
3.3x1.9 O环 8PCS
T08751 T08752
Front Hub Carrier Bushing
前轮座轴套
4pcs
M4x16 Screw
螺丝 4pcs
T08756 T08757
M4x12 Screw
螺丝 8pcs
Double-sided Tape
双面胶 1pcs
Antenna Casing
天线套管 1pcs
King Pin Bushing
大王销轴套
M4x14 Screw
螺丝 8pcs
Antenna Cap
天线管帽 1pcs
4pcs
M4x14 Screw
螺丝 4pcs
6.8 Ball Stud
球头 6pcs
T08758
6.8 Ball Stud
T08763
Arm Mount-FF
摆臂固定座-FF 1pcs
T08770
球头 6pcs
6.8 Ball Stud
球头 6pcs
T08759
6.8 Ball Stud
球头 6pcs
TU0839
Arm Mount-FR
摆臂固定座-FR 1pcs
T08771
6.8 Ball Stud
球头 6pcs
T08760
6.8 Ball End-Swaybar
6.8 球头座-防倾杆 2pcs
5.8 Ball End-Steering Servo
5.8 球头座-转向伺服 1pcs
T08942
Arm Mount-RF
摆臂固定座-RF 1pcs
T08772
M3x3 Screw
螺丝 6pcs
Swaybar Ball Stud
6.8 Ball Stud
防倾杆球头 6pcs
T08768
7.8 Ball End-Rear Upper
7.8 球头座-后上 2pcs
6.8 Ball End-Steering
6.8 球头座-转向 2pcs
7.8 Ball End-Front Upper
7.8 球头座-前上 2pcs
Shock Top Ball Stud
避震上球头
T08943 T08769
Spring Mount
弹簧固定座 4pcs
Arm Mount-RR
摆臂固定座-RR 1pcs
Shock Top Mount
避震上固定座 4pcs
T08773 T08774
球头 6pcs
4pcs
Ball End
球头座
4pcs
Shock Absorber Top cover
避震器上盖
4pcs
18.5x1.5 O-ring
18.5x1.5 O环 4pcs
9x1.0 O-ring
9x1.0 O环 4pcs
CVD Connecting Cup
CVD接杯
2pcs
5x8.5 Shaft
5x8.5轴 2pcs
2.5x12.8 Pin
2.5x12.8钢针 2pcs
94mm Drive Shaft
94mm传动轴 2pcs
5x8.5 Shaft
5x8.5轴 2pcs
2.5x12.8 Pin
2.5x12.8钢针 2pcs
95mm Drive Shaft
95mm传动轴 2pcs
Parts list for T8E V3 off-road buggy-4 T8E V3越野车配件包-4
T08775
3x40 Turnbuckle
3x40拉杆 2pcs
T08945
4x71
4x71
T08786
T08787
T08789
T08790
T08791
T08792
T08793
T08794
T08795
T08797
T08799
T08800
T08801
T08802
T08803
T08804
Arm Shaft
摆臂轴
T08776
4x53 Turnbuckle
4x53拉杆 2pcs
T08820
1pcs
36mm
1pcs
Motor Mount
马达扶持座
Front Chassis Stiffener
2pcs
M2.5 Nylon Nut
M2.5 尼龍螺母
M3.5 Nylon Nut
M3.5 尼龍螺母
M3x6 Button Head Hex Screw
M3x6半圆头内六角螺丝
M3x8 Button Head Hex Screw
M3x8半圆头内六角螺丝
M3x10 Button Head Hex Screw
M3x10半圆头内六角螺丝
M3x12 Button Head Hex Screw
M3x12半圆头内六角螺丝
M3x15 Button Head Hex Screw
M3x15半圆头内六角螺丝
M3x16 Button Head Hex Screw
M3x16半圆头内六角螺丝
M3x18 Button Head Hex Screw
M3x18半圆头内六角螺丝
M3.5x25 Button Head Hex Screw
M3.5x25半圆头内六角螺丝
M4x14 Button Head Hex Screw
M4x14半圆头内六角螺丝
M4x16 Button Head Hex Screw
M4x16半圆头内六角螺丝
M4x22 Button Head Hex Screw
M4x22半圆头内六角螺丝
M2.5x8 Flat Head Hex Screw
M2.5x8平头内六角螺丝
M3x8 Flat Head Hex Screw
M3x8
M3x10 Flat Head Hex Screw
M3x10
前支撑杆 1pcs
平头内六角螺丝
平头内六角螺丝
42mm
Center Differential Plate
中央差速器固定板 1pcs
6pcs
6pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
T08777
5x40 Turnbuckle
5x40拉杆 2pcs
T08821
Battery Mount
电池固定座 2pcs
T08805
T08806
T08807
T08808
T08809
T08810
T08811
T08812
T08813
T08814
T08815
T08816
T08819
84002
83001
T08219
Velcro Tape
魔鬼粘 6pcs
T08778
5x58 Turnbuckle
5x58拉杆 2pcs
T08822 TU0880
Receiver Box
接收机盒 1pcs
M3x12 Flat Head Hex Screw
M3x12
平头内六角螺丝
M3x14 Flat Head Hex Screw
M3x14
平头内六角螺丝
M3x15 Flat Head Hex Screw
M3x15
平头内六角螺丝
M3x16 Flat Head Hex Screw
M3x16
平头内六角螺丝
M3x18 Flat Head Hex Screw
M3x18
平头内六角螺丝
M3x35 Flat Head Hex Screw
M3x35
平头内六角螺丝
M4x10 Flat Head Hex Screw
M4x10
平头内六角螺丝
M4x12 Flat Head Hex Screw
M4x12
平头内六角螺丝
M4x14 Flat Head Hex Screw
M4x14
平头内六角螺丝
M3x5 Set Screw
M3x5机米螺丝
M4x10 Set Screw
M4x10机米螺丝
M5x4 Set Screw
M5x4机米螺丝
M3x25 Cap Head Screw
M3x25圆柱头螺丝
M4x4 Set Screw
M4x4机米螺丝
M3x12 Cap Head Screw
M3x12圆柱头螺丝
M3x14 Cap Head Screw
M3x14圆柱头螺丝
Receiver Cover
接收机盖 1pcs
1mm 2pcs
1.5mm 2pcs
2mm 2pcs
Servo Mount
伺服机座 1pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
8pcs
T08779
3x51.5
Arm Shaft
3x51.5
摆臂轴
2pcs
Front Shock Shaft-Titan Coated
前避震轴-镀钛 2pcs
TU0882
Rear Shock Shaft-Titan Coated
后避震轴-镀钛 2pcs
T08944
2pcs
2pcs
2pcs 2pcs
Arm Adjust Set
摆臂调节组
T08941
Buffer Plate-Plastic
缓冲顶板-塑胶 1pcs
2pcs
T08220
511129
511190
84001
87004
87006
T08951
M3x18 Cap Head Screw
M3x18圆柱头螺丝
Mid Clip
中号固定夹
Small Clip
小号固定夹
M3x3 Set Screw
M3x3机米螺丝
M3 Nylon Nut
M3 尼龍螺母
M4 Nylon Nut
M4 尼龍螺母
Body
1pcs
车壳
T08940
Wing Screw Washer
尾翼螺丝垫片 2pcs
Wing
尾翼 1pcs
8pcs
10pcs
10pcs
8pcs
6pcs
6pcs
T08681
1pcs
36mm
1pcs
Motor Mount
马达扶持座
Front Chassis Stiffener
前支撑杆 1pcs
42mm
Center Differential Plate
中央差速器固定板
T08952
Center Differential Mount /
Motor Mount
中央差速器固定座/马达固定座
1pcs
M4x14 Screw
M4x14螺丝 2pcs
1pcs
M3x8 Screw
M3x8 螺丝 4pcs
M3x14 Screw
M3x14螺丝 2pcs
1pcs
Battery Mount
电池固定座 2pcs
3x7x0.8 Washer
3x7x0.8垫片 2pcs
1pcs
Velcro Tape
魔鬼粘 6pcs
T08953
1pcs
Rear Chassis Stiffener Mount
后支撑杆固定座
Left 1pcs
Top 1pcs
Bottom
1pcs
Parts list for T8E V3 off-road buggy-5 T8E V3越野车配件包-5
T08954
Servo Saver Body
缓冲筒身 1pcs
Servo Saver Nut
缓冲螺母 1pcs
Pin
钢针 2pcs
1pcs
OP
OP
TU0802
Nut
螺母 2pcs
Hex Mount +2
六角座+2 2pcs
TU0829
1pcs
Front Hub Carriers 14 Degree
前轮座14度
T08955
Servo Saver Post
缓冲柱 2pcs
TU0807
Aluminium Motor Washer 4MM
铝马达垫片4MM 1pcs
TU0830
1pcs
Front Hub Carriers 12 Degree
前轮座12度
OP
OP
1pcs
T08956
Servo Saver Spring
缓冲弹簧 1pcs
TU0810
M3x12 Screw
螺丝 4pcs
M3.5x28 Screw
螺丝 2pcs
Carbon Front Shock Tower
碳纤前避震架 1pcs
1pcs
TU0831
1pcs 1pcs
Steering Block
转向座
OP
OP
T08650
1pcs
1pcs
1pcs
Servo Saver Set
缓冲组
TU0812
M3x12 Screw
螺丝 4pcs
M3.5x28 Screw
螺丝 2pcs
Carbon Rear Shock Tower
碳纤后避震架 1pcs
1pcs
TU0842
Piston 1.2x6-Black
活塞1.2x6-黑色 2pcs
2pcs
OP
OP
TU0801
Hex Mount +1
六角座+1 2pcs
TU0819
Carbon Buffer Plate
碳纤缓冲顶板
TU0847
Piston 1.2x6-Black
活塞1.2x6-黑色 2pcs
Nut
螺母 2pcs
Pin
钢针 2pcs
1pcs
OP
OP
OP
TU0844
3x40 Titan Turnbuckle
3x40钛拉杆 1pcs
TU0850
Front Shock Spring-Soft
前避震弹簧-软
TU0860G
M3 Aluminium
Nuts-Golden
M3铝螺母-金色
10pcs
M4 Aluminium
Nuts-Golden
M4铝螺母-金色
3pcs
2pcs
OP
OP
OP
TU0845
4x53 Titan Turnbuckle
4x53钛拉杆 2pcs
TU0852
Rear Shock Spring-Soft
后避震弹簧-软
TU0860B
M3 Aluminium
Nuts-Blue
M3铝螺母-蓝色
10pcs
M4 Aluminium
Nuts-Blue
M4铝螺母-蓝色
3pcs
2pcs
OP
OP
OP
TU0846
5x40 Titan Turnbuckle
5x40钛拉杆 2pcs
TU0854
Front Shock Spring-Hard
前避震弹簧-硬
TU0860R
M3 Aluminium
Nuts-Red
M3铝螺母-红色
10pcs
M4 Aluminium
Nuts-Red
M4铝螺母-红色
3pcs
2pcs
OP
TU0848
5x58 Titan Turnbuckle
5x58钛拉杆 2pcs
OP
TU0856
Rear Shock Spring-Hard
后避震弹簧-硬
OP
TU0872
Front Hub Carriers 12 Degree
前轮座12度
1 set
OP
OP
2pcs
OP
Steering Block
转向座
TU0870
Shock Top Ball Stud-Aluminium
避震上球头-铝
TU0871
5.8
2pcs
5.8/6.8mm Ball Stud-Aluminium
6.8
2pcs
5.8/6.8球头-铝
TU0874
Front Hub Carriers 14 Degree
前轮座14度
1 set
Steering Block
转向座
OP
4pcs
OP
6.8
2pcs
OP
TU0866
Front Sway Bar 2.3
前防倾杆-2.3
1pcs
OP
TU0867
Front Sway Bar 2.6
前防倾杆-2.6
1pcs
OP
TU0868
Rear
Sway Bar 2.6
后
防倾杆-2.6
1pcs
OP
TU0869
Rear
后
防倾杆-3.0
Sway Bar 3.0
1pcs
OP
TU0875
6.8 Swaybar Ball Stud-
6.8防倾杆球头-铝
OP
Aluminium
4pcs
Parts list for T8E V3 off-road buggy-6 T8E V3越野车配件包-6
TU0876
4pcs
7.8mm Arm Ball Stud-Aluminium
7.8摆臂球头-铝
H398
Motor Gear-18T
马达齿-18T 1pcs
OP
4pcs
OP
M4x4 Screw
1pcs
TU0877
Wing Washer
尾翼垫-铝
M3x12 Screw
H399
Motor Gear-19T
马达齿-19T 1pcs
-Aluminium
2pcs
螺丝 2pcs
M4x4 Screw
1pcs
OP
OP
TU0878
Diff Shaft
差速轴-铝
Motor Gear-20T
马达齿-20T 1pcs
-Aluminium
6pcs
M4x4 Screw
1pcs
OP
TU0879
Servo Saver Shaft-Aluminium
缓冲柱-铝
OP
Motor Gear-21T
马达齿-21T 1pcs
2pcs
M4x4 Screw
1pcs
OP
OP
H397
M4x4 Screw
1pcs
Motor Gear-17T
马达齿-17T 1pcs
TU0804
Carbon ESC Mount
碳纤电子变速器固定座
OP
OP
1pcs
T8E V3
SETUP SHEET for the TeamC T8E V3
Driver
Track / City
Event
Date
/
/
Track Condition
Sandy Soft dirt Grass Hard soil Clay
Front Suspension
4
3
2
1
1
2
3
Rear Suspension
Anti-roll bar:
Camber
4
3
2
1
1
2
3
1
2
4
5
Smooth Bumpy Low traction Med traction High traction
Shock Mounting&Camber link
Anti-roll bar:
Camber
2
1
mm
°
Shock Mounting&Camber link
mm
°
2
1
Wet Dry Dusty Other
Ride height
Wheelbase
Long
Medium
Short
1
Degree
mm
Front Shocks
2
3
mm
°
Spring
Oil wt
Piston #
Rear Shocks
mm
Ride height
Tires
Brand
Compound
Insert
Wheel
Brand
Compound
Insert
Wheel
Note
2
1
Front
Rear
Diff
Brand
Oil wt
Brand
Oil wt
Brand
Oil wt
Front
Center
Rear
Spring
Oil wt
Piston #
Motor
ESC
Motor
LiPo battery
Spur
Pinion
Note
www.teamcracing.net
Loading...
