Team C T8E User Manual

1:8 SCALE 4WD ELECTRIC PRO RACING BUGGY

Notice

This manual is written in english language only. If you need a manual in your language please visit our website or contact your distributor!

Diese Anleitung wurde in englischer Sprache verfasst. Sollten sie eine Anleitung in ihrer Sprache benötigen, besuchen sie unsere website oder konaktieren sie ihren Vertriebsagenten.

Questo manuale è stato scritto in inglese. Se avete bisogno del manuale nella tua lingua, si prega di visitare il nostro sito web o contattate il proprio distributore.

Este manual está escrito en Inglés. Si necesita el manual en su idioma, por favor visite nuestro sitio web o contacte con su distribuidor.

Ce manuel est écrit en langue anglaise. Si vous avez besoin d'un manuel dans votre langue s'il vous plaît visitez notre site web ou contactez votre distributeur!

Deze handleiding is geschreven in het Engels taal beschikbaar. Als u een handleiding in uw eigen taal kunt u terecht op onze website of neem contact op met uw distributeur!

Thank you for purchasing this T8E Competition Buggy by Team C. This manual shows instructions and tips to built and maintain your T8E. Please take some time to read through to get familiar with the shown steps. We continually improve our products, due to that, actual parts my be different to the illustrations. Please check our website for the latest versions manuals and tips before you start to built this model.

Generall Information

THIS IS NOT A TOY! Not suitable for children under 14 years of age without adult supervision.

This is a high performance vehicle, for safety reason don’t run on public streets, in crowded areas, environmentally areas or near children or animals.

This model contains rotationg parts and parts which become hot during operation. Care must been taken to avoid damage or injuries.

This product may require some assembly and routine maintance.

This product is covered by warranty based on material defectives. Crash damage or maintenance failures are not covered under warranty.

Batteries should be used in good condition only, and need to be fully charged.

Nitro models should be driven outside of buildings only. Inhaling exhaust gases could cause health damage.

Keep chemicals stored out of the range of small children.

Make sure your model and equipment is in perfect condition before you use it, to ensure savety and fun while driving.

DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM

反向开关

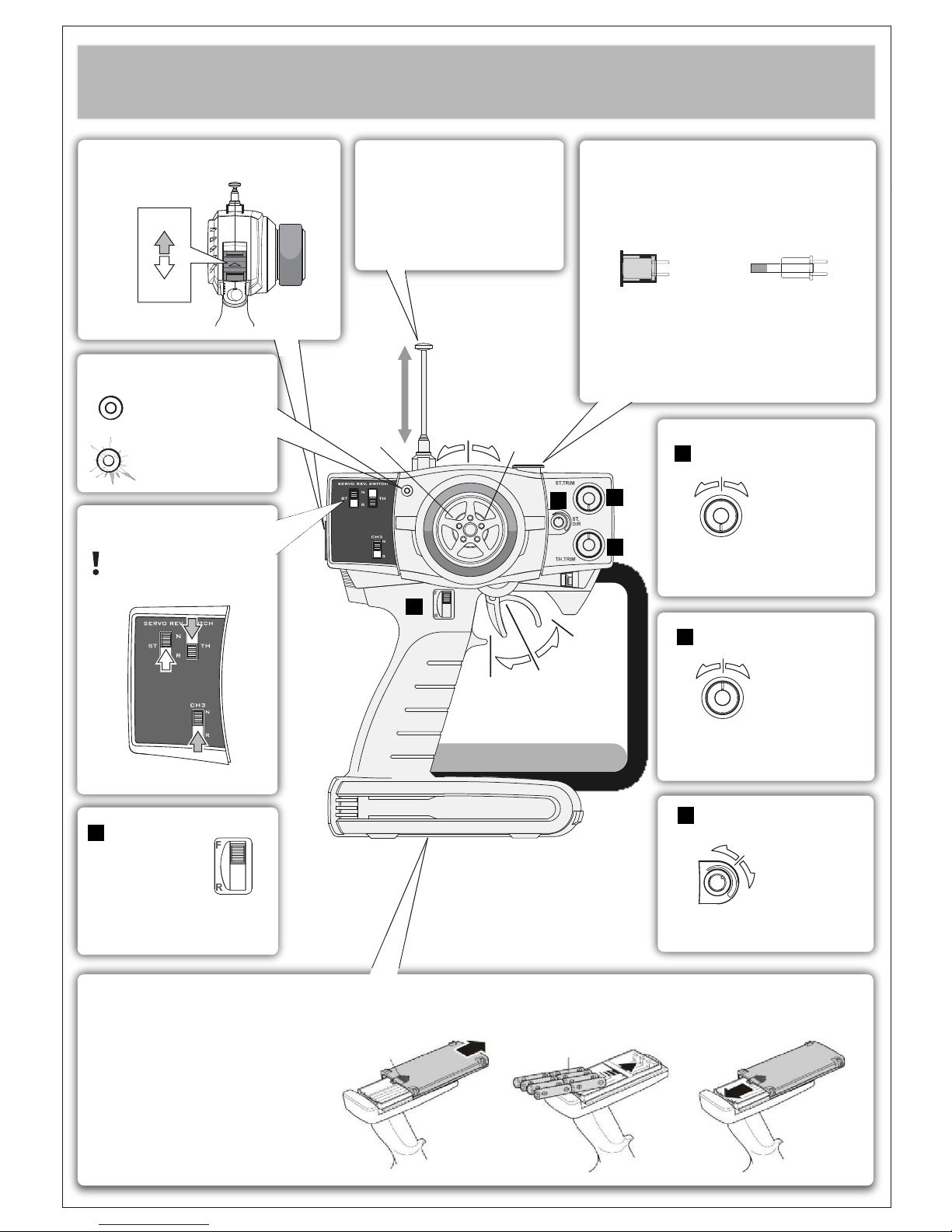

Transmitter Preparation

27MHzTransmitter Crystal（TX）

Transmitter crystal(TX)

Power Switch

ON

OFF

Antenna

Extend the antenna to the maximum Length for best performance

The crystal can be replaced to change frequencies. Note : You must also change receiver crystals! Do not use AM crystals

Receiver crystal(RX)

Steering Trim

To be used for trimming the steering operation

Throttle Trim

Steering Dual Rate

To be used to adjust steering servo throw

AA Alkaling Batteries

8X

Open battery cover at the bottom of transmitter. Install batteries. Follow the direction of batteries designated in the inside of battery box.

Transmitter Battery Installation

This switch is used for optional parts.

3ch Switch

Reverse Switch

Low Batteries(Light Blinks)

Good Batteries

Battery Level Indicator

Left turn

Straight (neutral)

Right turn

Brake

Forward

Stop(Neutral)

To be used for throttle operation

Throttle Trigger

Battery Cover

Servo Factory Settings

1

2

3

2

To be used for trimming the throttle operation

3

4

Transmitter Preparation

Battery

A new Ni-MH battery must be charged before it is used.Refer to the charger instruction manual for charging.

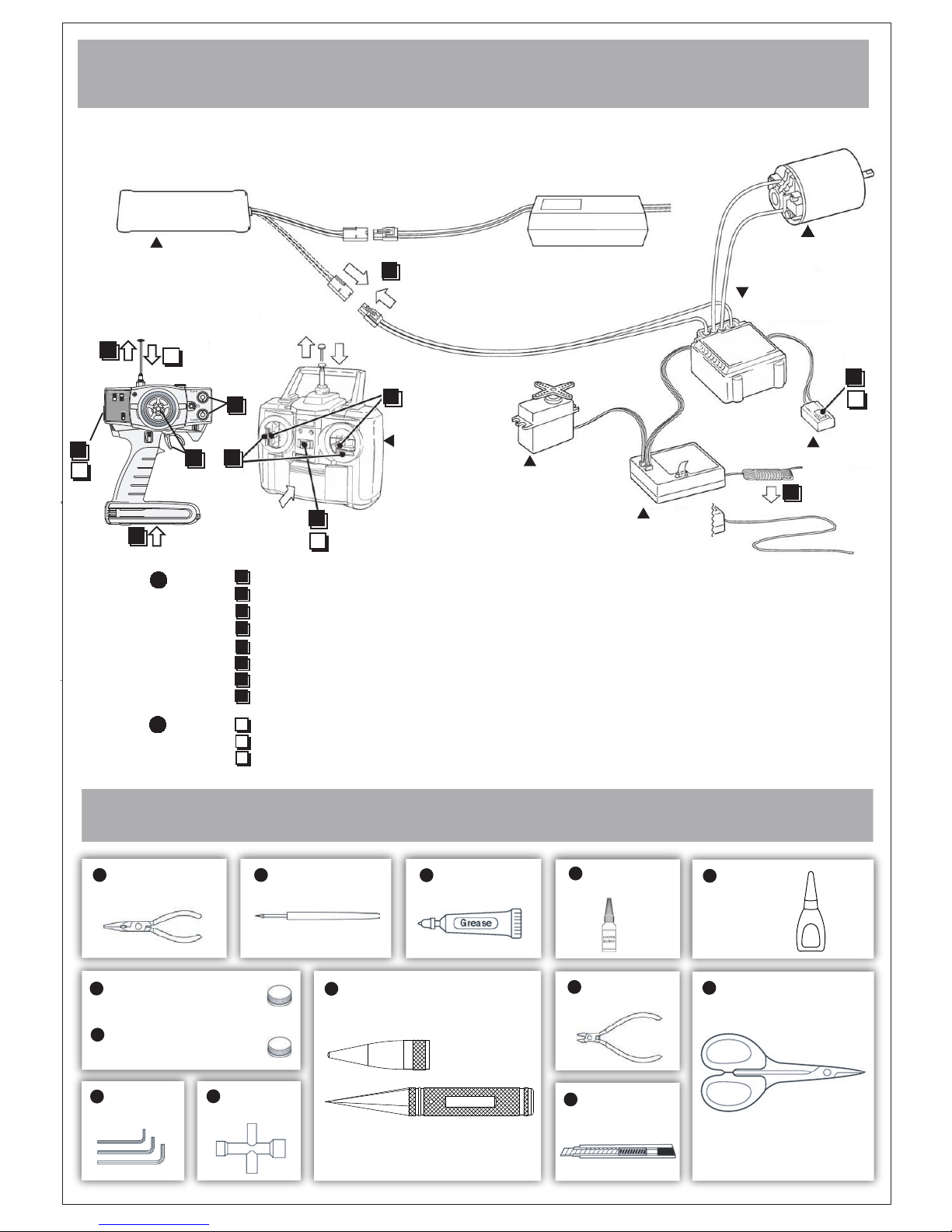

Set up the radio control system as indicated below.

6

5

8

Servo

Receiver

Transmitter

10

4

Switch

7

9

Electronic Speed Controller

Motor

DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM

11

2

ON

OFF

6

10

ON

OFF

5

8

1

3

Tools required

Needie Nose Pllers

Awl

Grease

Screw Cement

Instant Glue

Hex Wrench

Differential Grease

Molybdenum Grease(Black)

Hex Wrench

Body Reamer

No need to pre-drill precise holes (1mm to 15mm)can be drilled

Wire Cutters

Sharp Hobby knife

ROUND CUTTER

For trimming bodies!

Start

Finish

Install batteries.(Transmitter)

Extend the antenna.(Transmitter)

Connect the battery

Extend the antenna.(Reveiver) Center the trims. Switch on.(Transmitter)

Switch on.(Reveiver) Make sure the servos are in command.

Switch off.(Reveiver)

Switch off.(Transmitter) Retract the antenna(Transmitter)

1

8

7

2

5

3

4

6

9

10

11

H154

H162

H096

1

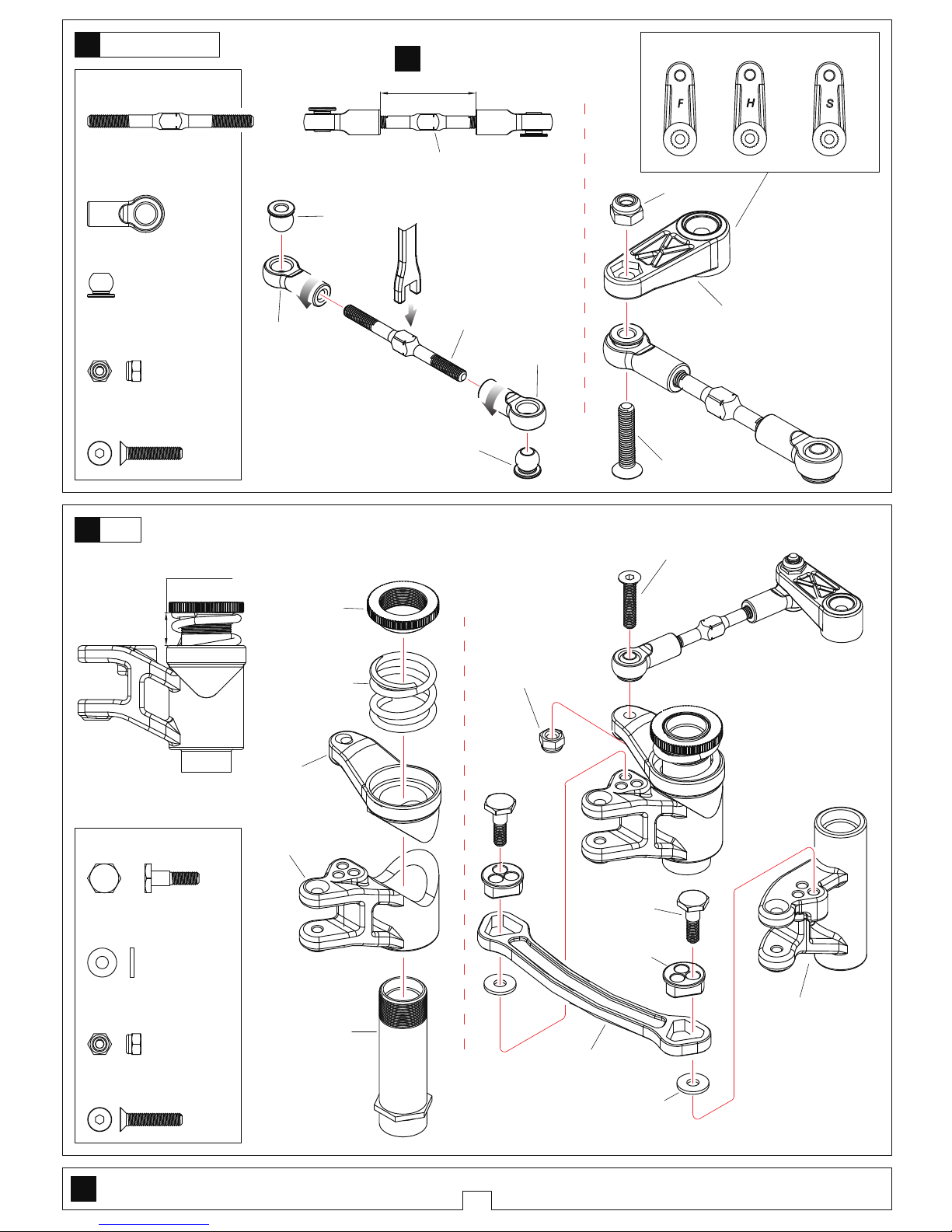

Servo Saver Turnbuckle

………1

T08674 M3x15 Screw

1

1:1

Approx.23mm

▲Projection.Note direction

T08643 3x40 Turnbuckle

…………1

T08606 5.8 Ball End

…………2

T08606 5.8 Ball stud

……………………2

T08666 M3 Nylon Nut

…………………1

………1

T08674 M3x14 Screw

T08666 M3 Nylon Nut

…………………1

T02081 3x7x0.8 Washer

…………………2

T08651 Buffer Screw

……2

Approx.8mm

1:1

True-to -scale diagram

T08666 M3

T08674 M3x15

T08650

Servo Saver Nut

T08650

Servo Saver Spring

T08609

Servo Saver-Top

T08609

Servo Saver-Bottom

T08650

Servo Saver Body

T08651

T08674 M3x14

T08651

Buffer Bushing

T08651

Steering Rack

T08666 M3

T08620

Steering Servo Horn-F

Select the servo horn matching the servo being used.

Futaba-25T Hitec-24T Sanwa/JR/KO-23T

T08609

Servo Saver-Left

Buffer Screw

T02081 3x7x0.8

2

Buffer

4mm

T08643

3x40 Turnbuckle

T08606

5.8 Ball End

T08606

5.8 Ball End

T08606

5.8 Ball stud

T08606

5.8 Ball stud

Bag-A

2

Screw

Cement

Screw Cement

Apply threadlock

…………1

T08674 M3x10 Screw

T08674 M4x10 Screw

…………2

T08666 M3 Nylon Nut

…………………2

T08662 6x10x3 Ball Bearing

T08673 M3x10

T08666 M3

T08674 M3x10

………………4

T08674 M3x12

T08674 M3x14

T08674 M4x10

T08681

Front Chassis Stiffener

T08609

Buffer Plate-Plastic

T08609

Buffer Plate-Aluminium

T08612

Front Body Mount

T08662 6x10x3

Buffer

Servo Saver Post/Side Plate

…………8

T08674 M3x8 Screw

T08674 M4x10 Screw

…………2

T08680

Side Plate-Left

T08680

Side Plate-Right

T08674 M3x8

T08674 M4x10

T08683

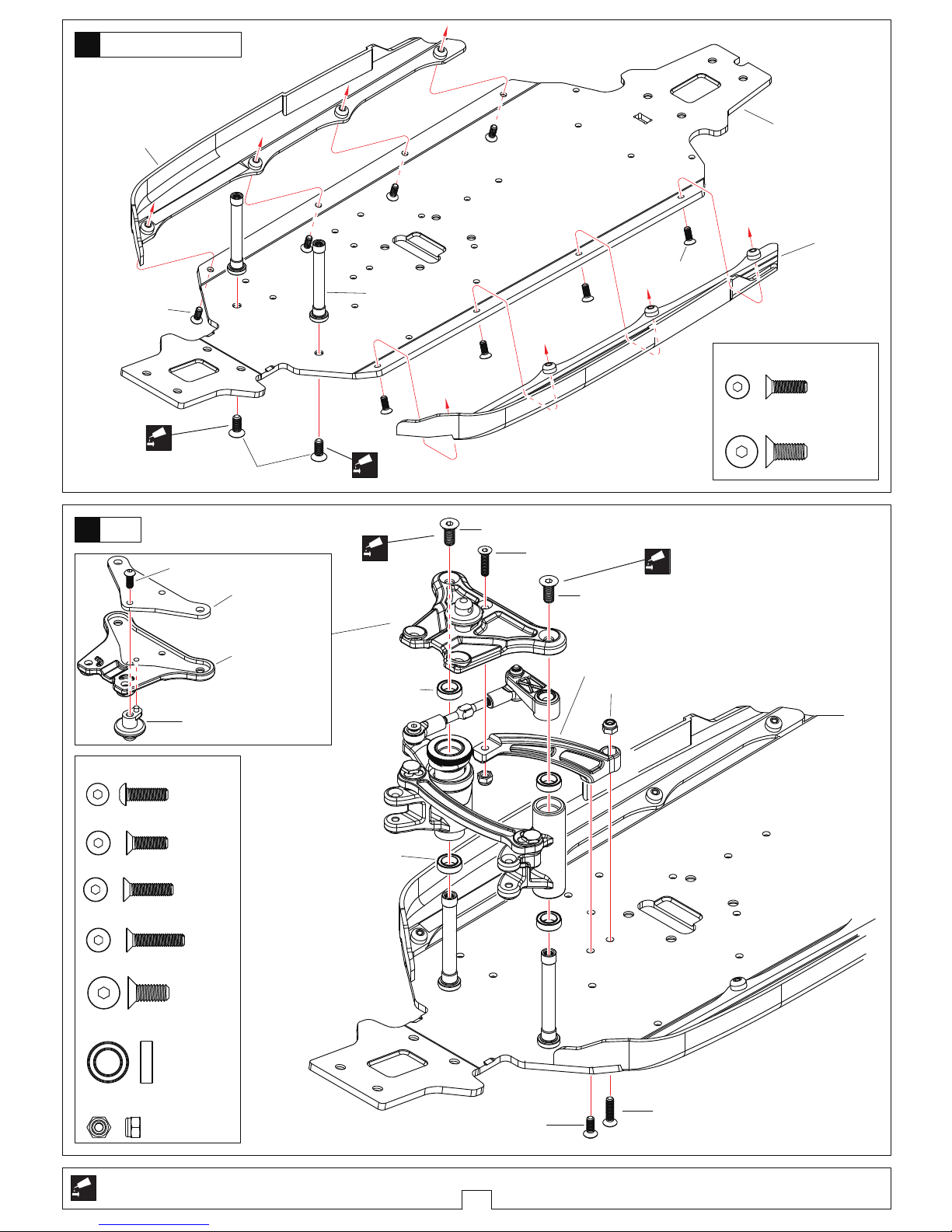

Chassis

T08674 M3x8

T08650

Servo Saver Post

4

3

Screw

Cement

T08673 M3x10 Screw

…………1

Bag-A

Bag-B

Bag-A

………1

T08674 M3x14 Screw

…………1

T08674 M3x12 Screw

Apply threadlock

3

T08304 13.1x15.9x0.2 Washer

…………2

T08663 6x13x5 Ball Bearing

………2

T08673 M3x16 Screw

……2

T08641 M5x4 Screw

………………1

T08641 M5x4

T08601

Differential Case

T08636

10T Gear

T08673 M3x16

T08601

Differential Case

T08663 6x13x5

T08304

13.1x15.9x0.2

T08663 6x13x5

6

Front Differential Case

x2

Assemble as many times as specified

Screw Cement

T08641

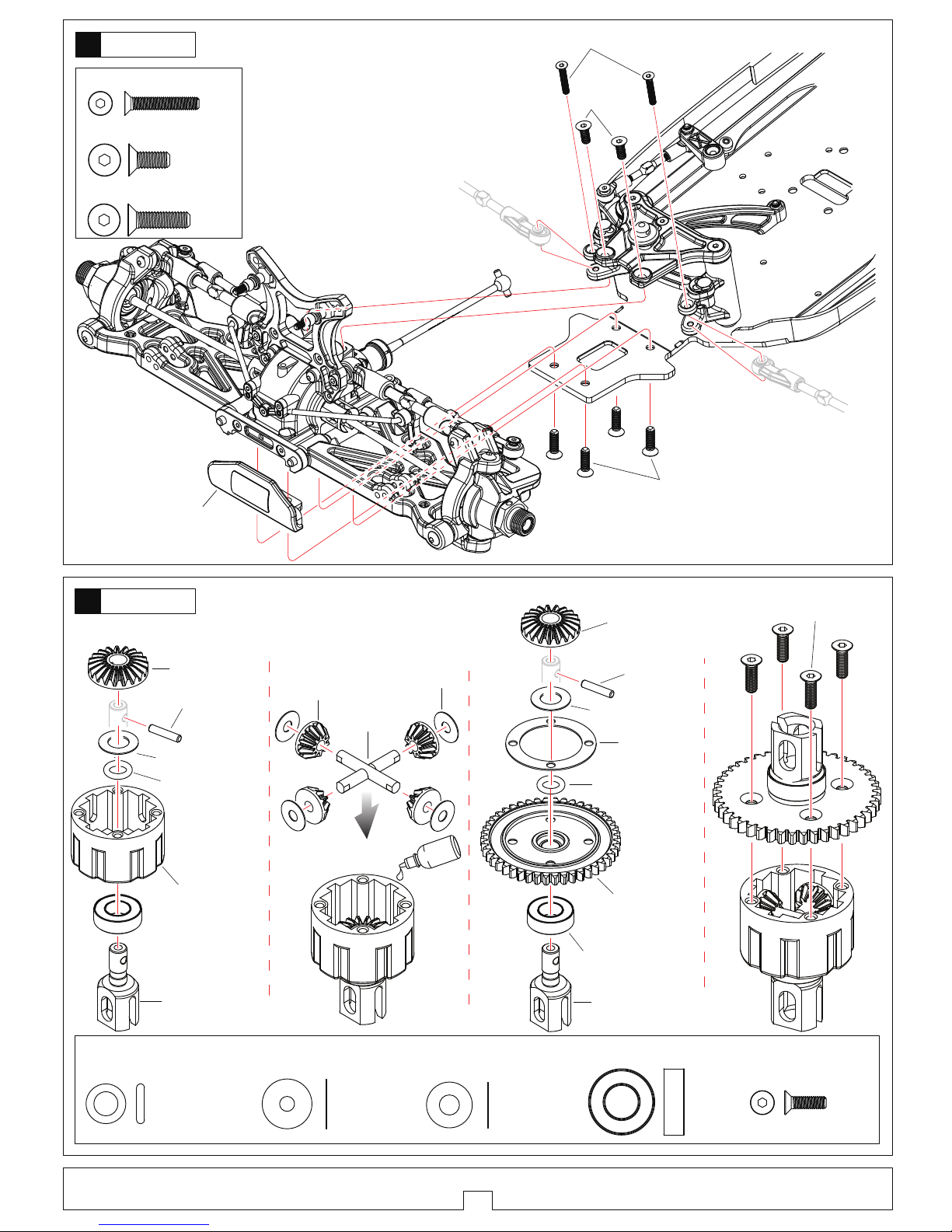

84mm Center Front CVD

Bag-C

Bag-D

T08600/T08636 5.8x1.9 O-Ring

…………………4

T08633 4.1x12x0.2 Washer

…………8

T08664 8x16x5 Ball Bearing

………4

……8

T08636 M3x12 Screw

T08633

20T Diff Gear

T08633

10T Diff Gear

T08633

20T Diff Gear

T08633

2.5x11.5 Pin

T08633

2.5x11.5 Pin

T08634

Diff Connecting Cup

T08634

Diff Connecting Cup

T08600

Differential Housing

T08633 4.1x12x0.2

T08633

T08600

Differential Pads

T08636

43T Diff Gear

T08636 M3x12

T08600 5.8x1.9

T08664 8x16x5

T08636 5.8x1.9

T08664 8x16x5

Oil

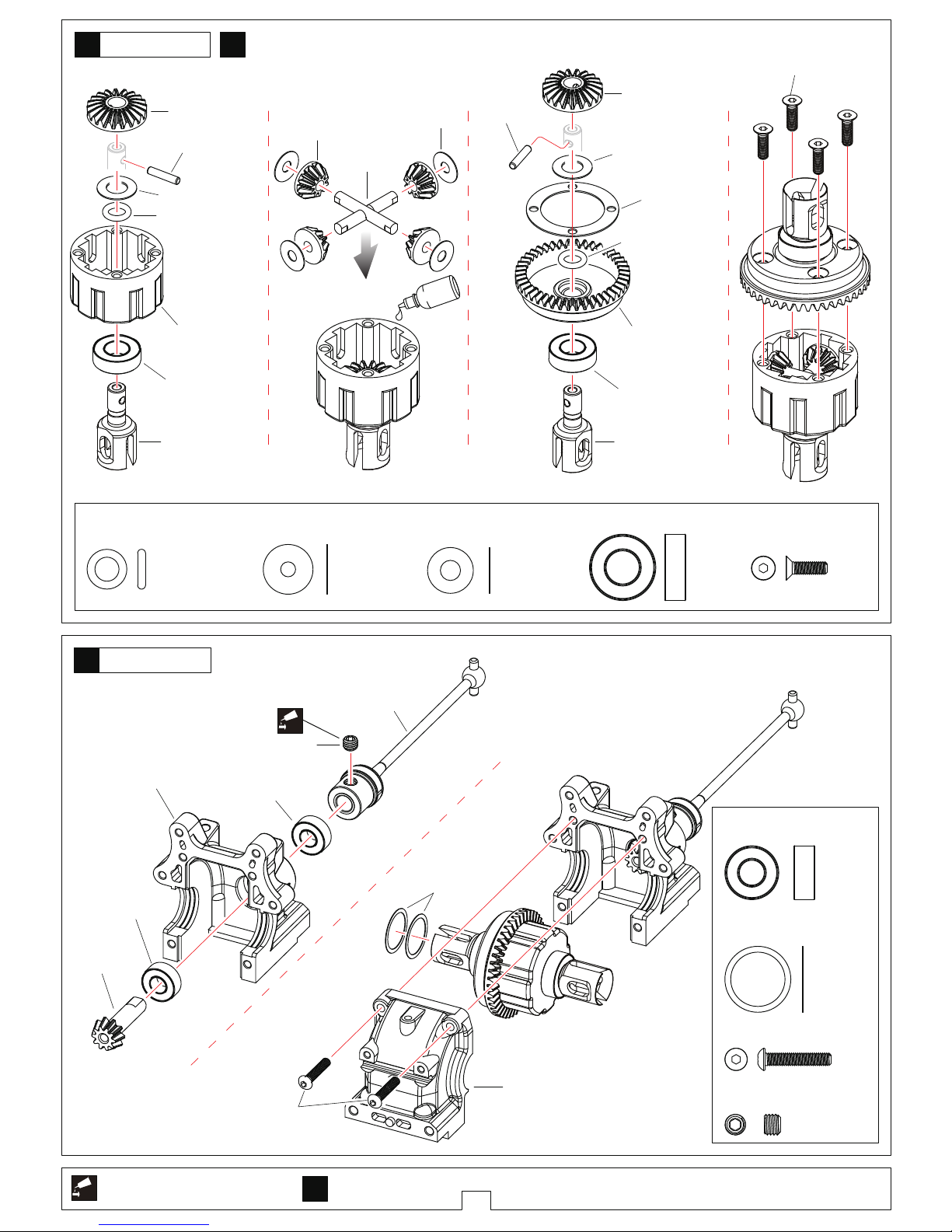

5

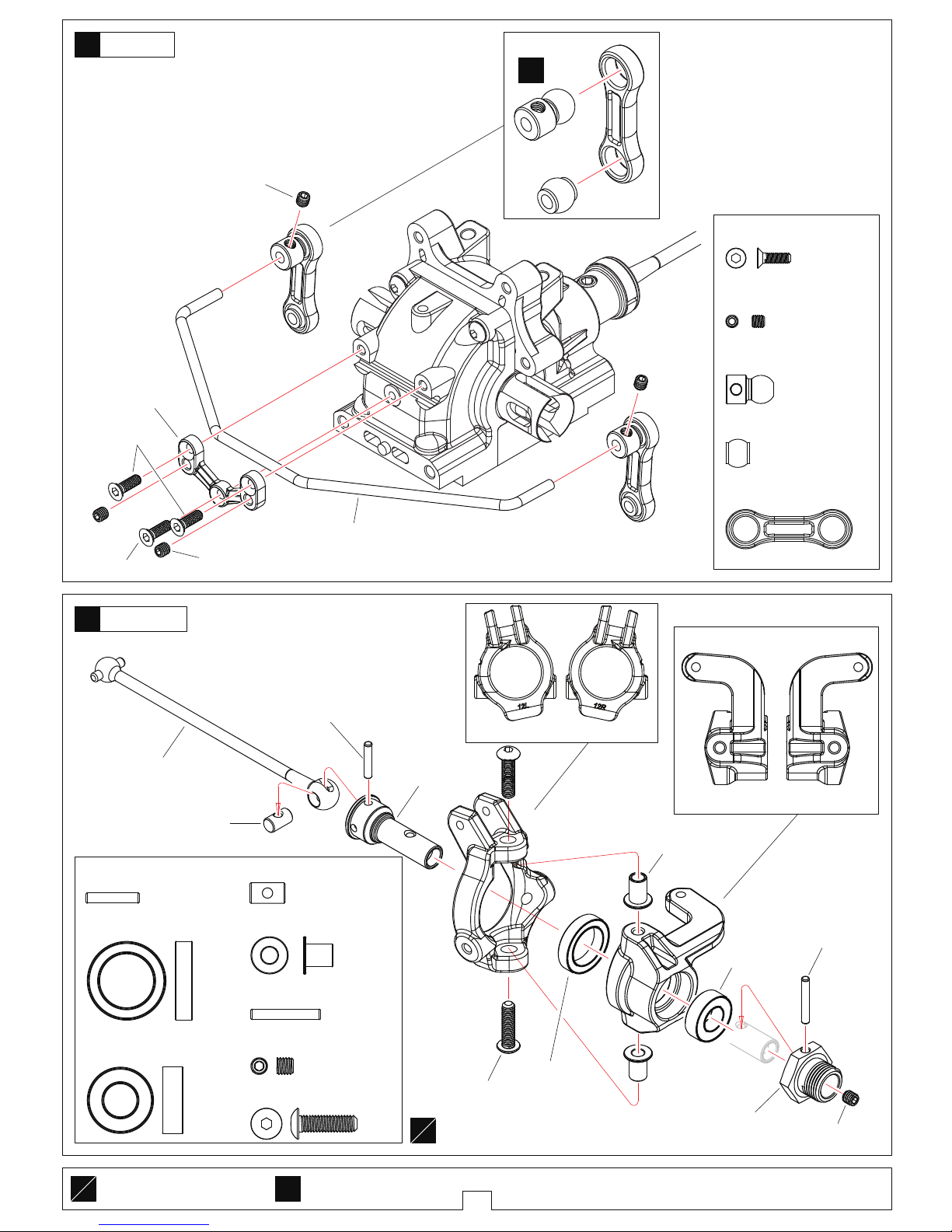

Front/Rear Differential

x2

5000# for Front 2000# for Rear

Bag-C

T08669 6.1x11x0.2

T08669 6.1x11x0.2 Washer

…………4

x2

4

………………3

T08674 M2.5x8 Screw

……………………4

T08601/T08606 M3x3 Screw

L

R

L

R

Assemble both Left and Right

T08606 6.8 Ball stud

…………………2

T08606 6.8 Ball stud

………………………2

x2

Assemble as many times as specified

T08606 M3x3

T08606 6.8 Ball End

T08606

………………2

T08601 M3x3

T08674 M2.5x8

T08601

Swaybar Mount

T08647

Front Swaybar

8

Front Hub Carrie

7

Front Swaybar

……4

T08673 M4x14 Screw

T08664 8x16x5 Ball Bearing

T08665 13x19x4 Ball Bearing

………2

………4

…………………2

T08639 M4x4 Screw

……………2

T08649 2.5x16.8 Pin

T08604

Steering Block-Left Steering Block-Right

T08673 M4x14

T08603

Front Hub Carriers 12 Degree

T08639

T08639 M4x4

T08649 2.5x16.8

T08649

Wheel Hex Hub

T08603

T08665 13x19x4

T08664 8x16x5

T08639 2.5x12.8

T08639 5x8.5

T08639

T08639 2.5x12.8 Pin

………………2

T08639 5x8.5 CVD Shaft

……………………2

T08603 King Pin Bushing

King Pin Bushing

Bag-D

Left

Right

95.5mm Front CVD

5

L

R

Assemble both Left and Right

……4

T08673 M4x16 Screw

………4

T08675 M4x10 Screw

……………2

L

R

T08673 M3x16 Screw

……2

T08645 4x73 Arm Pin

……2

T08674 M3x35 Screw

…………2

T08674 M3x15 Screw

………2

T08673 M4x16

T08675 M4x10

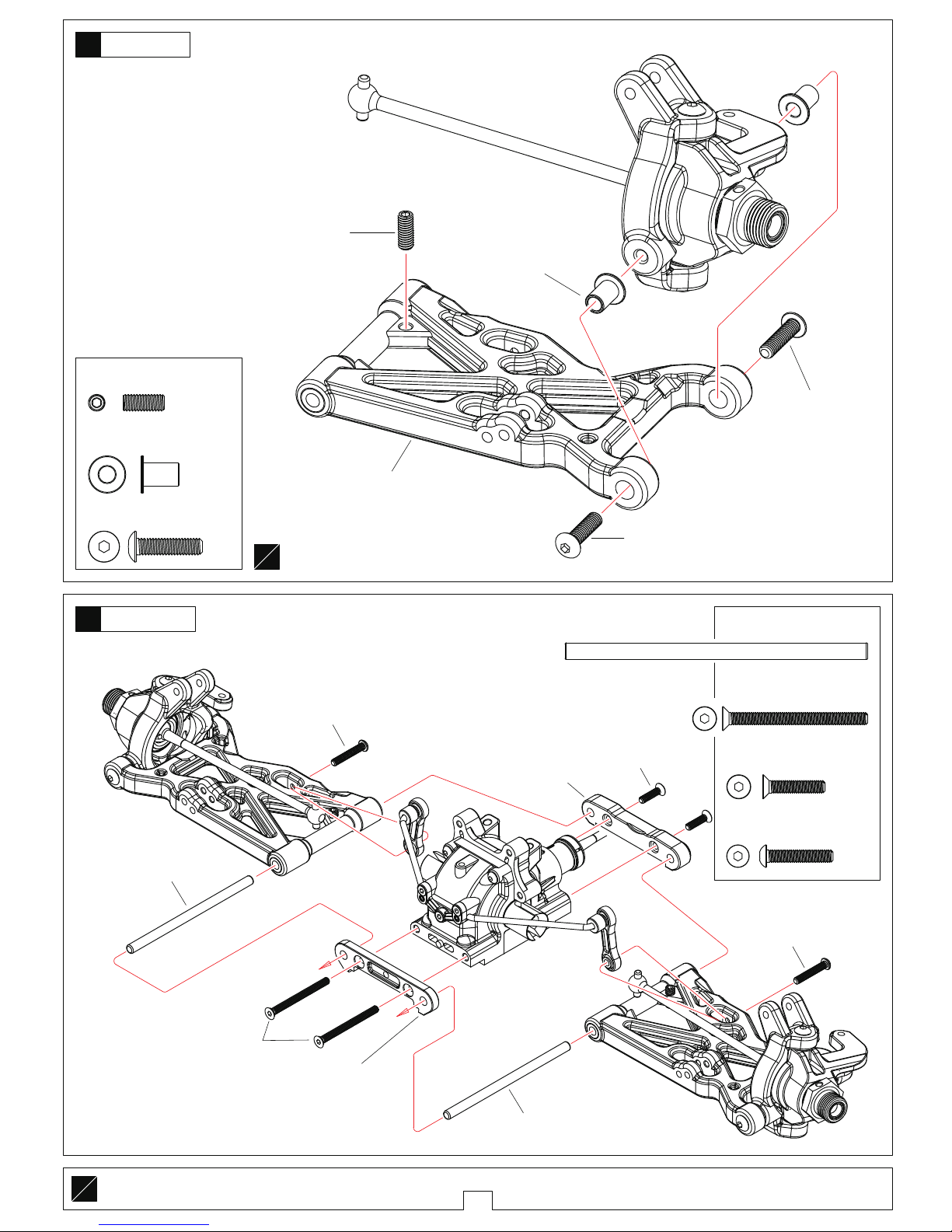

T08607

Front Lower Arm

T08613

Front Arm Mount-F

T08613

Front Arm Mount-R

T08645 4x73

T08674 M3x35

T08674 M3x15

T08673 M3x16

9

Front Hub Carrie

10

Front Suspension

T08607 Front Hub Carrier Bushing

Front Hub Carrier Bushing

Bag-D

6

T08674 M3x12 Screw

………4

T08673 M3.5x25 Screw

………2 ………2

T08622 Shock cap ball

T08643 5x58 Turnbuckle

1:1 x1

T08606 7.8 Ball stud

………2 ……………2 ……………2

T08606 7.8 Ball stud

Approx.32mm

▲Projection.Note direction

Approx.32mm

T08606 7.8 Ball End-Front Upper

…………4

Front Upper-Left

Front Upper-Right

11

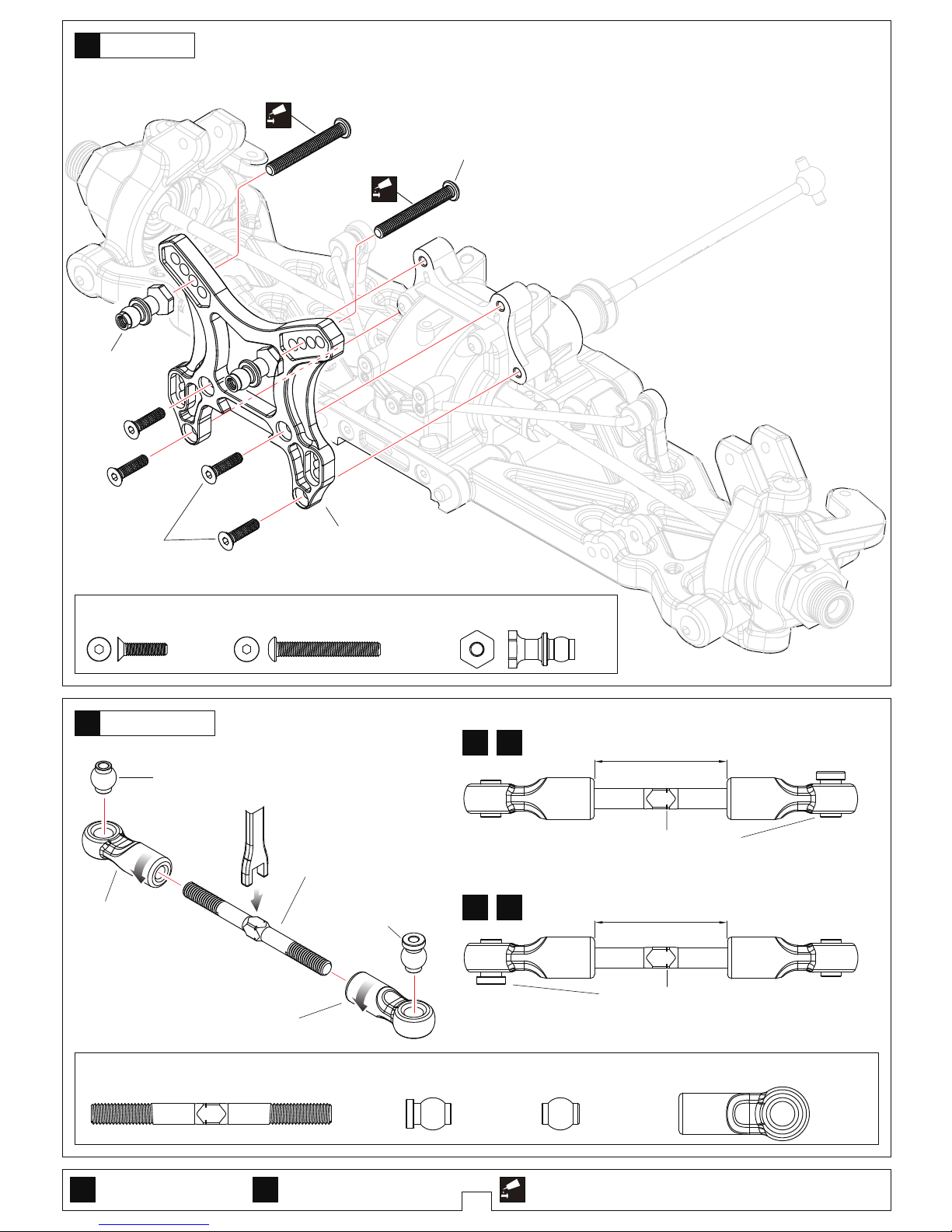

Front Shock Tower

12

Front Upper Turnbuckle

1:1

True-to -scale diagram

x1

Assemble as many times as specified

Apply threadlock

Screw

Cement

Screw Cement

T08643

5x58 Turnbuckle

T08606

7.8 Ball End-Front Upper

T08606

7.8 Ball stud

T08606

7.8 Ball stud

T08606

7.8 Ball End-Front Upper

5mm

T08631

Front Shock Tower

T08622

Ball stud

球头

T08674 M3x12

T08673 M3.5x25

Bag-D

7

T08643 4x53 Turnbuckle

T08606 6.8 Ball stud

………2 ……………2 ……………2

T08606 6.8 Ball stud

T08676 M3x25 Screw

……2

T08674 M3x16 Screw

……2

T08666 M3 Nylon Nut

…………6

……2

T08676 M3x18 Screw

T08606 6.8 Ball End-Steering

……………4

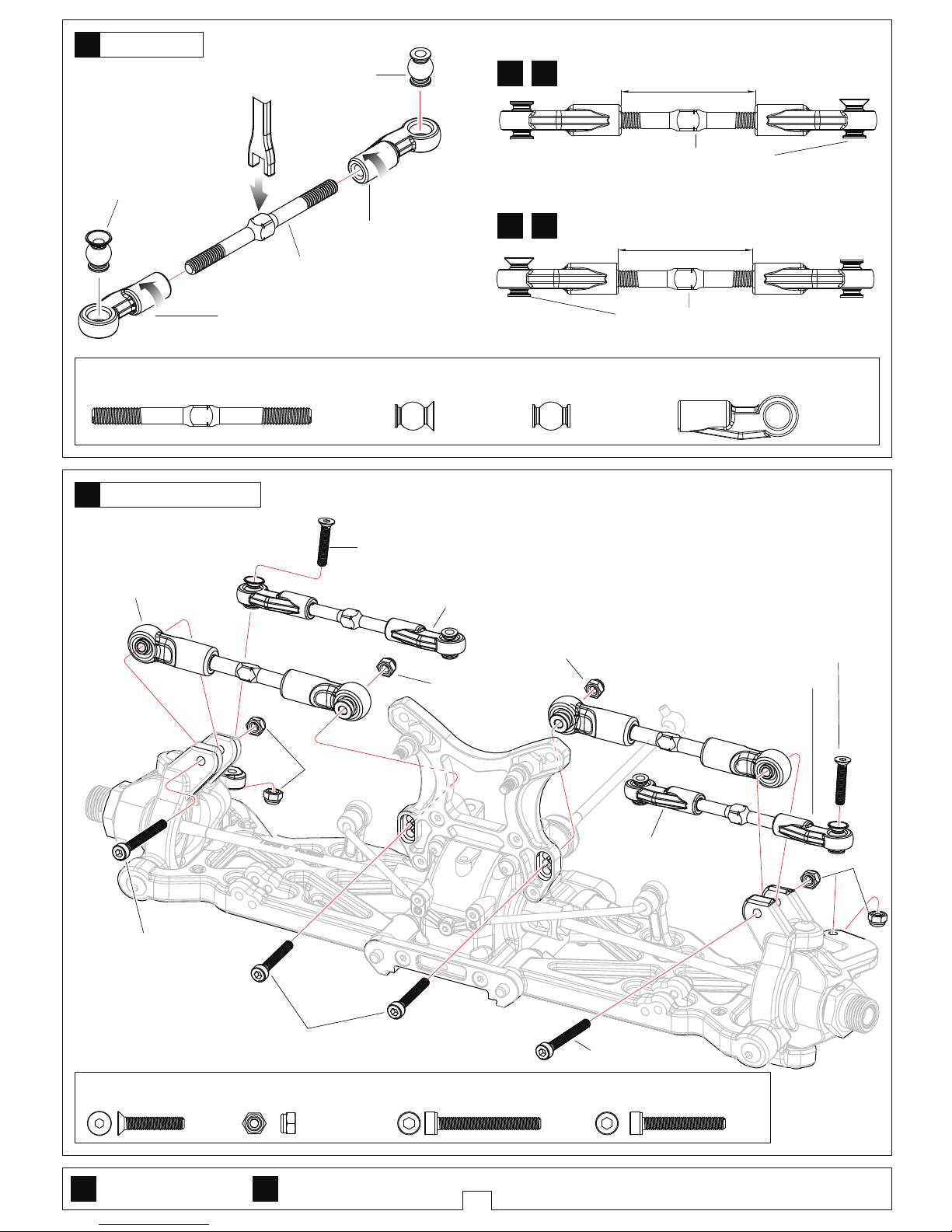

13

Steering Turnbuckle

14

1:1

True-to -scale diagram

x1

Assemble as many times as specified

Front Upper/Steering Turnbuckle

T08643

4x53 Turnbuckle

T08606

6.8 Ball End-Steering

T08606

6.8 Ball End-Steering

T08606

6.8 Ball stud

T08606

6.8 Ball stud

Front Upper Turnbuckle-Left

Front Upper Turnbuckle-Right

Steering Turnbuckle-Left

Steering Turnbuckle-Right

T08674 M3x16

T08676 M3x25

T08676 M3x18

T08666 M3

5mm

1:1 x1

Steering-Right

Steering-Left

Approx.32.5mm

▲Projection.Note direction

Bag-D

8

T08674 M4x10 Screw

…………2

T08674 M4x14 Screw

………4

T08674 M3x18 Screw

……2

15

Front Suspension

T08674 M4x14

T08674 M4x10

T08674 M3x18

T08611

Front Bumper

Bag-D

T08633

10T Diff Gear

T08633

20T Diff Gear

T08633

2.5x11.5 Pin

T08600

Differential Housing

T08633 4.1x12x0.2

T08633

Diff Shaft

T08636 M3x12

T08600 5.8x1.9

T08664 8x16x5

5000#

T08638

44T Center Diff Gear

T08633

20T Diff Gear

T08633

2.5x11.5 Pin

T08664 8x16x5

T08635

Center Diff Connecting Cup

T08637 5.8x1.9

T08600

Differential Pads

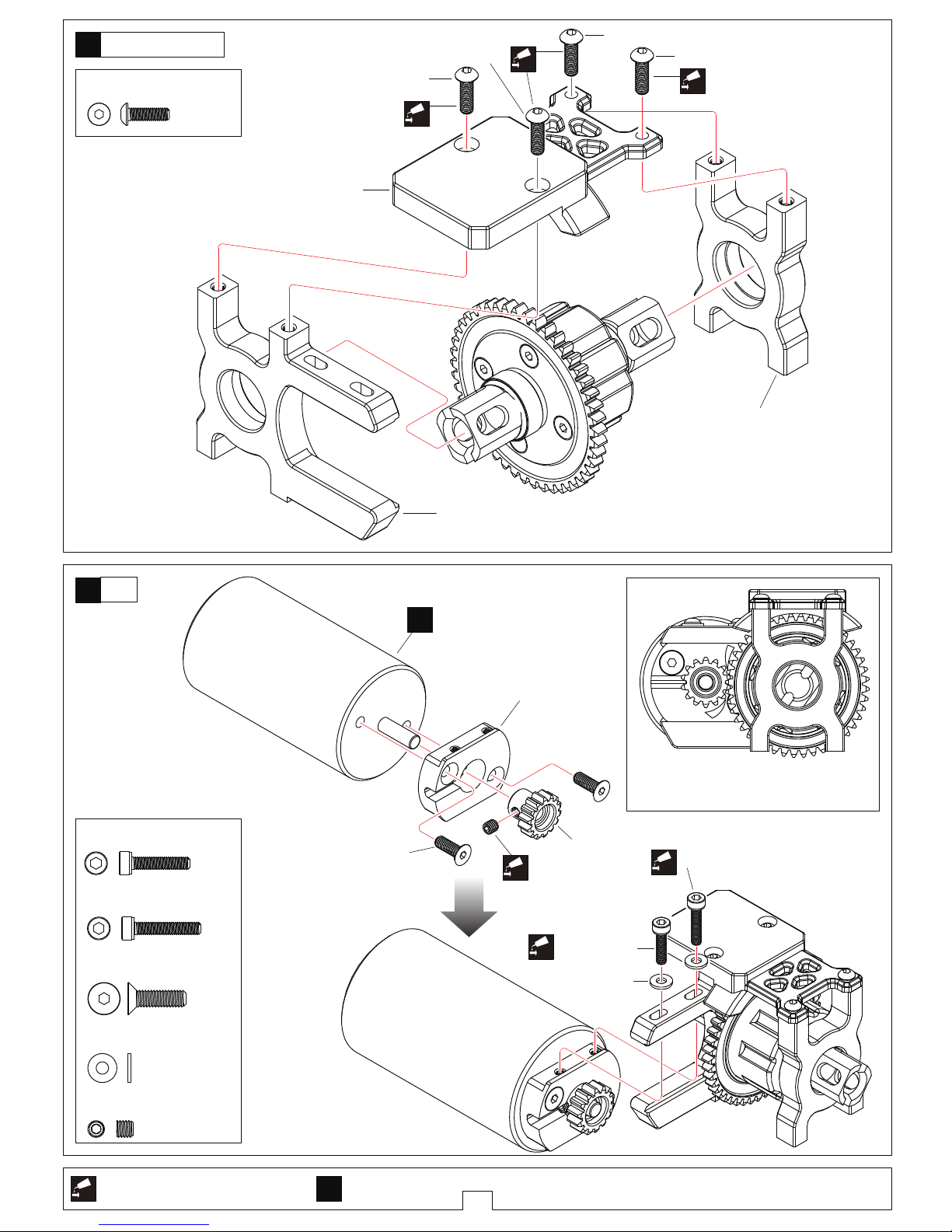

16

Center Differential

T08635

Center Diff Connecting Cup

Bag-C

T08669 6.1x11x0.2

T08600/T08636 5.8x1.9 O-Ring

…………………2

T08633 4.1x12x0.2 Washer

…………4

T08664 8x16x5 Ball Bearing

………2

……4

T08636 M3x12 Screw

T08669 6.1x11x0.2 Washer

…………2

9

Screw

Cement

Screw Cement

Screw

Cement

T08686

Center Differential Mount-Rear

Center Differential Mount

Motor

Apply threadlockt

T08686 M3x14 Screw

T08686 M4x14 Screw

T08686 3x7x0.8 Washer

H396 M4x4 Screw

…………………1

…………………2

………2

T08681 M3x10 Screw

…………4

T08686

Motor Mount

T08681 M3x10

T08681

Center Differential Plate

T08681 M3x10

H396 M4x4

T08686 M3x12

T08686 3x7x0.8

H396

T08686 M4x14

T08686

Motor Mount

Motor

Tighten the screws with one sheet of paper inserted between both gears.

18

17

X

Screw

Cement

Screw Cement

Screw

Cement

Must be purchased separately

X

……1

T08686 M3x12 Screw

……1

Screw Cement

T08686 M3x14

Bag-C

10

T08674 M4x10 Screw

………4

T08674 M4x10

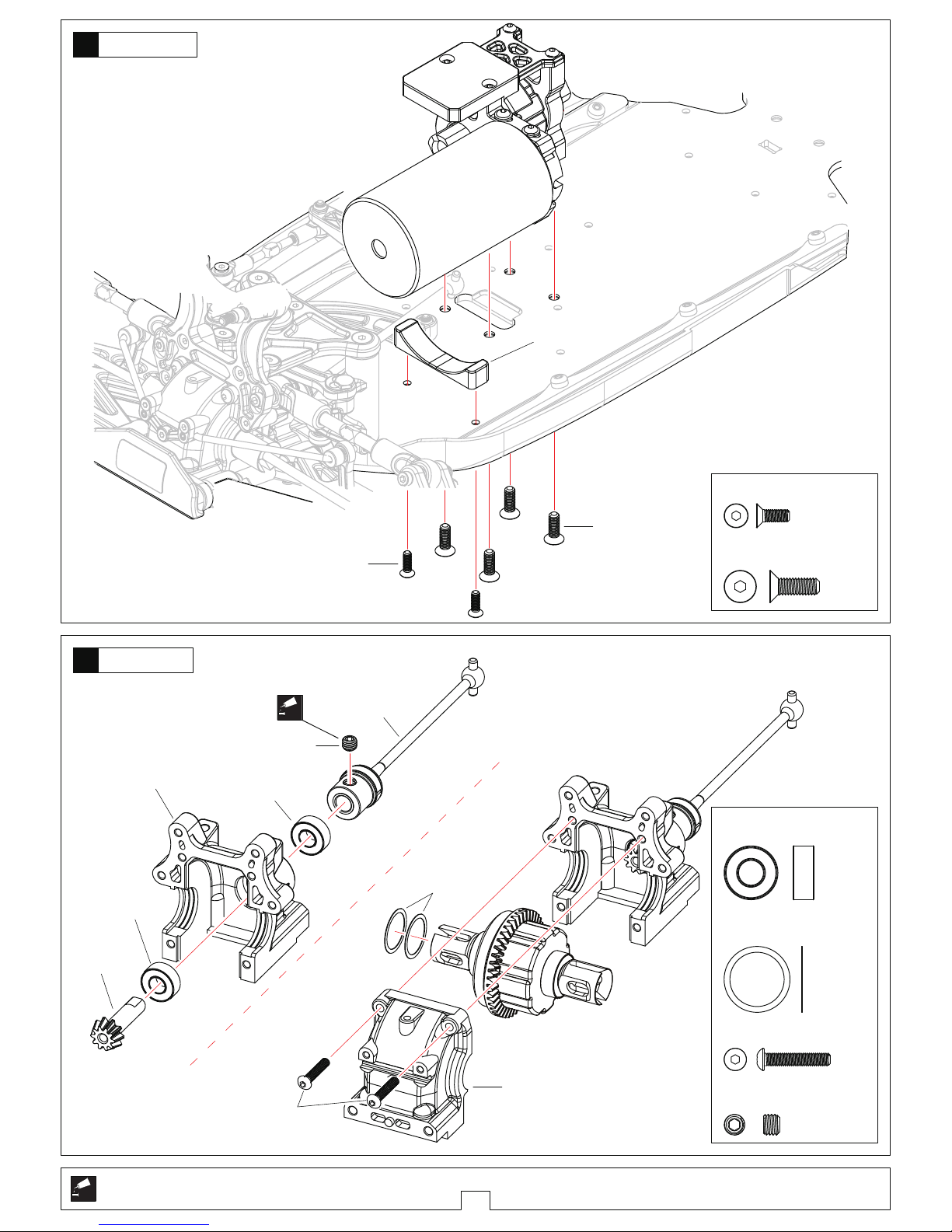

Center Differential

T08304 13.1x15.9x0.2 Washer

…………2

T08663 6x13x5 Ball Bearing

………2

T08673 M3x16 Screw

……2

T08642 M5x4 Screw

………………1

T08642 M5x4

T08642

110mm Center Rear CVD

T08601

Differential Case

T08636

10T Gear

T08673 M3x16

T08601

Differential Case

T08663 6x13x5

T08304 13.1x15.9x0.2

T08663 6x13x5

Rear Differential

………………2

T08674 M3x8 Screw

T08674 M3x8

T08681

Motor Mount

19

20

Screw

Cement

Screw

Cement

Apply threadlock

Bag-C

Bag-E

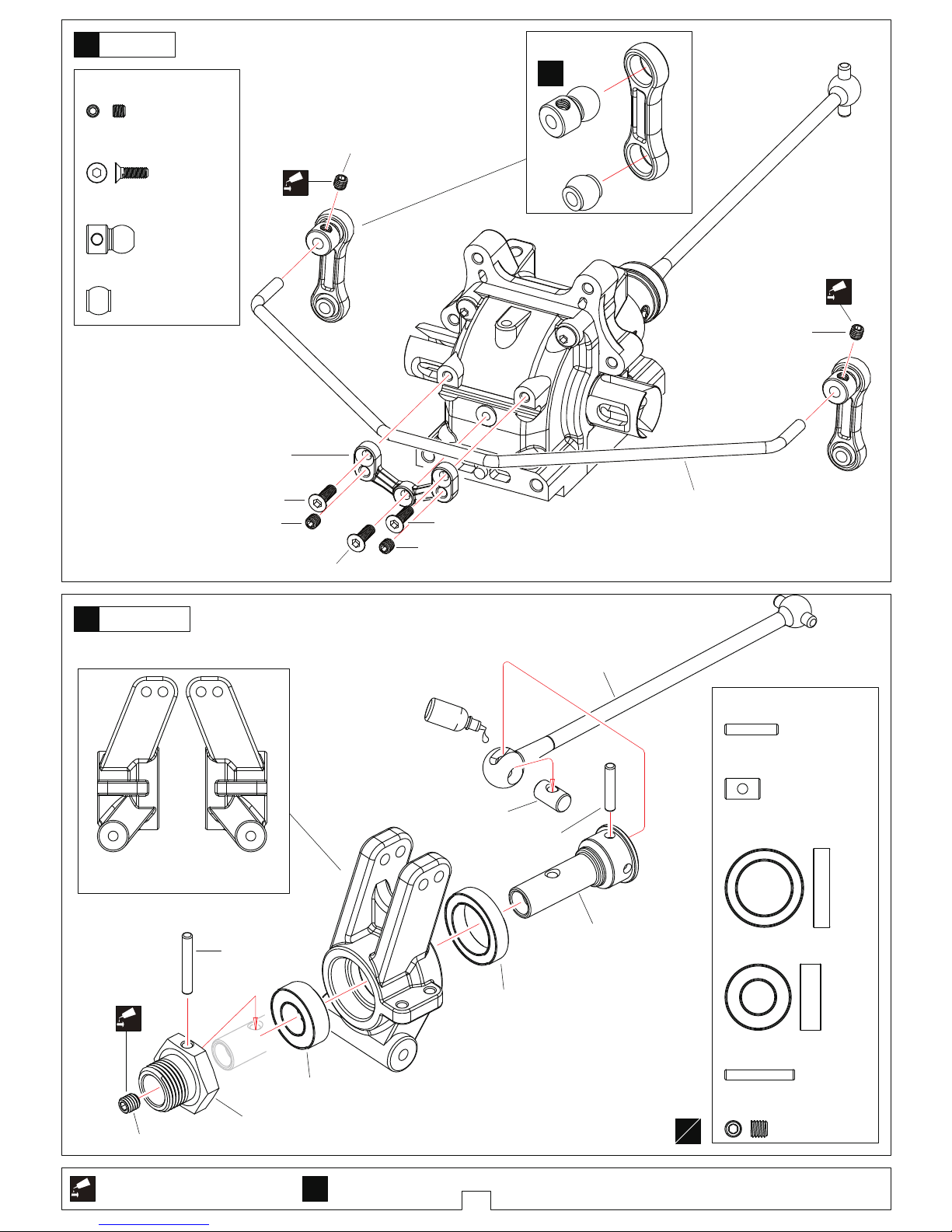

11

Screw Cement

……………………4

T08601/T08606 M3x3 Screw

T08606 6.8 Ball stud-Swaybar

…………………2

T08606 6.8 Ball stud-Swaybar

………………………2

………………3

T08601 M2.5x8 Screw

T08664 8x16x5 Ball Bearing

T08665 13x19x4 Ball Bearing

………2

……………………2

T08640 M4x4 Screw

………………2

T08649 2.5x16.8 Pin

T08605

Rear Hub Carriers-L

T08605

Rear Hub Carriers-R

T08640

T08640 M4x4

T08664 8x16x5

T08665 13x19x4

T08649 2.5x16.8

T08649

Wheel Hex Hub

Rear Swaybar

Rear Hub Carrie

Assemble as many times as specifiedApply threadlock

T08640 2.5x12.8 Pin

………………2

T08640 5x8.5 CVD Shaft

……………………2

T08640 2.5x12.8

Oil

油

T08640 5x8.5

T08640

L

R

22

21

x2

Bag-E

T08606

x2

T08606 M3x3

T08601 M3x3

T08601 M2.5x8

T08601

Swaybar Mount

T08647

Rear Swaybar

后防倾杆

Screw Cement

94mm Rear CVD

Screw Cement

L

R

L

R

Assemble both Left and Right

T08666 M3 Nylon Nut

………………2

……………2

T08675 M4x10 Screw

………………4

T08605 3.1x9x2.5 Plastic Washer

……………2

T08646 3x51.5 Arm Pin

T08646 4x77 Arm Pin

……………2

T08666 M4 Nylon Nut

………………2

T08673 M3x16 Screw

……2

T08674 M3x12 Screw

…………2

T08674 M3x35 Screw

……………2

T08666 M3

T08646 3x51.5

T08675 M4x10

T08605 3.1x9x2.5

T08608

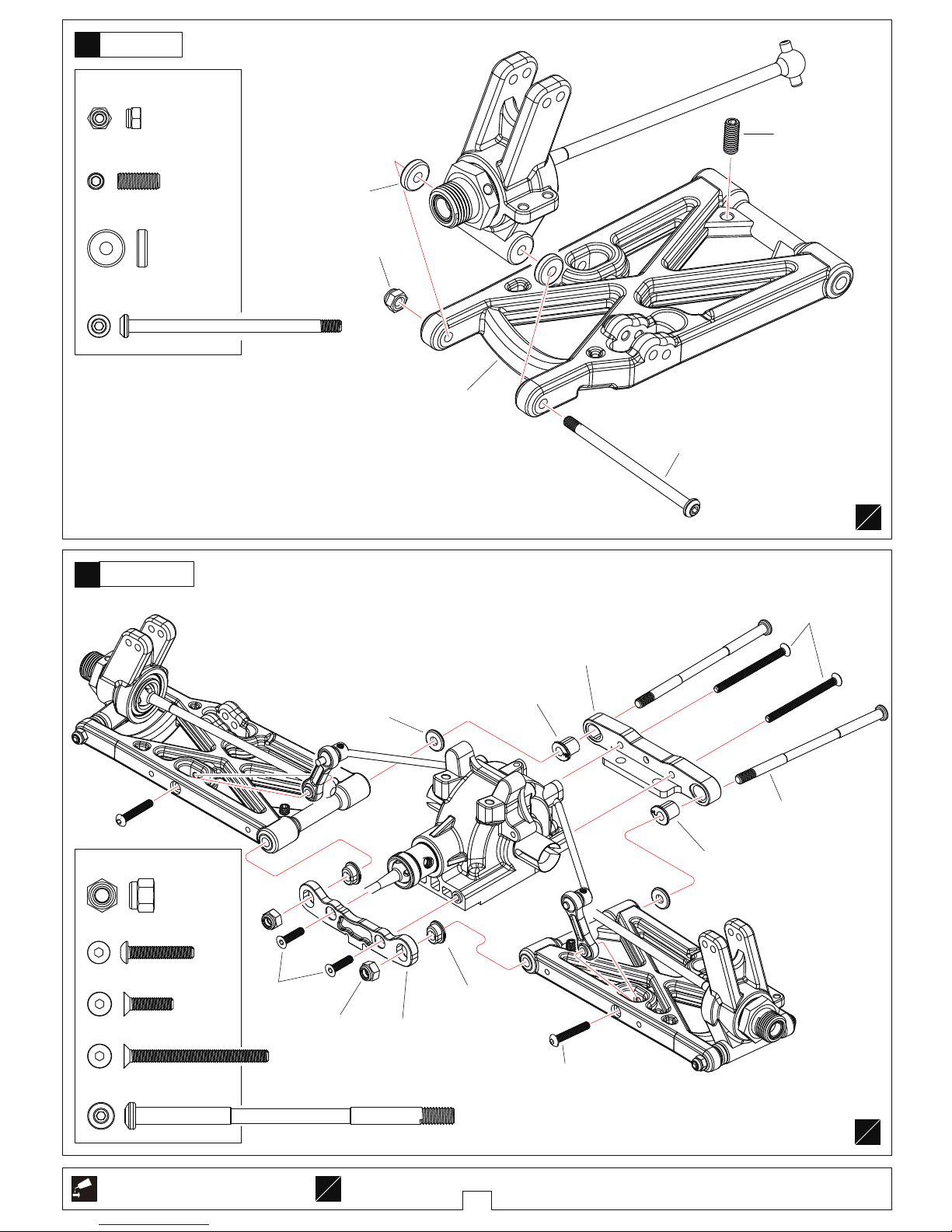

Rear Lower Arm-Left

T08673 M3x16

T08666 M4

T08646 4x77

T08674 M3x35

T08674 M3x12

T08613

0 Degree Bushing

T08613

+1 Degree Bushing-Left

T08613

+1 Degree Bushing-Right

T08613

Rear Arm Mount-F

T08613

Rear Arm Mount-R

Rear Hub Carrier

Rear Suspension

Apply threadlock

L

R

23

24

12

T08608

Bag-E

13

Screw Cement

T08673 M3x6 Screw

……………4

T08622 Shock cap ball

T08674 M3x10 Screw

T08673 M3.5x25 Screw

…………2

……2

T08666 M3 Nylon Nut

…………………2

T08673 M3x18 Screw

…2

T08673 M3x16 Screw

……6

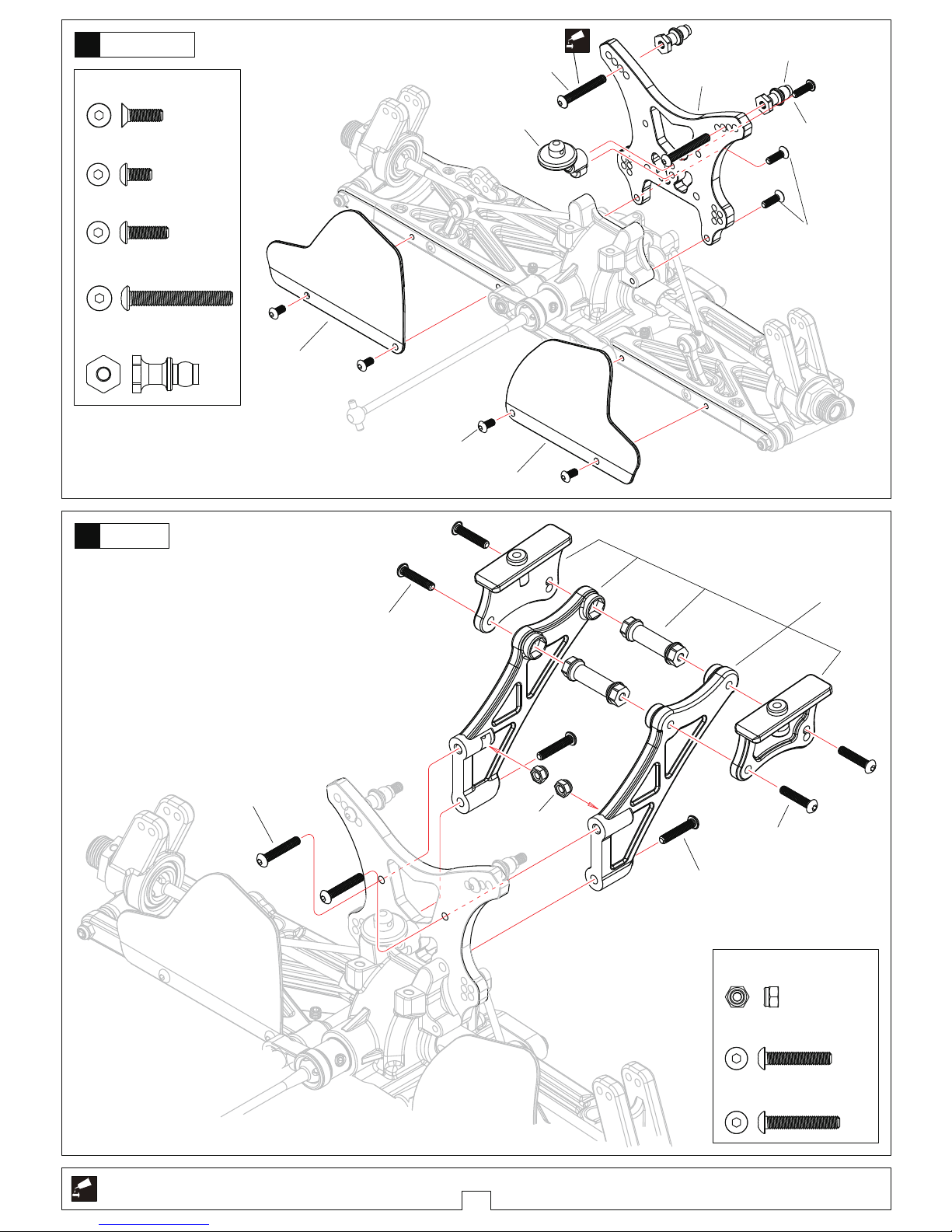

Rear Shock Tower

Apply threadlock

Wing Mount

T08673 M3x10 Screw

…………1

26

25

Screw Cement

T08611

Dirtcover Rear-Left

T08611

Dirtcover Rear-Right

T08612

Rear Body Mount

T08673 M3.5x25

T08674 M3x10

T08632

Rear Shock Tower

T08622

Ball stud

T08673 M3x6

T08673 M3x10

T08673 M3x16

T08673 M3x18

T08612

Wing Mount

T08673 M3x16

T08666 M3

T08673 M3x16

Bag-E

14

T08643 5x40 Turnbuckle

T08606 7.8 Ball End-Rear Upper

………2 ………4 ………………2 ……………2

T08606 7.8 Ball stud T08606 7.8 Ball stud

T08666 M3 Nylon Nut

T08676 M3x18 Screw T08676 M3x25 Screw

………1

T08673 M4x22 Screw

T08666 M4 Nylon Nut

T08643

5x40 Turnbuckle

T08606

7.8 Ball End-Rear Upper

T08606

7.8 Ball End-Rear Upper

T08606

7.8 Ball stud

T08606

7.8 Ball stud

7.8 球头

T08666 M3

T08676 M3x18

T08676 M3x25

T08666 M4

T08619

Rear Chassis Stiffener

后支撑杆

T08619

Rear Chassis Stiffener Mount

T08676 M3x25

T08674 M4x12 Screw

……2

……2 ……2

………………1……………4

T08673 M4x22

T08674 M4x12

Rear Upper Turnbuckle-Right

Rear Upper Turnbuckle-Left

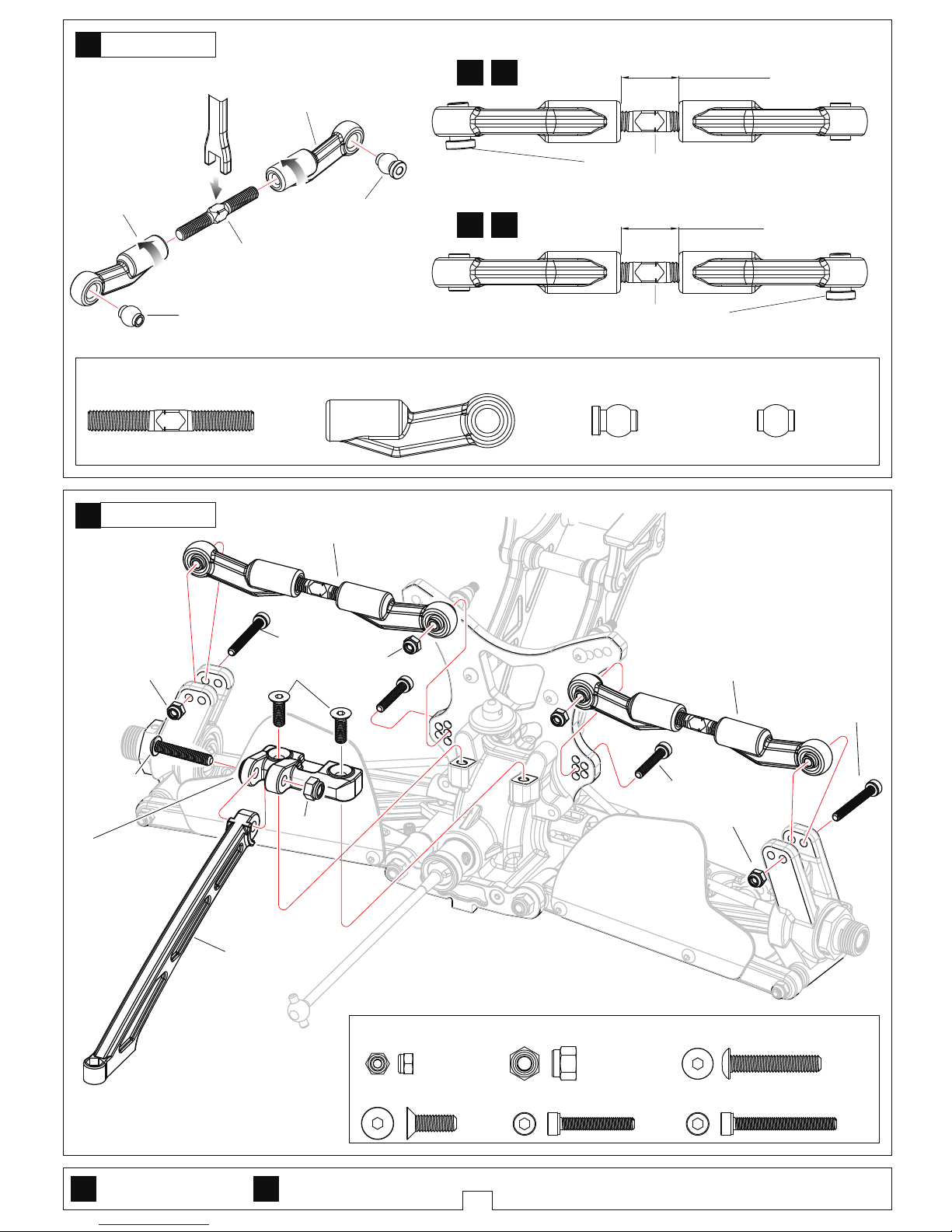

Rear Upper Turnbuckle

True-to -scale diagram Assemble as many times as specified

5mm

27

28

1:1 x1

▲Projection.Note direction

1:1 x1

Rear Upper-Left

Approx.14mm

▲Projection.Note direction

1:1 x1

Rear Upper-Right

Approx.14mm

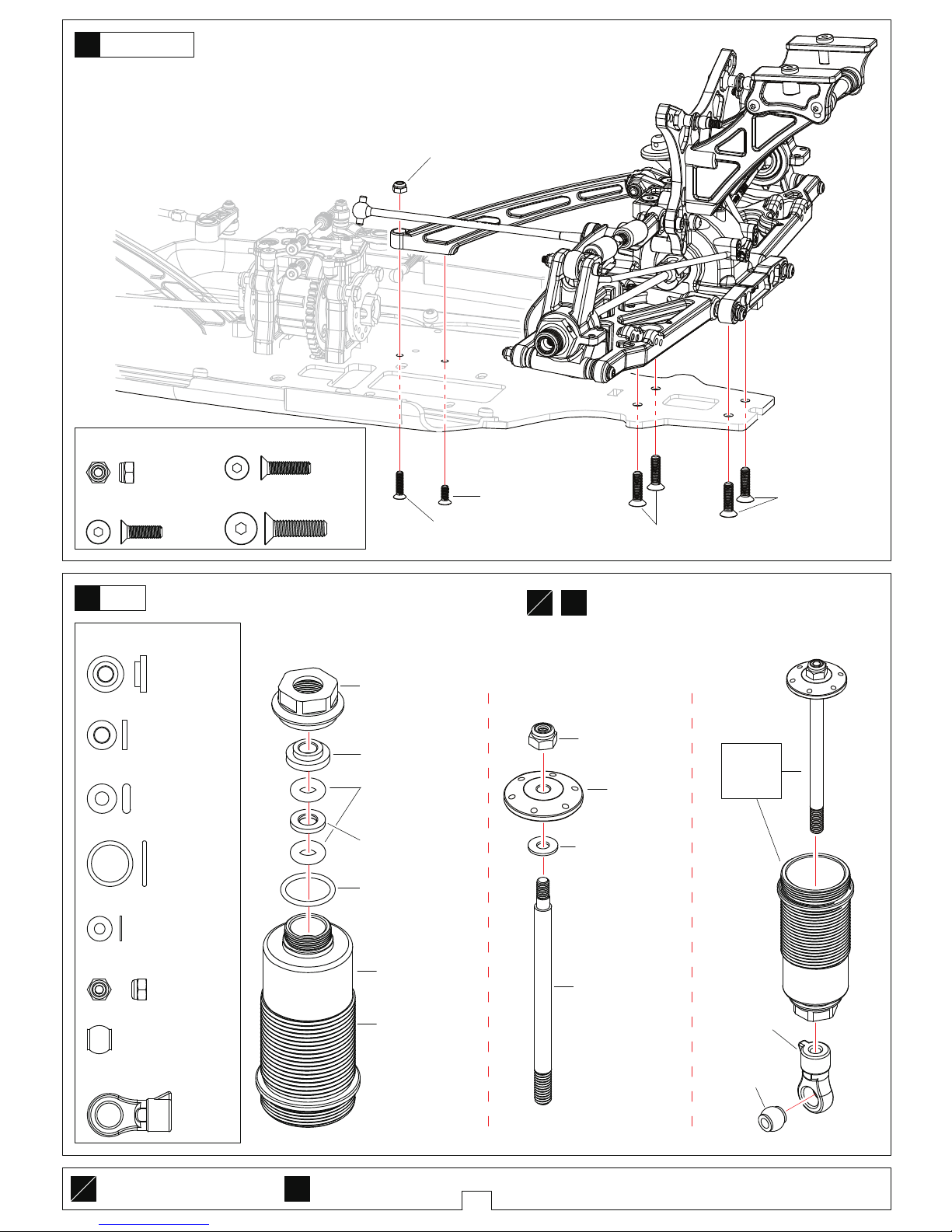

Bag-E

15

T08674 M4x14 Screw

……4

T08674 M3x10 Screw

………1

T08674 M3x12 Screw

………1

T08666 M3 Nylon Nut

……………1

T08627 2.75mm Plastic Washer

T08627 3.3x1.9 O-ring

T08627 1mm Plastic Washer

…………………4

……………………4

……………………8

T08625/T08626 9x1.0 O-ring

…………………4

T08624 2.7x5.8x0.5 Washer

……………………4

T08624 M2.5 Nylon Nut

…………………4

T08624 6.8 Ball stud

………………………4

Shock

Rear Suspension

T08627

3.3x1.9 O-ring

T08627

1mm Plastic Washer

T08627

2.75mm Plastic Washer

T08625/T08626

9x1.0 O-ring

T08625/T08626

Shock Bottom cover

T08625

Front Shock Body-Short

T08626

Rear Shock Body-Long

T08624

Front Shock Shaft-Short

Rear Shock Shaft-Long

T08624 2.7x5.8x0.5

T08627

Shock Piston

T08624 M2.5

T08624

6.8 Ball stud

T08622

6.8 Ball End

T08622 6.8 Ball End

……………4

Front-Short

Rear-Long

Assemble both Front and Rear Assemble as many times as specified

F

R

x2

30

29

F

R

x2

T08666 M3

T08674 M4x14

T08674 M3x10

T08674 M3x12

T08674 M4x14

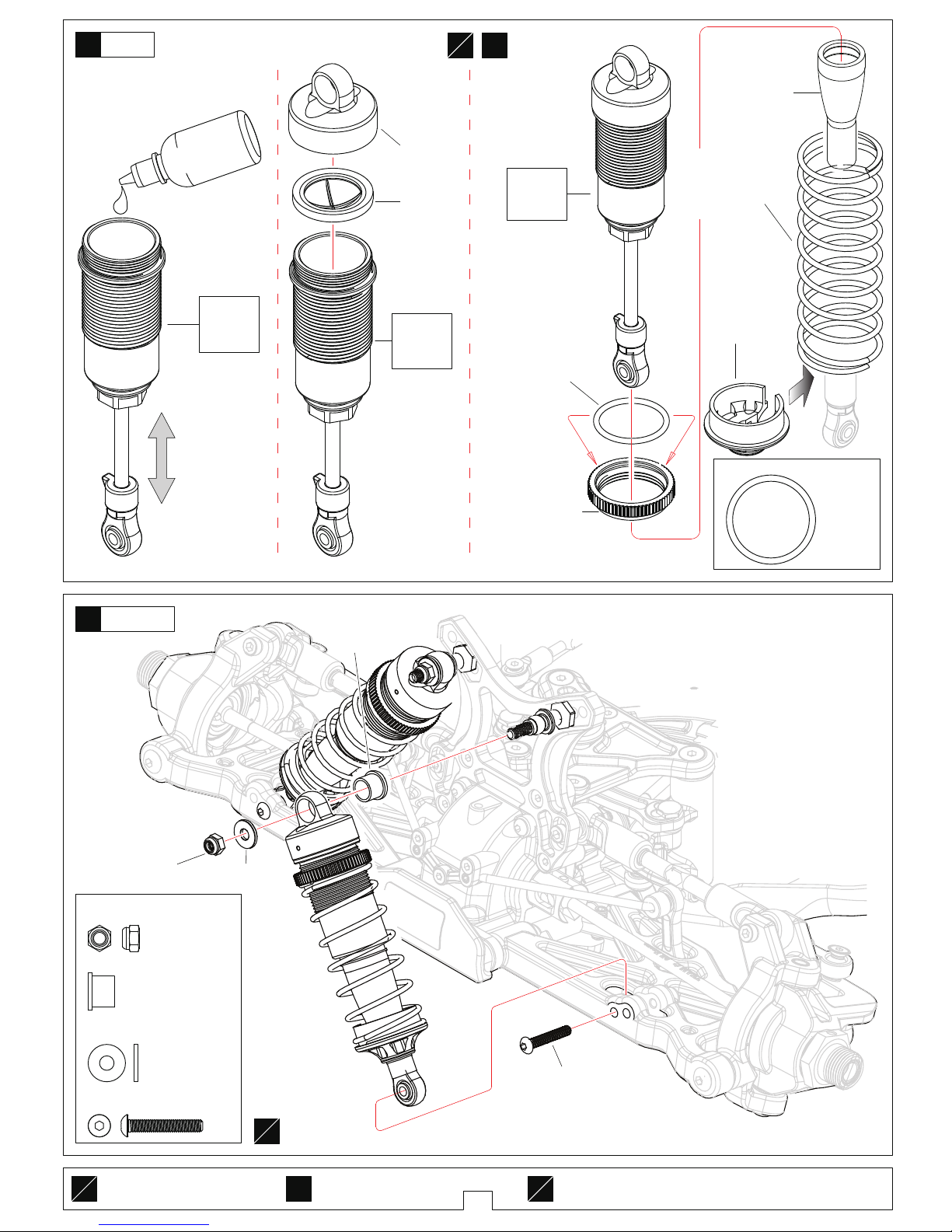

Bag-E

Bag-F

F

R

x2

Assemble both Front and Rear

T08625/T08626 O-Ring

O环

……………4

450#

Shock

Front-Short

Rear-Long

T08622

Diaphragm

Front-Short

Rear-Long

T08625/T08626

Shock Top cover

Front-Short

Rear-Long

T08625/T08626

T08687

Front Shock Spring-Short

Rear Shock Spring-Long

T08625/T08626

Spring Adjuster

T08622

Spring Mount

Assemble both Left and Right

T08673 M3x18 Screw

…………………2

T08666 M3.5 Nylon Nut

………………………2

T08622 Plastic Bushing

……2

T08670 3.5x9x1 Washer

…………………2

T08666 M3.5

Assemble as many times as specified

Front Shock

F

R

31

32

L

R

L

R

x2

16

T08623

Shock Boot

T08673 M3x18

T08670 3.5x9x1

T08622

Plastic Bushing

Bag-F

17

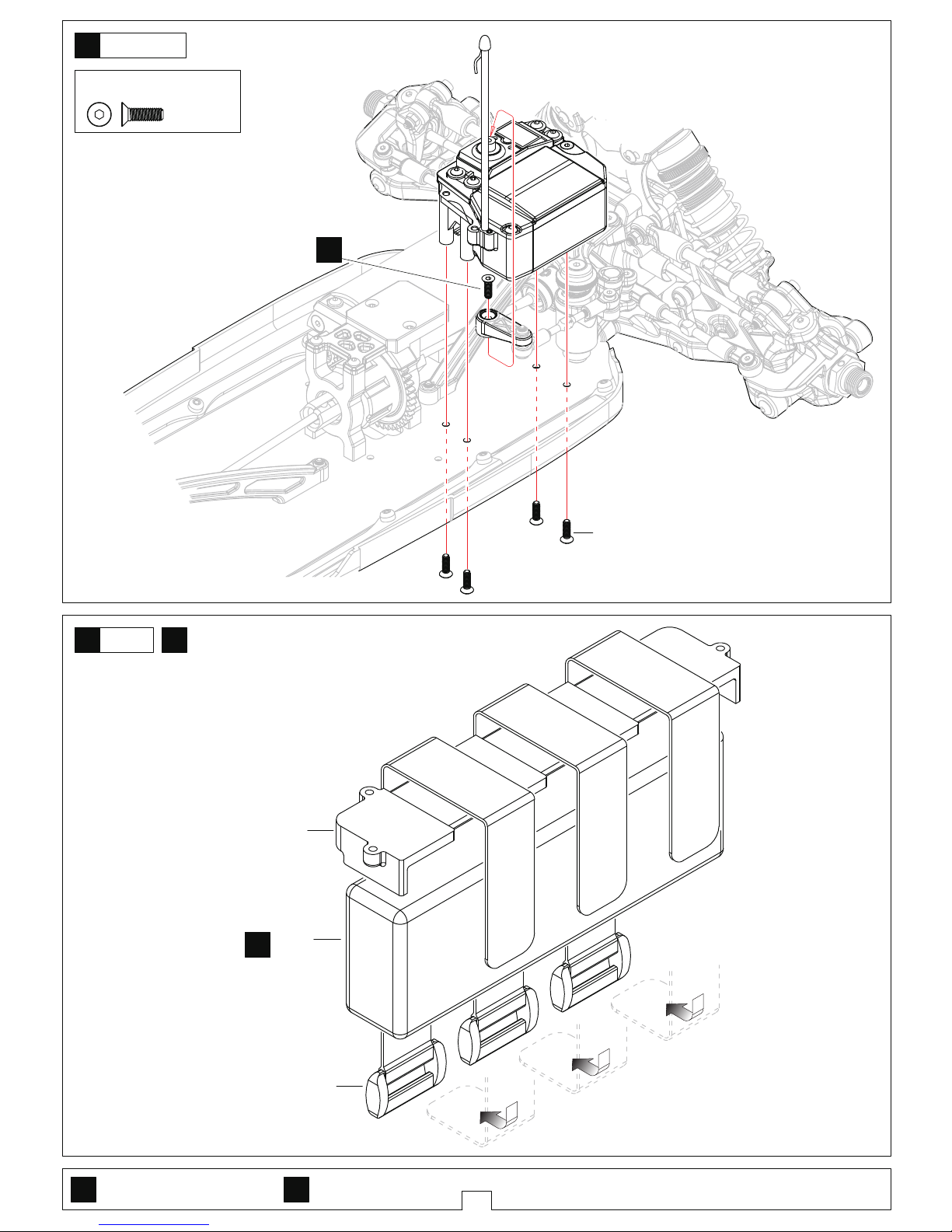

Receiver/Servo

T08673 M3x18 Screw

…………………2

T08666 M3.5 Nylon Nut

………………………2

T08622 Plastic Bushing

……2

T08670 3.5x9x1 Washer

…………………2

T08622

Plastic Bushing

T08614

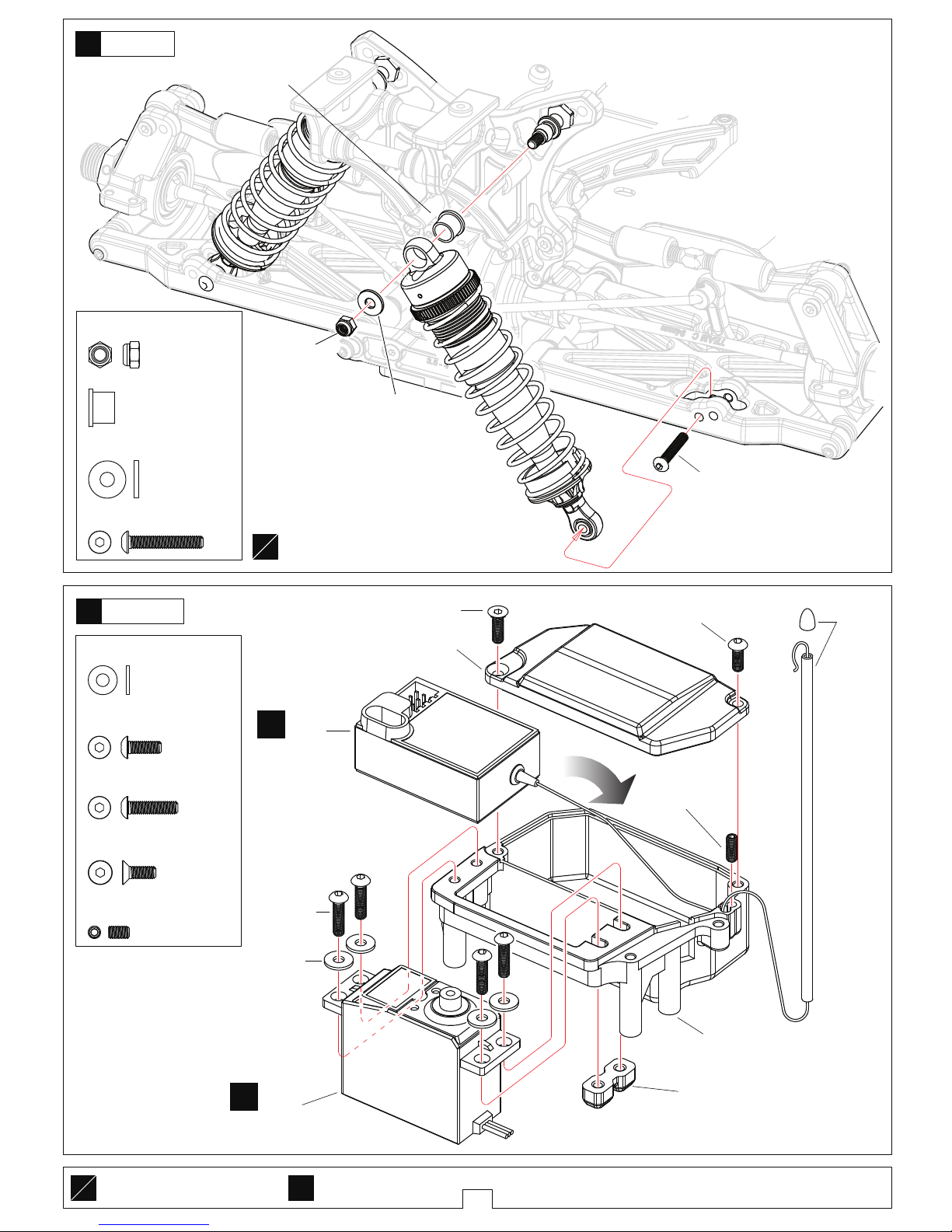

Receiver Box

T02081 3x7x0.8 Washer

……………………4

T02081 3x7x0.8

T08793 M3x15

T08616

Servo Mount

T08614

Receiver Cover

T08673 M3x8 Screw

……………1

T08673 M3x8

T08674 M3x8

T08674 M3x8 Screw

……………1

T08675 M3x5 Screw

…………………1

T08675 M3x5

T02087

Antenna Pipe

Rear Shock

Assemble both Left and Right

Servo

Receiver

Must be purchased separately

T08793 M3x15 Screw

…………4

33

34

L

R

L

R

X

T08673 M3x18

T08670 3.5x9x1

T08666 M3.5

Bag

-F

Bag

-B

Bag

-J

18

Receiver/Servo

Battery

Must be purchased separately

Battery

T08681

Battery Mount

T08681

Velcro Tape

Assemble as many times as specified

T08674 M3x10

T08674 M3x10 Screw

……………4

35

36

X

x2

X

Bag-B

X

Must be purchased separately

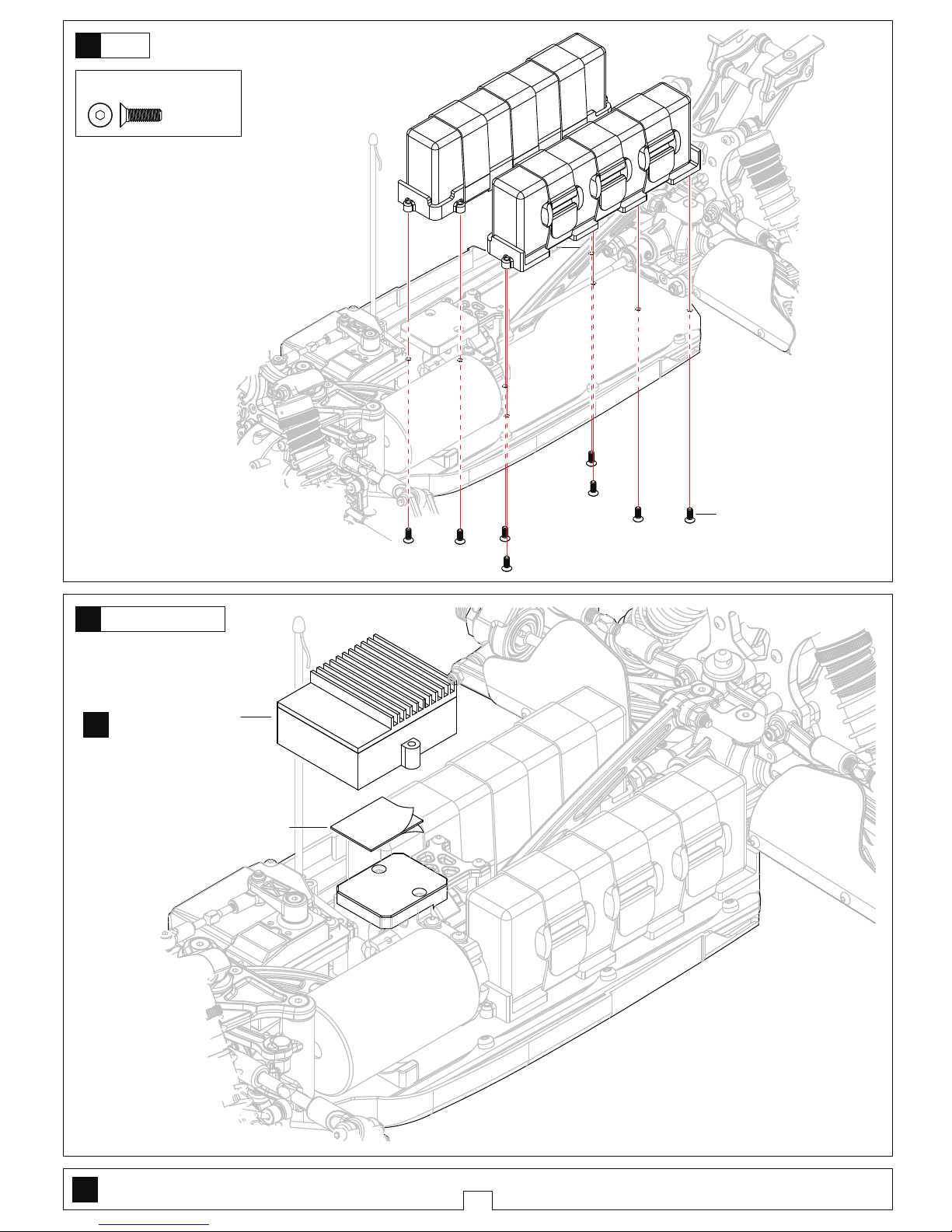

19

T08674 M3x8 Screw

……………8

Electronic speed controller

Battery

T08674 M3x8

T02087

Double-sided tape

Electronic speed controller

38

37

X

Bag

-B

Bag

-J

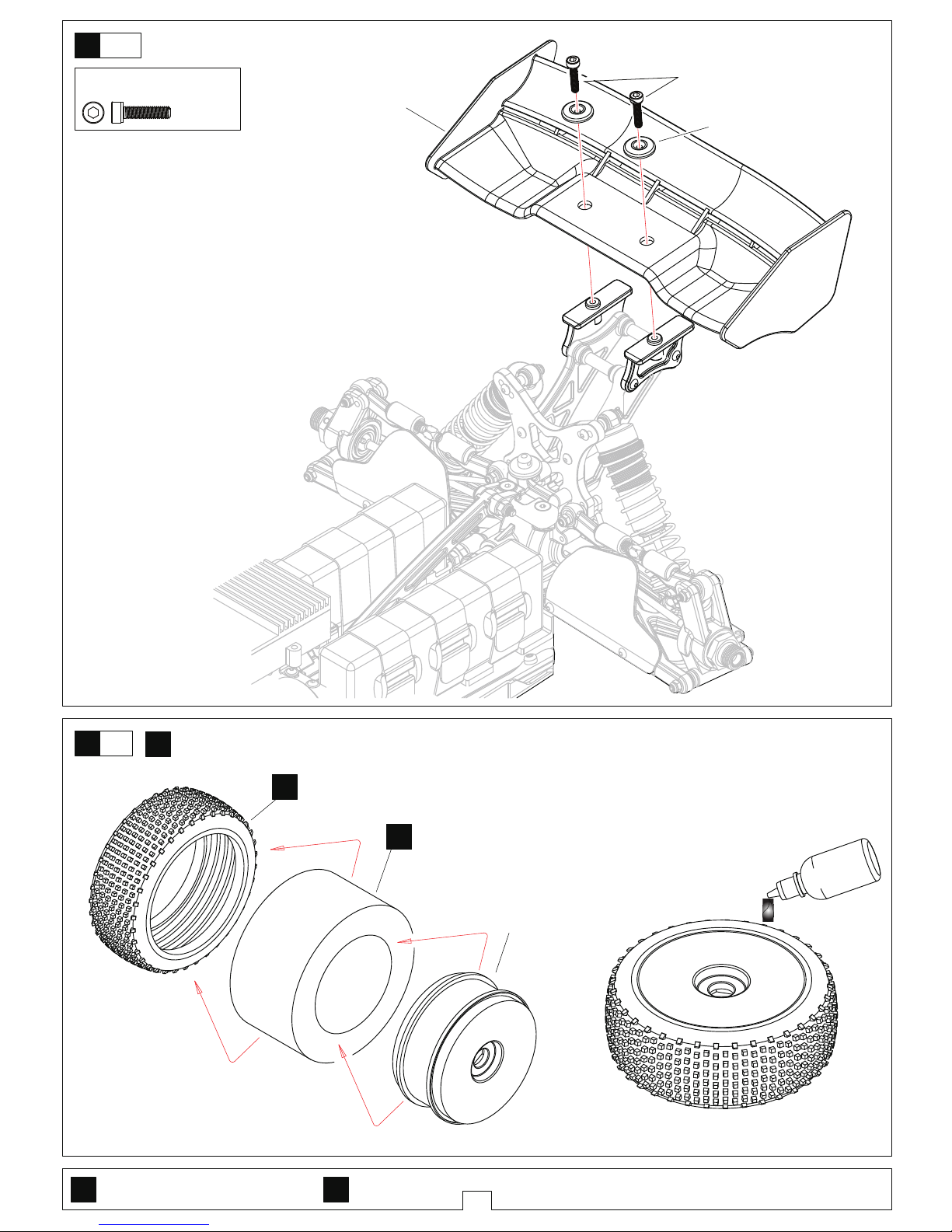

20

Tyre

Wing

T08672

Wing

T08672

Wing Screw Washer

Glue

Sponge

Tyre

T08648

Rim

Assemble as many times as specified Must be purchased separately

40

39

x4

X

x4

X

Bag

-G

Bag

-H

T08676 M3x12 Screw

……………2

T08676 M3x12

Tyre

T08649 17mm Hex Nut

……4

T08648

17mm Hex Nut

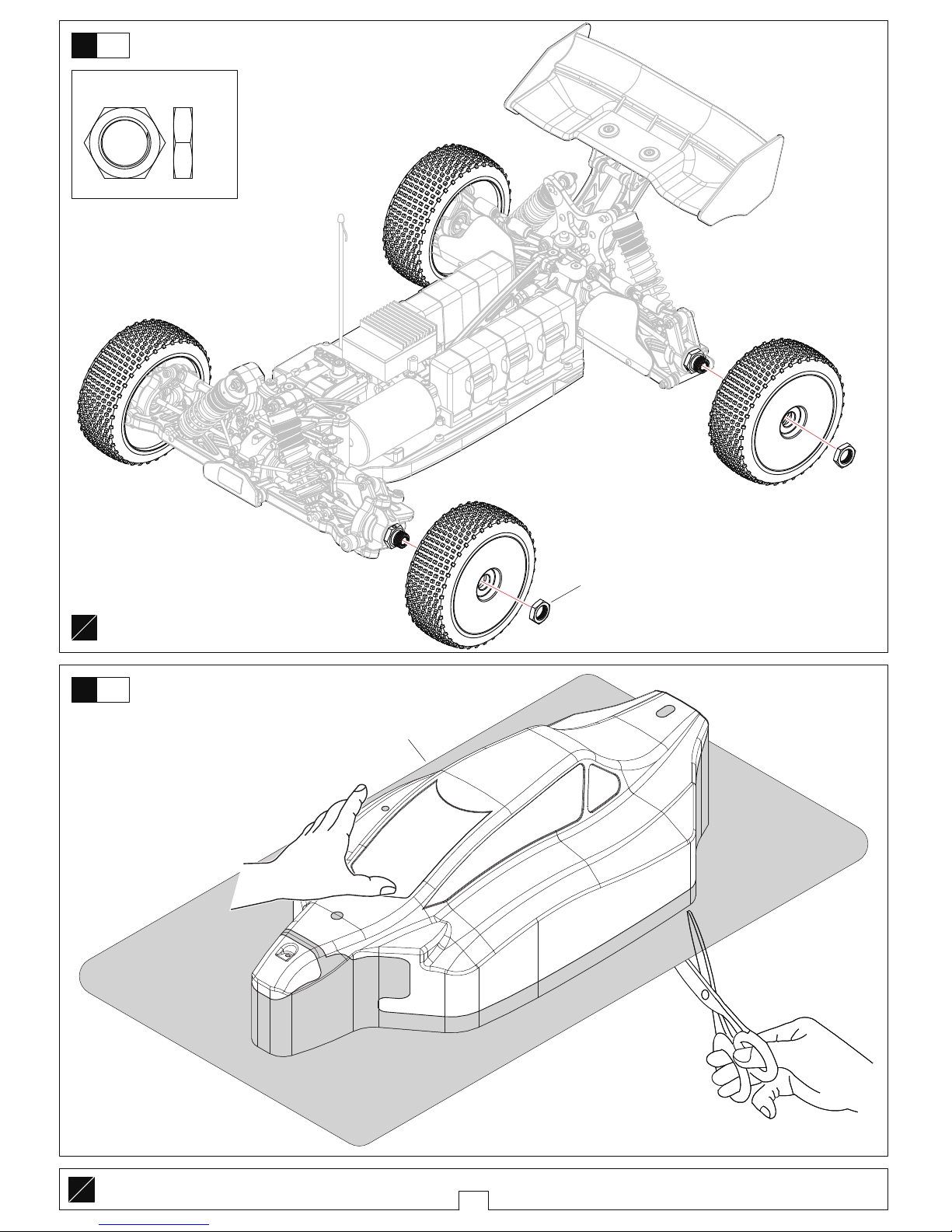

Body

41

L

R

42

21

L

R

Assemble both Left and Right

T08682

Body-Lexan

Bag-D Bag-E

Bag-I

22

Body

T08660 Mid Clip

……2

T08673 M3x6 Screw

………………1

T08660

Mid Clip

Body

T08660

Mid Clip

T08673 M3x6

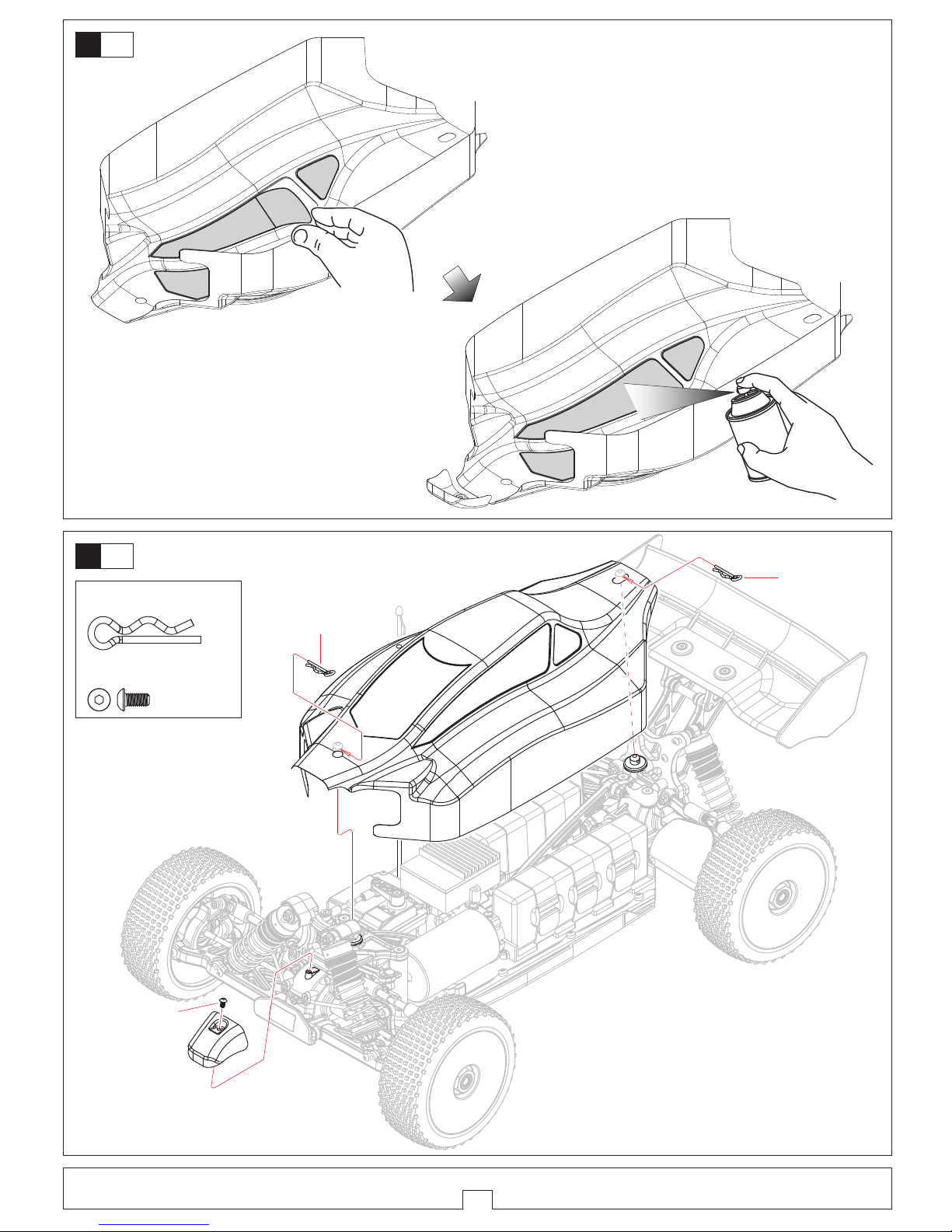

Paint the body shell from the inside using spray colors.

Mask the windows from the inside.

44

43

Bag-J

23

T08600

T08601

T08603

T08604

T08605

T08606

T08607

T08608

T08609

T08611

T08612

T08613

T08619

T08620

T08622

T08624

T08625

T08626

T08627

T08687

T08622

T08631

T08622

T08632

T08633

T08634

T08635

T08636

T08634

T08600

T08637

T08639

T08640

T08641

T08642

T08643

T08645

T08646

T08647

T08648

T08649

T08650

T08651

T08660

T08662

T08663

T08664

T08665

T08664

T08666

T08633

T08666

T08622

T08666

T08670

T08672

T08673

T08606

T08676

T08674

T08675

T08676

T08674

T08676

T08304

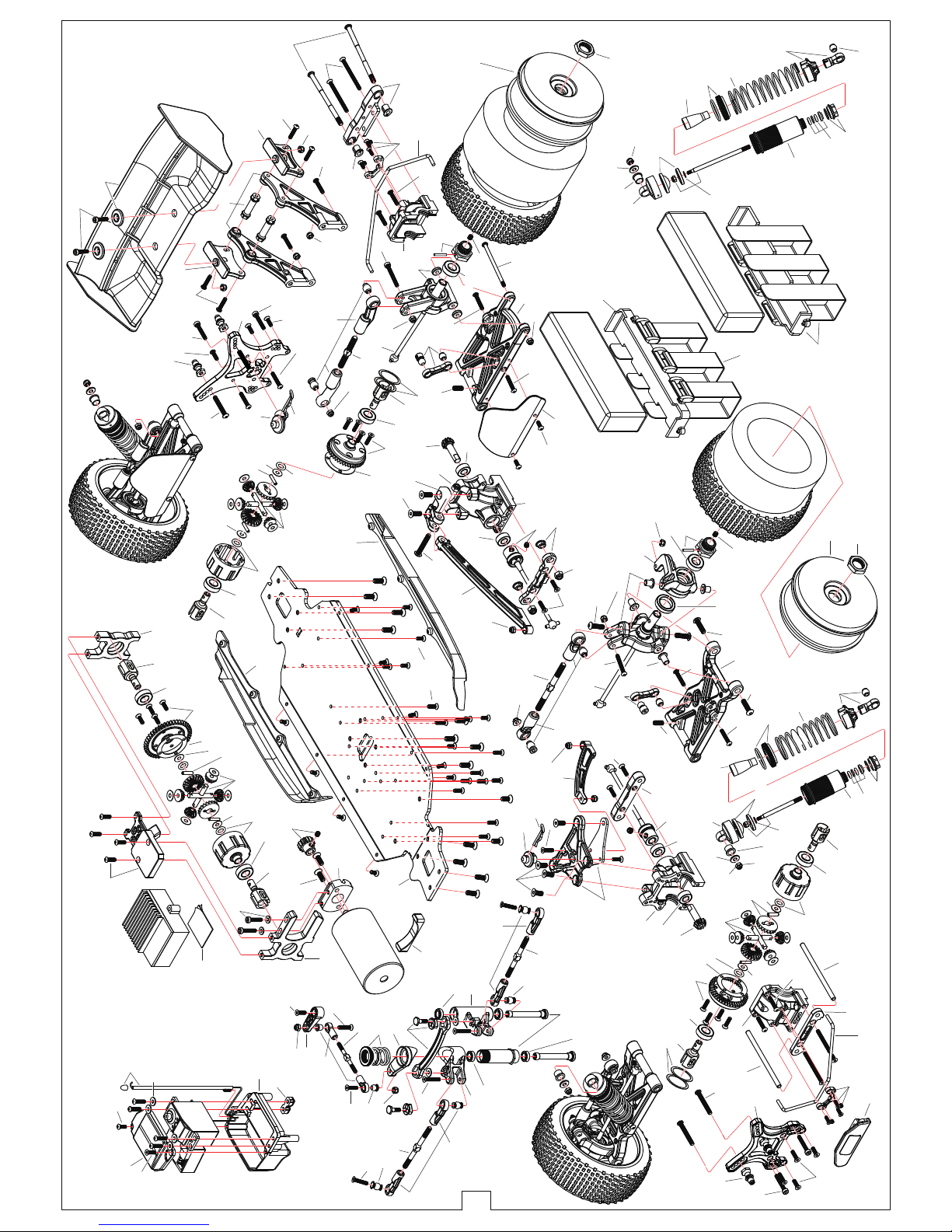

Explooded View

T02087

T08681

T08686

H396

T08600

T08614

T08616

T08674

T08673

T02081

T08681

T08680

T08674

T08683

T08609

T08673

T08676

T08623

T08669

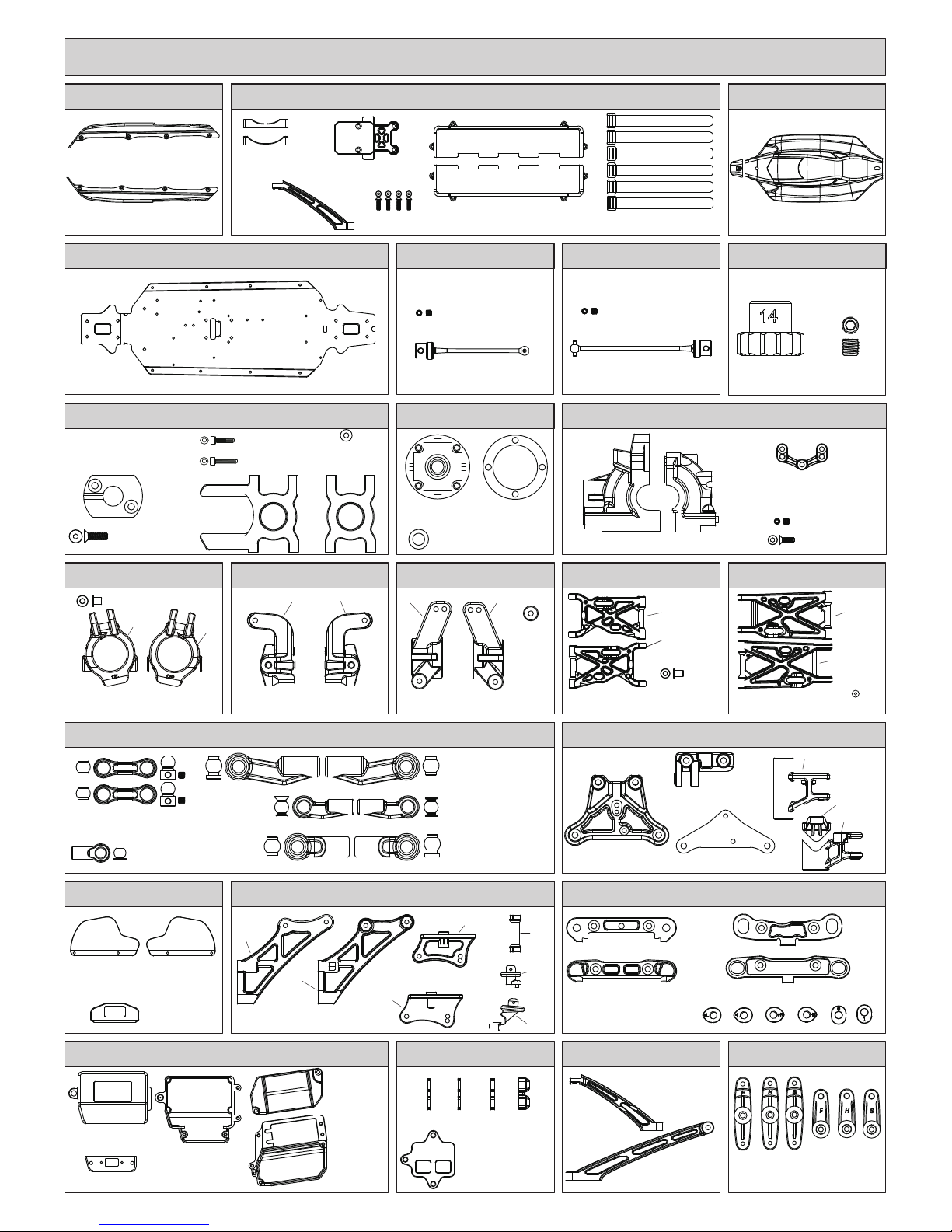

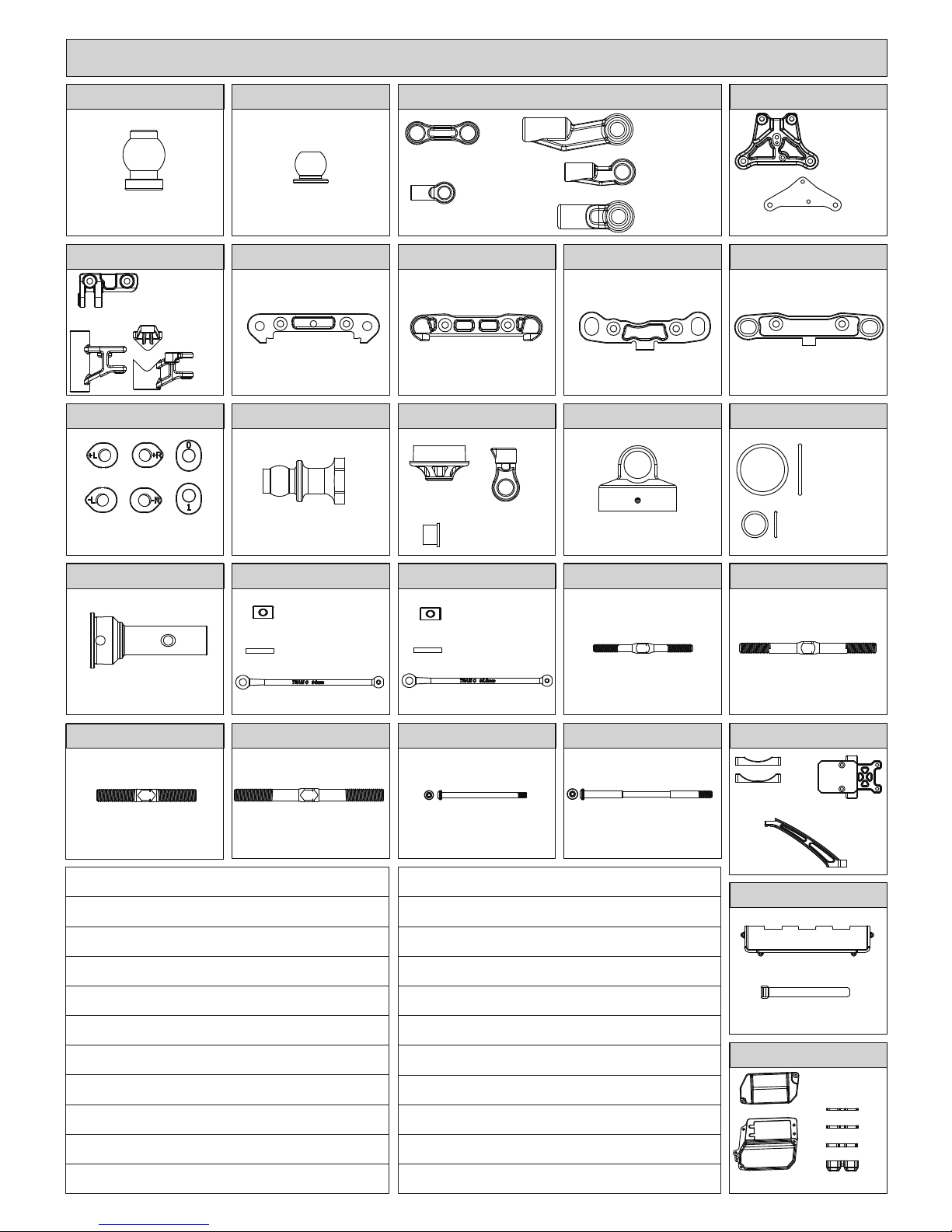

Parts list for T8E off-road buggy - 1

Front-F

Differential Pads

1pcs

Differential Housing

1pcs

Differential Case

1pcs

M3x3 2pcs

M2.5x8 3pcs

Swaybar Mount

1pcs

Front Hub Carriers 12 Degree

4pcs

1pcs

Steering Block

Left 1pcs

Right 1pcs

Rear Hub Carriers

Left 1pcs

Right 1pcs

Washer

4pcs

6.8 Ball End-Swaybar

5.8 Ball End-Steering Servo

6.8 Ball End-Steering

7.8 Ball End-Rear Upper

7.8 Ball End-Front Upper

Front Lower Arm

Left 1pcs

Right 1pcs

Rear Lower Arm

Left 1pcs

Right 1pcs

Left 1pcs

Top 1pcs

Bottom 1pcs

Rear Chassis Stiffener Mount

Buffer Plate-Plastic

Aluminium Buffer Plate-Black

1pcs

Dirtcover Rear-Left

1pcs

Dirtcover Rear-Right

1pcs

Front Bumper

1pcs

Side Plate-Left

1pcs

Side Plate-Right

1pcs

Wing Mount&Body Mount

Left 1pcs

Right 1pcs

Front 1pcs

Rear 1pcs

2pcs

Rear-F

Front-R

Rear-R

Transponder Mount

1pcs

Servo Mount

3pcs

1.5mm 2pcs

2mm 2pcs

1mm 2pcs

Rear Chassis Stiffener

1pcs

Front Chassis Stiffener

1pcs

Servo Arm

1pcs

Arm Mount

1pcs

2pcs 2pcs

Battery Box

Receiver Box

1pcs 1pcs 1pcs

84mm Center Front CVD

1pcs

110mm Center Rear CVD

1pcs

M5x4 Screw

1pcs

M5x4 Screw

1pcs

Chassis

1pcs

Right 1pcs

Left 1pcs

Battery Cover

1pcs

Switch Mount

1pcs

Receiver Cover

1pcs

Body-Lexan

1pcs

4pcs

T08600 T08601

T08603 T08604 T08605

T08606

T08607 T08608

T08609

T08680

T08611 T08612 T08613

T08614 T08616 T08619 T08620

T08641 T08642

T08681

M3x14 Screw

M4x14 Screw

T08682

T08686

T08683

H394

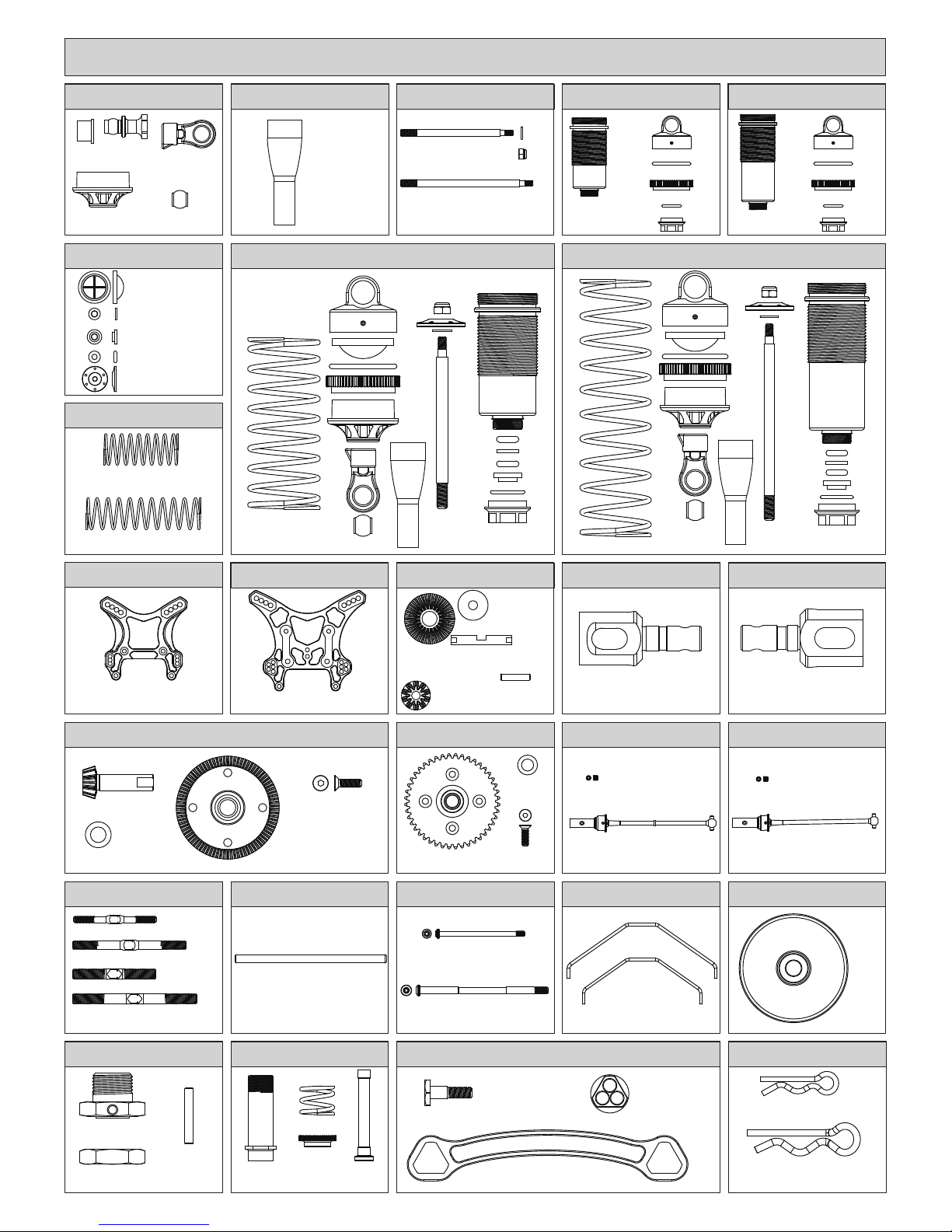

Center Differential Mount / Motor Mount

1pcs

3x7x0.8 Washer

2pcs

14T Pinion Gear

1pcs

M4x4 Screw

1pcs

O-ring

O环

1pcs

Front Chassis Stiffener

1pcs

Battery Mount

2pcs

Velcro Tape

6pcs

Motor Mount

1pcs

36mm

42mm

1pcs

M3x10 Screw

4pcs

Center Differential Plate

1pcs

2pcs

M3x12 Screw

1pcs

King Pin Bushing

Front Hub Carrier Bushing

Spring Mount

4pcs

Ball End

4pcs

6.8 Ball stud 4pcs

Ball stud

4pcs

Front Shock Shaft

2pcs

Rear Shock Shaft

2pcs

4pcs

Front Shock Body

2pcs

Front/Rear Diff Connecting Cup

2pcs

Center Diff Connecting Cup

2pcs

10T Gear

43T Front/Rear Diff Gear

1pcs

M3x12 Screw

4pcs

44T Center Diff Gear

1pcs

M3x12 Screw

4pcs

O-ring

1pcs

95.5mm Front CVD 2pcs

M4x4 Screw

2pcs

94mm Rear CVD

2pcs

M4x4 Screw

2pcs

4x73 Arm Shaft

2pcs

4x77 Arm Shaft

2pcs

3x51.5 Arm Shaft

2pcs

Front/Rear Swaybar

1pcs

Rim

2pcs

Turnbuckle Set

3x40 1pcs

4x53 2pcs

5x40 2pcs

5x58 2pcs

Servo Saver Set

1pcs

2pcs

Steering Rack

Buffer Screw

2pcs

Buffer Bushing

2pcs

1pcs

Wheel Hex Hub

17mm Hex Nut

4pcs

2.5x16.8 Pin

4pcs

Diaphragm

4pcs

1mm Plastic Washer

4pcs

Front Shock Spring

2pcs

Rear Shock Spring

2pcs

2.75mm Plastic Washer 4pcs

3.3x1.9 O-ring

8pcs

Shock Piston

4pcs

20T Diff Gear

10T Diff Gear

4.1x12x0.2 Washer

2pcs

4pcs

Diff Shaft

2pcs

2.5x11.5 Pin

2pcs

4pcs

Front Shock Tower

1pcs

Rear Shock Tower

后避震架

1pcs

2pcs

Rear Shock Body

2pcs

Small Clip

8pcs

Mid Clip

8pcs

Front Shock Absorber

2Set

Rear Shock Absorber

2Set

T08622 T08624 T08625 T08626

T08627

T08688 T08689

T08687

T08631

T08632 T08633 T08634 T08635

T08636 T08638 T08639 T08640

T08643 T08645 T08646 T08647 T08648

T08649 T08650 T08651 T08660

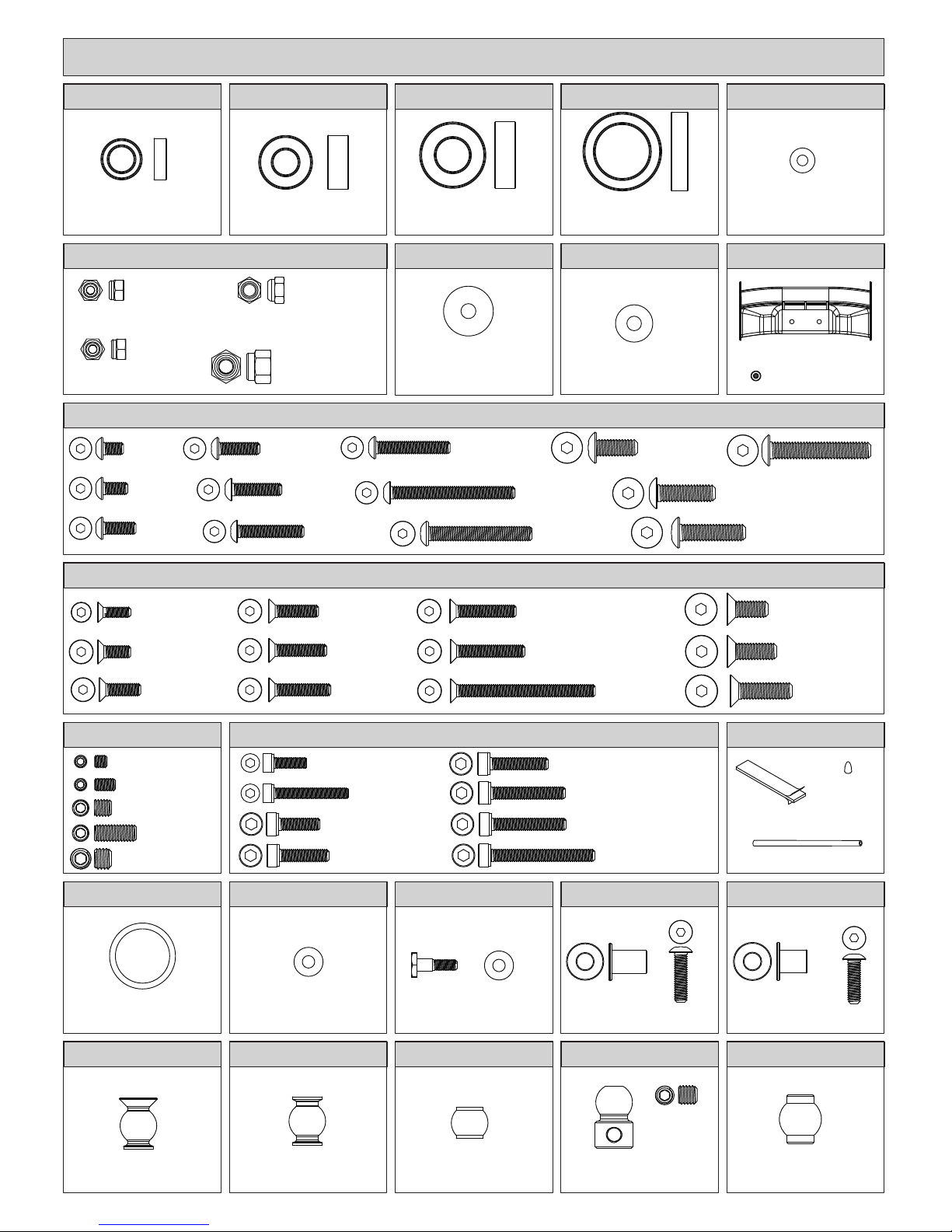

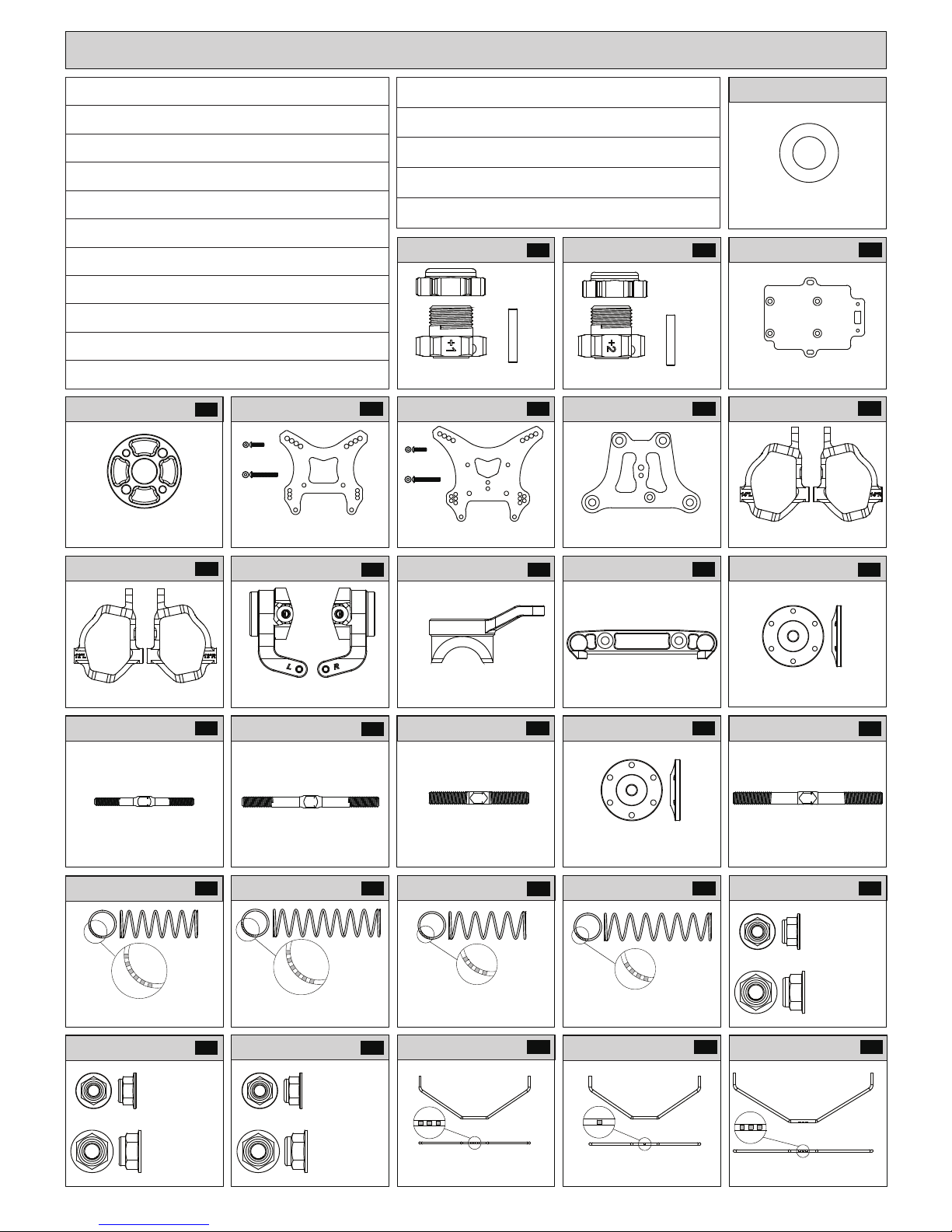

Parts list for T8E off-road buggy - 2

O-ring

1pcs

T08623

Shock Boot

4pcs

Wing Screw Washer

2pcs

Wing

1pcs

M4x14 Screw

M3x5 Screw

M3x6 Screw

M3x8 Screw

M3x10 Screw

M3x12 Screw

M3x16 Screw

M3x18 Screw

8pcs

M3x30 Screw

8pcs

M3.5x25 Screw

8pcs

M4x16 Screw

8pcs

6x10x3 Ball Bearing

8x16x5 Ball Bearing

6x13x5 Ball Bearing

13x19x4 Ball Bearing

6pcs 6pcs 6pcs 6pcs

M3 Nylon Nut

M4 Nylon Nut

M2.5 Nylon Nut

M3.5 Nylon Nut

6pcs

4.1x12x0.2 Washer

13.1x15.9x0.2 Washer

2.7x5.8x0.5 Washer

6pcs

3x7x0.8 Washer

10pcs

3.5x9x1.0 Washer

6pcs

M3x14 Screw

M3x8 Screw

M4x10 Screw

M2.5x8 Screw

M3x12 Screw

M4x12 Screw

M3x18 Screw

M4x14 Screw

8pcs

M3x16 Screw

8pcs

M2.5x8 Screw

M2.5x18 Screw

M3x20 Screw

M3x25 Screw

M3x12 Screw

M3x10 Screw

M5x4 Screw

M3x3 Screw

M4x10 Screw

M4x4 Screw

8pcs

T08674

T08675

T08673

T08304 T02081

T08670T08666

T08667

T08668

T08662 T08663 T08664 T08665

T08672

T08676

Parts list for T8E off-road buggy - 3

M3x5 Screw

M4x10 Screw

8pcs

M3x35 Screw

8pcs

M3x15 Screw

8pcs

T02087

Antenna pipe

Antenna cover

1pcs

Double-sided tape

1pcs

M4x22 Screw

8pcs

M3x10 Screw

8pcs

M3x18 Screw

8pcs

M3x14 Screw

8pcs

King Pin Bushing

4pcs

Front Hub Carrier Bushing

4pcs

6pcs

Buffer Screw

2pcs

T08753

T08756 T08757

T08754

6.8 Ball Stud-Steering

6pcs

6.8 Ball Stud-Steering

6pcs

6.8 Ball Stud-Swaybar/Shock

6pcs

6.8 Ball Stud-Swaybar

6pcs

7.8 Ball Stud-Front/Rear Upper

T08750

T08751 T08752

T08755

3x7x0.8 Washer

2pcs

M4x14

4pcs

M4x16

4pcs

M3x3

6pcs

Parts list for T8E o

ff-road buggy - 4

Aluminium Buffer Plate-Black

1pcs

Arm Mount Rear-R

1pcs

2pcs

Spring Mount

4pcs

Ball End

4pcs

Shock Top Ball stud

4pcs

5x58 Turnbuckle

2pcs

T08772 T08773 T08774 T08775 T08776

T08777 T08778

4pcs

6.8 Ball End-Swaybar

5.8 Ball End-Steering Servo

6.8 Ball End-Steering

7.8 Ball End-Rear Upper

7.8 Ball End-Front Upper

Left 1pcs

Top 1pcs

Bottom 1pcs

Rear Chassis Stiffener Mount

Buffer Plate-Plastic

1pcs

5x40 Turnbuckle

2pcs

4x53 Turnbuckle

2pcs

3x40 Turnbuckle

2pcs

94mm Drive Shaft

2pcs

95.5mm Drive Shaft 2pcs

5x8.5 Shaft

2pcs

2.5x12.8 Pin 2pcs

CVD Connecting Cup

2pcs

18.5x1.5 O-ring

4pcs

9x1.0 O-ring

4pcs

Shock Absorber Top cover

Shock Top Mount

Arm Adjust Set

Arm Mount Rear-F

Arm Mount Front-R

Arm Mount Front-F

6pcs

7.8 Ball Stud-Front/Rear Upper

6pcs

5.8 Ball Stud-Steering Servo

1pcs

2pcs

T08758 T08759

T08761

T08762

T08760

T08763 T08764 T08765 T08766

T08767

T08768 T08769

T08770

T08771

5x8.5 Shaft

2pcs

2.5x12.8 Pin 2pcs

4x77 Arm Shaft

2pcs

3x51.5 Arm Shaft

2pcs

T08779 T08780

T08786

M2.5 Nylon Nut

6pcs

T08790

M3x8 Button Head Hex Screw

8pcs

T08792

M3x12 Button Head Hex Screw

8pcs

T08794

M3x16 Button Head Hex Screw

8pcs

T08800

M4x16 Button Head Hex Screw

8pcs

T08802

M2.5x8 Flat Head Hex Screw

8pcs

T08787

M3.5 Nylon Nut

6pcs

T08789

M3x6 Button Head Hex Screw

8pcs

T08791

M3x10 Button Head Hex Screw

8pcs

T08793

M3x15 Button Head Hex Screw

8pcs

T08795

M3x18 Button Head Hex Screw

8pcs

T08797

M3.5x25 Button Head Hex Screw

8pcs

T08799

M4x14 Button Head Hex Screw

8pcs

T08801

M4x22 Button Head Hex Screw

8pcs

T08803

M3x8 Flat Head Hex Screw

8pcs

T08804

M3x10 Flat Head Hex Screw

8pcs

T08806

M3x14 Flat Head Hex Screw

8pcs

T08805

M3x12 Flat Head Hex Screw

8pcs

T08807

M3x15 Flat Head Hex Screw

8pcs

Servo Mount

1pcs

1.5mm

2pcs

2mm

2pcs

1mm

2pcs

Receiver Box

1pcs

Receiver Cover

1pcs

Front Chassis Stiffener

1pcs

Battery Mount

2pcs

Velcro Tape

6pcs

Motor Mount

1pcs

36mm

42mm

1pcs

Center Differential Plate

1pcs

T08820

T08821

T08822

T08808

M3x16 Flat Head Hex Screw

8pcs

T08810

M3x35 Flat Head Hex Screw

8pcs

T08809

M3x18 Flat Head Hex Screw

8pcs

Parts list for T8E off-road buggy - 5

M3x12

4pcs

M3.5x28

2pcs

TU0810

Carbon Front Shock Tower

1pcs

OPOP

Front Hub Carriers 14 Degree

TU0829

OP

1pcs

Front Hub Carriers 12 Degree

1pcs

TU0830

OP

5x58 Titan Turnbuckle

2pcs

TU0848

OP

T08812

M4x12 Flat Head Hex Screw

8pcs

T08814

M3x5 Set Screw

8pcs

T08816

M5x4 Set Screw

8pcs

T08811

M4x10 Flat Head Hex Screw

8pcs

T08813

M4x14 Flat Head Hex Screw

8pcs

T08815

M4x10 Set Screw

8pcs

T08819

M3x25 Cap Head Screw

8pcs

83001

M3x12 Cap Head Screw

8pcs

T08219

M3x14 Cap Head Screw

8pcs

T08220

M3x18 Cap Head Screw

8pcs

511190

Small Clip

10pcs

511129

Mid Clip

10pcs

84001

M3x3 Set Screw

8pcs

84002

M4x4 Set Screw

8pcs

87004

M3 Nylon Nut

6pcs

87006

M4 Nylon Nut

6pcs

TU0804

OP

Carbon ESC Mount

1pcs

5x40 Titan Turnbuckle

2pcs

4x52 Titan Turnbuckle

2pcs

3x40 Titan Turnbuckle

1pcs

TU0844

OP

TU0845

OP

TU0846

OP

Front Sway Bar 2.3

1pcs

OP

TU0866

Front Sway Bar 2.6

1pcs

OP

TU0867

Rear Sway Bar 2.6

1pcs

OP

TU0868

OP

TU0842

Piston 1.2x6-Black

2pcs

活塞1.4x6-白色

Piston 1.4x6-White

OP

TU0847

OP

TU0860G

2pcs

Piston 1.4x6-White

M3 Aluminium Nuts-Golden

M4 Aluminium Nuts-Golden

10pcs

3pcs

OP

TU0861B

M3 Aluminium Nuts-Blue

M4 Aluminium Nuts-Blue

10pcs

3pcs

OP

TU0862R

M3 Aluminium Nuts-Red

M4 Aluminium Nuts-Red

10pcs

3pcs

OP

TU0801

OP

TU0802

TU0807

Aluminium Motor Washer 4MM

OPOP

1pcs

TU0812

Carbon Rear Shock Tower

1pcs

M3x12

4pcs

M3.5x28

2pcs

OP

TU0819

Carbon Buffer Plate

1pcs

OPOP

Servo Saver

1pcs

TU0835

OP

Steering Block

1pcs

TU0831

OP

Front Arm Mount-Rear

1pcs

TU0839

OP

2pcs

OP

TU0850

Front Shock Spring-Soft

Rear Shock Spring-Soft

OP

TU0852

2pcs

Front Shock Spring-Hard

OP

TU0854

Rear Shock Spring-Hard

2pcs

OP

TU0856

Hex Mount +1

2pcs

Hex Mount +2

Nut

2pcs

Nut

2pcs

T08669

6.1x11x0.2 Washer 12pcs

TU0810

OPOP

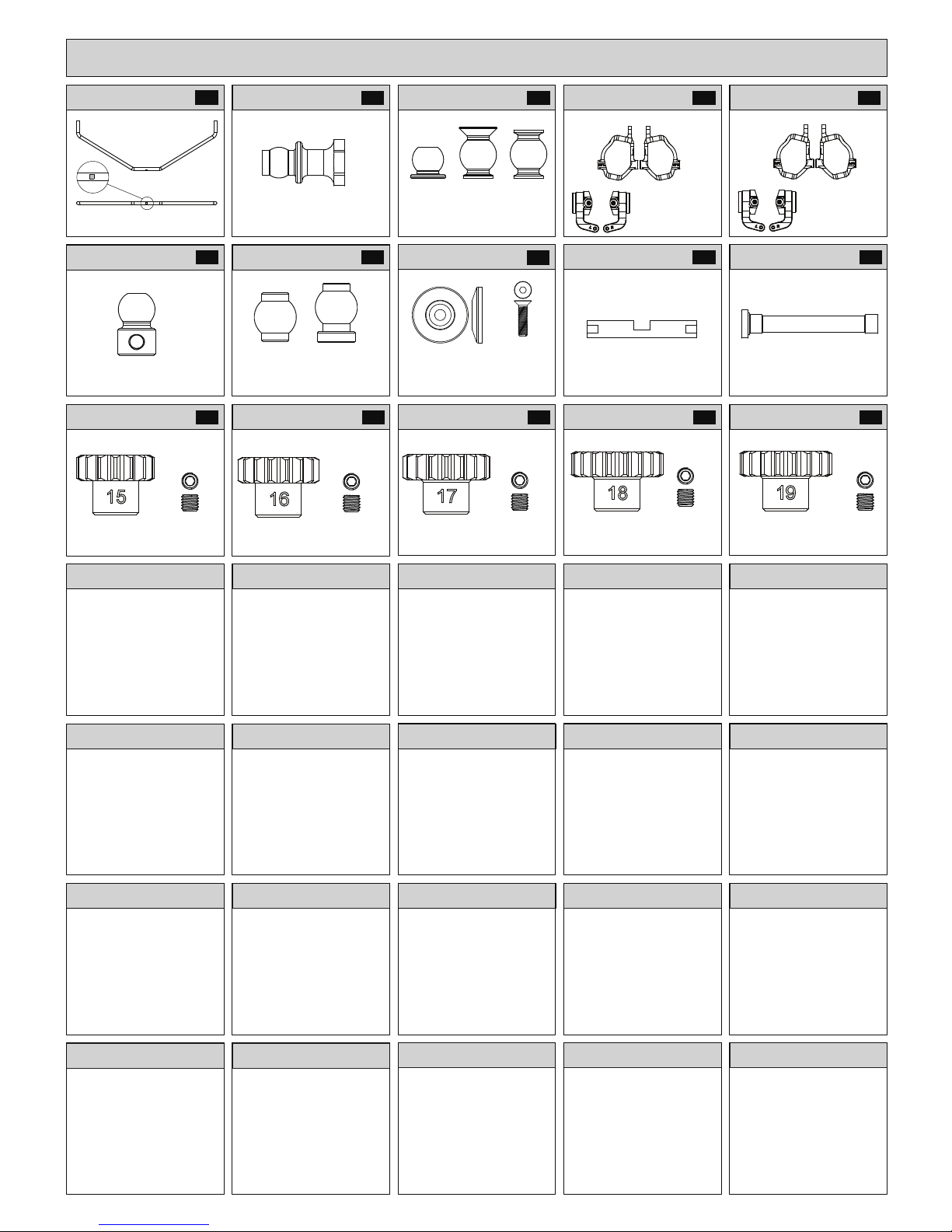

Parts list for T8E off-road buggy - 6

M4x4 Screw

1pcs

15T Pinion Gear

1pcs

M4x4 Screw

1pcs

16T Pinion Gear

1pcs

M4x4 Screw

1pcs

17T Pinion Gear

1pcs

M4x4 Screw

1pcs

18T Pinion Gear

1pcs

H395

OP

H396

OP

H397

OP

H398

OP

M4x4 Screw

1pcs

19T Pinion Gear

1pcs

H399

OP

Front Hub Carriers 14 Degree

TU0872

OP

Front Hub Carriers 12 Degree

TU0874

OP

Steering Block

1 set

Steering Block

1 set

OP

TU0877

Wing Washer

-Aluminium

2pcs

6.8 Swaybar Ball Stud-

Aluminium

4pcs

7.8mm Arm Ball Stud-Aluminium

5.8/6.8mm Ball Stud-Aluminium

4pcs

OP

TU0876

4pcs

OP

TU0875

OP

TU0871

2pcs

5.8

6.8

Shock Top Ball stud-Aluminium

4pcs

TU0870

OP

Diff Shaft

-Aluminium

6pcs

TU0878

OP

2pcs

TU0879

OP

Servo Saver Shaft-Aluminium

M3x12

2pcs

Rear Sway Bar 3.0

1pcs

OP

TU0869

Date

Driver

Track / City

/

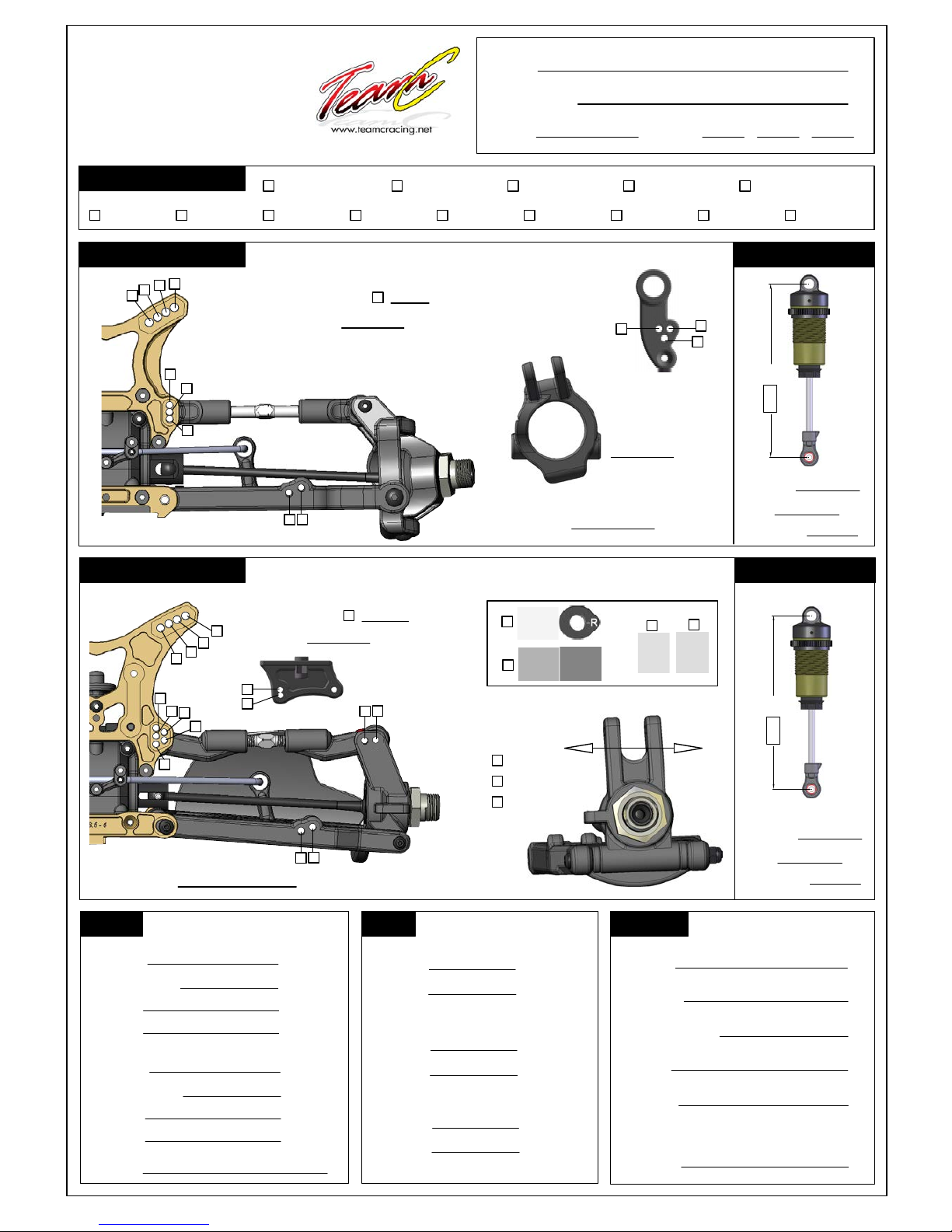

SETUP SHEET for the TeamC T8E

Front Suspension

Ride height

Rear Suspension

/

Motor

Shock Mounting&Camber link

Track Condition

Smooth Bumpy Low traction Med traction High traction

Sandy Soft dirt Grass Hard soil Clay

Motor

Spur

Tires

Piston #

Oil wt

Brand

Rear Shocks

Diff

Ride height

Shock Mounting&Camber link

Event

Long Medium Short

Wheelbase

Wet Dry Dusty Other

T8E

1

2

mm

Front Shocks

Anti-roll bar:

mm

Anti-roll bar:

mm

Camber

°

Camber

°

3

mm

1

2

3

1 2

1

2

1

2

1

2

1

2

3

4

5

4

1

2

3

1

2

1

2

3

4

Front

Rear

Compound

Insert

Wheel

Brand

Front

Center

Oil wt

Rear

LiPo battery

Brand

Compound

Insert

Wheel

Brand

Oil wt

Brand

Oil wt

Note

Pinion

Degree

°

Spring

Piston #

Oil wt

mm

Spring

ESC

HOBBYPRO COMPANY LTD.

Flat C-D, 5/F.,

Speedy Ind. BLDG.,

114 How Ming Street,

Kwun Tong, KLN., Hong Kong.

Team C Headquarter

www.teamcracing.net

Team C America

www.teamcamerica.com

Team C Europe

www.teamceurope.com
