1:10 SCALE 2WD ELECTRIC TRUCK
TR02T CHASSIS
Notice
Thank you for purchasing this Hyde Offroad Truck by Team C. This manual shows instructions and
tips to built and maintain your Hyde. Please take some time to read through to get familiar with the
shown steps.
We continually improve our products, due to that, actual parts my be different to the illustrations.
Please check our website for the latest versions manuals and tips before you start to built this model.
This manual is written in english language only. If you need a manual in your language please visit our
website or contact your distributor!
Diese Anleitung wurde in englischer Sprache verfasst. Sollten sie eine Anleitung in ihrer Sprache
benötigen, besuchen sie unsere website oder konaktieren sie ihren Vertriebsagenten.
Questo manuale è stato scritto in inglese. Se avete bisogno del manuale nella tua lingua, si prega di
visitare il nostro sito web o contattate il proprio distributore.
Este manual está escrito en Inglés. Si necesita el manual en su idioma, por favor visite nuestro sitio
web o contacte con su distribuidor.
Ce manuel est écrit en langue anglaise. Si vous avez besoin d'un manuel dans votre langue
s'il vous plaît visitez notre site web ou contactez votre distributeur!
Deze handleiding is geschreven in het Engels taal beschikbaar. Als u een handleiding in uw eigen
taal kunt u terecht op onze website of neem contact op met uw distributeur!
Generall Information
THIS IS NOT A TOY!
Not suitable for children under 14 years of age without adult supervision.
This is a high performance vehicle, for safety reason don’t run on public streets, in crowded areas,
environmentally areas or near children or animals.
This model contains rotationg parts and parts which become hot during operation. Care must been
taken to avoid damage or injuries.
This product may require some assembly and routine maintance.
This product is covered by warranty based on material defectives. Crash damage or maintenance
failures are not covered under warranty.
Batteries should be used in good condition only, and need to be fully charged.
Nitro models should be driven outside of buildings only. Inhaling exhaust gases could cause health
damage.
Keep chemicals stored out of the range of small children.
Make sure your model and equipment is in perfect condition before you use it, to ensure savety
and fun while driving.
Main Gear
13
T02084 M4 Flanged Nylon Nut
T02084
T02040
T02134
…………1
T02038
T02134
T02038
TG2033(86T)
approx.18mm
Rear Damper Stay
14
T02082 M3x10 Screw
T02082 M3x22 Screw
T02117 5mm Ball stud
………………………2
………………4
……2
T02117
TG2031
T02082(M3x22)
T02082(M3x10)
T02082(M3x22)
T02117
TG2035
9
Rear Bulkhead
15
T02059
T02127
T02082
T02082
Rear Chassis
16
T02009
T02125
T02059 Ball stud - long
……………2
T02082 M3x10 Screw
…………4
T02083 M3x8 Screw
…………2
T02083
T02083
10
Rear Suspension
17
T02125
T02055 3x48 Hinge pin Rear inner
T02083 M3x8 Screw
……2
T02083
TG2030
T02055
Rear Suspension
18
………………………………2
L
R
T02083 M3x10 Screw
Assemble left and right sides the same way
L
11
R
…………2
T02083
T02083

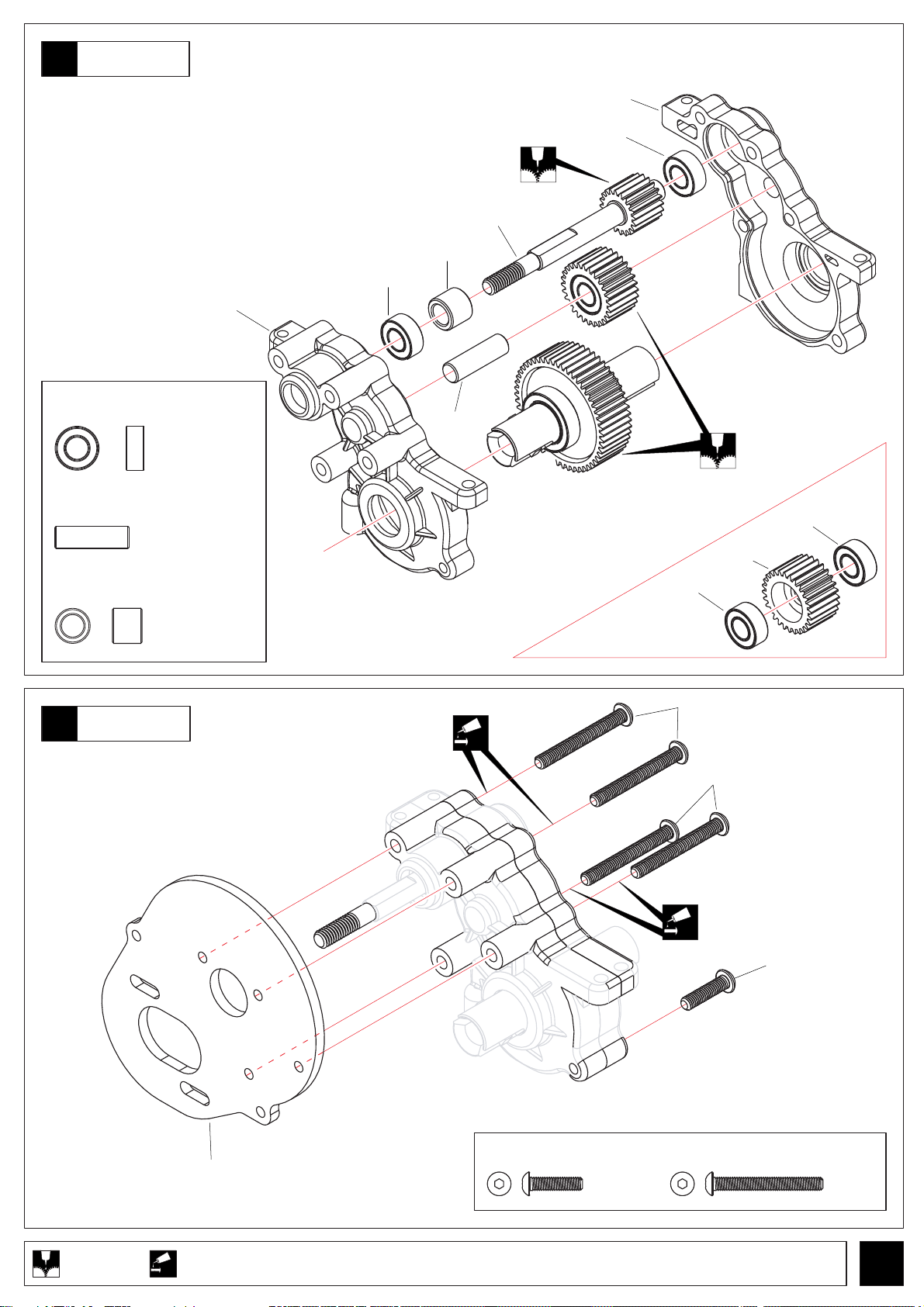

Rear Transmission
19
T02082
T02082 M3x10 Screw
……………2
T02083

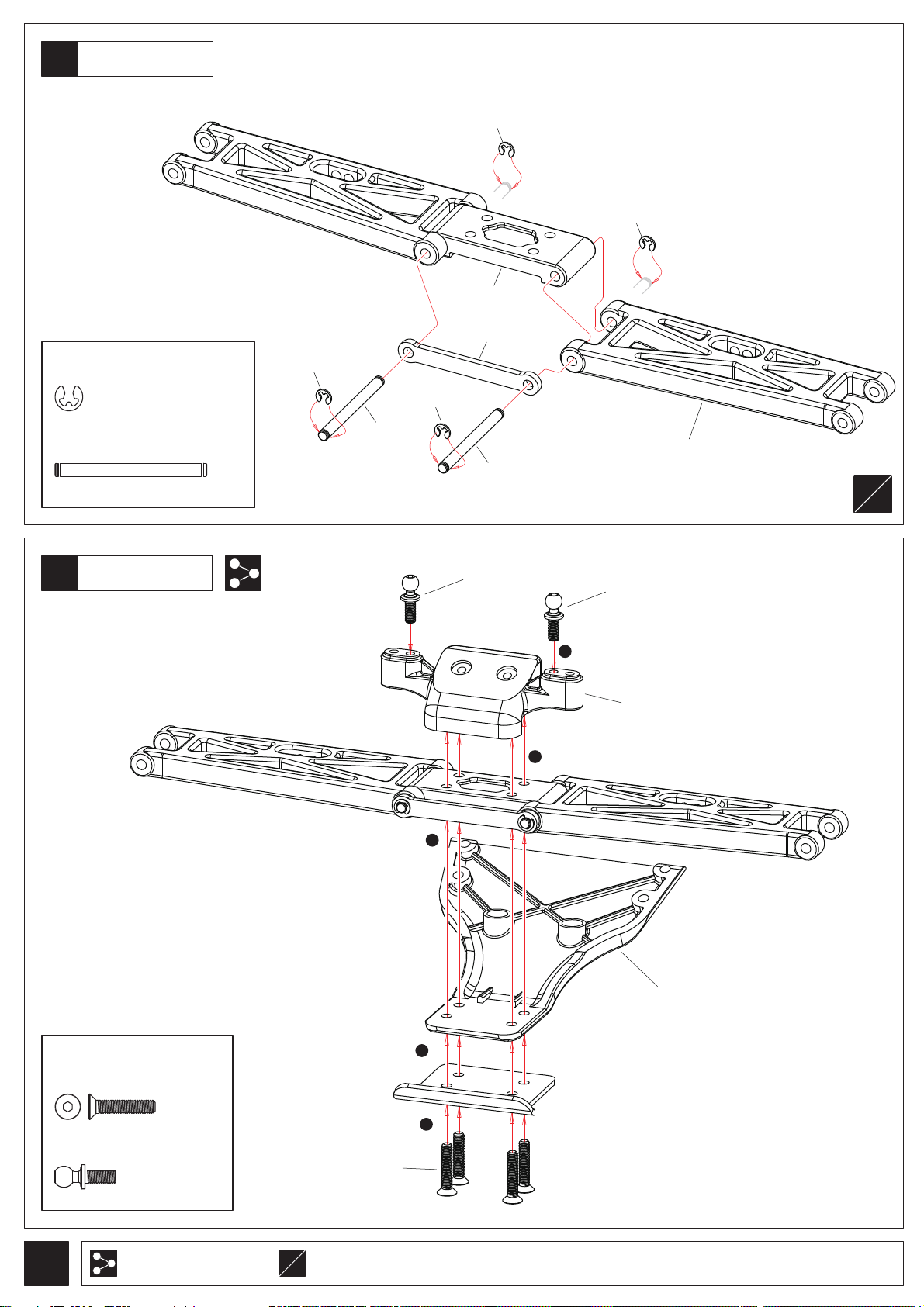

Rear Shock Stay & Rear Fender
20
T02082 M3x8 Screw
…………2
T02082 M3x10 Screw
…………4
T02082(3x8)
4
T02083 M3x8 Screw
……………2
1
2
3
T02082(3x10)
5
T02082(3x10)
T02109
1
Assemble in the specified order
2
3
2
3
1
T02083(3x8)
Screws which were semi tightened in P11
17
12
Rear Suspension
21
<Left>
<Right>
T02060 Ball stud - short
…………………2
T02115 2x9.8 Shaft
…………………2
Rear Suspension
22
T02079 5x10x4 Contain oil ball
bearing
……………4
TG2039
T02079
T02124
T02060
T02079
T02115
T02115
L
R
L
R
T02057 2.3 E-ring
…………………………4
T02124 3.1x6x1 Plastic Washer
………………………2
Assemble left and right sides the same way
L
13
R
T02057
T02124
T02057
T02057 3x30.5 Hinge pin Rear outer
T02057
…………2
Apply grease
Rear Suspension
23
T02112 4.8mm Ball End(Long)
…………………………4
TG2010 3x72 Turnbuckle
…………………………2
Rear Suspension
24
T02112
approx.53mm
TG2010
T02112
Rear Upper
1:1
x2
Main Chassis
25
T02083 M3x8 Screw
…………2
TG2031
Assemble as many times as specified
x2
True-to -scale diagram
1:1
T02083(3x8)
14
Shock Absorber
26
TG2040 / TG2041 2.3 E-ring
Front
x2
Rear
x2
…………………………8
T02068 9.9x2.5 Shock Piston
…………………4
T02069 2.8x1.9 O-ring
…………………8
T02069 3.1x1mm Plastic Washer
……………………4
TG2015 / TG2016 8x1 O-ring
……………………4
T02114 5.8 Ball End
…………………4
T02137 5.8x6 Ball stud
Put a little oil
TG2040
T02068
TG2040
TG2040(Short)
短
T02137
TG2015
T02069
T02069(2.8x1.9)
T02069(3x1mm)
T02069(2.8x1.9)
TG2015
TG2015(Short)
短
Put a little oil
TG2041
T02068
TG2041
TG2041(Long)
長
T02137
TG2016
T02069
T02069(2.8x1.9)
T02069(3x1mm)
T02069(2.8x1.9)
TG2016
TG2016(Long)
長
Shock Absorber
27
…………………………4
1
3
1
Put the oil
for Front(Short)
for Rear(Long)
F
x2
R
T02114
2
TG2015 / TG2016
Shock Absorber
Oil
2
for Front(Short)
for Rear(Long)
F
x2
R
T02114
15
Assemble as many times as specified
x2
1
Assemble in the specified order
2
3
Assemble front and rear sides the same way
F
R
Shock Absorber
28
Compress the spring and install
Front
x2
for adjusting the spring tension
TG2017(Short)
T02140
Short
T02140
T02114
T02140 3mm adjuster ring
Front Suspension
29
…………8
T02114
TG2015
TG2018(Long)
Long
TG2016
Rear
x2
3
T02084
1
2
3
Assemble as many times as specified
x2
1
Short
短
1
Assemble in the specified order
2
3
2
T02082
1
T02084 M3 Nylon Nut
L
R
Assemble left and rear sides the same way
L
R
…………2
T02082 M3x15 Screw
……2
16
Rear Suspension
30
T02084
Long
長
T02084 M3 Nylon Nut
Motor
31
…………2
T02082 M3x15 Screw
……2
T02082
L
R
T02120
T02083 M3x8 Screw T02082 M3x5 Screw
……………2
T02081 3x7x0.8 Washer
Assemble left and rear sides the same way
L
17
R
………………2
TG2038 M3x3 Screw
………2
…………1
1
3
T02081
1
2
3
Assemble in the specified order
2
1
T02083
TG2038
2
3
5
T02082
4
Steering Servo
32
Select for your servo
1
2
3
T02113
1
T02136
3
T02082
T02081
T02111
2
Steering Servo-H(24T)
Sanwa servo
SANWA
T02113 4.8 Ball End(Short)
T02113 M3x10 Screw
T02111
T02116
Steering Servo
X
……………2
……………1
Steering Servo-S(23T)
T02081 3x7x0.8 Washer
………………4
T02082 M3x8 Screw
…………4
T02110(25T)
T02082(2.6x8)
T02136 Ball stud - silvery
…………………1
T02082 M2.6x8 Screw
…………1
T02083
T02083 M3x8 Screw
……2
4
T02116 1.5 Servo spacer
……2
33
Radio
Receiver
T02087
Double-sided Tape
Antenna
T02087
Double-sided Tape
1
Assemble in the specified order
2
3
Must be purchased separately
X
Electronic speed controller
18
Transmitter Preparation
Power Switch
ON
OFF
Battery Level Indicator
Good Batteries
Low Batteries(Light Blinks)
Reverse Switch
反向开关
Servo Factory Settings
Antenna
Extend the antenna to the maximum
Length for best performance
Left turn
DIGITAL
PROPORTIONAL
RADIO CONTROL
SYSTEM
Straight (neutral)
Right turn
27MHzTransmitter Crystal（TX）
Transmitter crystal(TX)
The crystal can be replaced to change frequencies.
Note : You must also change receiver crystals!
Do not use AM crystals
Steering Trim
1
3
1
2
To be used for trimming the steering
operation
Receiver crystal(RX)
DIGITAL
PROPORTIONAL
RADIO CONTROL
SYSTEM
3ch Switch
4
This switch is used for optional parts.
Transmitter Battery Installation
Open battery cover at the bottom of transmitter.
Install batteries. Follow the direction of batteries
designated in the inside of battery box.
4
Battery Cover
Brake
Forward
To be used for throttle operation
Throttle Trigger
Stop(Neutral)
AA Alkaling Batteries
8X
Throttle Trim
2
To be used for trimming the throttle
operation
Steering Dual Rate
3
To be used to adjust steering servo throw
34
Battery
TG2036
If using loose battery cells
Please put the battery panel conversely
TG2036
T02086
X
Battery
TG2036(Sponge)
T02086
X
TG2036(Sponge)
Battery
T02086 Small clip
35
Wheels
1
Front
x2
TG2020
TG2020(Sponge)
…………2
1
2
3
Rear
x2
3
TG2019
TG2019(Sponge)
TG2037
2
After fitting wheels to tyres,apply instant glue as shown
1
3
19
Assemble as many times as specified
x2
Glue
Assemble in the specified order
2
TG2037
Glue
4
Must be purchased separately
X
36
Body Mounting
6mm
6mm
3mm
37
Body Mounting
T02086
TG2032
T02086
TG2032
TG2032
TG2032
TG2031
TG2032 M3x6 Screw
TG2032 M3 Nylon Nut
+3 deg
-3 deg
3°
3°
……………2
……………………2
T02086 Small clip
……………5
T02084 M4 Flanged Nylon Nut
……………4
Assemble as many times as specified
x2
Drill holes with the specified diameter Cut off shaded portion
6mm
T02084
T02084
20
T02069
TG2015
TG2015
T02140
T02068
T02084
TG2015
T02082
TG2031
T02086
T02120
T02082
T02120
Exploded View
T02137
TG2020
T02114
T02084
TG2017
T02054
T02123
TG2029
T02079
T02073
T02054
TG2040
T02056
T02082
T02042
T02117
T02083
T02109
T02082
T02060
T02122
T02056
TG2010
T02054
T02007
T02046
T02049
T02082
T02121
T02047
T02078
T02077
T02051
T02079
T02003
T02079
T02111
T02082
T02050
T02007
T02082
T02048
T02004
T02049
T02077
T02082
T02082
T02087
TG2034
T02084
T02008
TG2002
T02037
T02125
T02113
T02117
T02128
T02059
T02136
T02082
T02046
T02078
T02082
T02081
T02126
T02082
T02110
T02056
T02112
T02083
T02121
T02052
T02040
T02082
T02079
T02041
T02083
T02081
T02036
T02082
T02084
T02134
T02038
TG2033
T02038
T02134
TG2038
TG2036
T02082
21
TG2037
T02137
T02069
TG2016
T02114
TG2016
TG2018
T02079
T02042
T02044
T02140
T02107
T02068
T02060
T02117
T02073
T02044
T02080
T02106
T02084
TG2041
T02106
T02043
T02043
TG2016
T02083
T02043
TG2037
T02084
T02083
T02106
T02136
T02043
T02080
TG2019
TG2031
T02086
T02127
T02082
T02059
T02057
T02055
TG2030
T02079
T02087
TG2035
T02082
T02083
T02079
T02115
T02082
TG2039
T02124
T02086
TG2031
T02055
T02083
TG2036
TG2010
T02060
T02112
T02083
T02109
T02117
T02009
T02084
T02125
T02125
T02082

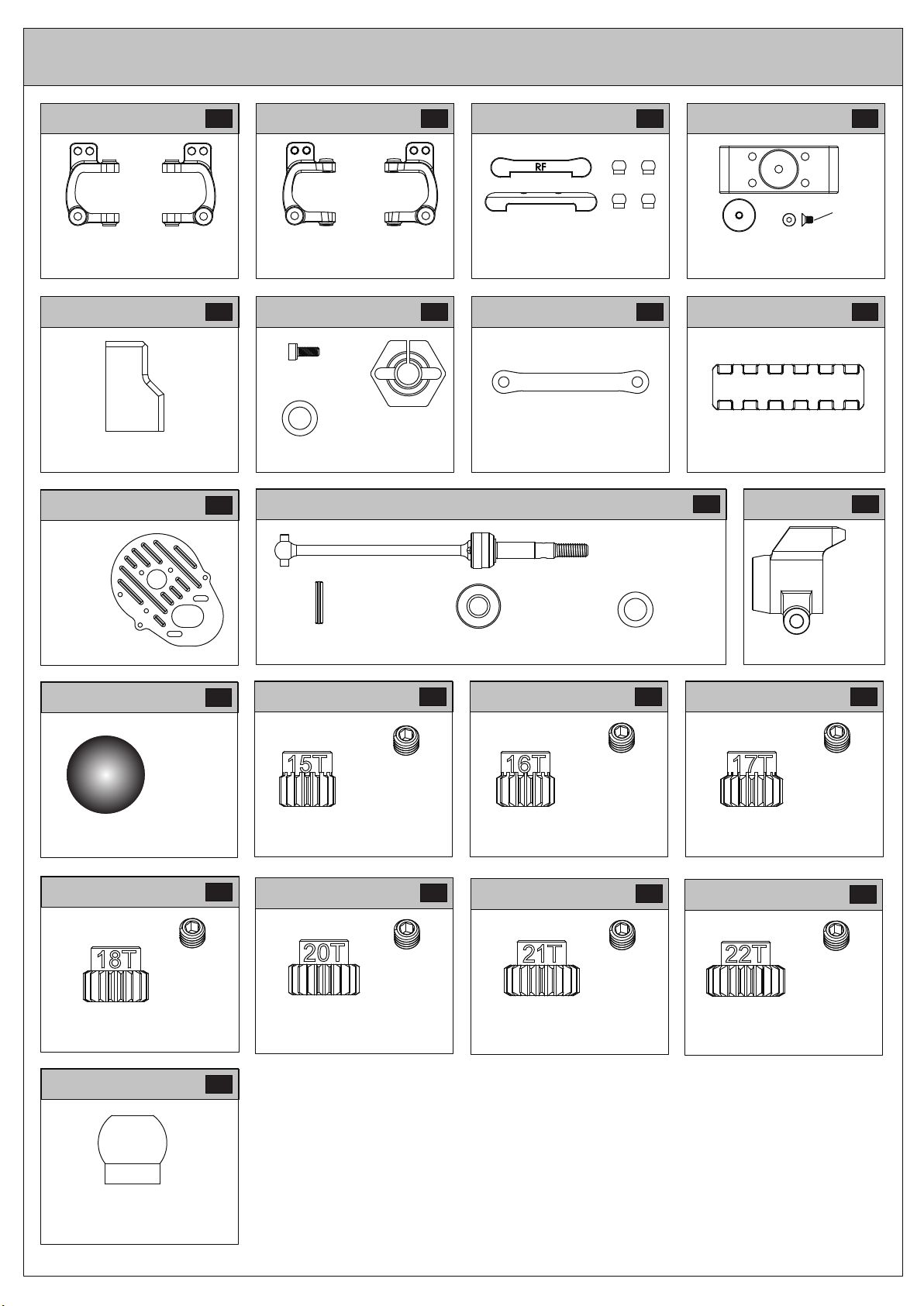

Parts list for Hyde - 1
TG2033
T02121
Differential-L
1PCS
TG2002
86T Spur Gear
1PCS
Differential-R
1PCS
T02003 T02004
28T Spur Gear
1PCS
T02007
M2.5x25 Screw
1PCS
M2.5 Nylon Nut
1PCS
Differential Nut Mount
1PCS
T02122
T02008
Front chassis plate
1PCS
T02123
52T Gear
1PCS
Steering block-L
1PCS
T02120
T02009
Rear chassis plate
1PCS
T02124
3.1x6x1 Plastic Washer
Gear Cover Button
1PCS
Gear Cover
1PCS
4PCS
T02125
Front alight suspension
T02127
Rear brace mount
Main Chassis plate
1PCS
arm mount
Rear arm mount-F
1PCS
Rear arm mount-R
1PCS
1PCS
1PCS
C-type holder L
1PCS
C-type holder R
1PCS
T02126 TG2029
Front upper suspension
arm mount
1PCS
Front lower arms
2PCS
T02128 TG2034
Front brace mount
1PCS
Front shock tower
Steering block-R
1PCS
1PCS
Rear hub carriers
-L
1PCS
TG2030
Rear lower arms
TG2035
Rear hub carriers
-R
1PCS
2PCS
Rear shock tower
1PCS
TG2036
Sponge
1PCS
Battery plate
1PCS
T02106 T02107
Servo saver upper
Servo saver lower
Servo saver - L
1PCS
1PCS
1PCS
Steering Rack
1PCS
Parts list for Hyde - 2
TG2031
Battery column
2PCS
Wing bracket
2PCS
T02112
T02115
Front body mount
2PCS
Wing angie shim
4.8 Ball End - Long
6PCS
2PCS
T02109
Front bumper
1PCS
Motor guard
1PCS
T02110
Steering
servo horn-F
1PCS
T02113 T02114
4.8 Ball End - Short
2PCS
T02116
3x10 Screw
1PCS
T02036
Steering servo
horn-H
1PCS
Spring Mount
5.8 Ball End
Steering
servo horn-S
1PCS
2PCS
2PCS
T02111
Servo plate
2PCS
TG2037
rim
2PCS
T02037
Hexagonal
4PCS
T02038
2x9.8 Pin
4PCS
Slipper pad
2PCS
1.0 Servo spacer
2PCS
T02134 T02040 T02041
T02042 T02043
4.0 E-ring
2PCS
2x9.8 Pin
2PCS
Front wheel axle
2PCS
Buffer
column-A
1PCS
Buffer Nut
1PCS
1.5 Servo spacer
2PCS
Slipper hub
2PCS
4.0 E-ring
(E
扣)
Buffer
Spring
1PCS
1PCS
column-B
Buffer
1PCS
T02044
Block Carrier
Motor plate
1PCS
Slipper Spring
1PCS
3x10 Screw
2PCS
2PCS
3x7x0.8 Washer
2PCS
Front hinge pin brace
1PCS
5x8x6.7 Top shaft spacer
1PCS
TG2010
3x68 Turnbuckle
4PCS
3x72 Turnbuckle
2PCS
T02046 T02047 T02048
Differential connecting
hub - Short
1PCS
Differential connecting
hub - Long
1PCS
Differential Spring
1PCS
2.37mm Ball
12PCS
Parts list for Hyde - 3
T02049
17x23x1 Washer
2PCS
T02050
2.6x6x3 Stop push ball bearing
1PCS
T02051
TG2038 T02054 T02055
2.3 E-ring
4PCS
Pinion Gear 19T
1PCS
3x3 Screw
1PCS
T02057 TG2039
2.3 E-ring
3x27.5 Hinge pin front outer
2PCS
3x48 Hinge pin Rear inner
2PCS
T02059 T02060
idler gear shaft
1PCS
T02052
Gear 20T
1PCS
T02056
2.3 E-ring
(E
扣)
4PCS
3x34.5 Hinge pin front inner
2PCS
4PCS
3x30.5 Hinge pin Rear outer
2PCS
Rear CVD
2PCS
T02136 T02137
Ball stud - silvery
2PCS
TG2041
3x53.5 Rear Shock Absorber
Shaft
2PCS
2.3 E-ring
4PCS
TG2015 TG2016
Front damper
(前油筒)
case
2PCS
5.8x6 Ball stud
8x1 O-ring
2PCS
top Spring
mount end
(上彈簧固定座)
2PCS
4PCS
Shock Absorber
upper cover-Plastic
2PCS
Shock Absorber
below cover-Plastic
(下蓋-塑膠)
2PCS
Ball stud - long
2PCS
4.8x5 Ball stud - short
T02117 TG2040
3x44.5 Front Shock Absorber
Shaft
5mm Ball stud
4PCS
T02068
Shock Absorber
upper cover-Plastic
2PCS
Shock Absorber
below cover-Plastic
Rear damper
case
2PCS
8x1 O-ring
2PCS
top Spring
mount end
2PCS 2PCS
5PCS
2PCS
2.3 E-ring
4PCS
Shock piston
4PCS
T02069 TG2017
3.1x1mm Plastic Washer
4PCS
2.8x1.9 O-ring
8PCS
3.5 Press washer
4PCS
T02140
1mm adjuster ring
2mm adjuster ring
3mm adjuster ring
5mm adjuster ring
4PCS
4PCS
4PCS
4PCS
Front Shock Absorber
Spring
2PCS
TG2018
Rear Shock Absorber
Spring
2PCS
Parts list for Hyde truck - 4
T02073
Diaphragm
4PCS
TG2019
Rear-tyre
2PCS
Wheels Sponge
2PCS
TG2020
Front-tyre
2PCS
T02077 T02078 T02079
5x8x2.5 Contain oil ball bearing
6PCS
10x15x4 Contain oil ball bearing
6PCS
5x10x4 Contain oil ball bearing
T02081 T02082
3x5 Screw
8PCS
3x8 Screw
8PCS
3x22 Screw
3x7x0.8 Washer
10PCS
8PCS
3x25 Screw
8PCS
Wheels Sponge
6PCS
2PCS
3x15 Screw
8PCS
3x12 Screw
8PCS
3x10 Screw
8PCS
2.6x8 Screw
8PCS
TG2032
3x6 Screw
2PCS
T02080
3x6x2.5 Ball Bearing
T02083
M3 Nylon Nut
Body shell
1PCS
4PCS
3x8 Screw
3x10 Screw
3x15 Screw
3x8 Screw
2PCS
8PCS
8PCS
8PCS
8PCS
T02084 T02085 T02086
M4 Flanged Nylon
Nut
6PCS
M3 Nylon Nut
6PCS
2.3 E-ring
8PCS
4 E-ring
8PCS
TG2022 TG2023
Small clip
8PCS
T02087
Double-sided tape
1PCS
Antenna pipe set
Antenna pipe
set cover
1PCS
1PCS
Front Shock Absorber
2PCS
Rear Shock Absorber
2PCS
TR02T Upgrade Parts TR02T - Chassis
Tu0219
C-Type-Holder
25 Degree - L
Servo mount 2pcs
Tu0229
OP OP OP OP
C-Type-Holder
25 Degree - R
OP
Tu0220 Tu0221 Tu0222
C-Type-Holder
30 Degree - L
C-Type-Holder
30 Degree - R
Rear arm mount F/R 1Set
Front arm mount 1Set
Tu0228Tu0226Tu0225Tu0224
2x5 Screw
4pcs
Hex mount
4pcs
5.1x8x0.2 Washer
4pcs
Tu0234
Front hinge pin brace Brass battery tray 1pcs
1pcs
OP OP
CVD for ae rim
2pcs
3x5
OPOPOPOP
Tu0236
Motor mount
1pcs
Tu0238
Ceramic Ball 2.37mm
12pcs
H478
3x3 Screw
1pcs
Aluminium Motor Gear - 18T
1pcs
OP
OP
1.6x11 Spring Pin
2pcs
Aluminum Washer
2pcs
5.1x8x0.2 Washer
4pcs
H475 H476 H477
3x3 Screw
1pcs
Aluminium Motor Gear - 15T
1pcs
H480
3x3 Screw
1pcs
Aluminium Motor Gear - 20T
1pcs
OP
Aluminium Motor Gear - 16T
H481
Aluminium Motor Gear - 21T
3x3 Screw
1pcs
1pcs
OP
3x3 Screw
1pcs
1pcs
Aluminium Motor Gear - 17T
H482
Aluminium Motor Gear - 22T
Rear hub carriers
2pcs
3x3 Screw
1pcs
1pcs
3x3 Screw
1pcs
1pcs
OPOPOP
OP
Tu0223
Rear arm mount -Ball 8pcs
OP
Transmitter Preparation
A new Ni-MH battery must be charged before it is used.Refer to the charger instruction manual for charging.
Set up the radio control system as indicated below。
6
10
2
ON
OFF
DIGITAL
PROPORTIONAL
RADIO CONTROL
SYSTEM
Battery
Motor
馬達
3
Electronic Speed
Controller
11
7
5
5
8
8
Transmitter
發送機
Servo
9
Switch
4
6
ON
1
Install batteries.(Transmitter)
Start
1
2
Extend the antenna.(Transmitter)
3
Connect the battery
4
Extend the antenna.(Reveiver)
Center the trims.
5
Switch on.(Transmitter)
6
7
Switch on.(Reveiver)
8
Make sure the servos are in command.
10
OFF
Receiver
Finish
Tools required
Needie Nose Pllers
Ball differential Grease(Clear)
Molybdenum Grease(Black)
Hex Wrench
Hex Wrench
Switch off.(Reveiver)
9
10
Switch off.(Transmitter)
11
Retract the antenna(Transmitter)
Awi
SP KINFE EDGE REAMER
No need to pre-drill precise holes
(1mm to 15mm)can be drilled
Grease
Screw Cement
Wire Cutters
Sharp Hobby knife
Instant Glue
ROUND CUTTER&SANDER
For trimming bodies!
2
Front Suspension
1
T02056 2.3 E-ring
T02056
T02056
T02125
T02037
T02056
………………………………4
T02056 3x34.5 Hinge pin front inner
………………………………2
Front Suspension
2
1
3
T02056
T02056
TG2029
T02056
L
R
2
T02059
2
3
T02059
1
T02126
T02083 M3x15 Screw
T02059 Ball stud - long
……………………2
1
Assemble in the specified order
2
3
3
……………4
4
5
T02083
Assemble left and right sides the same way
L
R
T02008
T02109
3
Buffer
1
2
3
T02080
2
10
T02080
T02043 4.0 E-ring
…………………………1
T02080 3x6x2.5 Ball Bearing
………………………4
4
4.0mm
T02106
T02043
T02080
T02043
31
T02043
9
T02043
8
7
6
5
T02106
T02106
T02043
T02136
T02136 Ball stud - silvery
………………………1
Buffer
4
T02044 4.5x5.4 Block Carrier
……………………………2
T02044 M3x10 Screw
………………2
11
T02080
T02044
T02060
T02060
T02044
T02060 Ball stud - short
………………………2
T02044 3x7x0.8 Washer
……………………2
1
Assemble in the specified order
2
3
T02044
T02107
T02044
4
Front Suspension
5
1
2
3
T02082(3x8)
T02128
4
T02082(3x10)
5
3
Front Suspension
6
<Right>
T02082(3x10)
1
2
T02082(3x10)
T02054 2.3 E-ring
……………8
T02042 4.0 E-ring
…………2
T02042 2x9.8 Shaft
…………2
TG2034
T02082 M3x8 Screw
………………2
T02082 M3x10 Screw
………………6
T02054 3x27.5 Hinge pin front outer
…………4
T02060 Ball stud - short
………………………4
T02079 5x10x4 Contain oil ball
bearing
…………………4
L
5
R
1
2
3
1
Assemble in the specified order
2
3
T02054
L
T02060
T02122
8
T02054
Assemble left and right sides the same way
7
T02054
R
<Left>
T02054
1
5
T02123
T02054
6
T02042
3
T02042
T02079
T02060
T02042
4
2
T02115
Front Suspension
7
Front Upper (Left)
T02112
TG2010
T02112 4.8mm Ball End(Long)
…………8
TG2010 3x68 Turnbuckle
Front Suspension
8
T02112
……4
approx.51mm
approx.51mm
approx.46mm
1:1
x1
Front Upper(Right)
1:1
x1
Steering Tip
1:1
x2
Front Suspension
9
T02082(M3x22)
TG2031
x1
T02117
T02082(M3x10)
Assemble as many times as specified
T02082(M3x12)
T02082 M3x12 Screw
1:1
TG2034
………2
True-to -scale diagram
T02082 M3x22 Screw
T02082 M3x10 Screw
……2
………4
T02117 5mm Ball stud
……………2
6
Differential Gear
10
T02050(2.6x6x3)
T02007(2.5x25)
T02046
T02078(10x15x4)
T02049(17x23x1)
T02078(10x15x4)
T02046
T02077(5x8x2.5)
T02007(M2.5)
T02007
T02047
T02048(2.37)
T02049 17x23x1 Washer
T02049(17x23x1)
T02004
T02007 M2.5x25 Screw
T02077(5x8x2.5)
T02077 5x8x2.5
Contain oil ball
bearing
T02078 10x15x4 Contain oil ball
Apply grease
bearing
7
……………2
……………2
T02007 M2.5 Nylon Nut
……………1
……1
……………2
T02048 2.37mm Ball
………………12
Transmission
11
T02121
<Right>
<Left>
T02121
T02079
T02052
T02041
T02079
T02079 5x10x4 Contain oil ball
Bearing
…………………4
T02051 5x16.8 idler gear shaft
……………………1
T02041 5x8x6.7 Top shaft spacer
…………………1
Motor mounts
12
T02051
Screw
Cement
T02079
T02003
T02079
T02082(3x25)
T02082(3x25)
Apply grease
T02036
Apply threadlock
Screw
Cement
T02082 M3x12 Screw
…………1
Screw
Cement
T02082(3x12)
T02082 M3x25 Screw
………4
8
Loading...
