Model Series
Covered in
This Manual
11A600
110600
111600
120600
121600
122600
123600
124600
125600
126600
Operating & Maintenance
Instructions
Model Type Code
Note: General M odel Series n umbers n oted a bove include m any s pecific n umbers
like the o n es on your engine. To get r epl acemen t parts or technical a ssist an ce i n
the future, write your engine Model, Type, Code and date of purchase here.
TABLE OF CONTENTS
Safety 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Information 6. . . . . . . . . . . . . . . . . . . . . . . .
Oil 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel and Starting Information 8. . . . . . . . . . . . . . .
Starting and Stopping 9-10. . . . . . . . . . . . . . . . . . .
Maintenance 11-13. . . . . . . . . . . . . . . . . . . . . . . . .
Adjustments 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts and Service & Storage 15-16. . . . . . . . . . . .
Warranty Information 17. . . . . . . . . . . . . . . . . . . . .
PRINTED IN U.S.A. Copyright 1999 by Briggs & Stratton Corporation FORM NO. 274264-10/99
Briggs & Stratton does not approve or authorize the use of
these engines on 3-wheel All Terrain Vehicles (ATVs), motor
bikes, aircraft products or vehicles intended for use in
competitive events. Use of these engines in such applications
could result in property damage, serious injury (including
paralysis), or even death.
In the USA and Canada our 24 hour hotline is
Briggs & Stratton Corporation
Milwaukee, Wisconsin 53201
www.briggsandstratton.com
WARNING
1-800-233-3723
Month Day Year
THE POWER IN POWER EQUIPMENT
Thank you for selecting a Briggs & Stratton engine to power your equipment.
Briggs & Stratton is committed to producing a line of engines which will make your life’s chores easier to perform. We have,
at the same time, improved the design of our engines so they are environmentally friendly . Since 1995, we have succeeded
in reducing smog-forming exhaust emissions from our engines by 70%. Briggs & Stratton’s ef forts have not stopped there.
We are also committed to designing and introducing even cleaner engines in the future, while maintaining our reputation for
excellent utility and value.
Briggs & Stratton’s environmental awareness has resulted in the engineering of the “Smart-Fill” gas can, featuring a spill
resistant nozzle which opens only when fully inserted into the gas tank, and which shuts off automatically when the tank is
full. Because refueling spills can harm the environment, the Smart-Fill container helps preserve a stronger ecosystem by
reducing this source of pollution.
We hope you will enjoy your new engine and equipment. We welcome you to our worldwide family of Briggs & Stratton
engine users.
Best Wishes Always,
The Employees of Briggs & Stratton Corporation
Look For Relevant Emissions Durability Period and Air Index
Information On Your Engine Emissions Label
Engines that are certified to meet the California Air Resources Board (CARB) Tier 2 Emission Standards must display
information regarding the Emissions Durability Period and the Air Index. Briggs & Stratton makes this information available
to the consumer on our emission labels.
The Emissions Durability Period describes the number of hours of actual running time for which the engine is certified to
be emissions compliant, assuming proper maintenance in accordance with the Operating & Maintenance Instructions. The
following categories are used:
Moderate: Engine is certified to be emission compliant for 125 hours of actual engine running time.
Intermediate: Engine is certified to be emission compliant for 250 hours of actual engine running time.
Extended: Engine is certified to be emission compliant for 500 hours of actual engine running time.
For example, a typical walk-behind lawn mower is used 20 to 25 hours per year. Therefore, the Emissions Durability
Period of an engine with an intermediate rating would equate to 10 to 12 years.
The Air Index is a calculated number describing the relative level of emissions for a specific engine family. The lower the
Air Index, the cleaner the engine. This information is displayed in graphical form on the emissions label.
2
BEFORE OPERATING ENGINE
• Read entire Operating & Maintenance Instructions AND
the instructions for the equipment this engine powers.*
• Failure to follow instructions could result in serious injury
or death.
THE OPERATING & MAINTENANCE INSTRUCTIONS
CONTAIN SAFETY INFORMATION TO
• Make you aware of hazards associated with engines
• Inform you of the risk of injury associated with those hazards, and
• Tell you how to avoid or reduce the risk of injury.
274264
The safety alert symbol ( ) is used to identify safety
information about hazards that can result in personal injury.
A signal word (DANGER, WARNING, or CAUTION) is
used with the alert symbol to indicate the likelihood and the
potential severity of injury. In addition, a hazard symbol
may be used to represent the type of hazard.
DANGER indicates a hazard which, if not
avoided, will result in death or serious injury.
WARNING indicates a hazard which, if not
avoided, could result in death or serious injury.
CAUTION indicates a hazard which, if not
avoided, might result in minor or moderate
injury.
CAUTION, when used without the alert symbol,
indicates a situation that could result in damage
to the engine.
HAZARD SYMBOLS AND MEANINGS
Fire
Explosion
Toxic Fumes
Kickback
Moving Parts
Shock
Hot Surface
WARNING
The engine exhaust from this product contains chemicals known to the
State of California to cause cancer,
birth defects, or other reproductive
harm.
* Briggs & Stratton does not necessarily know what equipment this engine will power. For that reason, you should carefully
read and understand the operating instructions for the equipment on which your engine is placed.
3
SAFETY
WARNING
Gasoline and its vapors are extremely flammable
and explosive.
Fire or explosion can cause severe burns or death.
WHEN ADDING FUEL
• Turn engine OFF and let engine cool at least 2
minutes before removing gas cap.
• Fill fuel tank outdoors or in well-ventilated area.
• Do not overfill fuel tank. Fill tank to approximately
1-1/2 inches below top of neck to allow for fuel
expansion.
• Keep gasoline away from sparks, open flames,
pilot lights, heat, and other ignition sources.
• Check fuel lines, tank, cap, and fittings frequently
for cracks or leaks. Replace if necessary.
WHEN STARTING ENGINE
• Make sure spark plug, muffler, fuel cap and air
cleaner are in place.
• Do not crank engine with spark plug removed.
• If fuel spills, wait until it evaporates before starting
engine.
• If engine floods, set choke to OPEN/RUN position,
place throttle in FAST and crank until engine starts.
WARNING
Unintentional sparking can result in fire or electric
shock.
Unintentional start-up can result in entanglement,
traumatic amputation, or laceration.
BEFORE PERFORMING ADJUSTMENTS OR
REPAIRS
• Disconnect spark plug wire and keep it away from
spark plug.
• Disconnect battery at negative terminal (only
engines with electric start).
WHEN TESTING FOR SPARK
• Use approved spark plug tester.
• Do not check for spark with spark plug removed.
WARNING
WHEN OPERATING EQUIPMENT
• Do not tip engine or equipment at angle which
causes gasoline to spill.
• Do not choke carburetor to stop engine.
WHEN TRANSPORTING EQUIPMENT
• Transport with fuel tank EMPTY or with fuel shut-of f
valve OFF.
WHEN STORING GASOLINE OR EQUIPMENT
WITH FUEL IN TANK
• Store away from furnaces, stoves, water heaters or
other appliances that have pilot light or other
ignition source because they can ignite gasoline
vapors.
Starting engine creates sparking.
Sparking can ignite nearby flammable gases.
Explosion and fire could result.
• If there is natural or LP gas leakage in area, do not
start engine.
• Do not use pressurized starting fluids because
vapors are flammable.
4
SAFETY
WARNING
Engines give off carbon monoxide, an odorless,
colorless, poison gas.
Breathing carbon monoxide can cause nausea,
fainting or death.
• Start and run engine outdoors.
• Do not start or run engine in enclosed area, even if
doors or windows are open.
WARNING
Running engines produce heat. Engine parts,
especially muffler, become extremely hot.
WARNING
Rotating parts can contact or entangle hands, feet,
hair, clothing, or accessories.
Traumatic amputation or severe laceration can
result.
• Operate equipment with guards in place.
• Keep hands and feet away from rotating parts.
• Tie up long hair and remove jewelry.
• Do not wear loose-fitting clothing, dangling
drawstrings or items that could become caught.
WARNING
Severe thermal burns can occur on contact.
Combustible debris, such as leaves, grass, brush,
etc. can catch fire.
• Allow muffler, engine cylinder and fins to cool
before touching.
• Remove accumulated combustibles from muffler
area and cylinder area.
• Install and maintain in working order a spark
arrester before using equipment on forest-covered,
grass-covered, brush-covered unimproved land.
The state of California requires this (Section 4442
of the California Public Resources Code). Other
states may have similar laws. Federal laws apply
on federal land.
Rapid retraction of starter cord (kickback) will pull h and
and arm toward engine faster than you can let go.
Broken bones, fractures, bruises or sprains could
result.
• When starting engine, pull cord slowly until
resistance is felt, then pull rapidly.
• Remove all external equipment/engine loads
before starting engine.
• Direct coupled equipment components such as,
but not limited to, blades, impellors, pulleys,
sprockets, etc., must be securely attached.
5
ENGINE PARTS
3
2
7
4
13
8
1
5
6
1. Primer bulb
2. Air cleaner
3. Fuel fill
4. Finger guard
5. Spark plug wire
6. Carburetor
GENERAL INFORMATION
ENGINE MODEL
This is a single cylinder, overhead valve (OHV), air-cooled
engine. It is a low emissions engine.
In the state of California, OHV Model Series 110000 and
120000 engines are certified by the California Air Resources Board to meet emissions standards for 125 hours.
Such certification does not grant the purchaser, owner or
operator of this engine any additional warranties with
respect to the performance or operational life of this engine.
This engine is warranted solely according to the product
and emissions warranties stated elsewhere in this manual.
MODEL SERIES 110000
Bore 2-11/16 in. (68.26 mm). . . . . . . . . . . . . . . . . . . . . . . . .
12
11
10
7. Rope handle
8. Fuel tank
9. Oil fill/Dipstick
10. Side drain plug (if equipped)
11. Muffler/Muffler guard (if equipped)
12. Spark arrester (if equipped)
13. Engine Model Type Code
xxxxx xxxx xx xxxxxxxx
THE INTERNATIONAL SYMBOLS USED
ON THE ENGINE OR
IN THIS MANUAL INCLUDE:
Safety Alert
Stop
Read Owner’s
Manual
Oil
Fuel Shutoff
9
On Off
Stroke 1-51/64 in. (46.00 mm). . . . . . . . . . . . . . . . . . . . . . .
Displacement 10.20 cu. in. (167.4 cc). . . . . . . . . . . . . . . .
MODEL SERIES 120000
Bore 2-11/16 in. (68.26 mm). . . . . . . . . . . . . . . . . . . . . . . . .
Stroke 2-3/64 in. (52.00 mm). . . . . . . . . . . . . . . . . . . . . . . .
Displacement 11.58 cu. in. (189.7 cc). . . . . . . . . . . . . . . . .
Note: For practical operation, the horsepower loading
should not exceed 85% of rated horsepower. Engine power
will decrease 3-1/2% for each 1,000 feet (300 meters)
above sea level and 1% for each 10° F (5.6° C) above 77° F
(25° C). It will operate satisfactorily at an angle up to 15°.
Fuel Choke
Primer
TUNE-UP SPECIFICATIONS
Armature air gap 0.010 – 0.014 in. (0.25 – 0.36 mm). . .
Spark plug gap 0.020 in. (0.51 mm). . . . . . . . . . . . . . . . . .
Valve c learance with valve springs installed and p iston 0.1 in.
(2.5 mm) past top dead center (check when engine is cold).
See Repair Manual P/N 274008.
Intake 0.004 – 0.008 in. (0.10 – 0.20 mm). . . . . . . . . . . . .
Exhaust 0.004 – 0.008 in. (0.10 – 0.20 mm). . . . . . . . . . .
6
274264
OIL
CAUTION: This engine is shipped from Briggs &
Stratton without oil
. Check oil level before starting
engine. If you start the engine without oil, the engine
will be damaged beyond repair and will not be
covered under warranty.
OIL CAPACITY
Engine holds approximately 2/3 quart (22 ounces; 0.65 liter).
TYPE OF OIL TO USE
• Use a high quality detergent oil classified “For Service
SF, SG, SH, SJ” or higher, such as Briggs & Stratton
30W, Part Number 100005 (20 oz) or 100028 (48 oz).
• Do not use special additives.
• Choose a viscosity according to the table opposite.
Note: Synthetic oil meeting ILSAC GF-2, API
certification mark and API service symbol
(shown at left) with “SJ/CF ENERGY CONSERVING” or higher, is an acceptable oil at al l
temperatures. Use of synthetic oil does not
alter required oil change intervals.
CHECKING AND ADDING OIL
• Check oil level before starting the engine.
• Check level daily, or after every eight (8) hours.
• Keep oil level at FULL.
SAE Viscosity Grades
**
*
-20 0 20 40 60 80 100
°F
-30 -20 -10 0 10 20 30 40
°C
STARTING TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
32
* CAUTION: Air cooled engines run hotter than
automotive engines. The use of non-synthetic
multi-viscosity oils (5W-30, 10W-30, etc.) in
temperatures above 40° F (4° C) will result in higher
than normal oil consumption. When using a
multi-viscosity oil, check oil level more frequently.
** CAUTION: SAE 30 oil, if used below 40°F (4°C), will
result in hard starting and possible engine bore
damage due to inadequate lubrication.
CAUTION: Do not overfill. Overfilling with oil may cause:
Smoking,
Hard starting,
Spark plug fouling, or
Oil saturation of air filter.
Oil Fill
[1] Place engine level and
clean around oil fill area.
FULL
[4] Oil level should be at
FULL line on dipstick.
[2] Remove dipstick and
wipe clean with cloth.
[5] If needed, add oil slowly -
recheck. Do not over fill.
[3] Replace and tighten dip-
stick. Remove and check
oil level.
[6] Replace and tighten dip-
stick.
7

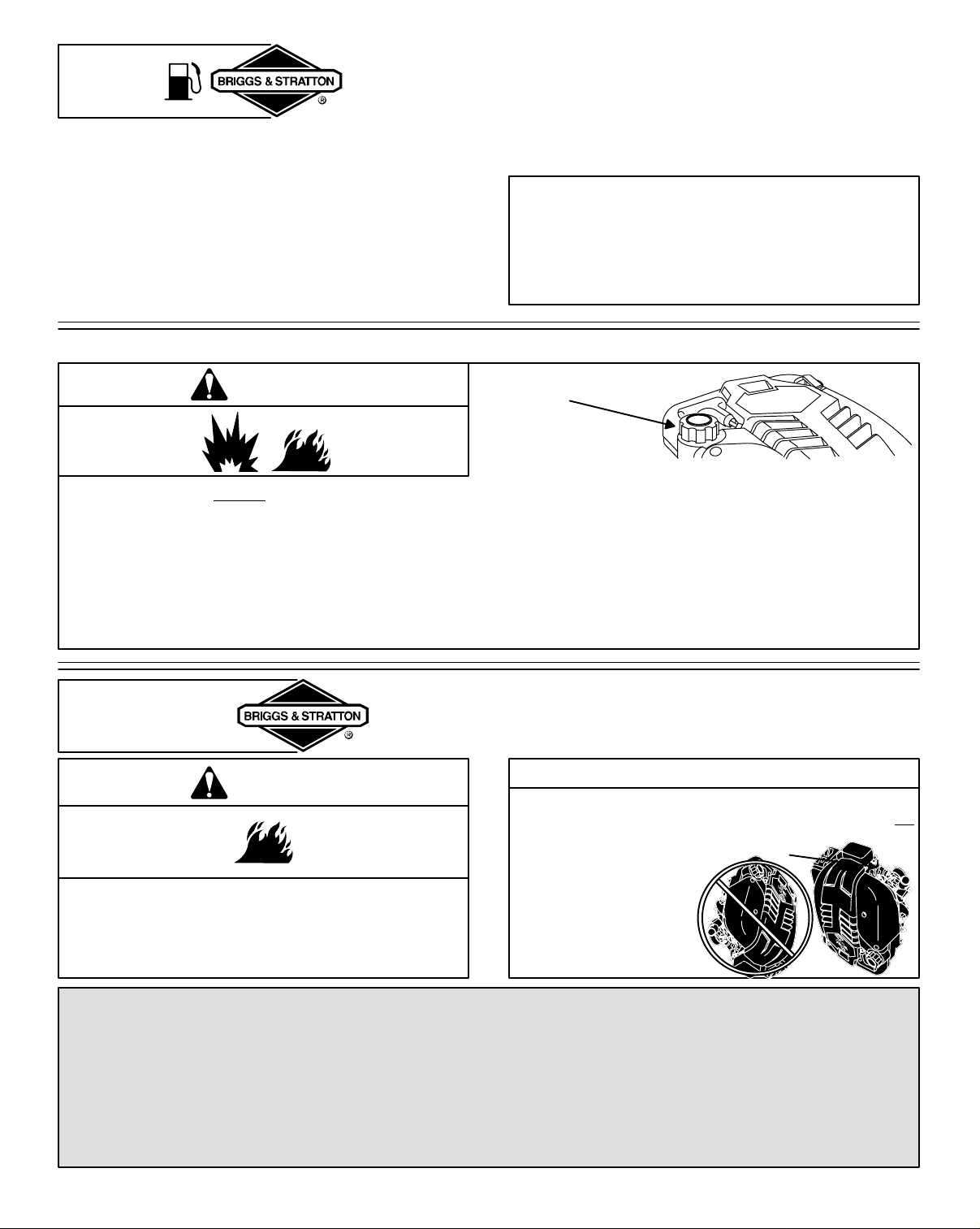

FUEL
TYPE OF FUEL TO USE
• Use clean, fresh, regular unleaded gasoline with a
minimum of 85 octane. Fresh fuel prevents gum from
forming in the f uel s ystem or on e ssential carburetor parts.
Purchase fuel in quantity that can be used within 30 days.
• Do not use gasoline which contains Methanol.
• Do not mix oil with gasoline.
• For engine protection use Briggs & Stratton Gasoline
Additive available from your Authorized Briggs &
Stratton Dealer (P/N 5041 or single use pouch).
ADDING FUEL
WARNING
Note: Remove and discard blue plug in fuel fill.
[1] Fill fuel tank outdoors or in well-ventilated area,
away from sparks, open flames, pilot lights, heat,
and other ignition sources.
[2] If fuel spills, wait until it evaporates before starting
engine.
[3] Turn engine OFF and let engine cool at least 2
minutes before removing gas cap.
• This engine is certified to operate on gasoline. Exhaust
Emission Control System: EM (Engine Modifications).
CAUTION: Some fuels, called oxygenated or reformulated gasoline, are gasoline blended with alcohols or
ethers. Excessive amounts of these blends can damage
the fuel system or cause performance problems. If any
undesirable operating symptoms occur, use gasoline
with a lower percentage of alcohol or ether.
Fuel Fill
[4] Remove cap. Fill tank to approximately 1-1/2 inches
below top of neck to allow for fuel expansion. Be
careful not to overfill.
Briggs & Stratton Smart-fill fuel can fills to the
correct level and automatically shuts off, reducing
spills and emissions.
[5] Replace cap before starting.
STARTING
WARNING
• Do not use pressurized starting fluids.
• Vapors are flammable.
STARTING AND OPERATING TIPS
♦Store and fuel equipment in level position.
♦Use fresh fuel. (See Fuel.)
♦Use correct type of oil for expected starting
temperature. (See Oil.)
♦Remove external equipment/engine loads. (See
equipment operating instructions.)
CAUTION
If engine must be tipped to transport equipm ent, inspect or
remove grass, keep spark plug side of engine up.
Transporting or tipping engine with spark plug down may
cause:
• Smoking,
• Hard starting,
• Spark plug fouling,
• Oil sat urat ion of air filter.
♦Start lawn mower on hard surface or over previously
cut grass.
♦Periodically remove grass buildup under mower
deck. (See Maintenance.)
♦After engine has started, let it warm up several
seconds to several minutes, depending on outside
temperature.
♦For maximum performance and life, operate engine
with choke (if equipped) in RUN and throttle in FAST.
KEEP SPARK PLUG UP
8
REWIND (MANUAL) STARTER
TO START ENGINE
[1] Check oil level (see p. 7).
[2] Open fuel shut-off valve
(if equipped) 1/4 turn.
[7] Close safety brake
handle on lawn mowers
and any other equipment
with this feature.
[3] Move throttle to FAST (if equipped).
Operate engine with thr ottle in FAST
[4] Push stop switch (if equipped) to ON.
STARTING AND STOPPING
WARNING
[8] Grasp rope handle. Pull
slowly until resistance is
felt, then pull rapidly to
start engine and avoid
kickback.
Primer Choke
[5] Firmly push primer bulb 3 times OR
[6] Rotate choke knob or move choke
control lever to CHOKE position.
[9] Let engine warm up.
Choke Equipped: Rotate knob or move choke
control lever toward RUN
a short dis tance at a time
over several seconds in
warm weather or minutes
in cold weather. Let engine run smoot hly before
each change. Operate
with choke in RUN.
TO STOP ENGINE
CAUTION: Do not stop engine by moving choke
control to CHOKE. Backfire, fire or engine damage
could occur.
OR
[1] Move throttle (if equipped) to
SLOW, then release safety
brake control handle.
[2] Move throttle (if equipped)
to SLOW, then to STOP.
9
[3] Close fuel shut-off valve (if
equipped).
[4] Push stop switch (if equipped) to OFF.
STARTING AND STOPPING
ELECTRIC (KEY) STARTER (if equipped)
TO START ENGINE
[1] Check oil level (see p. 7).
[2] Open fuel shut-off valve
(if equipped) 1/4 turn.
[5] Close safety brake
handle on lawn mowers
and any other equipment
with this feature.
[3] Move throttle to FAST (if
equipped). Operate engine with throttle in
FAST position.
[6] Insert key and turn to
START.
CAUTION: To prolong starter life, use short
starting cycles (5 seconds maximum, then wait
one minute). Follow equipment manufacturer’s
recommendations for charging battery.
[4] Firmly push primer bulb 3 times OR
Primer Choke
rotate choke knob or move choke control
lever to CHOKE position.
[7] Let engine warm up.
Choke Equipped: Move
choke control lever
toward RUN a short distance at a time over several seconds in warm
weather or minutes in cold
weather. Let engine run
smoothly before each
change. Operate with
choke in RUN.
TO STOP ENGINE
[1] Move throttle (if equipped) to
SLOW, then release safety
brake control handle.
OR
[2] Move throttle (if equipped)
to SLOW.
10
[3] Turn key to OFF. Remove key and
store out of reach of children.
[4] Close fuel shut-off valve (if
equipped).
MAINTENANCE
MAINTENANCE
Regular maintenance will improve the performance and
extend the life of the engine. See any Authorized Briggs &
Stratton Dealer for service. Use only genuine Briggs &
Stratton parts. Other parts may not perform as well,
may damage the engine, and may result in injury. In
addition, use of other parts may void your warranty.
Follow the instructions and schedules indicated below.
Task
Perform task at hourly
or calendar interval,
whichever comes first.
Check Oil Level
Change Oil
Change oil filter
(if equipped)
Service air cleaner
pre-cleaner (if equipped)
Service air cleaner cartridge (if not equipped
with pre-cleaner)
4
4*
4*
4*
*
4*
*
EMISSION CONTROL
Maintenance, replacement or repair of the emission
control devices and systems may be performed by any
nonroad engine repair establishment or individual.
However, to obtain no charge repairs under the terms and
provisions of the Briggs & Stratton warranty statement, any
service or emission control part repair or replacement must
be performed by a factory authorized dealer.
CHANGING OIL
AIR
CLEANER
TOP OIL DRAIN
3/8”
SQUARE
PIPE
DRAIN
PLUGS
CUTTING
BLADE
BOTTOM OIL DRAIN
OIL
DRAIN
PLUG
RATCHET
AND
EXTENSION
Service air cleaner cartridge (if equipped with
pre-cleaner)
Inspect spark arrester
(if equipped)
Replace spark plug
Replace in-line fuel filter
(if equipped)
Clean cooling system
Check valve clearance
4*
*
4
4
4
4*
*
4
* Change oil after first 5 to 8 hours of use, then every
50 hours or every season. Change oil every 25 hours
when operating the engine under heavy load or in high
temperatures.
** Clean more often under dusty conditions or when
airborne debris is present. Replace air cleaner parts, if
very dirty.
CAUTION: Used oil is a hazardous waste product.
Dispose of used oil properly. Do not discard with
household waste. Check with your local authorities,
service center, or dealer for safe disposal/recycling
facilities.
SIDE OIL DRAIN (IF EQUIPPED)
WARNING
[1] Run engine until it runs
out of fuel. Otherwise,
fuel can leak out, creating
a fire/explosion hazard,
when you tip engine in
Step 4.
[2] Disconnect spark plug wire and keep it away from
spark plug.
[3] With engine OFF but still warm rem ove dipstick.
[4] Top oil drain, keep air cleaner above oil outlet.
Bottom or side oil drain (if equipped), keep engine
level. Drain oil into appropriate receptacle.
Note: Top oil drain is recommended method, however
oil can drain from side (if equipped) or bottom as shown.
[5] Place engine level. Add about 5/8 quart
(20 ounces: 0.6 liter) new oil. Fill to FULL line on
dipstick. Do not overfill.
[6] Replace dipstick.
11
MAINTENANCE
CHANGING OIL FILTER (if equipped)
Replace oil filter after every 100 hours of operation.
OIL FILTER
[1] After draining engine of used oil, fill with fresh oil.
[2] Before installing new filter, lightly oil filter gasket
with fresh, clean oil.
[3] Screw filter on by hand until gasket contacts oil
filter adapter.
[4] Tighten 1/2 to 3/4 turn more.
[5] Start and run engine at idle to check for leaks.
[6] Stop engine. Re-check oil level. Add oil if required.
AIR CLEANER
All engines have an air cleaner cartridge. The cartridge is
either flat or oval (see illustrations). In addition, some
engines have a pre-cleaner.
PRE-CLEANER
P/N 493537
CARTRIDGE
P/N 491588
or P/N 5043
CARTRIDGE
LIP
TABS AND SLOTS
CLEANING Flat/Oval Pre-Cleaners and Cartridges
CAUTION: Do not use pressurized air or solvents to
clean cartridge. Pressurized air can damage
cartridge; solvents will dissolve cartridge.
Pre-cleaner
To clean pre-cleaner (if equipped), separate it from
cartridge and wash in liquid detergent and water. Air dry
thoroughly. Do not oil pre-cleaner. Re-assemble dry
pre-cleaner on clean cartridge.
Cartridge
To clean cartridge, gently tap pleated paper side on a flat
surface.
COVER
2 SCREWS
PRE-CLEANER
P/N 273356
BASE
ASSEMBLE SO THAT
CARTRIDGE LIP
SITS INSIDE BASE
CARTRIDGE
P/N 690106
Oval Air Cleaner
REMOVING and INSTALLING OVAL AIR CLEANER
[1] Loosen two screws and lift off cover.
[2] Remove air cleaner assembly (pre-cleaner, if
equipped, and cartridge) from base.
[3] Install clean (or new) air cleaner assembly in base. Air
cleaner must fit securely in base.
[4] Place cover over air cleaner.
[5] Tighten screws.
ASSEMBLE SO
CARTRIDGE LIP TOUCHES
BASE IN DIRECTION SHOWN
PRE-CLEANER LIP
SCREW
COVER
BASE
Flat Air Cleaner
REMOVING and INSTALLING FLAT AIR CLEANER
[1] Loosen screw and tilt cover down.
[2] Remove air cleaner.
[3] Install clean (or new) air cleaner assembly inside
cover. Lip of pre-cleaner (if equipped) must be at
bottom of cartridge pleats.
[4] Insert cover’s tabs into slots in bottom of base.
[5] Tilt cover up into place.
[6] Tighten screw.
SPARK PLUG
Use only Briggs & Stratton Spark Tester (part number
19368) to check for spark.
Note: In some areas, local
law requires using resistor
spark plug to suppress
.020” (0.51 mm)
WIRE GAGE
ignition signals. If this engine was originally
equipped with resistor
spark plug, use same type
for replacement.
RESISTOR P/N 499608
AIR COOLING SYSTEM
We recommend that after every 100 hours you have an
authorized Briggs & Stratton Service Dealer clean the air
cooling system.
12
MAINTENANCE
ENGINE AND ENGINE PARTS
We recommend that you see an authorized Briggs & Stratton Service Dealer for all maintenance and service of the engine
and engine parts. Use only genuine Briggs & Stratton parts.
If you perform any maintenance on the engine, first disconnect the spark plug wire
WARNING
WARNING
from the spark plug, and disconnect the battery at the negative terminal (electric
starter engines only) to prevent unintentional sparking. Unintentional sparking can
result in fire or electric shock. Unintentional start-up can result in entanglement,
traumatic amputation or laceration. Use only correct tools.
• Do not strike the flywheel with a hammer or hard object because the flywheel may
later shatter during operation.
• Do not tamper with governor spring, links or other parts to increase engine speed.
MUFFLER
Replacement parts for the
WARNING
move screen for inspection. Replace screen if damaged or
plugged.
muffler must be the same and
installed in the same position
as the original parts, otherwise fire can occur.
If muffler is equipped with
spark arrester screen, re-
FUEL SYSTEM
Replacement parts for fuel
WARNING
system (cap, hoses, tanks,
filters, etc.) must be the same
as original parts, otherwise
fire can occur.
CLEANING DEBRIS
CAUTION: Do not use water to clean engine parts.
Water could contaminate fuel system. Use a brush
or dry cloth.
REPLACE IN-LINE FUEL FILTER (if equipped)
FUEL FILTER
PART NO. 298090
OR 5018
FUEL HOSE CLAMPS
WARNING
[1] Disconnect spark plug
wire and keep away from
spark plug.
[2] Drain fuel tank or close
fuel shut-off valve before
replacing fuel filter.
Otherwise, fuel can leak
out, creating a fire/explosion hazard.
VALVE CLEARANCE
Check valve clearance yearly. (See Tune-up Specifications
on page 6.)
Engine parts should be kept
WARNING
clean to reduce the risk of
overheating and ignition of
accumulated debris. This is
especially important if cutting
tall grass.
Daily or before every use, clean
grass, chaff or accumulated debris from engine. Keep linkage,
spring and controls clean. Keep
area around and behind muffler
free of any combustible debris.
CLEAN
Finger Guard Linkage, Springs, Controls Muffler, Spark Arrester
CLEAN
13
CLEAN
CLEAN
CLEAN
SPARK ARRESTER
ADJUSTMENTS
THROTTLE ADJUSTMENT
If the engine does not start or if it runs roughly, the remote
throttle control may need adjustment. See your authorized
Briggs & Stratton dealer or follow the instructions below.
WARNING
Prevent unintentional starting.
Before performing adjustments:
• Remove spark plug wire from spark plug.
• Disconnect battery at negative terminal (only
engines with electric start).
TO ADJUST REMOTE THROTTLE*
WIRE &
CASING
CASING
CLAMP
SCREW
GOVERNOR
CONTROL
LEVER
CARBURETOR ADJUSTMENT
WARNING
The manufacturer of the equipment on which this
engine is installed specifies top speed at which the
engine will be operated. DO NOT EXCEED this speed.
Fuel/air mixture on this engine is not adjustable. If speed
adjustment is required, see your Authorized Briggs &
Stratton Service Dealer.
Note: Engines operated at about 3000 to 5000 feet (900 to
1500 meters) above sea level may require a high a ltitude carburetor main jet. If erratic performance is observed, contact a
Briggs & Stratton Authorized Service Dealer f or c ost to i nstall/
purchase a high altitude carburetor main jet, if available.
[1] Loosen casing clamp scr ew.
[2] Move governor control lever, wire, and casing as
far as possible in direction shown.
[3] Move remote throttle control to FAST and tighten
casing clamp screw.
[4] Move throttle to STOP (if equipped).
* On some models the governor lever is bent into position
and is not adjustable.
TO ADJUST STOP SWITCH
GOVERNOR
CONTROL
LEVER
[1] Governor control lever should make good contact
with stop switch. Check operation of throttle.
[2] Readjust if necessary.
STOP
SWITCH
14
SERVICE & STORAGE
PARTIAL LIST OF GENUINE BRIGGS &
STRATTON PARTS
BRIGGS & STRATTON
PART
Flat air cleaner cartridge 491588 (5043)
Flat air cleaner pre-cleaner 493537
Oval air cleaner cartridge 690106
Oval air pre-cleaner 273356
Oil 100005 or 100028
Fuel filter 298090 (5018)
Gas additive 5041
Resistor spark plug 499608
Spark plug wrench 89838
Spark tester 19368
Oil pump kit 5056
(uses standard electric drill to remove oil from engine q uickly)
PART NO. (or equivalent)
An illustrated shop manual includes common specifications and detailed information covering adjustment, tune-up and
repair of Briggs & Stratton single cylinder,
OHV, 4 cycle engines. It is available for
purchase from an Authorized Briggs &
Stratton Service Dealer or you can order it
from the factory. Write:
Briggs & Stratton Corporation
Attn: Service Division
P. O. Box 1144
Milwaukee, WI 53201
Part No. 274008
SERVICE
See an Authorized Briggs & Stratton Service Dealer. Each
one carries a stock of Genuine Briggs & Stratton Parts and
is equipped with special service tools. Trained mechanics
assure expert repair service on all Briggs & Stratton
engines. Only dealers advertising as “Authorized Briggs &
Stratton” are required to meet Briggs & Stratton standards.
When you purc hase equipment powered by a
Briggs & Stratton engine, you are assured of
highly skilled, reliable service at more than
30,000 Authorized Service Dealers
worldwide, including more than 3,500 Master
Service Technicians. Look for these signs
wherever Briggs & Stratton service is offered.
You may locate your nearest Authorized Briggs & Stratton
Service Dealer in our dealer locator map on our web site
www.briggsandstratton.com or in the “Yellow Pages”
directory under “Engines, Gasoline” or “Gasoline
Engines,” or “Lawn Mowers” or similar category.
Note: Walking fingers logo and “Yellow Pages” are regis-
tered trademarks in various jurisdictions.
Fill in both sides of this order form carefully
----------------------
MO 4.225%, NY 8.5%, OH 5%, TN 6%, TX 6.25%, WA 6.5%, WI 5%
**AL 5%, CT 6%, FL 6.5%, GA 4%, KY 6%, MI 6%, MN 6%,
Add sales tax if you live in any of the following states:
$2.00
$1.50
------------
------------
CREDIT CARD NUMBER
To purchase a complete list of Genuine Briggs & Stratton Parts for your engine, fill in
both sides of this order form carefully. We cannot fill your order without the correct
Engine Model/Type/Code. Allow 3 to 4 weeks for delivery.
Briggs & Stratton Corporationin the amount of $_______ (U.S. Dollars, please)
Payment Method:
j Check or money order enclosed payable to
j Please charge my j MasterCard j VISA
SIGNATURE (REQUIRED FOR CREDIT CARD ORDERS) EXPIRATION DATE
---------------------------------------
__ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
Parts List
Shipping & Handling
**Add State Sales Tax
Total
15
SERVICE & STORAGE
STORAGE
Engines stored over 30 days need special attention.
[1] To prevent gum from forming in fuel system or on
essential carburetor parts:
a) if fuel tank contains oxygenated or reformulated
gasoline (gasoline blended with an alcohol or an
ether), run engine until it stops from lack of fuel, or b) if
fuel tank contains gasoline, either run engine until it
stops from lack of fuel, or add a gasoline additive to the
gas in the tank. (See parts list. Single – use pouches of
gas additive are available from your service dealer.) If
you use a gas additive, run the engine for several
minutes to circulate the additive through the carburetor.
Then, engine and fuel can be stored up to 24 months.
[2] While engine is still warm, change oil.
[3] Remove spark plug and pour about 1/2 oz. (15 ml) of
engine oil into cylinder. Replace spark plug and crank
slowly to distribute oil.
[4] Clean engine of surface debris, chaff or grass.
[5] Store in a clean, dry area.
WARNING
Do not store in same area
as a stove, furnace, water
heater, or other appliance
that uses a pilot light or
has a device that can
create a spark.
Code
Type
Model
Briggs & Stratton Corporation
Fill in both sides, clip and return to:
Milwaukee, WI 53201–1144 U.S.A.
P.O. Box 1144
Name
Address
Your Engine
City State Zip Country
To purchase a complete list of Genuine Briggs & Stratton Parts for your engine, fill in
both sides of this order form carefully. We cannot fill your order without the correct
Engine Model/Type/Code. Allow 3 to 4 weeks for delivery.
16
Briggs & Stratton Corporation (B&S), the California Air Resources Board (CARB)
Emission Control System Warranty Statement (Owner’s Defect Warranty Rights and Obligations)
EMISSION CONTROL WARRANTY COVERAGE IS APPLICABLE
TO CERTIFIED ENGINES PURCHASED IN CALIFORNIA IN 1995
AND THEREAFTER, WHICH ARE USED IN CALIFORNIA, AND
The California Air Resources Board (CARB), U.S. EPA and B&S are
pleased to explain the Emission Control System Warranty on your
model year 2000 and l ater small o f f-road e ngine ( SORE). I n C alifornia,
new small off-road engines must be designed, built and equipped to
meet the State’s stringent anti-smog standards. Elsewhere in the
United States, new non-road, spark-ignition engines certified for model
year 1997 and later, must meet similar standards set forth by the U.S.
EPA. B&S must warrant the e mission control s ystem o n y our e ngine f or
Small off-road engines are warranted relative to emission control
parts defects for a period of two years, subject to provisions set forth
As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your Operating and
Maintenance Instructions. B&S recommends that you retain all your
receipts covering maintenance on your small off-road engine, but
B&S cannot deny warranty solely for the lack of receipts or for your
failure to ensure the performance of all scheduled maintenance.
As the small off-road engine owner, you should however be aware
that B&S may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
The following are specific provisions relative to your Emission Control Defects Warranty Coverage. It is in addition to the B&S engine warranty
for non-regulated engines found in the Operating and Maintenance Instructions.
1. Warranted Parts
Coverage under this warranty extends only to the parts listed be-
low (the emission control systems parts) to the extent these
parts were present on the engine purchased.
a. Fuel Metering System
• Cold start enrichment system
• Carburetor and internal parts
• Fuel Pump
b. Air Induction System
• Air cleaner
• Intake manifold
c. Ignition System
• Spark plug(s)
• Magneto ignition system
d. Catalyst System
• Catalytic converter
• Exhaust manifold
• Air injection system or pulse valve
e. Miscellaneous Items Used in Above Systems
• V acuum, temperature, position, time sensitive valves
and switches
• Connectors and assemblies
2. Length of Coverage
B&S warrants to t he i nitial o wner a nd e ach s ubsequent p urchaser
that the Warranted Parts shall be free from defects in materials
and workmanship which caused the failure of the Warranted
Parts for a period of two years from the date the engine is delivered to a retail purchaser.
and the United States Environmental Protection Agency (U.S. EPA)
TO CERTIFIED MODEL YEAR 1997 AND LATER ENGINES
WHICH ARE PURCHASED AND USED ELSEWHERE IN THE
UNITED STATES.
California and United States Emission Control Defects Warranty Statement
the periods of t ime l isted below, provided there has been n o a buse, neglect or improper maintenance of your small off-road engine.
Y our emission control system includes parts such as the carburetor,
air cleaner, ignition system, muf fler and catalytic converter. Also included may be connectors and other emission related assemblies.
Where a warrantable condition exists, B&S will repair your small offroad engine at no cost to you including diagnosis, parts and labor.
Briggs & Stratton Emission Control Defects Warranty Coverage
below. I f any covered part on your engine is defective, the part will be
repaired or replaced by B&S.
Owner’s Warranty Responsibilities
You are responsible for presenting your small off-road engine to an
Authorized B&S Service Dealer as soon as a problem exists. The
undisputed warranty repairs should be completed in a reasonable
amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact a B&S Service Representative at
1-414-259-5262.
The emission warranty is a defects warranty. Defects are judged on
normal engine performance. The warranty is not related to an in-use
emission test.
Briggs & Stratton Emission Control Defects Warranty Provisions
3. No Charge
Repair or replacement of any Warranted Part will be performed
at no charge to the owner, including diagnostic labor which leads
to the determination that a Warranted Part is defective, if the
diagnostic work is performed at an Authorized B&S Service
Dealer. For emissions warranty service contact your nearest Authorized B&S Service Dealer as listed in the “Yellow Pages” under “Engines, Gasoline,” “Gasoline Engines,” “Lawn Mowers,”
or similar category.
4. Claims and Coverage Exclusions
Warranty claims shall be filed in accordance with the provisions
of the B&S Engine Warranty Policy. Warranty coverage shall be
excluded for failures of Warranted Parts which are not original
B&S parts or because of abuse, neglect or improper maintenance as set forth in the B&S Engine W arranty Policy. B&S is not
liable to cover failures of Warranted Parts caused by the use of
add-on, non-original, or modified parts.
5. Maintenance
Any W arranted P art w hich i s not s cheduled for r eplacement a s r e-
quired maintenance o r w hich i s s cheduled o nly f or r egular i nspection to the effect of “repair o r r eplace a s necessary” shall be w arranted as to defects for the warranty pe riod. A ny Warranted Part
which is scheduled for replacement as required maintenance
shall be warranted as to defects only for the period of time up to
the first scheduled replacement for that part. Any replacement
part that is e quivalent i n p erformance a nd d urability may b e u sed
in the performance of any maintenance or repairs. The owner is
responsible for the performance of all required maintenance, as
defined in the B&S Operating and Maintenance Instructions.
6. Consequential Coverage
Coverage hereunder shall extend to the failure of any engine
components caused by the failure of any Warranted Part still under warranty.
In the USA and Canada, a 24 hour hot line, 1-800-233-3723, has a menu of pre-recorded messages offering you engine maintenance information.
17
About your engine warranty: (see next page for statement of LIMITED WARRANTY).
Briggs & Stratton welcomes warranty repair and apologizes
to you for being inconvenienced. Any Authorized Service
Dealer may perform warranty repairs. Most warranty repairs
are handled routinely, but sometimes requests for warranty
service may not be appropriate. For example, warranty would
not apply if engine damage occurred because of misuse, lack
of routine maintenance, shipping, handling, warehousing or
improper installation. Similarly, warranty is void if the serial
number of the engine has been removed or the engine has
been altered or modified.
If a customer differs with t he decision of the S ervice Dealer, an
investigation will be made to determine whether the warranty
applies. A sk t he S ervice D ealer t o s ubmit a ll s upporting f acts t o
his Distributor o r t he F actory f or review. If the D istributor o r t he
Factory decides that t he c laim i s j ustified, t he c ustomer w ill b e
fully reimbursed for those items that are defective. To avoid
misunderstanding which might occur between the customer
and the Dealer, listed below are some o f t he c auses o f e ngine
failure that the warranty does not cover.
Normal wear:
Engines, like all mechanical devices, need periodic parts service and replacement to perform well. Warranty will not cover
repair when normal use has exhausted the life of a part or an
engine.
Improper maintenance:
The life of an engine depends upon the conditions under
which it operates, and the care it receives. Some applications,
such as tillers, pumps and rotary mowers, are very often used
in dusty or dirty conditions, which can cause what appears to
be premature wear. Such wear, when caused by dirt, dust,
spark plug cleaning grit, or other abrasive material that has
entered the engine because of improper maintenance, is not
covered by warranty.
This warranty covers engine related defective material
and/or workmanship only
, and not replacement or refund
of the equipment to which the engine may be mounted.
Nor does the warranty extend to repairs required because of:
1. PROBLEMS CAUSED BY PARTS THAT ARE NOT
ORIGINAL BRIGGS & STRATTON PARTS.
2. Equipment controls or installations that prevent starting,
cause unsatisfactory engine performance, or shorten engine life. (Contact equipment manufacturer.)
3. Leaking carburetors, clogged fuel pipes, sticking valves,
or other damage, caused by using contaminated or stale
fuel. (Use clean, fresh, lead-free gasoline and Briggs &
Stratton gasoline stabilizer, Part No. 5041.)
4. Parts which are scored or broken because an engine was
operated with insufficient or contaminated lubricating oil,
or an incorrect grade of lubricating oil (check oil level daily
or after every 8 hours of operation. Refill when necessary
and change at recommended intervals.) OIL GARD
may not shut down running engine. Engine damage may
occur if oil level is not properly maintained. Read Operating & Maintenance Instructions.
5. Repair or adjustment of associated parts or assemblies
such as clutches, transmissions, remote controls, etc.,
which are not manufactured by Briggs & Stratton.
6. Damage or wear to parts caused by dirt, which entered
the engine because of improper air cleaner maintenance,
re-assembly, or use of a non-original air cleaner element
or cartridge. (At recommended intervals, clean and re-oil
the Oil-Foam
element or the foam pre-cleaner, and re-
place the cartridge.) Read Operating & Maintenance
Instructions.
7. Parts damaged by overspeeding, or overheating caused
by grass, debris, or dirt, which plugs or clogs the cooling
fins, or flywheel area, or damage caused by operating the
engine in a confined area without sufficient ventilation.
(Clean fins on the cylinder, cylinder head and flywheel at
recommended intervals.) Read Operating & Maintenance
Instructions.
8. Engine or equipment parts broken by excessive vibration
caused by a loose engine mounting, loose cutter blades,
unbalanced blades or loose or unbalanced impellers, improper attachment of equipment to engine crankshaft,
overspeeding or other abuse in operation.
9. A bent or broken crankshaft, caused by striking a solid object with the cutter blade of a rotary lawn mower, or excessive v-belt tightness.
10.Routine tune-up or adjustment of the engine.
Warranty is available only through service dealers which
have been authorized by Briggs & Stratton Corporation.
Your nearest Authorized Service Dealer is listed in the
“Yellow Pages” of your telephone directory under “En-
gines, Gasoline” or “Gasoline Engines,” “Lawn Mowers,” or similar category.
Briggs & Stratton Engines Are Made Under One Or More Of The Following Patents: Design D-247,177 (Other Patents Pending)
5,852,951
5,823,153
5,819,513
5,765,713
5,645,025
5,642,701
5,606,948
In the USA and Canada, a 24 hour hot line, 1-800-233-3723, has a menu of pre-recorded messages offering you engine maintenance information.
5,548,955
5,546,901
5,503,125
5,501,203
5,497,679
5,320,795
5,271,363
5,269,713
5,265,700
5,243,878
5,235,943
5,197,425
5,197,422
5,191,864
5,188,069
5,186,142
5,138,996
5,105,331
5,086,890
5,070,829
5,058,544
5,040,644
5,040,503
5,009,208
4,996,956
4,995,357
4,977,879
4,971,219
4,895,119
4,875,448
4,819,593
4,719,682
4,694,792
4,684,917
4,633,556
4,630,498
4,522,080
4,520,288
4,453,507
4,430,984
4,355,253
DES. 309,458
DES. 309,457
DES. 308,872
DES. 308,871
18
BRIGGS & STRATTON ENGINE OWNER WARRANTY POLICY
effective July 1, 1999
Replaces all undated Warranties and all Warranties
dated before July 1, 1999
LIMITED WARRANTY
“Briggs & Stratton Corporation will repair or replace, free of charge, any part, or parts of the engine that are defective in
material or workmanship or both. Transportation charges on parts submitted for repair or replacement under this Warranty
must be borne by purchaser. This warranty is ef fective for the time periods and subject to the conditions provided for in this
policy. For warranty service contact your nearest Authorized Service Dealer as listed in the ‘Yellow Pages’ under ‘Engines,
Gasoline,’ ‘Gasoline Engines,’ ‘Lawn Mowers’ or similar category. THERE IS NO OTHER EXPRESS WARRANTY. IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE LIMITED TO ONE YEAR FROM PURCHASE, OR TO THE EXTENT PERMITTED BY LAW ANY AND ALL IMPLIED
WARRANTIES ARE EXCLUDED. LIABILITY FOR CONSEQUENTIAL DAMAGES UNDER ANY AND ALL WARRANTIES
ARE EXCLUDED TO THE EXTENT EXCLUSION IS PERMITTED BY LAW. Some states do not allow limitations on how
long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights and you may
also have other rights which vary from state to state.”
Briggs & Stratton Corporation
F. P. Stratton, Jr.
Chairman and Chief Executive Officer
WARRANTY PERIOD
WITHIN U.S.A. AND CANADA OUTSIDE U.S.A. AND CANADA
ENGINES
CONSUMER
USE*
All Vanguard engines.
All Diamond Plus, Industrial Plus, I/C
engines and sleeve bore Intek series.
2 year 1 year
Quantum and Diamond Power. 2 year 90 days
COMMERCIAL
USE*
2 year – engine
CONSUMER
USE*
2 year
2 year
COMMERCIAL
USE*
1 year
90 days
All standard engines and Kool Bore Intek series
installed on lawn mowers, riders, edgers,
chippers, shredders, tillers, and all Sno/Gard
2 year 90 days 1 year 90 days
engines.
All other standard engines and Classic series. 1 year 90 days 1 year 90 days
* For purposes of this w arranty p olicy, “consumer u se” means personal r esidential h ousehold u se b y t he o riginal r etail c onsumer.
“Commercial use” means all o ther uses, i ncluding u se f or c ommercial, i ncome p roducing o r rental p urposes. O nce a n e ngine
has experienced commercial use, it shall t hereafter b e c onsidered a s a c ommercial u se e ngine f or p urposes o f t his w arranty.
Engines used in competitive racing or on commercial or rental tracks are not warrantied.
One (1) year in Australia, New Zealand, Middle East and Africa.
One (1) year in India.
NO WARRANTY REGISTRATION CARD IS NECESSARY TO OBTAIN WARRANTY ON BRIGGS & STRATTON ENGINES.
YOU MUST SAVE THE PURCHASE RECEIPT. A PROOF OF PURCHASE DATE WILL BE REQUIRED TO OBTAIN WARRANTY.
In the USA and Canada, a 24 hour hot line, 1-800-233-3723, has a menu of pre-recorded messages offering you engine maintenance information.
19
Loading...
