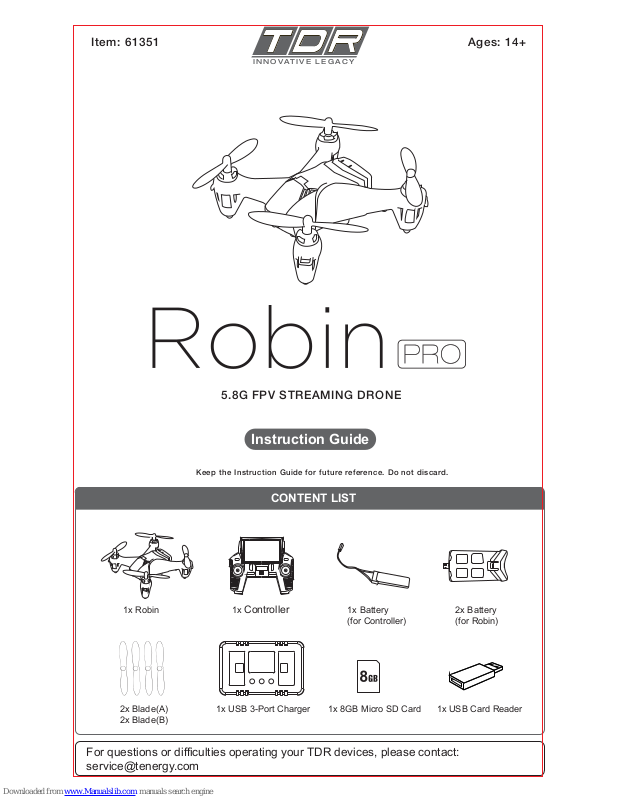

Instruction Guide
INNOVATIVE LEGACY
For questions or difficulties operating your TDR devices, please contact:
service@tenergy.com
CONTENT LIST
2x Blade(A)
2x Blade(B)
1x USB 3-Port Charger 1x 8GB Micro SD Card 1x USB Card Reader
1x Robin 1x
Controller 1x Battery
(for Controller)
2x Battery
(for Robin)
Ages: 14+Item: 61351
Keep the Instruction Guide for future reference. Do not discard.
5.8G FPV STREAMING DRONE
02
DISCLAIMER
FLY RESPONSIBLY
The Federal Aviation Administration requires registration of many drones flown in the US, for hobby or
commercial purposes. To learn more about drone registration requirements, visit "Know Before You Fly" at:
www.knowbeforeyoufly.org
Read this disclaimer and instructions thoroughly before operating this device.
THE USE OF THIS PRODUCT IS A SIGN OF YOUR COMPLIANCE WITH THIS
DISCLAIMER. You are responsible for your own actions, behavior, and conduct
while using this device. You agree to use this product in such a way that you will
comply with all local and federal regulations, including, but not limited to,
personal privacy laws. Tenergy Corporation will not be held liable for any damages or legal responsibilities resulting from the use of this product. This product
is NOT suitable for anyone under the age of 14. For more information and
guidance, please visit www.TDRWorld.com
Safety guidelines for sUAS recreational users
- Follow community-based safety guidelines, as developed by organizations such as the Academy of
Model Aeronautics (AMA).
- Fly no higher than 400 feet and remain below any surrounding obstacles when possible.
- Keep your sUAS in eyesight at all times, and use an observer to assist if needed.
- Remain well clear of and do not interfere with manned aircraft operations, and you must see and
avoid other aircraft and obstacles at all times.
- Do not intentionally fly over unprotected persons or moving vehicles, and remain at least 25 feet
away from individuals and vulnerable property.
- Contact the airport and control tower before flying within five miles of an airport or heliport.
- Do not fly in adverse weather conditions such as in high winds or reduced visibility.
- Do not fly under the influence of alcohol or drugs.
- Ensure the operating environment is safe and that the operator is competent and proficient in the
operation of the sUAS.
- Do not fly near or over sensitive infrastructure or property such as power stations, water treatment
facilities, correctional facilities, heavily traveled roadways, government facilities, etc.
- Check and follow all local laws and ordinances before flying over private property.
- Do not conduct surveillance or photograph persons in areas where there is an expectation of privacy
without the individual’s permission (see AMA’s privacy policy).
- Before each flight, check and ensure the drone and controller are not damaged, and that all
components are working in accordance with the user instruction .
- If you want to use unmanned aircraft systems for a commercial purpose: you can apply for an
exemption from the FAA to operate commercially. For more information about how to apply for an
exemption, visit the FAA’s “Section 333”.
03
ADULT SUPERVISION REQUIRED
An adult should check the unit and LiPo battery for damages prior to each use. Drones have rotating blades that
move at high speeds, posing a danger of damage and injury. Pilots are responsible for any action that results in
damages or injury from improper operation of the drone. Adequate flying space is required. Avoid flying near interior
fans and/or vents as they may affect your ability to control the drone. Keep a safe distance from streets, public
thoroughfares, and power lines. Never attempt to retrieve the drone from any location higher than your reach
(rooftops, trees, etc) or any location that poses a safety hazard. Never fly the drone at night. Keep drone in sight at
all times during operation. Discontinue operation immediately if the drone flies out of your field of view. Do not fly
near spectators. Keep away from pets, as they may become excited over R/C vehicles. Keep spinning rotors away
from fingers, hair, eyes, and other body parts. Always launch from a flat surface. Never leave Drone unattended
while it is turned on. Read all enclosed information before operating.
LITHIUM BATTERY CAUTIONS
LiPo batteries pose a serious hazard when used improperly and may result in overheating, fire, or explosions. Read
all precautions and instructions regarding the care and use of LiPo batteries prior to use. The enclosed LiPo battery
is to be used only with the vehicle and charger included in this package.
- Keep away from flammable materials
- Do not expose to direct sunlight
- Do not expose to extreme heat
- Do not drop or make subject to strong impact
- Keep dry and away from moisture
- Remove exhausted batteries as soon as possible and discard properly
- Remove all batteries when toy is inactive for long periods
- The supply terminals are not to be short circuited
LiPo Battery Disposal: LiPo batteries must be recycled and disposed of properly. LiPo batteries should not be
disposed of with household waste. Check your local laws and regulations for information on proper battery
disposal. If you are unable to identify the applicable rules in your area, please reference the instructions of
the battery manufacturer.
WARNING: Batteries are harmful if swallowed. Please keep away from children.
Waste Electrical and Electronic Equipment (WEEE)
The crossed-out dust bin symbol indicates that batteries
(primary, rechargeable, button cells, packs, etc) must not
be put in household waste. These items may be composed
of hazardous materials.
Please help protect the environment from health risks by
disposing of the batteries properly, and taking them to a
local collecting facility for safe recycling.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/television technician for help.
This product is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC.
When this appliance is out of use, please remove all
batteries and dispose of them separately. Bring electrical
appliances to the local collecting points for waste electrical
and electronic equipment. Other components can be
disposed of in domestic refuse.
FCC Statements
04
Product Features
Advance Auto-hovering Technology
Wrap-around Shot With Orbit Video
6-axis Flight Control System
5.8GHz Real-time Video Streaming
2MP / 720p HD Camera
Advance Headless Flight Mode
4-way 3600 Stunt Rolls (Left, Right, Forward, Backward)
Capable Of Outdoor Flight
Modular Battery Design
05
Diagrams
Controller
1. Blades
2. Canopy
3. Receiver Board
4. Battery
5. 5.8G Camera Board
6. Motors
7. Main Frame
360° Roll
Power Switch
Display
Speed Selection
Throttle Trim
Throttle/Rudder Stick
Rudder Trim
Video
Short Press: Photo
Long Press: Orbit Video
Forward/Backward Trim
Elevator/Aileron Stick
Left/Right Trim
Battery
Chamber
Photo/Orbit Video
Headless Mode
Button (Press down
the stick)
Auto Return Button
(Press down the stick)
06
Charging and installing battery for the drone
1. Connect the USB cable to the battery charger.
2. Connect the USB cable to USB power source.
3. Connect the battery to the charger.
4. The LED light will be on while charging, and off
once charging completed.
5. Insert the battery in to the drone after battery is fully
charged.
1. Remove the battery from the battery chamber of the
controller.
2. Connect the USB cable to the battery charger.
3. Connect the USB cable to USB power source.
4. Connect the battery to the charger.
5. The LED light will be on while charging, and off
once charging completed.
6. Insert the battery in to the controller.
5. Ensure the battery chamber cover is closed
Charge the battery for the drone
Remove the battery from controller
Insert the battery into the drone
LED Charging Status Indicators
On - Charging the battery
Off - Charging complete
Charging Time: approx 60min
Fly Time: approx 5min per charge
Charging and installing battery for the controller
Charge the battery
Insert the battery
LED Charging Status Indicators
On - Charging the battery
Off - Charging complete
Charging Time: approx 60min
Run Time: approx 60min per charge
Cautions:
Always unplug/remove LiPo battery when not in use.
Cool down battery after use to room temperature before charging.
Charge battery in an isolated area.
Never leave battery unattended while charging.
If battery swells, unplug it immediately. Do not use it again.
Do not modify, heat up or get the battery wet.
Charge the battery with the provided charger only.
07
Binding drone to the controller
1. Fully insert battery into drone unit and place on level surface
Start / Stop the motors
Start the motors:
Pull the left stick to bottom-left and the right
stick to bottom-right at the same time, then
release.
Stop the motors:
Pull the left stick to bottom-left and the right
stick to bottom-right at the same time, then
release.
ON
3. To turn on the controller and begin binding, switch the power switch to “ON”
2. When 2 red LEDs flash rapidly, the drone is ready to bind
4. LED on the drone will stop flashing after binding has been successful
Pull both sticks in the direction shown
above will turn the motors on and off.
5. When binding is complete, live video should be available on the LCD display of the controller
08
Basic operation controls
Basic operation:
Left stick controls altitude and direction.
Right stick controls the rotation forward, backward, left or right movement.
Press down to trim
Press left/right to trim
Short press the button
to take a photo
Short press the button
to shoot a video.
Press up to trim
Press left/right to trim
Photo Taking Video Shooting
09
Special operation controls
360° Roll
1. Bring the drone to a mid-air hover, without flying
towards any direction. Remove finger from the
direction (Elevator/Aileron) stick once in hover.
2. While hovering, press the 360° Roll button. The
remote will start beeping rapidly as the drone will
enter rolling-ready mode.
3. While the rolling-ready move, tap the direction
stick in the direction you want the drone to flip/roll.
Orbit Video
Press and hold the Photo Button for 1 second to start Orbit Video shooting. Press the Photo
or Video Button to stop.
1
.5
m
/
5
f
t
Note:
The orbit radius is approximately 1.5m (5ft) please ensure there is enough space before using
the Orbit Video feature. It is recommended to have a 9ft radius of clearance when using this
feature. For best results, avoid using Orbit Video when it is windy.
Note:
The 360° Roll function cannot be
performed when battery power is low.
Forward flip
Backward flip
Left
flip
Right
flip
LEFT
RIGHT
FORWARD
BACKWARD
Press and hold the button
for 1 second to start Orbit Video.
10
Special operation controls
Speed/Sensitivity Selection
The drone's flying speed and sensitivity can be adjusted by pressing the Speed Selection
button. Pressing the button will switch the speed in the following speed settings:
Low > Medium > High > Low
Auto return
Pressing the auto return button (the Throttle/Rudder stick) during the flight will force the drone to
find the shortest route back to its original take off location. For best results, align the body of the
drone in the same direction as the controller before binding.
Low
Medium
High
Tip: It is best to start flying in default low speed setting until you are comfortable to the flying speed.
Flying speed/sensitivity setting can be adjusted before or during flight. Each time the drone starts,
the flying speed will be reset to default (low speed) setting.
Cautions:
Use this feature with caution, ensure there
are no obstacle in its way.
Face the same direction
Yellow
Blade
Yellow
Blade
Headless Mode
In headless mode, drone flies from your viewpoint no matter which direction the drone is flying.
E.g.: if you push the controller to left the drone will fly to left, from your viewpoint - regardless of
what direction the drone is facing/pointing. Which allows you to give up worrying about
orientation of the drone altogether.
To enter headless mode:
1) Before taking off, position the drone in such a way that "its front is your front".
2) Press down the Headless Mode button (the Elevator/Aileron stick) to enter headless mode.
3) Press the button again to get out of headless mode.
Note:
- The controller will keep on beeping continuously when the drone is in headless mode.
- The rear LED on the drone will flash continuously during headless mode.
11
Specifications
Drone
LWH 13.2x13.2x6cm / 5.2x5.2x2.4inch
Weight 55g / 1.94oz
Operating Temperature 0°C to 40°C
Control Distance 70m / 230ft
Memory Card Micro SD card (Supports up to 64G)
Video Format 2MP/720P/30FPS
Camera Viewing Angle 120°
Battery Capacity 380mAh
Flight Time approx. 5~6 minutes
Controller
LWH 18x16x7cm / 6.6x6.2x2.7inch
Weight 284g / 10oz
Screen 4.3inch
Operating Temperature 0°C to 40°C
Control Distance 70m / 230ft
Battery Capacity 500mAh
Run Time approx. 60 minutes
12
Blade installation
Blades must be installed as shown:
Front: use Yellow Blade A and Yellow Blade B
Rear: use Black Blade A and Black Blade B
Note:
The letters A and B are printed on reverse side of blades.
A
B
Front
(Yellow Blades)
Rear
(Black Blades)
Yellow Yellow
B
Black
A
Black
To disassemble the blade:
Remove the blade by pulling
upward.
To install the blade:
Match blade with the blade socket
and press down.
13
Transfer photos and videos to your computer
Turn off the drone by disconnecting the battery.
Locate the Micro SD Card on the side of the drone. Press in and release. The Micro SD
Card will pop out. Remove the Micro SD Card.
Insert the Micro SD Card into the USB Card Reader. Insert the USB Card Reader into the
USB port on your computer.
The computer will recognize the Micro SD Card as an external/removable storage.
Use the computer’s operating system or preferred photo transferring program to transfer the
photos and videos.
CAUTION: Never remove the USB Card Reader from the computer during file transfer.
After the photos and videos have been transferred, delete photos and videos from Micro SD
Card to free up space.
Eject the USB Card Reader from the USB Port, remove the Micro SD Card and insert it
back in the drone.
Tips:
If computer cannot recognize the Micro SD Card, or the external/removable storage does not
show up:
- Ensure the USB Card Reader is fully plugged into the computer.
- Consult your computer’s user guide for downloading data from external/removable storage.
14
Flying Tips
Maintenance
When launching the drone, face the same direction as the drone. The yellow blades should be
in front.
Practice launching, hovering, and landing before attempt to learn other moves.
Flying 2 to 3 feet above the ground will reduce ground turbulence and make flying easier.
When first attempting to fly in a different direction, start by tapping the Direction Stick until you
get the hang of it. Always move controls slowly until you become comfortable operating the
drone.
Once you’ve mastered flying in different directions, practice rotational controls. Keeping the
drone facing the same direction as you makes flying easier and more intuitive.
Stay 2 to 3 feet away from walls and ceilings, as the drone will be drawn towards them if you
fly too close.
If the propeller blades come in contact with another object, or you crash, throttle down
immediately to prevent further damage.
If anything prevents the drone’s blades from spinning, or they become jammed, THROTTLE
DOWN IMMEDIATELY. Do not attempt to fly until obstruction has been removed and damage
fixed.
If the drone flies too far away (beyond the range of control for the remote) the drone will
AUTO-LAND to prevent the drone from flying away or out of control.
Over time, debris such as loose hair or carpet fibers may get wound in the blades and motors.
The debris should be regularly removed and cleaned to prevent buildup, and to avoid poor
flying performance.
15
Troubleshooting
Problem/Issue Cause Soluction
1
Cannot bind drone to
controller
a) Battery
b) Electromagnetic interference
c) Out of range
a) Make sure the batteries in both drone and
controller are fully charged
b) Clear out objects between drone and controller
c) Put drone and controller closer to each other
2 Drone does not turn on
a) Battery too low
b) Battery not fully plugged in
a) Charge battery
b) Battery fully plugged in the correct direction
3 Controller does not turn on
a) Switch didn't turn on
b) Battery didn't install correctly
c) Battery power too low
a) Ensure switch is turned on
b) Ensure battery fully plugged in correctly and
securely
C) Charge the battery
4
Blades do not spin or
drone has difficulty taking
off the ground, LEDs are
flashing
Battery power level is too low Fully recharge the battery
5
Unstable drone flying /
strong vibration
Damaged blade(s) Replace the blade(s)
6
All blades spin but drone
does not take off the
ground or not flying
properly
Blades are not installed correctly
Reinstall the blades following the "Blade
Installation" section on page 12
7
Drone crashes
immediately
Blades are not installed correctly
Reinstall the blades following the "Blade
Installation" section on page 12
8
Drone crashes during 360°
Roll
Not enough space to perform
the rolling function
Ensure the drone is at least 9ft from ground and
9ft away from all other objects in all direction
9
Drone can not perform
360° Roll and LEDs are
flashing
Battery power level is too low Fully recharge the battery
10 Cannot take photo or video
Micro SD Card not installed
correctly or damaged
a) Ensure Micro SD Card is fully inserted
b) Replace Micro SD Card
16
Thank You
Happy Flying
Loading...
