INNOVATIVE LEGACY
Ages: 14+
Phoenix Mini

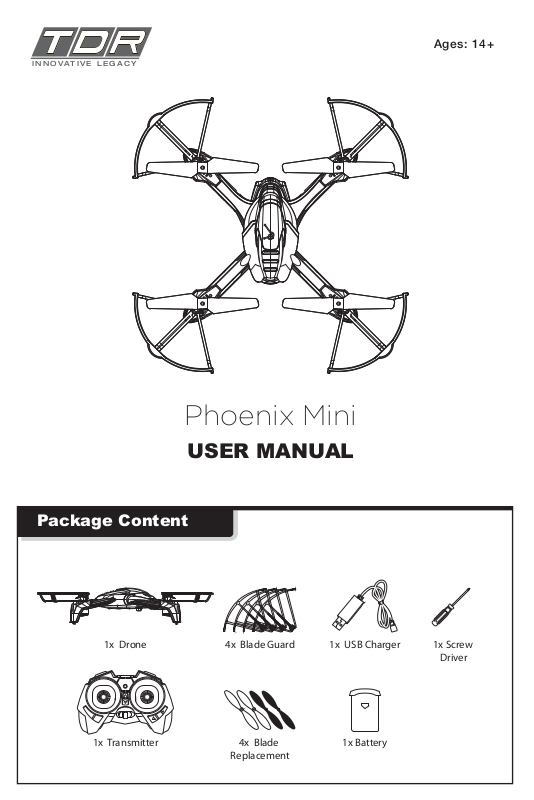

Package Content
1x Drone
1x Transmitter 4x Blade
USER MANUAL
4x Blade Guard 1x USB Charger
1x Battery
Replacement
1x Screw
Driver
DISCLAIMER
Read this disclaimer and instructions thoroughly before operating this device.
THE USE OF THIS PRODUCT IS A SIGN OF YOUR COMPLIANCE WITH
THIS DISCLAIMER. You are responsible for your own actions, behavior, and
conduct while using this device. You agree to use this product in such a way
that you will comply with all local and federal regulations, including, but not
limited to, personal privacy laws. Tenergy Corporation will not be held liable for
any damages or legal responsibilities resulting from the use of this product.
This product is NOT suitable for anyone under the age of 14.
Safety guidelines for sUAS recreational users
- Follow community-based safety guidelines, as developed by organizations such as the Academy of Model Aeronautics (AMA).
- Fly no higher than 400 feet and remain below any surrounding obstacles
when possible.
- Keep your sUAS in eyesight at all times, and use an observer to assist if
needed.
- Remain well clear of and do not interfere with manned aircraft operations,
and you must see and avoid other aircraft and obstacles at all times.
- Do not intentionally fly over unprotected persons or moving vehicles, and
remain at least 25 feet away from individuals and vulnerable property.
- Contact the airport and control tower before flying within five miles of an
airport or heliport.
- Do not fly in adverse weather conditions such as in high winds or reduced
visibility.
- Do not fly under the influence of alcohol or drugs.
- Ensure the operating environment is safe and that the operator is competent and proficient in the operation of the sUAS.
- Do not fly near or over sensitive infrastructure or property such as power
stations, water treatment facilities, correctional facilities, heavily traveled
roadways, government facilities, etc.
- Check and follow all local laws and ordinances before flying over private
property.
- Do not conduct surveillance or photograph persons in areas where there
is an expectation of privacy without the individual’s permission (see AMA’s
privacy policy).
- Before each flight, check and ensure the drone and controller are not
damaged, and that all components are working in accordance with the user
instruction .
- If you want to use unmanned aircraft systems for a commercial purpose:
you can apply for an exemption from the FAA to operate commercially. For
more information about how to apply for an exemption, visit the FAA’s
“Section 333”.
FLY RESPONSIBLY
The Federal Aviation Administration requires registration of many drones flown in the US, for hobby or commercial
purposes. To learn more about drone registration requirements, visit "Know Before You Fly" at:
www.knowbeforeyoufly.org
ADULT SUPERVISION REQUIRED
An adult should check the unit and LiPo battery for damages prior to each use. Drones have rotating blades that
move at high speeds, posing a danger of damage and injury. Pilots are responsible for any action that results in
damages or injury from improper operation of the drone. Adequate flying space is required. Avoid flying near interior
fans and/or vents as they may affect your ability to control the drone. Keep a safe distance from streets, public
thoroughfares, and power lines. Never attempt to retrieve the drone from any location higher than your reach
(rooftops, trees, etc) or any location that poses a safety hazard. Never fly the drone at night. Keep drone in sight at
all times during operation. Discontinue operation immediately if the drone flies out of your field of view. Do not fly
near spectators. Keep away from pets, as they may become excited over R/C vehicles. Keep spinning rotors away
from fingers, hair, eyes, and other body parts. Always launch from a flat surface. Never leave Drone unattended
while it is turned on. Read all enclosed information before operating.
LITHIUM BATTERY CAUTIONS
LiPo batteries pose a serious hazard when used improperly and may result in overheating, fire, or explosions. Read
all precautions and instructions regarding the care and use of LiPo batteries prior to use. The enclosed LiPo battery
is to be used only with the vehicle and charger included in this package.
- Keep away from flammable materials
- Do not expose to direct sunlight
- Do not expose to extreme heat
- Do not drop or make subject to strong impact
- Keep dry and away from moisture
- Remove exhausted batteries as soon as possible and discard properly
- Remove all batteries when toy is inactive for long periods
- The supply terminals are not to be short circuited
LiPo Battery Disposal: LiPo batteries must be recycled and disposed of properly. LiPo batteries should not be
disposed of with household waste. Check your local laws and regulations for information on proper battery
disposal.
WARNING: Batteries are harmful if swallowed. Please keep away from children.
The crossed-out dust bin symbol indicates that batteries
(primary, rechargeable, button cells, packs, etc) must not
be put in household waste. These items may be composed
of hazardous materials.
Please help protect the environment from health risks by
disposing of the batteries properly, and taking them to a
local collecting facility for safe recycling.
Waste Electrical and Electronic Equipment (WEEE)
When this appliance is out of use, please remove all
batteries and dispose of them separately. Bring electrical
appliances to the local collecting points for waste electrical
and electronic equipment. Other components can be
disposed of in domestic refuse.
This product is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC.
FCC Statements
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/television technician for help.
Caution
1. Always use dry and soft cloth to clean this product.
2. Avoid this product to be exposed to sunlight or heat.
3. Avoid immersing these toys into water, otherwise ,the electronic
parts may be damaged.
4. Regularly check and inspect the plug and other accessories. If any
damages are discovered, please immediately stop using it, until it is
completely repaired in good working condition.
Parts
2
1
6
5
3
4
1. Blade Guard
2. Blade
3. Power Button
4. Camera
5. Motor
6. Battery
7. Landing Gear
7
Transmitter
Photo / Video
Forward / Backward Trimmer
LED Indicator
Start / Stop
the motors
Throttle/Rudder
Stick (Press down
to start 360° Flip)
Headless
Mode
No Use
Install battery for controller
Elevator /
Aileron Stick
(Press down
to switch speed)
Left / Right
Trimmer
Power ON/OFF
2 x AAA Batteries
(not included)
1. Install batteries with the corresponding polarities
(i.e battery+ needs to go to the positive polarity.
Battery- needs to go to the negative polarity)
2. Do not use new and old batteries together.
3. Do not use different battery types together. Use
1.5V alkaline AAA batteries.
Flight Preparation (Drone)
Blade Guards Installation
Charge The Battery
1. Remove the battery from drone.
2. Charge the battery using the USB
charger.
The LED indicator on the USB charger:
Off - Charging
Red - Charging Completed
3. Re-install charged battery back to
the drone.
Charging time may take up to 45 minutes.
Flight time will be approx. 7 minutes per charge.
Flight Preparation (Binding)
Binding drone to the controller
1. Place the drone on a
2. Turn on the drone.
level and flat surface.
1
2
3. Turn on the transmitter 4. Pull the left stick
Up and then Down
5. The LED on the drone
will stop flashing when
binding is completed.
Start / Stop The Motors
To Start
1
2
After binding, press the right button on top of the transmitter to start the motor.
Push the left stick upward for drone to take off.
To Stop
To land and stop the motor, you can do one of the followings:
1) Press the right button on top of transmitter once - the drone will proceed
to land slowly and stop the motor.
2) Push and hold down the left stick will cause the drone to land and stop its
motor.
Emergency Stop
To stop the motor immediately, press and hold the right button
on top of the transmitter for 2 seconds.
Note: Emergency stopping in mid-air will result in drone dropping and may damage the
product and other properties, please use with cauation.
Basic Control
Photo Taking Video Shooting
Short press the
button to take a
Enter Headless Mode *
Press this button
once to enter / exit
Headless Mode
* To enter headless mode:
1) Before taking off, position the drone to where you and the drone are facing the same direction.
2) Press headless button to enter headless mode.
3) Pressing the headless button again will exit headless mode.
Note:
- The LED on drone will flash continuously when the it is in headless mode.
Flying Speed Select
Long press the button
to start video shooting,
press again to stop.
Short press right stick
to switch flying speed
1 beep = low
2 beeps = mid
3 beeps = fast
Special Operation / Control
360° Flip
1. Bring the drone to a 10ft mid-air hover, without
flying towards any direction. Remove finger from
both sticks once in hover.
2. While hovering, press down the left stick and
push the right stick to any direction.
3. The drone will flip to the diection of right stick
being pull.
Forward flip
Left
flip
Backward flip
Note:
The 360° Flip function cannot be
performed when battery power is low.
Right
flip
FORWARD
LEFT
BACKWARD
Drone needs to be hovering at least 10ft
in height before flipping. Do not use this
feature indoor to avoid damage.
RIGHT
Adjustment / Trimming
Why do we need to adjust the trimming?
Trimming is needed to adjust the differentials in real
world applications. Numerous factors contribute to
an unsuccessful hover and as a pilot, you will need
to make manual adjustments to fix these issues.
Recalibrate
It is a good idea to recalibrate the gyro system of your drone before manually trimming it.
A lot of drifting can be fixed by recalibrating the drone::
1) Bind the drone to the controller, place the drone on a flat and level surface.
2) Push both left and right stick (on the controller) to bottom left corner, hold it until the LED
on the drone stop flashing.
3) Recalibrate is complete upon LED on drone stop flashing.
Manually Trimming the drone
If drifting is still exists after recalibrating, use the following trimming buttons to
manually trim the drone.

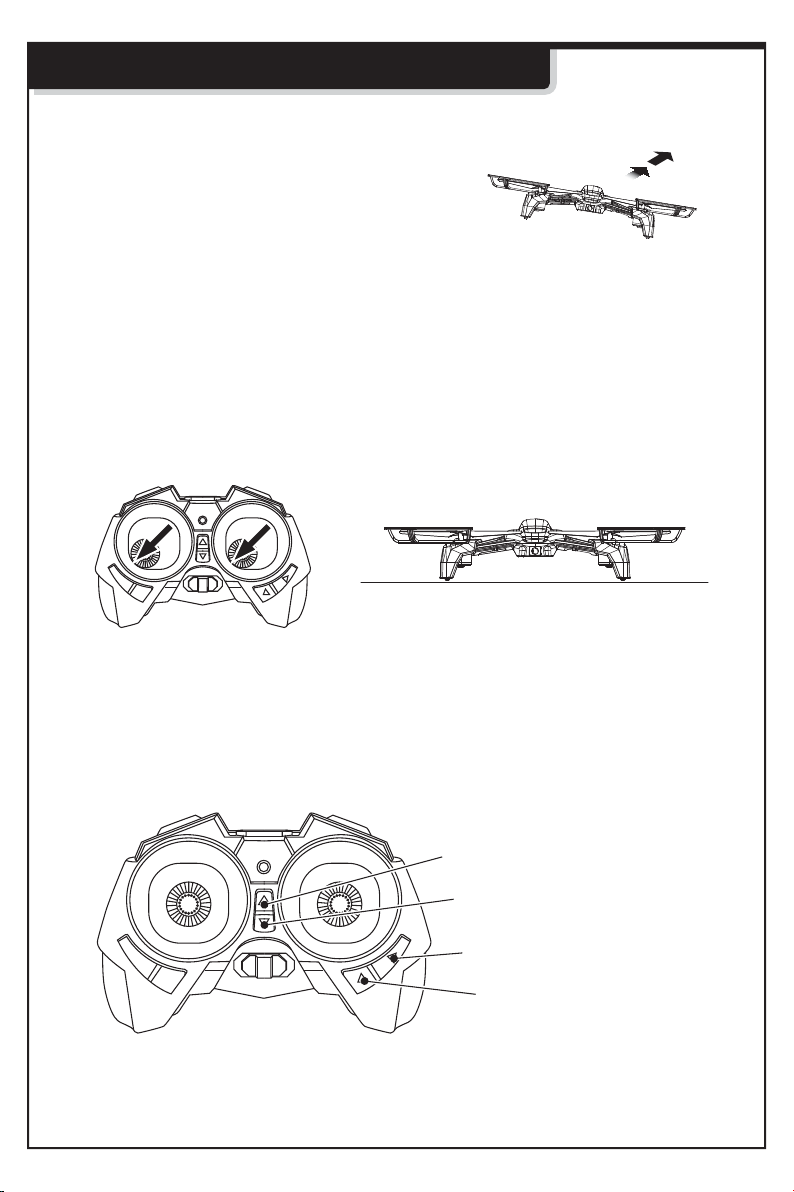

Forward Trimming
Backward Trimming
Right Trimming
Left Trimming
Adjustment / Trimming
Bring the drone to hover a few feet above the ground. Observe for
any drifting. Use the opposite direction trimmer button to correct the
drifting.
E.g.: If the drone drifts backwards repeatedly press the forward
trimmer until the drifting stops or until satisfied with the hover.
Forward TrimmerBackward Trimmer
Left Side-Fly Trimmer Right Side-Fly Trimmer
Erase Trimming settings
Manually trimmed settings can be cleared by doing the following:
1) Power OFF the controller.
2) Press down and hold the Right Trimming button.
3) Power ON the controller.
4) Let go of the Right Trimming button.
Blade Installation
Blades must be installed as shown below.
The letters are printed on reverse side of blades.
A B
Camera
TOP VIEWTOP VIEWTOP VIEW
Battery
AB
Note:
Debris could be found in the blades of the drone after multiple flights. It is
advisable to clean the blades regularly when it is in its off-state to avoid poor
flying performance.
Flying Tips
When launching the drone make sure that you and the drone are facing the
same direction. The camera should be looking in the same directional path
as yourself.
Practice launching, hovering, and landing before attempting to learn other
moves.
Flying 2 to 3 feet above the ground will reduce ground turbulence and
make flying easier.
When first attempting to fly in a different direction, start by tapping the
direction stick until you’re comfortable. Move controls slowly until you
become comfortable operating the drone.
Once you’ve mastered flying in different directions, practice rotational
controls. Keeping the drone facing the same direction as you makes flying
easier and more intuitive.
Stay away from walls and ceilings as the drone will be drawn towards them
if you fly too close.
If the propeller blades come in contact with another object, or the drone is
going to crash, throttle down immediately to prevent further damage.
If anything prevents the drone’s blades from spinning, or they become
jammed, THROTTLE DOWN IMMEDIATELY. Do not attempt to fly until
obstruction has been removed and damage fixed.
Troubleshooting
Problem/Issue Cause Solution
Cannot bind drone to
controller
Drone does not turn on
Controller does not turn on
Blades do not spin or
drone has difficulty taking
off the ground, LEDs are
flashing
Unstable drone flying /
drifting sideways
All blades spin but drone
does not take off the
ground or not flying
properly
a) Battery
b) Electromagnetic interference
c) Out of range
a) Battery too low
b) Battery not fully plugged in
a) Switch didn't turn on
b) Battery wasn't installed
correctly
c) Battery power too low
Battery power level is too low
Blades are not installed correctly Reinstall the blades following the "Blade
Damaged blade(s) Replace the blade(s)
Gyro off-balance Recalibrate and trim the drone as necessary
Blades are not installed correctly
a) Make sure the batteries in both drone and
controller are fully charged
b) Clear out objects between drone and controller
c) Put drone and controller closer to each other
a) Charge battery
b) Reinstall the battery
a) Ensure switch is turned on
b) Ensure battery fully and correctly plugged
c) Charge the battery
Fully recharge the battery
Installation" section
Reinstall the blades following the "Blade
Installation" section
Drone crashes during 360°
Flip
Drone can not perform
360° Flip and LEDs are
flashing
Cannot take photo or video
Not enough space to perform
the rolling function
Battery power level is too low Fully recharge the battery
Micro SD Card not installed
correctly or damaged
Ensure the drone is at least 9ft from ground and
9ft away from all other objects in all direction
a) Ensure Micro SD Card is fully inserted
b) Replace Micro SD Card
Thank You
Happy Flying
Loading...
