TDK-Lambda PHV Series Operator's Manual

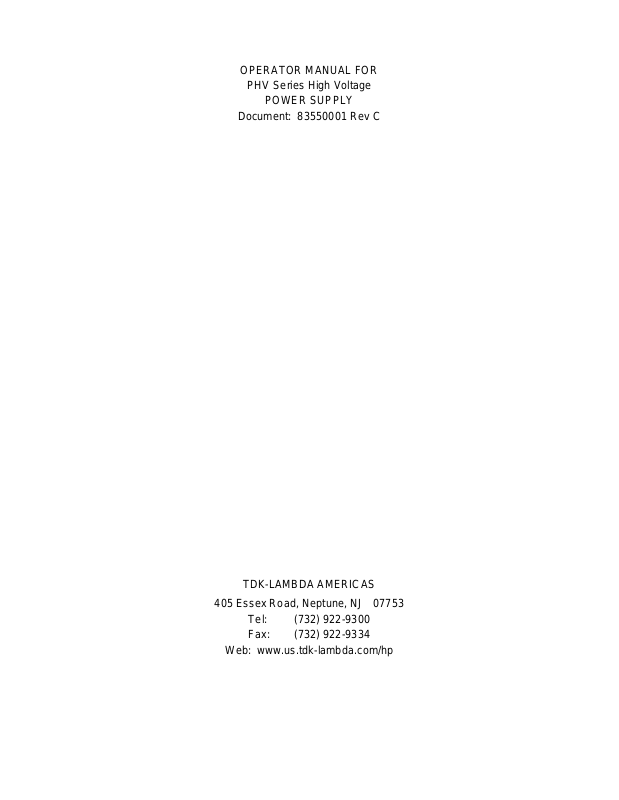

OPERATOR MANUAL FOR

PHV Series High Voltage

POWER SUPPLY

Document: 83550001 Rev C

TDK-LAMBDA AMERICAS

405 Essex Road, Neptune, NJ 07753

Tel: [phone]
Fax: [phone]

Web: www.us.tdk-lambda.com/hp

THREE YEAR WARRANTY

TDK-Lambda Americas, Inc. (405 Essex Road, Neptune, N.J. 07753), warrants that the unit is free from defects in
material or workmanship for a period of THREE YEARS from the date of initial shipment. TDK-Lambda Americas Inc.
will service and, at its option, repair or replace parts which prove to be defective. This will be done free of charge
during the stated warranty period. This warranty excludes defects resulting from misuse, unauthorized modification,
operation outside the environmental or safety specifications of the power supply, or improper site preparation or
maintenance. The customer shall contact TDK-Lambda Americas Inc., for warranty service or repair as described in
the RETURNING EQUIPMENT section. The customer shall prepay shipping charges. If the unit is covered under the
foregoing warranty, then TDK-Lambda Americas Inc. shall pay the return shipping charges.

The “WARRANTY”, “CLAIM FOR DAMAGE IN SHIPMENT”, and “RETURNING EQUIPMENT” information applies to
equipment purchased directly from TDK-Lambda Americas Inc. End users receiving equipment from a third party
should consult the appropriate service organization for assistance with these issues.

THIS LIMITED WARRANTY IS IN LIEU OF, AND TDK-LAMBDA AMERICAS INC. DISCLAIMS AND EXCLUDES,
ALL OTHER WARRANTIES, STATUTORY, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OF CONFORMITY TO
MODELS OR SAMPLES.

CERTIFICATION

All test and measuring equipment used by TDK-Lambda Americas Inc. for Final Acceptance Testing are traceable to
primary standards certified by the National Institute of Standards and Technology.

LETHAL VOLTAGES PRESENT!

All power supplies contain hazardous voltage and energy. The power supply must only be operated by qualified

personnel who have read this operator’s manual and are familiar with the operation, hazards and application of the

power supply. Proper care and judgment must always be observed.

1. Before connecting input AC power, ensure all covers are in place and securely fastened. Ensure the required

safety ground to chassis is installed and sufficient cooling is supplied.

2. Proper grounding from the input AC power is required to reduce the risk of electric shock, and to comply with

safety agency and code requirements.

3. Use extreme caution when connecting input AC power. Only apply the input voltage specified on the rating label.

4. Use extreme caution when connecting any high voltage cables. Never handle any output cables when the power

supply is operating.

5. After a power supply is switched OFF, its output section will retain a charge which may be lethal. Allow sufficient

time for self-discharge before handling anything connected to the output. The discharge time specified in the
Safety Notes does NOT include extra time required to discharge the energy stored in the user’s load.

6. When user serviceable fuses are present, always replace fuses with the same type and Volt/Amp rating.

7. Never attempt to operate the power supply in any manner not described in this manual.

8. Never remove DANGER or WARNING labels from the power supply. Replace lost or damaged labels

immediately. Contact TDK-Lambda Americas Customer Service for replacement labels.

9. The power supply may be serviced only by TDK-Lambda Americas Inc. factory qualified service personnel.

Breaking the warranty seal will void the warranty. Prior to opening the power supply, contact TDK-Lambda
Americas Inc. Customer Service for a written Service Waiver and a replacement warranty seal.

83-000-020 Rev B

TDK-Lambda

Description of symbols used in product labeling

SYMBOL PUBLICATION DESCRIPTION

EC Council
Directive 93/68/EEC

European Community
Conformity Assessment
Product Mark

IEC 348 Attention, consult

Accompanying documents

IEC 60417-1-5036 Dangerous voltage

IEC 60417-1-5019 Protective earth

(e.g. power line earth ground)

IEC 60417-1-5017 Functional earth

IEC 60417-1-5134 Electrostatic Discharge

(e.g. chassis ground)

(ESD) Sensitive Device

Page: 83-000-007 Rev E

Table of Contents

1. GENERAL INFORMATION ....................................................................................................... 4

1.1. User Manual Content ............................................................................................................... 4

1.2. Introduction .............................................................................................................................. 4

1.3. PHV Overview .......................................................................................................................... 5

1.3.1. Features ................................................................................................................................... 5

1.3.2. Benefits .................................................................................................................................... 5

1.3.3. Applications ................................................................ .............................................................. 5

1.4. Additional Features: ................................................................................................................. 5

1.5. Safety Precautions ................................................................................................................... 6

1.6. Model Number Format ............................................................................................................. 7

2. SPECIFICATION...................................................................................................................... 8

3. OUT OF BOX INSPECTION ................................................................ ...................................10

3.1. Visual Inspection .....................................................................................................................10

3.2. Contacting TDK-Lambda Americas Customer Service ............................................................10

3.3. Returning Defective Units ........................................................................................................10

4. INSTALLATION ......................................................................................................................12

4.1. 19-Inch Rack Mounting ...........................................................................................................12

4.2. Ventilation Requirements ........................................................................................................12

4.3. Orientation...............................................................................................................................12

4.4. AC Power Connection .............................................................................................................12

4.5. High Leakage Current .............................................................................................................13

4.6. Connecting the High Voltage Output .......................................................................................14

4.6.1. HV Output Polarity ...................................................................................................................14

4.6.2. Floating Output ........................................................................................................................14

4.6.3. HV Output Connector ..............................................................................................................14

5. CONTROLS, INDICATORS, CONNECTORS .........................................................................16

5.1. Front Panel Layout ..................................................................................................................16

5.1.1. Overtemp LED (Ref 1) .............................................................................................................18

5.1.2. P-Limit LED (Ref 2) ................................................................................................ .................18

5.1.3. Voltage Display (Ref 3) ...........................................................................................................18

5.1.4. CV Indicator LED (Ref 4) .........................................................................................................18

5.1.5. Output Voltage Control (Ref 5) ................................................................................................18

5.1.6. OVP Indicator LED (Ref 6) ......................................................................................................18

5.1.7. OVP Limit Adjustment (Ref 7)..................................................................................................18

5.1.8. Set Value Button (Ref 8)..........................................................................................................18

5.1.9. CC Indicator LED (Ref 9) .........................................................................................................19

5.1.10. Output Current Control (Ref 10) ..............................................................................................19

5.1.11. Current Display (Ref 11) ..........................................................................................................19

5.1.12. Power Switch (Ref 12) .............................................................................................................19

5.1.13. HV ON LED (Ref 13) ...............................................................................................................19

5.1.14. HV ON/OFF Button (Ref 14) ....................................................................................................19

5.1.15. NEG LED (Ref 15) ...................................................................................................................19

5.1.16. POS LED (Ref 16) ...................................................................................................................19

5.1.17. Polarity Button (Ref 17) ...........................................................................................................19

5.1.18. Local LED (Ref 18) ..................................................................................................................19

5.1.19. Local Remote Switch (Ref 19) .................................................................................................19

1

83550001 Revision C

5.1.20. Analog LED (Ref 20) ...............................................................................................................20

5.1.21. Analog/Digital Remote Switch (Ref 21) ....................................................................................20

5.1.22. Digital LED (Ref 22) ................................................................................................................20

5.1.23. Busy LED (Ref 23) ..................................................................................................................20

5.2. Rear Panel Layout ...................................................................................................................20

5.2.1. HV Output Connector (Ref 1) ..................................................................................................22

5.2.2. HV Output Return (Ref 2) ........................................................................................................22

5.2.3. Optional Digital Interface (Ref 3) .............................................................................................22

5.2.4. Remote Analog Connector (Ref 4) ..........................................................................................22

5.2.5. Safety Ground (Ref 5) .............................................................................................................22

5.2.6. AC Line Fuse (Ref 6) ...............................................................................................................22

5.2.7. AC Input Connector (Ref 7) .....................................................................................................22

6. LOCAL OPERATION ..............................................................................................................24

6.1. Set the Control Mode ..............................................................................................................24

6.2. Turn on AC power ...................................................................................................................24

6.3. Select desired output polarity ................................................................ ..................................24

6.4. Set the output OVP Limit .........................................................................................................24

6.5. Set the desired output voltage/current levels ...........................................................................24

6.6. Turning ON the output .............................................................................................................24

6.7. CC/CV Mode Indication ...........................................................................................................25

6.8. Turning the unit OFF ...............................................................................................................25

7. ANALOG REMOTE CONTROL OPERATION ........................................................................26

7.1. The Non-Isolated Analog Interface (ANA option) .....................................................................26

7.1.1. Typical Remote Operation .......................................................................................................27

7.1.2. Remote HV ON/OFF with LOCAL voltage/current controls (ANA option only) .........................27

7.1.3. HV Output is always ON, REMOTE Voltage and Current programming (ANA option only) ......27

7.1.4. HV Output is always ON, REMOTE Voltage programming, Current set to 100% rated value ..27

7.2. Isolated Analog Programming (INA option)..............................................................................28

8. DIGITAL REMOTE CONTROL OPERATION .........................................................................30

9. PARALLEL OPERATION .......................................................................................................32

9.1. Parallel Master Slave operation with the Remote Analog Interface – Option 1 ........................32

9.2. Parallel Master Slave operation with the Remote Analog Interface – Option 2 ........................32

2

83550001 Revision C

List of Figures

Figure 1. PHV Front Panel Controls and Indicators ........................................................................... 16

Figure 2. PHV Half Rack Rear Panel Connections (140Watt model with floating return shown) ........ 20

Figure 3. PHV Half Rack Rear Panel with Reversible Output ............................................................. 21

List of Tables

Table 1. PHV Model Description Format . ............................................................................................ 7

Table 2. PHV HV Output Connector Types ........................................................................................ 15

Table 3. Front Panel Controls and Indicator Functions (includes optional features) ........................... 17

Table 4. PHV Half Rack Rear Panel Functions .................................................................................. 21

Table 5. Non-Isolated Analog Interface Signals (ANA option) ............................................................ 27

Table 6. Isolated Analog Interface Signals (INA option) ..................................................................... 28

3

83550001 Revision C

1. GENERAL INFORMATION

1.1. User Manual Content
The PHV power supply can deliver potentially lethal voltages. Before operating this

unit, the user must read and understand the complete user’s manual.

This User’s Manual contains the operating instructions, installation instructions and

specifications for the TDK-Lambda PHV series precision high voltage power supply. The
instructions refer to standard power supply models, and include checkout, installation, and
operation of the PHV series. Suggestions and requirements for connecting AC power, load
cables and signal cables are given. Various operating modes and programming modes are
described.

THIS MANUAL CONTAINS INFORMATION, INSTRUCTIONS AND DIAGRAMS WHICH
APPLY TO STANDARD CONSTRUCTIONS. IF SPECIAL FEATURES OR
MODIFICATIONS HAVE BEEN INSTALLED, THE INSTRUCTIONS SPECIFIC TO THAT
MODIFICATION ARE CONTAINED IN ADDENDA AND TAKE PRECEDENCE IF
CONFLICTS EXIST. PLEASE TAKE CARE TO REFER TO THE CORRECT
INFORMATION FOR YOUR UNIT.

NOTE

1.2. Introduction

TDK-Lambda PHV series are state of the art precision switch mode high voltage power
supplies, designed to provide a highly stable, low ripple HV DC output for a broad range of
applications including photomultipliers, Ion sources, Insulation testing, Electron Microscopy,
and a multitude of other applications requiring precise and stable DC power.

The PHV series utilize a high frequency IGBT based inverter topology which precisely
regulates using pulse width modulation. The unit’s high switching frequency results in low
output voltage ripple, high stability, high regulation speed, and low stored energy.

The PHV series features a fully instrumented front panel with meters displaying output
voltage and current, status LEDs, a push-button switch to turn the HV Output ON and OFF,
and precision 10-turn output current and voltage controls. The rear panel features optional
remote control, HV output, and AC input connections.

4

83550001 Revision C

1.3. PHV Overview

1.3.1. Features

 11 power ranges from 14Watts to 15,000Watts.
 Output voltages from 0-125V to 0-300,000V in 16 ranges.
 Local or remote operation with optional Analog or Digital control interface.
 Comprehensive range of available digital interfaces including LAN, IEEE, USB.
 Parallel operation (master/slave) for high power applications.
 Compact Air Cooled design.
 Passive Power Factor Correction reduces RMS current draw.

1.3.2. Benefits

 Lightweight switchmode design.
 Benchtop chassis configuration with optional rack mount kit.
 Low output stored energy provides greater safety.
 Immunity to external EMI.
 CE marked for safety and EMC.

1.3.3. Applications

 Photomultipliers
 Insulation Test
 Electrostatics
 Ion Sources
 Gas Discharge/Sputtering
 Electrospinning
 Electron Microscopes
 Mass Spectrometry
 Nuclear Fusion Research
 Particle Accelerators
 Secondary Electron Multiplier

1.4. Additional Features:

 Documentation Manual Including -

Installation, check out, suggested remote interfaces and control circuits

5

83550001 Revision C

ALL PHV POWER SUPPLIES ARE DESIGNED TO MINIMIZE THE
RISK OF FIRE OR SHOCK HAZARD. THIS INSTRUMENT RECEIVED
COMPREHENSIVE MECHANICAL AND ELECTRICAL INSPECTION
PRIOR TO SHIPMENT. NEVERTHELESS, CERTAIN SAFETY
PRECAUTIONS MUST BE OBSERVED. ONLY TECHNICALLY
QUALIFIED SERVICE PERSONNEL FAMILIAR WITH THE
PRINCIPLES OF ELECTRICAL SAFETY SHOULD OPERATE THIS
SUPPLY. THE POWER SUPPLY SHOULD NOT BE EXPOSED TO
WATER OR MOISTURE OR DUSTY ENVIRONMENTS. ELECTRICAL
SAFETY MUST BE MAINTAINED AT ALL TIMES.

LETHAL VOLTAGES ARE PRESENT WITHIN THE POWER SUPPLY'S
ENCLOSURE AND AT THE OUTPUT CABLE. THEREFORE, THE
COVER MAY NOT BE REMOVED BY THE USER. THE LARGE
CAPACITORS IN THE SUPPLY MAY STORE POWER EVEN AFTER
THE AC INPUT LINE IS REMOVED. ALLOW AT LEAST 5 MINUTES
DISCHARGE TIME BETWEEN REMOVING THE AC INPUT LINE AND
OPENING THE COVER. ALSO, ALLOW AT LEAST 40 SECONDS
BETWEEN SWITCHING THE AC POWER OFF AND SWITCHING IT
ON AGAIN.

1.5. Safety Precautions

1.5.1. This product is designed for Indoor use, and for operation in a clean, dry environment.

1.5.2. This product is designed for pollution degree 1.

1.5.3. This product is designed for Transient Overvoltage Category II.

1.5.4. Ensure all covers are in place and securely fastened before switching ON the AC
power.

1.5.5. Ensure that no liquids or foreign objects are allowed to enter the unit via the chassis
ventilation holes.

1.5.6. Do not operate near flammable gases or vapors.

1.5.7. Proper grounding from the input AC power is required to reduce the risk of electric
shock. Ensure that the AC Protective Earth Ground connection has at least the same
gauge wire as the supply leads.

1.5.8. Use extreme caution when connecting AC input power, and never apply the incorrect
input voltage, refer to ratings label.

1.5.9. Use extreme caution when connecting the high voltage output cable to the load.

1.5.10. Never handle the output cable when the power supply is operating.

1.5.11. Never attempt to operate the power supply in any manner not described in this
manual.

1.5.12. Never remove DANGER and WARNING labels from the power supply. Replace lost
or damaged labels immediately.

1.5.13. The power supply should only be serviced by factory authorized personnel.

1.5.14. No user maintenance is required.

83550001 Revision C

6

PHV

20 N 15 - USB

-

FPV - 1P115

Series

Name

Output

Voltage

(kV DC)

Output

Polarity,

Pos,

Neg,

Reversible,

Floating

Output

Current

(mA DC)

Interfaces

ANA, INA,

IEEE, LAN,

USB, RS2,

RS4, ROS2

Blank for

local/analog IF

only

Optional

Features
Blank for

no

additional

features

AC Input

1P115

(115VAC 1ɸ)

or

3P208

(208VAC 3ɸ)

1.6. Model Number Format

The model numbering system for the PHV Series power supply includes symbols for features
and options. They are separated by dashes.

Examples are: PHV2P6-LAN-1P115 and PHV20N200-USB-3P208
Table 1 shows a partial listing of the model description format for the PHV Power Supply

family. For additional options, the customer may contact the Sales Department at TDK­Lambda Americas. Special options are typically shown as a four-digit suffix to the model
number.

Table 1. PHV Model Description Format .

7

83550001 Revision C

2. SPECIFICATION

8

83550001 Revision C

Mechanical Details

9

83550001 Revision C

3. OUT OF BOX INSPECTION

3.1. Visual Inspection

Prior to shipment, this instrument was inspected and found to be free of mechanical and
electrical defects. As soon as the unit is unpacked, inspect for any damage that may have
occurred in transit. Verify the following:

a) Check the operation of the front panel controls (knobs should rotate smoothly).
b) Confirm that there are no dents or scratches on the panel surfaces.
c) Check front panel meters and LEDs for any broken or cracked lenses.

If any damage is found, follow the instructions in Section 3.2.

3.2. Contacting TDK-Lambda Americas Customer Service

When contacting customer service locate the product description, part number and serial
number from the label located on the rear of the unit, and have this information available.

Phone: [phone] x 325 E-mail: [e-mail]
Fax: [phone]
Customer Service, or an approved Service Center, should be contacted if:

 The power supply is mechanically or electrically damaged.
 The power supply requires on-site calibration, or replacement warning decals.
 The customer has questions about a special application that is not described in this

manual.

Normally, the customer may NOT open any chassis covers that have a warranty seal.
Breaking a seal will void the warranty.

At the discretion of TDK-Lambda Americas, the customer may be granted permission to
break the warranty seal and open the chassis covers. Customer Service shall confirm the
permission by sending a replacement seal. Once the unit has been serviced, the customer
shall close the cover and apply the replacement seal adjacent to (not on top of) the broken
seal.

3.3. Returning Defective Units

If a unit needs to be returned to the factory for repair, the factory must first assign an RMA
number. Please complete and send the online RMA request form at http://www.us.tdk-

lambda.com/hp/RMA_request.htm and an RMA number will be assigned. Follow the return

instructions on the form or at http://www.us.tdk-lambda.com/hp/returns.htm.

10

83550001 Revision C

This Page Left Intentionally Blank

11

83550001 Revision C

NEVER INSTALL THE PHV SO ITS WEIGHT IS SUPPORTED

ONLY BY THE OPTIONAL FRONT PANEL RACK ADAPTER!

FOR 115VAC SINGLE PHASE MODELS, THE MAXIMUM
VOLTAGE ALLOWED BETWEEN ANY TWO AC INPUT
TERMINALS IS 126VAC. FOR 208VAC THREE PHASE MODELS,
THE MAXIMUM VOLTAGE ALLOWED BETWEEN ANY TWO AC
INPUT TERMINALS IS 228VAC. IF THIS VOLTAGE IS EXCEEDED,
CATASTROPHIC DAMAGE WILL RESULT, THAT IS NOT
COVERED BY TDK-LAMBDA AMERICAS STANDARD WARRANTY.

4. INSTALLATION

4.1. 19-Inch Rack Mounting

This power supply is intended for mounting on a benchtop or in a conventional 19-inch
equipment rack with optional rack adapters.

The PHV must never be installed without support in the back or sides of the unit. The PHV
should be mounted on support rails or on a suitable shelf or supports inside the rack.

4.2. Ventilation Requirements

Units rated at 350Watts and below are convection cooled, units rated at greater than
350Watts are forced air cooled. Sufficient space must be allocated so that a free flow of
cooling air can reach the back and sides of the instrument when it is in operation. Ensure
these clearances are met for adequate air flow:

 4 inches (10 cm) rear.
 1.75 inch (4.6 cm) on top and bottom.

When operating in an enclosed system, care must be taken to ensure the ambient inlet air to
the power supply does not exceed the maximum operating temperature of 40°C. This may
require addition of a system heat exchanger.

Do not operate bench top units without the feet installed. Do not expose the unit directly to
sunlight to avoid unwanted thermal effects.

4.3. Orientation

The power supply can be operated in any orientation.

4.4. AC Power Connection

Check that the input voltage rating of your PHV supply is compatible with available AC
power. For models rated at 1400W or less, the AC input power is 115VAC±10% single phase
(1P115). For models with a power rating above 1400W, the AC input power is 208VAC±10%
3 phase (3P208). The AC input rating of the unit is included in the part number label on the
rear panel. If in doubt please contact the factory.

The unit is equipped with a protective earth in the AC connector or terminal block. For
protection against electric shocks, the unit must be connected to the AC power via a
suitable 3 or 5-pole cable with a non-fused earth conductor.

83550001 Revision C

12

THE PROTECTIVE EARTH GROUND MUST BE CONNECTED

BEFORE APPLYING AC LINE POWER TO THE PHV.

For single phase models (≤1400Watt output power) AC power connectors are;

14Watts to 350Watts Models - IEC 60320-C14

700Watt models - IEC 60320-C19
For power levels greater that 700Watts, Phoenix HDFK4 terminal blocks are provided.
Use extreme caution when connecting input AC power and never apply the incorrect input

power.
An external switch or circuit breaker with the following parameters must be used as the

means of disconnection:
a) Rated voltage not less than maximum rated input voltage of the power supply.
b) Rated current not less than 150% of the power supply rated current.
c) If a circuit breaker is used it should have a C or K characteristic.
The switch or circuit breaker must be located close to the power supply and within easy

access of the operator. The switch or circuit breaker must be marked as a disconnecting
device for the equipment.

If external fuses are used they should have a higher rating than the internal fuses. Internal
fuse type/rating is shown on the Mains AC rating section of the serial number label on the
rear of the unit.

The AC input rating is marked on the rear terminal of the power supply. The rating is also
part of the unit’s model description shown in Table 1.

4.5. High Leakage Current

If the following label is located on the rear of the unit, or the unit is engraved with the text
“High Leakage Current”, it must be grounded using the ground stud with a cable of at least 6
AWG or 10mm² cross section.

83550001 Revision C

13

ONLY USE THE HV CONNECTOR AND CABLE SUPPLIED WITH
THIS INSTRUMENT. ENSURE THAT THE POWER SUPPLY IS OFF
AND DISCONNECTED FROM THE AC INPUT POWER AND THAT
ANY LOAD CAPACITORS ARE DISCHARGED AND SHORTED TO
GROUND BEFORE MAKING ANY CONNECTIONS. NEVER
HANDLE THE HV CABLE WHILE THE SUPPLY IS OPERATING.

THE HV OUTPUT CONNECTOR CAN ONLY BE OPERATED AT
RATED VOLTAGE WHEN PROPERLY MATED WITH THE UNIT.

4.6. Connecting the High Voltage Output

Before connecting the HV output cable, inspect the cable and check for signs of damage.
Always use the HV connector and cable provided with the power supply or an equivalent

substitute provided by TDK-Lambda Americas.
The shield of the HV cable or a separate conductor connected between the ground stud on

the unit and the load can be used for the return connection. The Return current must not
flow via the AC power ground! The HV cable shield is always at ground potential.

Suitable overvoltage protection and/or grounding should be used at the load return in case
the return connection to the power supply is disconnected or opened in error.

The HV return is internally connected to Ground inside the power supply via a removable
link. For most applications this connection should not be removed. If required, the Ground
link can be removed, and the HV return must be connected to Ground at the load.

In the event of load arcs or flashovers, the return connector is internally protected by a 350V
spark gap to Ground.

4.6.1. HV Output Polarity

The High Voltage output polarity should be specified at the time of ordering. Options are
Fixed Positive wrt ground, Negative wrt ground, Reversible, or Floating. The Reversible
option is only available on models rated between 3.5kV and 65kV.

Output polarity is indicated in the part number and by a Blue or Red label on the rear of the
unit. A Red label indicates Positive polarity, a Blue label indicates Negative polarity. Output
polarity is also indicated in the voltage/current displays.

Units with Reversible polarity have a combination Blue/Red label on the rear panel.

4.6.2. Floating Output

The Floating option is standard on models rated at 2kV or less, and optional for higher
voltage models.

For models rated up to 350V the outputs can float ±500V from ground.
For models rated from 650V to 2kV, the outputs can float ±2kV from ground.

4.6.3. HV Output Connector

For all PHV models rated at 650V and above, the HV output connector and 9ft cable is
supplied with the unit. For models rated less than 650V, 4mm banana plugs are used and
are widely available. Table 2 shows the output connectors used at the various available
output voltages.

14

83550001 Revision C

Model

HV Connector

Cable Type

Included with unit

PHV0.125PXX to PHV0.350PXX

4mm banana plug

N/A

None

PHV0.650PXX to PHV6.5PXX

(1)

SHV Cable Jack

(1)

RG58

(1)

9ft cable with connector
installed on one end

PHV12.5PXX to PHV20P6

HS21

(2)

130660

(3)

9ft cable with connector
installed on one end

PHV20P15 to PHV35PXX

F3430AG10.2

(3)

RG11

9ft cable with connector
installed on one end

PHV65PXX

S165

(2)

DS 2124

(4)

9ft cable with connector
installed on one end

PHV100PXX

S1100

(2)

DS 2124

(4)

9ft cable with connector
installed on one end

PHV150PXX

S1155

(2)

DS 2121

(4)

9ft cable with connector
installed on one end

PHV200PXX-PHV300PXX

Call factory

All models rated at 650V and higher include a 9ft long HV output cable with connector on one end.
Note 1. PHV0.65P15000, PHV0.65P22500, and PHV1.25P12000, use GES S115 connector with GES
cable 3330005 due to the high output current.
Note 2. Connectors and cable are GES designs available from TDK-Lambda.
Note 3. Connectors and cable available from TDK-Lambda
Note 4. Additional cable is available from TDK-Lambda

Table 2. PHV HV Output Connector Types

83550001 Revision C

15

12

21

13

18

20

14

15

16

17

19

22

23 1 10

11 7 3 4 5 6 8 9 2

5. CONTROLS, INDICATORS, CONNECTORS

5.1. Front Panel Layout

The PHV series power supply is equipped with a fully instrumented front panel featuring
output voltage/current controls, voltage and current metering, and comprehensive status
LEDs, along with local/remote mode switch
operated locally from the front panel or remotely
the rear panel. Typical front panel layout of the PHV power supply is shown in Figure 1
below, with the functions outlined in Table 3.

(1)

, and power on switch. The PHV can be

(1)

via an optional remote interface located on

Figure 1. PHV Front Panel Controls and Indicators

Note 1 – The remote interface is an optional feature that must be specified at the time of
ordering.

16

83550001 Revision C

REF

DESCRIPTION

NOTE

SECTION

1

Overtemp LED

Indicates an Overtemperature condition

5.1.1

2

P-Limit LED

Illuminated for optional Power limit mode

5.1.2

3

Voltage Display

Indicates actual output voltage, displays set point when
flashing

5.1.3

4

CV LED

Illuminated for Constant-Voltage mode operation

5.1.4

5

Output Voltage
Control

Lockable 10-turn Potentiometer for output voltage set value

5.1.5

6

OVP LED

Indicates OVP limit has been reached

5.1.6

7

OVP Limit Point

OVP set point potentiometer (screwdriver adjustable, 1-turn)

5.1.7

8

Set Value button

Switches the output displays to set point mode. Displays will
flash when in set point mode.

5.1.8

9

CC LED

Illuminated for Constant-Current mode operation

5.1.9

10

Output Current
Control

Lockable 10-turn Potentiometer for output current set value

5.1.10

11

Current Display

Digital display of average output current

5.1.11

12

Power switch

Turns on/off Main AC power to unit

5.1.12

13

HV ON LED

Illuminates when HV output is turned ON

5.1.13

14

HV ON/OFF Button

Turns HV Output ON/OFF (does not disconnect the HV
output, or AC Input)

5.1.14

15

NEG Polarity LED

(1)

If optional polarity reversal is installed, Illuminates to
Indicate the output polarity is Negative

5.1.15

16

POS Polarity LED

(1)

If optional polarity reversal is installed, Illuminates to
Indicate the output polarity is Positive

5.1.16

17

Polarity Button

(1)

Controls the HV output polarity if optional polarity reversal
is installed

5.1.17

18

Local LED

(1)

Indicates Local control is enabled

5.1.18

19

Local Remote
Switch

(1)

Toggles the control mode between Local and Remote
control mode

5.1.19

20

Analog LED

(1)

Indicates Remote Analog control is enabled

5.1.20

21

Analog/Digital
Remote Switch

(1)

Toggles the control mode between Remote Analog or Digital
if an optional digital interface is installed

5.1.21

22

Digital LED

(1)

Indicates Remote Digital control is enabled if an optional
digital interface installed

5.1.22

23

Busy LED

(1)

Indicates presence of traffic on the optional digital interface

5.1.23

Table 3. Front Panel Controls and Indicator Functions (includes optional features)

Note 1. Indicates an optional feature that may not be installed.

83550001 Revision C

17

The front panel controls/indicators are described in detail in the following sub-sections.

5.1.1. Overtemp LED (Ref 1)

Indicates the internal thermal sensor has detected an Overtemperature condition. Causes
are excessive ambient temperature, fan failure, poor ventilation, or excessive accumulated
dust. Allow unit to cool and cycle power OFF/ON to reset the fault. Ensure cooling vents are
clear and clearance around the unit meets the requirements shown in 4.2.

5.1.2. P-Limit LED (Ref 2)

Indicates the unit is operating in power limit mode

(1)

.

5.1.3. Voltage Display (Ref 3)

The Voltage Display is a 4½ digit LED indicator showing the voltage measured at the power
supply output. This display flashes and displays the programmed output voltage after the Set
Value button is depressed. Display is active in local and remote

(1)

modes.

5.1.4. CV Indicator LED (Ref 4)

Indicates the unit is in CV (Constant Voltage) mode. The power supply regulates the output
voltage at the set point value, while the load current varies as required by the load. Display is
active in local and remote

(1)

modes.

5.1.5. Output Voltage Control (Ref 5)

The local voltage set control is a lockable analog 10-turn potentiometer with precision dial,
for setting the output voltage from approximately 0.1% to 100% of rated. This control will
only operate in local mode, if the supply is operated in remote mode the local voltage set
control has no effect.

5.1.6. OVP Indicator LED (Ref 6)

Indicates the output has reached the OVP (Overvoltage limit) setpoint. The output will be
limited at this voltage.

5.1.7. OVP Limit Adjustment (Ref 7)

Single-turn screwdriver adjustable potentiometer to set the OVP limit. The OVP limit sets the
maximum output voltage that the supply will deliver, it will not exceed this set point.
Adjustment range is 1-100% of rated voltage. With the OUTPUT OFF, turn the voltage
potentiometer (Item 4 in Figure 1) clockwise to its limit and push the SET VALUES switch to
display set values. Using a screwdriver, adjust the OVP limit with the V-LIMIT potentiometer
(Item 6 in Figure 1). The V-LIMIT LED is illuminated and the limit voltage is displayed on the
VOLTAGE meter.

To operate with no output voltage limit, turn the V-LIMIT potentiometer fully clockwise. The
V-LIMIT LED will extinguish.

Once the OVP Limit has been set, turn the VOLTAGE potentiometer back to the desired set
point and switch display mode to actual values by pressing SET VALUES (Item 7 in Figure

1).
Note: OVP is always active in LOCAL, REMOTE, Analog or Digital programming modes.

5.1.8. Set Value Button (Ref 8)

Toggles the output voltage and current displays between Actual output Voltage/Current and
the Set Values. The displays flash when they are in the Set Values mode.

18

83550001 Revision C

DO NOT DEPRESS THE HV ON PUSH-BUTTON UNLESS A
SUITABLE LOAD IS CONNECTED TO THE POWER SUPPLY'S
OUTPUT CABLE, AND THE LOAD IS CORRECTLY GROUNDED.

5.1.9. CC Indicator LED (Ref 9)

Indicates the unit is in CC (Constant Current) mode. The power supply regulates the output
current at the selected value, while the voltage varies with the load requirement. Display is
active in local and remote

(1)

modes.

5.1.10. Output Current Control (Ref 10)

The local current set control is a lockable analog 10-turn potentiometer with precision dial, for
setting the output current from 0.1% to 100% of rated. This control will only operate in local
mode, if the supply is operated in remote mode the local current set control has no effect.

5.1.11. Current Display (Ref 11)

The Current Display is a 4½ digit LED indicator showing the current measured at the power
supply output. This display flashes and displays the programmed output current after the Set
Value button is depressed. Display is active in local and remote

(1)

modes.

5.1.12. Power Switch (Ref 12)

AC Power Switch. Provides two pole isolation from mains network.

5.1.13. HV ON LED (Ref 13)

Indicates the HV output is turned ON and potentially hazardous voltage may be present.

5.1.14. HV ON/OFF Button (Ref 14)

Turns HV Output ON/OFF (does not disconnect the HV output when OFF).

5.1.15. NEG LED (Ref 15)

When illuminated indicates the main output terminal polarity is Negative with respect to the
HV return. Only active if the reversible polarity option is installed.

5.1.16. POS LED (Ref 16)

When illuminated indicates the main output terminal polarity is Positive with respect to the
HV return. Only active if the reversible polarity option is installed.

5.1.17. Polarity Button (Ref 17)

Controls the output polarity of the supply. If the polarity switch is activated when the HV
output is ON, the supply turns the HV off momentarily, and then automatically turns HV ON
after the polarity has been switched. Only active if the reversible polarity option is installed.

5.1.18. Local LED (Ref 18)

Indicates that a supply equipped with remote analog or digital interface is operating in Local
control mode.

5.1.19. Local Remote Switch (Ref 19)

Toggles control mode of a supply equipped with remote analog or digital interface supply
between Local or Remote.

19

83550001 Revision C

3

4

6

7

1

2

5

5.1.20. Analog LED (Ref 20)

Indicates that a supply equipped with both remote analog and digital interfaces is operating
in remote control mode via the Analog interface.

5.1.21. Analog/Digital Remote Switch (Ref 21)

Toggles the control mode of a supply equipped with both remote analog and digital
interfaces between the remote Analog or Digital interface.

5.1.22. Digital LED (Ref 22)

Indicates that a supply equipped with both remote analog and digital interfaces is operating
in remote control mode via the Digital interface.

5.1.23. Busy LED (Ref 23)

Indicates presence of traffic on the optional Digital interface.

5.2. Rear Panel Layout

All of the interconnect and HV connections for the PHV supply are located on the power
supply rear panel.
Figure 2 shows the typical rear panel layout for the PHV half rack version with floating return,
with the location of the various connectors. Figure 3 shows the rear panel with the optional
Reversible output polarity.

Figure 2. PHV Half Rack Rear Panel Connections (140Watt model with floating return shown)

20

83550001 Revision C

REF

DESCRIPTION

NOTE

SECTION

1

HV Output

HV Output connector, mates with supplied connector

5.2.1

2

HV Return

HV Output Return

5.2.2

3

Digital Interface
(optional)

Location of optional digital interface connector

5.2.3

4

Remote
Interface

15pin sub-D type receptacle for remote analog control
interface

5.2.4

5

GND stud

M4 for 1ɸ AC inputs, M6 for 3ɸ AC inputs

5.2.5

6

Fuse

AC power fuse

5.2.6

7

AC Input

IEC 60320-C14 connector

5.2.7

1 2 6 7 5 3 4

Table 4. PHV Half Rack Rear Panel Functions

Figure 3. PHV Half Rack Rear Panel with Reversible Output

The function of each item in Table 4 is described in the following sections.

21

83550001 Revision C

5.2.1. HV Output Connector (Ref 1)

Main HV output, mates with the connector supplied with the unit. The connector should be
kept clean and free from debris at all times. The cable connector should only be hand
tightened. The HV output polarity is indicated by a label adjacent to the HV Connector
(blue=Negative; red=Positive, blue/red=Reversible), as well as a label on the front panel, and
the sign in the digital display.

5.2.2. HV Output Return (Ref 2)

HV Return Connection. Only for units equipped with the F option (floating HV return).
Connection can float up to 300V from ground. For all other models, HV return is internally
connected to ground inside the unit. Contact the factory before removing the ground
connection.

5.2.3. Optional Digital Interface (Ref 3)

Location of optional Digital control interface. Options are USB, IEEE-488, LAN (Ethernet),
RS232, RS422, RS485, Profibus.

5.2.4. Remote Analog Connector (Ref 4)

A 15 pin D-sub female connector that allows operation and monitoring of all power supply
functions when the unit is operated in REMOTE mode. A mating connector is supplied with
the unit.

5.2.5. Safety Ground (Ref 5)

M4 for 1ɸ AC inputs, M6 for 3ɸ AC inputs. Should be used for additional safety ground cable
between supply and load circuit.

5.2.6. AC Line Fuse (Ref 6)

AC line fuse built in to input connector. Fuse type and rating is shown on the model number
label. Units with 3ɸ AC inputs feature a circuit breaker.

5.2.7. AC Input Connector (Ref 7)

AC input connector for single phase models up to and including 700W. Outputs from
14Watts to 350Watts, connector type is IEC 60320-C14, for 700Watts connector is IEC
60320-C19.

For models rated above 700Watts, Phoenix HDFK4 terminal blocks are provided.

22

83550001 Revision C

This Page Left Intentionally Blank

23

83550001 Revision C

HIGH VOLTAGES MAY POTENTIALLY EXIST FROM THIS POINT FORWARD.
ENSURE HV OUTPUT IS IN THE OFF POSITION BEFORE COMMENCING.

6. LOCAL OPERATION

Follow the steps below to operate the PHV supply in Local mode.

6.1. Set the Control Mode

If an optional interface is installed, ensure front panel LOCAL/REMOTE switch is depressed
and the unit is in Local Mode (Item 18 in Figure 1).

6.2. Turn on AC power

Turn ON the POWER switch (Item 11 in Figure 1). The HV output will remain OFF, and the
Local LED (Item 17 in Figure 1) illuminates, indicating local operation.

6.3. Select desired output polarity

If optional polarity reversal is installed (Item 16 in Figure 1), set the switch to the desired
position.

6.4. Set the output OVP Limit

With the OUTPUT OFF, turn the voltage potentiometer (Item 4 in Figure 1) clockwise to its
limit and push the SET VALUES switch to display set values (display flashes). Using a
screwdriver, adjust the OVP Set Point with the V-LIMIT potentiometer (Item 6 in Figure 1).
The V-LIMIT LED illuminates and the limit voltage is displayed on the VOLTAGE meter.

To operate with no output voltage limit, turn the V-LIMIT potentiometer fully clockwise. The
V-LIMIT LED will extinguish.

Once the OVP limit has been set, turn the VOLTAGE potentiometer back to the desired set
point and switch display mode to actual values by pressing SET VALUES (Item 7 in Figure

1).
Note: OVP is always active in LOCAL, REMOTE, Analog or Digital programming modes.

6.5. Set the desired output voltage/current levels

To set the output voltage/current, push the SET VALUES (Item 7 in Figure 1) button, and the
voltage/current displays will Flash and show the set points. To display the setpoint
continuously, push and hold the SET VALUES button for approximately 2 seconds.

Adjust the Voltage and Current potentiometers (Items 4/9 in Figure 1) to the desired values.
Push the SET VALUES button again to return to the actual output mode (the displays will not
flash). The potentiometers provide an adjustment range from approximately 0.1% to 100% of
the rated value.

6.6. Turning ON the output

After adjusting the SET VALUES, the output can be turned on by pushing the OUTPUT
button (Item 13 in Figure 1). The ON LED will illuminate (Item 12 in Figure 1) to show the HV
output is ON.

83550001 Revision C

24

6.7. CC/CV Mode Indication

Depending on the output voltage and current settings and the load circuit, the power supply
will operate in either constant voltage CV or constant current mode CC and the corresponding
LED (Item 3 or 8 in Figure 1) will be illuminated.

6.8. Turning the unit OFF

Turn OFF the HV output by pushing the OUTPUT button (Item 13 in Figure 1). The ON LED
will extinguish (Item 12 in Figure 1) to show the HV output is OFF.

Wait until the output voltage has reached a safe potential, then turn off the POWER switch
(Item 11 in Figure 1).

This procedure is inherently safe, because it allows the user to observe any residual load
energy discharge and verify the output voltage is at a safe level.

Turning AC POWER OFF immediately is NOT recommended, because any residual
stored energy in the output/load may remain at a dangerously high voltage for some
time, and this voltage is not displayed on the unit’s VOLTAGE meter.

25

83550001 Revision C

Pin

Signal
Name

I/O

Description

1

CC LED

O

+15V through 10k when unit is operating in Constant Current mode

2

CV LED

O

+15V through 10k when unit is operating in Constant Voltage mode

3

I-MON

O

Analog output current monitor signal, scaled 0-10V=0-100% rated
current. Series resistance is 10k

4

VPS

O

Front panel voltage potentiometer wiper connection, scaled 0-10V=0­100% rated voltage. Series resistance is 10k

5

IPS

O

Front panel current potentiometer wiper connection, scaled 0-10V=0­100% rated voltage. Series resistance is 10k

6

Digital
Ground

Ground for digital circuits

7

POL-SET

I

Polarity set signal for units equipped with optional electronic polarity
reversal. Open=positive polarity, connected to digital ground=negative
polarity.

8

V-SET

I

Output voltage set point, scaled 0-10V=0-100% rated voltage.
Resistance to ground approx. 10M

7. ANALOG REMOTE CONTROL OPERATION

All remote control cabling should be as short as possible with a maximum length of 10ft
(3.3m).

To control the PHV supply using Analog remote programming, the unit must be equipped
with either the non-isolated Analog interface or the isolated Analog interface options (INA). A
unit equipped with the isolated analog interface has a label or engraving “FLOATING
ANALOG PROGRAMMING” on the rear panel. If the unit is equipped with floating return, the
isolated analog interface should be specified.

The Analog remote control interface allows the user to remotely program the output
voltage/current, turn HV ON/OFF, reverse the output polarity
and current levels. The remote interface does not allow the user to set the OVP limit, this is
only possible via the front panel as described in section 6.4.

The 15-pin D-sub analog interface connector is located on the rear panel of the supply (see
Item 4 in Figure 2). A mating connector is shipped with the unit. It is suggested that interface
connections should use shielded cable with a minimum voltage rating of 500V.

The non-isolated analog interface features ground referenced control and feedback signals.
The optional isolated interface (INA option) features up to 2kV isolation from chassis ground.

7.1. The Non-Isolated Analog Interface (ANA option)

Note that analog and digital ground (pins 6 and 9) for the external programming
signals are directly connected to HV return/0V terminal. If the HV return has been
disconnected from chassis ground by removing the internal jumper, the

programming signals can float ±300 V.
The Accuracy, Linearity, Stability and Temperature coefficient specifications are not

compromised when programming via the non-isolated analog interface.
The available remote interface signals and pin assignments are shown in Table 5 below.

(1)

, and readback output voltage

26

83550001 Revision C

Pin

Signal
Name

I/O

Description

9

Analog
Ground

Analog ground

10

+10V

O

+10V reference, 2mA max

11

V-MON

O

Analog output voltage monitor signal, scaled 0-10V=0-100% rated
voltage. Series resistance is 10k

12

HV ON

I

Open=HV OFF, Connect to digital ground=HV ON

13

POL­Status

O

Output Polarity indicator for units equipped with optional electronic
polarity reversal. +12V=Positive, 0V=Negative.

14

N/C

Not connected

15

I-SET

I

Output current set point, scaled 0-10V=0-100% rated current.
Resistance to ground approx. 10M

Table 5. Non-Isolated Analog Interface Signals (ANA option)

7.1.1. Typical Remote Operation

Set the LOCAL/REMOTE switch (see Item 18 in Figure 2) to the REMOTE position, the
LOCAL LED will extinguish.

If the power supply also features a Digital interface option, then set the DIGITAL/ANALOG
switch (see Item 20 in Figure 2) to the ANALOG position, the ANALOG LED will illuminate.

The power supply can now be controlled via the analog interface (see Item 4 in Figure 2),
with the output voltage and current levels set by 0-10V signals, and HV ON/OFF function
by switches or relay contacts.

Some examples for operating the unit in various combinations of LOCAL and REMOTE
modes are shown in sections 7.1.2 through 7.1.4.

7.1.2. Remote HV ON/OFF with LOCAL voltage/current controls (ANA option only)

Connect a switch between Pin 12 and Pin 6 to turn HV ON/OFF (closed=ON, open=OFF).
Hard wire Pin 5 to Pin 15 and Pin 4 to Pin 8. This setup allows the HV Output to be turned
ON and OFF remotely, but the front panel potentiometers still set the output voltage and
current. This connection will only work with the non-isolated analog interface option (ANA
option).

7.1.3. HV Output is always ON, REMOTE Voltage and Current programming (ANA
option only)

Hard wire Pin 12 and 6 to turn ON the output. Connect 0-10V to Pin 8 to program the output
voltage, and 0-10V to Pin 15 to program the output current. The internal 10V reference (Pin

10) can be used with external potentiometers to generate the program signals.

7.1.4. HV Output is always ON, REMOTE Voltage programming, Current set to 100%
rated value

Hard wire Pin 12 and 6 to turn ON the output. Connect 0-10V to Pin 8 to program the output
voltage. Hard wire Pin 15 to Pin 10 to set the current to 100% of rated.

27

83550001 Revision C

Pin

Signal
Name

I/O

Description

1

CC LED

O

+15V through 10k when unit is operating in Constant Current mode

2

CV LED

O

+15V through 10k when unit is operating in Constant Voltage mode

3

I-MON

O

Analog output current monitor signal, scaled 0-10V=0-100% rated
current. Series resistance is 11k

4

N/C

Not connected

5

N/C

Not connected

6

Digital
Ground

Ground for digital circuits, Isolated from chassis to 2,000V

7

POL-SET

I

Polarity set signal for units equipped with optional electronic polarity
reversal. Open=positive polarity, connected to digital ground=negative
polarity.

8

V-SET

I

Output voltage set point, scaled 0-10V=0-100% rated voltage.
Resistance to ground approx. 10M

9

Analog
Ground

Analog ground, Isolated from chassis to 2,000V

10

+10V

O

+10V reference, 2mA max.

11

V-MON

O

Analog output voltage monitor signal, scaled 0-10V=0-100% rated
voltage. Series resistance is 11k

12

HV ON

I

Open=HV OFF, Connect to digital ground=HV ON

13

POL­Status

O

Output Polarity indicator for units equipped with optional electronic
polarity reversal. +12V=Positive, 0V=Negative.

14

N/C

Not connected

15

I-SET

I

Output current set point, scaled 0-10V=0-100% rated current.
Resistance to ground approx. 10M

7.2. Isolated Analog Programming (INA option)

The INA option features galvanically isolated analog voltage/current programming/readback,
and digital control/readback connections. Signals are isolated using fiber optics. The
Accuracy, Linearity, Temperature coefficient and Stability specifications are limited to
±0.01% when programming via the isolated analog interface. If the unit is equipped with
floating return, the isolated analog interface should be specified.

The interface pin connections are similar to the ANA interface except the front panel
potentiometer wipers (pins 4 and 5) are not connected. Details are shown in Table 6 below.

Table 6. Isolated Analog Interface Signals (INA option)

Remote operation via the INA interface is the same as the ANA interface. Note that the
control modes described in sections 7.1.2 through 7.1.4 cannot be used.

28

83550001 Revision C

This Page Left Intentionally Blank

29

83550001 Revision C

8. DIGITAL REMOTE CONTROL OPERATION

The PHV series is available with a wide range of optional digital control interfaces. The
interface must be specified at the time of ordering. The digital interface connector is located
on the rear panel of the unit (see Figure 2 and Figure 3).

Available interfaces are;

LAN
USB
IEEE-488
RS232
RS422

Contact the factory for the availability of other digital interface options.
The digital interface allows the user to program and readback output voltage and current,

turn ON/OFF the HV output, and ramp outputs at defined rates among other functions. The
digital interface supports up to 2000 programming commands per second.

To operate the unit in Remote Digital mode, set the LOCAL/REMOTE switch (see Item 18 in
Figure 2) to the REMOTE position, the LOCAL LED will extinguish. If the power supply
also features an Analog interface option, then set the DIGITAL/ANALOG switch (see Item
20 in Figure 2) to the DIGITAL position, the DIGITAL LED will illuminate. Commands can
now be sent to the Digital interface; the BUSY LED will flash to indicate the presence of
traffic on the interface.

The remote digital interface does not allow the user to set the OVP limit, this must be done
via the front panel as described in section 6.4.

All Digital interface programming commands and setup information can be found in the
specific interface manual. Details are on our web site at www.us.tdk-lambda.com/hp.

30

83550001 Revision C

This Page Left Intentionally Blank

31

83550001 Revision C

9. PARALLEL OPERATION

Parallel operation of units with the same voltage and current ratings is possible using the
non-isolated analog interface. The interface must be installed on both units.

9.1. Parallel Master Slave operation with the Remote Analog Interface – Option 1

For basic parallel Master Slave operation, the set values for Voltage and Current on the
Master supply are used to program the output voltage and current of the Slave unit.

Connect Master Pin 4 to Slave Pin 8 for the Voltage channel, and Master Pin 5 to Slave Pin
15 for the Current channel. Hard wire Slave Pin 12 to Slave Pin 6 to turn on the HV output.
The HV output cables must be connected together at the load.

9.2. Parallel Master Slave operation with the Remote Analog Interface – Option 2

Connect the current monitor output of the Master (Pin 3) to the Current Program Input of the
Slave (Pin 15). The output voltage of the slave is set to the rated value by hard wiring the
Slave connector Pins 8 and 10 together. Hard wire Slave Pin 12 to Slave Pin 6 to turn on the
HV output. This connection ensures current sharing with parallel units. The Voltage set point
is controlled by the Master supply either in Local or Remote control as required.

32

83550001 Revision C

This Page Left Intentionally Blank

33

83550001 Revision C

Notes

34

83550001 Revision C

If there are any other application issues or questions that are not covered in this
manual, please do not hesitate to contact the factory and our team of experienced
HV application engineers.

Contact the Factory – We are here to help!

Tel: [phone] x229

Fax: [phone]

35

83550001 Revision C
