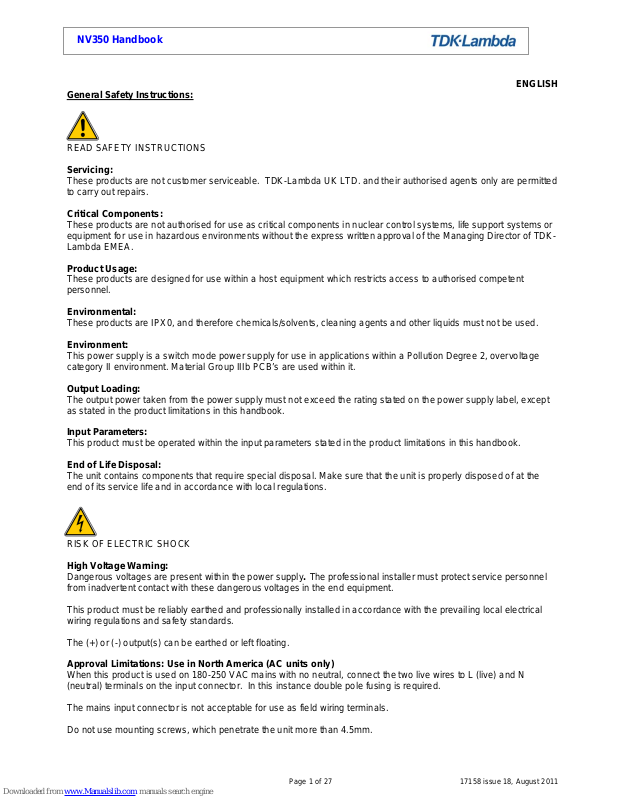

TDK-Lambda NV350 Handbook

Page 1 of 27 17158 issue 18, August 2011
NV350 Handbook
ENGLISH
General Safety Instructions:
READ SAFETY INSTRUCTIONS
Servicing:
These products are not customer serviceable. TDK-Lambda UK LTD. and their authorised agents only are permitted to carry out repairs.
Critical Components:
These products are not authorised for use as critical components in nuclear control systems, life support systems or equipment for use in hazardous environments without the express written approval of the Managing Director of TDK­Lambda EMEA.
Product Usage:
These products are designed for use within a host equipment which restricts access to auth orised competent personnel.
Environmental:
These products are IPX0, and therefore chemicals/solvents, cleaning agents and other liquids must not be used.
Environment:
This power supply is a switch mode power supply for use in applications within a Pollution Degree 2, overvoltage category II environment. Material Group IIIb PCB’s are used within it.
Output Loading:
The output power taken from the power supply must not exceed the rating stated on the power supply label, except as stated in the product limitations in this handbook.
Input Parameters:
This product must be operated within the input parameters stated in the product limitations in this handbook.
End of Life Disposal:
The unit contains components that require special disposal. Make sure that the unit is properly disposed of at the end of its service life and in accordance with local regulations.
RISK OF ELECTRIC SHOCK
High Voltage Warning:
Dangerous voltages are present within the power supply. The professional installer must protect service personnel from inadvertent contact with these dangerous voltages in the end equipment.
This product must be reliably earthed and professionally installed in accordance with the prevailing local electrical wiring regulations and safety standards.
The (+) or (-) output(s) can be earthed or left floating. Approval Limitations: Use in North America (AC units only)
When this product is used on 180-250 VAC mains with no neutral, connect the two live wires to L (live) and N (neutral) terminals on the input connector. In this instance double pole fusing is required.
The mains input connector is not acceptable for use as field wiring terminals. Do not use mounting screws, which penetrate the unit more than 4.5mm.
Page 2 of 27 17158 issue 18, August 2011
NV350 Handbook
Special earthing screws are used on these products which connect the cover to the chassis. They must not be removed. If they are removed by mistake, they must be replaced with new ones and the product tested for earth bonding.
An internal fuse protects the unit and must not be replaced by the user. In case of internal defect, the unit must be returned to TDK-Lambda UK LTD or one of their authorised agents.
These products are Class 1 and must therefore be reliably earthed and professionally installed in accordance with the prevailing electrical wiring regulations and the safety standards covered herein.
A suitable mechanical, electrical and fire enclosure must be provided by the end use equipment for mechanical, electric shock and fire hazard protection.
Energy Hazards: Certain modules are capable of providing hazardous energy (240VA) according to output voltage setting. Final equipment manufacturers must provide protection to service personnel against inadvertent contact with these module output terminals. If set such that hazardous energy can occur then the module terminals or connections must not be user accessible.
HOT SURFACE
External Hot Surfaces:
In accordance with local regulations for Health and Safety at work, manufacturers have an obligation to protect service engineers as well as users. In order to comply with this, a label must be fitted to these products which is clearly visible to service personnel accessing the overall equipment, and which legibly warns that surfaces of these products may be hot and must not be touched when the products are in operation.
The ventilation openings on these products must not be impeded. Ensure that there is at least 50mm spacing between any obstruction and the ventilation openings.
The unit may be mounted in any orientation except inverted (mounted on its top) or vertical with the airflow downwards.
The unit cover/chassis is designed to protect skilled personnel from hazards. They must not be used as part of the external covers of any equipment where they may be accessible to operators, since under full load conditions, part or parts of the unit chassis may reach temperatures in excess of those considered safe for operator access.
On units with end fans and IEC 60320 connector, the fan and connector end of the unit is permitted to be user accessible. (Not for 60601-1 standards compliance).
Page 3 of 27 17158 issue 18, August 2011
NV350 Handbook
DEUTSCH
Allgemeine Sicherheitsvorschriften:
LESEN SIE DIE SICHERHEITSVORSCHRIFTEN
Wartung:
Diese Produkte können nicht durch den Kunden gewartet werden. Nur TDK-Lambda UK LTD. und deren zugelassene Vertriebshändler sind zur Durchführung von Reparat uren berechtigt.
Kritische Komponenten:
Diese Produkte sind nicht für die Verwendung als kritische Komponenten in nuklearen Kontro llsystemen, Lebenserhaltungssystemen oder Geräten in gefährlichen Umgebungen geeign et, sofern die s nicht ausdrücklich und in Schriftform durch den Geschäftsführer von TDK-Lambda EMEA genehmigt wurde.
Produktverwendung:
Diese Produkte sind zur Verwendung innerhalb von Host-Anlagen gedacht, die einen auf das Fachpersonal beschränkten Zugang haben.
Umwelt:
Diese Produkte sind IPX0, aus diesem Grund dürfen keine Chemikalien/Lösungsmittel, Reinigungsmittel und andere Flüssigkeiten verwendet werden.
Umgebung:
Dieses Netzteil ist ein Schaltnetzteil zur Verwendung in einer Umgebung mit einem Verschmutzungsgrad 2, Überspannungskategorie II. Materialgruppe IIIb mit darin verwendeten PCBs.
Ausgangsstrom:
Der Ausgangsstrom des Netzteiles darf die Leistung, die auf dem Label des Netzteiles vermerkt ist, nur dann überschreiten, wenn dies in den Produktgrenzen dieses Handbuches ausgezeichnet ist.
Eingangsparameter:
Dieses Produkt muss innerhalb der Eingangsparameter, die in den Produktgrenzen dieses Handbuches angegeben sind, betrieben werden.
Entsorgung am Ende der Betriebszeit:
Das Gerät enthält Komponenten die unter Sondermüll fallen. Das Gerät muss am Ende der Betriebszeit ordnungsgemäß und in Übereinstimmung mit den regionalen Bestimmungen entsorgt werden.
GEFAHR VON ELEKTRISCH ERSCHÜTTERUNG
Hochspannungswarnung:
Innerhalb des Netzteiles gibt es gefährliche Spannungen. Der Elektroinstallateur muss das Wartungspersonal vor versehentlichem Kontakt mit den gefährlichen Spannungen im Endgerät schützen.
Dies Produkt muss sicher geerdet und von qualifiziertem Personal in Übereinstimmung mit den gültigen regionalen Bestimmungen zu Verdrahtungen sowie den Sicherheitsstandards installiert werden.
Die (+) oder (-) Ausgänge können geerdet werden oder unangeschlossen bleiben.
Genehmigungsgrenzen: Verwendung in Nordamerika (nur AC-Geräte)
Wenn dieses Produkt an eine 180-250 VAC Hauptleitung ohne Nullleiter angeschlossen wird, müssen die beiden stromführenden Leitungen an die Anschlüsse L (stromführend) und N (Nullleiter) in der Eingangsverbindung angeschlossen werden. In diesem Fall ist eine zweipolige Sicherung erforderlich.
Der Haupteingangsanschluss ist nicht für die Verwendung als Feldverdrahtungsan schluss geeignet. Verwenden Sie keine Befestigungsschrauben, die mehr als 4.5mm in das Gerät eindringen.
Page 4 of 27 17158 issue 18, August 2011
NV350 Handbook
Zur Befestigung der Abdeckung am Gehäuse werden für diese Produkte spezielle Erdungsschrauben verwendet. Diese dürfen nicht entfernt werden. Sollten sie versehentlich entfernt werden, müssen sie durch neue ersetzt und das Produkt auf Erdschluss geprüft werden.
Eine interne Sicherung schützt das Gerät und darf durch den Benutzer nicht ausgetauscht werden. Im Fall von internen Defekten muss das Gerät an TDK-Lambda UK LTD oder einen der autorisi erten Vertriebshändler zurückgeschickt werden.
Diese Produkte sind Produkte der Klasse 1 und müssen daher sicher geerdet und von qualifiziertem Personal in Übereinstimmung mit den gültigen regionalen Bestimmungen zu Verdrahtungen sowie den Sicherheitsstandards installiert werden.
Ein geeignetes mechanisches, elektrisches und brandgeschütztes Gehäuse muss al s Schutz vor der Gefahr von mechanischen Risiken, Stromschlägen und Brandschutz in dem Endgerät vorgesehen werden.
Gefahren durch elektrische Energie: Von bestimmten Modulen kann je nach Einstellung der Ausgangsspannung gefährlich e elektrische Energie ausgehen (240 VA). Die Endgerätehersteller müssen einen Schutz für Servicepersonal vor unbeabsi chtigtem Kontakt mit den Ausgangsanschlüssen dieser Module vorsehen. Kann aufgrund der Einstellung gefährliche elektrische Energie auftreten, dürfen die Modulanschlüsse für den Benutzer nicht zugänglich sein.
HEISSE OBERFLÄCHEN
Äußere heiße Oberflächen:
In Übereinstimmung mit den regionalen Bestimmungen für Gesundheit und Sicherheit bei der Arbeit ist der Hersteller für den Schutz von Wartungspersonal und Benutzern verantwortlich. Um diesen Bestimmungen gerecht zu werden, muss auf den Produkten ein Label angebracht werden, das deutlich sichtbar für das Wartungspersonal mit Zugriff auf die gesamte Anlage ist, und das gut lesbar auf die eventuell heiße Oberfläche des Gerätes hinweist und das Berühren des Produktes in Betrieb untersagt.
Die Belüftungsöffnungen an diesem Produkt dürfen nicht blockiert werden. Achten Sie darauf, dass mindestens 50 mm Abstand zwischen Hindernissen und den Belüftungsöffnungen bleibt.
Das Gerät darf in jeder Position befestigt werden, mit Ausnahme über Kopf (umgekehrt) oder vertikal mit dem Luftstrom abwärts.
Die Geräteabdeckung/das Gehäuse ist so entworfen, dass das Fachpersonal vor Gefahren ge schützt wird. Sie dürfen nicht als Teil der externen Abdeckung für Geräte verwendet werden, die für den Betreiber zugänglich sein müssen, da Teile oder das gesamte Gerätegehäuse unter voller Auslastung übermäßige Temperature n erreichen kann, die für den Zugang des Betreibers nicht mehr als sicher betrachtet werden.
An Geräten mit Endlüftern und IEC 60320 Anschluss, kann das Ende des Gerätes, in dem der Lüfter und der Anschluss untergebracht sind, für den Benutzer zugänglich sein.
Page 5 of 27 17158 issue 18, August 2011
NV350 Handbook
FRANÇAIS
Consignes de sécurité générale:
LIRE LES CONSIGNES DE SECURITE
Entretien:
Ces produits ne peuvent pas être réparés par le client. Seul, TDK-Lambda UK LTD et ses agents agréés sont autorisés à effectuer des réparations.
Composants critiques:
Ces produits ne doivent pas être utilisés en tant que composants critiques dans des systèmes de comm ande nucléaire, dans des systèmes de sauvetage ou dans des équipe ments utilisés dans des environnements dangereux, sans l'autorisation écrite express du directeur général de TDK-Lambda EMEA.
Utilisation du produit:
Ces produits sont conçus pour être utilisés dans un équipement hôte dont l'accès n'est autorisé qu'aux personnes compétentes.
Environnement:
Ces produits sont IPX0, et donc on ne doit pas utiliser des produits chimiques/solvants, des produits de nettoyage et d'autres liquides.
Environnement:
Cette alimentation fonctionne en mode commutation pour utilisation dans des applications fonctionnant dans un environnement avec Pollution Degré 2 et catégorie surtension II. Elle utilise des cartes de circuits imprimés (PCB) Groupe IIIb.
Intensité soutirée:
L'intensité soutirée de l'alimentation ne doit pas dépasser l'intensité nominale marquée sur la plaque signalétique, sauf indications contraires dans les limitations du produit dans ce manuel.
Paramètres d'entrée:
Ce paramètre doit être utilisé à l'intérieur des paramètres d'entrée indiqués dans les limitations du produit dans ce manuel.
Elimination en fin de vie:
L'alimentation contient des composants nécessitant des mesures spéciale s pour leur élimination. Vérifiez que cette alimentation est éliminée correctement en fin de vie utile et conformément aux réglementations locales.
RISQUE DE CHOC ELECTRIQUE
Attention-Danger haute tension:
Des tensions dangereuses sont présentes dans l'alimentation. L'installateur doit protéger le personnel d'entretien contre un contact involontaire avec ces tensions dangereuses dans l'équipement final.
Ce produit doit être raccordé à une terre fiable et installé par des professionnels en respectant les réglementations locales de câblages électriques en vigueur et les normes de sécurité.
Les sorties (+) ou (-) peuvent être raccordées à la terre ou laissées flotttantes.
Limitations approuvées : Utilisation en Amérique du Nord (alimentations AC seulement)
Si ce produit est utilisé sur une alimentation principale 180-250 VAC sans neutre, raccordez les deux fils de phase aux bornes L (phase) et N (neutre) sur le connecteur d'entrée. Dans ce cas, un fusible bipolaire est nécessaire.
Le connecteur d'entrée d'alimentation principale ne doit pas être utilisé comme borne de raccordement.
Page 6 of 27 17158 issue 18, August 2011
NV350 Handbook
N'utilisez pas de vis pénétrant dans le module sur une profondeur supérieure à 4. 5 mm. Des vis de terre spéciales sont utilisées sur ces produits pour raccorder le couvercle au châssis. Elles ne doivent
pas être enlevées. Si elles sont enlevées par erreur, elles doivent être remplacées et le produit doit être testé pour vérifier que le raccordement à la terre est correct.
Un fusible interne protège le module et ne doit pas être remplacé par l'utilisateur. En cas de défaut interne, le module doit être renvoyé à TDK-Lambda UK LTD ou l'un de ses agents agréés. Ces produits sont des produits Classe 1 et donc doivent être raccordés à une terre fiable et installés par u n professionnel en respectant les réglementations de câblage élect rique en vigueur et les normes de sécurité indiquées ici.
Ces produits sont des produits Classe 1 et donc doivent être raccordés à une terre fiable et installés par u n professionnel en respectant les réglementations de câblage élect rique en vigueur et les normes de sécurité indiquées ici.
Une enceinte appropriée doit être prévue par l'utilisateur final pour assurer la protection contre les chocs mécaniques, les chocs électriques et l'incen die.
Energies dangereuses : Certains modules peuvent générer une énergie dangereuse (240 VA) selon le réglage de tension de sortie. Le fabricant de l'équipement final doit assurer la protection des techniciens d'entretien contre un contact involontaire avec les bornes de sortie de ces modules. Si une telle tension dangereuse risque de se produi re, les bornes ou les connexions du module ne doivent pas être accessibles par l'utilisateur.
SURFACE CHAUDE
Surfaces chaudes extérieures:
Conformément aux réglementations locales concernant la santé et la sécurité sur les lieux de travail, les fabricants doivent protéger les techniciens d'entretien et les utilisateurs. Pour cela, une plaque signalétique doit être installée sur ces produits, et cette plaque doit être bien visible pour les techniciens d'entretien interven ant sur l'équipement, et elle doit indiquer de manière bien visible que les surfaces de ces produits peuvent être chaud es et qu'elles ne doivent pas être touchées lorsque les produits fonctionnent.
Le module peut être monté suivant une orientation quelconque, sauf en position inversée (monté sur son sommet) ou en position verticale avec écoulement d'air descendant.
Les orifices de ventilation sur ces produits ne doivent pas être obstrués. Vérifiez qu'il y a un espace libre d'au moins 50 mm entre une obstruction et l'orifice de ventilation.
Le couvercle et le châssis du module sont conçus pour protéger des personn els expérimentés. Ils ne doivent pas être utilisés comme couvercles extérieurs d'un équipement, accessible aux opérateurs car en condition de puissance maximum, des parties du châssis peuvent atteindre des températures considérées comme dangereuses pour l'opérateur.
Sur les modules avec ventilateurs d'extrémité et connecteur IEC 60320, le ventilateur et le connecteur sont accessibles pour l'utilisateur.
Page 7 of 27 17158 issue 18, August 2011
NV350 Handbook
ITALIANO Norme generali di sicurezza:
SI PREGA DI LEGGERE LE NORME DI SICUREZZA
Manutenzione:
Il cliente non può eseguire alcuna manutenzione su questi prodotti. L'esecuzione delle eventuali riparazioni è consentita solo a TDK-Lambda UK LTD e ai suoi agenti autorizzati.
Componenti critici:
Non si autorizza l'uso di questi prodotti come componenti critici all'interno di sistemi di cont rollo nucleari, sistemi necessari alla sopravvivenza o apparecchiature destinate all'impiego in ambienti pericolosi, senza l'espli cita approvazione scritta dell'Amministratore Delegato di TDK-Lambda EMEA.
Uso dei prodotti:
Questi prodotti sono progettati per l'uso all'interno di un'apparecchiatura ospite che limiti l'accesso al solo personale competente e autorizzato.
Condizioni ambientali:
Questi prodotti sono classificati come IPX0, dunque non devono essere utilizzati sostanze chimiche/solventi, prodotti per la pulizia o liquidi di altra natura.
Ambiente:
Questo prodotto è un alimentatore a commutazione, destinato all'uso in applicazioni rientranti in ambienti con le seguenti caratteristiche: Livello inquinamento 2, Categoria sovratensione II. Questo prodotto contiene schede di circuiti stampati in materiali di Gruppo IIIb.
Carico in uscita:
La potenza in uscita ottenuta dall'alimentatore non deve superare la potenza nomi nale indicata sulla targhetta dell'alimentatore, fatto salvo dove indicato nei limiti per i prodotto specificati in questo manuale.
Parametri di alimentazione:
Questo prodotto deve essere utilizzato entro i parametri di alimentazione indicati nei limiti per il prodotto, specificati in questo manuale.
Smaltimento:
L'unità contiene componenti che richiedono procedure speciali di smaltimento. Accertarsi che l'unità venga smaltita in modo corretto al termine della vita utile e nel rispetto delle normative locali.
RISCHIO DI SCOSSA ELETTRICA
Avvertimento di alta tensione:
All'interno dell'alimentatore sono presenti tensioni pericolose. Gli installatori profession ali devono proteggere il personale di manutenzione dal rischio di contatto accidentale con queste tensioni pericolose all'interno dell'apparecchiatura finale.
Questo prodotto deve essere messo a terra in modo affidabile e installato in modo professionale, nel rispetto delle norme di sicurezza e dei regolamenti vigenti in ambito locale in materia di collegamenti elettrici.
Le uscite (+) o (-) possono essere messa a terra o lasciate isolate.
Page 8 of 27 17158 issue 18, August 2011
NV350 Handbook
Limiti di approvazione: Uso in America Settentrionale (solo per le unità a CA)
Se il prodotto è utilizzato su reti a 180 - 250 VCA senza neutro, collegare i due fili sotto tensione ai terminali L (sotto tensione) e N (neutro) sul connettore di alimentazione. In tal caso è necessaria protezione con un fusibile bipolare.
Il connettore dell'alimentazione principale non può essere utilizzato come terminale di collegamento di campo. Non utilizzare viti che penetrano nell'unità per più di 4.5 mm. Per questi prodotti vengono usate viti speciali di messa a terra, che collegano il coperchio al telaio. Tali viti non
devono essere rimosse. Se le viti vengono tolte per errore, vanno sostituite con nuove viti ed occorre testare il prodotto per verificarne il collegamento a massa.
Un fusibile interno protegge l'unità e non deve essere sostituito dall'utente. Nell'eventualità di un difetto interno, restituire l'unità a TDK-Lambda UK LTD o a uno dei suoi agenti autorizzati.
Questi prodotti sono di Classe 1 e come tali devono essere messi a terra in modo affidabile e installati in modo professionale, nel rispetto dei regolamenti vigenti in ambito locale in materia di collegamenti elettrici e nelle norme di sicurezza in essi contemplati.
L'apparecchiatura finale deve includere una recinzione meccanica, elettrica e antincendio per proteggere dai pericoli di natura meccanica, dalle scosse elettriche e dai pericoli di incendio.
Pericoli energetici: Alcuni moduli sono in grado di erogare energia pericolosa (240 VA) a seconda della tensione in uscita impostata. I produttori delle apparecchiature finali sono tenuti a proteggere il personale di manutenzione dal rischio di contatto accidentale con questi terminali dei moduli di uscita. Se impostati su livelli che non escludono l'erogazione di energia pericolosa, questi terminali o collegamenti non devono risultare accessibili da parte dell'utente.
SUPERFICIE CALDA
Superfici esterne calde:
Coerentemente con le norme locali in materia di salute & sicurezza professionali, i produttori sono tenuti a salvaguardare i tecnici di manutenzione, e inoltre gli utenti. Per far fronte a tali obblighi, i prodotti devono presentare una targhetta, chiaramente visibile al personale di manutenzione che accede all'apparecchiatura nel complesso e che risulti inoltre leggibile e avverta gli addetti del rischio che le superfici di questi prodotti possono scottare e non vanno toccate con i prodotti in funzione.
L'unità può essere installata in qualunque orientamento, ma non in posizione capovolta o in posizi one verticale con il flusso dell'aria rivolto verso il basso.
Le griglie di ventilazione su questi prodotti non devono essere ostruite. Verificare che vi sia una distanza minima di 50 mm fra le griglie di ventilazione e qualsiasi eventuale ostruzione.
Il coperchio/telaio dell'unità è realizzato per proteggere il personale esperto dai pericoli. Non deve essere usato come parte degli involucri esterni di qualsiasi apparecchiatura, se risulta accessibile da parte degli addetti, poiché è possibile che in condizioni di pieno carico una o più parti del telaio dell'unità giunga/giungano a temperature superiori ai limiti considerati sicuri per l'accesso da parte degli addetti.
Sulle unità provviste di ventole terminali e di connettori a norma IEC 60320, è possibile consentire all'utente accesso al lato della ventola e del connettore dell'unità.
Page 9 of 27 17158 issue 18, August 2011
NV350 Handbook
ESPAÑOL Instrucciones generales de seguridad:
LEA LAS INSTRUCCIONES DE SEGURIDAD
Servicio:
Estos productos no pueden ser reparados por los client es. TDK-Lambda UK LTD. y sus agentes autorizados son los únicos que pueden llevar a cabo las reparacio nes.
Componentes fundamentales:
Estos productos no pueden ser utilizados como componentes fundamentales en sistemas de control nuclear, sistemas de soporte vital o equipos a utilizar en entornos peligrosos sin el consentimiento expreso por escrito del Director General de TDK-Lambda EMEA.
Uso de los productos:
Estos productos han sido diseñados para ser utilizados en un equipo central que restrinja el acceso al personal cualificado autorizado.
Medioambiental:
Estos productos son IPX0 y, por tanto, no pueden utilizarse sustancias químicas/disolventes, agentes de limpieza ni otros líquidos.
Medio ambiente:
Esta fuente de alimentación es una fuente de alimentación de modo conmutado a utilizar en aplicaciones dentro de un entorno con un Grado de contaminación 2 y una Categoría de sobretensión II. En él se utilizan policloruros de bifenilo del Grupo de materiales IIIb.
Carga de salida:
La potencia de salida tomada de la fuente de alimentación no puede sobrepasar el valor nominal indicado en la etiqueta de la fuente de alimentación, excepto en los casos indicados en las limitaciones del producto e n este manual.
Parámetros de entrada:
Este producto debe ser utilizado dentro de los parámetros de entrada indicados en las limitaciones del producto en este manual.
Desecho de la unidad:
La unidad contiene componentes que deben ser desechados de una manera especial. Asegúrese de desechar correctamente la unidad al final de su vida útil y conforme a las normas locales vigentes.
PELIGRO DE DESCARGAS ELÉCTRICAS
Advertencia de alta tensión:
En esta fuente de alimentación hay tensiones peligrosas. El instalador profesional debe proteger al personal de servicio contra cualquier contacto accidental con estas tensiones peligrosas en el equipo final.
Este producto se puede conectar de forma fiable a tierra e instalar profesionalmente de conformidad con las regulaciones locales para los cableados eléctricos y las normas de seguridad vigentes.
La salida o salidas (+) o (-) pueden conectarse a tierra o se las puede dejar flotando.
Page 10 of 27 17158 issue 18, August 2011
NV350 Handbook
Limitaciones a las aprobaciones: de uso sólo en EE. UU. (sólo unidades de CA)
Cuando este producto se utilice en una red de 180-250 V CA sin un punto neutro, cone cte los dos cables activos a los bornes L (activo) y N (neutro) del conector de entrada. En este caso se necesita una protección por fusibles bipolar.
El conector de entrada de la red no es apto para ser utilizado a modo de bornes de cablead o de campo. No utilice tornillos de montaje susceptibles de penetrar en la unidad más de 4.5 mm. Con estos productos se utilizan unos tornillos de puesta a tierra especiales que conectan la cubierta al chasis. No se
deben quitar en ningún caso. En caso de quitarlos por error, hay que reemplazarlos por unos nuevos y comprobar la conexión a tierra del producto.
Un fusible interno protege la unidad y este no debe ser nunca reemplazado por el usuario. En caso de existir algún defecto interno, la unidad debe ser enviada a TDK-Lambda UK LTD o a uno de sus agentes autori zad os.
Estos productos son de Clase 1 y, por tanto, se deben conectar de forma fiable a tierra y sólo pueden se r instalados por profesionales de acuerdo con con las regulaciones sobre cableados eléctricos y las normas de seguridad vigentes cubiertas en este documento.
El equipo de uso final debe constituir un recinto de protección mecánica, eléctrica y contra incendios de protección mecánica, contra descargas eléctricas y contra el peligro de incendios.
Peligros de energía: Algunos módulos pueden generar energía peligrosa (240VA) dependiendo de la configuración de la tensión de salida. Los fabricantes de equipos finales deben proteger al personal de servicio contra un contacto accidental con estos bornes de salida de los módulos. Si se configura de modo que pueda generarse energía peligrosa, hay que evitar que el usuario pueda acceder a los bornes o conexiones del módulo.
SUPERFICIE CALIENTE
Superficies externas calientes:
Según las normas locales relativas a la Salud y Seguridad en el trabajo, los fabricantes están obligados a proteger a los ingenieros de servicio además de a los usuarios. Para que esto se cumpla, debe colocarse una etiqueta en estos productos que pueda ser vista claramente por el personal de servicio que accede al equipo general, y con advertencias legibles de que las superficies de estos productos pueden estar calientes y no deben tocarse cuando los productos se encuentran en funcionamiento.
La unidad se puede montar en cualquier orientación excepto invertida (montada sobre su parte de arriba) o vertical con los orificios para el flujo de aire mirando hacia abajo.
Las aberturas de ventilación de estos productos no deben obstruirse jamás. Asegúrese de que quede una separación de 50 mm por lo menos entre cualquier obstrucción y las abertura s de ventilación.
La cubierta/chasis de la unidad ha sido diseñada para que proteja a las personas cualificadas de los peligros. No deben ser utilizadas como parte de las cubiertas externas de cualquier equipo al que pueden acceder los operarios, ya que bajo unas condiciones de carga completa, la pieza o piezas del chasis de la unidad pueden alcanzar temperaturas superiores a las consideradas seguras para el acceso de los operarios.
En las unidades con ventiladores y un conector IEC 60320 finales, se debe permitir el acceso al usuario al extremo de la unidad donde se encuentra el ventilador y el conector.
Page 11 of 27 17158 issue 18, August 2011
NV350 Handbook
PORTUGUÊS Instruções gerais de segurança:
LEIA AS INSTRUÇÕES DE SEGURANÇA
Manutenção:
Estes produtos não são podem ser submetidos a manutenção por parte do cliente. Apenas a TDK-Lambda UK LTD e os seus agentes autorizados têm permissão para realizar reparações.
Componentes essenciais:
Não é autorizada a utilização destes produtos como componentes essenciais de sistemas de controlo nuclear, sistemas de suporte de vida ou equipamento para utilização em ambientes perigosos sem a expressa autoriza ção por escrito do Director-Geral da TDK-Lambda EMEA.
Utilização do produto:
Estes produtos foram concebidos para utilização dentro de um equipamento de alojamento que apenas permita o acesso a pessoal qualificado autorizado.
Ambiental:
Estes produtos são IPX0 e, como tal, não se devem utilizar químicos/solventes, agentes de limpeza e outros líquidos.
Ambiente:
Esta fonte de alimentação é uma fonte de alimentação do modo de comutação para utilização em aplicações com um Nível de Poluição 2 e ambientes da categoria de sobretensão II. São utilizadas placas de circuitos impressos do grupo de materiais IIIb.
Carga de saída:
A potência de saída extraída da fonte de alimentação não deve exceder a classificação assinalada na etiqueta da fonte de alimentação, excepto quando indicado nas limitações do produto neste guia.
Parâmetros de entrada:
Este produto deve ser utilizado dentro dos parâmetros de entrada indicados nas limitaçõe s do produto neste guia.
Eliminação no fim de vida:
A unidade contém componentes que necessitam de procedimentos especiais de eliminação. Certifique-se de que a unidade é devidamente eliminada no fim da sua vida útil e que tal é feito em conformidade com os regulamentos locais.
RISCO DE CHOQUE ELÉCTRICO
Aviso de alta tensão:
Estão presentes tensões perigosas dentro da fonte de alimentação. O profissional que realizar a instalação deve proteger o pessoal de assistência contra contactos inadvertidos com estas tensões pe rigosas do equipamento final.
Este produto deve ser ligado à terra de forma fiável e instalado por um profissional, de acordo com as normas de segurança e os regulamentos locais vigentes em relação a cablagens eléctricas.
As saídas (+) e (-) podem ser ligadas à terra ou deixadas soltas.
Page 12 of 27 17158 issue 18, August 2011
NV350 Handbook
Limitações da aprovação: Utilização na América do Norte (apenas unidades de corrente alternada)
Quando este produto é utilizado em fontes de alimentação 180-250 VAC sem ligação neutra, ligue o s dois cabos sob tensão aos terminais L (tensão) e N (neutro) do conector de entrada. Neste caso é necessário uma ligação de fusíveis de dois pólos.
O conector de entrada de alimentação não deve ser utilizado como terminal de cablagens no local. Não utilize parafusos de montagem, uma vez que estes penetrarão na unidade em mais do que 4.5 mm. Nestes produtos utilizam-se parafusos especiais de ligação à terra, que ligam a cobertura ao chassis. Não devem
ser removidos. Se forem removidos por engano, deverão ser substituídos por parafusos novos, deven do-se testar a ligação à terra do produto.
Existe um fusível interno que protege a unidade e que não deve ser substituído pelo utilizador. Em caso de defeito interno, a unidade deve ser devolvida à TDK-Lambda UK LTD ou a um dos seus agentes autorizados.
Estes produtos pertencem à Classe 1, devendo assim ser ligados à terra de forma fiável e instalado por profissionais, de acordo com os regulamentos locais vigentes em relação a cablagens eléctricas e as normas de segurança aqui mencionadas.
O equipamento de utilização final deve fornecer um bastidor com protecção mecânica, eléctrica e contra incêndios adequada.
Perigos de energia: Alguns módulos tem a capacidade de fornecer energia perigosa (240 VA), de acordo com a configuração da tensão de saída. O equipamento final do fabricante deve garantir que o pessoal de assistência está protegido contra contactos inadvertidos com estes terminais de saída do módulo. Se essa energia perigo sa for produzida, as ligações e os terminais do módulo não devem ser acessíveis pelos utilizadore s.
SUPERFÍCIE QUENTE
Superfícies quentes externas:
Segundo com os regulamentos locais sobre saúde e segurança no local de tra balho, os fabricantes têm a obrigação de proteger os técnicos de manutenção, bem como os utilizadores. De forma a respeitar este regulamento, estes produtos deverão ter uma etiqueta que seja facilmente visível ao pessoal de assistência que aceda ao equipamento em geral, e que alerte, de forma legível, para o facto de as superfícies destes produtos poderem estar quentes, não devendo ser tocadas quando os produtos estão em funcionamento.
A unidade pode ser instalada em qualquer posição, excepto invertida (montada sobre a parte superior), ou na posição vertical, com o fluxo de ar dirigindo-se para baixo.
As aberturas de ventilação destes produtos não devem ser obstruídas. Certifique-se de que existe um espaçamento de pelo menos 50 mm entre qualquer obstrução e as aberturas de ventilação.
O chassis/cobertura da unidade está concebido de forma a proteger o pessoal especializado de perigos. Não devem ser utilizados como parte das coberturas externas de qualquer equipamento em que possam estar acessíveis aos operadores, uma vez que em condições de carga máxima, algumas peças do chassis da unidade podem atingir temperaturas superiores às consideradas seguras para o acesso do ope rador.
Em unidades com ventiladores finais e conectores IEC 60320, o lado do ventilador e do conector da unidade pode estar acessível ao utilizador.
Page 13 of 27 17158 issue 18, August 2011
NV350 Handbook
Special Instructions for medical applications (IEC 60601-1:1988 + A1:1991 + A2 :1995; EN 60601-1: 1990 + A1:1993 + A2:1995; UL 60601-1, 1st Edition, 2006-04-26 (includes National Differences for USA) CAN/CSA­C22.2 No. 601.1-M90 (R2005) (includes National Differences for Canada); IEC 60601-1:2005; EN 6 0601-1:2006; ANSI/AAMI ES 60601-1:2005; CSA 22.2 No 60601-1:2008) - Applicable to products with L, R and T Input Filter Options only
These products are designed for continuous operation within an overall enclosure, and must be mounted such that access to the mains terminals is restricted. See the appropriate standard listed above.
These products are NOT suitable for use in the presence of flammable anaesthetic mixtures with air or with oxygen, or with nitrous oxide.
For IEC60601-1, EN60601-1 and UL/CSA 60601-1 (Second Edition standards), the NV350 range provides the following levels of insulation: For PSU’s fitted with C and/or CM Modules only there is Reinforced insulation between input and outputs. For all other PSU’s there is a basic insulation between input and outputs. For PSU’s fitted wiith CM Modules only, there is basic insulation at the working voltage between the CM module outputs and earth (provided that a CM module is not fitted in slot 1).
For IEC 60601-1:2005; EN 60601-1:2006; ANSI/AAMI ES 60601-1:2005; CSA 22.2 No 60601-1:2008), the NV350 range provides reinforced insulation between input and outputs (2 MOOPs) for all products. For PSU’s fitted wiith CM Modules only, there is basic insulation at the working voltage between the CM module outputs and earth (1 MOPP) (provided that a CM module is not fitted in slot 1).
Connect only apparatus complying with the standards listed above as appropriate to the signal ports. All outputs are SELV except possibly when they are connected in series and depending on the total voltage. These products are classed as ordinary equipment and are not protected against the ingre ss of water (IPX0). Reference should be made to local regulations concerning the disposal of these product s at the end of their useful
life. Where any part of this product is made accessible to the operator in the end use equipment, the operator must not
touch this part and the patient at the same time. These products have not been assessed to IEC/EN60601-1-2 (EMC) but EMC test data is available from TDK-
Lambda UK Ltd.
WARNING: No modification of this product is allowed.
Except for permanently installed equipment, the overall equipment into which these products are installed must have double pole fusing on the input mains supply. The products themselves have single pole fusing in the live line only.
Special Instructions for IEC/EN/UL/CSA 61010-1 Second Edition
Whilst all individual module single outputs are classed as SELV outputs in accordance with IEC/EN/60950 (<60Vdc or 42.4V peak) serried combinations of these modules may exceed these values and become hazardou s output voltages. For IEC/EN61010-1 the equivalent limits are 70Vdc, 33Vrms or 46.7V peak. Provided these levels are not exceeded, the outputs are not considered hazardous for IEC/EN61010-1.
If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
If the earth terminal of the NV350 PSU is connected to the main incoming earth conductor of the end equipment, the installer must cover the NV350 earth symbol with a label bearing the earth symbol of IEC60417-5019.
Environmental Specifications:
Description Operation Storage
Use Indoor -
Temperature
0°C - +65°C (derating above 45°C or 50°C – See
Cooling Options)
-40°C - +85°C
Humidity 5 - 95% RH, non-condensing 5 - 95% RH, non-condensing
Altitude -200m - 5000m* -200m - 5000m
Pressure 54kPa - 106kPa 54kPa - 106kPa
Orientation
Horizontal with chassis lowest, on either side or vertical with the airflow upwards.
All
Material Group IIIb
Pollution Degree 2
Page 14 of 27 17158 issue 18, August 2011
NV350 Handbook
Description Operation Storage
Overvoltage Category II
Class I
Weight 1 Kg (Dependent on configuration)
IP Rating IPX0
* - 3000m for 60601-1 Edition 2 standards. Level of Insulation:
Primary mains circuits to earth: 2.25 – 2.35Kvdc. Primary mains circuits to secondary and earth: 4.25 - 4.35kVDC**. Primary mains circuits to transformer core: 4.25 - 4.35kVDC**. Outputs to each other and to earth are isolated to 200VDC except CM modules which are 730 – 760Vdc to earth. ** This test is not possible with modules fitted to the unit as damage to RFI capacitors will occur.
Safety Approvals:
UL60950-1 and CSA22.2 No.60950-1 - UL Recognised. C-UL for Canada. IEC / EN60950-1 - CE mark. IEC/EN60950-1, IEC/EN 61010-1 and IEC/EN60601-1 - CB Report and Certificate. CE marking when applied to any NV350 product, indicates compliance with the Low Voltage Directive (2006/95/EC) in that it complies with EN60950-1. UL/CSA 61010-1 : UL + C–UL approval UL/CSA 60601-1 : UL + C–UL approval
Fuse: Internal fuse (F1): 6.3A/250V fast acting HBC, 5x20mm. Symbols:
AC EARTH N – Neutral L – Live
If the earth terminal of the NV350 PSU is connected to the main incoming earth conductor of the end equipment, the installer must cover the earth symbol with a label bearing the earth symbol of IEC60417-5019.
PRODUCTS COVERED Unit Configuration Code
:
NV350 or NV3 (these models are identical) followed by: S, R, Q, P, V, C or U, where:
Option Letter Airflow Option
S Forward airflow, standard fan R Reverse airflow, standard fan Q Forward airflow, quiet fan P Reverse airflow, quiet fan V Forward airflow, temperature controlled fan C Customer air, fan not fitted
T
Forward airflow, top fan (non-standard model K30052x only)
U Customer air, fan not fitted, cover not fitted
followed by: S or I, where:
Option Letter Input Option
S Screw input terminals
I IEC input
Page 15 of 27 17158 issue 18, August 2011
NV350 Handbook
followed by: S, M, L, R, or T, where:
Option Letter Leakage Option
S Standard Leakage (Class B Filter) M Medium Leakage
L Low Leakage
R Reduced Leakage
T = Tiny Leakage
Unit configuration may be given using the above code and/or by the option description. The input terminal type (screw or IEC) may alternatively be determined by examination of the unit.
optionally followed by: EN#V, EN12V, EN13.5V, IN#V, IN12V, IN13.5V, ES#V, ES12V, ES13.5V, IS#V, IS12V or IS13.5V. Where:
Description Operation Storage
EN#V = AC good, global module good, PSU enable, 5-5.5V, 2A standby output
EN12V = AC good, global module good, PSU enable, 12V, 1A standby output
EN13.5V = AC good, global module good, PSU enable, 13.5V, 1A standby output
IN#V = AC good, global module good, PSU inhibit, 5-5.5V, 2A standby output
IN12V = AC good, global module good, PSU inhibit, 12V, 1A standby output
IN13.5V = AC good, global module good, PSU inhibit, 13.5V, 1A standby output
ES#V = AC good, PSU enable, 5-5.5V, 2A standby output
ES12V = AC good, PSU enable, 12V, 1A standby output
ES13.5V = AC good, PSU enable, 13.5V, 1A standby output
IS#V = AC good, PSU inhibit, 5-5.5V, 2A standby output
IS12V = AC good, PSU inhibit, 12V, 1A standby output
IS13.5V = AC good, PSU inhibit, 13.5V, 1A standby output Where: # represents the standby output voltage and is in the range 5 to 5.5. The Global Options Inhibit and Enable functions permit the customer to turn off or on the main PSUs outputs and the
fan. The standby supply is for use by the customer and provides an SELV output that continues to operate when all the main PSUs outputs have been turned off using the Inhibit or Enable functions. All the functions of the Global Option pass through a single 8 way PWB socket and are all rated SELV.
NV350 Modules:
Up to 3 of the following modules types may be fitted: @B
or @BH or @C or @CM
where @ is the output voltage of the mod ule and is within the range given in the single output module table. or @/#DB where @ is the output voltage of channel 1 and # is the output voltage of channel 2 of the module. Voltages
are within the range given in the DB module tables. or @/#DA where @ is the output voltage of channel 1 and # is the output voltage of channel 2 of the module. Voltages
are within the range given in the DA module tables. Only 1 DA module may be fitted. or B/S where B/S indicates that a blanking plate is fitted in place of a module.
Page 16 of 27 17158 issue 18, August 2011
NV350 Handbook
The following nomenclature may optionally be used for outputs connected in series: (Note that outputs may be connected in series even when this nomenclature is not used )
@BB or @ BHB or @BBH or @BHBH or @CC or @CCM where @ is the total voltage of any two B, BH, C or CM module s conne cted in series. or @/#BDB or @BHDB where @ is the total serie s voltage of any B or BH module and DB module channel 1. # is the output voltage
of the DB module channel 2. Voltages for # are within the range given in the DB module tables. or @HDB where @ is the total series voltage of any DB module channel 1 and channel 2. For all outputs connected in series:
Permissible min. value for @ is given by summing the min. voltage ratings of the outputs connected in series. Permissible max. value for @ is given by summing the max. voltage ratings of the outputs connected in series.
Custom Models:
Model: NV350 SJS 24B 24/24DB 12/12DB (K30012) Maximum outputs: 24V, 8A; 24V, 7A; 24V, 2A; 12V, 13A; 12V, 5A (total power 350W max.) Maximum ambient: 50°C Orientations: Horizontal with chassis lowest, on either side or vertical with the airflow upwards. Comments: PSU is fitted with dual fused IEC inlet and double pole mains switch (option J).
Model: NV350 SJS 24B 24/24DB 24/12DB (K30036) Maximum outputs: 24V, 8A; 24V, 7A; 24V, 2A; 24V, 7A; 12V, 5A (total power 350W max.) Maximum ambient: 50°C Orientations: Horizontal with chassis lowest, on either side or vertical with the airflow upwards. Comments: PSU is fitted with dual fused IEC inlet and double pole mains switch (option J).
Model: NV350 LSS 24/24DB 15.5/5.5DB (K30045A) Maximum outputs: 24V, 1A; 24V, 0.7A; 15.5V, 6.4A; 5.5V, 6.4A. (total power 175W max.) Maximum ambient: 50°C Orientations: Horizontal with chassis lowest, on either side. Comments: PSU has fan drive voltage fixed at 5.5V.
Model: NV350 LSS 24/24DB (K30045B) Maximum outputs: 24V, 7A; 24V, 0.7A. (total power 184.8W max.) Maximum ambient: 50°C Orientations: Horizontal with chassis lowest, on either side. Comments: PSU has fan drive voltage fixed at 5.5V.
Model: NV350 TSS 24/15DB 5/15DB (K30052x where x can be any letter) Maximum outputs: 350W max. Comments: PSU has top fan fitted. Compliant with EN/IEC/UL/CSA 60950-1 only.
ELECTRICAL & THERMAL RATINGS: Input Parameters
Standard 60950-1 60601-1 61010-1
Nominal input voltage (V) 100 - 240 100 - 240 100 - 240
Input voltage range (V) 85 - 264 85 - 264 85 - 264
Input frequency range (Hz) 47 - 440 47 - 63 47 - 440
Maximum input current (A) 5.5 5.5 5.5
Inrush Current (A) <15 For input voltages between 85 and 89.9V the output power is derated to 94% of the values given in the Cooling Options Table.
Page 17 of 27 17158 issue 18, August 2011
NV350 Handbook
Output modules:
Maximum Average Current According to Slot Position (A) Module Output Voltage Occupied
Slots
Slot 1 Slot 2 Slot 3 Slot 4 Slot 5 Slot 6
3.14-3.6V 40 - 40 40 40 -
4.75-5.5V 40* - 40* 40* 40* ­7-9V 22.5** - 22.5** 22.5** 22.5** -
12-15.5V 16*** - 16*** 16*** 16*** -
B
24-28V
2
8**** - 8**** 8**** 8**** -
12-15.5V 20# - 20# 20# 20# -
BH
24-28V
2
10## - 10## 10## 10## ­12-13.2V 33.34† - 33.34† 33.34† - ­15-16.5V 26.67† - 26.67† 26.67† - ­24-26.4V 16.67† - 16.67† 16.67† - -
C
27-32V
3
14.82†† - 14.82†† 14.82†† - -
CM 24-26.4V 3 - 16.67††† 16.67††† 16.67††† - -
DA CH1 11.88-12.25V - - - - ­DA CH2
-11.9 to
-11.6V
1
- - - - 1¥¥ -
3.14-3.6V 25 - 25 25 25 -
4.75-5.5V 25 - 25 25 25 -
5.5-6.5V†††† 25 - 25 25 25 ­12-15.5V 13¥¥¥ - 13¥¥¥ 13¥¥¥ 13¥¥¥ -
DB
CH1
24-28V 7¥¥¥¥ - 7¥¥¥¥ 7¥¥¥¥ 7¥¥¥¥ -
3.3-5.5V‡ 10 - 10 10 10 ­7-15.5V 5 - 5 5 5 -
DB
CH2
24-32V
2
2 - 2 2 2 -
* - Lineraly derate from 40 to 36A over the voltage range 5.2 to 5.5 V. ** - Lineraly derate from 22.5 to 20A over the voltage range 8 to 9V. *** - Lineraly derate from 16 to 13A over the voltage range 13.5 to 15.5 V. **** - Lineraly derate from 8 to 7A over the voltage range 26 to 28 V. # - Lineraly derate from 20 to 16.5A over the voltage range 13.2 to 15.5 V. ## - Lineraly derate from 10 to 8.5A over the voltage range 25.7 to 28 V. † - C & CM modules may output up to 600W for up to 10 seconds providing that the converter ratings are not exceeded and the average power from the module does not exceed the following: 400W for 115 - 264Vac input or 350W for 90Vac input (average power may be linearly interpolated between 90 and 115Vac input). †† - Derate to 400W above 27V. C & CM modules may output up to 600W for up to 10 seconds providing that the converter ratings are not exceeded and the average power from the module does not exceed the following: 400W for 115 - 264Vac input or 350W for 90Vac input (average power may be linearly interpolated between 90 and 115Vac input). ††† - CM Module cannot be fitted to slot 1 due to medical spacing requirements. †††† - See Table below
DB modules with 6V nominal, Output Channel1
O/P 1 : 5.5 - 6V O/P 1 + O/P 2 : 195W total. Cooling options C, S & V O/P 1 : 6 - 6.5V O/P 1 + O/P 2 : Linearly derate from 195 to 170W total. O/P 1 : 5.5 - 6V O/P 1 + O/P 2 : 180W total. Cooling option Q O/P 1 : 6 - 6.5V O/P 1 + O/P 2 : Linearly derate from 180 to 140W total.
Cooling options P & R O/P 1 : 5.5 - 6.5V O/P 1 + O/P 2 : 120W total. DB modules with 6V nominal channel 1 are not allowed when channel 2 exceeds 5.5V. ¥ - 3A forward air, 2A reverse air. ¥¥ - 1A forward air, 0.6A reverse air. ¥¥¥ - Lineraly derate from 13 to 10A over the voltage range 12.5 to 15.5 V. ¥¥¥¥ - Lineraly derate from 7 to 6A over the voltage range 25 to 28 V. ‡ - Voltage measured at the module power terminals. This voltage at the power terminals must not be exceeded when remote sense is used.
Page 18 of 27 17158 issue 18, August 2011
NV350 Handbook
Cooling Options:
Code Cooling Option Input
Voltage
Range
(Vac)
Total PSU output
power (W)
Max.
ambient
(°C)
Derating †
S, V Forward airflow, standard fan
(fixed speed & temp.
controlled)
90 - 264 ‡
350W continuous
(400W peak if 350W
average #)
65 2.5% per °C above
50°C
S, V Forward airflow, standard fan
(fixed speed & temp.
controlled)
115 - 264
450W continuous
(510W peak if 450W
average #)
65 2.5% per °C above
50°C
S, V Forward airflow, standard fan
(fixed speed & temp.
controlled)
180 - 264
664W continuous
(740W peak if
600W average #)
65 2.5% per °C above
50°C
R Reverse airflow, standard fan 90 - 264 ‡
250 W continuous
(no peak rating)
65
2.5% per °C above 50°C
Q Forward airflow, quiet fan 90 - 264 ‡
350 W continuous
(no peak rating)
65
2.5% per °C above 50°C
T
Top fan for model K30052x
only
90 - 264 ‡
350 W continuous
(no peak rating)
65
2.5% per °C above 50°C
P Reverse airflow, quiet fan 90 - 264 ‡
250 W continuous
(no peak rating)
60
3.8% per °C above 50°C
C, U Customer air, fan not fitted Refer to Customer Air Cooling section in for details.
† Both the total output power and the module output currents are derated by the given value.
‡ For input voltages between 85 and 89.9V the output power is derated to 94% of the values given for 90V
input.
# The PSU may output the given peak power for up to 10 seconds providing that the average power from the PSU does not exceed the stated value.
Continuous, peak and average power ratings may be linearly interpolated for input voltages between 90 and 180V.
Global Option standby outputs (12-13.5V at 1A or 5-5.5V at 2A) should not be included when calculating total PSU output power, but they are subject to the current deratings for operation above 50°C.
Global Options with output voltages between 5.01 and 5.5V have their max. output current linearly derated from 2A at 50°C ambient to 1.4A at 65°C ambient.
For reverse airflow cooling all B, BH and DB modules are limited to a maximum output power of 150W (total for both channels on dual output modules).
Customer Air Cooling (options C or U
):
Customer Air Cooling:
The following method must be used for determining the safe operation of PSUs when C or U option (Customer Air) is fitted, ie fan not fitted to PSU. The minimum permitted airflow for customer air cooling is 0.5m/s.
For PSUs cooled by customer supplied airflow the components listed in the following table must not exceed the temperatures given. Additionally ratings specified for units with an internal fan must still be complied with, eg mains input voltage range, maximum output power, module voltage / current ratings and maximum ambient temperature. To determine the component temperatures the heating tests must be conducted in accordance with the requirements of the appropriate standards.
Test requirements include: PSU to be fitted in its end-use equipment and operated under the most adverse conditions permitted in the end-use equipment handbook/specification and which will result in the highest temperatures in the PSU. To determine the most adverse conditions consideration should be given to the end use equipment maximum operating ambient, the PSU/assembly loading and input voltage, ventilation, end use equipment orientation, the position of doors & covers, etc. Temperatures should be monitored using type K fine wire thermocouples (secured with cyanoacrylate adhesive, or similar) placed on the hottest part of the component (out of any direct airflow) and the equipment should be run until all temperatures have stabilised.
Page 19 of 27 17158 issue 18, August 2011
NV350 Handbook
Circuit Ref. Description Max. Temperature (°C)
L2, L3, L4 Filter/PFC assy: Choke winding 155 C3, C4 Filter/PFC assy: X capacitors 100 L1 Filter/PFC assy: Boost choke winding 130 C1 Filter/PFC assy: Electrolytic capacitor 60 (105) T1 Filter/PFC assy: Flyback transformer winding 130 RLY1 Filter/PFC assy: Relay 100 TX1, TX2 Modules: Power transformer windings 130 L1, XL1 B, BH & DB module chokes 130 L1 C & CM module chokes 140 Global option T2 Global Options: Transformer winding 90 (130) Various All other choke & transformer windings 110 Various All <=10mm diameter electrolytic capacitors 80 (105) Various All 12.5mm diameter electrolytic capacitors 85 (105) TX1 DA Module: Flyback transformer windings 100 (130) XTH101 Primary IMS measured adjacent to XTH101 100 (105)
See component layout drawings below for locations of components. Higher temperature limit (in brackets) m ay be used but product life may be reduced.
Input Connections:
Input screw teminals – 6-32 screws with 8.25mm spacing between screw head centres. Screw head diameter is 6.6mm
Input IEC 60320 – rated 10A /250Vac (15A/132Vac)
Output Connections:
Maximum Torque Settings for Output Screw Terminals: M3 – 0.75Nm M4 1.5Nm
Modules connected in series or parallel
Module outputs can be connected in series. See section on Module Limitations. Module outputs cannot be paralleled to other modules in the same power supply or paralleled to other modules in
another unit. Paralleling of modules for redundant operation i.e. Output load does not exceed the load current of single module. This can be achieved by isolating the outputs using orring diodes. With this method remote sensing around these diodes is not allowed.
Page 20 of 27 17158 issue 18, August 2011
NV350 Handbook
Module limitations
All outputs are SELV except under the following circumstance: Outputs connected in series are non-SELV if the total output voltage + 30% of the max. Rated output voltage of the output with the highest rated voltage exceeds 60Vdc (the 30% addition allows for a single fault in any one individual channel).
If the total voltage of outputs connected in series exceeds the 60Vdc SELV limit then all outputs must be considered non-SELV.
The total voltage of outputs connected in series must not exceed 160V.
Non-SELV outputs are hazardous and must not be made user accessible. They must be guarded or a deflector
fitted during installation to avoid a service engineer making inadvertent contact with the output terminals, or dropping a tool onto them.
All outputs have operational spacings to earth, and due consideration must be given to this in the end product design.
Adjusting output voltage beyond the stated range may cause over voltage protection (OVP) to operate, whereby the output will turn off. To reset OVP, turn back the output voltage adjustment and remove the mains supply for 30 seconds and then switch back on.
Module and primary options
Given below are some suitable connection systems – mating parts and crimp tools: For the screw terminals Ring Tags: Up to 50A. AMP PIDG terminals Red: M3 36151, M4 320551, M5 130660 Blue: M3 320561, M4 320560, M5 130663 Yellow: M4 320568, M5 130167 Crimp tool: 169400 Die set 169404 R ing Tags: 50A and over AMP AMPOWER III M5 (8 AWG) 719538-2 (6 AWG) 719551-1 Terminals with crimp tool: 708777-4
Page 21 of 27 17158 issue 18, August 2011
NV350 Handbook
Primary option & single slot module
Primary Option Connector
: Single Slot Module Connector 1 V Standby 1 + 12V 2 V Standby Return 2 + 12V 3 INH Logic 1 3 + 12V 4 INH Logic 0 4 0V 5 Power Good Collector 5 0V 6 Power Good Emitter 6 0V 7 AC Fail Collector 7 -12V 8 AC Fail Emitter 9 -12V
Mating Connector Housing: Molex 51110-0860 Crimp pin: 50394 Hand crimp tool: 69008-0959
Page 22 of 27 17158 issue 18, August 2011
NV350 Handbook
Dual slot, single and twin output modules
Option Connector 1 CH2 0V (Twin) CH1 Gate Drive Supply (Single) 2 CH2 Module Good (Twin) Share Control (Single) 3 CH2 On/Off (Twin) N/C (Single) 4 Module Inhibit 5 CH1 0V 6 CH1 Module Good 7 CH1 Remote Sense­8 CH1 Remote Sense+
Secondary Option Connection Housing: Molex 51110-0860 Crimp pin: 50394 Hand crimp tool: 69008-0959
Page 23 of 27 17158 issue 18, August 2011
NV350 Handbook
NV350PFC Component Layout Drawings
Layout of IMS
XTH101
Page 24 of 27 17158 issue 18, August 2011
NV350 Handbook
Layout of Primary Option
Layout of B and BH Modules
Layout of C Modules
Layout of CM Modules
Page 25 of 27 17158 issue 18, August 2011
NV350 Handbook
Layout of DA Module
Layout of DB Modules
Page 26 of 27 17158 issue 18, August 2011
NV350 Handbook
NV350 Outline Drawing
Notes Tolerances: Edge to edge/Edge to centre, +/_0.5 Centre to centre +/_0.2
Page 27 of 27 17158 issue 18, August 2011
NV350 Handbook
NV350 Top Fan Outline Drawing
TDK-Lambda UK Ltd Kingsley Avenue, Ilfracombe Devon, EX34 8ES T elephone - Sales and Service +44 (0)1271 856666 Head Ofce and Works +44 (0)1271 856600 Facsimile +44 (0)1271 864894 WEBSITE: www.uk.tdk-lambda.com
