TDK-Lambda GEN8-400, GEN10-330, GEN15-220, GEN20-165, GEN30-110 User guide

...

Download

Programmable DC Power Supplies

3.3kW in 2U

Built in RS-232 & RS-485 Interface

Advanced Parallel Operation

Optional Interface:

Compliant LAN

IEEE488.2 SCPI (GPIB) Multi-Drop

Isolated Analog Programming

GENESYS

GEN 3.3kW SERIES POWER

SUPPLIES

USER MANUAL

GEN 3.3kW SERIES POWER

GEN8-400

GENESYS

SUPPLIES

USER MANUAL

This Manual Covers Models:

GEN40-85

GEN200-16.5 GEN10-330 GEN15-220 GEN20-165 GEN30-110

GEN60-55 GEN80-42 GEN100-33 GEN150-22

GEN300-11

GEN600-5.5

Manual Supplement

For units equipped with IEEE488.2 (GPIB) Interface option,

refer to Manual IA586-04-01_.

For units equipped with LAN Interface option, refer to Manual IA672-04-01_.

IA626-04-01-Rev. Q

This information sheet was prepared based on People's Republic of China "Management Methods for Controlling Pollution Caused by

"SJ/T 11364—2006 Marking for Control of Pollution Caused by Electronic Information Products

As People's Republic of China "Management Methods for Controlling Pollution Caused by Electronic Information Products Regulatio

2002/95/EC

, inquiries concerning EU RoHS Directive

The date of manufacture

Part Name

GENESYS, GEN3.3KW POWER SUPPLY SERIES Product Weight

13Kg

Lead (Pb) Mercury (Hg) Cadmium (Cd) Hexavalent

Chromium (Cr6+)

Polybrominated

Biphenyls （PBB）

Polybrominated Diphenyl

Ethers（PBDE）

0.1wt% 0.1wt% 0.01wt% 0.1wt% 0.1wt% 0.1wt%

Case

OOOO O O

Plastic panel

OOOO O O

PCB's assembly XOOO O O

Inner metal parts OOOO O O

Inner cables OOOO O O

Accessories OOOO O OProvided in the package

○ : Indicates that the concentration values of toxic and hazardous substances in all "homogeneous materials" of respective parts and materials does not exceed the concentration limits

regulated by "SJ/T 11363-2006 Requirements for Concentration Limits for Certain Hazardous Substances in Electronic Information Products".

× : Indicates that the concentration value of a toxic or hazardous substance included in a "homogeneous part" of a respective part ot material exceeds the concentration limit regulated by

"SJ/T 11363-2006 Requirements for Concentration Limits for Certain Hazardous Substances in Electronic Information Products".

Information Concerning Inclusion of Toxic and Hazardous Substances

NotesConcentration Values of Toxic and Hazardous Substances/Elements (wt%)

Subpart Name

（2002/95/EC）, inquiries concerning EU RoHS Directive （2002/95/EC） information should be done separately.

GENESYS, GEN3.3KW POWER SUPPLY SERIES Product Weight

13Kg

Lead (Pb) Mercury (Hg) Cadmium (Cd) Hexavalent

0.1wt% 0.1wt% 0.01wt% 0.1wt% 0.1wt% 0.1wt%

OOOO O O

Plastic panel

OOOO O O

PCB's assembly XOOO O O

Inner metal parts OOOO O O

Inner cables OOOO O O

Accessories OOOO O O

: Indicates that the concentration values of toxic and hazardous substances in all "homogeneous materials" of respective parts

regulated by "SJ/T 11363-2006 Requirements for Concentration Limits for Certain Hazardous Substances in Electronic Infor

: Indicates that the concentration value of a toxic or hazardous substance included in a "homogeneous part" of a respective p

"SJ/T 11363-2006 Requirements for Concentration Limits for Certain Hazardous Substances in Electronic Information Product

NotesConcentration Values of Toxic and Hazardous Substances/Elements (wt%)

n"is a different legislation from EU RoHS Directive

Electronic Information Products Regulation"and

Ethers（PBDE）

The date of manufacture

Polybrominated Diphenyl

Polybrominated

Biphenyls （PBB）

Provided in the package

and materials does not exceed the concentration limits

mation Products".

s".

art ot material exceeds the concentration limit regulated by

（2002/95/EC） information should be done separately.

）

Part Name

Chromium (Cr6+)

Subpart Name

（

Case

○

DECLARATION OF CONFORMITY

GEN3300W SERIES

We, TDK-Lambda Ltd., located at Haharoshet St. 56 Industrial Zone P.O.B. 500 Karmiel, Israel declare under our sole responsibility that the GEN3300W series as detailed on the products covered sheet comply with the provisions of the following European Directive and are eligible to bear the CE mark: Restriction Of the use of certain Hazardous Substances Directive 2011/65/EU (RoHS2) Low Voltage Directive 2006/95/EC EMC Directive 2004/108/EC Assurance of conformance of the described product with the provisions of the stated EC Directive is given through compliance to the following standard: Electrical Safety EN 60950-1:2006+A11+A1+A12 Electromagnetic Compatibility (EMC): EN 55022:1998+A1:2000+A2:2003 EN 55024:1998+A1:2001+A2:2003 EN 61000-3-3:1995+A2:2005 which cover testing to the following standards:

EN 55022:1998+A1:2000+A2:2003 Conducted Emissions Class A Radiated Emissions Class A EN 61000-3-3 :1995+A2:2005 Voltage Fluctuations EN 61000-4-2 :1995+A1:1998+A2:2001 ESD AD: 8KV, CD:4KV EN 61000-4-3 :2006 Radiated Immunity 3V/m EN 61000-4-4 :2004 EFT/B Power leads: 2KV Signal leads: 0.5KV EN 61000-4-5 :2006 Conductive Surges Common mode: 2KV Dierential mode: 1KV EN 61000-4-6 :2007 Conducted Disturbances 3Vrms EN 61000-4-8 :1993+A1:2001 Immunity to Mag. Field 1A/m EN 61000-4-11:2004 Voltage Dips

Our European Representative in the EU is TDK-Lambda UK Limited, located at Kingsley Avenue, llfracombe, Devon, EX34 8ES UK. Further, all products covered by this declaration are manufactured in accordance with ISO9000:2008 which ensure continued compliance of the products with the requirements of the Low Voltage Directive and EMC Directive.

Name of Authorized Signatory Martin Southam Signature of Authorized Signatory Position of Authorized Signatory Marketing Director EMEA Date 3

April 2013 Date Series rst CE marked 22 February 2006 Place where signed Ilfracombe, Devon, England

PRODUCTS COVERED SHEET FOR: GEN3300W series

1. GEN3300W with one phase input 190-240VAC

2. GEN3300W with three phase input 190-240VAC

3. GEN3300W with three phase input 380-415VAC

with rated output 0-8VDC/0-400A up to 0-600VDC/0-5.5A and total output power equial or less 3300W

Optional modules:

1. IEEE (GPIB) module

2. Isolated analog (V/I) module

3. LAN module

4. USB module

TDK-Lambda Ltd., Industrial Zone P.O.B 500 Karmiel, IsraelTDK-Lambda Ltd., Industrial Zone P.O.B 500 Karmiel, IsraelTDK-Lambda Ltd., Industrial Zone P.O.B 500 Karmiel, Israel

This page intentionally left blank

TABLEOF CONTENTS

WARRANTY ..........................................................................................................................................

SAFETY INSTRUCTIONS.....................................................................................................................

GERMAN SAFETY INSTRUCTIONS ...................................................................................................

CHAPTER 1 GENERAL INFORMATION

....................................................................................

1.1 OPERATION MANUAL CONTENT .................................................................................................

1.2 INTRODUCTION .............................................................................................................................

1.2.1 General description ................................................................................................................

1.2.2 Models covered ......................................................................................................................

1.2.3 Features and options .............................................................................................................

1.2.4 Multiple output power system .................................................................................................

1.2.5 Control via the serial communication port ..............................................................................

1.2.6 Analog voltage programming and monitoring .................................................................. ......

1.2.7 Parallel operation ...................................................................................................................

1.2.8 Output connections ................................................................................................................

1.2.9 Cooling and mechanical construction ....................................................................................

1.3 ACCESSORIES ...............................................................................................................................

1.3.1 General ..................................................................................................................................

1.3.2 Serial link cable ......................................................................................................................

1.3.3 Misc. hardware .......................................................................................................................

1.3.4 AC cables ...............................................................................................................................

CHAPTER 2 SPECIFICATIONS

...................................................................................................

2.1 OUTPUT RATING ...........................................................................................................................

2.2 INPUT CHARACTERISTICS ..........................................................................................................

2.3 CONSTANT VOLTAGE MODE .......................................................................................................

2.4 CONSTANT CURRENT MODE ......................................................................................................

2.5 ANALOG PROGRAMMING AND MONITORING ............................................................................

2.6 PROGRAMMING AND READBACK ...............................................................................................

2.7 PROTECTIVE FUNCTIONS ...........................................................................................................

2.8 FRONT PANEL ................................................................................................................................

2.9 ENVIRONMENTAL CONDITIONS ..................................................................................................

2.10 MECHANICAL ..............................................................................................................................

2.11 SAFETY/EMC ...............................................................................................................................

2.12 SUPPLEMENTAL CHARACTERISTICS .......................................................................................

2.13 OUTLINE DRAWINGS .................................................................................................................

Pg.1 Pg.2 Pg.4

Pg.6 Pg.6 Pg.6 Pg.6 Pg.6 Pg.6 Pg.7 Pg.7 Pg.7 Pg.7 Pg.7 Pg.8 Pg.8 Pg.8 Pg.8 Pg.8 Pg.8

Pg.9 Pg.9 Pg.9 Pg.9 Pg.9 Pg.9 Pg.10 Pg.10 Pg.10 Pg.10 Pg.10 Pg.10 Pg.11 Pg.12

CHAPTER 3 INSTALLATION

.......................................................................................................

3.1 GENERAL .......................................................................................................................................

3.2 PREPARATION FOR USE ..............................................................................................................

3.3 INITIAL INSPECTION .....................................................................................................................

3.4 RACK MOUNTING ..........................................................................................................................

3.4.1 To install the power supply inarack .......................................................................................

3.4.2 Rack mount slides ..................................................................................................................

3.5 LOCATION MOUNTING AND COOLING .......................................................................................

3.6 AC SOURCE REQUIREMENTS .....................................................................................................

3.7 AC INPUT POWER CONNECTION ................................................................................................

3.7.1 AC input connector..................................................................................................................

3.7.2 AC input cord ..........................................................................................................................

3.7.3 AC input wire connection.........................................................................................................

3.8 TURN-ON CHECKOUT PROCEDURE ...........................................................................................

3.8.1 General ...................................................................................................................................

3.8.2 Prior to operation ...................................................................................................................

3.8.3 Constant voltage check ..........................................................................................................

3.8.4 Constant current check ..........................................................................................................

3.8.5 OVP check .............................................................................................................................

3.8.6 UVL check ..............................................................................................................................

3.8.7 Foldback check ......................................................................................................................

3.8.8 Address setting ......................................................................................................................

3.8.9 Baud rate setting ....................................................................................................................

Pg.13 Pg.13 Pg.13 Pg.13 Pg.13 Pg.13 Pg.14 Pg.14 Pg.14 Pg.14 Pg.15 Pg.15 Pg.15 Pg.16 Pg.16 Pg.16 Pg.17 Pg.17 Pg.17 Pg.17 Pg.18 Pg.18 Pg.18

TABLEOF CONTENTS

3.9 CONNECTING THE LOAD ..........................................................................................................

3.9.1 Load Wiring ..........................................................................................................................

3.9.2 Current Carrying Capacity ...................................................................................................

3.9.3 Wire termination .................................................................................................................

3.9.4 Noise and Impedance Effects ..............................................................................................

3.9.5 Inductive loads .....................................................................................................................

3.9.6 Making the load connections ................................................................................................

3.9.7 Connecting single loads, local sensing (default) ..................................................................

3.9.8 Connecting single loads, remote sensing ............................................................................

3.9.9 Connecting multiple loads, radial distribution method ..........................................................

3.9.10 Multiple loads connection with distribution terminals .........................................................

3.9.11 Grounding outputs .............................................................................................................

3.10 LOCAL AND REMOTE SENSING .............................................................................................

3.10.1 Sensing wiring ...................................................................................................................

3.10.2 Local sensing .....................................................................................................................

3.10.3 Remote sensing .................................................................................................................

3.10.4 J2 sense connector technical information ..........................................................................

3.11 REPACKAGING FOR SHIPMENT .............................................................................................

CHAPTER 4FRONT AND REAR PANEL CONTROLS AND CONNECT

4.1 INTRODUCTION ..........................................................................................................................

4.2 FRONT PANEL CONTROLS AND INDICATORS ........................................................................

4.3 REAR PANEL ...............................................................................................................................

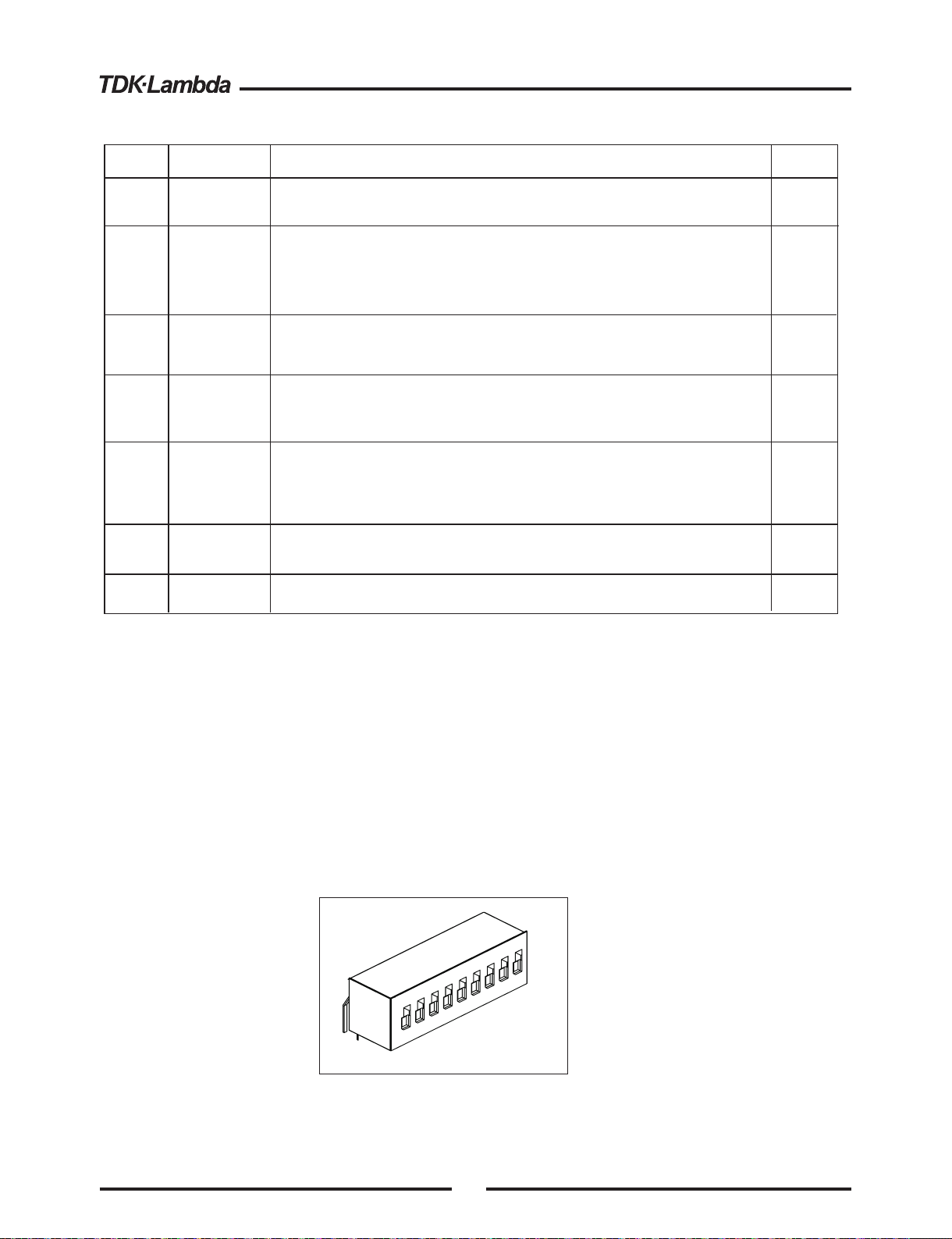

4.4 REAR PANEL SW1 SETUP SWITCH .........................................................................................

4.4.1 SW1 positions functions ......................................................................................................

4.4.2 Resetting the switch .............................................................................................................

4.5 REAR PANEL J1 PROGRAMMING AND MONITORING CONNECTOR ....................................

4.5.1 Making J1 connections ........................................................................................................

ORS

...............

Pg.18 Pg.18 Pg.18 Pg.19 Pg.20 Pg.20 Pg.20 Pg.23 Pg.23 Pg.23 Pg.24 Pg.24 Pg.25 Pg.25 Pg.25 Pg.26 Pg.26 Pg.26

Pg.27 Pg.27 Pg.27 Pg.29 Pg.30 Pg.31 Pg.31 Pg.32 Pg.32

CHAPTER 5LOCAL OPERATION

5.1 INTRODUCTION ..........................................................................................................................

5.2 STANDARD OPERATION ............................................................................................................

5.2.1 Constant Voltage Mode .......................................................................................................

5.2.2 Constant Current Operation .................................................................................................

5.2.3 Automatic Crossover ............................................................................................................

5.3 OVER VOLTAGE PROTECTION (OVP) ......................................................................................

5.3.1 Setting the OVP level ..........................................................................................................

5.3.2 Activated OVP protection indications ...................................................................................

5.3.3 Resetting the OVP circuit .....................................................................................................

5.4 UNDER VOLTAGE LIMIT (UVL) ..................................................................................................

5.4.1 Setting the UVL level ...........................................................................................................

5.5 FOLDBACK PROTECTION ..........................................................................................................

5.5.1 Setting the Foldback protection ...........................................................................................

5.5.2. Resetting activated Foldback protection ............................................................................

5.6 OUTPUT ON/OFF CONTROL ......................................................................................................

5.7 OUTPUT SHUT-OFF (SO) CONTROL VIA REAR PANEL J1 CONNECTOR ..............................

5.8 ENABLE/DISABLE CONTROL VIA REAR PANEL J1 CONNECTOR ..........................................

5.9 CV/CC SIGNAL .............................................................................................................................

5.10 PS_OK SIGNAL ..........................................................................................................................

5.11 SAFE START AND AUTO-RESTART MODES ............................................................................

5.11.1 Automatic start mode .........................................................................................................

5.11.2 Safe start mode ..................................................................................................................

5.12 OVER TEMPERATURE PROTECTION (OTP) ..........................................................................

5.13 LAST SETTING MEMORY .........................................................................................................

5.14 SERIES OPERATION .................................................................................................................

5.14.1 Series connection for increased output voltage .................................................................

5.14.2 Series connection for positive and negative output voltage ...............................................

5.15 PARALLEL OPERATION ............................................................................................................

5.16 DAISY-CHAIN CONNECTION ....................................................................................................

5.17 FRONT PANEL LOCKING ..........................................................................................................

.............................................................................................

Pg.34 Pg.34 Pg.34 Pg.34 Pg.34 Pg.35 Pg.35 Pg.35 Pg.35 Pg.35 Pg.36 Pg.36 Pg.36 Pg.36 Pg.36 Pg.36 Pg.36 Pg.37 Pg.37

Pg.37 Pg.38 Pg.38 Pg.38 Pg.38 Pg.38 Pg.38 Pg.39 Pg.40 Pg.41 Pg.43

Pg.43

TABLE OF CONTENTS

Pg.68

8.5

CHAPTER 6 REMOTE ANALOG PROGRAMMING

6.1INTRODUCTION ...........................................................................................................................

6.2 LOCAL/REMOTE ANALOG CONTROLL.......................................................................................

6.3 LOCAL/REMOTE ANALOG INDICATION......................................................................................

6.4 REMOTE VOLTAGE PROGRAMMING OF OUTPUT VOLTAGE AND CURRENT LIMIT .............

6.5 RESISTIVE PROGRAMMING OF OUTPUT VOLTAGE AND CURRENT LIMIT ...........................

6.6 REMOTE MONITORING OF OUTPUT VOLTAGE AND CURRENT .............................................

CHAPTER7RS232 & RS485 REMOTE CONTROL

7.1INTRODUCTION ...........................................................................................................................

7.2 CONFIGURATION .........................................................................................................................

7.2.1 Default setting .......................................................................................................................

7.2.2 Address setting .....................................................................................................................

7.2.3 RS232 or RS485 selection ...................................................................................................

7.2.4 Baud rate setting ...................................................................................................................

7.2.5 Settingthe unitinto Remoteor Local mode ..........................................................................

7.2.6 RS232/458 portat Local mode .............................................................................................

7.2.7Front panel in Remote mode ................................................................................................

7.3 REAR PANEL RS232/485 CONNECTOR ......................................................................................

7.4 CONNECTING POWER SUPPLIES TO RS232 OR RS485 BUS .................................................

7.4.1Single power supply ..............................................................................................................

7.4.2 Multi power supplies connectionto RS232 or RS485 bus ....................................................

7.5 COMMUNICATION INTERFACE PROTOCOL ..............................................................................

7.5.1 Dataformat ...........................................................................................................................

7.5.2 Addressing ............................................................................................................................

7.5.3 End of message ....................................................................................................................

7.5.4 Command repeat .................................................................................................................

7.5.5 Checksum .............................................................................................................................

7.5.6 Acknowledge .........................................................................................................................

7.5.7Error message ......................................................................................................................

7.5.8 Backspace ............................................................................................................................

7.6 ERROR MESSAGES .....................................................................................................................

7.7 COMMAND SET DESCRIPTION ..................................................................................................

7.7.1 General guides .....................................................................................................................

7.7.2 Command set categories ......................................................................................................

7.7.3Initialization control commands .............................................................................................

7.7.4ID control commands ............................................................................................................

7.7.5 Output control commands .....................................................................................................

7.7.6Global output commands.......................................................................................................

7.7.7Status control commands .....................................................................................................

7.8STATUS, ERROR AND SRQ REGISTERS ...................................................................................

7.8.1 General .................................................................................................................................

7.8.2 Conditional registers .............................................................................................................

7.8.3 Service Request: Enabled and Event Registers ...................................................................

7.9 SERIAL COMMUNICATION TEST SET-UP ..................................................................................

CHAPTER8ISOLATED ANALOG PROGRAMMING OPTION

8.1INTRODUCTION ...........................................................................................................................

8.2 SPECIFICATIONS .........................................................................................................................

8.2.10-5V/0-10V option .................................................................................................................

8.2.24-20mA option .......................................................................................................................

8.3ISOLATED PROGRAMMING&MONITORING CONNECTOR ....................................................

8.4 SETUP AND OPERATING INSTRUCTIONS .................................................................................

8.4.1 Settingupthe power supplyfor 0-5/0-10V Isolated Programming and Monitoring ...............

8.4.2 Settingupthe power supplyfor 4-20mA Isolated Programming and Monitoring ..................

PARALLEL OPERATION WITH ISOLATED ANALOG OPTION................................................................Pg.

.................................................................

...............................................................

..............................................

Pg.44 Pg.44 Pg.44 Pg.44 Pg.45 Pg.46 Pg.47

Pg.48 Pg.48 Pg.48 Pg.48 Pg.48 Pg.48 Pg.48 Pg.48 Pg.49 Pg.49 Pg.49 Pg.50 Pg.50 Pg.51 Pg.51 Pg.51 Pg.51 Pg.51 Pg.51 Pg.51 Pg.51 Pg.52 Pg.52 Pg.52 Pg.52 Pg.52 Pg.52 Pg.53 Pg.53 Pg.53 Pg.55 Pg.56 Pg.57 Pg.57 Pg.57 Pg.58 Pg.61

Pg.62 Pg.62 Pg.62 Pg.62 Pg.62 Pg.63 Pg.64 Pg.64 Pg.64

CHAPTER 9 MAINTENANCE

9.1INTRODUCTION ...........................................................................................................................

9.2 UNITS UNDER WARRANTY .........................................................................................................

9.3 PERIODIC MAINTENANCE ..........................................................................................................

9.4 ADJUSTMENT AND CALIBRATION .............................................................................................

9.5PARTS REPLACEMENT AND REPAIRS .......................................................................................

9.6 TROUBLESHOOTING ...................................................................................................................

9.7 FUSE RATING ...............................................................................................................................

USER MANUAL INDEX ........................................................................................................................

......................................................................................................

Pg.66 Pg.66 Pg.66 Pg.66 Pg.66 Pg.66 Pg.66 Pg.67

This page intentionally left blank

WARRANTY

This TDK-Lambda Ltd. product is warranted against defects in materials and workmanship for a period of

ve years from date of shipment. During the warranty period, TDK-Lambda Ltd. will, at it's option, either

repair or replace products which prove to be defective.

LIMITATION OF WARRANTY

The warranty shall not apply to defects resulting from improper or inadequate usage or maintenance by the buyer, buyer supplied products or interfacing. The warranty shall not apply to defects resulting

from unauthorized modications or from operation exceeding the environmental specications of the

product or if the QA seal has been removed or altered by anyone other than TDK-Lambda Ltd. authorized personnel. TDK-Lambda Ltd. does not warrant the buyers circuitry or malfunctions of TDK-Lambda

Ltd. products resulting from the buyer's circuitry. Furthermore, TDK-Lambda Ltd. does not warrant any damage occurring as a result ofthe buyer's circuitry or the buyer's - supplied products. No other warranty is expressed or implied.

WARRANTY SERVICE

This product must be returned to an authorized TDK-Lambda Ltd. service facility for repairs or other warranty service. For products returned to TDK-Lambda Ltd. for warranty service, the buyer shall prepay shipping charges to TDK-Lambda Ltd. and TDK-Lambda Ltd. shall pay the shipping charges to return the product to the buyer. Refer to section 3.11 for repackaging for shipment.

DISCLAIMER

The information contained in this document is subject to change without notice. TDK-Lambda Ltd. shall not be liable for errors contained in this document or for incidental or consequential damages in connection with the furnishing, performance or use of this material. No part of this document may be photocopied, reproduced or translated into another language without the prior written consent of TDK-Lambda Ltd..

TRADEMARK INFORMATION

Genesys™ power supply is a trademark of TDK-Lambda Ltd. & TDK- Lambda Americas Inc.

Microsoft™ and Windows™ are trademarks of Microsoft Corporation.

REGULATORY NOTICES

FCC Notice

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

WARNING: Modifications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment under FCC Rules.

CE Notice (European Union)

Marking by the CE Symbol indicates compliance to the EMC Directive and the Low Voltage Directive of the European Union. Such marking is indicative that the Genesys series GEN3300W

meets the following technical standards:



A “Declaration of Conformity” in accordance with the preceding directives and standards has been made and is on file at our EU representative TDK-Lambda Limited, located at Kingsley Avenue, Ilfracombe, Devon EX34 8ES, UK.

EN 55022:2010 Information technology equipment - Radio disturbance characteristics Limits and methods of measurement. EN 55024:2010 Information thecnology equipment - Immunity characteristics - Limits and methods of measurement. EN 60950-1:2006+A11:2009 + A1:2010 + A12:2011 Information technology equipment Safety - Part 1: General requirements.

WARNING: This is a Class A product. On a domestic environment this product may cause radio

interference in which case user may be required to takeadequate measures.

SAFETY APPROVALS:

UL 60950-1 Second Edition, UL Listed, C-UL for Canada, IEC 60950-1 Second Edition, CE marking, when applied to the GEN3300W product, indicates compliance with the Low Voltage Directive 2006/95/EC in that it complies with EN 60950-1 Second Edition.

SAFETY INSTRUCTIONS.

ENVIRONMENTAL CONDITIONS

The Genesys power supply series safety approval applies to the following operating conditions: *Indoor use *Ambient temperature: 0Cto 50 C *Maximum relative humidity: 90% (no condensation) *Altitude: up to 3000m *Pollution degree 2

CAUTION

Do not use this product in environmentswith strong Electromagnetic field, corrosive gas and conductive materials.

CAUTIONRiskof Electrical Shock.

Instruction manual symbol. The instrument will be marked with this symbol when it is necessary for the user to referto the instruction manual.

Indicates hazardous voltage.

On (Supply)

Direct Current (DC)

Alternative Current (AC)

Indicates ground terminal.

Three-PhaseAlternating Current

Protective Ground Conductor Terminal

Off (Supply)

WARNING

CAUTION

Standby (Supply)

The WARNING sign denotes a hazard. An attention toaprocedure is called. Not following procedure correctly could result in personal injury. AWARNING sign should not be skipped and all indicated conditions must be fully understood and met.

The CAUTION sign denotes a hazard. An attention toaprocedure is called. Not following procedure correctly could result in damage to the equipment. Do not proceed beyond aCAUTION sign until all indicated conditions are fully understood and met.

FCC COMPLIANCE NOTICE:

Note: This equipment has been tested and found to comply with the limits for aClass A digital device, pursuant to part 15 of the FCCRules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated inacommercial environment. This equipment generates uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment inaresidential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

345

CHAPTER 1 GENERAL INFORMATION

1.1 USER MANUAL CONTENT

This user’s manual contains the operating instructions, installation instructions and specifications of the Genesys 3300W power supply series. The instructions refer to the standard power supplies, including the built-in RS232/485 serial communication. For information related to operation with the optional IEEE programming, refer to User Manual for Power Supply IEEE Programming Interface.

1.2 INTRODUCTION

1.2.1 General description

Genesys power supplies are wide output range, high performance switching power supplies. The Genesys series is power factor corrected and operates from worldwide AC voltage range. Output

voltage and current are continuously displayed and LED indicators show the complete operating status of the power supply. The Front panel controls allow the user to set the output parameters, the protection levels (Over-Voltage protection, Under-Voltage limit and Foldback) and preview the settings. The rear panel includes the necessary connectors to control and monitor the power supply operation by remote analog signals or by the built-in serial communication (RS232/485). GPIB programming and Isolated-Analog programming/monitoring are optional.

1.2.2 Models covered by this manual

Model Voltage Current

range(V) range(A) GEN8-400 0-8 0-400 GEN10-330 0-10 0-330 GEN15-220 0-15 0-220 GEN20-165 0-20 0-165 GEN30-110 0-30 0-110 GEN40-85 0-40 0-85 GEN60-55 0-60 0-55 GEN80-42 0-80 0-42 GEN100-33 0-100 0-33 GEN150-22 0-150 0-22 GEN200-16.5 0-200 0-16.5 GEN300-11 0-300 0-11 GEN600-5.5 0-600 0-5.5

Table1-1: Models covered by the manual

1.2.3 Features and options

Constant Voltage /Constant Current with automatic crossover.

* Active Power Factor correction. * Single Phase or Three Phase options. *Embedded Microprocessor Controller. * Built in RS232/485 Interface. *Voltage&Current high resolution adjustment by digital encoders. *High accuracy programming/readback-16 bit. * Software Calibration (no internal trimmers / potentiometers). * Last Setting Memory. * Independent Remote ON/OFF (opto-isolated) and Remote Enable/Disable.

* Parallel operation (Master/Slave) with Active current sharing. * Remote sensing to compensate for voltage drop of power leads.

* External Analog Programming and Monitoring standard (0-5V or 0-10V, user selectable).

* Cooling fan speed control for low noise and extended fan life. * Zero stacking- no ventillation holes at the top and bottom surface of the power supply. *Optional GPIB interface (SCPI compatible). *Optional Isolated Analog programming/monitoring (0-5V or 0-10V, user selectable

and 4-20mA).

1.2.4 Multiple output power system

The Genesys power supplies series can be configured intoaprogrammable power

system of up to 31 units using the built-in RS232/RS485 communication port in the power supply and the RS485 linking cable provided with each power supply.

InaGPIB system, each power supply can be controlled using the optional GPIB controller (factory installed).

1.2.5 Control via the serial communication port

The following parameters can be programmed via the serial communication port:

1. Output voltage setting.

2. Output current setting.

3. Output voltage measurement.

4. Output on/off control.

5. Output current measurement.

6. Foldback protection setting.

7. Over-voltage protection setting and readback.

8. Under-Voltage limit setting and readback.

9. Power-supply start up mode (last setting or safe mode)

1.2.6 Analog voltage programming and monitoring

Analog inputs and outputs are provided at the rear panel for analog control of the power supply. The output voltage and the current limit can be programmedby analog voltage or by resistor, and can be monitored by analog voltage. The power supply output can be remotely set to On or Off and analog signals monitor the proper operation of the power supply and the mode of operation (CV/CC).

1.2.7 Parallel operation

Genesys power supplies of the same output voltage and current rating can be paralleled in

master-slave configuration with automatic current sharing to increase power available.

1.2.8 Output connections

Output connections are made to rear panel bus-bars for models up to 100V and toa4terminal wire clamp connector for models above 100V rated output voltage. Either the positive or negative terminal maybe grounded or the output maybe floated. Models up to 60VDC Rated Output shall not float outputsmore than +/- 60VDC above/below chassis ground. Models >60VDC Rated Output shall not float outputsmore than +/-600VDC above/below chassis ground. Contact factory for assistance with higher float voltage applications.

Local or remote sense maybe used.

In remote sense, the voltage drop on the load wires

should be minimized. Refer to the specifications for the maximum voltage drop value.

1.2.9 Cooling and mechanical construction

The Genesys series is cooled by internal fans. At the installation, care must be taken to allow free air flow into the power supply via the front panel and out of the power supply via the rear panel. The Genesys power supplies have a compact and lightweight package

which allows easy installation and space saving in the application equipment.

CAUTION

Observe all torque guidelines within this manual. Over torqueing may damage unit or accessories. Such damage is not covered under manufacturers warranty.

1.3 ACCESSORIES

1.3.1 General

Accessories are delivered with the power supply or separately upon ordering. The list below

shows the possible accessories and ordering numbers.

1.3.2 Serial link cable

erial link cable, for linking power supplies by RS485 communication is provided with the power supply. Cable description: 0.5m length, shielded, RJ-45 type plugs, 8 contacts (P/N: GEN/RJ45).

1.3.3 Misc. hardware

* DB25 plug kit (AMP, 749809-9). *Strain relief for AC cord * Output terminal shield * Plastic legs for bench mounting.

1.3.4 AC cables

AC cables are not provided with the power supply. Refer to Table1-2 for recommended AC input cables (customer supplied). Add a non-locking plug approved by the national safety standards of the country of usage.

AC Input Range

190-240V~ ,Single Phase

3x 12AWG (2 wire plus safety graund), stranded copper, 300V,60Cminimum, rated for 25A. 3m

AC Input Cable

max. length, outer diameter: 9~11mm.

190-240V~ , Three Phase

4x14AWG (3 wire plus safety ground), standed copper, 300V,60cminimum, rated for 15A. 3m

max. length, outer diameter: 9~11mm.

380-415V~ , Three Phase

4x16AWG (3 wire plus safety ground), standed copper, 600V,60cminimum, rated for 10A. 3m

max. length, outer diameter: 9~11mm.

Table 1-2: Recommended AC input cable

CHAPTER 2 SPECIFICATIONS

1.Vout voltage programming

2.Iout voltage programming (*13)

3.Vout resistor programming

4.Iout resistor programming (*13

5.On/off control

6.Output current monitor (*13)

7.Output voltage monitor

8.Power supply OK signal

9.Parallel operation

10.Series operation

11.CV/CC indicator

12.Enable/Disable

13.Local/Remote analog control

14.Local/Remote analog indicator

)

2.5 ANALOG PROGRAMMING AND MONITORING

---

0~100%, 0~5V or 0~10V, user selectable. Accuracy and linearity: +/-0.5% of rated Vout. 0~100%, 0~5V or 0~10V, user selectable. Accuracy and linearity: +/-1% of rated Iout. 0~100%, 0~5/10Kohm full scale, user selectable. Accuracy and linearity: +/-1% of rated Vout. 0~100%, 0~5/10Kohm full scale, user selectable. Accuracy and linearity: +/-1.5% of rated Iout. By electrical Voltage: 0~0.6V/2~15V or dry contact, user selectable logic. 0~5V or 0~10V, user selectable. Accuracy: +/-1%. 0~5V or 0~10V, user selectable. Accuracy : +/-1%. 4~5V-OK, 0V-Fail. 500ohm series resistance. Possible , up to 4 units in master/slave mode with two wires current balance connection. Possible (with external diodes), up to 2 units. Open collector. CC mode: On, CV mode: Off. Maximum voltage: 30V, maximum sink current: 10mA. Dry contact. Open: Off, Short: On. Max. voltage at Enable/Disable in: 6V. By electrical signal or Open/Short: 0~0.6V or short: Remote, 2~15V or open: Local. Open collector. Local: Open, Remote: On. Maximum voltage: 30V, maximum sink current: 10mA.

2.1 OUTPUT RATING

1.Rated output voltage(1*)

2.Rated output current (*2)

3.Rated output power

V A W

MODEL

GEN

8-400

400

3200

10-330

330

3300

15-220

220

3300

20-165

165

3300

30-110

110

3300

40-85

40 85

3400

60-55

60 55

3300

80-42

80 42

3360

100-33

100

3300

150-22

150

3300

200-16.5

200

16.5

3300

300-11

300

3300

600-5.5

600

5.5

3300

2.2 INPUT CHARACTERISTICS

Single Phase models: 3-Phase, 200V models: 3-Phase, 400V models:

---

--%

Single Phase models: 170~265V, 47~63Hz

Single Phase models: 0.99@200Vac, rated output power. 3-Phase models: 0.95@200/380Vac, rated output power.

3-Phase, 200V models: 170~265Vac, 47~63Hz 3-Phase, 400V models: 342~460Vac, 47~63Hz

Single-Phase and 3-Phase 200V models: Less than 50A 3-Phase 400V models: Less than 20A

40 150

100

600

200

300

24.0

14.5

7.2

24.0

14.5

7.2

24.0

14.5

7.2

24.0

14.5

7.2

23.0

14.0

7.0

24.0

14.5

7.2

23.0

13.6

6.8

23.5

14.0

7.0

23.0

13.7

6.8

23.0

13.7

6.8

23.0

13.7

6.8

23.0

13.9

7.0

23.0

13.8

6.9

3.Power Factor (Typ)

4.Efficiency (*4)

5.Inrush current (*5)

2.Maximum Input current

at 100% load

1.Input voltage/freg. (*3)

---

150

100

200

300

600

2.3 CONSTANT VOLTAGE MODE

1.Max. Line regulation (*6)

2.Max. Load regulation (*7)

3.Ripple and noise (p-p , 20MHz) (*8)

4.Ripple r.m.s., 5Hz~1MHz

5.Temperature coefficient

6.Temperature stability

7.Warm-up drift

8.Remote sense compensation/wire

11.Transient response time

12.Hold-up time (Typ)

Up-prog. response time, 0~Vomax.(*9)

10.Down-prog. response time

Full load(*9) No load(*10)

---

--mV mV

---

PPM/ C

0.01% of rated output voltage +2mV

0.015% of rated output voltage +5mV 55

70 20

100

350

100

275

300

50PPM/ C from rated output voltage, following 30 minutes warm-up.

0.01% of rated Vout over 8 hrs interval following 30 minutes warm-up. Constant line, load & temp.

Less than 0.05% of rated output voltage +2mV over 30 minutes following power on.

200

250

100

500

600

700

800

160

900

1000

300

150

1100

1200

1500

2000

500

3000

3500

4000 Time for output voltage to recover within 0.5% of its rated output for a load change 10~90% of rated output current. Output set-point: 10~100%, Local sense. Less than 1mS, for models up to and including 100V. 2mS, for models above 100V.

10mSec for Single-Phase and 3-Phase 200V models, 6mSec for 3-Phase 400V models. Rated output power.

100

150

200

600

300

2.4 CONSTANT CURRENT MODE

1.Max. Line regulation (*6)

2.Max. Load regulation (*11)

3.Load regulation thermal drift

4.Ripple r.m.s. 5Hz~1MHz (*12)

5.Temperature coefficient

6.Temperature stability

7.Warm-up drift

---

PPM/ C

0.01% of rated output current +2mA

0.02% of rated output current +5mA

70PPM/ C from rated output current, following 30 minutes warm-up.

0.01% of rated Iout over 8hrs interval following 30 minutes warm-up. Constant line, load & temperature.

Less than 0.1% of rated output current over 30 minutes following load change.

650

400

300

1000

150

250

8~20V model: Less than +/-0.5% of rated output current over 30 minutes following power on.

30V~600V model: Less than +/-0.25% of rated output current over 30 minutes following power on.

2.6 PROGRAMMING AND READBACK (RS232/485, Optional LAN/IEEE Interface)

1.Vout programming accuracy (*14)

2.Iout programming accuracy (*13)

3.Vout programming resolution

4.Iout programming resolution

5.Vout readback accuracy

6.Iout readback accuracy (*13)

7.Vout readback resolution

8.Iout readback resolution

---

0.05% of rated output voltage

0.1% of actual output current +0.2% of rated output current

0.002% of rated output voltage

0.002% of rated output current

0.05% of rated output voltage

0.3% of rated output current

2.7 PROTECTIVE FUNCTIONS

1.Foldback protection

2.Over-voltage protection

3.Over-voltage trip point

4.Output under voltage limit

5.Over temperature protection

---

Output shut-down when power supply change from CV to CC User presetable. Inverter shut-down, manual reset by AC input recycle or by OUT button or by communication port command.

Preset by front panel or communication port. Prevents from adjusting Vout below limit. Does not affect analog programming. User selectable, latched or non latched.

0.5~10

0.5~12

2~36

1~24

1~18

2~44

5~66

5~165

5~110

5~88

5~220

5~330

5~660

2010

100

150

200

300

600

2010

100

150

200

300

600

2.8 FRONT PANEL

---

Vout/Iout manual adjust by separate encoders (coarse and fine adjustment). OVP/UVL manual adjust by Vout. Adjust encoder. Address selection by Voltage Adjust encoder. No of addresses:31. Go to local control. Output on/off AC on/off Front panel Lock Foldback control Baud rate selection: 1200, 2400, 4800, 9600 and 19200. Re-start modes (automatic restart, safe mode). Vout: 4 digits, accuracy: 0.05% of rated output voltage +/-1count. Iout: 4 digits, accuracy: 0.2% of rated output current +/-1count. VOLTAGE, CURRENT, ALARM, FINE, PREVIEW, FOLDBACK, LOCAL, OUTPUT ON, FRONT PANEL LOCK.

1.Control functions

2.Display

3.Indications

2.9 ENVIRONMENTAL CONDITIONS

1.Operating temperature

2.Storage temperature

3.Operating humidity

4.Storage humidity

5.Altitude

---

--% %

---

0~50 C, 100% load.

-20~85 C 20~90% RH (no condensation). 10~95% RH (no condensation). Maximum 3000m. Derate output current by 2%/100m above 2000m. Alternatively, derate maximum ambient temperature by 1 C/100m above 2000m.

2.10 MECHANICAL

1.Cooling

2.Weight

3.Dimensions (WxHxD)

4.Vibration

5.Shock

---

Forced air cooling by internal fans. Less than 13Kg. W: 423, H: 88, D: 442.5 (Refer to Outline drawing). MIL-810F, method 514.5 Less than 20G, half sine, 11mS. Unit is unpacked.

Models with Vout 50V: Output is SELV, all communication/control interfaces (RS232/485, IEEE, Isolated Analog, LAN, Sense, Remote Programming and Monitoring) are SELV. Models with 60V Vout 400V: Output is Hazardous, communication/control interfaces: RS232/485, IEEE, Isolated Analog, LAN, Remote Programing and Monitoring (pins 1-3, pins14-16) are SELV, Sense, Remote Programming and Monitoring (pins 8-13, pins 21-25) are Hazardous. Models with 400V<Vout 600V: Output is Hazardous, all communication/control interfaces (RS232/485, IEEE, Isolated Analog, LAN, Sense, Remote Programming and Monitoring) are Hazardous. Vout 50V models : Input-Output (SELV): 4242VDC 1min, Input-communication/control (SELV): 4242VDC 1min, Input-Ground: 2828VDC 1min, 60V<Vout 100V models: Input-Output (Hazardous): 2600VDC 1min, Input-communication/control (SELV): 4242VDC 1min, Output(Hazardous)-SELV: 1900VDC 1min, Output(Hazardous)-Ground: 1200VDC 1min,

Input-Ground: 2828VDC 1min. 100V< Vout 600V models: Input-Output(Hazardous): 3550VDC 1min, Input-communication/control (SELV): 4242VDC 1min, Hazardous. Output-communication/control(SELV): 4242VDC 1min, Output(Hazardous)-Ground: 2670VDC 1min, Input-Ground: 2828VDC 1min. More than 100Mohm at 25 C, 70%RH.







2.11 SAFETY/EMC

2.Interface classification

4.Insulation resistance

3.Withstand voltage

1.Applicable standards: Safety

---

EMC

UL 60950-1, CSA22.2 No.60950-1, IEC 60950-1, EN 60950-1 EN55022, EN55024, EN61000-3-3, FCC part 15, VCCI. Conducted emmision - EN55022 class A, FCC part 15 class A, VCCI class A. Radiated emmision - EN55022 class A, FCC part 15 class A, VCCI class A. Immunity - EN55024

% of rated

output voltage

% of rated

output current

0.002%

0.003%

0.007%

0.006%0.011%

0.004%

0.003%

0.002%

0.011%

0.007%

0.006%

0.004%

0.002%

0.005%

0.007%0.004%

0.01%

0.002%

0.003%

0.004%

0.005%

0.007%

0.01%

0.002%

NOTES:

*1: Minimum voltage is guaranteed to maximum 0.2% of the rated output voltage. *2: Minimum current is guaranteed to maximum 0.4% of the rated output current. *3: For cases where conformance to various safety standards (UL, IEC etc.) is required, to be

described as 190~240Vac (50/60Hz) for Single-Phase and 3-Phase 200V models, and 380~415Vac (50/60Hz) for 3-Phase 400V models.

*4: Single-Phase and 3-Phase 200V models: at 200Vac input voltage.

3-Phase 400V: at 380Vac input voltage. With rated output power. *5: Not including EMI filter inrush current, less than 0.2mSec. *6: Single-Phase and 3-Phase 200V models: 170~265Vac, constant load.

3-Phase 400V models: 342~460Vac, constant load. *7: From No-load to Full-load, constant input voltage. Measured at the sensing point in Remote

Sense. *8: For 8V~300V models: measured with JEITA RC-9131A (1:1) probe.

For 600V model: measured with 10:1probe. *9: From10% to 90% or 90% to 10% of rated output voltage, with rated , resistive load. *10: From 90% to 10% of rated output voltage. *11: For load voltage change, equal to the unit voltage rating, constant input voltage. *12: For 8V~15V models the ripple is measured at 2V rated output voltage and rated output

current. For other models, the ripple is measured at 10~100% of rated output voltage and rated output current.

*13: The Constant Current programming readback and monitoring accuracy does not include the

warm-up and Load regulation thermal drift.

*14: Measured at the sensing point.

2.12 SUPPLEMENTAL CHARACTERISTICS

The supplemental characteristics give typical but non-warranted performance characteristics. The supplemental characteristics are useful in assessing applications for the power supply. Several kinds of supplemental characteristics are listed below.

1.Evaluation Data: Typical performance of the power supply.

2.Reliability Data: Reliability performance of the power supply.

3.EN61000 Data: Performance of the power supply under EN61000 test conditions.

4.EMI Data: Typical EMI (conducted and radiated) performance of the power supply.

The supplemental characteristics data is held in each Lambda sales and service facility. For further details please contact the Lambda office nearest you.

2.13 GENESYS 3300W POWER SUPPLIES OUTLINE DRAWINGS

NOTES:

1.Analog programming connector. Matingplug suppliedwith power supply.

2.Bus-barsfor 8V to 100V models. See detail. Wire clamp connector for 150V to 600V models(shown).

3. AC cablestrain relief(suppliedwith power supply).

4. AC input connector (single phase shown).

5. Chassisslides, GENERAL DEVICES P/N: CC3001-00-S160

or equivalent, mounting holes #10-32 marked "A".

6. Bus Bars enclosurefor 60V to 600V.

7. Mounting holes for 19” rack. Use M6x16

screws to ﬁx the unittothe rack.

423.0±1.0mm

Note1

Note2(150V~600V)

Note4

Note7

88.0mm±0.3

50.0

19.0

482.0±1.0mm

Bus-Bar Detail

8V to 100V Models

40.0m m

30.0mm

5.0mm

50.0mm

10.5mm

60.5

92.0

442.5±1.0mm

642.5±1.0mm

517.0±1.0mm

35.5±1.0mm

Note5

Note3

Note2

Note6

42.0

86±0.3

amb

2.0m

76.2

CHAPTER 3 INSTALLATION

3.1 GENERAL

This chapter contains instructions for initial inspection, preparation for use and repackaging for shipment. Connection to PC, setting the communication port and linking Genesys power supplies are described in Chapter 7.

WARNING

The Genesys series is intended only for installation in Restricted Access Location (RAL). Access to Hazardous parts (rear side of the power supply) shall be prevented after installation.

Genesys power supplies generate magnetic fields which might affect the operation of other instruments. If your equipment is susceptible to magnetic fields, do not position it adjacent to the power supply

NOTE

WARNING

through the front panel slits.

3.2 PREPARATIONFOR USE

To avoid electric shock hazard, do not insert conductive parts

n order to be operational the power supply must be connected to an appropriate AC source. The AC source voltage should be within the power supply specification. Do not apply power before reading, Section 3.6 and 3.7.

Table 3-1 below, describes the basic setup procedure. Follow the instructions in Table 3-1 in the sequence given to prepare the power supply for use.

Step no.

Item Description Reference

Inspection

Installation

AC source

Test

Load connection

Default setting

Initial physical inspection of the power supply

Installing the power supply, Ensuring adequate ventillation.

AC source requirements Connecting the power supply to the AC source.

Turn-on checkout procedure.

Wire size selection. Local /Remote sensing. Single or multiple loads.

The power supply setting at shipment.

Section 3.3

Section 3.4 Section 3.5

Section 3.6 Section 3.7

Section 3.8

Section 3.9

Section 7.2.1

Table 3-1: Basic setup procedure

3.3 INITIALINSPECTION

Prior to shipment this power supply was inspected and found free of mechanical or electrical defects. Upon unpacking of the power supply, inspect for any damage which may have occured in transit.

The inspection should confirm that there is no exterior damage to the power supply such as broken knobs or connectors and that the front panel and meters face are not scratched or cracked. Keep all

packing material until the inspection has been completed. If damage is detected, fileaclaim with carrier immediately and notify the Lambda sales or service facility nearest you.

3.4 RACK MOUNTING

The Genesys power supply series is designed to fit inastandard 19” equipment rack.

3.4.1 To install the Power Supply inarack:

1. Use the front panel rack-mount bracketsto install the power supply in the rack.

2. Useasupport bar to provide adequate support for the rear of the power supply.Do not obstruct

the air exhaust at the rear panel of the unit.

WARNING

The

the

Some componentsinsidethe power supplyare at AC voltage even whenthe On/Offswitch is in the “Off”position.Toavoid electric shock hazard, disconnect the line cord and load and waittwo minutes beforeremovingcover.

CAUTION

AC Input WiresNo Conductor Pretreatment:PhoenixContact clamping parts are designed

that all kinds of copper conductors canbe clamped without pretreatment. It is forbidden to solder theconductors. The solder tin yieldsand fractures under high pressure. result is increased contact resistance and an excessive temperature rise.Inaddition, corrosio caused by picklingor ﬂuxeshas been observedonsoldered conductor ends. Notch fractures at transition point fromthe rigid to the ﬂexible conductorareaare also possible.

The power supply ON/OFF switch is not themain “disconnectdevice”and does not completely disconnectall the circuits fromthe AC source. An appropriately rated“disconnect device”suchas circuit breaker, typeBplugonpower cord, ...etc., shallbeprovided in the ﬁnal installation. The “disconnectdevice” for onephaseunits shall disconnect bothsupply lines simultaneously.The “disconnected device”must be easily accessible.

3.7.1ACInput Connector

TheAC input connector is:for single phase: Phoenix ContactP/N: PC6/3-STF-10,16

forthree phase: Phoenix ContactP/N: PC6/4-STF-10,16

Header :for single-phase: Phoenix Contact P/N: PC6-16/3-GF-10,16

forthree-phase: Phoenix Contact P/N: PC6-16/4-GF-10,16

Use suitablewires and tightening torque as follows:

1. Wire diameter: 12AWG forsingle-phase models,

14AWG forthree-phase 200V models and 16AWG forthree-phase 400V models. Refer to Table1-2 for details.

2. Tightening torque: 10.7-13.4Lb-inch. (1.2 -1.5Nm).

3.7.2ACInput Cord

WARNING

AC input cordis not provided with power supply.

Refer to section1.3.4 for details of therecommended AC input cords and to section3.7 fo disconnected device requirement.

3.7.3ACInput Wire Connection

1.Stripthe outside insulationofthe AC cable approx. 10cm. Trim thewiressothat theground wire is

10mm longer than theother wires. Strip 10mm at the end of each of thewires.

2.Unscrew the base of thestrain relief fromthe helix-shaped body.Insertthe base through the

outside opening in theACinput cover and screw thelocknut securely(11-14 Lb-inch.)intothe base, fromthe inside.

3.Slidethe helix-shaped body ontothe AC cable. Insertthe stripped wiresthrough thestrain relief

Screw-on

Locknut

Fig.3-2: Stripped WiresinstalledinStrain Relief

4.Connect

position

Fig.3-4: AC input cover and strain relief

Removable cover. Remove only to inspect AC Input wires connection. Reinstall cover after inspection.

Assembled Strain Relief

M3x8

Flat Head screws

(2 places)

the AC wires to the terminals of the input plug supplied with the unit. To connect the wires, loosen the terminal screw, insert the stripped wire into the terminal and tighten the screw securely (4.4-5.3 Lb-inch.). Refer to Fig. 3-3 for details. Pay attention to connect the wires according to the polarity marking on the plug.

AC Input Plug : Single Phase: P/N: PC6/3-STF-10,16

Wire clamp screws tightening torque: 10.7- 13.4 Lb-inch.

3-Phase: P/N: PC6/4-STF-10,16:

Protective Ground wire

AC Line wires

Fig.3-3: AC Input plug (3-Phase shown)

Connect the AC input plug to the AC input connector at the power supply rear panel. Fasten

the plug to the connector using the two screwsat each side of the plug.

(Tightening torque:10.7-13.4Lb inch)

Route the wires inside the cover to prevent pinching. Fasten the cover to the unit using the M3x8 Flat Head screws are provided. Refer to Fig.3-4 for details.

3.8 TURN-ON CHECKOUT PROCEDURE

3.8.1 General

The following procedure ensures that the power supply is operational and may be used asabasic incoming inspection check. Refer to Fig.4-1 and Fig.4-2 for the location of the controls indicated in the procedure.

3.8.2 Prior to Operation

1. Ensure that the power supply is configured to the default setting:

-AC On/Off switch at Off position.

-Dip switch : All positions at Down (”Off”) position.

-Sense connector : Configured to Local Sense as shown in Fig.3-5:

1 Remote (+) sense 2 Local (+) sense 3 Not connected 4 Local (-) sense 5 Remote (-) sense

Fig.3-5: Sense connector default connection

Plug P/N: MC 1.5/5-ST-3.81

(Phoenix)

-For units equipped with IEEE option, ensure that the IEEE_En switch is in Up (default) (Refer to Fig.4-2, item8for location), if checkout is to be done in IEEE mode.

2. Connect the unit to anAC source as described in section 3.7.

3. Connect aDVM with appropriate cables for the rated voltage to the output terminals.

4. Turn the front panel AC power switch to On.

3.8.3 Constant Voltage Check

1. Turn on the output by pressing OUT pushbutton so the OUT LED illuminates.

2. Observe the power supply VOLT display and rotatethe Voltage encoder. Ensure that the output voltage varies while the VOLT encoder is rotated. The minimum control range is from zero to the maximum rated output for the power supply model. Compare the DVM reading with the front panel VOLT display to verify the accuracy of the VOLT display. Ensure that the front panel VOLT LED is on.

3. Turn off the front panelAC power switch.

3.8.4 Constant Current Check

1. Ensure that the front panelAC power switch is at Off position and the DVM connected to the output terminals shows zero voltage.

2. Connect aDC shunt across the output terminals. Ensure that the shunt and the wires' current ratings are higher than the power supply rating. Connect a DVM to the shunt.

3. Turn the front panel AC power switch to On position.

4. Turn on the output by pressing OUT pushbutton so the OUT LED illuminates.

5. Observe the power supply CURRENTdisplay and rotate the CURRENT encoder. Ensure that the output current varies while the CURRENT encoder is rotated. The minimum control range is from zero to the maximum rated output for the power supply model. Compare the DVM reading with the front panel CURRENT display to verify the accuracy of the CURRENT display. Ensure that the front panel CURRENT LED is on.

6. Turn off the front panel AC power switch.

7. Remove the shunt from the power supply output terminals.

3.8.5 OVPCheck

Refer to Section 5.3 for explanation of the OVP function prior to performing the procedure below.

1. Turn the front panel AC power switch to On position and turn on the output by pressing OUT

pushbutton.

2. Using the VOLT encoder, adjust the output voltage to approx. 10% of the unit voltagerating.

3. Momentarily press VOLTAGE display will show the last setting of the OVPlevel.

4. Rotate the VOLT encoder CCW to adjust the OVPsetting to 50% of the unit voltage rating.

5. Wait a few seconds until the VOLT display returns to show the output voltage.

6. Adjust the output voltagetoward it’smaximum and check that the output voltagecannot be increased more than the OVP setting.

7. Adjust OVPlimit to the maximum by repeating step 3 and rotatingthe VOLT encoder CW.

3.8.6 UVLCheck

Refer to Section 5.4 for explanation of the UVLfunction prior to performing the procedure below.

1. Press the OVP/UVLbutton TWICEso that the CURRENT display shows"UUL". The VOLTAGE display will show the last setting of the UVL level.

2. Rotate the VOLT encoder to adjust the UVL level to approx. 10% of the unit voltage rating.

3. Wait a few seconds until the VOLT display returns to show the output voltage.

4. Adjust the output voltagetoward it’sminimum and check that the output voltagecannot be decreased below the UVL setting.

5. Adjust the UVL limit to the minimum by repeating step1 and rotating the VOLT encoder CCW.

the OVP/UVL button so that the CURRENT display shows“OUP”. The

3.8.7 Foldback Check

WARNING

Shorting the output may expose the user to hazardous voltages. Observe proper safety procedures.

Refer to Section 5.5 for explanation of the FOLD function prior to performing the procedure below.

1. Ensure that the output voltage is set to approx. 10% of the unit rating.

2. Adjust the CURRENT encoder to set the current limit to approx. 10% of the unit rating.

3. Momentarily press the FOLD button. Ensure that the FOLD LED illuminates. The output voltage remains unchanged.

4. Short the output terminals momentarily (approx. 0.5 sec.). Ensure that the output voltage falls to zero, the VOLT display shows “Fb” and the ALARM LED blinks.

5. Press the FOLD button again to cancel the protection. The output voltage remains zero.

6. Press OUT button. Ensure that the output voltage returns to it’s last setting.

7. Turn the output offby pressing OUT button. Ensure that the VOLT display shows“OFF”.

3.8.8 Address Setting

1. Press and hold the REM/LOC button for approx. 3sec. The VOLT display will show the communication port address.

2. Using the VOLT adjust encoder, check that the address can be set within the range of0to 30.

3.8.9 Baud Rate Setting

1. Press and hold the REM/LOC button for approx. 3sec. The CURRENT display will show the communication port Baud Rate.

2. Using The CURRENT adjust encoder, check that the Baud Rate can be set to 1200, 2400, 4800, 9600 and 19200.

3.9 CONNECTINGTHE LOAD

WARNING

Turn off the AC input power before making or changing any rear panel connection. Ensure that all connections are securely tightened before applying power.There isapotential shock hazard when using a power supply with a rated output greater than 40V.

3.9.1 Load Wiring

The following considerations should be made to select wiring for connecting the load to the power supply:

* Current carrying capacity of the wire (refer to 3.9.2) * Insulation rating of the wire should be at least equivalent to the maximum output voltage of

the power supply. * Maximum wire length and voltage drop (refer to 3.9.2) * Noise and impedance effectsof the load wiring (refer to 3.9.4).

3.9.2 Current Carrying Capacity

Two factors must be considered when selecting the wire size:

1. Wires should be heavy enough not to overheat while carrying the power supply load current at the rated load, or the current that would flow in the event the load wires were shorted, whichever is greater.

at least

2. Wire size should be selected to enable voltage drop per lead to be less than 1.0V at the rated current. Although units will compensate for up to 5V in each load wire, it is recommended to minimize the voltage drop (1V typical maximum) to prevent excessive output power consumption from the power supply and poor dynamic response to load changes. Please refer to Tables 3-2 and 3-3 for maximum wire length to limit voltage drop inAmerican and European dimensions respectively.

Wire size

AWG

14 12 10

8 6 4 2 0

Cross sect.

area

(mm )

2.5 4 6

10 16 25 35

Resistivity

Ohm/1000ft

2.526

1.589

0.9994

0.6285

0.3953

0.2486

0.1564

0.0983

10A

60 100 160 250 400 600

1000

voltage drop to 1V or less

20A

20 30 50

80 125 200 300 500

50A

8 12 20 32 50 80

125 200

100A

6 10 15 25 40 60

100

200A

2 3 5

8 12 20 30 50

Table 3-2: Maximum wire length for 1V drop on lead (in feet)

Maximum length in meters to limit

Maximum length in Feet to limit

Resistivity

Ohm/Km

8.21

5.09

3.39

1.95

1.24

0.795

0.565

10A

12.0

18.6

29.4

51.2

80.0

125.0

177.0

voltage drop to 1V or less

20A

6.0

9.8

14.8

25.6

40.0

62.0

88.0

50A

2.4

4.0

5.8

10.2

16.0

25.2

35.4

100A

1.2 2

2.9

5.1 8

12.6

17.7

200A

0.6

1.0

1.45

2.5 4

6.3

8.8

400A

---

--2 4 6

10 15 25

400A

0.3

0.5

0.7

1.25 2

3.1

4.4

Table 3-3: Maximum wire length for 1V drop on lead (in meters)

For currents not shown in Table 3-2 and 3-3, use the formula:

Maximum length=1000/(currentxresistivity)

where current is expressed in Amperes and resistivity in ohms/km or ohms/1000ft.

3.9.3 Wire termination

The wires should be properly terminated with terminals securely attached. DO NOT use unterminated wires for load connection at the power supply.

CAUTION

When local sensing, a short from +LS or +S to -V or -S or -LS, will cause damage to the power supply.Reversing the sense wires might cause damage to the power supply in local and remote sensing. (Do not connect -S to +V or +S to -V.)

3.9.4 Noise and Impedance Effects

To minimize the noise pickup or radiation, the load wires and remote sense wires should be twistedpairs to the shortest possible length. Shielding of sense leads may be necessary in high noise environments. Where shielding is used, connect the shield to the chassis viaarear panel Ground screw. Even if noise is notaconcern, the load and remote sense wires should be twisted-pairs to reduce coupling, which might impact the stability of power supply. The sense leads should be separated from the power leads. Twisting the load wires reduces the parasitic inductance of the cable which could produce high frequency voltage spikes at the load and the output of power supply, because of current variation in the load itself. The impedance introduced between the power supply output and the load could make the ripple and noise at the load worse than the noise at the power supply rear panel output.Additional filtering with bypass capacitors at the load terminals may be required to bypass the high frequency load current.

3.9.5 Inductive loads

Inductive loads can produce voltage spikes that may be harmful to the power supply.Adiode should be connected across the output. The diode voltage and current rating should be greater than the power supply maximum output voltage and current rating. Connect the cathode to the positive output and the anode to the negative output of the power supply. Where positive load transients such as back EMF fromamotor may occur, connect a surge suppressor across the output to protect the power supply. The breakdown voltage rating of the suppressor must be approximately 10% higher than the maximum output voltage of the power supply.

3.9.6 Making the load connections

WARNING

Hazardous voltages may exist at the outputs and the load connections when using a power supply with a rated output greater than 40V.To protect personnel against accidental contact with hazardous voltages, ensure that the load and its connections have no accessible live parts. Ensure that the load wiring insulation rating is greater than or equal to the maximum output voltage of the power supply.

CAUTION

Ensure that the load wiring mounting hardware does not short the output terminals. Heavy connecting cables must have some form of strain relief to prevent loosening the connections or bending the bus-bars.

8V to 100V Models

Refer to Fig.3-6 for connection of the load wires to the power supply bus-bars and to Fig.3-7 for mounting the bus-bars shield to the chassis.

Wire terminal lug (2 places)

Output

so It result caused transition

M10x25 screw (2 places)

Flat washer

(2 places)

Flat washer (2 places)

Spring washer (2 places)

Hex Nut (2 places)

Screws tightening torque: 290-310 Lb-inch.

Fig. 3-6: Load wires connection, 8V to 100V models.

Fig. 3-7: Bus-bars shield mounting,

8V to 40V models

Fig. 3-8: Bus-bars shield mounting,

60V to 100V models

150V to 600V Models

WARNING

Hazardous voltages exist at the outputs and the load connections. To protect personnel against accidental contact with hazardous voltages, ensure that the load and its connections have no accessible live parts. Ensure that the load wiring insulation rating is greater than or equal to the maximum output voltage of the power supply.

CAUTION

Load Wires No Conductor Pretreatment: Phoenix Contact clamping parts are designed

that all kinds of copper conductors can be clamped without pretreatment.

is forbidden to solder the conductors. The solder tin yields and fractures under high pressure. The

is increased contact resistance and an excessive temperature rise. In addition, corrosion

by pickling or fluxes has been observed on soldered conductor ends. Notch fractures at the

point from the rigid to the flexible conductor area are also possible.

The Phoenix The output The

150V to 600V models have afour terminal wire clamp output connector:

Contact P/N: FRONT4-H-7.62/4

twoleftterminalsare the positive outputs and theother two right terminalsare the negative

s.Max. 30A per terminal.

connector requirementsare as follows:

1. Wires: AWG18 to AWG10.

2. Tightening torque: 4.4-5.3Lb-inch. (0.5-0.6Nm).

Followthe below instructions for connectionofthe load wirestothe power supply:

1. Strip approx.10mm at the end of each of theload wires.

2. Loosen the connector terminal screws.

3. Loosen screws “B” from enclosure bottom cover to release the shutter.

4. Insertstripped wiresinto enclosure bottom cover opening and then to theterminals, tighten theterminals screws securely(see ﬁg.3-9)

5. Assemblethe enclosuretop cover to the chassisas shown in Fig.3-9,using clamp “A1” and screw “A2”,tighten screw “A2” (tightening torque:4.8-5.3 Lb-inch).

Negative (-)

Output/Return

Enclosuretop cover

Shutters

Positive output (+)

Enclosure bottom cover

Load wires

Fig.3-9: Load wires connectiontothe output connector

6. Assemble the enclosure bottom cover to it’s place, as showninFig.3-10,using screws“C”, 3 places (tightening torque 4.8-5.3 Lb-inch).

7. Slide down the shutter to secure load wires in place, and tighten screws “B”.

Fig.3-10: Enclosure assembly

3.9.7 Connecting single loads, local sensing (default).

Fig.3-11 shows recommended load and sensing connections forasingle load. The local sense lines shown are default connections at the rear panel J2 sense connector. Local sensing is suitable for applications where load regulation is less critical.

Power Supply

Rem.sense

Local sense

+ +

Rem.sense

3.9.8 Connecting single loads, remote sensing

Fig.3-12 shows recommended remote sensing connection for single loads. Remote sensing is used when, in Constant Voltage mode, the load regulation is important at the load terminals. Usetwisted or shielded wires to minimize noise pick-up. If shielded wires are used, the shield should be connected to the ground at one point, either at the power supply chassis or the load ground. The optimal point for the shield ground should be determined by experimentation.

Power Supply

-V

Load lines, twisted pair, shortest length possible.

Fig.3-11: Single load connection, local sensing

Load lines. Twisted pair

shortest length possible.

-V

Load

Rem.sense

Local sense

+ +

Rem.sense

Fig.3-12: Remote sensing, single load

3.9.9 Connecting multiple loads, radial distribution method

Fig.3-13 showsmultiple loads connected to one supply. Each load should be connected to the power supply’s output terminals using separate pairs of wires. It is recommended that each pair of wires will be as short as possible and twisted or shielded to minimize noise pick-up and radiation. The sense wires should be connected to the power supply output terminals or to the load with the most critical load regulation requirement.

Sense lines. Twisted pair or shielded.

Load lines, twisted pair, shortest length possible.

Power Supply

Rem.sense

Local sense

+ +

Rem.sense

3.9.10 Multiple load connection with distribution terminals

If remotely located output distribution terminals are used, the power supply output terminals should be connected to the distribution terminals by apair of twisted and/or shielded wires. Each load should be separately connected to the remote distribution terminals (see Fig.3-14). If remote sensing is required, the sensing wires should be connected to the distribution terminals or at the most critical load.

Power Supply

Rem.sense

Local sense

+ +

Rem.sense

-V

Fig.3-13: Multiple loads connection, radial distribution, local sense

Distribution terminal

-V

Load#1

Load#2

Load#3

Load#1

Load#2

Load#3

Fig.3-14: Multiple loads connection with distribution terminal

3.9.11Grounding outputs

Either the positive or negative output terminals can be grounded. To avoid noise problems caused by common-mode current flowing from the load to ground, it is recommended to ground the output terminal as close as possible to the power supply chassis ground. Always use twowires to connect the load to the power supply regardless of how the system is grounded.

WARNING

Models up to 60VDCRated Output shall not float outputsmore than +/-60VDC above/below chassis ground. Models > 60VDC Rated Output shall not float outputsmore than +/-600VDC above/below chassis ground.

WARNING

+S +LS

-LS

-S

OFF

SW1

OUTPUT TERMINAL GROUNDING

There is a potential shock hazard at the RS232/485 and the IEEE portswhen using power supplies with rated or combined voltage greater than 400V with the Positive Output of the power supplies is grounded. Do not connect the Positive Output to ground when using the RS232/485 or IEEE under the above conditions.

3.10 LOCAL AND REMOTE SENSING

The rear panel J2 sense connector is used to configure the power supply for local or remote sensing of the output voltage. Refer to Fig.3-15 for sense connector location.

3.10.1 Sense wiring

WARNING

There isapotential shock hazard at the sense connector when using a power supply with a rated output voltage greater than 40V. Local sense and remote sense wires should have aminimum insulation rating equivalent or greater than the maximum output voltage of the power supply. Ensure that the connections at the load end are shielded to prevent accidental contact with hazardous voltages.

3.10.2 Local sensing

The power supply is shipped with the rear panel J2 sense connector wired for local sensing of the output voltage. See Table 3-4 for J2 terminals assignment. With local sensing , the output voltage regulation is made at the output terminals. This method does not compensate for voltage drop on the load wires, therefore it is recommended only for low load current applications or where the load regulation is less critical.

Terminal J2-1 J2-2 J2-3 J2-4 J2-5

Fig.3-15: Sense connector location

Function Remote positive sense (+S). Local positive sense. Connected internally to the positive output terminal (+LS). Not connected (NC). Local negative sense. Connected internally to the negative output terminal (-LS). Remote negative sense (-S).

Table 3-4: J2 terminals

3.10.3 Remote sensing

WARNING

There isapotential shock hazard at the sense point when using power supply with a rated output voltage greater than 40V. Ensure that the connections at the load end are shielded to prevent accidental contact with hazardous voltages.

CAUTION

When using shielded sense wires, ground the shield in one place only. The location can be the power supply chassis or one of the output terminals.

Use remote sense where the load regulation at the load end is critical. In remote sense, the power supply will compensate for voltage drop on the load wires. Refer to the power supply specifications for the maximum voltage drop on load wires. The voltage drop is subtracted from the total voltage available at the output. Follow the instructions below to configure the power supply for remote sensing:

1. Ensure that the AC On/Off is in the Off position.

2. Remove the local sense jumpers from J2.

3. Connect the negative sense lead to terminal J2-5 (-S) and the positive sense lead to terminal J2-1(+S) of the J2 mating connector. Ensure that the J2 mating connector is plugged securely

into the rear panel sense connector, J2.

4. Turn On the power supply.

Notes:

1. If the power supply is operating in remote sense and either the positive or negative load wire is not connected, an internal protection circuit will activate and shut down the power supply.To resume operation, turn the AC On/Off to the Off position, connect the open load wire, and turn On the power supply.

2. If the power supply is operated without the remote sense lines or local sense jumpers, it will

continue to work, but the output voltage regulation will be degraded. Also, the OVP circuit may activate and shut down the power supply.

3.10.4 J2 sense connector technical information

-J2 connector type: MC 1.5/5-G-3.81, Phoenix.

- Plug type: MC 1.5/5-ST-3.81, Phoenix.

-Wire AWG; 28 up to 16.

-Stripping length: 7mm.

-Tightening torque:1.95-2.21Lb-Inch. (

0.22- 0.25Nm)

3.11 REPACKAGING FORSHIPMENT

To ensure safe transportation of the instrument, contact the Lambda sales or service facility near

you for Return Authorization and shipping information. Please attach atag to the power supply describing the problem and specifying the owner,model number and serial number of the power supply.Refer to Warranty Information for further instructions.

CHAPTER 4FRONT AND REAR PANEL CONTROLS

AND CONNECTORS

4.1INTRODUCTION

The Genesys Power Supplyseries has afullset of controls, indicators and connectors that allow

theuserto easily setupand operate the unit. Beforestartingto operate the unit, please readthe following sections forexplanationofthe functions of the controls andconnectors terminals.

- Section4.2:Front panel controls andindicators.

- Section4.3: Rear panel controls and connectors.

4.2FRONT PANEL CONTROLS AND INDICATORS

See Fig.4-1toreviewthe controls, indicators and meters located on the powersupply front panel.

CURRENT

POWER

VOLTAGE

ALARM

DC VOLTS

FINE

PREV/

OVP UVL

FOLD

REM/LOC

DC AMPS

OUT

Fig.4-1: Front panel controls and indicators

Table4-1:Front Panel controls and indicators

Number

Control/Indicator

Description

High resolutionrotary encoder foradjusting the Output

VOLTAGE control

Voltage. Also adjuststhe OVP/UVL levels and selects

theAddress.

VOLTAGE indicator

Green LED,lightsfor Constant-Voltage mode

operation.

4digit, 7-segment LED display.Normally displays the output voltage. When the PREV buttonispressed, the

VOLTAGE display

displayindicatesthe programmed settingofthe output voltage. When the OVP/UVL buttonispressed,the Voltage displayindicatesthe OVP/UVL setting.

Section

5.2.1

5.3.1

5.4.1

7.2.2

Table 4-1: Front Panel controls and indicators

Number Control/Indicator Description

4 digit, 7-segment LED display.Normally displays the

CURRENT display

output current. When the PREV button is pressed, the display indicates the programmed setting of output current.

CURRENT indicator

Green LED, lights for Constant-Current mode operation.

High resolution rotary encoder for adjusting the Output

CURRENT control

Current. Also selects the Baud-Rate of the communication port.

Main function

set the output On or Off. Press to reset and turn On the output after OVPorFOLD alarm events have occurred.

Auxiliary function

OUT button

"Auto-Restart" modes. Press and hold OUT button to toggle between "Safe-Start" and "Auto-Restart".The VOLT display will cycle between "SAF" and "AU7”. Releasing the OUT button while one of the modes is displayed, selects that mode.

OUT indicator

Green LED, lights when the DC output is enabled.

Main function

unit into Local (REM/LOC button is disabled at Local Lockout mode).

REM/LOC button

Auxiliary function

Press and hold REM/LOC for 3sec. to set the Address with the VOLTAGE encoder and the Baud Rate with the CURRENT encoder.

REM/LOC indicator

Green LED, lights when the unit is in Remote mode.

Foldback protection control.

- Press FOLD to set Foldback protection to On.

FOLD button

-To release Foldback alarm event, press OUT to enable the output and re-arm the protection.

- Press FOLD again to cancel the Foldback protection.

FOLD indicator

Green LED, lights when Foldback protection is On.

:Output ON/OFF control. Press OUT to

: Selects between "Safe-Start" and

:Goto local. Press REM/LOCto put the

: Address and Baud Rate setting.

Section

5.2.2

7.2.4

5.6

5.11

7.2.5

7.2.2

7.2.4

5.5

OVP/UVL button

PREV/ button

Over VoltageProtection and Under Voltage limit setting.

- Press once to set OVP using VOLTAGE encoder ( the

current display shows“OUP” )

- Press again to set the UVL using VOLTAGE encoder

( the current display shows “UUL” ).

Main function

: Press PREV to display the output voltage and current limit setting. For5sec. the display will show the setting and then it will return to show the actual output voltage and current.

Auxiliary function

: Front Panel Lock. Press and hold PREV button to toggle between “Locked front panel” and “Unlocked front panel”. The display will cycle between “LFP” and “UFP”. Releasing the PREV button while one of the modes is displayed, selects that mode.

5.3

5.4

5.17

Table 4-1: Front Panel controls and indicators

Number Control/Indicator Description

PREV indicator

Green LED, lights when PREV button is pressed.

Section

Voltage and Current Fine/Coarse adjustment control. Operates asatoggle switch. In Fine mode, the

FINE button

VOLTAGE and CURRENT encoders operate with high resolution and in Coarse mode with lower resolution (approx. 6 turns).

Auxiliary function

: Advanced Parallel Operation

5.15.2

Mode setting.

FINE indicator

Green LED, lights when the unit is in Fine mode. Red LED, blinks in case of fault detection. OVP, OTP

ALARM indicator

Foldback, Enable and AC fail detection will cause the ALARM LED to blink.

AC Power switch

AC On/Off control.

4.3 REAR PANEL

See Fig.4-2 to review the connections and controls located on the power supply rear panel. Refer to Table 4-2 for explanations about the rear panel connections and controls.

SW1

OFF

OUT

150~600V

Models

Fig.4-2: Rear panel connections and controls

Table 4-2: Rear panel connections and controls

Number

Item

AC input connector

DC output

Description

Wire clamp connector. Three terminals for Single-Phase models and four terminals for Three-Phase models.

Bus-bars for 8V to 100V models. Wire clamp connector for 150V to 600V models (shown).

RJ-45 type connector, use for connecting power supplies to

Remote-In connector

RS232 or RS485 port of computer for remote control purposes. When using several power supplies inapower system, the first unit Remote-In is connected to the computer and the remaining units are chained, Remote-In to Remote-Out.

8~100V

Models

AC INPUT

Section

3.7

3.9.6

7.3

7.4

Table 4-2: Rear panel connections and controls

Number

Item

Remote Out connector

Programming and Monitoring connector

SW1 Setup switch

Remote sense connector

Blank Sub-plate

IEEE switch

Ground stud

Description

RJ-45 type connector, used for chaining power supplies to form a serial communication bus.

Connector for remote analog interface. Includes output voltage and current limit programming and monitoring signals, Shut-off control (electrical signal), Enable/Disable control (dry-contact), power supply ok (PS_OK) signal and operation mode (CV/CC) signal.

Nine position DIPswitch for selecting remote programming and monitoring modes for Output Voltage, Current Limit and other control functions.

Connector for making remote sensing connections to the load for regulation of the load voltage and compensation of load wire drop.

Blank sub-plate for standard units. Isolated Remote Analog programming connector for units equipped with Isolated Analog control option (shown). IEEE connector for units equipped with IEEE programming option.

Two position DIP switch for selecting IEEE mode or RS232/485 mode when IEEE option is installed.

M4 stud and hardware for chassis ground connection.

Section

7.3

7.4

4.5

4.4

4.4.1

4.4.2

3.8.2

3.10.2

3.10.3

4.4 REAR PANELSW1 SETUP SWITCH

The SW1 Setup switch (see Fig.4-3) isa9-position DIP switch that allows the user to choose the following:

- Internal or remote programming for Output Voltage and Current Limit.

- Remote voltage or resistive programming of Output Voltage and Output Current limit.

- Select range of remote voltage and resistive programming.

- Select range of Output Voltage and Output Current monitoring.

- Select the Remote Shut-Off control logic.

- Select between RS232 or RS485 communication interface.

- Enable or disable the rear panel Enable/Disable control (dry contact).

Fig.4-3: SW1 setup DIP switch

4.5 REAR PANELJ1PROGRAMMING AND MONITORING CONNECTOR

The J1 Programming and Monitoring connector isaDB25 subminiature connector located on the power supply rear panel. Refer to Table 4-4 for description of the connector functions. The power supply default configuration is Local operation which does not require connections to J1. For remote operation using J1 signals use the plug provided with power supply or equivalent type. It is essential to use plastic body plug to conform with Safety Agency requirements. Ifashield is required for J1 wires, connect the shield toapower supply chassis ground screw.

4.5.1 Making J1 connections

-J1 connector type: AMP, P/N: 5747461-3

-J1 plug description: AMP, P/N: 745211-7

-Wire dimension range: AWG26-22

- Extraction tool: AMP, 91232-1 or equivalent.

-Manual Pistol grip tool: Handle:AMP, P/N: 58074-1 Head:AMP, P/N: 58063-2

Before making any connection, turn the AC On/Off switch to the Off position and wait until the front panel display has turned Off.

CAUTION

The programming return terminals (12, 22 and 23) are referenced to the -V potential of the power supply.Do not attempt to bias any of these terminals relative to the -V or any other potential. Use the Isolated Programming interface option to allow control fromaprogramming source at a different potential relative to the power supply negative output.

CAUTION

To prevent ground loops and to maintain the isolation of the power supply when programming from J1, use an ungrounded programming source.

WARNING

There isapotential shock hazard at the output when using a power supply with rated output greater than 40V.Use wires with minimum insulation rating equivalent to the maximum output voltage of the power supply.

CHAPTER 5LOCAL OPERATION

5.1 INTRODUCTION

This Chapter describes the operating modes that are not involved in programming and monitoring the power supply via its serial communication port (RS232/RS485) or by remote analog signals. Ensure that the REM/LOC LED on the front panel is Off, indicating Local mode. If the REM/LOC LED is On, press the front panel REM/LOC button to change the operating mode to local.

- For information regarding remote analog programming refer to Chapter 6.

- For information regarding usage of the serial communication port refer to Chapter 7.

5.2 STANDARD OPERATION

The power supply has two basic operating modes: Constant Voltage Mode and Constant Current Mode. The mode in which the power supply operates at any given time depends on the output voltage setting, output current limit setting and the load resistance.

5.2.1 Constant Voltage Mode

1. In constant voltage mode, the power supply regulates the output voltageat the selected value, while the load current varies as required by the load.

2. While the power supply operates in constant voltage mode, the VOLTAGELED on the front panel

illuminates.

3.Adjustment of the output voltage can be made when the power supply output is enabled

(Output On)or disabled (Output Off). When the output is enabled, simply rotate the VOLTAGE encoder knob to program the output voltage. When the output is disabled, press the PREV button and then rotate the VOLTAGE encoder knob. The VOLTAGEmeter will show the programmed output voltage for5seconds after the adjustment has been completed.Then the VOLTAGEmeter will display "OFF".

4.Adjustment resolution can be set to coarse or fine resolution. Press FINE button to select between the lower and higher resolution. The FINE LED turns On when the resolution is set to FINE.

NOTE

If after completing the adjustment, the display shows a different value than the setting, the power supply maybeat current limit. Check the load condition and the power supply current limit setting.

NOTE

The maximum and minimum setting values of the output voltage are limited by the Over Volt Refer to Sec.5.3 and 5.4 for more details.

5.2.2 Constant Current Operation

1. In constant current mode, the power supply regulates the output current at the selected value,

while the voltage varies with the load requirement.

2. While the power supply is operating in constant current mode, the CURRENT LED on the front panel illuminates.

3.Adjustment of the output current limit can be made when the power supply output is enabled (Output On)or disabled (Output Off).

-Disabled output (Off): Press PREV button and then rotate the Current encoder knob. The

CURRENT meter will show the programmed current limit for 5 seconds after the adjustment has been completed. Then the VOLTAGEmeter will display "OFF".

age protection and Under Voltage limit setting.

- Enabled output, power supply in Constant Voltage mode: Press the PREV button and then rotate the CURRENT encoder knob. The CURRENT meter will show the programmed

current limit for5seconds after the adjustment has been completed, and then will return to show the actual load current.

- Enabled output, power supply in Constant Current mode: Rotate the CURRENT encoder

knob to adjust the current limit.

4. Adjustment resolution can be set to Coarse or Fine adjustment. Press the FINE button to select between the Coarse and Fine resolution. The FINE LED turns On when the resolution is set to FINE.

5.2.3 Automatic Crossover

If the power supply operates in Constant Voltage mode, while the load current is increased to greater than the current limit setting, the power supply will automatically switch to Constant Current mode. If the load is decreased to less than the current limit setting, the power supply will automatically switch back to Constant Voltage mode.

5.3 OVER VOLTAGEPROTECTION(OVP)

The OVP circuit protects the load in the event ofaremote or local programming error orapower supply failure. The protection circuit monitors the voltage at the power supply sense points and thus providing the protection level at the load. Upon detection of an Over Voltage condition, the power supply output will shut down.

5.3.1 Setting the OVP level

The OVP can be set when the power supply output is Enabled (On) or Disabled (Off). To set the OVP level, press the OVP/UVL button, so that the CURRENT meter shows"OUP".

The VOLTAGEmeter shows the OVP setting level. Rotate the VOLTAGE encoder knob to adjust the OVP level. The display will show "OUP" and the setting value for5seconds after the adjustment has been completed and then will return to it's previous state.

The minimum setting level is approx. 105% of the set output voltage, or the value in Table 7-6, whichever is higher. The maximum setting level is shown in Table5-1.

To preview the OVP setting, press OVP/UVL pushbutton so that the CURRENT display will show "OUP". At this time, the VOLTAGE display will show the OVP setting. After5seconds, the display will return to it's previous state.

Model

8V 10V 15V 20V 30V 40V

Max. OVP

10.0V

12.0V

18.0V

24.0V

36.0V

44.0V

Model

60V

80V 100V 150V 200V 300V 600V

Max. OVP

66.0V

88.0V

110.0V

165.0V

220.0V

330.0V

660.0V

Table 5-1: Maximum OVP setting levels

5.3.2 Activated OVP protection indications

When the OVPis activated the power supply

output shuts down. The VOLTAGE display shows

"OUP" and the ALARM LED blinks.

5.3.3 Resetting the OVP circuit

To reset the OVP circuit afterit activates:

1. Reduce the power supply Output Voltage setting below the OVP set level.

2. Ensure that the load and the sense wiring is connected properly.

3. There are four methods to reset the OVPcircuit.

3.1 Press OUT button.

3.2 Turn the power supply Off using theAC On/Off switch, wait until the front panel display turns Off, then turn the power supply On using theAC On/Off switch.

3.3 Turn the power supply output Offand then On using the SO control (refer to sect.5.7). In this method the power supply should be set toAuto-Restart mode.

3.4 Send OUT1 command via the RS232/485 communication port.

5.4 UNDER VOLTAGE LIMIT (UVL)

The UVL prevents adjustment of the output voltage below a certain limit.The combination of UVL and OVP functions, allow the user to create a protection window for sensitive load circuitry.

5.4.1 Setting the UVL level

Setting the UVL can be made when the power supply output is Enabled (On) or Disabled (Off). To set the UVL level, press the OVP/UVL button TWICE, so that the CURRENT meter shows “UUL”. The VOLTAGE meter shows the UVL setting level. Rotate the VOLTAGE encoder knob to adjust the UVL level. The display will show “UUL” and the setting value for 5 seconds after the adjustment has been completed and then will return to it’s previous state. UVL setting values are limited at the maximum level to approximately 95% of the Output Voltage setting. Attempting to adjust the UVL above this limit will result in no response to the adjustment attempt. The minimum UVL setting is zero.

5.5 FOLDBACKPROTECTION

Foldback protection will shut down the power supply output if the load current exceeds the current limit setting level. This protection is useful when the load circuitry is sensitive to an over current condition.

5.5.1 Settingthe Foldback protection

To arm the Foldback protection, the FOLD button should be pressed so that the FOLDLED illuminates. In this condition, transition from Constant Voltage to Constant Current mode will activate the Foldback protection. Activation of the Foldback protection disables the power supply output, causes the ALARM

LEDto blink and display "Fb" on the VOLTAGE meter.

5.5.2 Resetting activated Foldback protection

There are four methods to reset an activated Foldback protection.

1. Press the OUT button. The power supply output is enabled and the Output Voltage and current will return to their last setting. In this method, the Foldback protection remains armed, therefore if the load current is higher than the current limit setting, the Foldback protection will be activated again.

2. Press the FOLD button to cancel the Foldback protection. The power supply output will be disabled

and the VOLTAGE display will show “OFF”.Press the OUT button to enable the power supply output.

3. Turn the power supply output Off and then On using the SO control (refer to sect. 5.7). In this method the foldback protection remains armed, therefore if the load current is higher than the current limit setting the Foldback protection will be activated.

4. Turn the power supply Offusing the AC On/Off switch, wait until the front panel display turns Off, then turn the unit back ON again. The power supply output is enabled and the Output Voltage and Current will return to their last setting. In this method, the Foldback protection remains armed, therefore if the load current is higher than the current limit setting, the Foldback protection will be activated again.

5.6 OUTPUT ON/OFF CONTROL

TheOutput On/Off enables or disables the power supply output. Use this function to make adjustments to either the power supply or the load without shutting off the AC power.The Output On/Off can be activated from the front panel using the OUT button or from the rear panel J1 connector.The OUT button can be pressed at any timeto enable or disable the power supply output. When the output is disabled, the output voltage and current fall to zero and the VOLTAGE display shows“OFF”.

5.7 OUTPUT SHUT-OFF (SO) CONTROL VIA REAR PANEL J1 CONNECTOR

Contacts 2,3 and 15 of J1 (Fig.4-2, Item 5) serve as Output Shut-Off (SO) terminals. The SO terminals accept a 2.5V to 15V signal or Open-Short contact to disable or enable the power supply output. The SO function will be activated only when a transition from On to Offis detected after applying AC power to unit. (Thus ,inAuto-Restart mode, the output will be enabled after applying AC power, even if SO is in Off level.). After On to Off transition is detected, the SO will enable or disable the power supply output according to the signal level or the short/open applied to J1.This function is useful for connecting power supplies ina“Daisy-chain” (refer to section 5.16). TheSO control can be used also to reset the OVP and Fold Protection. Refer to sect. 5.3 and 5.5 for details.

When the unit is shut-offbyJ1 signal, the VOLTAGE display will show “SO” to indicate the unit state. J1

*AC fail

*Output Off

contact 15 is the SO signal input and contacts2and 3, IF_COM, are the signal return (connected internally). Contacts 2,3 and 15 are optically isolated from the power supply output. The SO control logic can be selected by the rear panel SW1 Setup switch. Refer to Table 5-2 for SW1 setting and SO control logic.

SW1-5 setting

Down (default)

SO signal level J1-2(3), 15 2-15V or Open 0-0.6V or Short 2-15V or Open 0-0.6V or Short

Power supply output On Off Off On

Display

Voltage/Current “SO” “SO” Voltage/Current

Table 5-2: SO logic selection

5.8 ENABLE/DISABLE CONTROL VIA REAR PANELJ1 CONNECTOR

Contacts1and 14 of J1 (Fig.4-2, Item 5) serve as Output Enable/Disable terminals by switch or relay. This function is enabled or disabled by the SW1 Setup switch position 9. Refer to Table 5-3 for Enable/Disable function and SW1 setting.

SW1-9 setting

Down (Default)

Enable/Disable inputs

Open or Short

Open Short

Table 5-3: Enable/Disable function and SW1 setting

Power supply output

On Off On

Display

Voltage/Current

“ENA”

Voltage/Current

ALARM LED

Off

Blinking

Off

CAUTION

To prevent possible damage to the unit, do not connect any of the Enable/Disable inputsto the positive or negative output potential.

NOTE

Safe Start mode

Auto Restart mode

-If the Enable/Disable fault condition clears when unitsin safe start mode recovery is by pressing OUT button or by sending a ‘OUT1’ serial command.

- The output will return back ON automatically when the Enable/Disable fault conditions clears.

5.9 CV/CC SIGNAL

CV/CC signal indicates the operating mode of the power supply, Constant Voltage or Constant Current. CV/CC signal is an open collector output with a 30V parallel zener,at J1-13, referenced to the COM potential at J1-12 (connected internally to the negative sense potential). When the power supply operates in Constant Voltage mode, CV/CC output is open. When the power supply operates in Constant Current mode, CV/CC signal output is low(0-0.6), with maximum 10mA sink current.

CAUTION

Do not connect CV/CC signal toavoltage source higher than 30VDC. Always connect CV/CC signal to the voltage source with a series resistor to limit the sink current to less than 10mA.

5.10 PS_OK SIGNAL

PS_OK signal indicates fault condition in the power supply. PS_OK is a TTL signal output at J1-16, referenced to IF_COM at J1-2,3 (Isolated Interface Common)). When a fault condition occurs, PS_OK level is low, with maximum sink current of 1mA, when no fault condition occurs, PS_OK level is high with maximum source current of 2mA. The following faults will set the PS_OK to Fault state:

*OTP *OVP *Foldback

*Enable/Disable open (Power supply is disabled) *SO (Rear panel Shut-Off-Power supply is shut off)) *IEEE failure (with optional IEEE interface)

5.11 SAFE START AND AUTO-RESTART MODES

When turning on the power supply AC On/Off,it can start to its last setting of Output Voltage and Current limit with the output enabled (Auto-restart) or start with the output disabled (Safe mode). Press and hold the OUT button to select between Safe start and Auto-restart modes. The VOLTAGE display will continuously cycle between "SAF" and "AU7” every 3 seconds. Releasing OUT pushbutton while one of the modes is displayed, selects that mode. The default setting at shipment is Safe mode.

5.11.1Automatic start mode

In this mode, the power supply restores its last operation setting. Upon start-up, the output is enabled or disabled according to its last setting.

5.11.2Safe start mode

In this mode, the power supply restores its last operation setting and sets the Output to Offstate. At

start-up, the output is disabled and the output voltage and current are zero. To enable the output and restore the last output voltage and current limit values, momentarily press OUTbutton.

5.12 OVER TEMPERATURE PROTECTION(OTP)

The OTP circuit shuts down the power supply before the internal components can exceed their safe internal operating temperature. When an OTP shutdown occurs, the display shows"O7P" and the ALARM LED blinks. Resetting the OTP circuit can be automatic (non-latched) or manual (latched) depending on the Safe or Automatic restart mode.

1. Safe start mode:

condition has been removed. The display continue to shows"O7P" and the ALARM LED continues to blink. To reset the OTP circuit, press OUT button (or send OUT ON command via the serial port).

2. Auto-restart mode:

automatically when the over temperature condition is removed.

5.13 LAST SETTING MEMOR

The power supply is equipped with Last Setting Memory,which stores power supply parameters at eachAC turn-off sequence.

STORED PARAMETERS:

1. OUT On or Off

2. Output voltage setting (PV setting)

3. Output current limit (PC setting)

4. OVP setting

5. UVL setting

6. FOLD setting

7. Start-up mode (Safe or Auto-rest

8. Remote/Local:If the last setting was Local Lockout (latched mode), the supply will return to Remote mode (non-latched).

9.Address setting

10. Baud rate

11. Locked /Unlocked front panel (LFP/UFP) (Items8,9,10 are related to Remote digital control operation and explained in chapter 7)

12. Master/Slave setting

In Safe start mode, the power supply stays offafter the over temperature

InAuto-restart mode , the power supply recovers to it's last setting

art)

5.14 SERIES OPERATION

Power supplies of the SAME MODEL can be connected in series to obtain increased output voltage. Split connection of the power supplies gives positive and negative output voltage.

CAUTION

Do not connect power supplies from different manufacturers in series or in parallel.

5.14.1 Series connection for increased output voltage

In this mode, two units are connected so that their outputs are summed. Set the current limit of each power supply to the maximum that the load can handle without damage. It is recommended that diodes be connected in parallel with each unit output to prevent reverse voltage during start up sequence or in case one of the units shuts down. Each diode should be rated to at least the power supply rated output voltage and output current. Refer to Fig.5-1 and 5-2 for series operation with local and remote sensing.

WARNING

When power supplies are connected in series, and the load or one of the output terminals is grounded, no point maybeatagreater potential of +/-60VDC from ground for models up to 60VDCRated Output and +/-600VDC from ground for models >60VDC Rated Output. When using RS232/485 or IEEE, refer to the OUTPUT TERMINALS GROUNDING warning, section 3.9.11.

+LS

-LS

+LS

-LS

-S

(*)

LOAD

(*)

(*) Diodes are user supplied.

POWER SUPPLY

Fig.5-1: Series connection, local sensing

Remote programming in series operation for increased output voltage:

1.Programming by external voltage:

2.Using the SO function and PS_OK signal:

+LS

-LS

+LS

-LS

-S

(*)

LOAD

(*)

POWER SUPPLY

Fig.5-2: Series connection, remote sensing

The analog programming circuitsof this power supply are referenced to the negative output potential. Therefore, the circuits used to control each series connected unit must be separated and floated from each other.

The Shut-Off and PS_OK circuits are referenced to the isolated interface common, IF_COM (J1-2,3). The IF_COM terminals of different units can be connected to obtainasingle control circuit for the power supplies connected in series.

3. Programming by external resistor:

Programming by external resistor is possible . Refer to section 6-5 for details.

4. Programming via the Serial Communication port (RS232/RS485):

The communication port is referenced to the IF_COM which is isolated from the power supply output potential. Therefore power supplies connected in series can be chained using the Remote-In and Remote-Out connectors. Refer to chapter 7 for details.

5.14.2 Series connection for positive and negative output voltage

In this mode, two units are configured as a positive and negative output. Set the current limit of each power supply to the maximum that the load can handle without damage. It is recommended that diodes be connected in parallel with each unit output to prevent reverse voltage during start-up or in case one of the units shuts down. Each diode should be rated to at least the power supply rated output voltage and output current. Refer to Fig.5-3 for this operating mode.

+LS

-S

(*)

LOAD

COM.

(*)

(*) Diodes are user supplied.

POWER SUPPLY

-LS

POWER SUPPLY

-LS

Fig.5-3: Series connection for positive/negative output voltages

Remote programming in series operation for positive and negative output voltage

1. Programming by external voltage:

2. Using the SO function and PS_OK signal :

The Shut-Off and PS_OK circuits are referenced to the isolated interface common, IF_COM (J1-2,3). The IF_COM terminals of the units can be connected to obtain a single control circuit for the power supplies connected in series.

3. Programming by external resistor :

Programming by external resistor is possible. Refer to section 6.5 for details.

4. Programming via the Serial Communication port (RS232/RS485):

5.15 PARALLEL OPERATION

Up to four units of the same VOLTAGE and CURRENT rating can be connected in parallel to provide up to four times the output current capability. One of the units operates as a master and the remaining units are slaves. The slave units are analog programmed by the master unit. In remote digital operation, only the master unit can be programmed by the computer while the slave units may be connected to the computer for voltage, current and statusreadback only. There are two methods, basic and advanced, to configure multiple supplies for parallel operation. With both methods, Power Supplies, should be connected in a Daisy-Chain configuration.

Refer to Sec. 5.15.1, to Sec. 5.15.2 and to Sec.5.16 for detailed explanation.

5.15.1 Basic parallel operation

In this method, setting the units as Master and Slaves is made by the rear panel J1 connections and the setup switch SW1. Each unit displays its own output current and voltage. To program the load current, the Master unit should be programmed to the total load current divided by the number of units in the system. Refer to the following procedure to configure multiple supplies for simple parallel operation.

1. Setting up the Master unit

Set the master unit output voltage to the desired voltage. Program the current limit to the desired load current limit divided by the number of parallel units. During operation, the master unit operates in CV mode, regulating the load voltage at the programmed output voltage. Connect the sensing circuit to local or remote sensing as shown in Fig.5-4 or Fig.5-5.

2. Setting up the slave units

-1.The output voltage of the slave units should be programmed 2%~5% higher than the output voltage of the master unit to prevent interference with the master unit's control. The current limit of each unit should be programmed to the desired load current limit divided by the number of parallel units.

-2.Set the rear panel setup switch SW1 position 2 to it's up position.

-3.Set the rear panel setup switch SW1 position 3 in the same position as

SW1 position 4 of the master.

-4.Connect short between J1-8 and J1-12 (refer to Table 4-4.)

-5. Connect J1 terminal 10(IPGM) of the slave unit to J1 terminal 25(P) of the master unit.

-6. Connect J1 terminal 23(IPGM_RTN) of the slave unit to J1 terminal 12(COM) of the master unit.

During operation the slave units operate as a controlled current source following the master output current. It is recommended that the power system is designed so that each unit supplies up to 95% of its current rating because of the imbalance which may be caused by cabling and connections voltage drop.

3. Setting Over Voltage protection

The master unit OVP should be programmed to the desired OVP level. The OVP of the slave units should be programmed to a higher value than the master OVP. When the master unit shuts down, it programs the slave unit to zero output voltage. If a slave unit shuts down (when its OVP is set lower than the master output voltage), only that unit would shut down and the remaining slave units would supply all the load current.

4. Setting Foldback protection

Foldback protection if desired, may only be used with the master unit. When the master unit shuts down it programs the slave units to zero output voltage.

5. Connection to the load

In parallel operation, power supplies can be connected in local or remote sensing. Refer to Fig.5-4 and 5-5 for typical connections of parallel power supplies. The figures show

5.15.2 Advanced parallel operation

In this method, multiple supplies can be configured to parallel operation as a single power supply. The total load current and output voltage are displayed by the Master unit and can be readback from the Master unit. The Slave units display only their operating status (On, Off or Fault condition). Refer to the following procedure to configure multiple supplies for Advanced parallel operation.

1. Basic configuration Repeat steps 1 to 5 in Sec. 5.15.1 (Basic parallel operation).

2. Setting the unitsasMaster or Slave

a) Depress and hold the FINE button for3seconds. The Master/Slave configuration will be displayed on the Current Display.Rotate the CURRENT encoder to obtain the desired mode. Refer to Table 5-4 for the CURRENT display and modes of operation.

CURRENT Display

H1 H2 H3 H4

Single supply(default) Master supplywith1Slave supply Master supplywith2Slave supplies Master supplywith3Slave supplies Slave supply

Operating Mode

Table 5-4: Setting mode of operation

b) When the desired configuration is obtained, depress and release the FINE button or wait approx. 5 seconds.

3. Master and Slave units default operation

a) When a unit is programmedto Slave mode it enters the Remote mode with Local Lockout. In this mode, the front panel controls are disabled to prevent accidental setting change (refer to Sec.

7.2.7 for details). b) The Slave unitsparameters will automatically set the following:

*Output voltage to approximate. 102% of rated output voltage. *ProgrammedCurrent to zero. *UVL to zero volts

*AST On *OUT On *Foldback protection Off

*OVP to itsmaximum value

c) The Master and Slave modes are stored in the power supply EEPROM when the AC power is

Turned off. The system will return to the Master/Slave mode upon re-application of AC power.

4. CURRENT display accuracy

In the advanced parallel mode, the total current is programmed and reported by the Master.In this method, the CURRENT display accuracy is 2%+/- 1 count. In cases that higher accuracy is required, it is recommended to use the basic parallel operation mode.

5. To release units from Slave mode

Slave units can be released using the following procedure: a) Depress FINE button for3seconds. The Master/Slave configuration will be displayed on the

CURRENT display. b) Select H1 mode using the CURRENT encoder. c) Depress FINE button again or wait 5 seconds. d) Turn the AC power Offto store the new setting. e) After exiting from Slave operation the unit’s parameters will be set to:

*Programmed Voltage to zero *AST OFF *Programmed Current to zero *OUT OFF *UVL to zero volts *Foldback protection OFF *OVP to its maximum value *Locked Front Panel

J1-12 COM

+LS

IPGM_RTN

J1-23

-S -LS

To J1-10

SLAVE#2

POWER SUPPLY

To J1-23

SLAVE#2

POWER SUPPLY

CAUTION

Make sure that the connection between -Vo terminals is reliable to avoid disconnection during operation. Disconnection may cause damage to the power supply.

MASTER POWER SUPPLY

J1-25

IPGM

J1-12

J1-8

J1-10

SLAVE#1 POWER SUPPLY

-S -LS

+LS

As shortas possible

-V

Twisted

pair

LOAD

Fig.5-4: Parallel connection

with local sensing

VORSICHT

Stellen Sie sicher, dass die Verbindung zwischen den -V Anschlussklemmen sich nicht während des Betriebs lösen kann. Eine Unterbrechung kann die Netzteile beschädigen.

NOTE

Use PREV button to preview the output voltage and current setting or to unlock the front panel.

NOTE

With local sensing it is important to minimize the wire length and resistance. Also the positive and negative wire resistance should be close as possible to each other to achieve current balance between power supplies.

-S

To J1-10

SLAVE#2

POWER SUPPLY

To J1-23

SLAVE#2

POWER SUPPLY

MASTER POWER SUPPLY

J1-25

IPGM

J1-12

J1-8

SLAVE#1 POWER SUPPLY

J1-10

+S-S

J1-12 COM

IPGM_RTN

J1-23

Twisted

pair

As shortas possible

-V

Twisted

pair

-S

Twisted

pair

Make sure that the connection between -Vo terminals is reliable to

LOAD

avoid disconnection during operation. Disconnection may cause

damage to the power

-S

supply.

CAUTION

Fig.5-5: Parallel operation with Remote sensing

5.16 DAISY-CHAIN CONNECTION

It is possible to configure amultiple power supply system to shut down all the unitswhen a fault condition occurs in one of the units. When the fault is removed, the system recovers according to its setting to Safe start mode or Automatic restart. Setup switch SW1 position 5 should be set to itsDown position to enable the Daisy-chain operation. Other SW1 positions can be set according to the application requirements. Ifafault occurs in one of the unitsits PS_OK signal will be set to low level and the display will indicate the fault. The other unitswill shut off and their display will indicate "SO”. When the fault condition is removed, the unitswill recover to their last setting according to their Safe start or Auto-restart setting. Fig.5-6 shows connection of three units, however the same connection method applies to systems

with a larger number of units.

POWER SUPPLY

J1-16

J1-2,3

IF_COM

PS_OK

J1-15

POWER SUPPLY

J1-2,3

IF_COM

J1-16

PS_OK

J1-15

POWER SUPPLY

J1-2,3

J1-16

IF_COM

PS_OK

J1-15

Fig.5-6: Daisy-chain connection

5.17 FRONT PANELLOCKING

The front panel controls can be locked to protect from accidental power supply parameter change. Press and hold PREV button to toggle between “Locked front panel” and “Unlocked front panel”. The display will cycle between “LFP” and “UFP”. Releasing the PREV button while one of the modes is displayed, selects that mode.

5.17.1 Unlocked front panel

In this mode, the front panel controls are enable to program and monitor the power supply parameters.

5.17.2 Locked front panel

In this mode the following front panel controls are disabled:

- VOLTAGE and CURRENT encoders.

- FOLD button.

- OUT button. The power supply will not respond to attemptsto use these controls. The VOLT display will show “LFP” to indicate that the front panel is locked. OVP/UVL button is active to preview the OVPand UVL setting.

CHAPTER 6 REMOTE ANALOG PROGRAMMING

6.1 INTRODUCTION

The rear panel connector J1 allows the user to program the power supply output voltage and current limit with an analog device. J1 also provides monitoring signals for output voltage and output current. The programming range and monitoring signals range can be selected between 0-5V or 0-10V using the setup switch SW1. When the power supply is in Remote Analog programming, the serial communication port is active and can be used to read the power supply parameters.

CAUTION

COM (J1-12), VPGM_RTN (J1-22) and IPGM_ RTN (J1-23) terminals of J1 are referenced to the -Vout potential (-V). Do not connect these terminals to any potential other than -Vout (-V), as it may damage the power supply.

6.2 LOCAL /REMOTEANALOG CONTROL

Contact 8ofJ1 (Fig. 4-2, item 5) accepts TTL signal or Open-Short contact (referenced to J1-12) to select between Local or Remote Analog programming of the output voltage and current limit. In Local mode, the output voltage and current limit can be programmed via the front panel VOLTAGE and CURRENT encoders or via the RS232/485 port. In Remote Analog mode, the output voltage and current limit can be programmedby analog voltage or by programming resistors via J1 contacts 9 and 10 (refer to sec. 6.4 and 6.5). Refer to Table 6-1 for Local/Remote Analog control (J1-8) function and Setup switch SW1-1, 2 setting.

SW1-1,2 setting

Down (default)

Table 6-1: Local/Remote Analog control function

J1-8 function

No effect

"0" or Short

"1" or Open

Output voltage/

Current setting

Local

Remote Analog

Local

6.3 LOCAL/REMOTEANALOGINDICATION

Contact 21 of J1 (Fig. 4-2, item 5) is an open collector output that indicates if the power supply is in Local mode or in Remote Analog mode. To use this output, connect a pull-up resistor toavoltage source of 30Vdc maximum.Choose the pull-up resistor so that the sink current will be less than 5mA when the output is in low state. Refer toTable 6-2 for J1-21 function.

J1-8

TTL "0" or short

TTL "1" or open

Table 6-2: Local/Remote Analog indication

SW1-1

Down Down

Up Up

Down or Up

SW1-2

Down

Down or Up

J1-21 signal

Open 0~0.6V 0~0.6V 0~0.6V

Open

6.4 REMOTE VOLTAGEPROGRAMMING OF OUTPUT VOLTAGE AND CURRENT LIMIT

CAUTION

To maintain the isolation of power supply and prevent ground loops, use an isolated programming source when operating the power supply via remote analog programming at J1 connector.

Perform the following procedure to set the power supply to Remote Voltage programming :

1. Turn the power supply AC On/Off switch to Off.

2. Set setup switch SW1-1 to itsUP position for output voltage external programming and SW1-2 to itsUP position for Output Current limit external programming.

3. Set SW1 position3to select programming voltage range according to Table 6-3.

4. Ensure that SW1 positions7and8are at their Down (default) position.

5. Connect a short between J1-8 and J1-12 (refer to Table 4-4).

6. Connect the programming source to the mating plug of J1 as shownin Fig.6-1. Observe correct polarity for the voltage source.

7. Set the programming sources to the desired levels and turn the power supply ON. Adjust the programming sources to change the power supply output.

NOTES:

1. SW1 positions 4,5,6 and9are not required for remote programming. Their setting can be

determined according the application.

2. The control circuits allow the user to set the output voltage and current limit up to 5% over

the model-rated maximum value. The power supply will operate within the extended range, however it is not recommended to operate the power supply over its voltage and current rating and performance is not guaranteed.

SW1-3 setting

DOWN

Table 6-3: SW1-3 setting and programming range

Output Voltage programming

VPGM (J1-9)

0-10V

0-5V

Current limit programming

IPGM (J1-10)

0-10V

0-5V

J1 connector, rear panel view

CURRENT LIMIT PROGRAMMING

OUTPUT VOLTAGE

PROGRAMMING

Fig.6-1: Remote voltage programming connection

6.5 RESISTIVE PROGRAMMING OF OUTPUT VOLTAGE AND CURRENT LIMIT

For resistive programming, internal current sources, for output voltage and/or output current control, supply 1mA current through external programming resistors connected between J1-9&22 and J1-10 & 23. The voltage across the programming resistors is used asaprogramming voltage for the power supply.Resistance of 0~5Kohm or 0~10Kohm can be selected to program the output voltage and current limit from zero to full scale. A variable resistor can control the output over its entire range, oracombination of variable resistor and series/parallel resistors can control the output over restricted portion of its range.

Perform the following procedure to set the power supply to Resistive programming:

1. Turn the AC On/Off switch to Off.

2. Set setup switch SW1-1 to itsUP position for output voltage external programming and SW1-2 to itsUP position for Output Current limit external programming.

3. Set SW1 position 3to select programming resistor range according to Table 6-4.

4. Set SW1-7 to itsUP position for output voltage resistive programming and

SW1-8 to itsUP position for Output Current limit resistive programming.

5. Connect a short between J1-8, J1-12 and J1-23 (refer to Table 4-4).

6. Connect the programming resistors to the mating plug of J1 as shownin Fig.6-2.

7. Set the programming resistors to the desired resistance and turn the power supply ON.

Adjust the resistors to change the power supply output.

NOTES:

1. SW1 positions 4, 5, 6 and9are not required for remote programming. Their setting can be

determined according to the application requirements.

2. The control circuits allow the user to set the output voltage and current limit up to 5% over

3. To maintain the temperature stability specification of the power supply, the resistors used for

programming should be stable and low noise resistors, with temperature coefficient of less than 50ppm.

4. When resistive programming is used, front panel and computer control (via serial communication port) of output voltage and current are disabled.

PROGRAMMING

RESISTOR

OPTIONAL SETS

LOWER LIMIT

OPTIONAL SETS

UPPER LIMIT

SW1-3 setting

DOWN

Output Voltage programming

VPGM (J1-9)

0-10Kohm

0-5Kohm

Current limit programming

IPGM (J1-10)

Table 6-4: SW1-3 setting and programming range

J1 connector, rear panel view

CURRENT LIMIT

PROGRAMMING

10 9

OUTPUT VOLTAGE

PROGRAMMING

Fig.6-2: Remote resistive programming

0-10Kohm

0-5Kohm

PROGRAMMING

RESISTOR

OPTIONAL SETS

LOWER LIMIT

OPTIONAL SETS

UPPER LIMIT

6.6 REMOTE MONITORINGOF OUTPUTVOLTAGE AND CURRENT

The J1 connector, located on the rear panel provides analog signals for monitoring the output voltage and output current. Selection of the voltage range between 0-5V or 0-10V is made by setup switch SW1-4. The monitoring signals represent 0to 100% of the power supply output voltage and output current.The monitor outputs have 500 ohm series output resistance. Ensure that the sensing circuit has an input resistance of greater than 500 Kohm or accuracy will be reduced. Refer to Table 6-5 for required J1 connection, SW1-4 setting and monitoring voltage range.

Signal

name

VMON

IMON

VMON

IMON

Signal function

Vout monitor

Iout monitor

Vout monitor

Iout monitor

Table 6-5 Monitoring signals setting

Notes:

1.Radiated emissions, FCC requirements:

2. Front panel encoders operation:

3. Front panel PREV button:

J1 connection

Signal (+)

J1-11

J1-24

J1-11

J1-24

FCC requirements for radiated emissions, use shielded cable for the analog control signals. In case of using unshielded cable, attach an EMI ferrite suppressor to the cable, as close as possible to the power supply.

In Remote analog mode the output voltage and current can’t be set by the VOLTAGE and CURRENT encoders.

Use PREV button to display the output voltage and current setting defined by the encoders or communication.

Return (-)

J1-12

Range

0-5V

0-10V

SW1-4

Down

4. Communication:

In Remote analog mode, power supply parameters can be programmed and readback via the communication port except output voltage and current setting.

CHAPTER 7 RS232&RS485 REMOTE CONTROL

7.1 INTRODUCTION

This chapter describes the operation of the Genesys 3300W power supplies via the serial communication port. Details of the initial set-up, operation via RS232 or RS485, the command set and the communication protocol are described in this chapter.

7.2 CONFIGURATION

7.2.1 Default setting

The power supply is shipped with the following setting:

-Address:

-Baud-rate:

-RS232/485:

-Vout setting:

-Iout setting:

-Master/Slave

7.2.2 Address setting

The power supply address can be set to any address between0and 30. Follow the instructions described below to set the address.

1. If the unit is in Remote mode (front panel REM/LOC LED illuminates), press REM/LOC button to put the unit into Local mode.

2. Press and hold for approximately 3sec. the REM/LOC button. The VOLTAGE display will indicate the communication port address.

3. Using the VOLTAGE adjust encoder, select the address.

6 9600 RS232 0 Maximum H1 (Master)
