Programmable DC Power Supplies
Genesys
TM

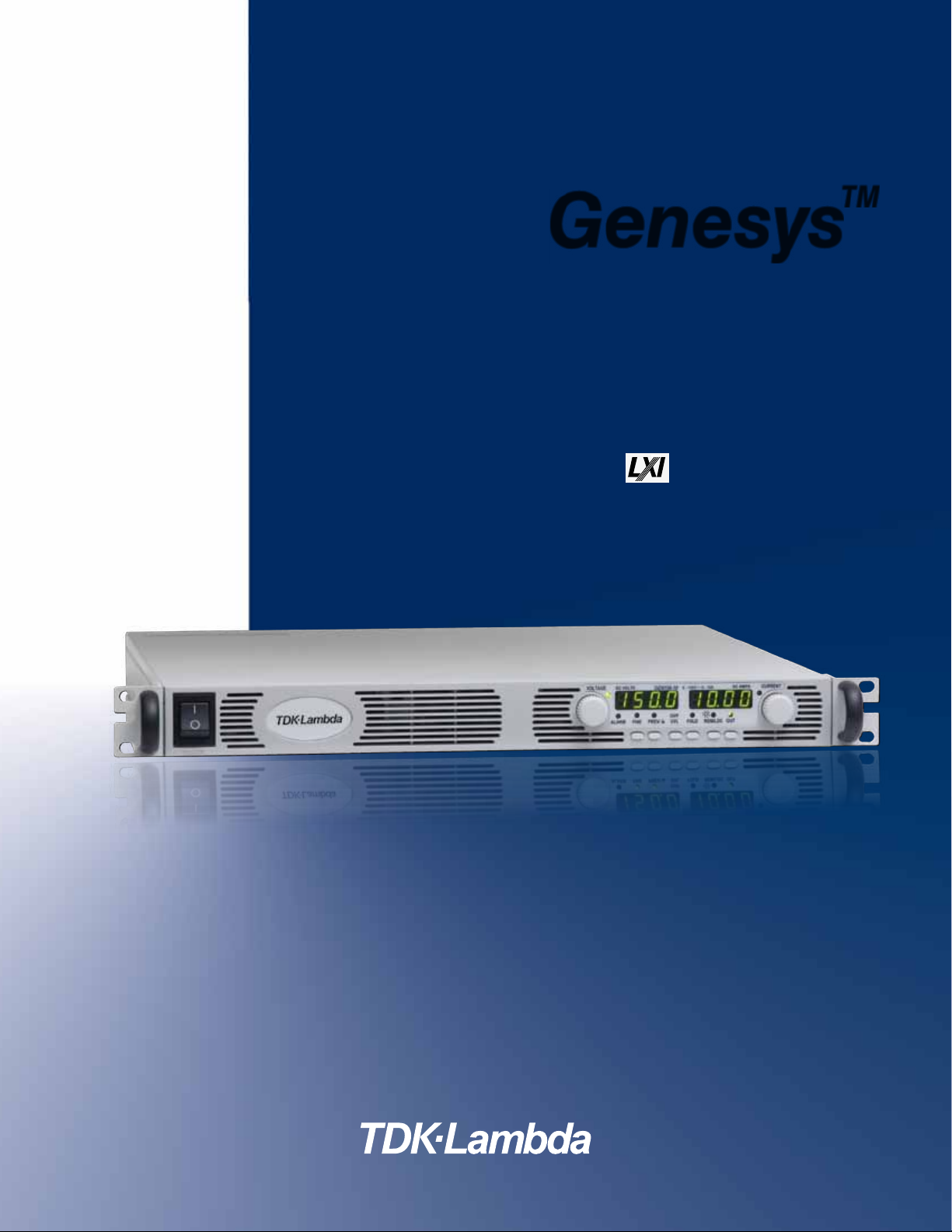

Programmable DC Power Supplies
750W /1500W in 1U
750W /1500W in 1U
Built in RS-232 & RS-485 Interface
Built in RS-232 & RS-485 Interface
Parallel Current Summing
Parallel Current Summing
Optional Interfaces: USB
Optional Interfaces: USB
Compliant
Compliant
IEEE488.2 SCPI Multi-Drop
IEEE488.2 SCPI Multi-Drop
Isolated Analog Interface
Isolated Analog Interface
LAN
LAN
GenesysTM Family
GEN H 750W Half Rack
GEN 1U 750/1500W Full Rack
GEN 2U 3.3/5kW
GEN 3U 10/15kW
www.us.tdk-lambda.com/hp
The Genesys™ family of programmable power supplies sets a new standard for flexible, reliable,
AC/DC power systems in Test & Measurement, Industrial and Laboratory applications.
Genesys™ power supplies are designed for demanding applications.
Common controls are shared across all platforms.
Test and Measurement
Last-Setting memory simplifies test design and requires no battery backup.
Built-in RS-232/RS-485 gives maximum system flexibility along with 0-5V and 0-10V, selectable analog programming.
Wide range of available outputs allows testing of many different devices.
Semiconductor Processing
Equipment designers appreciate the wide range Input (85-265Vac) and numerous Outputs from which to select
depending on application. Selectable Safe and Auto Re-start protects loads and process integrity.
Typical applications include Magnets, Filaments and Heaters.
Aerospace and Satellite Testing
Complex systems use the complete Genesys ™ Family: 1U 750W Half Rack, 1U 750W or 1500W Full-Rack, 2U 3.3kW
and 3U 10/15kW. All are identical in Front Panel, Rear Panel Analog and Digital Interface Commands. A wide variety of
outputs allows testing of many different devices.
Laser Diode
OVP is directly set on Voltage Display, assuring accurate protection settings.
Current Limit Fold Back assures load is protected from current surges.
Heater Supplies
Smooth, reliable encoders with selectable Fine and Coarse adjustment enhance Front Panel Control.
Remote Analog Programming is user selectable 0-5V or 0-10V and optional Isolated Programming/Monitoring Interfaces
are also available.
RF Amplifiers and Magnets
Robust design assures stable operation under a wide variety of loads.
High linearity in voltage and current mode.
1|
Genesys 750W/1500W-1U
TM

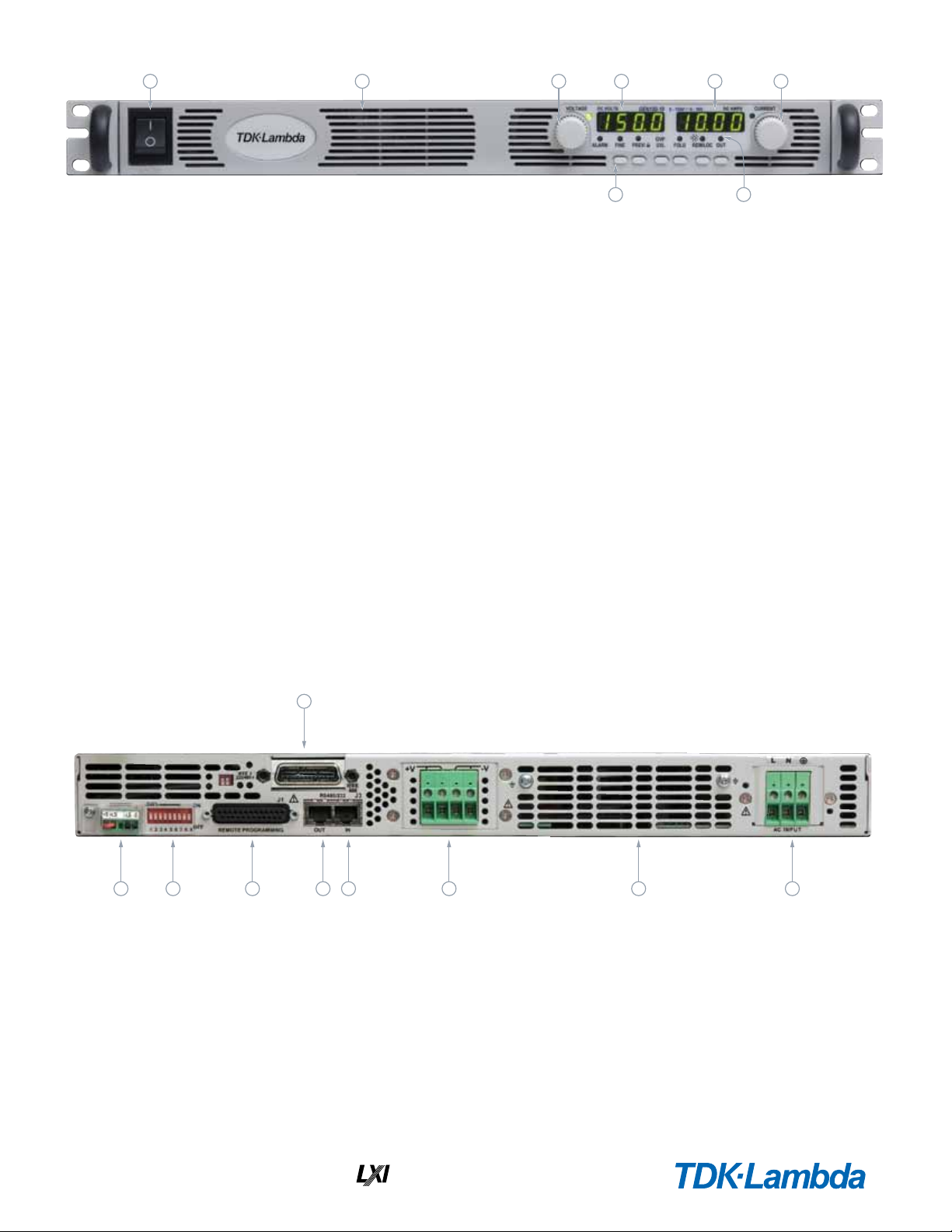

Front Panel Description
1
2 4
3 6 5
8
1. AC ON/OFF Switch
2. Air Intake allows zero stacking for maximum system flexibility and power density.
3. Reliable encoder controls Output Voltage and sets Address.
4. Volt Display shows Output V P
5. Reliable encoder controls Output Current, sets baudrate, and Advanced Parallel Mode
6. Current Display shows Output Current and displays baudrate.
7. Function/Status LEDs:
Alarm
•
Fine Control
•
Preview Settings
•
8. Pushbuttons allow flexible user configuration
Coarse and fine Adjustment of Output Voltage/Current and Advanced Parallel Master or Slave select.
•
Preview settings and set Voltage/Current with Output OFF
•
Set OVP and UVL Limits
•
Set Current Foldback
•
Local/Remote Mode and select Address and Baudrate
•
Output ON/OFF and Auto-Start/Safe-Start Mode
•
oltage and directly displays OV L, UV and Address settings.
Foldback Mode
•
Remote Mode
•
Output On
•
7
Rear Panel Description
9
2 81 4 6 7 85
1. Remote/Local Output Voltage Sense Connections.
2. DIP Switches select 0-5V or 0-10V Programming and other functions.
3. DB25 (Female) connector allows (Non-isolated) Analog Program and Monitor and other functions.
4. RS-485 OUT to other Genesys™ Power Supplies.
5. RS-232/RS-485 IN Remote Serial Programming.
6. Output Connections: R
7. Exit air assures reliable operation when zero stacked.
8. Wide-Range Input 85-265VAC continuous, 47/63Hz with Active Power Factor Correction (0.99 typical)
AC Input Connector: 750W (IEC320), 1500W (screw terminal-shown).
9. Optional Interface Position for IEEE488.2 SCPI (shown), Isolated Analog Interface,
LAN Interface or USB Interface.
ged busbars for up to 60V Output; Terminal block for Outputs >60V.
ug
LAN Interface complies with Class C Specification
