TDK-Lambda FPS-S1U, FPS1000-48, FPS-T1U, FPS1000-24, FPS1000-12 Instruction Manual

...
This Manual Cover Models: FPS1000-12 FPS1000-24
FPS1000-32 FPS1000-48 FPS-S1U 19” Rack Single Output FPS-T1U 19” Rack Triple Output
FPS SERIES
1000W In 1U
Front End Power Supplies INSTRUCTION MANUAL
DWG NO: IA599-04-02-A
FPS1000 SERIES
INSTRUCTION MANUAL
DWG NO: IA599-04-02 A
TABLE OF CONTENTS
Warranty .................................................................................................................................Pg. 1
FPS1000, FPS-S1U and FPS-T1U rack Safety instructions ................................................. Pg. 2
FPS1000 Power Supply
Chapter 1: FPS1000 Series Specifications ............................................................................ Pg. 4
Chapter 2: FPS1000 Series Outline drawings ........................................................................Pg. 5
Chapter 3: FPS1000 Series Installation instructions ..............................................................Pg. 7
Chapter 4: Functions and features .......................................................................................Pg. 11
Chapter 5: Basic connections for operation .........................................................................Pg. 14
Chapter 6: Parallel and Series operation .............................................................................Pg. 16
Chapter 7: I
2
C BUS Interface option ....................................................................................Pg. 19
Chapter 8: FPS1000 Maintenance ......................................................................................Pg. 23
FPS-S1U rack
Chapter 9: FPS-S1U rack Specifications .............................................................................Pg. 25
Chapter 10: FPS-S1U rack Installation instructions .............................................................Pg. 26
Chapter 11: FPS-S1U and FPS-S1U/P Outline drawings ....................................................Pg. 30
Chapter 12: Basic connections for operation .......................................................................Pg. 32
Chapter 13: Parallel and Series operation ...........................................................................Pg. 34
Chapter 14: FPS-S1U I
2
C BUS Interface option ..................................................................Pg. 37
Chapter 15: FPS-S1U rack Maintenance .............................................................................Pg. 38
FPS-T1U rack
Chapter 16: FPS-T1U rack Specifications ............................................................................Pg. 40
Chapter 17: FPS-T1U rack Installation instructions .............................................................Pg. 41
Chapter 18: FPS-T1U and FPS-T1U/P Outline drawings ....................................................Pg. 45
Chapter 19: Basic connections for operation .......................................................................Pg. 47
Chapter 20: Parallel and Series operation ...........................................................................Pg. 49
Chapter 21: FPS-T1U I
2
C BUS Interface option ..................................................................Pg. 51
Chapter 22: FPS-T1U rack Maintenance .............................................................................Pg. 52
1
WARRANTY
This Densei-Lambda product is warranted against defects in materials and workmanship for a period of two years from date of shipment. During the warranty period , Densei-Lambda will, at it's option, either repair or replace products which prove to be defective.
LIMITATION OF WARRANTY
The warranty shall not apply to defects resulting from improper or inadequate usage or maintenance by the buyer, buyer supplied products or interfacing. The warranty shall not apply to defects resulting from unauthorized modifications or from operation exceeding the environmental specifications of the product or if the Warranty seal has been removed or altered by anyone other than Densei-Lambda authorized personnel. Densei-Lambda does not warrant the buyers circuitry or malfunctions of Densei- Lambda products resulting from the buyer's circuitry. Furthermore, Densei-Lambda does not warrant any damage occurring as a result of the buyer's circuitry or the buyer's-supplied products. No other warranty is expressed or implied.
WARRANTY SERVICE
This product must be returned to an authorized Densei-Lambda service facility for repairs or other warranty service. For products returned to Densei-Lambda for warranty service, the buyer shall prepay shipping charges to Densei-Lambda and Densei-Lambda shall pay the shipping charges to return the product to the buyer.
DISCLAIMER
The information contained in this document is subject to change without notice. Densei-Lambda shall not be liable for errors contained in this document or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. No part of this document may be photo-copied, reproduced or translated to another language without prior written consent of Densei­Lambda.
FPS1000 Instruction Manual
2
FPS1000 POWER SUPPLY AND FPS-S1U RACK SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Operating personnel must not remove the FPS1000, FPS-S1U and the FPS-T1U cover. No internal adjustment or component replacement is allowed by non Densei-Lambda qualified service personnel. Never replace components with power cable connected. To avoid injuries,always disconnect power, discharge circuits and remove external voltage sources before touching components. These products are not authorized for use as critical components in nuclear control systems, life support systems or equipment for use in hazardous environments without the express written approval of the managing director of Densei-Lambda. Restricted Access Area: The equipment should only be installed in a Restricted Access Area. Access should be available to service personnel only.
WICHTIGE SICHERHEITSHINWEISE
Bedienungspersonal oder Anwender duerfen die Gehaeuseabdeckung des FPS1000, FPS-S1U und desFPS-T1U nicht entfernen. Ersatzteiltausch - und Aenderungen duerfen nur von autorisiertem Densei-Lambda SERVICE-Personen bzw. Organisationen durchgefuehrt werden.
Vor Austausch von Bauteilen ist das Netzkabel bzw. die Versorgungsspannung zu trennen. Energieversorgungsanschluesse sind immer zu trennen, um Personenverletzungen durch gefaehrliche Energieinhalte und Spannungen auszuschliessen. Die Stromkreise sind zu entladen, externe Spannungsquellen sind zu entfernen bevor Bauteile bzw. Komponenten getauscht werden. Der direkte Zugriff auf das Racksystem ist nur dem geschulten Service-Personal erlaubt.
SAFETY APPROVALS
UL60950-1, UL Recognized, C-UL for canada. IEC/EN60950-1. CE marking, when applied to the FPS1000, FPS-S1U and the FPS-T1U products, indicates compliance with the Low Voltage Directive (73/23EEC) as modified by the CE Marking Directive (93/68EEC) in that it complies with EN60950-1.
SAFETY-CLASS OF INSULATION
The FPS1000, FPS-S1U and the FPS-T1U are designed for the following safety parameters: Material group IIIa, Pollution degree 2, Overvoltage category II, Class I (earthed), indoor use as part of an overall equipment such that the FPS product is accessible to service personnel only.
GROUNDING
These products are Safety Class I instruments. To minimize shock hazard, the instruments chassis must be connected to an electrical ground. The instruments must be connected to the AC power supply mains through a three conductor power cable, with the ground wire firmly connected to an electrical ground (safety ground) at the power outlet. For instruments designed to be hard-wired to the supply mains, the protective earth terminal must be connected to the safety electrical ground before any other connection is made. Any interruption of the protective ground conductor, or disconnection of the protective earth terminal will cause a potential shock hazard that might cause personal injury.
INPUT RATINGS
Do not use AC supply which exceeds the input voltage and frequency rating of these instruments. The input voltage and frequency rating is: 100-240V~ , 50/60Hz. For safety reasons, the mains supply voltage flactuations should not exceed +/­10% of nominal voltage.
FPS-S1U RACK AC INPUT
CAUTION:
Risk of electrical shock and energy hazard. Disconnecting one power supply disconnects only one power supply module. To isolate the unit completely, disconnect all power supplies.
ACHTUNG:
Spannungsfuehrende Teile - Gefahr durch elektrischen Schlag order hohe Energieinhalte. Alle Netzstecker der einzelnen Komponenten bzw. der Einschuebe muessen getrennt werden, damit das System “spannungsfrei” ist.
3
FPS1000 Instruction Manual
ATTENTION:
Risque de choc et de danger e'lectriques. Le de'branchement d'une seule alimenttation stabilise'e ne de'branche uniquement qu'un module "Alimentation Stabilise'e". Pour isoler completement le module en cause, il faut de'brancher toutes les alimentations stabilise'es.
SAFETY SYMBOLS
CAUTION Risk of Electrical Shock.
Instruction manual symbol. The instrument will be marked with this symbol when it is necessary for the user to refer to the instruction manual.
Indicates hazardous voltage.
Indicates ground terminal.
Protective Ground Conductor Terminal
Denotes hazard. An attention to a procedure is called. Not following the procedure correctly could result in personal injury. A WARNING sign should not be skipped and all indicated conditions must be fully understood and met.
Denotes hazard. An attention to a procedure is called. Not following the procedure correctly could result in damage to the equipment.
ENERGY HAZARD
The FPS1000, FPS-S1U and the FPS-T1U products are capable of providing hazardous energy. Manufacturers final equipment must provide protection to service personnel against inadvertent contact with these models output terminals. If set such that hazardous energy can occur then the output terminals or connections therefore must not be user accessible.
OVERCURRENT PROTECTION:
A readily accessible Listed branch circuit overcurrent protective device rated 20 A must be incorporated in the building wiring.
SERIAL OPERATION
The FPS-T1U product is capable of providing hazardous voltage output in case of the serial connection of two or more FPS1000 units in the rack. Manufacturers final equipment must provide protection to service personnel against inadvertent contact with these models output terminals. If set such that hazardous voltage can occur then the output terminals or connections therefore
FUSES
There are no user replaceable fuses in the FPS1000, FPS-S1U and the FPS-T1U products. Internal fuses are sized for fault protection and if a fuse was opened it would indicate that service is required. Fuse replacement should be made by qualified technical personnel. FPS-S1U and FPS-T1U racks contains no fuses. FPS1000 fuses rating are described below. F101: F20A H 250Vac F102: 6.3A 400Vdc
SICHERHEITSHINWEISE
Vor Anschluss an die Netzversorgung ist die Aufstellanleitung zu beachten!
1. Absicherung: F101: F20A H 250VAC, F102: 6.3A 400VDC
2. Der maximale Ableitstrom der Gesamtanlage darf 3.5mA nicht ueberschreiten.
3. Die Gehaeuseabdeckung darf nur im stromlosen Zustand geoeffnet werden.
ACHTUNG: Sicherungen duerfen nur durch geschulte Service Personen getauscht werden.
4
CHAPTER 1 FPS1000 SERIES SPECIFICATIONS
Model FPS1000 FPS1000 FPS1000
V/I -24 -32 -48
24 32 48 29 38.4 58 33 26 17.25 40 31 21
V1 (V) V2 (V)
I1 (A) I2 (A)
V1
V2
Fig. 1: Rated output current vs output voltage
Vout (V)
I1
Iout (A)
I2
Notes: *1: For cases where conformance to various safety standards (UL, EN etc.) is required, to be described as 100-240Vac (50/60Hz). *2: At 100/200Vac, rated load and 25˚C ambient temperature. *3: Not applicable for the noise filter inrush current less than 0.2mS. *4: Measured with JEITA RC-9131A 1:1 probe, 20MHz B.W. *5: From 85~132Vac or 170~265Vac, constant load. *6: From No-load to Rated load, constant input voltage. Measured at the sensing point in Remote sense. *7: Remote sensing can compensate up to 1V drop on each load wire.
*8: Inverter shut down method. Reset by AC voltage recycle or by On/Off control. *9: Derate Maximum output power by 10% for input voltage less than 100V
RMS
.
*10 For FPS 1000-12/P(S), when used not with FPS-S1U or FPS-T1U
racks, an EMI suppressor clamp should be attached to the AC cable, as close as possible to the AC inlet, to meet class B.
FPS1000
-12 12
13.2 66 72
1V 2V 3V 4A 5W 6
Input voltage / frequency range
(*1) ---
7
Maximum input current (at 100/200Vac)
A 8 --­9 (*2) %
10 (*3) A 11 mS 12 (*5) --­13 (*6) --­14 (*4) mV 15 --­16
PPM/°C
17 (*7) V 18 (*9) --­19
Series operation
(*10)
--­20 --­21 (*8) V 22 --­23 --­24 --­25 --­26 --­27 --­28 --­29 --­30 --­31 ---
32 --­33 --­34 --­35 --­36 --­37 --­38 --­39 --­40 --­41
--­42 --­43 mA 44 Kg 45 ---
Rated output voltage
12
32
48
FPS1000 SERIES SPECIFICATIONS
FPS1000-12
FPS1000-32
FPS1000-48
Output voltage range
10.5~13.2
28.8~38.4
43~58
Output voltage set point
12+/-1%
32+/-1%
48+/-1%
Maximum output power
864
992
1008
Maximum Output Current (Refer to Fig.1)
72
31
21
85~265Vac continuous, 47~63Hz, Single phase
12.0/6.0
Power Factor (Typ)
>0.98 at 115/230V and maximum output power
Inrush current
Less than 40A
Efficiency (Typ)
84/86%
84/86%
85/88%
Hold-up time
20mS typical at 100Vac input, rated output voltage and less than 80% of rated load.
Maximum line regulation
0.40%
Max load regulation
0.80%
Output Ripple and noise pk-pk
200
250
300
Temperature stability
0.05% of rated Vout for 8hrs after 30min warm-up. Constant line, load and temperature.
Temperature coefficient
200
Remote sensing
Possible. Refer to Instruction Manual.
Parallel operation
Possible. Refer to Instruction Manual. Possible. Refer to Instruction Manual.
Over current protection
105~125% of maximum output current. Refer to Fig. 1
Over voltage protection
31~34
41.5~45.5
62~66
Over temperature protection
Inverter shut down method, automatic reset.
Remote On/Off control
By electrical signal or dry contact. ON: 0~0.6V or short. OFF: 2~15V or open.
DC OK signal
Open collector signal. On when Vout>80+/-5% rated output. Max.sink current: 10mA
Over-Temp. warning
Open collector signal. Refer to Instruction Manual
AC fail signal
Open collector signal. Refer to Instruction Manual
Auxiliary power supply
11.2~12.5VDC. 0.25A Maximum output current.
Vout voltage trimming
Possible, via Vout Trim pin in the I/O connector. Refer to Instruction Manual.
Front panel indicators
AC OK, DC OK, DC FAIL
I
2
C Interface
Optional. Refer to Instruction Manual.
Operating temperature-models without IEC inlet
models with IEC inlet
0~50°C: 100% load. Derate 2%/°C, 50°C to 60°C, Derate 2.5%/°C, 60°C to 70°C.
Storage temperature
-30~85°C
Operating humidity
10~90% RH, no condensation.
Storage humidity
10~95% RH, no condensation.
Cooling
By internal Fans. Variable speed control.
Vibration
Built to meet ETS 300 019
Shock
Built to meet ETS 300 019
Conducted emission
EN55022B, FCC part 15J-B, VCCI-B
Radiated emission
EN55022B, FCC part 15J-B, VCCI-B
Applicable safety standards
UL60950-1, EN60950-1
Withstand voltage
Input-Output: 3000Vrms, 1min. Input-Ground: 2000Vrms, 1min. Output-Ground:
500Vrms,1min.
Insulation resistance
More than 100Mohm at 25° C and 70% RH. Output-Ground: 500Vdc
Leakage current
Less Than 1.1mA at 230Vac
Weight (Typ)
2.0
Size (W*H*D)
127x41x290mm. Refer to Outline Drawing.
24
FPS1000-24
21.5~29
24+/-1%
960
40
81/83%
150
14.3~15.7
0~50°C: 100% load. Derate 2%/°C, 50°C to 60°C.
---
5
CHAPTER 2 OUTLINE DRAWINGS
1.2 FPS 1000 SERIES OUTLINE DRAWINGS
FPS1000 Instruction Manual
6
2.2 FPS 1000/P SERIES OUTLINE DRAWINGS
7
CHAPTER 3 FPS1000 POWER SUPPLY INSTALLATION
3.1 GENERAL
This chapter contains instructions for initial inspection, preparation for use and repackaging forshipment.
NOTE
FPS1000 power supplies series generate magnetic field which might affect the operation of other instruments. If your equipment is susceptible to magnetic fields, do not position it adjacent to the FPS1000 unit.
3.2 PREPARATION FOR USE
In order to be operational the power supply must be connected to an appropriate AC source. The AC source voltage should be within the power supply specification. Do not apply power before reading sections 3.6 and 3.7. Table 3-1 below describes the basic setup procedure. Follow the instructions in Table 3-1 in the sequence given to prepare the power supply for use.
3.3 INITIAL INSPECTION
Prior to shipment this power supply was inspected and found free of mechanical or electrical defects. Upon unpacking of the power supply, inspect for any damage which may have occurred in transit. The inspection should confirm that there is no exterior damage to the power supply. Keep all packing material until the inspection has been completed. If damage is detected , file a claim with carrier immediately and notify the Lambda sales or service facility nearest you.
3.4 FPS1000 MOUNTING
The FPS1000 power supplies series is designed to fit in the FPS-S1U and FPS-T1U, 19" rack, or in an equivalent rack designed for the FPS1000 power supply. The FPS1000 is secured to the rack using the spring lock device, located at the FPS1000 front panel. Refer to the FPS1000 and the FPS-S1U and FPS-T1U outline drawings in Chapter 2, Chapter 11 and Chapter 18. When installation using mounting screws is required, the FPS1000 can be secured to the equipment using the M3 mounting holes at its bottom surface. Refer to the FPS1000 outline drawings.
3.5 LOCATION MOUNTING AND COOLING
This power supply is fan cooled. The air intake is at the front panel and the exhaust is at the rear panel. Upon installation allow cooling air to reach the front panel ventilation inlets and allow minimum 50mm of unrestricted air space at the rear of the unit for the air exhaust.
3.6 AC SOURCE REQUIREMENTS
The FPS1000 series can be operated from a nominal 100V to 240V, single phase, 47~63Hz. Refer to the specifications in chapter 1 for the input voltage range and the current required. Ensure that under heavy load, the AC voltage supplied to the power supply does not fall below the "low limit" specifications.
CAUTION
Connection of this power supply to an AC power source should be made by an electrician or other qualified personnel.
WARNING
There is a potential shock hazard if the power supply chassis and cover are not connected to an electrical safety ground via the safetyground in the AC input connector.
Step no Item Description Reference
1 Inspection Initial physical inspection of the power supply Section 3.3 2 Installation Installing the power supply. Section 3.4
Ensuring adequate ventilation. Section 3.5 3 AC source AC source requirements Section 3.6 4 Load connection Wire size selection. Local / Remote Section 3.7
sensing. Single or multiple loads.
Table 3-1: Basic setup procedure
FPS1000 Instruction Manual
8
3.7 CONNECTING THE LOAD
wire size
Resistivity Maximum length in Feet to limit voltage
AWG Ohm/kft drop to 1V or less.
5A 10A 20A 50A 150A
14 2.526 80 40 20 8 2
12 1.589 120 60 30 12 3.4 10 0.9994 200 100 50 20 6
8 0.6285 320 160 80 32 10 6 0.3953 500 250 125 50 16 4 0.2486 800 400 200 80 26 2 0.1564 1200 600 300 125 40 0 0.0983 2000 1000 500 200 68
Table 3-2:Maximum wire length for 1V drop on lead (in feet).
Cross sect. Resistivity
Maximum length in meters to limit voltage
Area
Ohm/km drop to 1V or less.
(mm^2) 5A 10A 20A 50A 150A
2.5 8.21 24.0 12.0 6.0 2.4 0.8 4 5.09 39.2 18.6 9.8 4.0 1.4 6 3.39 59.0 29.4 14.8 5.8 2.0
10 1.95 102.6 51.2 25.6 10.2 3.4 16 1.24 160.0 80.0 40.0 16.0 5.4 25 0.795 250.0 125.0 62.0 25.2 8.4 35 0.565 354.0 177.0 88.0 35.4 11.8
Table 3-3:Maximum wire length for 1V drop on lead (in meters).
For currents not shown in Tables 3-2 and 3-3 , use the formula :
Maximum length=1000/(current*resistivity)
Where current is expressed in ampers and resistivity in ohms/km or ohms/1000ft.
3.7.1 Load Wiring.
The following considerations should be made to select wiring for connecting the load to the power supply: * Current carrying capacity of the wire (refer to 3.7.2). *Insulation rating of the wire should be at least equivalent to the maximum output voltage of the power supply. *Maximum wire length and voltage drop (refer to 3.7.2). *Noise and impedance effects of the load wiring (refer to 3.7.3).
3.7.2 Current Carrying Capacity
Two factors should must be considered while selecting the wire size. 1.Wires should be at least heavy enough not to overheating while carrying the power supply load current at the rated load, or the current that would flow in the event the load wires were shorted, whichever is greater.
2.Wire size should be selected to enable voltage drop per lead to be less than 1.0V at the rated current. Please refer to Tables 3-2 and 3-3 for maximum wire length to limit the voltage drop in American and European dimensions respectively.
WARNING
Turn off the AC input power before making or changing any rear panel connection. Ensure that all connections are securely tightened before applying power. There is a potential shock hazard when using a power supply with a rated output greater than 40V.

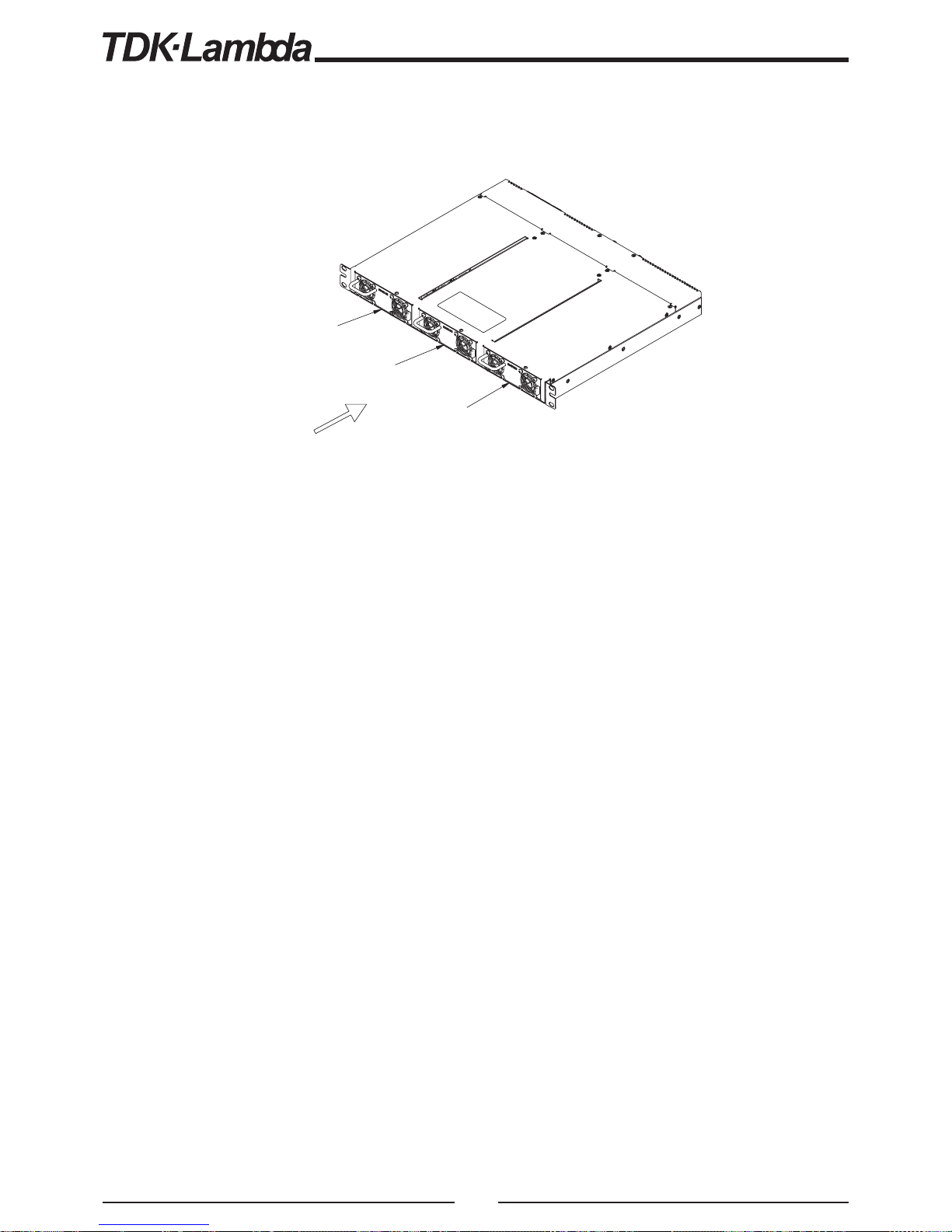

Fig. 3-2: FPS1000/P front panel
1
2 34
56
Fig. 3-1: FPS1000 front panel
1
4
5
3
2
9
3.7.6 Front panel controls and indicator
3.7.3 Noise and Impedance Effects
To minimize the noise pickup or radiation, the load wires and remote sense wires should be twisted-pairs of the shortest possible length. Shielding of the sense leads may be necessary in high noise environments. Even if noise is not a concern, the load and remote sense wires should be twisted-pairs to reduce coupling between them, which might impact the stability of power supply. The sense leads should be separated from the power leads. Twisting the load wires reduces the parasitic inductance of the cable which could produce high frequency voltage spikes at the load and the output of power supply because of current variation in the load itself. The impedance introduced between the power supply output and the load could make the ripple and noise at the load worse than the noise at the power supply rear panel output. Additional filtering with bypass capacitors at the load terminals may be required to bypass the high frequency load current.
3.7.4 Inductive loads
To prevent damage to the power supply from inductive kickback, a diode should be connected across the output. The diode voltage and current rating should be greater than the power supply maximum output voltage and current rating. Connect the cathode to the positive output and the anode to the negative output. Where positive load transients such as back EMF from a motor may occur, connect a surge suppressor across the output to protect the power supply. The breakdown voltage rating of the suppressor must be approximately 10% higher than the maximum output voltage of the power supply.
3.7.5 Making the load connections
Hazardous voltages may exist at the outputs and the load connections when using a power supply with a rated output greater than 40V. To protect personnel against accidental contact with hazardous voltages, ensure that the load and it's connections has no accessible live parts. Ensure that the load wiring insulation rating is greater than or equal to the maximum output voltage of the power supply.
WARNING
!
1: Handle 2: DC OK green LED, on when the output
voltage is above 80% +/- 5% of its rated value.
3: DC Fail red LED, on when the output voltage
is lower than 80% +/- 5% of its rated value.
4: AC OK green LED, on when the input
voltage is higher than 85Vrms 5: Lock/Unlock lever. Automatically locks the power supply to the FPS-S1U rack chassis when the FPS1000 power supply is inserted. Push the Lock/Unlock lever toward the power supply cooling fan to withdraw
the FPS1000 from the rack. 6: IEC320 AC inlet
FPS1000 Instruction Manual
10
3.7.7 Input/Output connector information
The FPS1000 series uses male connector PCIB24W9M400A1, Positronic connector. To mate FPS1000 series to the load circuitry, use female connector PCIB24W9F400A1-S1031, Positronic connector. Refer to Table 3-4 and to the Outline drawing in chapter 2 for the connector pinout description.
Table 3-4: Rear In/Out connector pins function description
3.7.8 REPACKAGING FOR SHIPMENT
The original packaging material is reusable. If the original package is not available, contact the Lambda Sales or service facility near you for details on obtaining suitable packaging and shipping information. To ensure safe transportation of the instrument, it is recommended to use the original package. Please attach a tag to the power supply describing the problem and specifying the owner, model number and serial number of the power supply.
Pin No Function Description
1,2,4 +V Positive output voltage. Maximum current capacity: 24A/contact. 3,5,6 -V Negative output voltage. Maximum current capacity: 24A/contact.
7 On/Off control
8
+Sense
9 DC_OK
10 Signal_Return
11 AC_Fail
12
Over Temperature Alarm
13 -Sense
14 V_Trim
15 CS
16 +12V Auxiliary
17 SDA
Serial Data used in the I
2
C interface option. Refer to the I2C interface description.
18 SCL
Serial Clock used in the I
2
C interface option. Refer to the I2C interface description.
19,20,21 A0, A1, A2
I
2
C interface address lines. Refer to the I2C interface description in Chapter 7.
22 ACG
23 AC Line
24 AC Neutral
Turns the output to On and Off by electrical signal or dry contact between pin 7 and pin 10 (Signal Return). 0~0.6V or Short: On, 2~15V or Open: Off. The maximum source current is 2.6mA.
Positive sensing. The +Sense signal should be connected to the positive terminal of the load. The +Sense and -Sense leads should be twisted pair to minimize noise pick-up effect. The maximum load wires drop compensation is 1V/wire.
Return for the following control and supervisory signals: On/Off, DC_OK, Over_temperature Alarm, AC_Fail, Auxiliary 12V supply. The Signal return is isolated from the output terminals.
Open collector signal, referenced to pin 10 (Signal Return). On when Vout80%+/­5% of its rated value. The maximum sink current is 10mA and the maximum external voltage is 15V.
Open collector signal, referenced to pin 10 (Signal Return). On when the internal temperature is within safe limit, Off approx. 10°C below Thermal shut down. The maximum sink current is 10mA and the maximum external voltage is 15V.
Open collector signal, referenced to pin 10 (Signal Return). On when the input voltage is 85Vrms. The maximum sink current is 10mA and the maximum external voltage is15Vdc.
Negative sensing. The -S signal should be connected to the negative terminal of the load. The -S and +S leads should be twisted pair to minimize noise pick-up effect. The maximum load wires drop compensation is 1V/wire.
Connection for output voltage trimming. The voltage can be trimmed within its range specifications.
Current sharing signal. When units are connected in parallel, the CS pins of the
units should be connected to allow current balance between units. Auxiliary voltage output, 11.2~12.5V, referenced to pin 10 (Signal Return). The maximum load current is 0.25A. This output has built in Oring diode and is not controlled by the On/Off control.
AC Ground connection, refer to the safety instructions for safety standards requirements. For "/P" models the AC Ground is connected via the front panel IEC inlet.
AC Line connection, refer to the safety instructions for safety standards requirements.
For "/P" models the AC Line is connected via the front panel IEC inlet.
AC Neutral connection, refer to the safety instructions for safety standards requirements.
For "/P" models the AC Neutral is connected via the front panel IEC inlet.
11
CHAPTER 4 FUNCTIONS AND FEATURES
4.1 Input Voltage Range
Input voltage is single phase 85~265Vac (47~63Hz). The power supply can be operated also with a DC input voltage, 120~330VDC but the safety approvals apply to the AC voltage only. Input voltage which is out of the specifications might cause damage to the unit.
4.2 Output voltage trimming
The output voltage can be adjusted within the specifications via the V_Trim pin at the In/Out connector. Refer to Fig 4-1 typical connection and calculation of the adjustment resistors: Note that the Over Voltage Protection may trigger if the output voltage exceeds the maximum voltage specification.
4.3 Over Voltage Protection (OVP)
The OVP triggers when the output voltage exceeds the maximum rating and reaches the OVP limit. When the OVP is triggered, the output voltage shuts down. In order to resume operation, the AC input voltage should be removed for more than 30 sec. The OVP level is factory set and is not adjustable.
4.4 Over Current Protection (OCP)
A constant current limiting with automatic recovery is provided. The OCP operates when the output current exceeds 105%~125% of the rated output current. The output voltage recovers automatically when the overload condition is removed. Avoid operating the power supply under overload condition for long time as it might cause damage to the power supply.
4.5 Over Temperature Protection (OTP)
The OTP is activated when the ambient temperature or the power supply internal temperature exceeds a safe temperature. When the OTP is activated, the power supply output shuts down. The output recovers automatically when the ambient temperature or the internal temperature cools to a safe limit.
4.6 Auxiliary 12V output
An isolated 11.2V~12.5V output is provided (Referenced to the Signals_Return potential). The maximum output current from this output is 0.25A. This output has a built-in Oring diode to allow paralleling FPS1000 units. Use this output for the control and monitoring signals described in this chapter or to operate application circuits.
4.7 Over Temperature Alarm
An open collector output provides an Over Temperature Alarm approx. 10°C below shut down by the OTP. The open collector output is referenced to the Signals_Return potential and is isolated from the power supply +V and -V terminals The maximum sink current is 10mA and the maximum external voltage is 15V. Refer to Fig 4-2 for typical application.
8
FPS1000 R1 KΩ
14
V_trim
13 R2 KΩ
Fig 4-1
+S
-S
FPS1000 Instruction Manual
16
12V aux
FPS1000 10KΩ
12
Over temperature alarm
10
Signals return
Fig 4-2
FPS1000-24: R2=0.0785*V
2
out -5.819*Vout+105.132
R1(K
Ω)=20(KΩ)-R2(KΩ)
FPS1000-48: R2=0.0497*V
2
out-7.2795*Vout+259.04
R1(K
Ω)=50(KΩ)-R2(KΩ)
FPS1000-32: R2=0.0463*V
2
out -4.5805*Vout+109.49
R1(K
Ω)=20(KΩ)-R2(KΩΩ)
FPS1000-12: R2=0.0324*V
2
out -1.1298*Vout+9.9342
R1(K
Ω)=5(KΩ)-R2(KΩ)
+V
-V
12
4.8 DC_OK signal
An open collector output provides a low output voltage detection signal. The open collector output is on when the output voltage is higher than 80%+/-5% of the rated output voltage of the power supply. The open collector output is referenced to the Signals_Return potential and is isolated from the power supply +V and -V terminals The maximum sink current is 10mA and the maximum external voltage is 15V. Refer to Fig 4-3 for typical application.
4.10 Remote On/Off control
A Remote On/Off control input is provided. The Remote On/Off input is isolated from the power supply +V and -V terminals and is referenced to the Signals_Return potential. The Remote On/Off can be operated either by electrical signal or by dry contact. (1) Operation by electrical signal:
0~0.6V: Output is On.
2~15V: Output is Off. The maximum sink current is 2.6mA and the maximum external voltage is 15V. (2) Operation by dry contact (relay or switch):
Short between On/Off input and Signals Return: Output is On.
Open circuit between On/Off input and Signals Return: Output is Off. When the Remote On/Off function is not used, connect a short circuit between the On/Off control and the Signals_Return. Refer to Fig 4-5 for the remote On/Off circuit description:
4.9 AC_Fail signal
An open collector output provides a low AC input voltage detection signal. The open collector output is on when the input voltage is 85Vac or higher. The open collector output is referenced to the Signals_Return potential and is isolated from the power supply +V and -V terminals The maximum sink current is 10mA and the maximum external voltage is 15V. Refer to Fig 4-4 for typical application.
16 12V aux
FPS1000 10KΩ
9
DC_OK
10
Signals return
Fig 4-3
16 12V aux
FPS1000 10KΩ
11
AC_Fail signal
10
Signals return
Fig 4-4
16 12V aux
FPS1000 4.7KΩ
7
I source 2.6mA max, 15Vdc max.
On/Off control
10
Signals return
Fig 4-5
13
Fig 4-6
4.11 Remote Sensing
The Remote sensing compensates voltage drop on the load wiring. The maximum voltage drop on each wire is 1V, however, it is recommended to minimize the voltage drop on the load wires to improve the response to load current changes. In case that the sensing wires are long, use separate twisted pair wires for the sensing and for the load wires to minimize noise pick-up. It is recommended to connect electrolytic capacitors in the following locations:
1) Across the load terminals
2) Between the "+S" terminal and the "+V" terminal of the power supply.
3) Between the "-S" terminal and the "-V" terminal of the power supply.
Refer to Fig 4-6 for typical connection of remote sensing.
LOAD
FPS1000
+V
+S
-S
-V
8
13
1,2,4
3,5,6
+
+
+
-
FPS1000 Instruction Manual
14
Fig 5-1: single load connection, local sensing
Fig 5-2: Remote sensing, single load.
CHAPTER 5 BASIC CONNECTIONS FOR OPERATION
5.1 Connecting single load, Local sensing
Local sensing is suitable for applications where load regulation is not critical. Fig 5-1 shows recommended load and sensing connections for applications with a single load.
5.2 Connecting Single Load, Remote Sensing
Remote sensing is used in cases where the load regulation is important at the load terminals. Use twisted or shielded wires to minimize noise pick-up. If shielded wires are used, the shield should be connected to the ground at one point, either the power supply side or the load. The optimal point for the shield ground should be determined by experimentation. Refer to the power supply specifications for the maximum voltage drop allowed at the load wires.
Fig 5-3: Multiple loads connection , radial distribution
5.3 Connecting Multiple loads, radial distribution method
In cases of multiple loads connected to one supply, each load should be connected to the power supply's output terminals using separate pairs of wires. It is recommended that each pair of wires will be as short as possible and twisted or shielded to minimize noise pick-up and radiation. The sense wires should be connected to the power supply output terminals or to the load with the most critical load regulation requirement.
LOAD
FPS1000
SIGNAL
RTN
ON/
OFF
+V +S
-S
-V
8
13
710
1,2,4
3,5,6
FPS1000
SIGNAL
RTN
ON/
OFF
+V +S
-S
-V
8
13
710
1,2,4
3,5,6
LOAD # 1
+
-
LOAD # 2
+
-
LOAD # 3
+
-
+
-
LOAD
FPS1000
SIGNAL
RTN
ON/
OFF
+V +S
-S
-V
8
13
710
Sense lines Twisted pairs
Load line. Up to 1V drop.
Load line. Up to 1V drop.
1,2,4
3,5,6
+
-
In Local sense applications, the +/- sense have to be connected to the +/-V terminals of the FPS1000 units prior the operating the FPS1000 units
*
15
Fig 5-4: Multiple loads connection with distribution terminal
5.4 Multiple loads connection with distribution terminals
If remotely located output distribution terminals are used, the power supply output terminals should be connected to the distribution terminals by a pair of twisted or shielded wires. Each load should be separately connected to the remote distribution terminals (see Fig 5-4). If remote sensing is required, the sensing wires should be connected to the distribution terminals or at the most critical load.
5.5 Grounding outputs
Either the positive or negative output terminals can be grounded. To avoid noise problems caused by common-mode current flowing from the load to ground, it is recommended to ground the output terminal as close as possible to the power supply's output. Always use two wires to connect the load to the power supply regardless of how the system is grounded.
FPS1000
SIGNAL
RTN
ON/
OFF
+V +S
-S
-V
8
13
710
1,2,4
3,5,6
LOAD # 1
+
-
LOAD # 2
+
-
LOAD # 3
+
-
+V
-V
FPS1000 Instruction Manual
16
CHAPTER 6 PARALLEL AND SERIES OPERATION
6.1 Parallel operation
Up to 8 FPS1000 units of the same output voltage rating can be connected in parallel. By connecting the CS signal between the paralleled units, automatic current balance is achieved, with +/-10% accuracy. Derate the total output current by 10% when using parallel operation to prevent overload condition. The built-in Oring diodes on the main output and the 12V Auxiliary output allow N+1 operation. For input voltages less than 100Vac, maximum output Power derated by 10% of the Power rating.
6.1.1 Parallel operation with Remote sensing
Fig 6-1 shows typical connection of parallel operation with Remote sensing. The CS signal wires should be as short as possible and with the same length.
Fig 6-1: Parallel operation with Remote sensing
Fig 6-2: Output voltage trimming at parallel operation
6.1.2 Output voltage trimming at parallel operation
The output voltage of the units connected in parallel can be made by a single trimmer or resistive divider as shown in Fig 6-2.
LOAD
FPS1000 #1
SIG. RTN
ON/
OFF
+V +S
-S
-V
CS
+S
-S
FPS1000 #2
SIG. RTN
ON/
OFF
+V +S
-S
-V
CS
+S
-S
+S
-S
FPS1000 #N
SIG. RTN
ON/
OFF
+V +S
-S
-V
CS
+S
-S
+V
-V
71015
71015
71015
FPS1000 #1
SIG. RTN
ON/ OFF
V TRIM
+S
-S
CS
SIG. RTN
ON/ OFFCS
FPS1000 #N
SIG. RTN
ON/ OFFCS
FPS1000 #2
V TRIM
+S
-S
V TRIM
+S
-S
V TRIM
+S
-S
R1
R2
710
710
710
15
15
15
FPS1000-24: R2=0.0785*V
2
out -5.819*Vout+105.132
R1(K
Ω)=20(KΩ)-R2(KΩ)
FPS1000-48: R2=0.0497*V
2
out-7.2795*Vout+259.04
R1(K
Ω)=50(KΩ)-R2(KΩ)
FPS1000-32: R2=0.0463*V
2
out -4.5805*Vout+109.49
R1(K
Ω)=20(KΩ)-R2(KΩΩ)
FPS1000-12: R2=0.0324*V
2
out -1.1298*Vout+9.9342
R1(K
Ω)=5(KΩ)-R2(KΩ)
+V
-V
17

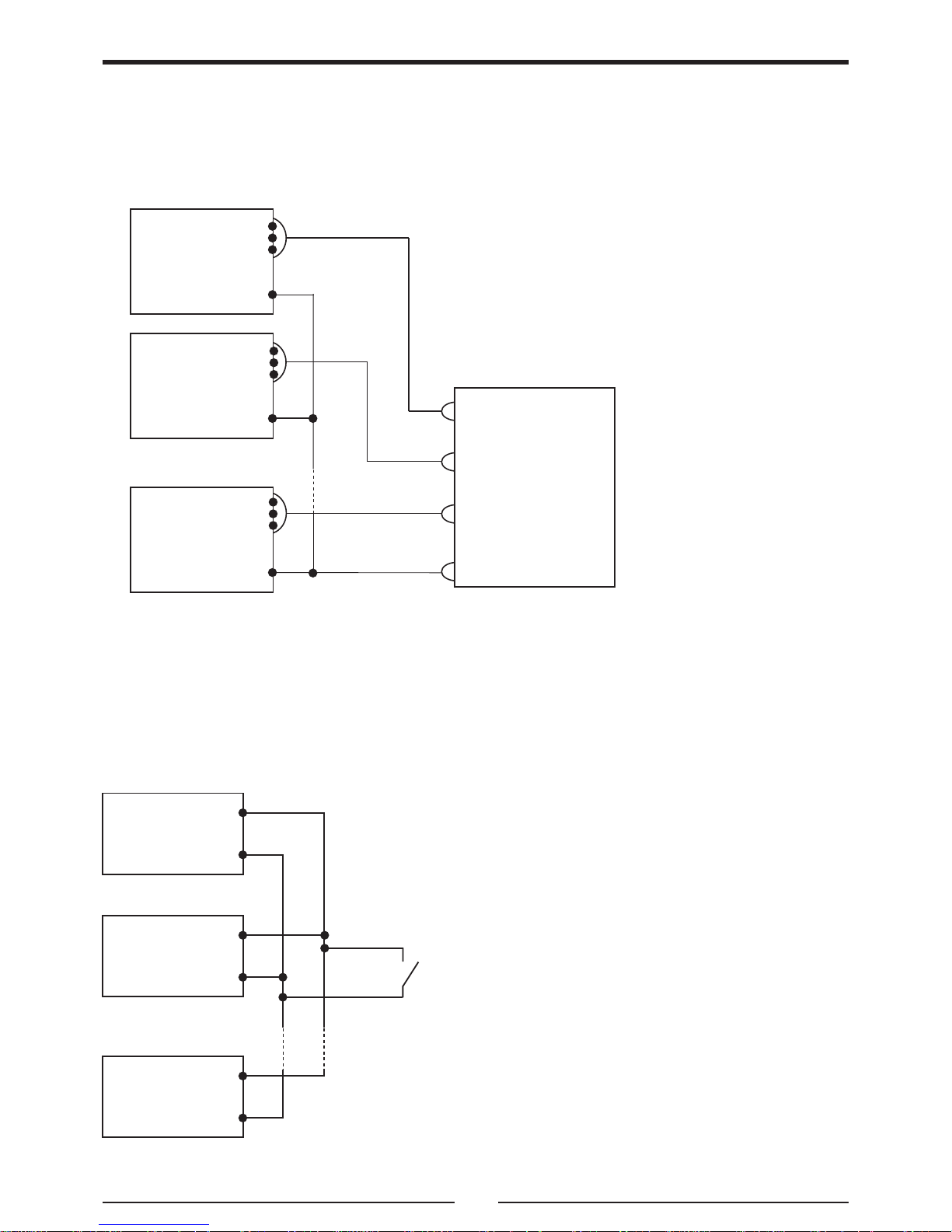

Fig 6-3: Signal Return connection at parallel operation
Fig 6-4: Remote On/Off control at parallel operation
6.1.3 Signal Return bus at parallel operation
The Signal Return of each paralleled unit can be connected together to form a common Signal Return bus. By this way, the control and monitoring signals of the paralleled units can be connected to the same control and monitoring circuitry. The Signal Return bus can be connected to the -V or -S or +V or -S or float. Fig 6-3 shows typical connection of the Signal Return at parallel operation.
6.1.4 Remote On/Off control at parallel operation
The paralleled units can be turned On or Off via a single On/Off control. Refer to Fig 6-4 for typical application. The Signal Return function of all the paralleled units should be connected together to create a common Signal Return bus. The Signal Return bus may be connected to the -V or the +V potential or floated. In any case do not connect the Signal Return bus to different potentials.
ON OFF
FPS1000 #1
SIG. RETURN
ON/OFF
FPS1000 #2
SIG. RETURN
ON/OFF
FPS1000 #N
SIG. RETURN
ON/OFF
7
10
7
10
7
10
FPS1000 Instruction Manual
FPS1000 #1
SIG. RETURN
AC_FAIL
DC_OK
9, 11, 12
10
10
10
FPS1000 #1 SIGNALS
FPS1000 #2 SIGNALS
FPS1000 #N SIGNALS
SIGNALS RETURN
OVER-TEMP
ALARM
FPS1000 #2
SIG. RETURN
AC_FAIL
DC_OK
OVER-TEMP
ALARM
FPS1000 #N
SIG. RETURN
AC_FAIL
DC_OK
OVER-TEMP
ALARM
9, 11, 12
9, 11, 12
CONTROL AND MONITORING CIRCUITS
18
Fig 6-6: Series connection for Bipolar output voltage
6.2 Series operation
Two units can be seriesly connected to increase the output voltage or to create a bipolar voltage source. It is recommended to connect diodes in parallel with each output to prevent reverse voltage in case of failure in one of the power supplies. Each diode should be rated to at least the power supply rated output voltage and output current. Refer to Fig 6-5 and 6-6 for typical lseries connection of power supplies.
Fig 6-5: Series connection for increased output voltage
(*) Diodes are user supplied
LOAD
FPS1000 #1
SIG. RTN
ON/
OFF
FPS1000 #2
SIG. RTN
ON/
OFF
+V
+S
-S
-V
+S
-S
+V
-V
+V
+S
-S
-V
(*)
(*)
710
710
LOAD
FPS1000 #1
SIG. RTN
ON/
OFF
FPS1000 #2
SIG. RTN
ON/
OFF
+V
+S
-S
-V
+V
-V
+V
+S
-S
-V
(*)
(*)
710
710
COMMON
(*) Diodes are user supplied
Series connection for positive and negative output voltage.
Series connection for increased output voltage.
CAUTION
Series operation is not applicable for units with I
2
C bus option.
19
FPS1000 Instruction Manual
7.2 I2C Interface Specifications
7.2.1 General specifications
1. Clock frequency: 100KHz
2. Address lines: Three (A0, A1, A2). Support 8 power supply modules
7.2.2 Output voltage measurement
7.2.3 Output current measurement
7.2.4 Internal temperature measurement
7.2.5 EEPROM
Model name, Serial no., Revision, Manufacture. Name, Output voltage, Date, Country of manufacturing, Check-Sum
7.2.6 Status register
1. Register type: PCF8574, Philips, or equivalent.
2. Register content: DC Fail, Over-Temperature Protection (OTP)
Temperature Alarm, Fan Fail, AC Fail
3. Measurement range: 0-100°C
1. EEPROM type: AT24C02AN-10S , Atmel, or equivalent
2. EEPROM data:
1. Measurement accuracy: +/-3°C
2. Measurement resolution: 8 bits
2. Measurement resolution: 8 bits
3. Measurement range: 0~25.0A for 48V model
/
0~50A for 32V & 24V models
3. Measurement range:
0~60.0V for 48V model / 0~40.0V for 32V model / 0-30.0V for 24V model.
1. Measurement accuracy: +/-10% of full scale
1. Measurement accuracy: +/-2% of full scale
2. Measurement resolution: 8 bits
CHAPTER 7 I2C BUS INTERFACE OPTION
7.1 Introduction
The I
2
C interface option includes facilities to monitor operating parameters of the power supply. The parameters
are then transferred to the host PC if demanded, over a standard I
2
C bus.
The following data can be monitored for the individual units connected to the I
2
C bus:
1. Status of the unit.
2. Actual output voltage, output current and internal temperature of the unit.
3. Manufacturing related data (model, serial number, manufacturing date etc…).
7.1.1 Addressing (A0, A1, A2).
Three address lines allow up to eight FPS1000 units to be addressed on a single I
2
C bus. The address lines are
internally pulled-up to +5V by resistors. Addressing of a unit is achieved by hard-wiring an address line to the
-Sense to set it to "0" or leaving the address line open to set it to "1".
7.1.2 Serial clock
This line is clocked by the processor which controls the I
2
C bus. It should be connected to +5V (referenced to -Sense)
via a pull-up resistor of 2KΩ. The I
2
C interface is designed to run with a serial clock speed of 100KHz.
7.1.3 Serial dataThis line is a bidirectional data line. It should be connected to +5V
(referenced to -Sense) via a pull-up resistor of 2KΩ.
CAUTION
The I2C bus address lines, serial clock and data are referenced to the -Sense potential. When using series connection of FPS1000 units, do not connect the I
2
C lines
of the units together.
20
PCF8574 slave address:
Table 7-2
7.3 Block diagram of the I
2
C option
Refer to Fig 7-1 for description of the I
2
C block diagram and for typical application.
A0 A1 A2 REGISTER
A0
Output voltage
A1 A2
ADC
Temperature
A0 A0 A1 A1 A2 A2
EEPROM
Fig 7-1: I2C option bloack diagram
Output Fail OTP
Temperature Alarm Fan Fail AC Input Fail
Serial CLOCK
Serial DATA
Output current
7.4 Operation and functions
7.4.1. Digital status
Digital status functions are provided by a PCF8574, 8-bit Register. It provides a single 8-bit word when read by the I
2
C controller. Fault is indicated by "1" and Good level is indicated by "0".
Refer to Table 7-1 for the register information.
Bit 7 6 5 4 3 2 1 0 Value 0 1 0 0 A2 A1 A0 R/W
The slave EEPROM address is:
Bit 7 6 5 4 3 2 1 0
Value 1 0
1
0 A2 A1 A0 R/W
7.4.2 EEPROM functions
A 256 bytes EEPROM included in the I
2
C option. The EEPROM type is AT24C02 and it is programmed at the factory
with the data shown in Table 7-2.
BIT
0 Output Fail
Output voltage is <80% +/- 5% of Vout rated 1 Over Temperature Protection Internal temperature is over 80°C. Supply turns off. 2 Temperature Alarm Internal temperature is over 70°C. Supply is on. 3 Fan Fail Failure of an internal fan. 4
AC Input Fail
AC Input <85Vac 5 Not Used Always "0". 6 Not Used Always "0". 7 Not Used Always "0".
Table 7-1
FUNCTION MEANING
ADDRESS BYTES DATA
0 4 Number of fields 4 16 Manufacturer
20 20 Serial number 40 16 Revision 56 16 Country of manufacture 72 16 Model name
88 16 Output voltage 104 16 Date of manufacture 254 2 Checksum
21
The PCF8591 slave address is:
The PCF8591 device initially requires a control byte to be written to the configuration register. The control byte is as follows:
When a single channel is to be read, A,B,C and D should be determined as follows:
Refer to the following table for the scaling of the A/D channels:
7.4.3 Analog functions
Analog functions are provided by a single PCF8591, 4-channel 8-bit A/D converter. When this device is read by the serial buscontroller it provides an 8-bit word with the following information: Channel 1: Output voltage, channel 2: Output current, channel 3: Internal temperature.
Bit 7 6 5 4 3 2 1 0
Value 1 0 0 1 A2 A1 A0 R/W
Bit 7 6 5 4 3 2 1 0
Value 0 A 0 0 0 B C D
A/D channel A B C D Voltage 0 0 0 0 Current 0 0 0 1 Temperature 0 0 1 0
To read all channels with a single control byte, A and B have to be "1", C and D have to be "0". This control byte sets the device so that on each successive read the data from the next A/D is read.Thus, the first result from a sequence of reads should not be considered. Note that on each read, a conversion is started for a particular channel and the result will be read from the previous channel.
7.4.4 A/D Scaling
The A/D readback has to be scaled to obtain a correct value for the voltage, current and the temperature. Note that the voltage reading is made inside the power supply unit before the "Oring" diode and is typically 0.5V higher than the actual output voltage. The following scaling should be employed:
VALUE = BYTE VALUE x RESOLUTION
The measurement range is from 0 to the maximum value listed in the range column. The resolution or scale of reading is linear over the entire range and provides a linear output on the A/D converter.
7.5 Measurements and calculation examples
7.5.1 Output voltage readback
The voltage before the "Oring" diode is measured and can be read from the A/D converter. This voltage is higher than the voltage at the output terminals by 0.5V typically. Model: FPS 1000-48/S
1. Output voltage (at the output terminals): 48.0V
2. Voltage before the "Oring" diode: 48.0V+0.5V=48.5V
3. .Hex readback: CE (1100 1110).
4. Convert the hex readback to decimal: 206
5. Calculate measured Vout: Vout=206*0.2344=48.286V
7.5.2 Output current readback
The output current is sensed by an internal shunt and measured by an A/D converter. Refer to the following examplefor current readback calculation.
1. Actual output current: 21.0A
2. Hex readback: E0 (1110 0000).
3. Convert the hex readback to decimal: 224
4. Calculate measured Iout: Iout=224*0.0977=21.884A.
FPS1000 Instruction Manual
FPS1000-24/S
FPS1000-48/S
FPS1000-32/S
FPS1000-12/S
0~15V 0~80A 0~100°C
0.0586 V/Bit
0.312 A/Bit
0.391°C/Bit
22
Internal temperature calculation example:
1. Hex readback: 68 (0110 1000).
2. Convert hex readback to decimal: 104
3. Calculate the measured temperature:
Temp=104*0.391=40.664
o
C
Fig 7-3: Typical application of I
2
C interface
7.5.3 Internal temperature measurement
The internal ambient temperature is measured to provide information of the safe operation of the power supply. The internal ambient temperature is usually higher than the power supply air intake temperature due to internal power dissipation. As the power dissipation varies with the load, the internal ambient temperature increases with the load. Refer to Fig 7-2 for typical internal temperature rise above the air intake temperature versus the load.
Fig 7-2: Internal temperature rise vs. load
7.6 Typical application diagram
A typical application is described in Fig 7-3.
FPS1000
ON/OFF CONTROL
LOAD
+
-
+V
+S
-S
-V
RS232 TO
I
2
C
CONVERTOR
PC
RS232 CABLE
ON/OFFSIGNAL
RETURN
SCL
SDA
A0 A1 A2
ADDRESS SETTING
CLOCK
DATA
GND
RS232
Internal temp.
rise (°C)
15
10
5
0
25 50 75 100 % of rated load
23
Fig 8-1: Expected fan life vs. ambient temperature
CHAPTER 8 FPS1000 MAINTENANCE
8.1 Introduction
This chapter contains information about maintenance, calibration and troubleshooting of the FPS1000 power supply.
8.2 Units under warranty
Units requiring repairs during the warranty period should be returned to Densei-Lambda authorized service office. Unauthorized repairs performed by other than the authorized service facilities may void the warranty.
8.3 Periodic maintenance
No routine maintenance of the FPS1000 power supply is required except for periodic cleaning. To clean, disconnect the unit from the AC supply and allow 30sec. for discharging internal voltage. The FPS1000 should be cleaned using mild solution of detergent and water. The solution should be applied onto a soft cloth, and not directly to the surface of the unit. Do not use aromatic hydrocarbons or chlorinated solvents for cleaning. Use low pressure compressed air to blow dust from the unit.
8.4 Adjustments and Calibration
No internal adjustment or calibration are required. Units that are returned for repair will be calibrated at the service office.In any case ,opening the cover is not allowed.
8.5 Fan life expectancy
The fan life has limitation depending mainly on the ambient temperature. Please refer to Fig 8-1 for the expected fan life vs. the ambient temperature. In case that the fan should be replaced, contact your nearest Densei-Lambda authorized service office.
8.6 Before concluding that the unit is at fault:
Before concluding that the unit is at fault, make the following tests: * Check if the AC voltage is within the specification range. *Check if the input and output wiring is correct. *Check if the +S and -S wires are connected to the +Vout and -Vout (refer to sec. 4.11). *Check if the wires size is sufficient (refer to sec. 3.7.2). *Check if the output voltage control, V_Trim, is connected properly (refer to sec. 4.2). *Check if the On/Off control is connected properly (refer to sec. 4.10). *Check if the load current and power consumption are within the power supply specifications. *Audible noise can be heard during dynamic load operation. *Audible noise can be heard when the input voltage waveform is not sinusoidal.
8.7 Parts replacement and repair
As repairs are made only by the manufacturer or by its authorized service offices, no parts replacement information is given inthis manual. In case of failure, unusual or erratic operation of the unit, contact your nearest Densei-Lambda sales and service office.
Ambient temperature (°C)
Life expectancy (years)
100500
1
10
FPS1000 Instruction Manual
24
FPS-S1U 19” Rack Single Output
25
CHAPTER 9 FPS-S1U RACK SPECIFICATIONS
FPS-S1U Instruction Manual
Notes:
*1: The Output of all the FPS1000 modules are connected in parallel in the rack.
*2: For input voltage lower than 100Vac, maximum output power derated by 10% of the power rating.
*3: For cases where conformance to to various safety standards (UL, EN etc.) is required, to be described
as 100-240Vac (50/60Hz).
*4: Remote sensing can compensate up to 1V drop on each load wire.
*5: Not apllicable for units with I
2
C bus option.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
Number of power supply modules (*1)
Maximum output power (*2)
Input voltage / frequency range (*3)
Maximum input current (at 100/200Vac)
AC input connector
Output terminals
Remote sensing (*4)
Parallel operation
Series operation (*5)
Remote On/Off control
DC_OK signal
AC fail signal
Over Temperature alarm signal
Vout voltage trimming
Auxiliary power supply
Operating temperature
Storage temperature
Operating humidity
Storage humidity
Vibration
Shock
Applicable safety standards
Withstand voltage
Insulation resistance
Weight (Typ)
Size (W*H*D)
Warranty
---
W
---
A
---
---
V
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
Kg
---
Yr
Maximum 3 x FPS1000 modules of the same output voltage rating.
3000
85~265Vac continuous, 47~63Hz, Single phase
12.0/6.0 for each FPS1000 unit installed
FPS-S1U :IEC inlet for each power supply module . FPS-S1U/P :None
Bus-bars.Refer to outline drawing.
Possible.
Possible. Up to 3 racks with max 8 FPS 1000 units of the same voltage and current rating.
Possible. Up to 2 racks of the same voltage and current rating
Separate control for each FPS 1000 unit , By electrical signal or dry contact
ON: 0~0.6V or short. OFF: 2~15V or open.
Separate control for each FPS1000 unit, Open collector signal.
On when Vout >80% +/-5%. Max.sink current: 10mA
Separate control for each FPS1000 unit ,Open collector signal.
Refer to Instruction Manual
Separate control for each FPS1000 unit ,Open collector signal.
Refer to Instruction Manual
Possible, via separate control for each FPS1000 unit .Refer to Instruction Manual.
11.2~12.5VDC.Maximum output current:0.25A*Number of installed FPS1000 units.
0~50°C: 100% load. Derate 2%/°C, 50°C to 60°C.
-30~85°C
10~90% RH, no condensation.
10~90% RH, no condensation.
Built to meet ETS 300 019
Built to meet ETS 300 019
UL60950-1, EN60950-1
Input-Output: 3000Vrms, 1min. Input-Ground: 2000Vrms, 1min. Output-Ground:
500Vrms, 1min.
More than 100Mohm at 25°C and 70% RH. Output-Ground: 500Vdc
3.7
440x44x351mm. Refer to Outline Drawing.
Two Years
26
Step no Item Description Reference
1 Inspection Initial physical inspection of the power supply Section 3.3 2 Installation Installing the power supply. Section 10.4
Ensuring adequate ventilation. Section 10.5 3 AC source AC source requirements Section 3.6 4 Load connection Wire size selection. Section 10.7
Table 10-1: Basic setup procedure
CHAPTER 10 FPS-S1U RACK INSTALLATION
10.1 GENERAL
This chapter contains instructions for initial inspection, preparation for use and repackaging for shipment. In some sections in this chapter, where the instructions for the FPS-S1U and the FPS1000 are identical, a reference to a section describing the FPS1000 will be given.
10.2 PREPARATION FOR USE
Table 10-1 below describes the basic setup procedure. Follow the instructions in Table 10-1 in the sequence given to prepare the FPS-S1U rack for use.
10.3 INITIAL INSPECTION
Refer to Sec. 3.3 for details.
10.4 FPS-S1U RACK MOUNTING
The FPS-S1U is designed to be mounted in a 19" rack. Use a support bars or surface to provide adequate support for the rear of the power supply. Secure the FPS-S1U to its location using the front panel using M6x12 screws via the mounting holes at its front side (Refer to the outline drawings in Chapter 11). Do not obstruct the air exhaust at the rear panel of the unit.
10.5 LOCATION MOUNTING AND COOLING
The FPS1000 units installed in the FPS-S1U rack are fan cooled. The air intake is at the front panel and the exhaust is at the rear panel. Upon installation allow cooling air to reach the front panel and allow minimum 50mm of unrestricted air space at the rear of the unit for the air exhaust.
10.6 AC SOURCE REQUIREMENTS
Refer to Sect 3.6 for details.
10.7 CONNECTING THE LOAD
WARNING
Turn off the AC input power before making or changing any rear panel connection. Ensure that all connections are securely tightened before applying power. There is a potential shock hazard when using a power supply with a rated output greater than 40V.
10.7.1 Load Wiring
.Refer to Sec. 3.7.1, 3.7.2 and 3.7.3 for details.
10.7.2 Inductive loads
To prevent damage to the power supply from inductive kickback, a diode should be connected across the output. The diode voltage and current rating should be greater than the power supply maximum output voltage and total current rating. Connect the cathode to the positive output and the anode to the negative output. Where positive load transients such as back EMF from a motor may occur, connect a surge suppressor across the output to protect the power supply. The breakdown voltage rating of the suppressor must be approximately 10% higher than the maximum output voltage of the power supply.
1
4
3
2 5 1
27
10.7.3 Making the load connections
10.7.4 Rear panel description
Fig. 10-1: FPS-S1U Rear panel
The load wires should be properly terminated with terminals securely attached. DO NOT use unterminated wires for load connection at the FPS-S1U.
Hazardous voltages may exist at the outputs and the load connections when using a power supply with a rated output greater than 40V. To protect personnel against accidental contact with hazardous voltages, ensure that the load and it's connections has no accessible live parts. Ensure that the load wiring insulation rating is greater than or equal to the maximum output voltage of the power supply.
WARNING
!
1. Mounting brackets. Use M6x12 screws to fix the FPS-S1U to the rack. 2: DB25 connector for control and monitoring signals. 3: Output voltage terminals. Use M6x16 screws and M6 lug to connect the load wire. The recommended
tightening torque is 42~56Kgf.cm.
4. DIP switch for I
2
C option address setting. Refer to Chapter 14 for details.
5. IEC320 AC inlets, shown for FPS-S1U rack. For FPS-S1U/P, there are no IEC320 inlets on the rack.
10.7.5 Control and monitoring signals connector
Pin No Function
1 V_TRIM_B Connection for output voltage trimming of FPS1000 unit "B". The voltage can be
trimmed within its range specifications.
Description
Open collector signal, referenced to pin 11 (Signal Return). On when the internal temperature of FPS1000 unit "B" is within safe limit, Off approx. 10°C below Thermal shut down. The maximum sink current is 10mA and the maximum external voltage is 15V.
TEMP_ALARM_B2
Open collector signal, referenced to pin 11 (Signal Return). On when the output voltage of FPS1000 unit "B" is higher than 80%+/-5%. The maximum sink current: 10mA and the maximum external voltage is 15V.
DC_OK_B3
Open collector signal, referenced to pin 11 (Signal Return). On when the internal temperature of FPS1000 unit "A" is within safe limit, Off approx. 10°C below Thermal shut down. The maximum sink current is 10mA and the maximum external voltage is 15V.
TEMP_ALARM_A4
Turns the output of FPS1000 unit "A" to On and Off by electrical signal or dry contact between pin 5 and pin 11 (Signal Return). 0~0.6V or Short: On, 2~15V or Open: Off. The maximum source current is 2.6mA.
ON/OFF_A5
Open collector signal, referenced to pin 11 (Signal Return). On when the output voltage of FPS1000 unit "A" is higher than V
out 80%+/-5%. The maximum sink
current: 10mA and the maximum external voltage is 15V.
DC_OK_A6
Connection for output voltage trimming of FPS1000 unit "A". The voltage can be trimmed within its range specifications.
V_TRIM_A7
Auxiliary voltage output, 11.2~12.5V, referenced to pin 11 (Signal Return). The maximum load current is 0.25A. This output has built in Oring diode and is not controlled by the On/Off control.
+12V_AUX8
FPS-S1U Instruction Manual
28
10.7.5 Control and monitoring signals connector
Current sharing signal. When FPS-S1U racks are connected in parallel, the CS pins of the units should be connected to allow current balance between units.
CS9
Connection for output voltage trimming of FPS1000 unit "C". The voltage can be trimmed within its range specifications.
V_TRIM_C10
Return for the following control and supervisory signals: On/Off, DC_OK, Over_temperature Alarm, AC_Fail, Auxiliary 12V supply. The Signal return is isolated from the output terminals.
SIGNAL_RETURN11
17 NC 18 NC 19 NC
Open collector signal, referenced to pin 11 (Signal Return). On when the output voltage of FPS1000 unit "C” is higher than 80%+/-5%. The maximum sink current: 10mA and the maximum external voltage is 15V.
DC_OK_C12
Positive sensing. The +Sense signal should be connected to the positive terminal of the load. The +Sense and -Sense leads should be twisted pair to minimize noise pick­up effect. The maximum load wires drop compensation is 1V/wire.
+SENSE13
Open collector signal, referenced to pin 11 (Signal Return). On when the input voltage of FPS1000 unit "B" is 85Vrms. The maximum sink current is 10mA, and the maximum external voltage is 15Vdc.
AC_FAIL_B14
Turns the output of FPS1000 unit "B" to On and Off by electrical signal or dry contact between pin 15 and pin 11 (Signal Return). 0~0.6V or Short: On, 2~15V or Open: Off. The maximum source current is 2.6mA.
ON/OFF_B15
Open collector signal, referenced to pin 11 (Signal Return). On when the input voltage of FPS1000 unit "A" is 85Vrms. The maximum sink current is 10mA, and the maximum external voltage is 15Vdc.
AC_FAIL_A16
Not connected Not connected Not connected Serial Clock used in the I
2
C interface option. Refer to the I2C interface description in
the Chapter 7 in this Instruction Manual.
SCL (I2C)20
Serial Data used in the I
2
C interface option. Refer to the I2C interface description in
the Chapter 7 in this Instruction Manual.
SDA (I2C)21
Negative sensing. The -Sense signal should be connected to the negative terminal of the load. The -Sense and +Sense leads should be twisted pair to minimize noise pick-up effect. The maximum load wires drop compensation is 1V/wire.
-SENSE22
Open collector signal, referenced to pin 11 (Signal Return). On when the internal temperature of FPS1000 unit "C" is within safe limit, Off approx 10°C below Thermal shut down. The maximum sink current is 10mA and the maximum external voltage is 15V.
TEMP_ALARM_C23
Open collector signal, referenced to pin 11 (Signal Return). On when the input voltage of FPS1000 unit "C" is 85Vrms. The maximum sink current is 10mA, and the maximum external voltage is 15Vdc.
AC_FAIL_C24
Turns the output of FPS1000 unit "C" to On and Off by electrical signal or dry contact between pin 25 and pin 11 (Signal Return). 0~0.6V or Short: On, 2~15V or Open: Off. The maximum source current is 2.6mA.
ON/OFF_C25
29
Fig 10-2: FPS1000 modules location
10.7.6 Modules location
Up to three FPS1000 modules of the same output voltage rating can be plugged into an FPS-S1U rack. Refer to Fig 10-2 for the modules location.
10.7.7 Blank panels
Each FPS-S1U rack is supplied with two blank panels in the package. Use the blank panels to close the front panel opening in places where FPS1000 power supplies are not installed. Use M3x6 screws to fix the blank panel to the chassis. Refer to the outline drawings in chapter 11 for details.
10.7.8 Repackaging for shipment
Refer to Sec. 3.7.8 for details.
Air flow direction
Front side
see note 1
PS MODULE “A”
PS MODULE “B”
PS MODULE “C”
Note 1: Forced air cooling allow minimum 50mm of unrestricted air space at the rear of the unit. Do not obsruct air flow to the unit front panel.
FPS-S1U Instruction Manual
30
CHAPTER 11 FPS-S1U AND FPS-S1U/P OUTLINE DRAWINGS
11.1 FPS-S1U Outline Drawing
31
11.2 FPS-S1U/P Outline Drawing
FPS-S1U Instruction Manual
32
Fig 12-1: single load connection, local sensing
Fig 12-2: Remote sensing, single load.
Fig 12-3: Multiple loads connection with distribution terminal
CHAPTER 12 BASIC CONNECTIONS FOR OPERATION FPS-S1U RACK
12.1 Connecting single load, Local sensing
Local sensing is suitable for applications where load regulation is not critical. Fig 12-1 shows recommended load and sensing connections for applications with a single load.
12.2 Connecting Single Load, Remote Sensing
Remote sensing is used in cases where the load regulation is important at the load terminals. Use twisted or shielded wires to minimize noise pick-up. If shielded wires are used, the shield should be connected to the ground at one point, either the power supply side or the load. The optimal point for the shield ground should be determined by experimentation. Refer to the power supply specifications for the maximum voltage drop allowed at the load wires.
12.3 Multiple loads connection
If remotely located output distribution terminals are used, the power supply output terminals should be connected to the distribution terminals by a pair of twisted or shielded wires. Each load should be separately connected to the remote distribution terminals (see Fig 12-3). If remote sensing is required, the sensing wires should be connected to the distribution terminals or at the most critical load.
LOAD
FPS-S1U
SIGNAL
RTN
ON/
OFF
C
+V +S
-S
-V
13
22
+V
-V
ON/
OFF
B
ON/
OFF
A
2515511
LOAD
FPS-S1U
SIGNAL
RET
+V
+S
-S
-V
13
22
511
Sense lines Twisted pairs
Load line. Up to 1V drop.
Load line. Up to 1V drop.
ON/ OFF
A
ON/
OFF
B
ON/
OFF
C
15 25
+V
-V
*
FPS-S1U
+V +S
-S
-V
13
22
LOAD # 1
+
-
LOAD # 2
+
-
LOAD # 3
+
-
+V
-V
SIGNAL
RET
511
ON/
OFF
A
ON/
OFF
B
ON/ OFF
C
15 25
In Local sense applications, the +/- sense have to be connected to the +/-V terminals of the FPS-S1U prior to operating the FPS1000 units plugged in.
*
33
Fig 12-4: Individual On/Off control Fig 12-5: Single On/Off control
Fig 12-6: Output voltage trimming
Fig 12-7: Supervisory signals
12.4 On/Off control
Fig 12-4 shows typical connection for individual On/Off control of each installed FPS1000 unit. The On/Off control signal is applied to the DB25 connector located at the rear panel (refer to sec. 10.7.5). When it is desired to control all the installed units simultaneously, it is possible to connect the On/Off control as shown in Fig 12-5.
12.5 Output voltage trimming
Refer to Fig 12-6 for output voltage trimming typical application.
12.6 Supervisory signals
Supervisory signals are accessible at the J1-DB25 female connector on the rear panel of the rack. Fig 12-7 shows a typical connection for FPS1000 unit "A" inside the rack. Units "B" and "C" connections - Reffer to sec 10.7.5.
12.7 Grounding outputs
Either the positive or negative output terminals can be grounded. To avoid noise problems caused by common-mode current flowing from the load to ground, it is recommended to ground the output terminal as close as possible to the power supply's output. Always use two wires to connect the load to the power supply regardless of how the system is grounded.
Note: AC_FAIL, DC_OK and TEMP.ALARM are open collector signals.
Application
Monitoring
and Control
circuts
FPS-1000 Module B
FPS-1000 Module C
FPS-S1U
FPS-1000 Module A
12V AUX
AC_FAIL_A
DC_OK_A
TEMP.ALARM_A
SIGNAL RET
10K 10K
10K
11
4
6
16
8
(J1)
ON/OFF_A
FPS-S1U
ON/OFF_B ON/OFF_C
SIGNAL_RET
ON/ OFF
ON/ OFF
ON/ OFF
UNIT
‘C’
UNIT
‘B’
UNIT
‘A’
11
25
15
5
11
25
15
5
ON/OFF_A
FPS-S1U
ON/OFF_B ON/OFF_C
SIGNAL_RET
ON/ OFF
FPS-S1U Instruction Manual
13
7
1
10 22
FPS-S1U
+S
V_TRIM_A
V_TRIM_B
V_TRIM_C
-S
R1
R2
+V
-V
FPS-S1U with FPS1000-24 installed: R2=0.0785*V
2
out -5.819*Vout+105.132
R1(K
Ω)=20(KΩ)-R2(KΩ)
FPS-S1U with FPS1000-48 installed: R2=0.0497*V
2
out-7.2795*Vout+259.04
R1(K
Ω)=50(KΩ)-R2(KΩ)
FPS-S1U with FPS1000-32 installed: R2=0.0463*V
2
out -4.5805*Vout+109.49
R1(K
Ω)=20(KΩ)-R2(KΩΩ)
FPS-S1U with FPS1000-12 installed: R2=0.0324*V
2
out -1.1298*Vout+9.9342
R1(K
Ω)=5(KΩ)-R2(KΩ)
34
CHAPTER 13 PARALLEL AND SERIES OPERATION
13.1 Parallel operation
Up to 3 FPS-S1U racks with up to 8 FPS1000 installed units of the same output voltage rating can be connected in parallel. The built-in Oring diodes on the main output and on the +12V auxiliary voltage in each FPS1000 unit allow N+1 operation. By connecting the CS signal between the paralleled units, automatic current balance is achieved, with +/-10% accuracy. For input voltages less than 100Vac, maximum output Power derated by 10% of the Power rating. Refer to Fig 13-1 for output Power derating in parallel operation.
Fig 13-2: Parallel operation with Remote sensing
13.1.1 Parallel operation with Remote sensing
Fig13-2 shows typical connection of parallel operation with Remote sensing. The CS signal wires should be as short aspossible and with the same length.
LOAD
FPS-S1U #1
+V +S
-S
-V
+S
-S
FPS-S1U #2
+V +S
-S
-V
+S
-S
+S
-S
FPS-S1U #3
+V +S
-S
-V
+S
-S
+V
-V
9CS11
SIG. RTN
ON/
OFF
C
ON/ OFF
B
ON/
OFF
A
515 25
9CS11
SIG.
RTN
ON/
OFF
C
ON/
OFF
B
ON/ OFF
A
515 25
9CS11
SIG. RTN
ON/
OFF
C
ON/ OFF
B
ON/
OFF
A
515 25
Fig 13-1: Output Power derating at parallel operation
90
100
100
265
Input voltage (Vrms)
% of rated Power
85
35
Fig 13-3: Output voltage trimming at parallel operation
Fig 13-4: Signal Return connection at parallel operation
13.1.2 Output voltage trimming at parallel operation
The output voltage of the units connected in parallel can be made by a single trimmer or resistive divider.
13.1.3 Signal Return bus at parallel operation
The Signal Return of each paralleled FPS-S1U rack can be connected together to form a common Signal Return bus. By this way, the control and monitoring signals of the paralleled racks can be connected to the same control and monitoring circuitry. The Signal Return bus can be connected to the -V or -S or +V or -S or float. Fig 13-4 shows typical connection of the Signal Return at parallel operation.
+S
-S
+S
-S
+S
-S
V_TRIM
V_TRIM
+S
-S
R1
R2
FPS-S1U # 1
V_TRIM A, B, C
CS
SIG. RTN
FPS-S1U # 2
V_TRIM A, B, C
CS
FPS-S1U # 3
V_TRIM A, B, C
CS
ABC
V_TRIM
V_TRIM
V_TRIM
FPS-S1U #1
SIG. RETURN
AC_FAIL
DC_OK
11
11
11
FPS-S1U #1 SIGNALS
FPS-S1U #2 SIGNALS
FPS-S1U #3 SIGNALS
SIGNALS RETURN
OVER-TEMP
ALARM
FPS-S1U #2
SIG. RETURN
AC_FAIL
DC_OK
OVER-TEMP
ALARM
FPS-S1U #3
SIG. RETURN
AC_FAIL
DC_OK
OVER-TEMP
ALARM
CONTROL AND MONITORING CIRCUITS
25155
11
9
119119
9
7 1
10
7 1
10
7 1
10
ON/ OFF
ON/
OFF
ON/
OFF
SIG. RTN
ABC
25155
ON/ OFF
ON/ OFF
ON/ OFF
11
SIG. RTN
ABC
25155
ON/
OFF
ON/
OFF
ON/
OFF
FPS-S1U Instruction Manual
FPS-S1U with FPS1000-24 installed: R2=0.0785*V
2
out -5.819*Vout+105.132
R1(K
Ω)=20(KΩ)-R2(KΩ)
FPS-S1U with FPS1000-48 installed: R2=0.0497*V
2
out-7.2795*Vout+259.04
R1(K
Ω)=50(KΩ)-R2(KΩ)
FPS-S1U with FPS1000-32 installed: R2=0.0463*V
2
out -4.5805*Vout+109.49
R1(K
Ω)=20(KΩ)-R2(KΩΩ)
FPS-S1U with FPS1000-12 installed: R2=0.0324*V
2
out -1.1298*Vout+9.9342
R1(K
Ω)=5(KΩ)-R2(KΩ)
+V
-V
36
Fig 13-5: Remote On/Off control at parallel operation
Fig 13-6: Series connection for increased output voltage
13.1.4 Remote On/Off control at parallel operation
The paralleled racks can be turned On or Off via a single On/Off control. Refer to Fig 13-5 for typical application. The Signal Return function of all the paralleled racks should be connected together to create a common Signal Return bus. The Signal Return bus may be connected to the -V or the +V potential or floated. In any case do not connect the Signal Return bus to different potentials.
13.2 Series operation
Two FPS-S1U racks with the same output voltage rating can be connected in series to increase the output voltage or to create a bipolar voltage source. It is recommended to connect diodes in parallel with each output to prevent reverse voltage in case of failure in one of the power supplies. Each diode should be rated to at least the power supply rated output voltage and output current. Refer to Fig 13-6 and 13-7 for a typical series connection of power supplies.
(*) Diodes are user supplied
LOAD
+V
+S
-S
-V
+S
-S
+V
-V
+V
+S
-S
-V
(*)
(*)
FPS-S1U #1
FPS-S1U #2
11
SIG. RTN
ON/
OFF
C
ON/ OFF
B
ON/
OFF
A
515 25
11
SIG. RTN
ON/
OFF
C
ON/ OFF
B
ON/
OFF
A
515 25
ON OFF
FPS-S1U #1
SIG. RETURN
ON/OFF
A, B, C
FPS-S1U #2
SIG. RETURN
ON/OFF
A, B, C
FPS-S1U #3
SIG. RETURN
ON/OFF
A, B, C
5, 15, 25
11
11
11
5, 15, 25
5, 15, 25
2.6 mA / Installed unit
2.6 mA / Installed unit
2.6 mA / Installed unit
Fig 13-7: Series connection for Bipolar output voltage
(*) Diodes are user supplied
LOAD
FPS-S1U #1
FPS-S1U #2
+V
+S
-S
-V
+V
-V
+V
+S
-S
-V
(*)
(*)
COMMON
11
SIG. RTN
ON/ OFF
C
ON/
OFF
B
ON/
OFF
A
515 25
11
SIG. RTN
ON/ OFF
C
ON/
OFF
B
ON/
OFF
A
515 25
CAUTION
Series operation is not applicable for units with I2C bus option.
37
CHAPTER 14 FPS-S1U I2C BUS INTERFACE OPTION
14.1 Introduction
The FPS-S1U rack provides access to the I
2
C Bus interface in each installed FPS1000/S unit via the rear panel DB25 female connector located at the rear panel. The Clock is connected to pin 20 and the Data is connected to pin 21. The specifications of the I
2
C of the FPS1000/S power supplies are kept when they
are installed in the FPS-S1U rack. Refer to Chapter 7 for the specifications and all operating details.
14.2 Addressing (A0, A1, A2).
The rear panel 9 positions DIP switch is used to select the I
2
C bus address for the individual FPS1000/S
unit inside the rack. Each unit should have its own I
2
C address to communicate over the I2C bus. Each address is made of three DIP switch positions, thus a single power supply in the FPS-S1U can be addressed with one of 8 different addresses. Refer to Fig 14-1 for the description of the DIP switch setting. The DIP switch down position is logic level "1" and the up position is logic level "0".
Fig 14-1: Address setting DIP switch (rear panel view)
1 2345678 9
Module C Module B Module A
ON
OFF
CAUTION
The I
2
C bus address lines, serial clock and data are
referenced to the -Sense potential. When using series
connection of FPS-S1U racks, do not connect the
I
2
C lines of the units together.
FPS-S1U Instruction Manual
38
CHAPTER 15 FPS-S1U MAINTENANCE
15.1 Introduction
This chapter contains information about maintenance, calibration and troubleshooting of the FPS-S1U rack.
15.2 Units under warranty
Units requiring repairs during the warranty period should be returned to Densei-Lambda authorized service office. Unauthorized repairs performed by other than the authorized service facilities may void the warranty.
15.3 Periodic maintenance
No routine maintenance of the FPS-S1U rack is required except for periodic cleaning. To clean, disconnect the unit from the AC supply and allow 30sec. for discharging internal voltage. The FPS-S1U should be cleaned using mild solution of detergent and water. The solution should be applied onto a soft cloth, and not directly to the surface of the unit. Do not use aromatic hydrocarbons or chlorinated solvents for cleaning. Use low pressure compressed air to blow dust from the unit.
15.4 Adjustments and Calibration
No internal adjustment or calibration are required. Units that are returned for repair will be calibrated at the service office In any case ,opening the cover is not allowed.
15.5 Parts replacement and repair
As repairs are made only by the manufacturer or by its authorized service offices, no parts replacement information is given in this manual. In case of failure, unusual or erratic operation of the unit, contact your nearest Densei-Lambda sales and service office.
39
FPS-T1U 19” Rack Triple Output
40
Notes:
*1: The Output of all the FPS1000 modules are floating in the rack.
*2: For input voltage lower than 100Vac, maximum output power derated by 10% of the power rating.
*3: For cases where conformance to to various safety standards (UL, EN etc.) is required, to be described
as 100-240Vac (50/60Hz).
*4: Remote sensing can compensate up to 1V drop on each load wire.
*5: Not apllicable for units with I
2
C bus option.
*6: Factory default: ON/OFF_1 P.S. is On when AC is applied.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
Number of power supply modules (*1)
Maximum output power (*2)
Input voltage / frequency range (*3)
Maximum input current (at 100/200Vac)
AC input connector
Output terminals
Remote sensing (*4)
Parallel operation
Series operation (*5)
Remote On/Off control (*6)
DC_OK signal
AC fail signal
Over Temperature alarm signal
Vout voltage trimming
Auxiliary power supply
Operating temperature
Storage temperature
Operating humidity
Storage humidity
Vibration
Shock
Applicable safety standards
Withstand voltage
Insulation resistance
Weight (Typ)
Size (W*H*D)
Warranty
---
W
---
A
---
---
V
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
Kg
---
Yr
Maximum 3 x FPS1000 modules.
3000
85~265Vac continuous, 47~63Hz, Single phase
12.0/6.0 for each FPS1000 unit installed
FPS-T1U :IEC inlet for each power supply module . FPS-T1U/P :None
Bus-bars.Refer to outline drawing.
Possible.
Possible. Up to 3 racks with max 8FPS 1000 units of the same voltage and current rating.
Possible. Up to 3x FPS1000 units of the same voltage and current rating
Separate control for each FPS 1000 unit , By electrical signal or dry contact
On/Off logic is user selectable. Refer to instruction manual.
Separate control for each FPS1000 unit, Open collector signal.
On when Vout >80% +/-5%. Max.sink current: 10mA
Separate control for each FPS1000 unit ,Open collector signal.
Refer to Instruction Manual
Separate control for each FPS1000 unit ,Open collector signal.
Refer to Instruction Manual
Possible, via separate control for each FPS1000 unit .Refer to Instruction Manual.
11.2~12.5VDC.Maximum output current:0.25A, for each FPS1000 unit.
0~50°C: 100% load. Derate 2%/°C, 50°C to 60°C.
-30~85°C
10~90% RH, no condensation.
10~95% RH, no condensation.
Built to meet ETS 300 019
Built to meet ETS 300 019
UL60950-1, EN60950-1
Input-Output: 3000Vrms, 1min. Input-Ground: 2000Vrms, 1min. Output-Ground:
1414Vdc, 1min.
More than 100Mohm at 25°C and 70% RH. Output-Ground: 500Vdc
3.7
440x44x351mm. Refer to Outline Drawing.
Two Years
CHAPTER 16 FPS-T1U RACK SPECIFICATIONS
41
Step no Item Description Reference
1 Inspection Initial physical inspection of the power supply Section 3.3 2 Installation Installing the power supply. Section 10.4
Ensuring adequate ventilation. Section 10.5 3 AC source AC source requirements Section 3.6 4 Load connection Wire size selection. Section 10.7
Table 17-1: Basic setup procedure
CHAPTER 17 FPS-T1U RACK INSTALLATION
17.1 GENERAL
This chapter contains instructions for initial inspection, preparation for use and repackaging for shipment. In some sections in this chapter, where the instructions for the FPS-T1U and the FPS1000 are identical, a reference to a section describing the FPS1000 will be given.
17.2 PREPARATION FOR USE
Table 10-1 below describes the basic setup procedure. Follow the instructions in Table 17-1 in the sequence given to prepare the FPS-T1U rack for use.
17.3 INITIAL INSPECTION
Refer to Sec. 3.3 for details.
17.4 FPS-T1U RACK MOUNTING
The FPS-T1U is designed to be mounted in a 19" rack. Use a support bars or surface to provide adequate support for the rear of the power supply. Secure the FPS-T1U to its location using the front panel using M6x12 screws via the mounting holes at its front side (Refer to the outline drawings in Chapter 18). Do not obstruct the air exhaust at the rear panel of the unit.
17.5 LOCATION MOUNTING AND COOLING
The FPS1000 units installed in the FPS-T1U rack are fan cooled. The air intake is at the front panel and the exhaust is at the rear panel. Upon installation allow cooling air to reach the front panel and allow minimum 50mm of unrestricted air space at the rear of the unit for the air exhaust.
17.6 AC SOURCE REQUIREMENTS
Refer to Sect 3.6 for details.
17.7 CONNECTING THE LOAD
WARNING
Turn off the AC input power before making or changing any rear panel connection. Ensure that all connections are securely tightened before applying power. There is a potential shock hazard when using a power supply with a rated output greater than 40V.
17.7.1 Load Wiring
Refer to Sec. 3.7.1, 3.7.2 and 3.7.3 for details.
17.7.2 Inductive loads
To prevent damage to the power supply from inductive kickback, a diode should be connected across the output. The diode voltage and current rating should be greater than the power supply maximum output voltage and total current rating. Connect the cathode to the positive output and the anode to the negative output. Where positive load transients such as back EMF from a motor may occur, connect a surge suppressor across the output to protect the power supply. The breakdown voltage rating of the suppressor must be approximately 10% higher than the maximum output voltage of the power supply.
FPS-T1U Instruction Manual
42
17.7.3 Making the load connections
17.7.4 Rear panel description
Fig. 17-1: FPS-T1U Rear panel
The load wires should be properly terminated with terminals securely attached. DO NOT use unterminated wires for load connection at the FPS-T1U.
Hazardous voltages may exist at the outputs and the load connections when using a power supply with a rated output greater than 40V. To protect personnel against accidental contact with hazardous voltages, ensure that the load and it's connections has no accessible live parts. Ensure that the load wiring insulation rating is greater than or equal to the maximum output voltage of the power supply.
WARNING
!
1
2 3 5
1
1. Mounting brackets. Use M6x12 screws to fix the FPS-T1U to the rack.
2. Output voltage terminals rugged busbars. Use M5x12 screws for load wires recommended Tightening torque 24~31 Kgf.cm.
3. Micro-Fit 3.0
TM
Dual Row Right Angle 16pins (Molex) connector for control and monitoring signals.
4. Ground stud M4 (three place).
5. IEC320 AC inlet ,shown for FPS-T1U. For FPS-T1U/P there are no IEC320 inlets on the rack.
4
Module C Module B Module A
43
17.7.5 Rear Panel In/Out Connector Pins Function Description J1(A), J2(B), J3(C)
Pin No Function Description
14 TEMP_ALARM
Open collector signal, referenced to pin 3 (Signal Return). On when the internal temperature of FPS1000 unit is within safe limit, Off approx. 10°C below Thermal shut down. The maximum sink current is 10mA and the maximum external voltage is 15V.
5 DC_OK
Open collector signal, referenced to pin 3 (Signal Return). On when the output voltage of FPS1000 unit is higher than Vout 80% +/-5%. The maximum sink current: 10mA and the maximum external voltage is 15V.
6 V_TRIM
Connection for output voltage trimming of FPS1000 unit. The voltage can be trimmed within its range specifications.
9 +12V_AUX
Auxiliary voltage output, 11.2~12.5V, referenced to pin 3 (Signal Return). The maximum load current is 0.25A. This output is not controlled by the On/Off control.
10 CS
Current sharing signal. When FPS1000 units are connected in parallel, the CS pins of the units should be connected to allow current balance between units.
3 SIGNAL_RETURN
Return for the following control and supervisory signals: On/Off, DC_OK, Over_temperature Alarm, AC_Fail, Auxiliary 12V supply. The Signal return is isolated from the output terminals.
8 +SENSE
Positive sensing. The +Sense signal should be connected to the positive terminal of the load. The +Sense and -Sense leads should be twisted pair to minimize noise pick-up effect. The maximum load wires drop compensation is 1V/wire.
11 AC_FAIL
Open collector signal, referenced to pin 3 (Signal Return). On when the input voltage of
FPS1000 unit is 85Vrms. The maximum sink current is 10mA, and the maximum external
voltage is 15Vdc.
2 SCL (I
2
C)
Serial Clock used in the I
2
C interface option. Refer to the I2C interface description in the
FPS1000 Instruction Manual.
1 SDA (I
2
C)
Serial Data used in the I
2
C interface option. Refer to the I2C interface description in the
FPS1000 Instruction Manual.
7 -SENSE
Negative sensing. The -Sense signal should be connected to the negative terminal of the load. The -Sense and +Sense leads should be twisted pair to minimize noise pick-up effect. The maximum load wires drop compensation is 1V/wire.
12 ON/OFF_1 (*1)
Turns the output of FPS1000 unit to On and Off by electrical signal or dry contact between pin 12 and pin 3 (Signal Return). 0~0.6V or Short: On, 2~15V or Open: Off. The maximum sink current is 2.6 mA (when using pin#12, it should be disconected from pin#13).
CONNECTOR PINOUT (REAR PANEL VIEW)
15
16
13
4
- LOCAL SENSE
+ LOCAL SENSE
ON/OFF_2 (*1)
On/Off control. To use this input, pin#12 and pin#13 must be shorted together. Short between On/Off_2 to pin#3: Off. Open On/Off_2: On. The maximum source current is 1.2mA
ON/OFF LOGIC
SELECT
Input used to select the On/Off control logic. Short this input to pin#12 when using On/Off_2 as On/Off control. Leave this input open when using On/Off_1 as On/Off control.
When working in local sense mode, connect -Local Sense to -Sense (pin#7). When working in Remote sense mode, this input should be open.
When working in local sense mode, connect +Local Sense to +Sense (pin#8). When working in Remote sense mode, this input should be open.
Note: *1: On/Off_1 and On/Off_2 are reversed logic inputs.
J1(A), J2(B), J3(C) CONECTOR DESCRIPTION
MALE HEADER: P/N-43045-1600 (MOLEX) FEMALE HOUSING (PLUG): P/N-43025-1600 (MOLEX) FEMALE TERMINAL: P/N-43030 (MOLEX)
Rear In/Out connector pins function description (J1), (J2), (J3)
16 9
18
FPS-T1U Instruction Manual
44
Fig 17-2: FPS1000 modules location
17.7.6 Modules location
Up to three FPS1000 modules can be plugged into an FPS-T1U rack. Refer to Fig 17-2 for the modules location.
17.7.7 Blank panels
Each FPS-T1U rack is supplied with two blank panels in the package. Use the blank panels to close the front panel opening in places where FPS1000 power supplies are not installed. Use M3x6 screws to fix the blank panel to the chassis. Refer to the outline drawings in chapter 18 for details.
17.7.8 Repackaging for shipment
Refer to Sec. 3.7.8 for details.
Air flow direction
Front side
see note 1
PS MODULE “A”
PS MODULE “B”
PS MODULE “C”
Note 1: Forced air cooling allow minimum 50mm of unrestricted air space at the rear of the unit. Do not obsruct air flow to the unit front panel.
FPS-T1U Instruction Manual
45
CHAPTER 18 FPS-T1U AND FPS-T1U/P OUTLINE DRAWINGS
18.1 FPS-T1U Outline Drawing
46
11.1 FPS-T1U Outline Drawing
18.2 FPS-T1U/P Outline Drawing
47
Fig 19-1: Remote sensing, three load.
CHAPTER 19 BASIC CONNECTIONS FOR OPERATION FPS-T1U RACK
19.1 Connecting Single Load, Remote Sensing
Remote sensing is used in cases where the load regulation is important at the load terminals. Use twisted or shielded wires to minimize noise pick-up. If shielded wires are used, the shield should be connected to the ground at one point, either the power supply side or the load. The optimal point for the shield ground should be determined by experimentation. Refer to the power supply specifications for the maximum voltage drop allowed at the load wires.
FPS-T1U
FPS-1000 Module A
Sense lines Twisted pairs
Load line. Up to 1V drop.
Load line. Up to 1V drop.
LOAD
+V +S
-S
-V
J1-8 J1-7
+V
-V
LOAD
+V +S
-S
-V
J2-8 J2-7
+V
-V
LOAD
+V +S
-S
-V
J3-8 J3-7
+V
-V
FPS-1000 Module B
FPS-1000 Module C
J1(A)-12
J3(C)-3
ON/ OFF_1 A
J2(B)-12
J2(B)-3
ON/ OFF_1 B
J3(C)-12
J1(A)-3
ON/ OFF_1 C
In Local sense applications, the +/- sense have to be connected to the +/-Local Sense terminals of the FPS-T1U prior to operating the FPS1000 units plugged in.
*
Fig 19-3
FPS-T1U
FPS-1000 Module A
FPS-1000 Module B
FPS-1000 Module C
ON OFF
ON OFF
ON OFF
J1(A)-12
J2(B)-12
J3(C)-12
J1(A)-3
J2(B)-3
J3(C)-3
FPS-T1U
FPS-1000 Module A
FPS-1000 Module B
FPS-1000 Module C
OFF ON
OFF ON
OFF ON
J1(A)-4
J2(B)-4
J3(C)-4
J1(A)-3
J2(B)-3
J3(C)-3
ON/
OFF
SLCT
J1(A)-12
J3(C)-13
ON/
OFF1
A
ON/ OFF
SLCT
J2(B)-12
J2(B)-13
ON/
OFF1
B
ON/
OFF
SLCT
J3(C)-12
J1(A)-13
ON/
OFF1
C
Fig 19-2
Connection for negative logic: Closed: On Open: Off Factory default: ON/OFF Control_1
Connection for positive logic: Closed: Off Open: On
ON/OFF Control_1 ON/OFF Control_2
19.2 On/Off control
Fig 19-2 and Fig 19.3 shows typical connection for individual On/Off control of each installed FPS1000 unit.
FPS-T1U Instruction Manual
48
Fig 19-4 shows typical output voltage trimming connection for FPS1000 unit ‘A’ inside the rack Units ‘B’ and ‘C’ connections - Refer to 17.7.5
Signals are accessible at the J1(A), J2(B), J3(C) connectors on the rear panel of the rack Fig 19-5 shows typical connection for FPS1000 unit ‘A’. inside the rack Units ‘B’ and ‘C’. connections - Refer to 17.7.5
Note: AC_FAIL, DC_OK and TEMP.ALARM are open collector signals
Application
Monitoring
and Control
circuits
FPS-1000 Module B
FPS-1000 Module C
FPS-T1U
FPS1000 Module A
12V AUX
AC_FAIL_A
DC_OK_A
TEMP.ALARM_A
SIGNAL RET
10K 10K
10K
3
14
5
11
9
J1(A)
J2(B)
J3(C)
19.3 Output Voltag Trimming
FPS-1000 Module B
FPS-1000 Module C
FPS-T1U
FPS1000 Module A
J1(A)-8
J1(A)
J2(B)
J3(C)
J1(A)-6
J1(A)-7
R1
R2
R1&R2:0.5W
+S
-S
V_TRIM
FPS1000-24: R2=0.0785*V
2
out -5.819*Vout+105.132
R1(K
Ω)=20(KΩ)-R2(KΩ)
FPS1000-48: R2=0.0497*V
2
out-7.2795*Vout+259.04
R1(K
Ω)=50(KΩ)-R2(KΩ)
FPS1000-32: R2=0.0463*V
2
out -4.5805*Vout+109.49
R1(K
Ω)=20(KΩ)-R2(KΩΩ)
FPS1000-12: R2=0.0324*V
2
out -1.1298*Vout+9.9342
R1(K
Ω)=5(KΩ)-R2(KΩ)
19.4 Supervisory Signals
19.5 Grounding outputs
Either the positive or negative output terminals can be grounded. To avoid noise problems caused by common-mode current flowing from the load to ground, it is recommended to ground the output terminal as close as possible to the power supply's output. Always use two wires to connect the load to the power supply regardless of how the system is grounded.
Fig 19-5 Supervisory Signals
Fig 19-4 Output Voltag Trimming
49
FPS-T1U
FPS-1000 Module A
FPS-1000 Module B
FPS-1000 Module C
J1(A)-12
J3(C)-3
ON/
OFF_1
A
J2(B)-12
J2(B)-3
ON/
OFF_1
B
J3(C)-12
J1(A)-3
ON/
OFF_1
C
LOAD
+V +S
-S
-V
+S
-S
+V +S
-S
-V
+S
-S
+S
-S
+V +S
-S
-V
+S
-S
+V
-V
CS
CS
CS
J1(C)-10 J1(B)-10 J1(A)-10
CHAPTER 20 PARALLEL AND SERIES OPERATION
20.1 Parallel operation
Up to 3 x FPS-T1U racks with up to 8 x FPS1000 installed units of the same output voltage rating can be connected in parallel. The built-in Oring diodes on the main output and on the +12V auxiliary voltage in each FPS1000 unit allow N+1 operation. By connecting the CS signal between the paralleled units, automatic current balance is achieved, with +/-10% accuracy. For input voltages less than 100Vac, maximum output Power derated by 10% of the Power rating. Refer to Fig 20-1 for output Power derating in parallel operation.
20.1.1 Parallel operation with Remote sensing
Fig 20-2 shows typical connection of parallel operation with Remote sensing. The CS signal wires should be as short aspossible and with the same length.
90
100
100
265
Input voltage (Vrms)
% of rated Power
85
Fig 20-2 Parallel operation with Remote sensing
FPS-T1U Instruction Manual
Fig 20-1
50
(*) Diodes are user supplied
FPS-T1U
FPS-1000 Module A
FPS-1000 Module B
FPS-1000 Module C
J1(A)-12
J3(C)-3
ON/
OFF_1
A
J2(B)-12
J2(B)-3
ON/
OFF_1
B
J3(C)-12
J1(A)-3
ON/
OFF_1
C
LOAD
+V
+S
-S
-V
+S
-S
+V
-V
+V
+S
-S
-V
(*)
(*)
+V
+S
-S
-V
(*)
20.2 Series operation
Up to three FPS1000 with the same output voltage rating can be connected in series to increase the output voltage or to create a bipolar voltage source. It is recommended to connect diodes in parallel with each output to prevent reverse voltage in case of failure in one of the power supplies. Each diode should be rated to at least the power supply rated output voltage and output current. Refer to Fig 20-3 for a typical series connection of power supplies.
CAUTION
Series operation is not applicable for units with I2C bus option.
Fig 20-3 Series operation
51
CHAPTER 21 FPS-T1U I2C BUS INTERFACE OPTION
21.1 Introduction
The FPS-T1U rack provides access to the I
2
C Bus interface in each installed FPS1000/S unit via the rear panel MOLEX female connector located at the rear panel. The Clock is connected to pin 2 and the Data is connected to pin 1. The specifications of the I
2
C of the FPS1000/S power supplies are kept when they
are installed in the FPS-T1U rack. Refer to Chapter 7 for the specifications and all operating details.
Module “A”
Module “B”
Module “C”
A0
1
0
1
A1
1
1
0
A2
1
1
1
21.2 Addressing (A0, A1, A2).
The address line of the FPS1000/S units installed in the FPS-T1U rack are internally fixed Refer to the following table for detailes:
Note: Address are applicable when modules FPS1000/S (I2C option) are used
CAUTION
The I
2
C bus address lines, serial clock and data are
referenced to the -Sense potential. When using series
connection of FPS-T1U racks, do not connect the
I
2
C lines of the units together.
FPS-T1U Instruction Manual
52
CHAPTER 22 FPS-T1U MAINTENANCE
22.1 Introduction
This chapter contains information about maintenance, calibration and troubleshooting of the FPS-T1U rack.
22.2 Units under warranty
Units requiring repairs during the warranty period should be returned to Densei-Lambda authorized service office. Unauthorized repairs performed by other than the authorized service facilities may void the warranty.
22.3 Periodic maintenance
No routine maintenance of the FPS-T1U rack is required except for periodic cleaning. To clean, disconnect the unit from the AC supply and allow 30sec. for discharging internal voltage. The FPS-T1U should be cleaned using mild solution of detergent and water. The solution should be applied onto a soft cloth, and not directly to the surface of the unit. Do not use aromatic hydrocarbons or chlorinated solvents for cleaning. Use low pressure compressed air to blow dust from the unit.
22.4 Adjustments and Calibration
No internal adjustment or calibration are required. Units that are returned for repair will be calibrated at the service office In any case ,opening the cover is not allowed.
22.5 Parts replacement and repair
As repairs are made only by the manufacturer or by its authorized service offices, no parts replacement information is given in this manual. In case of failure, unusual or erratic operation of the unit, contact your nearest Densei-Lambda sales and service office.
53
Notes
56
Notes
Loading...
