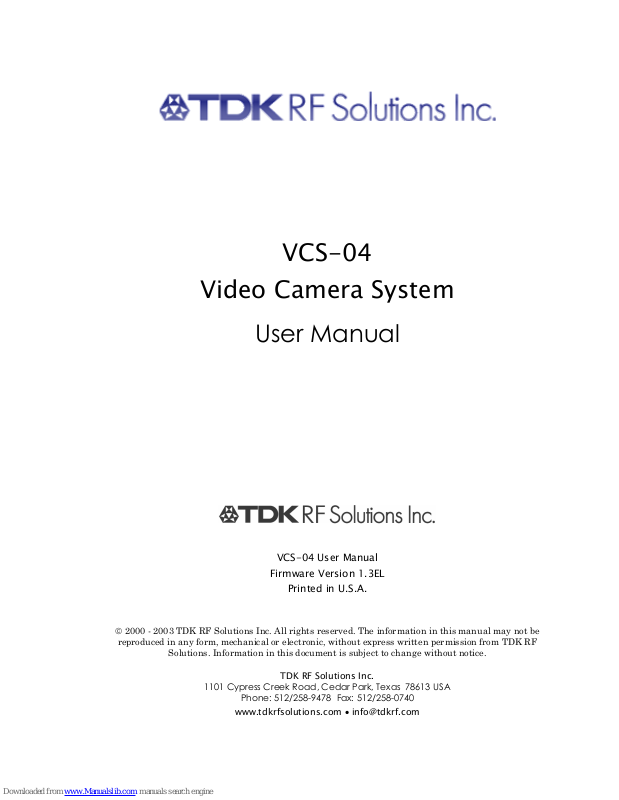

TDK VCS-04 User Manual
VCS-04
Video Camera System
User Manual
VCS-04 User Manual
Firmware Version 1.3EL
Printed in U.S.A.
2000 - 2003 TDK RF Solutions Inc. All rights reserved. The information in this manual may not be
reproduced in any form, mechanical or electronic, without express written permission from TDK RF
Solutions. Information in this document is subject to change without notice.
1101 Cypress Creek Road, Cedar Park, Texas 78613 USA
TDK RF Solutions Inc.
Phone: 512/258-9478 Fax: 512/258-0740
www.tdkrfsolutions.com • info@tdkrf.com
Contents
About This User Manual ..............................................................................................................i
Safety Precautions...................................................................................................................... ii
CHAPTER 1 Introduction.................................................................................................. 1
Purpose and Functions ............................................................................................................. 1
VC-04 Features........................................................................................................................... 1
VC-04 Specifications ................................................................................................................. 2
SI-300CC Camera Controller Features ................................................................................... 2
SI-300CC Camera Controller Technical Data....................................................................... 3
Video Monitor Features ............................................................................................................ 3
CHAPTER 2 Installation .................................................................................................... 4
Before You Begin ....................................................................................................................... 4
Inspection............................................................................................................................. 4
Supplied Components/Accessories................................................................................. 4
Optional Components/Accessories ................................................................................ 4
Product Diagrams...................................................................................................................... 5
SI-300CC Rear Panel........................................................................................................... 5
VC-04 Rear Panel................................................................................................................6
Installation Instructions .............................................................................................................. 7
Connecting the Video System Components ................................................................. 7
System Initialization.................................................................................................................... 8

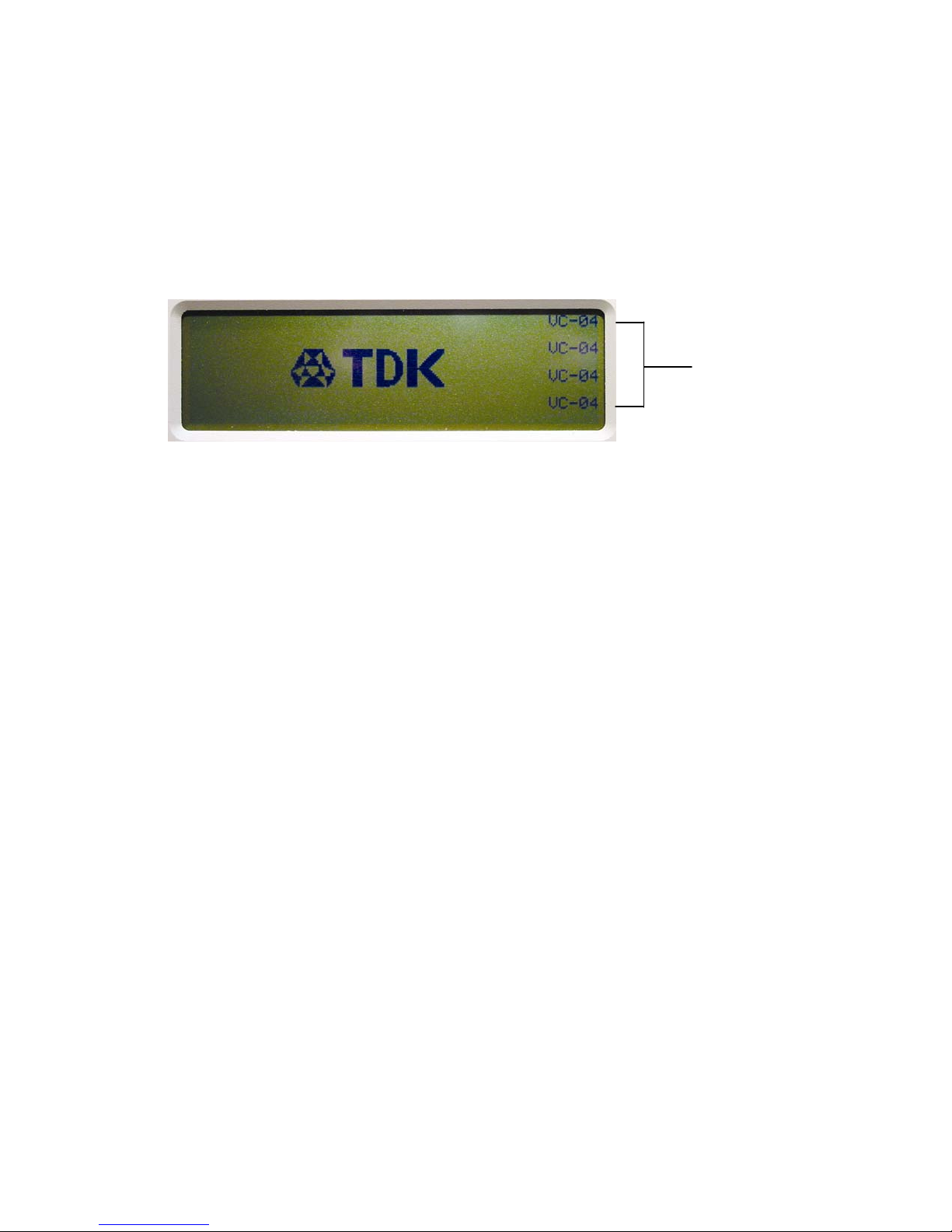

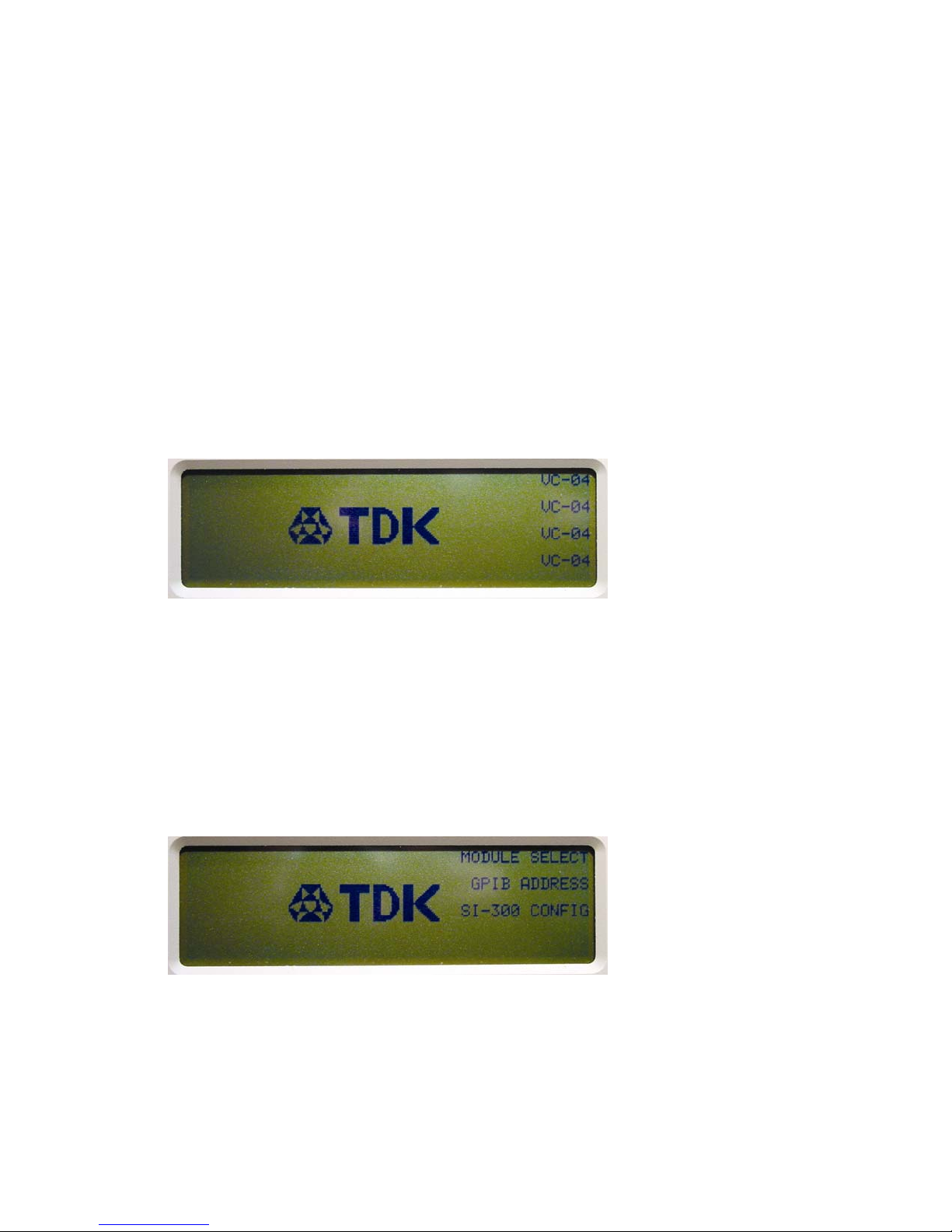

SI-300CC Opening Screen................................................................................................. 8
SI-300CC Menu Screen .................................................................................................... 10
CHAPTER 3 Operating Instructions............................................................................... 11
Getting Started ........................................................................................................................ 11

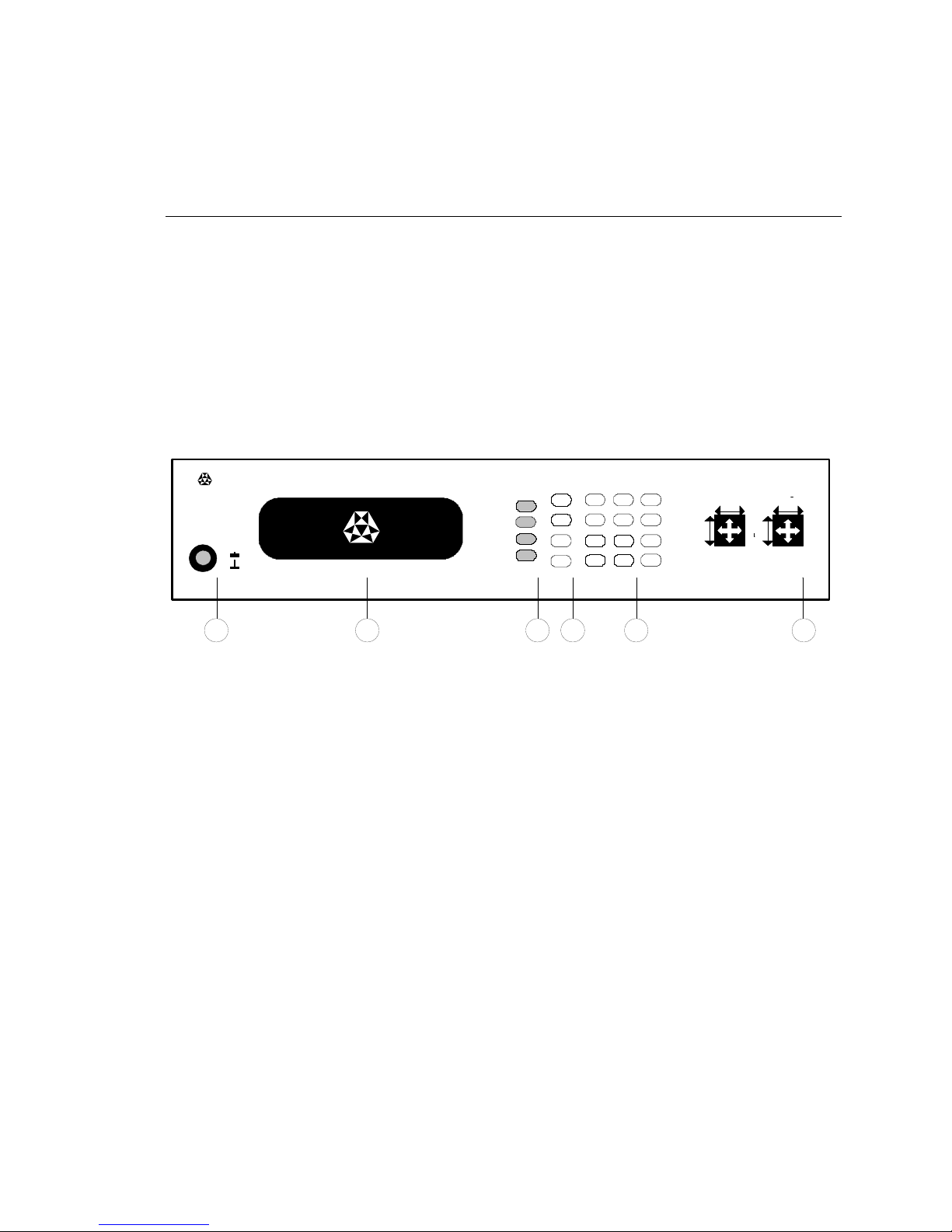

Remote Operation – SI-300CC Front Panel Controls ......................................................... 11
Menu Page ........................................................................................................................ 12
Options Page..................................................................................................................... 12

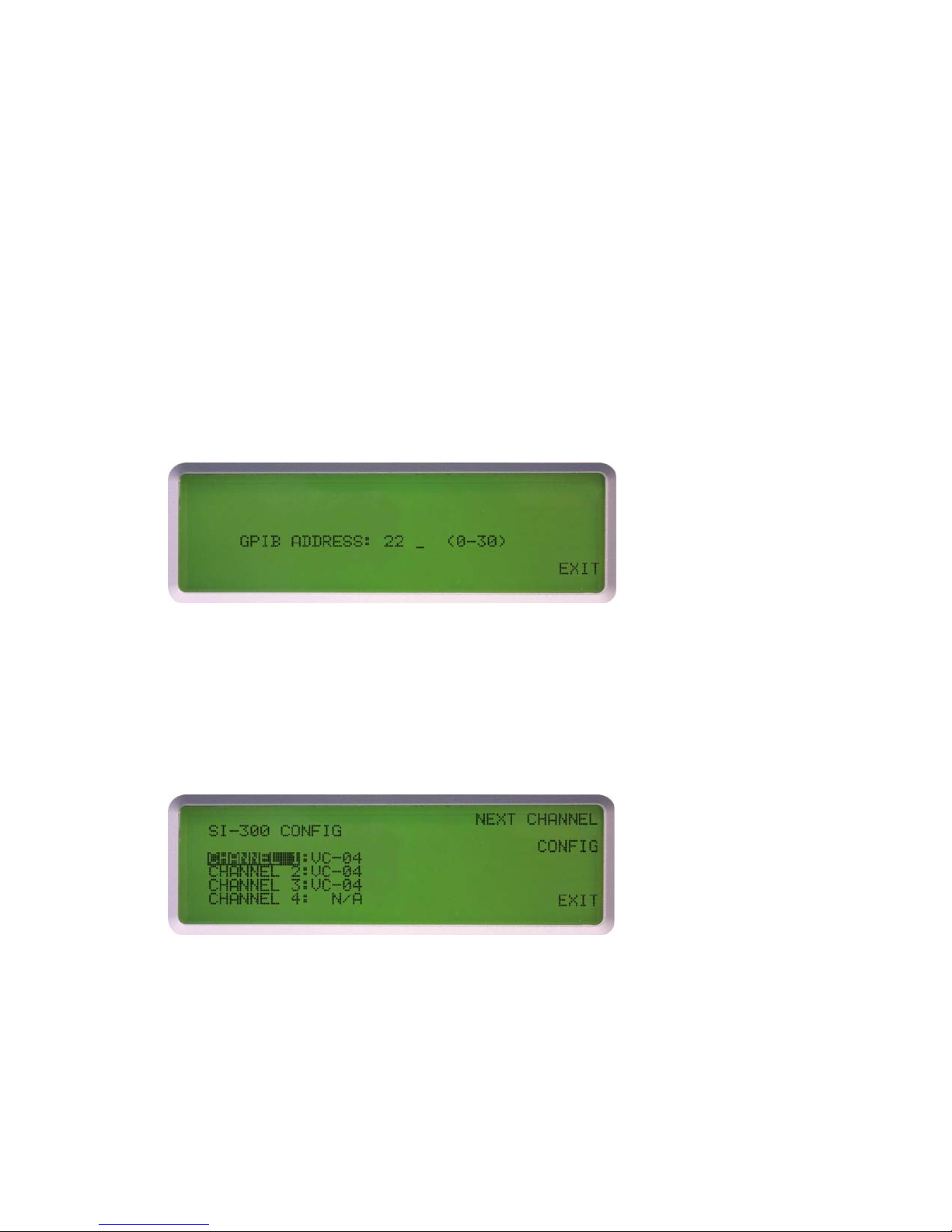

GPIB Page .......................................................................................................................... 13
SI-300CC CONFIG Page................................................................................................... 13

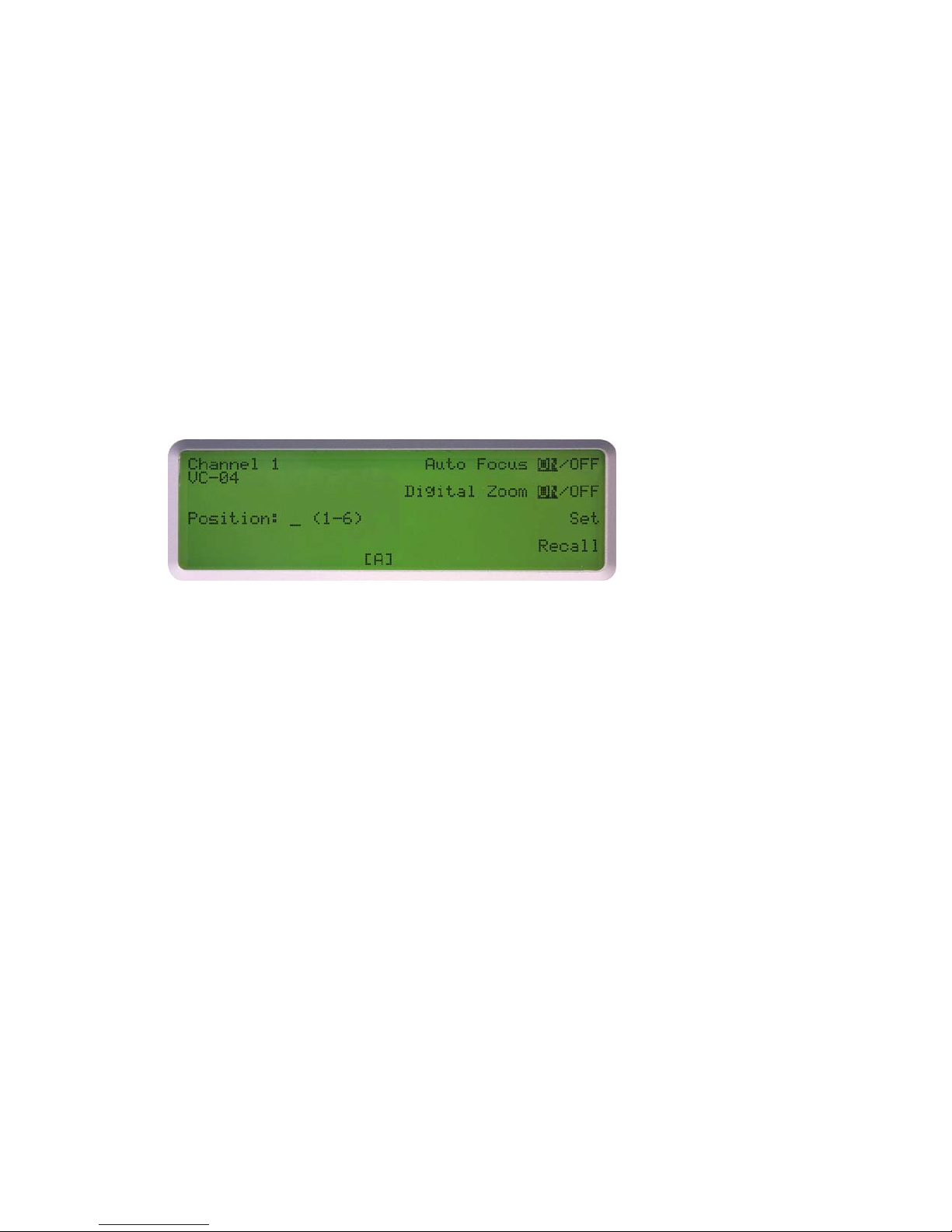

Camera Control Module Operation.............................................................................. 14
Manual Operation – VC-04 Rear Panel Controls................................................................ 16
Manual Control Switches ................................................................................................. 16
CHAPTER 4 Remote Programming............................................................................... 17
SI-300CC System Commands v1.3EL .................................................................................... 17
SI-300CC Camera Commands ............................................................................................. 18
APPENDIX A Service...................................................................................................... 19
Replaceable Parts................................................................................................................... 19
Service and Ordering Information ........................................................................................ 19
APPENDIX B Maintenance............................................................................................ 20
APPENDIX C Limited Warranty ..................................................................................... 21
About This User Manual
The VCS-04 Video Camera System User Manual provides detailed information about the
VCS-04 features and operation. This manual is designed to be used as a reference tool for
installing and using the VCS-04.
Chapter 1 introduces you to the basic features of VCS-04, system components, supported
products, and specifications.
Chapter 2 provides installation instructions.
Chapter 3 covers operation of the VCS-04.
Chapter 4 provides commands for remote programming.
Note: TDK RF Solutions has made every effort to ensure this manual is both easy to use
and factually accurate. If you have any suggestions on improvements you would like
to see in this document, or if you discover a discrepancy between the documentation
and the VCS-04’s functionality, please notify TDK RF Solutions.
TDK RF Solutions Video Camera System User Manual i
Safety Precautions
Safety Statement
The following general safety precautions must be observed during installation, operation,
maintenance, and service to the product. Failing to follow these precautions or warnings
listed in this manual may result in physical injury. TDK RF Solutions assumes no liability
for the user’s failure to follow these precautions.
Shock Hazard
To minimize shock hazard, the VCS-04 Video Camera System must be connected to an
electrical ground. The SI-300CC is equipped with a three-conductor AC power cable. The VC04 is available with either a DC power supply or an AC power supply with a three-conductor
AC power cable. The power cable(s) must be plugged into an approved three-contact
electrical outlet.
Do not attempt to open the product case while power is present.
Service Precautions
The VCS-04 contains no user serviceable parts. Do not install substitute parts or perform
unauthorized modification to this product. Contact a TDK RF Solutions Sales and Support
Office for service and repair requirements.
To minimize the risk of injury, do not attempt to service, repair, modify, or adjust this
product.
Safety Messages
Warning messages such as the example below may appear in this document. To avoid
personal injury and/or damage to the product, warning instructions must be followed.
WARNING: No user serviceable parts inside. Contact a TDK RF Solutions Sales and
Support Office for service.
TDK RF Solutions Video Camera System User Manual ii
CHAPTER 1
Introduction
Purpose and Functions
The VCS-04 is a video camera system designed for use in a shielded room environment for
remote monitoring of EUTs (Equipment Under Test) during EMC testing. The system
includes:
1. VC-04 shielded color video camera(s)
2. SI-300CC camera controller
3. High resolution monitor
VC-04 Features
The VC-04 is housed in an EMI hardened protective casing. The main body of the unit
contains a camera, lens, and circuitry for remote communication and transmission of the
video and audio signals over a fiber link. The remote communication, video and audio signals
are done using fiber optics to avoid problems caused by high electromagnetic fields present
during EMC testing. The camera can be operated with an AC module or battery module that
is mounted on top of the camera.
The VC-04 incorporates a 25X optical zoom and offers a 12X digital zoom. The camera also
contains a high-speed auto focus lens that adjusts the focus to objects with high luminance
and strong contrast in the measurement area. The camera can be controlled remotely via
fiber optics or manually via the rear panel. In addition, it also contains an optional
microphone for EUT (equipment under test) monitoring, and an optional Pan/Tilt unit for
remote positioning. This enables the VC-04 camera to be used in a wide range of
applications.
Additional features of the VC-04 are:
• Glass fiber optic cables are used for communication, video and audio
• Use of fiber optic cables allow communications to be uninterrupted by high RF fields
• Universal power supply input 100-240 VAC, 50-60Hz or Rechargeable Ni-MH 12V
battery
• Remote (RS-232) operation of zoom/focus
• Optional Pan/Tilt Unit allows for remote movement control
TDK RF Solutions Video Camera System User Manual 1
VC-04 Specifications
Image Sensor
Pixels
Picture Elements
Lens
Shortest Subject Distance
S/N Ratio
Communication Channels
Video Type
Fiber Interfaces
1/4” Super HAD CCD
680K pixels
768(H) x 494(V)
25X Zoom, f=2.4 to 60mm,
F=1.6 to 2.7, Wide Macro,
Auto Focus (Inner Focus
System)
35mm (wide end): 800mm
(tele end)
Min. 49dB
Bi-directional Serial @ 9600
Baud
NTSC or PAL
Fiber Communication 62.5 micron glass ST
Fiber Video Transmitter 62.5 micron glass ST
Fiber Video Transmitter 62.5 micron glass ST
Rear Panel Controls
Computer Interface
Mechanical
Electrical
Battery
Toggle on/off switch
RS-232
3”x3”x6”
Power Supply 100-240 VAC, 50-60 Hz
12V 4A Ni-MH Rechargeable (Typical battery life with
full charge, 8 hrs.)
SI-300CC Camera Controller Features
The SI-300CC is designed to simplify EMC testing. It reduces the complexity of a test system
by controlling up to four color video cameras. Additional features of the SI-300CC are:
Glass fiber optic cables are used for communication.
Use of fiber optic cables and serial links allow communications to be uninterrupted by
high RF fields.
Universal power supply input 100-240 VAC, 50-60Hz.
Remote (IEEE-488) and local (front panel) operation.
Modular design allows for easy upgrades (to control a maximum of four cameras).
TDK RF Solutions Video Camera System User Manual 2
Bright Graphical Display (240 x 64).
Serial EEPROM stores critical configuration information.
Dual Joysticks on front panel allows easy maneuvering of cameras.
Optional 4 Fiber Optic Video Receivers w/AGC on rear panel.
Optional Video Distribution board (1 to 4) on rear panel for connecting to VCRs/monitors.
SI-300CC Camera Controller Technical Data
Architecture 8051 20 MHz w/20K flash
Communication Channels Up to 4 channels, Bi-directional Serial @ 9600 Baud
Fiber Interfaces Fiber Communication 62.5 micron glass ST
Fiber Video Receiver 62.5 micron glass ST
Display 240x64 Graphical LCD w/back-light
Front Panel Controls 4 function keys, 4 special keys, and 12 numeric keys
2 Joysticks for positioning devices and cameras
Computer Interface GPIB IEEE-488 compatible
Mechanical Occupies 2U of space in a 19 inch rack
Electrical Power Supply 100-240 VAC, 50-60 Hz
Video Monitor Features
The VCS-04 includes a high-resolution video monitor. For more information, refer to the
manufacturer’s manual included with the video monitor.
