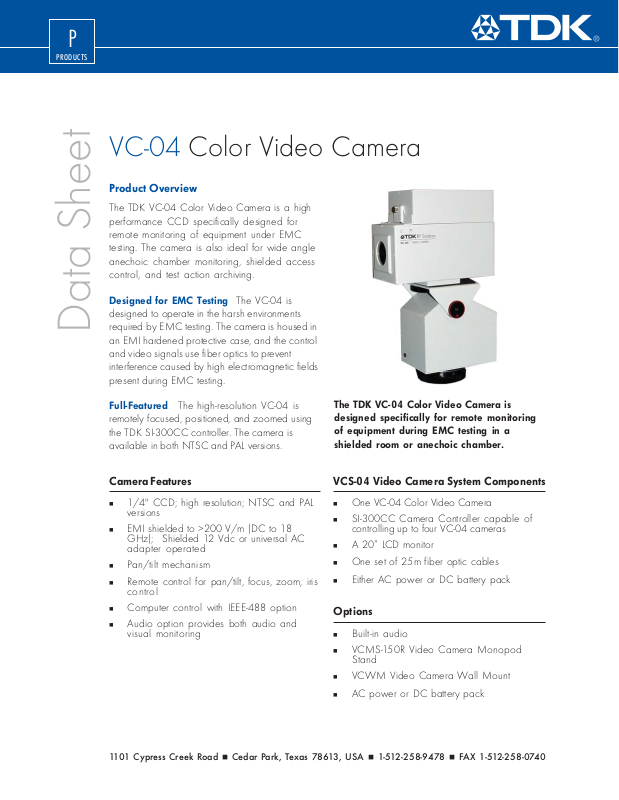

VC-04 Color Video Camera
Product Overview
The TDK VC-04 Color Video Camera is a high
performance CCD specifically designed for
remote monitoring of equipment under EMC
testing. The camera is also ideal for wide angle
anechoic chamber monitoring, shielded access
control, and test action archiving.
Designed for EMC Testing The VC-04 is
designed to oper
required by EMC testing. The camera is housed in
Data Sheet
an EMI hardened protective case, and the control
and video signals use fiber optics to prevent
interference caused by high electromagnetic fields
present during EMC testing.
ate in the harsh environments
Full-Featured The high-resolution VC-04 is
emotely focused, positioned, and zoomed using
r
the TDK SI-300CC controller. The camera is
available in both NTSC and PAL versions.
Camera Features
1/4" CCD; high resolution; NTSC and PAL
versions
EMI shielded to >200 V/m (DC to 18
GHz);
Shielded 12 Vdc or universal AC
adapter operated
Pan/tilt mechanism
Remote control for pan/tilt, focus, zoom, iris
control
Computer control with IEEE-488 option
Audio option provides both audio and
visual monitoring
The TDK VC-04 Color Video Camera is
designed specifically for remote monitoring
of equipment during EMC testing in a
shielded room or anechoic chamber.
VCS-04 Video Camera System Components
One VC-04 Color Video Camera
SI-300CC Camera Controller capable of
controlling up to four VC-04 cameras
A 20” LCD monitor
One set of 25m fiber optic cables
Either AC power or DC battery pack
Options
Built-in audio
VCMS-150R Video Camera Monopod
Stand
VCWM Video Camera Wall Mount
AC power or DC battery pack
1101 Cypress Creek Road Cedar Park, Texas 78613, USA 1-512-258-9478 FAX 1-512-258-0740
P
PRODUCTS
VC-04 Color Video Camera
Overall Dimensions
With pan/tilt unit: 10.5” H x 6.2” D x
3.0” W (26.7 cm x
15.8 cm x 7.6 cm)
Without pan/tilt unit: 5.0” H x 6.2” D x
3.0” W (12.7 cm x
15.8 cm x 7.6 cm)
Electrical/Environmental Specifications
Image: 1/4” IT CCD Active
Picture Elements
NTSC: 768 (H) x 494 (V)
PAL: 752 (H) x 582 (V)
Resolution:
NTSC: 470 (H) x 350 (V)
PAL: 460 (H) x 400 (V)
Signal to Noise Ratio: min 49 dB
Optical Capabilities
Focal Length: 3.5 – 91 mm
Zoom: 26x Optical zoom
12x Digital zoom
Angular Field of View: 55
Minimum Object Distance: 35 mm (wide);
Angle of Pan/Tilt: Pan: +/- 150° degrees
Fiber Optic Cable: 62.5 u glass fiber
Iris Control: Manual and
Minimum Illumination: 0.7 lux
o
wide; 2.3o tele-
800 mm (telephoto)
Tilt: +/- 30° degrees
Automatic
Ordering Information
Video Output: Optically encoded
NTSC or PAL
Color Balance: Automatic Synchroni-
zation
Operating temperature: 0° to +40° C
Storage Temperature: -10° to +50° C
Motor Box Specifications
Houses the motors which power the pan/tilt
mechanism.
Power: 110-220 VAC /
12 VDC
Dimensions: 7.0” H (including
mount) x 7” D x 4.7”
W (18 cm x 12 cm x
7.6 cm)
Contruction: Painted steel
To learn more about TDK RF Solutions’ wide range of innovative products and services visit www.tdkrfsolutions.com
© Copyright 2008 TDK RF Solutions Inc. All rights reserved. Specifications subject to change without notice.
Product: Video Camera
Model Number: VC-04
Warranty: 1 year
To place an order or to learn more about the
TDK RF Solutions products that best meet your
needs, contact your TDK sales representative:
TDK RF Solutions Inc.
1101 Cypress Creek Rd.
Cedar Park, Texas 78613 USA
Phone: 1-512-258-9478
Fax: 1-512-258-0740
E-mail: info@tdkrf.com
World Wide Web: www.tdkrfsolutions.com
TDK Electronics Europe
United Kingdom
Phone: +44 (0) 1737 22 77 77
Fax: +44 (0) 1737 22 77 88
E-mail: chambers@tdk.de
DSVC04040808
