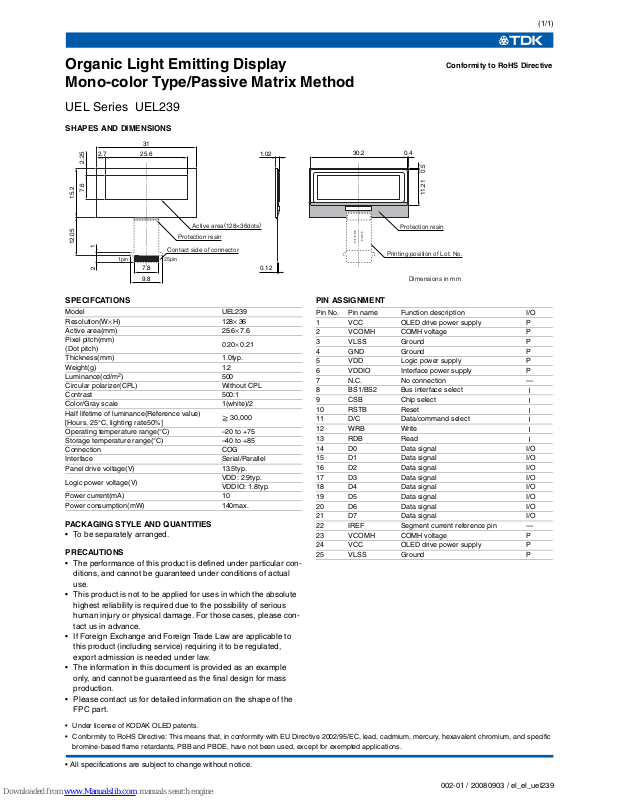

TDK UEL Series UEL239, UEL239 Specification Sheet

(1/1)

002-01 / 20080903 / el_el_uel239.fm

• All specifications are subject to change without notice.

Organic Light Emitting Display
Mono-color Type/Passive Matrix Method

UEL Series UEL239

SHAPES AND DIMENSIONS

SPECIFCATIONS

PACKAGING STYLE AND QUANTITIES

• To be separately arranged.

PRECAUTIONS

• The performance of this product is defined under particular con­ditions, and cannot be guaranteed under conditions of actual
use.

• This product is not to be applied for uses in which the absolute
highest reliability is required due to the possibility of serious
human injury or physical damage. For those cases, please con­tact us in advance.

• If Foreign Exchange and Foreign Trade Law are applicable to
this product (including service) requiring it to be regulated,
export admission is needed under law.

• The information in this document is provided as an example
only, and cannot be guaranteed as the final design for mass
production.

• Please contact us for detailed information on the shape of the
FPC part.

PIN ASSIGNMENT

Conformity to RoHS Directive

2.7 25.6 1.02

31

7.6 2.25

15.2

12

12.05

7.8 0.12

9.8

Active area(128×36dots

)

Protection resin

Protection resin

Contact side of connector

1pin 25pin

30.2 0.4

11.21 0.5

∗∗∗∗-

∗∗∗∗∗

Dimensions in mm

Printing position of Lot. No.

∗∗∗∗

∗∗∗∗∗

Model UEL239
Resolution(W× H) 128× 36
Active area(mm) 25.6× 7.6
Pixel pitch(mm)
(Dot pitch)

0.20× 0.21

Thickness(mm) 1.0typ.
Weight(g) 1.2
Luminance(cd/m2) 500
Circular polarizer(CPL) Without CPL
Contrast 500:1
Color/Gray scale 1(white)/2
Half lifetime of luminance(Reference value)
[Hours, 25°C, lighting rate50%]

30,000

Operating temperature range(°C) –20 to +75
Storage temperature range(°C) –40 to +85
Connection COG
Interface Serial/Parallel
Panel drive voltage(V) 13.5typ.

Logic power voltage(V)

VDD: 2.9typ.

VDDIO: 1.8typ.
Powe r cu rrent (mA) 10
Power consumption(mW) 140max.

Pin No. Pin name Function description I/O
1 VCC OLED drive power supply P
2 VCOMH COMH voltage P
3VLSS Ground P
4 GND Ground P
5 VDD Logic power supply P
6 VDDIO Interface power supply P
7 N.C. No connection —
8 BS1/BS2 Bus interface select

Ｉ

9 CSB Chip select

Ｉ

10 RSTB Reset

Ｉ

11 D/C Data/command select

Ｉ

12 WRB Write

Ｉ

13 RDB Read

Ｉ

14 D0 Data signal I/O
15 D1 Data signal I/O
16 D2 Data signal I/O
17 D3 Data signal I/O
18 D4 Data signal I/O
19 D5 Data signal I/O
20 D6 Data signal I/O
21 D7 Data signal I/O
22 IREF Segment current reference pin —
23 VCOMH COMH voltage P
24 VCC OLED drive power supply P
25 VLSS Ground P

• Under license of KODAK OLED patents.

• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific

bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
