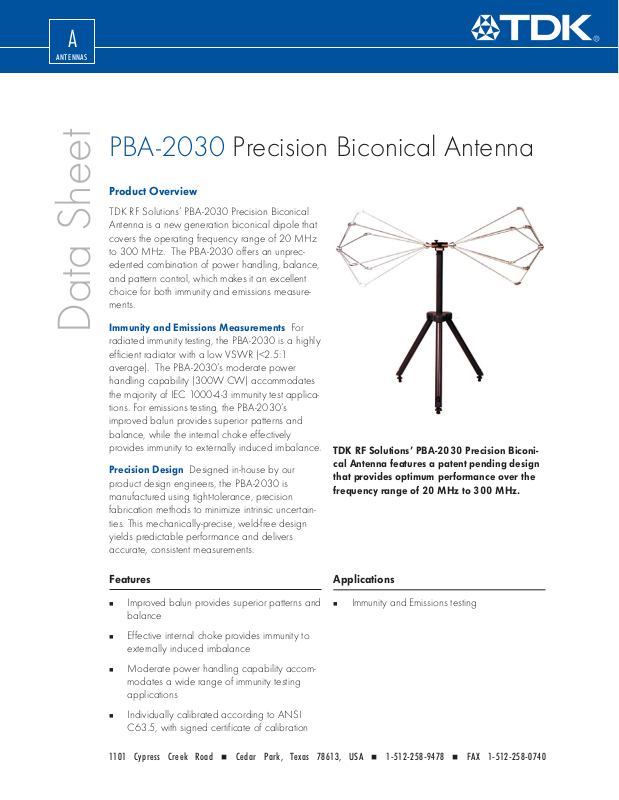

PBA-2030 Precision Biconical Antenna

Product Overview

TDK RF Solutions’ PBA-2030 Precision Biconical
Antenna is a new generation biconical dipole that
covers the operating frequency range of 20 MHz
to 300 MHz. The PBA-2030 offers an unprec­edented combination of power handling, balance,
and pattern control, which makes it an excellent
choice for both immunity and emissions measure­ments.

Immunity and Emissions Measurements For

Data Sheet

radiated immunity testing, the PBA-2030 is a highly
efficient radiator with a low VSWR (<2.5:1
average). The PBA-2030’s moderate power
handling capability (300W CW) accommodates
the majority of IEC 1000-4-3 immunity test applica­tions. For emissions testing, the PBA-2030’s
improved balun provides superior patterns and
balance, while the internal choke effectively
provides immunity to externally induced imbalance.

Precision Design Designed in-house by our

product design engineers, the PBA-2030 is
manufactured using tight-tolerance, precision
fabrication methods to minimize intrinsic uncertain­ties. This mechanically-precise, weld-free design
yields predictable performance and delivers
accurate, consistent measurements.

TDK RF Solutions’ PBA-2030 Precision Biconi­cal Antenna features a patent pending design
that provides optimum performance over the
frequency range of 20 MHz to 300 MHz.

Features

 Improved balun provides superior patterns and

balance

 Effective internal choke provides immunity to

externally induced imbalance

 Moderate power handling capability accom-

modates a wide range of immunity testing
applications

 Individually calibrated according to ANSI

C63.5, with signed certificate of calibration

1101 Cypress Creek Road  Cedar Park, Texas 78613, USA  1-512-258-9478  FAX [phone]

Applications

 Immunity and Emissions testing

A

ANTENNAS

PBA-2030 Precision Biconical Antenna

Electrical Characteristics

Frequency Range: 20 MHz to 300 MHz

VSWR: 2.5:1 average

Polarization: Linear

Power Handling: 100 W maximum

Feedpoint Impedance: 50 ohms nominal

Mechanical Specifications

Size: 138 cm x 53 cm x 72

cm (length x width x
height)

Weight: 3 kg

Construction: Aluminum with gold

chromate finish

RF Connector: N type female or SC
