TDK JBW24-0R5, JBW05-2R0, JBW12-0R9, JBW15-0R7, JBW05-3R0 Specification Sheet

(1/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

AC Input
Single Output, General-Purpose, UL/C-UL/TÜV Approved

J Series JBW(10 to 150W)

FEATURES

• Compact and low price.

• Wide input voltage range.

• Safety standards approved.

• Corresponds to products with CE marking.

• Full lineup of output power 10 to 150W

• Open frame

• Meets conducted noise standard FCC Class B.

• Warranty period: 3 years

• Specific bromine inflammable materials (PBDPEs, PBBs) are
not included in use.

• It is a product conforming to RoHS directive.

APPLICATIONS

Measuring equipment, robotics, automation equipment, informa­tion processing equipment, security systems, amusement equip­ment, etc.

SAFETY STANDARDS

UL60950-1, CSA C22.2 No.60950-1(C-UL), EN60950-1(TÜV),
approved.

EMC REGULATIONS

• FCC Class-B, VCCI Class-B, EN-55011-B and EN55022-B
meet.

• Harmonic current requirement EN61000-3-2 meet(50 to 150W).

PRODUCT IDENTIFICATION

(1)Series name
(2)Rated output voltage
(3)Rated output current(R: Decimal point)

PART NUMBERS AND RATINGS

• 3.3 and 48V models(75 to 150W type) are made to order.

Conformity to RoHS Directive

JBW 05 – 2R0

(1) (2) (3)

Output voltage
(V)

10W Type 15W Type 30W Type 50W Type

Current(A) Part No. Current(A) Part No. Current(A) Part No. Current(A) Part No.
5 2 JBW05-2R0 3 JBW05-3R0 6 JBW05-6R0 10 JBW05-10R
12 0.9 JBW12-0R9 1.3 JBW12-1R3 2.5 JBW12-2R5 4.3 JBW12-4R3
15 0.7 JBW15-0R7 1 JBW15-1R0 2 JBW15-2R0 3.5 JBW15-3R5
24 0.5 JBW24-0R5 0.7 JBW24-0R7 1.3 JBW24-1R3 2.1 JBW24-2R1

Output voltage
(V)

75W Type 100W Type 150W Type

Current(A) Part No. Current(A) Part No. Current(A) Part No.
5 15 JBW05-15R 20 JBW05-20R 30 JBW05-30R
12 6.3 JBW12-6R3 8.5 JBW12-8R5 12.5 JBW12-12R
15 5.0 JBW15-5R0 6.7 JBW15-6R7 10 JBW15-10R
24 3.2 JBW24-3R2 4.3 JBW24-4R3 6.3 JBW24-6R3
48 —— —— 3.2JBW48-3R2

• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific

bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.

(2/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

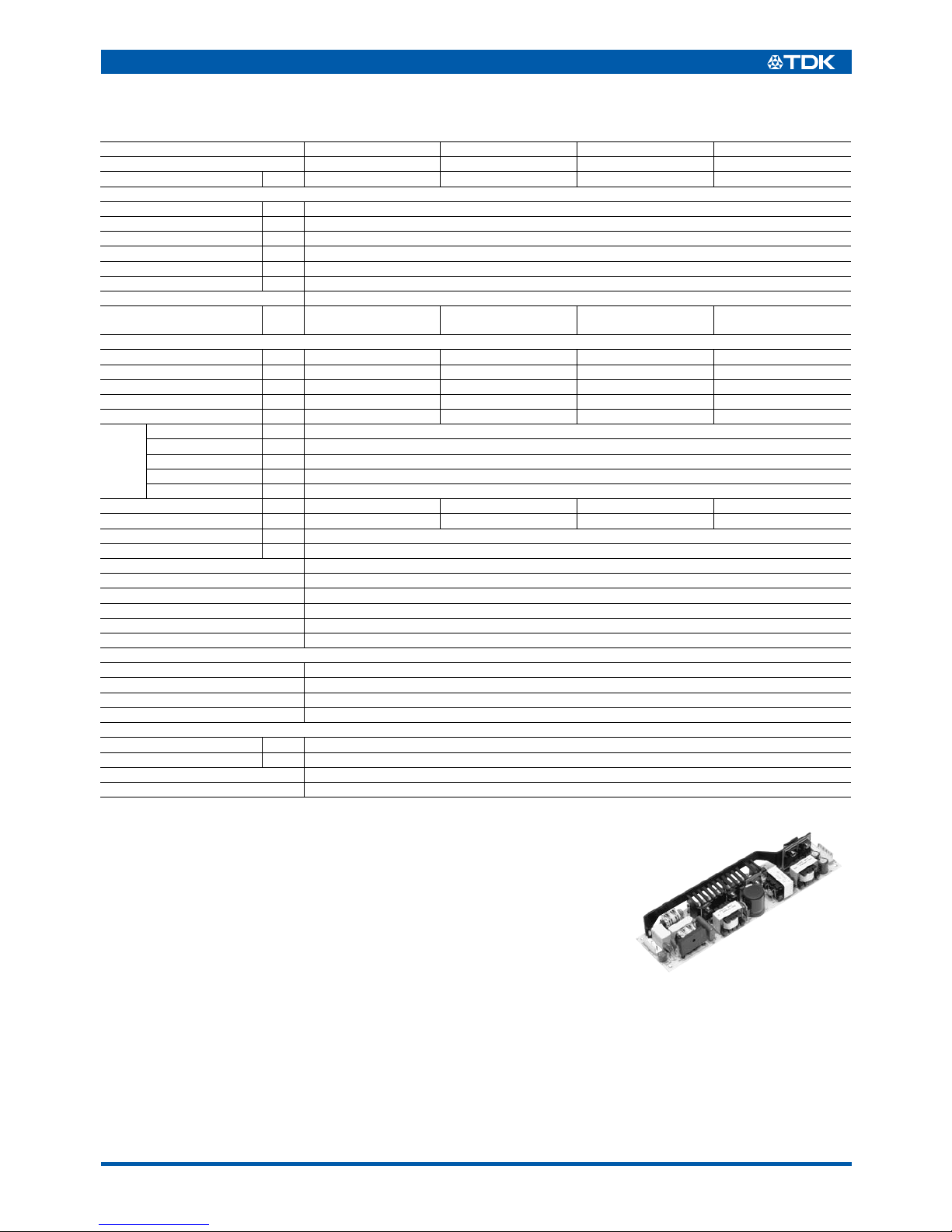

JBW10W Type

SPECIFICATIONS AND STANDARDS

∗

Current rating(maximum output current) is determined for –10 to +50°C. Derating is required when used outside this temperature range.

• Optional input, output cable kits are available at a separate price.

Part No. JBW05-2R0 JBW12-0R9 JBW15-0R7 JBW24-0R5
Rated output voltage and current

∗

5V • 2A 12V • 0.9A 15V • 0.7A 24V • 0.5A
Maximum output power W 10 10.8 10.5 12
Input conditions
Input voltage Eac/Edc V 85 to 265[Rating: 100 to 240]/110 to 370
Input frequency Hz 47 to 440[Rating: 50 to 60](Single phase)
Input current A 0.25typ./0.35max. [AC.100V]0.15typ./0.25max.[AC.240V]
Fuse rating A 2[AC.250V, built-in]
Surge current A 15typ.(20max.)[AC.100V]30typ.(40max.)[AC.240V] 1st surge current, cold start, reset after 1s minimum.
Leakage current mA 0.1typ./0.75max.[AC.100V, 60Hz]0.15typ./0.75max.[AC.240V, 60Hz]
Power factor 0.6typ./0.45typ.[AC.100/240V]

Efficiency

% 71typ.[AC.100V] 78typ.[AC.100V] 79typ.[AC.100V] 82typ.[AC.100V]

% 71typ.[AC.240V] 79typ.[AC.240V] 80typ.[AC.240V] 83typ.[AC.240V]
Output characteristics
Output voltage Edc V 5 12 15 24
Voltage variable range Edc V Fixed Fixed Fixed Fixed
Maximum output current A 2 0.9 0.7 0.5
Minimum output currentA0000
Overvoltage threshold Edc V 5.75min. 13.8min. 17.25min. 27.6min.
Overcurrent threshold A 2.5min. 1.12min. 0.87min. 0.62min.

Voltage
stability

Source effect % 0.4max.[Within the input voltage range]
Load effect % 0.8max.[0 to 100% load]
Temperature effect % 1max.[Ambient temperature: –10 to +50°C]
Drift(Time effect) % 0.4max.[25°C, input and output ratings, after input voltage ON for 30min to 8h]

Recovery % ±4max.[50 to 100% sudden load change]
Ripple Ep-p mV 80max. 120max. 120max. 120max.
Ripple noise Ep-p mV 120max. 150max. 150max. 150max.
Start up time ms 700max.(200typ.)/700max.(200typ.) [AC.100/240V]
Hold up time ms 15typ/140typ [AC.100/240V]
Auxiliary functions
Indicator display No
Overvoltage protection Zenor diode clamp method, output may latch up depending on the condition.
Overcurrent protection Fold back type, automatic recovery.
Remote ON-OFF No
Remote sensing No
Parallel operation Impossible
Series operation Inpossible
Output voltage external variable function No
Standards
Safety standards UL60950-1, CSA C22.2 No.60950-1(C-UL), EN60950-1(TÜV) approved.
Noise terminal voltage FCC-B, VCCI-B, EN55011-B, EN55022-B meet.
Input harmonics current requirement No
Constructions
External dimensions mm 21× 36×95[H× W×L]
Weight g 50max.
Mounting method Can be attached to 1 side.
Case material No(PWB Material: CEM3)

(3/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

JBW10W Type

SHAPES AND DIMENSIONS

TERMINAL DESIGNATION

Connector made by

Power supply side
connector

Cable Side Option Part No.

Housing Terminal Set 4EU20G054
Japan Solderless Terminal Co., Ltd.
Input Connector(TB1) VH Series B3P5-VH-B VHR-5N SVH-21T-P1.1
Output Connector(TB2) XH Series B4B-XH-2 XHP-4 SXH-001T-P0.6
LCE
Input Connector(TB1) P101 Series P101-05-2/4 H101-05 T101
Output Connector(TB2) P221 Series P221-04 H221-04 T221-01

+

_

_

+

L

N

95

7

3.5

3.5

7

29±0.5

17.3

3.8

16.4 1.6

3max.

21

88±0.5

7

3.5

36

7

10

5.2

GND Pad
Solder Side

Solder Side

2-

ø3.4Mounting holes

TB1

TB2

JBW05-2R0

TDK

Ser. No. LABEL

Area For Spacer(

ø6.0max.)

Dimensions in mm

±1mm : without specified dimensions

Terminal No. Designations
1 Input terminal(L)
2 Input terminal(N)
3 Frame ground terminal(G)
4 Ground pad
5 Output terminal(–)
6 Output terminal(+)

+

_

_

+

L

N

4

6
5

TB2

P4

P3

P2

P1

+

–

P3

TB1

P2LN

P1

1

2

3

(4/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

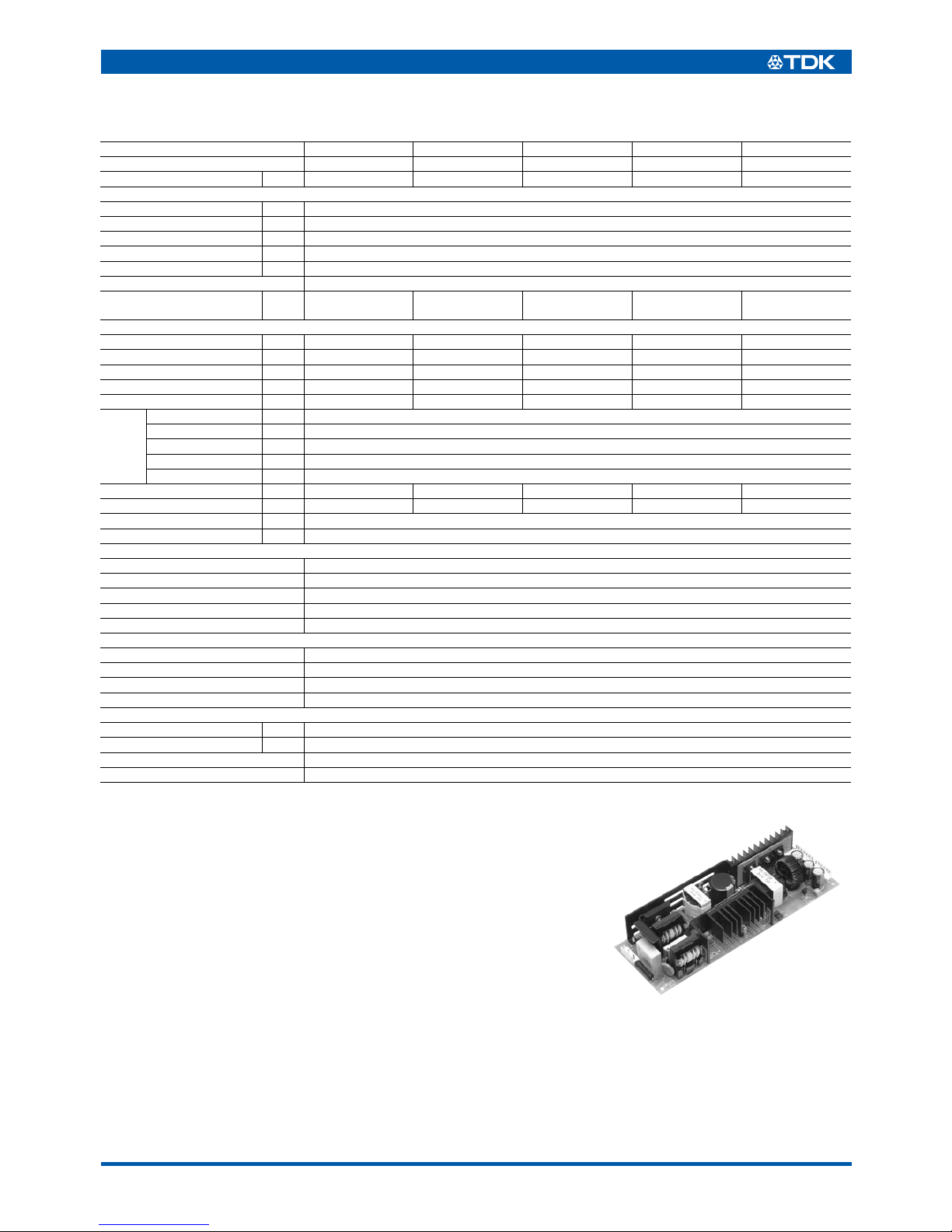

JBW15W Type

SPECIFICATIONS AND STANDARDS

∗

Current rating(maximum output current) is determined for –10 to +50°C. Derating is required when used outside this temperature range.

• Optional input, output cable kits are available at a separate price.

Part No. JBW05-3R0 JBW12-1R3 JBW15-1R0 JAW24-0R7
Rated output voltage and current

∗

5V • 3A 12V • 1.3A 15V • 1.0A 24V • 0.7A
Maximum output power W 15 15.6 15 16.8
Input conditions
Input voltage Eac/Edc V 85 to 265[Rating: 100 to 240]/110 to 370
Input frequency Hz 47 to 440[Rating: 50 to 60](Single phase)
Input current A 0.36typ./0.43max.[AC.100V]0.2typ./0.24max.[AC.240V]
Fuse rating A 2[AC.250V, built-in]
Surge current A 15typ./19.5max.[AC.100V]30typ./41max.[AC.240V] 1st surge current, cold start, reset after 1s minimum.
Leakage current mA 0.2typ./0.75max.[AC.100V, 60Hz]0.3typ./0.75max.[AC.240V, 60Hz]
Power factor 0.6typ./0.45typ.[AC.100/240V]

Efficiency

% 72typ.[AC.100V] 76typ.[AC.100V] 76typ.[AC.100V] 78typ.[AC.100V]

% 72typ.[AC.240V] 74typ.[AC.240V] 74typ.[AC.240V] 76typ.[AC.240V]
Output characteristics
Output voltage Edc V 5 12 15 24
Voltage variable range Edc V Fixed Fixed Fixed Fixed
Maximum output current A 3 1.3 1 0.7
Minimum output currentA0000
Overvoltage threshold Edc V 5.75min. 13.8min. 17.25min. 27.6min.
Overcurrent threshold A 3.15min. 1.37min. 1.05min. 0.74min.

Voltage
stability

Source effect % 0.4max.[Within the input voltage range]
Load effect % 0.8max.[0 to 100% load]
Temperature effect % 1max.[Ambient temperature: –10 to +50°C]
Drift(Time effect) % 0.4max.[25°C, input and output ratings, after input voltage ON for 30min to 8h]

Recovery % ±4max.[50 to 100% sudden load change]
Ripple Ep-p mV 80max. 120max. 120max. 120max.
Ripple noise Ep-p mV 120max. 150max. 150max. 150max.
Start up time ms 200max.(25typ.)/100max.(25typ.)[AC.100/240V] 200max.(40typ.)/100max.(40typ.)[AC.100/240V]
Hold up time ms 13typ./150typ. [AC.100/240V]
Auxiliary functions
Indicator display No
Overvoltage protection Zenor diode clamp method, output may latch up depending on the condition.
Overcurrent protection Rectangular type, automatic recovery.
Remote ON-OFF No
Remote sensing No
Parallel operation Impossible
Series operation Impossible
Output voltage external variable function No
Standards
Safety standards UL60950-1, CSA C22.2 No.60950-1(C-UL), EN60950-1(TÜV) approved.
Noise terminal voltage FCC-B, VCCI-B, EN55011-B, EN55022-B meet.
Input harmonics current requirement No
Constructions
External dimensions mm 22.6× 50× 95[H× W× L]
Weight g 80max.
Mounting method Can be attached to 1 side.
Case material No(PWB Material: CEM3)

(5/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

JBW15W Type

SHAPES AND DIMENSIONS

TERMINAL DESIGNATION

Connector made by

Power supply side
connector

Cable Side Option Part No.

Housing Terminal Set 4EU20G054
Japan Solderless Terminal Co., Ltd.
Input Connector(TB1) VH Series B3P5-VH-B VHR-5N SVH-21T-P1.1
Output Connector(TB3) XH Series B4B-XH-2 XHP-4 SXH-001T-P0.6
LCE
Input Connector(TB1) P101 Series P101-05-2/4 H101-05 T101
Output Connector(TB3) P221 Series P221-04 H221-04 T221-01

+

_

_

+

L

N

TB3

TB1

1.6

18.5

3max.

22.6

Solder Side

4-

ø

3.4Mounting holes

43±0.5

28

3.5

3.5

3.8

88±0.5

7

7

95

23.7

5.2

50

7

7

GND Pad

Solder Side 3 Places

Ser. No. LABEL

JBW05-3R0

TDK

Area For Spacer (ø6.0max.)

Dimensions in mm

±1mm : without specified dimensions

+

_

_

+

L

N

4

6
5

TB3

P4

P3

P2

P1

+

–

P3

TB1

P2LN

P1

1

2

3

Terminal No. Designations
1 Input terminal(L)
2 Input terminal(N)
3 Frame ground terminal(G)
4 Ground pad
5 Output terminal(–)
6 Output terminal(+)

(6/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

JBW30W Type

SPECIFICATIONS AND STANDARDS

∗

Current rating(maximum output current) is determined for –10 to +50°C. Derating is required when used outside this temperature range.

• Optional input, output cable kits are available at a separate price.

Part No. JBW05-6R0 JBW12-2R5 JBW15-2R0 JAW24-1R3
Rated output voltage and current

∗

5V • 6A 12V • 2.5A 15V • 2A 24V • 1.3A
Maximum output power W 30 30 30 31.2
Input conditions
Input voltage Eac/Edc V 85 to 265[Rating: 100 to 240]/110 to 370
Input frequency Hz 47 to 440[Rating: 50 to 60](Single phase)
Input current A 0.65typ./0.86max.[AC.100V]0.35typ./0.48max.[AC.240V]
Fuse rating A 2[AC.250V, built-in]
Surge current A 15typ./30max.[AC.100V]30typ./60max.[AC.240V] 1st surge current, cold start, reset after 1s minimum.
Leakage current mA 0.35typ./0.75max.[AC.100V, 60Hz]0.5typ./0.75max.[AC.240V, 60Hz]
Power factor 0.6typ./0.45typ.[AC.100/240V]

Efficiency

% 75typ.[AC.100V] 78typ.[AC.100V] 79typ.[AC.100V] 80typ.[AC.100V]

% 77typ.[AC.240V] 79typ.[AC.240V] 80typ.[AC.240V] 81typ.[AC.240V]
Output characteristics
Output voltage Edc V 5 12 15 24
Voltage variable range Edc V Fixed Fixed Fixed Fixed
Maximum output current A 6 2.5 2 1.3
Minimum output currentA0000
Overvoltage threshold Edc V 5.6min. 13.3min. 16.6min. 26.5min.
Overcurrent threshold A 6.3min. 2.7min. 2.1min. 1.4min.

Voltage
stability

Source effect % 0.4max.[Within the input voltage range]
Load effect % 0.8max.[0 to 100% load]
Temperature effect % 2max.[Ambient temperature: –10 to +50°C]
Drift(Time effect) % 0.4max.[25°C, input and output ratings, after input voltage ON for 30min to 8h]

Recovery % ±4max.[50 to 100% sudden load change]
Ripple Ep-p mV 80max. 120max. 120max. 120max.
Ripple noise Ep-p mV 120max. 150max. 150max. 150max.
Start up time ms 650max.(350typ.)/320max.(130typ.)[AC.100/240V]
Hold up time ms 20typ./160typ.[AC.100/240V]
Auxiliary functions
Indicator display No
Overvoltage protection Voltage shut-down type.
Overcurrent protection Rectangular type(Winker operation), automatic recovery.
Remote ON-OFF No
Remote sensing No
Parallel operation Impossible
Series operation Impossible
Output voltage external variable function No
Standards
Safety standards UL60950-1, CSA C22.2 No.60950-1(C-UL), EN60950-1(TÜV) approved.
Noise terminal voltage FCC-B, VCCI-B, EN55011-B, EN55022-B meet.
Input harmonics current requirement No
Constructions
External dimensions mm 26× 55×122[H× W×L]
Weight g 150max.
Mounting method Can be attached to 1 side.
Case material No(PWB Material: CEM3)

(7/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

JBW30W Type

SHAPES AND DIMENSIONS

TERMINAL DESIGNATION

Connector made by

Power supply side
connector

Cable Side Option Part No.

Housing Terminal Set 4EU20G057
Japan Solderless Terminal Co., Ltd.
Input Connector(TB1) VH Series B3P5-VH-B VHR-5N SVH-21T-P1.1
Output Connector(TB2) VH Series B4P-VH-B VHR-4N SVH-21T-P1.1
LCE
Input Connector(TB1) P101 Series P101-05-2/4 H101-05 T101
Output Connector(TB2) P101 Series P101-04 H101-04 T101

3max.

26

+

_

_

+

L

N

21.4 1.6

30

6.6

6.5

5

8

8

8

8

55

16

122

112±0.5

45±0.5

5

4-ø3.4Mounting holes

GND Pad 2 Places
Solder Side

Solder Side 2 Places

Ser. No. LABEL

JBW05-6R0

TDK

TB1

TB2

Area For Spacer (

ø

6.0max.)

Dimensions in mm

±1mm : without specified dimensions

+

_

_

+

L

N

4

4

5
6

TB2

P1

P2

P3

P4

–

+

TB1

P1P2L

N

P3

3

2

1

Terminal No. Designations
1 Input terminal(L)
2 Input terminal(N)
3 Frame ground terminal(G)
4 Ground pad
5 Output terminal(–)
6 Output terminal(+)

(8/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

JBW50W Type

SPECIFICATIONS AND STANDARDS

∗1

Current rating(maximum output current) is determined for –10 to +50°C. Derating is required when used outside this temperature range.

∗2

Please note that the deterioration of parts is occasionally caused when operating for a long time(over 10 minutes) with the voltage below the range of the
input voltage.

• Optional input, output cable kits are available at a separate price.

Part No. JBW05-10R JBW12-4R3 JBW15-3R5 JBW24-2R1
Rated output voltage and current

∗1

5V • 10A 12V • 4.3A 15V • 3.5A 24V • 2.1A
Maximum output power W 50 51.6 52.5 50.4
Input conditions
Input voltage Eac/Edc

∗2

V 85 to 265[Rating: 100 to 240]/120 to 375
Input frequency Hz 47 to 66[Rating: 50 to 60](Single phase)
Input current A 0.7typ./0.88max. [AC.100V]0.35typ./0.5max.[AC.240V]
Fuse rating A 3.15[AC.250V, built-in]
Surge current A 15typ.(30max.)[AC.100V]40typ.(60max.)[AC.240V] cold start
Leakage current mA 0.35typ./0.75max.[AC.100V, 60Hz]0.5typ./0.75max.[AC.240V, 60Hz]
Power factor 0.99typ./0.93typ.[AC.100/240V]

Efficiency

% 77typ.[AC.100V] 80typ.[AC.100V] 80typ.[AC.100V] 81typ.[AC.100V]

% 79typ.[AC.240V] 81typ.[AC.240V] 81typ.[AC.240V] 83typ.[AC.240V]
Output characteristics
Output voltage Edc V 5 12 15 24
Voltage variable range Edc V 4.5 to 5.5 10.8 to 13.2 13.5 to 16.5 21.6 to 26.4
Maximum output current A 10 4.3 3.5 2.1
Minimum output currentA0000
Overvoltage threshold Edc V 5.75 to 6.9 13.8 to 16.8 17.2 to 21 27.6 to 33.6
Overcurrent threshold A 10.5min. 5.4min. 4.4min. 2.7min.

Voltage
stability

Source effect % 0.4max.[Within the input voltage range]
Load effect % 0.8max.[0 to 100% load]
Temperature effect % 1max.[Ambient temperature: –10 to +50°C]
Drift(Time effect) % 0.4max.[25°C, input and output ratings, after input voltage ON for 30min to 8h]

Recovery % ±4max.[50 to 100% sudden load change]
Ripple Ep-p mV 80max. 120max. 120max. 120max.
Ripple noise Ep-p mV 120max. 150max. 150max. 150max.
Start up time ms 500max.(400typ.)/500max.(400typ.) [AC.100/240V]
Hold up time ms 20typ./20typ. [AC.100/240V]
Auxiliary functions
Indicator display No
Overvoltage protection Voltage shut-down type.
Overcurrent protection Rectangular type, automatic recovery.
Remote ON-OFF No
Remote sensing No
Parallel operation Impossible
Series operation Possible
Output voltage external variable function No
Standards
Safety standards UL60950-1, CSA C22.2 No.60950-1(C-UL), EN60950-1(TÜV) approved.
Noise terminal voltage FCC-B, VCCI-B, EN55011-B, EN55022-B meet.
Input harmonics current requirement EN61000-3-2 meet.
Constructions
External dimensions mm 26× 55×190[H× W×L]
Weight g 220max.
Mounting method Can be attached to 1 side.
Case material No(PWB Material: CEM3)

(9/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

JBW50W Type

SHAPES AND DIMENSIONS

TERMINAL DESIGNATION

Connector made by

Power supply side
connector

Cable Side Option Part No.

Housing Terminal Set 4EU20G057
Japan Solderless Terminal Co., Ltd.
Input Connector(TB1) VH Series B3P5-VH-B VHR-5N SVH-21T-P1.1
Output Connector(TB2) VH Series B4P-VH-B VHR-4N SVH-21T-P1.1
LCE
Input Connector(TB1) P101 Series P101-05-2/4 H101-05 T101
Output Connector(TB2) P101 Series P101-04 H101-04 T101

Solder Side 2 Places

Ser. No. LABEL

Area For Spacer (

ø6max.)

+

_

_

+

L

N

TB2

TB1

12.18

8

5.5

180±0.5

190

5

5

8

7.1

8

5

17.2

47.7

45±0.5

55

3max.

26

35.7

1.621.4

5

GND Pad 2 Places

Solder Side

4-ø4 Mounting holes

JBW05-10R

TDK

RATING LABEL

Dimensions in mm

±1mm : without specified dimensions

+

_

+

L

N

_

5

6

4

4

7

TB2

P4

P3

P2

P1

–

+

TB1

3

2

1

P3

P2 N

P1

L

Terminal No. Designations
1 Input terminal(L)
2 Input terminal(N)
3 Frame ground terminal(G)
4 Ground pad
5 Output terminal(–)
6 Output terminal(+)

7

Output voltage variable
volume

(10/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

JBW75W Type

SPECIFICATIONS AND STANDARDS

Part No. JBW05-15R JBW12-6R3 JBW15-5R0 JBW24-3R2
Rated output voltage and current 5V • 15A 12V • 6.3A 15V • 5.0A 24V • 3.2A
Maximum output power W 75 75.6 75 76.8
Input conditions
Input voltage Eac/Edc V 85 to 265[Rating: 100-240]/120 to 370
Input frequency Hz 47 to 66
Input current A 1.6/0.8max.[100-240V]
Fuse rating A 3.15
Surge current A 30/60max.[100-240V]
Leakage current mA 0.75/0.75max.[AC.100V(DENAN)/240V(UL, IEC)]
Power factor 0.99/0.95typ.[100-240V]

Efficiency %

75/77typ.
[100-240V]

78/80typ.
[100-240V]

79/81typ.
[100-240V]

82/84typ.

[100-240V]
Output characteristics
Output voltage Edc V 5 12 15 24
Voltage variable range Edc V 4.5 to 5.5 10.8 to 13.2 13.5 to 16.5 21.6 to 26.4
Maximum output current A 15 6.3 5.0 3.2(Peak4.2)
Overvoltage threshold Edc V 5.75 to 6.9 13.8 to 16.8 17.2 to 21 27.6 to 33.6
Overcurrent threshold A 15.8min. 6.6min. 5.2min. 4.4min.

Voltage
stability

Source effect % 0.4max.[Within the input voltage range]
Load effect % 0.8max.[0 to 100% load]
Temperature effect % 1max.[Ambient temperature: –10 to +60°C]
Drift(Time effect) % 0.4max.[25°C, input and output ratings, after input voltage ON for 30min to 8h]

Recovery % ±4max.[50 to 100% sudden load change]
Ripple Ep-p mV 80 120 120 120
Ripple noise Ep-p mV 120 150 150 150
Start up time ms 500max.(400typ.)/250max.(200typ.)[AC.100/240V]
Hold up time ms 20typ.[100-240V]
Auxiliary functions
Indicator display No
Overvoltage protection Voltage shut-down type(Latch).
Overcurrent protection Rectangular type, automatic recovery.
Remote ON-OFF No
Remote sensing No
Standards
Safety standards UL60950-1, CSA C22.2 No.60950-1(C-UL), EN60950-1(TÜV) approved.
Noise terminal voltage FCC-B, VCCI-B, EN55011-B, EN55022-B meet.
Input harmonics current requirement EN61000-3-2
CE marking Planned compliance.
Constructions
External dimensions mm 32× 55×222[H× W×L]
Weight g 290max.
Mounting method Can be attached to 1 side.
Case material CEM3

(11/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

JBW75W Type

SHAPES AND DIMENSIONS

TERMINAL DESIGNATION

Connector made by

Power supply side
connector

Cable Side Option Part No.

Housing Terminal Set 4EU20G085
Japan Solderless Terminal Co., Ltd.
Input Connector(CP1)VH Series B3P5-VH-B VHR-5N SVH-21T-P1.1
Output Connector(CP2)VH Series B6P-VH-B VHR-6N SVH-21T-P1.1

9max.

9max.

(

45.9

)

222

5 5

(

4.5

)

212±0.5

55

55 45±0.5

(

25.9

)

29

3max.1.6

5

3

1

CP1

1

6

CP2

Area for spacer(ø6max.

)

Solder Side(2 Places

)

Ground pattern area(ø6max.

)

Solder Side(2 Places

)

4-ø3.5

(

33

)

(

43.2

)

(

50.9

)

(

5.3

)

Dimensions in mm

±1mm : without specified dimensions

CP2

P1
P2
P3
P4
P5
P6

–

+

CP1

5

3

1

CP1

1

2

3

4

5

6

CP2

· Japan Solderless Terminal Co., Ltd.
VH Series B6P-VH-B

P1
P3 N

L

P5

· Japan Solderless Terminal Co., Ltd.
VH Series B3P5-VH-B

(12/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

JBW100W Type

SPECIFICATIONS AND STANDARDS

Part No. JBW05-20R JBW12-8R5 JBW15-6R7 JBW24-4R3
Rated output voltage and current 5V • 20A 12V • 8.5A 15V • 6.7A 24V • 4.3A
Maximum output power W 100 102 100.5 103.2
Input conditions
Input voltage Eac/Edc V 85 to 265[Rating: 100-240]/120 to 370
Input frequency Hz 47 to 66
Input current A 1.8/1.0max.[100-240V]
Fuse rating A 5
Surge current A 30/60max.[100-240V]
Leakage current mA 0.75/0.75max.[AC.100V(DENAN)/240V(UL, IEC)]
Power factor 0.99/0.95typ.[100-240V]

Efficiency %

78/80typ.
[100-240V]

80/82typ.
[100-240V]

80/82typ.
[100-240V]

82/85typ.

[100-240V]
Output characteristics
Output voltage Edc V 5 12 15 24
Voltage variable range Edc V ±10% ±10% ±10% ±10%
Maximum output current A 20 8.5 6.7 4.3(Peak5)
Overvoltage threshold Edc V 5.75 to 6.9 13.8 to 16.8 17.2 to 21 27.6 to 33.6
Overcurrent threshold A 21.0min. 10.6min. 8.38min. 5.38min.

Voltage
stability

Source effect % 0.4max.[Within the input voltage range]
Load effect % 0.8max.[0 to 100% load]
Temperature effect % 1max.[Ambient temperature: –10 to +60°C]
Drift(Time effect) % 0.4max.[25°C, input and output ratings, after input voltage ON for 30min to 8h]

Recovery % ±4max.[50 to 100% sudden load change]
Ripple Ep-p mV 80 120 120 120
Ripple noise Ep-p mV 120 150 150 150
Start up time ms 500max.(400typ.)/500max.(300typ.)[AC.100/240V]
Hold up time ms 20typ.[100-240V]
Auxiliary functions
Indicator display No
Overvoltage protection Voltage shut-down type(Latch).
Overcurrent protection Rectangular type, automatic recovery.
Remote ON-OFF No
Remote sensing No
Standards
Safety standards UL60950-1, CSA C22.2 No.60950-1(C-UL), EN60950-1(TÜV) approved.
Noise terminal voltage FCC-B, VCCI-B, EN55011-B, EN55022-B meet.
Input harmonics current requirement EN61000-3-2
CE marking Planned compliance.
Constructions
External dimensions mm 35× 62×222[H× W×L]
Weight g 400max.
Mounting method Can be attached to 1 side.
Case material FR4

(13/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

JBW100W Type

SHAPES AND DIMENSIONS

TERMINAL DESIGNATION

Connector made by

Power supply side
connector

Cable Side Option Part No.

Housing Terminal Set 4EU20G056
Japan Solderless Terminal Co., Ltd.
Input Connector(CP1)VH Series B3P5-VH-B VHR-5N SVH-21T-P1.1
Output Connector(CP2)VH Series B8P-VH-B VHR-8N SVH-21T-P1.1

5
3

1

CP1

1

8

CP2

Area for spacer(ø6max.

)

Solder Side(3 Places

)

Ground pattern area(ø6max.

)

Solder Side(1 Place

)

222

5.0

(

4.7

)

212±0.5

9max.

(

5.8

)

(

32.7

)

62

52±0.5

9

42.0

(

51.5

)

(

17.9

)

9max.

Input
connector

Output voltage connector

Output voltage
adjustment trimmer

32

5

3max.1.6

Dimensions in mm

±1mm : without specified dimensions

· Japan Solderless Terminal Co., Ltd.
VH Series B3P5-VH-B

· Japan Solderless Terminal Co., Ltd.
VH Series B8P-VH-B

2

3

1

4

7

5

6

CP2

P1
P2
P3
P4
P5
P6
P7
P8

–

+

P1

CP1

CP1

P3 N

L

P5

CP2

1

8

5
3
1

Terminal No. Designations
1 Input terminal(L)
2 Input terminal(N)
3 Frame ground terminal(G)
4 Ground pad
5 Output terminal(–)
6 Output terminal(+)
7 Output voltage setting trim(+)

(14/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

JBW150W Type

SPECIFICATIONS AND STANDARDS

∗

Current rating(maximum output current) is determined for –10 to +40°C. Derating is required when used outside this temperature range.

Part No. JBW05-30R JBW12-12R JBW15-10R JBW24-6R3 JBW48-3R2
Rated output voltage and current

∗

5V • 30A 12V • 12A 15V • 10A 24V • 6.3A 48V • 3.2A
Maximum output power W 150 150 150 151.2 153.6
Input conditions
Input voltage Eac/Edc V 85 to 265[Rating: 100-240]/120 to 370
Input frequency Hz 47 to 66
Input current A 2.7/1.5max.[100-240V]
Surge current A 30/60max.[100-240V]
Leakage current mA 0.75/0.75max.[AC.100V(DENAN)/240V(UL, IEC)]
Power factor 0.99/0.95typ.[100-240V]

Efficiency %

78/80typ.

[100-240V]

81/83typ.
[100-240V]

81/83typ.
[100-240V]

82/84typ.
[100-240V]

82/84typ.

[100-240V]
Output characteristics
Output voltage EdcV5 12152448
Voltage variable range Edc V 4.5 to 5.5 10.8 to 13.2 13.5 to 16.5 21.6 to 26.4 43.2 to 52.8
Maximum output current A 30 12.5 10 6.3(Peak7.5) 3.2
Overvoltage threshold Edc V 5.75 to 6.9 13.8 to 16.8 17.2 to 21 27.6 to 33.6 55.2 to 67.2
Overcurrent threshold A 31.5min. 15.7min. 12.5min. 7.87min. 3.36min.

Voltage
stability

Source effect % 0.4max.[Within the input voltage range]
Load effect % 0.8max.[0 to 100% load]
Temperature effect % 1max.[Ambient temperature: –10 to +60°C]
Drift(Time effect) % 0.4max.[25°C, input and output ratings, after input voltage ON for 30min to 8h]

Recovery % ±4max.[50 to 100% sudden load change]
Ripple Ep-p mV 80max. 120max. 120max. 120max. 150max.
Ripple noise Ep-p mV 120max. 150max. 150max. 150max. 350max.
Start up time ms 500max.(400typ.)/500max.(300typ.)[AC.100/240V]
Hold up time ms 25/35typ.[AC.100/240V]
Auxiliary functions
Indicator display No
Overvoltage protection Voltage shut-down type(Latch).
Overcurrent protection Rectangular type, automatic recovery.
Remote ON-OFF No
Remote sensing No
Standards
Safety standards UL60950-1, CSA C22.2 No.60950-1(C-UL), EN60950-1(TÜV) approved.
Noise terminal voltage FCC-B, VCCI-B, EN55011-B, EN55022-B meet.
Input harmonics current requirement EN61000-3-2
CE marking Meet.
Constructions
External dimensions mm 40× 75×222[H× W×L]
Weight g 550max.
Mounting method Can be attached to 1 side.
Case metal FR4

(15/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

JBW150W Type

SHAPES AND DIMENSIONS

TERMINAL DESIGNATION

Connector made by

Power supply side
connector

Cable Side Option Part No.

Housing Terminal Set 4EU00G062
Japan Solderless Terminal Co., Ltd.
Input Connector(CP1)VH Series B3P5-VH-B VHR-5N SVH-21T-P1.1
Output Connector(CP2)VH Series B6P-VH-B VHR-6N SVH-21T-P1.1
Output Connector(CP3)VH Series B7P-VH-B VHR-7N SVH-21T-P1.1

UP

(

5

)

9max.

1

7
1

6

CP2

CP3

5
3
1

CP1

Area for spacer(ø6max.

)

Solder Side(3 Places

)

Ground pattern area(ø6max.

)

Solder Side(1 Place

)

222

5.0 212±0.5

37

9max.

(4)

(4)

(5)

(

27.9

)

75

65±0.55

(

47.2

)

(

32.7

)(

29.5

)

Input connector

Output voltage adjustment trimmer

(

4

)

3max.1.6

Dimensions in mm

±1mm : without specified dimensions

· Japan Solderless Terminal Co., Ltd.
VH Series B7P-VH-B

· Japan Solderless Terminal Co., Ltd.
VH Series B3P5-VH-B

· Japan Solderless Terminal Co., Ltd.
VH Series B6P-VH-B

2

3

1

3

5

1

4

7

5

6

P1

CP1

CP1

P3 N

L

P5

CP3

P1
P2
P3
P4
P5
P6
P7

–

CP3

CP2

CP2

P1
P2
P3
P4
P5
P6

+

1

7
1

6

Terminal No. Designations
1 Input terminal(L)
2 Input terminal(N)
3 Frame ground terminal(G)
4 Ground pad
5 –Output terminal(–)
6 +Output terminal(+)
7 Output voltage setting trim(+)

(16/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

Characteristics, Functions, and Applications

BLOCK DIAGRAMS
JBW10W/15W/30W TYPES

JBW50W TYPE

COMMON SPECIFICATIONS

Temperature and humidity

Temperature range

Operating(°C) –10 to +60
Operating available(°C) –20 to –10
Storage(°C) –30 to +75

Humidity range

Operating(%)RH

10 to 90[Maximum wet-bulb temperature: 35°C, without dewing]

Storage(%)RH

Vibration and shock

Vibration

5 to 10Hz All amplitude 10mm[3 directions, each 1h]
10 to 200Hz Acceleration 19.6m/s

2

(2G)[3 directions, each 1h]

Shock

Acceleration 10 to 50W: 588m/s

2

(60G)[3 directions, each 3 times]/75 to 150W: 588m/s2(60G)[Sine wave]

Pulse duration 11±5ms

Withstand voltage and insulation resistance

Withstand voltage

Input terminal to ground terminal(G) Eac: 2kV, 1min[Normal temperature, normal humidity, cutout current 10mA]
Input terminal to output terminal Eac: 3kV, 1min[Normal temperature, normal humidity, cutout current 10mA]
Output terminal to ground terminal(G) Eac: 500V, 1min[Normal temperature, normal humidity, cutout current 10mA]

Insulation resistance

Input terminal to ground terminal(G)

Eac: 500V, 100MΩ min.[Normal temperature, normal humidity]Input terminal to output terminal

Output terminal to ground terminal(G)

AC input

L

N

Input
smoothing
circuit

Surge
current
limiting
circuit

Over­current
detection
circuit

Drive
circuit

Output voltage
control circuit

Output rectifying
and
smoothing circuit

Input
filter
circuit

Power
switching
circuit

+

–

DC OUT

PWM

control circuit

Input
rectifier
circuit

Overvoltage
protection

AC input

L

N

Boost-up
circuit

Overvoltage
detection circuit

+

–

DC OUT

PFC
control
circuit

Output voltage
control circuit

Control circuit

Surge
current
limiting
circuit

Input
filter
circuit

Input
smoothing
circuit

Over­current
detection
circuit

Power
switching
circuit

Drive
circuit

Output rectifying
and
smoothing circuit

(17/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

Characteristics, Functions, and Applications

10 to 50W TYPES
OUTPUT POWER-AMBIENT TEMPERATURE(DERATINGS)

INSTALLATIONS

• Mounting the power supply at the four corners with metal spac­ers (2 corners for 10W models).

• Maintain a min. 4mm clearance distance in order to satisfy insu­lation and high voltage safety requirements.

• Lay an insulating sheet under the power supply in case a min.
8mm installation space cannot be secured between the PC
board and the housing.

• Provide a min. 4mm distance between heat sink or component
surface and surrounding objects in order to cause a thermal con­vection.

• Since components are mounted on the back (solder) side of the
product, sufficient care should be taken when handling the
power supply to protect the PC board from shock, vibration, tor­sion, etc. which can result in damage caused by cracked chip
components.

To install the power supply in a device, apply the standard installa­tion direction (A) or (B).
In case of an installation in other directions, please contact TDK.

75 to 150W TYPES
OUTPUT POWER-AMBIENT TEMPERATURE(DERATINGS)
75, 100W TYPES

150W TYPE

INSTALLATION DIRECTION

There are installation directions (B) to (F) as shown below in addi­tion to the standard installation direction (A) for mounting the
power supply on an apparatus. The installation (B), however, is
inhibited because it will cause heat to be trapped inside the power
supply.
Derating of the output voltage and the ambient temperature for the
installation directions (C) to (F) are not the same as for the direc­tion (A). Please consult us if you need.

20

40

60

80

100

–20 –10 0 10 20 30 40 50 60 71

70

Ambient temperature(˚C)

Output power(%)

Available operating range
(outside of warranty)

8mm
min.

4mm
min.

4mm
min.

Metal spacer
ø6mm max.

4mm
min.

Power
supply

Mounting screw dia.: 3mm

Housing

UP

++

(A) (B)

Component surface

Component surface

The shaded portion indicates a side in which an output
connector is arranged.

(A)

(C),(D)

(E),(F)

20

0

40

60

80

100

0102030405060

Ambient temperature(˚C)

Output power(%)

Available operating range
(outside of warranty)

–20 –10

(C),(D)

(E),(F)

(A)

20

0

40

60

80

100

0102030405060

50

Ambient temperature(˚C)

Output power(%)

Available operating range
(outside of warranty)

–20 –10

(B)

(C)

(D)(

E

)

(F)

IN

OUT

IN

OUT

Heat sink

(A) Standard installation

Components

(18/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

Characteristics, Functions, and Applications

RIPPLE NOISE MEASUREMENT CONDITIONS

SERIES OPERATION (TO INCREASE OUTPUT VOLTAGE OR
TO OBTAIN SEPARATE ±OUTPUT)

When the output voltage of a single power supply is insufficient,
several power supplies can be connected in series in order to
obtain a higher voltage or separate ±outputs.
If power supplies A and B in the illustration below are 5V each, a
10V output can be obtained in this connection. It should be noted
that, however, the output current is limited to the lower rated cur­rent value of the power supplies A and B. There is no problem if
the voltages of A and B are different from each other.
D1 and D2 in the illustration designate diodes for preventing
reverse voltage application. They are provided for preventing inter­nal components of the power supply having the lower rated voltage
from being damaged by an applied reverse voltage caused by a
short circuit in the load or the like.
Use diodes which meet the following requirements:

Reverse withstanding voltage: Over twice that of the combined
output voltage
Forward current: Over twice that of the output current
Forward voltage drop: As small as possible

(e.g. Shottkey diode, etc.)

SERIES CONNECTION FOR INCREASING OUTPUT VOLTAGE

INSULATION AND WITHSTAND VOLTAGE TESTS

The insulation and withstand voltage tests may cause deteriora­tion. Care must be taken for execution of the tests. The potential
must be equal among input, output, and FG (frame ground) termi­nals. It is preferable to use testers that gently start up at the test­ON and automatically discharge charged energy at the test-OFF.
Manual discharging after the tests should be through a resistor
around 100kΩ to 1MΩ (Do not perform discharging at low imped-
ance. It may cause deterioration.)
In any case, take full countermeasures for electric-shock preven­tion.

OTHER CONDITIONS

• Unless conditions are otherwise specified in the specifications or
standards, 25°C and rated input-output should be applied.

L

+

C

1C2

Output connector

Load

Output ripple and noise measurement point (20MHz)
C

1

C

2

L

: 100µF Electrolytic capacitor
: 0.1µF Film capacitor
: 150mm

D1

D2

Power supply A

Power supply B

Load

∗

For obtaining separate ±outputs, (A) should be zero voltage.

(A)

∗

+

–

+

–

(19/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

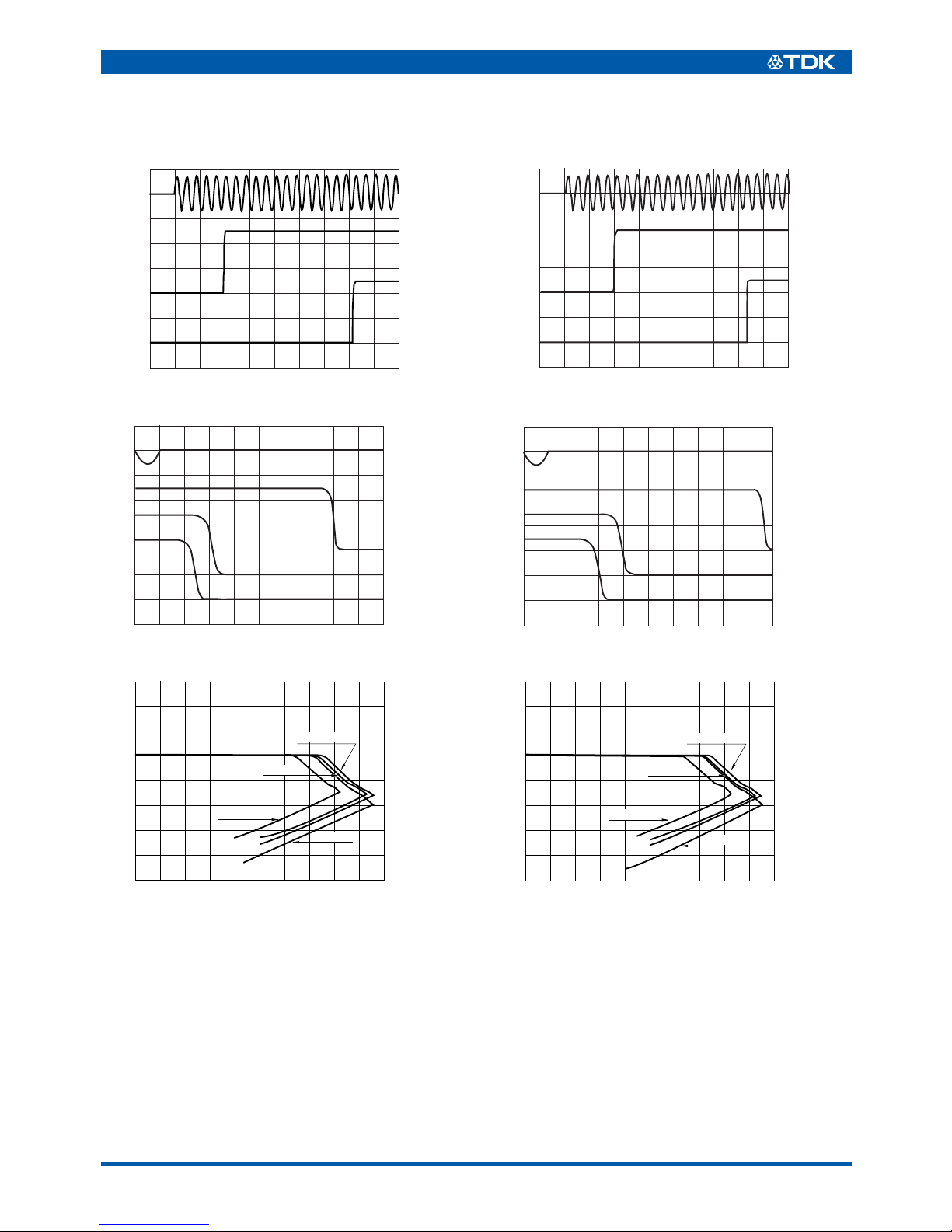

Characteristics, Functions, and Applications

JBW10W TYPE TYPICAL CHARACTERISTICS: JBW05-2R0
AC.100V TYPE: INPUT CURRENT AC.200V TYPE: INPUT CURRENT

AC.100V TYPE: EFFICIENCY AC.200V TYPE: EFFICIENCY

AC.100V TYPE: POWER FACTOR AC.200V TYPE: POWER FACTOR

AC.100V TYPE: SURGE CURRENT AC.200V TYPE: SURGE CURRENT

0

0.1

0.2

0.3

0.4

0.5

100V

132V

85V

20 40 60 80 1000

Load(%

)

Input current(A)

0

0.04

0.08

0.12

0.16

0.20

240V
265V

170V

20 40 60 80 1000

Load(%

)

Input current(A)

132V
100V

85V

20

0

40

60

80

100

20 40 60 80 1000

Load (%)

Efficiency(%)

20

0

40

60

80

100

200V
265V

170V

20 40 60 80 1000

Load (%)

Efficiency(%)

132V

100V

85V

20 40 60 80 1000

0.0

0.2

0.4

0.6

0.8

1.0

Load (%)

Power factor

20 40 60 80 1000

0.0

0.2

0.4

0.6

0.8

1.0

240V
265V

170V

Load (%)

Power factor

H : 0.1ms/Div
V : 5A/Div

11A

H : 5ms/Div
V : 5A/Div

Vin=100V

Enlarged view

27.6A

H : 0.1ms/Div
V : 10A/Div

H : 5ms/Div
V : 10A/Div

Vin=240V

Enlarged view

(20/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

Characteristics, Functions, and Applications

JBW10W TYPE TYPICAL CHARACTERISTICS: JBW05-2R0
AC.100/200V TYPE: –20°C START UP CHARACTERISTICS AC.100/200V TYPE: +60°C START UP CHARACTERISTICS

AC.100/200V TYPE: –20°C HOLD UP CHARACTERISTICS AC.100/200V TYPE: +60°C HOLD UP CHARACTERISTICS

AC.100V/200V TYPE: –20°C OVERCURRENT CURVE AC.100V/200V TYPE: +60°C OVERCURRENT CURVE

H : 50ms/Div

AC.265V

AC.85V

H : 50ms/Div

AC.265V

AC.85V

H : 10ms/Div

240V

100V

85V

Off

H : 10ms/Div

170V

100V

85V

Off

1

2

3

4

5

6

0

Output voltage(V)

24310

5

Load current(A)

6

AC.170V

AC.132V

AC.85V

AC.265V

1

2

3

4

5

6

0

Output voltage(V)

24310

5

Load current(A)

6

AC.170V

AC.265V

AC.85V
AC.132V

(21/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

Characteristics, Functions, and Applications

JBW10W TYPE TYPICAL CHARACTERISTICS: JBW05-2R0
AC.100V TYPE: LIFE OF ELECTROLYTIC CAPACITOR AC.200V TYPE: LIFE OF ELECTROLYTIC CAPACITOR

AC.100V TYPE: HOLD UP TIME AC.200V TYPE: HOLD UP TIME

CONDUCTIVE NOISE EMISSION

40

35

30

25

20

15

10

5

0

Life(Years)

20 40 60 80 100

Load(%)

30˚C

40˚C
50˚C
60˚C
70˚C

40

35

30

25

20

15

10

5

0

Life(Years)

20 40 60 80 100

Load(%)

30˚C

40˚C
50˚C
60˚C
70˚C

1000

10000

100

10

1

Hold up time(ms)

115V
100V

85V

10 25 50 75 100

Load(%)

1000

10000

100

10

1

Hold up time(ms)

240V
200V
170V

10 25 50 75 100

Load(%)

0

10

80

70

60

50

40

30

20

10

0.15 0.5 301
Frequency(MHz)

[dBµV]

[PEAK DATA]

(FCC-B)

VCCI-B(QP)

VCCI-B(AV)

5

(22/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

Characteristics, Functions, and Applications

JBW15W TYPE TYPICAL CHARACTERISTICS: JBW05-3R0
AC.100V TYPE: INPUT CURRENT AC.200V TYPE: INPUT CURRENT

AC.100V TYPE: EFFICIENCY AC.200V TYPE: EFFICIENCY

AC.100V TYPE: POWER FACTOR AC.200V TYPE: POWER FACTOR

AC.100V TYPE: SURGE CURRENT AC.200V TYPE: SURGE CURRENT

100V

132V

85V

0

0.1

0.2

0.3

0.4

0.5

20 40 60 80 1000

Load(%

)

Input current(A)

240V
265V

170V

0

0.05

0.10

0.15

0.20

0.25

20 40 60 80 1000

Load(%

)

Input current(A)

132V
100V

85V

20

0

40

60

80

100

20 40 60 80 1000

Load (%)

Efficiency(%)

240V
265V

170V

20

0

40

60

80

100

20 40 60 80 1000

Load (%)

Efficiency(%)

132V

100V

85V

20 40 60 80 1000

0.0

0.2

0.4

0.6

0.8

1.0

Load (%)

Power factor

240V
265V

170V

20 40 60 80 1000

0.0

0.2

0.4

0.6

0.8

1.0

Load (%)

Power factor

H : 0.5ms/Div
V : 5A/Div

12.1A

H : 5ms/Div
V : 5A/Div

Vin=100V

Enlarged view

30A

H : 0.5ms/Div
V : 10A/Div

H : 5ms/Div
V : 10A/Div

Vin=240V

Enlarged view

(23/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

Characteristics, Functions, and Applications

JBW15W TYPE TYPICAL CHARACTERISTICS: JBW05-3R0
AC.100/200V TYPE: –20°C START UP CHARACTERISTICS AC.100/200V TYPE: +60°C START UP CHARACTERISTICS

AC.100/200V TYPE: –20°C HOLD UP CHARACTERISTICS AC.100/200V TYPE: +60°C HOLD UP CHARACTERISTICS

AC.100V/200V TYPE: –20°C OVERCURRENT CURVE AC.100V/200V TYPE: +60°C OVERCURRENT CURVE

H : 10ms/Div

AC.265V

AC.85V

H : 10ms/Div

AC.265V

AC.85V

H : 10ms/Div

240V

100V

85V

H : 50ms/Div

H : 10ms/Div

Off

Off

H : 10ms/Div

240V

100V

85V

H : 50ms/Div

H : 10ms/Div

1

2

3

4

5

6

7

0

24310

5

Load current(A)

Output voltage(V)

AC.100V

AC.85V

AC.265V

AC.240V

1

2

3

4

5

6

7

0

24310

5

Load current(A)

Output voltage(V)

AC.100V

AC.240V

AC.265V

AC.85V

(24/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

Characteristics, Functions, and Applications

JBW15W TYPE TYPICAL CHARACTERISTICS: JBW05-3R0
AC.100V TYPE: LIFE OF ELECTROLYTIC CAPACITOR AC.200V TYPE: LIFE OF ELECTROLYTIC CAPACITOR

AC.100V TYPE: HOLD UP TIME AC.200V TYPE: HOLD UP TIME

CONDUCTIVE NOISE EMISSION

40

35

30

25

20

15

10

5

0

Life(Years)

20 40 60 80 100

Load(%)

30˚C
40˚C
50˚C
60˚C
70˚C

16

14

12

10

8

6

4

2

0

Life(Years)

20 40 60 80 100

Load(%)

30˚C

40˚C

50˚C
60˚C

70˚C

1000

10000

100

10

1

Hold up time(ms)

115V
100V

85V

10 25 50 75 100

Load(%)

1000

10000

100

10

1

Hold up time(ms)

240V
200V
170V

10 25 50 75 100

Load

(%)

100

90

80

70

60

50

40

30

20

10

0

–10

0.15 0.5 1 5

10 20 30

Frequency [MHz]

[dBµV]

[PEAK DATA]

VCCI(QP)

VCCI(AV)

FCC-B

(25/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

Characteristics, Functions, and Applications

JBW30W TYPE TYPICAL CHARACTERISTICS: JBW05-6R0
AC.100V TYPE: INPUT CURRENT AC.200V TYPE: INPUT CURRENT

AC.100V TYPE: EFFICIENCY AC.200V TYPE: EFFICIENCY

AC.100V TYPE: POWER FACTOR AC.200V TYPE: POWER FACTOR

AC.100V TYPE: SURGE CURRENT AC.200V TYPE: SURGE CURRENT

100V

132V

85V

0

0.2

0.4

0.6

0.8

1.0

20 40 60 80 1000

Load(%

)

Input current(A)

240V
265V

170V

0

0.1

0.2

0.3

0.4

0.5

20 40 60 80 1000

Load(%

)

Input current(A)

132V
100V

85V

20

0

40

60

80

100

20 40 60 80 1000

Load (%)

Efficiency(%)

240V
265V

170V

20

0

40

60

80

100

20 40 60 80 1000

Load (%)

Efficiency(%)

132V

100V

85V

20 40 60 80 1000

0.0

0.2

0.4

0.6

0.8

1.0

Load (%)

Power factor

240V
265V

170V

20 40 60 80 1000

0.0

0.2

0.4

0.6

0.8

1.0

Load (%)

Power factor

H : 5ms/Div
V : 5A/Div

12.8A

Vin=100V

31.2A

H : 5ms/Div
V : 10A/Div

Vin=240V

(26/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

Characteristics, Functions, and Applications

JBW30W TYPE TYPICAL CHARACTERISTICS: JBW05-6R0
AC.100/200V TYPE: –20°C START UP CHARACTERISTICS AC.100/200V TYPE: +60°C START UP CHARACTERISTICS

AC.100/200V TYPE: –20°C HOLD UP CHARACTERISTICS AC.100/200V TYPE: +60°C HOLD UP CHARACTERISTICS

AC.100V/200V TYPE: –20°C OVERCURRENT CURVE AC.100V/200V TYPE: +60°C OVERCURRENT CURVE

H : 50ms/Div

AC.265V

AC.85V

H : 50ms/Div

AC.265V

AC.85V

Off

H : 10ms/Div

170V

100V

85V

H : 10ms/Div

170V

100V

85V

Off

1

2

3

4

5

6

7

0

48620

10

Load current(A)

Output voltage(V)

AC.85V

AC.265V

AC.170V

AC.132V

1

2

3

4

5

6

7

0

48620

10

Load current(A)

Output voltage(V)

AC.85V

AC.265V

AC.170V

AC.132V

(27/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

Characteristics, Functions, and Applications

JBW30W TYPE TYPICAL CHARACTERISTICS: JBW05-6R0
AC.100V TYPE: LIFE OF ELECTROLYTIC CAPACITOR AC.200V TYPE: LIFE OF ELECTROLYTIC CAPACITOR

AC.100V TYPE: HOLD UP TIME AC.200V TYPE: HOLD UP TIME

CONDUCTIVE NOISE EMISSION

16

14

12

10

8

6

4

2

0

Life(Years)

20 40 60 80 100

Load(%)

30˚C

40˚C
50˚C
60˚C
70˚C

8

7

6

5

4

3

2

1

0

Life(Years)

20 40 60 80 100

Load(%)

30˚C

40˚C

50˚C
60˚C
70˚C

1000

10000

100

10

1

Hold up time(ms)

115V
100V

85V

10 25 50 75 100

Load(%)

1000

10000

100

10

1

Hold up time(ms)

240V
200V

170V

10 25 50 75 100

Load(%)

80

70

60

50

40

30

20

10

0

–10

0.15 0.5 1 5 10 20 30
Frequency [MHz]

[dBµV]

[PEAK DATA]

VCCI(QP)

VCCI(AV)
FCC-B

(28/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

Characteristics, Functions, and Applications

JBW50W TYPE TYPICAL CHARACTERISTICS: JBW05-10R
AC.100V TYPE: INPUT CURRENT AC.200V TYPE: INPUT CURRENT

AC.100V TYPE: EFFICIENCY AC.200V TYPE: EFFICIENCY

AC.100V TYPE: POWER FACTOR AC.200V TYPE: POWER FACTOR

AC.100V TYPE: SURGE CURRENT AC.200V TYPE: SURGE CURRENT

Load(%

)

Input current(A)

20 40 60 80 1000

0

0.2

0.4

0.6

0.8

1.0

100V

132V

85V

20 40 60 80 1000

0

0.1

0.2

0.3

0.4

0.5

240V
265V

170V

Load(%

)

Input current(A)

20 40 60 80 1000

20

0

40

60

80

100

132V
100V

85V

Load (%)

Efficiency(%)

20 40 60 80 1000

20

0

40

60

80

100

240V

265V

170V

Load (%)

Efficiency(%)

20 40 60 80 1000

0.0

0.2

0.4

0.6

0.8

1.0
132V

100V

85V

Load (%)

Power factor

20 40 60 80 1000

0.0

0.2

0.4

0.6

0.8

1.0
240V

265V

170V

Load (%)

Power factor

H : 5ms/Div
V : 10A/Div

16.2A

Vin=100V

H : 0.2ms/Div
V : 10A/Div

Enlarged view

43A

H : 0.2ms/Div
V : 20A/Div

Vin=240V

H : 5ms/Div
V : 20A/Div

Enlarged view

(29/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

Characteristics, Functions, and Applications

JBW50W TYPE TYPICAL CHARACTERISTICS: JBW05-10R
AC.100/200V TYPE: –20°C START UP CHARACTERISTICS AC.100/200V TYPE: +60°C START UP CHARACTERISTICS

AC.100/200V TYPE: –20°C HOLD UP CHARACTERISTICS AC.100/200V TYPE: +60°C HOLD UP CHARACTERISTICS

AC.100V/200V TYPE: –20°C OVERCURRENT CURVE AC.100V/200V TYPE: +60°C OVERCURRENT CURVE

H : 50ms/Div

AC.265V

AC.85V

H : 50ms/Div

AC.265V

AC.85V

H : 10ms/Div

AC.170V

Off

AC.100V

AC.85V

H : 10ms/Div

AC.170V

AC.100V

AC.85V

Off

1

2

3

4

5

6

7

0

12 2016840

Output voltage(V)

Load current(A)

AC.100V

AC.240V

1

2

3

4

5

6

7

0

12 2016840

Output voltage(V)

Load current(A)

AC.100V

AC.240V

(30/30)

004-02 / 20070523 / ea122_jbw.fm

• All specifications are subject to change without notice.

Characteristics, Functions, and Applications

JBW50W TYPE TYPICAL CHARACTERISTICS: JBW05-10R
AC.100V TYPE: LIFE OF ELECTROLYTIC CAPACITOR AC.200V TYPE: LIFE OF ELECTROLYTIC CAPACITOR

AC.100V TYPE: HOLD UP TIME AC.200V TYPE: HOLD UP TIME

CONDUCTIVE NOISE EMISSION

8

7

6

5

4

3

2

1

0

20 40 60 80 100

30˚C

40

˚C

50˚C

60˚C

Life(Years)

Load(%)

8

7

6

5

4

3

2

1

0

20 40 60 80 100

30˚C

40˚C

50˚C

60˚C

Life(Years)

Load(%)

10 25 50 75 100

1000

100

10

1

115V
100V

85V

Hold up time(ms)

Load(%)

10 25 50 75 100

1000

100

10

1

240V
200V
170V

Hold up time(ms)

Load(%)

80

90

70

60

50

40

30

20

10

0

0.15 0.5 1 5 10 20 30
Frequency [MHz]

[dBµV]

[PEAK DATA]

VCCI(QP)

VCCI(AV)
FCC-B
