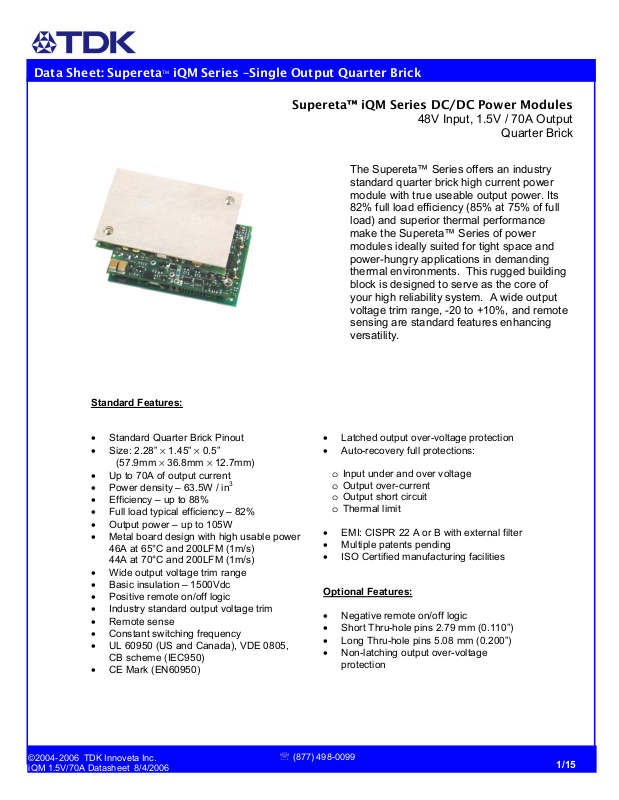

Data Sheet: SuperetaTM iQM Series –Single Output Quarter Brick

Supereta™ iQM Series DC/DC Power Modules

48V Input, 1.5V / 70A Output

Standard Features:

• Standard Quarter Brick Pinout

• Size: 2.28” × 1.45” × 0.5” (57.9mm × 36.8mm × 12.7mm)

• Up to 70A of output current

• Power density – 63.5W / in

• Efficiency – up to 88%

• Full load typical efficiency – 82%

• Output power – up to 105W

• Metal board design with high usable power

46A at 65°C and 200LFM (1m/s) 44A at 70°C and 200LFM (1m/s)

• Wide output voltage trim range

• Basic insulation – 1500Vdc

• Positive remote on/off logic

• Industry standard output voltage trim

• Remote sense

• Constant switching frequency

• UL 60950 (US and Canada), VDE 0805,

CB scheme (IEC950)

• CE Mark (EN60950)

3

The Supereta™ Series offers an industry standard quarter brick high current power module with true useable output power. Its 82% full load efficiency (85% at 75% of full load) and superior thermal performance make the Supereta™ Series of power modules ideally suited for tight space and power-hungry applications in demanding thermal environments. This rugged building block is designed to serve as the core of your high reliability system. A wide output voltage trim range, -20 to +10%, and remote sensing are standard features enhancing versatility.

• Latched output over-voltage protection

• Auto-recovery full protections:

o Input under and over voltage o Output over-current o Output short circuit o Thermal limit

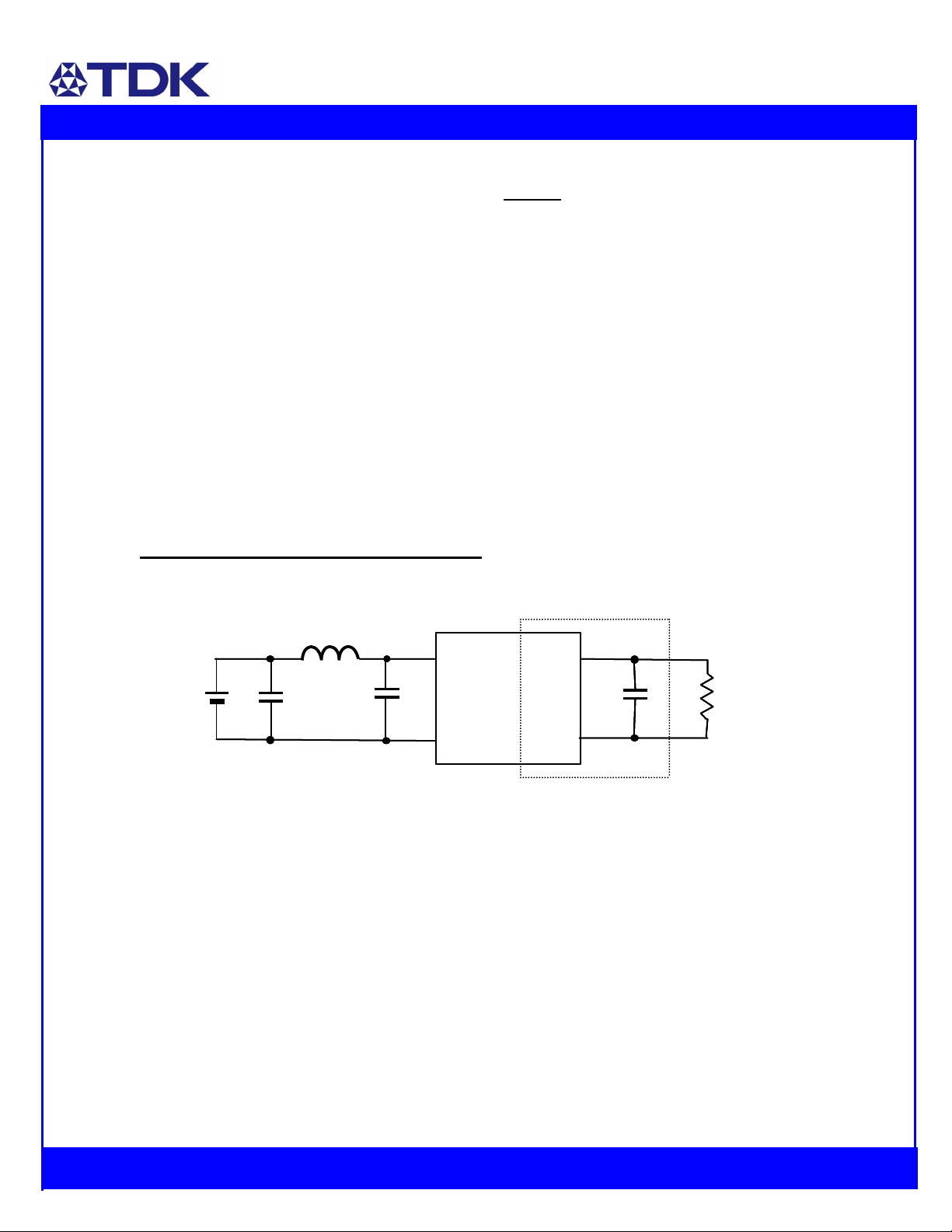

• EMI: CISPR 22 A or B with external filter

• Multiple patents pending

• ISO Certified manufacturing facilities

Optional Features:

• Negative remote on/off logic

• Short Thru-hole pins 2.79 mm (0.110”)

• Long Thru-hole pins 5.08 mm (0.200”)

• Non-latching output over-voltage

protection

Quarter Brick

℡

877) 498-0099

1/15

(

Data Sheet: SuperetaTM iQM Series –Single Output Quarter Brick

Ordering information:

Product

Identifier

i Q M 48 070 A 015 V - 0 00

TDK Innoveta

Package

Size

Quarterbrick

Platform Input

Voltage

Supereta 36-75V 070 – 70A Amps

Output

Current/

Power

Output

Units

Main

Output

Voltage

015 – 1.5V

Outputs

Option Table:

Feature Set On/Off Logic OVP Pin Length

00 Positive Latch 0.145” 01 Negative Latch 0.145” 02 Positive Latch 0.110” 03 Negative Latch 0.110” 04 Positive Latch 0.200” 05 Negative Latch 0.200” 06 Positive Non-Latch 0.145” 07 Negative Non-Latch 0.145” 08 Positive Latch 0.180” 09 Negative Latch 0.180”

Product Offering:

Code Input Voltage Output Voltage

Output

Current

iQM48070A015V 36-75V 1.5V 70A 105W 82%

# of

Single 00 – Standard

Safety

Class

Maximum

Feature Set

Efficiency

Output Power

TDK Innoveta, Inc.

3320 Matrix Drive, Suite 100 Richardson, Texas 75082

Phone (877) 498-0099 Toll Free (469) 916-4747 Fax (877) 498-0143 Toll Free (214) 239-3101

support@tdkinnoveta.com http://www.tdkinnoveta.com/

℡

877) 498-0099

2/15

(

Data Sheet: SuperetaTM iQM Series –Single Output Quarter Brick

Mechanical Specification:

Dimensions are in mm [in]. Unless otherwise specified tolerances are: x.x ± 0.5 [0.02], x.xx and x.xxx ± 0.25 [0.010].

1.02 [.040] DIA 6 pins

1.52 [.060] DIA

M3 X .5 threaded inserts, 2 places

2 pins

1

2

3

3.40 [0.134] max Dia 2 places

Recommended hole pattern (top view)

8 7 6 5 4

Pin Assignment:

PIN FUNCTION PIN FUNCTION

1 Vin(+) 4 Vo(-)

2 On/Off 5 Sense(-)

3 Vin(-) 6 Trim

7 Sense(+)

8 Vo(+)

Pin base material is copper or brass with matte tin or tin/lead plating; the maximum module weight is 60g (2.1 oz).

℡

877) 498-0099

3/15

(

Data Sheet: SuperetaTM iQM Series –Single Output Quarter Brick

Absolute Maximum Ratings:

Stress in excess of Absolute Maximum Ratings may cause permanent damage to the device.

Characteristic Min Max Unit Notes & Conditions

Continuous Input Voltage -0.5 80 Vdc

Transient Input Voltage --- 100 Vdc 100mS max.

Isolation Voltage Input to Output Input to Base-plate Output to Base-plate

Storage Temperature -55 125 ˚C

Operating Temperature Range (Tc)

---

-40 120 ˚C

1500 1500

500

Vdc Vdc Vdc

Basic Insulation Basic Insulation Operational Insulation

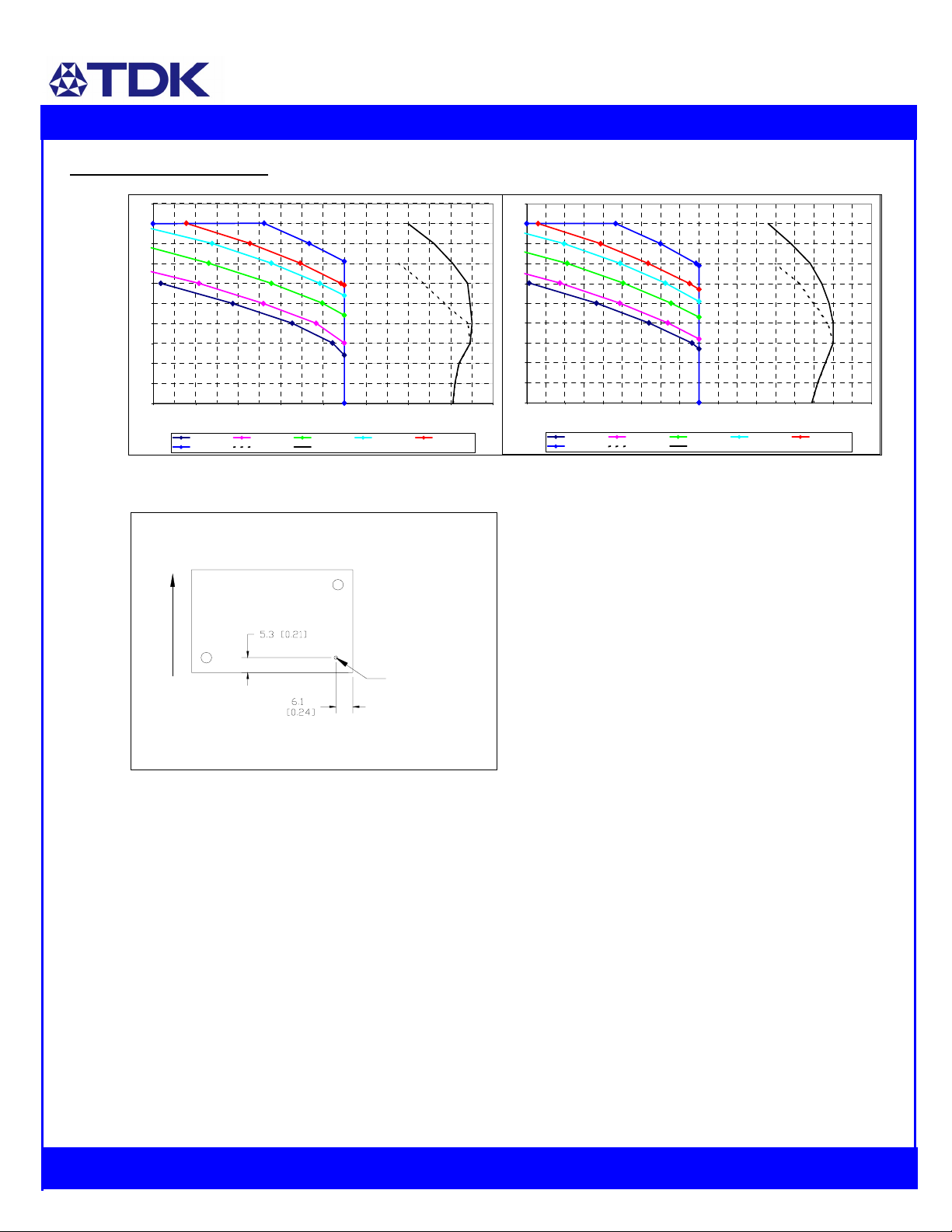

Measured at the location specified in the thermal measurement figure. Maximum temperature varies with model number, output current, and module orientation – see curve in thermal performance section of the data sheet.

Input Characteristics:

Unless otherwise specified, specifications apply over all Rated Input Voltage, Resistive Load, and Temperature conditions.

Characteristic Min Typ Max Unit Notes & Conditions

Operating Input Voltage 36 48 75 Vdc

Turn-on Voltage --- 34.7 --- Vdc

Turn-off Voltage 31* 32.3 --- Vdc

Hysteresis 1.5 2.4 --- Vdc

Startup Delay Time from application of input voltage

Startup Delay Time from on/off --- 10 --- mS Vo = 0 to 0.1*Vo,nom; Vin = Vi,nom,

Output Voltage Rise Time --- 15 --- mS Io=Io,max,Tc=25˚C, Vo=0.1 to 0.9*Vo,nom

Inrush Transient --- --- 0.1 A2s Exclude external input capacitors

Input Reflected Ripple --- 12 --- mApp See input/output ripple and noise

Input Ripple Rejection --- 57 --- dB @120Hz

* Engineering Estimate

Caution: The power modules are not internally fused. An external input line normal blow fuse with a maximum value of 10A is required; see the Safety Considerations section of the data sheet.

60A output --- --- 3.4 A Vin = 0 to Vin,max Maximum Input Current

70A output --- --- 4.2 Vin = 0 to Vin,max

--- 12 --- mS Vo = 0 to 0.1*Vo,nom; on/off =on,

Io=Io,max, Tc=25˚C

Io=Io,max,Tc=25˚C

measurements figure; BW = 20 MHz

℡

877) 498-0099

4/15

(

Data Sheet: SuperetaTM iQM Series –Single Output Quarter Brick

Electrical Data:

iQM48070A015V-000 through -009: 1.5V, 70A Output

Characteristic Min Typ Max Unit Notes & Conditions

Output Voltage Initial Setpoint 1.47 1.5 1.53 Vdc Vin=Vin,nom; Io=Io,max; Tc = 25˚C

Output Voltage Tolerance 1.45 1.5 1.55 Vdc

Efficiency --- 82 --- % Vin=Vin,nom; Io=Io,max; Tc = 25˚C

Line Regulation --- 1 5.0* mV Vin=Vin,min to Vin,max, Io and Tc fixed

Load Regulation --- 1 7.0* mV Io=Io,min to Io,max, Vin and Tc fixed

Temperature Regulation --- 10 50* mV Tc=Tc,min to Tc,max, Vin and Io fixed

Output Current 7 --- 70 A

Output Current Limiting Threshold --- 75 --- A Vo = 0.9*Vo,nom, Tc<Tc,max

Short Circuit Current --- 2 --- A Vo = 0.25V, Tc = 25

Over all rated input voltage, load, and temperature conditions to end of life

At loads less than Io,min the module will continue to regulate the output voltage, but the output ripple may increase

--- 60 100*

Output Ripple and Noise Voltage

--- 10 --- mVrms

Output Voltage Adjustment Range 80 --- 110 %Vo,nom

Output Voltage Sense Range --- --- 10 %Vo,nom

---

250

100

Dynamic Response:

Recovery Time to 10% of Peak Deviation

Transient Voltage

Output Voltage Overshoot during startup 0 0 --- mV Vin=Vin,nom; Io=Io,max,Tc=25˚C

Switching Frequency --- 140 --- kHz Fixed

Output Over Voltage Protection 1.80* 1.83 2.10* V

External Load Capacitance 48 ---

Isolation Capacitance --- 1000 --- pF

Isolation Resistance 10 --- --- MΩ

Vref 1.225 V Required for trim calculation

* Engineering Estimate

---

50,000

mVpp

µS

mV

†

uF

Vin=48V, Io≥Io,min, Tc=25˚C. Measured across one 0.1uF, one 1.0 uF, and one 47uF ceramic capacitors located 2 inches away – see input/output ripple measurement figure; BW = 20MHz

di/dt = 0.1A/uS, Vin=Vin,nom; load step from 50% to 75% of Io,max, Tc=25˚C with at least one 1.0 uF and one 47uF ceramic capacitors across the output terminals

Minimum ESR > 2.5 mΩ

† Contact TDK Innoveta for applications that require additional capacitance or very low ESR

℡

877) 498-0099

5/15
