(1/2)
001-02 / 20080113 / e731_dea162500lt_1217.fm
• All specifications are subject to change without notice.
Multilayer Chip Low Pass Filters
For 2.4GHz W-LAN
DEA Series DEA162500LT-1217A1

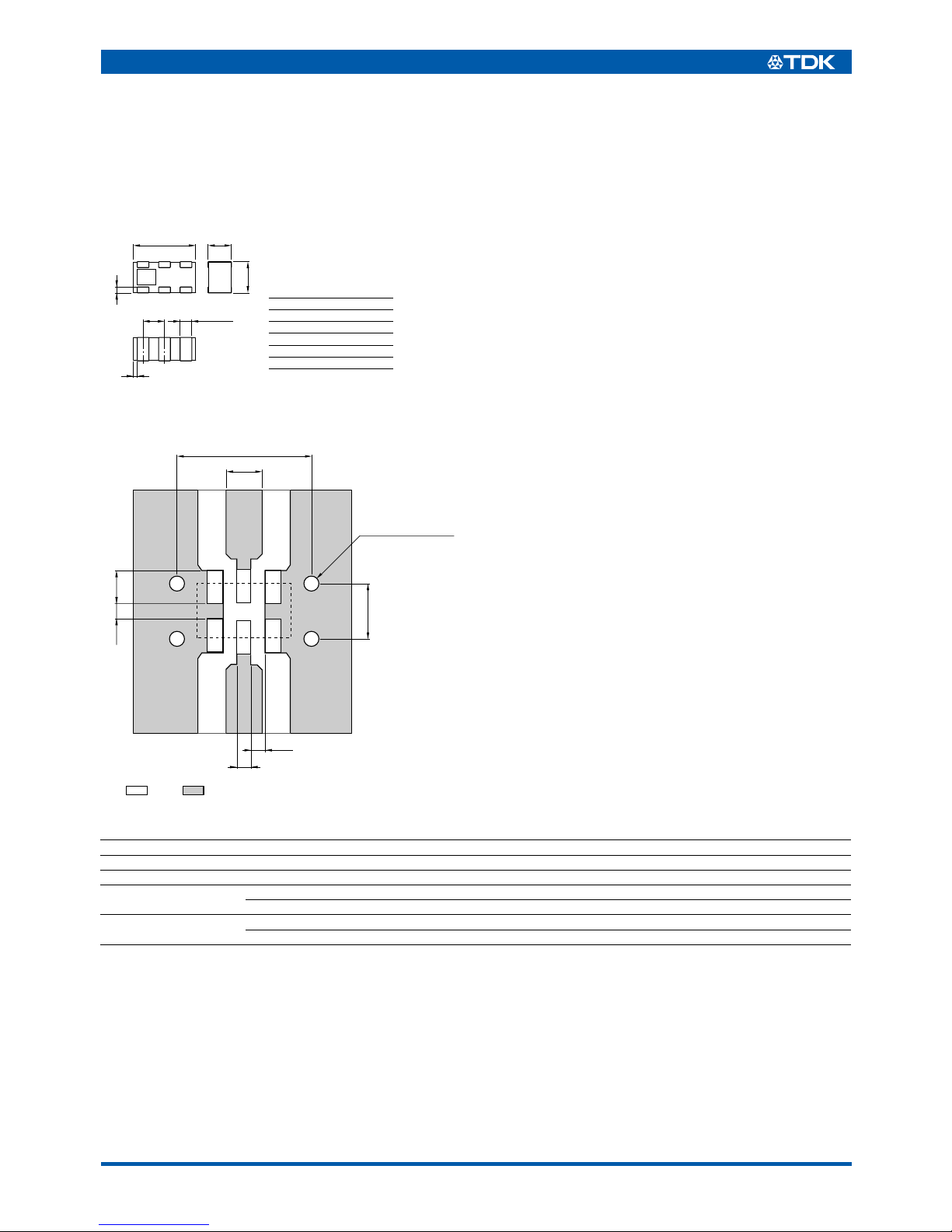

SHAPES AND DIMENSIONS
RECOMMENDED PC BOARD PATTERNS
ELECTRICAL CHARACTERISTICS
• Ta: +25±5°C
Item Minimum value Typical value Maximum value
Insertion loss [2400 to 2500MHz] (dB) — — 0.48
Return loss [2400 to 2500MHz] (dB) 14 — —
Attenuation
[4800 to 5000MHz] (dB) 35 — —
[7200 to 7500MHz] (dB) 27 — —
Temperature range
Operating (°C) –40 — +85
Storage (°C) –40 — +85
Conformity to RoHS Directive
0.6±0.1
0.8±0.1
0.3±0.1
0.1±0.1
1.6±0.1
654
123
0.15±0.1
Dimensions in mm
0.55±0.1
1 GND
2IN
3 GND
4 GND
5 OUT
6 GND
Terminal functions
1.0
0.650.25
0.3
0.25
0.7
2.6
Land Solder resist
4-ø0.3 Through-hole
Dimensions in mm
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and
specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
(2/2)
001-02 / 20080113 / e731_dea162500lt_1217.fm
• All specifications are subject to change without notice.

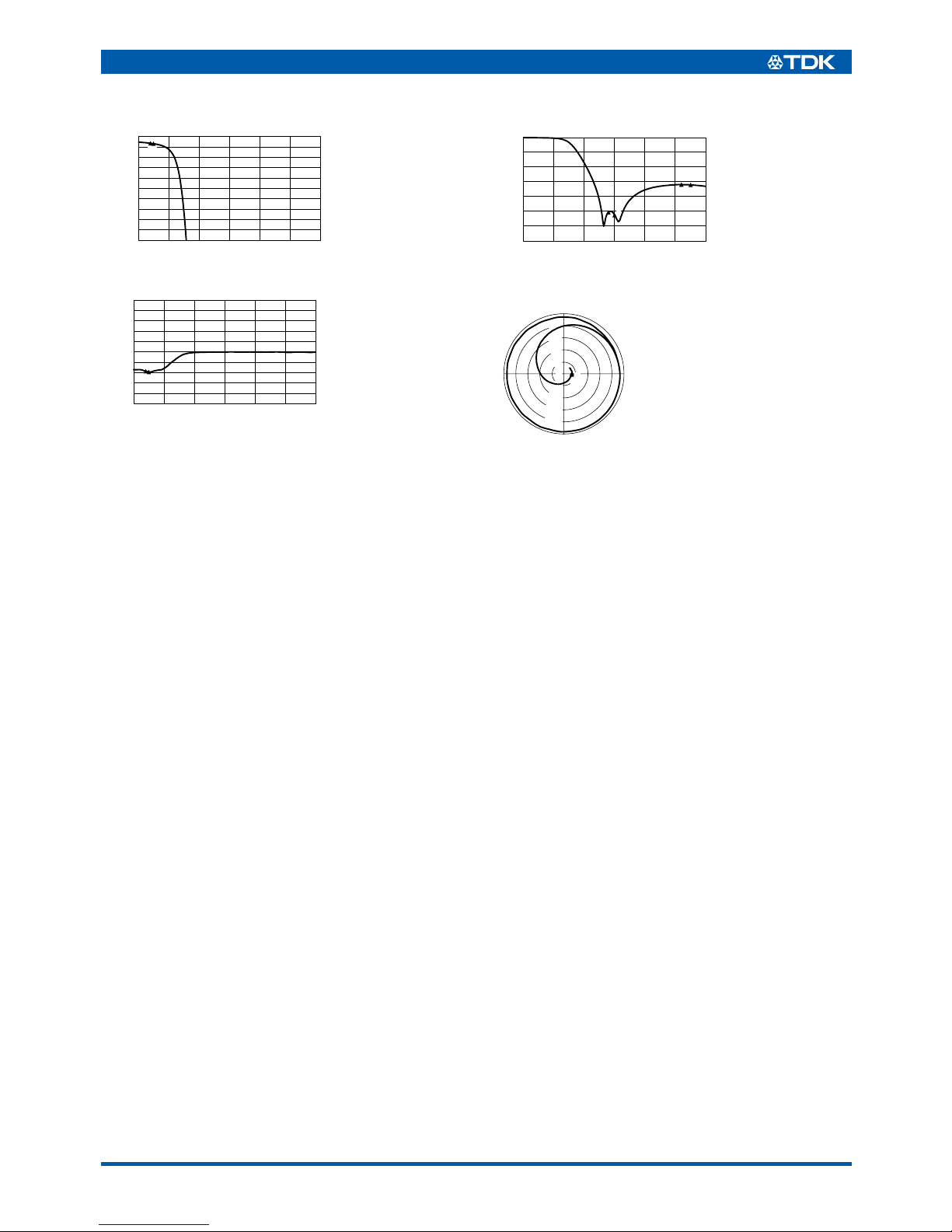

FREQUENCY CHARACTERISTICS
INSERTION LOSS
RETURN LOSS
ATTENUAT IO N
VSWR
2000 800060003000 4000 5000 7000
Frequency(MHz
)
–5.0
–4.0
–4.5
–3.0
–3.5
–2.0
–2.5
–1.0
–1.5
–0.5
0
Insertion loss
(
dB
)
1: 2400MHz
–0.331dB
2: 2500MHz
–0.355dB
1
2
2000 800060003000 4000 5000 7000
Frequency(MHz
)
20
10
40
30
50
–40
–50
–20
–30
–10
0
Return loss
(
dB
)
1: 2400MHz
–18.725dB
2: 2500MHz
–19.442dB
1
2
2000 800060003000 4000 5000 7000
Frequency(MHz
)
–70
–60
–40
–50
–20
–30
–10
0
Attenuation
(
dB
)
1: 4800MHz
–50.600dB
2: 5000MHz
–52.569dB
3: 7200MHz
–32.021dB
4: 7500MHz
–32.194dB
1
2
3
4
1: 2400MHz
1.309dB
2: 2500MHz
1.304dB
–0.2
0.2
0.4
0.6
0.8
0
–0.4
–0.6
–0.8
1
2
1
1
–1
jV
U
–1
