Ultra-high Voltage Ceramic Capacitors
Molded Type with Metal Terminals FD Series
FOR HIGH VOLTAGE POWER CIRCUIT/AC HEAVY DUTY
Temperature range: –30 to +85°C/Capacitance temperature characteristics: Y5P (±10%)
CLASS 2 HIGH DIELECTRIC
Molded from resins that provide outstanding insulation and moisture resistance, these capacitors are ideal for high-voltage power
circuits in electrical power transmission and receiving devices.
FEATURES
• They are compact in size and exhibit excellent low-loss, low-
distortion characteristics.
• Capacitance values are largely unaffected by variations in
applied voltage.
• Internal screw thread design simplifies mounting requirements.
APPLICATIONS
• High voltage surge absorbers, gas circuit breakers in electrical
power transmission and receiving devices, and lightning
arresters.
• Voltage distribution elements in high-voltage measuring devices.
• Impedance matching in transformers and high-voltage AC
circuits.
FD-9AU to FD-16AU FD-18AU to FD-36AU
CAPACITANCE/ELECTRICAL CHARACTERISTICS/DIMENSIONS
∗
PC:Pico coulomb
• In addition to the above, products are available that can be used in SF6 gas without modification (S type: molded with epoxide resin; alumina filler).
Conformity to RoHS Directive
øD L
T
ød
ISO M3
screw thread
ISO M3 internal
screw thread
øD L
T
ød
Internal screw
thread
Part No. Application
Capacitance
(pF)±10%
Withstand
voltage
Erms(kV)
Insulation
resistance
(MΩ)min.
AC corona starting
voltage
Erms(kV) min. [3PC
∗
]
Dimensions (mm)
Internal
screw
øD T L ød
FD-9AU
AC.10kVr.m.s.
100 15 10,000 12 16 15 27 5 ISO M3
FD-10AU 250 15 10,000 12 21 15 27 5 ISO M3
FD-11AU 500 15 10,000 12 28 15 27 5 ISO M3
FD-12AU 1,000 15 10,000 12 38 15 27 5 ISO M3
FD-16AU
AC.13kVr.m.s.
250 20 10,000 16 26 18.5 30.5 5 ISO M3
FD-18AU 500 20 10,000 16 34 23.5 27.5 10 ISO M4
FD-20AU 1,000 20 10,000 16 48 23.5 27.5 15 ISO M5
FD-22AU
AC.20kVr.m.s.
250 30 10,000 24 30 29 33 10 ISO M4
FD-24AU 500 30 10,000 24 40 29 33 15 ISO M5
FD-33AU
AC.25kVr.m.s.
250 40 10,000 32 34 35 39 10 ISO M4
FD-36AU 500 40 10,000 32 48 35 39 15 ISO M5
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
Page 3
(2/2)
005-01 / 20110630 / e4e39a_fd.fm
• All specifications are subject to change without notice.

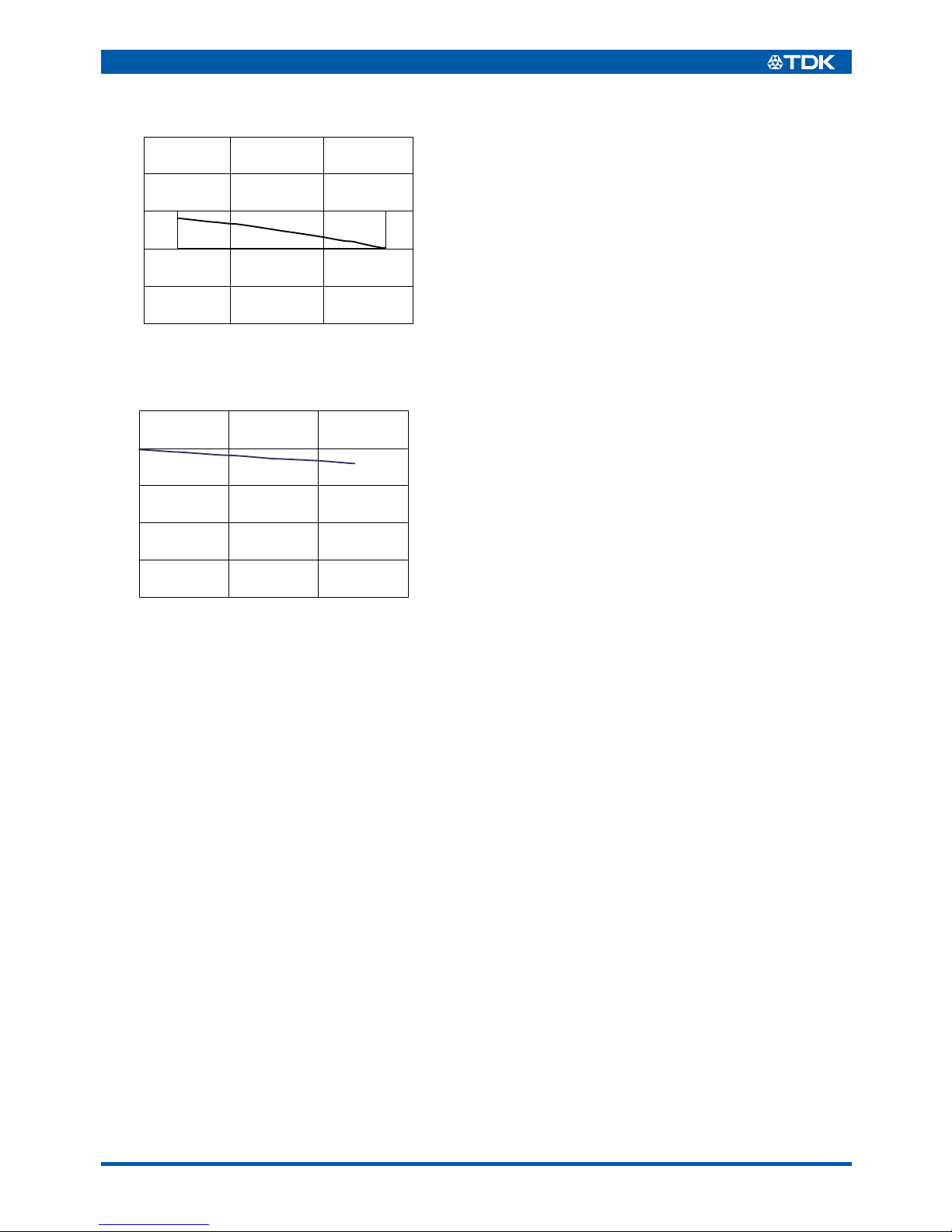

TYPICAL CAPACITANCE CHARACTERISTICS
