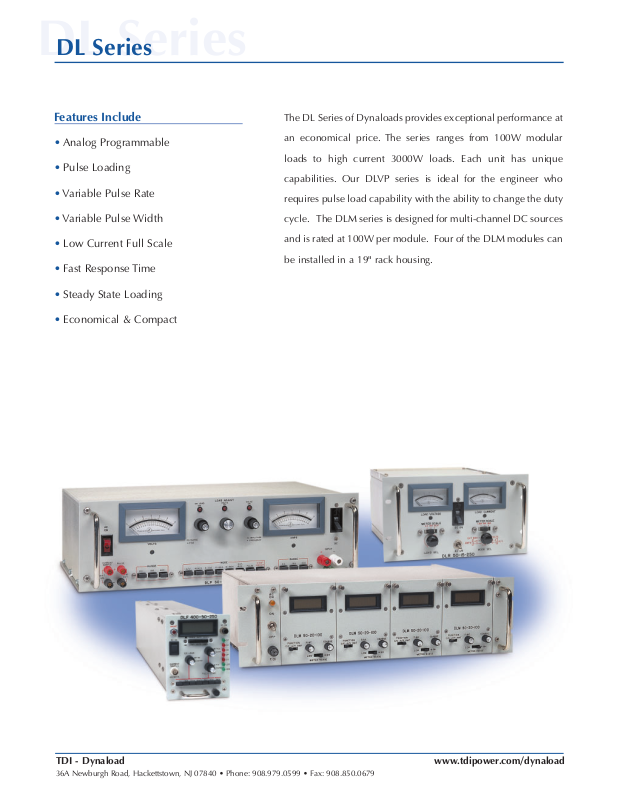

DL Series
DL Series
Features Include
• Analog Programmable
• Pulse Loading
• Variable Pulse Rate
• Variable Pulse Width
• Low Current Full Scale
• Fast Response Time
• Steady State Loading
• Economical & Compact

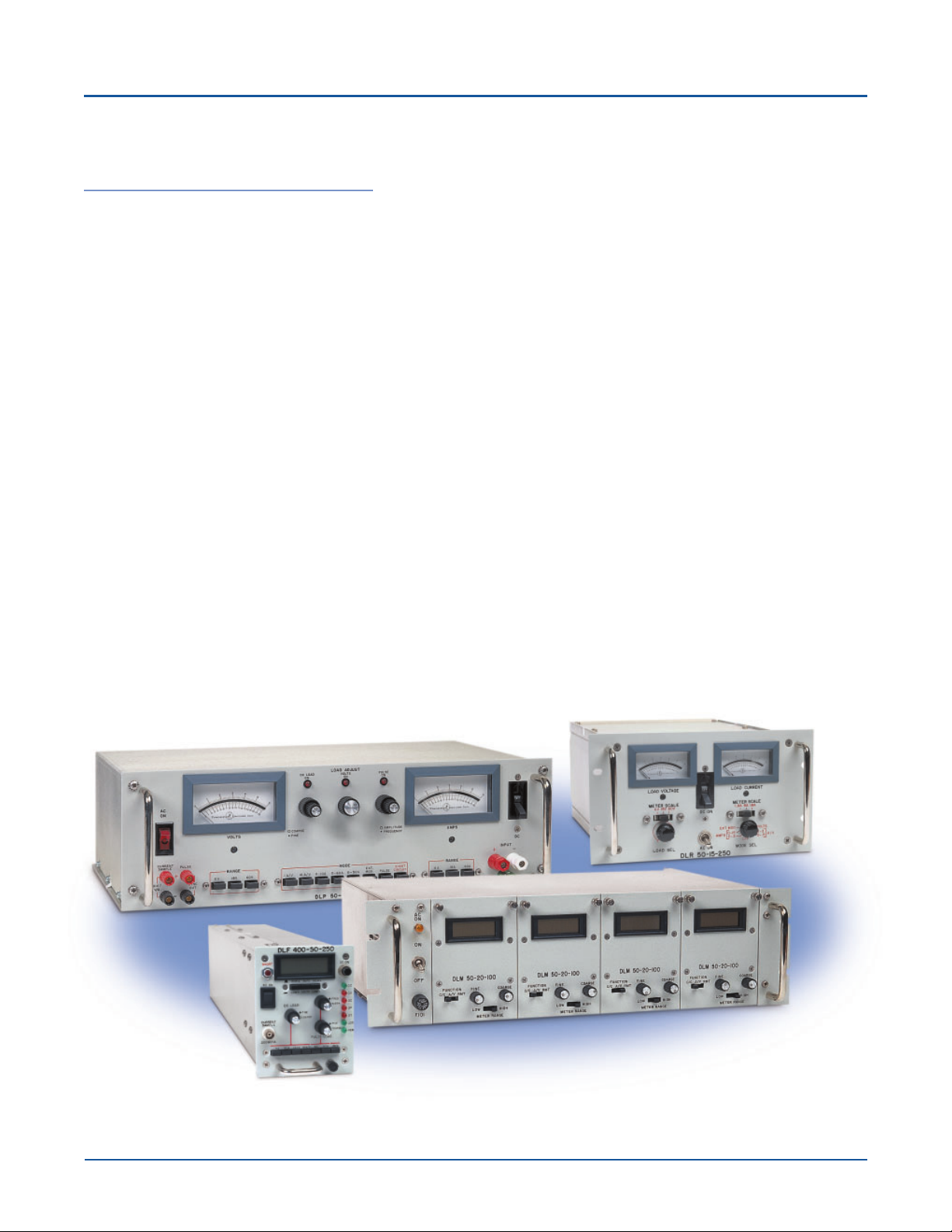

The DL Series of Dynaloads provides exceptional performance at
an economical price. The series ranges from 100W modular
loads to high current 3000W loads. Each unit has unique
capabilities. Our DLVP series is ideal for the engineer who
requires pulse load capability with the ability to change the duty
cycle. The DLM series is designed for multi-channel DC sources
and is rated at 100W per module. Four of the DLM modules can
be installed in a 19" rack housing.
TDI - Dynaload
36A Newburgh Road, Hackettstown, NJ 07840 • Phone: 908.979.0599 • Fax: 908.850.0679
www.tdipower.com/dynaload
Page 2
DLVP Series
DLVP Series
3000 Watt
DLVP 3000 Watt
• Pulse Loading
• Variable Pulse Rate
• Variable Pulse Width
• Analog Programmable
DLVP 50-300-3000B
OPERATION
Operating Voltage: 3 - 50 Volts
Operating Current: 0 - 300 Amps
Power Dissipation: 0 - 3000 Watts
Voltmeter Ranges: 0 - 6 Volts
0 - 18 Volts
0 - 60 Volts
Ammeter Ranges: 0 - 36 Amps
0 - 120 Amps
0 - 360 Amps
Constant Current: 0 - 60 Amps
0 - 300 Amps
Constant Resistance: 0 - 20A/V
0 - 60A/V
Constant Voltage: 0 - 50 Volts
Over Voltage: 60 Volts Max
Over Current: 320 Amps Max
Power Limit: 3400 Watts
Frequency Range: 20Hz to 5KHz
Pulse Width: 10 - 100% Duty Cycle
Response Time: <50µS
Ext. Prog: 0 to 10 Volts input yields 0
to full scale current.
Prog. Accuracy: ±1% of setpoint from 10 to
100% of rated current
Current Sample: 0-10 Volts for 0 to 100% of
Rated Current
Meter Accuracy: <±3%
MECHANICAL
Size: 19”W x 8.75”H x 19.18”D
483mm W x 222mm H x 487mm D
19” Rack Mountable
Weight: 42 lbs. / 19.05kg
