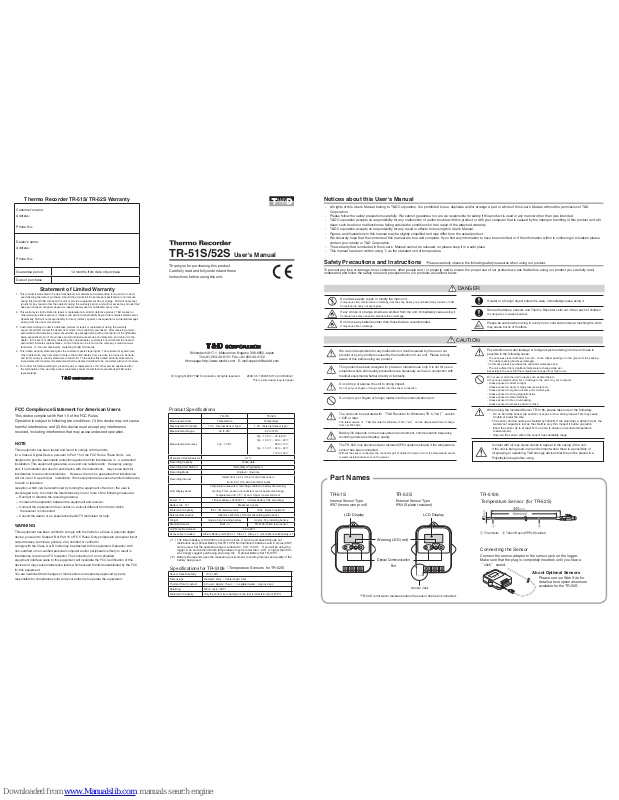

Part Names
① Thermistor ② Teflon Resin (FEP)-Shielded
TR-5106
Connecting the Sensor
Connect the sensor adapter to the sensor jack on the logger.
Make sure that the plug is completely inserted; until you hear a
“click” sound.
About Optional Sensors
Temperature Sensor (for TR-52S)
LCD Display
TR-52STR-51S
Internal Sensor Type
IP67 (Immersion proof)
External Sensor Type
IP64 (Splash resistant)
*TR-52S is not water resistant unless the sensor has been connected.
Warning LED (red)
Optical Communication
Port
Sensor Jack
LCD Display
Please see our Web Site for
details about optional sensors
available for the TR-52S.
Pay attention as water leakage or foreign objects entering into the unit case is
possible in the following cases.
- The case was closed with dust, hair, etc., on the rubber packing or in the groove for the packing.
- The rubber packing becomes damaged.
(In this case, please purchase the optional maintenance set.)
- The unit suffered from significant temperature change while wet.
Especially in the case that the temperature changes from high to low.
Do not use or store the unit in places such as listed below:
It may cause electrocution, fire or damage to the unit or to your computer.
- Areas exposed to direct sunlight
- Areas exposed in water or high-pressure water flow.
- Areas exposed to organic solvents and corrosive gas.
- Areas exposed to strong magnetic fields
- Areas exposed to static electricity.
- Areas exposed to fire or overheating.
- Areas exposed to excessive dust or smoke.
When using the included Sensor TR-5106, please take note of the following:
・ Do no bend the sensor (tip section) or expose it to a strong impact. This may cause
trouble or break the wire.
・ The sensor and the cable are shielded by Teflon®. If the shield has a defect or tear, the
waterproof capacity is lost as the shield is very thin. Inspect it before operation.
・ Insert the sensor tip to at least 5cm or more to obtain on accurate temperature
measurement.
・ Only use the sensor within the sensor heat-durability range.
Notices about this User's Manual
- All rights of this User's Manual belong to T&D Corporation. It is prohibited to use, duplicate and/or arrange a part or whole of this User's Manual without the permission of T&D
Corporation.
- Please follow the safety precautions carefully. We cannot guarantee nor are we responsible for safety if this product is used in any manner other than was intended.
- T&D Corporation accepts no responsibility for any malfunction of and/or trouble with this product or with your computer that is caused by the improper handling of this product and will
deem such trouble or malfunction as falling outside the conditions for free repair of the attached warranty.
- T&D Corporation accepts no responsibility for any result or effects from using this User's Manual.
- Figures and illustrations in this manual may be slightly simplified and may differ from the actual product.
- We sincerely hope that the contents of this manual are true and complete. If you find any information to have been omitted, or if the information within is confusing or mistaken please
contact your retailer or T&D Corporation.
- The warranty that is included in this
User's Manual cannot be reissued, so please keep it in a safe place.
- This manual has been written using ℃ as the standard unit of temperature.
Safety Precautions and Instructions
To prevent any loss or damage to our customers, other people and / or property, and to ensure the proper use of our products we ask that before using our product you carefully read,
understand and follow the safety rules and precautions for our products as outlined below.
DANGER
If water or a foreign object enters the case, immediately cease using it.
Store all batteries, sensors and Thermo Recorder units out of the reach of children.
It is dangerous to swallow batteries.
Please be careful when using in overly hot or cold environments; touching the units
may cause burns or frostbite.
Do not take apart, repair or modify the main unit.
It may cause fire, electrocution or damage. Ask the shop where you purchased the products or T&D
Corporation to carry out any repairs.
If any smoke or strange smells are emitted from the unit, immediately cease using it.
Continued use may cause fire, electrocution or damage.
Do not use any batteries other than those that are recommended.
It may cause fire or damage.
CAUTION
We are not responsible for any malfunction or trouble caused by the use of our
product or by any problem caused by the malfunction of our unit. Please be fully
aware of this before using our product.
This product has been designed for private or industrial use only. It is not for use in
situations where strict safety precautions are necessary such as in connection with
medical equipment whether directly or indirectly.
Do not drop or expose the unit to strong impact.
Do not put your fingers or foreign matter into the sensor connection.
Do not put your fingers or foreign matter into the communication port.
The units can be operated with “T&D Recorder for Windows (TR-5, 7xU)” version
1.50E or later.
The latest version of “T&D Recorder for Windows (TR-5, 7xU)” can be downloaded free of charge
from our Web Site.
Battery life depends on the measurement environment, communication frequency,
recording interval and battery quality.
The TR-52S only becomes water resistant (IP64 splash resistant) if the temperature
sensor has been connected.
Without the sensor connected, the connector part of neither the main unit nor the temperature sensor
is water resistant; make sure not to get wet.
Product Specifications
TR-51S
TR-52S
Measurement Item
Temperature
Temperature
Measurement Channels
1 Ch（Internal Sensor Type）
1 Ch（External Sensor type）
Measurement Range―40 to 80℃―60 to 155℃
Measurement Accuracy
Typ.± 0.5℃
Typ. ± 0.3℃: ―20 to 80℃
Typ. ±0.5℃ :
―
40 to ―20℃
80 to 110℃
Typ. ±1.0℃ :
―
60 to ―40℃
110 to 155℃
Measurement Display Resolution
0.1℃
Recording Capacity
16000 data
Recording Start Method
Immediate / Programmed
Recording Mode
Endless / One-time
Recording Interval
Select from 1,2,5,10,15,20 and 30 seconds or
from1,2,5,10,15,20,30 and 60 minutes
LCD Display Items
Temperature measured, recording conditions, battery life warning,
memory FULL, sensor unconnected, over measurement range,
temperature unit (°F / °C) and Upper / Lower limit over
Power（*1 ）
Lithium battery LS14250 x 1 (Lithium battery CR2 also Okay)
Battery Life（*2）
Maximum 4 years
Waterproof Capacity
IP67（Immersion proof）
IP64（Splash resistant）
External Dimensions
H62mm x W47mm x D19mm (Excluding protrusions)
Weight
Approx. 54g including battery
Approx. 55g including battery
Standard Sensor
Built - in
TR-5106: Teflon resin sensor
Unit Temp. Resistance―40 to 80℃
Accessories Included
Lithium Battery LS14250 x 1, Tube x 1, Strap x 1, User's Manual (Warranty) x 1
(*1 ) The lithium battery (LS14250) is not sold in stores. It can be purchased through our
distributors as (Optional Battery Set TR-10P2) Normal lithium batteries sold in stores (CR2)
can be used, but the operating range is reduced to
―
20℃ to 60℃ . If you will be using the
logger in an environment where temperatures may be lower than
―20℃ or higher than 60℃ ,
we strongly suggest purchasing and using the “Optional Battery Set TR-10P2”.
(*2) Battery life depends upon the measuring environment, recording interval, and quality of the
battery being used.
Specifications for TR-5106
（Temperature Sensors for TR-52S）
Sensor Heat-Durability―70 to 180℃
Dimensions Diameter: 2mm / Cable length: 0.6m
Thermal Time
Constant in the air : Approx 15 sec. / in agitated water : Approx 2 sec.
Shielding Teflon resin （FEP）
Waterproof Capacity Only the sensor tip is waterproof, the rest is immersion proof (IPX7)
Contact with oil may cause cracks to appear in the casing of the unit.
If the unit is being used in an environment where there is a possibility of
oil spraying or splashing, T&D strongly advises that the unit be placed in a
Polyethylene bag before using.
Thermo Recorder TR-51S/ TR-52S Warranty
Customer's name:
Address:
Phone No.:
Dealer's name:
Address:
Phone No.:
Guarantee period 12 months from date of purchase
Date of purchase
Statement of Limited Warranty
1. This product is warranted to be free from defects in materials and workmanship for a period of one (1)
year following the date of purchase. Should the product fail to operate per specification in normal use
during this period T&D will repair the unit or provide a replacement free of charge. T&D will not accept
returns for any reason other than defects during the warranty period, and will not accept any product that
has been misused, dropped, abused or inappropriately used or mistreated at any time.
2. This warranty is strictly limited to repair or replacement-in-kind for defective product. T&D makes no
other warranty, either express or implied, and will not accept liability beyond the remedies stated herein.
Specifically, T&D will not accept liability for direct, indirect, special, consequential or incidental damages
arising from the use of this product.
3. Customers wishing to submit a defective product for repair or replacement during the warranty
period should first contact the dealer from whom it was originally purchased. After receiving a return
authorization the defective product should then be packaged along with a description of the difficulties
being experienced, proof of purchase and all included accessories and materials, and return it to the
dealer. In the event of difficulty contacting the original dealer, customers should contact the nearest
authorized T&D sales representative. A list of these can be found on the company' s website, www.
tandd.com, or it can be obtained by contacting TandD US directly.
4. This limited warranty statement gives the customer specific legal rights. The customer may also have
other rights which vary from state to state in the United States, from province to province in Canada,
and from country to country elsewhere in the world. To the extent this limited warranty statement is
inconsistent with local law, this statement shall be deemed modified to be consistent with such local law.
5. For further information relating to product repair or replacement, or for other service questions after
the termination of the warranty period, customers should contact their local authorized T&D sales
representative.
*Please carefully observe the following safety measures when using our product.
FCC Compliance Statement for American Users
This device complies with Part 15 of the FCC Rules.
Operation is subject to following two conditions: (1) this device may not cause
harmful interference. and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE
This equipment has been tested and found to comply with the limits
for a Class A Digital Device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
WARNING
This equipment has been verified to comply with the limits for a Class A personal digital
device, pursuant to Subpart B of Part 15 of FCC Rules. Only peripherals (computer input/
output devices, terminals, printers, etc.) certified or verified to
comply with the Class A or B limits may be attached to this equipment. Operation with
non-certified or non-verified personal computer and/or peripherals is likely to result in
interference to radio and TV reception. The connection of a non-shielded
equipment interface cable to this equipment will invalidate the FCC Certification of this
device and may cause interference levels which exceed the limits established by the FCC
for this equipment.
You are cautioned that changes or modi.cations not expressly approved by party
responsible for compliance could void your authority to operate the equipment.
Shimadachi 817-1, Matsumoto, Nagano 390-0852 Japan
Tel:+81-263-40-0131 Fax:+81-263-40-3152
Homepage:http://www.tandd.com/ E-mail:support@tandd.com
©
Copyright 2007 T&D Corporation. All rights reserved. 2009. 06 16004514110 (3rd Edition)
This is printed using recycled paper.
Thank you for purchasing this product.
Carefully read and fully understand these
instructions before using this unit.
TR-51S/52S
User's Manual
Installing the Battery
Communication with your Computer
Reading the LCD
Outline
● We offer two types to fit your needs: the TR-51S with
internal sensor offers improved water resistance
and the TR-52S with external sensor brings quicker
response to changes in temperature. Both are
ideal for measuring and recording temperature in
normal outdoor conditions as well as harsher frozen
environments or frozen storage. The compact design
makes it no problem to place almost anywhere.
●
For downloading data to computer for saving and
processing use either one of our Communication
Ports (TR-50U or TR-50C) or our handy Data
Collectors (TR-57U or RTR-57U).
● By using with our newly released Communication
Port TR-50U, it is possible to take advantage of the
highest communication speeds for downloading data.
(up to 8 times faster than our previous models)
● We have removed all switches from the main unit to
assure nothing gets accidentally pushed during use,
thus assuring you of no mistakes, no tampering and
no loss of data.
● Up to 16,000 measurement readings can be
recorded; at a recording interval of 60 minutes that
would equal about 666 days or about 2 years of nonstop consecutive recording.
● The latest version of our software can be downloaded
free of charge from our Web Site. Please visit us at
http://www.tandd.com for more information. The units
can be operated wit
h“T&D Recorder for Windows
(TR-5,7xU)
”version 1.50E or later (included with our
Communication Ports and Handy Data Collectors).
- When being used in cold environments the display may become difficult to read. This
is not a malfunction.
- When being used in hot environments the display may become black. This is not a
malfunction.
Battery Replacement Icon
If the replacement icon appears, try to replace the battery with a
new one as soon as possible.
1.
When it is time for the battery to be replaced, the [
] icon will
appear.
2.
After removing the battery, wait for about three seconds until the
[bAt t] appears. Once this appears please change the battery as
quickly as possible.
- If the battery is replaced before [bAt t] appears, even after replacing the
[
] icon may remain.
- After a battery is installed, if [bAt t] remains on display for more than one minute,
please check to make sure that the battery has been properly installed. If after
checking, the
icon continues to appear, please try to carry out some optical
communication. If optical communication is psossible, the icon will disappear within
an hour.
- Downloading of data cannot occur while the battery is removed.
- Recorded data will be saved and recording will continue.
3.
If the battery is further left unchanged, the display will automatically
shut off.
- If, at this time, a new battery is placed in the unit, [CHEC] will appear on the display
after which recording will begin again using the previously set recording conditions.
Note however that all previously recorded data will have been lost.
[Estimating Battery Life]
These estimates are based on using a new battery. Battery Life will be
greatly shortened if communication is carried out quite often and/or if the
recording interval is set for 10 seconds or less.
(Communication frequency : 4 times / month)
Recording Interval 1 second 2 seconds 5～ 30 seconds 1 minute or more
Battery Life
about
16 months
about 2 years about 3 years about 4 years
- The [
] icon will appear based upon the calculation of battery use. It may
appear sooner than noted above.
- If the unit is left with the warning LED blinking, battery life will be halved.
Notes about Changing the Battery
Replace with a new battery following directions as in“Installing the
Battery”. Recording will continue using the previously set recording
settings or will restart using those settings.
- If + (plus) and – (minus) are mistaken, or if the battery terminals + and – are
shorted, the recorded data that is stored in the logger will be lost.
- Before replacing a battery, please make sure to download any necessary data and
proceed with changing the battery. For details, see the User's Manual that came
with the software.
- Do not remove the battery until it can be replaced with a new one.he battery life
warning will not be displayed at the proper time.
- Please store the LS14250 in a place that is 20℃ or less.
① Recording Status （
）
LIT UP:
displayed during recording or when FULL of data
BLINKING:
displayed when waiting for a programmed recording to start
② Battery Replacement Icon（
）
displayed when time to change the battery.
③ Measurement Reading and Message Display
④ Unit of Measurement: displays unit of measurement
When a battery is installed, temperature
measurement will start at the default settings.
1.
Remove screws and open the case.
- Make sure to use the proper type and size screwdriver.
(A Phillips head #1 is best)
2.
Insert the attached battery into the tube and mount
the tube in the direction shown in the figure.
- Tube is not necessary in the case of using CR2.
3.
Confirm that the rubber packing does not have dust
or defects. Close the case and screw on the cover.
- Dust or defects on the packing can adversely affect the
waterproof characteristics.
- Make sure the cover is closed in the correct direction.
- Please do not tighten the screw too tightly.
(appropriate torque: 20N/cm – 30N/cm [2Kgf/cm – 3Kgf/cm])
Basic LCD Display
Other Icons
[Full Memory]
When using the One-time Recording Method, the
REC icon appears when the number of recorded
readings reaches 16,000 and the unit stops
recording.
Estimates of time until FULL is displayed.
Recording Intervals 1 second 30 seconds 1 minute 10 minutes 60 minutes
Period
about
4 hours
about
5 days
about
11 days
about
111 days
about
1 year and 10 months
[Check]
This will be displayed under the following conditions:
・The first time a battery was inserted after purchase
・If the battery is replaced after having been taken
out for a long period
If this appears, all data that was stored in the Logger
will have been erased.
Warning (exceeds set limit)
Warning
LED will
flash
If a measured temperature exceeds one of the
already set upper and lower limits, the warning LED
on the Logger will flash. At the same time, one of the
“Over Limit ”icons will appear on the Logger LCD.
[Exceeds Upper Limit]
If a measured temperature exceeds the set upper
limit, the Logger LED will alternately flash between
[HI] and the current temperature.
[Exceeds Upper Limit]
If a measured temperature exceeds the set lower
limit, the Logger LED will alternately flash between
[Lo] and the current temperature.
Starting the Warning Monitoring Function
If these settings are made in an environment where one of the limits is being exceeded
and recording is started, the monitoring function will enter“wait”mode. Once the current
measurement falls within the set limits, the monitoring function will begin to operate.
Removing a Warning
Under the following conditions the warning display will be removed:
-When a Recording Start session is begun from the software.
-When [Clear Warning] is carried out from the software (only via TR-50U).
-When recorded data is downloaded and is successfully completed.
-When the battery is removed, or battery power has been lost and the [CHEC] icon appears.
Measurement Range Exceeded (for TR-52S only)
The current temperature display will blink when the
temperature goes below
－
60℃ or goes above ＋
155℃ .
Sensor Unconnected (for TR-52S only)
Displayed when a sensor has not been connected
or the wire has been broken. Measurement and
recording will continue and battery power consumed.
Set-up Procedure
1.
Connect the Communication Port or Data Collector to your
computer using the provided communication cable.
Communication Port
or Data Collector
Communication cable
2.
Place the TR-51S/52S Data Logger on top of the Port or Collector
as shown in the figure, making sure that the optical communication
spots are aligned properly.
Compatible Devices
Communication cable
TR-51S/52S
Data Collector
（*1）
Communication Port
RTR-57U
RTR-57C
Compatible Devices
TR-50U
TR-50C（*1
）
Communication cable
TR-51S/52S
- Communication errors may occur in environments where temperatures are very
high or very low.
- Communication may not be possible if battery power is extremely low.
Recording Condition Settings which can be
made via Optical Communication
The following settings can be made via computer communication.
Initial Setting Values: Recording Interval : 10 minutes / Recording Mode : Endless loop
Recording Intervals Select from 1,2,5,10,15,20,30 seconds / 1,2,5,10,15,20,30,60 minutes
Recording Methods Immediate /
One-time
Recording starts immediately upon battery
installation.
When the unit reaches 16,000 readings, the LCD
alternately displays the current reading and FULL
and recording stops.
Programmed /
One-time
Recording starts at the programmed date and time.
When the unit reaches 16,000 readings, the LCD
alternately displays the current reading and FULL
and recording stops.
Immediate /
Endless Loop
Recording starts immediately upon battery
installation.
When the unit reaches 16,000 readings, the oldest
data is overwritten and recording continues.
Programmed /
Endless Loop
Recording starts at the programmed date and time.
When the unit reaches 16,000 readings, the oldest
data is overwritten and recording continues.
In addition to communication, the software is designed to help with data
processing.
Computer Display and Printing Display downloaded data in graphs or tables and print out
Saving Downloaded Data
- Create Files to save downloaded data
- Convert data into Text File for exporting to spreadsheets
（*1）：
Notes about the Device used for Communication
When using optical communication with Communication Port TR50C or one of our Data Collectors, please take note of the following.
- When using these devices with our Software “T&D Recorder for Windows (TR-5,
7xU)” TR-51S will be recognized as TR-51A and TR-52S will be recognized as
TR-52; please operate as such.
- Furthermore, the high speed data communication for downloading data and warning
monitoring functions built into the TR-5S series cannot be used.
In order to make recording settings in the Logger and download data from the Logger to your computer it is necessary to carry out
communication via optical communication using one of T&D's Communication Ports or Data Collectors (sold separately).
For details about how to make recording settings, download data and other operations; please see the User's Manual that comes with the
Communication Port or Data Collector.
Note
- If a new battery has been installed and recording does not immediately start, the display is jumbled, or
nothing appears the circuit board may have been touched while installing the battery. Please remove the
battery and try installing again.
- When inserting a battery, make sure no water or foreign objects get inside the case.
- Lithium batteries (CR2) sold in stores may also be used, but if you are using in an environment below
－
20℃ , above 60℃ , or in a situation such as transportation where continued vibration is likely to occur, we
suggest the purchase and use of the optional lithium battery LS14250.
- Make sure that + and － are in the correct direction. If they are not correct, it may cause damage.
- After inserting the battery, it may occur that nothing appears in the display for about 10 seconds; this is
not a malfunction.
Cover
Rubber
Packing
Screw
Battery
Inserted into
Tube
Loading...
