TCT Mobile 906 User Manual

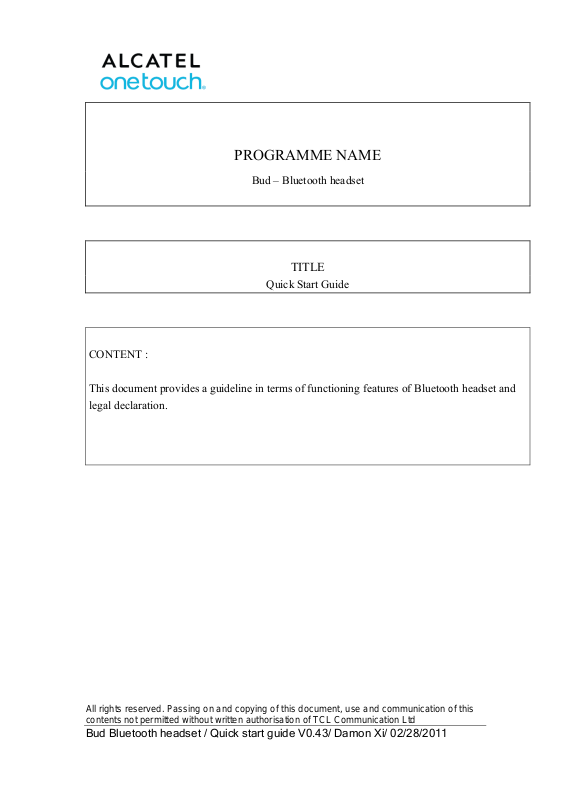

PROGRAMME NAME
Bud – Bluetooth headset
TITLE
Quick Start Guide
CONTENT :
This document provides a guideline in terms of functioning features of Bluetooth headset and
legal declaration.
All rights reserved. Passing on and copying of this document, use and communication of this
contents not permitted without written authorisation of TCL Communication Ltd
Bud Bluetooth headset / Quick start guide V0.43/ Damon Xi/ 02/28/2011
HISTORIC
Version Date Author Modification object
0.1 06/01/2011 Damon Xi Creation of the document from BH30 QSG
0.2 10/01/2011 Damon Xi Update to v0.1 after the MMI confirmation
0.3 12/01/2011 Damon Xi Update Volume key function by removing ‘call reject and
transfer’ and add it to MFB.
0.4 16/01/2011 Damon Xi Update Bluetooth version to V3.0;
Update talk time, standby time and weight
Add ‘mark of FCC declaration’.
0.41 19/01/2011 Damon Xi Update new logo, ‘Alcatel’ and ‘one touch’
0.42 23/02/2011 Damon Xi Add legal notice of ‘IC’ of Industry Canada
0.43 28/02/2011 Damon Xi Add ‘operation and storage temperature’
All rights reserved. Passing on and copying of this document, use and communication of this
contents not permitted without written authorisation of TCL Communication Ltd
Bud Bluetooth headset / Quick start guide V0.43/ Damon Xi/ 02/28/2011
BH50
Bluetooth Headset
User Guide
Contents
Product Specifications
BH50 Overview
Getting Started
Charging Your Headset
Pairing Your Headset with a Bluetooth Mobile Phone
Using Your Headset
Factory Reset
Troubleshooting
Safety Information
Declaration of Conformity
Guarantee
Product Specifications
Bluetooth Specification: V3.0 with V2.1 EDR features, Class 2
Bluetooth Profiles Supported: Headset & Handsfree
All rights reserved. Passing on and copying of this document, use and communication of this
contents not permitted without written authorisation of TCL Communication Ltd
Bud Bluetooth headset / Quick start guide V0.43/ Damon Xi/ 02/28/2011
Range of Frequency: 2.4GHz spectrum
Nominal Charging Time: Within 30minutes
Talk Time*: Up to 6 hours
Standby Time*: Up to 270 hours
Dimensions: 55 (L) x 16.4 (W) x 9.2 (T) mm
Weight: 8.5 grams
Operating temperature range: -20Ԩ to 55Ԩ
Storage temperature range: -30Ԩ to 70Ԩ
* may vary due to the user’s habit, different modes of operation, and mobile phone
settings.
BH50 Overview
A. Multi-function Button (MFB)
• Power On / Off
• Pair with mobile phone
• Answer / End a call
• Reject / Transfer a call
B. Volume
• Adjust volume
C. Status Indicator
D. Microphone
E. Speaker
F. Micro USB Charging Socket
All rights reserved. Passing on and copying of this document, use and communication of this
contents not permitted without written authorisation of TCL Communication Ltd
Bud Bluetooth headset / Quick start guide V0.43/ Damon Xi/ 02/28/2011
