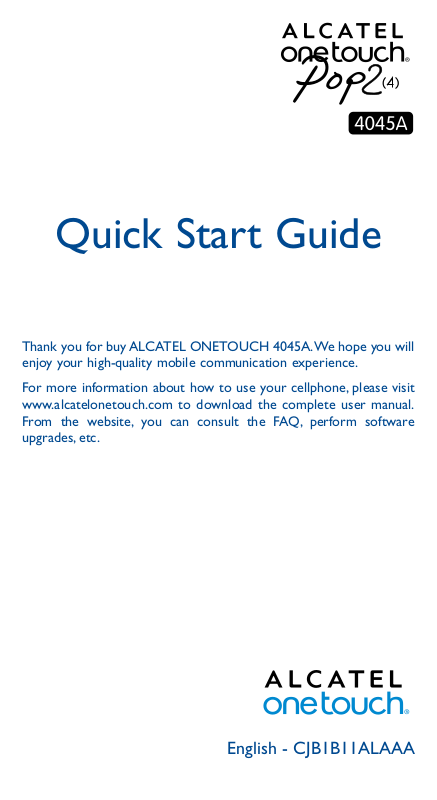

Quick Start Guide

Thank you for buy ALCATEL ONETOUCH 4045A. We hope you will enjoy your high-quality mobile communication experience.

For more information about how to use your cellphone, please visit www.alcatelonetouch.com to download the complete user manual. From the website, you can consult the FAQ, perform software upgrades, etc.

English - CJB1B11ALAAA

Page 2

Table of contents

1 Your phone ��1

2 Text input ��11

3 Phone call ��12

4 Contacts ��14

5 Messaging��15

6 Email ��16

7 Getting connected ��17

8 Find my location using GPS satellites ��20

9 Data backup ��21

10 Factory data reset��21

11 Applications & Internal storage ��22

12 Making the most of your phone ��23

Safety and use��25

General information ��32

TCT Mobile (US), Inc��33

Warranty��Troubleshooting ��35

This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in RADIO WAVE part of this user guide.

When carrying the product or using it while worn on your body, either use an approved accessory

www.sar-tick.com

such as a holster or otherwise maintain a distance of 1.0 cm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call.

PROTECT YOUR HEARING

To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use.

Your phone ��

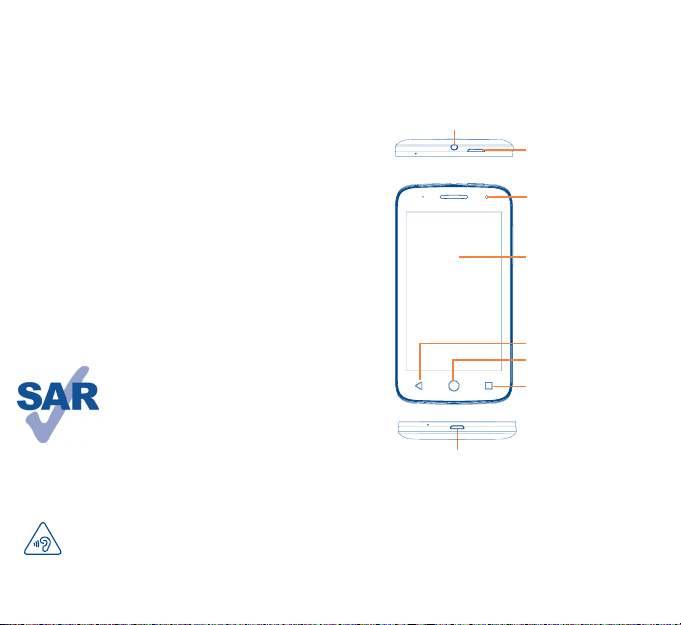

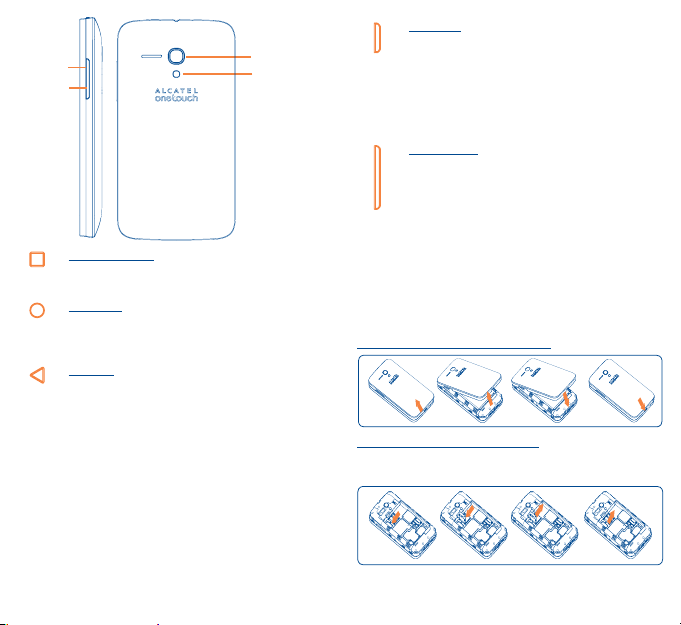

1�1 Keys and connectors

Headset connector

Power key

Front camera

Touch screen

Back key

Home key

Recent Apps Key

Micro-USB Connector

Page 3

Power key

Volume

up key

Volume

down key

Recent Apps key

• Touch to view or clear recent used applications.

Home key

• From any application or screen, touch to return to the

Home screen.

• Touch and hold to open Google search.

Back key

• Touch to go back to the previous screen, or to close

a dialog box, options menu, the notification panel, etc .

Camera

Camera Flash/ Flashlight

• Press: Lock the screen/Light up the screen.

• Press and hold: Show the pop-up menu to select from

Power off/Reboot/Airplane mode.

• Press the Powe r key for more than 7s to restart.

• Press the Powe r key and Volume up key to reset.

• Press the Powe r key and Volume down key for 1s to

capture a screenshot.

Volume Keys

• In call mode, adjusts the earpiece or headset volume.

• In Music/Video/Streaming mode, adjusts the media

volume.

• In general mode, adjusts the ringtone volume.

• Mutes the ringtone of an incoming call.

• In camera preview mode, press Volume up or down

key to enter burst shoot.

1�2 Getting started

1�2�1 Set-up

Removing or installing the back cover

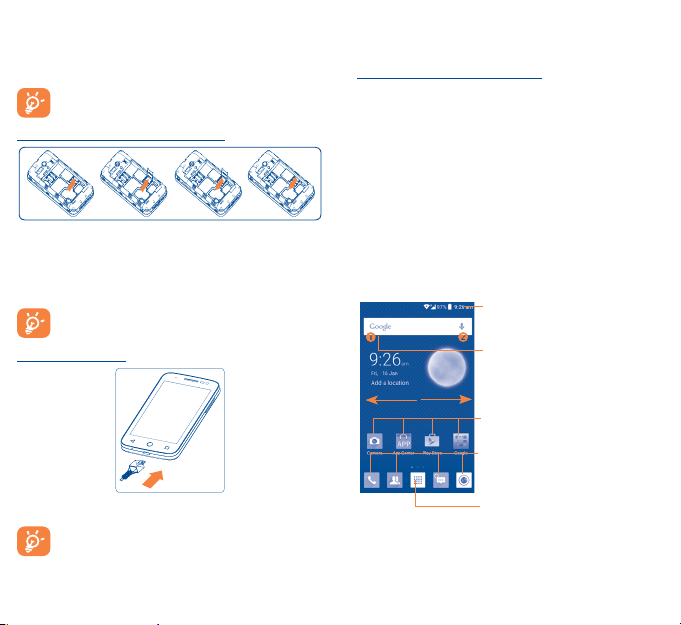

Inserting or removing the SIM card

You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card.

To install SIM card, start by sliding the metal tray to OPEN position,

2 3

Page 4

tray will click and release when unlocked. Place the SIM card into the slot with gold contacts facing downward. Once SIM card is placed into slot, close metal tray, then slide tray to LOCK position, tray will click when locked. To remove SIM card, slide the metal SIM card tray to unlock position and gently slide the SIM card out from slot.

Your phone only supports micro-SIM cards. Do not attempt to insert other SIM types like mini and nano cards; otherwise this may cause damage to your phone.

Installing or removing the microSD card

To install microSD card, start by sliding the metal tray right to OPEN position, tray will click and release when unlocked. Place the microSD card into the slot with gold contacts facing downward. Once microSD card is placed into slot, close metal tray, then slide tray to left. To remove microSD card, slide the metal microSD card tray to unlock position and gently slide the microSD card out from slot.

To avoid data loss and SD card damage, before removing the SD card, please ensure that the SD card is unmounted (Settings\Storage\Unmount SD card).

Charging the battery

Connect the battery charger to your phone and wall socket respectively, the LED indicator will light while charging.

To reduce power consumption and energy waste, when the battery is fully charged, disconnect your charger; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc .

1�2�2 Power on your phone

Hold down the Powe r key until the phone powers on. It will take a few seconds before the screen lights up.

Set up your phone for the first time

The first time you power on the phone, you should set the following options: Input method, Google account, Location, etc.

Even if no SIM card is installed, your phone will still power on and you will be able to connect to a Wi-Fi network, sign into your Google account and use some of the phone's features.

1�2�3 Power off your phone

Hold down the Power key from the Home screen until the phone options appear, select Power off.

1�3 Home screen

You can move all of items (applications, shortcuts, folders and widgets) you use most frequently to your Home screen for quick access. Touch the Home key to switch to the Home screen.

Status bar

• Status/Notification indicators

• Touch and drag down to open

the notification panel.

Search bar

• Touch  to enter text search screen.

• Touch  to enter voice search screen.

Touch an icon to open an application, folder, etc.

Favorite tray applications

• Touch an icon to enter the

application.

• Touch and hold an icon to move or

delete applications.

Touch to enter application list.

The Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view.

4 5

Page 5

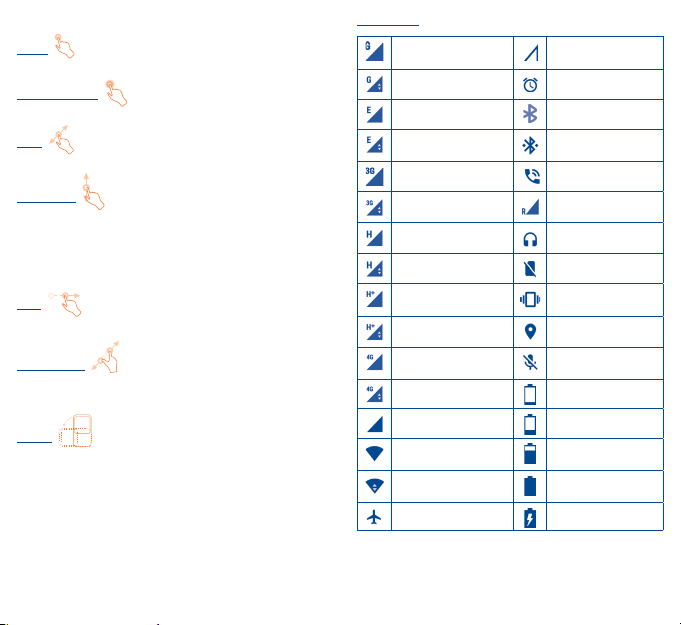

1�3�1 Using the touchscreen

Touch

To access an application, touch it with your finger.

Touch and Hold

Touch and hold the item to enter the available options.

Drag

Place your finger on the screen to drag an object to another location.

Slide/Swipe

Slide the screen up and down to scroll through the applications, images, web pages, etc.

The device also supports one finger zoom (Messaging, Browser, Email, Camera and Gallery) by double tapping the screen then sliding with one finger to zoom in/out).

Flick

Similar to swiping, but flicking makes it moves quicker.

Pinch/Spread

Place your fingers of one hand on the screen surface and draw them apart or together to scale an element on the screen.

Rotate

Automatically change the screen orientation from portrait to landscape by turning the phone sideways to have a better view.

1�3�2 Status bar

From the status bar, you can view both phone status (on the right side) and notification information (on the left side).

Status icons

GPRS connected No signal

GPRS in use Alarm is set

EDGE connected Bluetooth is on

EDGE in use

3G connected

3G in use Roaming

HSPA (3G+) connected Headset connected

HSPA (3G+) in use No SIM card installed

HSPA+ connected Vibrate mode

HSPA+ in use GPS is on

4G connected

4G in use Battery is very low

Signal strength Battery is low

Wi-Fi is on

Connected to a Wi-Fi network

Airplane mode Battery is charging

Connected to a Bluetooth device

Speakerphone is on

Phone microphone is mute

Battery is partially drained

Battery is full

6 7

Page 6

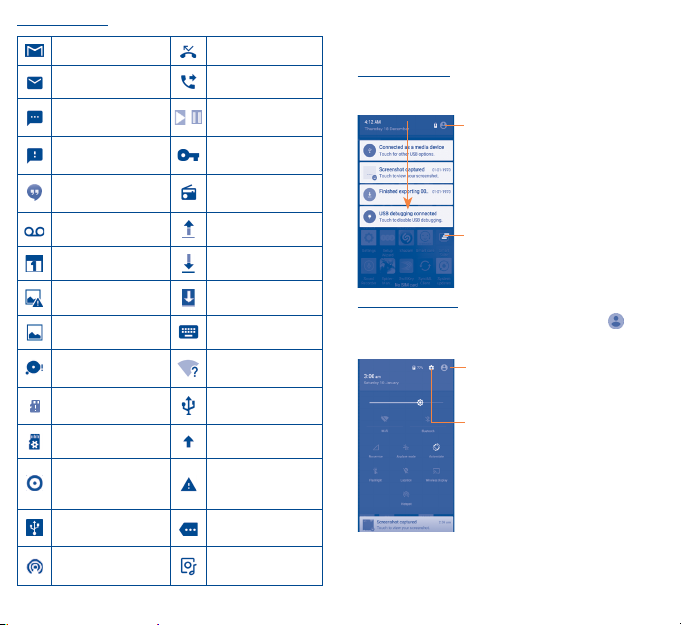

Notification icons

New Gmail message Missed call

New Email message Call forwarding is on

New text or multimedia message

Problem with SMS or MMS delivery

New Google Hangouts message

New voicemail Uploading data

Upcoming event Downloading data

Song is playing/pause

Connected to VPN

Radio is on

Touch and drag down the Status bar to open the Quick setting panel or Notification panel. Touch and drag up to close it. When there are notifications, you can touch them to access notifications directly.

Notification panel

When there are notifications, touch and drag down the Status bar to open the Notification panel to read more detailed information.

Touch to switch to the quick setting panel.

Touch to clear all event–based notifications (other ongoing notifications will remain).

Screenshot error Download finished

Screenshot captured Select input method

MicroSD card is full

No SD card

Preparing SD card System update available

Both USB tethering and portable hotspot are on

USB tethering is on

Portable Wi-Fi hotspot is on

An open Wi-Fi network is available

Phone is connected via USB cable

Carrier data use threshold approaching or exceeded

More notifications are hidden

Audio share

Quick setting panel

Touch and drag down the Notification panel or touch the Quick setting panel. You can enable or disable functions or change modes by touching the icons.

Touch to enter user screen.

Touch to access Settings, where you can set more items.

to open

8 9

Page 7

1�3�3 Search bar

The phone provides a Search function which can be used to locate information within applications, the phone, or the web.

1�3�4 Lock/Unlock your screen

To protect your phone and privacy, you can lock the phone screen by creating a variety of patterns, PIN or password etc.

1�3�5 Personalize your Home screen

Add

You can touch and hold a folder, an application, or a widget to activate the Move mode and drag the item to any Home screen as you prefer.

Reposition

Touch and hold the item to be repositioned to activate the Move mode, drag the item to the desired position and then release. You can move items both on the Home screen and the Favorite tray. Hold the icon on the left or right edge of the screen to drag the item to another Home screen.

Remove

Touch and hold the item to activate the Move mode, drag the item up to the top of the

Create folders

To improve the organization of items (shortcuts or applications) on the Home screen, you can add them to a folder by stacking one item on top of another. To rename a folder, open it and touch the folder’s title bar to input the new name.

Wallpaper customization

Touch and hold an empty space on the home screen, then touch WALLPAPER.

icon, and release after the item turns red.

1�3�6 Volume adjustment

You can set the ringer, media and phone ringtone volumes to your preference by pressing the Volume up/down key, or touching

Settings\Sound & notification\Sound to set the volume.

Text input ��

2�1 Using Onscreen Keyboard

Onscreen Keyboard settings

Touch Settings\Language & input, touch the keyboard you want to setup and a series of settings will become available for your selection.

Adjust the Onscreen Keyboard orientation

Turn the phone sideways or upright to adjust the Onscreen Keyboard orientation. You can also adjust it by changing the settings (Touch

Settings\Display\Auto-rotate screen).

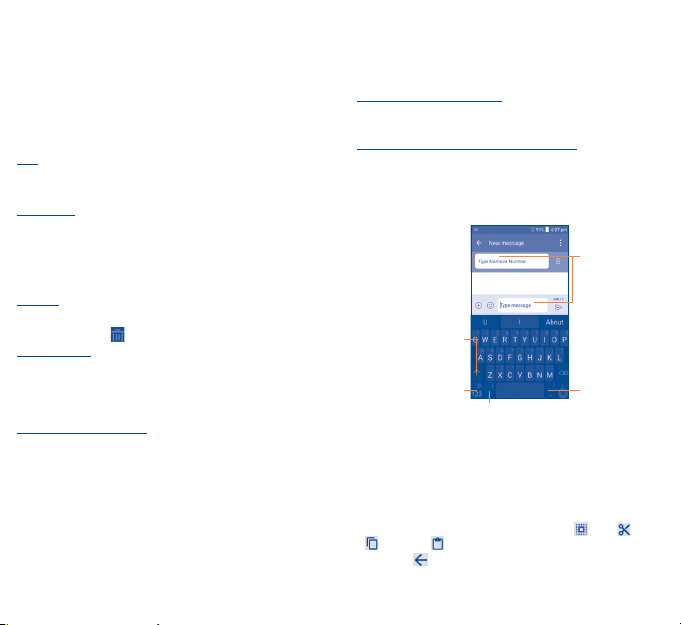

2�1�1 Android keyboard

Touch to enter text or numbers.

Touch to switch

"abc/Abc" mode; Touch

& hold to switch "abc/

ABC" mode.

Touch to switch

between symbol and

numeric keyboard.

Touch & hold to enter voice input.

Touch & hold to select symbols.

2�2 Text editing

You can edit the text you have entered.

• Touch and hold or double-tap within the text you would like

to edit.

• Drag the tabs to change the highlighted selection.

• The following options will show: Select all

and Paste .

• Touch the

icon to go back without any action.

, Cut , Copy

10 11

Page 8

Phone call ��

3�1 Placing a call

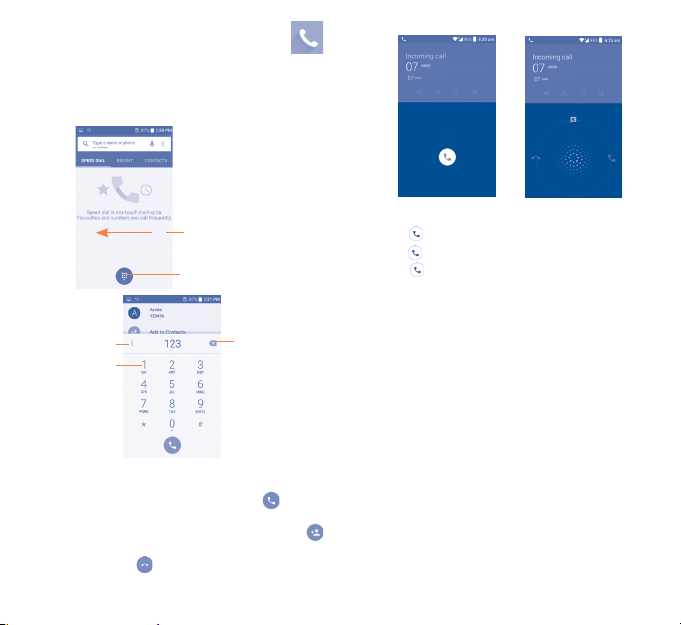

You can easily place a call using Phone. Touch the Application tab from the Home screen and select Phone.

3�2 Answering or rejecting a call

When you receive a call:

Slide to access the

RECENT and CONTACTS.

Touch to display keyboard

Touch to get

more options.

Touch and

hold to access

voicemail.

Enter the desired number from the keyboard directly or select a contact from CONTACTS or RECENT by sliding or touching tabs, then choose your target SIM card and touch the call.

The number you entered can be saved to Contacts by touching and then touching Create new contact.

To hang up a call, touch settings\Power key ends call option is activated).

12 13

or the Powe r key (when the Call

Touch to delete digts.

to place

• Slide the

To mute the ringtone volume of an incoming call, press the Volume up/down key or turn the phone over (when the Settings\ Gestures\Turn over to mute option is activated).

3�3 Consulting your call memory

You can access your call memory by touching RECENT tab from the Phone screen to view Missed calls, Outgoing calls and Incoming calls.

message.

icon to the right to answer;

icon to the left to reject;

icon upwards to reject the call by sending a preset

Page 9

Contacts ��

You can view and create contacts on your phone and synchronize these with your Gmail contacts or other applications on the web or on your phone.

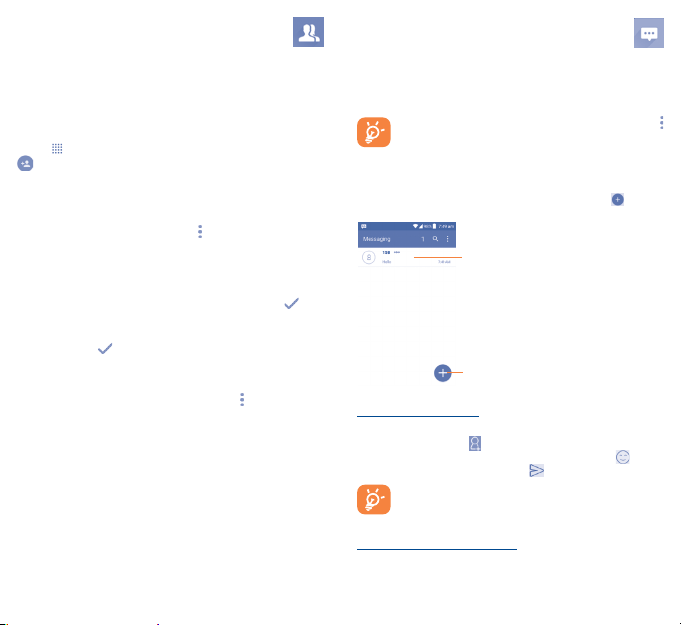

4�1 Adding a contact

Touch on the Home screen, select Contacts, then touch the

icon in the contacts list to create a new contact.

4�2 Importing, exporting and sharing

contacts

From the Contacts screen, touch the icon to open the options menu, touch Import/export, then select Import from SIM card,

Import from storage, Export to storage or Share visible contacts.

To import/export a single contact from/to your SIM card, select the contact you want to import/export, and touch the to confirm.

To import/export all contacts from/to your SIM card, touch Select all and touch the

You can share a single contact or contacts with others by sending the contact's vCard to them via Bluetooth, Gmail, etc.

Touch a contact you want to share, touch the from the contact details screen, and then select the application to perform this action.

icon to confirm.

icon

icon and Share

4�3 Synchronizing contacts in multiple

accounts

Contacts, data or other information can be synchronized from multiple accounts, depending on the applications installed on your phone.

14 15

Messaging ��

You can create, edit and receive SMS and MMS with this phone.

To access this feature, touch the Application tab from the Home screen, then select Messaging.

To check messages stored in your SIM card, touch the icon from the Messaging screen, then touch Settings\

Manage SIM card messages.

5�1 Write message

On the message list screen, touch the new message icon to write text/multimedia messages.

• Touch to view the whole message thread.

• Touch & hold to activate delete mode.

Touch to create a new message.

Sending a text message

Enter the cellphone number of the recipient in the Type Name or Number bar or touch message bar to enter the text of the message. Touch the

insert emotions. When finished, touch to send the text message .

An SMS of more than 160 characters will be charged as several SMS. Specific letters (accent) will also increase the size of the SMS. This may cause multiple SMS to be sent to your recipient.

Sending a multimedia message

MMS enables you to send video clips, images, photos, animations, slides, and sounds to other compatible phones and e-mail addresses.

to add recipients and touch the Type

icon to

Page 10

An SMS will be converted to MMS automatically when media files (image, video, audio, slides, etc.) are attached or Subject or email addresses added.

Email ��

Besides your Gmail account, you can also set-up external POP3 or IMAP email accounts in your phone.

To access this feature, touch the Application tab from the Home screen, then select Email.

An email setup wizard will guide you through the steps to set-up an email account.

• Enter the email address and password of the account you want

to set-up.

• Touch

. If the account you entered is not provided by your service provider in the phone, you will be prompted to go to the email account settings screen to enter settings manually. Alternatively, you can touch MANUAL SETUP to directly enter the incoming and outgoing settings for the email account you are setting up.

• Enter the account name and display name in outgoing emails.

• To add another email account, you can touch the

Settings. Touch Add account to create.

To create and send emails

• Touch the

• Enter recipient(s) email address (es) in the To field.

• If necessary, touch the

add a copy or a blind carbon copy to the message.

• Enter the subject and the content of the message.

• Touch

• Finally, touch

• If you do not want to send the mail right away, you can touch the

icon and Save draft keys or touch the Back key to save a copy.

icon from the Inbox screen.

icon beside To field to add Cc/Bcc to

to add an attachment.

to send�

icon and

Getting connected ��

To connect to the Internet with this phone, you can use GPRS/ EDGE/3G/4G networks or Wi-Fi, whichever is most convenient.

7�1 Connecting to the Internet

7�1�1 GPRS/EDGE/3G/4G

The first time you turn on your phone with your SIM card inserted, it will automatically configure your network service: GPRS, EDGE, 3G or 4G.

To check the network connection you are using, touch Settings\

More\Mobile networks, and touch Access Point Names or Network operators.

7�1�2 Wi-Fi

Using Wi-Fi, you can connect to the Internet when your phone is within range of a wireless network. Wi-Fi can be used on your phone even without a SIM card inserted.

To turn Wi-Fi on and connect to a wireless network

• Touch Settings\Wi-Fi.

• Touch the switch

• The detailed information of detected Wi-Fi networks is displayed in

the Wi-Fi networks section.

• Touch a Wi-Fi network to connect. If the network you selected is

secured, you are required to enter a password or other credentials (you can contact the network operator for details). When finished, touch CONNECT.

to turn on/off Wi-Fi.

16 17

Page 11

All data you have downloaded is stored in the File Manager. Here

7�2 Browser ��

Using the Browser, you can enjoy surfing the Web.

To access this feature, touch the Application tab from the Home screen, then select Browser.

To go to a web page

On the Browser screen, touch the URL box at the top, enter the address of the web page, and then confirm.

7�3 Connecting to a computer

With the USB cable, you can transfer media files and other files between your microSD card/internal storage and the computer.

To connect/disconnect your phone to the computer:

To connect:

• Use the USB cable that came with your phone to connect

the phone to a USB port on your computer. You will receive a notification that the USB is connected.

• Open the Notification panel and touch Connected as a media

device, then make a selection in the dialog that opens to confirm

that you want to transfer files.

To disconnect (for mass storage):

• Open the Notification panel and touch Connected as a media

device,

• Touch to cancel Media device (MTP) in the dialog that opens.

Before using MTP, make sure that the driver (Windows Media Player 11 or higher version) has been installed.

To locate data you have transferred or downloaded in your microSD card:

• Touch

to open the applications list.

• Touch File Manager.

(1)

You can change your default connection mode via Settings\Storage\

touch the icon\USB computer connection. Some operations

which are available under mass storage are not usable under MTP and PTP.

(1)

you can view media files (videos, photos, music and others), rename files, install applications into your phone, etc.

7�4 Sharing your phone's mobile data

connection

You can share your phone's mobile data connection with a single computer via USB cable (USB tethering) or with up to eight devices at once by turning your phone into a portable Wi-Fi hotspot.

To turn on USB tethering or Portable Wi-Fi hotspot

• Touch Settings\More\Tethering & portable hotspot.

• Touch the switch

hotspot to activate this function.

These functions may incur additional network charges from your network operator. Extra fees may also be charged in roaming areas.

of USB tethering or Portable Wi-Fi

18 19

Page 12

Find my location using

GPS satellites ��

To activate your phone’s global positioning system (GPS) satellite receiver:

• Touch Settings\Location.

• Touch the switch

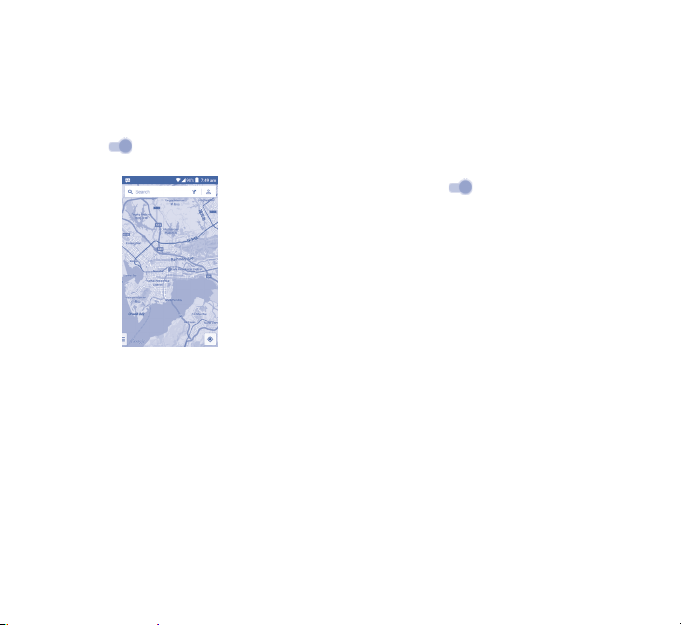

You can then open Maps to find your location:

to turn on Google's location service.

Data backup ��

This phone enables you to back up your phone’s settings and other application data to Google Servers, with your Google Account.

If you replace your phone, the settings and data you’ve backed up are restored onto the new phone the first time you sign in with your Google Account.

To activate this function:

• Touch Settings\Backup & reset

• Touch the switch

When this function is activated, a wide variety of settings and data is backed up, including your Wi-Fi passwords, bookmarks, a list of the applications you’ve installed, the words you’ve added to the dictionary used by the onscreen keyboard, and most of the settings that you configure with the Settings application. If you deactivate this option, you stop backing up your settings, and any existing backups are deleted from Google Servers.

of Back up my data.

Use your phone’s GPS satellite receiver to pinpoint your location within an accuracy as close as several meters (“street level”). The process of accessing the GPS satellite and setting your phone's precise location for the first time will require up to 5 minutes. You will need to stand in a place with a clear view of the sky and avoid moving. After this, GPS will only need 20-40 seconds to identify your precise location.

20 21

To activate factory data reset:

• Touch Settings\Backup and reset\Factory data reset�

• Touch the RESET PHONE.

Resetting the phone will erase all of your personal data from internal phone storage, including information about your Google Account, any other accounts, your system and application settings, and any downloaded applications. If you reset the phone in this way, you’re prompted to re-enter the same kind of information as when you first started Android.

When you are unable to power on your cellphone, you can perform a factory data reset by pressing the Power key and the Volume up key at the same time until the screen lights up.

Factory data reset

Page 13

Applications &

Internal storage ��

11�1 Applications

With this phone, some built-in Google applications and other third party applications are available for your convenience.

With the built-in applications, you can

• Communicate with friends.

• Exchange messages or emails with friends.

• Track your location, view traffic situations, search for locations and

get navigation information to your destination.

• Download more applications from the Google Play Store and

more.

For more information about these applications, please check the online user manual at: www.alcatelonetouch.com.

11�2 Internal storage

Touch Settings\Storage to display the amount of internal phone storage used by the operating system, its components, applications (including those you downloaded), permanent and temporary data.

If a warning message comes up saying that phone memory is limited, you are required to free up space by deleting some unwanted applications, downloaded files, etc.

22 23

You can download software upgrades for free from the website (www.alcatelonetouch.com).

12�1 Smart Suite

Smart Suite includes:

• Contacts

Allows you back up contact entries so that you don't have to worry about losing, breaking, switching phones or changing service providers.

• Messages

Free you from painstakingly inputting text on the keypads. All of your messages are easily accessible and well-organized.

• Calendar

Allows you to sync events freely between your phone and Outlook and create and edit new events from a PC.

• Photos

Allows you to easily import photos from your PC or the handset and organize them in different albums for better management.

• Videos

Allows you to insert video files from your PC for playback and then upload them to a handset folder.

• Music

Quickly search for your favorite songs on your PC, manage the ultimate Library, and enjoy the easiest digital jukebox in your own way.

• Application

Allows you to import downloaded mobile applications and have them installed into your handset upon synchronization.

• Backup

Allows you to back up your contacts, messages, calendar, photos and applications, then import the backup files to your phone.

Making the most of your phone ��

Page 14

Supported Operating Systems

Windows XP/Vista/Windows 7/Windows 8.

12�2 Upgrade

You can use the Mobile Upgrade tool or FOTA Upgrade tool to update your phone's software.

12�2�1 Mobile Upgrade

Download Mobile Upgrade from the ALCATEL ONETOUCH website (www.alcatelonetouch.com) and install it on your PC. Launch the tool and update your phone by following the step by step instructions (refer to the User Guide provided together with the tool). Your phone’s software will now have the latest software.

All personal information will be permanently lost following the update process. We recommend you backup your personal data using Smart Suite before upgrading.

12�2�2 FOTA Upgrade

Using the FOTA Upgrade tool you can update your phone's software.

To access System updates, touch Settings\About phone\ System updates. Touch Check for updates, and the phone will search for the latest software. If you want to update the system, please touch Download, and after it is done please touch Install to complete the upgrade. Now your phone's software will be the latest version.

You should turn on data connection before searching for updates. Settings for auto-check intervals are also available once you restart the phone.

If you have chosen auto-check, dialog will pop up when the system discovers the new version, you can choose download or ignore, the notification also will show in status bar.

Safety and use ��

We recommend that you read this chapter carefully before using your mobile phone. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein.

• TRAFFIC SAFETY:

Given that studies show that using a mobile phone while driving a vehicle constitutes a real risk, even when the hands-free kit is used (car kit, headset...), drivers are requested to refrain from using their mobile phone when the vehicle is not parked. Check the laws and regulations on the use of wireless mobile phones and their accessories in the areas where you drive. Always obey them. The use of these devices may be prohibited or restricted in certain areas.

When driving, do not use your mobile phone and headphone to listen to music or to the radio. Using a headphone can be dangerous and forbidden in some areas. When switched on, your mobile phone emits electromagnetic waves that can interfere with the vehicle’s electronic systems such as ABS anti-lock brakes or airbags. To ensure that there is no problem:

- do not place your mobile phone on top of the dashboard or within an airbag deployment area,

- check with your car dealer or the car manufacturer to make sure that the car’s electronic devices are shielded from mobile phone RF energy.

• CONDITIONS OF USE:

You are advised to switch off the mobile phone from time to time to optimize its performance. Remember to abide by local authority rules of mobile phone use on aircrafts. Operational Warnings: Obey all posted signs when using mobile devices in public areas. Follow Instructions to Avoid Interference Problems: Turn off your mobile device in any location where posted notices instruct you to do so. In an aircraft, turn off your mobile device whenever instructed to do so by airline staff. If your mobile device offers an airplane mode or similar feature, consult airline staff about using it in flight. Switch the mobile phone off when you are in health care facilities, except in designated areas. As with many other types of equipment now in regular use, mobile phones can interfere with other electrical or electronic devices, or equipment using radio frequency. Switch the mobile phone off when you are near gas or flammable liquids. Strictly obey all signs and instructions posted in a fuel depot, gas station, or chemical plant, or in any potentially explosive atmosphere.

24 25

Page 15

When the mobile phone is switched on, it should be kept at least 15 cm from any medical device such as a pacemaker, a hearing aid or insulin pump. In particular when using the mobile phone you should hold it against the ear on the opposite side to the device, if any. Read and follow the directions from the manufacturer of your implantable medical device. If you have any questions about using your mobile device with your implantable medical device, consult your healthcare provider. To avoid hearing impairment, answer the call before holding your mobile phone to your ear. Also move the handset away from your ear while using the “hands-free” option because the amplified volume might cause hearing damage. It is recommended to have proper supervision while small children use your mobile phone. Please note that your phone is a unibody device, the back cover and battery are not removable. Do not attempt to disassemble your phone. If you disassemble your phone the warranty will not apply. Also disassembling the phone may damage the battery, and may cause leakage of substances that could create an allergic reaction. Always handle your mobile phone with care and keep it in a clean and dust-free place. Do not allow your mobile phone to be exposed to adverse weather or environmental conditions (moisture, humidity, rain, infiltration of liquids, dust, sea air, etc.). The manufacturer’s recommended operating temperature range is -10°C (14°F) to +55°C (131°F) (the max value depends on device, materials and housing paint/texture). Over 55°C (131°F) the legibility of the mobile phone’s display may be impaired, though this is temporary and not serious. Do not open or attempt to repair your mobile phone yourself. Do not drop, throw or try to bend your mobile phone. Do not use the mobile phone if the glass made screen, is damaged, cracked or broken to avoid any injury. Do not paint it. Use only batteries, battery chargers, and accessories which are recommended by TCT Mobile Limited and its affiliates and are compatible with your mobile phone model.TCT Mobile Limited and its affiliates disclaim any liability for damage caused by the use of other chargers or batteries. Your mobile phone should not be disposed of in a municipal waste. Please check local regulations for disposal of electronic products. Remember to make back-up copies or keep a written record of all important information stored in your mobile phone. Some people may suffer epileptic seizures or blackouts when exposed to flashing lights, or when playing video games. These seizures or blackouts may occur even if a person never had a previous seizure or blackout. If you have experienced seizures or blackouts, or if you have a family history of such occurrences, please consult your doctor before playing video games on your mobile

phone or enabling a flashing-lights feature on your mobile phone. Parents should monitor their children’s use of video games or other features that incorporate flashing lights on the mobile phones. All persons should discontinue use and consult a doctor if any of the following symptoms occur: convulsion, eye or muscle twitching, loss of awareness, involuntary movements, or disorientation. To limit the likelihood of such symptoms, please take the following safety precautions:

- Play at the farthest distance possible from the screen.

When you play games on your mobile phone, you may experience occasional discomfort in your hands, arms, shoulders, neck, or other parts of your body. Follow these instructions to avoid problems such as tendinitis, carpal tunnel syndrome, or other musculoskeletal disorders:

- Take a minimum of a 15-minute break every hour of game playing.

- If your hands, wrists, or arms become tired or sore while playing, stop and rest for several hours before playing again.

- If you continue to have sore hands, wrists, or arms during or after playing, stop the game and see a doctor.

PROTECT YOUR HEARING

To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use.

• PRIVACY:

Please note that you must respect the laws and regulations in force in your jurisdiction or other jurisdiction(s) where you will use your mobile phone regarding taking photographs and recording sounds with your mobile phone. Pursuant to such laws and regulations, it may be strictly forbidden to take photographs and/or to record the voices of other people or any of their personal attributes, and reproduce or distribute them, as this may be considered to be an invasion of privacy. It is the user’s sole responsibility to ensure that prior authorization be obtained, if necessary, in order to record private or confidential conversations or take a photograph of another person; the manufacturer, the seller or vendor of your mobile phone (including the operator) disclaim any liability which may result from the improper use of the mobile phone.

• BATTERY AND ACCESSORIES:

Please note your phone is a unibody device, the back cover and battery are not removable. Observe the following precautions:

- Do not attempt to open the back cover,

- Do not attempt to eject, replace and open battery,

- Do not punctuate the back cover of your phone,

- Do not burn or dispose of your phone in household rubbish or

store it at temperature above 60°C.

26 27

Page 16

Phone and battery as a unibody device must be disposed of in accordance with locally applicable environmental regulations.

This symbol on your telephone, the battery and the accessories means that these products must be taken to collection points at the end of their life:

- Municipal waste disposal centers with specific bins for these items of equipment

- Collection bins at points of sale.

They will then be recycled, preventing substances being disposed of in the environment, so that their components can be reused.

In European Union countries:

These collection points are accessible free of charge. All products with this sign must be brought to these collection points.

In non European Union jurisdictions:

Items of equipment with this symbol are not be thrown into ordinary bins if your jurisdiction or your region has suitable recycling and collection facilities; instead they are to be taken to collection points for them to be recycled. In the United States you may learn more about CTIA’s Recycling Program at www.recyclewirelessphones.com CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

• CHARGERS

Home A.C./ Travel chargers will operate within the temperature range of: 0°C (32°F) to 40°C (104°F). The chargers designed for your mobile phone meet with the standard for safety of information technology equipment and office equipment use. Due to different applicable electrical specifications, a charger you purchased in one jurisdiction may not work in another jurisdiction. They should be used for this purpose only. Characteristics of power supply (depending on the country): Travel charger: 100-240 V, 50/60 Hz, 150 mA Output: 5 V, 550 mA Battery: Lithium 2000 mAh

• RADIO WAVES:

THIS MOBILE PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your mobile phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio-frequency (RF) energy. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. These guidelines include a substantial safety margin designed to ensure the safety of all persons, regardless of age and health. The exposure standard for mobile phones employs a unit of

measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by public authorities such as the Federal Communications Commission of the US Government (FCC), or by Industry Canada, is 1.6 W/kg averaged over 1 gram of body tissue. Tests for SAR are conducted using standard operating positions with the mobile phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the mobile phone while operating can be well below the maximum value. This is because the mobile phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output of the mobile phone. Before a mobile phone model is available for sale to the public, compliance with national regulations and standards must be shown. The highest SAR value for this model mobile phone when tested is 1.094 W/Kg for use at the ear and 1.199 W/Kg for use close to the body. While there may be differences between the SAR levels of various mobile phones and at various positions, they all meet the government requirement for RF exposure. For bodyworn operation, the mobile phone meets FCC RF exposure guidelines provided that it is used with a non-metallic accessory with the handset at least 10 mm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Additional information on SAR can be found on the Cellular Telecommunications & Internet Association (CTIA) Web site: http://www.phonefacts.net The World Health Organization (WHO) considers that present scientific information does not indicate the need for any special precautions for use of mobile phones. If individuals are concerned, they might choose to limit their own or their children’s RF exposure by limiting the length of calls, or using “hands-free” devices to keep mobile phones away from the head and body. (fact sheet n°193). Additional WHO information about electromagnetic fields and public health are available on the following website: http://www. who.int/peh-emf. Note: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

28 29

Page 17

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/ TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For the receiver devices associated with the operation of a licensed radio service (e.g. FM broadcast), they bear the following statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. For other devices, they bear the following statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference (2) this device must accept any interference received, including interference that may cause undesired operation. Your mobile phone is equipped with a built-in antenna. For optimal operation, you should avoid touching it or degrading it. As mobile devices offer a range of functions, they can be used in positions other than against your ear. In such circumstances the device will be compliant with the guidelines when used with headset or usb data cable. If you are using another accessory ensure that whatever product is used is free of any metal and that it positions the mobile phone at least 10 mm away from the body.

• LICENCES

microSD Logo is a trademark.

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by TCT Mobile Ltd. and its affiliates is under license. Other trademarks and trade names are those of their respective owners.

ALCATEL ONETOUCH 4045A

Bluetooth Declaration ID XXXXXX

The Wi-Fi Logo is a certification mark of the Wi-Fi Alliance.

Google, the Google logo, Android, the Android logo, Google Search Google Play Store, Google LatitudeTM and Hangouts are trademarks of Google Inc.

The Android robot is reproduced or modified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License (the text will show when you touch and hold Google legal in Settings\About phone\ Legal information). You have purchased a product which uses the open source (http://opensource.org/) programs mtd, msdosfs, netfilter/iptables and initrd in object code and other open source programs licensed under the GNU General Public License and Apache License. We will provide you with a complete copy of the corresponding source codes upon request within a period of three years from the distribution of the product by TCT. You may download the source codes from http://sourceforge.net/ projects/alcatel/files/. The provision of the source code is free of charge from internet.

Hearing Aid Compatibility

Your mobile phone is rated: «For Hearing Aid», to assist hearing device users in finding mobile phones that may be compatible with their hearing devices. This device is HAC M4 compatible. Reference ANSI C63.19-2011. For more information please visit our website http://www. alcatelonetouch.com

, Google MapsTM, GmailTM, YouTube,

(1)

FCC ID: RAD536

(1)

May not be available in all countries.

30 31

Page 18

General information ��

• Internet address: www.alcatelonetouch.com

• Hot Line Number: see “TCT Mobile Services” leaflet or go to

our website.

• Address: Room 1910-12A, Tower 3, China HK City, 33 Canton

Road, Tsimshatsui, Kowloon, Hong Kong

• Eletronic labeling (Elabel) path: Touch Settings/Regulatory

& Safety or input "*#07#", you can find more information about

(1)

labeling.

On our website, you will find our FAQ (Frequently Asked Questions) section. You can also contact us by e-mail to ask any questions you may have. An electronic version of this user guide is available in English and other languages according to availability on our server:

www�alcatelonetouch�com

Your telephone is a transceiver that operates on GSM in quad-band (850/900/1900/2100MHz), LTE in six-band (B1/B2/B3/B4/B7/B28).

This equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The entire copy of the Declaration of Conformity for your telephone can be obtained through our website: www.alcatelonetouch.com.

Protection against theft

Your telephone is identified by an IMEI (phone serial number) shown on the packaging label and in the phone’s memory. We recommend that you note the number the first time you use your telephone by entering * # 0 6 # and keep it in a safe place. It may be requested by the police or your operator if your telephone is stolen. This number allows your mobile telephone to be blocked preventing a third person from using it, even with a different SIM card.

(1)

It depends on countries.

(2)

Contact your network operator to check service availability.

(2)

TCT Mobile (US), Inc� Warranty ��

TCT Mobile (US), Inc. warrants to the original retail purchaser of this wireless device that should this product or part thereof during normal consumer usage and condition be proven to be defective in material or workmanship that results in product failure within the first twelve (12) months from the date of purchase as shown on your original sales receipt from an authorized sales agent. Such defect(s) will be repaired or replaced (with new or rebuilt parts) at the company’s option without charge for parts or labor directly related to the defect(s). Batteries, power adapters, and other accessories sold as in box items are also warranted against defects and workmanship that results in product failure within the first six (6) months period from the date of purchase as shown on your original sales receipt. Such defect(s) will be repaired or replaced (with new or rebuilt parts) at the company’s option without charge for parts or labor directly related to the defect(s). The limited warranty for your wireless device will be voided if any of the following conditions occur:

• Non-compliance with the instructions for use or installation, or with

technical and safety standards applicable in the geographical area where your phone is used;

• Connection to any equipment not supplied or not recommended by

TCT Mobile (US), Inc.;

• Modification or repair performed by individuals not authorized by

TCT Mobile (US), Inc. or its affiliates;

• Changes to the device operating system by the user or third party

applications;

• Acts of god such as inclement weather, lightning, power surges, fire,

humidity, infiltration of liquids or foods, chemical products, download of files, crash, high voltage, corrosion, oxidation;

• Removal or altering of the wireless device’s event labels or serial

numbers (IMEI);

• Damage from exposure to water or other liquids, moisture,

humidity, excessive temperatures or extreme environmental conditions, sand, excess dust and any condition outside the operating guidelines;

• Defects in appearance, cosmetic, decorative or structural items such

as framing and non-operative parts;

• Damage as result of physical abuse regardless of cause.

32 33

Page 19

There are no express warranties, whether written, oral or implied, other than this printed limited warranty or the mandatory warranty provided by your jurisdiction. In no event shall TCT Mobile (US), Inc. or any of its affiliates be liable for incidental or consequential damages of any nature whatsoever, including but not limited to commercial loss, to the full extent those damages can be disclaimed by law. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitation of the duration of implied warranties, so the preceding limitations or exclusions may not apply to you. How to obtain Support: Contact the customer care center by calling (877-702-3444) or going to (http://www.alcatelonetouch.com/usa/). We have placed many self-help tools that may help you to isolate the problem and eliminate the need to send your wireless device in for service. In the case that your wireless device is no longer covered by this limited warranty due to time or condition, you may utilize our out of warranty repair options. How to obtain Hardware Service within the terms of this warranty: Create a user profile (alcatel.finetw.com) and then create an RMA for the defective device. Ship the device with a copy of the original proof of purchase (e.g. original copy of the dated bill of sale, invoice) with the owner’s return address (No PO Boxes accepted), wireless carrier’s name, alternate daytime phone number, and email address with a complete problem description. Only ship the device. Do not ship the SIM card, memory cards, or any other accessories such as the power adapter. You must properly package and ship the wireless device to the repair center. TCT Mobile (US), Inc. is not responsible for devices that do not arrive at the service center or are damaged in transit. Insurance is recommended with proof of delivery. Upon receipt, the service center will verify the warranty conditions, repair, and return your device to the address provided in the RMA. Check the warranty repair status by going online with the RMA number on web portal. In no event shall TCT Mobile Limited or any of its affiliates be liable for indirect, incidental or consequential damages of any nature whatsoever, including but not limited commercial or financial loss or damage, loss of data or loss of image to the full extent those damages can be disclaimed by law. Some countries/states do not allow the exclusion or limitation of indirect, incidental or consequential damages, or limitation of the duration of implied warranties, so the preceding limitations or exclusions may not apply to you.

Troubleshooting��

Before contacting the service center, you are advised to follow the instructions below:

• You are advised to fully charge (

operation.

• Avoid storing large amounts of data in your phone as this may

affect its performance.

• Use Factory data reset and the upgrade tool to perform phone

formatting or software upgrading (to reset factory data, hold down the Power key and the Volume up key at the same time). ALL User phone data: contacts, photos, messages, files, and downloaded applications will be permanently lost. It is strongly advised to fully backup the phone data and profile via Smart Suite before doing formatting or upgrading.

and carry out the following checks:

My phone cannot be switched on or is frozen

• When the phone cannot be switched on, charge for at least 20

minutes to ensure the minimum battery power needed, then try to switch on again.

• When the phone falls into a loop during power on-off animation

and the user interface cannot be accessed, press and hold the Volume down key to enter Safe Mode. This eliminates any abnormal OS booting issues caused by 3rd party APKs.

• If neither method is effective, please reset the phone using the

Power key and the Volume up key, (holding both together).

My phone has not responded for several minutes

• Restart your phone by pressing and holding the Powe r key for

more than 9s.

My phone turns off by itself

• Check that your screen is locked when you are not using your

phone, and make sure the Powe r key is not mis-contacted due to unlocked screen.

• Check the battery charge level.

My phone cannot charge properly

• Make sure you are using the ALC ATEL ONETOUCH charger

included in the box.

• Make sure that your battery is not completely discharged; if the

battery power is empty for a long time, it may take around 20 minutes to display the battery charger indicator on the screen.

) the battery for optimal

34 35

Page 20

• Make sure charging is carried out under normal conditions (0°C

to +40°C).

• When abroad, check that the voltage input is compatible.

My phone cannot connect to a network or “No service” is displayed

• Try connecting in another location.

• Verify the network coverage with your operator.

• Check with your operator that your SIM card is valid.

• Try selecting the available network(s) manually.

• Try connecting at a later time if the network is overloaded.

My phone cannot connect to the Internet

• Check that the IMEI number (press *#06#) is the same as the one

printed on your warranty card or box.

• Make sure that the internet access service of your SIM card is

available.

• Check your phone's Internet connecting settings.

• Make sure you are in a place with network coverage.

• Try connecting at a later time or another location.

Invalid SIM card

• Make sure the SIM card has been correctly inserted (see

"Inserting or removing the SIM card").

• Make sure the chip on your SIM card is not damaged or scratched.

• Make sure the service of your SIM card is available.

Unable to make outgoing calls

• Make sure you have dialed a valid number and have touched

• For international calls, check the country and area codes.

• Make sure your phone is connected to a network, and the network

is not overloaded or unavailable.

• Check your subscription status with your operator (credit, SIM

card valid, etc.).

• Make sure you have not barred outgoing calls.

• Make sure that your phone is not in flight mode.

Unable to receive incoming calls

• Make sure your phone is switched on and connected to a network

(check for overloaded or unavailable network).

• Check your subscription status with your operator (credit, SIM

card valid, etc.).

• Make sure you have not forwarded incoming calls.

• Make sure that you have not barred certain calls.

• Make sure that your phone is not in flight mode.

The caller’s name/number does not appear when a call is received

• Check that you have subscribed to this service with your operator.

• Your caller has concealed his/her name or number.

I cannot find my contacts

• Make sure your SIM card is not broken.

• Make sure your SIM card is inserted properly.

• Import all contacts stored in SIM card to phone.

The sound quality of the calls is poor

• You can adjust the volume during a call by pressing the Volume

Up/Down key.

• Check the network strength

• Make sure that the receiver, connector or speaker on your phone

is clean.

I am unable to use the features described in the manual

• Check with your operator to make sure that your subscription

includes this service.

• Make sure this feature does not require an ALCATEL ONETOUCH

accessory.

When I select a number from my contacts, the number cannot be dialed

• Make sure that you have correctly recorded the number in your

file.

• Make sure that you have selected the country prefix when calling

a foreign country.

I am unable to add a contact in my contacts

• Make sure that your SIM card contacts are not full; delete some

files or save the files in the phone contacts (i.e. your professional or personal directories).

My callers are unable to leave messages on my voicemail

• Contact your network operator to check service availability.

I cannot access my voicemail

• Make sure your operator’s voicemail number is correctly entered

in "Voicemail number".

• Try later if the network is busy.

I am unable to send and receive MMS

• Check your phone memory availability as it might be full.

• Contact your network operator to check service availability and

check MMS parameters.

36 37

Page 21

• Verify the server center number or your MMS profile with your

operator.

• The server center may be busy, tr y again later.

SIM card PIN locked

• Contact your network operator to obtain the PUK code (Personal

Unblocking Key).

I am unable to connect my phone to my computer

• Install Smart Suite.

• Check that your USB driver is installed properly.

• Open the Notification panel to check if the Smart Suite Agent

has activated.

• Check that your computer meets the requirements for Smart

Suite Installation.

• Make sure that you’re using the cable included in the box.

I am unable to download new files

• Make sure there is sufficient phone memory for your download.

• Select the microSD card as the location to store downloaded files.

• Check your subscription status with your operator.

The phone cannot be detected by others via Bluetooth

• Make sure that Bluetooth is turned on and your phone is visible

to other users.

• Make sure that the two phones are within Bluetooth’s detection

range.

How to make your battery last longer

• Make sure you follow the complete charge time (minimum 3

hours).

• After a partial charge, the battery level indicator may not be exact.

Wait for at least 20 minutes after removing the charger to obtain an exact indication.

• Adjust the brightness of screen as appropriate.

• Extend the email auto-check interval for as long as possible.

• Update news and weather information on manual demand, or

increase their auto-check interval.

• Exit background-running applications if they are not being used

for a long time.

• Deactivate Bluetooth, Wi-Fi, or GPS when not in use.

The phone will become warm following prolonged calls, game playing, internet surfing or running other complex applications�

• This heating is a normal consequence of the CPU handling

excessive data. Ending above actions will make your phone return to normal temperatures.

ALCATEL is a trademark of Alcatel-Lucent

and is used under license by

TCT Mobile Ltd.

TCT Mobile Ltd. reserves

the right to alter material

or technical specification

without prior notice.

All "Signature" ringtones embedded in this phone have been composed, arranged and mixed by NU TROPIC (Amar Kabouche).

38 39
