ONE TOUCH Y600A0
Quick Start Guide
CJB17K0ALAAA
Page 2
Safety and use __________
Do not attempt to disassemble your device or its accessories. Only qualified personnel are allowed to service or repair
We recommend that you read this chapter carefully before using this device. The manufacturer disclaims any liability for damage, which may
result as a consequence of improper use of this device or of use contrary to the instructions contained herein.
Do not switch on your device when its use is prohibited or when using the device may cause interference or danger.
Follow rules or regulations in hospitals and health care facilities. Switch off your device near medical apparatus.
Switch off your device in an aircraft. The device may cause interference to aircraft control signals.
Switch off your device near high-precis ion electronic devices. The device may affect the performance of these devices.
the device.
1
Page 3
Do not place your device or its accessories in containers with a str ong ele ctr o mag neti c field .
Do not place magnetic storage media near your device. Radiation from the device may erase the information stored on
them.
Do not subject your device to high temperatures or use it in a place with flammable gas such as a petrol station.
Keep your device and its accessories away from children. Do not allow children to use your device without guidance.
Only use approved batteries and chargers to avoid the risk of explosion.
Observe the laws or regulations on device use. Respect others’ privacy and legal rights when using your device.
It is recommended that the equipment only be used in an environment where the temperature is between -10℃ and 50℃ and hum idity is
between 10% to 90%.
2
Page 4
1. Overview
ONE TOUCH Y600 is a portable wireless router, providing a simple way to share 3G with any Wi-Fi embedded device.
1.1 Package contents

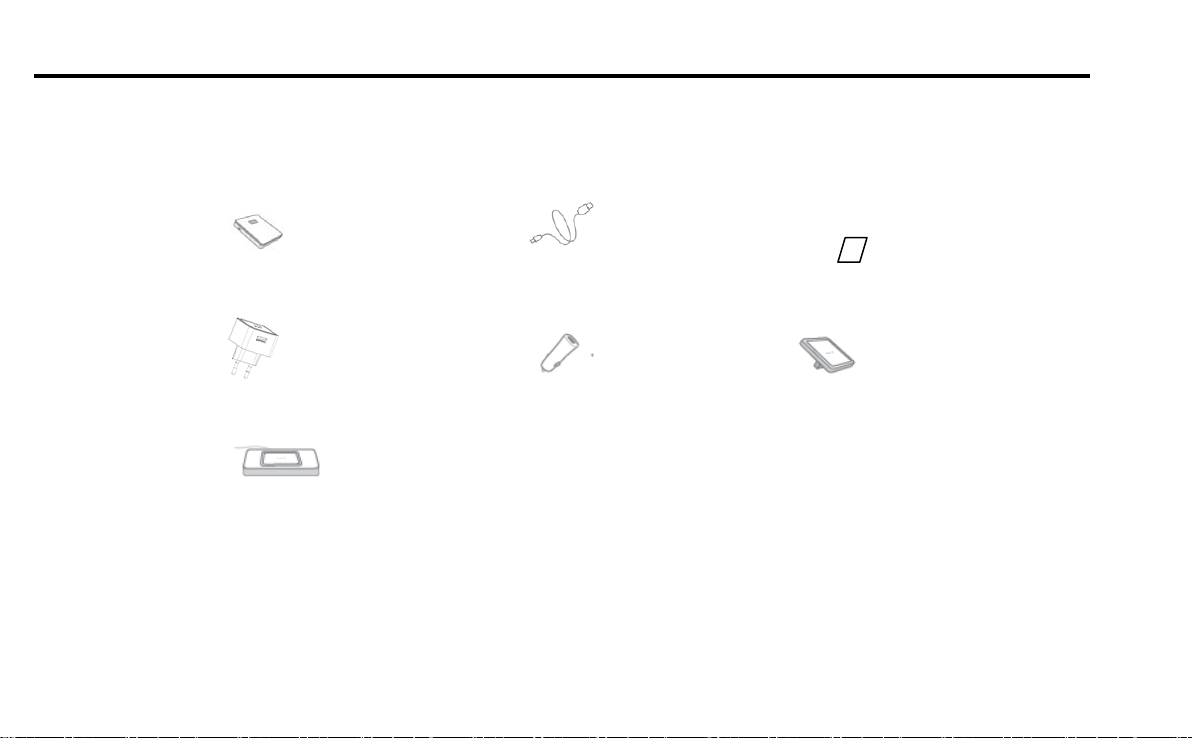

●ONE TOUCH Y600 ● USB cable ● Quick start guide
● USB Wall charger
● USB Cradle charger
*
● Car Charger* ● USB Adapter*
Note: *depending on your region and market.
3
Page 5

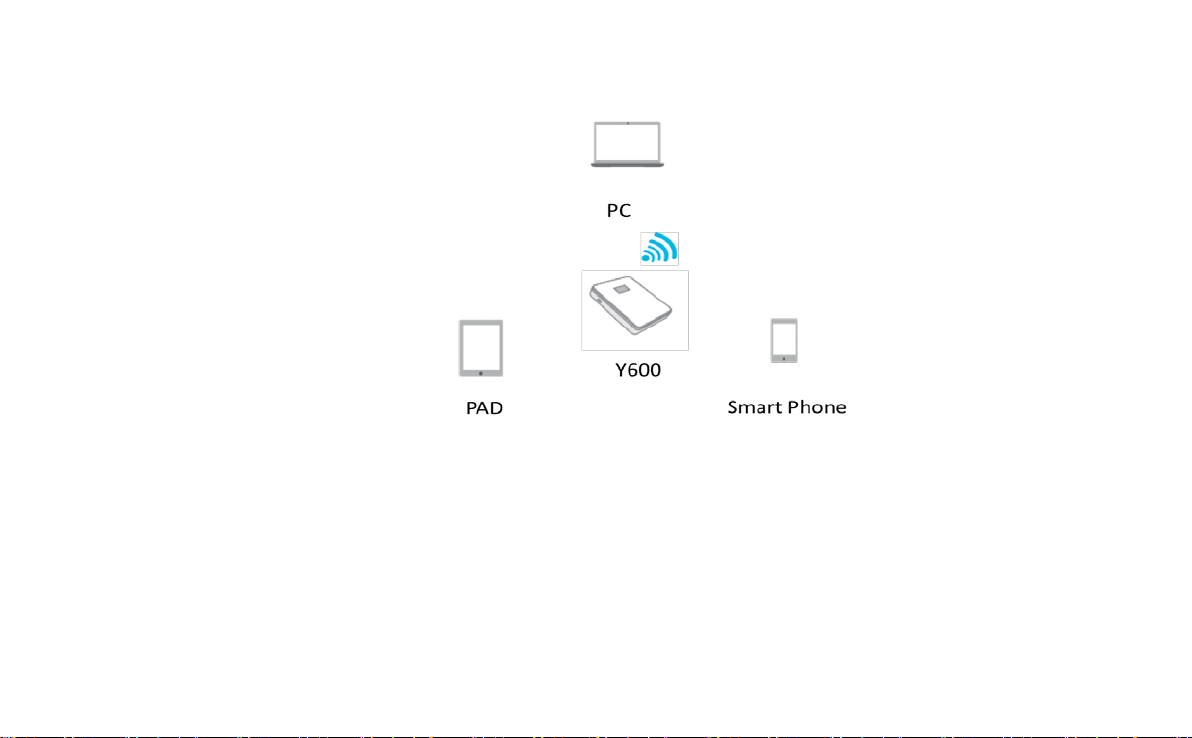

1.2 Application
4
Page 6

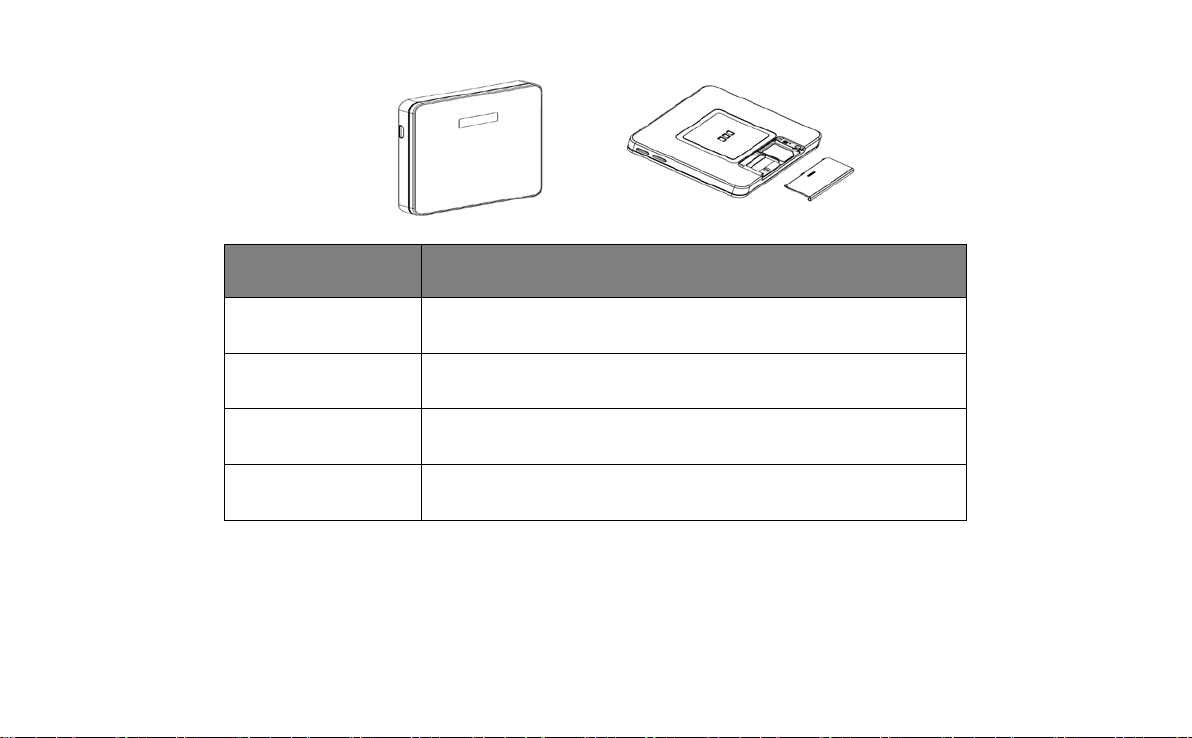

1.3 Devic e overview
⑦
Number Description
① Power on/off Key
② WPS Key
③
④
⑥
①
Reboot Button
Charging Pin
5
④
②
③
⑤
Page 7
⑤ SIM Card Cover
⑥ OLED screen
⑦ Micro USB Interface
Use the device’s 3 buttons as follows:
Button Description
① Power On/Off
②WPS
③Reboot
Long press to turn on/off the device
Short press to put the OLED screen in either active or sleep mode.
Long press to turn on WPS
Short press to display SSID and password
Long press to reboot the device if the system freezes.
6
Page 8

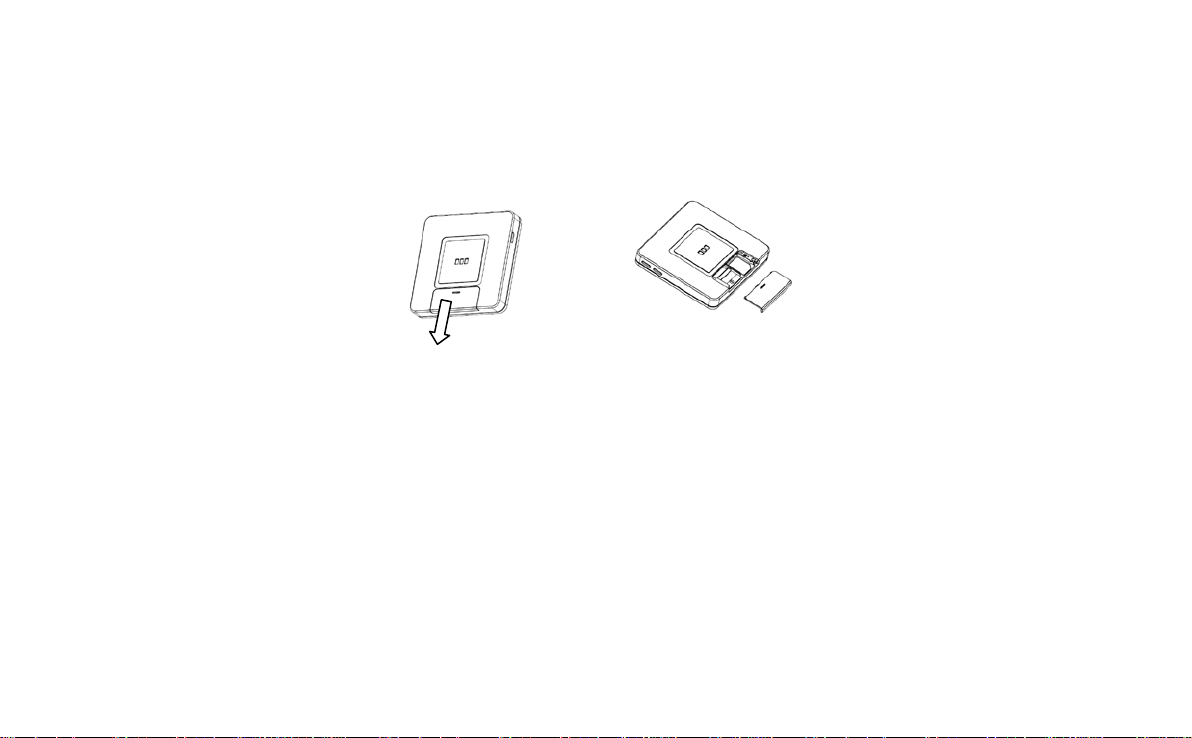

1.4 Turning on the device Step 1: Push down on the SIM Card cover and install your SIM card as indicated on the device.
Step 2: Press the Pow er On/Off button
7
Page 9
1.5 Screen display

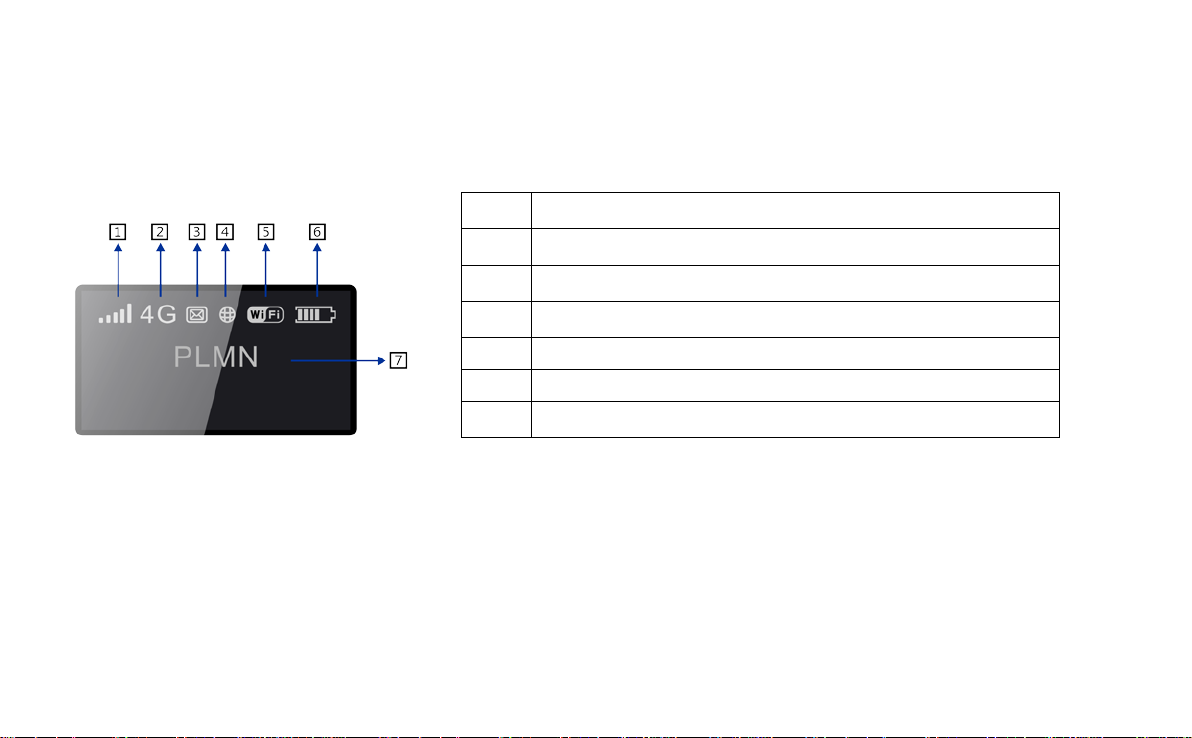

The screen display is interpreted as follows:
Network Signal (dynamic graphic symbol )
1
2 Network type (3G+/3G/2G)
SMS status (full, unread, incoming)
3
Connection status(connected and disconnected )
4
Wi-Fi (number of user connected/WPS connection)
5
Battery level (dynamic graphic symbol when charging)
6
7 Name of the network registered
8
Page 10
Screen description:

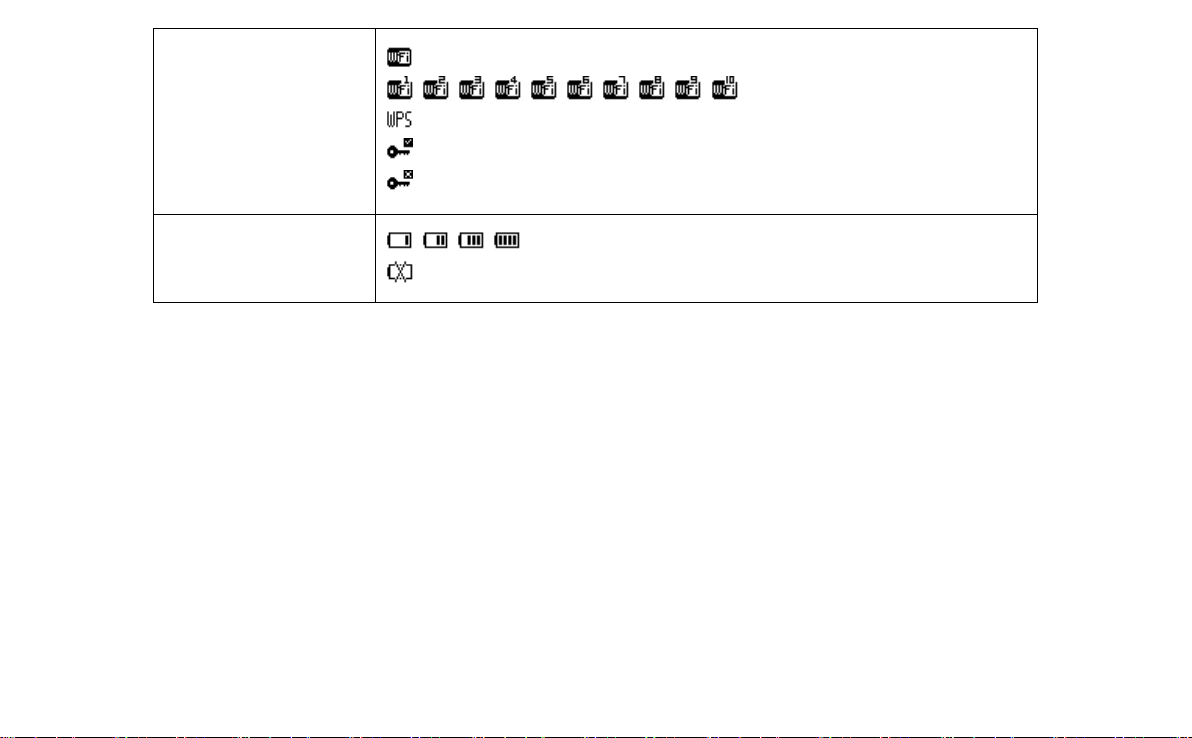

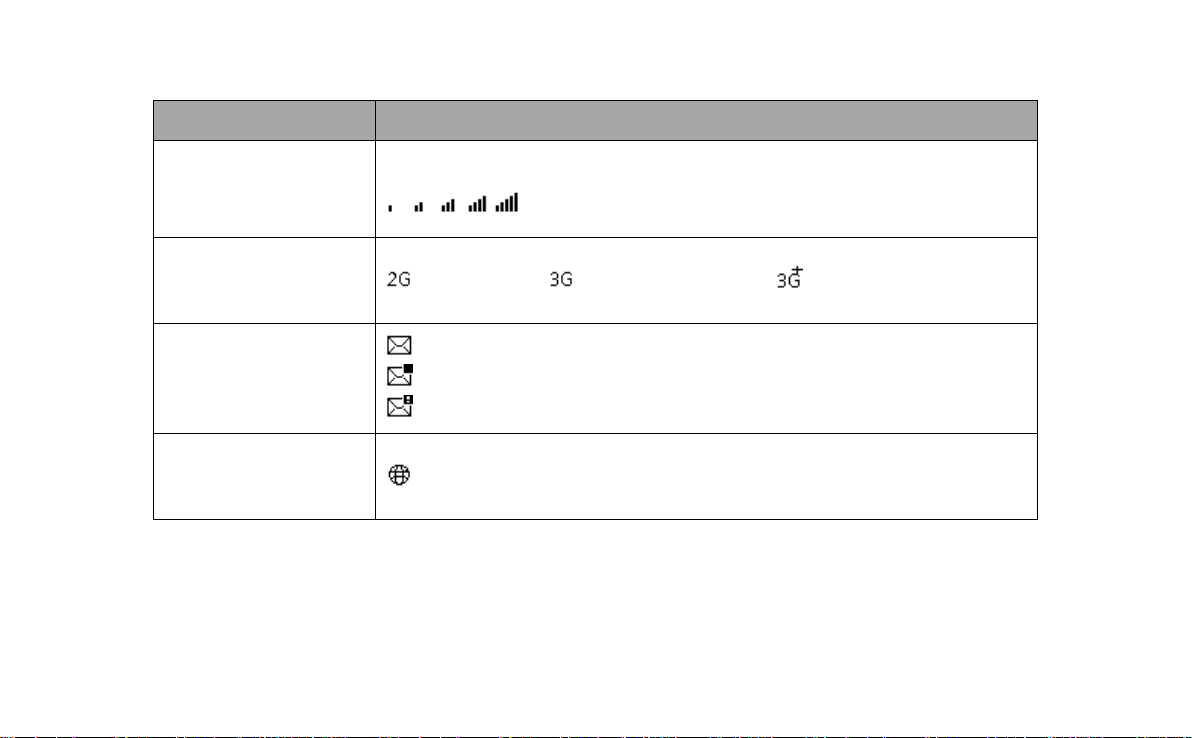

Category Icon Display
Signal Strength
Network type
SMS status
Connection Status
From 1 bar to excellent signal strength
: EDGE/GPRS : UMTS/HSDPA/HSUPA : HSPA+
: SMS is available
: Unread SMS
: SMS full
connected
9
Page 11
Wi-Fi status
: Wi-Fi is active
: Number of Wi-Fi users
: WPS is active
: WPS conn ected succes sfully
: WPS conn ection failed
Battery
: From 1 level to level 4
: Low power
Note: the information is displayed for 20 seconds, then the display powers off. You can reactivate the
display with a short press on the Power key.
1.6 Connecting in Wi-Fi mode
SSID：locate the SSID information on the sticker on the SIM card cover.
10
Page 12
Step 1: Use the Wi-Fi manager on the Wi-Fi embedded device to select network name (SSID).
◆From a Windows PC: Right-click Wireless network connection on the task bar, and select:
View Available Networks.
Choose Y600*_XXXX from the list of available networks.
◆From a Mac computer: Select System Preferences -> Network->Airport. Click “Advanced” to choose Y600*_XXXX from the list of available
networks.
◆From an i OS device: Settings->Wi-Fi. Choose Y600*_XXXX from the available networks.
◆From an android device: Settings->Wireless controls->Wi-Fi settings. Choose Y600*_XXXX from the available networks.
Step 2: Enter the Wi-Fi key when prompted for a security key.
11
Page 13
2. Quick Setup ________________
Open your browser, and input the addre ss http://192.168.1.1 to access the login page.
Default login password: admin
Login and click "Quick Setup" to configure the basic settings.
Admin Password:
Login Password: Set the password for login.
Wi-Fi Settings:
SSID: Set the network name of this device.
Security: Configure the securi ty mode for Wi-Fi connec tion.
12
