TCT Mobile 433 User Manual

6034Y

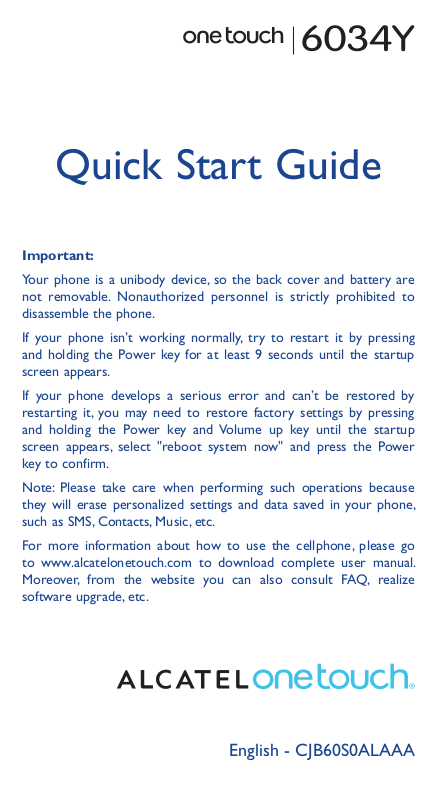

Quick Start Guide

Important:

Your phone is a unibody device, so the back cover and battery are not removable. Nonauthorized personnel is strictly prohibited to disassemble the phone.

If your phone isn’t working normally, try to restart it by pressing and holding the Power key for at least 9 seconds until the startup screen appears.

If your phone develops a serious error and can’t be restored by restarting it, you may need to restore factory settings by pressing and holding the Power key and Volume up key until the startup screen appears, select "reboot system now" and press the Power key to confirm.

Note: Please take care when performing such operations because they will erase personalized settings and data saved in your phone, such as SMS, Contacts, Music, etc.

For more information about how to use the cellphone , please go to www.alcatelonetouch.com to download complete user manual. Moreover, from the website you can also consult FAQ, realize software upgrade, etc.

English - CJB60S0ALAAA

Table of contents

1 Your mobile phone �� 1 2 Text input �� 11 3 Phone call ��13 4 Contacts �� 15 5 Messaging�� 16 6 Email ��17 7 Getting connected �� 18 8 Locate my location using GPS satellites �� 20 9 Data backup �� 21 10 Factory data reset ��22 11 Applications & Internal storage ��22 12 Making the most of your phone �� 23 Safety and use �� 25 General information ��33 TCT Mobile (US), Inc� Warranty ��34 Troubleshooting�� 36

Your mobile phone ��

1�1 Keys and connectors

Headset connector

LED

indicator

Proximity

sensor

Touch

screen

Front camera

SD card slot

SIM card slot

Power key

This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found on page 30 of this user guide.

When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a

www.sar-tick.com

distance of 1.0 cm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call.

PROTECT YOUR HEARING

To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use.

Home key

Back key

Menu key

Micro-USB Connector

Volumn Key

Camera

Flash/Flashlight

Camera

Power key

• Press: Lock the screen / Light up the screen.

• Press to mute the ringtone when there's an incoming

call.

• Press and hold: Show the pop-up menu to select from

Power off / Restart / Airplane mode / Quick start / Power on.

• Press Power key more than 9s to restart.

• Press Power key and Volumn up key to reset.

• Press Power key and Volumn down key to capture

a screenshot.

Volume Keys

• Under call mode, adjust the earpiece or headset volume.

• In Music/Video/Strea ming mode, ad just the media

volume.

• In general mode, adjust the ring tone volume.

• Mute the ringtone of an incoming call.

Menu key

• To uch to access Wallpaper, Manage apps and

Settings.

• Touch and hold to open a list of thumbnail images of

apps you've worked with recently. Touch it to open an app. Swipe it left or right to remove a thumbnail from the list.

Home key

• While on any application or screen, touch to return to

the Home screen.

Back key

• Touch to go back to the previous screen, or to close

a dialog box, options menu, the notification panel, etc.

1�2 Getting started

1�2�1 Set-up

An insertion tool is provided at the phone package, please use it to install or remove the SIM/SD card conveniently.

Inserting or removing the SIM card

You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card.

To install, place the SIM card chip facing downwards, and then slide it into its slot. Make sure that it is correctly inserted. To remove the card, press and slide it out.

2 3

Installing and removing the microSD card

Insert the microSD card with golden contact facing downwards into the slot. To remove the microSD card, gently press and slide it out.

To avoid data loss and SD card damage, before removing

the SD card, please ensure that the SD card is unmounted (Settings\Storage\Unmount SD card).

Charging the battery

Connect the battery charger to your phone and mains socket respectively, LED indicator will light while charging.

To reduce power consumption and energy waste, when

battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or backgroundrunning applications when not in use; reduce the backlight time, etc.

1�2�2 Power on your phone

Hold down the Power key until the phone powers on. It will take some seconds before the screen lights up.

Set up your phone for the first time

The first time you power on the phone, you should set following options: language, Input method, date & time, etc.

Power on screen without SIM card inserted, you can also connect to a Wi-Fi network to sign into your Google account and to use some features.

1�2�3 Power off your phone

Hold down the Power key from the Home screen until the phone options appear, select Power off.

1�3 Home screen

You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your Home screen for quick access. Touch the Home key to switch to Home screen.

Status bar

• Status/Notification indicators

• Touch and drag down to open the

notification panel.

Search bar

• Touch  to enter text search screen.

• Touch  to enter voice search screen.

Touch an icon to open an application, folder, etc .

Favorite tray applications

• Touch to enter the application.

• Touch and hold to move or change

applications.

Application tab

• Touch to open main menu.

Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc . Slide the Home screen horizontally left and right to get a complete view of the Home screen. Blue line at the lower left and right of the screen indicate which screen you are viewing. You can customize the number of home screens by Settings\Display\Home screen settings.

4 5

1�3�1 Using the touchscreen

Touch

To access an application, touch it with your finger.

Touch and Hold

To enter the available options for an item, touch and hold the item. For example, select a contact in Contacts, touch and hold this contact, options list will then appear on screen.

Drag

Place your finger on the screen to drag an object to another location.

Slide/Swipe

Slide the screen to scroll up and down the applications, images, web pages… at your convenience.

Flick

Similar to swiping, but flicking makes it move quicker.

Pinch/Spread

Place your fingers of one hand on the screen surface and draw them apart or together to scale an element on the screen.

Rotate

Automatically change the screen orientation from portrait to landscape by turning the phone sideways to have a better view.

1�3�2 Status bar

From status bar, you can view both phone status (to the right side) and notification information (to the left side).

Status icons

GPRS connected Airplane mode

GPRS in use Alarm is set

EDGE connected GPS is on

EDGE in use

3G connected Speakerphone is on

3G in use Roaming

HSPA (3G+) connected No signal

HSPA (3G+) in use No SIM card installed

HSPAP connected Vibrate mode

HSPAP in use Ringer is silenced

4G connected

4G in use Battery is very low

Signal strength Battery is low

Wi-Fi is on

Connected to a Wi-Fi network

Bluetooth is on Battery is charging

Connected to a Bluetooth device

Receiving location data from GPS

Phone microphone is mute

Battery is partially drained

Battery is full

Headset connected

6 7

Notification icons

New Gmail message Missed call

New Email message Call forwarding is on

New text or multimedia message

Problem with SMS or MMS delivery

New Google Hangouts message

New voicemail Radio is on

Upcoming event Uploading data

Screenshot error Downloading data

Screenshot captured Download finished

microSD card is full Select input method

safe to remove SD card

preparing SD card

Both USB tethering and portable hotspot are on

USB tethering is on

Portable Wi-Fi hotspot is on

Song is playing

Connected to VPN

Disconnected from VPN

An open Wi-Fi network is available

Phone is connected via USB cable

System update available

Carrier data use threshold approaching or exceeded

Notification panel

Touch and drag down the Status bar to open the notification panel. Touch and drag up to close it. From the Notification panel, you can open items and other reminders indicated by notification icons or view wireless service information.

Touch one notificaiton and slide it sideways to delete it.

Touch the icon to clear all event–based notifications (other ongoing notifications will remain).

Touch and then the Settings icon to access Settings.

Touch to open quick settings bar and enable/disable functions or change modes.

1�3�3 Search bar

The phone provides a Search function which can be used to locate information within applications, the phone or the web.

1�3�4 Lock/Unlock your screen

To protect your phone and privacy, you can lock the phone screen by creating a variety of patterns, PIN or password etc.

1�3�5 Personalize your Home screen

Add

Touch the application tab , touch and hold an application or a widget to active the Move mode, and drag the item to any Home screen as you prefer.

8 9

Reposition

Touch and hold the item to be repositioned to activate the Move mode, drag the item to the desired position and then release. You can move items both on the Home screen and the Favorite tray. Hold the icon on the left or right edge of the screen to drag the item to another Home screen.

Remove

Touch and hold the item to be removed to activate the Move mode, drag the item up to the top of Remove icon, and release after the item turns red.

Create folders

To improve the organization of items (shortcuts or applications) on the Home screen and the Favorite tray, you can add them to a folder by stacking one item on top of another. To rename a folder, open it, touch the folder’s title bar to input the new name.

Wallpaper customization

Touch and hold an empty area or touch the Menu key, then touch Wallpaper on the Home screen to customize wallpaper.

1�3�6 Application tab

Touch from the Home screen to enter applications list.

To return to the Home screen, touch the Home key.

Consult recently-used applications

To consult recently-used applications, you can touch and hold the Menu key. Touch a thumbnail in the window to open the related application.Touch one thumbnail and slide it sideways to delete it.

1�3�7 Volume adjustment

You can set ringer, media and phone ringtone volume to your preference by pressing Volume up/down key, or touching Settings\

Sound\Volumes to set volume.

1�4 Applications and widgets list

The list contains all pre-embedded and newly installed applications and widgets.

To access the list, touch from the Home screen. To return to the Home screen, touch the Home key or the Back key.

Touch the icon to access the Google Play Store.

Text input ��

2�1 Using Onscreen Keyboard

Onscreen Keyboard settings Touch the Menu key from the Home screen, select Settings\

Language & input, touch the Settings icon on the right of Android keyboard, a series of settings are available for your

selection.

Adjust the Onscreen Keyboard orientation

Turn the phone sideways or upright to adjust the Onscreen Keyboard orientation. You can also adjust it by changing the settings (Touch the Menu key on the Home screen, then touch Settings\Display\ Auto-rotate screen).

10 11

2�1�1 Android keyboard

Touch to enter text or numbers.

Touch to switch

between "abc/Abc"

mode; Touch & hold

to switch between

"abc/ABC" mode.

Touch to switch

between symbol and

numeric keyboard.

Touch to enter voice input; touch & hold to show input options.

Touch & hold to select symbols.

2�2 Text editing

You can edit the text you have entered.

• Touch and hold or double-tap within the text you would like

to edit.

• Drag the tap to change the high-lighted selection.

• Following options will show: Select all , Cut , Copy

and Paste .

• Touch the icon or touch the blank to go back without any

action.

Phone call ��

3�1 Placing a call

You can easily launch a call using Phone. Touch Application tab from the Home screen and select Phone.

Display the

suggest

number(s).

Touch and hold to

access voicemail.

Touch to hide/

display keyboard

Enter the desired number from the keyboard directly or select a contact from Contacts or Call log by sliding or touching tabs, then touch to place the call.

The number you entered can be saved to Contacts by touching and then touching Create new contact.

If you make a mistake, you can delete the incorrect digits by touching

To hang up a call, touch or the Power key (when the Call settings\Power key ends call option is activated).

Touch to call the preview number.

Slide to access Call

log and Contacts.

3�2 Speed dial settings

You can access this setting screen by touching the Menu key and then touching Speed Dial on Dial screen, then select contacts to define 2-9 screen keys as a speed dialer.

12 13

3�3 Answering or rejecting a call

Contacts ��

You can view and create contacts on your phone and synchronize these with your Gmail contacts or other applications on the web or on your phone.

4�1 Adding a contact

Touch Application tab on the Home screen, select Contacts, then touch the icon in the contact list to create a new contact.

When you receive a call:

• Slide the icon rightward to answer ;

• Slide the icon leftward to reject;

• Slide the icon upward to reject the call by sending a preset

message.

To mute the ringtone volume of an incoming call, press the Volume

up/down key or turn over the phone (when the Call settings\Turn over to mute option is activated).

3�4 Consulting your call memory

You can access your call memor y by touching from the Dial screen to view call history in categories of Missed calls, Outgoing calls and Incoming calls.

4�2 Importing , exporting and sharing

contacts

From Contacts screen, touch the Menu key to open options menu, touch Import/export, then select Import from SIM card, Export to SIM card, Import from storage, Export to storage, or Share visible contacts.

To import/export a single contact from/to SIM card, choose an account and target SIM card(s), select the contact you want to import/export, and touch the icon √ to confirm.

To import/export all contacts from/to SIM card, choose an account and target SIM card(s), select Select all and touch the icon √ to confirm.

You can share a single contact or contacts with others by sending the contact's vCard to them via Bluetooth, Gmail, etc.

Touch a contact you want to share, touch the Menu key and Share from contact details screen, then select the application to perform this action.

4�3 Synchronizing contacts in multiple

accounts

Contacts, data or other information can be synchronized from multiple accounts, depending on the applications installed on your phone.

14 15

Messaging ��

You can create, edit and receive SMS and MMS with this phone.

To access this feature, touch Application tab from the Home screen, then select Messaging.

To consult messages stored in SIM card, touch the Menu

key from Messaging screen, then touch Settings\Manage

SIM messages.

5�1 Write message

On message list screen, touch the new message icon to write text/multimedia messages.

• Touch to view the whole message thread.

• Touch & hold to active the delete mode.

Touch to create a new message.

Touch to search in all messages.

Sending a text message

Enter the mobile phone number of the recipient on To bar or touch

to add recipients, touch Type message bar to enter the text

of the message. Touch the icon to inser t media files. Touch the icon to insert emotions. When finished, touch to send the text message.

An SMS of more than 160 characters will be charged as

several SMS. Specific letters (accent) will also increase the size of the SMS, this may cause multiple SMS to be sent to your recipient.

Sending a multimedia message

MMS enables you to send video clips, images, photos, animations, slides and sounds to other compatible phones and e-mail addresses.

An SMS will be converted to MMS automatically when media files (image, video, audio, slides, etc.) are attached or Subject or email addresses added.

Email ��

Besides your Gmail account, you can also set-up external POP3 or IMAP email accounts in your phone .

To access this feature, touch Application tab from the Home screen, then select Email.

An email wizard will guide you through the steps to set-up an email account.

• Enter the email address and password of the account you want

to set-up.

• Touch Next. If the account you entered is not provided by your

service provider in the phone, you will be prompted to go to the email account settings screen to enter settings manually. Or you can touch Manual setup to directly enter the incoming and outgoing settings for the email account you are setting up.

• Enter the account name and display name in outgoing emails.

• To add another email account, you can touch the Menu key and

Settings. Touch ADD ACCOUNT on the right of the title to create.

To create and send emails

• Touch the icon from Inbox screen.

• Enter recipient(s) email address(es) in To field.

• If necessary, touch the Menu key and touch Add Cc/Bcc to add

a copy or a blind copy to the message.

• Enter the subject and the content of the message.

• Touch the Menu key, touch Attach file to add an attachment.

• Finally, touch to send�

16 17

• If you do not want to send the mail right away, you can touch the

Menu key and Save draft or touch Back key to save a copy.

Getting connected ��

To connect to the Internet with this phone, you can use GPRS/ EDGE/3G/4G networks or Wi-Fi, whichever is most convenient.

7�1 Connecting to the Internet

7�1�1 GPRS/EDGE/3G/4G

The first time you turn on your phone with SIM card inserted, it will automatically configure network service: GPRS, EDGE, 3G or 4G.

To check the network connection you are using, touch the Menu key, then touch Settings\More��\Mobile networks, and touch Access

Point Names or Network operators.

7�1�2 Wi-Fi

Using Wi-Fi, you can connect to the Internet when your phone is within range of a wireless network. Wi-Fi can be used on phone even without a SIM card inserted.

To turn Wi-Fi on and connect to a wireless network

• Touch the Menu key from the Home screen, then touch Settings.

• Touch the switch beside Wi-Fi to turn on/off Wi-Fi.

• Touch Wi-Fi, the detailed information of detected Wi-Fi networks

is displayed in the Wi-Fi networks section.

• Touch a Wi-Fi network to connect. If the network you selected is

secured, you are required to enter a password or other credentials (you may contact network operator for details). When finished, touch Connect.

Warning: 5 GHz Wi-Fi operation is for indoor use only.

18 19

7�2 Browser ��

Using Browser, you can enjoy surfing the Web.

To access this feature, touch Application tab from the Home screen, then select Browser.

To go to a web page

On Browser screen, touch the URL box at the top, enter the address of the web page, then confirm.

7�3 Connecting to a computer

With the USB cable, you can transfer media files and other files between your microSD card/internal storage and the computer.

To connect/disconnect your phone to/from the computer:

To connect:

• Use the USB cable that came with your phone to connect

the phone to a USB port on your computer. You will receive a notification that the USB is connected.

• Open the Notification panel and touch USB connected, then

choose a way in the dialog that opens to confirm that you want to transfer files.

To disconnect (for mass storage):

• Open the Notification panel and touch USB connected.

• Touch to cancel The USB storage device is in use now in the

dialog that opens.

Before using MTP, make sure that the driver (Windows Media Player 11 or above version) has been installed.

To locate data you have transferred or downloaded in your microSD card:

• Touch Application tab from the Home screen to open the

applications list.

• Touch File Manager.

(1)

You can change the default connecting way via Settings\Storage\

Menu key\USB computer connection. Compared with mass storage, Some operations are not usable via MTP and PTP.

(1)

All data you have downloaded is stored in File Manager, where you can view media files (videos, photos, music and others), rename files, install applications into your phone, etc.

7�4 Sharing your phone's mobile data

connection

You can share your phone's mobile data connection with a single computer via a USB cable(USB tethering) or with up to eight devices at once by turning your phone into a portable Wi-Fi hotspot.

To turn on USB tethering or Portable Wi-Fi hotspot

• Touch the Menu key from the Home screen.

• Touch Settings\More��\Tethering & portable hotspot.

• Mark the checkbox of USB tethering or Portable Wi-Fi

hotspot to activate this function.

The functions may incur additional network charges from your network operator. Extra fees may also be charged in roaming areas.

Use your phone’s GPS satellites receiver to pinpoint your location within an accuracy as close as several meters (“street level”). The process of accessing the GPS satellite and setting your phone's precize location for the first time will require up to 5 minutes. You will need to stand in a place with a clear view of the sky and avoid moving. After this, GPS will only need 20-40 seconds to identify your precize location.

Locate my location

using GPS satellites ��

To activate your phone’s global positioning system (GPS) satellite Receiver:

• Touch the Menu key from the Home screen.

• Touch Settings\Location access.

• Touch the switch

turn on.

When open Maps, you can find your location:

20 21

beside Access to my location to

Data backup ��

This phone enables you to back up your phone’s settings and other application data to Google Ser vers, with your Google Account.

If you replace your phone, the settings and data you’ve backed up are restored onto the new phone the first time you sign in with your Google Account.

To activate this function:

• Touch the Menu key from the Home screen.

• Touch Settings\Backup & reset\Back up my data.

Activated this function, a wide variety of settings and data are backed up, including your Wi-Fi passwords, bookmarks, a list of the applications you’ve installed, the words you’ve added to the dictionary used by the onscreen keyboard, and most of the settings that you configure with the Settings application. If you deactivated this option, you stop backing up your settings, and any existing backups are deleted from Google Servers.

To activate factory data reset:

• Touch the Menu key from the Home screen.

• Touch Settings\Backup & reset\Factory data reset�

• Touch the Reset phone.

Phone reset will erase all of your personal data from internal phone storage, including information about your Google Account, any other accounts, your system and application settings, and any downloaded applications. Resetting the phone does not erase any system software updates you’ve downloaded or any files on your microSD card, such as music or photos. If you reset the phone in this way, you’re prompted to re-enter the same kind of information as when you first started Android.

When you are unable to power on your mobile phone, there is another way to perform a factor y data reset by pressing the Power key and the Volumn up key at same time until the screen lights up.

Factory data reset �

Applications & Internal storage ��

11�1 Applications

With this phone, some built-in Google applications and other third party applications are available for your convenience.

With the built-in applications, you can

• Communicate with friends.

• Exchange messages or emails with friends.

• Track your location, view traffic situations, search for locations and

get navigation information to your destination.

• Download more applications from Google Play Store and more.

For more information about these applications, please check user manual online: www.alcatelonetouch.com.

22 23

11�2 Internal storage

Available space

Touch Settings\Storage to display the amount of internal phone storage used by the operating system, its components, applications (including those you downloaded), permanent and temporary data.

If a warning message comes up saying that phone memory is limited, you are required to free up space by deleting some unwanted applications, downloaded files, etc.

Making the most of your phone ��

You can download software upgrade for free from the website (www.alcatelonetouch.com).

12�1 ONE TOUCH Center

ONE TOUCH Center includes:

• Contacts

It allows you to back up contact entries so that you don't have to worry about losing, breaking, switching phones or changing service providers.

• Messages

It frees you from painstakingly inputting text on the keypads. All of your messages are easily accessible and well-organized.

• Photos

It allows you to easily import photos from PC or the handset and organize them in different albums for better management.

• Videos

It allows you to insert video files from PC for playback and then upload to handset folder.

• Music

It allows you to quickly search your favorites in PC, manage the ultimate Library, and enjoy the easiest digital jukebox in your own mobile way.

• Application

It allows you to import downloaded mobile applications and have them installed into your handset upon synchronization.

• Backup

It allows you to back up your contacts, messages, calendar, photos and applications, then import the backup files to your phone.

Supported Operating Systems

Windows XP/Vista/Windows 7.

12�2 Upgrade

You can use Mobile Upgrade tool or FOTA Upgrade tool to update your phone's software.

12�2�1 Mobile Upgrade

Download Mobile Upgrade from ALCATEL ONE TOUCH website (www.alcatelonetouch.com) and install it on your PC. Launch the tool and update your phone by following the step by step instructions (refer to the User Guide provided together with the tool). Your phone’s software will now have the latest software.

All personal information will be permanently lost following the update process. We recommend you backup your personal data using ONE TOUCH Center before

upgrading.

12�2�2 FOTA Upgrade

Using FOTA Upgrade tool you can update your phone's software.

To access System updates, please touch the Menu key from the Home screen, then Settings\About phone\System updates. Touch Check for updates, and the phone will search for the latest software. If you want to update the system, please touch the button Download, after it done please touch Install to complete the upgrade. Now your phone's software will have the latest version.

You should turn on data connection before searching for updates. Settings for auto-check intervals and reminders about upgrades are also available once you restart the phone .

If you have chosen auto-check, when the system discovers the new version, the icon will appear in the status bar. Touch the notification to access the System updates directly.

During FOTA downloading or updating, to avoid errors in locating the correct update packages, do not change your default storage location.

Safety and use ��

We recommend that you read this chapter carefully before using your mobile phone. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein.

• TRAFFIC SAFETY:

Given that studies show that using a cellphone while driving a vehicle constitutes a real risk, even when the hands-free kit is used (car kit, headset...), drivers are requested to refrain from using their cellphone when the vehicle is not parked. Check the laws and regulations on the use of wireless cellphones and their accessories in the areas where you drive. Always obey them. The use of these devices may be prohibited or restricted in certain areas.

When driving, do not use your mobile phone and headphone to listen to music or to the radio. Using a headphone can be dangerous and forbidden in some areas. When switched on, your mobile phone emits electromagnetic waves that can interfere with the vehicle’s electronic systems such as ABS anti-lock brakes or airbags. To ensure that there is no problem:

- do not place your mobile phone on top of the dashboard or within an airbag deployment area,

- check with your car dealer or the car manufacturer to make sure that the car’s electronic devices are shielded from cellphone RF energy.

• CONDITIONS OF USE:

You are advised to switch off the cellphone from time to time to optimize its performance. Remember to abide by local authority rules of cellphone use on aircrafts. Operational Warnings: Obey all posted signs when using mobile devices in public areas.

24 25

Follow Instructions to Avoid Interference Problems: Turn off your mobile device in any location where posted notices instruct you to do so. In an aircraft, turn off your mobile device whenever instructed to do so by airline staff. If your mobile device offers an airplane mode or similar feature, consult airline staff about using it in flight. Switch the cellphone off when you are in health care facilities, except in designated areas. As with many other types of equipment now in regular use , cellphones can interfere with other electrical or electronic devices, or equipment using radio frequency. Switch the cellphone off when you are near gas or flammable liquids. Strictly obey all signs and instructions posted in a fuel depot, gas station, or chemical plant, or in any potentially explosive atmosphere. When the cellphone is switched on, it should be kept at least 15 cm from any medical device such as a pacemaker, a hearing aid or insulin pump. In particular when using the cellphone you should hold it against the ear on the opposite side to the device, if any. Read and follow the directions from the manufacturer of your implantable medical device. If you have any questions about using your mobile device with your implantable medical device, consult your healthcare provider. To avoid hearing impairment, answer the call before holding your mobile phone to your ear. Also move the handset away from your ear while using the “hands-free” option because the amplified volume might cause hearing damage. It is recommended to have proper supervision while small children use your mobile phone. When replacing the cover please note that your mobile phone may contain substances that could create an allergic reaction. Always handle your mobile phone with care and keep it in a clean and dust-free place. Do not allow your mobile phone to be exposed to adverse weather or environmental conditions (moisture, humidity, rain, infiltration of liquids, dust, sea air, etc.). The manufacturer’s recommended operating temperature range is -10°C (14°F) to +55°C (131°F)(the max value depends on device, materials and housing paint/texture). Over 55°C (131°F) the legibility of the cellphone’s display may be impaired, though this is temporary and not serious. Do not open or attempt to repair your mobile phone yourself. Do not drop, throw or try to bend your mobile phone. Do not use the cellphone if the glass made screen, is damaged, cracked or broken to avoid any injury. Do not paint it.

Use only batteries, battery chargers, and accessories which are recommended by TCT Mobile Limited and its affiliates and are compatible with your mobile phone model. TCT Mobile Limited and its affiliates disclaim any liability for damage caused by the use of other chargers or batteries. Your mobile phone should not be disposed of in a municipal waste. Please check local regulations for disposal of electronic products. Remember to make back-up copies or keep a written record of all important information stored in your mobile phone.Some people may suffer epileptic seizures or blackouts when exposed to flashing lights, or when playing video games. These seizures or blackouts may occur even if a person never had a previous seizure or blackout. If you have experienced seizures or blackouts, or if you have a family history of such occurrences, please consult your doctor before playing video games on your mobile phone or enabling a flashing-lights feature on your mobile phone. Parents should monitor their children’s use of video games or other features that incorporate flashing lights on the cellphones. All persons should discontinue use and consult a doctor if any of the following symptoms occur: convulsion, eye or muscle twitching, loss of awareness, involuntary movements, or disorientation. To limit the likelihood of such symptoms, please take the following safety precautions:

- Play at the farthest distance possible from the screen.

When you play games on your mobile phone, you may experience occasional discomfort in your hands, arms, shoulders, neck, or other parts of your body. Follow these instructions to avoid problems such as tendinitis, carpal tunnel syndrome, or other musculoskeletal disorders:

- Take a minimum of a 15-minute break every hour of game playing.

- If your hands, wrists, or arms become tired or sore while playing, stop and rest for several hours before playing again.

- If you continue to have sore hands, wrists, or arms during or after playing, stop the game and see a doctor.

PROTECT YOUR HEARING

To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use.

26 27

• PRIVACY:

Please note that you must respect the laws and regulations in force in your jurisdiction or other jurisdiction(s) where you will use your mobile phone regarding taking photographs and recording sounds with your mobile phone. Pursuant to such laws and regulations, it may be strictly forbidden to take photographs and/or to record the voices of other people or any of their personal attributes, and reproduce or distribute them, as this may be considered to be an invasion of privacy. It is the user’s sole responsibility to ensure that prior authorization be obtained, if necessary, in order to record private or confidential conversations o r take a photog raph of anothe r person; the manufacturer, the seller or vendor of your mobile phone (including the operator) disclaim any liability which may result from the improper use of the cellphone.

• BATTERY:

Please note your phone is a unibody device, the back cover and battery are not removable. Observe the following precautions:

- Do not attempt to open the back cover,

- Do not attempt to eject, replace and open battery,

- Do not punctuate the back cover of your phone,

- Do not burn or dispose of your phone in household rubbish or store it at temperature above 60°C. Phone and battery as a unibody device must be disposed of in accordance with locally applicable environmental regulations.

This symbol on your mobile phone, the battery and the accessories means that these products must be taken to collection points at the end of their life:

- Municipal waste disposal centers with specific bins for these items of equipment

- Collection bins at points of sale. They will then be recycled, preventing substances being disposed of in the environment, so that their components can be reused.

In European Union countries:

These collection points are accessible free of charge. All products with this sign must be brought to these collection points.

In non European Union jurisdictions:

Items of equipment with this symbol are not be thrown into ordinary bins if your jurisdiction or your region has suitable recycling and collection facilities; instead they are to be taken to collection points for them to be recycled. In the United States you may learn more about CTIA’s Recycling Program at http://www.gowirelessgogreen.org/

CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INC ORRECT TYPE. DISPOSE O F USED BATTERIES ACCORDING TO THE INSTRUCTIONS

• CHARGERS

Home A.C./ Travel chargers will operate within the temperature range of: 0°C (32°F) to 40°C (104°F). The chargers designed for your mobile phone meet with the standard for safety of information technology equipment and office equipment use. Due to different applicable electrical specifications, a charger you purchased in one jurisdiction may not work in another jurisdiction. They should be used for this purpose only. Characteristics of power supply (depending on the country): Travel charger: Input: 100-240 V, 50/60 Hz, 150 mA Output: 5 V, 1000 mA Battery: Lithium 2000 mAh

• RADIO WAVES:

THIS CELLPHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your mobile phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio-frequency (RF) energy. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are b ased on standard s that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. These guidelines include a substantial safety margin designed to ensure the safety of all persons, regardless of age and health. The exposure standard for cellphones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by public authorities such as the Federal Communications Commission of the US Government (FCC), or by Industry Canada, is 1.6 W/kg averaged over 1 gram of body tissue. Tests for SAR are conducted using standard operating positions with the cellphone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the cellphone while operating can be well below the maximum value. This is because the cellphone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output of the cellphone.

28 29

Before a cellphone model is available for sale to the public, compliance with national regulations and standards must be shown. The highest SAR value for this model cellphone when tested for use at the ear is 0.61 W/Kg @ 1 gram and when properly worn on the body is 1.44 W/Kg @ 1 gram. To meet RF exposure guidelines during body-worn operation, the device should be positioned at least 10 mm away from the body. While there may be differences between the SAR levels of various cellphones and at various positions, they all meet the government requirement for RF expo sure. For body- worn operation, the cellphone meets FCC RF exposure guidelines provided that it is used with a non-metallic accessory with the handset at least 10 mm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Additional information on SAR can be found on the Cellular Telecommunica tions & Inte rnet Ass ociation (CTI A) Web site: http://www.ctia.org/ The World Health Organization (WHO) considers that present scientific information does not indicate the need for any special precautions for use of cellphones. If individuals are concerned, they might choose to limit their own or their children’s RF exposure by limiting the length of calls, or using “hands-free” devices to keep cellphones away from the head and body. (fact sheet n°193). Addition al WHO information about elec tromagneti c fields and public health are available on t he following website: http://www.who.int/peh-emf. Note: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against h armful inte rference in a residenti al installa tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

- Consult the dealer or an experienced radio/ TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For the receiver devices associated with the operation of a licensed radio service (e.g. FM broadcast), they bear the following statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. For other devices, they bear the following statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference (2) this device must accept any interference received, including interference that may cause undesired operation. Your mobile phone is equipped with a built-in antenna. For optimal operation, you should avoid touching it or degrading it. As mobile devices offer a range of functions, they can be used in positions other than against your ear. In such circumstances the device will be compliant with the guidelines when used with headset or usb data cable. If you are using another accessory ensure that whatever product is used is free of any metal and that it positions the cellphone at least 10 mm away from the body.

30 31

• LICENSES

FCC ID: RAD433

(1)

microSD Logo is a trademark.

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by TCT Mobile Limited and its affiliates is under license. Other trademarks and trade names are those of their respective owners.

ONE TOUCH 6034Y

Bluetooth® QD ID B021336

The Wi-Fi Logo is a certification mark of the Wi-Fi Alliance.

The Android robot is reproduc ed or mo dified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License (the text will show when you touch and hold Google legal in Settings\ About phone\Legal information).

Google , the Google logo, Android, the Android logo, Google SearchTM, Google MapsTM, GmailTM, YouTube, Google Play Store, Google LatitudeTM and Google TalkTM are trademarks of Google Inc .

(1)

General information ��

• Website: www.alcatelonetouch.com

• Facebook: http://www.facebook.com/alcatelonetouchusa

• Twitter : http://www.twitter.com/alcatel1touch

• Hot Line Number: In the United States, call 877-702-3444 for

technical support. On our Internet site, you will find our FAQ (Frequently Asked Questions) section. You can also contact us by e-mail to ask any questions you may have. An electronic version of this user guide is available in English and other la nguages accordi ng to availability on our server : www.alcatelonetouch.com Your mobile phone is a transceiver that operates on following networks: GSM in quad-band (850/900/1800/1900MHz), UMTS in tri-band (850/1900/2100MHz), LTE (CSFB) in quad-band (B1/B2/B4).

Protection against theft

Your mobile phone is identified by an MEID (cellphone serial number) shown on the packaging label and in the product’s memory. We recommend that you note the number the first time you use your mobile phone by entering *#06# and keep it in a safe place . It may be requested by the police or your operator if your mobile phone is stolen.

Disclaimer

There may be cer tain difference s between the u ser manual description and the cellphone’s operation, depending on the software release of your mobile phone or specific operator services. TCT Mobile shall not be held legally responsible for such differences, if any, nor for their potential consequences, which responsibility shall be borne by the operator exclusively.

(1)

It may not available according to the countries.

(1)

Contact your network operator for service availability.

32 33

TCT Mobile (US), Inc� Warranty ��

TCT Mobile (US), Inc. warrants to the original retail purchaser of this wireless device that should this product or part thereof during normal consumer usage and condition be proven to be defective in material or workmanship that results in product failure within the first twelve (12) months from the date of purchase as shown on your original sales receipt from an authorized sales agent. Such defect(s) will be repaired or replaced (with new or rebuilt parts) at the company’s option without charge for parts or labor directly related to the defect(s). Batteries, power adapters, and other accessories sold as in box items are also warranted against defects and workmanship that results in product failure within the first six (6) months period from the date of purchase as shown on your original sales receipt. Such defect(s) will be repaired or replaced (with new or rebuilt parts) at the company’s option without charge for parts or labor directly related to the defect(s). The limited warranty for your wireless device will be voided if any of the following conditions occur:

• Non-compliance with the instructions for use or installation, or

with technical and safety standards applicable in the geographical area where your phone is used;

• Connection to any equipment not supplied or not recommended

by TCT Mobile (US), Inc.;

• Modification or repair performed by individuals not authorized by

TCT Mobile (US), Inc. or its affiliates;

• Changes to the device operating system by the user or third party

applications;

• Acts of god such as inclement weather, lightning, power surges,

fire, humidity, infiltration of liquids or foods, chemical products, download of files, crash, high voltage, corrosion, oxidation;

• Removal or altering of the wireless device’s event labels or serial

numbers (IMEI);

• Damage from exposure to water or other liquids, moisture,

humidity, exces sive temperatures or extreme environ mental

conditions, sand, excess dust and any condition outside the

operating guidelines;

• Defects in appearance, cosmetic , decorative or structural items

such as framing and non-operative par ts;

• Damage as result of physical abuse regardless of cause.

There are no express warranties, whether written, oral or implied, other than this printed limited warranty or the mandator y warranty provided by your jurisdiction. In no event shall TCT Mobile (US), Inc. or any of its affiliates be liable for incidental or consequential damages of any nature whatsoever, including but not limited to commercial loss, to the full extent those damages can be disclaimed by law. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitation of the duration of implied warranties, so the preceding limitations or exclusions may not apply to you. How to obtain Support: Contact the customer care center by calling (877-702-3444) or going to (http://www.alcatelonetouch.com/usa/). We have placed many self-help tools that may help you to isolate the problem and eliminate the need to send your wireless device in for service. In the case that your wireless device is no longer covered by this limited warranty due to time or condition, you may utilize our out of warranty repair options. How to obtain Hardware Service within the terms of this warranty: Create a user profile (alcatel.finetw.com) and then create an RMA for the defective device. Ship the device with a copy of the original proof of purchase (e.g. original copy of the dated bill of sale , invoice) with the owner's return address (No PO Boxes accepted), wireless carrier’s name, alternate daytime phone number, and email address with a complete problem description. Only ship the device. Do not ship the SIM card, memory cards, or any other accessories such as the power adapter. You must properly package and ship the wireless device to the repair center. TCT Mobile (US), Inc. is not responsible for devices that do not arrive at the ser vice center or are damaged in transit. Insurance is recommended with proof of delivery. Upon receipt, the service center will verify the warranty conditions, repair, and return your device to the address provided in the RMA. Check the warranty repair status by going online with the RMA number on web portal.

34 35

Troubleshooting��

Before contacting the service centre, you are advised to follow the instructions below:

• You are advised to fully charge ( ) the battery for optimal

operation.

• Avoid storing large amounts of data in your phone as this may

affect its performance.

• Use Factory date reset and the upgrade tool to perform phone

formatting or software upgrading (to reset factory data, hold down the Power key and the Volume up key at the same time). ALL User phone data: contacts, photos, messages and files, downloaded applications will be lost permanently. It is strongly advised to fully backup the phone data and profile via ONE TOUCH Center before doing formatting and upgrading.

and carry out the following checks:

My phone is frozen or cannot switch on

• Check the battery power level, charge for at least 20 minutes.

• If it still does not work, please reset the phone using the Power

key and the Volume up key.

My phone has not responded for several minutes

• Restart your phone by pressing and holding the Power key more

then 7s.

My phone turns off by itself

• Check that your screen is locked when you are not using your

phone, and make sure the Power key is not mis-contacted due to unlocked screen.

• Check the battery charge level.

My phone cannot charge properly

• Make sure you are using an ALCATEL ONE TOUCH charger

from the box.

• Make sure that your battery is not completely discharged; if the

battery power is empty for a long time, it may take around 20 minutes to display the battery charger indicator on the screen.

• Make sure charging is carried out under normal conditions (0°C

to +40°C).

• When abroad, check that the voltage input is compatible.

My phone cannot connect to a network or “No service” is displayed

• Try connecting in another location.

• Verify the network coverage with your operator.

• Check with your operator that your SIM card is valid.

• Try selecting the available network(s) manually

• Try connecting at a later time if the network is overloaded.

My phone cannot connect to the Internet

• Check that the IMEI number (press *#06#) is the same as the one

printed on your warranty card or box.

• Make sure that the internet access service of your SIM card is

available.

• Check your phone's Internet connecting settings.

• Make sure you are in a place with network coverage.

• Try connecting at a later time or another location.

Invalid SIM card

• Make sure the SIM card has be en correctly inserted (see

"Inserting or removing the SIM card").

• Make sure the chip on your SIM card is not damaged or scratched.

• Make sure the service of your SIM card is available.

Unable to make outgoing calls

• Make sure you have dialed a valid number and have touched

• For international calls, check the country and area codes.

• Make sure your phone is connected to a network, and the network

is not overloaded or unavailable.

• Check your subscription status with your operator (credit, SIM

card valid, etc.).

• Make sure you have not barred outgoing calls.

• Make sure that your phone is not in flight mode.

Unable to receive incoming calls

• Make sure your phone is switched on and connected to a network

(check for overloaded or unavailable network).

• Check your subscription status with your operator (credit, SIM

card valid, etc.).

• Make sure you have not forwarded incoming calls.

• Make sure that you have not barred certain calls.

• Make sure that your phone is not in flight mode.

36 37

The caller’s name/number does not appear when a call is received

• Check that you have subscribed to this service with your operator.

• Your caller has concealed his/her name or number.

I cannot find my contacts

• Make sure your SIM card is not broken.

• Make sure your SIM card is inserted properly.

• Import all contacts stored in SIM card to phone.

The sound quality of the calls is poor

• You can adjust the volume during a call by pressing the Volume

Up/Down key.

• Check the network strength .

• Make sure that the receiver, connector or speaker on your phone

is clean.

I am unable to use the features described in the manual

• Check with your operator to make sure that your subscription

includes this service.

• Make sure this feature does not require an ALCATEL ONE

TOUCH accessory.

When I select a number from my contacts, the number cannot be dialed

• Make sure that you have correctly recorded the number in your

file.

• Make sure that you have selected the country prefix when calling

a foreign country.

I am unable to add a contact in my contacts

• Make sure that your SIM card contacts are not full; delete some

files or save the files in the phone contacts (i.e. your professional or personal directories).

My callers are unable to leave messages on my voicemail

• Contact your network operator to check ser vice availability.

I cannot access my voicemail

• Make sure your operator’s voicemail number is correctly entered

in "Voicemail number".

• Try later if the network is busy.

I am unable to send and receive MMS

• Check your phone memory availability as it might be full.

• Contact your network operator to check service availability and

check MMS parameters.

• Verify the server centre number or your MMS profile with your

operator.

• The server centre may be swamped, try again later.

SIM card PIN locked

• Contact your network operator to obtain the PUK code (Personal

Unblocking Key).

I am unable to connect my phone to my computer

• Install ONE TOUCH Center.

• Check that your USB driver is installed properly.

• Open the Notification panel to check if the ONE TOUCH Center

Agent has activated.

• Check that your computer meets the requirements for ONE

TOUCH Center Installation.

• Make sure that you’re using the right cable from the box.

I am unable to download new files

• Make sure there is sufficient phone memory for your download.

• Select the microSD card as the location to store downloaded files.

• Check your subscription status with your operator.

The phone cannot be detected by others via Bluetooth

• Make sure that Bluetooth is turned on and your phone is visible

to other users .

• Make sure that the two phones are within Bluetooth’s detection

range.

How to make your battery last longer

• Make sure you follow the complete charge time (minimum 4

hours).

• After a partial charge, the battery level indicator may not be exact.

Wait for at least 20 minutes after removing the charger to obtain an exact indication.

• Adjust the brightness of screen as appropriate.

• Extend the email auto-check inter val for as long as possible .

• Update news and weather information on manual demand, or

increase their auto-check interval.

• Exit background-running applications if they are not being used

for a long time.

• Deactivate Bluetooth, Wi-Fi, or GPS when not in use.

38 39

The phone will become warm following prolonged calls, game playing, internet surfing or running other complex applications�

• This heating is a normal consequence of the CPU handling

excessive data. Ending above actions will make your phone return to normal temperatures.

40 41

ALCATEL is a trademark of Alcatel-Lucent

and is used under license by

TCT Mobile Limited.

TCT Mobile Limited reserves

the right to alter material

or technical specification

without prior notice.

All "Signature" ringtones embedded in thi s phone have been composed, arranged and mixed by NU TROPIC (Amar Kabouche).

TCT Mobile 433 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
