TCT Mobile 400 User Manual

You have purchased a product which uses the open source (http://opensource.org/) programs mtd, msdosfs, netfilter/iptables and initrd in object code and ot her open source programs licensed under the GNU General Public License and Apache License.

We will provide you with a complete copy of the corresponding source codes upon request within a period of three years from the distribution of the product by TCT.

You may download the source codes from http://sourceforge.net/projects/alcatel/files/. The provision of the source code is free of charge from internet.

Table of Contents

1. Your device ........................................................................................................................................ 3

1.1 Appearance illustration ....................................................................................................... 3

1.2 Home screen ...................................................................................................................... 5

1.3 Apps and widgets ............................................................................................................... 7

1.4 Basic Operation .................................................................................................................. 8

2. Settings ............................................................................................................................................ 12

2.1 Device ............................................................................................................................... 12

2.2 Personal ............................................................................................................................ 13

2.3 System .............................................................................................................................. 13

3．Recovery ........................................................................................................................................ 15

SATEFY INFORMATION ..................................................................................................................... 16

PROTECT YOUR HEARING

This device meets applicable national SAR limits of 2.0 W/kg in EU and 1.6W/Kg in US. The specific maximum SAR values can be found on page 16 of this user gui de. Whe n carrying the device or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 0 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not using it.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Exercise caution when holding your device near your ear while the loudspeaker is in use.

1. Your device

1.1 Appearance illustration

a. Micro USB connector/ Battery charge interface b. Front camera c. Earphone interface d. Micro phone e. Power key f. Volume Up/Down g. Rear camera h. Built‐in speaker

Note: Please charge before first use. Normally, long press the Power key will power the pad on and the Home Screen will show up, but a battery icon will show instead of the Home Screen when the pad is lack of power, that indicates you should charge before use. Use onl y charger recommended by TC T Mobile Limited and its affiliates.

1.2 Home screen

Your device includes five pages of Home screen giving you more space to add your own favorite apps, folders, and widgets for one-touch access. T o switch between screens, sliding your finger to left o r right.

● Lock/Unlock your screen

Once your device is powered on, it shows a locked screen interface, which is set as default. Touch the locked icon, then a circle will shows around it.

Touch and hold the locked icon unlocked.

, drag it to the lock icon at the right of the circle, home screen is

● Icons on your screen

Icon

Name

Description

directions, etc.

program

Google search Touch it to access the Google search engine. Voice actions All apps Touch to show all apps list interface.

Back Go back to previous menu or screen. Home Return to home screen.

Background

Wi-Fi Press to view Wi-Fi connection.

Use Voice Actions to watch a video, send email, set alarm, get

Press to view background program list.

On the right of the screen bottom, there is a notification bar . A hidden menu will popup when you press the bar, which includes time, date, network connection and battery information, etc. For

further operation, you can press

1.3 Apps and widgets

● Apps The Applications (apps) list contains all pre-embedded and newly installed apps. To access the apps

list, touch the all apps key

● Widgets Touch the Widgets tab at the top of all apps scr een or slide l eft at All app s screen, you can switch to widgets interface.

● Get more apps Touch the Google play store icon

● Create and manage shortcut on desktop Touch and hold an icon on All Apps or widgets interface, it will jump to home screen automatically, drag it to the right place you want. Overlap icons toget her will build a folder. You ca n name the folder by touching the tap under the icons.

setting.

from Home screen.

to get more apps.

● Remove apps icon from desktop Touch and hold the icon you want to delete from the desktop, drag it right ov er the "

appears right in the middle of the screen top.

● Uninstall apps Press

1.4 Basic Operation

● Power on your device Long press the Power key until the pad powers on. It will t ake some sec onds before the scr een light s up.

● Power off your device

1. Long press the Power key about 3 seconds until the options appear, sel ect OK to power off your device.

2. Long press the Power key about 10 seconds to shut down your device.

● Stand-by mode Press Power key once to shut down the screen and the product enters stand-by mode.

to enter all Apps, then touch and hold the Apps icon you want to uninstall, drag it over the

, which appears top-left in the desktop.

", which

Note: without operation, the product will enter stand-b y mode automatically. Press Power key once to wake it up.

● Reset your device When your device is out of function,

1. You can press power button and volume up at the same time to enter Recovery screen to restart the device (Referring to Page 10).

2. Long press the Power key about 10 seconds to shut down your device. Then press the Power key to restart.

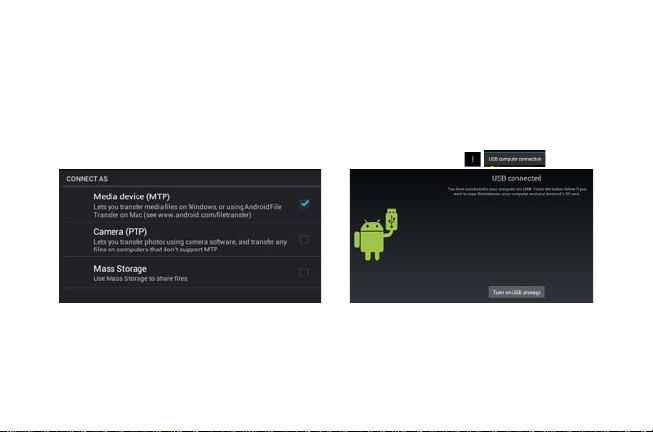

● Connect to a computer via USB When connecting your device to computer by USB, Select Setting\Storage\

\ ,

Turn on USB storage, you can transfer files between your device and the computer. Note: files copied to pad are not available until USB data cable is disconnected with PC completely.

● Change your wallpaper You can change your wallpaper in two different ways: touch & hold any space on home screen, select a wallpaper source from Gallery, Live Wallpapers or Wallpapers, touch a picture, select OK at the top of

the screen (for Gallery images) or Set wallpaper; For anothe r way is following the steps Settings > DEVICE > Display > Wallpaper.

● Wi-Fi To turn Wi-Fi on and connect to a wireless network

• Touch Application tab from the Home screen.

• Select Settings\Wireless & networks\Wi-Fi.

• Mark/Unmark the checkbox to turn on/off Wi-Fi.

• Touch Wi-Fi. The detailed information of an y detected Wi-Fi networks are displayed in the Wi-Fi

networks section.

• Touch a Wi-Fi network to connect. If the network you selected is secured, you are required to enter a password or other credentials (You may need to conta ct the network operator for details). When finished, touch Connect. Tips: To extend the battery life, turn off Wi-Fi when you're not using it.

● Zoom in/out Draw your fingers together/apart to zoom in/out (Web browser, Gallery etc...)

2. Settings

2.1 Device

2.1.1 Sound You can set Volumes, Touch sounds a nd Screen lock sound to your preference with the Volume up/down key, or touch Settings\DEVICE\Sound.

2.1.2 Display Touch settings> DEVICE >Display, you can see the items: Brightness: adjust your screen in a comfortable brightness Wallpaper: set your wallpaper Auto-rotate screen: mark the checkbox, to enable or disable auto-rotation Sleep: set Screensavers time Font size: select a suitable font size for your tablet

2.1.3 Storage Touch Settings> DEVICE >Storage to view the memory using status.

2.1.4 Battery Touch Settings> DEVICE >battery to check the battery power and its service status.

2.2 Personal

Language & input Touch Settings>PERSONAL>Language & input to view or set system language and input methods. Language: set the system language Keyboard & input methods: check and select all the input methods installed in the pad.

2.3 System

2.3.1 Date & time Touch Settings>SYSTEM>Date & time, to set date, time and format.

2.3.2 About tablet Touch Settings>SYSTEM>About tablet to check legal information, tablet status and soft ware version, etc.

2.3.3 Backup & reset You can back up settings and other data associated with one or more of your Google Accounts. If you need to replace or factory reset your device, you can restore your data for an y accounts that were previously backed up.

Touch Settings\PERSONAL\Backup & reset

Tips: please make sure that all the important da ta have been backed-up b efore you run factor y data reset, for this function will erase all apps and data that user installed; and remaining the battery is more than 50%.

3．Recovery

Options

Descriptions

Reboot system now

Restart up the system.

Apply update from SD card

Apply update from SD card.

Wipe data/factory reset

Clear all data/ restore the factory default settings.

Wipe cache partition

Clear all CACHE partitions.

Recovery system from backup

Recover the system from the backup files.

Update RK image from SD card

Update the system (image) from local SD card.

Recovery operation procedures

1) In power-off status, press and hold down the V ol+ ke y, then long pr ess the Power ke y to enter the recovery mode. The system will show a screen containing a robot and a red triangle with an exclamation mark inside.

2) In Recovery mode, you can use Vol+/- key to scroll through the options, then press Power key to enter.

Note: User data format will erase all your personal information and downloaded apps (not include SD card files and current system software).

Recovery options:

SATEFY INFORMATION We recommend that you read this chapte r carefully before using your device. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein.

● TRAFFIC SAFETY Given that studies show that using a device while driving a vehicle constitut es a real risk, even when the hands-free kit is used (car kit, headset...), drivers are r equested to refrain from using their device when the vehicle is not parked. When driving, do not use your device or headphone to listen to music or to the radio. Using a headphone can be dangerous and forbidden in some areas. W hen switched on, your device emits electromagnetic waves that can interfere with the vehicle’s ele ctronic systems such as A BS anti-lock brakes or airbags. To ensure that there is no problem:

- Do not place your device on top of the dashboard or within an airbag deployment area,

- Check with your ca r dealer or the car manufact urer to make sure th at the dashboard is adeq uately shielded from device RF energy.

● CONDITIONS OF USE You are advised to switch off the device from time to time to optimize its performance. Switch the device off before boarding an aircraft. Switch the device off when you are in healthcare facilities, except in designated a reas. As with ma ny other types of equipment now in regul ar use, these devices can interfere with other electrical or electronic devices, or equipment using radio frequencies.

Switch the device off when you are near gas or flammable liquids. Strictly obey all signs and instructions posted in a fuel depot, petrol station, or chemical plant, or in any potentially explosive atmosphere. When the device is switched on, it should be kept at least 15 cm from any medical de vice such as a pacemaker, a hearing aid or insulin pump, etc. In particular wh en using the device, you should hold it against the ear on the opposite side to the device, if any. To avoid hearing impairment, move the handset away from your ear while using the “hands-free” mode because the amplified volume might cause hearing damage. Do not let children use the device and/or play with the device and accessories without supervision. When replacing the cover please note th at your device ma y contain subs tances that could cr eate an allergic reaction. Always handle your device with care and keep it in a clean and dust-free place. Do not allow your device to be expose d to adverse weather or environment al conditions (moisture, humidity, rain, infiltration of liquids, dust, sea air, etc.). The m anufacturer’s recommended operatin g temperature range is -0°C to +45°C. At over 45°C the legibility of the device’s displa y may be impaired, though this i s temporary and not serious. Do not open, dismantle or attempt to repair your device yourself. Do not drop, throw or bend your device. Do not use the device if the glass made screen is damaged, cracked or broken to avoid any injury. Do not paint it. Use only battery chargers and accessories whic h are recommended by TCT Mobile Limited and i ts affiliates and are compatible with your device model. TCT Mobile Limited and its affiliates disclaim any liability for damage caused by the use of other chargers or accessories.

Remember to make back-up copies or keep a written record of all important information stored in your device. Some people may suffer epileptic seizures or blackouts when exposed to flashing lights, or when playing video games. These seizures or blac kouts may occur even i f a person never had a p revious seizure or blackout. If you have experienced seizures or black outs, or if you have a family histor y of such occurrences, please consult your doctor before playing video games on your device or enabling a flashing-lights feature on your device. Parents should monitor their children’s us e of video games or other f eatures tha t incorporat e flashing lights on the device. All persons should discontinue use and consult a doctor if any of the following symptoms occur: convulsion, eye or muscle twitching, loss of awareness, involuntary movements, or disorientation. To limit the likelihood of such symptoms, please take the following safety precautions:

- Do not play or use a flashing-lights feature if you are tired or need sleep.

- Take a minimum of a 15-minute break hourly.

- Play in a room in which all lights are on.

- Play at the farthest distance possible from the screen.

- If your hands, wrists, or arms become tired or sor e while playing, stop and rest for several hours before playing again.

- If you continue to have sore hands, wrists, or arms during or afte r playing, stop th e game and see a doctor. When you play games on your device, you may experience occasional discomfort in your hands, arms, shoulders, neck, or other parts of your body. Follow the instructions to avoid problems such as tendinitis, carpal tunnel syndrome, or other musculoskeletal disorders.

● PRIVACY

Please note that you must respect the laws and regulations in force in your jurisdiction or other jurisdiction(s) where you will use your device phone regarding taking photographs and recording sounds with your device. Pursuant to such laws and regulations, it may be strictly forbidden to take photographs and/or to record the voices of other people or any of their personal attributes, and duplicate or distribute them, as this may be considered to be an i nvas ion o f priv acy . It is t he use r's sole responsibility to ensure that prior authoriz ation be obtained, if necessar y, in order t o record p rivate o r confidential conversations or take a photograph of ano ther person; the manufacturer, the seller or vendor of your device (including the operator) disclaim any liability which may result from the improper use of the device.

● BATTERY There is an inner battery in this device. Observe the following precautions for battery use:

- Please do not attempt to open the cover and pick up the battery. This battery must be disposed of in accordance with locally applicable environment regulations.

They will then be recycled, preventing su bstances be ing disp osed of in the environment, so that their components can be reused.

In European Union countries:

This symbol on your device, the battery and the accesso ries means that these products must be taken to collection points at the end of their life:

- Municipal waste disposal centers with specific bins for these items of equipment.

- Collection bins at points of sale.

These collection points are accessible free of charge. All products with this sign must be brought to these collection points.

In non-European Union jurisdictions:

Items of equipment with this symbol are not to be thrown into ordinary bins if your jurisdiction or your region has suitable recycling and collection facilities; instead they are to be taken to collection points for them to be recycled.

● CHARGERS Mains powered chargers will operate within the temperature range of: 0°C to 40°C. The chargers designed for your device meet with the standard f or safety of information technology equipment and office equipment use. They are also compliant to the eco design directive 2009/125/EC. Due to different applicable electrical specifications, a charger you purchased in one jurisdiction may not work in another jurisdiction. They should be used for this purpose only.

● RADIO WAVES THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES Your device is a radio transmitter and receiver. It is designed not to exceed the lim its for exposure to radio waves (radio frequency electromagnetic fiel ds) recommended by international guide lines. The guidelines were developed by an independent scientific organization (ICNIRP) and include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The radio wave exposure guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg in EU and 1.6W/Kg in US. Tests for SAR are conducted using standard operating positions with t he device transmitting at its highest certified power level in all tested frequency bands. The highest SAR values under th e ICNI R P guidelines for this device model are: Maximum SAR for this model and conditions under which it was recorded:

Maximum SAR for this model and conditions under which it was recorded:

Wi-Fi + Blue Tooth version (Body-worn)

1.466W/Kg

During use, the actual SAR values for this device are usually well below the values stated above. This is because, for purposes of system efficiency and to minimize interference on the network, the operating power of your device is automatically decreased when full power i s not needed. T he lower the power output of the device, the lower its SAR value. Body-worn SAR testing has been carried out at a separati on distance of 0mm. To meet RF exposur e guidelines during body-worn operation, the device should be positioned at least this dist ance away from the body. If you are not using an approved access ory e nsure that what ever product is use d is free of an y meta l and that it positions the device the indicated distance away from the body. Organizations such as the World Health Organization and th e US Food an d Dr ug A dmi nistra tion ha ve suggested that if people are concerned and want to reduce their exposure they could use a hands-free accessory to keep the wireless device away from the head or body during use, or reduce the amount of time spent on the device.

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference cau sed by unauthorize d modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential in stallation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordanc e with the instruction s, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equip ment does cause harmful interf erence to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help. Changes or modifications made to this equipment not e xpressly approved b y manufacturer may void

the FCC authorization to operate this equipment.

● LICENCES

Micro SD Logo is a trademark.

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. And any use of such marks by TCT Mobile Limited and its affiliates is under license. Other trademarks and trade names are those of their respective owners. ONETOUCH TAB 8HD Bluetooth QD ID B021123

TouchPal Information Technology Co., Ltd. and/or its Affiliates.

The Wi-Fi Logo is a certification mark of the Wi-Fi Alliance. Your device uses non-harmonized frequency and is intended for use in all European countries. The WLAN can be operated in the EU without r estriction indo ors, but cannot be operated outdoors in France.

and CooTekTM are trademarks of Shanghai HanXiang (CooTek)

TruMedia, SRS and the symbol are trademarks of SRS Labs, Inc. TruMedia

technology is incorporated under license from SRS Labs, Inc. SRS TruMedia™, a feature-rich audio solution tuned specifically for mobile devices, provides a cinema-like surround headphone performance with deep, rich bass.

General information

Internet address: TCT Mobile Limited address: Room 1910-12A, Tower 3, China HK City, 33 Canton Road, Tsimshatsui, Kowloon, Hong Kong. Hot Line Number: see “TCT Mobile Services” leaflet or go to our website. On our website, you will find our FAQ (Frequently Asked Questions) section. You can also cont act us by e-mail to ask any questions you may have. An electronic version of this user guide is available in English and other languages according to availability on our server:

Your device is a transceiver that operates on Wi-Fi and Bluetooth with 2.4GHz. This equipment is in compliance with the essential r equirements and other relevant provisions of Directive 1999/5/EC. The entire copy of the Declaration of Conformity for your device can be obtained through our website:

www.alcatelonetouch.com

www.alcatelonetouch.com.

Disclaimer

There may be certai n differences between the user manual description and the device operation, depending on the software release of your device or specific operator services. TCT Mobile shall not be held legally responsible for such difference s, if any, nor for their potential consequences, which responsibility shall be borne by the operator exclusively.
