TCT Mobile 376 User Manual

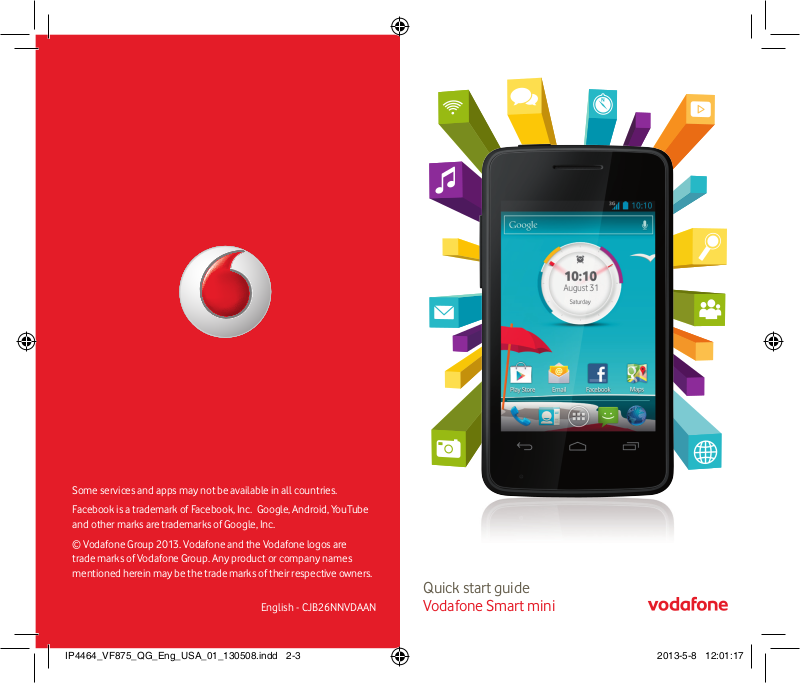

Quick start guide

Vodafone Smart mini

Some services and apps may not be available in all countries.

Facebook is a trademark of Facebook, Inc. Google, Android, YouTube
and other marks are trademarks of Google, Inc.

© Vodafone Group 2013. Vodafone and the Vodafone logos are
trade marks of Vodafone Group. Any product or company names
mentioned herein may be the trade marks of their respective owners.

English - CJB26NNVDAAN

IP4464_VF875_QG_Eng_USA_01_130508.indd 2-3 2013-5-8 12:01:17

1

2

For more information about how to use this phone, please go to
www.vodafone.com/smartmini to download full user manual. At this
website, you can also view the FAQs, check for software updates, and
more.

Your mobile 1

Keys and connectors1.1

Proximity sensor

Touch screen

LED light

Back key

Home key

Multitask key

Headset connector

Power key

micro-USB connector

Volume up

Volume down

Camera

Multitask key

On the Home screen, a press shows all running apps.•
Quick menu: pressing and holding the Multitask key can •

bring up a quick menu for settings and managing apps. To
enable this, go to Settings > Display > Menu appearance
and select

Home key

Press to return to the central Home screen. •
Use a long press to access "Google Now" and "Voice •

Search".

Back key

Press to go back to the previous menu or screen.•

IP4464_VF875_QG_Eng_USA_01_130508.indd 1-2 2013-5-8 12:01:18

3

4

Power key

Press: Lock the screen. •

Light up the screen.

Press and hold: If your phone is off, this powers it on. •

If your phone is on, this brings up the Power
option menu: Power off, Restart, Aeroplane
mode, and icons for ringing modes.

Volume Key

Press to adjust the volume (in call/media playing mode)•
Press to adjust the ring tone volume in general mode.•

Getting started1.2

Set-up1.2.1

Removing or installing the back cover

Inserting or removing the SIM card

You must insert your SIM card to make phone calls. Please power off
your phone and remove the battery before inserting or removing the
SIM card.

Place the SIM card with the chip facing downwards and slide it into its
housing. Make sure that it is correctly inserted. To remove the card,
press and slide it out.

Inserting or removing the battery

Please power off your phone before removing the batter y.

Insert and click the battery into place, then close the phone cover.•
Unclip the cover, then remove the battery.•

Inserting and removing the microSD card

To release the microSD card holder, slide it in the direction of the
arrow and lift it. Then insert the microSD card with the golden contact
downward. Finally, fold down the microSD holder and slide it in the
opposite direction to lock it.

Charging the battery

Connect the battery charger to your phone and the outlet
respectively.

IP4464_VF875_QG_Eng_USA_01_130508.indd 3-4 2013-5-8 12:02:03

5

6

To reduce energy wastage, disconnect your charger from the

plug when the battery is fully charged.

To reduce your phone's power consumption switch off Wi-Fi,
GPS, Bluetooth or applications running in the background when
not needed. You can also reduce the backlight brightness, and
shorten the time before the phone goes into sleep mode.

Power on your phone1.2.2

Hold down the Power key until the phone powers on. It will take some
seconds before the screen lights up.

Set up your phone for the first time

The first time you power on the phone, you will be asked to choose
following options: language, date & ti me, Google account, Input
method, etc. You can always make changes later using Settings in
the main menu

(1)

.

If you don't have a SIM card inserted you can still connect to a Wi-Fi
network from the Power on screen, which will let you sign on to your
Google account and use some features.

Power off your phone1.2.3

Hold down the Power key until the phone options appear. Tap Power
off, then tap OK.

Sleep mode1.2.4

After a set time, your phone will go into a sleep mode to save power.
You can also press the Power key once to send the phone to sleep
mode.

To wake your phone from sleep mode, just press the Power key.

Lock/Unlock the screen1.2.5

When you wake your phone from sleep mode you'll see a Lock screen,
which prevents accidental key presses.

(1)

Application availability depends on country and operator.

To unlock the screen, touch and slide the to the right. You can also
slide it in other directions to perform other actions, such as search or
starting the camera.

You can change the type of lock screen so that it unlocks with a
password or by drawing a pattern: press and hold the Multitask key
and touch System settings > Security > Set up screen lock > PIN

or Password or Slide.

Home screen1.3

You can bring all your favorite items (applications, shortcuts, folders
and widgets) to your Home screen for quick access. Touch the Home
key to switch to the main Home screen.

Status bar

Status/Notification indicators •
Touch and Drag down to open the •
Notification panel.

Application tab

Touch to open applications list.

Touch to access Messaging.
Touch to access Browser.

Touch to access Call log if you have missed calls.
Touch to access dial screen.

Touch to access People.

Search bar

Touch a to enter Search options: All,
Web, Apps, Contacts, etc.
Touch b to enter voice search screen.

Touch an icon to open an application,
folder, etc.

a

b

The Home screen extends on either side of the screen to allow more
space for adding applications, shortcuts, etc. Slide the Home screen
horizontally left and right to get a complete view of the Home screen.

IP4464_VF875_QG_Eng_USA_01_130508.indd 5-6 2013-5-8 12:02:05

7

8

Using the touchscreen1.3.1

Touch

To open an application, touch it with your finger.

Touch and Hold

Touch and hold your finger on the screen for 2 or more seconds. You
can touch and hold an application, a widget or a blank area to drag the
item or display the corresponding option menus.

Drag

Touch and hold your finger on any item to drag it to another location.

Slide/Swipe

Slide the screen to scroll up and down applications, images, web
pages...

Flick

Similar to swiping, but flicking makes it move quicker.

Pinch/Spread

Place your finger and thumb on the screen surface and draw them
apart or together to scale an element on the screen.

Rotate

Automatically change the screen orientation from portrait to landscape
by turning the phone sideways.

To achieve the best response when using the touchscreen,

all that is needed is a gentle touch for press/press and hold
actions.

Status bar1.3.2

From status bar, you can view both phone status (on the right side) and
notification information (on the left side).

Status icons

GPRS connected GPS is on

GPRS in use

Receiving location data
from GPS

EDGE connected Roaming

EDGE in use No signal

3G connected No SIM card installed

3G in use Vibrate mode

HSPA (3G+) connected Ringer is silenced

HSPA (3G+) in use

Phone microphone is
muted

Connected to a Wi-Fi
network

Battery is very low

Bluetooth is on Battery is low

Connected to a
Bluetooth device

Battery is partially
drained

Airplane mode Battery is full

Alarm is set Battery is charging

Signal strength Headset connected

IP4464_VF875_QG_Eng_USA_01_130508.indd 7-8 2013-5-8 12:02:05

9

10

Notification icons

New Gmail TM message

Both USB tethering and
portable hotspot are on

New text or multimedia
message

Call in progress

Problem with text or
multimedia message
delivery

Call in progress using
Bluetooth headset

New Google Talk TM
message

Missed call

New voicemail Call on hold

Upcoming event Call forwarding is on

Data is synchronising Uploading data

Problem with sign-in or
synchronisation

Downloading data

microSD card is full Download finished

No microSD card
installed

An open Wi-Fi network is
available

Connected to VPN

Phone is connected via
USB cable

Disconnected from VPN Radio is on

Song is playing System update available

USB tethering is on

Portable Wi-Fi hotspot
is on

Notification panel

Touch and drag down the Status bar to open the Notification panel.
Touch and drag up to close it. From the Notification panel, you can
open items and other reminders indicated by notification icons or view
wireless service information.

Widget bar: swip e left to see more
widgets. Touch an icon to change its
function.

Settings

Touch to clear all event–ba sed no tifications (other ongoing
notifications will remain).

Search bar1.3.3

The phone provides a Search bar on the main Home screen which can
be used to find information in applications, search for apps and data on
your phone or search the web.

a Touch or press the keypads to

searce by text

b Touch to search by voice
c Touch to enter the suggested

text for quick search

d Touch to search the web

a

c

b

d

IP4464_VF875_QG_Eng_USA_01_130508.indd 9-10 2013-5-8 12:02:05

11

12

Personalize your home screen1.3.4

Add

You can add shortcuts, widgets or folders to the Home screen by
pressing the key. Touch and hold the item you want to add and then
release it. You will see it in current home screen.

Reposition

Touch and hold the item to be repositioned to activate the Move
mode: drag the item to desired position, then release. Hold the icon on
the left or right edge of the screen to drag the item to another Home
screen page.

Remove

Touch and hold the item to be removed to activate the Move mode:
drag the item on top of , and when the icon turns red release your
finger.

Wallpaper customisation

Touch and hold an empty area on the Home screen or press and
hold the Multitask key in the Home screen, then select System

settings > Display > Wallpaper to customize wallpaper.

Application tab1.3.5

The Applications list contains all pre-embedded and newly installed
applications.

Touch from the Home screen to enter the Applications list.

To return to the Home screen, touch the Home key.

View Default/Most used/Recently installed applications

To view your Default/Most used/Recently installed applications, press
the option icon at the top of the applications list and choose your
option.

Volume adjustment1.3.6

You can set ringer, media and phone ringtone volume to your preference
using the Volume up/down key, or in the Settings menu.

IP4464_VF875_QG_Eng_USA_01_130508.indd 11-12 2013-5-8 12:02:06

13

14

Text input 2

Using the onscreen keyboard2.1

The onscreen keyb oard will be displayed automati cally when a
program requires you to enter text or numbers.

Onscreen Keyboard settings

Press and hold the Multitask key in the Home screen, then select
System settings > Language & input > Android keyboard (or
Google voice typing) to see the various keyboard settings. Scroll to

select the keyboard style you want to change keyboard style.

Adjust the Onscreen Keyboard orientation

Turn the phone sideways or upright to adjust the onscreen keyboard
orientation. You can also adjust it by settings (press the Application tab
key in the Home screen, then Settings > Display > Orientation).

Android keyboard2.1.1

Touch to enable caps lock
mode.

Touch to switch to symbol
and numeric keyboard.

Touch to enter Voice input.

Press and hold t o enter an
accent of the letter.

Touch to enter text or
numbers.

Text editing2.2

You can edit the text you have entered.

Touch and hold text you have entered. •
For large group words, you may touch and hold the beginning word
and move the end points to the place which you want.
An options list pops up.•
Select the operation you need (• Paste, Replace, Cut, etc.)

Phone call 3

Placing a call3.1

You can easily make a call using Phone. You can open the Phone
menu in two ways:

Touch • from the Home screen.

Touch the Application tab from the Home screen and select • Phone.

Touch and

hold to access

Voicemail

Search

contacts

Call log

Options

Contacts

Enter the number you want from the keyboard directly or select a
contact from Contacts or Call log by touching the tabs at the top of
the screen, then touch to place the call.

IP4464_VF875_QG_Eng_USA_01_130508.indd 13-14 2013-5-8 12:02:06

15

16

The number you entered can be saved to Contacts by pressing the
key and touching Add to Contacts.

If you make a mistake, you can delete the incorrect digits by touching

.

To hang up a call, press .

Answering or rejecting a call3.2

When you receive an incoming call, slide the green phone icon to
answer. Hang up the call by pressing the icon.

When you receive an incoming call but don't want to answer, you
can reject it by dragging up to select Messages. The caller is sent
directly to your voicemail box to leave a message.

View your call history3.3

You can view your call history by touching from the Home screen
and then touch . This will show your Missed calls, Outgoing calls,
and Incoming calls.

People 4

You can view and create contacts on your phone and sychronize
these with your Gmail contacts or with other accounts registered on
your phone.

When using People for the first time you are asked to add new
contacts, import contacts from your SIM card or synchronize
contacts from other application accounts to your phone.

Adding a contact4.1

Touch the Application tab on the Home screen, select People, You can
also select Groups and Favorites to manage your contacts. Press to
add a contact.

Importing, exporting and sharing 4.2
contacts

From the Contacts screen, press the icon to open the contacts list
option menu, touch Import/Export, then select SIM card, Phone,
Internal storage, SD card.

To import/export a single contact from/to the SIM card, touch the •
contact you want to import/export, then press to confirm.

To import/export all contacts from/to the SIM card, press • and touch

to confirm.

You can share a single contact or contacts with others by sending the
contact's vCard to them via Bluetooth, MMS, Email, etc.

Touch a contact you want to share, press the Menu key and touch
Share from the contact details screen, then select the application to
perform this action.

Synchronising contacts in multiple 4.3
accounts

Contacts, data or other information can be synchronized from multiple
accounts, depending on the applications installed on your phone.

IP4464_VF875_QG_Eng_USA_01_130508.indd 15-16 2013-5-8 12:02:06

17

18

Messaging 5

You can create, edit and receive SMS and MMS messages with this
mobile phone.

To access this feature, touch the Application tab from the Home
screen, then select Messaging.

All messages you recei ve or send out can only be saved in
phone memory. To view messages stored on the SIM card,
press the icon in th e Me ssaging scree n, th en to uch

Settings > Manage SIM messages.

Write message5.1

On the message list screen, touch the new message icon to write
text/multimedia messages.

Touch to create a new
message

Touch to view the whole
message thread

Sending a text message

Enter the mobile phone number of the recipient on the To bar or
touch to add recipients, then touch the Type to compose bar to
enter the text of the message. When finished, touch to send the
text message.

An SMS of more than 160 characters will be charged as several
SMS messages. Specific letters (like accents) will also increase
the size of the SMS, so this may cause multiple SMS messages
to be sent to your recipient.

Sending a multimedia message

MMS enables you to send video clips, images, photos, animations,
slides and sounds to other compatible phones and e-mail addresses.

An SMS will be converted to MMS automatically when media files (images,
video, audio, slides, etc.) are attached or Subject or email addresses added.

Email 6

Besides your Gmail account, you can also set up external POP3 or IMAP
email accounts on your phone.

To access this function, touch the Application tab from the Home
screen, then select Email.

An email wizard will guide you through the steps to set up an email
account.

a Enter the email address and password of the account you want to

set up.

b Touch Next. If the account you ente red is not supp orted

automatically on the phone, you will be prompted to go to the
email account settings screen to enter settings manually. Or
you can touch Manual setup to directly enter the incoming and
outgoing settings for the email account you are setting up.

IP4464_VF875_QG_Eng_USA_01_130508.indd 17-18 2013-5-8 12:02:06

19

20

c Enter the account name and display name in outgoing emails.

d Touch Done.

e To add another email account, you can touch and press "Settings",

touch Add account.

To create and send emails

a Press the icon in the Inbox screen, and touch Compose.

b Enter the recipient(s)’s email address in the To field, and if necessary,

press the key and touch Add Cc/Bcc to include a copy or a blind
copy to the message.

c Enter the subject and content of the message.

d Press the icon and, touch Attach file to send an attachment to

the receiver.

e Finally, touch to send.

f If you do not want to send the mail right away, you can touch and

Save as draft or press the Back key to save a copy.

Getting connected 7

To connect to the Internet with this phone, you can use GPRS/
EDGE/3G networks or Wi-Fi, whichever is most convenient.

Connecting to the Internet7.1

GPRS/EDGE/3G7.1.1

The first time you turn on your phone with the SIM card inserted it will
automatically configure a network service: GPRS, EDGE or 3G.

To check the network connection you are using, press the Menu key
in the Home screen, then touch Settings > Wireless & Networks

> More > Mobile networks > Network operators or Access Point
Names.

Wi-Fi7.1.2

Using Wi-Fi, you can connect to the Internet when your phone is within
range of a wireless network. Wi-Fi can be used on the phone even
without a SIM card inserted.

To turn Wi-Fi on and connect to a wireless network

a Press and hold the Multitask key in the Home screen.

b Touch System settings.

c Touch the On/Off toggle next to the Wi-Fi icon to turn Wi-Fi on or

off.

d Touch Wi-Fi. The detailed information of detected Wi-Fi networks is

displayed in the Wi-Fi networks section.

e Touch a Wi-Fi network to connect. If the network you selected

is secured, you will be required to enter a password or other
credentials (you may contact network operator for details). When
finished, touch Connect.

Browser 7.2

Using the Browser, you can enjoy surfing the Web.

To open the web browser, tap on the Home screen.

To go to a web page

In the Browser screen, touch the URL box at the top, enter the address
of the web page, then touch Go.

IP4464_VF875_QG_Eng_USA_01_130508.indd 19-20 2013-5-8 12:02:06

21

22

Connecting to a computer via USB7.3

With the USB cable, you can transfer media files and other files
between your phone and computer.

To connect your phone to the computer

a Use the USB cable that came with your phone to connect the phone

to a USB port on your computer. You will receive a notification that
the USB is connected.

b If you w ant t o cha nge th e USB connec tion type, open the

Notifications panel and touch .

To locate data you have t ransferred or d ownloaded to your
phone:

a Touch the Application tab from the Home screen to open the

applications list.

b Touch File Manager.

All the data you have downloaded are stored in File Manager, where
you can view media files (videos, photos, music and others), rename
files, install applications onto your phone, etc.

Sharing your phone's mobile data 7.4
connection

You can share your phone's mobile data connection with a single
computer via a USB cable (USB tethering), or with up to eight devices
at once by turning your phone into a portable Wi-Fi hotspot.

To turn on USB tethering or Portable Wi-Fi hotspot

a Press and hold the Multitask key in the Home screen.

b Touch Settings > Wireless & Networks > More > Tethering &

portable hotspot.

c Mark the checkbox of USB tethering or Portable Wi-Fi hotspot to

activate this function.

Sharing data may incur additional network charges from your
network operator. Extra fees may also be charged in roaming
areas.

IP4464_VF875_QG_Eng_USA_01_130508.indd 21-22 2013-5-8 12:02:07

23

24

Find8 my location

To turn on your phone’s global positioning system (GPS) satellite receiver:
a Press the Menu key in the Home screen.
b Touch Settings > Location services > GPS satellites
c Mark the checkbox
Find your location by opening Maps:

Your phone uses GPS and mobile cell-tower data to provide a quick and
accurate location − sometimes as close as several metres. The process
of accessing the GPS satellite and setting your phone's precise location
for the first time can require up to 5 minutes. You will need to stand in a
place with a clear view of the sky and avoid moving. After this, GPS will
only need 20-40 seconds to identify your precise location.

Data backup9

This phone enables you to back up your phone’s settings and other
application data to Google Servers, using your Google Account.

If you replace your phone, the settings and data you’ve backed up
are restored onto the new phone the first time you sign in with your
Google Account.

To activate this function:
a Press the Menu key in the Home screen
b Touch Settings > Backup and reset > Back up my data
c Mark the checkbox
When data backup is activated, a wide variety of settings and data are

backed up, including your Wi-Fi passwords, bookmarks, a list of the
applications you’ve installed, the words you’ve added to the dictionary
used by the onscreen keyboard, and most of the settings that you
configure with the Settings application. If you deactivate this option,
you stop backing up your settings, and any existing backups are
deleted from Google Servers.

Factory data reset 10

To activate a factory data reset:
a Press and hold the Multitask key in the Home screen.
b Touch System settings > Backup and reset > Factory data reset
c Mark the checkbox

Phone reset will erase all of your personal data from internal
phone storage, including information about your Google Account,
any other accounts, your system and application settings, and any
downloaded applications. Resetting the phone does not erase any

system software updates you’ve downloaded or any files on your microSD
card, such as music or photos. If you reset the phone in this way, you’re
prompted to re-enter the same kind of information as when you first
started Android.

When you are unable to power on your phone, there is another way to
perform a factory data reset by using hardware keys. Hold down the
the Volume up key and press the Power key at same time until the
screen lights up.

IP4464_VF875_QG_Eng_USA_01_130508.indd 23-24 2013-5-8 12:02:07

25

26

Applications 11

Your phone comes with some built-in GoogleTM applications, and more
third-party applications can be downloaded onto it.

With the built-in applications, you can

Communicate with friends•
Exchange messages or emails with friends•
Track your location, view traffic situations, search for locations and •

get navigation information to your destination
Download more applications from Google Play Store and more.•

For more information about these applications, please check the user
manual online: www.vodafone.com/smartmini.

Making the most of your 12
phone

Android Manager12.1

You can download the Android Manager PC suite software for free from
the website: http://www.vodafone.com/smartmini

The Vodafone PC suite includes:

Contacts•

It allows you to back up contact entries so that you don't have to worry
about losing, breaking, or changing your phone.

Messages•

It allows you to write messages from your computer instead of using
the phone's onscreen keyboard. It also manages your messages.

Photos•

It allows you to easily import photos from either your PC or your
phone, and organize them in different albums.

Videos•

It allows you to playback video files from your PC and upload them to
a folder on your phone.

Music•

It allows you to quickly find your favorites on your PC, manage your
library, and set up playlists for your phone's music player.

Application •

It allows you to impor t downloaded mobile applications and have
them installed onto your phone upon synchronization.

File •

It allows you to organize your phone's files with just a few clicks, so
they will appear on your phone where you want them.

Sync•

It allows you to synchronize the Contacts and Calendar in Outlook/
Outlook Express and handset.

Supported Operating Systems

Windows XP/Vista/Windows 7

FOTA Upgrade12.2

Using the FOTA Upgrade tool you can update your phone's software.
To access Software updates, please open n otification panel and

touch icon, then press About phone > Software updates. or
touch the icon and access Sett ings > About phone > Software
updates. Touch Check for updates, and the p hone will search
for the late st software. If you wan t to update the system , please
touch the Download button, after it's done please touch Install to
complete the upgrade. Now yo ur phone will have the late st version
of the software.

You should turn on data connectio n before searching for updates.
Settings for auto-c heck interv als and reminders about upgrades are

also avai lable once you res tart the phone .
If you h ave chosen auto-c heck, when the system discovers the

new version, the icon wi ll appear in the status bar. Touch the
notification to access the Software Updates directly.

During FOTA dow nloading o r updati ng,to a void errors in
locating the correct update packages, do not change your
default storage location.

IP4464_VF875_QG_Eng_USA_01_130508.indd 25-26 2013-5-8 12:02:07

27

28

Safety and use

We recommend that you read this chapter carefully before using your
mobile phone. The manufacturer disclaims any liability for damage,
which may result as a consequence of improper use or use contrary to
the instructions contained herein.

TRAFFIC SAFETY

Given that studies show that using a mobile phone while driving a
vehicle constitutes a real risk, even when the hands-free kit is used (car
kit, headset...), drivers are requested to refrain from using their mobile
phone when the vehicle is not parked. Check the laws and regulations
on the use of wireless mobile phones and their accessories in the areas
where you drive. Always obey them. The use of these devices may be
prohibited or restricted in certain areas.
When driving, do not use your mobile phone and headphone to listen
to music or to the radio. Using a headphone can be dangerous and
forbidden in some areas.
When switched on, your mobile phone emits electromagnetic waves
that can interfere with the vehicle’s electronic systems such as ABS
anti-lock brakes or airbags. To ensure that there is no problem:

- do not place your mobile phone on top of the dashboard or within an
airbag deployment area,

- check with your car dealer or the car manufacturer to make sure
that the car’s electronic devices are shielded from mobile phone RF
energy.

CONDITIONS OF USE

You are advised to switch off the mobile phone from time to time to
optimize its performance.
Remember to abide by local authority rules of mobile phone use on
aircrafts.
Operational Warnings: Obey all posted signs when using mobile
devices in public areas.
Follow Instructions to Avoid Interference Problems: Turn off your
mobile device in any location where posted notices instruct you to do
so. In an aircraft, turn off your mobile device whenever instructed to
do so by airline staff. If your mobile device offers an airplane mode or
similar feature, consult airline staff about using it in flight.

Switch the mobile phone off when you are in health care facilities,
except in designated areas. As with many other types of equipment
now in regular use, mobile phones can interfere with other electrical
or electronic devices, or equipment using radio frequency.
Switch the mobile phone off when you are near gas or flammable
liquids. Strictly obey al l signs and instr uctions pos ted in a fuel
depot, gas station, or chemical plant, or in any potentially explosive
atmosphere.
When the mobile phone is switched on, it should be kept at least 15 cm
from any medical device such as a pacemaker, a hearing aid or insulin
pump. In particular when using the mobile phone you should hold it
against the ear on the opposite side to the device, if any.
Read and fol low the di rections from the ma nufacturer of your
implantable medical device. If you have any questions about using
your mobile device with your implantable medical device, consult your
healthcare provider.
To avoid hearing impairment, answer the call before holding your
mobile phone to your ear. Also move the handset away from your ear
while using the “hands-free” option because the amplified volume
might cause hearing damage.
It is recommended to have proper supervision while small children use
your mobile phone.
When replacing the cover please note that your mobile phone may
contain substances that could create an allergic reaction.
Always handle your mobile phone with care and keep it in a clean and
dust-free place.
Do not allow your mobile phone to be exposed to adverse weather
or environmental conditions (moisture, humidity, rain, infiltration of
liquids, dust, sea air, etc.). The manufacturer’s recommended operating
temperature range is -10°C (14°F) to +55°C (131°F) (the max value
depends on device, materials and housing paint/texture).
Over 55°C (131°F) the legibility of the mobile phone’s display may be
impaired, though this is temporary and not serious.
Do not open or attempt to repair your mobile phone yourself.
Do not drop, throw or try to bend your mobile phone.
Do not use the mobile phone if the glass made screen, is damaged,
cracked or broken to avoid any injury.
Do not paint it.

IP4464_VF875_QG_Eng_USA_01_130508.indd 27-28 2013-5-8 12:02:07

29

30

Use only batteries , batter y cha rgers, and accessories which are
recommended by TCT Mo bile Limite d and it s affili ates and are
compatible with your mobile phone model.TCT Mobile Limited and its
affiliates disclaim any liability for damage caused by the use of other
chargers or batteries.
Your mobile phone should not be disposed of in a municipal waste.
Please check local regulations for disposal of electronic products.
Remember to make back-up copies or keep a written record of all
important information stored in your mobile phone.
Some people may suffer epileptic seizures or blackouts when exposed
to flashing lights, or when playing video games. These seizures or
blackouts may occur even if a person never had a previous seizure or
blackout. If you have experienced seizures or blackouts, or if you have
a family history of such occurrences, please consult your doctor before
playing video games on your mobile phone or enabling a flashing-lights
feature on your mobile phone. Parents should monitor their children’s
use of video games or other features that incorporate flashing lights
on the mobile phones. All persons should discontinue use and consult
a doctor if any of the following symptoms occur: convulsion, eye
or muscle twitching, loss of awareness, involuntary movements, or
disorientation. To limit the likelihood of such symptoms, please take
the following safety precautions:

- Play at the far thest distance possible from the screen.

When you play games on your mobile phone, you may experience
occasional discomfort in your hands, arms, shoulders, neck, or other
parts of your body.
Follow these instructions to avoid problems such as tendinitis, carpal
tunnel syndrome, or other musculoskeletal disorders:

- Take a minimum of a 15-minute break every hour of game playing.

- If your hands, wrists, or arms become tired or sore while playing, stop
and rest for several hours before playing again.

- If you continue to have sore hands, wrists, or arms during or after
playing, stop the game and see a doctor.

PROTECT YOUR HEARING
To prevent possible hearing damage, do not listen at high

volume levels for long periods. Exercise ca ution when
holding your device near your ear while the loudspeaker is
in use.

PRIVACY

Please note that you must respect the laws and regulations in force in
your jurisdiction or other jurisdiction(s) where you will use your mobile
phone regarding taking photographs and recording sounds with your
mobile phone. Pursuant to such laws and regulations, it may be strictly
forbidden to take photographs and/or to record the voices of other
people or any of their personal attributes, and reproduce or distribute
them, as this may be considered to be an invasion of privacy.
It is the user’s sole responsibility to ensure that prior authorization
be obtained, if necessary, in order to record private or confidential
conversatio ns or take a photogra ph of another person; the
manufacturer, the seller or vendor of your mobile phone (including
the operator) disclaim any liability which may result from the improper
use of the mobile phone.

BATTERY AND ACCESSORIES

Before removing the battery from your mobile phone, please make
sure that the mobile phone is switched off.
Observe the following precautions for battery use:

- Do not attempt to open the battery (due to the risk of toxic fumes
and burns).

- Do not puncture, disassemble or cause a short-circuit in a battery,

- Do not burn or dispose of a used battery in the garbage or store it at
temperatures above 60°C (140°F).

Batteries must be disposed of in accordance with locally applicable
environmental regulations. Only use the battery for the purpose for
which it was designed. Never use damaged batteries or those not
recommended by TCT Mobile Limited and/or its affiliates.

This symbol on your mobile phone, the battery and the

accessories means that these products must be taken to
collection points at the end of their life:

- Municipal waste disposal centers with specific bins for
these items of equipment

- Collection bins at points of sale.

They will then be recycled, preventing substances being disposed of in
the environment, so that their components can be reused.

IP4464_VF875_QG_Eng_USA_01_130508.indd 29-30 2013-5-8 12:02:07

31

32

In European Union countries:

These collection points are accessible free of charge. All products with
this sign must be brought to these collection points.

In non European Union jurisdictions:

Items of equipment with this symbol are not be thrown into ordinary
bins if your jurisdiction or your region has suitable recycling and
collection facilities; instead they are to be taken to collection points
for them to be recycled.
In the United States you may learn more about CTIA’s Recycling
Program at www.recyclewirelessphones.com
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS

CHARGERS

Home A.C./ Travel chargers will operate within the temperature range
of: 0°C (32°F) to 40°C (104°F).
The chargers designed for your mobile phone meet with the standard
for safety of information technology equipment and office equipment
use. Due to different applicable electrical specifications, a charger you
purchased in one jurisdiction may not work in another jurisdiction.
They should be used for this purpose only.

Characteristics of power supply (depending on the country):
Travel charger: Input: 100-240 V, 50/60 Hz, 150 mA
Output: 5 V, 550 mA
Battery: Lithium 1300/1400 mAh

RADIO WAVES

THIS MOBILE PHONE MEETS THE GOVERNMENT’S REQUIREMENTS
FOR EXPOSURE TO RADIO WAVES.
Your mobile phone is a radio transmitter and receiver. It is designed
and manufactured not to exceed the emission limits for exposure to
radio-frequency (RF) energy. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the general
population. The guidelines are based on standards that were developed
by independent scientific organizations through periodic and thorough
evaluation of scientific studies. These guidelines include a substantial
safety margin designed to ensure the safety of all persons, regardless
of age and health.

The exposure standard for mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR
limit set by public authorities such as the Federal Communications
Commission of the US Government (FCC), or by Industry Canada, is 1.6
W/kg averaged over 1 gram of body tissue. Tests for SAR are conducted
using standard operating positions with the mobile phone transmitting
at its highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified power level,
the actual SAR level of the mobile phone while operating can be
well below the maximum value. This is because the mobile phone is
designed to operate at multiple power levels so as to use only the
power required to reach the network. In general, the closer you are
to a wireless base station antenna, the lower the power output of the
mobile phone.
Before a mobile phone model is available for sale to the public,
compliance with national regulations and standards must be shown.
The highest SAR value for this model mobile phone when tested is

0.59 W/Kg for use at the ear and 0.90 W/Kg for use close to the body.
While there may be differences between the SAR levels of various
mobile phones and at various positions, they all meet the government
requirement for RF exposure. For body-worn operation, the mobile
phone meets FCC RF exposure guidelines provided that it is used with
a non-metallic accessory with the handset at least 10 mm from the
body. Use of other accessories may not ensure compliance with FCC
RF exposure guidelines.
Additiona l informat ion on SAR ca n be found on th e Cellular
Telecommunicati ons & Internet Associat ion (C TIA) Web site:
http://www.phonefacts.net
The World Health Organization (WHO) considers that present scientific
information does not indicate the need for any special precautions
for use of mobile phones. If individuals are concerned, they might
choose to limit their own or their children’s RF exposure by limiting
the length of calls, or using “hands-free” devices to keep mobile
phones away from the head and body. (fact sheet n°193). Additional
WHO information about electromagnetic fields and public health are
available on the following website: http://www.who.int/peh-emf.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device pursuant to part 15 of the FCC Rules.

IP4464_VF875_QG_Eng_USA_01_130508.indd 31-32 2013-5-8 12:02:07

33

34

These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.

- Consult the dealer or an experienced radio/ TV technician for help.

Changes or modifi cations not ex pressly a pproved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
For the receiver devices associated with the operation of a licensed
radio service (e.g. FM broadcast), they bear the following statement:
This device complies with Part 15 of the FCC Rules. Operation is subject
to the condition that this device does not cause harmful interference.
For other devices, they bear the following statement:
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) this device may not cause harmful interference
(2) t his devi ce must accept any interference recei ved, includ ing

interference that may cause undesired operation.
Your mobile phone is equipped with a built-in antenna. For optimal
operation, you should avoid touching it or degrading it.
As mobile devices offer a range of functions, they can be used in
positions other than against your ear. In such circumstances the device
will be compliant with the guidelines when used with headset or usb
data cable. If you are using another accessory ensure that whatever
product is used is free of any metal and that it positions the mobile
phone at least 10 mm away from the body.

LICENCES

microSD Logo is a trademark.

The Bluetooth word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by TCT Mobile
Limited and its affiliates is under license. Other trademarks
and trade names are those of their respective owners.

Vodafone 875 Bluetooth QD ID
B020261

The Wi-Fi Logo is a cer tification mark of the Wi-Fi
Alliance.

Android, Google and YouTube and other marks are
trademarks of Google Inc. The Android robot is reproduced
or modified from work created and shared by Google
and used according to terms described in the Creative
Commons 3.0 Attribution License.

IP4464_VF875_QG_Eng_USA_01_130508.indd 33-34 2013-5-8 12:02:08

35

36

You have purchased a product which uses the open source (http://
opensource.org/) programs mtd, msdosfs, netfilter/iptables and initrd
in object code and other open source programs licensed under the
GNU General Public License and Apache License.

We will provide you with a complete copy of the corresponding source
codes upon request within a period of three years from the distribution
of the product by TCT.

You may download the source codes from http://sourceforge.net/
projects/ alcatel/files/. The provision of the source code is free of
charge from internet.

Notice

The information in this manual is subject to change without notice.
Every effort has been made in the preparation of this manual to

ensure accuracy of the contents, but all statements, information, and
recommendations in this manual do not constitute a warranty of any
kind, expressed or implied. Read the safety precautions and safety
information carefully to ensure that you use this wireless device in a
correct and safe manner.

TCT Mobile Limited Address:
Room 1910-12A, Tower 3, China HK City, 33 Canton Road, Tsimshatsui,

Kowloon, Hong Kong
Website: http://www.vodafone.com/smartmini

General information

• Website: www.alcatelonetouch.com

• Facebook: http://www.facebook.com/alcatelonetouchusa

• Twitter: http://www.twitter.com/alcatel1touch

• Hot Line Number: In the United States, call 877-702-3444 for

technical support.

On our Internet site, you will find our FAQ (Frequently Asked Questions)
section. You can also contact us by e-mail to ask any questions you
may have.
An electronic version of this user guide is available in English and
other languages according to availability on our ser ver: www.
alcatelonetouch.com

Your telephone is a transceiver that operates on GSM in quad-band
(850/ 900/1800/1900MHz) or UMTS in dual-band (900/2100MHz).

Protection against theft

(1)

Your mobile phone is identified by an IMEI (mobile phone serial
number) shown on the packaging label and in the product’s memory.
We recommend that you note the number the first time you use your
mobile phone by entering *#06# and keep it in a safe place. It may
be requested by the police or your operator if your mobile phone is
stolen.

Disclaimer

There may be certain differences between the user manual description
and the mobile phone’s operation, depending on the software release
of your mobile phone or specific operator services.

TCT Mobile shall not be held legally responsible for such differences, if
any, nor for their potential consequences, which responsibility shall be
borne by the operator exclusively.

(1)

Contact your network operator to check service availability.

IP4464_VF875_QG_Eng_USA_01_130508.indd 35-36 2013-5-8 12:02:08

37

38

ALCATEL ONE TOUCH Limited
Warranty

TCT Mobile North America LTD warrants to the original retail purchaser
of this wireless device, that should this product or part thereof during
normal consumer usage and condition, be proven to be defective
in material or workmanship that results in product failure within the
first twelve (12) months from the date of purchase as shown on your
original sales receipt. Such defect(s) will be repaired or replaced (with
new or rebuilt parts) at the company’s option without charge for par ts
or labor directly related to the defect(s).

Batteries, power adapters, and other accessories sold as in box items are
also warranted against defects and workmanship that results in product
failure within the first six (6) months period from the date of purchase as
shown on your original sales receipt. Such defect(s) will be repaired or
replaced (with new or rebuilt parts) and the company’s option without
charge for parts or labor directly related to the defect(s).

The limited warranty for your wireless device will be voided if any of the
following conditions occur:

•Non-compliance withtheinstructionsforuse orinstallation,orwith

technical and safety standards applicable in the geographical area
where your mobile phone is used;

•Connection toany equipmentnot supplied or not recommended

by TCT Mobile;

•ModificationorrepairperformedbyindividualsnotauthorizedbyTCT

Mobile or its affiliates;

•Acts ofgodsuchasInclementweather,lightning,powersurges,fire,

humidity, infiltration of liquids or foods, chemical products, download
of files, crash, high voltage, corrosion, oxidation;

•Removal or altering of the wireless devices event labels or serial

numbers (IMEI);

•Damage fromexposuretowaterorotherliquids,moisture,humidity,

excessive temperatures or extreme environmental conditions, sand,
excess dust and any condition outside the operating guidelines;

•Defectsinappearance,cosmetic,decorativeorstructuralitemssuch

as framing and non-operative parts.

There are no express warranties, whether written, oral or implied,
other than this printed limited warranty or the mandatory warranty
provided by your jurisdiction. In no event shall TCT Mobile or any of
its affiliates be liable for incidental or consequential damages of any
nature whatsoever, including but not limited to commercial loss, to
the full extent those damages can be disclaimed by law. Some states
do not allow the exclusion or limitation of incidental or consequential
damages, or limitation of the duration of implied warranties, so the
preceding limitations or exclusions may not apply to you.
How to obtain Support: Contact the customer care center by calling
(877-702-344 4) or goin g to www.alcate lonetouch.com. We h ave
placed many self-help tools that may help you to isolate the problem
and eliminate the need to send your wireless device in for ser vice. In
the case that your wireless device is no longer covered by this limited
warranty due to time or condition we have other options that you may
utilize our out of warranty repair options.
To obtain hardware repairs or replacement within the terms of this
warranty, contac t TCT M obile to get an RMA number, i nclude a
copy of the original proof of warranty coverage (e.g. original copy of
the dated bill of sale, invoice), the consumer’s return address, your
wireless carrier’s name, alternate daytime mobile phone number, and
email address with a complete problem description. Only ship the
wireless device. Do not ship the SIM card, memor y cards, or any other
accessories such as the power adapter. You must properly package and
ship the wireless device to the repair center.
TCT Mobile is not responsible for wireless devices that do not arrive
at the service center. Upon receipt, the service center will verify the
warranty conditions, repair, and return your wireless device to the
address provided.

PROTECT YOUR HEARING

To prevent possible hearing damage, do not listen at high
volume levels for long periods. Exercise caution when
holding your device near your ear while the loudspeaker is
in use.

IP4464_VF875_QG_Eng_USA_01_130508.indd 37-38 2013-5-8 12:02:08
