Introduction ................................
TCT Mobile Limited would like to thank you for purchasing this
cellphone.
Widget Bar
- Convenient at-a-glance view of Widget applications
- Sub-menu shortcuts for quick access
Power media applications
- Music player & Radio
- Webcam
The 0.3 Megapixel camera is a good companion for PC instant
messaging.
Bluetooth
With Bluetooth 2.1 supporting A2DP profiles, enjoy handsfree
conversations.
Table of contents
Safety and use ......................................................................6
General information .........................................................11
1 Your cellphone ............................................................. 13
1.1 Status bar icons ..................................................................................16
1.2 Personalize mainscreen ....................................................................18
1.3 Simple menu .......................................................................................18
2 Getting started ............................................................ 19
2.1 Set-up ...................................................................................................19
2.2 Power on your cellphone ................................................................21
2.3 Power off your cellphone ................................................................21
3 Making a call ................................................................ 22
3.1 Calling your voicemail ......................................................................22
3.2 Receiving a call ...................................................................................23
3.3 During a call ........................................................................................23
3.4 Conference calls ................................................................................ 24
3.5 Line switching .....................................................................................25
4 Menu arrange ............................................................... 26
5 Messages ....................................................................... 27
5.1 Access ..................................................................................................27
5.2 Conversational mode and conventional mode ...........................27
5.3 Create message ..................................................................................28
5.4 Alerts ....................................................................................................28
5.5 Available options ................................................................................29
6 Email ............................................................................. 31
6.1 Access ..................................................................................................31
6.2 Email account set-up.........................................................................31
6.3 Create Email ....................................................................................... 32
6.4 Inbox .....................................................................................................32
6.5 Outbox .................................................................................................32
6.6 Sent ....................................................................................................... 32
1 2
Page 3
6.7 Drafts....................................................................................................32
6.8 Available options ................................................................................32
7 Instant messaging ....................................................... 34
7.1 Access ..................................................................................................34
7.2 Open a Palringo account online .................................................... 34
7.3 Sign in/Sign out ...................................................................................34
7.4 Add service .........................................................................................35
7.5 Chat ......................................................................................................35
7.6 Contacts ..............................................................................................35
7.7 Groups ................................................................................................. 35
8 Directory ...................................................................... 36
8.1 Consulting your directory ...............................................................36
8.2 Adding a contact ................................................................................37
8.3 Available options ................................................................................38
9 Calls ..............................................................................39
9.1 Call log ................................................................................................39
9.2 My numbers .......................................................................................39
9.3 Billing ....................................................................................................39
9.4 Call settings .........................................................................................40
10 Media applications ....................................................... 42
10.1 Music.................................................................................................... 42
10.2 Image ....................................................................................................43
10.3 Video ....................................................................................................44
10.4 Radio .....................................................................................................44
11 Internet ........................................................................ 46
11.1 Opera ...................................................................................................46
11.2 Wap ......................................................................................................46
11.3 Weather ............................................................................................... 47
12 Entertainment .............................................................48
12.1 Stopwatch ............................................................................................48
12.2 Java ........................................................................................................48
13 Camera ......................................................................... 50
13.1 Access ..................................................................................................50
13.2 Camera ................................................................................................50
13.3 Video ....................................................................................................52
14 Profiles .......................................................................... 53
14.1 General ................................................................................................53
14.2 Meeting ................................................................................................54
14.3 Outdoor ..............................................................................................54
14.4 Indoor...................................................................................................54
14.5 Silence ..................................................................................................54
14.6 Flight mode .........................................................................................54
15 File manager ................................................................ 55
15.1 My audios ............................................................................................55
15.2 My images ............................................................................................ 55
15.3 My videos ............................................................................................55
15.4 My creations .......................................................................................56
15.5 Others files .........................................................................................56
15.6 Cellphone ............................................................................................56
15.7 Memory card ......................................................................................56
15.8 Managing audios, images, videos and creations ........................... 57
15.9 Formats and compatibility ............................................................... 58
15.10 Memory status ...................................................................................58
16 Bluetooth ..................................................................... 59
17 Others ........................................................................... 61
17.1 Calendar ..............................................................................................61
17.2 Calculator ............................................................................................ 61
17.3 Notes ....................................................................................................62
17.4 Clock ....................................................................................................62
17.5 Converter ............................................................................................63
18 Settings ......................................................................... 64
18.1 Cellphone settings ............................................................................. 64
18.2 Call settings .......................................................................................66
3 4
Page 4
18.3 Security ................................................................................................66
18.4 Network ..............................................................................................67
18.5 Connectivity ........................................................................................67
19 Making the most of your cellphone........................... 68
19.1 PC suite ...............................................................................................68
19.2 Webcam ............................................................................................... 68
20 Latin input mode/character table .............................69
21 Alcatel Mobile Phones Limited Warranty ................ 72

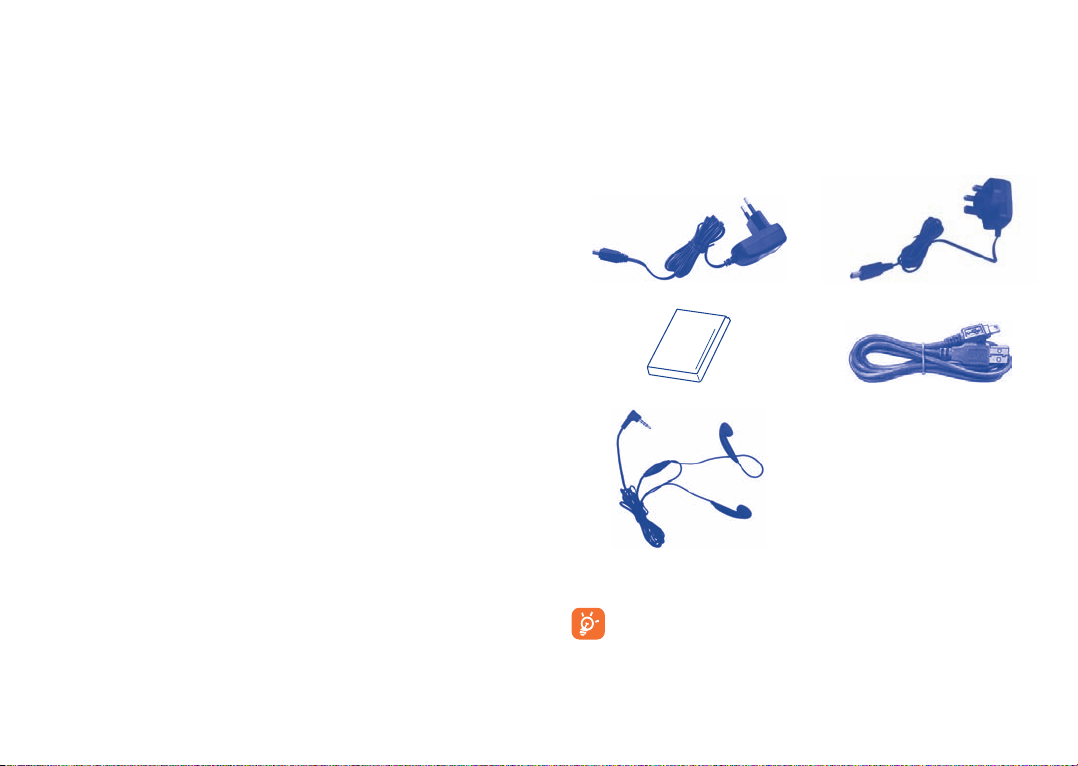

22 Accessories................................................................... 74
23 Troubleshooting ........................................................... 75
5 6
Safety and use ..............................
We recommend that you read this chapter carefully before using your cellphone. The
manufacturer disclaims any liability for damage, which may result as a consequence of improper
use or use contrary to the instructions contained herein.
TRAFFIC SAFETY:•
Given that studies show that using a cellphone while driving a vehicle constitutes a real risk, even
when the hands-free kit is used (car kit, headset...), drivers are requested to refrain from using
their cellphone when the vehicle is not parked. Check the laws and regulations on the use of
wireless telephones and their accessories in the areas where you drive. Always obey them. The
use of these devices may be prohibited or restricted in certain areas.
When driving, do not use your cellphone and headphone to listen to music or to the radio. Using
a headphone can be dangerous and forbidden in some areas.
When switched on, your cellphone emits electromagnetic waves that can interfere with the
vehicle’s electronic systems such as ABS anti-lock brakes or airbags. To ensure that there is no
problem:
When switched on, your cellphone emits electromagnetic waves that can interfere with the
vehicle’s electronic systems such as ABS anti-lock brakes or airbags. To ensure that there is no
problem:
- do not place your cellphone on top of the dashboard or within an airbag deployment area,
- check with your car dealer or the car manufacturer to make sure that the car’s electronic
devices are shielded from cellphone RF energy..
CONDITIONS OF USE:•
You are advised to switch off the cellphone from time to time to optimize its performance.
Remember to abide by local authority rules of cellphone use on aircrafts.
Switch the cellphone off when you are in health care facilities, except in designated areas. As with
many other types of equipment now in regular use, cellphones can interfere with other electrical
or electronic devices, or equipment using radio frequency.
Switch the cellphone off when you are near gas or flammable liquids. Strictly obey all signs and
instructions posted in a fuel depot, gas station, or chemical plant, or in any potentially explosive
atmosphere.
When the cellphone is switched on, it should be kept at least 15 cm from any medical device such
as a pacemaker, a hearing aid or insulin pump. In particular when using the cellphone you should
hold it against the ear on the opposite side to the device, if any.
To avoid hearing impairment, answer the call before holding your cellphone to your ear. Also
move the handset away from your ear while using the “hands-free” option because the amplified
volume might cause hearing damage.
It is recommended to have proper supervision while small children use your cellphone.
When replacing the cover please note that your cellphone may contain substances that could
create an allergic reaction.
Always handle your cellphone with care and keep it in a clean and dust-free place.
Page 5
Do not allow your cellphone to be exposed to adverse weather or environmental conditions
(moisture, humidity, rain, infiltration of liquids, dust, sea air, etc.). The manufacturer’s
recommended operating temperature range is -10°C to +55°C (the max value depends on device,
materials and housing paint/texture).
Over 55°C the legibility of the cellphone’s display may be impaired, though this is temporary and
not serious.
Do not open or attempt to repair your cellphone yourself.
Do not drop, throw or try to bend your cellphone.
Do not paint it.
Use only batteries, battery chargers, and accessories which are recommended by TCT Mobile
Limited and its affiliates and are compatible with your cellphone model.TCT Mobile Limited and its
affiliates disclaim any liability for damage caused by the use of other chargers or batteries.
Your cellphone should not be disposed of in a municipal waste. Please check local regulations for
disposal of electronic phones.
Remember to make back-up copies or keep a written record of all important information stored
in your cellphone.
Some people may suffer epileptic seizures or blackouts when exposed to flashing lights, or when
playing video games. These seizures or blackouts may occur even if a person never had a previous
seizure or blackout. If you have experienced seizures or blackouts, or if you have a family history
of such occurrences, please consult your doctor before playing video games on your cellphone
or enabling a flashing-lights feature on your cellphone. Parents should monitor their children’s use
of video games or other features that incorporate flashing lights on the cellphones. All persons
should discontinue use and consult a doctor if any of the following symptoms occur: convulsion,
eye or muscle twitching, loss of awareness, involuntary movements, or disorientation. To limit the
likelihood of such symptoms, please take the following safety precautions:
- Play at the farthest distance possible from the screen.
When you play games on your cellphone, you may experience occasional discomfort in your hands,
arms, shoulders, neck, or other parts of your body. Follow these instructions to avoid problems
such as tendinitis, carpal tunnel syndrome, or other musculoskeletal disorders:
- Take a minimum of a 15-minute break every hour of game playing.
- If your hands, wrists, or arms become tired or sore while playing, stop and rest for several
hours before playing again.
- If you continue to have sore hands, wrists, or arms during or after playing, stop the game and
see a doctor.
Prolonged exposure to music at full volume using the music player may damage your
hearing. Set your cellphone’s volume to it’s lowest setting prior to inserting headphones
in your ears and adjust the volume to your preference. Only use headphones that are
recommended by TCT Mobile Limited and it’s affiliates.
7 8
PRIVACY:•
Please note that you must respect the laws and regulations in force in your jurisdiction or other
jurisdiction(s) where you will use your cellphone regarding taking photographs and recording
sounds with your cellphone. Pursuant to such laws and regulations, it may be strictly forbidden to
take photographs and/or to record the voices of other people or any of their personal attributes,
and reproduce or distribute them, as this may be considered to be an invasion of privacy.
It is the user’s sole responsibility to ensure that prior authorization be obtained, if necessary, in
order to record private or confidential conversations or take a photograph of another person; the
manufacturer, the seller or vendor of your cellphone (including the operator) disclaim any liability
which may result from the improper use of the cellphone.
BATTERY AND ACCESSORIES:•
Before removing the battery from your cellphone, please make sure that the cellphone is switched off.
Observe the following precautions for battery use:
- Do not attempt to open the battery (due to the risk of toxic fumes and burns).
- Do not puncture, disassemble or cause a short-circuit in a battery,
- Do not burn or dispose of a used battery in the garbage or store it at temperatures above 60°C.
Batteries must be disposed of in accordance with locally applicable environmental regulations. Only
use the battery for the purpose for which it was designed. Never use damaged batteries or those
not recommended by TCT Mobile Limited and/or its affiliates.
This symbol on your cellphone, the battery and the accessories means that these
phones must be taken to collection points at the end of their life:
- Municipal waste disposal centers with specific bins for these items of equipment
- Collection bins at points of sale.
They will then be recycled, preventing substances being disposed of in the environment, so that
their components can be reused.
In European Union countries:
These collection points are accessible free of charge. All phones with this sign must be brought
to these collection points.
In non European Union jurisdictions:
Items of equipment with this symbol are not be thrown into ordinary bins if your jurisdiction or
your region has suitable recycling and collection facilities; instead they are to be taken to collection
points for them to be recycled.
In the United States you may learn more about CTIA’s Recycling Program at www.
recyclewirelessphones.com
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
CHARGERS•
Home A.C./ Travel chargers will operate within the temperature range of: 0°C to 40°C.
The chargers designed for your cellphone meet with the standard for safety of information
technology equipment and office equipment use. Due to different applicable electrical specifications,
a charger you purchased in one jurisdiction may not work in another jurisdiction. They should be
used for this purpose only.
Characteristics of power supply (depending on the country):
Travel charger: Input: 100-240 V, 50/60 Hz, 0.15 A
Output: 5 V, 350/400 mA
Battery: Lithium 670 mAh
Page 6
RADIO WAVES:•
THIS CELLPHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO
RADIO WAVES.
Your cellphone is a radio transmitter and receiver. It is designed and manufactured not to
exceed the emission limits for exposure to radio-frequency (RF) energy. These limits are part of
comprehensive guidelines and establish permitted levels of RF energy for the general population.
The guidelines are based on standards that were developed by independent scientific organizations
through periodic and thorough evaluation of scientific studies. These guidelines include a substantial
safety margin designed to ensure the safety of all persons, regardless of age and health.
The exposure standard for cellphones employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by public authorities such as the Federal Communications
Commission of the US Government (FCC), or by Industry Canada, is 1.6 W/kg averaged over 1
gram of body tissue. Tests for SAR are conducted using standard operating positions with the
cellphone transmitting at its highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified power level, the actual SAR level of the
cellphone while operating can be well below the maximum value. This is because the cellphone is
designed to operate at multiple power levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base station antenna, the lower the power
output of the cellphone Before a cellphone model is available for sale to the public, compliance
with national regulations and standards must be shown.
The highest SAR value for this model cellphone when tested is 0.89 W/Kg for use at the ear and
1.42 W/Kg for use close to the body.
While there may be differences between the SAR levels of various cellphones and at various
positions, they all meet the government requirement for RF exposure. For body-worn operation,
the cellphone meets FCC RF exposure guidelines provided that it is used with a non-metallic
accessory with the handset at least 1.5 cm from the body. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines.
The World Health Organization (WHO) considers that present scientific information does not
indicate the need for any special precautions for use of cellphones. If individuals are concerned,
they might choose to limit their own or their children’s RF exposure by limiting the length of calls,
or using “hands-free” devices to keep cellphones away from the head and body. (fact sheet n°193).
Additional WHO information about electromagnetic fields and public health are available on the
following website: http://www.who.int/peh-emf.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
For the receiver devices associated with the operation of a licensed radio service (e.g. FM
broadcast), they bear the following statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this
device does not cause harmful interference.
For other devices, they bear the following statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Your cellphone is equipped with a built-in antenna. For optimal operation, you should avoid
touching it or degrading it.
As cellphone devices offer a range of functions, they can be used in positions other than against
your ear. In such circumstances the device will be compliant with the guidelines when used with
headset or usb data cable. If you are using another accessory ensure that whatever phone is used
is free of any metal and that it positions the cellphone at least 2cm away from the body.
• LICENCES
Obigo® is a registered trademark of Obigo AB.
microSD Logo is a trademark.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and
any use of such marks by TCT Mobile Limited and its affiliates is under license.
Other trademarks and trade names are those of their respective owners.
OT-606A Bluetooth QD ID B016876
eZiText™ and Zi™ are trademarks of Zi Corporation and/or its Affiliates.
Java™ and all Java™ based trademarks and logos are trademarks or registered
trademarks of Sun Microsystems, Inc. in the U.S. and other countries.
is a registered trademark of Opera Mini.
Hearing Aid Compatibility
Your cellphone is rated: "For Hearing Aid", to assist hearing device users in finding phones that
may be compatible with their hearing devices.
This device is HAC M3 compatible.
For more information please refer to "Hearing Aid Compatibility with Mobile Phones" leaflet or
visit our website http://www.alcatel-mobilephones.com/
9 10
Page 7
General information ...................
Website: www.alcatel-mobilephones.com•
Facebook: http://www.facebook.com/alcatelonetouchtribe•
Twitter: http://www.twitter.com/Alcateltribeus•
Hot Line Number: In the United States, call 877-702-3444 for •
technical support.
On our Internet site, you will find our FAQ (Frequently Asked Questions)
section. You can also contact us by e-mail to ask any questions you may
have.
An electronic version of this user guide is available in English and
other languages according to availability on our server: www.alcatelmobilephones.com
Your cellphone is a transceiver that operates on GSM networks with 850
and 1900 MHz bands.
Disclaimer
There may be certain differences between the user manual description
and the cellphone’s operation, depending on the software release of your
cellphone or specific operator services.
Protection against theft
Your cellphone is identified by an IMEI (cellphone serial number) shown
on the packaging label and in the phone’s memory. We recommend that
you note the number the first time you use your cellphone by entering
*#06# and keep it in a safe place. It may be requested by the police or
your operator if your cellphone is stolen.
(1)
Contact your network operator to check service availability.
(1)
11 12
Page 8
Your cellphone ......................
1
Status bar
Navigation key:
confirm an option
Simple menu
Left softkey
Answer/Send call/
Call log
Voicemail
Lock/Unlock
Widget bar to access
favorite applications
Right softkey
Switch on/Switch
off/End call/Return
to main screen
Vibration alert
13 14
Left softkey
Fn key
Right softkey
Del key
Enter key
Page 9
Confirm an option (press the middle of the key)
Press navigation key from the main screen to view application
lists from widget bar, and then press navigation key to access
sub-menus accordingly.
Access your voicemail (hold down)
Input top-half character (press once), press twice to lock in
this mode
/ Left softkey
/ Right softkey
Answer
Send a call
Access Call log (Redial) (press)
Switch on/Switch off the cellphone (hold down)
End call
Return to the main screen
1.1 Status bar icons
Battery charge level
Vibrate alert: your cellphone vibrates, but does not ring or beep
with the exception of the alarm (see page 53).
Bluetooth status (Activated).
Bluetooth status (Connected to an audio device).
(1)
Headset connected.
Keypad locked.
Call forwarding activated: your calls are forwarded (see page 40).
Alarm or appointments programmed (see page 62).
Level of network reception.
Voicemail message arrived.
Missed calls.
Stopwatch is active.
Radio is on.
WAP alerts
Roaming.
Memory card scanning completed.
SIM card missing.
Line switching
(2)
.
(3)
: indicates the selected line.
(1)
The icons and illustrations in this guide are provided for informational
purposes only.
(2)
Depending on your network operator.
(3)
Contact your network operator to check service availability.
15 16
Page 10
GPRS connection status (Activated).
GPRS connecting.
Music player active.
Message receipt in progress.
Sending a SMS.
Sending a MMS.
Silence mode: your cellphone does not ring, beep or vibrate with
the exception of the alarm (see page 53).
SMS unread
(Flicking)Message list is full: your cellphone cannot accept any
new messages. You must access the message list and delete at least
one message on your SIM card.
Flight mode.
A2DP connected.
1.2 Personalize mainscreen
You may customize your mainscreen by selecting through key from
the main screen.
1.2.1 Widget bar
You may customize widget lists on the main screen as a convenient
shortcut to your desire. To add/remove a widget, select “Edit widgets”
and use
To reorder widgets, select “Reorder widgets” and choose one item by
pressing
the / key, and then confirm by selecting “Done” with key.
1.2.2 Change wallpaper
You will be directed to "My images" with this option. You may choose
one image as your favourite wallpaper. (see page 55)
key to mark/unmark, and then confirm by pressing “Save”.
/ key, scroll up or down to the required position, place using
Two widgets cannot be removed: Calls, Messages.
1.3 Simple menu
Four frequently-used applications from the main screen will be displayed
when you slide open your cellphone: Messages, Email, Directory,
Wap. You can quickly choose any of the above by selecting with the
left softkey, or you may select with the right softkey to switch to the
full main menu screen.
17 18
Page 11
Getting started .....................
2
2.1 Set-up
Removing or installing the back cover
Installing or removing the battery
Insert and click the battery into place, then close the cellphone cover.
Unclip the cover, then remove the battery.
Inserting or removing the SIM card
You must insert your SIM card to make phone calls.
Place the SIM card with the chip facing downwards and slide it into its
housing. Make sure that it is correctly inserted. To remove the card, press
the bottom and slide it out. Please power off your cellphone before you
remove the SIM card.
(1)
Check with your network operator to make sure that your SIM card is 3V or
1.8V compatible. The old 5 Volt cards can no longer be used. Please contact
your operator.
(1)
19 20
Charging the battery
Connect the battery charger
• Charging may take about 20 minutes to start if the battery is flat.
• Be careful not to force the plug into the socket.
• Make sure the battery is correctly inserted before connecting the
charger.
• The mains socket must be near to the cellphone and easily accessible
(avoid electric extension cables).
Page 12
• When using your cellphone for the first time, charge the battery fully
(approximately 3 hours). You are advised to fully charge the battery
( ).
The charge is complete when the animation stops.
2.2 Power on your cellphone
Hold down the key until the cellphone powers on, type in your PIN
code if necessary and then confirm with the
displayed.
If you do not know your PIN code or if you have forgotten it,
contact your network operator. Do not leave your PIN code
with your cellphone. Store this information in a safe place when
not in use.
If cell broadcast messages are displayed, use the
through them or press the to return to the main screen.
While the cellphone is searching for a network, “Searching/Emergency”
will be displayed.
In the power on screen, you also have access to the functions of “Radio”,
“Camera”, “Music player”, etc. even if there is no SIM card inserted.
key. The main screen is
key to browse
2.3 Power off your cellphone
Hold down the key from the main screen.
Making a call .........................
3
Dial the desired number then press the key to place the call. If you
make a mistake, you may short press
one by one, or you may long press
To hang up the call, press the
Making an emergency call
If your cellphone has network coverage, dial emergency number and
press the
SIM card and without typing the PIN code or unlocking the keypad.
key to make an emergency call. This works even without a
3.1 Calling your voicemail
Your voicemail is provided by your network to avoid missing calls. It works
like an answering machine that you can consult at any time. To access your
voicemail, hold down the key.
If the access number for your operator’s voicemail service does not work,
dial the number that you were given. To change this number at a later date,
refer to “My numbers” (see page 39).
To use your voicemail service from abroad, contact your network
operator before leaving.
key to delete the incorrect digits
key to delete all.
key.
(1)
(1)
Contact your network operator to check service availability.
21 22
Page 13
3.2 Receiving a call
When you receive an incoming call, press the key to talk and then
hang up using the key.
If the
ringtone. If the icon is displayed, the cellphone neither rings nor
vibrates.
Muting the ringtone
To mute ringtone of current incoming call, press
by pressing the
Rejecting a call
Press the
SMS).
3.3 During a call
During a call, following options are available:
- New call (Hold the current call and dial another number)
- Hold (Hold the current call)
- Mute (Mute the current call)
- DTMF (Enable/Disable sending DTMF during the call)
- Volume (Adjust the vloume level)
PROMPT: You may also adjust sound level by using
icon is displayed, the vibrator is activated and there is no
The caller’s number is displayed if it is transmitted by the network
(contact your network operator to check service availability).
key. Answer the call
key.
key once, or reject it by SMS (Options\Reject call with
(1)
key directly
during a call.
- Switch audio patch (Switch the audio path between the Bluetooth
headset and cellphone)
- Directory (Enter the directory)
- Messages (Enter Message Center)
- Calendar (Enter Calendar)
- Services (Enter the Service menu)
- Sound recorder (record your current call).
You can switch the audio speech from handset to Bluetooth device when
connected.
You may also use Handsfree function with
during a call.
WARNING: move the handset away from your ear while using the
“handsfree” option because the amplified volume might cause hearing
damage.
Handling two calls
• Answering a second call (ensure that “Call waiting” is activated, see
page 40).
• To call a second party during a call, dial the number directly.
3.4 Conference calls
(1)
Your cellphone allows you to talk to several people at the same time (up
to five). If you are on a double call, press “Options” and select
“Conference”. If a third call comes in, answer it by pressing the
key
and speak with your new caller.
This caller becomes a member of the conference if you press “Options”
and select “Add to conference”. Pressing
disconnects the current
call.
To end the conference call, press “Options” and select “End conf.”.
(1)
Contact your network operator to check service availability.
23 24
(1)
Contact your network operator to check service availability.
Page 14
3.5 Line switching
Your SIM card can contain two distinct cellphone numbers. Under “Calls”,
choose “Line switching” and then select a default line; all your outgoing
calls will be made from this number. Incoming calls, however, will continue
to use either of the two lines.
The services programmed on the default line do not impact those
selected on the other line.
(1)
Menu arrange ................
4
Main menu is designed to vary according to your preference.
You may access this function by selecting “Menu arrange” from the
main menu.
Change the order
Press left softkey from the main menu screen and select “Move” or hold
down
key till tick “√” is shown, then move the cursor to your favorite
destination and confirm with key.
Show/Hide
Access “Menu arrange”, press
Restore factory settings
Access “Menu arrange”, select “Options”, choose “Restore factory
settings” to return to the default menu display.
to show/hide the main menu items.
(1)
Contact your network operator to check service availability.
25 26
Page 15
Messages ........................
5
You can create, edit and receive SMS, MMS with this cellphone.
MMS enables you to send video clips, images, photos, animations and
sounds to other compatible mobiles and e-mail addresses.
The MMS function can only be used if the service is provided by
your operator, and if your contract includes the MMS option and
if all the parameters for MMS have been entered (see page 30).
5.1 Access
You may access this menu using the following options:
- Access from the main menu by selecting “Messages” .
- Access from the simple menu by selecting “Messages”. (see page 18)
- Select
from widget bar, and then enter the sub-menu you require.
5.2 Conversational mode and conventional mode
In conversational view mode you can view chat history in chronological
order. In conventional view mode you may have access to the following
folders: Inbox, Outbox, Sent, Drafts, Voicemail, Broadcast SMS,
Empty folder, Templates, Settings, etc. Conversational view mode
is set as default. You may switch to conventional mode by selecting
“Options\Settings\Conversational mode\On(Off)”. The following
instructions are based on conversational mode.
5.3 Create message
You can select “Messages\Write msg” from the main menu, or access
from widget to create text/multimedia message. One or more
recipients can be added in the list and you can remove a recipient by
pressing . Press “Directory” through key to multi-select recipients
from Directory.
An SMS will be converted to MMS automatically when images, videos,
audio, slides or attachments are inserted, Subject, CC/BCC/email address
is added; or the message contains more than 8 pages of text.
An SMS message of more than a certain number of characters
(the number of characters depends on your language) will be
charged as several SMS. An MMS message containing photos and/
or sounds may also be billed as more than one message.
5.4 Alerts
5.4.1 Setting messages
The storage of provisioning messages.
5.4.2 Voicemail
View and edit the voicemail number.
5.4.3 Broadcast SMS
Store the received Broadcast SMS.
5.4.4 WAP alerts
Store WAP push messages.
27 28
Page 16
5.5 Available options
5.5.1 View
With this option, you can view details of the selected thread.
5.5.2 Delete
To delete a thread (containing all chat history), select “Options\Delete”
, and then confirm with
5.5.3 Settings
Conversational mode
This option enables you to switch on/off conversational message view
mode.
Text messages
Profile settings • Profiles can be retrieved directly from SIM card.
Common
settings
Alphabet
Management
Memory status • Memory used on the cellphone.
Preferred storage • Select default message storage, SIM or cellphone.
Preferred. bearer • Bearer preference.
/ key.
Alternatively, you can create your own profile.
• Delivery report, request for acknowledgement of
delivery report On/Off. Reply path
(1)
: show reply
path.
• Enables the definition of SMS data coding for
management SMS sending.
Multimedia messages
Edit • Set edit mode, image size and signature.
Sending • Set the values for validity period, Read report, etc.
Retrieve • Set the values for Home network, Roaming
network, etc.
Edit profiles • Follow the same procedure as for setting your
WAP connection.
Memory status • Memory used on the cellphone.
(1)
Broadcast SMS
Receiving mode • Enable to receive broadcast SMS.
Languages • Language selection.
Channel settings • Add/Edit channels.
(1)
Depending on your network operator.
(1)
Depending on your network operator.
29 30
Page 17
Email ..............................
6
Your cellphone has an email client with the settings pre-defined for a few
popular email services like – GoogleMail, Windows live, Yahoo, AOL, etc.
Besides this, you can set up other POP3 or IMAP4 email accounts that
you may be using.
6.1 Access
Press through key from the main screen to enter the main menu,
and then select “Email”, or your may access from the simple menu
“Email” (see page 18).
6.3 Create Email
Select “Email\Options\Create Email” to enter write email interface.
Input the initial letter of the recipient name. Subsequent letters may be
added for accurate search. Input the next recipient to add one more
Email address.
6.4 Inbox
Folder of all received Emails.
6.5 Outbox
Folder of all unsent Emails.
6.2 Email account set-up
Pre-defined email service
If you own an email account of predefined services, you can install it
to your cellphone by selecting the service (GoogleMail, yahoo, etc.),
entering the username, password and account name, and then confirming
with
key.
New email service
To set up a new email account other than the predefined email services,
press “Options\New account”, select “Other Email accounts”.
(1)
You are required to enter your email address, select protocol
or IMAP4) and network, then enter your incoming server address and
outgoing server address, and then input your user name, password and
account name, select “Save”.
(1)
Consult your email service provider for more information about protocol.
31 32
(POP3
6.6 Sent
Folder of all sent Emails.
6.7 Drafts
Folder of all draft Emails.
6.8 Available options
Select • Select to enter the menu.
Send and receive • To connect the email server in order to receive/
send mails.
Send and receive • To connect all email accounts’ server in order to
all accounts receive/send mails.
Page 18
Create Email • To create a new Email.
Edit account • To edit the detailed configuration information of
the selected account.
Delete account • To delete the current selected account.
New account • To create a new email account.
Empty folder • Delete all emails in “Inbox/Outbox/Sent/Drafts”.
Delete marked • To delete the marked mail in the selected folder.
Delete all • To delete all the mails in the selected folder.
Delete all marked • To delete all marked mails in all folders.
Empty all folders • Delete all emails in all folders.
Instant messaging
7
Palringo Instant messaging (IM) allows you to chat with other people
using Palringo account. You can also connect to other popular IM services
through Palringo, like Yahoo, AIM, GG, ICQ, Google talk, iChat etc.
Please note that the services may be upgraded depending on your client
version.
(1)
.......
7.1 Access
To access Palringo, press from the main screen to enter the main
menu, select .
7.2 Open a Palringo account online
Before activating this service, you are required to open a Palringo account
online. There are three ways to do this:
• Click “Menu”, select “Register”.
• You can also open account directly on website:
http://www.palringo.com/en/gb/.
7.3 Sign in/Sign out
To connect to Palringo instant messaging server, please click “Menu”,
then select “Sign in”. You are required to input your Palringo account
information, like username (Email address), password, sign in status, etc.
To sign out, click “Menu”, then “Sign out”.
(1)
Depending on your network operator.
33 34
Page 19
7.4 Add service
Various services (Yahoo, Google, ICQ etc.) can be added by “Menu\
Services\Add Service”.
7.5 Chat
To start a chat, select one online contact, then “Menu\Private chat”.
During chat, you can also exchange voice or photo messages with your
community.
7.6 Contacts
• Add a contact
To add a contact, click “Menu”, then select “Add contact”.
First, you need to specify which service, Yahoo for example, you want to
add the new contact to. Then input the contact’s email address.
Your request will be sent to the contact for approval. Once
accepted, the contact’s name and status will appear on your
contact list.
• Delete a contact
To delete a contact, select one contact, then “Menu\Delete contact”.
The selected contact will be removed from your contact list.
7.7 Groups
With this menu, you can “Join a group” or “Create a new group”. You
can begin chatting with all members in the group simultaneously.
Directory .......................
8
8.1 Consulting your directory
You may have access to this function from the main menu by selecting
“Directory”, or your may access from the simple menu “Directory”
(see page 18).
The whole contact list is categorized by Favorite, Most called and All
contacts.
Favorite
Most called
Searching for a contact
You can search for a contact by inputing the initial of their name.
Subsequent letters may be added to refine the search.
Viewing a contact
Select a name from your directory to read the contact information.
Sending vCard via Bluetooth
Selecting the vCard you wish to transfer (“Options\Send vCard\By
Bluetooth”).
35 36
Page 20
Making the call
Press the
associated with the name to be called, you must first choose the
number from the list (Mobile, Home, Work, etc.) using the
the key to make the call.
key once the name is selected. If several numbers are
key. Press
Information in the directory and the diary may be sent to and
received from a computer using the PC suite.
8.2 Adding a contact
You can add a new contact by selecting “Options\Add contact”.
When you create a new contact in the phone directory, at least one of
the following fields must be filled in: First name, Last name, Image, Mobile,
Home, Work, Email, Birthday, Add birthday reminder, URL, Address,
Ringtone, Group, Copy to SIM/ Not copy to SIM.
You can move from one field to another using the
Adding birthday reminder
You can set a birthday reminder when editing contact information. This will
remind you at regular intervals during the day prior to the set date.
If you use your cellphone abroad, store the numbers in your
directories in international format “+” followed by the country
code (see page 22).
key.
8.3 Available options
From the list of names in Favorite/Most called, All contacts, you can access
the following options:
Add contact • Add a contact (name, numbers, address, e-mail, etc.)
in the directory.
Send message • Send an SMS/MMS/Email to a contact you selected
from the directory.
Delete contact • Delete the selected contact.
Group • You can view, send messages or e-mails to the
group you select or you can create, delete groups
as you want.
View mode • You may view contacts stored in cellphone only or
both in SIM and cellphone.
More • Import
from SIM
• Export to
SIM
• My number Type in, modify or send the user’s
• Memory
status
Copy the whole directory from SIM
to cellphone only if there is sufficient
memory.
Copy the whole directory from
cellphone to SIM only if there is
sufficient memory.
own number by SMS.
View used and available space in SIM
and Phone directory.
37 38
Page 21
Calls .................................
9
9.1 Call log
You can access your call log by pressing the key from the main screen
or selecting
this menu, following lists will be displayed:
Missed calls
Outgoing calls (Redial)
Answered calls/Rejected calls
Select a number from the call memory and press “Options” through
key to Send message, Save to directory, Edit before call, etc.
from the main menu, then select “Call log”. Once enter
9.2 My numbers
Type in or modify your cellphone number or the number to access your
voicemail and confirm. Your cellphone number is usually written on your
SIM card.
9.3 Billing
You can access different items with this option:
(1)
Duration • You can view the total duration of all outgoing calls
GPRS counter • Management of the volume data usage volume (in
Beep duration • You can activate or cancel the beep emitted during
9.4 Call settings
You can access a number of items with this option:
9.4.1 Call waiting
Activate/deactivate the notification of a second incoming call by a beep.
9.4.2 Call forwarding
You can activate, cancel or verify the status of the call forwarding to
the voicemail or to a specified number. The following configurations are
possible:
• Unconditional: systematic forwarding of all your calls. The
displayed.
• Conditional: if your line is busy, if you don’t answer or if you are outside
the network range.
or reset it.
kilobytes).
a call with a specified frequency (enter the
frequency and confirm by
(1)
key ,or .
icon is
Last call cost/
Total cost/Max
cost/Reset cost/
Price per unit
(1)
Depending on your network operator.
• You can view the last, max or total cost of charged
calls, modify it or reset it and enter the cost of a call
in the currency of your choice.
(1)
Contact your network operator to check service availability.
39 40
Page 22
9.4.3 Call barring
You can activate or deactivate the call barring for outgoing and incoming
calls. The various options are:
Outgoing calls • The following configurations are possible:
• All calls • All outgoing calls are barred.
• International calls • Outgoing international calls are barred.
• International • Outgoing international calls except those to your
except home country of subscription are barred.
Incoming calls • The following configurations are possible:
• All calls • All incoming calls are barred.
• When Roaming • Incoming calls are barred when you are abroad.
Cancel all • Deactivate all call barring.
barring
Change barring • Change the original Password for activating call
Password barring.
9.4.4 Caller ID
Activate/deactivate CLIR.
9.4.5 Line switching
Line switch between line 1 and line 2.
9.4.6 Auto redial
You can activate or deactivate the automatic callback of your party for
calls that do not get through the first time.
(1)
10
Media applications .............
10.1 Music ...............................................................
You may access this feature from the main menu by selecting “Music”.
You will have full flexibility of managing music both on your cellphone and
memory card.
You can have access to your music files through one of the following:
All songs • Contains all songs both on cellphone memory and
memory card.
My star list •
Folders • Category of songs in folder.
Album/Artist/ • Music files are categorized by Album, Artist or
Genre Genre based on information stored in the tags.
Update songs • Update the information of songs saved in cellphone
Use keys to manage the Music player:
: Set the volume level
: Go to previous/next title (press)
Fast play backward/forward (hold down)
You can simply add your favorite songs to “My star list”
by holding down
Those missing such information will be classified as
“Unknown files”.
or memory card.
during playing music (max 100).
(1)
Depending on your SIM card.
41 42
Page 23
10.1.1 Settings
Access by pressing the right navigation key for following options:
Play mode • Enable you to switch between Normal, Repeat
current, Repeat all, Shuffle and Repeat shuffle.
Equalizer • Different music styles preset in the cellphone.
Bluetooth
settings
• With this setting, you can play music in Bluetooth,
Phone or both in Phone & Bluetooth.
Display • Enable your player to display spectrum, song
information or lyric.
10.1.2 Playing with lyrics
Lyrics can be displayed in synchronization with the music.
10.2 Image .................................................................
A library links to the images in “My creations” and “My images” in
cellphone to be shown in list, slide, or thumbnail, set as Wallpaper, Power
on/off display, and Contact ID, or sent by MMS, Email, Bluetooth.
10.3 Video ..................................................................
Contains all video clips both in cellphone and memory card and enables
you to Play, Send (by MMS, Email, or Bluetooth), Delete, Rename, Sort
(by name, type, time or size), etc.
Use keys to manage the Video player:
: Set as play/pause
: Set the volume level
: Previous/next video
: Adjust the display screen size via left softkey
: Back to previous menu
10.4 Radio ................................................................
Your cellphone is equipped with a radio
can use the application as a traditional radio with saved channels or with
parallel visual information related to the radio program on the display if
you tune to stations that offer Visual Radio service. You can listen to it
while running other applications.
To use it, you must plug in your headset, which works as an
antenna connected with your cellphone.
(1)
with RDS functionality. You
(1)
The quality of the radio depends on the coverage of the radio station in that
particular area.
43 44
Page 24
Available options:
Channel list • Open the list of saved stations.
Save channel • Save the current tuned station to the “Channel
list”.
Auto search • Start auto search and stations will be automatically
saved to “Channel list”.
Enter the • Enter the frequency manually.
frequency
Turn off • Stop playing the radio.
Radio Recording • Record the radio: files will be automatically saved to
“Notes”.
Settings • Use
Activate • Listen to the radio using loudspeaker or headset.
loudspeaker/
Play in headset
Activate mono • Switch between mono and stereo mode.
mode/stereo
mode
Update station •
(1)
name
Optimize radio •
frequency
Hold down the key to enter “Manual tuning” mode and go to
the previous/next station by pressing the
the Radio interface.
navigation keys to manage settings.
Save RDS information as station name in the channel
list.
Optimize the audio quality.
navigation keys in
(1)
...........................
11
Internet
11.1 Opera ...............................................................
Not only does Opera Mini give you the full Web experience where you
stay in touch with your friends, obtain information, do your online banking
etc., but it is also designed to save time by using compressed web pages.
11.2 Wap .................................................................
11.2.1 Homepage
Launch the Wap browser with the preset homepage.
11.2.2 Bookmarks
Access your favorite sites.
11.2.3 Go to URL
Enter the URL of Wap site.
11.2.4 Recent pages
Pages which you recently browsed.
(1)
Availability dependant on RDS information detected.
45 46
(1)
Depending on your network operator. May cause additional network charges
for data flow to provide this service. Extra fees might also be charged in
roaming states.
Page 25
11.2.5 Offline pages
Pages available for offline viewing.
11.2.6 Service inbox
Store WAP push messages.
11.2.7 Settings
Customize your browser preferences.
11.3 Weather ......................................................
Your cellphone is equipped with a weather function for consulting up to
3-day forecasts of favorite cities.
To access the function, you can press
main menu and select the .
Available options:
More information
Forecast Display 3-day weather forecast.
Update Refresh weather information.
My cities List all my cities, you can add new city, set default city,
delete the selected city, etc. via “My cities\Options”.
Settings Set unit, update mode and network.
Search more weather information online.
through key to access the
12
Entertainment ...................
12.1 Stopwatch ........................................................
The stopwatch is a simple application for measuring time with the
possibility to register several results and suspend/resume measurement.
12.2 Java ..................................................................
12.2.1 Launch an application
Select “Java applications” to launch applications.
12.2.2 Java settings
The “Java” menu allows you to manage Java settings, in which you may
set Java audio, vibration, network and identify how much Heap size is
available.
12.2.3 Java downloading
You can download new Java™ applications in the “Java” menu by selecting
“Download application” from “Options”. The list of available Web
bookmarks dedicated to the application download will then be displayed.
Select the appropriate bookmark to go to the desired Web page.
Each downloaded java game can be assigned as a main menu
display for quick access.
12.2.4 Trusted certificates
View detailed information of the trusted certificates supported by your
cellphone.
47 48
Page 26
Disclaimer
Downloading or running applications will not damage or alter any software
already in your cellphone designed to support Java™ technology.
TCT Mobile Limited and its affiliates waive any responsibility and refuse
to guarantee applications that are subsequently used, as well as for all
applications not embedded in the handset upon purchase.
The purchaser alone bears the risk of loss, damage or defect of the
handset, or of applications/software, and generally of any damage or
consequence resulting from the use of the said applications/software. In
the event that the said applications/software, or the subsequent setup of
any function are lost due to technical reasons resulting from the handset
being replaced/repaired, the cellphone owner should repeat the operation
and download or set up again. TCT Mobile Limited and its affiliates grant
no guarantee and disclaim any responsibility if the operation cannot be
repeated or cannot be performed without incurring some cost.
13
Your cellphone is fitted with a camera for taking photos and shooting
videos that you can use in different ways:
- store them in your “File manager\My creations”.
- send them in a multimedia message (MMS) to a cellphone or an email
- send them directly by Email or Bluetooth.
- customize your main screen (see page 64).
- select them as incoming call image to a contact in your directory.
- transfer them by data cable or microSD card to your computer.
Camera ........................
address.
13.1 Access
Select from the main menu to access this function.
13.2 Camera
13.2.1 Take a photo, save or delete
The screen acts as the viewfinder. Position the object or landscape in
the viewfinder and press
automatically saved. If you don’t want it, you may directly delete it with
key.
to take the image and the images will be
49 50
Page 27
13.2.2 Settings in framing mode
Before taking the photo, you can adjust a number of settings by using the
following shortcuts:
From the photo shot screen, press the press
access: “Image size”, “Capture mode”, “Quality”, “Timer”, “Banding”,
“Night mode”, “Exposure Value”, “White balance”, “Color mode”,
but also following ones:
My creations • Go to “File manager\My creations” to view the
photos you have taken.
Storage • You may choose saving location if MicroSD card is
inserted.
Access Video • Access Video recording mode.
Restore default • Return all settings to default values.
Image size
Capture mode
Quality
Timer
Banding
My creations
Storage
13.2.3 Options available after taking the photo
Once you have taken a photo, five icons appear on the photo for your
selection. By pressing
MMS and Email, assign it to a contact, or set as wallpaper.
, , , , you can send your photo by Bluetooth,
through not only to
Access Video
Restore default
Night mode
Exposure Value
White balance
Color mode
13.3 Video
You can record a video clip of unlimited length, as long as the battery
sustains and there is sufficient memory.
We strongly advise you to change the default folder to “Memory
card” to store your photos and videos.
13.3.1 Framing mode
When you enter the “Video” function, your are in Framing mode. Use
the mobile screen as a viewfinder and press for the settings of White
balance, Exposure Value, Night mode, Banding, Quality, Record
audio, Color mode, Storage, Access camera, to access the “File
manager\My videos”, and to restore default value.
13.3.2 Recording mode
Once you have chosen your settings, you can launch the recording of your
video-clip by pressing the key.
If you receive a call in recording mode, video recording will be
stopped and a pop up message will inquire if you want to save it.
13.3.3 Further operations after shooting a video
After shooting a video, three icons will appear on the screen so you can
choose to send your video by Email, MMS, or Bluetooth.
In the list of “My videos”, press “Options” to play the video and send by
MMS, Email or Bluetooth.
51 52
Page 28
14
With this menu, you may personalize ringtones for different events and
environments.
Profiles .........................
14.1 General
To modify the sound settings, select “Edit” and you will see the functions
below using key:
Ringtone Select a melody from the list by scolling up/down.
Mode You may set your cellphone ringtone to Normal,
Discreet (ring with beep), Vibration (all sounds are
replaced by vibrations except for alarms), Vibration and
Melody, Vibration then Melody, Beep and vibration,
Silence (no sounds except for alarms, the icon
be displayed).
Volume Adjust the volume by
Key beep Select the type of key beep.
Message beep Select a melody for a new incoming message.
Power on beep Select a Power on melody for your cellphone.
Power off beep Select a Power off melody for your cellphone.
key.
will
14.2 Meeting
When this is selected the cellphone will not ring or beep unless an alarm
has been set. A new event will cause it to vibrate.
14.3 Outdoor
It is a profile designed for outdoor users who require louder ringtones.
14.4 Indoor
Ringtone/beep volume will be slightly lower than General mode volume.
14.5 Silence
This profile will turn off all ringtones, even notification sounds.
14.6 Flight mode
Voice calls, Bluetooth and messaging functions are barred. Can be used to
increase standby duration.
53 54
Page 29
15
You will have access to all audio and visual files stored in cellphone or
memory card in File manager.
File manager ...............
15.1 My audios
Choose an audio for the ON/OFF screen, for an incoming call, a message
alert, power on/off ringtone or an alarm and scheduler.
(1)
The “My audios” album contains the following folders
- Music: full track music.
- Melodies: melodies that can be set as ringtone.
- Recorded: all recorded sounds.
- General: contains all audio files stored in cellphone or memory card.
DRM: Digital Rights Management feature allows sounds and
images to be played while protecting the associated copyright.
DRM counter-based files and files with expired rights will not be
automatically played when scrolling the list.
:
15.2 My images
You can select an image or a photo as wallpaper, ON/OFF screen, or assign
it to a contact in the directory.
The images will be displayed in alphabetical order.
15.3 My videos
The “My videos” album contains all video clips recorded by the user,
originally embedded in the cellphone and downloaded to the cellphone
or memory card.
(1)
The embedded folder names cannot be modified. However, in certain cases,
you can modify, delete and add items included in these folders.
55 56
15.4 My creations
This feature stores all the photos captured by your cellphone.
15.5 Others files
A folder contains all downloaded java applications.
15.6 Cellphone
An entry to access all files in all folders stored in cellphone.
15.7 Memory card
You can access all files stored in the memory card here.
When a memory card is inserted for the first time, it will be
scanned and the default folders will be created.
Inserting or removing the memory card:
Unclip the cover and insert the MicroSD card into the slot.
Unclip the cover and gently push the memory card until unlocked. Take
out your MicroSD card and clip the back cover.
Page 30
Available options
Open • Open a folder.
Create folder • Create more folders.
Delete folder • Remove folders.
Rename folder • Edit folder’s name.
Empty folder • Delete all files in one folder.
Memory card • To format or to query its memory status.
15.8 Managing audios, images, videos and creations
According to the item chosen, you can access some of the functions
below:
View • View the selected image.
Play • Play the selected video.
(1)
Send
• Send the audio/image/video.
Delete • Delete the audio/image/video selected (not applicable for
embedded items).
Set as • - Image
- SoundÆringtone, message beep, switch ON/OFF, assign it
- VideoÆAssign it to a contact.
Mark/ • Mark/Unmark a tick on a file for further operation. Press
Unmark
Download • Download new items.
Rename • Rename the audio/image/video.
Sort • Sort the files by name, type, time and size.
Move to • Move a file from the phone memory to the memory
phone/ card and vice-versa
memory card
Æwallpaper, switch ON/OFF, assign it to a contact.
to a contact.
on Mark menu to mark all diretly.
Properties • Display part of the ID3 Tag content of an MP3 file.
Activate • DRM file option.
Copy to phone/
memory card
15.9 Formats and compatibility
• Copy a file to the phone memory or the memory
card.
(1)
- Sounds: mp3, m4a, aac, midi, wav, amr, wma. (aac/aac+, wma are
customized)
- Images: jpg, gif, wbmp, bmp
- Videos: 3gp, mp4
15.10 Memory status
Indicates how much space is used and how much is currently free on your
cellphone and memory card (if any).
15.10.1 Cellphone
View available memory space.
Your cellphone’s memory is shared among several functions: directory,
calendar, messages, images, melodies, games and video clips.
15.10.2 Memory card (MicroSD card)
View the memory available on your MicroSD card.
You are advised to save large files (like songs) on your microSD
card.
(1)
Files marked with cannot be sent.
(1)
Depending on phone and market.
57 58
Page 31
(1)
16
Access this feature by pressing through key from the main screen
to enter the main menu, then selecting “Bluetooth”.
To use your cellphone with a Bluetooth device, you need to proceed in
two steps:
- Pair and register the device to your cellphone,
- Select it to use hands-free communication. Only one Bluetooth audio
Pair and register your Bluetooth device
Activate the Bluetooth feature by selecting the “Bluetooth\Activation\
On” option. Then enter the “Device list” menu to search for connectable
Bluetooth devices and select the device you want to be paired with in the
list. If the bluetooth device has no keyboard, enter its default password
to register it with your cellphone. If the Bluetooth device has keyboard/
keypad, enter the same set of password on both handset and the device
to get it registered.
From the list, press the “Options” softkey to connect/disconnect, rename,
search for new devices or delete an unconnected one from the list.
Bluetooth™
device (your Bluetooth headset or your Bluetooth car kit) can be
connected during the communication.
Don’t forget to turn on your Bluetooth device and activate the
pairing mode while pairing it with your cellphone.
.............
Available functions
Data transmit • Exchange files with another bluetooth device.
Handle a call • Initiate or receive a phone call with a Bluetooth
headset.
Listen to music • Support A2DP profile.
Visibility • Select whether you want to hide (“Hidden”) or
My phone’s name • You may change your cellphone name, which is
Always activate Bluetooth in your cellphone first before
connecting it to a Bluetooth device. Be aware that Bluetooth
activation will slightly affect battery life of your cellphone.
Bluetooth technology allows free wireless connections between all
Bluetooth-compliant devices within short range. Please make sure that the
Bluetooth headset or the Bluetooth car kit and your cellphone are in this
range and set as “Visible to all”.
Your cellphone is Bluetooth™ v1.1, v1.2 and v2.0 compatible.
show to all (“Visible to all”) your cellphone.
visible to the others.
(1)
You are highly recommended to use Alcatel OT-BM82 (mono) Bluetooth
headset, which has been tested and proved fully compatible with OT-606A.
59 60
Page 32
17
Others ..................................
17.1 Calendar ........................................................
Once you enter this menu from the main menu, there is a monthly-view
calendar for you to keep track of important meetings, appointments, etc.
Days with events entered will be marked in color.
Available options:
Today's
appointments
All appointments • See all the created appointments.
Jump to date • Input the required date and it will be immediately
Create • Create an appointment.
Synchronization • Synchronize with the account you've set.
• See today’s appointments.
highlighted.
17.2 Calculator .........................................................
Access this feature by selecting “Calculator” from the main menu.
Enter a number, select the type of operation to be performed using the
navigation keys, and enter the second number, then press
key to display the result.
If you want to input a decimal, you may press
Once an operation is complete, you can select “Clear” to clear numbers
and carry out a new operation.
To return to the main screen, press the “Back” softkey.
61 62
key or
17.3 Notes .................................................................
You can create a note in text or voice format by accessing “Notes” from
the main menu.
Available options:
Open • Open and view note.
Send
New text note/
voice memo
Delete • Delete note.
Delete all • Delete all notes.
While recording a voice memo, you can define the audio format (AMR,
WAV or AWB), Quality (High/Low), and Storage (Phone, memory card).
• Send by SMS, MMS, Email or Bluetooth.
• Add new text note or voice memo.
17.4 Clock .................................................................
17.4.1 Alarm
Your cellphone has a built-in alarm clock with a snooze feature. You can set
up to five separate alarms and choose whether or not the alarm should
repeat.
Repeat • You may select Once (default)/Every day/Days or customize
Snooze • The alarm will repeat at regular intervals.
Mode • You may select the mode of Ringtone: Ring, Vibration only,
(1)
In Radio mode, you are required to plug in headset first. Your cellphone will
to your desire.
Silence, Radio
power on automatically before Radio is on.
(1)
or Vibration and Ring.
Page 33
17.4.2 World clock
The World clock shows current local time and the time zone in different
cities. You may view up to 3 cities at one time (Options\Set as my city).
17.4.3 Clock
Allows you to have settings of date and time, including 12/24h format.
You can also set the daylight saving adjustment.
17.5 Converter.........................................................
17.5.1 Unit converter
You can use the Weight and Length conversion by selecting the unit you
wish to convert via
with
key or key.
17.5.2 Currency converter
The currency converter allows you to:
• Convert a currency directly into euros and vice versa
• Convert between international currencies, both currencies must be
selected by
exchange rate.
, then press to input the digits. Finally confirm
(1)
.
keys. You are requested to input the appropriate
18
From the main menu, select the menu icon and select the function of
your choice in order to customize your cellphone.
Settings ................................
18.1 Cellphone settings
18.1.1 Display
Wallpaper
The wallpaper is displayed when you switch on your cellphone.
By selecting “Wallpaper” you can customize it by replacing the default
image or animation displayed on your cellphone.
Theme
This function enables you to customize the graphic style and the colours
of your cellphone.
Power On/Off
You can customize your welcome animation or image that appears when
you switch on your cellphone.
You can also customize your OFF screen with an image or animation.
Brightness
You may adjust black level with respect to LCD display by pressing the
key.
(1)
(1)
For the former European national currencies, the currency converter uses the
final Euro conversion rates set on 31/12/1998, which are used in accordance
with official conversion rules.
63 64
(1)
Depending on the model.
Page 34
Backlight
• Screen Allows you to reduce brightness for enhanced battery performance
and to save power during periods of expected inactivity.
• Keypad You may customize your keypad light by selecting On/Off or
inputting your preferred duration directly.
18.1.2 Languages
(1)
Display language for messages (select using ). The “Automatic” option
selects the language according to the home network (if available).
18.1.3 Headset mode
Switch audio play (incoming call, message beep, alarm beep...) between
Headset only and Phone & Headset.
18.1.4 Input mode
(2)
Please see chapter “Latin input mode”, page 69. In addition to the
specific characters table for Cyrillic, Chinese, other data input modes are
also available in your cellphone. This feature allows you to write short
messages and add names with special characters to your directory.
18.1.5 Numeric keys
By customising your keys, you can access any function directly from the
main screen.
18.1.6 Auto lock
Your keypad will be locked automatically or you may lock it manually by
long pressing the
key.
Unlock the keypad
Short press the
key when locked.
The keypad will be unlocked automatically on receiving a call or
plugging in the charger.
18.2 Call settings
See page 40.
18.3 Security
Activate PIN • The SIM card protection code is requested each
time the cellphone is powered on if this code is
activated.
Change PIN • Change PIN code.
Change PIN2
Activate phone
code
Change phone
code
Fixed dialed
number
• A protection code for certain SIM card features
(Billing/Cost/FDN, etc.) will be requested if you
attempt to access it, if the code is activated. Select
to update it with a new one (between 4 and 8
digits).
• It is requested each time the cellphone is powered
on if this code is activated.
• Change cellphone password, its initial one is 1234.
• Allows the cellphone to be “locked” so that it can
only dial certain numbers, or numbers with certain
prefixes. To activate this function, PIN2 code is
mandatory.
(1)
Contact your network operator to check service availability.
(2)
Depending on the language.
65 66
Page 35
18.4 Network
Network selection
•
Preferred
network
• Select network • The choice of network connection is left up to the
• Search mode • Network connection can be switched between
GPRS connection
• When needed • GPRS mode active depending on connection
• Always • GPRS mode continuously active.
GPRS international roaming
• GPRS data services can be used while roaming.
• List of networks to which you wish to be
connected in order of priority (update this list using
).
user.
“Manual” and “Automatic”.
(1)
requirements.
18.5 Connectivity
A set of profile settings for messaging (MMS, Email...) and Web
connection.
19
Making the most of your
cellphone .............................
19.1 PC suite
You can download software upgrade for free from the website. The PC
suite includes:
•
Backup/restore
You can backup the important data in your cellphone and restore them
when needed.
• GPRS Modem
Use your cellphone to connect PC to the internet.
•
Multimedia Personalization
Customize your cellphone with images, animations and melodies.
• Messaging
You can compose SMS/MMS easily on your PC and transfer them to your
cellphone.
Supported Operating Systems
Windows 2000/XP/Vista/Windows 7.
(1)
Depending on network availability.
19.2 Webcam
You can use your cellphone as a webcam for instant messaging on your PC.
• Connect your cellphone to PC via USB cable.
• Go to “My computer” folder on your PC and find USB video device
(Under Scanners & Cameras).
Webcam is disabled when Java application is running.
(1)
The using of webcam may vary according to the operating system of your
PC.
67 68
(1)
Page 36
20
Latin input mode/character
table .....................................
There are two text entry methods that can be used to write messages:
• Normal
• Predictive with the eZi mode
Normal
This mode allows you to type text by choosing a letter or a sequence of
characters.
Key :
Press:
access the Symbols table
Predictive eZi mode
This mode speeds up the writing of your text.
Press the key once and the word will be modified each time you press a
key. As you go on, the word will keep changing.
69 70
Fn Key :
Press once:
input a top-half
character.
Press twice:
top-half
characters
inputting mode.
Shift key :
Press:
switch capital mode
Space key :
Press:
space between words
Hold down:
access the language list
key:
+
switch mode of input
method
Del key :
Press:
delete one by one.
Hold down:
delete all.
Enter key :
Confirm an option
Switch to a new
line (in SMS/ Emai/
IM)
Page 37
Key
- Press:
insert a smart
punctuation
- Hold down:
insert 1
Key
- Press:
change input
methods
- Hold down: access
the language list
Key
- Press: access the symbovls
table
- Hold down: enter zero
Symbol table
Short press the key to display the
symbols table; the cursor is positioned
in the center. Use the navigation key
to move it and the key to select.
Navigation key:
:
-
validate the word
:
-
previous/next word
: page up/down
-
Keypad
- Press: alpha
input (a, b)
- Hold down:
numeric input
(1, 2, 3)
key:
- insert a space
21
Alcatel Mobile Phones
Limited Warranty ..............
TCT Mobile North America LTD warrants to the original retail purchaser of this
wireless device, that should this product or part thereof during normal consumer
usage and condition, be proven to be defective in material or workmanship that
results in product failure within the first twelve (12) months from the date of
purchase as shown on your original sales receipt. Such defect(s) will be repaired
or replaced (with new or rebuilt parts) at the company’s option without charge for
parts or labor directly related to the defect(s).
Batteries, power adapters, and other accessories sold as in box items are also
warranted against defects and workmanship that results in product failure within
the first six (6) months period from the date of purchase as shown on your original
sales receipt. Such defect(s) will be repaired or replaced (with new or rebuilt parts)
and the company’s option without charge for parts or labor directly related to the
defect(s).
The limited warranty for your wireless device will be voided if any of the following
conditions occur:
• Non-compliance with the instructions for use or installation, or with technical and
safety standards applicable in the geographical area where your phone is used;
• Connection to any equipment not supplied or not recommended by TCT Mobile;
• Modification or repair performed by individuals not authorized by TCT Mobile or
its affiliates;
• Acts of god such as Inclement weather, lightning, power surges, fire, humidity,
infiltration of liquids or foods, chemical products, download of files, crash, high
voltage, corrosion, oxidation;
• Removal or altering of the wireless devices event labels or serial numbers (IMEI);
• Damage from exposure to water or other liquids, moisture, humidity, excessive
temperatures or extreme environmental conditions, sand, excess dust and any
condition outside the operating guidelines;
71 72
Page 38
• Defects in appearance, cosmetic, decorative or structural items such as framing and
non-operative parts.
There are no express warranties, whether written, oral or implied, other than this
printed limited warranty or the mandatory warranty provided by your jurisdiction.
In no event shall TCT Mobile or any of its affiliates be liable for incidental or
consequential damages of any nature whatsoever, including but not limited to
commercial loss, to the full extent those damages can be disclaimed by law. Some
states do not allow the exclusion or limitation of incidental or consequential
damages, or limitation of the duration of implied warranties, so the preceding
limitations or exclusions may not apply to you.
22
The latest generation of Alcatel GSM cellphones offers a built-in handsfree
feature that allows you to use the cellphone from a distance, placed on
a table for example. For those who prefer to keep their conversations
confidential, an earpiece is also available known as the headset.
Accessories
(1)
.......................
How to obtain Support: Contact the customer care center by calling (877-702-
3444) or going to www.alcatel-mobilephones.com. We have placed many self-help
tools that may help you to isolate the problem and eliminate the need to send your
wireless device in for service. In the case that your wireless device is no longer
covered by this limited warranty due to time or condition we have other options
that you may utilize our out of warranty repair options.
To obtain hardware repairs or replacement within the terms of this warranty,
contact TCT Mobile to get an RMA number, include a copy of the original proof
of warranty coverage (e.g. original copy of the dated bill of sale, invoice), the
consumer's return address, your wireless carrier’s name, alternate daytime phone
number, and email address with a complete problem description. Only ship the
wireless device. Do not ship the SIM card, memory cards, or any other accessories
such as the power adapter. You must properly package and ship the wireless device
to the repair center. TCT Mobile is not responsible for wireless devices that do
not arrive at the service center. Upon receipt, the service center will verify the
warranty conditions, repair, and return your wireless device to the address provided.
73 74
Standard charger UK charger
Battery USB cable
Stereo headset
Only use your cellphone with Alcatel batteries, chargers and
accessories in your box.
(1)
Images for reference only.
Page 39
23
Troubleshooting ..................
Before contacting the aftersales department, you are advised to follow the
instructions below:
• You are advised to switch off the cellphone from time to time to optimize its
performance.
• You are advised to fully charge (
• Avoid storing large amounts of data in your cellphone as this may affect the
performance of your cellphone.
) the battery for optimal operation.
and carry out the following checks:
My cellphone will not switch on
• Press
• Check the battery charge level
• Check the battery contacts, remove and reinstall your battery, then turn your
My cellphone has not responded for several minutes
• Press the
• Remove the battery and re-insert it, then switch the cellphone back on
My screen is difficult to read
• Clean your screen
• Use your cellphone in accordance with the recommended conditions of use
My cellphone turns off by itself
• Check that your keypad is locked when you are not using your cellphone
• Check the battery charge level
until the screen comes on
cellphone back on
key
My cellphone will not charge properly
• Make sure that your battery is not completely discharged; the battery charge
indicator can take several minutes and may be accompanied by a quiet whistling
sound
• Make sure charging is carried out under normal conditions (0°C - +40°C)
• Make sure your battery is inserted. It must be inserted before plugging in the
charger
• Make sure you are using an Alcatel battery and charger in the box
• When abroad, check that the electrical current is compatible
My cellphone will not connect to a network
• Try connecting in another location
• Verify the network coverage with your operator
• Check with your operator that your SIM card is valid
• Try selecting the available network(s) manually (see page 67)
• Try connecting at a later time if the network is overloaded
SIM card error
• Make sure the SIM card has been correctly inserted (see page 19)
• Verify with your operator that your SIM card is 3V or 1.8V compatible; the old 5V
SIM cards cannot be used
• Make sure the chip on your SIM card is not damaged or scratched
Unable to make outgoing calls
• Make sure you have dialled a valid number and press the
• For international calls, check the country and area codes
• Make sure your cellphone is connected to a network, and that the network is not
overloaded or unavailable
• Check your subscription status with your operator (credit, SIM card valid, etc.)
• Make sure you have not barred outgoing calls (see page 41)
Unable to receive incoming calls
• Make sure your cellphone is switched on and connected to a network (check for
overloaded or unavailable network)
• Check your subscription status with your operator (credit, SIM card valid, etc.)
• Make sure you have not forwarded incoming calls (see page 40)
• Make sure that you have not barred certain calls
key
75 76
Page 40
The caller’s name does not appear when a call is received
• Check that you have subscribed to this service with your operator
• Your caller has concealed his/her number
The sound quality of the calls is not optimal
• You can adjust the volume during a call by means of the
• Check the network strength
I am unable to use the features described in the manual
• Check with your operator to make sure that your subscription includes this
service
• Make sure this feature does not require an Alcatel accessory
When I select a number from my directory, the number is not dialled
• Make sure that you have correctly recorded the number in your file
• Make sure that you have selected the country prefix when calling a foreign
country
I am unable to add a contact in my directory
• Make sure that your SIM card directory is not full; delete some files or save the
files in the phone directory (i.e. your professional or personal directories)
My callers are unable to leave messages on my voicemail
• Contact your network operator to check service availability
I cannot access my voicemail
• Make sure your operator’s voicemail number is correctly entered in “My
numbers”
• Try later if the network is busy
I am unable to send and receive MMS
• Check your cellphone memory available as it might be full
• Contact your network operator to check service availability and check MMS
parameters (see page 30)
• Verify the server center number or your MMS profile with your operator
• The server center may be swamped; try again later
The flicking
• You have saved too many short messages on your SIM card; delete some of them
or archive them in the phone memory
icon is displayed on my standby screen
key
“No service” is displayed
• You are outside of the network coverage area
I have already entered 3 incorrect PIN codes
• Contact your network operator to obtain the PUK code (Personal Unblocking
Key)
I am unable to connect my cellphone to my computer
• Install first of all Alcatel’s PC suite
• Use “Install the connection” and perform the installation
• Check that your computer meets the requirements for Alcatel’s PC Suite
installation
I am unable to download new files
• Check for free space
• Delete some files
• Select the MicroSD Card to store the files you downloaded
• Check your subscription status with your operator
The cellphone can’t be detected by others via Bluetooth
• Make sure that Bluetooth is turned on and your cellphone is visible to other users
(see page 59)
My cellphone is frozen, can’t power on
• Make sure your battery is not completely used up or damaged
• Remove your battery, remove your SIM card then reinstall them to power on again
• Hold down # and press power on/off key at same time to reset it
ALL User cellphone data: contacts, photos, messages and files, downloaded
applications like Java games will be lost permanently.
How to make your battery last longer
• Make sure you followed the complete charge time (minimum 3 hours)
• After a partial charge, the battery level indicator may not be exact. Wait for at least
20 minutes after removing the charger to obtain an exact indication
• Switch on the backlight upon request.
• Extend email auto-check interval as long as possible.
• Update news, weather information. upon demand manually or set its auto-check
interval longer.
• Exit Java background-running applications if they are not being used for a long
time.
• Deactivate Bluetooth when not in use.
77 78
Page 41
ALCATEL is a trademark of Alcatel-Lucent
and used under license by
All rights reserved © Copyright 2010
TCT Mobile Limited reserves
the right to alter material or technical
specification without prior notice.
English - CJA31C1ALAAA
TCT Mobile Limited.
TCT Mobile Limited.
79
Loading...
