TCT Mobile 269 User Manual

ALCATEL

Manufacturer: Huizhou TCL Mobile Communication Co., Ltd.
Technical Service Hotline: [phone]
Address: 70 Huifeng 4th Road, Zhongkai High- Tech Development Zone,

Huizhou, Guangdong Province

www.alcatelonetouch.com

onetouch VIEW

INSTRUCTION

CONTENTS

I Devices and accessories

Ⅱ

Images of onetouch VIEW Set-top Box

Ⅲ

IR remote controller

Ⅳ How to connect onetouch VIEW Set-top Box
Ⅴ How to set up onetouch VIEW Set-top Box

VI How to operate the device

1 Turn on the device

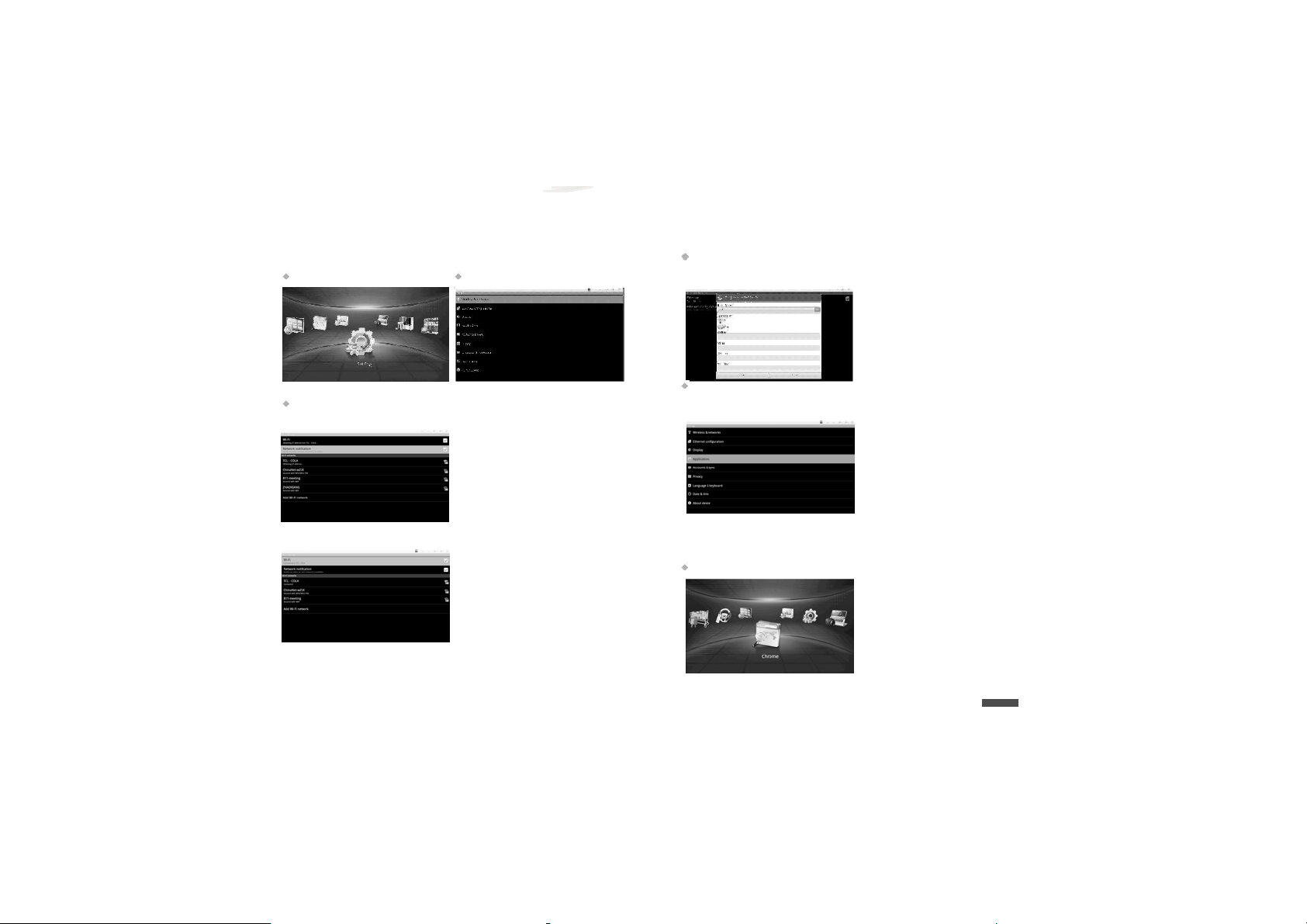

2 Settings

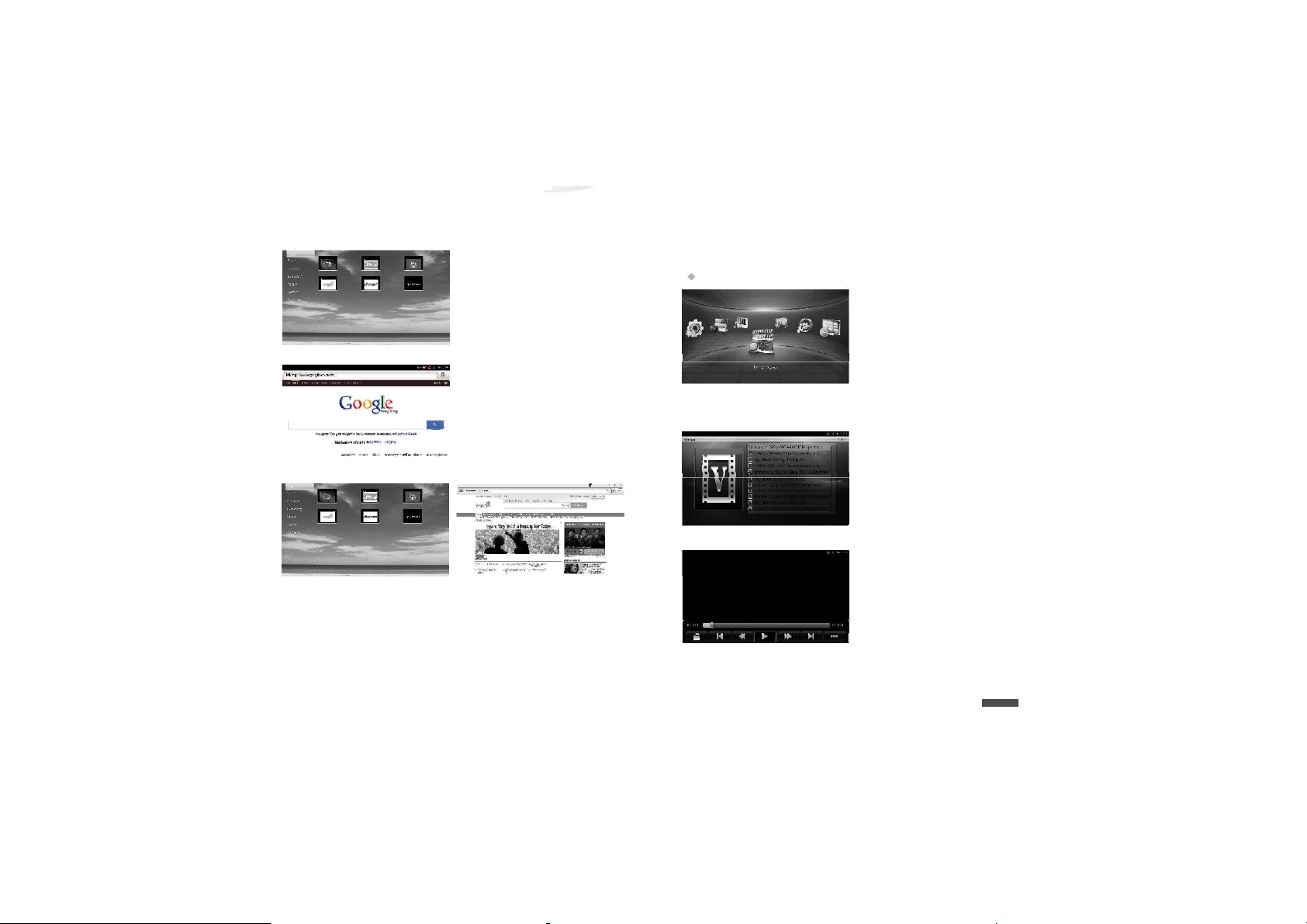

3 Network functions
4 Local Video

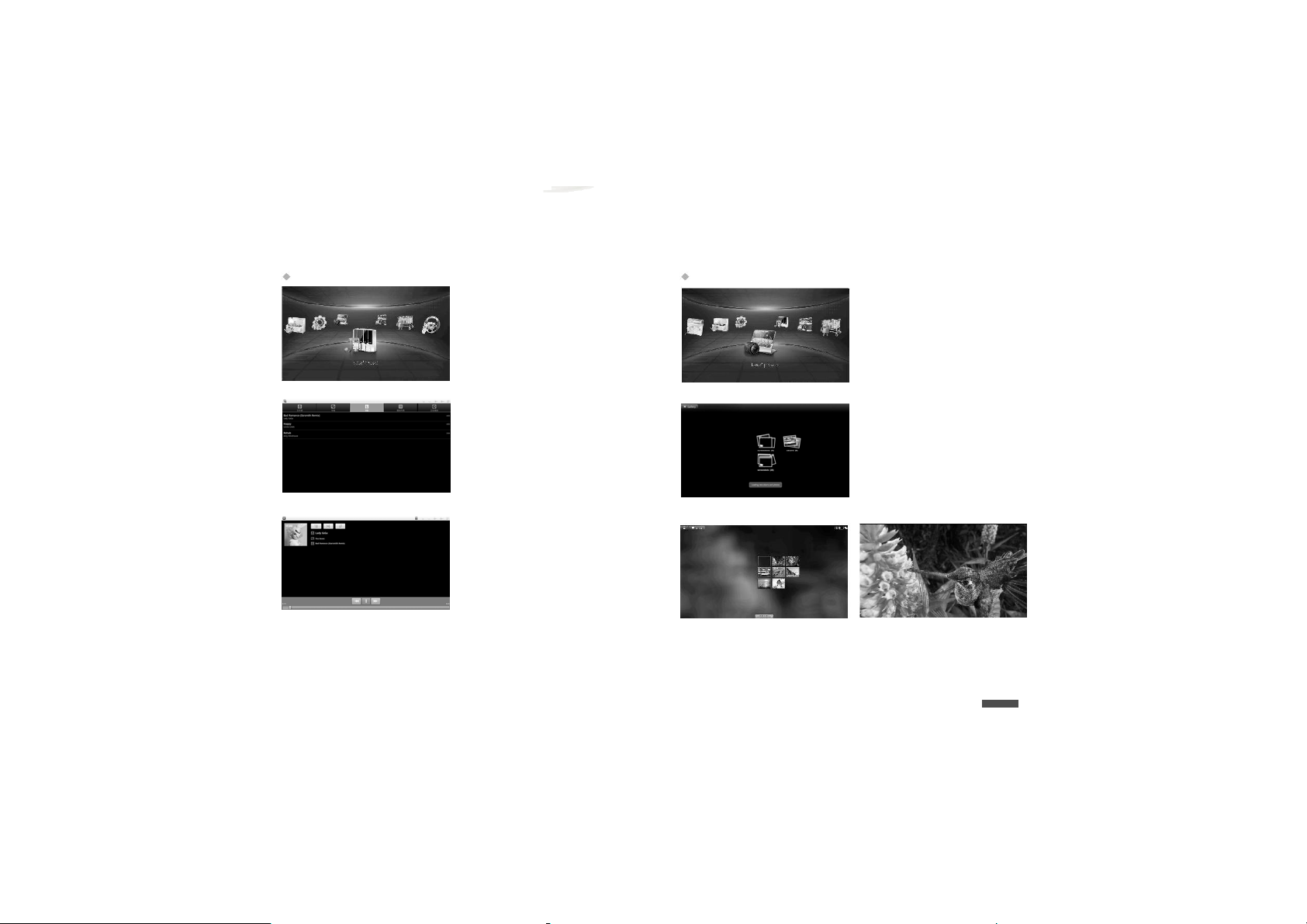

5 Local Music
6 Local Picture

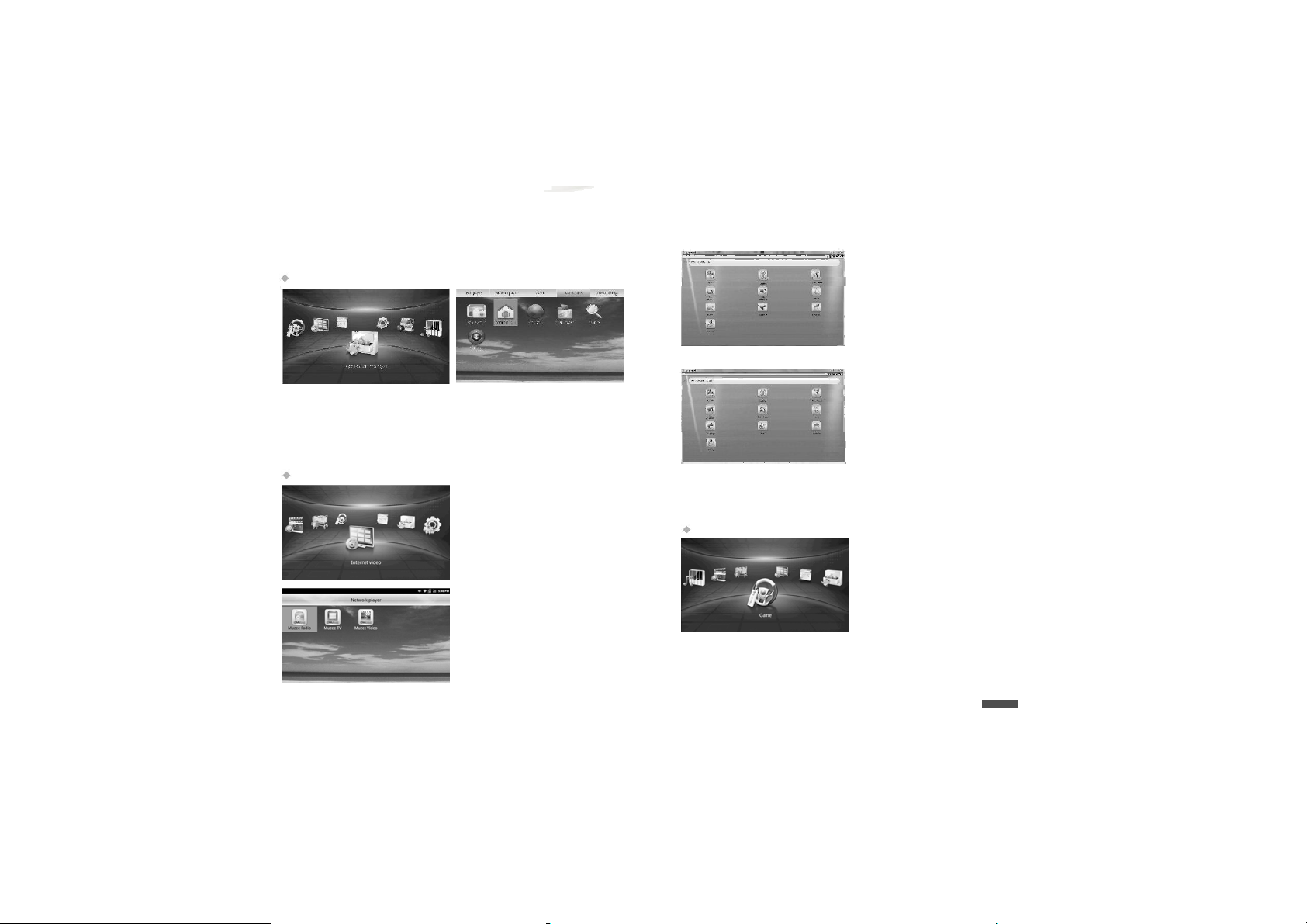

7 Application Management
8 Internet Video
9 Game

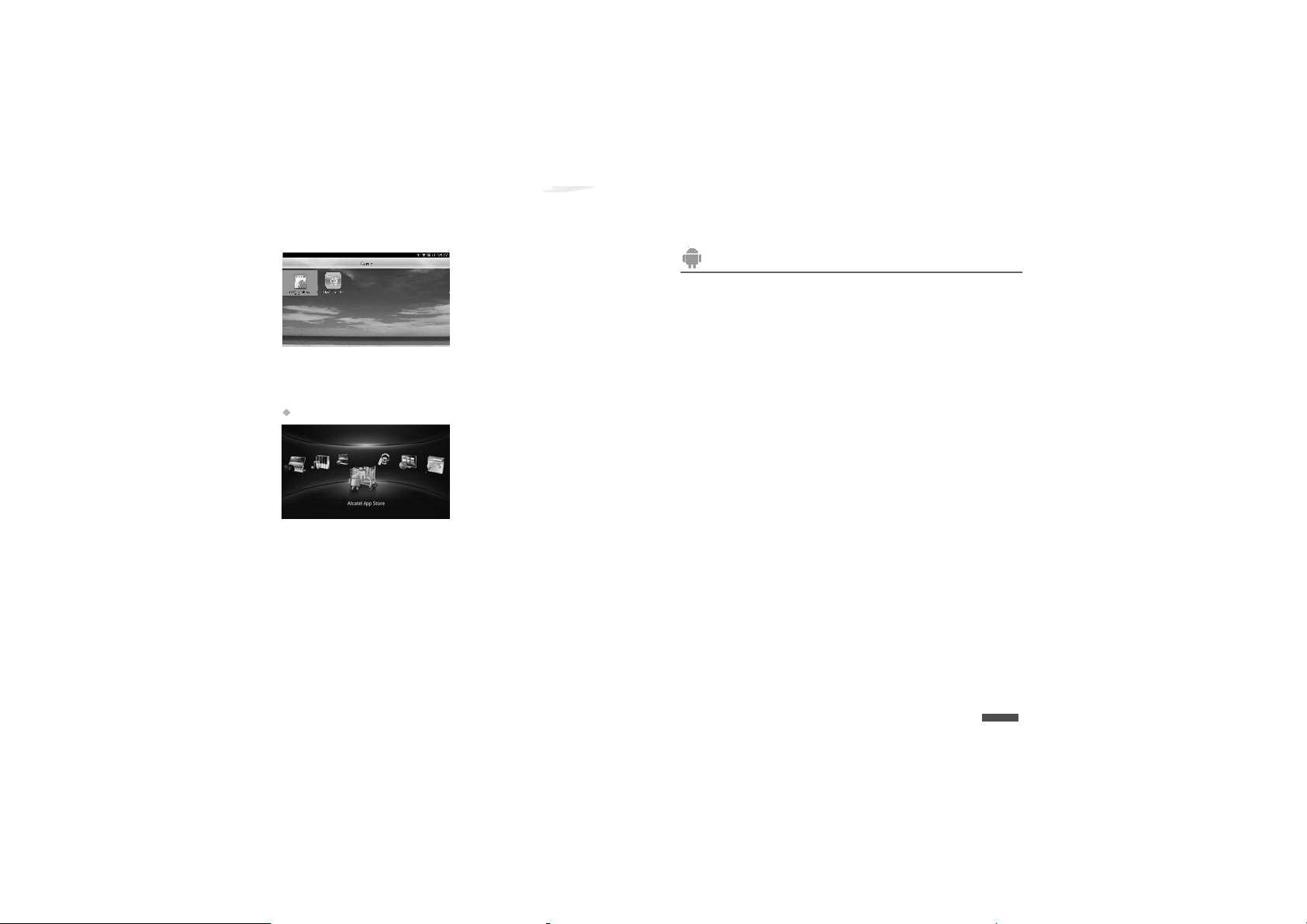

10 Alcatel app store

VII

Trouble Shooting

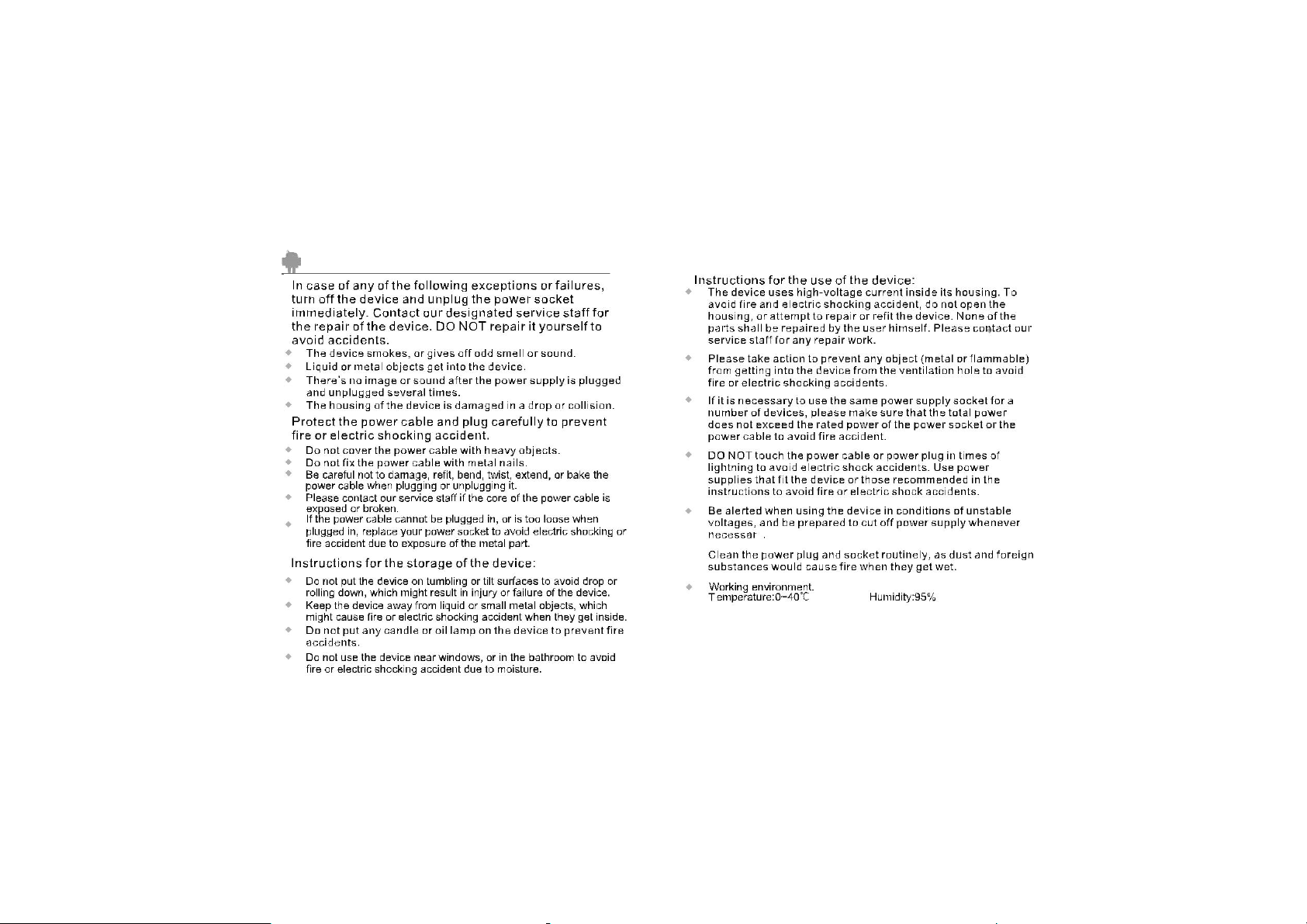

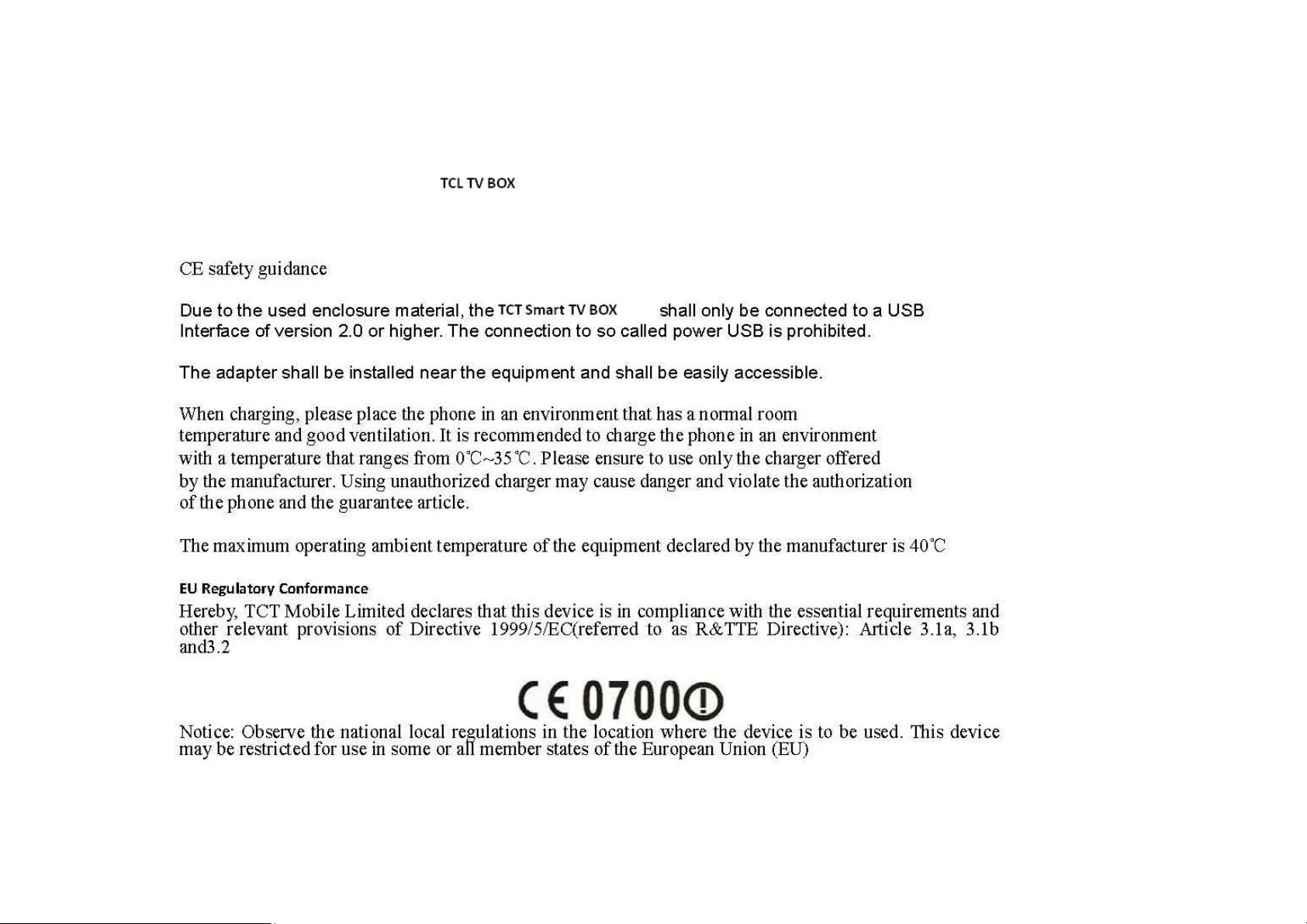

VIII Caution

I. Devices and accessories

Devices and accessories include: Alcatel onetouch VIEW Set-top

01
01
03
04
05

05
06
07
09
10
11
12
12
13
14
15
16

Box, HDMI wire and adapter, and IR remote controller.

Alcatel onetouch VIEW

HDMI wire and adapter IR remote controller

II. Images of Alcatel onetouch VIEW Set-top Box

Back side

Your TV, Smarter！

01

Left side

Right side

1 Power socket (5V DC In): for power supply through a 5V/2A adapter.

2 Optical fiber interface: for connection with external high-

fidelity acoustic system.

3 HDMI (High-definition Multimedia Interface): to connect an onetouch

VIEW Set-top Box with a TV set with an HDMI connector for the
display of HD contents (remember to switch the TV to HDMI mode).

4 CVBS analogue video interface: to connect the CVBS port of Alcatel

onetouch VIEW Set-top Box with the AV port of a TV set with the

video connector (yellow) of the RCA cable (usually known as AV
connectors) for the transmission of video signals from the TV.

5 L: left sound channel (analogue), usually the white AV connector,

for the output of audio signals of the TV set.

6 R: right sound channel (analogue), usually the red AV connector, for

the output of audio signals of the TV set.

7 ETHERNET: Internet interface, for access to the Internet to enable

high-speed network access experience.

8 USB A: for connection with flash disks, mobile hard drives, wireless mice,

wireless keyboards, and other devices with USB2.0 interfaces.

9 USB B: for connection with flash disks, mobile hard drives, wireless mice,

wireless keyboards, and other devices with USB2.0 interfaces.

10 SD CARD slot: for the reading of information in SD cards

Notes

The device enables Internet connection with an embedded Wi-Fi
module, as well as a cable modem.

III. IR remote controller

1

2
3

4

Your TV, Smarter！ 02-03

5 RETURN: return to the previous screen or menu.
6 OK: confirm the icon selected.
7 DIRECTION: including left, right, up, down keys.

8 VOLUME: for volume control.

9 MEDIA PLAY: including play, fast forward, fast backward and pause

keys.

10 WEB: onetouch Internet surfing.

IV. How to connect onetouch VIEW Set-top Box

power source

HDMI Out

CVBSL

OPTICAL

R

How to connect onetouch VIEW Set-top Box with the TV set

V. How to set up onetouch VIEW Set-top Box

1
2

3

4

VI. How to operate the device

1 Turn on the device

Turn on the device. You will see
the welcome screen and the main
menu in 40 seconds. Main menu
options include local video, free
video, games, applications, setup,
application store, music, image

and browser.

Your TV, Smarter！ 04-05
