User manual
Vodafone Smart II
Page 2
Notice
Copyright © 2012 TCT Mobile Limited
All Rights Reserved
Your phone is made exclusively for Vodafone by TCT.
No part of this manual may be reproduced or transmitted in any form or by any
means without prior written consent of TCT.
Trademarks
VODAFONE, the Vodafone logos are trade marks of the Vodafone Group. Other
product and company names mentioned herein may be trade marks of their
respective owners.
TCT is a trademark of TCT.
The Bluetooth
Bluetooth® QDID (Qualified Design ID): B019112
microSD™ is a trade mark of SD Card Association.
®
word mark and logos are owned by Bluetooth® SIG, Inc.
Licences
microSD Logo is a trademark.
The Bluetooth word mark and logos are owned by the Bluetooth
SIG, Inc. and any use of such marks by TCT Mobile Limited and
its affiliates is under license. Other trademarks and trade names
are those of their respective owners.
Vodafone Smart II
Bluetooth QD ID B019112
The Wi-Fi Logo is a certification mark of the Wi-Fi Alliance.
Your device uses non-harmonised frequency and is intended
for use in all European countries.
The WLAN can be operated in the EU without restriction
indoors, but cannot be operated outdoors in France.
Google, the Google logo, Android, the Android logo, Google
Search, Google Maps, Gmail, YouTube, Android Market, Google
latitude and Google Talk are trademarks of Google Inc.
Notice
The information in this manual is subject to change without notice. Every
effort has been made in the preparation of this manual to ensure accuracy of
the contents, but all statements, information, and recommendations in this
manual do not constitute a warranty of any kind, expressed or implied. Read
the safety precautions and safety information carefully to ensure that you use
this wireless device in a correct and safe manner.
TCT Mobile Limited Address:
TCT Mobile Europe SAS, 55 Av. des champs pierreux Le Capitole, Noyau B, 1er
étage, 92000 Nanterre, France.
Website: http://www.vodafone.com/smart2
1 2
Page 3
Table of Contents
1 Your phone ...................................................................................................6
1.1 Keys and connectors ..................................................................................................6
1.2 Getting started ..............................................................................................................8
1.3 Home screen ...............................................................................................................13
1.4 Applications list..........................................................................................................22
2 Text input ................................................................................................... 24
2.1 Using the onscreen keyboard ..............................................................................24
2.2 Text editing ..................................................................................................................25
3 Phone calls, Call log and Contacts ................................................... 26
3.1 Phone .............................................................................................................................26
3.2 Call history ...................................................................................................................30
3.3 Contacts ........................................................................................................................31
4 Google Messaging, Gmail/Email, Google Talk ............................. 38
4.1 Google Messaging ....................................................................................................38
4.2 Gmail/Email ................................................................................................................44
4.3 Google Talk .................................................................................................................. 49
5 Google Calendar & Alarm clock & Calculator ............................... 52
5.1 Google Calendar ........................................................................................................ 52
5.2 Clock ............................................................................................................................... 54
5.3 Calculator .....................................................................................................................56
6 Getting connected .................................................................................. 57
6.1 Connecting to the Internet ...................................................................................57
6.2 Browser ..........................................................................................................................60
6.3 Connecting to Bluetooth devices.......................................................................67
6.4 Connecting to a computer via USB ...................................................................68
6.5 Sharing your phone's mobile data connection ............................................69
6.6 Connecting to virtual private networks ...........................................................71
3 4
7 Android Play Shop ................................................................................. 73
7.1 Locate the item you want to download and install ....................................73
7.2 Download and install ...............................................................................................74
7.3 Manage your downloads ........................................................................................76
8 Multimedia applications ...................................................................... 78
8.1 Camera/Camcorder .................................................................................................78
8.2 Gallery ............................................................................................................................81
8.3 YouTube .........................................................................................................................83
8.4 Music .............................................................................................................................. 84
8.5 Sound Recorder .........................................................................................................86
8.6 Videos.............................................................................................................................87
8.7 FM Radio .......................................................................................................................87
9 Google Maps ............................................................................................. 89
9.1 Get My Location .........................................................................................................89
9.2 Search for a location ................................................................................................90
9.3 Star a location .............................................................................................................91
9.4 Get driving, public transport or walking directions .....................................92
9.5 Arrangement of layers ............................................................................................94
9.6 Join Latitude to see your friends' locations and share yours with them ....94
10 Others ......................................................................................................... 98
10.1 FileManager .................................................................................................................98
10.2 SyncML Client .............................................................................................................98
10.3 Torch ...............................................................................................................................99
10.4 Other applications .................................................................................................... 99
11 Settings ....................................................................................................100
11.1 Wireless & networks ..............................................................................................100
11.2 Call settings .............................................................................................................. 102
11.3 Sound .......................................................................................................................... 103
11.4 Display ........................................................................................................................ 105
Page 4
11.5 Location & security ...............................................................................................105
11.6 Applications ..............................................................................................................107
11.7 Accounts & sync .....................................................................................................109
11.8 Privacy .........................................................................................................................110
11.9 SD card & phone storage .................................................................................... 111
11.10 Language & keyboard .......................................................................................... 112
11.11 Voice input & output ............................................................................................. 115
11.12 Accessibility ............................................................................................................. 116
11.13 Date & time ...............................................................................................................117
11.14 About phone ............................................................................................................118
12 Making the most of your phone....................................................... 119
12.1 FOTA Upgrade .......................................................................................................... 119
13 Safety and use .......................................................................................120
14 Telephone warranty .............................................................................127
15 Accessories ............................................................................................ 129
16 Troubleshooting .................................................................................... 130
17 Specifications .........................................................................................134
1
Your phone

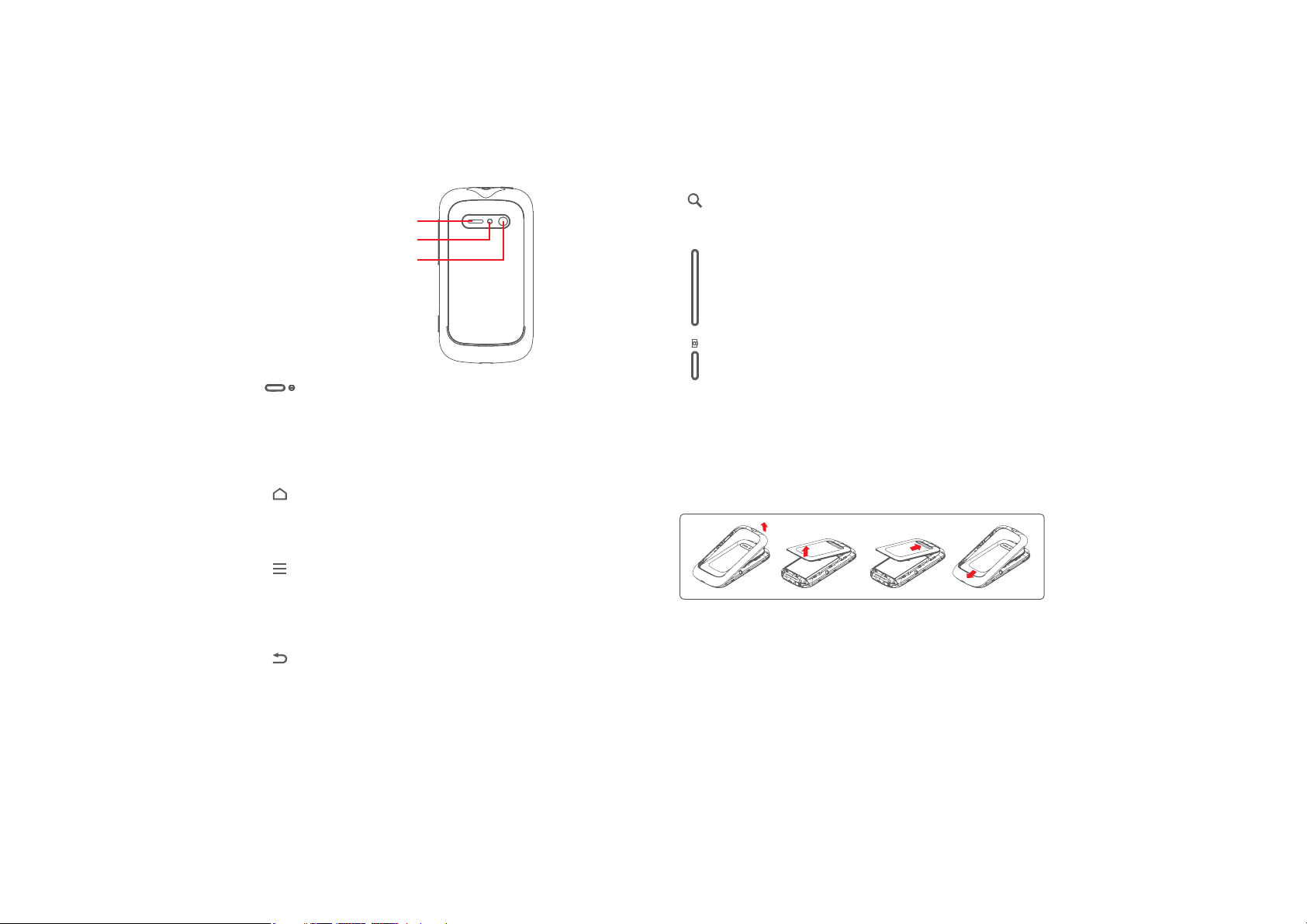

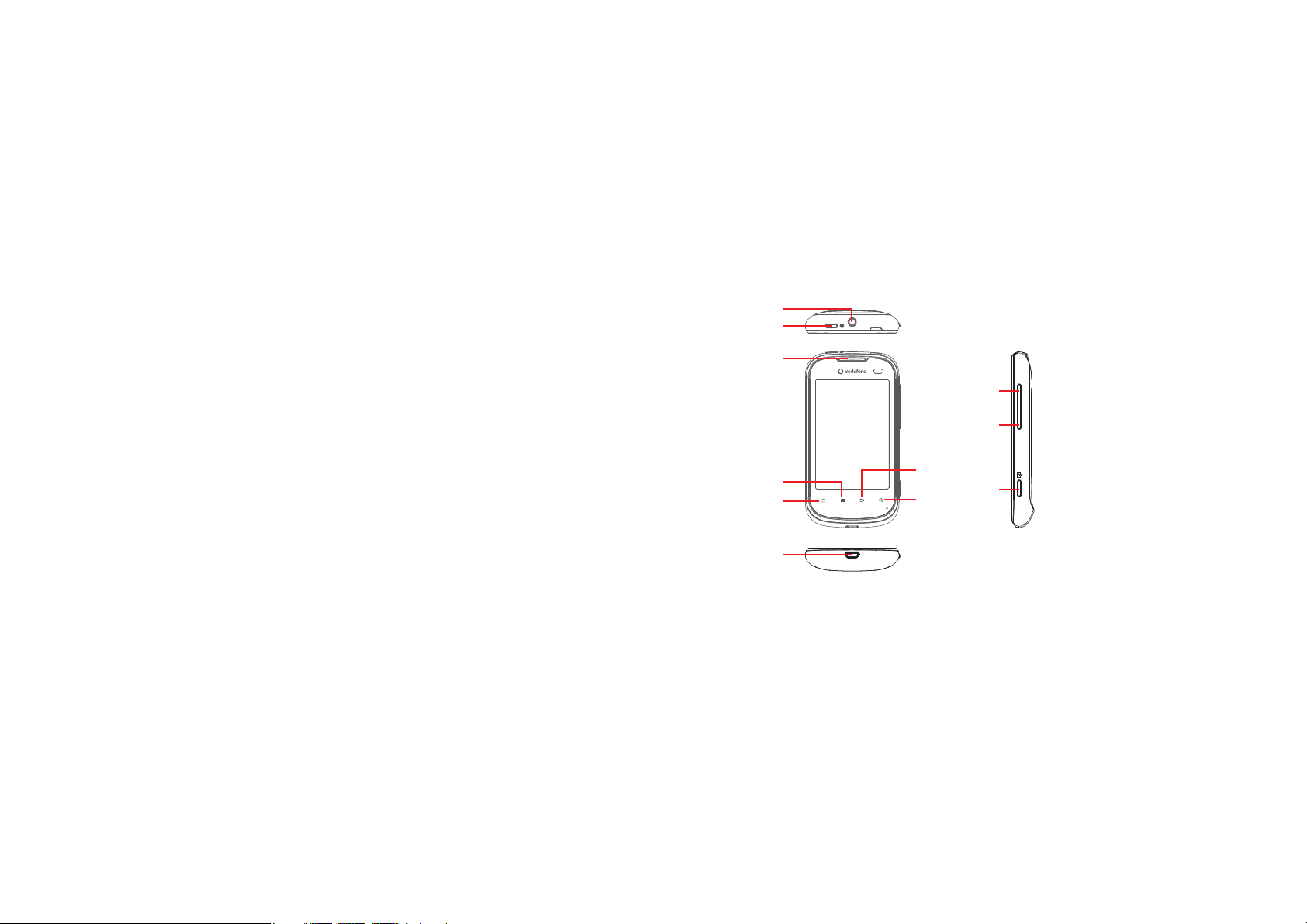

1.1 Keys and connectors
Headset connector
Power key
Loudspeaker
Menu key
Home key
Micro-USB connector
Volume up
Volume down
Back key
Camera key
Search key
5 6
Page 5
Loudspeaker
Flash
Camera
Power key
Short press: Wake the phone when in sleep mode
Lock the screen.
End a call when active.
Long press: Turn the phone on
Choose Silent mode, Airplane mode or Power off
Home key
Short press: Return to the Home screen or back to the central
Home screen if it is extended.
Long press: Enter the recently used applications list.
Menu key
On the Home screen, press to quickly access Settings menu or
Notification panel; to launch quick search; to customise your
Home screen by adding applications or changing wallpaper.
On other screens, press to view options list.
Back key
Go back to the previous menu or screen.
Search key
Open Search bar for searching within an application, the phone
or web.
Volume Keys
Adjust the volume during a call, or when playing music or videos.
Adjust the ring tone volume in general mode.
Camera key
Long press: Start up the camera.
Short press: take a photo or start/stop recording a video when on
camera or video preview screen.
1.2 Getting started
1.2.1 Set up

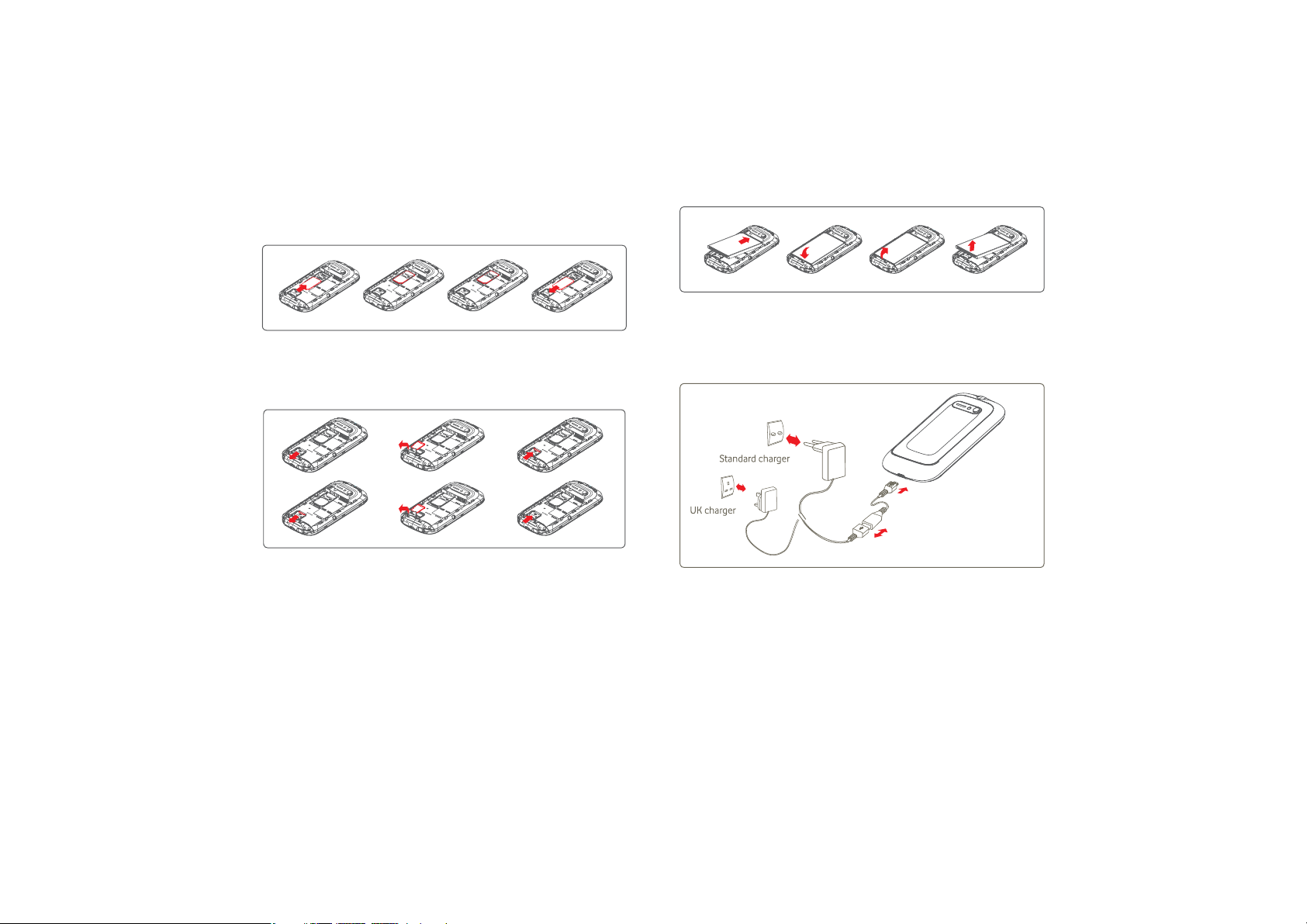

Removing or installing the back cover
7 8
Page 6
Inserting or removing the SIM card
(1)
You must insert your SIM card to make phone calls. Please power off your
phone and remove the battery before inserting or removing the SIM card.
Place the SIM card with the chip facing downwards and slide it into its housing.
Make sure that it is correctly inserted. To remove the card, press and slide it out.
Installing and removing the microSD card
To release the microSD card holder, slide it in the direction of the arrow and
lift it. Then insert the microSD card with the golden contact downward. Finally,
fold down the microSD holder and slide it in the opposite direction to lock it.
(1)
Your SIM card must be 3V or 1.8V compatible. If your SIM card does not work, please
contact Vodafone, as it may be an older 5V SIM.
9 10
Installing or removing the battery
To install, inser t and click the battery into place, then close the phone cover.
To remove the battery, first power the phone off. Then unclip the cover and
remove the battery.
Charging the battery
Connect the battery charger to your phone and mains socket respectively.
The phone will be switched on when charging the battery.
Be careful not to force the plug into the socket.
Make sure the battery is correctly inserted before connecting the charger.
The mains socket must be near to the phone and easily accessible (avoid
electric extension cables).
When using your telephone for the first time, charge the battery fully
(approximately 4 hours).
Page 7
You are advised to fully charge the battery (
). Charging status is indicated
by a lightning icon and an increasing level of green in the battery symbol (
on the top icon bar.
To reduce power consumption and energy waste, when the battery is
fully charged: disconnect your charger from the plug; switch off Wi-Fi,
GPS, Bluetooth or background-running applications when not in use;
reduce the backlight time, etc.
1.2.2 Turn on your phone
Hold down the Power key until the phone powers on. It will take some seconds
before the screen lights up.
If you do not know your PIN code or if you have forgotten it, contact your
network operator. Do not leave your PIN code with your telephone. Store this
information in a safe place when not in use.
Set up your phone for the first time

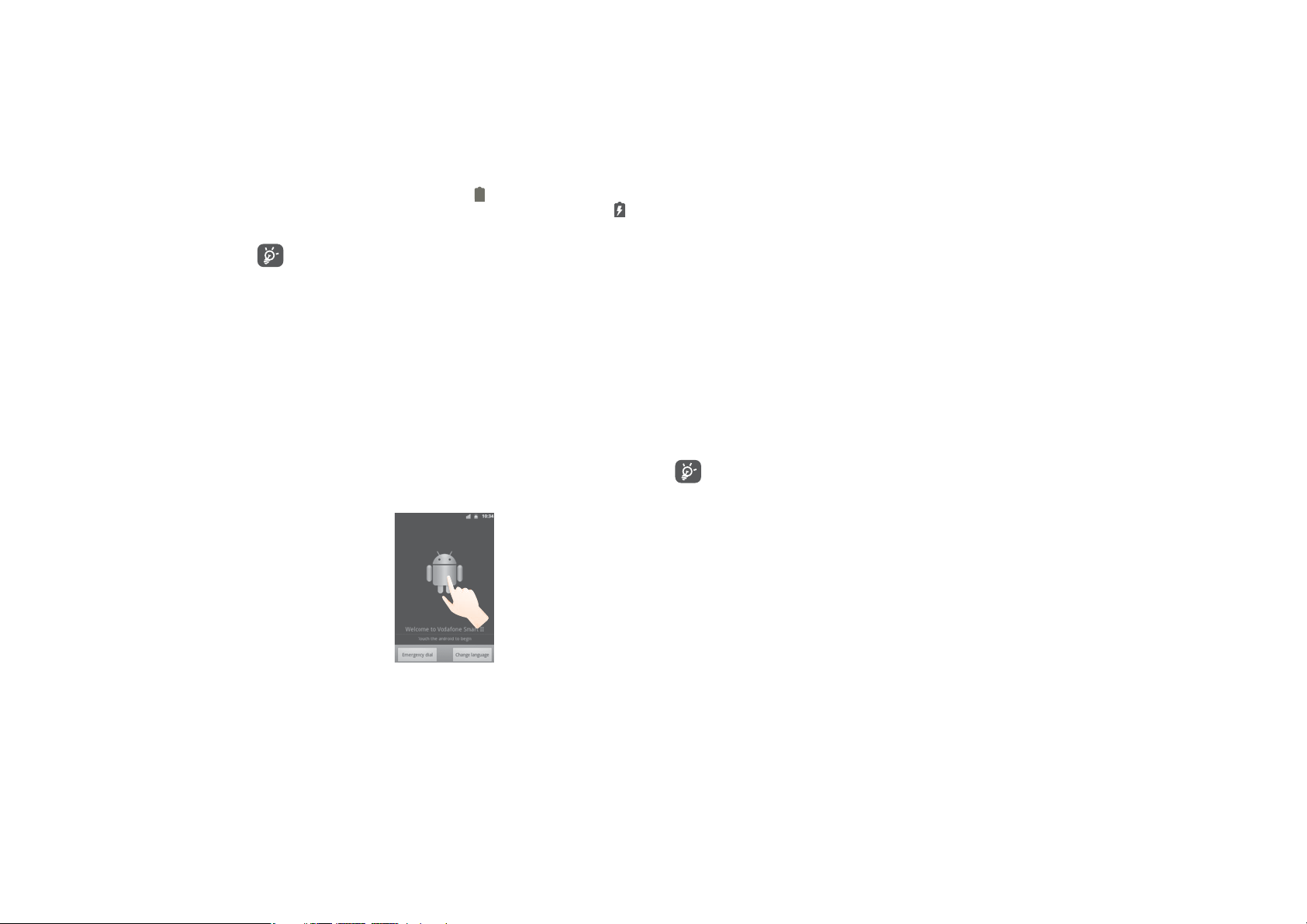

The first time you power on the phone, you are asked to touch the Android
logo to begin. And then sign into your Google account to synchronise email,
contacts, calendar and other Google applications
(1)
.
Select your Language: Touch Change language to select the phone's
)
language, then touch Next.
Read the information on the screen, then touch Next or Skip.
Mobile Data Explained: Mark/Unmark the check box to choose the Data
Enabled or the Data Roaming, then touch Next.
Setup Wi-Fi: Touch set Wi-Fi to add new Wi-Fi network. Touch Skip to enter
next option, you could set it later at Settings/Wireless & networks/Wi-Fi
settings.
Apps make life easier: If you have a Google Account, touch Setup Now/
Sign in, then enter your user name and password. If you forget your
password, you can go to http://www.google.com/ to retrieve it. If you don’t
own a Google Account, you are prompted to create one by touching Create.
Touch Skip to enter next option.
Date & time: To set up the date and time, then touch Next.
Manage contacts or set Security: To manage your contacts or set your
phone's security, then touch Finish.
You can always go to this initial setup again by touching Applications
tap/Setup Wizard.
If you don't have a SIM card inserted you can still connect to a Wi-Fi network
from the Power on screen, which will let you sign on to your Google account
and use some features.
1.2.3 Power off your phone
Hold down the Power key from the Home screen until the Phone options
appear, select Power off.
(1)
Application availability is dependent on the country you're based in.
11 12
Page 8
1.3 Home screen

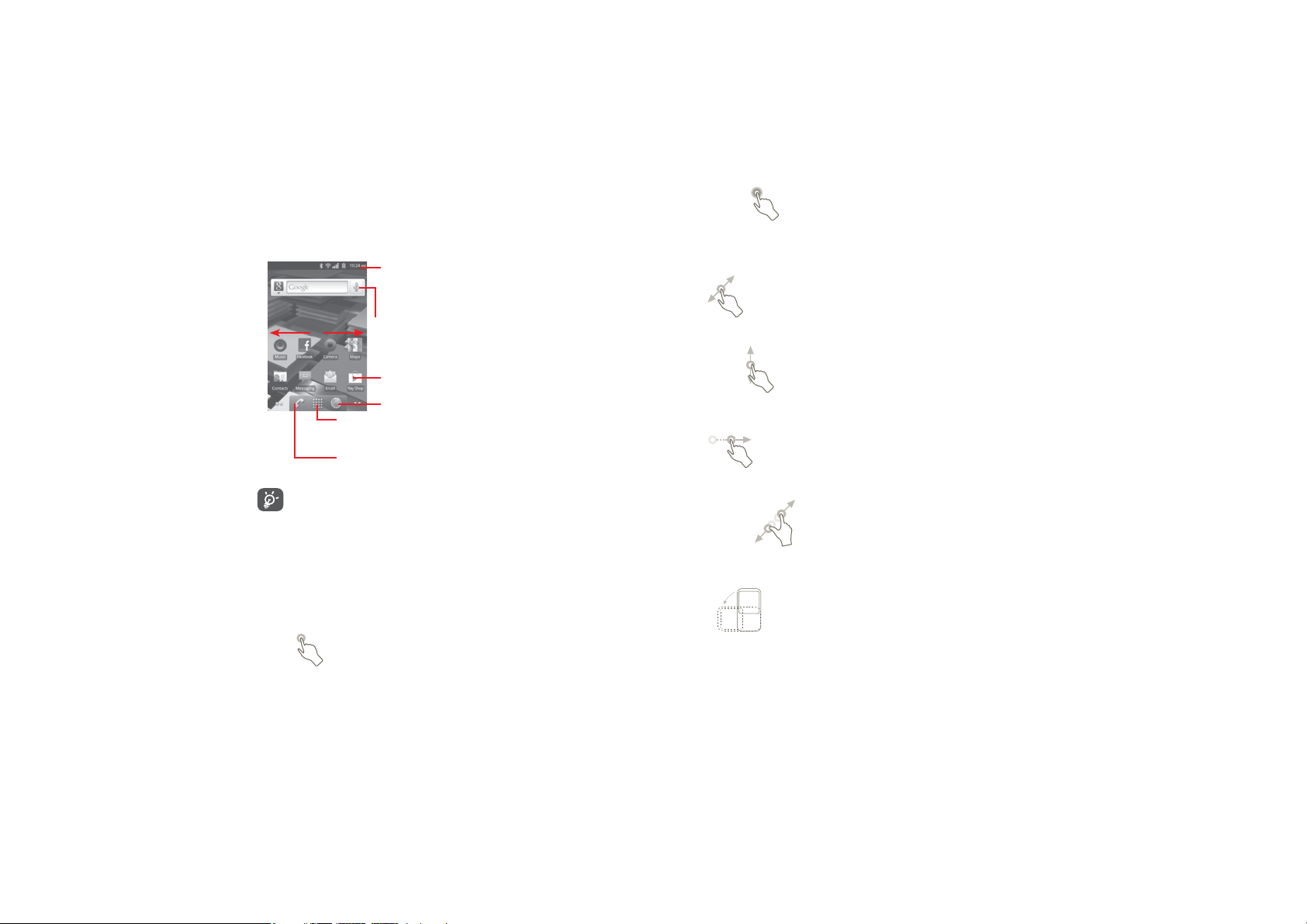

You can bring all the things you use most frequently (applications, shortcuts,
folders and widgets) to your Home screen for quick access. Press the Home
key to switch to the Home screen.
Status bar
a b c
The real Home screen depends on different districts and operators.
The Home screen also includes other screens on either side of it to allow for
more space for adding applications, shortcuts, etc.
Touch the small dots on either side of the Applications tab to move to the next
screen available. Touch & hold the dots to display thumbnails of the other
screens, then touch a thumbnail to open it.
Status/Notification indicators
Touch & drag down to open the notification panel.
Search bar
Touch a to enter Search options: All, Web, Apps,
Contacts, etc.
Touch b to enter text search screen.
Touch c to enter voice search screen.
Touch an icon to open an application, folder, etc.
Touch to access Browser
Applications tab
Touch to open main menu.
Touch and hold to display thumbnails of all your Home screens.
Touch to access the dial screen.
Touch to access Call log if you have missed call(s).
Touch & hold
To enter the available options for an item, Touch & hold the item. For example:
select a contact in Contacts, Touch & hold this contact, and an option list will
then appear on screen.
Drag
Place your finger on the touchscreen to drag an object to another location.
Slide/Swipe
Slide the screen to scroll up and down the applications, images, web pages…
You could slide the screen horizontally too.
Flick
Similar to swiping, but flicking makes it move quicker.
Pinch/Spread
Place your fingers of one hand on the screen surface and draw them apart or
together to scale an element on the screen.
1.3.1 Using the touchscreen
Touch
To access an application, touch it with your finger.
13 14
Rotate
Automatically change the screen orientation from portrait to landscape by
turning the phone sideways.
Page 9
1.3.2 Status bar
From the Status bar, you can view both phone status (to the right side) and
notification information (to the left side). When the Status bar is full, “
will appear, touch to display hidden icons.

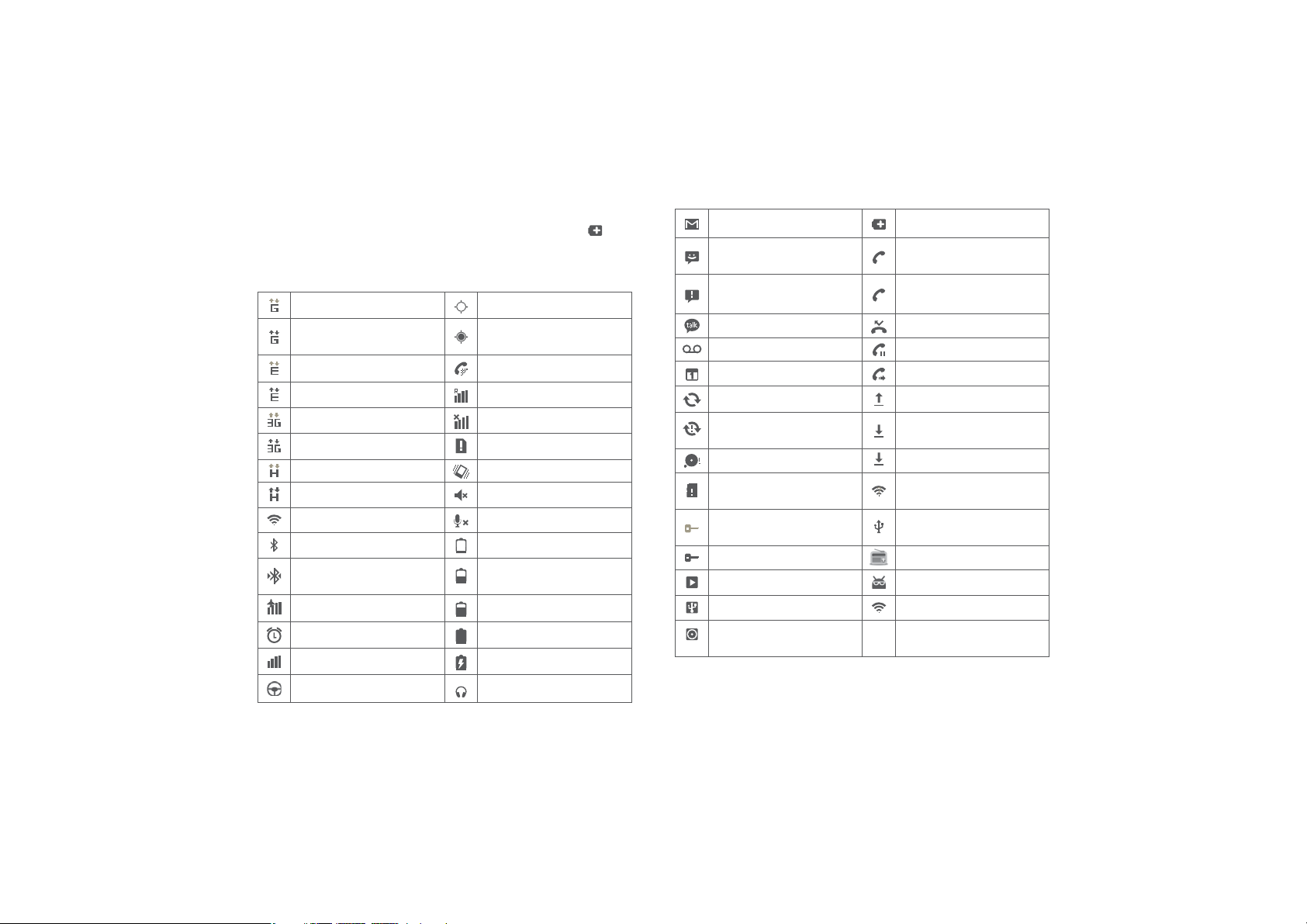

Status icons
GPRS connected GPS is on
GPRS in use
EDGE connected Speakerphone is on
EDGE in use Roaming
3G connected No signal
3G in use No SIM card installed
HSPA (3G+) connected Vibrate mode
HSPA (3G+) in use Ringer is silenced
Connected to a Wi-Fi network Phone microphone is mute
Bluetooth is on Battery is very low
Connected to a Bluetooth
device
Airplane mode Battery is partially drained
Alarm is set Battery is full
Signal strength Battery is charging
Receiving location data from
GPS
Battery is low
” icon
Notification icons
New Gmail message More notifications are hidden
New text or multimedia
message
Problem with text or
multimedia message delivery
New Google Talk message Missed call
New voicemail Call on hold
Upcoming event Call forwarding is on
Data is synchronizing Uploading data
Problem with sign-in or
synchronisation
microSD card is full Download finished
No microSD card installed
Connected to VPN
Disconnected from VPN Radio is on
Song is playing System update available
USB tethering is on Portable Wi-Fi hotspot is on
Both USB tethering and
portable hotspot are on
Call in progress (green)
Call in progress using
Bluetooth headset (blue)
Downloading data
An open Wi-Fi network is
available
Phone is connected via USB
cable
Car mode Headset connected
15 16
Page 10
Notification panel

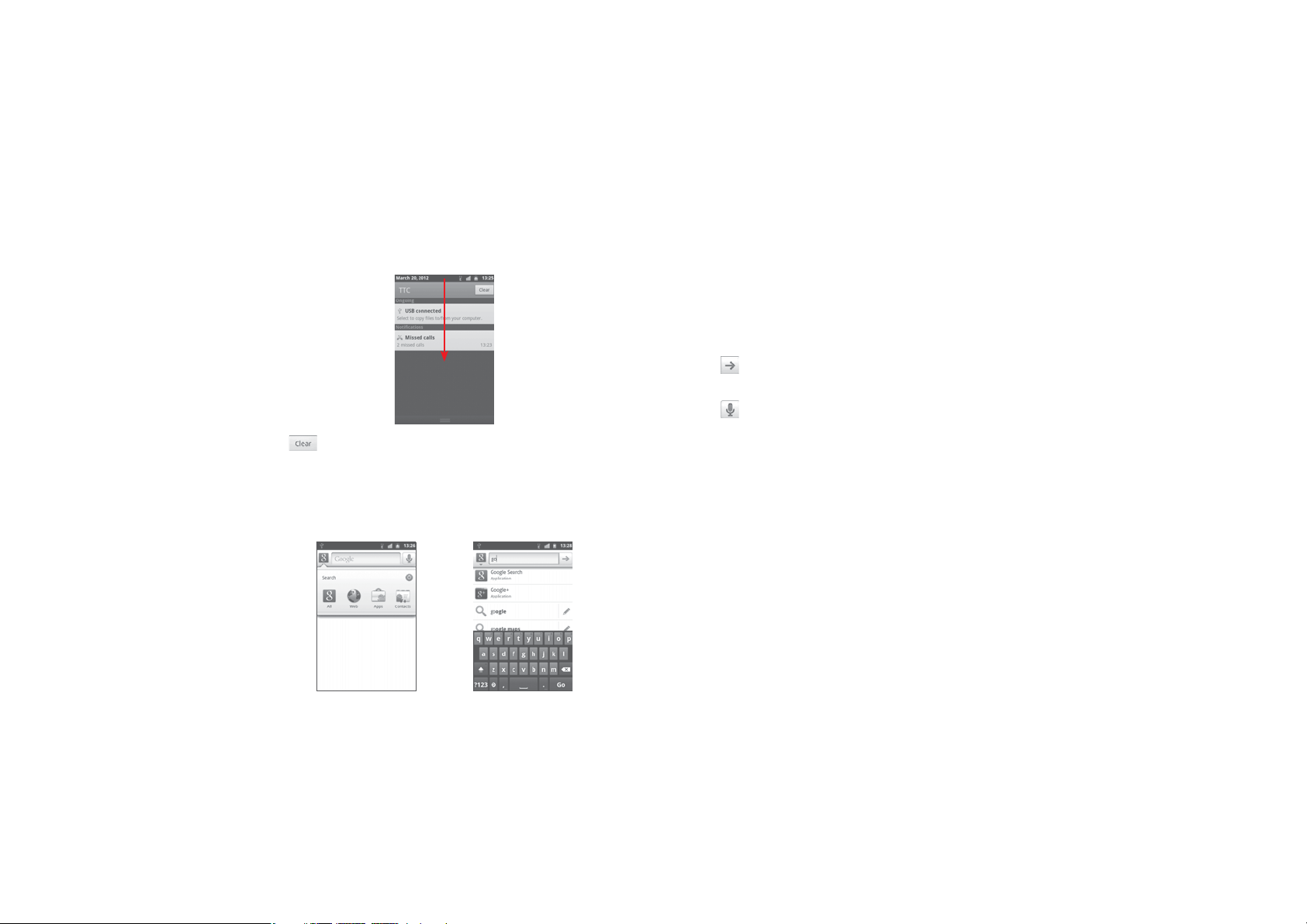

To open the notification panel, touch & drag down from the Status bar or press
the Menu key and touch Notifications. Touch & drag up to close it. From
the Notification panel, you can open items and other reminders indicated by
notification icons or view wireless service information.
Touch to clear all event–based notifications (other ongoing notifications
will remain).
1.3.3 Search bar
The phone provides a Search function which can be used to locate information
within applications, the phone or the web.
a b c
d
e
a Touch to enter targets of Search: All, Web, Apps, Contacts, etc.
b Touch or press the keypads to search by text
c Touch to search by voice
d Touch to search the web
e Touch to enter the suggested text for quick search
Search by text
Touch Search bar or press the Menu key then touch Search from the Home
screen, or press Search key from other applications screen.
Enter the text/phrase you want to search for.
Touch
Search by voice
Touch from Search bar to display a dialog screen.
Speak the word/phrase you want to search for. A list of search results will
display for you to select from.
if you want to search on the web.
1.3.4 Lock/Unlock your screen
To protect your phone and privacy, you can lock the phone screen by creating
a variety of patterns, PIN or password.
To create a screen unlock pattern (refer to section “11.5.2 Screen unlock/
Set up screen lock” for detail settings)
Press Menu key from the Home screen, touch Settings, then touch
Location & security/Set up screen lock/Pattern.
Draw your own pattern, you can also press Menu key for help.
17 18
Page 11

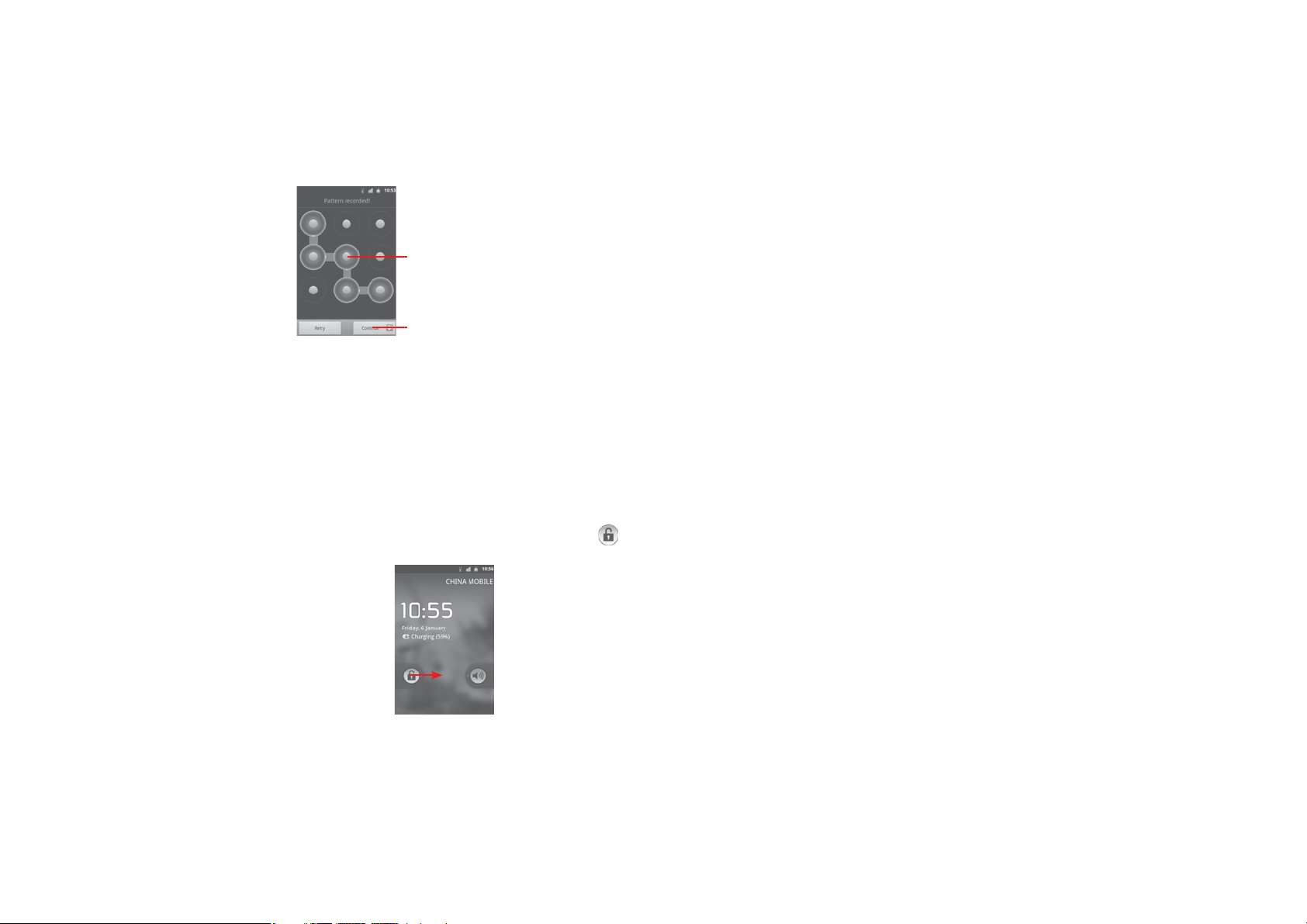

Draw your unlock pattern
1.3.5 Personalise your home screen
Add
You can add shortcuts, widgets or folders to the Home screen by touching &
holding an empty area, or pressing the Menu key, and touching Add. The Add
to Home screen will appear, offering a range of options.
Touch to confirm by drawing pattern again
To create a screen unlock PIN/Password
Press Menu key from the Home screen, touch Settings, then touch
Location & security/Set up screen lock/PIN or Password.
Set your PIN or password.
To lock phone screen
Press the Power key once to lock the screen.
To unlock phone screen
Draw the unlock pattern you have created or enter PIN or password to wake up
the screen. If you did not set the unlock screen, drag right the lock icon
to
unlock it.
19 20
Shortcuts
To add a shortcut to the Home screen, such as
applications, bookmark, contact, etc.
Widgets
To add a widget to the Home screen, such as clock,
calendar, etc.
Folders
To add a folder to the Home screen, such as new folder,
contact folder, etc.
To improve the organization of the Home screen items (shortcuts, widgets),
you can add them to a folder by touching and dragging them onto the folder
of your choice. To rename a folder, open it, Touch & hold the folder’s title bar
to open the Rename folder dialog box, then enter the new folder name and
confirm with OK.
Reposition
Touch & hold the item to be repositioned to activate the Move mode, then
drag it to the place you want and release it. Hold the icon on the left or right
edge of the screen to drag the item to another Home screen page.
Remove
Touch & hold the item to be removed to activate the Move mode. Drag the
item to the top of the Applications tab, which will then turn red, and release.
Page 12

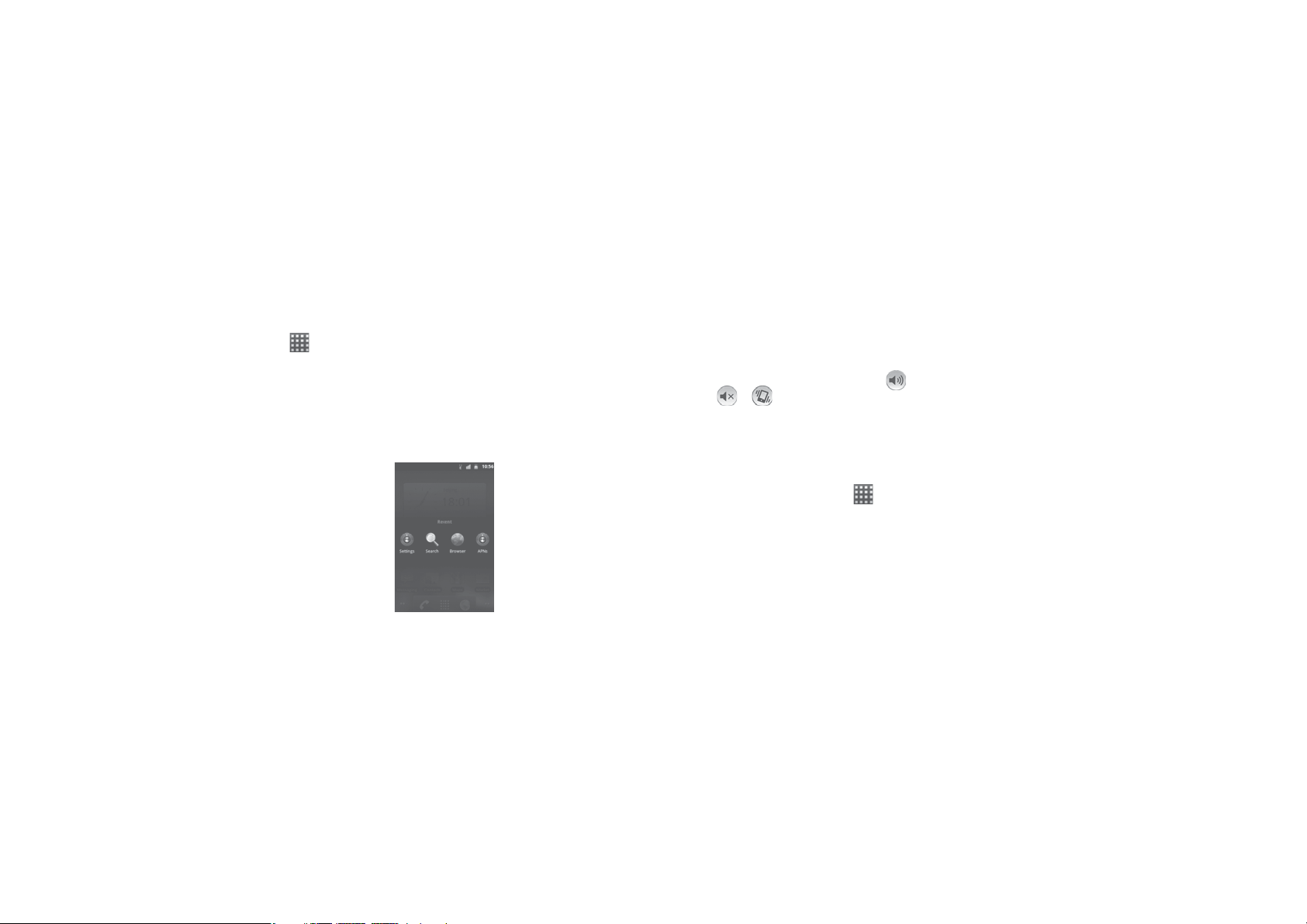

Wallpaper customisation
Touch & hold an empty area or press Menu key and touch Wallpaper on the
Home screen, a popup window named Select wallpaper from will appear,
offering a range of options. Gallery includes pictures you have taken, cropped
or downloaded. Live wallpaper include a scrolling list of animated wallpapers.
Wallpapers includes all preset wallpapers in the phone. Slide left and right to
locate a desired image, touch Set wallpaper to confirm.
1.3.6 Applications tab
Touch on the Home screen to enter applications list.
To return to the Home screen, press the Home key.
Consult recently-used applications
To consult recently-used applications, you can press and hold the Home
key from the Home screen. Touch an icon in the window to open the related
application.
1.3.7 Volume adjustment
Using volume key
Press Volume up/down key to adjust the volume. While in the lowest volume
level, your phone will now be switched to Silent mode or Vibrate mode
(1)
.
Using Settings menu
Press Menu key from the Home screen, then touch Settings/Sound, you can
set ringer, media and phone ringtone volume to your preference.
Sound on/off
When the screen is locked, drag left the icon
the icon
or to switch sound on
to switch sound off, drag right
(1)
.
1.4 Applications list
The Applications list contains all pre-embedded and newly installed
applications.
To access the Applications list, touch
the Home screens, press the Home key.
1.4.1 Normal mode and sort mode
Applications can be managed in two modes. To switch between the two
modes, press Menu key from applications list screen, and touch Switch view.
from the Home screens. To return to
Normal mode
All applications are listed in alphabetical order.
(default)
Sort mode
(1)
The phone setting will var y depending on the changes made to the default settings
in Settings/Sound/Vibrate.
All applications are sorted by several categories.
21 22
Page 13
1.4.2 Managing Categories
There are 8 categories in total: 5 categories are predefined, and you can add
3 more.
Press the Menu key, and select Edit to enter edit mode. Within edit mode you
can now customise categories.
Rename Category
Remove Category
Add a category
Move an application
among categories
Locate the category you want to rename, touch
to display options menu, then touch Rename
Category. When finished, touch OK.
Locate the category you want to remove, touch
to display options menu, then touch Remove
Category.
Press the Menu key, then touch Add Category to
create a new category name. When finished, touch
OK. You can select some applications to move
into the new category, and confirm by touching
OK again.
Locate the application you want to move, touch to
display the categories list, then touch the desired
category name.
2
Text input
2.1 Using the onscreen keyboard
An onscreen keyboard will display automatically when a program requires you
to text or numbers.
Onscreen keyboard settings
Press the Menu key from the Home screen, then select Settings/Language
& keyboard/Swype (or Android keyboard) to see the various keyboard
settings. Scroll to select the keyboard style you want to change.
Change the onscreen keyboard orientation
Turn the phone sideways or upright to change the onscreen keyboard
orientation. You can also change it in the keyboard settings (press the Menu
key in the Home screen, then Settings/Display/Quto-rotate screen).

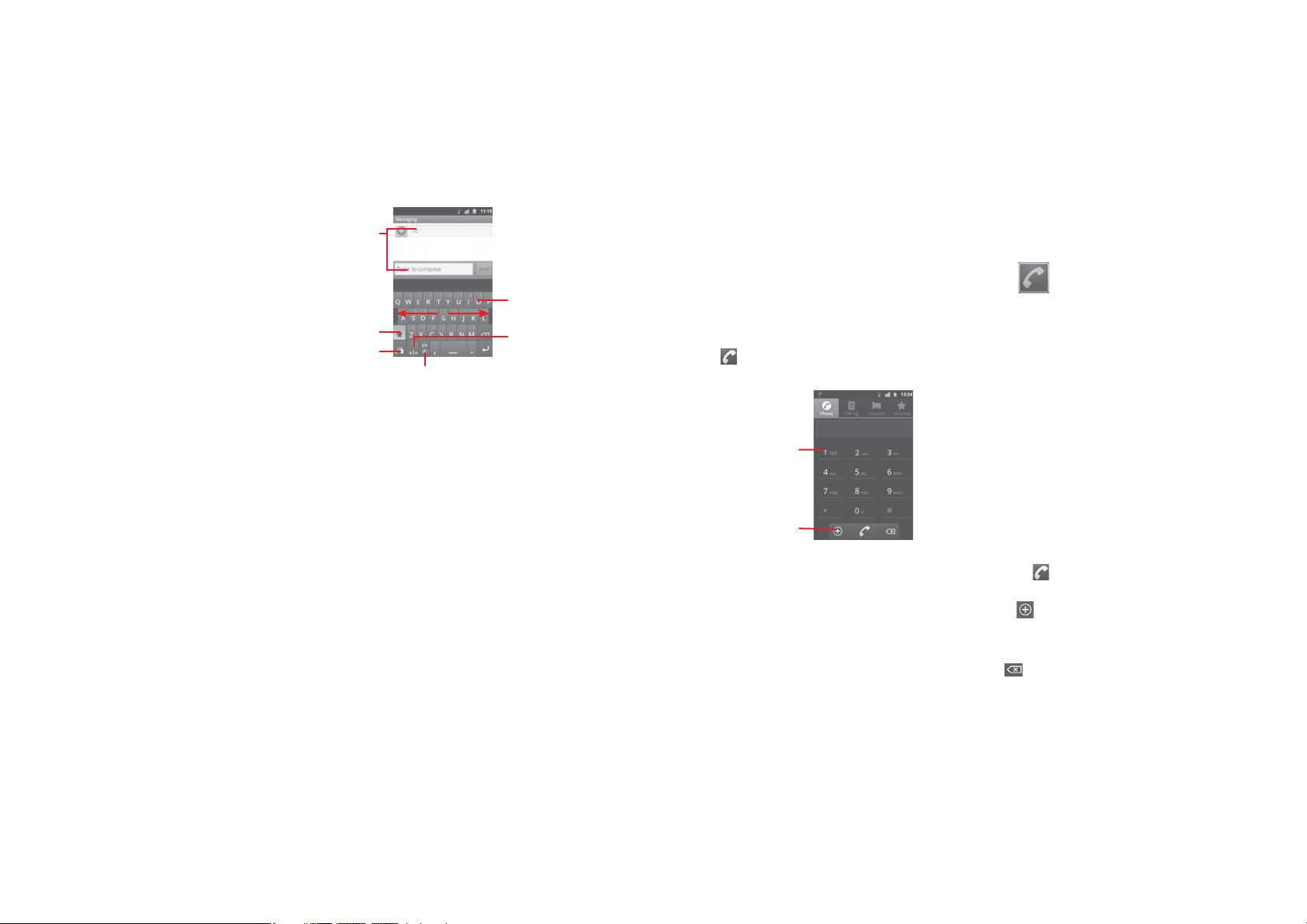

2.1.1 Standard Android keyboard
Touch to enter text or
numbers, Touch & hold to
select input method.
Touch to enter the symbol
Touch & hold to enter
Touch to switch "abc/
Abc/ABC" input mode
Touch to switch to
symbol and numeric
keyboard
Touch to enter Input
options.
an accent of the letter.
Touch to enter Voice input.
Touch & hold, then
select to enter symbol/
emotion.
23 24
Page 14

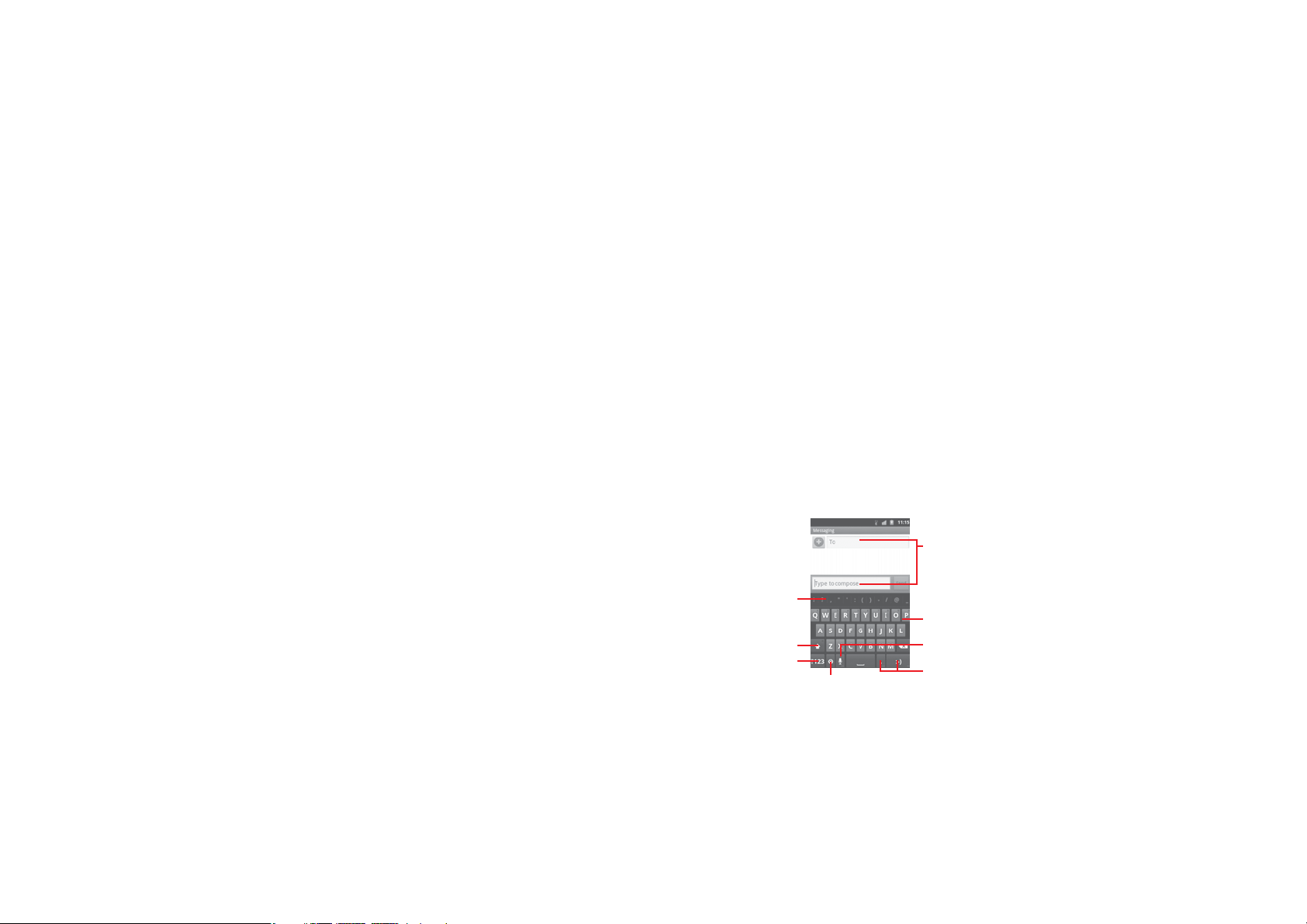

2.1.2 Swype keyboard
Touch to enter text or
numbers. Touch & hold
to select input method.
Touch & hold to enter
Touch to switch "abc/
Abc/ABC" input mode.
Touch & hold for
Swype settings and
additional information.
Touch to switch back to last chosen word.
Touch & hold to change input language.
multiple choices mode.
Touch to enter numbers,
symbols, etc.
2.2 Text editing
You can edit the text you have entered.
Touch & hold text you have entered
An options list pops up
Select the operation you need (Select all, Select text, Cut all, Copy all,
etc.)
25 26
3
Phone calls, Call log
and Contacts
3.1 Phone .............................................................................
3.1.1 Making a call
To quickly open the Phone application:
Touch
Touch the Applications tab from the Home screen and select Phone.
Enter the number you want using the keyboard, or select a contact from
Contacts, Call log or Favourites by touching the upper tabs, then touch
to place the call.
The number you entered can be saved to Contacts by touching
pressing the Menu key and touching Add to Contacts.
Press the Menu key to add 2-sec pause or wait.
If you make a mistake, you can delete the incorrect digits by touching
To hang up a call, touch End or Power key when the Settings/Accessibility/
Power button ends call option is activated.
from the Home screen.
Touch and hold to
access voicemail
Touch to add to Contacts
or
.
Page 15
International call
To dial an international call, Touch & hold
international country prefix followed by the full phone number and finally
touch
Emergency call
If your phone has network coverage, dial emergency number and touch
to make an emergency call. This works even without a SIM card and without
typing the PIN code.
.
enter “+”, then enter the

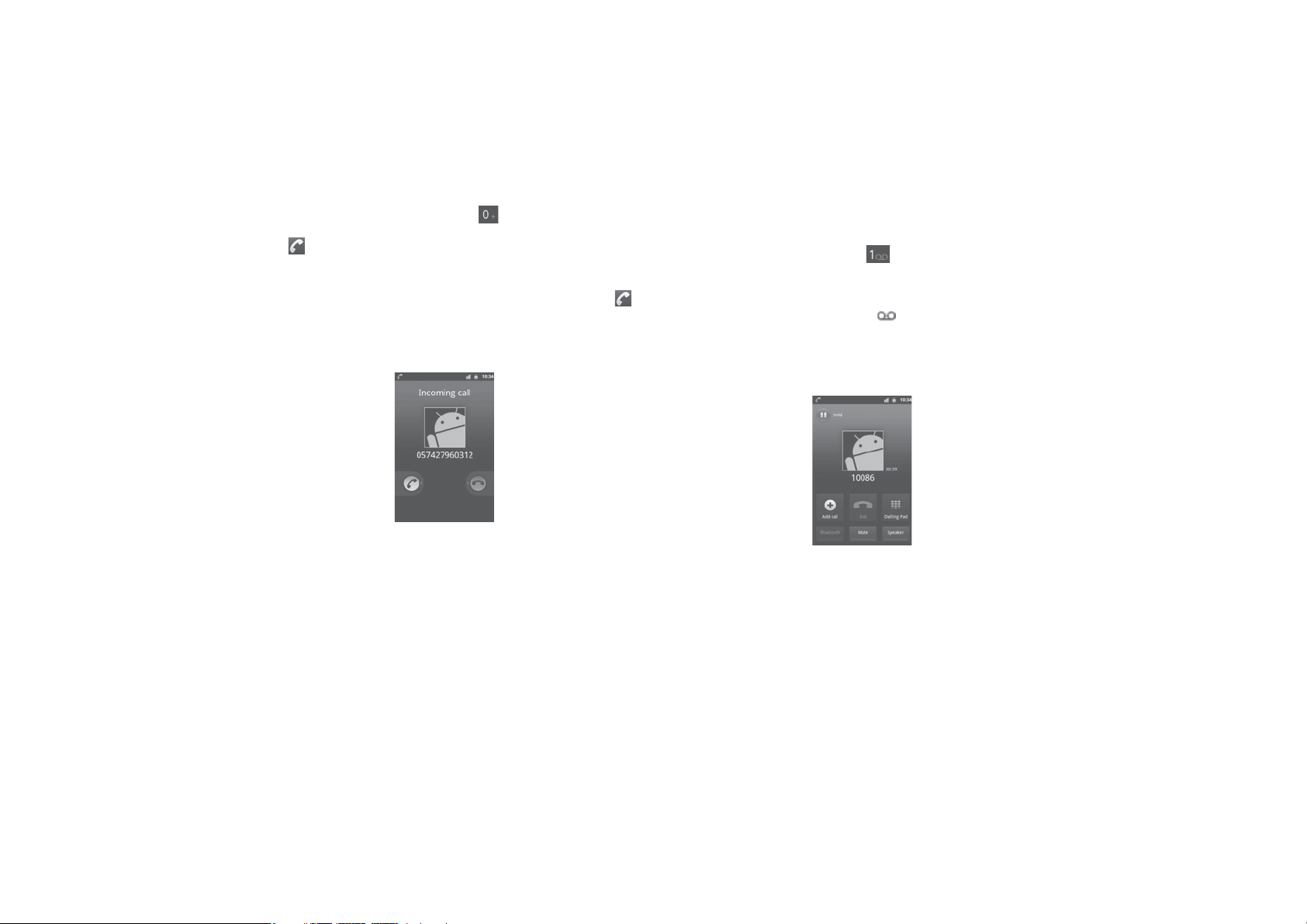

3.1.2 Answering or rejecting a call
When you receive an incoming call, drag the green phone icon over to the
right to answer.
When you receive an incoming call, but don’t want to answer, you may decline
it by dragging the red phone icon over to the left. The caller is sent directly to
your voicemail box to leave a message.
To mute the ringtone volume of an incoming call, press the Volume up/
down key.
3.1.3 Calling your voicemail
Your voicemail is provided by your network to avoid missing calls. It works like
an answering machine that you can consult at any time.
To access your voicemail, Touch & hold on Phone tab.
To set your voicemail number, enter Settings/Call settings/Voicemail
settings.
If you receive a voicemail, a voicemail icon appears on the Status bar. Open
the Notification panel, touch New voicemail.
3.1.4 During a call
To adjust the volume during a call, press the Volume up/down key.
27 28
Page 16
(1)
Touch to hold the current call. Touch this icon again to
retrieve the call.
Conference calls
You can set up a conference call.
Place a call to the first participant of the conference call.
Touch to display Dialpad.
Touch to end the current call.
Touch icon
.
Enter the phone number of the person you want to add to conference and
touch icon
. You can also add participants from Contacts, Call log or
Favourites.
Touch icon
to start conference call.
Touch to switch between bluetooth headset and phone.
Touch to mute the current call. Touch this icon again to
unmute the call.
Touch to activate the speaker during the current call.
Touch this icon again to deactivate the speaker.
During a conference call, touch
privately to one of the participants. Touch to drop the participant from
the conference, touch to talk privately to the participant and hold on
other participants.
Touch to end the conference call and disconnect all callers.
to drop a participant or to talk
To avoid misoperation on touchscreen during a call, screen will be
locked automatically when the user put the phone close to his/her
ear, and it will be unlocked when put the phone away.
3.1.5 Managing multiple calls
With this phone you can handle multiple calls at the same time.
Swap calls
When you accept two calls, touch icon
two lines. The current call is put on hold and you have joined in the other call.
Press the Menu key to display options list.
, you can now switch between
29 30
3.2 Call history
You can access your call history by touching from the Home screen and
touching Call log. Touch on the right side of contact/number to place a
call directly. There are three kinds of calls in Call log:
Missed calls
Outgoing calls
Incoming calls
Touch or touch & hold a contact or number to view information or further
operations.
(1)
Depending on your network operator.
Page 17
You can view detailed information of a call, launch a new call or send messages
to a contact or number, or add numbers to Contacts (only available for phone
numbers), etc.
To clear the entire call memory, press the Menu key then touch Clear call log.
3.3 Contacts ........................................................................
Contacts enables quick and easy access to the people you want to reach.
You can view and create contacts on your phone and synchronize these with
your Gmail contacts or other applications on the web or on your phone.
When using Contacts for the first time you will be asked to add new
contacts, import contacts from SIM card (please refer to “3.3.5
Contacts importing, exporting and sharing” for detailed
information), or synchronize contacts from other application accounts
to your phone.
3.3.1 Consult your Contacts
To access the Contacts, touch the Applications tab on the Home screen, then
select Contacts.
Touch to view your favourite contacts.
Following actions are enabled:
New contact
SIM contacts
Display options
Add new contacts to the phone.
Manage contacts stored in SIM card.
Choose contacts to display, for example only
contacts with phones, other application contacts
if any, etc.
Accounts
Manage the synchronization settings for different
accounts.
Import/Export
Import or export contacts between phone, SIM
card, and microSD card.
More/Sync
More/Delete
Launch synchronization with the account you set.
Select and delete unwanted contacts.
3.3.2 Adding a contact
Press the Menu key from contacts list screen and touch New contact.
You are required to enter the contact's name and other contact information. By
scrolling up and down the screen, you can move from one field to another easily.
Touch to view the contact’s detailed information.
Touch icon to open Quick Contact panel.
Touch & hold a contact to display its option menu.
You can also press the Menu key to display contacts list option menu.
31 32

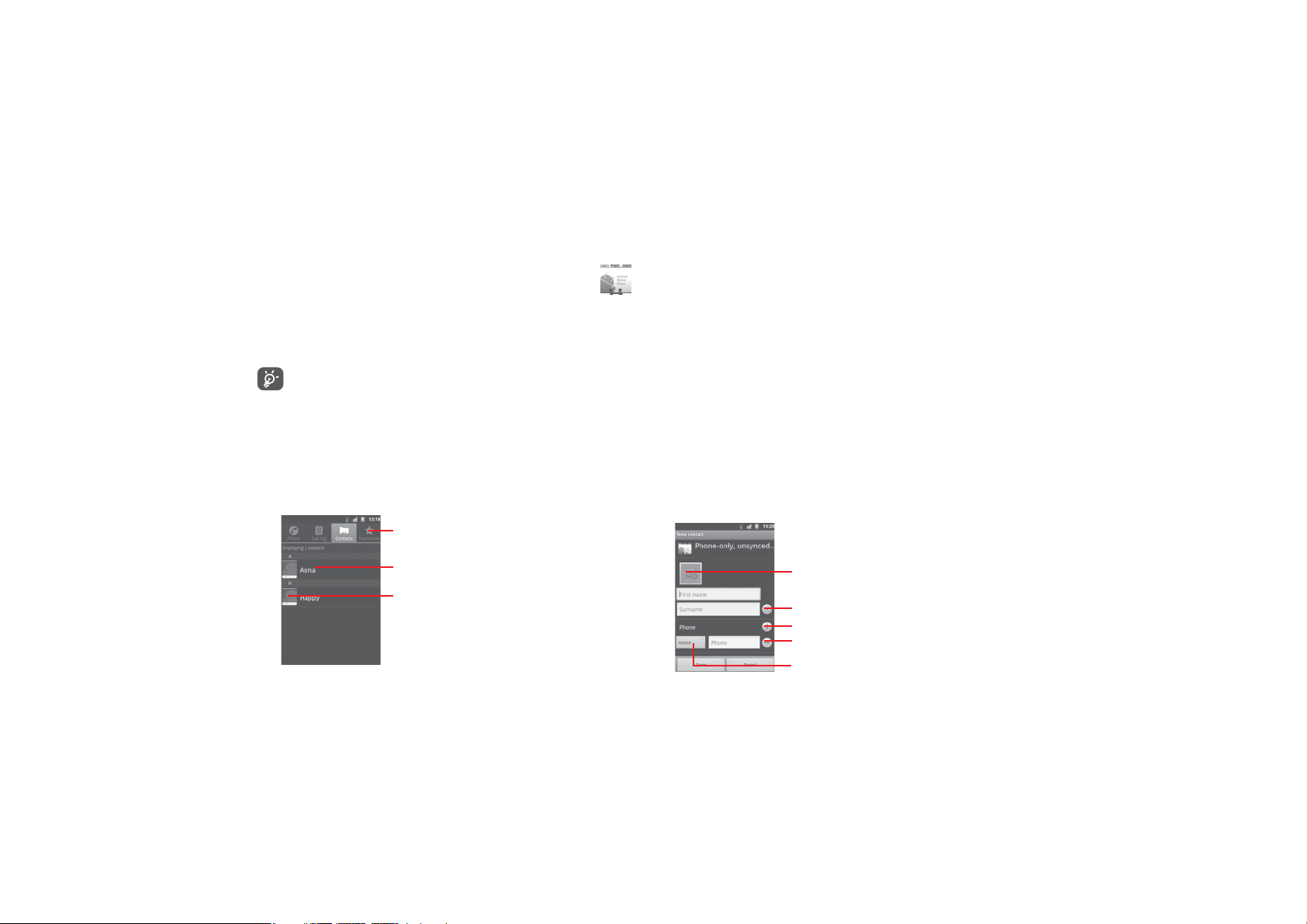

Touch to select a picture for the contact.
Touch to unfold the other predefined labels of this category.
Touch to add other new labels to this category.
Touch to delete the selected label.
Touch to open a menu with preset labels.
When finished, touch Done to save.

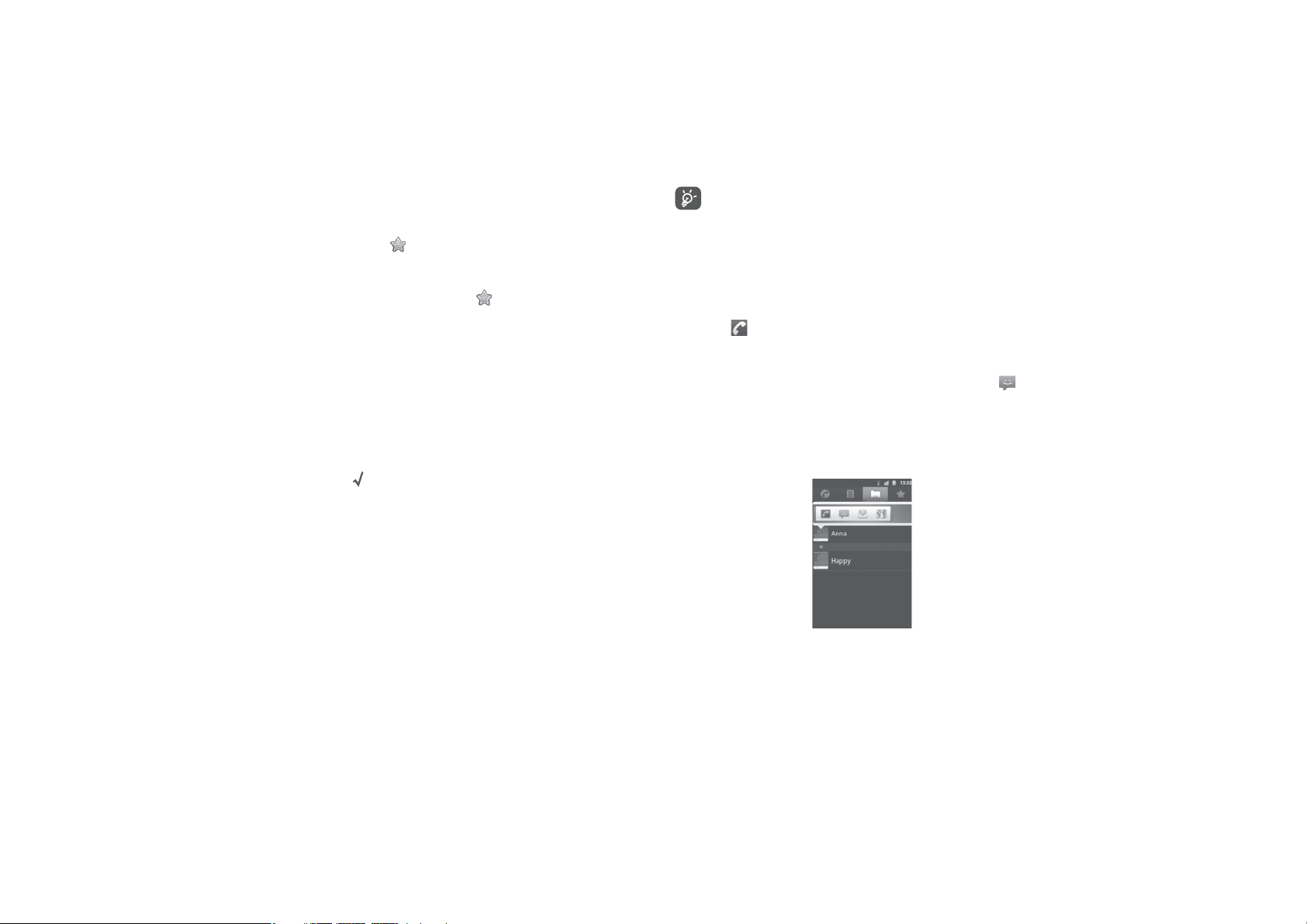

Page 18
Add to/remove from Favourites
To add a contact to Favourites, Touch & hold a contact to display the contact’s
option menu, then touch Add to Favourites. Or you can also touch a contact
to view details then touch
turn gold in color).
To remove a contact from Favourites, select Remove from Favourites on the
contact’s option menu or touch the gold star
to add the contact to Favourites (the star will
on contact details screen.
3.3.3 Editing your contacts
To edit contact information, Touch & hold the contact whose information is to
be edited, then touch Edit contact. When finished, touch Done.
Change a contact’s default phone number
The default phone number (the number which has priority when making a
call or sending a message) will always be displayed under the contact name.
To change the default phone number, Touch & hold the number you want to
set as the default number from the contact's details screen, then select Make
default number. A
Divert calls to voicemail/Set ringtone for a contact
On the contact's detail screen, press the Menu key to display contacts list
options menu, touch Options, then select Incoming calls or Ringtone.
When one contact has been set to send calls directly to voicemail, if he/
she calls, your phone will not ring and the caller will be sent directly to your
voicemail.
Delete a contact
To delete a contact, press the Menu key and touch Delete contact from
contact details screen or directly touch & hold a contact from Contacts screen
to display contacts list option menu then touch Delete contact. Touch OK
to confirm.
appears after the number.
The contact you have deleted will also be removed from other
applications on the phone or web the next time you synchronize your
phone.
3.3.4 Communicating with your contacts
From the contacts list, you can communicate with your contacts by making a
call or exchanging messages.
To launch a call to a contact, locate the contact or number you want to call,
then touch
Call contact.
To send a message to a contact, touch & hold the contact or number you want
to send a message to, then touch Text contact. You can also touch
right side of the contact from contact details screen.
Use Quick Contact for Android
Touch a contact’s picture to open Quick Contact for Android, then you can
touch the icon for the way you want to connect.
The icons available on Quick Contact bar depend on the information you have
for the contact and the applications and accounts on your phone.
. You can also touch & hold the contact or number, then touch
on the
33 34
Page 19
3.3.5 Contacts importing, exporting and sharing
This phone enables you to import contacts from SIM card/microSD card and
export contacts to a microSD card which can then be used to back up your
information.
From the Contacts screen, press the Menu key to open options menu, touch
Import/Export, then select Import from SIM card, Export to SIM card,
Import from SD card, Export to SD card or Share visible contacts.
To import/export a single contact from/to SIM card, touch the contact you
want to import/export, then touch OK to confirm.
To import/export all contacts from/to your SIM card, mark the Select all
check box, then touch OK to confirm.
You can share a single contact or contacts with others by sending the contact's
vCard to them via Bluetooth, MMS, Gmail, etc.
Touch a contact you want to share, press the Menu key and touch Share from
contact details screen, then select the way you want to share it.
3.3.6 Displaying contacts
You can configure which group of contacts, for each account, you want to
display in the Contacts list. To hide/display contacts that don’t have phone
numbers, press the Menu key from contacts list screen, touch Display
options, then activate or deactivate Only contacts with phones by touching
it. Finally, touch Done to save. The same operation for other two options: Sort
list by, View contact names as.
3.3.7 Joining/Separating contacts
To avoid duplication, you can add any new contact information to existing
contacts in a single action.
Touch the contact which you want to add information to, press the Menu key
and touch Edit contact, then press the Menu key again and touch Join.
At this time, you are required to select the contact whose information you
want to join with the first contact. The information from the second contact is
added to the first one, and the second contact will no longer be displayed in
the Contacts list.
To separate contact information, touch the contact whose information you
want to separate, press the Menu key and touch Edit contact, then press the
Menu key again and touch Separate, touch OK to confirm.
3.3.8 Accounts
Contacts, data or other information can be synchronized from multiple
accounts, depending on the applications installed on your phone.
To add an account, press the Menu key from Contacts list, touch Accounts,
then touch Add account tab; or access it by pressing Menu key from the
Home screen, then touch Settings/Accounts & sync/Add account.
You are required to select the kind of accounts to add, like Google, Corporate,
etc.
As with other account set ups, you need to enter detailed information, like
username, password, etc.
You can remove an account to delete it and all associated information from
the phone.
Open the Accounts & sync settings screen, touch the account you want to
delete, then touch Remove account and confirm.
Useful icons:
Indicates that the account is configured to synchronize
automatically with your phone.
Indicates that the account is not configured to synchronize
automatically with your phone.
35 36
Page 20
Background data
Activate or deactivate Background data to control whether applications or
services data can be transmitted when they are running in the background.
Applications can synchronize, send, and receive data at any time if activated.
For example, if deactivated, Gmail will stop receiving new emails until you
touch the Refresh or send an email.
Auto-sync
When activated, all changes to information on the phone or online will be
automatically synchronized to each other.
Sync manually
You can synchronize an account manually on Accounts & sync settings
screen, and you must touch an account in the list on this screen, press the
Menu key and touch Sync now.
4
Google Messaging, Gmail/
Email, Google Talk
4.1 Google Messaging ......................................................
You can create, edit and receive SMS and MMS messages with your phone.
To start, touch the Applications tab from the Home screen, then select Messaging.
All messages you receive or send out can only be saved in phone
memory. To view older messages stored on your SIM card, press the
Menu key in the Messaging screen, then touch Settings/Manage
SIM card messages.
4.1.1 Write a message
In the message list screen, touch New message to write text/multimedia
messages.
Touch to create a new message
Touch to view the whole message thread
37 38
Page 21
Sending a text message
Enter the mobile phone number of the recipient in the To bar or touch
to add numbers from your Contacts, then touch the Type to compose bar
to enter the text of the message. When finished, touch Send to send the text
message.
An SMS message of more than 160 characters will be charged as several SMS.
When the total number of characters you have entered is approaching the
160-character limit, a counter will appear on the lower right corner below Send
option of the text box to remind you how many characters are allowed to be
entered in one message.
Specific letters (accent) will increase the size of the SMS, which may
cause multiple SMS to be sent to your recipient.
Sending a multimedia message
MMS enables you to send video clips, images, photos, animations, slides and
sounds to other compatible mobiles and e-mail addresses.
An SMS will be converted to MMS automatically when media files (image,
video, audio, slides, etc.) are attached or subject or email addresses are added.
To send a multimedia message, enter the recipient's phone number in the To
bar, touch Type to compose bar to enter the text of the message. Press the
Menu key to open the option menu, touch Add subject to insert a subject,
and touch Attach to attach picture, video, audio or slide.
When finished, touch Send MMS to send the multimedia message.
Attach options:
Pictures
Capture picture
Videos
Capture video
Audio
Record audio
Contact
Appointments
Slideshow
Access Gallery application or File manager to select
a picture as attachment.
Access Camera to capture a new picture for attaching.
Access Gallery application or File manager to select
a video as attachment.
Access Camcorder to record a new video for attaching.
Access to select an audio file as attachment.
Enter voice message recorder to record a voice
message for attaching.
Access Contacts to attach a vCard of a contact.
Access Calendar to attach an appointment.
Enter Edit slide show screen, touch Add slide to
create a new slide, and touch currently existing
slide to edit it (see following picture). Press the
Menu key to get more actions, like setting the slide
duration, adding music, etc.

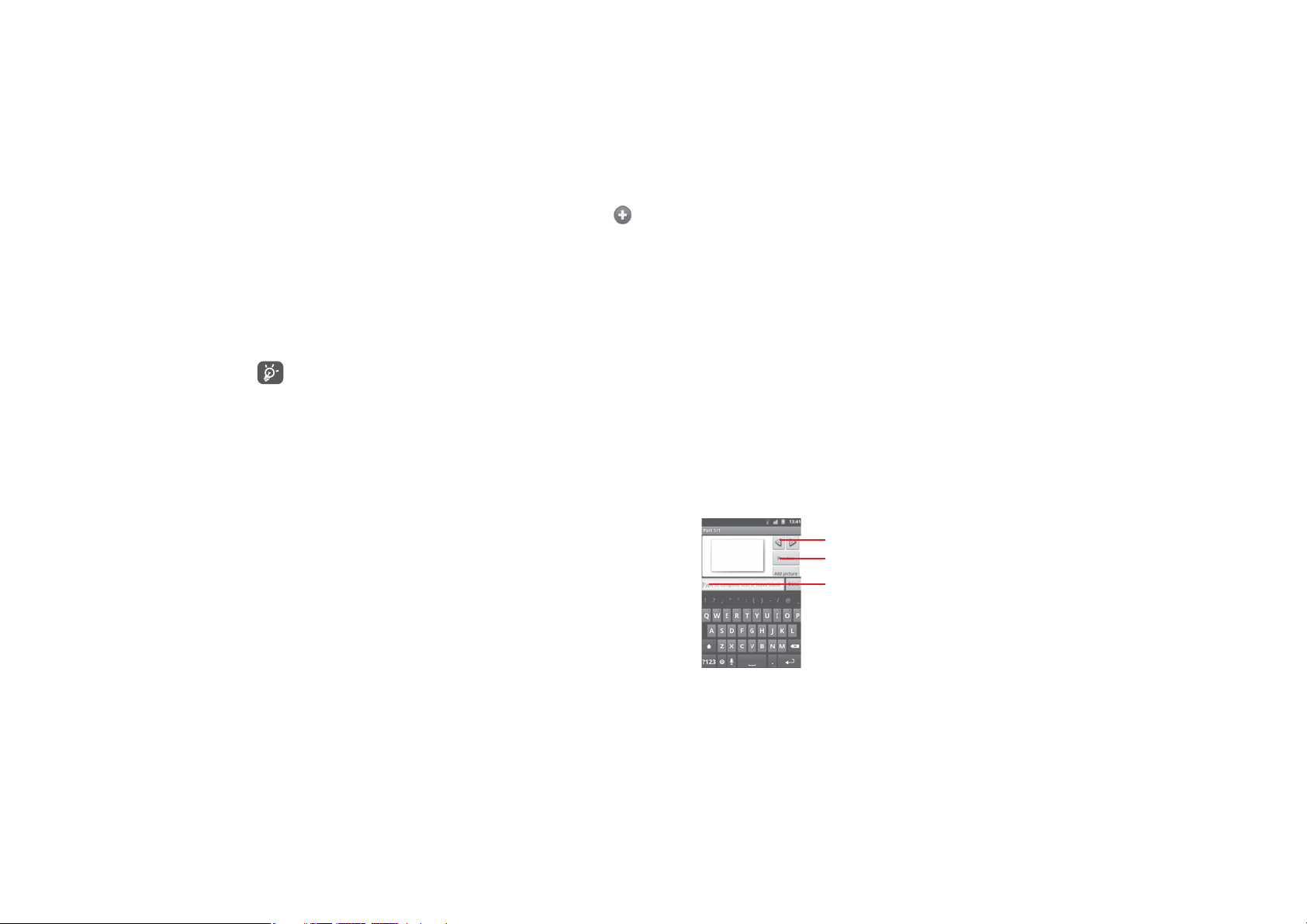

Touch to go to previous or next slide.
Touch to preview the current slide.
Touch to edit the title of this slide.
39 40
Page 22
4.1.2 Manage messages
When receiving a message, an icon will appear on status bar as notification.
Drag down the status bar to open the Notification panel, touch the new
message to open and read it. You can also access the Messaging application
and touch the message to open.
Messages are displayed in conversational order.
To reply to a message, touch the current message to enter messagecomposing screen, enter the text, then touch Send.
To return to the message list from a text message thread, press the Menu key
and then touch More/All threads.
Touch & hold a message in message details screen. The following message
options are available for selection:
Lock/Unlock
message
Call XXX
Add XXX to
Contacts
(1)
Forward
Copy message
*
text
View message
details
Delete message
Save to template
(1)
Touch to lock/unlock the message so it can/can’t
be deleted if you reach maximum number of stored
messages.
Touch to call the message sender.
Touch to save the number to Contacts.
Touch to forward the message to another recipient.
This option displays when the message is an SMS.
Copy the current message content. You can paste it
to the enter bar of the new message you are going
to compose.
Touch to view details of the message.
Delete the current message.
Save the current message to Message template.
4.1.3 Adjust message settings
You can adjust a set of message settings. From Messaging application screen,
press the Menu key and touch Settings.
Storage settings
Delete old
messages
Text-message limit
Multimedia
message limit
Service Center
Text message (SMS) settings
Delivery reports
Manage SIM card
messages
Character
optimization
Select to delete old messages when the maximum
number of stored messages is reached.
Touch to set the number of text messages to be
saved per conversation.
Touch to set the number of multimedia messages
to be saved per conversation.
Touch to view the service center number.
Select to request a delivery report for each text
message you send.
Touch to manage text messages stored on your
SIM card.
Mark to use the similar ASCII character.
(1)
Option will not appear unless the number is not saved in the Contacts.
41 42
Page 23
Multimedia message (MMS) settings
Delivery reports
Read reports
Auto-retrieve
Roaming auto-
retrieve
Maximum message
size
Creation mode
MMS Priority
Notification settings
Notifications
Select ringtone
Vibrate
Select to request a delivery report for each
multimedia message you send.
Select to request a report on whether each recipient
has read a multimedia message sent by you.
Select to download the full MMS message (including
message body and attachment) automatically to
your phone. Otherwise, download only the MMS
message header.
Select to download the full MMS message (including
message body and attachment) automatically
when roaming. Otherwise, download only the MMS
message header to avoid extra charges.
Touch to set maximum message size.
Touch to set MMS creation mode when composing
message.
Touch to set MMS priority.
Select to display message notifications in status
bar.
Touch to select a ringtone as a new message
notification tone.
Select to have phone vibrate as a notification when
receiving a new message.
4.2 Gmail/Email
The first time you set up your phone, you can select to use an existing Gmail
or to create a new Email account.
4.2.1 Gmail ......................................................................................
As Google's web based email service, Gmail is configured when you first set
up your phone. Gmail on your phone can be automatically synchronized
with your Gmail account on the web. Unlike other kinds of email account,
each message and its replies in Gmail are grouped in your inbox as a single
conversation; all emails are organized by labels instead of folders.
To access Gmail
From the Home screen, touch the Applications tab to enter the applications
list, then touch Gmail.
Gmail displays messages and conversations from one single Gmail account
at a time, if you own more than one account, you can switch to another by
pressing Menu key from Inbox screen, touching Accounts, then touching the
account you want to view.
To create and send emails
Press the Menu key from Inbox screen, and touch Compose.
Enter recipient(s)’s email address in To field, and if necessary, press the
Menu key and touch Add Cc/Bcc to add a copy or a blind copy to the
message.
Enter the subject and the content of the message.
Press the Menu key, touch Attach to send an attachment to the receiver.
Finally, touch
If you do not want to send the mail out right away, you can touch Menu key
then Save draft to save copy. To view the draft, press the Menu key from
Inbox screen and touch Go to labels, then select Drafts.
or press the Menu key then Send.
43 44
Page 24
If you do not want to send or save the mail, you can press the Menu key
then touch Discard.
To add a signature to emails, press the Menu key from inbox screen, and touch
More/Settings, then touch an account to set Signature.
To receive and read your emails
When a new email arrives, you will be notified by a ringtone or vibration, and an
will appear on Status bar.
icon
Touch and drag down the Status bar to display the Notification panel, touch
the new email to view it. Or you can also access the Gmail Inbox label and
touch the new mail to read it.
If you want to go back to the Inbox label while reading a new message, you can
press the Back key or press the Menu key and touch Go to inbox.
You can search for an email by sender, subject, label, etc.
from inbox screen, press the Menu key and then touch Search
enter the keyword you want to search for in the searching box and touch
search icon.
To reply or forward emails
When viewing an email, you will see three icons offering further options at the
centre of the conversation.
Reply/Reply all
Forward
Touch to enter text-inputting mode, enter the message
you want to reply, then touch Send to send this message
to one single recipient or all people in a mail loop.
Touch to forward the message to another person. You
are required to enter the new recipient’s email address
and then touch Send.
Managing Gmails by Labels
To conveniently manage conversations and messages, you can organize them
using a label.
To label a conversation when reading a conversation’s messages, press
the Menu key, touch Change labels and select the label to assign to the
conversation.
To view conversations by labels when viewing your inbox or another
conversation list, press the Menu key and touch Go to labels. Touch a label to
view a list of conversations with that label.
Touch & hold an email to produce the following options:
Read
Archive
Mute
Mark read/Mark
unread
Delete
Add star/Remove
star
Change labels
Report spam
To read the selected email.
To archive the email message. To display the
archived messages, you can press the Menu key in
inbox screen and touch View labels, then All mail.
To mute the entire conversation. When muted,
new mails related to this conversation will not be
displayed in Inbox, but archived.
To mark an email message as read or unread.
To delete the email message.
To assign a star or remove the star from the
conversation.
To add or change the label of the email message
or conversation.
To report the email message/conversation as spam.
45 46
Page 25
Gmail settings
To manage Gmail settings, press Menu key in Inbox screen and touch More/
Settings,
General preferences
Message Actions
Clear search history
Clear "Show
pictures"
Touch an account to set:
Signature
Confirm actions
Reply all
Auto-advance
Message text size
Batch operations
Sync inboxes and
labels
Email
notifications
Labels to notify
Touch to select
Touch to remove the search history.
Touch to remove the show pictures.
To add a signature text to the end of each mail you
send.
Select to activate a query when deleting a message
or conversation for double confirmation.
Touch to mark the check box to make the default
responding to messages.
Touch to select which screen to show after you
delete or archive a conversation.
Touch to select the gmail text size.
Select to add a conversation to a batch for further
operation, like archive, delete, change label, etc.
Touch to open the Label screen, where you can
manage conversation synchronization.
Select to activate notification when a new email
arrives.
Touch to set the notification preferences for synced
labels.
47 48
4.2.2 Email ......................................................................................
Besides your Gmail account, you can also set up external POP3 or IMAP email
accounts on your phone.
To access your email, touch the Applications tab from the Home screen, then
select Email.
An email wizard will guide you through the steps to set up an email account.
Enter the email address and password of the account you want to set up.
Touch Next. If the account you entered is not provided by a service provider
shown on the phone, you will be prompted to go to the email account
settings screen to enter settings manually. Or you can touch Manual setup
to directly enter the incoming and outgoing settings for the email account
you are setting up.
Enter the account name and display name in outgoing emails.
Touch Done.
To add another email account, you can press Menu key and touch Add
account to create.
To create and send emails
In the Inbox screen, press the Menu key, then touch Compose.
Enter recipient(s)’s email address in To field, and if necessary, press the
Menu key and touch Add Cc/Bcc to add a copy or a blind copy to the
message.
Enter the subject and the content of the message.
Press the Menu key, touch Add attachment to send an attachment to the
receiver.
Finally, touch Send.
If you do not want to send the mail right away, you can touch Save as draft
or press the Back key to save a copy.
Page 26
4.3 Google Talk ...................................................................
Google's instant messaging service, Google Talk, lets you communicate with
your friends whenever they are connected to this service.
To access this feature and sign in, touch the Applications tab from the Home
screen, then touch Talk. All friends added by using Google Talk from the web
or phone will be displayed in your friends list.
Touch your account to enter set your status screen:
Touch
Touch the text box to enter your status message.
Touch Done to save.
To sign out, press the Menu key from Friends list to display options, then touch
Sign out.
4.3.1 Chatting with your friends
To start a chat, touch the name of a friend in your Friends list, then enter your
message and finally touch Send.
You can invite other friends to join in a group chat by pressing Menu key,
touching Add to chat and then selecting the friend you want to add.
When chatting with more than one friend, you can switch screens by pressing
Menu key, then touching Switch chats.
To return to Friends list screen, press the Menu key, then touch Friends list.
4.3.2 To add a new friend
From Friends list, press the Menu key to open options list and touch Add
Friend to add a new friend. Enter the Google Talk ID or Gmail address of the
friend you want to add, and then touch Send invitation.
to set your online status.
49 50
A notification with this invitation will be received by the friend. By touching the
invitation, the friend can select Accept or Cancel in response.
You can also check all invitations you have sent or received by pressing Menu
key from Friends list and touching More/Invites.
4.3.3 To close a chat
When you want to end a chat, the following two ways are available:
From Friends list screen, Touch & hold the friend you want to stop chatting
with to open Option menu, and then touch End chat.
Press the Menu key from chatting screen directly, and then touch End chat.
4.3.4 To manage your friends
Besides adding new friends to your friends list, the following actions are
available for your choice:
To view all friends/
most popular
friends
To make a friend
popular
To block a friend
By default, only friends that you frequently
communicate with are displayed in Friends list. To
view all friends, press the Menu key, then touch
All friends. To return to displaying most popular
friends screen, press the Menu key again, then
touch Most popular.
To ensure a friend is always displayed in your Most
popular list, Touch & hold the friend’s name until
the options menu pops up, then touch Always
show friend. To remove a friend from Always show
friend, Touch & hold the friend, and touch Auto-
show friend.
To block a friend from exchanging messages and
remove them from your friends list, Touch & hold the
friend, then touch Block friend. All blocked friends
can be viewed by pressing Menu key and touching
More/Blocked. To unblock a friend, touch the name
of this friend and touch OK when prompted.
Page 27
4.3.5 Settings
A series of settings are available for your selection by pressing Menu key from
Friends list screen, and touching Settings.
Automatically
sign in
Mobile indicator
Automatic
away status
Clear search history
IM notifications
Select ringtone
Vibrate
Invitation
notifications
Select to sign in to your Google Talk account
automatically every time you turn on your phone.
Select to display an indicator icon along with your
name in other people’s Friends list.
Select to set status as Away when the screen is
turned off.
Touch to clear previous chat searches history from
showing up in the Search box.
Mark/Unmark the checkbox to activate/deactivate
the notify in status bar when a new message
arrives.
Touch to set a notification ringtone.
Touch to activate vibration alert for this service.
Mark/Unmark the checkbox to activate/deactivate
the notify in status bar when friend invitations are
received.
5
Google Calendar &
Alarm clock & Calculator
5.1 Google Calendar ..........................................................
Use Google Calendar to keep track of important meetings, appointments, etc.
To access this function, touch the Applications tab from the Home screen,
then touch Calendar.
5.1.1 Multimode view
You can display the Calendar in daily, weekly, monthly, or agenda view.
To change your Calendar view, press the Menu key, then touch Day, Week,
Month or Agenda.

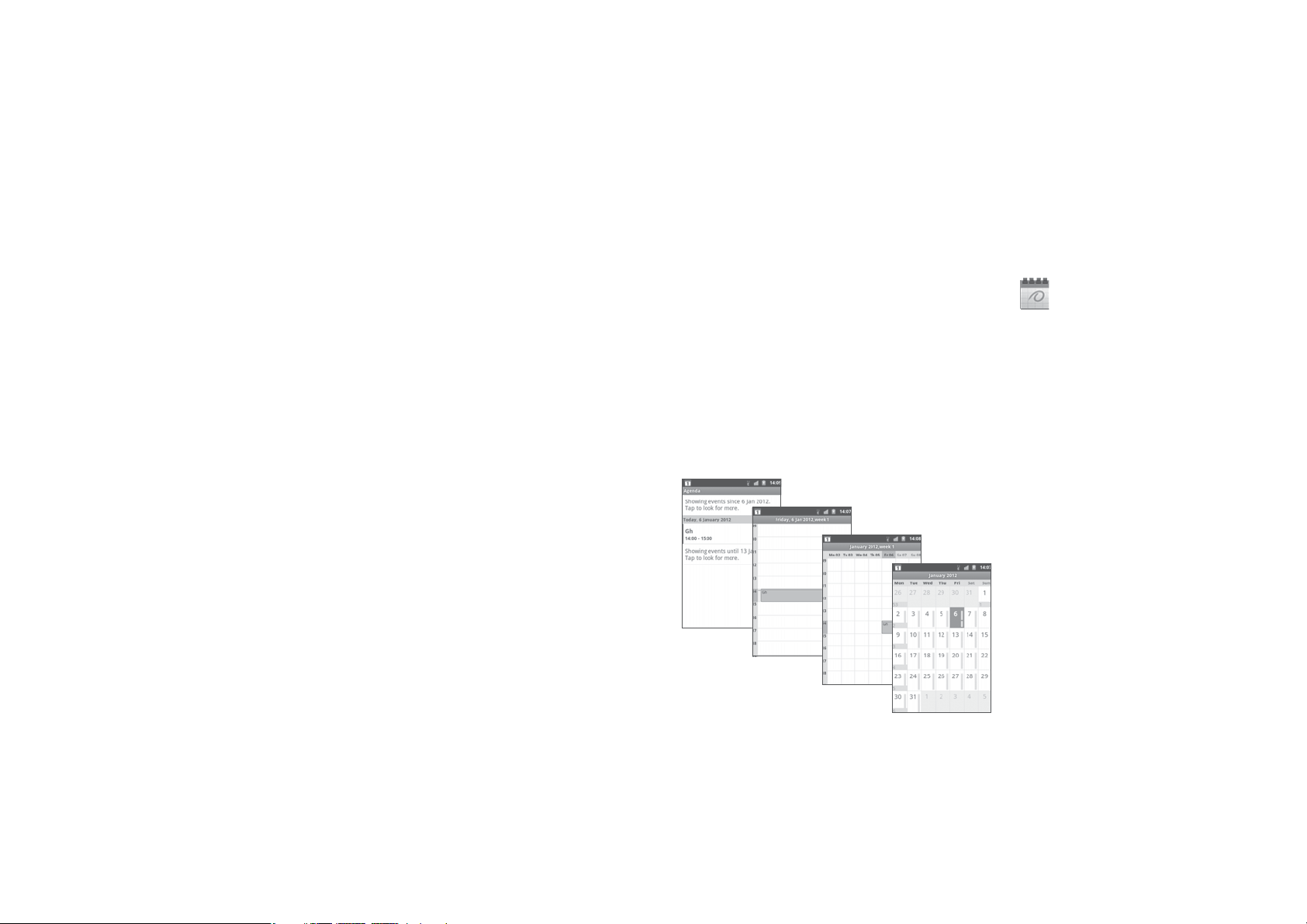

Agenda view
Day view
Week view
Month view
In Agenda, Day or Week view touch
an event to view its detalls.
Touch a day in Month view to
open that day's events.
51 52
Page 28

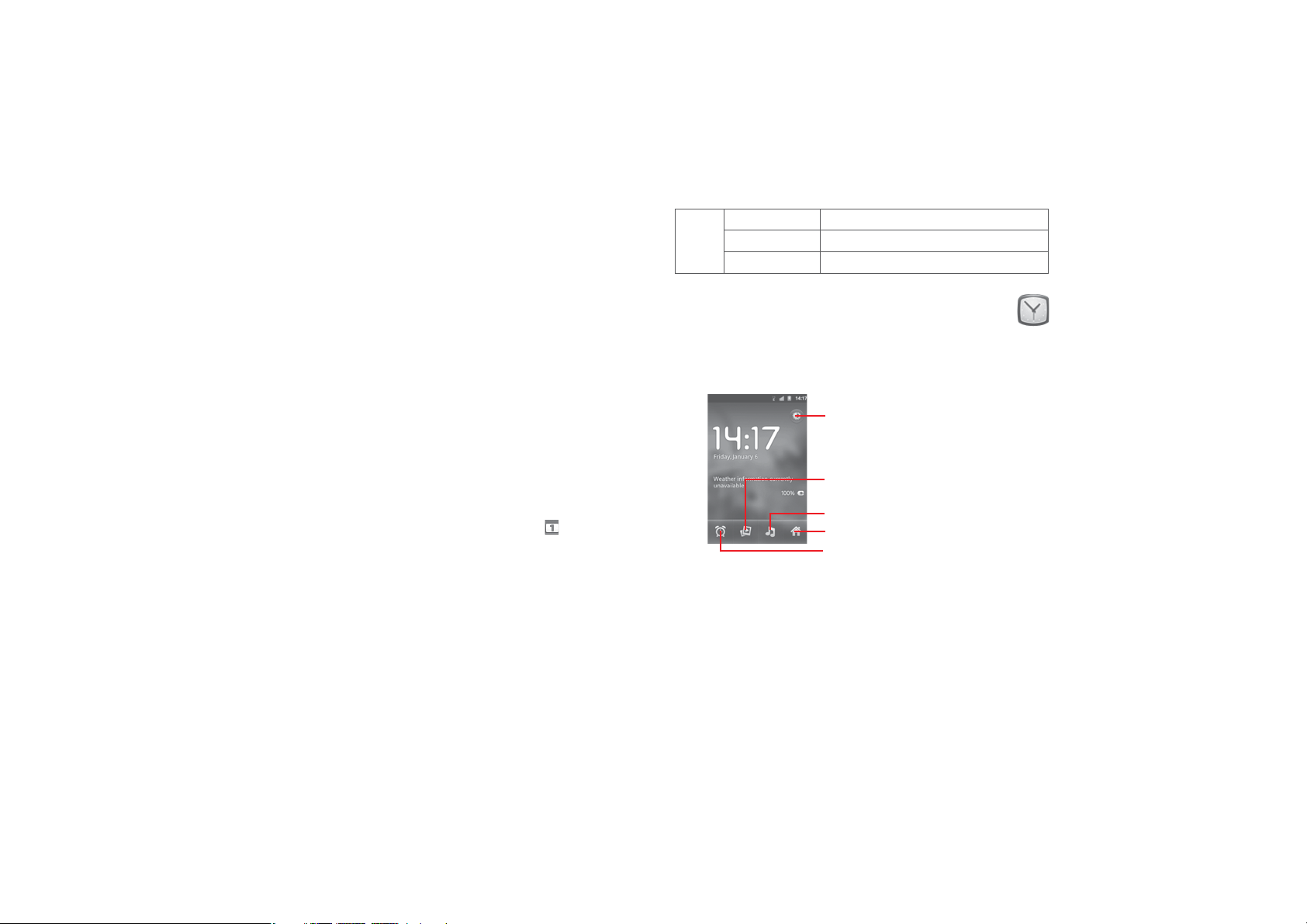

5.1.2 To create new events
You can add new events from any Calendar view.
Press the Menu key from Calendar screen, and touch More/New event to
access new event edit screen.
Fill in all required information for this new event. If it is a whole-day event,
you can select All day.
Invite guests to the event. Enter the email addresses of the guests you want
to invite with commas to separate. If the guests use Google Calendar, they
will receive an invitation from Calendar and Email.
When finished, touch Done from the end of the screen.
To quickly create an event from Day, Week or Month view screen, Touch & hold
an empty spot or an event to open option menu, then touch New event to
enter the event details screen of the time you have previously selected.
5.1.3 To delete or edit an event
To delete or edit an event, touch the event to enter details screen, press the
Menu key, touch Edit event, or Delete event.
5.1.4 Event reminder
If a reminder is set for an event, the upcoming event icon will appear on
Status bar as a notification when the reminder time arrives.
Touch and drag down the status bar to open the notification panel, touch
event name to view Calendar notification list.
Touch Snooze all to turn off all event reminders for 5 minutes.
Touch Dismiss all to delete all reminders from the list.
Press the Back key to keep the reminders pending in the status bar and the
notification panel.
Important options by pressing Menu key from Calendar main screen:
More
New event
My calendars
Settingss
To add a new event
To show, hide or synce calendars
To set a series of Calendar settings
5.2 Clock ...............................................................................
Your mobile phone has a built-in clock.
To access this function, touch the Applications tab from the Home screen,
then touch Clock.
Touch to dim the screen.
Touch to play a slideshow of the
pictures in Gallery.
Touch to play music.
Touch to go back to the Home screen.
Touch to add or set an alarm.
53 54
Page 29
5.2.1 To set an alarm
From Clock screen, touch icon at the bottom of the screen to enter
Alarms screen, touch Add alarm to add a new alarm, set the alarm time then
touch Set to display the under options:
Turn alarm on
Time
Repeat
Ringtone
Vibrate
Label
When finished, touch Done to confirm.
Touch a currently existing alarm to enter alarm editing screen, touch Delete
to delete the selected alarm.
Touch to enable the alarm
Touch to set time
Touch to select days you want alarm to work
Touch to select a ringtone for the alarm
Select to activate vibration
Touch to set a name for the alarm
5.2.2 To adjust alarm settings
Press the Menu key from Alarms screen, then touch Settings. The following
options can now be adjusted:
5.3 Calculator ......................................................................
With Calculator, you can solve many mathematical problems.
To access this function, touch the Applications tab from the Home screen,
then touch Calculator.

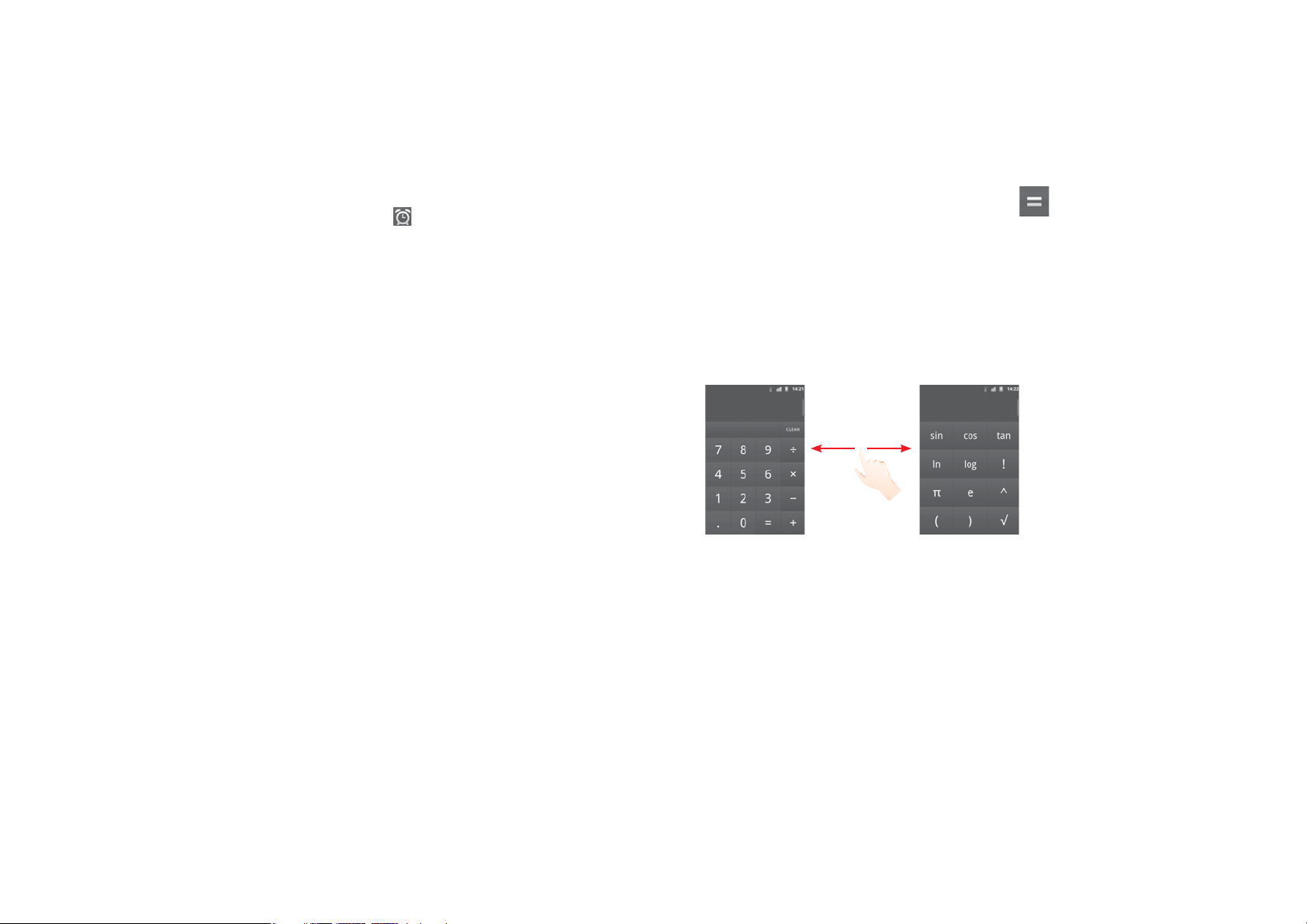

There are two panels available: Basic panel and Advanced panel.
To switch between panels, select one of the following two ways:
Touch and drag the basic screen to the left to open the Advanced panel.
Or press the Menu key from basic panel to open option menu and touch
Advanced panel.
Alarm in silent
mode
Alarm volume
Snooze duration
Side button
behavior
Select to play alarm with sound or vibration even
when the phone is in silent mode.
Touch to set the volume of alarms.
Touch to set temporary turn off time of an alarm.
Touch to set side Volume up/down key and
Camera key behaviors when alarm sounds: None,
Snooze or Dismiss.
55 56
Enter a number and the arithmetic operation to be performed, enter the
second number, then touch “=” to display the result. Touch CLEAR to delete
digits one by one, Touch & hold CLEAR to delete all at one time.
Page 30
6
To connect to the internet with this phone, you can use GPRS/EDGE/3G
networks or Wi-Fi, whichever is most convenient.
Getting connected
6.1 Connecting to the Internet
6.1.1 GPRS/EDGE/3G
The first time you turn on your phone with SIM card inserted, it will
automatically configure network service: GPRS, EDGE or 3G.
To check the network connection you are using, press the Menu key on
the Home screen, then touch Settings/Wireless & networks/Mobile
networks/Access Point Names or Network operators.
To create a new access point
A new GPRS/EDGE/3G network connection can be added to your phone with
the following steps:
Press the Menu key from the Home screen.
Touch Settings/Wireless & networks/Mobile networks/Access Point
Names.
Then press the Menu key again and touch New APN.
Enter the required APN information.
When finished, press the Menu key and touch Save.
To activate/deactivate Data roaming
When roaming, you can decide to connect/disconnect to a data service.
Press the Menu key from the Home screen.
Touch Settings/Wireless & networks/Mobile networks.
Mark/Unmark the Data roaming checkbox to activate or deactivate data
roaming.
When Data roaming is deactivated, you can still perform data exchange with
a Wi-Fi connection (refer to “6.1.2 Wi-Fi”).
To limit your data connection to 2G networks only
To save battery and extend battery life, you can set to activate 2G networks
(GPRS or EDGE) only.
Press the Menu key from the Home screen.
Touch Settings/Wireless & networks/Mobile networks.
Mark/Unmark the Use only 2G networks checkbox to activate/deactivate
this function.
6.1.2 Wi-Fi
Using Wi-Fi, you can connect to the Internet when your phone is within range
of a wireless network. Wi-Fi can be used on your phone even without a SIM
card inserted.
To turn Wi-Fi on and connect to a wireless network
Press the Menu key from the Home screen.
Touch Settings/Wireless & networks.
Mark/Unmark the Wi-Fi checkbox to turn Wi-Fi on or off.
Touch Wi-Fi settings. The detailed information of detected Wi-Fi networks
is displayed in the Wi-Fi networks section.
Touch a Wi-Fi network to connect. If the network you selected is secured, you
will be asked to enter a password or other credentials (you may need to ask
the Wi-Fi network owner for details). When finished, touch Connect.
57 58
Page 31
To activate notification when a new network is detected
When Wi-Fi is on and the network notification is activated, the Wi-Fi icon will
appear on the status bar whenever the phone detects an available wireless
network within range. The following steps activate the notification function:
Press the Menu key from the Home screen.
Touch Settings/Wireless & networks/Wi-Fi settings.
Mark/Unmark the Network notification checkbox to activate/deactivate
this function.
To add a WPS network
WPS (Wi-Fi Protected Setup) is an easy way for users to access Wi-Fi network by
entering PIN or using push button.
Press the Menu key from the Home screen.
Touch Settings/Wireless&networks/Wi-Fi settings/Add WPS network.
Enter PIN number or use push button.
Touch Start to get access to a WPS network.
To add a Wi-Fi network
When Wi-Fi is on, you may add new Wi-Fi networks according to your
preference.
Press the Menu key from the Home screen.
Touch Settings/Wireless & networks/Wi-Fi settings/Add Wi-Fi network.
Enter the name of the network and any required network information.
Touch Save.
When successfully connected, your phone will be connected automatically
the next time you are within range of this network.
To forget a Wi-Fi network
The following steps prevent automatic connections to networks which you no
longer wish to use.
Turn on Wi-Fi, if it’s not already on.
In the Wi-Fi settings screen, touch & hold the name of the network.
Touch Forget network in the dialog that opens.
59 60
6.2 Browser ..........................................................................
The Browser lets you surf the web, just like on your computer.
To quickly get onto the web from the Home screen, simply touch the Browser
. You'll also find the Browser in Applications.
icon
To go to a web page
On Browser screen, touch the URL box at the top, enter the address of the web
page, then touch
To set homepage
Press the Menu key from Browser screen to display option menu, touch
More/Settings/Set homepage.
Enter the URL of the website you want to set as your homepage.
Finally touch OK to confirm.
.
Page 32
6.2.1 Viewing web pages
When opening a website, you can navigate on web pages by sliding your finger
on the screen in any direction to locate the information you want to view.
To zoom in/out of a web page
Zoom controls
your finger. Touch the plus or minus on the side of the Zoom control to zoom
in or out.
To quickly zoom into a section of a web page, double-tap on the section you
want to view. To return to normal zoom level, double-tap again.
To find text on a web page
Press the Menu key from web page screen, then touch More/Find on
page.
Enter the text or phrase you want to find.
The first word with matching characters will be highlighted on the screen,
and subsequent matches will be boxed.
Touch the left or right arrow to switch to the previous or next matching
items.
When finished, you can touch
To copy text on a web page
You can copy text from a web page and paste it into emails or SMS/MMS
messages.
Press the Menu key from web page screen, then touch More/Select text.
Place your finger at the start of the text you want to copy and then drag it
to the end of the text.
Selected text is copied and highlighted in color.
Release your finger.
will be activated when scrolling the screen using
to close the search bar.
To paste the copied text into an email or SMS/MMS message, Touch & hold the
enter box and then touch Paste on the options menu.
To open new window/switch between windows
Multiple windows can be opened at the same time for your convenience.
Press the Menu key from web page screen, and touch New window.
To view all currently open windows, press the Menu key then touch
Windows, or pinch current web pages.
Touch a window you want to view.
To close a window, touch on the window you want to close.
Other options:
Refresh
Forward
Page info
Share page
To refresh the current page (press the Menu key on web
page screen, then touch Refresh).
To forward the pages you have opened (press the Menu key
on web page screen, then touch More/Forward).
To view more information about the current page (press the
Menu key on web page screen, then touch More/Page info).
To share the current page with your friends via various ways,
like Message, Email, Bluetooth, etc. (press the Menu key on
web page screen, then touch More/Share page).
61 62
Page 33
6.2.2 Manage links, history, downloads
To manage a link, phone number or address displayed on a web page
To view items you have downloaded, press the Menu key and touch More/
Downloads. You can clear the downloaded item list by pressing Menu key
and touching Clear list.
Link
Phone number
Address
To view Browser history
Press the Menu key from Browser screen.
Touch Bookmarks.
Touch History tab to view browser history.
To view your most frequently visited pages
Press the Menu key from Browser screen.
Touch Bookmarks.
Touch Most visited tab to view your most frequently visited pages.
To download a web application/view your downloads
Before downloading a web application, you need to enable your phone to
download web applications (press the Menu key from the Home screen, touch
Settings/Applications, mark check box of Unknown sources, finally touch
OK to confirm).
To download a file, Touch & hold the item you want to download, then touch
Save on the menu that opens.
To cancel a download, press the Menu key and touch More/Downloads, then
touch Menu key again and finally touch Cancel all downloads.
Touch the link to open the web page.
Touch & hold the link to open options for further
operation, like open in new window, save link, share
link, copy link, etc.
Touch to call the phone number.
Touch to open Google Maps and locate the address
6.2.3 Manage bookmarks
To bookmark a web page
Open the web page you want to bookmark.
Touch the bookmark icon at the top of the screen, or press the Menu key
and touch Bookmarks.
Touch Add.
Enter the name and the location if needed and touch OK to confirm.
To open a bookmark
On the Bookmarks tab, touch the bookmark you want to open.
You can also touch & hold to display the options screen, then touch Open
or Open in new window.
To edit a bookmark
On the Bookmarks tab, touch & hold the bookmark you want to edit.
Touch Edit bookmark.
Enter your changes.
When finished, touch OK to confirm.
Touch & hold a bookmark in the Bookmark tab to view more additional options:
Add shortcut to Home
Share link
Copy link URL
Delete bookmark
Set as homepage
To add a bookmark shortcut to the Home screen.
To share the bookmark.
To copy the bookmark link.
To delete a bookmark.
Set the select bookmark as Homepage.
63 64
Page 34
6.2.4 Settings
A series of settings are available for your adjustment. To access Browser
settings, press the Menu key from Browser screen, and touch More/Settings.
Page content settings
Text size
Default zoom
Open pages
in overview
Text encoding
Block pop-up
windows
Load images
Auto-fit pages
Landscape-
only display
Enable JavaScript
Enable plug-ins
Open in background
Set homepage
Touch to select the size of the text display: Tiny,
Small, Normal, Large, or Huge.
Touch to select the magnification level by default.
Mark the checkbox to open web pages zoomed out,
in an overview.
Touch to select the character encoding standard.
Mark the checkbox to prevent pop-up windows.
Mark to display images on web pages.
Mark to format web pages to fit the screen.
Mark to display pages only in landscape screen
orientation.
Mark to enable JavaScript.
Mark to enable plug-ins.
Mark to open new windows behind the current one.
Touch to set homepage.
Privacy settings
Clear cache
Clear history
Accept cookies
Clear all cookie
data
Remember form
data
Clear form data
Enable location
Clear location
access
Security settings
Remember
passwords
Clear passwords
Show security
warnings
Advanced settings
Set search engine
Website settings
Reset to default
Touch to clear locally cached content and databases.
Touch to clear the browser history.
Mark to allow sites to save and read cookie data.
Touch to clear all browser cookies.
Mark to remember data in forms for later use.
Touch to clear all the saved form data.
Mark to allow sites to request access to your
location.
Touch to clear location access for all websites.
Mark to save usernames and passwords for websites.
Touch to clear all saved passwords.
Mark to show warning if there is a problem with a
site’s security.
Touch to select a search engine.
Touch to view advanced settings for individual
websites.
Touch to clear all browser data and to reset all
settings to default.
65 66
Page 35
6.3 Connecting to Bluetooth devices
Bluetooth is a short-range wireless communication technology that you can
use to exchange data, or connect to other Bluetooth devices for various uses.
To access this feature, press the Menu key from the Home screen, touch
Settings/Wireless & networks/Bluetooth or Bluetooth settings.
To turn on Bluetooth
Press the Menu key from the Home screen,
Touch Settings/Wireless & networks/Bluetooth or Bluetooth settings.
Mark/Unmark the Bluetooth checkbox to activate/deactivate this function.
To change device name
To make your phone more recognizable, you can change your phone name
which is visible to others.
Press the Menu key from the Home screen,
Touch Settings/Wireless & networks/Bluetooth settings/Device
name.
Enter a name, and touch OK.
To make device visible
Press the Menu key from the Home screen,
Touch Settings/Wireless & networks/Bluetooth settings.
Mark/Unmark the Discoverable checkbox to activate/deactivate this
function.
To pair/connect your phone with a Bluetooth device
To exchange data with another device, you need to turn Bluetooth on and pair
your phone with the Bluetooth device with which you want to exchange data.
Press the Menu key from the Home screen.
Touch Settings/Wireless & networks/Bluetooth settings.
Touch Scan for devices.
Select a Bluetooth device you want to be paired with in the list.
Enter a passcode (0000 or 1234).
If the pairing is successful, your phone connects to the device.
To disconnect/unpair from a Bluetooth device
Touch & hold the device in the Bluetooth settings screen.
Touch Unpair or Disconnect & Unpair in the menu that opens.
6.4 Connecting to a computer via USB
With the USB cable, you can transfer media files and other files between your
phone’s microSD card and the computer.
To connect/disconnect your phone to/from the computer
To connect your phone to the computer:
Use the USB cable that came with your phone to connect the phone to a
USB port on your computer. You will receive a notification that the USB is
connected.
Open the Notification panel and touch USB connected.
Touch Mount USB storage in the dialog that opens to confirm that you
want to transfer files.
67 68
Page 36
To disconnect:
Unmount the microSD card on your computer.
Open the Notification panel and touch Turn off USB storage.
Touch Unmount USB storage in the dialog that opens.
To safely remove the microSD card from your phone
The microSD card can be removed from your phone any time the phone is
powered off. To remove the microSD card while the phone is on, you must
unmount the storage card from the phone first, to prevent corrupting or
damaging the storage card.
Press the Menu key from the Home screen,
Touch Settings/SD card & phone storage.
Touch Unmount SD card.
You can now safely remove the microSD card from the phone.
To format a microSD card
Press the Menu key from the Home screen,
Touch Settings/Storage.
Touch Erase SD card. On the screen a popup warns you that formatting the
microSD card will erase its contents, touch .
6.5 Sharing your phone's mobile data connection
You can share your phone's mobile data connection with a single computer via
a USB cable (USB tethering) or with up to eight devices at once by turning your
phone into a portable Wi-Fi hotspot.
The functions below may incur additional network charges from your
network operator. Extra fees may also be charged in roaming areas.
To share your phone's data connection via USB
Use the USB cable that along with your phone to connect the phone to a USB
port on your computer.
Press the Menu key from the Home screen.
Touch Settings/Wireless & networks/Tethering & portable hotspot.
Mark/unmark the check box of USB tethering to activate/deactivate this
function.
To share your phone's data connection as a portable Wi-Fi hotspot
Press the Menu key from the Home screen.
Touch Settings/Wireless & networks/Tethering & portable hotspot.
Mark/unmark the check box of Portable Wi-Fi hotspot to activate/
deactivate this function.
To rename or secure your portable hotspot
When Portable Wi-Fi hotspot is activated, you could change the name of your
phone's Wi-Fi network (SSID) and secure its Wi-Fi network.
Press the Menu key from the Home screen.
Touch Settings/Wireless & networks/Tethering & portable hotspot/
Portable Wi-Fi hotspot settings.
Touch Configure Wi-Fi hotspot to change the network SSID or set your
network security.
Touch Save.
69 70
Page 37
6.6 Connecting to virtual private networks
Virtual private networks (VPNs) allow you to connect to the resources inside
a secured local network from outside that network. VPNs are commonly
deployed by corporations, schools, and other institutions so that their users
can access local network resources when not inside that network, or when
connected to a wireless network.
To add a VPN
Press the Menu key from the Home screen,
Touch Settings/Wireless & networks/VPN settings/Add VPN.
Touch the type of VPN to add.
In the screen that opens, follow the instructions from your network
administrator to configure each component of the VPN settings.
Press the Menu key and touch Save.
The VPN is added to the list on the VPN settings screen.
To connect/disconnect to a VPN
To connect to a VPN:
Press the Menu key from the Home screen,
Touch Settings/Wireless & networks/VPN settings.
VPNs you have added are listed; touch the VPN you want to connect with.
In the dialog that opens, enter any requested credentials and touch
Connect.
To disconnect:
Open the Notification panel and touch the resulting notification for the
VPN connection.
To edit/delete a VPN
To edit a VPN:
Press the Menu key from the Home screen,
Touch Settings/Wireless & networks/VPN settings.
VPNs you have added are listed; touch & hold the VPN you want to edit.
Touch Edit network.
After finished, press the Menu key and touch Save.
To delete:
Touch & hold the VPN you want to delete, in the dialog that opens, touch
Delete network.
Touch OK to confirm.
71 72
Page 38

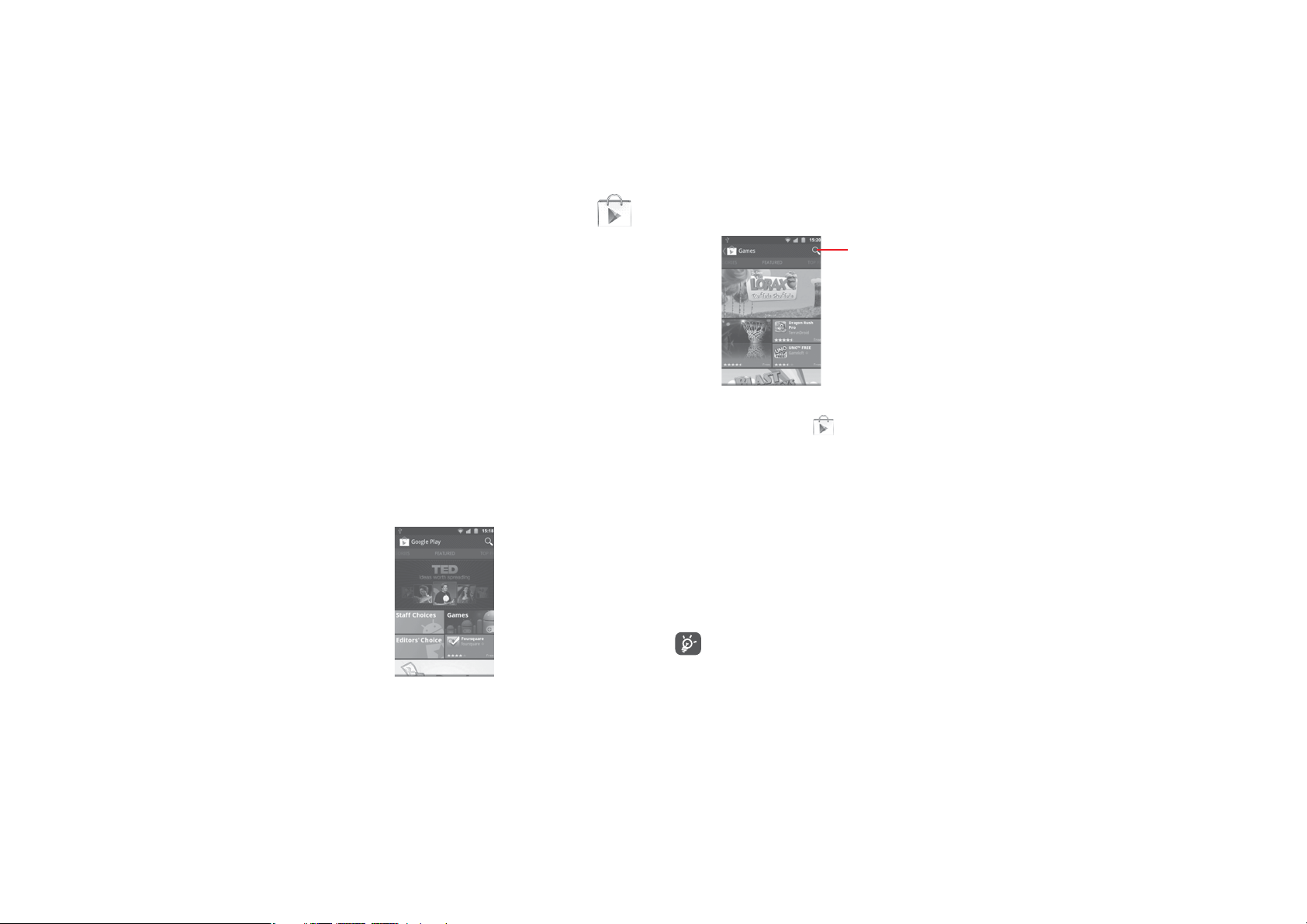

7
Android Play Shop
(1)
..........
Touch Apps or Games on Android Play Shop screen to browse its contents,
and then select subcategory. Within each subcategory you can select to view
items sorted by Top paid, Top free, or Just in.
Android Play Shop is an online software store, where you can download and
install applications and games to your Android Powered Phone.
To open Android Play Shop:
Touch the Applications tab from the Home screen, and then touch Play
Shop.
For the first time you access Android Play Shop, a screen with terms of
service pops up for your attention, touch Accept to continue.
Press the Menu key, then touch Help to enter Android Play Shop help page for
more information on this function.
7.1 Locate the item you want to download
and install
Android Play Shop home page provides several ways to find applications. It
showcases applications and games in categorized listings, and has a link to
all your downloads.
Touch to search in Android market.
To return to Android Play Shop Home screen, do one of the followings:
Touch the Play Shop icon
Press the Menu key to display options list, then touch Home.
on the top left of the screen.
7.2 Download and install
To download & install:
Navigate to the item you want to download, and select to enter the details
screen from which you can read its overall rating or comments, view
developer’s information, etc.
Press the Menu key and touch Security to preview the functions and data
the application can access on your phone if you install it.
Touch Install.
Be especially cautious with applications that have access to many
functions or to a significant amount of your data. Once you touch OK
to continue, you are responsible for the results of using this item on
your phone.
(1)
Depending on your country and operator.
73 74
Page 39
To check the progress of the download, open the Notification panel. To
stop the downloading of the item, touch the progress bar and Cancel on
the screen that opens.
After download and installation have finished, you will see a notification
To open the application you have downloaded:
On Android Play Shop screen, press the Menu key and touch My apps.
Touch the installed application in the list, then touch Open.
To buy an application
On Android Play Shop, some applications are labeled as free, while some of
them are to be paid for before downloading and installing.
Touch the application you want to buy.
Touch Buy on the bottom of the screen.
When making your first purchase, you are prompted to log in to Google
If your Google Checkout account has multiple credit card accounts, select
Select the Terms of service link and read the document. When finished,
Mark the check box if you agree with the terms of service.
Touch Buy now at the bottom of the screen.
When finished, Android downloads the application.
on the status bar.
icon
Checkout payment and billing service.
one to proceed.
press the Back key.
To request a refund
If you are not satisfied with the application, you can ask for a refund within 24
hours of the purchase. Your credit card will not be charged and the application
will be removed. If you change your mind, you can install the application again,
but you will not be able to request a refund.
Press the Menu key and touch My apps in Android Play Shop Home.
Touch the application that you want to uninstall.
Touch OK in the Uninstall & refund dialog box. If the dialog box does not
appear, your trial period has expired.
In the survey form, select the answer that best matches your reason, and
touch OK.
7.3 Manage your downloads
After you downloaded and installed an application, the following further
operations are available for your selection.
View
On Android Play Shop screen, press the Menu key and touch My apps.
Uninstall
On Android Play Shop screen, press the Menu key and touch My apps.
Touch the application you want to uninstall to enter the details screen, touch
Uninstall, and finally touch OK to confirm.
Refund
On Android Play Shop screen, press the Menu key and touch My apps. Touch
the application you want to uninstall for a refund, touch Uninstall & refund,
and finally touch OK to confirm.
75 76
Page 40
Update notification
On Android Play Shop screen, press the Menu key and touch My apps. Press
the Menu key and touch Notification, select whether or not to be notified of
updates, and finally touch OK to confirm.
8
Multimedia applications
Rate
Open the details screen for an application, touch the stars
under My review to award and touch OK to confirm.
Flag
You can report an inappropriate application to Android Play Shop by flagging
it. Open the details screen for the application, scroll to the bottom and touch
Flag as inappropriate, enter the reason and finally touch Submit.

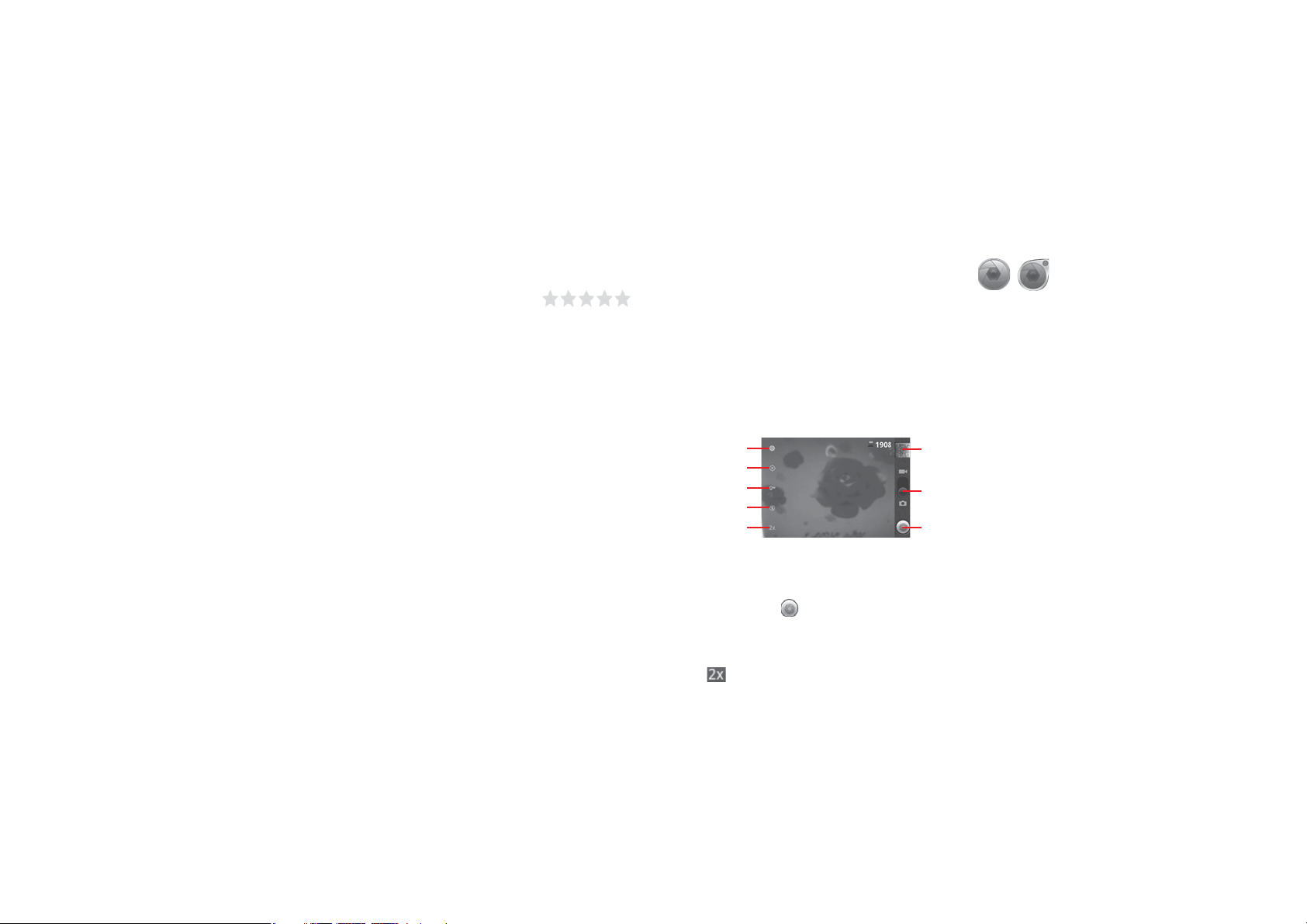

8.1 Camera/Camcorder.......................................
Your mobile phone is fitted with a Camera and a Camcorder for taking photos
and shooting videos.
Before using the Camera or Camcorder, please ensure that a microSD card
where all pictures and videos are stored is correctly installed. Also, be sure
to open the protective lens cover before use to avoid it affecting your picture
quality.
To access this function, touch the Applications tab from the Home screen and
then touch Camera or Camcorder.
Settings
Store location
White balance
Flash mode
Zoom
To take a picture
The screen acts as the viewfinder. First position the object or landscape in the
viewfinder, and touch
saved.
Zoom in/zoom out
Touch
out gradually. Touch the screen twice to zoom all the way in or out.
icon to open the Zoom control and slide the scroll bar to zoom in or
icon to take the picture, which will be automatically
Touch to view pictures or
videos you have taken.
Drag up or down to switch
between Camera mode and
Video mode.
Touch to take a picture
or record a video.
/
77 78
Page 41
To shoot a video
Switch Camera mode to Video mode or access Camcorder directly from the
applications list. First position the object or landscape in the viewfinder, and
touch
will be automatically saved.
Further operations when viewing a picture or a video you have taken:
Press the Menu key or Touch & hold the picture to display more operations
such as Rotate left, Rotate right, Crop and Details etc. (refer to“Working
with pictures”)
icon to start recording. Touch icon to stop shooting. The video
Touch to set the picture as a contact icon, wallpaper, etc.
Touch to share the picture or video you have just taken or shot by
Bluetooth, MMS, gmail, etc.
Touch to delete the picture or video you have just taken or shot.
Touch to enter Slideshow.
Touch to return to frame mode after viewing a picture or shooting
a video.
Touch to play the video you have just shot.
8.1.1 Settings in framing mode
Before taking a photo/shooting a video you can adjust a number of settings
in framing mode.
Camera settings
Settings
Store location
White balance
Flash mode
Zoom
Video/Camcorder settings:
Settings
Store location
White balance
Flash mode
Video quality
Advanced settings (Press the Menu key):
Touch to enter a scrolling list of settings:
Exposure, Picture size, Picture quality, etc.
Touch to turn on/off stored location information
of pictures by using the phone's GPS.
Touch to adjust color in different lights: Auto,
Incandescent, Daylight, Fluorescent or Cloudy.
Touch to turn on/off flash mode or set as auto.
Touch to open the Zoom control and slide the
scroll bar to zoom in or out gradually.
Touch to enter a scrolling list of settings: Colour
effect, Remaining time, etc.
Touch to turn on/off stored location information
of pictures by using the phone's GPS.
Touch to adjust color in different lights: Auto,
Incandescent, Daylight, Fluorescent or Cloudy.
Touch to turn on/off flash mode.
Touch to set video quality.
Preview photo/video
Switch to camera/
video
79 80
Touch to preview your photo or video.
Touch to switch between camera and video.
Page 42

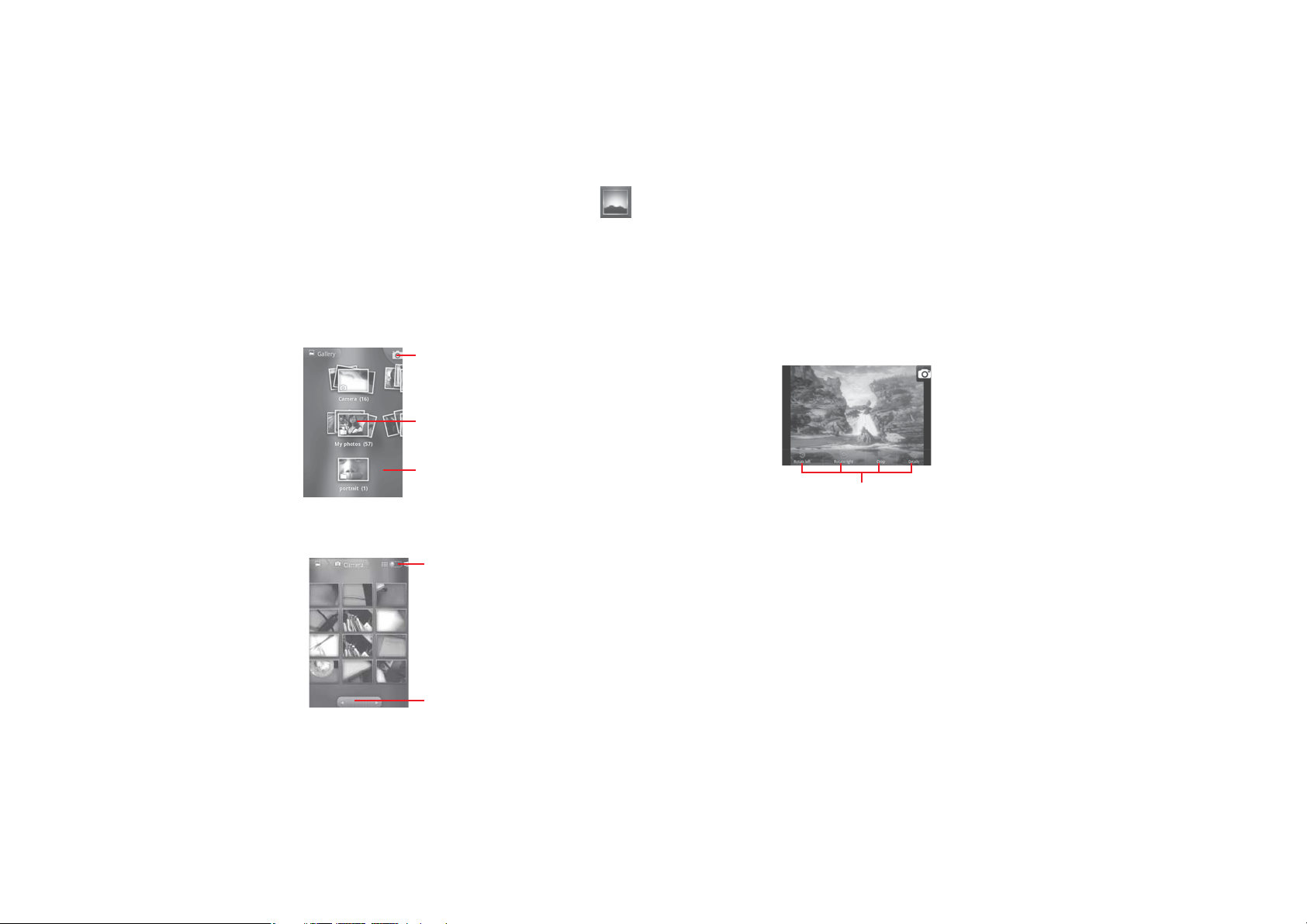

8.2 Gallery ............................................................................
Gallery acts as a media player for you to view photos and playback videos. In
addition, a set of further operations to pictures and videos are available for
your choice (refer to “8.1.1 Settings in framing mode”).
To access this function, touch the Applications tab from the Home screen,
then touch Gallery.
From this menu, you can access Camera or Camcorder for taking a picture or
video.
Touch to open camera.
Pinch the album and spread it apart.
Slide left or right to view more albums.
To view a picture/play a video
Pictures and videos are displayed by albums in Gallery.
Touch and scroll the bar to switch.
This will change the album view
from grid to stack.
Touch an album, pinch it with two fingers and then all pictures or videos will
spread the screen.
Touch the picture/video directly to view or play it.
Slide left/right to view previous or next pictures/videos.
Working with pictures
You can work with pictures by rotating or cropping them, sharing them with
friends, setting them as contact ID or wallpaper, etc.
Locate the picture you want to work on, press the Menu key from full-screen
picture view.
Touch Menu key, four options will appear below.
To crop a picture, touch a picture to view controls and touch Menu/Crop. The
cropping square appears in the middle of the picture. Select the portion to
crop, touch and Save.
Batch operation
Gallery provides a multi-select function, so that you can work with pictures/
videos in batches.
Open the main Gallery window or an alblum, press the Menu twice or Touch &
hold one alblum/picture, and mark the checkbox before the file you want to
work on, then perform further actions, like delete, share, etc.
Drag left or right to scroll
through the album quickly.
81 82
Page 43

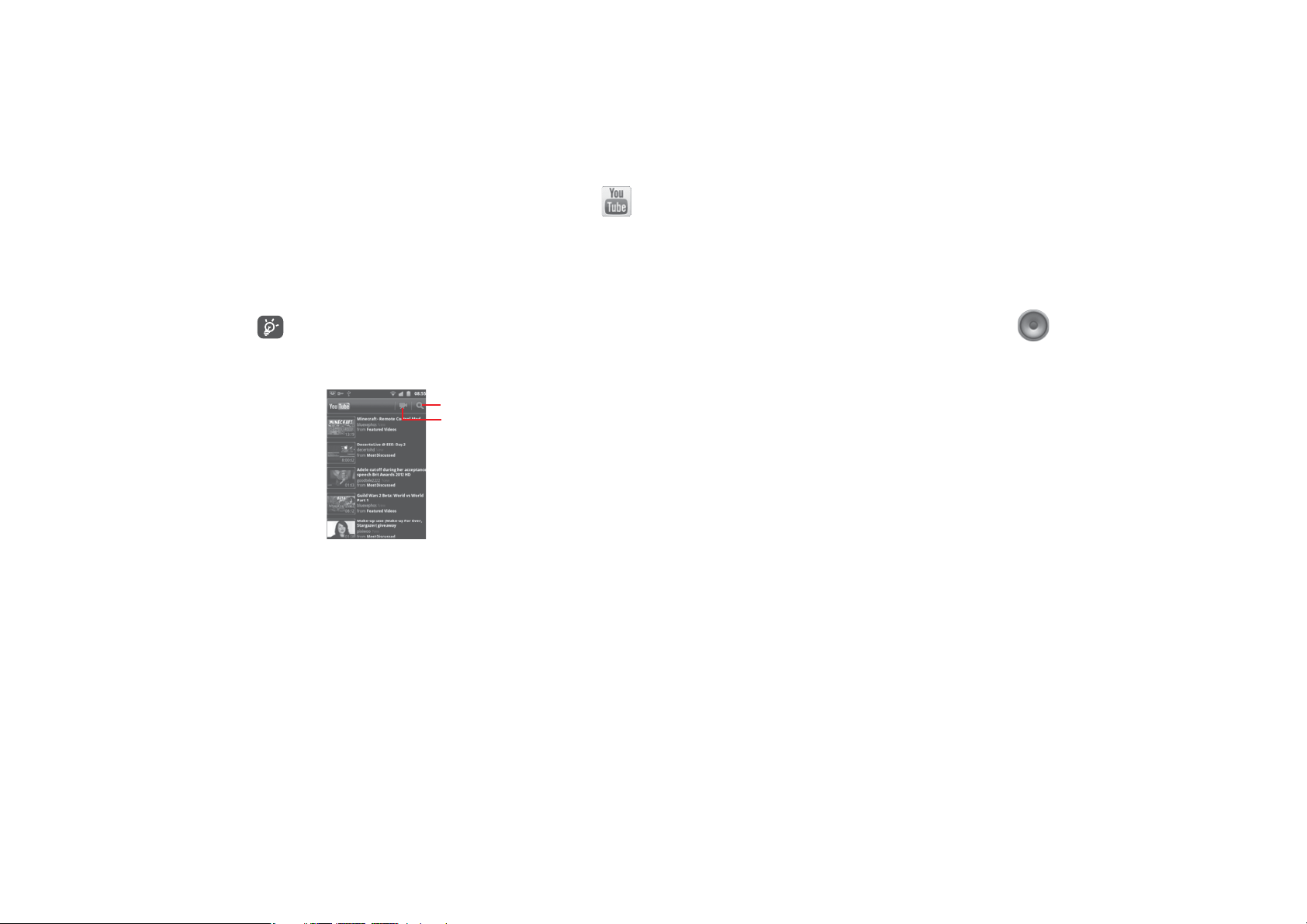

8.3 YouTube ..........................................................................
YouTube is an online video-sharing service where the user can download,
share and view videos. It supports a streaming function that allows you to start
watching videos almost as soon as they begin downloading from the Internet.
To access this function, touch the Applications tab from the Home screen,
then touch YouTube.
As an online video service, your phone must have a network
connection to access YouTube.
All videos in YouTube are grouped into several categories, like Most popular,
Most viewed, Top rated, etc.
Touch to search for a video.
Touch to shoot a video.
By pressing Menu key from YouTube screen, you can rate, share, label as
favourite, etc. For details about these features, please visit the YouTube
website: www.YouTube.com
8.3.1 Watch videos
Touch a video to play it.
Touch video playing screen to display playback controls with which you can
pause, skip forward or backward, or drag the progress bar to the point you
want to watch.
To exit video playing screen, press the Back key to return to the video list.
8.4 Music ..............................................................................
Using this menu, you can play music files stored on the microSD card in your
phone. Music files can be downloaded from computer to microSD card using
an USB cable.
To access this function, touch the Applications tab from the Home screen,
then touch Music.
You will find four libraries in which all songs are classified: Artists, Albums,
Songs, and Playlists. Touch a category and view the list.
With the help of Search key, you can easily search for songs you want to play
in libraries.
To delete a song, press the Menu key from playback screen and then touch
Delete to remove it from the microSD card.
You can also set a song as a ringtone, press the Menu key from playback
screen to display option menu, then touch Use as ringtone.
83 84
Page 44
8.4.1 Playing music
From any of the four library screens, touch a song to play it back.
a
b
c
d
e f g
a Touch to open the current playlist.
b Touch to play the current playlist in shuffle mode (tracks are played in
random order).
c Touch to toggle repeat mode: Don't repeat, Repeat the playlist, or Repeat
the current track.
d Touch & hold to search for more information.
e Touch to skip to the previous track in the album, playlist, or shuffle.
f Touch to pause/resume playback.
g Touch to skip to the next track in the album, playlist, or shuffle.
8.4.3 Working with playlists
Playlists allow you to conveniently organize all the songs stored in the card.
You can create a new playlist, add a song to the list, rearrange the order of the
list, and delete or rename a playlist.
To create a playlist
Press the Menu key from playback screen to display the option menu, touch
Add to playlist, then touch New, enter the name and finally touch Save.
To change the order of songs in a playlist
Enter a playlist, drag a song up or down to change the order within the playlist.
To delete a song or a playlist
Locate the song or playlist you want to delete, Touch & hold or press the Menu
key from playback screen to display option menu, then touch Delete.
To rename a playlist
Locate the playlist you want to rename, Touch & hold to display option menu,
then touch Rename. When finished, touch Save.
Adjust volume
To adjust the volume, you can press the Volume up and Volume down key.
8.4.2 Using Party shuffle
All songs will be displayed in order by default. When Party shuffle is activated,
some songs will be selected and played at random. Press the Menu key, then
touch Party shuffle to turn on this function. To turn it off, press the Menu key
again, then touch Party shuffle off.
85 86
8.5 Sound Recorder .........................................................
To access this function, touch the Applications tab from the Home screen,
then touch Sound Recorder.
Sound Recorder allows you to record voice/sound for seconds/hours.
Page 45
8.6 Videos ...............................................................................
To access this function, touch Application tab from the Home screen, then
touch Videos.
Videos is a small built-in video player that lists all your videos.
Touch an item from the list to play. While playing, use Pause, Forward and
Back functional icons as required, touch a point on the timeline to jump to
and play from.

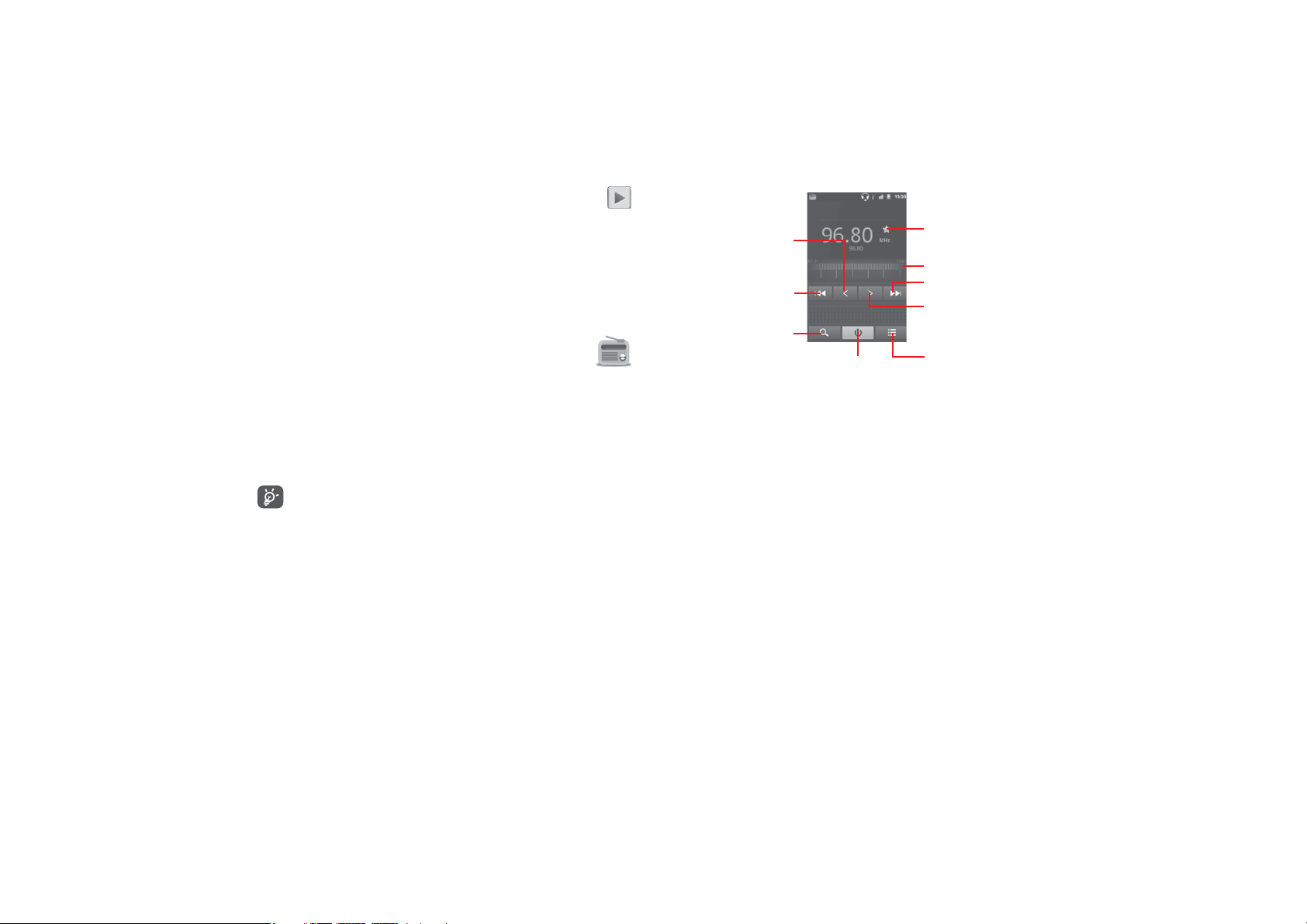

8.7 FM Radio .......................................................................
Your phone is equipped with a radio
(1)
with RDS
the application as a traditional radio with saved channels or with parallel visual
information related to the radio program on the display if you tune to stations
that offer Visual Radio service.
To access this function, touch the Applications tab from the Home screen,
then touch FM Radio.
To use it, you must plug in your headset, which works as an antenna
connected with your phone.
(2)
functionality. You can use
Touch to decrease 0.1MHz
Touch & hold to search and
go to the nearest lower
frequency channel
Touch to go to previous
saved channel
Touch to search for
all available stations
automatically
Available options:
Save channel
Edit name
Audio mode
Exit
Enter frequency
Settings
Delete
Touch to add the current
station to favourites.
Drag to switch the channel
Touch to go to next saved
channel
Touch to increase 0.1MHz
Touch & hold to search and
go to the nearest higher
frequency channel
Touch to play/stop
Touch to open and view the
saved channels list
Save the current tuned station to the channels list.
Edit the channel name.
Listen to the radio using loudspeaker or headset.
Turn off the radio.
Enter the frequency manually.
Customise radio settings according to preference.
Delete the channel
(1)
The quality of the radio depends on the coverage of the radio station in that
particular area.
(2)
This function depends on the country you are based in.
87 88
Page 46

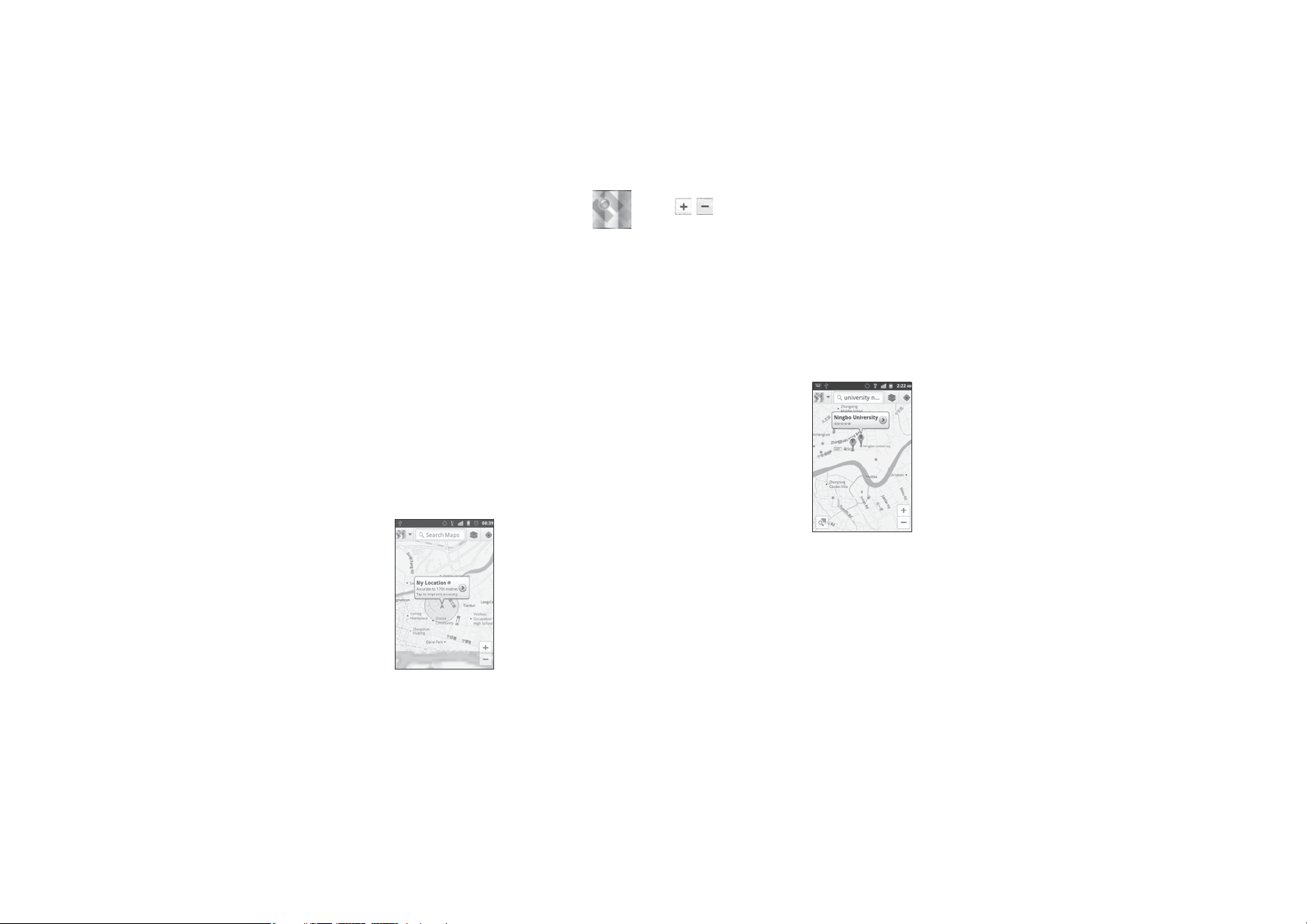

9
Google Maps ........................
To zoom in and out of a map, touch the plus or minus side of the zoom control
, or you can also zoom in/out by double-tapping a location on screen.
To clear the map history, press the Menu key and touch Clear Map.
9.1 Get My Location
9.1.1 Choose a data source to decide My Location
Press the Menu key from the Home screen, touch Settings/Location &
security.
Mark the check box of Use wireless networks to set Wi-Fi and/or mobile
networks as My Location data source.
Or mark the check box of Use GPS satellites to set GPS as My Location
data source.
9.1.2 Open Google Maps and view My Location
Touch the Applications tab from the Home screen, then touch Maps.
The map will then center on a blue dot with a blue circle around. Your actual
position is within the blue circle.
To move the map, drag the map with your finger.
9.2 Search for a location
While viewing a map, press the Menu key and touch Search, or you can
directly press the Search key on keyboard to activate search function.
In the search box, enter an address, a city or a local business.
Touch the search icon and in a while your search results will appear on the map
highlighted by markers with letter labels.
You can touch a marker to open a balloon that contains a label. Touch the
balloon to open a screen with more handy information about the location.
89 90
Page 47

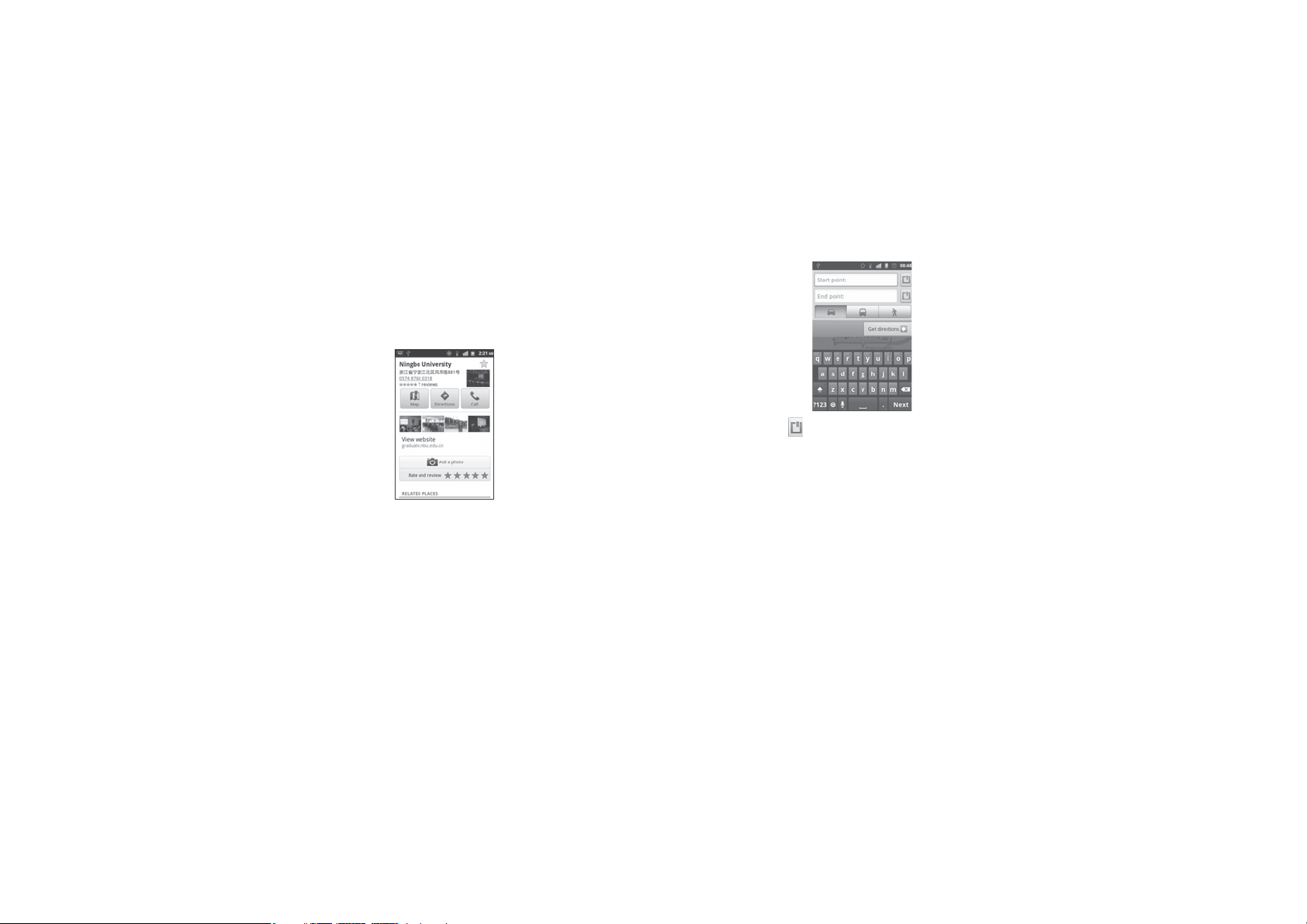

9.3 Star a location
Just like bookmarking a web address on the Internet, you can star any position
on the map for later use.
9.3.1 How to star (or unstar) a location
Touch & hold a location on a map
Touch the address rectangle that opens
Touch the gray star at the top of the screen to star the location. (Or touch a
gold star to unstar that location.)
9.3.2 View a list of starred items
Press the Menu key from maps screen and touch More/My Places.
The list of your starred items and their addresses opens.
Touch a location in the list to view it .
Press the Menu key and touch Refresh to update the list.
9.4 Get driving, public transport or walking directions
9.4.1 Get suggested routes for your trip
Press the Menu key from maps screen and touch Directions.
Touch enter bar or to edit your start point by one of the following
methods: entering an address, using My Location, selecting a start point on
a map, selecting a starred item, selecting an address from your contacts or
using search history.
Do likewise for your end point.
To reverse directions, press the Menu key and touch Reverse Start & End.
Then select a transport mode: driving by car, using public transport, or
walking directions.
Finally touch Get directions.
A couple of suggested routes will appear in a list. Touch any routes to view
their respective detailed directions.
To get reverse directions for a route you’ve already made, simply open that
route’s directions window and select Reverse. No need to enter your start
point and end point again.
91 92
Page 48
9.4.2 Preview suggested routes and decide on a route more
preferable or feasible to you
You can preview each turn in your route in Navigation, Satellite, and other
views.
Touch a left or right arrow to preview the next or previous leg of your route.
You can view turn-by-turn directions in a list by touching
key to return to previous view.
When selecting a more preferable or feasible route, distance and time will be
the two most important factors for your evaluation. Distance and estimated
time will be displayed at the top of the directions screen.
, press the Back
9.4.3 Search for locations along your route
Please refer to “9.2 Search for a location” for detailed information.
9.4.4 View route progress and calculate estimated arrival
time
To view your route progress, pinpoint My Location, zoom out until the whole
route goes into one screen, with both finished and unfinished miles in sight.
Start another Directions screen based on your current and intended destination
locations. Estimated arrival time will be shown in the results. Please note that
the estimated arrival time is not available for the public transport mode.
9.4.5 View traffic conditions on your route
At the lower-left corner of navigation view, a traffic light indicates the overall
traffic conditions on your route, next to the estimated time of arrival at your
destination. You can also view the traffic conditions on each segment of your
route.
Touch the traffic light at the lower left of the Navigation View. Your route opens
in Traffic View, with color coding to indicate the traffic along the way. Touch the
navigation icon to return to your current location in Navigation View.
93 94
9.4.6 Get an alternative route to your destination
If traffic is slow on your current route, or if you just want to try a different route,
you can request an alternative route from Google Maps with turn-by-turn
Navigation service.
Press the Menu key and touch Route information. Touch the alternative
route icon. An alternative route is drawn on the map.
9.5 Arrangement of layers
Layers allow you to view locations and additional information overlaid on the
map. You can add multiple layers or remove only certain layers so you control
exactly what information you want visible on the map at one time.
9.5.1 To view multiple layers
Touch from maps screen.
All available layers are listed (like Traffic, Satellite, Latitude, etc), select one
to view.
9.5.2 To clear the map
After you get directions or search on a map, you can clear the markers/layers
that have been drawn: press the Menu key on maps screen and touch Clear
Map, or you can also touch Clear Map on Layers screen.
9.6 Join Latitude to see your friends' locations and
share yours with them
With Google Latitude, you can:
see your friends' locations on a map or in a list.
quickly contact your friends with a text message, instant message, or phone call.
you can share, set, hide your location, or sign out of Google Latitude.
control who sees your location, and at what level of detail.
add Latitude widget to home screen to see nearby friends at a glance.
Page 49
9.6.1 To join Latitude
Press the Menu key from maps screen.
Touch More/Join Latitude.
When you joined Latitude, the menu item changes to Latitude.
To open Latitude, press the Menu key from maps screen, then touch Latitude.
9.6.2 How to invite friends to share their locations
Press the Menu key from Latitude screen, touch Add friends.
Touch Select from Contacts or Add via email address.
After selecting your chosen contacts touch Add friends at the bottom of the screen.
When finished, an invitation will be sent to the friends you have invited.
To respond to an invitation, you can select one of the followings:
Accept and share
back
Accept, but hide
my location
Don’t accept
You and your friend can share locations with each
other.
You can view your friend's location, but they can
not view yours.
No locations can be shared between you and your
friend.
9.6.3 To view your friends' location
You can view your friends' locations on a map or in a list.
9.6.4 To connect with your friends
Select a contact, you can communicate with your friend and set privacy
options.
Show on map
Chat using Google
Talk
Send email
Directions
Hide from
this friend
Share only
city level location
Remove
Locate the friend's position on the map.
Send instant messages to the friend.
Send emails to the friend.
Get directions to this friend's location.
Set to hide your location from this friend.
Set to share locations only at city level, instead of
street level, etc.
Remove this friend from your list and stop sharing
information with him or her.
Map view
List view
When Google Maps is opened, your friends'
locations will display with their photo icons for
identification.
Press the Menu key from maps screen, then touch
Latitude. Your friends are displayed in a list.
95 96
Page 50
9.6.5 To control what you share
You can control the information you want to share with your friends.
Press the Menu key from maps screen, touch Latitude, touch your own name
and then touch Edit privacy settings.
The following options are available to choose from:
Location reporting/
Detect your
location
Location reporting/
Set your location
Location reporting/
Do not update your
location
Enable location
history
Manage your friends
Sign out of Latitude
Enable Latitude to detect your location
automatically when you move around.
Select a location on the map manually.
Your location is not updated and your friends
cannot see it.
Mark to hide your location history.
Touch to add or remove friends who can see your
location.
Deactivate Latitude and stop sharing.
97 98
10
Others
10.1 FileManager .................................................................
To access FileManager, touch the Applications tab from the Home screen, then
touch FileManager.
FileManager works with your SD card instead of your phone memory. To use
it, you have to install your SD card first. See “Installing and removing the
microSD card”.
FileManager displays all data stored on the microSD card, including
applications, media files downloaded from Android Play Shop, YouTube or
other locations; videos, pictures or audios you have captured; other data
transferred via Bluetooth, USB cable, etc.
When you download an application from PC to microSD card, you can locate
the application on FileManager, then touch it to install it in your phone.
FileManager allows you to perform and be really efficient with the following
common operations: create (sub) folder, open folder/file, view, rename, move,
copy, delete, play, share, etc.
10.2 SyncML Client ............................................................
To access this function, touch the Applications tab from the Home screen,
then touch SyncML Client.
You have to configure your own sync-hosting server account to locate the
synchronization source at the other side. Also you might be asked to decide
on the following options:
Who to sync: account name, username and password are needed to
authenticate your identity.
Page 51
How to sync: available synchronization types are two-way synchronization,
backup to server, restore from server, export to server, and import from
server.
What to sync: supported synchronization applications are Contacts and
Calendar, each with an independent secure database that doesn’t allow
anonymous access.
When to sync: synchronize when roaming, synchronize when data is
modified, synchronize when phone is turned on or synchronize at a regular
basis (daily, weekly or monthly).
11
To access this function, touch the Applications tab from the Home screen, and
touch Settings on main menu, or you can also press the Menu key from the
Home screen and touch Settings.
Settings ..................................
11.1 Wireless & networks
10.3 Torch ..............................................................................
To access this function, touch the Applications tab from the Home screen,
then touch Tor c h.
Tor c h is an application which can provide power light for your convenience
and you can select to turn on/off or adjust the brightness as needed.
10.4 Other applications
The previous applications in this section are preinstalled on your phone. To
read a brief introduction of the preinstalled 3rd party applications, please refer
to the leaflet provided with the phone. You can also download thousands of
3rd party applications by going to Android Play Shop on your phone.
(1)
Application availability is dependent on the country you're based in.
(1)
...........................................................
99 100
11.1.1 Airplane mode
Mark the check box of Airplane mode to simultaneously disable all wireless
connections including Wi-Fi, Bluetooth and more.
11.1.2 Wi-Fi
Using Wi-Fi you can now surf the Internet without using your SIM card
whenever you are in range of a wireless network. The only thing you have to do
is to enter the Wi-Fi settings screen and configure an access point to connect
your phone to the wireless network.
For detailed instructions on using Wi-Fi, please refer to “6.1.2 Wi-Fi”.
11.1.3 Bluetooth
Bluetooth allows your phone to exchange data (videos, images, music, etc.)
in a small range with another Bluetooth supported device (phone, computer,
printer, headset, car kit, etc.).
For more information on Bluetooth, please refer to “6.3 Connecting to
Bluetooth devices”.
Page 52
11.1.4 Tethering & portable hotspot
This function allows you to share your phone's mobile data connection via USB
or as a portable Wi-Fi access point (Please refer to “6.5 Sharing your phone's
mobile data connection”).
11.1.5 VPN settings
A mobile virtual private network (mobile VPN or mVPN) provides mobile devices
with access to network resources and software applications on their home
network, when they connect via other wireless or wired networks. Mobile VPNs
are used in environments where workers need to keep application sessions
open at all times, throughout the working day, as the user connects via various
wireless networks, encounters gaps in coverage, or suspend-and-resumes
their devices to preserve battery life. A conventional VPN cannot survive
such events because the network tunnel is disrupted, causing applications to
disconnect, time out, fail, or even the computing device itself to crash.
For more information of VPN, please refer to “6.6 Connecting to virtual
private networks”.
11.1.6 Mobile networks
Data enabled
If you do not need to transmit data on all mobile networks, unmark the check
box of Data enabled to avoid incurring significant charges for data use on
local carrier mobile networks, particularly if you do not have a mobile data
agreement.
Data roaming
If you don’t need to transmit data on other carriers’ mobile networks, unmark
the check box of Data roaming to avoid incurring significant roaming charges.
Access Point Names
You can select your preferred network with this menu.
Use only 2G networks
You can select to use only 2G networks.
Network operators
You can select a network operator.
Cell broadcast/Cell broadcast settings
Enable receipt of CB messages by marking the check box of Cell broadcast.
You can access a series of adjustable CB settings by touching Cell broadcast
settings.
11.2 Call settings
Use Call settings to configure normal phone call settings and other special
features offered by your carrier. You can also use Call settings to configure the
phone so that it can place outgoing calls only to a fixed set of phone numbers.
11.2.1 Fixed Dialling Numbers
Fixed Dialling Number (FDN) is a service mode of SIM, where outgoing calls are
restricted to a set of phone numbers. These numbers are added to the FDN list.
The most common practical application of FDN is for parents to restrict the
phone numbers to which their children can dial.
For security reasons, you’ll be prompted to enable FDN by entering SIM PIN2
which is usually acquired from your service provider or SIM maker.
Network Mode
Touch to select network mode.
101 102
Page 53
11.2.2 Voicemail
Voicemail service
Opens a dialog where you can select your carrier’s voicemail service or another
service.
Voicemail settings
If you are using your carrier’s voicemail service, this opens a dialog where
you can enter the phone number to use for listening to and managing your
voicemail. You can enter a comma (,) to insert a pause into the number—for
example, to add a password after the phone number.
11.2.3 Other call settings
Call forwarding
Depending on your subscription. Forward the incoming calls to a different
number.
Additional settings
Caller ID: Touch to set whether display the caller ID in outgoing calls.
Call waiting: Touch to turn on/off call waiting. When turn on, during a call,
there is a notification of incoming calls.
11.3 Sound
Use the Sound settings to configure many aspects of call and notification
ringtones, music, and other audio settings.
Silent mode
Alert override
Phone vibrate
Volume
Phone ringtone
Notification
ringtone
Audible touch
tones
Audible selection
Screen lock sounds
Haptic feedback
Mark the check box to silence all sounds except
media & alarms.
Mark the check box to enable maximum volume
and vibrate when device is in a pocket or bag.
Touch to access phone vibrate options.
Touch to set volume for Incoming call, Media and
Alarm.
Touch to set your default incoming call ringtone.
Touch to set your default notification ringtone.
Mark the check box to enable playing tones when
using dial pad.
Mark the check box to enable playing sounds when
making screen selection.
Mark the check box to enable playing sounds when
locking and unlocking the screen.
Mark the check box to activate vibration when
pressing soft keys and on certain UI interactions.
103 104
Page 54
11.4 Display
Brightness
Auto-rotate
screen
Animation
Screen timeout
Touch to adjust the brightness of the screen or select
Automatic brightness.
Touch to select whether rotate screen automatically.
Touch to select whether to show some, all or no
animations.
Touch to set screen timeout.
AGPS Setting
Touch to set the AGPS server address and the port.
11.5.2 Screen unlock pattern/Set up screen lock
None
Pattern
PIN
Password
Touch to disable screen unlock security.
Touch to draw pattern to unlock screen.
Touch to enter a numeric PIN to unlock screen.
Touch to enter a password to unlock screen.
11.5 Location & security
Use the Location & Security settings to set your preferences for using and
sharing your location when you search for information and use location-aware
applications, such as Google Maps. You can also configure settings that help
secure your phone and its data.
11.5.1 My Location
Use wireless networks
Mark the check box to use information from Wi-Fi and mobile networks to
determine your approximate location, for use in Google Maps, when you search,
and so on. When you select this option, you’re asked whether you consent to
share your location anonymously with Google’s location service.
Use GPS satellites
Check to use your phone’s global positioning system (GPS) satellite receiver
to pinpoint your location within an accuracy as close as several meters (“street
level”). The process of accessing the GPS satellite and setting your phone's
precise location for the first time will require up to 5 minutes. You will need to
stand in a place with a clear view of the sky and avoid moving. After this, GPS
will only need 20-40 seconds to identify your precise location.
105 106
11.5.3 SIM card lock/Set up SIM card lock
Open a screen where you can configure the PIN required to use the phone, and
where you can change the SIM PIN.
11.5.4 Passwords/Visible passwords
Mark the check box to show passwords as you type.
11.5.5 Device administration/Select device administrators
Touch to add or remove the device administrators.
11.5.6 Credential storage
Use secure credentials
Mark the check box to allow applications to access your phone’s encrypted
store of secure certificates, related passwords and other credentials. Credential
storage is used to establish some kinds of VPN and Wi-Fi connections. If you
have not set a password for the credential storage, this setting is dimmed.
Page 55
Install from SD card
Touch to install encrypted certificates from the microSD card.
Manage applications
Touch to manage and remove installed applications.
Set password
Touch to set or change a password for the credential storage (at least 8
characters).
Clear storage
Touch to clear credential storage of all contents and reset its password.
11.6 Applications
You use the Applications settings to view details about the applications
installed on your phone, to manage their data and force them to stop, and to
set whether you want to permit installation of applications that you obtain
from web sites and emails.
Unknown sources
Mark the check box to permit installation of applications that you obtain from
web sites, emails, or other locations other than Android Play Shop.
To protect your phone and personal data, download applications only from
trusted sources, such as Android Play Shop.
Battery use
Touch to show the status of battery using.
Storage use
Touch to view storage use.
Running services
Touch to open a list of services—applications or parts of applications that
provide services to other applications, or that run even when their main
applications aren’t running. Examples include the Android onscreen keyboard
and the small portion of Google Talk that always listens for incoming
messages. Above each service, one or more gray bars show what processes
the running service needs and how much memory they're using (how much
memory you would recover if you stopped the service). Depending on the
service, when you touch it in the list it either opens a dialog in which you can
stop it or opens its Settings screen.
Development
The Development screen contains settings that are useful for developing
Android applications. For full information, including documentation of the
Android applications and development tools, see the Android developer web
site (http://developer.android.com).
USB debugging: mark the check box to permit debugging tools on a
computer to communicate with your phone via a USB connection.
Stay awake: mark the check box to prevent the screen from dimming and
locking when the phone is connected to a charger or to a USB device that
provides power. Don’t use this setting with a static image on the phone for
long periods of time, or the screen may be marked with that image.
Allow mock locations: mark the check box to permit a development tool
on a computer to control where the phone believes it is located, rather than
using the phone’s own internal tools for this purpose.
107 108
Page 56
11.7 Accounts & sync
Use the Accounts & Sync settings to add, remove, and manage your Google
and other supported accounts. You can also use these settings to control
how and whether all applications send, receive, and synchronize data on
their own schedules, and whether all applications can synchronize user data
automatically.
Gmail, Google Calendar, and other applications may also have their own
settings to control how they synchronize data; see the sections on those
applications for details.
11.7.1 General sync settings
Background data
Mark the check box to permit applications to synchronize data in the
background, whether or not you are actively working in them. Unmarking this
setting can save battery power and lowers (but does not eliminate) data use.
Auto-sync
Mark the check box to permit applications to synchronize data on their own
schedule. If you unmark this setting, you must touch an account in the list on
this screen, press the Menu key, and touch Sync now to synchronize data for
that account.
Synchronizing data automatically is disabled if Background data is unchecked.
In that case, the Auto-sync checkbox is dimmed.
11.7.2 Manage accounts
The rest of this screen lists the Google Accounts and other accounts you’ve
added to the phone. If you touch an account in this screen, its account screen
opens.
This screen contains different options, depending on the kind of account. For
Google Accounts, it lists the kinds of data you can synchronize to the phone
with checkboxes so you can turn synchronizing on and off for each kind. You
can also press the Menu key and touch Sync now to synchronize data. Touch
Remove Account to remove the account along with all its data (contacts,
mails, settings, and so on).
11.8 Privacy
You use the Privacy settings to manage your personal information.
Back up my data
Mark the check box to back up your phone’s settings and other application
data to Google Servers, with your Google Account. If you replace your phone,
the settings and data you’ve backed up are restored onto the new phone for
the first time you sign in with your Google Account. If you mark this option, a
wide variety of settings and data are backed up, including your Wi-Fi passwords,
bookmarks, a list of the applications you’ve installed, the words you’ve added
to the dictionary used by the onscreen keyboard, and most of the settings
that you configure with the Settings application. If you unmark this option,
you stop backing up your settings, and any existing backups are deleted from
Google Servers.
Automatic restore
Mark the check box to restore your backed up settings or other data when you
reinstall an application.
109 110
Page 57
Factory data reset
Erase all of your personal data from internal phone storage, including
information about your Google Account, any other accounts, your system and
application settings, and any downloaded applications. Resetting the phone
does not erase any system software updates you’ve downloaded or any files
on your microSD card, such as music or photos. If you reset the phone in this
way, you’re prompted to re-enter the same kind of information as when you
first started Android.
When you are unable to power on your phone, there is another way to perform
a factory data reset by using hardware keys. Hold down Volume up key and
press Power key at same time until the screen lights up.
WARNING! Doing a factory data reset will delete all of your personal data and
settings stored on your phone.
Erase SD card
Permanently erases everything on a microSD card and prepares it for use with
your phone.
11.9.2 Internal phone storage
Available space
Touch to display the amount of internal phone storage used by the operating
system, its components, applications (including those you downloaded),
permanent and temporary data.
If a warning message comes up saying that phone memory is limited,
you are required to free up space by deleting some unwanted
applications, downloaded files, etc.
11.9 SD card & phone storage
Use the microSD card & Phone Storage settings to monitor the total and
available space on your phone and on your microSD card; to manage your
microSD card; and if necessary, to reset the phone, erasing all of your personal
information.
11.9.1 SD card
Total space/Available space
Lists the amount of space on any microSD card installed in your phone and the
amount you can use to store photos, videos, music, and other files.
Unmount/Mount SD card
Unmounts the microSD card from your phone so that you can format the card
or safely remove it when the phone is on. This setting is dimmed if there is no
microSD card installed, or have already unmounted it, or have mounted it on
your computer.
111 112
11.10 Language & keyboard
Use the Language & keyboard settings to select the language for the text on
your phone and for configuring the onscreen keyboard, including words that
you’ve added to its dictionary.
11.10.1 Select locale
Touch to select the language and the region you want.
11.10.2 User dictionary
Touch to open a list of the words you’ve added to the dictionary. Touch a word
to edit or delete it. Press the Menu key and touch Add to add a word.
Page 58
11.10.3 Android keyboard
For phones with physical keyboards, unmark to disable the onscreen keyboard.
The Android keyboard settings apply to the onscreen keyboard that is included
with your phone. The correction and capitalization features affect only the
English version of the keyboard. Available options are as follows:
Input languages
Touch to set input language.
Quick fixes
Correct commonly typed mistakes.
Vibrate on keypress
Mark the check box to have the phone vibrate briefly each time you touch a
key on the onscreen keyboard.
Popup on keypress
Mark the check box to popup messages when you input keyboard.
Sound on keypress
Mark the check box to play a brief sound each time you touch a key on the
onscreen keyboard.
Touch to correct words
Mark the check box to enable you to correct entered words by touching them.
Auto-capitalisation
Mark the check box to have the onscreen keyboard automatically capitalize
the first letter of the first word after a period, the first word in a text field, and
each word in name fields.
Show settings key
Touch to set how to show the settings key.
Voice input
Touch to display or not the Mic button on keyboard.
113 114
Show suggestions
Display suggested words while typing.
Auto-complete
Spacebar and punctuation automatically insert highlighted word.
11.10.4 Swype
To set the options of Swype input method.
Select Input Method
Touch to select the input method between Android keyboard and Swype.
How to Swype
Touch to view how to use the Swype.
Personal dictionary
Touch to open a list of the words you’ve added to the dictionary. Touch a word
to edit or delete it. Press the Menu key and touch Add to add a word.
Preferences
View and modify Swype options.
Language options
Touch to set the active languages.
Page 59
11.11 Voice input & output
11.11.1 Voice recogniser settings
Touch to set Google voice recognition items:
Language
SafeSearch
Block offensive
words
11.11.2 Text-to-speech settings
You use the Text-to-Speech settings to configure the Android text-to-speech
synthesizer, for applications like TalkBack that can take advantage of it.
If you don’t have speech synthesizer data installed, only the Install voice data
setting is available.
Listen to an example
Touch to play a brief sample of the speech synthesizer, using your current
settings.
Always use my settings
Mark the check box to use the settings on this screen in place of speech
synthesizer settings available in other applications.
Default Engine
Touch to set the speech synthesis engine to be used for spoken text.
(1)
Availability dependent on the country you're based in.
Choose an input language
Set Google Search safety range
Mark the check box to hide recognized offensive voice
results
(1)
115 116
Install voice data
If your phone does not have speech synthesizer data installed, connect
to Android Play Shop and find yourself guided through the process of
downloading and installing the data. This setting is not available if the data is
already installed.
Speech rate
Touch to open a dialog where you can select how quickly you want the
synthesizer to speak.
Language
Touch to open a dialog where you can select the language of the text you
want the synthesizer to read. This is particularly useful in combination with
Always Use My Settings, to ensure that text is spoken correctly in a variety of
applications.
11.12 Accessibility
(1)
You use the Accessibility settings to configure any accessibility plug-ins you
have installed on your phone.
Accessibility
Mark the check box to enable all installed accessibility plug-ins.
KickBack
Mark the check box to have the phone vibrate briefly as feedback as you
navigate the user interface, press buttons, and so on.
TalkBack
Mark the check box to have an installed speech synthesizer speak the labels or
names of items as you navigate the phone’s user interface.
(1)
Availability dependent on the country you're based in.
Page 60
SoundBack
Mark the check box to play a sound as you navigate to the phone’s user
interface.
Power button ends call
Mark the check box to end a call by pressing Power key during the call.
11.13 Date & time
Use Date & Time settings to customise your preferences for how date and time
are displayed.
Automatic
Mark the check box to use network-provided values. Or unmark to set all
values manually.
Set date
Touch to open a dialog where you can manually set the phone’s date.
Select time zone
Touch to open a dialog where you can set the phone’s time zone.
Set time
Opens a dialog where you can set the phone’s time.
Use 24-hour format
Mark the check box to display the time using 24-hour clock format.
11.14 About phone
Actually this contains information about a lot of things ranging from Legal
information, Model number, Firmware version, Baseband version, Kernel
version, Build number to those listed below:
System updates
Touch to check for system updates.
Status
This contains the status of the Battery charging level, My phone number,
Network, Signal strength, Mobile network type, Service state, Roaming, Mobile
network state, IMEI, IMEI SV, Wi-Fi MAC address, Bluetooth address, Up time.
Battery use
Touch to open a list of the applications and operating system components you
have used since you last connected the phone to a power source, sorted by
the amount of power they have used. Touch an application in the list to view
details about its power use and, if available, touch a button to open a settings
or information screen for that component or application.
Legal information
Touch to view legal information.
Select date format
Touch to open a dialog where you can select the format for displaying dates.
117 118
Page 61
12
Making the most of your
phone
12.1 FOTA Upgrade
Using FOTA Upgrade tool you can update your phone's software.
To access Firmware Upgrade Manager, please touch Menu key, then press
Settings/About phone/System updates. Touch Check for updates, and
the phone will search for the latest software. If you want to update the system,
please touch the button Download, after it done please touch Install to
complete the upgrade. Now your phone's software will have the latest version.
Press Settings and Help, and you can set Wi-Fi Only, Auto-check interval,
Reminder and Help.
If you have chosen auto-check, when the system discovers the new version,
the icon
Firmware Upgrade Manager directly.
will appear in the status bar. Touch the notification to access the
13
We recommend that you read this chapter carefully before using your cellphone.
The manufacturer disclaims any liability for damage, which may result as a
consequence of improper use or use contrary to the instructions contained herein.
TRAFFIC SAFETY:
Given that studies show that using a cellphone while driving a vehicle constitutes
a real risk, even when the hands-free kit is used (car kit, headset...), drivers are
requested to refrain from using their cellphone when the vehicle is not parked.
Check the laws and regulations on the use of wireless cellphones and their
accessories in the areas where you drive. Always obey them. The use of these
devices may be prohibited or restricted in certain areas.
When driving, do not use your cellphone and headphone to listen to music or to the
radio. Using a headphone can be dangerous and forbidden in some areas.
When switched on, your cellphone emits electromagnetic waves that can interfere
with the vehicle’s electronic systems such as ABS anti-lock brakes or airbags. To
ensure that there is no problem:
- do not place your cellphone on top of the dashboard or within an airbag
deployment area,
- check with your car dealer or the car manufacturer to make sure that the car’s
electronic devices are shielded from cellphone RF energy.
CONDITIONS OF USE:
You are advised to switch off the cellphone from time to time to optimize its
performance.
Remember to abide by local authority rules of cellphone use on aircrafts.
Operational Warnings: Obey all posted signs when using mobile devices in public
areas.
Follow Instructions to Avoid Interference Problems: Turn off your mobile device in
any location where posted notices instruct you to do so. In an aircraft, turn off your
mobile device whenever instructed to do so by airline staff. If your mobile device
offers an airplane mode or similar feature, consult airline staff about using it in flight.
Safety and use
119 120
Page 62
Switch the cellphone off when you are in health care facilities, except in designated
areas. As with many other types of equipment now in regular use, cellphones
can interfere with other electrical or electronic devices, or equipment using radio
frequency.
Switch the cellphone off when you are near gas or flammable liquids. Strictly obey
all signs and instructions posted in a fuel depot, gas station, or chemical plant, or in
any potentially explosive atmosphere.
When the cellphone is switched on, it should be kept at least 15 cm from any
medical device such as a pacemaker, a hearing aid or insulin pump. In particular
when using the cellphone you should hold it against the ear on the opposite side
to the device, if any.
Read and follow the directions from the manufacturer of your implantable medical
device. If you have any questions about using your mobile device with your
implantable medical device, consult your healthcare provider.
To avoid hearing impairment, answer the call before holding your cellphone to your
ear. Also move the handset away from your ear while using the “hands-free” option
because the amplified volume might cause hearing damage. It is recommended to
have proper supervision while small children use your cellphone.
When replacing the cover please note that your cellphone may contain substances
that could create an allergic reaction.
Always handle your cellphone with care and keep it in a clean and dust-free place.
Do not allow your cellphone to be exposed to adverse weather or environmental
conditions (moisture, humidity, rain, infiltration of liquids, dust, sea air, etc.). The
manufacturer’s recommended operating temperature range is -10°C (14°F) to
+55°C (131°F)(the max value depends on device, materials and housing paint/
texture).
Over 55°C (131°F) the legibility of the cellphone’s display may be impaired, though
this is temporary and not serious.
Do not open or attempt to repair your cellphone yourself.
Do not drop, throw or try to bend your cellphone.
Do not use the cellphone if the glass made screen, is damaged, cracked or broken
to avoid any injury.
Do not paint it.
Use only batteries, battery chargers, and accessories which are recommended by
Vodafone Limited and its affiliates and are compatible with your cellphone model.
Vodafone Limited and its affiliates disclaim any liability for damage caused by the
use of other chargers or batteries.
Your cellphone should not be disposed of in a municipal waste. Please check local
regulations for disposal of electronic products.
Remember to make back-up copies or keep a written record of all important
information stored in your cellphone.
Some people may suffer epileptic seizures or blackouts when exposed to flashing
lights, or when playing video games. These seizures or blackouts may occur even if
a person never had a previous seizure or blackout. If you have experienced seizures
or blackouts, or if you have a family history of such occurrences, please consult your
doctor before playing video games on your cellphone or enabling a flashing-lights
feature on your cellphone. Parents should monitor their children’s use of video
games or other features that incorporate flashing lights on the cellphones.
All persons should discontinue use and consult a doctor if any of the following
symptoms occur: convulsion, eye or muscle twitching, loss of awareness,
involuntary movements, or disorientation. To limit the likelihood of such symptoms,
please take the following safety precautions:
- Play at the farthest distance possible from the screen.
When you play games on your cellphone, you may experience occasional
discomfort in your hands, arms, shoulders, neck, or other parts of your body. Follow
these instructions to avoid problems such as tendinitis, carpal tunnel syndrome, or
other musculoskeletal disorders:
- Take a minimum of a 15-minute break every hour of game playing.
- If your hands, wrists, or arms become tired or sore while playing, stop and rest for
several hours before playing again.
- If you continue to have sore hands, wrists, or arms during or after playing, stop the
game and see a doctor.
Prolonged exposure to music at full volume using the music player may
damage your hearing. Set your cellphone’s volume to it’s lowest setting prior
to inserting headphones in your ears and adjust the volume to your
preference. Only use headphones that are recommended by Vodafone
Limited and it’s affiliates.
121 122
Page 63
PRIVACY:
Please note that you must respect the laws and regulations in force in your
jurisdiction or other jurisdiction(s) where you will use your cellphone regarding
taking photographs and recording sounds with your cellphone. Pursuant to such
laws and regulations, it may be strictly forbidden to take photographs and/or to
record the voices of other people or any of their personal attributes, and reproduce
or distribute them, as this may be considered to be an invasion of privacy.
It is the user’s sole responsibility to ensure that prior authorization be obtained,
if necessary, in order to record private or confidential conversations or take a
photograph of another person; the manufacturer, the seller or vendor of your
cellphone (including the operator) disclaim any liability which may result from the
improper use of the cellphone.
BATTERY AND ACCESSORIES:
Before removing the battery from your cellphone, please make sure that the
cellphone is switched off.
Observe the following precautions for battery use:
- Do not attempt to open the battery (due to the risk of toxic fumes and burns).
- Do not puncture, disassemble or cause a short-circuit in a battery,
- Do not burn or dispose of a used battery in the garbage or store it at temperatures above
60°C (140°F).
Batteries must be disposed of in accordance with locally applicable environmental
regulations. Only use the battery for the purpose for which it was designed. Never
use damaged batteries or those not recommended by TCT Mobile Limited and/or its
affiliates.
This symbol on your cellphone, the battery and the accessories means
that these products must be taken to collection points at the end of their
life:
- Municipal waste disposal centers with specific bins for these items of
equipment
- Collection bins at points of sale.
They will then be recycled, preventing substances being disposed of in the
environment, so that their components can be reused.
In European Union countries:
These collection points are accessible free of charge. All products with this sign
must be brought to these collection points.
123 124
In non European Union jurisdictions:
Items of equipment with this symbol are not be thrown into ordinary bins if your
jurisdiction or your region has suitable recycling and collection facilities; instead
they are to be taken to collection points for them to be recycled.
In the United States you may learn more about CTIA’s Recycling Program at www.
recyclewirelessphones.com
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
CHARGERS
Home A.C./ Travel chargers will operate within the temperature range of: 0°C (32°F) to
40°C (104°F).
The chargers designed for your cellphone meet with the standard for safety of
information technology equipment and office equipment use. Due to different
applicable electrical specifications, a charger you purchased in one jurisdiction may
not work in another jurisdiction. They should be used for this purpose only.
Characteristics of power supply (depending on the country):
Travel charger: Input: 100-240 V, 50/60 Hz, 0.15 A
Output: 5 V, 550/1000 mA
Battery: Lithium 1150 mAh
RADIO WAVES:
THIS CELLPHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO
RADIO WAVES.
Your cellphone is a radio transmitter and receiver. It is designed and manufactured
not to exceed the emission limits for exposure to radio-frequency (RF) energy.
These limits are part of comprehensive guidelines and establish permitted levels
of RF energy for the general population. The guidelines are based on standards
that were developed by independent scientific organizations through periodic and
thorough evaluation of scientific studies. These guidelines include a substantial
safety margin designed to ensure the safety of all persons, regardless of age and
health.
Page 64
The exposure standard for cellphones employs a unit of measurement known as
the Specific Absorption Rate, or SAR. The SAR limit set by public authorities such
as the Federal Communications Commission of the US Government (FCC), or by
Industry Canada, is 1.6 W/kg averaged over 1 gram of body tissue. Tests for SAR are
conducted using standard operating positions with the cellphone transmitting at its
highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified power level, the actual SAR
level of the cellphone while operating can be well below the maximum value. This
is because the cellphone is designed to operate at multiple power levels so as to
use only the power required to reach the network. In general, the closer you are to a
wireless base station antenna, the lower the power output of the cellphone.
Before a cellphone model is available for sale to the public, compliance with
national regulations and standards must be shown.
The highest SAR value for this model cellphone when tested is 0.753 W/Kg for use
at the ear and 0.872 W/Kg for use close to the body.
While there may be differences between the SAR levels of various cellphones and
at various positions, they all meet the government requirement for RF exposure. For
body-worn operation, the cellphone meets FCC RF exposure guidelines provided
that it is used with a non-metallic accessory with the handset at least 10 mm
from the body. Use of other accessories may not ensure compliance with FCC RF
exposure guidelines.
Additional information on SAR can be found on the Cellular Telecommunications &
Internet Association (CTIA) Web site: http://www.phonefacts.net
The World Health Organization (WHO) considers that present scientific information
does not indicate the need for any special precautions for use of cellphones. If
individuals are concerned, they might choose to limit their own or their children’s
RF exposure by limiting the length of calls, or using “hands-free” devices to keep
cellphones away from the head and body. (fact sheet n°193). Additional WHO
information about electromagnetic fields and public health are available on the
following website: http://www.who.int/peh-emf.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
For the receiver devices associated with the operation of a licensed radio service
(e.g. FM broadcast), they bear the following statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
condition that this device does not cause harmful interference.
For other devices, they bear the following statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Your cellphone is equipped with a built-in antenna. For optimal operation, you
should avoid touching it or degrading it.
As mobile devices offer a range of functions, they can be used in positions other
than against your ear. In such circumstances the device will be compliant with
the guidelines when used with headset or usb data cable. If you are using another
accessory ensure that whatever product is used is free of any metal and that it
positions the cellphone at least 10 mm away from the body.
125 126
Page 65
14
Telephone warranty
WARRANTY TERMS AND CONDITIONS
1. Vodafone undertakes the warranty of this Mobile Phone for a period of two (2)
years from the date of Purchase by the original owner (not transferable) under
normal use.
2. The Battery has a limited warranty for twelve (12) months, and Charger for
twenty-four (24) months against manufacturing defects. Other accessories have
a limited warranty for twenty-four (24) months against manufacturing defects.
3. This Warranty does not cover damage resulting from;
a) Normal wear & tear of the equipment;
b) Defects and damages due to the equipment being used other than its normal
and customary manner;
c) An unauthorized disassembly, repair, alteration or modification being carried
out;
d) Misuse, abuse, negligence or accident howsoever caused;
e) Defects or damage arising from improper testing, operation, maintenance,
installation, or any alteration or modification;
f) Defects or damage due to spillage of food or liquids, corrosion, rust or the use
of wrong voltage;
g) Scratches or damage to plastic surfaces and all other externally exposed parts
that are due to normal customer use;
4. The Handset requiring service/repair must be delivered at the user’s cost.
5. This warranty will be null and void in any of the following events:
a) If the serial number or warranty seal on the equipment has been defaced or
removed.
b) If any term contained in this warranty has been altered or modified in any way
without prior written consent of Vodafone.
6. The limited warranty extends only to customer who purchase the product in one of the
countries (or areas) set forth at the end of this document. The limited warranty is only
valid in Vodafone’s intended country (or area) of sale of the Product.
7. If the product is returned to Vodafone after the expiration of the warranty period,
Vodafone’s normal service policies shall apply and the Consumer will be charged
accordingly.
a) Vodafone neither assumes for it any other obligation or liability beyond that
which is expressly provided for in this limited warranty.
b) All warranty information, product features and specifications are subject to
change without notice.
8. THIS WARRANTY IS IN LIEU OF ANY AND OTHER WARRANTIES EXPRESSED OR IMPLIED,
SPECIFICALLY INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILlTY OR FITNESS
FOR A PARTICULAR PURPOSE. VODAFONE ASSUMES NO LIABILITY FOR THE BREACH OF
THE WARRANTY BEYOND CORRECTING THE BREACH IN THE MANNER DESCRIBED
ABOVE. IN NO EVENT SHALL VODAFONE BE LIABLE FOR CONSEQUENCES.
127 128
Page 66
15

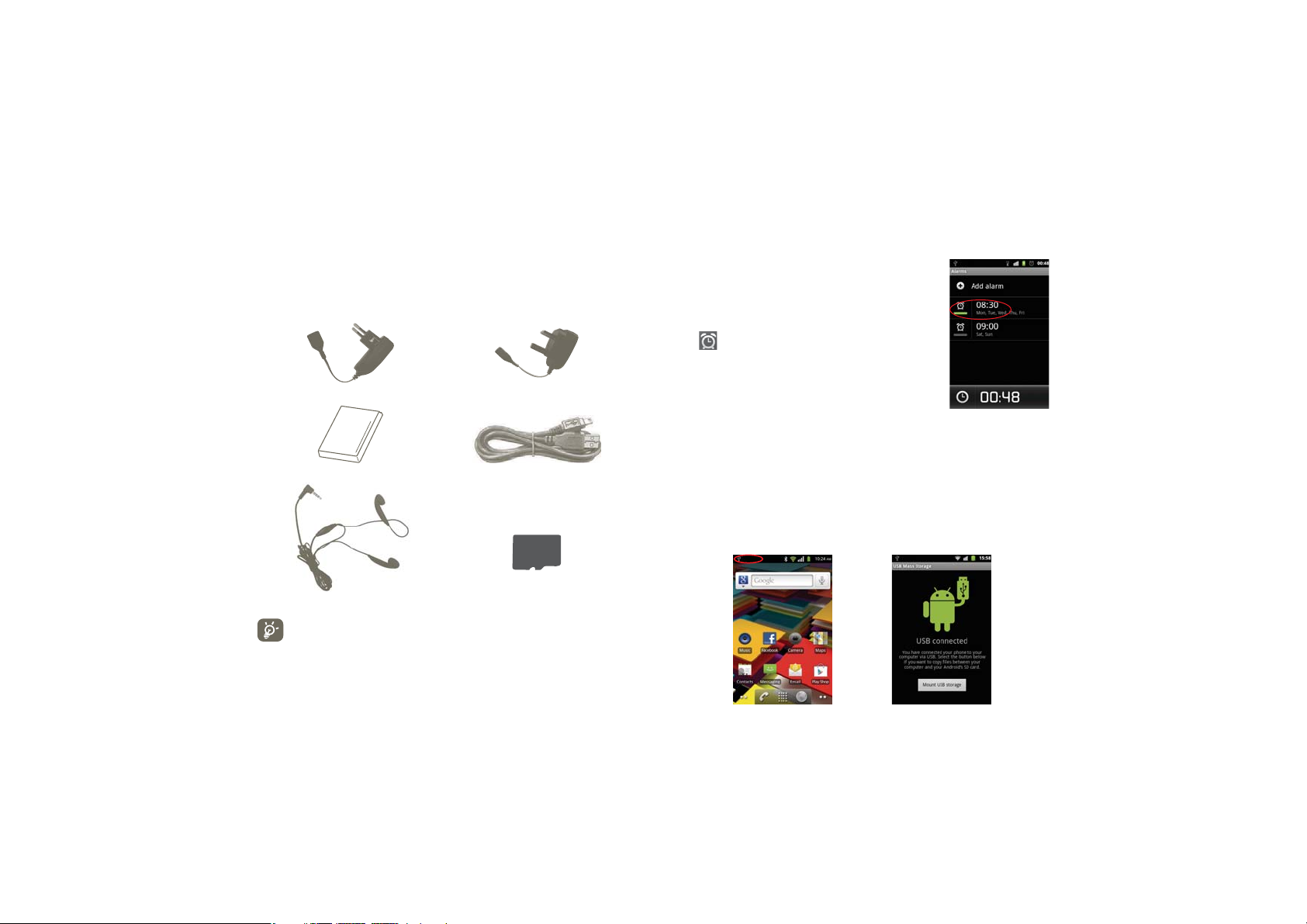

Accessories
(1)
16
Troubleshooting
The latest generation of Vodafone GSM mobile phones offers a built-in handsfree
feature that allows you to use the telephone from a distance, placed on a table
for example. For those who prefer to keep their conversations confidential, an
earpiece is also available known as the headset.
Standard charger UK charger
Battery USB cable
Stereo headset microSD card
Only use your telephone with the batteries, chargers and accessories
in your box.
(1)
Pictures for reference only.
129 130
Q1. Why does my alarm not work?
Firstly, please be noted that the alarm does not work in
power off mode.
Secondly, please remember to check the bar under the
is green after you finish editing your alarm. If
icon
the bar under the Icon is not green, means the alarm is
not activated. When the bar under the icon is green, the
alarm is activated successfully.
Q2. Why couldn’t I see the SD card on PC?
1. Please make sure your SD card is undamaged and can be recognized by
your handset.
2. Please make sure the correct USB cable for Vodafone Smart II is used.
3. When you connect the handset to PC, you’ll get the notification of USB
connected. Please press Turn on USB storage, and then you can access
your SD card on PC.
Page 67

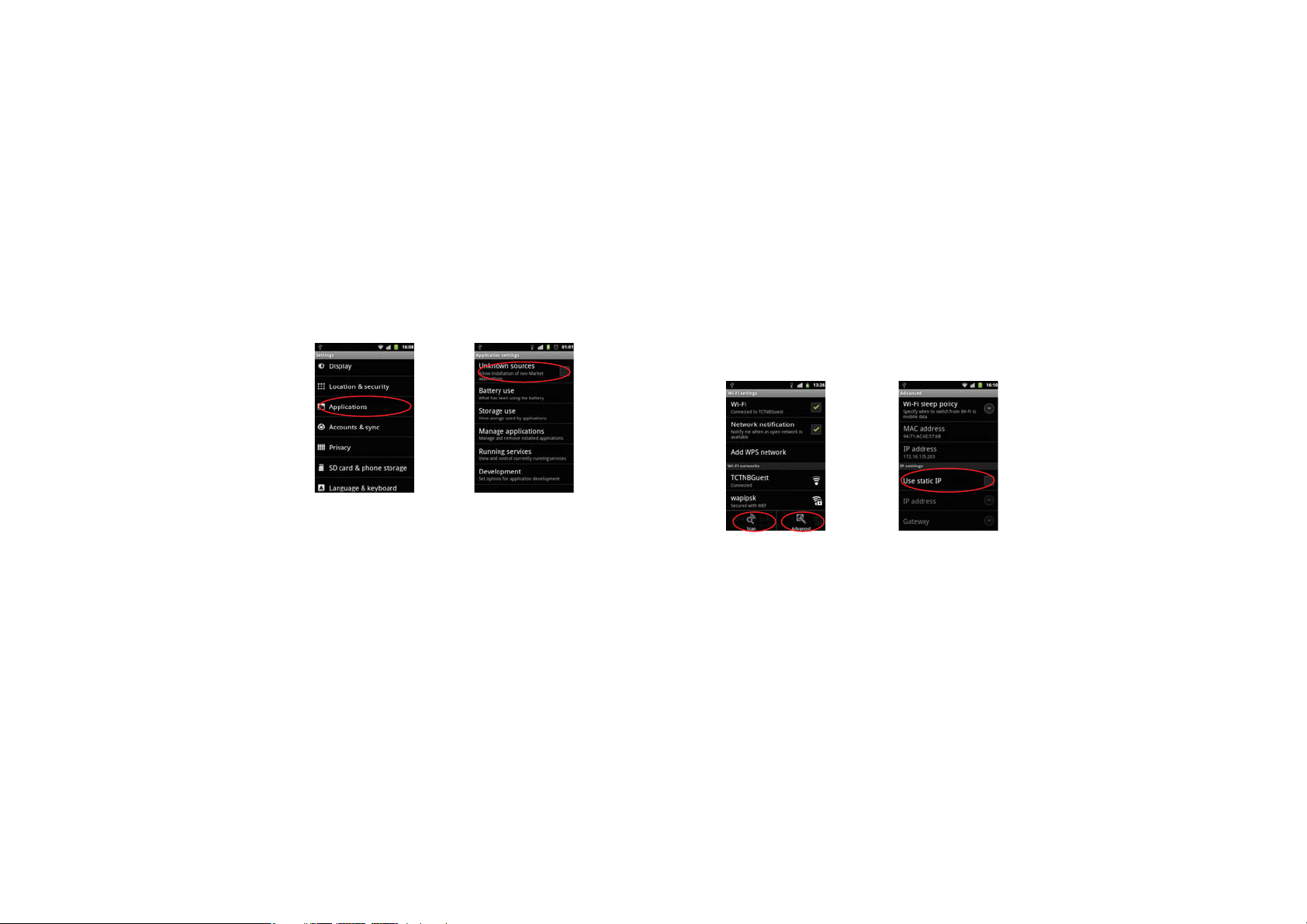

Q3. How can I install applications such as tools and games?
APK (Android Package) file is the installation file for Android phone, which can
be downloaded from Google Play Shop or other websites. Please copy APK
files to the SD card and use the built-in File Manager program to open it, then
follow the setup wizard to finish the installation.
Please note that the third-party APK files, downloaded from other websites
than Google Play Shop, are not allowed to be installed by default due to
security reason. You can change the setting by the following the procedures:
Settings->Applications, then activate Unknown sources option.
Q5. How can I connect to Wi-Fi?
Please press Menu key at home screen -> Settings -> Wireless & networks
-> Turn on Wi-Fi -> Press Wi-Fi settings -> Select Network notification ->
press Menu key -> Scan -> The available Wi-Fi networks will be listed.
Press the network which you want to connect. If the connection is successful,
the Wi-Fi icon will be shown on the top of the status bar, near the antenna
signal icon.
Please be noted that the Wi-Fi function could fail if static IP is activated.
You can deactivate Use static IP by pressing Menu key at home screen ->
Settings -> Wireless & networks -> Turn on Wi-Fi -> Press Wi-Fi settings ->
press Menu key -> Advanced ->deactivate Use static IP.
Q4. How can I uninstall the applications?
The built-in applications in the handset are not allowed to be uninstalled. You
can only uninstall the applications installed by yourself.
Please press Menu key at home screen->Settings>Applications>Manage
applications>Downloaded, then you can see the applications installed
by yourself. Please click the one that you want to uninstall and follow the
uninstall process.
131 132
Q6. Handset cannot power on or power on with strange behavior, such as
can not charge, charge abnormally, unlock the screen when you forget
the screen unlock pattern, and etc …
You can initiate a master reboot to the handset following steps as described:
Power off the handset; long press Volume Up key + Power On in power off
mode at the same time for a few seconds until you see the reset interface.
After reset you can use mobile normally.
Please note that user data format will erase all data from your phone (not
include SD card files and current system software).
Page 68
Q7. Why is there a notification of connection error or certificates error
when I use mail or social network applications?
If the time or time zone is not correctly set, the phone might have connection
error or certificates error when you use the above applications. Please set your
handset’s time to the correct local time including time zone, date and time.
17
Processor
Platform
Memory
Dimensions (LxWxT)
Weight
Display
Network
GPS
Connectivity
Camera
Specifications
Broadcom® 21552™
Android™ 2.3
ROM: 512 MB
RAM: 512 MB
109×58×12.35 mm
Around 144 grams with battery
3.2-inch TFT-LCD touchscreen with 320×480
HVGA resolution
UMTS:
Dual-band 900/2100 MHz
GSM/GPRS/EDGE:
Quad-band 850/900/1800/1900 MHz
(Band frequency and data speed are operator
dependent.)
Assisted GPS/Internal GPS antenna
Bluetooth
Wi-Fi
3.5 mm audio jack
Micro-USB
3.2 megapixel color camera
®
V3.0+EDR
®
: IEEE 802.11 b/g/n
133 134
Page 69
135
CJB6050VDAAA
Note Specifications are subject to change without prior notice.
Special Features
G-sensor
E-Compass
Light and proximity sensor
Expansion Slot
Capacity: 1150 mAh
microSD™ memory card
(Availability of microSD card depends on market)
Battery
Rechargeable Lithium-ion battery
Video supported
formats
H.263, H.264, MPEG4
Audio supported
formats
AAC, AAC+, AAC Enhanced, WB AMR, MP3, Midi
Loading...
