Your cellphone
1
..............
Keys and connectors1.1
Status bar icons1.2.1
(1)
Battery charge level
Vibrate alert: your cellphone vibrates, but does not ring
or beep with the exception of the alarm.
Bluetooth status (Activated).
Bluetooth status (Connected to an audio device).
Java status (Activated).
Headset connected.
Call forwarding activated: your calls are forwarded.
Alarm or appointments programmed.
Level of network reception.
Wi-Fi connected
(2)
.
Wi-Fi disconnected
(2)
.
Voicemail message arrived.
Missed calls.
Call in progress.
Stopwatch is active.
Radio is on.
Email unread.
WAP messages
(1)
.
Roaming.
SD card scanning in progress.
SD card scanning completed.
SIM card unavailable.
Line switching
(1)
: indicates the selected line.
GPRS connection status (Activated).
GPRS connecting.
EDGE connecting.
EDGE attached.
2G network available.
3G network available.
Music player active.
MMS receipt in progress.
Sending a SMS.
Sending a MMS.
Silence mode: your cellphone does not ring, beep or
vibrate with the exception of the alarm.
SMS unread.
MMS unread.
(Flickering) Message list is full: your cellphone cannot
accept any new messages. You must access the message
list and delete at least one message on your SIM card.
Flight mode.
Status list1.2.2
Touch the status bar and drag down to open, drag up to close.
To open an application, touch it from the list.
Toolbar1.2.3
Toolbar with 4 fixed shortcuts to access Main menu, Calls,
Message, Edit Home screen.
Personalize your home screen1.2.4
Adding items
To add an item, touch and hold an empty area of the Home screen or
select
from the toolbar.
Add shortcuts• To add a shortcut to the Home screen, such as
Alarm, Bookmarks, Contacts, etc.
Add widgets• To add a widget to the Home screen, such as the
World clock, Music player, etc.
Editing/Removing/Re-organizing items
Press and hold the application on the Home screen to edit/remove/
re-organize it, touch
to edit (only for my favorites), touch
to remove. Touch and hold the application and drag it to the location
you desire, and then confirm by touching "Done".
Customizing wallpaper
To personalize your wallpaper, you can select one of the following
two ways:
Touch and hold an empty area from the Home screen, select •
"Wallpaper", then touch a folder to select an image as your
wallpaper.
Touch •
from the tool bar, select "Wallpaper", then touch a
folder to select an image as your wallpaper.
Getting started
2
...........
Set-up2.1
Removing or installing the back cover
Inserting or removing the SIM card
You must insert your SIM card to make phone calls. Please power
off your cellphone and remove battery before inserting or removing
the SIM card.
Place the SIM card with the chip facing downwards and slide it into its
housing. Make sure that it is correctly inserted. To remove the card,
press and slide it out.
Installing or removing the battery
Insert and click the battery into place, then close the cellphone •
cover.
Unclip the cover, then remove the battery.•
Charging the battery
Connect the battery charger to your cellphone and outlet
respectively.
To reduce power consumption and energy waste, when
battery is fully charged, disconnect your charger from
the plug; switch off Wi-Fi
(1)
, Bluetooth or backgroundrunning applications when not in use; reduce the backlight
time, etc.
Power on your cellphone2.2
Hold down the key until the cellphone powers on.
Power off your cellphone2.3
Hold down the key from the Home screen.
Using the touchscreen2.4
Touch
To access an application, touch it with your
finger.
Drag
Place your finger on the screen to drag the
object to the destination.
Scroll
Slide the screen to scroll up and down the
applications, images, web pages... at your
convenience.
Making a call
3
................
To place a call, you may touch from tool bar.
Enter the desired number on the on-screen keypad directly or
select a contact from Call log or Contacts by touching
or
respectively, then touch or press key to place the call.
The number you entered can be saved to Contacts by selecting
. If you make a mistake, you can delete the incorrect digits
by touching .
To hang up the call, press the
key.
When making, receiving or during a call, press to
return to the middle Home screen, and then touch
or press to retrieve the call.
Muting the ringtone
You may mute ringtone of current incoming call by touching
.
Answer the call by pressing the
key.
Rejecting a call
Press the
key once to reject the call, or reject call with SMS
by touching .
Message
4
................
Access4.1
You may access this menu using the following options:
- Touch
to enter the main menu screen, and then select .
- Access from tool bar by selecting
.
Conversational On (Off) mode4.2
In conversational on mode, you can view chat history in chronological
order. In conversational off mode, you can access the following folders:
Inbox, Outbox, Sent, Broadcast SMS, Voicemail, Drafts, etc.
You can switch between these two modes by selecting "Switch view
mode" via . Conversational on mode is set as the default mode and
the following instructions are based on this mode.
Write message4.3
Touch to create text/multimedia messages. Specific letters (accent)
will increase the size of the SMS, this may cause multiple SMS to be
sent to your recipient.
An SMS will be converted to MMS automatically when: images, videos,
audio, slides or attachments are inserted; Subject, CC/BCC/email
address is added; or the message contains more than 8 pages of text.
Timer send
Schedule an SMS/MMS to be sent out at predefined time (select
"Timer send" via
).
Email
5
......................
Your cellphone has an email client with the settings predefined for a
few popular email services like – GoogleMail, Yahoo, AOL, etc. Besides
this, you can set up other POP3 or IMAP4 email accounts that you
may be using.
Palringo
6
(1)
................
Palringo Instant message (IM) allows you to chat with other people
using Palringo account. You can also connect to other popular IM
services through Palringo, like Yahoo, AIM, GG, ICQ, GTalk, iChat etc.
Please note that the services accessible to you will depend on your
client version and dynamic Palringo server options.
Contacts
7
.................
Consulting your Contacts7.1
To access the Contacts, touch from tool bar to enter the main
menu, and select "Contacts".
Adding a contact7.2
You can add a new contact by touching .
Birthday reminder
You can set a birthday reminder when editing contact information.
This will remind you at regular intervals during the day prior to the
set date.
Importing, exporting and sharing 7.3
contacts
From the cellphone contacts screen, select "More" via and touch
"Import from SIM card" or "Export to SIM card".
From the SIM contacts screen, select "More" via
and touch "Copy
to phone".
From a detailed Contact view screen, you can share the contact
information with others by selecting "Share contact" via
and then
send it by Bluetooth, MMS, Email, etc.
Call log
8
...................
Access8.1
You may access this function from the main menu “Call log” or by
pressing from the Home screen.
Available options8.2
When you touch , you may have access to Delete, Send
message, Save to Contacts, Edit before call, etc.
Billing8.2.1
(1)
You can access different items with this option: Last call cost, Total
cost, Max cost, Reset cost, Price per unit, Duration, GPRS
counter, Beep duration.
Call settings 8.2.2
(1)
You can access a number of items with this option: Call waiting,
Call forwarding, Call barring, Caller ID, Line switching, Auto
redial, etc.
Media applications
9
........
Music player9.1 .................................
To access this function, touch to enter the main menu and select
. You will have full flexibility of managing music both on your
cellphone and SD card.
Image viewer9.2 ..............................
A library links to the images in “My creations” in cellphone to be
shown in list, slide, or thumbnail, set as Wallpaper, Power on/off
display, and Contact ID, or sent by MMS, Email, Bluetooth.
Video player9.3 .................................
“My videos” album contains video clips recorded, received or
downloaded. All video clips in this folder can be played, set as Power
on/off display, sent, deleted, renamed, sorted.
Radio9.4 .............................................
Your cellphone is equipped with a radio
(1)
with RDS
(2)
functionality. You
can use the application as a traditional radio with saved channels or with
parallel visual information related to the radio program on the display
if you tune to stations that offer Visual Radio service. You can listen to
it while running other applications.
Internet
10
(3)
..................
Opera10.1 ............................................
Not only does Opera Mini give you the full Web experience where
you stay in touch with your friends, obtain information, do your online
banking etc., but it is also designed to save time by using compressed
web pages.
Wap10.2 .............................................
Access Wap options: Homepage, Bookmarks, Go to URL, Last
web address, Recent pages, Offline pages, Service inbox,
Settings.
News10.3 .............................................
It is a huge time saver providing news updates from a website in a
simple form. Once subscribed to a channel, it gives you the ability to
track and manage all your favorite RSS content on your cellphone at
anytime, anywhere!
Weather10.4 ......................................
Your cellphone is equipped with a weather function for consulting up
to 3-day forecasts of favorite cities.
Facebook10.5 ......................................
Facebook is a social utility that connects people with friends and
others who work, study and live around them. It provides a number
of features with which users may interact: Wall, a space on every
user's profile page that allows friends to post messages for the user to
see; Pokes, which allow users to send a virtual “poke” to each other;
Gifts, a feature allowing users to send virtual gifts which appear on the
recipient’s profile; Market places, which lets users post free classified
goods, etc.
To open an account online, please go to: http://www.facebook.com/.
mTweet10.6 .........................................
Twitter is a social networking and microblogging service that has gained
notability and popularity worldwide. This feature enables cellphone
users to exchange news updates and ideas with a community in the
form of messages or posts. Posts are displayed on the author's profile
page and delivered to the author's subscribers or followers.
To open an account online, please go to: http://twitter.com/.
English - CJB31H1ALAAA
Java11.3 ...............................................
Your Alcatel cellphone may include
(1)
some Java™ applications and
games. You can also download new applications and games to your
cellphone.
Camera
12
.............
Your cellphone is fitted with a camera for taking photos and shooting
videos that you can use in different ways:
store them in your “• File manager\My creations”.
send them in a multimedia message (MMS) to a cellphone or an •
email address.
send them directly by Email or Bluetooth.•
customize your Home screen.•
select them as incoming call image to a contact in your contacts.•
transfer them by data cable or microSD card to your computer.•
upload them directly to an available SNS •
(2)
(Social network service).
Answer/Send a call•
Enter Call log•
Press to light up the cellphone screen•
Press: End a call•
Lock the screen
Return to the previous Home screen
Press to light up the cellphone screen
Press and hold: Power on/off•
Press to return to the middle Home screen•
Press to light up the cellphone screen•
Volume up/down•
Zoom in/out•
Scroll up/down•
Press to light up the cellphone screen•
(1)
The icons and illustrations in this guide are provided for information
purposes only.
(2)
Depending on your model.
(1)
Depending on your network operator.
(1)
Depending on your network operator.
(1)
Contact your network operator to check service availability.
(1)
The quality of the radio depends on the coverage of the radio station in
that particular area.
(2)
Depending on your network operator and market.
(3)
Depending on your network operator. May cause additional network
charges for data flow to provide this service. Extra fees might also be
charged in roaming states.
(1)
Depending on your network operator.
(2)
Depending on your model.
(1)
Depending on your model.
Prolonged exposure to music at full volume on the music player
may damage the listener's hearing. Set your cellphone volume
safely. Use only headphones recommended by TCT Mobile
Limited and its affiliates.

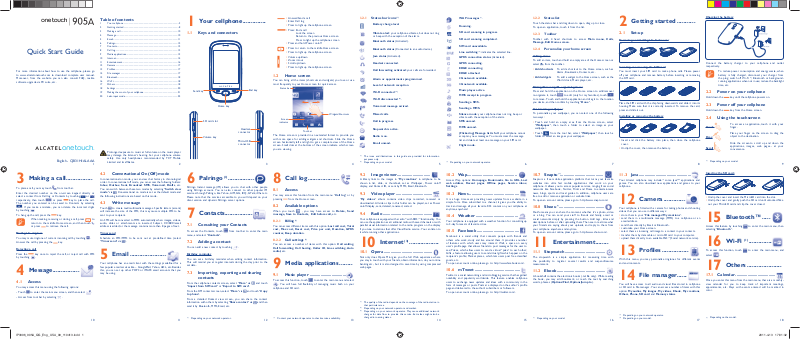

Quick Start Guide
For more information about how to use the cellphone, please go
to www.alcatelonetouch.com to download complete user manual.
Moreover, from the website you can also consult FAQ, realize
software upgrade via PC suite, etc.
Table of contents
1 Your cellphone ................................................................................................... 3
2 Getting started ................................................................................................... 8
3 Making a call ...................................................................................................... 10
4 Message ..............................................................................................................10
5 Email .................................................................................................................... 11
6 Palringo ............................................................................................................... 12
7 Contacts ............................................................................................................. 12
8 Call log ................................................................................................................ 13
9 Media applications ............................................................................................13
10 Internet ...............................................................................................................14
11 Entertainment ................................................................................................... 16
12 Camera ............................................................................................................... 17
13 Profiles ................................................................................................................ 17
14 File manager ...................................................................................................... 17
15 Bluetooth ........................................................................................................... 18
16 Wi-Fi ................................................................................................................... 18
17 Others ................................................................................................................18
18 Settings ...............................................................................................................20
19 Making the most of your cellphone ............................................................21
20 Latin input mode .............................................................................................. 22
A
Headset
connector
Micro-USB
connector
SD card slot
Volume key
End key
Send key
Home key
Home screen1.2
You can bring all the items (shortcuts and widgets) you love or use
most frequently to your Home screen for quick access.
Status bar
Screen
indicator
Tool bar
Widgets/Shortcuts
The Home screen is provided in an extended format to provide you
with more space for adding widgets and shortcuts. Slide the Home
screen horizontally left and right to get a complete view of the Home
screen. Small dots at the bottom of the screen indicate which screen
you are viewing.
Snaptu10.7
(1)
.......................................
Snaptu is a free mobile application platform that turns your favorite
websites into ultra fast mobile applications that work on your
cellphone. It allows you to access popular services, ranging from social
networks like Facebook, Twitter, Flickr and Picasa to entertainment
news, blogs, sports and local guides. In addition, cellphone users are
free to add or remove application or website links.
To open an account online, please go to: http://www.snaptu.com/.
Shozu10.8
(1)
.........................................
ShoZu means you can share the moment, whether it's a photo, video
or a blog. You can send your stuff to friends and family, email or
social networks simply by pressing the button. Add tags, titles and
descriptions before or after uploading them. Then see in real time what
your friends are saying about your uploads, and reply to them from
your cellphone anywhere and anytime.
To open an account online, please go to: http://www.shozu.com/.
Entertainment
11
........
Stopwatch11.1 .....................................
The stopwatch is a simple application for measuring time with
the possibility to register several results and suspend/resume
measurement.
Ebook11.2 ............................................
A bookshelf contains the electronic books (.txt file only). While reading
the book, you may add bookmark, or reach the text by searching
words, phrases (Options\Find, Options\Jump to).
Inserting the SD card:
Unclip the cover and insert the MicroSD card into the slot.•
Unclip the cover and gently push the SD card until unlocked.Take •
out your MicroSD card and clip the cover closed.
Bluetooth™
15
.....
Access this feature by touching to enter the main menu, then
selecting “Bluetooth”.
Wi-Fi
16
(1)
..............
To access this function, touch to enter the main menu, and
select
.
Others
17
.....................
Calendar17.1 ....................................
Once you enter this menu from the main menu, there is a monthlyview calendar for you to keep track of important meetings,
appointments, etc. Days with events entered will be marked in
color.
(1)
Depending on the model.
Profiles
13
................
With this menu, you may personalize ringtones for different events
and environments.
File manager
14
......
You will have access to all audio and visual files stored in cellphone
or SD card in File manager. You can access a number of items with this
option: My audios, My images, My videos, Ebook, My creations,
Others, Phone, SD card and Memory status.
(1)
Depending on your model.
IP3396_905A_QG_Eng_USA_09_110413.indd 1IP3396_905A_QG_Eng_USA_09_110413.indd 1 2011-4-13 17:01:322011-4-13 17:01:32
19
28
20
29
21
30
22
31
23
32
24
33
25
34
26 27
3635
Calculator17.2 ...................................
Access this feature by selecting “Calculator” from the main menu.
Enter a number, select the type of operation to be performed, and
enter the second number, then press “=” to display the result.
Notes17.3 ...........................................
You can create a note in text or voice format by accessing “Notes”
from the main menu.
Tasks17.4 ...........................................
Enables you to easily manage and track the progress of a task with
priorities. All the tasks will be sorted by due date.
Clock17.5 ...........................................
Alarm17.5.1
Your cellphone has a built-in alarm clock with a snooze feature.
World clock17.5.2
The World clock shows current local time and the time zone in
different cities.
Date and time17.5.3
Allows you to have settings of date and time, including 12/24h
format.
Converter17.6 ...................................
You can use the Weight and Length conversion by selecting the unit
you wish to convert via , then touch to input the digits. Finally
confirm with “√”.
Settings
18
..............
From the main menu, select the menu icon and select the function
of your choice in order to customize your cellphone: Phone settings,
Call settings, Security, Network, Connectivity.
Touch settings
LCD touch •
calibration
To calibrate the touch screen, touch
anywhere on the screen to start calibration.
Touch vibration• When “On”, the cellphone vibrates when
the screen is touched.
Screen lock during call
Select “On”/“Off” to activate/deactivate screen lock during call.
Service selection
(1)
GSM/GPRS• Only GSM/GPRS network service is available.
WCDMA• Only WCDMA network service is available.
Dual mode• Both GSM/GPRS and WCDMA network service
are available, with priority to WCDMA.
network. In general, the closer you are to a wireless base station antenna,
the lower the power output of the cellphone. Before a cellphone model
is available for sale to the public, compliance with national regulations and
standards must be shown.
The highest SAR value for this model cellphone when tested is 1.23 W/Kg
for use at the ear and 1.04 W/Kg, for use close to the body.
While there may be differences between the SAR levels of various cellphones
and at various positions, they all meet the government requirement for RF
exposure. For body-worn operation, the cellphone meets FCC RF exposure
guidelines provided that it is used with a non-metallic accessory with the
handset at least 1.5 cm from the body. Use of other accessories may not
ensure compliance with FCC RF exposure guidelines.
Additional information on SAR can be found on the Cellular
Telecommunications & Internet Association (CTIA) Web site: http://www.
phonefacts.net
The World Health Organization (WHO) considers that present scientific
information does not indicate the need for any special precautions for use
of cellphones. If individuals are concerned, they might choose to limit their
own or their children’s RF exposure by limiting the length of calls, or using
“hands-free” devices to keep cellphones away from the head and body.
(fact sheet n°193). Additional WHO information about electromagnetic
fields and public health are available on the following website: http://www.
who.int/peh-emf.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference to radio
or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
For the receiver devices associated with the operation of a licensed radio
service (e.g. FM broadcast), they bear the following statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the condition that this device does not cause harmful interference.
For other devices, they bear the following statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
In European Union countries:
These collection points are accessible free of charge. All products with this
sign must be brought to these collection points.
In non European Union jurisdictions:
Items of equipment with this symbol are not be thrown into ordinary bins if
your jurisdiction or your region has suitable recycling and collection facilities;
instead they are to be taken to collection points for them to be recycled.
In the United States you may learn more about CTIA’s Recycling Program
at www.recyclewirelessphones.com
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO
THE INSTRUCTIONS
• CHARGERS
Home A.C./ Travel chargers will operate within the temperature range of:
0°C (32°F) to 40°C (104°F).
The chargers designed for your cellphone meet with the standard for
safety of information technology equipment and office equipment use. Due
to different applicable electrical specifications, a charger you purchased in
one jurisdiction may not work in another jurisdiction. They should be used
for this purpose only.
Characteristics of power supply (depending on the country):
Travel charger: Input: 100-240 V, 50/60 Hz, 0.15 A
Output: 5 V, 400/550 mA
Battery: Lithium 850 mAh
• RADIO WAVES:
THIS CELLPHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR
EXPOSURE TO RADIO WAVES.
Your cellphone is a radio transmitter and receiver. It is designed and
manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy. These limits are part of comprehensive guidelines
and establish permitted levels of RF energy for the general population. The
guidelines are based on standards that were developed by independent
scientific organizations through periodic and thorough evaluation of
scientific studies. These guidelines include a substantial safety margin
designed to ensure the safety of all persons, regardless of age and health.
The exposure standard for cellphones employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit set by public
authorities such as the Federal Communications Commission of the US
Government (FCC), or by Industry Canada, is 1.6 W/kg averaged over 1
gram of body tissue. Tests for SAR are conducted using standard operating
positions with the cellphone transmitting at its highest certified power level
in all tested frequency bands.
Although the SAR is determined at the highest certified power level, the
actual SAR level of the cellphone while operating can be well below the
maximum value. This is because the cellphone is designed to operate at
multiple power levels so as to use only the power required to reach the
Read and follow the directions from the manufacturer of your implantable
medical device. If you have any questions about using your mobile device with
your implantable medical device, consult your healthcare provider.
To avoid hearing impairment, answer the call before holding your cellphone to
your ear. Also move the handset away from your ear while using the “handsfree” option because the amplified volume might cause hearing damage.
It is recommended to have proper supervision while small children use your cellphone.
When replacing the cover please note that your cellphone may contain
substances that could create an allergic reaction.
Always handle your cellphone with care and keep it in a clean and dust-free place.
Do not allow your cellphone to be exposed to adverse weather or
environmental conditions (moisture, humidity, rain, infiltration of liquids, dust,
sea air, etc.). The manufacturer’s recommended operating temperature range
is -10°C (14°F) to +55°C (131°F) (the max value depends on device, materials
and housing paint/texture).
Over 55°C (131°F) the legibility of the cellphone’s display may be impaired,
though this is temporary and not serious.
Do not open or attempt to repair your cellphone yourself.
Do not drop, throw or try to bend your cellphone.
Do not paint it.
Use only batteries, battery chargers, and accessories which are recommended
by TCT Mobile Limited and its affiliates and are compatible with your cellphone
model.TCT Mobile Limited and its affiliates disclaim any liability for damage
caused by the use of other chargers or batteries.
Your cellphone should not be disposed of in a municipal waste. Please check
local regulations for disposal of electronic products.
Remember to make back-up copies or keep a written record of all important
information stored in your cellphone.
Some people may suffer epileptic seizures or blackouts when exposed to
flashing lights, or when playing video games. These seizures or blackouts may
occur even if a person never had a previous seizure or blackout. If you have
experienced seizures or blackouts, or if you have a family history of such
occurrences, please consult your doctor before playing video games on your
cellphone or enabling a flashing-lights feature on your cellphone. Parents should
monitor their children’s use of video games or other features that incorporate
flashing lights on the cellphones. All persons should discontinue use and consult
a doctor if any of the following symptoms occur: convulsion, eye or muscle
twitching, loss of awareness, involuntary movements, or disorientation. To limit
the likelihood of such symptoms, please take the following safety precautions:
- Play at the farthest distance possible from the screen.
When you play games on your cellphone, you may experience occasional
discomfort in your hands, arms, shoulders, neck, or other parts of your body.
Follow these instructions to avoid problems such as tendinitis, carpal tunnel
syndrome, or other musculoskeletal disorders:
Making the most of
19
your cellphone ..........
PC suite
You can download software upgrade for free from the website. The
PC suite includes:
Backup/restore•
You can backup the important data in your cellphone and restore
them when needed.
3G (WCDMA)/EDGE/GPRS modem•
Use your cellphone to connect PC to the internet.
Multimedia Personalization•
Customize your cellphone with images, animations and melodies.
Message•
You can compose SMS/MMS easily on your PC and transfer them to
your cellphone.
Supported Operating Systems
Windows 2000/XP/Vista/Windows 7.
One Touch Upgrade
Using One Touch Upgrade tool you can update your cellphone’s
software from your PC.
Download One Touch Upgrade from ALCATEL website (www.
alcatelonetouch.com) and install it on your PC. Launch the tool and
update your cellphone by following the step by step instructions (refer
to the User Guide provided together with the tool). Your cellphone’s
software will now have the latest software.
All personal information will be permanently lost following
the update process. We recommend you backup your
personal data using PC Suite before upgrading.
(1) this device may not cause harmful interference
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Your cellphone is equipped with a built-in antenna. For optimal operation, you
should avoid touching it or degrading it.
As mobile devices offer a range of functions, they can be used in positions
other than against your ear. In such circumstances the device will be compliant
with the guidelines when used with headset or usb data cable. If you are using
another accessory ensure that whatever product is used is free of any metal
and that it positions the cellphone at least 1.5 cm away from the body.
LICENCES •
Obigo® is a registered trademark of Obigo AB.
microSD Logo is a trademark.
The Bluetooth word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by TCT
Mobile Limited and its affiliates is under license. Other
trademarks and trade names are those of their respective
owners.
one touch 905A Bluetooth QD ID B017652
TouchPal™ and CooTek™ are trademarks of Shanghai
HanXiang (CooTek) Information Technology Co., Ltd.
and/or its Affiliates.
Java™ and all Java™ based trademarks and logos
are trademarks or registered trademarks of Sun
Microsystems, Inc. in the U.S. and other countries.
is a registered trademark of Opera Mini.
Facebook and the f Logo are trademarks of Facebook,
Inc., and are used under license.
Twitter and the T Logo are trademarks of Twitter, Inc.,
and are used under license.
The Wi-Fi Logo is a certification mark of the Wi-Fi
Alliance.
Snaptu is trademark of Snaptu, Inc, and is used under
license.
Shozu is trademark of Shozu, Inc, and is used under
license.
Webcam
(1)
You can use your cellphone as a webcam for instant message on
your PC.
Connect your cellphone to PC via USB cable.•
Go to "• My computer" folder on your PC and find USB video device
(Under Scanners & Cameras).
Latin input mode
20
.....
There are two text entry methods that can be used to write
messages
Normal: this mode allows you to type a text by choosing a letter or •
a sequence of characters associated with a key.
TouchPal mode: This mode can perform predictive input in virtual •
keypad and supports multi-language input.
Touch inputting
3*4 virtual keypad Qwerty virtual keypad
(Slide horizontally to switch between the two types of keypad)
Hearing Aid Compatibility
Your cellphone is rated: "For Hearing Aid", to assist hearing device users in
finding cellphones that may be compatible with their hearing devices.
This device is HAC M3 compatible.
For more information please refer to "Hearing Aid Compatibility with Mobile
Phones" leaflet or visit our website http://www.alcatelonetouch.com
General information ........
• Website: www.alcatelonetouch.com
• Facebook: www.facebook.com/alcatelmobilephones
• Twitter: http://www.twitter.com/alcatel1touch
• Hot Line Number: In the United States, call 877-702-3444 for
technical support.
On our Internet site, you will find our FAQ (Frequently Asked Questions)
section. You can also contact us by e-mail to ask any questions you may
have.
An electronic version of this user guide is available in English and other
languages according to availability on our server: www.alcatelonetouch.com
Your cellphone is a transceiver that operates on GSM/GPRS/EDGE in
quad-band with 850/900/1800/1900 MHz or UMTS in dual-band with
850/1900 MHz.
Protection against theft
(1)
Your cellphone is identified by an IMEI (cellphone serial number) shown
on the packaging label and in the product’s memory. We recommend
that you note the number the first time you use your cellphone by
entering *#06# and keep it in a safe place. It may be requested by the
police or your operator if your cellphone is stolen.
Disclaimer
There may be certain differences between the user manual description
and the cellphone’s operation, depending on the software release of
your cellphone or specific operator services.
TCT Mobile shall not be held legally responsible for such differences, if
any, nor for their potential consequences, which responsibility shall be
borne by the operator exclusively.
Switch mode of input method.
Switch between ABC/abc/Abc.
/
Access to the symbol and number table.
Access to all symbols.
- Touch once to delete one by one.
- Long touch to delete all.
Options for more operations.
~
Press and hold 0-9 to input number.
- Confirm an option.
- Switch to a new line (in SMS, Email, etc.).
Close input keypad.
Switch between 3*4 virtual keypad and
Qwerty virtual keypad.
Alcatel Mobile Phones
Limited Warranty ............
TCT Mobile North America LTD warrants to the original retail
purchaser of this wireless device, that should this product or
part thereof during normal consumer usage and condition, be
proven to be defective in material or workmanship that results
in product failure within the first twelve (12) months from the
date of purchase as shown on your original sales receipt. Such
defect(s) will be repaired or replaced (with new or rebuilt parts)
at the company’s option without charge for parts or labor directly
related to the defect(s).
Batteries, power adapters, and other accessories sold as in box
items are also warranted against defects and workmanship that
results in product failure within the first six (6) months period
from the date of purchase as shown on your original sales receipt.
Such defect(s) will be repaired or replaced (with new or rebuilt
parts) and the company’s option without charge for parts or labor
directly related to the defect(s).
The limited warranty for your wireless device will be voided if any
of the following conditions occur:
• Non-compliance with the instructions for use or installation, or
with technical and safety standards applicable in the geographical
area where your cellphone is used;
• Connection to any equipment not supplied or not recommended
by TCT Mobile;
• Modification or repair performed by individuals not authorized by
TCT Mobile or its affiliates;
• Acts of god such as Inclement weather, lightning, power surges,
fire, humidity, infiltration of liquids or foods, chemical products,
download of files, crash, high voltage, corrosion, oxidation;
• Removal or altering of the wireless devices event labels or serial
numbers (IMEI);
• Damage from exposure to water or other liquids, moisture,
humidity, excessive temperatures or extreme environmental
conditions, sand, excess dust and any condition outside the
operating guidelines;
• Defects in appearance, cosmetic, decorative or structural items
such as framing and non-operative parts.
There are no express warranties, whether written, oral or implied,
other than this printed limited warranty or the mandatory warranty
provided by your jurisdiction. In no event shall TCT Mobile or any
of its affiliates be liable for incidental or consequential damages of
Safety and use .......................
We recommend that you read this chapter carefully before using your
cellphone. The manufacturer disclaims any liability for damage, which may
result as a consequence of improper use or use contrary to the instructions
contained herein.
• TRAFFIC SAFETY:
Given that studies show that using a cellphone while driving a vehicle
constitutes a real risk, even when the hands-free kit is used (car kit, headset...),
drivers are requested to refrain from using their cellphone when the vehicle is
not parked. Check the laws and regulations on the use of wireless cellphones
and their accessories in the areas where you drive. Always obey them. The use
of these devices may be prohibited or restricted in certain areas.
When driving, do not use your cellphone and headphone to listen to music or
to the radio. Using a headphone can be dangerous and forbidden in some areas.
When switched on, your cellphone emits electromagnetic waves that can
interfere with the vehicle’s electronic systems such as ABS anti-lock brakes or
airbags. To ensure that there is no problem:
- do not place your cellphone on top of the dashboard or within an airbag
deployment area,
- check with your car dealer or the car manufacturer to make sure that the car’s
electronic devices are shielded from cellphone RF energy.
• CONDITIONS OF USE:
You are advised to switch off the cellphone from time to time to optimize
its performance.
Remember to abide by local authority rules of cellphone use on aircrafts.
Operational Warnings: Obey all posted signs when using mobile devices in
public areas.
Follow Instructions to Avoid Interference Problems: Turn off your mobile
device in any location where posted notices instruct you to do so. In an aircraft,
turn off your mobile device whenever instructed to do so by airline staff. If
your mobile device offers an airplane mode or similar feature, consult airline
staff about using it in flight.
Switch the cellphone off when you are in health care facilities, except in designated areas.
As with many other types of equipment now in regular use, cellphones can interfere
with other electrical or electronic devices, or equipment using radio frequency.
Switch the cellphone off when you are near gas or flammable liquids. Strictly
obey all signs and instructions posted in a fuel depot, gas station, or chemical
plant, or in any potentially explosive atmosphere.
When the cellphone is switched on, it should be kept at least 15 cm from any
medical device such as a pacemaker, a hearing aid or insulin pump. In particular
when using the cellphone you should hold it against the ear on the opposite
side to the device, if any.
Prolonged exposure to music at full volume on the music player
may damage the listener's hearing. Set your cellphone volume
safely. Use only headphones recommended by TCT Mobile
Limited and its affiliates.
ALCATEL is a trademark of Alcatel-Lucent
and is used under license by
TCT Mobile Limited.
© Copyright 2011 TCT Mobile Limited
All rights reserved
TCT Mobile Limited reserves
the right to alter material
or technical specification
without prior notice.
any nature whatsoever, including but not limited to commercial
loss, to the full extent those damages can be disclaimed by law.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, or limitation of the duration of implied
warranties, so the preceding limitations or exclusions may not
apply to you.
How to obtain Support: Contact the customer care center by
calling (877-702-3444) or going to www.alcatelonetouch.com. We
have placed many self-help tools that may help you to isolate the
problem and eliminate the need to send your wireless device in for
service. In the case that your wireless device is no longer covered
by this limited warranty due to time or condition we have other
options that you may utilize our out of warranty repair options.
To obtain hardware repairs or replacement within the terms of this
warranty, contact TCT Mobile to get an RMA number, include a
copy of the original proof of warranty coverage (e.g. original copy
of the dated bill of sale, invoice), the consumer's return address,
your wireless carrier’s name, alternate daytime cellphone number,
and email address with a complete problem description. Only ship
the wireless device. Do not ship the SIM card, memory cards,
or any other accessories such as the power adapter. You must
properly package and ship the wireless device to the repair center.
TCT Mobile is not responsible for wireless devices that do not
arrive at the service center. Upon receipt, the service center will
verify the warranty conditions, repair, and return your wireless
device to the address provided.
(1)
Contact your network operator for service availability.
Troubleshooting
Before contacting the aftersales department, you are advised to follow
the instructions below:
You are advised to switch off the cellphone from time to time to •
optimize its performance.
You are advised to fully charge (• ) the battery for optimal
operation.
Avoid storing large amounts of data in your cellphone as this may •
affect the performance of your cellphone.
and carry out the following checks:
My cellphone will not switch on
Press•
until the screen comes on
Check the battery charge level•
Check the battery contacts, remove and reinstall your battery, then •
turn your cellphone back on
My cellphone has not responded for several minutes
Press the•
key
Remove the battery and re-insert it, then switch the cellphone back on•
My screen is difficult to read
Clean your screen•
Use your cellphone in accordance with the recommended •
conditions of use
My cellphone turns off by itself
Check that your keypad is locked when you are not using your •
cellphone
Check the battery charge level•
My cellphone will not charge properly
Make sure that your battery is not completely discharged; If the •
battery is flat, it may take around 20 minutes to display the battery
charger indicator on the screen
Make sure charging is carried out under normal conditions (0°C •
(32
°F) +40°C (104 °F))
Make sure your battery is inserted. It must be inserted before •
plugging in the charger
Make sure you are using an Alcatel battery and charger in the box•
When abroad, check that the electrical current is compatible•
My cellphone will not connect to a network
Try connecting in another location•
Verify the network coverage with your operator•
Check with your operator that your SIM card is valid•
Try selecting the available network(s) manually•
Try connecting at a later time if the network is overloaded•
SIM card error
Make sure the SIM card has been correctly inserted•
Verify with your operator that your SIM card is 3V or 1,8V •
compatible; the old 5V SIM cards cannot be used
Make sure the chip on your SIM card is not damaged or scratched•
Touch screen does not respond
Make sure your cellphone is not locked.•
Launch LCD touch calibration (Settings\Phone settings\Touch settings\•
LCD touch calibration)
Unable to make outgoing calls
Make sure you have dialled a valid number and press the •
key
For international calls, check the country and area codes•
Make sure your cellphone is connected to a network, and that the •
network is not overloaded or unavailable
Check your subscription status with your operator (credit, SIM •
card valid, etc.)
Make sure you have not barred outgoing calls•
Unable to receive incoming calls
Make sure your cellphone is switched on and connected to a •
network (check for overloaded or unavailable network)
Check your subscription status with your operator (credit, SIM •
card valid, etc.)
Make sure you have not forwarded incoming calls•
Make sure that you have not barred certain calls•
The caller’s name does not appear when a call is received
Check that you have subscribed to this service with your operator•
Your caller has concealed his/her number•
The sound quality of the calls is not optimal
You can adjust the volume during a call by means of the Volume key•
Check the network strength •
I am unable to use the features described in the manual
Check with your operator to make sure that your subscription •
includes this service
Make sure this feature does not require an Alcatel accessory•
When I select a number from my contacts, the number is
not dialled
Make sure that you have correctly recorded the number in your file•
Make sure that you have selected the country prefix when calling a •
foreign country
I am unable to add a contact in my contacts
Make sure that your SIM card contacts is not full; delete some •
contacts or save the contacts in the cellphone contacts (i.e. your
professional or personal directories)
My callers are unable to leave messages on my voicemail
Contact your network operator to check service availability•
I cannot access my voicemail
Make sure your operator’s voicemail number is correctly entered •
in “My numbers”
Try later if the network is busy•
I am unable to send and receive MMS
Check your cellphone memory available as it might be full•
Contact your network operator to check service availability and •
check MMS parameters
Verify the server center number or your MMS profile with your •
operator
The server center may be swamped; try again later•
The flickering
icon is displayed on my standby screen
You have saved too many short messages on your SIM card; delete •
some of them or archive them in the cellphone memory
“No service” is displayed
You are outside of the network coverage area•
I have already entered 3 incorrect PIN codes
Contact your network operator to obtain the PUK code (Personal •
Unblocking Key)
I am unable to connect my cellphone to my computer
Install first of all Alcatel’s PC suite•
Use “Install the connection” and perform the installation•
Check that your computer meets the requirements for Alcatel’s •
PC Suite installation
I am unable to download new files
Check for free space•
Delete some files•
Select the MicroSD Card to store the files you downloaded•
Check your subscription status with your operator•
The cellphone can’t be detected by others via Bluetooth
Make sure that Bluetooth is turned on and your cellphone is •
visible to other users
My cellphone is frozen, can’t power on
Make sure your battery is not completely used up or damaged•
Remove your battery, remove your SIM card then reinstall them •
to power on again, if still does not work
Hold down Volume key (up) and press Power on/off key for a •
while to reset the cellphone
ALL User cellphone data: contacts, photos, messages and
files, downloaded applications like Java games will be lost
permanently.
How to make your battery last longer
Make sure you followed the complete charge time (minimum •
3 hours)
After a partial charge, the battery level indicator may not be •
exact. Wait for at least 20 minutes after removing the charger to
obtain an exact indication
Switch on the backlight upon request.•
Extend email auto-check interval as long as possible.•
Update news, weather information upon demand manually or set •
its auto-check interval longer.
Exit Java background-running applications if they are not being •
used for a long time.
Deactivate Bluetooth when not in use.•
- Take a minimum of a 15-minute break every hour of game playing.
- If your hands, wrists, or arms become tired or sore while playing, stop and rest
for several hours before playing again.
- If you continue to have sore hands, wrists, or arms during or after playing, stop
the game and see a doctor.
Prolonged exposure to music at full volume using the music player may
damage your hearing. Set your cellphone’s volume to it’s lowest setting
prior to inserting headphones in your ears and adjust the volume to your
preference. Only use headphones that are recommended by TCT Mobile
Limited and it’s affiliates.
• PRIVACY:
Please note that you must respect the laws and regulations in force in
your jurisdiction or other jurisdiction(s) where you will use your cellphone
regarding taking photographs and recording sounds with your cellphone.
Pursuant to such laws and regulations, it may be strictly forbidden to take
photographs and/or to record the voices of other people or any of their
personal attributes, and reproduce or distribute them, as this may be
considered to be an invasion of privacy.
It is the user’s sole responsibility to ensure that prior authorization be
obtained, if necessary, in order to record private or confidential conversations
or take a photograph of another person; the manufacturer, the seller or vendor
of your cellphone (including the operator) disclaim any liability which may
result from the improper use of the cellphone.
• BATTERY AND ACCESSORIES:
Before removing the battery from your cellphone, please make sure that the
cellphone is switched off.
Observe the following precautions for battery use:
- Do not attempt to open the battery (due to the risk of toxic fumes and burns).
- Do not puncture, disassemble or cause a short-circuit in a battery,
- Do not burn or dispose of a used battery in the garbage or store it at
temperatures above 60°C (140°F).
Batteries must be disposed of in accordance with locally applicable
environmental regulations. Only use the battery for the purpose for which
it was designed. Never use damaged batteries or those not recommended by
TCT Mobile Limited and/or its affiliates.
This symbol on your cellphone, the battery and the accessories
means that these products must be taken to collection points at
the end of their life:
- Municipal waste disposal centers with specific bins for these
items of equipment
- Collection bins at points of sale.
They will then be recycled, preventing substances being disposed of in the
environment, so that their components can be reused.
(1)
The using of webcam may vary according to the operating system of your
PC.
(1)
Only for 3G network.
IP3396_905A_QG_Eng_USA_09_110413.indd 2IP3396_905A_QG_Eng_USA_09_110413.indd 2 2011-4-13 17:01:332011-4-13 17:01:33
Loading...
