One Touch X100 HSDPA USB MODEM
1 About WIRELESS USB MODEM
WIRELESS USB MODEM is a kind of Internet equipment customized for mobile
working and entertainment, which allows the user connect to Internet
conveniently.
2 Installation

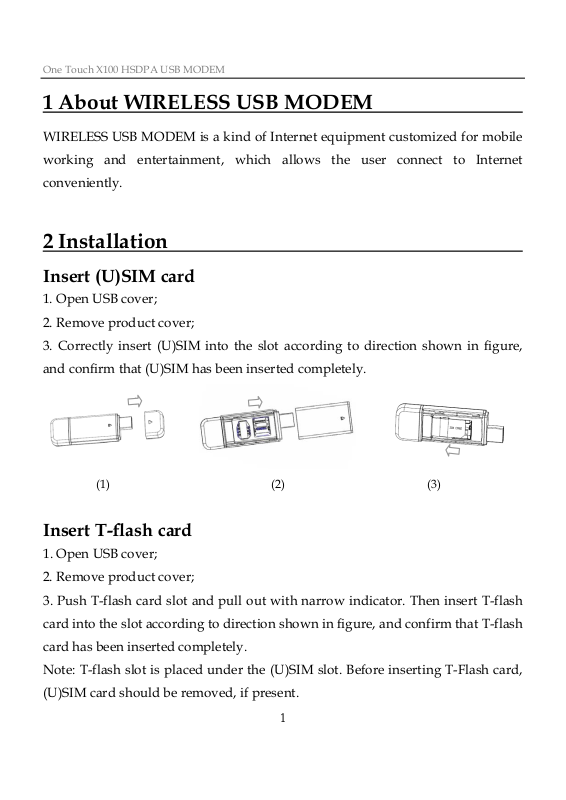

Insert (U)SIM card
1. Open USB cover;
2. Remove product cover;
3. Correctly insert (U)SIM into the slot according to direction shown in figure,
and confirm that (U)SIM has been inserted completely.
(1) (2) (3)
Insert T-flash card
1. Open USB cover;
2. Remove product cover;
3. Push T-flash card slot and pull out with narrow indicator. Then insert T-flash
card into the slot according to direction shown in figure, and confirm that T-flash
card has been inserted completely.
Note: T-flash slot is placed under the (U)SIM slot. Before inserting T-Flash card,
(U)SIM card should be removed, if present.
1
One Touch X100 HSDPA USB MODEM
(1) (2) (3)
Connect WIRELESS USB MODEM to PC
1. Insert the MODEM into a USB port of computer, to achieve USB power supply
of MODEM.
2. Installation program should run automatically after the
MODEM inserted into the computer correctly; in case of failure
of automatic run, please open MODEM memory via Icon of My
Computer in Windows OS, and double click it to begin
installing. Do not disconnect the MODEM during installation;
3. Program should run automatically if installation is completed.
3 Connect to Internet
Establish connection
1. Clicking on main interface to connect Internet, of which operation change
to ;
2. Internet connection is established successfully if connection information
window ejects.
Please check APN setting if connection failed. (Refer to the section of custom
connection in Help.)
Disconnect
Click on main interface to disconnect Internet.
2
One Touch X100 HSDPA USB MODEM
4 Indicator light
State of indicator light Description
Twist in multicolour
circularly
Twist in red slowly Abnormity of (U)SIM card
Twist slowly Internet is connected
Luminous continuously Data transmitting
Green HSDPA - Blue UMTS - Purple - EDGE
Yellow GPRS
Network searching
5 Attention
1. Please confirm whether the number of short message centre is correct in case
that short message is sent unsuccessfully.
2. Please check whether your (U)SIM card is fully used in case that no message is
received successfully.
3. Naturally heat under long-time working, weak signals or high indoor
temperature. Avoid touching it directly in body for a long time.
4. As the user is using it, the minimum distance to the MODEM is 20cm.
5. For Mac OS will provide Internet Connect only.
6 Remark
For Mac OS or more detailed information, please click “Help” in Setting Menu.
3
One Touch X100 HSDPA USB MODEM
FCC Regulations:
zThis device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
zThis device has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiated
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user‘s authority to operate the equipment.
4
One Touch X100 HSDPA USB MODEM
zThis device complies with FCC radiation exposure limits set forth for an
uncontroll ed environ ment. In orde r to avoid the possibility of exceeding the
FCC radio frequency exposure limits, human proximity to the antenna shall
not be less than 20cm (8 inches) during normal operation.
