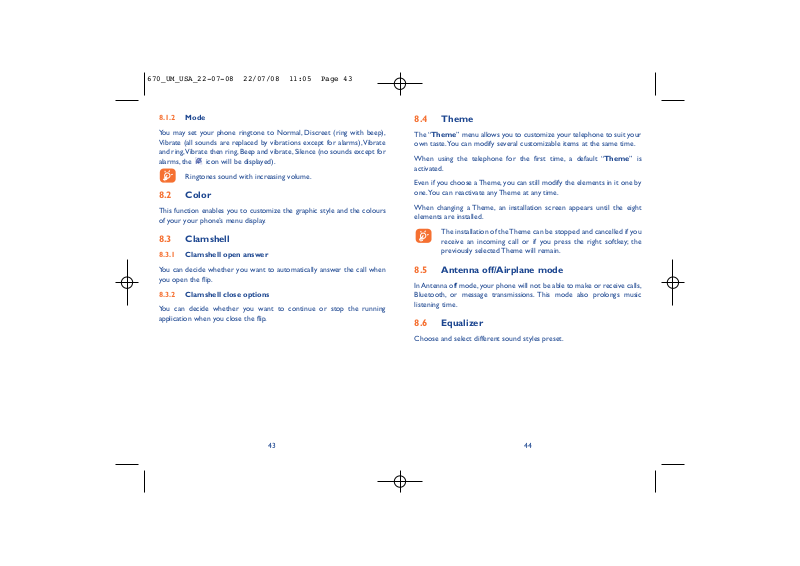

8.4 Theme
The “Theme” menu allows you to customize your telephone to suit your
own taste.You can modify several customizable items at the same time.
When using the telephone for the first time, a default “Theme” is
activated.
Even if you choose a Theme, you can still modify the elements in it one by
one.You can reactivate any Theme at any time.
When changing a Theme, an installation screen appears until the eight
elements are installed.
The installation of the Theme can be stopped and cancelled if you
receive an incoming call or if you press the right softkey; the
previously selected Theme will remain.
8.5 Antenna off/Airplane mode
In Antenna off mode, your phone will not be able to make or receive calls,
Bluetooth, or message transmissions. This mode also prolongs music
listening time.
8.6 Equalizer
Choose and select different sound styles preset.
44
8.1.2 Mode
You may set your phone ringtone to Normal, Discreet (ring with beep),
Vibrate (all sounds are replaced by vibrations except for alarms),Vibrate
and ring,Vibrate then ring, Beep and vibrate, Silence (no sounds except for
alarms, the icon will be displayed).
Ringtones sound with increasing volume.
8.2 Color
This function enables you to customize the graphic style and the colours
of your your phone’s menu display.
8.3 Clamshell
8.3.1 Clamshell open answer
You can decide whether you want to automatically answer the call when
you open the flip.
8.3.2 Clamshell close options
You can decide whether you want to continue or stop the running
application when you close the flip.
43
670_UM_USA_22-07-08 22/07/08 11:05 Page 43
8.7.4 Power On/Off
(1)
You can customize your welcome animation or image that appears when
you switch on your phone.
You can also customize your OFF screen with an image or animation.
8.7.5 Menu display
Board • All the main menu icons displayed on one screen.
Image • One full-screen icon displayed at a time.
List • Main menus displayed line by line.
8.8 Clock
Manage time and date settings, including: 12/24h format. You may also
adjust daylight savings time settings.
8.9 Keys
8.9.1 Softkeys
These keys have predefined functions, which vary from one model to
another (operator services, games access,or Games & Applications,...).You
can customize
(2)
them by assigning functions, setting speed dial entries, or
associate a URL with each key.
46
(1)
Depending on the model.
(2)
Depending on your network operator.
8.7 Display
8.7.1 Main screen
The main screen is displayed when you switch on your telephone.
You can access the main functions from the main screen either with the
navigation key or by pressing and by selecting the icons displayed on
the screen
(1)
.
By selecting “Main screen” you can customize it by replacing the default
image or animation displayed on your telephone.
When you receive an event (incoming call, SMS/MMS,
notifications, etc.) the icon, type and number of events will be
displayed on your main screen allowing you to view them directly.
8.7.2 Sub-display
The external display of your phone indicates you of any events.You can
personalize the external phone display by setting.
8.7.3 Screen saver
If you activate this option, the screen saver will be enabled after a short
preset time. You can choose a picture, an animation or a video as your
screen saver.
45
(1)
Depending on the operator.
670_UM_USA_22-07-08 22/07/08 11:05 Page 45
8.10.3 Languages
(1)
Display language for messages (select using ).The “Automatic” option
selects the language according to the home network (if available).
8.10.4 Dictionary
You have a dictionary to which you can add your own words in addition
to those suggested by the predictive input system.When you consult your
dictionary,you can add,modify or erase words by using the “Options”
softkey.
8.10.5 Input method
(2)
Please see chapter “Latin input mode”, page 73. In addition to the specific
characters table for Cyrillic, Chinese, other data input modes are also
available in your telephone. This feature allows you to write short
messages and add names with special characters to your directory.
8.10.6 Security
Activate PIN • The SIM card protection code is requested each
time as the phone is powered on if this code is
activated.
Change PIN • Change PIN code.
Change PIN2 • A protection code for certain SIM card features
(Billing/Cost/FDN, etc.) will be requested if you
attempt to access it, if the code is activated. Select
to update it with a new one (between 4 and 8
digits).
48
(1)
Contact your network operator to check service availability.
(2)
Depending on the language.
8.9.2 Keypad
By customizing your keys, you can call someone or access a function
directly from the main screen.
To programme a key on your keypad, select “Keypad” and choose the key
that you wish to programme.
-“Speed dial”: activate this option to program numbers with contacts.
And then in the idle mode keep pressing number to dial directly.
-“Keys”: activate this option to program the functions.
8.10 More settings…
8.10.1 Auto lock
Lock the keypad
Three music keys on the front cover will be automatically locked after you
close the phone.
Unlock the keypad
Open the flip.
8.10.2 Backlight
Adjusting the backlight allows to reduce brightness to conserve battery
consumption. You may also set screen duration for inactivity; immediate,
5s, 10s, 30s, or 1 min.
47
670_UM_USA_22-07-08 22/07/08 11:05 Page 47
50
9
Tools ................................
9.1 Bluetooth™
(1)
Access this feature by selecting “Tools” from the main menu, then
“Bluetooth”.
To use your phone with a Bluetooth device, follow the following
procedures:
- Pair and register the device to your phone,
- Select it to use hands-free communication. Only one Bluetooth audio
device (your Bluetooth headset or your Bluetooth car kit) can be
connected during the communication.
Pair and register your Bluetooth device
Activate the Bluetooth feature by selecting the “Tools\Bluetooth\
Activation\On” option.Then enter the “Device list” menu to search for
connectable Bluetooth devices and select the device you want to be
paired with in the list. If the bluetooth device has no keyboard, enter its
default password to register it with your phone. If the Bluetooth device
has keyboard/keypad, enter the same set of password on both handset and
the device to get it registered.
From the list,press the “Options” softkey to connect/disconnect, rename,
search for new devices or delete an unconnected device from the list.
Don’t forget to turn on your Bluetooth device and activate the
pairing mode while pairing it with your phone.
(1)
You are highly recommended to use OT-BM 81 Bluetooth headset,
which have been tested and proved fully compatible with OT-V670A.
Activate phone • It is requested each time as the phone is powered
code on if this code is activated.
Change phone • Change phone password, default is 1234.
code
Fixed dialed • It allows the phone to be "locked" so that it can only
number dial certain numbers, or numbers with certain
prefixes. To activate this function, PIN2 code is
mandatory.
8.10.7 Networks
Network • Depending on the option selected, the network
selection search mode will be:
• Automatic • The first network searched for is the network you
used last.
• Manual • Manually select your preferred network.
Preferred • List of networks to which you wish to be connected
networks in order of priority (update this list using ).
GPRS • Two modes available:
connection
(1)
• When needed • GPRS mode active depending on connection
requirements.
• Always • GPRS mode continuously active.
49
(1)
Depending on network availability.
670_UM_USA_22-07-08 22/07/08 11:05 Page 49
Available options:
Create • Create an appointment.
View • See created appointments.
appointments
Jump to date • Input the required date and it will be immediately
highlighted.
9.3 Alarm
Your cellphone has a built-in alarm clock with a snooze feature. You can
set up to five separate alarms and choose whether or not the alarm should
repeat.
Repeat • You may select Once (default)/Every day/Days.
Snooze • The alarm will repeat at regular intervals.
9.4 Calculator
You can use it to perform basic calculations. Hold down the key to
input a decimal point. Confirm with the key or the left softkey.
52
Available functions
Data transmit • Exchange files with another bluetooth device.
Handle a call • Initiate or receive a phone call with a Bluetooth
headset.
Listen to music • Support A2DP profile.
Settings
• Visibility: Select whether you want to hide (“Hidden”) or show to all
(“Shown to all”) your phone.
• My phone's name: you may change your phone name, which is visible
to the others.
Always activate Bluetooth in your phone first before connecting
it to a Bluetooth device. Be aware that Bluetooth activation will
slightly affect battery life of your phone.
Bluetooth technology allows free wireless connections between all
Bluetooth-compliant devices within short range. Please make sure that the
Bluetooth headset or the Bluetooth car kit and your cellphone are in this
range and set as “Visibility”.
Your phone is Bluetooth™ v1.1, v1.2 and v2.0 compatible.
9.2 Organizer
Once you enter this menu from “Tools”, there is a monthly-view calendar
for you to keep track of important meetings, appointments, etc. Days with
events entered will be marked in color.
51
670_UM_USA_22-07-08 22/07/08 11:05 Page 51
9.6.2 Memory card (MicroSD card)
View the memory available on your MicroSD card.
You are advised to save large files (like videos, songs,…) on your
MicroSD card. File names up to 35 characters are supported.
9.7 Voice memo
This feature enables you to record a call by selecting “Voice memo”
while communicating. To record a sound, select “Voice memo”, then
“New record”.
54
9.5 Converter
9.5.1 Unit
You can use the Weight and Length conversion by selecting the unit you
wish to convert via , then press to input the digits. Finally confirm
with key or left softkey.
9.5.2 Currency
The currency converter allows you to:
• Convert a currency directly into euros and vice versa
(1)
.
• Convert between international currencies, both currencies must be
selected by keys. You are requested to input the appropriate
exchange rate.
9.6 Memory status
It will indicate how much space is used and how much is currently free on
your phone and memory card (if any).
9.6.1 Phone
View available memory.
Your phone’s memory is shared among several functions: directory,
scheduler, messages, voice messages, images, melodies, games, applications
and video clips.
53
(1)
For the former European national currencies,the currency converter
uses the final Euro conversion rates set on 31/12/1998, which are
used in accordance with official conversion rules.
670_UM_USA_22-07-08 22/07/08 11:05 Page 53
11
WAP ..............................
11.1 Homepage
Launch the WAP browser with the homepage of the default profile.
11.2 Bookmarks
Access your favorite sites.
11.3 Recent pages
Pages which you recently browsed.
11.4 Go to URL
Enter the URL of WAP site.
11.5 Profiles
11.5.1 Edit profile
Edit existing profile or create new profile.
11.5.2 Browser options
Set timeout values and image loading options.
56
10
My shortcuts ................
Accessing and creating new shortcuts.
To program new shortcuts: select "My shortcuts" to create quick access
to a function, Directory, or WAP Bookmarks, etc.
55
670_UM_USA_22-07-08 22/07/08 11:05 Page 55
12
Media album ................
You will have an access to all audio and visual files stored in phone or
memory card in Media Album.
12.1 My audio
Choose an audio for the ON/OFF screen, for an incoming call, a message
alert, power on/off ringtone or an alarm and scheduler.
The “My audio” album contains the following folders
(1)
:
- Music: full track music.
- Melodies: melodies that can be set as a ringtone.
- Recorded: all recorded sounds,
- General: contains all audio files stored in phone or memory card.
DRM: Digital Rights Management feature allows sounds and
images to be played while protecting the associated copyright.
DRM counter-based files and files with expired rights will not be
automatically played when scrolling the list.
58
(1)
The embedded folder names cannot be modified. However, in certain
cases, you can modify, delete and add items included in these folders.
11.5.3 Push message settings
Enable or disable receiving service message from WAP.
11.5.4 Clear cache
Empty the phone’s cache memory.
11.5.5 Clear cookies
Clear cookies from website.
11.5.6 Trusted certif.
Certificates of trusted sites.
57
670_UM_USA_22-07-08 22/07/08 11:05 Page 57
12.6 Memory card
You will have access to all files stored in memory card here.
When a memory card is inserted for the first time, it will be
scanned and the default folders will be created.
Insert the memory card: Open the rubber cap, place the MicroSD card
with gold finger downwards and insert it into the slot:
60
Remove the memory card: Open the rubber cap and gently push the
memory card until unlocked. Take out your MicroSD card and close the
cap.
Available options
Create folder • Create more folders.
Delete folder • Remove folders.
Rename folder • Rename folder's name.
Empty folder • Delete all files in one folder.
Memory card • To format it or check available memory.
12.2 My images
You can select an image or a photo as main screen or the ON/OFF screen.
You may also change it, send it by MMS, Bluetooth,or assign it to a contact
in the directory.
Images are displayed in alphabetical order.
12.3 My videos
The "My videos" album contains all video clips embedded and
downloaded in phone or memory card.
In My audio, My images and My videos: only files transferred via
PC suite will be saved in the pre-defined folder and recognized by
the music player. However, the files copied to other directories
are still accessible in “Media album\Memory card”.
12.4 My creations
This feature stores all photos and videos captured by your cellphone.
12.5 Unknown files
Store files of unsupported format.
Thumbnails are displayed for preview. In addition, you can use “Mark”
function, to select multiple files.
59
670_UM_USA_22-07-08 22/07/08 11:05 Page 59
Move to phone/ • Move a file from the product memory to the
memory card memory card and vice-versa.
Properties • Display part of the ID3 Tag content of an MP3 file.
Activate • DRM file option.
Copy to phone/ • Copy a file to the phone memory or the memory
memory card card.
Delete • Delete files except those that are embedded.
Delete all • Delete all files except those that are embedded.
List view • View files in the selected list.
Slideshow
(1)
• Show the images continuously.
Capture • Access “Camera & Video” function directly.
Mark/Unmark • Mark/Unmark a click on a file for further operation.
Mark/Unmark all • Mark/Unmark a click on all files.
Delete marked • Delete all the marked files.
12.8 Compatible formats
(2)
- Sounds: mp3, m4a, aac, midi, wav, amr
- Images: jpg, gif
- Videos: 3gp, mp4
12.9 Memory status
See page 53.
62
(1)
Only applies to images that can be cleared but not for copyrighted
files.
(2)
Depending on product and market.
12.7 Managing audio, images, videos and creations
Below are the available functions for applicable files:
View • View the selected image. If you want to view all the
pictures in your folder in a slideshow hold down
on the current picture.
Play • Play the selected video.
Send
(1)
• Send the audio/image/video.
Delete • Delete the audio/image/video selected (Not
applicable for embedded items).
Set as • - Image->main screen,screen saver, switch ON/OFF,
assign it to a contact.
- Sound->ringtone, message beep, switch ON/OFF,
assign it to a contact.
- Video->Screen saver, switch ON/OFF or assign it
to a contact.
Modify • Modify an image
(2)
.
Download • Download new items.
Rename • Rename the audio/image/video.
Sort • Sort the files by name, type, time and size.
61
(1)
Files marked with cannot be sent.
(2)
Only applies to images that can be cleared but not for copyrighted
files.
670_UM_USA_22-07-08 22/07/08 11:05 Page 61
13.2.2 Settings in framing mode
Before taking a photo, you may adjust several settings by using the
following shortcuts below:
64
Navigation key:
: take the picture
In portrait mode
- : exposure – or +
- : zoom in or out
In landscape mode
- : zoom in or out
- : exposure – or +
Key : Quality: High/
Standard/Economy
Key : White balance
Key : Capture mode
1 / 3 / 5 shot / Off / Mosaic
Key : Hide/Unhide all
icons
Left softkey: Options
Key : Scene mode:
Auto/Night
Right softkey: Back, return
to sub-menus previous
screen
Selected options bar:
Image size
Photo quality
White balance
Capture mode
Exposure
Timer
Scene mode
Key : Color mode:
color or black&white
Key : Image size:
640x480, 320x240, 128x160,
120x160
Key : Timer: 5 / 10 /
15secs / Off
Key : Add frame
(only available to size
128x160)
13
Camera & Video ..........
Your cellphone is fitted with a VGA camera for taking photos and shooting
videos that you can use in different ways
- store them in your “Media album”.
- send them in a multimedia message (MMS) to a cellphone or an email
address.
- customize your main screen (see page 45).
- select them as incoming call image to a contact in your directory.
- transfer them by data cable or microSD card to your computer.
- modify your photos by adding frames (see page 65).
13.1 Access
To access photo and video from the main screen:
- press the key
- press the key to access the menu and select the icon.
If you access the camera via the menu, you will be in Portrait mode. If you
access it via the key, you will be in landscape mode.
13.2 Camera
13.2.1 Take a photo, save or delete
The screen acts as the viewfinder. Position the object or landscape in the
viewfinder and press or to take the picture and the picture will
be automatically saved. If you prefer not to save, you may delete it by
pressing the right softkey “Delete”.
63
670_UM_USA_22-07-08 22/07/08 11:06 Page 63
13.3.1 Video settings while in framing mode
66
Key : Record audio on/
off
Key : Color mode:
Normal, Grayscale, Sepia,
Sepia green, Sepia blue, etc.
Key : Record
duration: 15 sec, 30 sec, 60
sec and No limit
- : Exposure correction
- : Zoom in/out
Key : White balance:
Auto, Daylight, Tungsten,
Fluorescent, Cloudy and
Incandescence
From the photo shot screen, press the “Options” softkey not only to
access: “Image size”, “Capture mode”, “Quality”, “Timer”, “White
balance”,“Color mode”,“Add frame”, but also the following:
Media album • Go to the media album feature.
Storage • You may choose saving location if MicroSD card is
inserted.
Restore default • Make all settings recover as default value.
Hotkeys • List all hotkeys.
13.2.3 Options available after taking the photo
Once you have taken a photo, you can Send your photo, assign it to a
contact or to the main screen, etc, or Delete it, Modify it (see below),
or access your Media album.
13.2.4 Modifying images
Access the “Media album\My creations” after taking a photo, and then
select “Modify”.
13.3 Video
You can record unlimited length of video clip as long as the battery
sustains and there is sufficient memory.
We strongly advise you to change the default folder to “Memory
card” to store the photos you will take and videos you will
record.
65
670_UM_USA_22-07-08 22/07/08 11:06 Page 65
14
Music ............................
Access this feature from the main menu by selecting “Music” or directly
by holding down the key. You will have full flexibility of managing
music both on your cellphone and memory card.
14.1 Music
(1)
Access your audio files through the following menus:
Playlist • List created either on the PC or the cellphone
Album/Artist/ • Music files are categorized by Album, Artist or
Genre Genre based on information stored in the tags.
Those missing such information will be classified as
“Unknown files”.
All songs • Contains all songs both on phone memory and
memory card.
Recently played • Contains 12 recently played songs.
My star list • You can simply add your favorite songs to "My star
list" by holding down during playing music (max
100).
Update songs • Update the information of songs saved in memory
card.
68
(1)
Only music files in mp3, m4a and aac format will be visible in Music
Player.
67
13.3.2 Framing mode
When you enter the “Video” function, your are in Framing mode.Use the
cellphone screen as a viewfinder and press the “Options” softkey for
White balance settings, to activate or deactivate the sound, to choose the
color, to access the “Media album” or the “Camera”, and to change the
default folder.
13.3.3 Recording mode
Once you have chosen your settings, you can launch the recording of your
video-clip by pressing the or key.
If you receive a call in recording mode, video recording will be
stopped and a message will appear asking you of you would like
to save the recorded file.
13.3.4 Playing mode
In the list of "My creations", press "Options" to Play the video and
choose List View (from thumbnail view), Send, assign it (Set as) to a
contact or to the main screen.
Press keys to adjust its playing speed.
Press key to shift between portrait and landscape mode.
670_UM_USA_22-07-08 22/07/08 11:06 Page 67
15
Games & Applications ..
Your Alcatel phone may include
(1)
some Java™ applications and games.You
may also download other compatible Java applications and games from
your service provider or other third party providers.
15.1 Launch an application
Select "Java" to launch applications.
15.2 Java settings
The “Games & Apps” menu allows you to manage Java settings, in which
you may set Java audio, Java vibration and view free/heap size.
15.3 Java downloading
You can download new Java™ applications in the "Games & Apps" menu
by selecting the “Download” from “Options”.The list of available WAP
bookmarks dedicated to the application download will then be displayed.
Select the appropriate bookmark to go to the desired WAP page.
70
(1)
Depending on your country or your operator.
14.2 Settings
Access by pressing the right navigation key for following options:
Play mode • Normal, Repeat current, Repeat all, Shuffle and
Repeat shuffle. You may also customize it simply by
pressing the key during playing music.
Equalizer • Different music style presets in the phone.You may
also customize it simply by pressing the key
during playing music.
In playing screen, press key to shift between play in speaker and play in
BT stereo bluetooth.
Color • Change the skin of your Music Player.
14.3 Playing with lyrics
Lyrics can be displayed in synchronization with the music. You need a
separate .Irc file with the same name of music file.
69
670_UM_USA_22-07-08 22/07/08 11:06 Page 69
16
Making the most of your
telephone ............................
16.1 PC suite
Your phone includes a PC suite application on CD-ROM which is included
with this package. You may download applicable updates for free via our
website. PC suite allows you to:
- Backup/restore
• You can backup the important data in your cellphone and restore
them when needed.
- GPRS Modem
• Use your cellphone to connect a PC to the internet.
- Multimedia Personalization
• Customize your cellphone with images, animations, videos and
melodies.
- Music management
• Create and transfer playlists with music files and provide edited lyrics.
- Messaging
• You can compose SMS/MMS/Email/IM
(1)
easily on your PC and
transfer them to phone.
Supported Operating Systems
- Windows 2000/XP
72
(1)
Depending on product availability and operator.
Disclaimer
Downloading or running applications will not damage or alter any
software already in your cellphone designed to support Java™ technology.
TCT Mobile Limited and its affiliates waive any responsibility and refuse to
guarantee applications that are subsequently used, as well as for all
applications not embedded in the handset upon purchase.
The purchaser alone bears the risk of loss, damage or defect of the
handset, or of applications/software, and generally of any damage or
consequence resulting from the use of the said applications/software. In
the event that the said applications/software, or the subsequent setup of
any function are lost due to technical reasons resulting from the handset
being replaced/repaired,the cellphone owner should repeat the operation
and download or set up again.TCT Mobile Limited and its affiliates grant
no guarantee and disclaim any responsibility if the operation cannot be
repeated or cannot be performed without incurring some cost.
71
670_UM_USA_22-07-08 22/07/08 11:06 Page 71
Predictive T9 mode
Predictive T9 mode predicts words for quick selection based on
predefined words in the phone's dictionary.
Write the word by pressing a key between and . Press the key
once and the word will be modified each time you press a key.As you go
on, the word will keep changing.
Example: For “Tomorrow”, press on the following keys:
, , = Too -> -> tomorrow
74
Write message
Options Back
Write message
Options Back
17
Latin input mode/
character table
(1)
................
To write messages, there are two writing methods:
• Normal
• Predictive with the T9 mode
Normal
This mode allows you to type a text by choosing a letter or a sequence of
characters associated with a key. Press the key several times until the
desired letter is highlighted.
When you release the key the highlighted character is inserted into the
text.
73
Write message
Options Back
(1)
For specific languages as Chinese, please see specific input leaflets.
670_UM_USA_22-07-08 22/07/08 11:06 Page 73
This characters table is generic. All available characters are not displayed.
Available letters will vary according to languages.
Symbol table
Hold down the key to display the symbols table; the cursor is
positioned in the centre. Use the navigation key to move it and the
key to select.
76
Symbols table
Key Latin uppercase Latin lower case
Select Back
75
Key
- Long keypress: insert 1
Key
- Short keypress:Access the
language list
- Long keypress: Enter zero
Key
- Short keypress:Valid the
displayed word in
predictive mode and/or
insert a space
Navigation key:
- : RIGHT/LEFT:
Validate the word
- : UP:Previous word in
the dictionary
- : DOWN: Next word
in the dictionary
Keypad
- Short keypress: alpha
input (a, b)
- Long keypress: numeric
input (1, 2,3)
Key
- Short keypress: switch the
current mode into:
Ab -> AB -> ab
- Switch from T9 predictive
mode to Normal mode
- Long keypress: access the
symbol table
670_UM_USA_22-07-08 22/07/08 11:06 Page 75
3) improper maintenance of batteries and other sources of energy,and of the overall
electric installation,
4) accidents or consequences of theft of the vehicle in which the telephone is
transported, acts of vandalism, lightning, fire, humidity, infiltration of liquids,
inclement weather,
5) connecting or integrating the cellphone into equipment not supplied or not
recommended by TCT Mobile Limited or its affiliates, without their express
written consent for such,
6) any servicing, modification or repair performed by individuals not authorized by
TCT Mobile Limited or its affiliates, the vendor or the approved maintenance
center,
7) use of the equipment for a purpose other than that for which it was designed,
8) normal wear,
9) malfunctions caused by external causes (e.g., radio interference from other
equipment, power or telephone line voltage fluctuations),
10)modifications made to the equipment even if required by changes in regulations
and/or modification of network parameters,
11)faulty connections resulting from unsatisfactory radio transmission or caused by
the absence of radio relay coverage.
In accordance with the applicable law, TCT Mobile Limited or its affiliates guarantee
your product against hidden defects (defects inherent in the design, manufacture,
etc.).
The above provisions constitute the only claims enforceable against the manufacturer
and vendor in the event of defects in the cellphone or accessory.
There are no express warranties, whether written or oral, other than this printed
limited warranty. All implied warranties, including without limitation the implied
warranties of merchantability or fitness for a particular purpose, are limited to the
duration of this limited warranty.In no event shall TCT Mobile Limited or its affiliates
be liable for incidental or consequential damages of any nature whatsoever, including
but not limited to loss of profits, commercial loss, to the full extent those damages
can be disclaimed by law. Some countries/states do not allow the exclusion or
limitation of incidental or consequential damages, or limitation of the duration of
implied warranties, so the preceding limitations or exclusions may not apply to you.
78
18
Telephone warranty............
Congratulations on choosing this cellphone - we hope that you will be completely
satisfied with it.
Your cellphone is guaranteed against any deviation from technical specifications for a
period of twelve (12) months from the date specified on your original invoice
(1)
.
The warranty terms defined in the manual also apply to the battery and accessories
but for a period of six (6) months
(2)
from the date of purchase shown on your
original invoice.
Under the terms of this warranty,you must inform your vendor (or any maintenance
center approved by TCT Mobile Limited or its affiliates) without delay, of any defect
and present the invoice given to you at the time of purchase. The vendor or
maintenance center will decide whether to replace or repair, as appropriate, all or
any part of the telephone or accessory found to be defective; this warranty covers
the cost of parts and labour but excludes any other costs. Repair or replacement may
be carried out using reconditioned components offering equivalent functionality.
Servicing under the terms of this warranty, especially repair, modification or
replacement of products, shall entitle to a THREE (3) month warranty unless there
are statutory provisions to the contrary.
This warranty shall not apply to damage or defects to your telephone and/or
accessory caused by:
1) failure to follow the instructions for use or installation,
2) failure to comply with technical and safety standards applicable in the
geographical area where the equipment is used,
77
(1)
The warranty period may vary if overriding statutory provisions are
applicable in your country.
(2)
The life of a rechargeable telephone battery in terms of conversation
time, standby time, and total service life, will depend on the
conditions of use and network configuration. Batteries being
considered expendable supplies, the specifications state that you
should obtain optimal performance for your Alcatel phone during the
first six months after purchase and for approximately 200 more
recharges.
670_UM_USA_22-07-08 22/07/08 11:06 Page 77
20
Troubleshooting ..................
Before contacting your retailer or service center, please try the following
procedures below:
• You are advised to switch off the telephone from time to time to optimize its
performance.
• You are advised to fully charge ( ) the battery for optimal operation.
• Avoid storing large amounts of data in your telephone as this may affect the
performance of your telephone.
My cellphone will not switch on
• Press until the screen comes on
• Check the battery charge level
• Check the battery contacts, remove and reinstall your battery, then turn your
telephone back on
My screen is difficult to read
• Clean your screen
• Use your cellphone in accordance with the recommended conditions of use
My cellphone turns off by itself
• Check that your keypad is locked when you are not using your cellphone
• Check the battery charge level
80
19
Accessories
(1)
......................
The latest generation of Alcatel GSM cellphones offers a built-in handsfree
feature that allows you to use the telephone from a distance, placed on a
table for example. For those who prefer to keep their conversations
confidential, an earpiece is also available known as the headset.
79
Only use your telephone with Alcatel batteries, chargers and
accessories compatible with your model.
Battery
Stereo headset
Standard charger
(1)
Pictures for reference only.
670_UM_USA_22-07-08 22/07/08 11:06 Page 79
Unable to receive incoming calls
• Make sure your cellphone is switched on and connected to a network (check for
busy or unavailable networks)
• Check your subscription status with your operator (credit, account status etc.)
• Make sure you have not forwarded incoming calls (see page 29)
• Make sure that you have not barred certain calls
The caller’s name does not appear when a call is received
• Check that you have subscribed to this service with your operator
• Your caller has concealed his/her number
The sound quality of the calls is not optimal
• You can adjust the volume during a call by means of the key
• Check the network signal strength indicator
I am unable to use the features described in the manual
• Check with your operator to make sure that your subscription includes this
service
• Make sure this feature does not require an Alcatel accessory
When I select a number from my directory, the number is not dialed
• Make sure that you have correctly recorded the number
• Make sure that you have selected the country prefix when calling a foreign country
I am unable to create a file in my directory
• Make sure that your SIM card directory is not full; delete some files or save the files
in the phone's directory (i.e. your professional or personal directories)
• Check the “Call barring” option for “Incoming calls” to be sure that the
“Except SIM directory” feature is not activated
My callers are unable to leave messages on my voicemail
• Contact your network operator to check service availability
82
My cellphone will not charge properly
• Make sure that your battery is not completely discharged; the battery charge
indicator can take several minutes and may be accompanied by a quiet whistling
sound
• Make sure charging is carried out under normal conditions (0°C +40°C)
• Make sure your battery is inserted. It must be inserted bef
ore plugging in the
charger
• Make sure you are using an Alcatel battery and charger
• When abroad, check that the electrical current is compatible
My cellphone will not connect to a network
• Try connecting in another location
• Verify the network coverage with your operator
• Check with your operator that your SIM card is valid
• Try selecting the available network(s) manually (see page 49)
• Try connecting at a later time if the network is busy or unavailable
SIM card error
• Make sure the SIM card has been correctly inserted (see page 17)
• Verify with your operator that your SIM card is 3V compatible; the old 5V SIM
cards cannot be used
• Make sure the chip on your SIM card is not damaged or scratched
Unable to make outgoing calls
• Make sure you have dialed a valid number and press the key
• For international calls, check the country and area codes
• Make sure your cellphone is connected to a network, and that the network is not
busy or unavailable
• Check your subscription status with your operator (credit, account status etc.)
• Make sure you have not barred outgoing calls (see page 29)
81
670_UM_USA_22-07-08 22/07/08 11:06 Page 81
ALCATEL is a trademark of Alcatel-Lucent
and used under license by
TCT Mobile Limited.
All rights reserved © Copyright 2008
TCT Mobile Limited.
TCT Mobile Limited reserves
the right to alter material or technical
specification without prior notice.
I cannot access my voicemail
• Make sure your operator’s voicemail number is correctly entered in “My
Numbers”
• Try later if the network is busy
I am unable to send and receive messages MMS,Vox MMS
• Check your phone’s memory available as it might be full
• Contact your network operator to check service availability and check MMS
parameters (see page 41)
• Verify the server centre number or your MMS profile with your operator
• The server centre may be busy; try again later
The icon is displayed on my standby screen
• You have too many SMS messages on your SIM card;delete some, or archive them
in your phone's memory
The << - >> icon is displayed
• You are outside of the network coverage area
I have already entered 3 incorrect PIN codes
• Contact your network operator to obtain the PUK code (Personal Unblocking
Key)
I am unable to connect my telephone to my computer
• Install first of all Alcatel’s PC suite
• Use “Install the connection” and perform the installation
• Check that your computer meets the requirements for Alcatel’s PC Suite
installation
I am unable to download new files
• Check required/available memory
• Delete some files
• Select the MicroSD Card to store the files you downloaded
• Check your subscription status with your operator
The phone can’t be detected by others via Bluetooth
• Make sure that Bluetooth is turned on and your cellphone is visible to other users
(see page 50)
83
English - CJA30D1ALAAA
670_UM_USA_22-07-08 22/07/08 11:06 Page 83
Loading...
