Page 1
English
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:31 Page 1
Page 2
Introduction ..........................................................
TCL & Alcatel Mobile Phones would like to thank you for purchasing this mobile.
Your camera: photo and video clip
Record a video clip with sound with your mobile.Save it in your multimedia album and use it to personalise
the idle screen.You can also associate a video to a contact so when y our contact calls you,the video is played.
Capture and share your fa v ourite moments thanks to the embedded camera.You can zoom and record sound
while taking your photos,or add funny frames and stamps.It is easy and a lot of fun!
Say it with colours using MMS
Your phone includes the Multimedia Message Ser vice enabling you to send video clips, colour pictures and
sounds in your text messages. You can create expressive messages to match your mood thanks to the
embedded and downloaded multimedia content.
Your MP3 melody
Choose an MP3 melody as your incoming call ring.When you receive a call,your MP3 melody will be played.
A style of your very own
Personalise your handset giving it a personal touch. Either choose the colour and texture of your interface
from the embedded skins,or pick a video clip,a wallpaper or melodie from the rich multimedia content.
Yo ur game companion
Get ready for a new intense gaming experience with a large choice of downloadable games and applications.
1
Ta b le of contents ..................................................
Introduction ......................................................................................................1
Safety and Use ..................................................................................................5
General Information ........................................................................................9
1. Your mobile ..............................................................................................10
1.1 Keys..................................................................................................................................................................11
1.2 Main screen icons ........................................................................................................................................12
2. Getting started ........................................................................................14
2.1 Set-up ..............................................................................................................................................................14
2.2 Switching on your telephone......................................................................................................................16
2.3 Switching off your telephone......................................................................................................................16
3. Calls ..........................................................................................................17
3.1 Making a call....................................................................................................................................................18
3.2 Calling your voicemail ..................................................................................................................................18
3.3 Receiving a call ..............................................................................................................................................18
3.4 During the call ..............................................................................................................................................19
3.5 Conference calls ............................................................................................................................................20
3.6 Double line (ALS) .........................................................................................................................................20
4. Call log ......................................................................................................21
4.1 Call memory ..................................................................................................................................................21
4.2 My Numbers ..................................................................................................................................................22
4.3 Billing ................................................................................................................................................................22
4.4 Call settings ....................................................................................................................................................24
5. Menu ..........................................................................................................26
2
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:31 Page 1
Page 3
10. Tips & Tricks..............................................................................................63
11. Services ....................................................................................................64
11.1 Access WAP menu ........................................................................................................................................64
11.2 Programming your access............................................................................................................................64
11.3 Direct access/profile access ......................................................................................................................66
11.4 GPRS function................................................................................................................................................66
11.5 WAPbrowser options..................................................................................................................................67
12. Media Album ............................................................................................68
12.1 Album menu ..................................................................................................................................................68
12.2 My Images ........................................................................................................................................................68
12.3 My Sounds ......................................................................................................................................................70
12.4 My Videos ........................................................................................................................................................70
12.5 Managing sounds, images and videos ......................................................................................................71
12.6 Download new video clips,photos, sounds, ... ......................................................................................72
12.7 Formats and compatibility ..........................................................................................................................72
13. Photo/Video ..............................................................................................73
13.1 Photo applications ........................................................................................................................................73
13.2 Video applications..........................................................................................................................................79
14. Games & Applications..............................................................................84
14.1 Launch an application ..................................................................................................................................84
14.2 Available options............................................................................................................................................85
14.3 Download an application ............................................................................................................................85
14.4 Java™ Push......................................................................................................................................................86
14.5 Settings ............................................................................................................................................................86
15. Making the most of your mobile ............................................................88
15.1 “My One Touch” ser vices by TCL & Alcatel Mobile Phones ............................................................88
15.2 Alcatel One Touch PC suite........................................................................................................................88

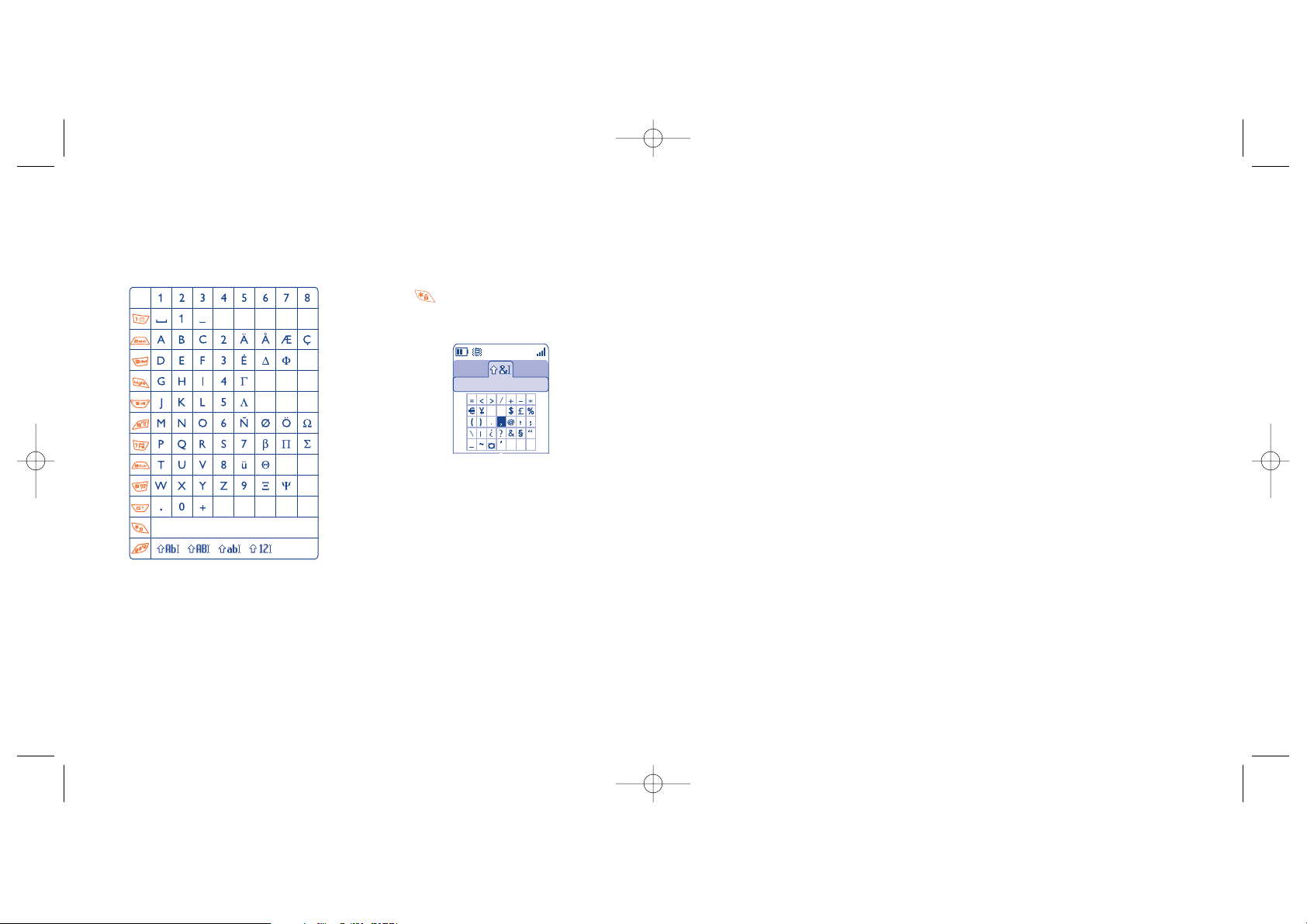

16. Characters and symbols table ................................................................89
17. Telephone warranty ................................................................................90
18. Accessories................................................................................................92
19. Troubleshooting........................................................................................93
4
6. Directory ..................................................................................................28
6.1 Consulting your directory ..........................................................................................................................28
6.2 Creating a file.................................................................................................................................................29
6.3 Available options ...........................................................................................................................................30
6.4 Creating a new directory............................................................................................................................31
6.5 Using voice tag ..............................................................................................................................................31
6.6 Assigning a ringtone to a directory ..........................................................................................................32
6.7 Assigning an image, an animation or a video to a file ..........................................................................32
6.8 Privacy..............................................................................................................................................................32
7. Messages....................................................................................................33
7.1 Receiving and reading messages ................................................................................................................34
7.2 Creating and sending messages .................................................................................................................37
7.3 Speed writing system....................................................................................................................................40
7.4 Parameters......................................................................................................................................................42
7.5 Delete messages............................................................................................................................................44
8. My Settings ..............................................................................................45
8.1 Ringtones.........................................................................................................................................................45
8.2 Display .............................................................................................................................................................46
8.3 Clock................................................................................................................................................................49
8.4 Set my shortcuts............................................................................................................................................50
8.5 Customising the keys....................................................................................................................................50
8.6 More settings..................................................................................................................................................51
9. Tools ..........................................................................................................55
9.1 Diary ................................................................................................................................................................55
9.2 Alarms..............................................................................................................................................................58
9.3 Converter........................................................................................................................................................58
9.4 Calculator........................................................................................................................................................59
9.5 Memory............................................................................................................................................................59
9.6 Voice memo ..................................................................................................................................................60
9.7 Infrared (IrDA) ..............................................................................................................................................60
9.8 Alarms list........................................................................................................................................................61
9.9 Tone composer ..............................................................................................................................................61
9.10 Voice tag..........................................................................................................................................................62
3
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:31 Page 3
Page 4
Some people suffer epileptic seizures or blackouts when exposed to flashing lights, or when playing video games. These
seizures or blackouts may occur e ven if a person never had a previous seizure or blackout.If you ha v e experienced seizures
or blackouts,or if you have a family history of such occurrences,please consult your doctor before playing video games on
your phone or enabling a flashing-lights feature on your phone.Parents should monitor their children’s use of video games
or other features that incorporate flashing lights on the phones.All persons should discontinue use and consult a doctor if
any of the following symptoms occur: convulsion, eye or muscle twitching, loss of awareness, involuntary movements, or
disorientation.To limit the likelihood of such symptoms, please take the following safety precautions:
- Do not play or use a flashing-lights feature if you are tired or need sleep.
-Take a minimum of a 15 minute-break hourly.
-Play in a room in which all lights are on.
-Play at the farthest distance possible from the screen.
When you play games on your phone,you may experience occasional discomfort in your hands, arms, shoulders, neck, or
other parts of your body.Follow these instructions to avoid problems such as tendinitis,carpal tunnel syndrome,or other
musculoskeletal disorders:
-Take a minimum of 15 minute break every hour of game playing.
- If your hands, wrists, or arms become tired or sore while playing,stop and rest for several hours before playing again.
- If you continue to have sore hands,wrists,or arms during or after playing, stop the game and see a doctor.
• PRIVACY:
Please note that you must respect the laws and regulations in force in your country regarding taking photographs and
recording sounds using your mobile telephone.Pursuant to such laws and regulations,it may be strictly forbidden to take
photographs and/or to record the voices of other people or any of their personal attributes, and reproduce or distribute
them, as this may be considered to be an invasion of privacy. It is the user's sole responsibility to ensure that prior
authorisation be obtained, if necessar y,in order to record private or confidential conversations or take a photograph of
another person;the manufacturer,the seller or reseller of your mobile phone (including the operator) disclaim any liability
which may result from the improper use of the mobile phone.
• BATTERY:
Before removing the battery from your phone,please make sure that the phone is switched off.
Take precautions with the battery and do not attempt to open the battery (chemical substances may cause burns).
Do not pierce,disassemble nor cause a short-circuit in a battery.
Do not burn or dispose of a used battery in household waste or store it at temperatures above 60 °C.
Batteries must be disposed of in accordance with locally applicable environmental legislation.
Batteries should not be used for any other purpose than the one intended.
Never use damaged batteries or not recommended by TCL & Alcatel Mobile Phone Limited and/or its affiliates.
6
Safety and Use ......................................................
We recommend that you read this chapter carefully before using your phone.The manufacturer disclaims any liability for
damage, which may result as a consequence of improper use or use contrary to the instructions contained in this manual.
• TRAFFIC SAFETY:
Given studies,which show that using a mobile phone while driving a vehicle constitutes a real risk,even when the handsfree
kit is used (car kit,headset...),drivers are requested to refrain from using their mobile when the vehicle is not parked.
When switched on, your phone emits electromagnetic waves that can interfere with the vehicle’s electronic systems such
as ABS anti-lock brakes or airbags.To ensure that there is no problem:
-do not place your phone on top of the dashboard or within an airbag deployment area.
- check with your dealer or car manufacturer to make sure that the car electronics is well insulated.
• CONDITIONS OF USE:
Switch the phone off before boarding an aircraft to avoid prosecution.
Switch the phone off when you are in health care facilities,except in designated areas.As with many other types of equipment
now in regular use, mobile telephones can interfere with other electrical or electronic devices,or equipment using radio
frequency.
Switch the phone off when you are near gas or flammable liquids. Strictly obey all signs and instructions posted in a fuel
depot,gas station,or chemical plant,or in any potentially explosive atmosphere.
When the phone is switched on, it should be kept at least 15 cm from any medical device such as a pacemaker, a hearing
aid or insulin pump.When using the phone you should hold it against the ear on the opposite side to the device, if any.
To avoid hearing impairment,pick up the call before holding your phone to your ear.Also move the handset away from your
ear while using the “hands-free” option because the amplified volume might cause hearing damage.
Do not let small children use the phone without supervision.
When exchanging the cover please note that your phone may contain substances that could create an allergic reaction.
Always handle your phone with care and keep it in a clean and dust-free place.
Do not allow your phone to be exposed to unfavourable environmental conditions (moisture,humidity, rain, infiltration of
liquids,dust, sea air,etc).The manufacturer’s recommended operating temperature range is -20°C to +55°C.Over 55°C the
legibility of the phone’s display may be impaired,though this is temporary and not serious.
Do not open or attempt to repair your mobile phone yourself.
Do not drop,throw or try to bend your mobile phone.
Do not paint it.
Use only Alcatel batteries, battery chargers, and accessories that are compatible with your phone model. (See Accessories
List,chapter 18).TCL & Alcatel Mobile Phones Limited or its affiliates disclaim any liability for damage caused by the use of
other batteries.
Your phone should not be placed in municipal waste . Please check local regulations for disposal of electronic products.
Remember to make back-up copies or keep a written record of all important information stored in your phone.
5
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:31 Page 5
Page 5
The highest SAR value for this model phone when tested for use at the ear is 0,38 W/Kg and for use close to the body is
0,91 W/Kg.While there may be differences between the SAR levels of various phones and at various positions, they all meet
the government requirement for RF exposure. For body-worn operation, the phone meets FCC RF exposure guidelines
provided that it is used with a non-metallic accessory with the handset at least 2 cm from the body .Use of other accessories
may not ensure compliance with FCC RF exposure guidelines.
The World Health Organization (WHO) considers that present scientific information does not indicate the need for any
special precautions for use of mobile phones. If individuals are concerned, they might choose to limit their own or their
children's RF exposure by limiting the length of calls,or using "hands-free" devices to keep mobile phones away from the
head and body.(fact sheet n°193).Additional WHO information about electromagnetic fields and public health are available
on the following website:http://www.who.int/peh-emf.
Your telephone is equipped with a built-in antenna. For optimal operation, you should avoid touching it or degrading it (see
page 15).
8
• CHARGERS
Mains powered chargers will operate within the temperature range:0°C to 40°C.
The chargers designed for your mobile phone meet with the standard for safety of information technology equipment and
office equipment use. They should be used for this purpose only.
Electrical characteristic of power supply (depending on the country):
110 V charger (used in Mexico):
Input:100-127 V ,50/60 Hz, 0.30 A
Output:4.5 V ,350 mA
220 V charger:
Input:220-240 V ,50/60 Hz, 0.30 A
Output:4.5 V ,350 mA
Travel charger:
Input:100-240 V ,50/60 Hz, 0.15 A
Output:6.5 V ,350 mA
Battery: Lithium 950 mAh
• RADIO WAVES:
THIS MOBILE PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
Your mobile phone is a radio transmitter and receiver.It is designed and manufactured not to exceed the emission limits for
exposure to radio-frequency (RF) energy. These limits are part of comprehensive guidelines and establish permitted levels
of RF energy for the general population.The guidelines are based on standards that were developed by independent scientific
organisations through periodic and thorough evaluation of scientific studies. These guidelines include a substantial safety
margin designed to ensure the safety of all persons,regardless of age and health.
The exposure standard for mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by public authorities such as the Federal Communications Commission of the US Government (FCC),the
Australian Communications Authority (ACA) or by Industry Canada,is 1.6 W/kg averaged over 1 gram of body tissue.Tests
for SAR are conducted using standard operating positions with the phone transmitting at its highest certified power level in
all tested frequency bands.
Although the SAR is determined at the highest certified power level,the actual SAR level of the phone while operating can
be well below the maximum value.This is because the phone is designed to operate at multiple power levels so as to use
only the power required to reach the network.In general,the closer you are to a wireless base station antenna,the lower
the power output of the phone.Before a phone model is available for sale to the public,compliance with national regulations
and standards must be shown.
7
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:31 Page 7
Page 6
1
Your mobile ....................................................
10
Clear
Back
Voicemail
Switch on/Switch off
End call
Keypad lock/unlock
Access the symbols table
Left softkey
Right softkey
Operator key/Personal key/
Camera key
(1)
Pickup/Send call
Call memory
Voice tag
Navigation key
(1)
:
Menu/Confirm an option
Messages
Directory
Media Album
Volume
Edit mode
Vibrator
(1)
Depending on your network operator.
9
General Information ............................................
• Website: www.alcatel.com
• Wap address:wap.alcatel.com
• Hot Line Number: see the “TCL & Alcatel Mobile Phones Services” leaflet (calls charged at applicable
local rates in your country)
An electronic version of this user guide is available in English and other languages according to availability on
our server: www.alcatel.com
Your telephone is a transceiver that operates on GSM networks with 900, 1800 and 1900 MHz bands.
The marking indicates that your telephone complies with "1999/5/EC (R&TTE)" directive and that the
accessories concerned comply with current EC directives.The entire copy of the Declaration of Conformity
for your telephone can be obtained through website:www.alcatel.com.
Protection against theft
Your mobile phone has an identification number called IMEI (phone serial number) shown on the packaging
label and in the product’s memory.We recommend that you note this number the first time you use your
telephone by entering , , , , and keep it safely. It may be requested by the police or your
operator if your telephone is stolen.This number allows your mobile telephone to be blocked,preventing a
third person from using it,even with a different SIM card.
January 2004
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:31 Page 9
Page 7
1.2 Main screen icons
(1)
Battery charge level
Vibrator mode:your phone vibrates but neither rings nor beeps except for the alarms (see page
46).
Silence mode:your phone neither rings,beeps nor vibrates except for the alarms (see page 46).
Message unread
Message list is full (SMS):your terminal cannot accept any new SMS.You must access the message
list and delete at least one message on your SIM card (see page 44).
Voicemail message arrived.
Missed calls.
WAP alert.
Call forwarding activated:your calls are forwarded (see page 24).
Timer or alarm clock programmed (see page 58).
Level of network reception.
Preferred tariff areas
(2)
.
12
(1)
The icons and illustrations in this guide are provided for informational purposes only.
(2)
Contact your network operator to check service availability.
11
Navigation key
Confirm an option (central keypress)
Delete
(short keypress)
Return to the previous screen(short
keypress)
Return to the main screen (long keypress)
Pick up
Send a call
Access call memory (Redial) (short keypress)
Use voice tag features (long keypress)
Switch on/Switch off the telephone (long
keypress)
End call
Return to the main screen
Operator key/Personal key/Camera key
(1)
Left softkey
Right softkey
Consult your voicemail
(long keypress)
Keypad lock/unlock
Access the symbols table
In Edit mode:
- Short keypress: upper case, lower case,
digits
- Long keypress: switch from normal to
predictive mode
In standby screen:
- Short keypress:dial #
- Long keypress: activate/deactivate the
vibrator.
1.1 Keys
(1)
Depending on your network operator.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:31 Page 11
Page 8
2
Getting started ..............................................
2.1 Set-up
Inserting and removing the SIM card
(1)
You must insert your SIM card in order to use your phone.
14
Place the SIM card with the chip facing downwards and slide it into its
housing.Make sure that it is correctly inserted.
1
2
Installing and removing the battery
Insert and engage the battery,then close the
telephone cover.
1
2
2
1
Unclip the cover, then the battery and remove it.
1
1
2
2
(1)
Check with your network operator to make sure that your SIM card is 3V compatible. The old 5 Volt
cards can no longer be used.Please contact your operator.
CLICK
CLICK
Keypad locked.
Roaming within your country of subscription.
Infrared:infrared link activated.
Double line
(1)
:indicates the selected line.
GPRS context activated.
Reception of an MMS in progress.
Sending an MMS.
13
(1)
Contact your network operator to check service availability.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:31 Page 13
Page 9
16
2.2 Switching on your telephone
Make a long keypress on the key until the telephone comes on,type in your PIN code if necessary and
then confirm with the key.The main screen is displayed.
If you don’t know your PIN code or if you have forgotten it,contact your network operator.Do
not leave your PIN code near your telephone and store your card in a safe place when not in use.
If cell broadcast messages are displayed, use the key to browse through them in full or press the
key to return to the main screen.
While the phone is searching for a network,the <<<->>> symbol is displayed (???-??? is displayed if your SIM
card is rejected by the network,in this case please contact your operator).
In the switch on screen, you also have access to “Video” demo function: select the left icon with the
navigation key .Even if no SIM card inside,you will have a quick view of the diff er ent options of the video
function.
2.3 Switching off your telephone
Press the key from the main screen (long keypress).
15
Charging the battery
Connect the battery charger
1
2
• A short beep will sound when charging begins.
• The animation may take several minutes to start and may emit a
slight whistling sound if the battery is flat.
• Be careful not to force the plug into the socket.
• The battery icon will take 2 minutes to indicate the correct charge
level.
• Make sure the battery is correctly inserted before connecting the
charger.
• The mains socket must be near to the phone and easily accessible
(avoid electric extension cables).
The charge is complete when the animation stops.Only use Alcatel chargers.
Precautions during use
OK
Do not place you hand on the upper part of the mobile phone.
Your telephone is equipped with a built-in antenna. For optimal
operation,you should avoid touching it or degrading it.
For better radio reception and optimum operation,do not touch the
upper part of your telephone.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:31 Page 15
Page 10
18
Automatic redial
If this feature is activated and supported by the network (see page 25),the person you called will be called
back automatically until they can be reached.
3.2 Calling your voicemail
(1)
Your voicemail is provided by your network to avoid missing calls. It works like an answering machine and
you can consult it at any time.To access your voicemail,make a long keypress on the key, then send the
call using the key.
If the access number for your operator’s voicemail service does not appear,dial the number that you were
given.To change this number at a later date, refer to “My Numbers” (see page 22).
To use your voicemail service from abroad,contact your network operator before leaving.
3.3 Receiving a call
When you receive an incoming call,press the key to talk and then hang up using the key.
When you have an incoming call,your telephone rings quietly at first and then gets louder.If the icon is
displayed,the vibrator is activated and there is no ringtone. If the icon is displayed, the phone neither
rings nor vibrates.
The caller’s n umber is displayed if it is transmitted by the network (contact your netw ork operator
to check service availability).
18
(1)
Contact your network operator to check service availability.
3
Calls ............................................................
3.1 Making a call
Dial the desired number then press the key to place the call.To hang up,press the key. If you make
a mistake,you can delete the incorrect digits by pressing the key.
To enter characters “+” or “P” (pause), make a long keypress on the key (the following
characters will scroll by:0,+, P,•).
Making an emergency call
If your phone is covered by the network,dial 112 and press the key to make an emergency call (or any
other number provided by your operator).This works even without a SIM card and without typing the PIN
code or unblocking the keypad.
Making a call with a prefix
To access the various prefixes, make a long keypress on ,stop at “+” sign and use the key.
•To make an international call,go to , confirm the country,finish dialling the number and send the call.
• If you already know the prefix you want,go directly to the icon and enter the prefix directly followed
by the number of the person you are calling.
• In some companies, telephone numbers all begin with the same digits. By using the “Prefix” feature
,you can save the shared digits,but you will need to enter the variable part. You must create the
prefixes yourself.
17
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:31 Page 17
Page 11
20
Handling two calls
• Call waiting
(1)
If a second call comes in while you are already on line,you will be notified by a tone.You can then accept
the call by pressing the key.
Your current call will be automatically put on hold.You can then switch between your two cor r espondents
using the key and then .
• Making a second call
To call a second party during a call, dial directly the number.
3.5 Conference calls
(1)
Your phone allows you to talk to several people at the same time (up to 5).Once you are on a double call,
press ,select “Conference” then confirm with the key .If a third call comes in,answer it by pressing
the key and speak with your new correspondent.
This correspondent becomes a member of the conference if you press , select “Add conf.”,and then
confirm by pressing . Pressing disconnects the current call.
To end the conference call, press and select “End conf.”.
3.6 Double line (ALS)
(1)
Your SIM card can contain two distinct telephone numbers. Under “Call log”,choose “Double line” and
then select a default line;all your outgoing calls will be made from this number. Incoming calls,however, will
continue to use the two lines.
The services programmed on the default line do not impact those selected on the other line.
20
(1)
Contact your network operator to check service availability.
Muting the ringtone
Press the key once while the telephone is ringing. Answer the call by pressing the key,or select
“Options”.
Rejecting a call
Press the key once or the key twice,or select “Options”.
3.4 During the call
Available functions
During a call,you can use your directory,your diary,short messages, etc. without losing your correspondent
by pressing the key.
19
(1)
Contact your network operator to check service availability.
Adjusting the volume
You can adjust the sound level during a call using the navigation key .
Call on hold
Ongoing call
Handsfree
WAR NING:move the handset away from
your ear while using the “handsfree”
option because the amplified volume might
cause hearing damage.
Directory
Messages
Diary
Services
(1)
Voice memo (record your current call).
Display notes
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:31 Page 19
Page 12
22
4.2 My Numbers
My Number
Save your telephone n umber (usuall y written on your SIM card),type in the number and confirm by pressing
.
Voicemail
Modify the number to access your voicemail.
4.3 Billing
Amount
(1)
Management of call charges.
Total cost Total cost of charged calls.
Available Remaining credit as compared with “Maximum credit” amount.
credit
(1)
Maximum Credit limit beyond which any billable call is barred (enter credit, then confirm by
credit
(1)
).
Reset Reset total cost of charged calls.
Cost unit Cost of a Telecom Unit in the currency of your choice (Select the “Other?” option for
a new currency and use the key to enter a decimal point).
Duration Call duration management.
Total duration Total duration of all outgoing calls.
Avail. duration Time credit still available in relation to the duration provided by the “Set duration”
(amount provided for informational purposes only).
(1)
Contact your network operator to check service availability.
4
Call log ............................................................
4.1 Call memory
You can access your call memory by pressing the key from the main screen.You must first choose the
appropriate icon:
Outgoing calls (Redial) Unanswered calls Answered calls
The icons that may be displayed to the left of the person’s name show the type of telephone
number recorded in the directory (Home,Office, Mobile Phone).
Available options
From the stored number, you can access the following options using the right softkey:
21
View • Consult call details (number,
date, time, etc.).
To directory • Store the selected number in
one of your directories.
Delete • Delete the selected number.
number
Clear list • Clear the entire list.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:31 Page 21
Page 13
24
4.4 Call settings
Call forward
(1)
Voice Activate/cancel call forwarding to a specified number (type in the number, confirm by
pressing ). The following configurations are possible:
• Unconditional Systematic forwarding of all your calls. The icon is displayed.
• Conditional If your line is busy,if you don’t answer or if you are outside the network range.
• If busy Only if your line is busy.
• If no reply Only if you don’t answer.
• If unreachable Only if you are outside the range of the network.
Data Your data reception calls are systematically forwarded to a specified number.
Fax Your fax reception calls are systematically forwarded to a specified number.
Status List of call forwarding options activated on this telephone.
Cancel all Cancellation of all activated call forwarding options.
Call barring
Outgoing calls Activate/deactivate the call barring.This option is applied as follows:
• Except SIM Dir. Outgoing calls to numbers not included in your directory are barred.
• All
(1)
All outgoing calls are barred.
• International
(1)
Outgoing international calls are barred.
• Except->Home Outgoing international calls except those to your country of subscription are barred.
• Except FDN Barring of outgoing calls in accordance with a specific “FDN” directory contained in the
Dir.
(1)
SIM card.
Activate/ All calls not beginning with one of the numbers recorded in the “FDN” directory are
Deactivate barred.
(1)
Contact your network operator to check service availability.
Set duration Contract duration (enter the duration then confirm by ).
Reset Reset to zero (immediately or periodically) the cumulative duration for outgoing calls.
GPRS Management of the volume of data communications charged for (in kilobytes).
counters
Global counter Total charges for data volume exchanged.
Access point Charges for data volume exchanged per access point.
• Access point 1-2 Charges for data volume exchanged through access point 1 or 2.
Cumulated Charges for data volume exchanged through all access points 1 or 2.
Last counter Charges for data volume exchanged through last access point 1 or 2.
Reset Reset to zero data volume exchanged through all access points 1 or 2.
• Other Charges for data volume exchanged through other access points.
Cumulated Charges for data volume exchanged through all access points.
Last counter Charges for data volume exchanged through the last access point.
Reset Reset to zero data volume exchanged through all access points.
Reset Reset all counters to zero.
Cost summary
Last call Duration and cost of the last call.
Total cost Duration and cost of all calls.
Beep duration Activate (or cancel) the beep emitted during a call with a specified frequency (enter the
frequency and confirm by ).
23
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:31 Page 23
Page 14
5
Menu
(1)
............................................................
• GAMES & APPS
• MEDIA ALBUM
- My Images
- My Videos
- My Sounds
-Games & Apps
- Memory
•TOOLS
- Diary
- Alarms
- Calculator
- Converter
- Memory
-Tone composer
-Voice memo
-Voice tag
- Infrared
- Alarms list
• PHOTO/VIDEO
-Take a picture
- Record video
- My Images
- My Videos
- Tips&tricks
• DIRECTORY
• MESSAGES
-Create message
- Inbox
- Outbox
-Voicemail
-Templates
- Parameters
- Memory
- Delete
- Tips&tricks
26
(1)
Depending on your network operator.
Change If the “Except FDN dir” f eature has been activated,after entering PIN2, you can update
the “FDN” directory (update “FDN” directory by pressing ).
Incoming calls Activate/deactivate the barring of incoming calls. The following configurations are
possible:
• Except SIM Dir. All incoming calls not corresponding to one of the numbers in your directory are barred.
• All
(1)
All incoming calls are barred.
• If abroad
(1)
Incoming calls are barred when you are abroad.
Status List of incoming call barring options activated on this phone .
Calls
Call waiting
(1)
Activate/deactivate the notification of a second incoming call by a beep.
Conceal ID
(1)
Activate/deactivate the option making your calls anonymous (your number is no longer
(CLIR) transmitted by the network to the party you are calling).
Caller ID
(1)
Activate/deactivate the display of your caller’s number (or name if found in the directory)
(CLIP) for each call.
Network Enables automatic callback by the network of the last dialled busy number.
autoredial
(1)
Automatic redial
(2)
Activate/ Activate/deactivate automatic callback of your party if the first call did not go through.
deactivate
See list List of numbers for which automatic callback was not successful (10 unsuccessful
attempts).
Clear list Delete the list.
Double line (ALS)
See page 20.
25
(1)
Contact your network operator to check service availability.
(2)
Depending on your country or your operator.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:31 Page 25
Page 15
6
Directory ..................................................
6.1 Consulting your directory
To access the directory from the main screen, press the key
(1)
downwards or press the key and
select the icon from the menu.
You have 4 directories:
SIM directory:
The SIM card’s capacity depends on your operator. It is not possible to assign more than one number
to a name.
General directory:
Contains all files created.The SIM card files are not created automatically in the general directory,but
they can be copied to it.
Personal directory:
You can store your personal contacts in this directory (relatives,friends, etc.).
Professional directory:
You can store your professional contacts in this directory (companies,etc.).
In addition to the directories already provided, you can create your own directories (see page 31).
Searching for a name by its first letter
You can search for the person’s name by pressing the key associated with the first letter of his/her name.
For some languages that have a specific entry mode,you should use the “Search name” option.
28
(1)
Depending on your network operator.
27
(1)
Contact your network operator to check service availability.
• CALL LOG
- Call memory
- My Numbers
-Billing
- Call settings
•MYSETTINGS
- Ringtones
- Display
- Clock
- Set My shortcuts
-Personal key
- More settings...
- Tips&tricks
•MYSHORTCUTS
•SERVICES
-WAP
- Services
(1)
- My One Touch
- Tips&tricks
• DISPLAY
- Colours
- Main screen
- Atmospheres
- Switch on / off
- Zoom
- Contrast
- Menu display
- Battery saver
• TIPS&TRICKS
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:31 Page 27
Page 16
6.3 Available options
From the list of names in your directories,you can access the following options via the right softkey:
30
View • View a complete file: name ,
address,e-mail,etc.
Create • Create a file (name, numbers,
contact address,e-mail,etc.) in the
desired directory.
Write • Send an SMS or MMS to a
message contact from the directory.
Modify • Modify the contents of a file .
Image • Select a video/photo/image in
the Album and assign it to the
current file (not valid for the SIM
directory).
Delete • Delete the selected file .
Classify file • Move a file from one directory
to another.
Dir. ringtone • Assign a melody to the current
directory.
Create dir. • Create your own directory.
Empty dir. • Empty the contents of a
directory.
Delete dir. • This directory and its files will
disappear completely (created
directory only).
CopyAll-> • Copy the whole directory to the
phone/SIM SIM or telephone directory in
one go if there is sufficient
memory.
Vo ice tag • Record a voice tag command
except in the SIM.
Send • Exchange data via infrared (see
page 60) or Multimedia/MMS.
Tips&tricks • Get information and tricks about
the current menu function.
29
Read a contact file
Select a name from your directory,choose the “Options” softkey and select “View”.
Making the call
Press the key when the name is selected.If several numbers are associated with the name to be called,
you must first choose the number from the list (Mobile,Home, Office,etc.) using the key.Press the
key to make the call.
Information in the directory and the diary may be sent to and received from a computer using the
Alcatel One Touch PCsuite (see page 88).
6.2 Creating a file
Select the directory in which you wish to create a file,press the right softkey,select “Create contact” then
.You can save the data you have entered at any time by pressing the right softkey and choosing “Save
& quit”.Go to the following field by pressing the key or by using the navigation key .
When you create a new contact in the product directory,at least one of the following fields must be filled
in: Identity card, Birthday, Nickname, URL Address, Numbers, Image, E-mail,
Address, Notes, Perso.Info.1...4.You can move from one field to another using the key.
When the field “Birthday” is filled in,an alarm is automatically created in the Diary.
If you use your phone abroad,store the numbers in your directories in international format “+”
followed by the country code (see page 17).
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:31 Page 29
Page 17
6.6 Assigning a ringtone to a directory
Select a file from the product directory,press the right softkey and select “Dir. ringtone”.
When you receive a call from a contact classified in the product directory, the ringtone will be the one
assigned to that directory.
6.7 Assigning an image, an animation or a video to a file
Select a file from the product directory,press the right softkey and select “Image”.
When you receive a call,the picture, animation or video clip that you have chosen will be displayed on the
screen.It is possible to assign either an image or a video but not both for the same contact.
6.8 Privacy
The data of your directory can be protected (see option “Privacy” page 52).
32
6.4 Creating a new directory
From the product directory, press the right softkey and select “Create dir.”, confirm using the key,
then name your new directory .You can create up to 13 new directories.Y ou can delete onl y those directories
that you created,by selecting “Delete dir.”
6.5 Using voice tag
voice tag allows you to place your call by pronouncing the party’s name without using your directory.
Select a file from the product directory and confirm with the right softkey. Then select “Voice tag” and
confirm once again. Three different beeps will signal the start of recording, its failure or its success. After
recording,you can “Listen to”,“Replace” or “Delete” a recorded voice tag command.
The files for which a voice tag command has been recorded are indicated by the icon. The
number of names accessible through voice tag is limited.This feature can be used in all directories
except the SIM card directory.
Activate voice tag by a long keypress on the key from the main screen,then follow the instructions on
the screen.
31
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:31 Page 31
Page 18
When viewing your messages, you will find the following status icons, depending on:
- the type of message: SMS message, MMS message , MMS notification, MMS sending in
progress, MMS message with a sound, MMS with video clip, MMS with copyright elements which
cannot be forwarded.
- Storage: messages stored on your SIM card (SMS only), messages stored in the phone’s memory
(MMS notifications).
7.1 Receiving and reading messages
7.1.1 SMS
When a new SMS arrives, the following message is displayed: “You received a new message!”, a beep
sounds, the icon shows up,a line with the number of messages appears on the screen.Select this line
and press to read it directly from the main screen.To modify or deactivate the audible signal,see page
45.
7.1.2 MMS
You have two ways of managing the reception of MMS: immediate or deferred reception. From
“Parameters/MMS Parameters”,confirm your choice in the “Mode” option.
•“Immediate”: when in idle mode, the icon will indicate that a new MMS is being downloaded.The
message “You received a new message!” appears,a beep sounds,the icon shows up,a line with the
number of messages appears on the screen.Select this line and press to select and open the MMS.
•“Deferred”:you will receive a notification with the name and number of the sender and the title of the
message if it has been saved.You can download the MMS at any time in order to read it.You can also delete
it without reading it; in this case the sender of the MMS will be informed that it has been rejected
(deferred reception may be useful for instance when you are abroad and you do not want to pay a high
cost for MMS reception ;you can then read them when you’re back in your country).
34
7
Messages ..................................................
From your telephone, you can read, write, send and receive short “Te xt/SMS” messages and
“Multimedia/MMS” and share them with other mobiles
(1)
.
Multimedia messages are messages whereby you can send video clips, images, photos, animations, sounds,
voice messages (or Vox MMS: simplified MMS that allows you to send a voice memo as a message),
appointments (V.C AL) or directory files (V.CARD) to other compatible mobiles and e-mail addresses.
The multimedia MMS function can only be used if the service is proposed by your operator, if your
contract includes the MMS option and if all the parameters for sending MMS have been entered
(see page 43).
To access the messages from the main screen,press the top of the key
(2)
or press the key, select
“Messages” with the navigation key and confirm with the key.
This menu is composed of the following items:
-Create message
- Inbox
- Outbox
-Voicemail
-Templates
- Parameters
- Memory
- Delete
- Tips&tricks
33
(1)
Check with your network operator for the availability of the MMS service.
(2)
Depending on your network operator.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:31 Page 33
Page 19
- when reading an MMS:
Restart • View the message again.
With sound • View your MMS with or without
Without sound sound.
Save items
(2)
• Save video clips, images, sounds
received in MMS current page.
36
MMS additional options:
- when selecting
an MMS in the inbox/outbox list
(1)
:
Open/Retrieve • Read the selected message
(“Retrieve” if the deferred
mode has been selected).
Information • Go to MMS details: local date ,
title, size, class,priority,mailing
list,ack. of receipt.
Reply all • Reply to all MMS recipients.
Save no./e-mail• Save the senders’ number or e-
mail address in your directory.
(1)
Options available according to the reception mode chosen.
(2)
-For one object press to save.
-For several objects press “Options”, choose the objects one by one using the option “Next”,and
press to save.
In addition:
- If the MMS includes a wap address,an e-mail address,or a telephone number, you have the 2 possibilities:
select the “Options”,to save and/or access the link displayed (launch wap link,send e-mail,or call number
displayed).
- If the MMS contains several pages,it will scroll automatically.To launch the viewing again,select the option
“Restart” or use the navigation key .
35
You can receive video clips, photos, images, or sounds by MMS. These MMS are automatically stored in the
memory of your telephone. If you select “Options/Save Items” you can save the video clips, images or
sounds or all of them (in this case, save the first item displayed,then select the “Next” option to save the
second item,and so on). They are all saved in the multimedia album.
7.1.3 Options while receiving or viewing messages in Inbox/Outbox
Generally, the common following options are proposed:
Delete • Delete the message .
Reply • Reply by SMS, MMS or by Vox
MMS.
Archive • Save your message in the
message “Archive” folder (product
memory).
Forward • Forward the message to other
people.
Sort by date/ • Sort the read messages by date
Sort by size or by size: by date is the default
sorting.
The following options depend on the context (receiving a message,reading in the Inbox or Outbox an MMS
or an SMS):
SMS additional options:
Save picture • Save a picture contained in the
message.
Save • Save an animation contained in
animation the message.
Save melody • Save a melody contained in the
message.
Save template • Save the message as a predefined
message.
Save number • Save a number or e-mail address
contained in the message.
Launch WAP • Go to the WAP address
contained in the message.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:31 Page 35
Page 20
If the acknowledgement of receipt (“Rpt”) is activated in “Parameters/SMS Parameters”,(see page 42),
when you consult your sent messages,the following symbols will show the following:
Msg.received:message sent and acknowledgment received.
Not received:message sent and waiting for delivery report,or message not received:you should
send the message again.
Other options are available if you choose the predictive entry mode (see page 40).
7.2.2 Creating MMS
From the main menu,select “Messages/Create message/Multimedia/MMS” and press . By default,
you are in edit mode.
Your MMS may contain several pages (maximum memory allocated: usually 50 KB or 100 KB depending on
the model and the operator) ; as you create the MMS you will be informed of the memory used (for all
pages).
If the acknowledgment of receipt (“Rpt”) is activated in “Parameters/MMS Parameters”,you can consult
it in the option “Information” when selecting a message (see page 36).
38
->Directory • To a person or e-mail address
whose contact is stored in one
of your directories).
My favourite • To y our favourite contact.
Send to one • Manually by entering the number
or the mail address of the
recipient.
Send ->several • To different people by manually
entering the numbers or
selecting them from the
directory.
Group • To a group of people that you
have pre-set in the sending
parameters (“Distribution list”
option).
Options for sending your message
37
7.2 Creating and sending messages
7.2.1 Creating SMS
From the main menu,select “Messages/Create message”,select “Te xt/SMS” and press .You can also
modify a predefined message selecting “Templates”.
Customise your messages adding pictures,sounds or mood icons proposed in your telephone:while writing
a message select the following options using the key:
Select “Preview” to see the whole message:the icons, sounds and mood icons are represented by the
, or symbol.You can also download new sounds and images over WAP (see page 88).
A message of more than 160 characters,or a message containing icons, sounds,or mood icons may
be billed as more than one message.Check with your operator.
The person receiving the message must be equipped with an EMS, compatible mobile phone in
order to display the objects or listen to the sounds in your message.
Send to • Send the message.
Add mood • Add a mood icon to your
message.
Add picture • Add an icon to your message.
Add melody • Add a sound to your message.
Symbols • Go to the symbols table .
Predictive • Switch to the predictive mode.
Preview • View your message.
Save • Save the message (“Inbox/
Unsent”) and send it later.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:31 Page 37
Page 21
(1)
Contact your network operator to check service availability.
(2)
This Vox MMS being a normal MMS which contains an AMR type sound, you can only listen to it with
an AMR IETF compatible phone or a computer equipped with an adequate sound decoder.
40
Reply to an MMS by sending an MMS,an SMS or a Vox MMS message.To send text only,it is advisable to use
an SMS.
To send your MMS later on (to add other items or photos for instance) save your MMS (“Archive
message”) as a draft stored in your “Outbox/Unsent” folder. Then select it and use the function
“Forward” to replace or remove items before sending it.
If the message is not send,the mobile will try to re-send it automatically
(1)
.The icon is displayed on the
screen and in the “Outbox/Unsent” folder,indicating the automatic sending procedure is activated.If it fails
completely, you will be notified by a message and the icon in your “Unsent” folder indicates that the
MMS could not be sent.Select it and press to send it again,modify it or delete it.
7.2.3 Creating Vox MMS (Voice memo)
From the main menu,select “Messages/Create message/Voice/Vox MMS”. This function allows you to
send a message quickly without having to write.The recipient is not disturbed and simply receives a normal
MMS
(2)
.You can reply to any message using a “Voice/Vox MMS”.
7.3 Speed writing system
The “Predictive” mode allows to speed the writing of your SMS or MMS. When you want to write a
message, press the “Options” softkey, select “Predictive” for SMS, or select “Te xt options”, then
“Predictive” for MMS and begin to type ;for instance for “hello” type on the follo wing k eys , ,
,,once. The letter or word displayed may not always correspond to the desired one but do not
pay attention,continue typing and the system will make better suggestions as you continue to input letters.
39
You may also attach special files to your MMS such as: a contact from your directory (Vcard), or an
appointment from your diary (Vcal). They will be displayed in a separate page (select option
“Attachments”).
Depending on whether your MMS is empty or not,with no file or at least one file attached, you will be given
the following options:
Send to one • Send to one recipient from your
“Directory” or “Dial” the
number or e-mail or select “My
favourite”.
Send->several • Send to several persons by
dialling the numbers (“Dial”),or
selecting the numbers,or the
group (“Add group”) from the
“Directory”.
Add image • Add a picture or an animation
from the “Album” function, or
create it directly from the
“Camera” function.
Add video • Add a video from the “Album”
function.
Add sound • Add a sound from the “Album”
function,or a voice message.
Add text • Write your text.
Add title • Give a title to your MMS.
Add bookmark• Insert a bookmark (URL) from
the list of your favourite sites
(see page 64).
Replace • Change an item in your MMS.
Remove • Remove an item in your MMS.
Add page • Add a page to your MMS.
Previous page • Go to the previous page of your
MMS.
Next page • Go to the next page of your
MMS.
Delete page • Delete the current page.
Attachments • Add a Vcard or Vcal (see page
39).
Preview • Preview the MMS you created.
Save • Save your message if you do not
want to send it immediately.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:31 Page 39
Page 22
42
Confirm word • Confirm the selected word.
Other words • View other possible words.
Add word • Add a word to your personal
dictionary.
Add numbers • Go to the digital mode.
Normal • Switch to the normal mode .
Languages • Use the dictionary in another
language.
Save • Save the message.
You have a personal dictionary which allows you to add
(1)
,modify or delete words.While writing a message,
you can add a word by pressing the key and by selecting “Add word”.
7.4 Parameters
From the main menu,select “Messages” and using the navigation key to the right,select the icon.
7.4.1 SMS Parameters
• Service centre (“SC”)
(2)
: phone number of your operator’s service centre (it may be provided
automatically).
• E-mail centre (“EC”)
(2)
: the number of the server for sending e-mails (it may be provided
automatically).
• Ack. receipt (“Rpt”):request for acknowledgement of receipt for each message sent.
• Message validity (“Val”):the time period during which attempts to send the message to the recipient
will be repeated in case of failure.
• Format (“Typ”):format to be used for delivery of message to recipient (SMS,fax, etc.).
• Memory (“Mem.”):product or SIM (see page 43).
(1)
Contact your network operator.
(2)
Contact your operator for details to fill in these fields.
41
When in predictive mode,type the first letter:
- if it corresponds to a single word (for instance a),the letter will be displayed,
- if it does not exist as a single word (for instance h),the symbol “*” will be displayed.
The cursor shape varies depending on the input mode selected: in predictive input mode, in normal
mode.
To confirm a word and insert a space, press the key to the right or press the key downwards or
press the key.
Specific keys Normal mode / Predictive mode
Normal:Display the symbols table.
Predictive:View words proposed by the dictionary that include a sign or punctuation mark such as
an apostrophe,@, dash, etc.
Normal:Insert a “+”,“0” or “•”.
Predictive:View other words in the dictionary.
Short keypress:Move between automatic capitals , upper case , lower case , digits
.
Long keypress:Switch between the normal and predictive mode.
Available options
In addition to the available options in the normal entry mode,you will also find the following choices:
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 41
Page 23
For information:
-Received SMS are always in the SIM card,
-Received MMS are always in the product.
You can always save your messages in the “Archived”. They will then be stored in the product.
7.4.4 Create a distribution file
In the “Parameters” folder,select “Distribution list”,confirm with ke y,then name the group.You can
now enter the phone numbers for the members of your new distribution list.
7.4.5 My favourite
Enter the number or email of your fav ourite contact.Then, when you want to send a message,select “Send”
and “My favourite” directly without searching in the directory.
7.5 Delete messages
To delete all messages on your SIM card or in the product, select the icon and select the following
options:
-“Delete SIM msg”:delete all messages received and sent from the SIM.
-“Delete phone msg”:delete all messages stored in the phone’s memory.
Your SIM card’s capacity depends on your operator.The icon appears when the card is full.To
receive new SMS,delete some old ones.
4443
7.4.2 MMS Parameters
• MMS profiles (“Profile”)
(1)
:To set your MMS profile, follow the same procedure as for setting your
WAP connection (see page 64).
• Mode:choose between immediate or deferred reception for national and international network coverage
(see page 34).
• Acknowledgment of receipt (“Rpt”):request for acknowledgement of receipt for each message sent.
• Message validity (“Val”):the time period during which attempts to send the message to the recipient
will be repeated in case of failure.
• Memory (“Mem.”):to store or automatically delete your sent messages.
• Timer:sets the speed at which the pages scroll through:the recipient will see the message at this speed.
• Filters:Anonymous MMS filtering:to receive or not anonymous messages
• Layout:choose between display:image first then text or text then image.
7.4.3 Saving parameters
You can change the save parameters for your messages:
- Sent SMS are stored by default in the product:
Select “SMS parameters” and “Mem.” to choose “SIM memory” or “Phone memory”, or “Not
saved”.
- Sent MMS are stored by default on the product:
Select “MMS parameters” and “Mem.” to choose “Phone memory” or “Not saved”.
(1)
Contact your operator for details to fill in these fields.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 43
Page 24
46
Mode
Normal • Normal ringtone (increasing
volume).
Discreet • Normal ringtone (increasing
volume) preceded by beeps.
Vibrate • Activate the vibrator and mute
all sounds (ringtone, message
beep,appointment alarm,low
battery alert).The icon will
be displayed.
Vibrate and • Vibrator and the normal
ring ringtone at the same time.
Vibrate then • Vibrator followed by beeps then
ring the normal ringtone (increasing
volume).
Beep and • Warning beep followed by the
vibrate vibrator.
Silence • No sound nor beep except for
alarms.The icon will be
displayed.
Some of these modes may be deactivated when using certain accessories (full duplex handsfree car
kit,...).
8.2 Display
8.2.1 Colours
This function enables you to customise the graphic style and the colours of your telephone (menu screens,
entry screens etc.)
8.2.2 Main screen
The main screen is displayed after y our telephone has been switched on and/or when no functions have been
used for a short time (calls, sending of short messages...).
You can lock and unlock the keypad by making a long keypress on the key.
45
8
My Settings ..............................................
From the main screen,select the icon menu and select the function of your choice in order to customise
your telephone.
8.1 Ringtones
Available functions
To modify the sound settings, select the different options using the key:
Select a melody using the key then confirm by pressing .
Mode (normal,discreet,vibrator...).
Adjust the volume using the key.
Select the type of key beep.
Select a melody for a new incoming message.
Select a melody for a new incoming appointment.
Select a melody for a new incoming alarm.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 45
Page 25
4 visual items: - ON screen image/animation
- OFF screen image/animation
- Main screen image/animation
- Skins and colours
3 sound items: - 1 melody for incoming calls
- 1 melody when the telephone is switched on
- 1 melody for notification of incoming messages
When using the mobile phone for the first time, a default Atmosphere is activated.
Even if you choose an Atmosphere, you can still modify the elements in it one by one.You can reactivate an
Atmosphere at any time.
When changing an Atmosphere,an installation screen appears until the 7 elements are installed.
The installation of the Atmosphere can be stopped and cancelled if you receive an incoming call or
if you press the key ;the previous choice of Atmosphere is kept.
8.2.4 ON/OFF screens
(1)
You can customise your welcome message, animation, melody or image that appears when you switch on
your telephone.
You can also customise your OFF screen with an image or animation.
8.2.5 Zoom
(2)
Two character sizes are available for your telephone screen.Large characters is selected by default. If you
wish to display more information select “Zoom”.
48
(1)
Depending on the model.
(2)
Depending on the language.
47
You can access the main functions directly from the main screen either with the navigation key or selecting
the icons displayed on the screen
(1)
.
By selecting the “Main screen/My Images” you can customise it by replacing the default image or
animation displayed on your telephone.If you receive an event (incoming call, SMS/MMS, notifications, etc.)
the icon, type and quantity of events will be displayed on your main screen allowing you to consult them
directly.
Extra screen
You have the possibility to customise your main screen each time the telephone returns in idle screen by
adding a video clip or a slideshow:
Select “Main screen/Extra screen”.If you choose a video,when you return to idle mode, the video will
be displayed for a few seconds,then the image chosen as main screen will be displayed.
If you choose the slide show,the phone will display the slideshow for a few seconds,then the image chosen
as main screen will be displayed.
Note that this extra screen will not be displayed if an event (incoming call, SMS/MMS, voice
message, wap notification, ...) has not been consulted.
8.2.3 Atmospheres
The “Atmospheres” menu allows you to customise your telephone to suit your own taste.You can modify
7 customisable items at the same time.An Atmosphere comprises:
(1)
Depending on the operator.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 47
Page 26
50
Display format
You can display your clock in analogue or digital format and the date in the following formats:day/month/year,
month/date/year or year/month/day in digits or using the first three letters for the day and month.
8.4 Set my shortcuts
You can customize your menu by selecting the function,or telephone number,or URL,in the order you want.
You will find your new customized menu under the item “My Shortcuts” from the main screen.
8.5 Customising the keys
(1)
8.5.1 Operator/Personal key and softkeys
(1)
These keys have predefined functions, which vary from one model to another (operator services, games
access, or Games & Applications,...). You can customise
(1)
them for long and short keypresses,giving them
the functions that you wish. For example , they can be used as a shor tcut to access the Diary, to write a
message,...
8.5.2 Keypad
By customising your keys,you can call someone or access a function directly from the main screen pressing
on one key. Choose the first key you wish to programme,then select one of following options :
• “Numbers” if you wish to programme a direct call,
• “Function” if you wish to assign a specific function to the selected key,
• “URL” if you wish to programme an Internet address.
Repeat this operation key by key.
(1)
Depending on your network operator.
49
8.2.6 Menu display
Select a menu display by choosing from the three options proposed:
• “Icons”:one icon per screen,with a little part of the previous and next icon.
• “Image”: one icon on all the screen
• “Mosaic”:all the menu icons displayed on the screen.
8.2.7 Battery saver
You can choose whether to activate this function or not:
- Deactivated: the main screen remains displayed.
- Activated: a new screen appears after a few seconds displaying the following
information:clock, battery charge , signal strength.
By default,the economy mode is activated.
We advise you to stay in economy mode to maximise your telephone’s
autonomy.
8.3 Clock
You can display two clocks (local and remote) at the same time.
Go first to the “Clock type” icon and select the “2 clocks” option.Then go back to the “Clock set
up”, select “Local clock”, choose a city and confirm. The automatic transition to daylight saving time is
activated. Repeat the same operation for the “Remote clock”.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 49
X-Plmn
Page 27
8.6.4 Input mode
(1)
In addition to the specific character table for Arabic, Cyrillic, Chinese, other data input modes are also
available in your telephone. This feature allows you to write short messages and enter names into your
directory.
8.6.5 Extensions
This function allows you to choose whether to display the extensions of your photos,videos,sounds,files of
your Album.
8.6.6 Wap access features
(See page 66).
8.6.7 Privacy
Select “Activate” in this option in order to protect your diary or directory data.This option is useful if you
use PC synchronisation.
8.6.8 Security
PIN code
(2)
The SIM card protection code is requested each time the phone is switched on if this
code is activated.
Activate/ Activate/deactivate this code.
deactivate
Change Update code (between 4 and 8 digits).
PIN 2 code
(2)
Protection code for certain SIM card features (Billing/Cost/FDN,etc.) requested during
their use when this code is activated.
Change Update code (between 4 and 8 digits).
52
(1)
Depending on the language.
(2)
Contact your network operator.
8.6 More settings
8.6.1 Keypad lock
Activate/deactivate the automatic keypad lock.
If the telephone is plugged in using a car kit accessory or the charger, it will be unlocked
automatically.
8.6.2 Languages
(1)
Display language for messages (select using ).The “Automatic” option selects the language according to
the subscription network (if available).
8.6.3 Dictionary
You have a dictionary to which you can add your own words in addition to those suggested by the pr edictiv e
input system.When you consult your dictionary,you can add,modify or erase words by using “Options”.
51
(1)
Contact your network operator to check service availability.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 51
Page 28
Partial The phone receives messages intermittently and displays them according to your list (see
“CB list” option).
Complete The phone continually receives messages and displays them according to your list (see
“CB list” option).
None The phone does not receive any messages.
Search Search for a network connection.
• Available List of networks available in your radio environment.
• Mode Depending on the option selected,the network search mode is:
Automatic The first network searched for is the network you used last.
Manual The choice of the connection network is left up to the user.
• Preferred list List of networks to which you wish to be connected in order of priority (update this list
using ).
8.6.10 Connectivity
Headset pickup
Key Only by pressing the key.
Automatic Automatically without any keypress, after approximately 2 ringtones (this option is
operational only if your mobile phone is connected to an audio kit or handsfree kit).
Any key By pressing any key from the keypad (keys 1 to #).
Audio mode Choose to ring in headset,or both on telephone and headset.
Car kit
Choose the pick up mode: key, automatic or any key.
5453
Network Password requested for network “Call barring” options.
code
(1)
Menu code A protection code for certain MENU options (services, settings, language) will be
requested if accessed while the code is activated.
Activate/ Activate (or cancel) this code.
deactivate
Change Update code (between 4 and 8 digits).
Telephone A telephone protection code will be requested each time the phone is switched on, if
code this code is activated.
Activate/ Activate (or cancel) this code.
deactivate
Change Update code (between 4 and 8 digits).
8.6.9 Network
SMS CB
(2)
Messages broadcast over the network (weather forecast, traffic conditions, etc.) are
automatically displayed on the main screen.
• CB list List of codes for messages to be displayed.
• Reception Depending on the option selected, the phone displays messages broadcast over the
network.
(1)
Contact your network operator.
(2)
Contact your network operator to check service availability.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 53
Page 29
Creating an appointment and programming an alarm
When you create an appointment (“Create” option),you can also activate an alarm.You can set the desired
alarm activation time to coincide with your appointment time.
Creating a task
Scroll to the icon using the key,and confirm using the key. Select “Select type”,then confirm
once again using the key and enter the type of task to be performed (“to do” or call appointment),then
enter the purpose.
This list can be arranged by deadline or by priority.To do this,scroll to the icon using the key,then
confirm using the key.
You can set an alarm for a task for which you have set a due date.This alarm will sound on the chosen day
at the time that you entered.
Configure the diary
Scroll to the icon using the key, to access the following options:
56
Alarm • Set a default time for the alarm
to sound before the scheduled
appointment.
Diary • Programme the start time for
your day, your first day of the
week and your first week of the
year.
“To Do” • Sort your tasks by priority or by
due date.
Delete • Delete all tasks or diar y items or
only those items that have
expired.
Privacy:
The data of your diary can be protected (see option “Privacy” page 52).
9
Tools ..........................................................
9.1 Diary
Your phone has a sophisticated diar y that will help you to manage your daily schedule. You can also save “to
do” lists.
Consulting your diary
Three views are possible.You must first choose the appropriate icon:
Daily view
Weekly view
Monthly view
“To D o” list.
Parameters
You can scroll through the dates by pressing the key.
According to the view you can read,create, modify or send an item.
Information in the directory and the diary may be shared with a computer using the Alcatel One
Touch PC suite (see page 88).
55
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 55
Page 30
(1)
For the former european national currencies, the currency converter uses the final Euro conversion
rates set on 31/12/1998,which are used in accordance with official conversion rules.
58
9.2 Alarms
Alarm clock
First set the alarm frequency (daily or only once),then enter the time and date and confirm by pressing the
key.You can also enter the purpose of the alarm and then confirm with the key.
Timer
Set the amount of time desired before the alarm is to sound and confirm with the key.
Options
When the alarm has been activated, the icon is displayed on the main screen. The alarm will sound
whether the handset is switched on or off and can be shut off by pressing the key.
If you have chosen the “Snooze” option, the alarm will sound at regular 10 minute intervals.
9.3 Converter
The currency converter allows you to:
• Convert a currency directly into euros and vice versa
(1)
.
• Convert a sum of money into another currency (e.g.dollars to pounds).
For a conversion into euros,you can modify the default currency by selecting “Set up”.
Daily view Weekly view Monthly view
57
Activate or deactivate a setting by pressing . Exit the configuration function by pressing .
More about your diary
Graphic view
A single appointment recorded.
Two or more appointments recorded during this time slot.
Week number.
An appointment was recorded prior to this time slot.
An appointment was recorded after this time slot.
Monthly view
Blue background Meeting scheduled
White background No meeting scheduled
In the various views,the current day, week and month flash.
Wed. 4th December 02
2 Events
Wed. 4th December 02
2 Events
December 2002
TMW
FTSS
TMW
FTSS
Create Options
Create Options
Create Options
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 57
Page 31
Listen to • Listen to a recorded voice
memo.
Send • Send your memo.
Handsfree • Switch between handsfree and
discreet mode.
Title • Modify the name of the memo.
Memo->Album• Copy the memo to your sound
album (to send it by MMS or use
it as a ringtone).
Delete • Delete the selected memo.
9.6 Voice memo
The voice memo feature acts as a Dictaphone and enables you to record personal messages. To record a
voice memo,select “Voice memo”, then “Save”,and begin speaking after the beep. Once the voice memo
has been created,you can access the following options:
60
9.7 Infrared (IrDA)
Your phone’s infrared feature allows you to exchange contacts, diary data, images, videos, melodies via an
infrared link with an other mobile or a PC. The infrared port is located on the top of your telephone.
Sending data
To send data,select the directory file,then select the “Data transfer” option.It is not necessary to activate
the infrared feature before sending.
Receiving data
To receive data, you must activate the infrared feature. A message will advise you of the arrival of data; you
then save the data by pressing the key or reject it using the key.
59
If converting between international currencies,both currencies must be selected. You must also enter the
appropriate exchange rate.
An exchange rate value is pre-set for each currency.You can change this value by selecting “Set up”.
From the main screen,enter the amount in euros to be converted into the programmed currency,
then press the key and select “Converter”.
9.4 Calculator
Enter a number and confirm with the key,then select the type of operation to be
performed using the key and confirm again.
Enter the second number and press .
Select the “=” sign to display the result.
To return to the main screen,press the key (long keypress).
Calculator
9.5 Memory
View available memory space.
Your telephone’s memory is shared between several functions: directory, diary, messages, voice messages,
voice tag,images and melodies, games and applications, video clips. For example,if you use a lot of memory
for your voice memos,you will have less memory available for the directory.
Do not forget to delete large items such as voice memos,MMS,images, photos, recorded sounds,
applications, video clips..., in order to free up memory space. You can also delete certain items
included in your telephone when you bought it.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 59
Page 32
9.9.2 Record
Select “Record” to record a sound of your own.If you want to listen it, select it and press the “Options”
softkey.
9.10 Voi ce tag
Voice tags allow you to access one of the menu functions by pronouncing the name of that function.
Recording a voice tag
In order to record a voice tag for one of the menu functions, select “Voice tag” and the desired function
and then follow the instructions.
The functions for which a voice tag has been recorded are indicated by the icon.There are 10 functions
accessible through voice tag.
Using a voice tag
You activate “voice tag” by a long keypress on the key from the main screen.To use a voice tag,follow
the instructions on the screen.
After recording,you can “Listen to”,“Replace” or “Delete” a recorded voice tag command.
6261
Once you have selected the option, the icon appears on your screen. Infrared will be deactivated
automatically after a short while
(1)
.The connection will cut off if you have an incoming call.You can receive
up to three calling cards (V.Card) or appointments (V.Cal) at the same time.
9.8 Alarms list
You can view all the alarms that you have set.The icon will appear on your main screen if the alarm clock
or the timer have been set,or if the alarm is set for the current day or the following day.
9.9 To ne composer
9.9.1 Compose
Select “Compose” then use the keypad as shown below:
(1)
If you use infrared often,we advise that you set a quick access to it from the keypad (see page 51).
Delete
a note
Key 1 to 7:
basic notes of an
octave (C,D,E,F,
G,A , B )
Change
octave
Add
a pause
Go to the
options
Change the
length of a note
or a pause
Add
a sharp
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 61
Page 33
Launch • Launch WAP with this profile
even if another one is selected
as default one.
Activate • Select the current profile as
default one (this option is not
displayed if it is already selected).
Create • Enter the parameters of a new
profile.
Modify • Modify the parameters of a
profile.
Delete • Delete the selected profile.
64
11
Services ..................................................
11.1 Access WAP menu
(1)
WAP (Wireless Application Protocol) is a service that allows you to access the mobile Internet,where you
can obtain information such as weather conditions,stock market information,traffic information, etc.
- “Homepage” launches the WAP browser on the homepage of the default profile.
- “Bookmarks” gives access the list of your favourite sites or add new sites to them.
- “Profiles” lists the Wap profiles.
- “Enter address” allows you to directly access the WAP page for which you enter the URL address.
11.2 Programming your access
(2)
Select a profile from the “Profiles” list and access the following options by pressing the key:
(1)
Contact your network operator to check service availability.
(2)
Enter the information supplied by your access provider.
10
Tips & Tricks............................................
This feature gives you a quick description of your phone’s main functions and provides handy hints to
optimize the way you will use it.
From the main screen,press the key to access the menu then select the icon ;you access the tips
and tricks menu.
You can also find this feature inside of each main function (select “Options”).
Scroll the text.Aside the explanations, a small animation is displayed to show you how to use the function.
After reading the current explanations, you can either go back to the tips & tricks home page, or select
"Options" in order to connect to the WAP options (see page 67).
63
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 63
Page 34
66
11.3 Direct access/profile access
From the main screen,select “My Settings/More settings/WAP access”,to change the launch access:
• Direct access: when you launch WAP from the main menu,you go directly to the homepage of your
default Wap profile
• Profile access:when you launch WAP from the main menu,you will have the f ollowing items:Homepage,
Bookmarks,Profiles,Enter address.
11.4 GPRS function
(1)
Your mobile phone has an efficient high-speed modem based on GPRS technolog y
(1)
.With this modem you
will be able to surf faster on the WAP and send your MMS more quickly. This ser vice may be billed at a
different rate (contact your operator for more information).
You can use the GPRS function if:
- the service is supplied by your operator,
-your subscription includes the GPRS option,
- the profiles have been configured and the corr esponding bear er selected is GPRS or GPRS/GSM (see page
65);the icon appears when the GPRS context is active.
(1)
Contact your network operator to check service availability.
65
To “ Create” or “Modify” a profile, you are required to replace the following parameters
(1)
:
-Profile name
- Homepage
- IP address
- Security
- Bearer choice
-Validate
In the “Bearer choice” item you can choose the transmission mode:GPRS/GSM, GPRS or GSM.
When you select the GPRS/ GSM transmission mode,GSM mode is activated if
GPRS mode is not
available.
If you select the GPRS transmission mode, select a GPRS bearer and then fill in the following
parameters
(1)
:
- Authentication (user name and password)
- APN
If you select the GSM transmission mode, select a GSM bearer and then fill in the following parameters
(1)
:
- User name
- Password
-Telephone number
- Access type
If you select the GPRS/GSM transmission mode, select a GPRS bearer and then a GSM bearer; fill in the
required parameters for each one
(1)
.
(1)
Enter the information supplied by your access provider.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 65
Page 35
12
Media Album ..........................................
12.1 Album menu
To access the Album fr om the main screen,press the navigation key to the left or to the right .The Album
is a function that groups together all visual and sound items in your telephone,regardless of whether they
are embedded,downloaded,recorded or composed.
This function comprises 3 menus:
- the images album, containing images, icons, photos etc...
- the sounds album, containing sounds and melodies.
- the video album, containing videos.
In each of these 3 menus,you have the possibility to create new folders with the option “Create folder”.
12.2 My Images
You can select an image or a photo and use it as the main screen or the ON/OFF screen.You may change it,
send it by MMS or assign it to a contact in the directory using the “Image” option (see page 30).
6867
11.5 WAP browser options
Once you have launched the Wap browser, while reading a page, you can access to the options by selecting
the icon on the top left of the screen, or press the right softkey “Options”, or press (long
keypress).
Home • Access the homepage directly.
Bookmarks • Access your favourite sites
(bookmarked sites).
Alert Inbox • View information sent over WAP.
Snapshot • Save the whole of your screen.
Save Items • Save images or sounds.
Send Link • Send an SMS with the URL
address of the visited page.
Go To URL • Access the WAP site directly by
entering the address.
Show URL • Display the URL address of the
current page.
Reload • Refresh the current page.
Settings • Customise your WAP access.
About... • Display the browser version.
History • Display the list of the last visited
URL.
Exit • End your WAP session and
return to the main screen.
At any time during your navigation,a long keypress on the key allows you to exit the WAP
mode.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 67
Page 36
12.3 My Sounds
Choose a sound for the ON/OFF screen,for an incoming call,a message alert or an alarm (see page 45).
The “My Sounds” Album is made up of the following folders
(1)
:
General,contains all sound items (built-in or created) from all album folders,
Melodies,
Crazy sounds,
Recorded sounds (only contains recor dings made with the “Record” function and the “Memo -
>Album” function),
Composed sounds (only contains compositions made using “Compose”).
12.4 My Videos
The “My Videos” Album is made up of the following folders
(1)
:
General,contains all the items from all the folders (created and embedded)
Recorded,contains the video clips you have recorded
Crazy clips,
Video trailers.
You can search any Image, Sound or Video files by pressing the key bearing the first character of
the filename.
70
(1)
The embedded folder names cannot be modified.However, in certain cases, you can modify,delete and
add items included in these folders.
The Images album is made up of the following folders
(1)
:
General:list of all images (built-in or created) from all album folders.
Photos:default folder for pictures taken with the camera.
Images: contains all images not belonging in one of the other folders.
Icons:contains EMS, stamps...
Frames:contains frames for enhancing your images.
For easier searching,the images/photos are displayed on the screen in reduced size.To view one image at a
time, select an image, press and click on “View”.
Then, from this view you can scroll through the images by making a short keypress on . A long keypress
will start the slide show (or press then “Slideshow”).
69
(1)
The embedded folder names cannot be modified.However, in certain cases, you can modify,delete and
add items included in these folders.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 69
Page 37
72
12.6 Download new video clips, photos, sounds, ...
With the “Download” option, you can access your favourite sites saved in your bookmarks list, and
download new items that you will be able to save in your Album.
12.7 Formats and compatibility
List of audio,image and video formats compatible with your telephone:
- Audio: AMR
(1)
,Midi, iMelody,MP3
-Image: JPEG
(2)
,GIF,PNG, BMP
- Video: 3GP (H263
(3)
+ AMR
(1)
or MPEG-4
(4)
)
MP4 (MPEG-4
(4)
)
-You can convert large image and sound files using the PC software suite so that they are compatible with
your terminal.
(1)
AMR-NB.
(2)
Except for progressive Jpeg.The telephone uses the “Independent Jpeg Group” code.
(3)
H263 profile 0,level 10.
(4)
MPEG-4 simple visual profile,level 0.
71
12.5 Managing sounds, images and videos
According to the item chosen,by selecting “Options”,you can access some of the functions below:
(1)
Files marked with cannot be forwarded.
(2)
Only applies to composed sounds,images and videos that can be cleared.
View • View the image selected.
Listen to • Listen the sound selected.
Play • Play the video selected.
Send
(1)
• Send sound/image/video.
Delete • Delete image/sound/video
selected (Not for built-in items).
Set as • - Image->main screen, switch
ON/OFF, assign it to a contact.
- Sound->ringtone, switch
ON/OFF, assign it to a contact.
- Video->extra screen or assign
it to a contact.
Ringtones • Choose a melody for an
incoming call ringtone.
Modify • Modify sound/image/video
(2)
.
Download • Access to your bookmark sites
to download new items.
Slideshow • View images in your current
folder as a slideshow.
Rename • Rename sound/image/video.
Classify • Classify an image from a folder
to another.
Create folder • Create folders grouping together
a series of images or sounds (for
example:“Holidays” or
“Birthday”).
Delete folder • Delete a folder.
Rename folder • Rename a folder that you
created.
Empty folder • Empty the contents of a folder.
Sort by size/ • Sort the images by size or by
Sort by name alphabetical order.
Capture • Access the “Shoot” or
“Record” function directly.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 71
Page 38
Just after taking the photo,you can rotate the image with the key or reduce the image size with the
key (for certain formats).
Please use your camera sensibly.Respect others and observe current regulations in your country.
13.1.2 Photo settings
Before taking the photo,you can adjust a number of settings.
74
Selected options bar:
photo quality
white balance
capture mode
Exposure (over/under)
number of photos taken (for
animation and mosaic)
Timer
Left softkey:Shoot
Quality:
:High - key
:Standard - key
:Economy - key
Key Capture mode
:Single
:Animation x 4
:Mosaic
Key : White balance
Right softkey:Options
Key :
- Short keypress:take photo
- Long keypress:take a photo with sound
- Exposure:
Left:underexposure
Right:overexposure
- Zoom:
Up:zoom in
Down:zoom out
Key Image size:
- Panoramic
-VGA
- XL/L/M/S
Shoot Options
Key Colour settings
IFA BILDERTEAM/Agenceimages.com
73
13
Photo/Video............................................
Your telephone is fitted with a camera allowing you to take photos,short animations, and video clips (about
10 seconds) that you can use in different ways :
- store them in your “Media Album”,
- send them in a multimedia message (MMS) to a mobile phone or an e-mail address (see page 39),
- customise your main screen (see page 46),
- assign them to a contact in your directory (see page 32),
- transfer them by IRDA to your computer using Alcatel One Touch PC Suite ,
- modify your photos adding frames,stamps, etc (see page 78).
13.1 Photo applications
To access this function from the main screen, press the right softkey, then using the navigation key select
“Ta ke a picture”.You then go straight to the photo shot screen.
13.1.1 Taking a picture
Your phone must be switched on to take a photo. The screen acts as viewfinder. Position the object or
landscape in the viewfinder and press to take the picture.The lens is situated on the back of the phone.
Please do not touch it.To the left of the lens there is a mirror to make sure you are well placed in order to
take a photo of yourself.
Taking a picture with sound
You can record a background sound,while you are taking a picture.To do so, keep your finger pressed down
on the key when taking the photo.A screen will ask you to record your sound.If you release your finger ,
the recording will stop.Press to return to the photo shot screen.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 73
Page 39
Quality
Select “Quality” in the list of options or access it directly by pressing the , , keys:
: High quality: excellent quality to be sent to a PC,
: Standard quality:compromise between size and quality,
: Economy quality: memory space is optimized.
Warning:the higher the quality, the more memory is required. For example, if you have 1 MB of
free memory,you may store the following number of photos:
Format High quality Economic quality
VGA 10 photos* 20 photos*
128 x 160 146 photos* 340 photos*
Timer
The photo will be taken 10 seconds after pressing . A sound will be emitted when you take a photo (if
your telephone is in Sound mode).
White balance
By pressing the “Options” function key, you can choose from 5 settings:
Auto:the settings adjust automatically (no icon will be displayed on your screen),
sunny,
cloudy,
night time,
indoors/artificial light.
In a dark atmosphere,select “Night” to improve the picture quality.
76
* These estimations are only given as an indication.
75
Access the settings from the MENU: From the photo shot screen, press the right softkey to access the
following options:
Image size
Select “Image size” in the list of options or press the key until you reach the size you require:VGA
(640x480),and Panoramic (512x288) optimised to be sent to a PC, XL (128x160), L (128x128) for local use
or MMS, M (64x64) to assign it to a directory file for instance, S (32x32) to create your very own stamps
(see page 78).
Capture mode
Select “Capture mode” in the options list or keep pressing the key to choose from one of the
following modes:
Single:a single photo; this is the default mode.
Animation x 4:in this mode,you can take 4 consecutive photos like a small slide show.The number
at the top right of the screen shows you which photo your are on: 1/4, 2/4, ....4/4.When you have
taken the 4th photo,the animation will start automatically.
Mosaic: in this mode, you will get an image made up of 4 thumbnails. To do this, proceed as for the
animation,once the “Mosaic” has been selected (see above).
Frame
Choose a frame from the list offered and press .The frame will be placed in your photo shot screen;if
the image is to your liking,press to take the photo.You will also find this option in the “Modify” function
(see page 78).
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 75
Page 40
13.1.4 Modifying images
This option enables you to reduce image size,or to add stamps or frames.You have two possibilities for
accessing images in order to modify them:
- Via the “Media Album” menu:
Choose an image, select “Options” then “Modify”.
- Via the “Camera” menu
(1)
:
After taking the photo,select the “Options” softkey, then select “Modify”.
13.1.3 Options available after
taking the photo
Once you have taken a photo or an animation,you can access the following options:
78
Send • Send your photo without saving
it in the Album.
Save and send • Save your photo and send it.
Save • Save your photo.
Delete • Delete the photo you have just
taken.
Modify • Reduce size , add stamps, frames.
Attach sound • Save a sound and assign it to the
photo.
Image album • Access your Images Album
directly.
Rotate • Rotate by 90°.
Set as • Select what you want to do with
your picture.
(1)
The multimedia content (melodies,images, drawings,etc.) in this camera is for private use only,and may
not be used for commercial purposes.Any illegal use is liable to prosecution against the perpetrator.
Colour
You can choose the colour effects.Y ou can access this option directl y fr om the photo shot screen b y pressing
the key.
Direct access to the album
With the option “Image album”,you access the “Media Album/My Images” menu directly.
Default folder
You can change the folder where your photos will be stored automatically.
You can create your own folders using the “Media Album/My Images” option:“Create folder”
(see page 71).
Other direct access options from the photo shot screen
Exposure: adjust the contrast of your photo with the navigation key:to the left = underexposure, to the
right = overexposure.
Zoom:activate the zoom with the up/down navigation key:up: zoom in, down: zoom out. If you keep the
key pressed in,the zoom will be gradual.
77
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 77
Page 41
Memory space
A video clip takes about 100 kB memory space.
Therefore, if you have 1 MB free memory in your telephone, you can still record about 10 clips (this
estimation is given as an indication only).
80
13.2.1 Framing mode
When you enter the “Video” function,you are in Framing mode.Use the telephone screen as a viewfinder
and press the softkey “Options” to access the various settings before recording:
White balance • Choose the lighting setting:
auto/shiny/cloudy/night/indoor.
Without / • Activate or deactivate the
With sound recording of sounds.
Colour • Choose the colour effect of your
clip:Colour or Black and White.
Video album • Access the Video Album.
Access camera• Exit the “Video” function and
move to the “Camera”
function.
Default folder • You can change the default
folder where videos will be
stored when saved.
79
13.2 Video applications
To access this function from the main screen, press the right softkey then, using the navigation key,select
“Video”.You can also configure a key for a direct access to this feature (see page 51).
Then,you can choose between:
- MMS video (to record a video clip of 10 seconds that you can send by MMS),
- Long video (to record a video clip of 30 seconds that you can transfer by IrDA).
Video settings (direct access):
Viewfinder
Key : White balance settings (in
Framing mode)
Key : With sound / Without
sound (in Framing mode only)
: Zoom in/out (in Framing and in
Recording modes)
: Volume (in Playing mode)
: Underexposure
(in Framing mode only)
: Overexposure
(in Framing mode only)
key: Starts the recording (in
Framing mode only)
key: Stops the recording
(in Recording mode only)
Key : Colour settings
(in Framing mode only)
IFA BILDERTEAM/Agenceimages.com
Record Options
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 79
Page 42
82
Save • Save the video in the Video
album in the product memory
and returns to Framing mode. A
name is automatically given.
Then,you can modify it in the
"Video Album”).
Play • Play the video sequence.Adjust
the volume with the keys.
Send • You can send your video clip
either by IrDA (Infrared) or with
an MMS without saving it.
Save and send • Same as “Send” but the video
clip will be saved in the Album.
Cancel • Cancel the video sequence and
return to Framing mode.
Set as • Allows you to use the video clip
either to associate it to a
contact (in phone directory
only) or as an Extra screen (see
page 46).
Default folder • Change the default folder where
videos will be stored when
saved.
13.2.3 Playing mode
After recording the video sequence,press the left softkey to play the video and decide what to do with it.
If you press the right softkey,you will access the following options:
81
BEEP ...
A bargraph indicates
the elapsed time
During the recording,you can use the and keys to zoom in or out.
In Recording mode with sound,you cannot receive any call nor message.
In Recording mode without sound,if you receive a call,the recording is stopped and lost.
13.2.2 Recording mode
Once you have chosen your settings, you can launch the recording of your video-clip by pressing the
"Record" softkey or the key ;a short beep is emitted.
IFA BILDERTEAM/Agenceimages.com
Record Options
Stop
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 81
Page 43
84
14
Games & Applications ............................
Your Alcatel phone may include
(1)
some Java™ applications and games. You can also download new
applications and games to your phone from other service providers
(2)
.
Access the “Games & Apps” menu:
-with a long keypress on the key from the main screen,or
- via “Games & Apps” menu
The “Games & Apps” menu allows you to manage the Java™ applications installed in your phone. It
includes three directories and one configuration folder:
General:contains all applications and games,
Games:contains the games,
Applications:contains the other applications,
Settings:contains your sound,backlighting and network settings.
14.1 Launch an application
Select the application.Press the “Launch” softkey or then “Launch”.
(1)
Depending on your country or your operator.
(2)
Requires access to WAPservices (see page 64).
83
13.2.4 Direct access to the video function, photo capture, or album from MMS composition
With the options “Add image” or “Add video”, you can also access the photo or video function or album
directly while you are writing a Multimedia Message (MMS) (see page 39).
You have two ways to insert a video in an MMS:
• Either by adding an existing video-clip to your MMS taken from the video album:
when you are in the “Messages” menu, select "Create message/Multimedia/MMS”, select the
“Options” softkey, then “Add video/Video album": then select a video: the first image of the video is
displayed in the MMS slide to notify that the video is correctly attached to the message.
• Either by recording directly a new video clip:
choose "Add video",press the key and then select "Record video".When included in an MMS slide,
the video is automatically saved in the default folder of the Video Album.
If a video is inserted in a page, you can add text only ;it is not possible to add another image, or a
sound to the same slide.A new page will be automatically created if you select “Add image”,“Add
sound” …
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 83
Page 44
86
-Or, from the main screen by selecting “WA P” then “Bookmarks” and choosing “My One Touch”.
The downloaded applications can be saved either in the Games folder or Application folder. By default,
applications saved in Games folder are in landscape mode.
14.4 Java™ Push
Depending on your server/operator, you may receive Java™ Push messages inviting you to launch new
applications they propose.
14.5 Settings
- Sound on Switch sound ON/OFF for all applications.
Sound off
- Backlight Activate or deactivate the backlight.
- Networks List of network profiles available for Games & Applications. This list comprises the current
WAP profiles and specific profiles for Games & Applications.To select a profile, go to the list,
press and select “Confirm”.To modify a specific profile for Games & Applications,go to
the list,press and select “Modify”.To create a profile,go to the list,press and select
“Create”.For the options available,see page 65.
- Memory View memory available.Applications use shared memory (see page 59).
While an application is running
- Short keypress on :pause
- Long keypress on :exit the application
Authorisation for network access: some applications require network access or the sending of an SMS. In
this case, select the authorisation profile required with the navigation key ,press then validate the
selection then press “Confirm” to validate everything.
85
(1)
For the availability of different WAP services,pricing and tariffs, contact your network operator and /or
the WAP service provider .
14.2 Available options
Launch • Launch the application.
Information • This option gives information on the application.
Download • Download an application.
Delete • Deletes the application. If you delete a pre-installed application in your phone,you may,
depending on the application:
-download it again from the My One Touch ser ver,www.alcatel.com
-download it again from your operator’s Website.Contact your operator for further
information.
However, some applications cannot be re-downloaded.
Classify • Classify in “Games” or “Applications”.
14.3 Download an application
You can download new Java™ applications in 2 ways:
- Either,in the “Games & Apps” menu by selecting the “Download” softkey.The list of available WAP
bookmarks dedicated to the application download will then be displayed.Select the appropriate bookmark
to go to the desired WAP page.
You can download a Java™ application only if the Wap profile is activated
(1)
(see page 64).
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 85
Page 45
15
Making the most of your mobile................
15.1 “My One Touch” services by TCL & Alcatel Mobile Phones
On the website you will find all the services available to make the most of your mobile telephone.
Go to “
www.alcatel.com” or simply choose the “My One Touch” option in your mobile telephone.
Access this by selecting “Services” or “My Settings/Ringtones” or “Media Album/My Images/
Download” from the main menu.
15.2 Alcatel One Touch PC suite
Depending on your model,your packaging box may contain a PC suite.Otherwise , you can download it for
free from the website.The PC suite includes:
- Multimedia Studio:
• customise your mobile with sounds, melodies, images,animations and videos.
• transfer to your PC the photos and videos taken with your camera.
- One T ouch Sync:
• synchronise your mobile phone with: MS Outlook 98 / 2000 / 2002 / 2003, Outlook Express 5.0 / 6.0,
Lotus Notes 4.6 / 5.0 / 6.0 / 6.5,Lotus Organiser 5.0 / 6.0
-Data Connection Wizard:
• use your mobile phone to connect your PC to the internet.
Supported Operating Systems
- Windows 2000 with Service Pack 4 (SP4) or later
- Windows XP with Service Pack 1 (SP1) or later
8887
Disclaimer
Downloading or running applications will not damage or alter any software already in y our mobile telephone
designed to support Java™ technology.
TCL & Alcatel Mobile Phones Limited and its affiliates waive any responsibility and refuse to guarantee
applications that are subsequently used, as well as for all applications not embedded in the handset upon
purchase.
The purchaser alone bears the risk of loss,damage or defect of the handset, or of applications/software, and
generally of any damage or consequence resulting from the use of the said a pplications/software.In the event
the said applications/software, or the later setup of any function are lost due to technical reasons if the
handset has been replaced/repaired,the mobile phone owner should repeat the operation and download or
set up again. TCL & Alcatel Mobile Phones Limited and its affiliates grant no guarantee and waive any
responsibility if the operation cannot be repeated or cannot be performed without incurring some cost.
Java™ and all Java™ based trademarks and logos are trademarks or registered trademarks
of Sun Microsystems,Inc. in the U.S. and other countries.
Powered by JBlend™ - Copyright 1997-2003 - Aplix Corporation. All rights reserved.
JBlend™ and all JBlend™-based trademarks and logos are trademarks or registered
trademarks of Aplix Corporation in Japan and other countries.
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 87
Page 46
90
17
Telephone warranty ....................................
Congratulations on choosing this mobile phone - we hope that you will be totally satisfied with it.
Notwithstanding any other applicable statutory warranties,this mobile phone is guaranteed against any manufacturing defect
for a period of ONE (1) year from the date of purchase shown on your invoice. Nevertheless if the statutory warranty in
force in your country exceeds one (1) year, the statutory warranty is not affected by the manufacturer’s warranty. The
present warranty terms also apply to the battery and accessories but for a period of SIX (6) months from the date of
purchase shown on your invoice.
Under the terms of this warranty, you must inform your dealer or any maintenance centre (see list of maintenance centres
on our website - www.alcatel.com) without delay, of any defect and present the invoice given to you at the time
of purchase.The dealer or maintenance centre will decide whether to replace or repair,as appropriate, all or any part of the
equipment (telephone or accessory) found to be defective.This warranty covers the cost of parts and labour but excludes
any other costs.Repair or replacement may be carried out using reconditioned components offering equivalent functionality.
Servicing under the terms of this warranty,especially repair,modification or replacement of parts shall entitle to a three (3)
month warranty unless there are statutory provisions to the contrary.
This warranty shall not apply to damage or defects (to your telephone and/or accessory) caused by:
1) use not conforming with the instructions for use or installation,
2) non observation of the technical and safety standards applicable in the country where the equipment is used,
3) improper maintenance of batteries and other sources of energy,and of the overall electric installation,
4) accidents or the consequences of theft, (of the vehicle), acts of vandalism, lightning, fire, humidity, infiltration of liquids,
atmospheric influences,
5) combination or integration of the equipment in hardware not supplied or not recommended by TCL & Alcatel Mobile
Phones Limited or its affiliates,without express written consent for such,
16
Characters and symbols table....................
To enter a word in normal mode, press the key corresponding to the desired letter several times until the
letter appears.
89
Press the key to display the symbols table; the
cursor is positioned in the centre. Use the navigation
key to move it.
Displays the symbols table
,,,(see p. 41)
Symbols table
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 89
Page 47
18
Accessories
(1)
................................................
The latest generation of Alcatel GSM mobile phones off ers a built-in handsfr ee featur e that allo ws y ou to use
the telephone from a distance, placed on a table for example. For those who prefer to keep their
conversations somewhat confidential,an earpiece is also available known as the headset.
92
Battery
BB-09499
Travel charger
C57
Cigar lighter charger
C56
Headset
M13
Comfort headset
M16
(1)
Depending on availability.
Only use your telephone with Alcatel batteries, chargers and accessories compatible with your
model.
Basic car kit
MP79
6) modifications, alterations, or repairs carried out by parties not authorised by TCL & Alcatel Mobile Phones Limited or
its affiliates,the dealer or the approved maintenance centre,
7) use of the equipment for a purpose other than that for which it was designed,
8) normal wear,
9) deterioration caused by external causes (RF interference produced by other equipment,fluctuations in mains voltage
and/or voltages on telephone lines,etc),
10)modifications made to the equipment even if they are unavoidable due to changes in regulations and/or modification of
network parameters,
11)connection faults resulting from unsatisfactory radio transmission or caused by the absence of radio relay coverage.
Equipment on which markings or serial numbers have been removed or altered, and handsets on which labels have been
removed or deteriorated shall be excluded from the warranty.The above provisions constitute the only claims which can
be made against the manufacturer and dealer on the grounds of equipment defects,this warranty excludes any other explicit
or implied warranty except the statutory warranty in force in the user’s country.
There are no express warranties,whether written or oral,other than this printed limited warranty .All implied warranties,
including without limitation the implied warranties of merchantability or fitness for a particular purpose,are limited to the
duration of this limited warranty.In no event shall TCL & Alcatel Mobile Phones Limited or its affiliates be liable for incidental
or consequential damages of any nature whatsoever, including but not limited to loss of profits, commercial loss, to the full
extent those damages can be disclaimed by law.Some countries/states do not allow the exclusion or limitation of incidental
or consequential damages,or limitation of the duration of implied warranties, so the preceding limitations or exclusions may
not apply to you.
91
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 91
Page 48
My mobile phone does not connect to a network
• Try connecting in another location
• Verify the network coverage with your operator
• Check with your operator that your SIM card is valid
• Try selecting the available network(s) manually (see page 54)
• Try connecting at a later time if the network is overloaded
SIM card error
• Make sure the SIM card was correctly inserted (see page 14)
• Verify with your operator that your SIM card is 3V compatible;the old 5V SIM cards cannot be used
• Make sure the chip on your SIM card is not damaged or scratched
Unable to make outgoing calls
• Make sure you have dialled a valid number and press the key
• For international calls,check the country and area codes
• Make sure your mobile phone is connected to a network,and that the network is not overloaded or unavailable
• Check your subscription with your operator (credit,SIM card valid, etc.)
• Make sure you have not barred outgoing calls (see page 24)
Unable to receive incoming calls
• Make sure your mobile phone is switched on and connected to a network (check for overloaded or unavailable network)
• Check your subscription with your operator (credit,SIM card valid, etc.)
• Make sure you have not forwarded incoming calls (see page 24)
• Make sure that you have not barred certain calls
The caller’s name does not appear when a call is received
• Check that you have subscribed to this service with your operator
• Your caller has concealed his/her number
The sound quality of the calls is not optimal
• You can adjust the volume during a call by means of the key
• Check the radio reception icon level
I am unable to use the features described in the manual
• Check with your operator to make sure that your subscription includes this service
• Check to be sure this feature does not require an Alcatel accessor y.
9493
19
Troubleshooting ..........................................
Before contacting the after-sales service, we advise you to perform the following checks:
My mobile phone does not switch on
• Press until the screen comes on
• Check the battery charge level
• Check the battery contacts, remove and reinstall your battery, then turn your telephone back on
My phone does not respond since several minutes
• Press the key
• Remove the battery and re-insert it, then switch the phone back on
My screen is difficult to read
• Clean your screen
• Activate the backlighting
• Use your mobile phone in accordance with the recommended conditions of use
My mobile phone turns off by itself
• Check that your keypad is locked when you are not using your mobile phone
• Check the battery charge level
• Make sure the backlighting is not permanently activated
My mobile phone has a low level of autonomy
• Make sure that the battery saver mode is activated
• Make sure you respected the complete charge timing (minimum 3 hours)
• After a partial charge, the batter y level indicator may not be exact.Wait for 20 minutes minimum after you remove the
charger to obtain an exact indication
My mobile phone does not charge properly
• Make sure that your battery is not completely discharged;the batter y charge indicator can take several minutes and may
be accompanied by a quiet whistling sound
• Make sure charging is carried out under normal conditions (0°C +40°C)
• Make sure your battery is inserted.It must be inserted bef
ore plugging in the charger
• Make sure you are using an Alcatel batter y and charger
• When abroad,check that the electrical current is compatible
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 93
Page 49
Alcatel logo and Alcatel name are trademarks of Alcatel
and used under license by TCL & Alcatel Mobile Phones Limited
All rights reserved © Copyright 2004 TCL & Alcatel Mobile Phones Limited.
TCL & Alcatel Mobile Phones Limited reserves the right
,in customer's interest,
to alter material or technical specifications without prior notice.
English - 3DS10853XXXX
When I select a number from my directory, the number is not dialled
• Make sure that you have correctly recorded the number in your file
• Make sure that you have selected the country prefix when calling a foreign country
I am unable to create a file in my directory
• Make sure that your SIM card directory is not full;delete some files or save the files in the product directory (i.e. your
professional or personal directories)
• Check the “Call barring” option f or “Incoming calls” to be sure that the “Incoming calls except directory” feature
is not activated
My callers are unable to leave messages on my voicemail
• Contact your network operator to check service availability
I can’t access my voicemail
• Make sure your operator’s voicemail number is correctly entered in “My numbers”
• Try later if the network is busy
I am unable to send and receive messages MMS,Vox MMS
• Check your phone memory available as it might be full (see page 59)
• Contact your network operator to check service availability and check MMS parameters (see pages 42-43)
• Verify the server centre number or your MMS profile with your operator
• The server centre may be saturated;tr y again later
The icon is displayed on my standby screen
• You have sa ved too many short messages on your SIM card;delete some of them or archive them in the product memory
The << - >> icon is displayed
• You are outside of the network coverage area
I have already entered 3 incorrect PIN codes
• Contact your network operator to obtain the PUK code (Personal Unblocking Key)
I am unable to connect my telephone to my computer
• Install first of all Alcatel’s PC suite
• Use “Install the connection” and perform the installation
• If you use the infrared port,check that it is correctly activated (see page 60)
• If you use infrared often,we advise that you set a quick access to it from the keypad (see page 51).
• Check that your computer meets the requirements for Alcatel’s PC Suite installation
95
TH4relook_UM_GB-FCC-18-11-04 18/11/04 15:32 Page 95
Loading...
