TCT Mobile 005 User Manual

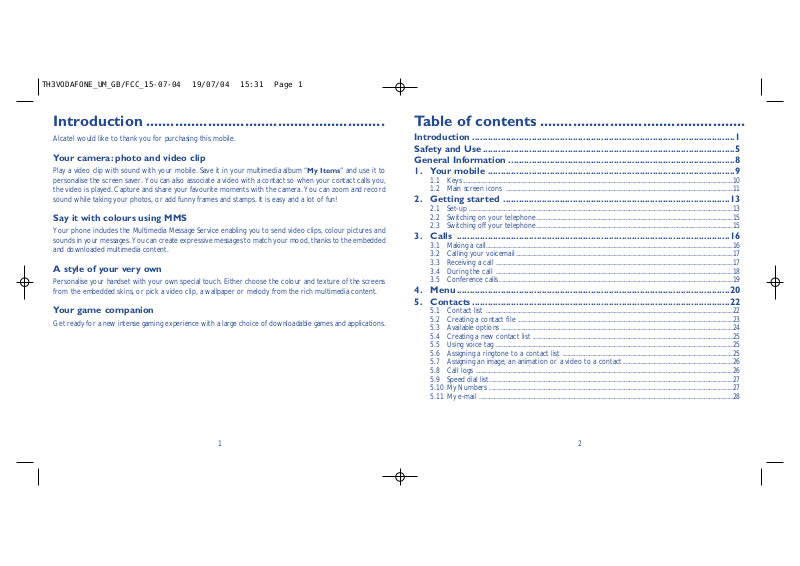

Introduction ..........................................................

Alcatel would like to thank you for purchasing this mobile.

Your camera: photo and video clip

Play a video clip with sound with your mobile. Save it in your multimedia album “My Items” and use it to personalise the screen saver. You can also associate a video with a contact so when your contact calls you, the video is played. Capture and share your favourite moments with the camera. You can zoom and record sound while taking your photos, or add funny frames and stamps. It is easy and a lot of fun!

Say it with colours using MMS

Your phone includes the Multimedia Message Service enabling you to send video clips, colour pictures and sounds in your messages. You can create expressive messages to match your mood, thanks to the embedded and downloaded multimedia content.

A style of your very own

Personalise your handset with your own special touch. Either choose the colour and texture of the screens from the embedded skins, or pick a video clip, a wallpaper or melody from the rich multimedia content.

Your game companion

Get ready for a new intense gaming experience with a large choice of downloadable games and applications.

Table of contents ..................................................

Introduction ......................................................................................................1

Safety and Use ..................................................................................................5

General Information ........................................................................................8

1. Your mobile ................................................................................................9

1.1 Keys..................................................................................................................................................................10

1.2 Main screen icons ........................................................................................................................................11

2. Getting started ........................................................................................13

2.1 Set-up ..............................................................................................................................................................13

2.2 Switching on your telephone......................................................................................................................15

2.3 Switching off your telephone......................................................................................................................15

3. Calls ..........................................................................................................16

3.1 Making a call....................................................................................................................................................16

3.2 Calling your voicemail ..................................................................................................................................17

3.3 Receiving a call ..............................................................................................................................................17

3.4 During the call ..............................................................................................................................................18

3.5 Conference calls............................................................................................................................................19

4. Menu ..........................................................................................................20

5. Contacts ....................................................................................................22

5.1 Contact list ....................................................................................................................................................22

5.2 Creating a contact file .................................................................................................................................23

5.3 Available options...........................................................................................................................................24

5.4 Creating a new contact list ........................................................................................................................25

5.5 Using voice tag ..............................................................................................................................................25

5.6 Assigning a ringtone to a contact list ......................................................................................................25

5.7 Assigning an image, an animation or a video to a contact..................................................................26

5.8 Call logs ..........................................................................................................................................................26

5.9 Speed dial list..................................................................................................................................................27

5.10 My Numbers ..................................................................................................................................................27

5.11 My e-mail ........................................................................................................................................................28

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:31 Page 1

12. My Items....................................................................................................61

12.1 Pictures............................................................................................................................................................61

12.2 Games & more ..............................................................................................................................................62

12.3 Sounds..............................................................................................................................................................62

12.4 Videos ..............................................................................................................................................................63

12.5 Managing sounds, images and videos ......................................................................................................63

12.6 Download new videos, photos, sounds ........................................................................................ ..........65

12.7 Formats and compatibility ..........................................................................................................................65

12.8 My Shortcuts ..................................................................................................................................................65

13. Application ................................................................................................66

13.1 Alarms..............................................................................................................................................................66

13.2 Calculator........................................................................................................................................................66

13.3 Converter........................................................................................................................................................67

13.4 Voice recorder ..............................................................................................................................................67

13.5 Tone maker ................................................................................................................ ..................................68

13.6 Infrared (IrDA) ..............................................................................................................................................69

13.7 Alarms list ......................................................................................................................................................69

14. Settings......................................................................................................70

14.1 Profiles .............................................................................................................................................................70

14.2 Phone ...............................................................................................................................................................75

14.3 Call settings ....................................................................................................................................................77

14.4 Connectivity....................................................................................................................................................81

14.5 Internet............................................................................................................................................................82

14.6 Network..........................................................................................................................................................82

14.7 Security............................................................................................................................................................83

15. Call logs ....................................................................................................85

16. PC suite ....................................................................................................86

17. Characters and symbols table ................................................................87

18. Telephone warranty ................................................................................88

19. Accessories................................................................................................90

20. Troubleshooting........................................................................................92

6. Messages....................................................................................................29

6.1 Receiving and reading messages ................................................................................................................30

6.2 Creating and sending messages..................................................................................................................33

6.3 Speed writing system....................................................................................................................................37

6.4 Parameters......................................................................................................................................................38

6.5 Deleting messages ........................................................................................................................................41

6.6 Memory status ..............................................................................................................................................41

7. Camera......................................................................................................42

7.1 Taking a picture ............................................................................................................................................42

7.2 Burst shots ......................................................................................................................................................43

7.3 Taking a photo with sound ........................................................................................................................43

7.4 Photo settings ................................................................................................................................................44

7.5 Options available just after taking the photo ........................................................................................48

7.6 Modifying images ..........................................................................................................................................48

7.7 Direct access to the photo capture or to “My Items” from MMS composition ..........................49

8. Games & more ........................................................................................50

8.1 Launch an application ..................................................................................................................................50

8.2 Available options ..........................................................................................................................................51

8.3 Download an application ............................................................................................................................51

8.4 Java™ Push ....................................................................................................................................................52

8.5 Settings ............................................................................................................................................................52

9. Calendar ....................................................................................................54

9.1 Consulting your calendar............................................................................................................................54

9.2 Creating an appointment and programming an alarm..........................................................................55

9.3 Creating a task ..............................................................................................................................................55

9.4 Configure the calendar................................................................................................................................55

9.5 More about your calendar..........................................................................................................................56

10. SIM card Services ....................................................................................57

11. Vodafone live!............................................................................................58

11.1 Access WAP menu ......................................................................................................................................58

11.2 Programming your access ..........................................................................................................................58

11.3 GPRS function................................................................................................................................................60

11.4 WAP browser options ................................................................................................................................60

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:31 Page 3

• PRIVACY:

Please note that you must respect the laws and regulations in force in your country regarding taking photographs and recording sounds using your mobile telephone. Pursuant to such laws and regulations, it may be strictly forbidden to take photographs and/or to record the voices of other people or any of their personal attributes, and reproduce or distribute them, as this may be considered to be an invasion of privacy. It is the user's sole responsibility to ensure that prior authorisation be obtained, if necessary, in order to record private or confidential conversations or take a photograph of another person; the manufacturer, the seller or reseller of your mobile phone (including the operator) disclaim any liability which may result from the improper use of the mobile phone.

• BATTERY:

Before removing the battery from your phone, please make sure that the phone is switched off. Observe the following precautions for battery use: do not attempt to open the battery (due to the risk of toxic fumes and burns), do not puncture, disassemble or cause a short-circuit, do not burn batteries or dispose of them in household rubbish, and do not expose to temperatures in excess of 60°C. Batteries must be disposed of in accordance with locally applicable environmental regulations. Only use the battery for the purpose for which it was designed. Never use damaged batteries or not recommended by Alcatel.

• CHARGERS

Mains powered chargers will operate within the temperature range: 0°C to 40°C. The chargers designed for your mobile phone meet with the standard for safety of information technology equipment and office equipment use. They should be used for this purpose only.

• RADIO WAVES:

THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your mobile phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio-frequency (RF) energy. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independant scientific organisations through periodic and thorough evaluation of scientific studies. The guidelines include a substantiel safety margin designed to assure the safety of all persons, regardless of age and health.

Safety and Use ......................................................

We recommend that you read this chapter carefully before using your phone. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained in this manual.

• TRAFFIC SAFETY:

Given studies, which show that using a mobile phone while driving a vehicle constitutes a real risk, even when the handsfree kit is used (car kit, headset...), drivers are requested to refrain from using their mobile when the vehicle is not parked.

When switched on, your phone emits electromagnetic waves that can interfere with the vehicle’s electronic systems such as ABS anti-lock brakes or airbags. To ensure that there is no problem:

- do not place your phone on top of the dashboard or within an airbag deployment area.

- check with your dealer or car manufacturer to make sure that the car electronics is well insulated.

• CONDITIONS OF USE:

Always treat the phone with care and in a clean and dust-free place. Switch off the phone before boarding an aircraft to avoid prosecution. Switch off the phone when you are in health care facilities, except in designated areas. As with other types of equipment now in regular use, mobile phones can interfere with the operation of other electric, electronic or radio frequency devices in their vicinity. When the telephone is on, it should not come closer than 15cm to any medical device (i.e. cardiac pacemaker, hearing aid, insulin pump, etc.). When making or receiving a call, make sure you place the phone against the ear that is furthest away from the pacemaker or the hearing aid (if there is only one). Switch the phone off when you are near gas or flammable liquids. Strictly obey the rules relating to the use of mobile phones at fuel depots, petrol stations, chemical plants or in any potentially explosive atmosphere. Do not allow children to use your mobile phone without supervision. Do not open or attempt to repair your mobile phone yourself. Move the handset away from your ear while using the “handsfree” option because the amplified volume might cause hearing damage. Only use your telephone with Alcatel batteries, chargers and accessories compatible with your model (see page 90). The manufacturer disclaims any liability for damage caused by the use of other chargers or batteries. Do not allow your mobile phone to be exposed to adverse weather or environmental conditions (dampness, rain, infiltration, dust, sea air, etc.). The minimum and maximum temperatures recommended by the manufacturer are between -10°C and +55°C. Beyond 55°C, the legibility of the display may be impaired, but this is temporary and not serious.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:31 Page 5

General Information ............................................

• Internet address: www.alcatel.com - Wap address: wap.alcatel.com

• Alcatel Hot Line Number: see the “Alcatel Services” leaflet (calls charged at applicable local rates in

your country)

An electronic version of this user guide is available in English and other languages according to availability on our Alcatel Server: www.alcatel.com

Your telephone is a transceiver that operates on GSM networks with 900, 1800 and 1900 MHz bands. The marking indicates that your telephone complies with "1999/5/EC (R&TTE)" directive and that the

accessories concerned comply with current EC directives. The entire copy of the Declaration of Conformity for your telephone can be obtained through Alcatel website: www.alcatel.com.

Protection against theft

Your mobile phone has an identification number called IMEI (phone serial number) shown on the packaging label and in the product’s memory. We recommend that you note this number the first time you use your telephone by entering , , , , and keep it safely. It may be requested by the police or Vodafone if your telephone is stolen. This number allows your mobile telephone to be blocked, preventing a third person from using it, even with a different SIM card.

January 2004

The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by public authorities such as the Federal Communications Commission of the US Government (FCC), the Australian Communications Authority (ACA) or by Industry Canada, is 1.6 W/kg averaged over 1 gram of body tissue. Tests for SAR are conducted using standard operating positions with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a würmiennes base station antenna, the lower the power output of the phone. Before a phone model is available for sale to the public, compliance with national regulations and standards must be shown. The highest SAR value for this model phone when tested for use at the ear is 0.18 W/Kg and for use close to the body is

0.21 W/Kg. While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for RF exposure. For body-worn operation, the phone meets FCC RF exposure guidelines provided that it is used with a non-metallic accessory with the handset at least 2 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.

The World Health Organization (WHO) considers that present scientific information does not indicate the need for any special precautions for use of mobile phones. If individuals are concerned, they might chose to limit their own or their children's RF exposure by limiting the length of calls, or using "hands-free" devices to keep mobile phones away from the head and body (fact sheet n°193). Additional WHO information about electromagnetic fields and public health are available on the following site: http://www.who.int/peh-emf.

Your telephone is equipped with a built-in antenna. For optimal operation, you should avoid touching it or degrading it (see page 14).

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 7

Navigation key Confirm an option (central press)

Delete

(short keypress)

Return to the previous screen (short

keypress)

Return to the main screen (long keypress) Pick up

Send a call Access call list (Redial) (short keypress) Use voice tag features (long keypress)

Switch on/Switch off the telephone from main screen (long keypress) End call Return to the main screen

Camera key

Left softkey

Right softkey

Consult your voicemail

(long keypress)

From the main screen: Keypad lock/unlock In Edit mode:

- Short keypress: upper case, lower case, digits

- Long keypress: switch from normal to predictive mode

From the main screen:

- Short keypress: dial #

- Long keypress: activate/deactivate the vibrator.

In edit mode: Access the symbols table

Side keys

- Set the ringtone volume from the main screen

- Take a photo (short press up or down)

- Take a burst shot (long press up)

- Take a photo with sound (long press down)

- Set the volume during a call

- Scroll in the menu

1.1 Keys

Your mobile ....................................................

Switch on/Switch off End call

Voicemail

Clear Back

Keypad lock/unlock

Edit mode

Left softkey

Right softkey

Camera key

Pickup/Send call

Call logs

Voice tag

Scroll key: Menu/Confirm an option SIM card services Contact list Inbox Calendar

Access the symbols table Vibrator

2 side keys

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 9

Keypad locked. Roaming within your home country. Infrared: infrared link activated.

GPRS context activated. Download in progress/immediate reception of an incoming MMS. Sending an MMS.

1.2 Main screen icons

(1)

Battery charge level

Vibrator mode: your phone only vibrates and neither rings nor beeps except for the alarms (see

page 71).

Silence mode: your phone neither rings, beeps nor vibrates except for the alarms (see page 71).

Message unread

Message list is full (SMS): your phone cannot accept any new SMS. You must access the message

list and delete at least one message on your SIM card (see page 41). Voicemail message arrived. Missed calls. WAP alert.

Call forwarding activated: your calls are forwarded (see page 77). Timer or alarm clock programmed (see page 66). Level of network reception.

Preferred tariff areas

(2)

(1)

The icons and illustrations in this guide are provided for informational purposes only.

(2)

Contact Vodafone to check service availability.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 11

Charging the battery

Connect the battery charger

• A short beep will sound when charging begins.

• The animation may take several minutes to start and may emit a

slight whistling sound if the battery is flat.

• Be careful not to force the plug into the socket.

• The battery icon will take 2 minutes to indicate the correct charge

level.

• Make sure the battery is correctly inserted before connecting the

charger.

• The mains socket must be near to the phone and easily accessible

(avoid electric extension cables).

The charge is complete when the animation stops. Only use ALCATEL chargers.

Precautions during use

Do not place you hand on the upper part of the mobile phone. Your telephone is equipped with a built-in antenna. For optimal

operation, you should avoid touching it or degrading it. For better radio reception and optimum operation, do not touch the

upper part of your telephone.

Getting started ..............................................

2.1 Set-up

Inserting and removing your Vodafone SIM card

(1)

You must insert your SIM card in order to use your phone.

Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted.

Installing and removing the battery

Insert and engage the battery, then close the

telephone cover.

Unclip the cover, then the battery and remove it.

(1)

Check with Vodafone to make sure that your SIM card is 3V compatible. The old 5 Volt cards can no longer be used.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 13

Calls ............................................................

3.1 Making a call

Dial the desired number then press the key to place the call. To hang up, press the key. If you make a mistake, you can delete the incorrect digits by pressing the key.

To enter characters “+” or “P” (pause), make a long keypress on the key (the following characters will scroll by: 0, +, P, •).

Making an emergency call

If your phone is in network coverage, dial 112 and press the key to make an emergency call (or any other number provided by Vodafone). This works even without a SIM card and without typing the PIN code or unblocking the keypad.

Making a call with a prefix

To access the various prefixes, make a long keypress on , stop at “+” sign and use the key.

• To make an international call, go to , select the country, finish dialling the number and send the call.

• If you already know the prefix you want, go directly to the icon and enter the prefix directly followed by the number of the person you are calling.

• In some companies, telephone numbers all begin with the same digits. By using the “Prefix” feature

, you can save the shared digits, but you will need to enter the variable part. You must create the

prefixes yourself.

1615

2.2 Switching on your telephone

Make a long keypress on the key until the telephone comes on, type in your PIN code if necessary and then confirm with the key. The main screen is displayed.

If you don’t know your PIN code or if you have forgotten it, contact Vodafone. Do not leave your PIN code near your telephone.

If cell broadcast messages are displayed, use the key to browse through them in full or press the key to return to the main screen.

While the phone is searching for a network, the <<<->>> symbol is displayed (???-??? is displayed if your SIM card is rejected by the network, in this case please contact Vodafone).

In the switch on screen, you also have access to a video clip demo function: select the left icon with the navigation key . Even if no SIM card inside, you will have access to the video clips list.

2.3 Switching off your telephone

Press the key from the main screen (long keypress).

Change the front belt

Open the front belt Close the front belt

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 15

Rejecting a call

Press the key once or the key twice, or select “Options”.

3.4 During the call

Available functions

During a call, you can use your contact list, short messages, etc. without losing your correspondent by pressing the key.

(1)

Contact Vodafone to check service availability.

Call on hold Ongoing call Handsfree

WARNING: move the handset away from your ear while using the “handsfree” option because the amplified volume might cause hearing damage.

Contact list Messages Calendar Services

(1)

Voice recorder (record your current call). Display notes

Phone autoredial

If this feature is activated and supported by the network (see page 79), the person you called will be called back automatically until they can be reached.

3.2 Calling your voicemail

Your voicemail is provided by Vodafone to avoid missing calls. It works like an answering machine and you can consult it at any time. To access your voicemail, make a long keypress on the key.

If the access number for your voicemail service does not work, dial the number that you were given. To change this number at a later date, refer to “My Numbers” (see page 27).

To use your voicemail service from abroad, contact Vodafone before leaving.

3.3 Receiving a call

When you receive an incoming call, press the key to talk and then hang up using the key. When you have an incoming call, your telephone rings quietly at first and then gets louder. If the icon

is displayed, the vibrator is activated and there is no ringtone. If the icon is displayed, the phone neither rings nor vibrates.

The caller’s number is displayed if it is transmitted by the network (contact Vodafone to check service availability).

Muting the ringtone

Press the key once while the telephone is ringing. Answer the call by pressing the key, or select “Options”.

Adjusting the volume

You can adjust the sound level during a call using the navigation key or the side keys.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 17

Menu................................................................

• GAMES & MORE

- Games

- Settings

• VODAFONE LIVE !

- Vodafone live!

- News (URL)

- Sport (URL)

- Chat (URL)

- My Vodafone (URL)

- Search (URL)

- What’s New? (URL)

- More Sounds (URL)

- More Pictures (URL)

- More Games (URL)

- Video & Audio (URL)

- Media Album (URL)

- Vodafone Mail (URL)

- Messenger (URL)

- Bookmarks

- Enter URL

- Profiles

• APPLICATION

- Alarms

- Calculator

- Converter

- Voice recorder

- Tone maker

- Infrared

- Alarms list

• MESSAGES

- Create message

- Inbox

- Outbox

- Voicemail

- My messages

- Media Album (URL)

- Vodafone Mail (URL)

- Messenger (URL)

- Parameters

- Memory

- Delete

2019

Handling two calls

• Call waiting

(1)

If a second call comes in while you are already on line, you will be notified by a tone. You can then accept the call by pressing the key. Your current call will be automatically put on hold. You can then switch between your two correspondents using the key and then .

• Making a second call

To call a second party during a call, dial the number directly.

3.5 Conference calls

(1)

Your phone allows you to talk to several people at the same time (up to 5). If you are on a double call, press

, select “Conference” then confirm with the key. If a third call comes in, answer it by pressing the

key and speak with your new correspondent.

This correspondent becomes a member of the conference if you press , select “Add conf.”, and then confirm by pressing . Pressing disconnects the current call.

To end the conference call, press and select “End conf.”.

(1)

Contact Vodafone to check service availability.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 19

Contacts......................................................

5.1 Contact list

You can customize a quick access to your contacts with the “Speed dial list” function (see page 27). To access the contact list from your main screen, press the key, select “Contacts” with the

navigation key, press again and select “Contact list”. You have 4 contact lists:

SIM directory: The SIM card’s capacity depends on the type of SIM you have. It is not possible to assign more than one number to a name.

General list: Contains all contacts saved on the phone. The SIM card contacts are not created automatically in the general list, but they can be copied to it.

Personal list: You can store your personal contacts in this list (relatives, friends, etc.).

Professional list: You can store your professional contacts in this list (companies, etc.).

In addition to the lists already provided, you can create your own lists (see page 25).

Searching for a name by its first letter

You can search for the person’s name by pressing the key associated with the first letter of his/her name.

For some languages that have a specific entry mode, you should use the “Search name” option.

2221

• CAMERA

- Take a picture

- Pictures

- Videos

• MY ITEMS

- Pictures

- Games & more

- Sounds

- Videos

- My Shortcuts

- Bookmarks

- My messages

• CALENDAR

• CONTACTS

- Contact list

- Call logs

- Speed dial list

- My Numbers

- My e-mail

• SETTINGS

- Profiles

- Phone

- Call settings

- Connectivity

- Internet

- Network

- Security

• SERVICES

• CALL LOGS

• RINGTONES

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 21

5.3 Available options

From the contact list, you can access the following options via the right softkey:

View • View a complete contact: name,

address, e-mail, etc.

Create contact• Create a contact (name,

numbers, address, e-mail, etc.) in the desired list.

Write • Send an SMS or MMS to a message contact.

Modify • Edit a contact. Image • Select a video/photo/image in

the album and assign it to the current file (not valid for the SIM list).

Delete file • Delete the selected contact. Classify file • Move a contact from one list to

another.

Dir. ringtone • Assign a ringtone to all contacts

in the current list.

Create list • Create your own list. Empty list • Delete all contacts in a list. Delete list • This list and its contacts will

disappear completely (created list only).

Copy all-> • Copy all contacts to the SIM or SIM/Phone telephone list in one go if there

is sufficient memory.

Voice tag • Record a voice tag command

(not available in the SIM list).

Send • Exchange data via infrared (see

page 69) or Multimedia/MMS.

Tips & Tricks • Get information and tricks about

the current menu function.

Read a contact file

Select a name from your contact list and confirm with the key. Select “View” and confirm.

Making the call

Press the key when the name is selected. If several numbers are associated with the name to be called, you must then choose the number from the list (Mobile, Home, Office, etc.) using the key. Press the key to make the call.

Information in the contact list and the calendar may be shared with a computer using the Alcatel One Touch PC suite (see page 86).

5.2 Creating a contact file

Select the contact list in which you wish to create a file, press the right softkey, select “Create contact” then . You can save the data you have entered at any time by pressing the left softkey “Save”. Go to the following field by pressing the key or by using the navigation key .

When you create a new contact in the phone list, at least one of the following fields must be filled in:

Identity card, Birthday, Nickname, URL, Numbers, Image, E-mail, Address,

Notes, Pers. info. 1...4. You can move from one field to another using the key. When the field “Birthday” is filled in, an alarm is automatically created in the Calendar.

If you use your phone abroad, store the numbers in your contact lists in international format “+” followed by the country code (see page 16).

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 23

5.7 Assigning an image, an animation or a video to a contact

Select a contact from the contact list, press the right softkey and select “Image”. When you receive a call from that contact, the picture, animation or video clip that you have chosen will be

displayed on the screen. It is possible to assign either an image or a video but not both for the same contact.

5.8 Call logs

You can access your call memory by pressing the key from the main screen. You must first choose the appropriate icon:

Last dialled calls Missed calls Received calls

The icons that may be displayed to the left of the person’s name show the type of telephone number recorded in the contact list (Home, Office, Mobile Phone).

Available options

From the stored number, you can access the following options using the right softkey:

View • Consult call details (number,

date, time, etc.).

Write • Send an SMS or MMS to message the selected number.

To contact list • Store the selected number in

one of your lists.

Delete • Delete the selected number.

number

Clear list • Clear the entire list.

5.4 Creating a new contact list

From the product contact list, press the right softkey and select “Create list”, confirm using the key, then name your new contact list. You can create up to 13 new lists. You can delete only those lists that you created, by selecting “Delete list”.

5.5 Using voice tag

Voice tag allows you to place your call by pronouncing the party’s name without using your contact list. Select a contact from the phone list and press the “Options” softkey. Then select “Voice tag” and confirm

once again. Three different beeps will signal the start of recording, its failure or its success. After recording, you can “Listen to”, “Replace” or “Delete” a recorded voice tag.

The contacts for which a voice tag has been recorded are indicated by the icon. The number of names accessible through voice tag is limited. This feature can be used in all lists except the SIM card list.

Activate voice tag by a long keypress on the key from the main screen, then follow the instructions on the screen.

5.6 Assigning a ringtone to a contact list

Select a contact from the phone list, press the right softkey and select “Dir. ringtone”. When you receive a call from a contact classified in that list, the ringtone will be the one assigned to the list.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 25

5. 11 My e-mail

Access this feature by selecting “Contacts” from the main menu, press and select “My E-mail”. Enter your own e-mail address to be able to more easily send pictures, images, video clips, sounds... by MMS

to your PC. You can do it also directly from the options while writing an MMS.

5.9 Speed dial list

By customising your keys, you can call someone or access a function directly from the main screen. Access this feature by selecting “Contacts” from the main menu, press and select “Speed dial list”.

You can also access this function in the “Settings”, then select “Profiles” then “Speed dial list”. Choose the key that you wish to programme. Then select:

-“Contact list” activate this option if you want to access directly from the main screen to the contact

whose first letter corresponds to the first letter of the key for instance key for “PETERSON John”.

-“Custom keys”: direct access to the numbers or functions you have programmed.If you want to change

them, press the “Options” softkey, select “Modify”; then choose the first key you wish to program, and select one of following options:

• “Numbers” to programme a direct call to a specific phone number from this key from the main screen,

• “Function” to assign a specific function to the selected key,

Repeat this operation key by key.

5.10 My Numbers

Access this feature by selecting “Contacts” from the main menu, press and select “My Numbers”.

My Number

Save your mobile phone number. Type in the number and confirm by pressing .

Voicemail

Modify the number to access your voicemail. This will usually have already been entered for you by Vodafone.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 27

When viewing your messages, you will find the following status icons, depending on:

- the type of message: SMS message, MMS message, MMS notification, MMS sending in progress, MMS message with a sound, MMS with video clip, MMS with copyright elements which cannot be forwarded.

- Storage: messages stored on your SIM card (SMS only), messages stored in the phone’s memory (MMS notifications).

6.1 Receiving and reading messages

6.1.1 SMS

When a new SMS arrives, the following message is displayed: “New message!”, a beep sounds, the icon shows up, a line with the number of messages appears on the screen. Select this line and press to read it directly from the main screen. To modify or deactivate the audible signal, see page 71.

6.1.2 MMS

You have three ways of managing the reception of MMS: immediate, deferred or restricted reception. From “Parameters/MMS parameters”, confirm your choice in the “Mode” option (see page 39).

•“Immediate” reception: when in idle mode, the icon will indicate that a new MMS is being downloaded. The message “New message!” appears, a beep sounds, the icon shows up, a line with the number of messages appears on the screen. Select this line and press to select and open the MMS.

To access the menu from the idle screen, and you do not want to open incoming MMS, press to delete the idle screen notification. The messages are kept in the “Messages/Received/Not read” folder.

•“Deferred” reception: you will receive a notification with the name and number of the sender and the title of the message if there is one. You can download the MMS at any time in order to read it. You can also delete it without reading it; in this case the sender of the MMS will be informed that it has been rejected (only in National mode).

•“Restricted” reception: same behavior as “Deferred” mode but you will not receive any notification, only the icon (only in International mode).

Messages ..................................................

From your telephone, you can read, write, send and receive short “Text/SMS” messages and “Multimedia/MMS” and share them with other mobiles.

MMS messages are messages whereby you can send videos, images, photos, animations, sounds, voice messages (or Vox MMS: simplified MMS that allows you to send a voice memo as a message), appointments (V.CAL) or contact files (V.CARD) to other compatible mobiles and e-mail addresses.

To access the messages from the main screen, press the key, select “Messages” with the navigation key and confirm with the key.

The following list is displayed:

- Create message

- Inbox

- Outbox

- Voicemail

- My messages

- Media Album (URL)

- Vodafone Mail (URL)

- Messenger (URL)

- Parameters

- Memory

- Delete

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 29

- when reading an MMS:

Restart • View the message again. With sound/ • View your MMS with or without

Without sound sound.

Save items

(2)

• Save video clips, images, sounds

received in MMS current page.

MMS additional options:

- when selecting

an MMS in the inbox/outbox list

(1)

Open/Retrieve • Read the selected message

(“Retrieve” if the deferred mode has been selected).

Details • Go to MMS details: local date,

title, size, class, priority, mailing list, ack. of receipt.

Reply all • Reply to all MMS recipients. Save no./e-mail• Save the senders’ number or e-

mail address in your contact list.

(1)

Options available according to the reception mode chosen.

(2)

- For one object press to save.

- For several objects press “Options”, choose the objects one by one using the option “Next”, and press to save.

In addition:

- If the MMS includes a wap address, an e-mail address, or a telephone number, you have the 2 possibilities: select the “Options”, to save and/or access the link displayed (launch wap link, send e-mail, or call number displayed).

- If the MMS contains several pages, it will scroll automatically. To launch the viewing again, select the option “Restart” or use the navigation key .

You can receive videos, photos, images, or sounds by MMS. If you select “Options/Save items” you can save the videos, images or sounds or all of them. If you want to save more than one item, save the first item displayed, then select the “Next” softkey to save the second item, etc. They are all saved in “My Items”.

6.1.3 Options while receiving or viewing messages in Inbox/Outbox

Generally, the common following options are proposed:

Open • Open and read the content of

your message.

Send • For unsent messages in Outbox. Modify • For unsent messages in Outbox. Delete • Delete the message. Reply • Reply by SMS, MMS or by Vox

MMS.

Archive • Save your message in the

“Archive” folder (phone memory).

Forward • Forward the message to other

people.

Sort by date/ • Sort the read messages by date Sort by size or by size: by date is the default

sorting.

The following options depend on the context (receiving a message, reading in the Inbox or Outbox, an MMS or an SMS):

SMS additional options:

Move • Cut /paste SMS from SIM to

product memory.

Save picture • Save a picture contained in the

message.

Save • Save an animation contained in animation the message.

Save melody • Save a melody contained in the

message.

Save template • Save the message as a predefined

message.

Save number • Save a number or an e-mail

address contained in the message.

Launch WAP • Go to the WAP address

contained in the message.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 31

If the acknowledgement of receipt (“Rpt.”) is activated in “Sending/Parameters/SMS parameters”, (see page 38), when you consult your sent messages, the following symbols will show:

Msg.received: message sent and delivery report received. Not received: message sent and waiting for delivery report, or message not received: you should

send the message again.

Other options are available if you choose the predictive entry mode (see page 37).

6.2.2 Creating MMS

From the main menu, select “Messages/Create message/Multimedia/MMS” and press . By default, you are in edit mode. You can also modify a predefined message selecting “My messages”.

Your MMS may contain several pages (maximum memory allocated: 100 KB) ; as you create the MMS you will be informed of the memory used (for all pages).

With the option “My e-mail”, you can send images, video clips, sounds, ... to your own preset e-mail address.

If the acknowledgment of receipt (“Rpt.”) is activated in “Sending/Parameters/MMS Parameters”, you can consult it in the option “Information” when selecting a message (see page 39).

Contact list • To a person or e-mail address

whose contact is stored in one of your contact lists.

My favourite • To your favourite contact.

Several • To different people by manually recipients entering the numbers or

selecting them from the contact list.

Distribution • To a group of people that you list have pre-set in the sending

parameters (“Distribution list” option).

Options for sending your message

6.2 Creating and sending messages

6.2.1 Creating SMS

From the main menu, select “Messages/Create message”, select “Text/SMS” and press . You can also modify a predefined message selecting “My messages”.

Customise your messages adding pictures, sounds or mood icons available in your telephone. While writing a message, select the “Options” softkey:

Select “Preview” to see the whole message: the icons, sounds and mood icons are represented by the

, or symbol. You can also download new sounds and images over WAP (see page 86).

A message of more than 160 characters, or a message containing icons, sounds, or mood icons may be billed as more than one message. The person receiving the message must be equipped with an EMS compatible mobile phone in order to display the objects or listen to the sounds in your message.

Send • Send the message. Edit as MMS • If your SMS is long or if you

want to add pictures or sounds.

Add mood • Add a mood icon to your

message.

Add image • Add an icon to your message.

Add melody • Add a sound to your message. Add bookmark• Add a website to your message. Symbols • Go to the symbols table. Predictive • Switch to the predictive mode. Preview • View your message. Save • Save the message (outbox/

unsent) and send it later.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 33

(1)

Contact Vodafone to check service availability.

(2)

This Vox MMS being a normal MMS which contains an AMR type sound, you can only listen to it with an AMR IETF compatible phone or a computer equipped with an adequate sound decoder.

Reply to an MMS by sending an MMS, an SMS or a Vox MMS message. To send text only, it is advisable to use an SMS.

To send your MMS later on (after sending other items or photos for instance) save your MMS (“Save”) as a draft stored in your “Outbox/Unsent” folder. Then select it and use the function “Options” to replace or remove items before sending it.

If the message is not sent, the mobile will try to re-send it automatically

(1)

. The icon is displayed on the screen and in the “Outbox/Unsent” folder, indicating the automatic sending procedure is activated. If it fails completely, you will be notified by a message and the icon in your “Unsent” folder indicates that the MMS could not be sent. Select it and press to send it again, modify it or delete it.

6.2.3 Creating a postcard from your mobile phone

From the main menu, select “Messages/Create Message/MMS Postcard”. Type your message, insert a picture, and follow the instructions to complete details for the addressee: name, address, …. A real postcard will be sent automatically by post to the contact you entered. You can also take a picture and send it by postcard just after selecting “Send/Send by/MMS Postcard”.

You can only send a postcard with a VGA format picture (see page 45).

6.2.4 Creating Vox MMS (Voice recorder)

From the main menu, select “Messages/Create message/Voice/Vox MMS”. This function allows you to send a message quickly without having to type. The recipient simply receives a normal MMS

(2)

. You can reply

to any message using a “Voice/Vox MMS”.

You may also attach special files to your MMS such as: a contact from your contact list (Vcard), or an appointment from your calendar (Vcal). They will be displayed in a separate page (select option “Attachments”).

Depending on whether your MMS is empty or not, with no file or at least one file attached, you will be given the following options:

Send to one • Send to one recipient from your

Contact list or dial the number or e-mail or select “My favourite” or “My e-mail”.

Send to many • Send to several persons by

dialling the numbers (Dial), or selecting the numbers, or the group (“Add group”) from the

Contact list.

Add image • Add a picture or an animation

from the “Image album” function, or create it directly from the “Take a picture” function.

Add video • Add a video from the “Videos”

function.

Add sound • Add a sound from the

“Sounds” function, or a voice message.

Add text • Write your text. Add title • Give a title to your MMS.

Add bookmark• Insert a bookmark (URL) from

the list of your favourite sites (see page 58).

Text options • -“->Directory”: insert a

contact number.

-“Symbols”: insert a symbol.

-“Predictive”: switch between normal and predictive mode.

Replace • Change an item in your MMS. Remove object• Remove an item in your MMS. Add page • Add a page to your MMS. Previous page • Go to the previous page of your

MMS.

Next page • Go to the next page of your

MMS.

Delete page • Delete the current page. Attachments • Add a Vcard or Vcal. Preview • Preview the MMS you created. Save • Save your message if you do not

want to send it immediately.

Save canned • Save your message as a

predefined one.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 35

Confirm word • Confirm the selected word. Other words • View other possible words. Add word • Add a word to your personal

dictionary.

Add numbers • Go to the numeric mode.

Normal • Switch to the normal mode. Languages • Use the dictionary in another

language.

Save • Save the message.

You have a personal dictionary which allows you to add, modify or delete words. While writing a message, you can add a word by pressing the “Options” softkey and by selecting “Add word”, then .

6.4 Parameters

From the main menu, select “Messages” and using the navigation key to the right, select the icon.

6.4.1 SMS Parameters

• Service centre (“SC”)

(1)

: phone number of Vodafone’s service centre (it may be provided

automatically).

• E-mail centre (“EC”)

(1)

: the number of the server for sending e-mails (it may be provided

automatically).

• Delivery report (“Rpt:”): request for acknowledgement of receipt for each message sent.

• Message validity (“Val:”): the time period during which attempts to send the message to the recipient

will be repeated in case of failure.

• Format (“Typ:”): format to be used for delivery of message to recipient (SMS, fax, etc.).

• Memory (“Mem:”): product or SIM (see page 39).

(1)

Contact Vodafone for details to fill in these fields.

6.3 Speed writing system

The “Predictive” mode allows to speed the writing of your SMS or MMS. When you want to write a message, press the “Options” softkey, select “Predictive” for SMS, or select “Text options” then “Predictive” for MMS and begin to type ; for instance for “hello” type on the following keys , ,

, , once. The letter or word displayed may not always correspond to the desired one but

continue typing and the system will make better suggestions as you continue to input letters. When in predictive mode, type the first letter:

- if it corresponds to a single word (for instance a), the letter will be displayed,

- if it does not exist as a single word (for instance h), the symbol “*” will be displayed. The cursor shape varies depending on the input mode selected: in predictive input mode, in normal

mode. To confirm a word and insert a space, press the key to the right or press the key downwards or

press the key.

Specific keys Normal mode / Predictive mode

Short keypress: Move between automatic capitals , upper case , lower case , digits

Long keypress: Switch between the normal and predictive mode. Normal: Insert a “+”, “0” or “•”.

Predictive: View other words in the dictionary. Normal: Display the symbols table.

Available options

In addition to the available options in the normal entry mode, you will also find the following choices:

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 37

- Sent MMS are stored by default on the product: Select “MMS parameters” and “Mem:” to choose “Phone memory” or “Not saved”.

For information:

- Received SMS are always in the SIM card,

- Received MMS are always in the phone.

You can always save your messages in the “Archive”.They will then be stored in the phone.

6.4.4 Create a distribution list

In the “Parameters” folder, select “Distribution list”, confirm with key, then name the group. You can now enter the phone numbers for the members of your new distribution list.

6.4.5 My favourite

Enter the number or email of your favourite contact. Then, when you want to send a message, select “Send” and “My favourite” directly without searching in the contact list.

6.4.6 My e-mail

Enter your own e-mail address (if not entered yet under the option “My e-mail” of the “Contacts” menu, see page 28) to be able to easily send images, pictures, sounds, ... by MMS to your computers.

4039

6.4.2 MMS Parameters

• MMS profiles (“Profile”)

(1)

: To set your MMS profile, follow the same procedure as for setting your

WAP connection (see page 58).

• Mode: choose between immediate, deferred or restricted reception for national and international

network coverage (see page 30).

• Delivery report (“Rpt:”): request for acknowledgement of receipt for each message sent.

• Message validity (“Val:”): the time period during which attempts to send the message to the recipient

will be repeated in case of failure.

• Memory (“Mem:”): to store your sent messages.

• Timer: sets the speed at which the pages scroll through: the recipient will see the message at this speed.

• Filters: Anonymous MMS filtering: to receive or not anonymous messages

• Layout configuration: choose between display: image first then text or text then image.

6.4.3 Saving parameters

You can change the saving parameters for your messages:

- Sent SMS are saved by default in the phone memory: Select “SMS parameters” and “Mem:” to choose “SIM memory” or “Phone memory”, or “Not saved”.

(1)

Contact Vodafone for details to fill in these fields.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 39

Camera ....................................................

Your phone is fitted with a camera allowing you to take photos, short animations that you can use in different ways :

- store them in your “My Items”,

- send them in a multimedia message (MMS) to a mobile phone or an e-mail address (see page 35),

- customise your main screen (see page 72),

- assign them to a contact (see page 26),

- transfer them by IRDA to your computer using Alcatel One Touch PC Suite,

- modify your photos adding frames, stamps, etc (see page 48).

7.1 Taking a picture

Your phone must be switched on to take a photo. To access this function from the main screen, press the

key. The screen acts as viewfinder. Position the object or landscape in the viewfinder. The lens is situated on the back of the phone. Please do not touch it. Just next to the lens there is a mirror to make sure you are well placed if you want to take a photo of yourself.

You can take a photo in Portrait or in Landscape mode

- Portrait mode: short keypress on ;

- Landscape mode: short press on one of the side keys.

6.5 Deleting messages

To delete all messages on your SIM card or in the phone, select the icon and then the following options:

-“Delete SIM msg”: delete all messages received and sent from the SIM.

-“Delete phone msg”: delete all messages stored in the phone’s memory. The icon appears when the SIM card is full. To receive new SMS, delete some old ones.

6.6 Memory status

View available memory space. Your telephone’s memory is shared between several functions: contact list, calendar, messages, voice

messages, voice tag, images and melodies, games and applications, video clips. For example, if you use a lot of memory for your voice memos, you will have less memory available for the contact list.

Do not forget to delete large items such as voice memos, MMS, images, photos, recorded sounds, applications, video clips..., in order to free up memory space.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 41

Selected options bar:

photo quality white balance capture mode Exposure (over/under) number of photos taken (for animation and mosaic) Timer

Left softkey: Shoot

Quality:

: High - key : Standard - key : Economy - key

Key Capture mode

: Single

: Animation x 4

: Mosaic

Key : White balance

Right softkey: Options

Key :

- Short keypress: take photo

- Long keypress: take a photo + sound

- Exposure: Left: underexposure Right: overexposure

- Zoom: Up: zoom in Down: zoom out

Key Image size:

- Panoramic

- VGA

- XL/L/M/S

Key Colour mode: colour or black&white

IFA BILDERTEAM/Agenceimages.com

7.4 Photo settings

Before taking the photo, you can adjust a number of settings.

Side keys:

- short keypress up or down: take a photo

- long keypress up: burst shot

- long keypress down: take a photo + sound

7.2 Burst shots

Make a long keypress on the upperside key. The shots are taken as long as the press on the key is maintained (maximum number of pictures in a burst: 15). Then, by using the options menu, you can send this burst in an MMS.

7.3 Taking a photo with sound

You can record a background sound, while you are taking a picture (long press on the lower side key). A screen will ask you to record your sound. If you release your finger, the recording will stop. Press to return to the photo shot screen.

Please use your camera sensibly. Respect others and observe current regulations in your country.

Shoot Options

Side keys

key and key

Key :

- From idle: access to camera

- In Framing mode: short keypress: shoot long keypress: take a photo with sound

IFA BILDERTEAM/Agenceimages.com

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 43

Quality

Select “Quality” in the list of options or access it directly by pressing the , , keys:

: High quality: excellent quality to be sent to a PC, : Standard quality: balance between size and quality, : Economy quality: memory space is optimized.

Warning: the higher the quality, the more memory is required. For example, if you have 1 MB of free memory, you may store the following number of photos:

Format High quality Low quality

VGA 10 photos* 20 photos* 128 x 160 146 photos* 340 photos*

Timer

The photo will be taken 10 seconds after pressing . A sound will be emitted when you take a photo (if your telephone is in Sound mode).

White balance

By pressing the “Options” function key, you can choose from 5 settings: Auto: the settings adjust automatically (no icon will be displayed on your screen),

sunny, cloudy, night time, indoors/artificial light.

In a dark atmosphere, select “Night” to improve the picture quality.

* These estimations are only given as an indication.

Access the settings from the Menu before taking the photo: select the “Camera” item from the main menu, select “Take a picture” then press the “Options” softkey:

Image size

Select “Image size” in the list of options or press the key until you reach the size you require: VGA (640x480) and Panoramic (360x640) are optimised to be sent to a PC, XL (128x160) and L (128x128) are for local use or MMS, M (64x64) is used to assign the image to a contact for instance, S (32x32) is used to create your very own stamps (see page 48).

Capture mode

Select “Capture mode” in the options list or keep pressing the key to choose from one of the following modes:

Single: a single photo; this is the default mode. Animation x 4: in this mode, you can take 4 consecutive photos like a small slide show. The number

at the top right of the screen shows you which photo your are on: 1/4, 2/4, ....4/4. When you have

taken the 4th photo, the animation will start automatically. Mosaic: in this mode, you will get an image made up of 4 thumbnails. To do this, proceed as for the

animation, once the “Mosaic” has been selected (see above).

The burst shoot mode is available by a long keypress on the upperside key.

Frame

Choose a frame from the list offered and press . The frame will be placed in your photo shot screen; if the image is to your liking, press on the key to take the photo. You will also find this option in the “Modify” function (see page 48).

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 45

7.6 Modifying images

This option enables you to “Reduce” image size, to “Add stamp” or “Add frame”. You have two possibilities for accessing images in order to modify them:

- Via the “My Items/Pictures” menu: Choose an image, press and select “Options” then “Modify”.

- Via the “Camera” menu

(1)

Just after taking the photo, press the right softkey to access “Options” and select “Modify”.

7.5 Options available just after taking the photo

Once you have taken a photo or an animation, you can access the following options:

Send • Send your photo without saving

it in “My Items”. Save and send • Save your photo and send it. Save • Save your photo. Discard • Delete the photo you have just

taken.

Modify • Reduce size, add stamps or

frames.

Attach sound • Save a sound and assign it to the

photo.

Pictures • Access your album of images

directly.

Set as • Select what you want to do with

your picture.

(1)

The multimedia content (melodies, images, drawings, etc.) in this phone is for private use only, and may not be used for commercial purposes. Any illegal use is liable to prosecution against the perpetrator.

Colour

You can choose the colour effects. You can access this option directly from the photo shot screen by pressing the key.

Direct access to “Pictures”

Access the “Pictures” folder directly (to create a folder for instance) to put your picture.

Default folder

You can change the folder where your photos will be stored automatically.

You can create your own folders using the “Pictures” option.Press , then the “Options” softkey and select “Create folder”.

Other direct access options from the photo shot screen

Exposure: adjust the contrast of your photo with the navigation key: to the left = underexposure, to the

right = overexposure. Zoom: activate the zoom with the up/down navigation key: up: zoom in, down: zoom out (depending on

the image size).

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 47

Games & more ..........................................

Your Alcatel phone may include some Java™ applications and games. You can also download new applications and games to your phone from Vodafone live!.

The “Games & more” menu allows you to manage the Java™ applications installed in your phone. It includes the following folders:

General: contains all applications and games, Settings: contains your sound, backlighting and network settings.

8.1 Launch an application

Select the application. Press the “Launch” softkey or then “Launch”.

7.7 Direct access to the photo capture or to “My Items” from MMS

composition

With the option “Add image”, you can also access the photo function or “My Items” (picture/image/ video/sound) directly while you are writing a Multimedia Message (MMS) (see page 35).

You have two ways to insert a photo in an MMS:

• Either by adding an existing photo to your MMS taken from “My Items/Pictures”:

when you are in the “Messages” menu, select successively “Create message”, “Multimedia/MMS”, press , press the “Options” softkey, select “Add image”, then “Image album” album and select a photo.

• Or by taking a new photo:

same process, but instead of selecting the “Image album” album, select “Take a picture”.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 49

8.4 Java™ Push

You may receive Java™ Push messages inviting you to launch new applications.

8.5 Settings

- Sound off/ Switch sound ON/OFF for all applications.

Sound on

- Backlight Activate or deactivate the backlight.

- Networks List of network profiles available for Games & more. This list comprises the current WAP profiles and specific profiles for Games & more. To select a profile, go to the list, press and select “Confirm”. To modify a specific profile for Games & more, go to the list, press

and select “Modify”. To create a profile, go to the list, press and select “Create”.

For the options available, see page 58.

- Memory View memory available. Applications use shared memory (see page 41).

While an application is running

- Short keypress on : pause

- Long keypress on : exit the application

Authorisation for network access: some applications require network access or the sending of an SMS. In this case, select the authorisation profile required with the navigation key , press then validate the selection then press “Confirm” to validate everything.

8.2 Available options

Launch • Launch the application. Information • This option gives information on the application. Download • Download an application. Delete • Deletes the application. If you delete a pre-installed application in your phone, you

may, depending on the application, be able to download it again from Vodafone live! However, some applications cannot be re-downloaded.

8.3 Download an application

You can download new Java™ applications in the “Games & more” menu by selecting the “Download” softkey. The list of available WAP bookmarks dedicated to the application download will then be displayed. Select the appropriate bookmark to go to the desired WAP page.

The downloaded applications can be saved either in the Games folder or Application folder.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 51

Calendar......................................................

Your phone has a sophisticated calendar that will help you to manage your daily schedule. You can also save “to do” lists.

9.1 Consulting your calendar

Three views are possible. You must first choose the appropriate icon:

Daily view Weekly view Monthly view “To D o ” list.

Parameters You can scroll through the dates by pressing the key. According to the view you can read, create, modify or send an item.

Information in the contact list and the calendar may be shared with a computer using the Alcatel One Touch PC suite (see page 86).

5453

Disclaimer

Downloading or running applications will not damage or alter any software already in your mobile telephone designed to support Java™ technology.

Alcatel waives any responsibility and refuses to guarantee applications that are subsequently used, as well as for all applications not embedded in the handset upon purchase.

The purchaser alone bears the risk of loss, damage or defect of the handset, or of applications/software, and generally of any damage or consequence resulting from the use of the said applications/software. In the event the said applications/software, or the later setup of any function are lost due to technical reasons if the handset has been replaced/repaired, the mobile phone owner should repeat the operation and download or set up again. Alcatel grants no guarantee and waives any responsibility if the operation cannot be repeated or cannot be performed without incurring some cost.

Java™ and all Java™ based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries.

Powered by JBlend™ - Copyright 1997-2003 - Aplix Corporation. All rights reserved. JBlend™ and all JBlend™-based trademarks and logos are trademarks or registered trademarks of Aplix Corporation in Japan and other countries.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 53

Daily view Weekly view Monthly view

Activate or deactivate a setting by pressing . Exit the configuration function by pressing .

9.5 More about your calendar

Graphic view

A single appointment recorded.

Two or more appointments recorded during this time slot.

Week number.

An appointment was recorded prior to this time slot.

An appointment was recorded after this time slot.

Monthly view

Blue background Meeting scheduled White background No meeting scheduled

In the various views, the current day, week and month flash.

Wed. 4th December 02

2 Events

Wed. 4th December 02

2 Events

December 2002

TMW

FTSS

TMW

FTSS

Create Options

9.2 Creating an appointment and programming an alarm

When you create an appointment (“Create” option), you can also activate an alarm. You can set the desired alarm activation time to coincide with your appointment time.

9.3 Creating a task

Scroll to the icon using the key, and confirm using the key. Select “Select type”, then confirm once again using the key and enter the type of task to be performed (“to do” or call appointment), then enter the purpose.

This list can be arranged by deadline or by priority. To do this, scroll to the icon using the key, then confirm using the key.

You can set an alarm for a task for which you have set a due date. This alarm will sound on the chosen day at the time that you entered.

9.4 Configure the calendar

Scroll to the icon using the key, to access the following options:

Alarm • Set a default time for the alarm

to sound before the scheduled appointment.

Calendar • Program the start time for your

day, your first day of the week and your first week of the year.

“To Do” • Sort your tasks by priority or by

due date.

Delete • Delete all tasks or calendar

items or only those items that have expired.

Privacy: The data in your calendar can be protected (see option “Privacy” page 79).

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 55

Launch • Launch WAP with this profile

even if another one has been selected as default one.

Activate • Select the current profile as

default one (this option is not displayed if it is already selected).

Create • Enter the parameters of a new

profile.

Modify • Modify the parameters of a

profile.

Delete • Delete the selected profile.

Vodafone live! ........................................

11.1 Access WAP menu

Vodafone live! is a service that allows you to access the mobile Internet, where you can obtain information such as weather conditions, news, sport and download new ringtones, wallpapers, etc.

- “Vodafone live!” launches the Vodafone live! portal homepages.

- “Bookmarks” gives access to the list of your favourite sites or add new sites to them.

- “Enter URL” allows you to directly access the WAP page for which you enter the URL address.

- “Profiles” lists the Wap profiles.

11.2 Programming your access

Vodafone has already pre-configured your phone, however, you can select a profile from the “Profiles” list and access the following options by pressing the key:

SIM card Services ..................................

Access to the services menu proposed by your operator in your SIM card.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 57

11.3 GPRS function

Your mobile phone has an efficient high-speed modem based on GPRS technology. With this modem you will be able to surf faster on the WAP and send your MMS more quickly. This service may be billed at a different rate (contact Vodafone for more information).

The icon appears when the GPRS context is active.

11.4 WAP browser options

Once you have launched the Wap browser, while reading a page, you can access to the options by selecting the right softkey “Options”, or press (long keypress).

To “Create” or “Modify” a profile, you are required to replace the following parameters:

- Profile name

- Homepage

- IP address

- Security

- Bearer choice

- Confirm In the “Bearer choice” item you can choose the transmission mode: GPRS/GSM, GPRS or GSM.

When you select the GPRS/ GSM transmission mode, GSM mode is activated if

GPRS mode is not

available.

If you select the GPRS transmission mode, select a GPRS bearer and then fill in the following parameters:

- Authentication (user name and password)

- APN If you select the GSM transmission mode, select a GSM bearer and then fill in the following parameters:

- User name

- Password

- Telephone number

- Access type If you select the GPRS/GSM transmission mode, select a GPRS bearer and then a GSM bearer; fill in the

required parameters for each one.

Home • Access the homepage directly. Bookmarks • Access your favourite sites

(bookmarked sites).

Alert Inbox • View information sent over

WAP.

Snapshot • Save the whole of your screen. Save Items • Save images or sounds. Send Link • Send an SMS with the URL

address of the visited page.

Go To URL • Access the WAP site directly by

entering the address.

Show URL • Display the URL address of the

current page.

Reload • Refresh the current page. Settings • Customise your WAP access. About... • Display the browser version. History • Display the list of the last visited

URL.

Exit • End your WAP session and

return to the main screen.

At any time during your navigation, a long keypress on the key allows you to exit the WAP mode.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 59

For easier searching, the images/photos are displayed on the screen in reduced size. To view one image at a time, select an image, press and click on “View”.

Then, from this view you can scroll through the images by making a short keypress on . A long keypress will start the slide show (or press the right softkey “Options” then “Slideshow”).

12.2 Games & more

See page 50.

12.3 Sounds

Choose a sound for the ON/OFF screen, for an incoming call, a message alert or an alarm (see page 70). The “Sounds” album is made up of the following folders

(1)

General, contains all sound items (built-in or created) from all album folders,

Melodies,

Crazy sounds,

Recorded sounds (only contains recordings made with the “Record” function and the “Memo->

Album” function),

Composed sounds (only contains compositions made using “Compose”).

(1)

The embedded folder names cannot be modified. However, in certain cases, you can modify, delete and add items included in these folders.

My Items ................................................

To access “My Items” from the main screen, press the navigation key to the left or to the right or press and select the icon. “My Items” is a function that groups together all visual and sound items in your telephone, regardless of whether they are embedded, downloaded, recorded or composed.

12.1 Pictures

You can select an image or a photo and use it as the main screen wallpaper or the ON/OFF screen wallpaper. You may change it, send it by MMS or assign it to a contact in the contact list using the “Image” option (see page 26).

The “Pictures” album is made up of the following folders

(1)

General: list of all images (built-in or created) from all album folders. Photos: default folder for pictures taken with the camera. Pictures: contains all images not belonging in one of the other folders. Icons: contains EMS, stamps... Frames: contains frames for enhancing your images.

(1)

The embedded folder names cannot be modified. However, in certain cases, you can modify, delete and add items included in these folders.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 61

(1)

Files marked with cannot be forwarded.

(2)

Only applies to composed sounds, images and videos that can be edited.

View • View the image selected. If you

want to view all the pictures of your folder in a slideshow press

on the current picture.

Listen to • Listen to the sound selected. Play • Play the video selected.

Send

(1)

• Send sound/image/video.

Delete • Delete image/sound/video

selected (Not for built-in items).

Set as • - Image->main screen, switch

ON/OFF, assign it to a contact.

- Sound->ringtone, switch ON/OFF, assign it to a contact.

- Video->to a contact.

Ringtones • Choose a melody for an

incoming call ringtone.

Modify • Modify sound/image/video

(2)

Download • Access to your bookmark sites

to download new items.

Rename • Rename image/video/sound. Classify file • Move an image/video/sound

from a folder to another.

Create folder • Create folders grouping together

a series of images or sounds (for example: “Holidays” or “Birthday”).

Delete folder • Delete a folder. Rename folder • Rename a folder that you

created.

Empty folder • Empty the contents of a folder. Sort by size/ • Sort the images by size or by

Sort by name alphabetical order. Camera access• Access the photo taking mode

directly.

12.4 Videos

The “Videos” album is made up of the following folders

(1)

General, contains all the items from all the folders (created and embedded) Crazy clips, Video trailers.

While playing a video, you can adjust the volume with the key or the side keys.

You can search any Image, Sound or Video files by pressing the key bearing the first character of the filename.

12.5 Managing sounds, images and videos

According to the item chosen, you can access some of the following functions:

(1)

The embedded folder names cannot be modified. However, in certain cases, you can modify, delete and add items included in these folders.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 63

Application..............................................

13.1 Alarms

Alarm clock

First set the alarm frequency (daily or only once), then enter the time and date and confirm by pressing the

key. You can also enter the purpose of the alarm and then confirm with the key.

Timer

Set the amount of time desired before the alarm is to sound and confirm with the key.

Options

When the alarm is set, the icon is displayed on the main screen. The alarm will sound whether the handset is switched on or off and can be shut off by pressing the key.

If you have chosen the “Snooze” option, the alarm will sound at regular 10 minute intervals.

13.2 Calculator

Enter a number and confirm with the key, then select the type of operation to be performed using the key and confirm again.

Enter the second number and press . Select the “=” sign to display the result. To return to the main screen, press the key (long keypress).

Calculator

12.6 Download new videos, photos, sounds, ...

With the “Download” option, you can access your favourite sites saved in your bookmarks list, and download new items that you will be able to save in the “My Items” menu.

12.7 Formats and compatibility

List of audio, image and video formats compatible with your telephone:

- Audio: AMR (.amr)

(1)

; Midi (.mid); iMelody (.imy); Smaf (.mmf, .spf, .saf)

- Image: JPEG (.jpg)

(2)

; GIF (.gif); PNG (.png); BMP (.bmp)

- Video: 3GP (.3gp) (H263

(3)

+ AMR

(1)

or MPEG-4

(4)

)

MP4 (.mp4) (MPEG-4

(4)

)

- You can convert large image and sound files using the PC software suite so that they are compatible with your terminal.

12.8 My shortcuts

Access the own shortcuts already programmed. To programme new shortcuts, select “Set my shortcuts” if you want to have a quick access to a function

or a telephone number.

(1)

AMR-NB.

(2)

Except for progressive Jpeg. The phone uses the “Independent Jpeg Group” code.

(3)

H263 profile 0, level 10.

(4)

MPEG-4 simple visual profile, level 0.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 65

13.5 Tone maker

Access this feature by selecting “Application” for the main menu, then “Tone maker”.

13.5.1 Compose

Select “Compose” then use the keypad as shown below:

13.5.2 Record

Select “Record” to record a sound of your own. In both cases, you can use these sounds to use them as a melody. If you want to listen to a sound (composed

or recorded), select the desired one and press the “Options” softkey.

Delete a note

Key 1 to 7:

basic notes of an

octave (C, D, E,

F, G, A, B)

Change

octave

Add

a pause

Go to the

options

Change the

length of a note

or a pause

Add

a sharp

13.3 Converter

The currency converter allows you to:

• Convert a currency directly into euros and vice versa

(1)

• Convert a sum of money into another currency (e.g. dollars to pounds).

For a conversion into euros, you can modify the default currency by selecting “Set up”. If converting between international currencies, both currencies must be selected. You must also enter the

appropriate exchange rate. An exchange rate value is pre-set for each currency. You can change this value by selecting “Set up”.

From the main screen, enter the amount in euros to be converted into the programmed currency, then press the key and select “Converter”.

13.4 Voice recorder

The voice memo feature enables you to record personal messages. To record a voice memo, select “Voice recorder”, then “Record”, and begin speaking after the beep. Once the voice memo has been created, you

can access the following options:

Listen to • Listen to a recorded voice

memo.

Send • Send your memo by MMS or

infrared.

Hands-free/ • Switch between hands-free and Discreet discreet mode.

Title • Modify the name of the memo. Memo->Album• Copy the memo to your

“Sounds” album (to send it by MMS or use it as a ringtone).

Delete • Delete the selected memo.

(1)

For the former european national currencies, the currency converter uses the final Euro conversion rates set on 31/12/1998, which are used in accordance with official conversion rules.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 67

Settings ....................................................

From the main screen, select the icon menu , press and select the function of your choice in order to customise your telephone.

14.1 Profiles

14.1.1 Ringtones

Available functions

To modify the sound settings, select the different options using the key:

Select a melody in the list using the key then confirm by pressing . You can also select in this list the random melody function called “Surprising melody” (see page

71). Mode (normal, discreet, vibrator...). Adjust the volume using the key. Select the type of key beep. Select a melody for a new incoming message. Select a melody for an appointment. Select a melody for an alarm. Select the type of network beep.

13.6 Infrared (IrDA)

Access this feature by selecting “Application” from the main menu, then “Infrared”. Your phone’s infrared feature allows you to exchange contacts, calendar data, images, videos, melodies via

an infrared link with an other mobile or a PC. The infrared port is located on the top of your phone.

Sending data

To send data, select the contact file, then select the “Data transfer” option. It is not necessary to activate the infrared feature before sending.

Receiving data

To receive data, you must activate the infrared feature. A message will advise you of the arrival of data; you then save the data by pressing the key or reject it using the key.

Once you have selected the option, the icon appears on your screen. Infrared will be deactivated automatically after a short while

(1)

. The connection will cut off if you have an incoming call. You can receive

up to three calling cards (V.Card) or appointments (V.Cal) at the same time.

13.7 Alarms list

Access this feature by selecting “Application” from the main menu, then “Alarms list”. You can view all the alarms that you have set (Appointment, To Do, Alarm clock). The icon will appear

on your main screen if the alarm clock or the timer have been set, or if the alarm is set for the current day or the following day.

(1)

If you use infrared often, we advise that you set a quick access to it from the keypad (see page 27).

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 69

4 visual items: - ON screen image/animation

- OFF screen image/animation

- Main screen image/animation

- Skins and colours

3 sound items: - 1 melody for incoming calls

- 1 melody when the telephone is switched on

- 1 melody for notification of incoming messages When using the telephone for the first time, a default Theme is activated. Even if you choose a Theme, you can still modify the elements in it one by one. You can reactivate a Theme

at any time. When changing a Theme, an installation screen appears until the 7 elements are installed.

The installation of the Theme can be stopped and cancelled if you receive an incoming call or if you press the key ; the previous choice of Theme is kept.

14.1.3 Screen

Access this feature by selecting “Settings” from the main menu, then “Profiles” and “Screen”.

Main screen

The main screen is displayed after your telephone has been switched on and/or when no functions have been used for a short time (calls, sending of short messages...).

You can lock and unlock the keypad by making a long keypress on the key. You can access the main functions directly from the main screen with the key.

Mode

Normal • Normal ringtone (increasing

volume).

Discreet • Normal ringtone (increasing

volume) preceded by beeps.

Vibrate • Activate the vibrator and mute

all sounds (ringtone, message beep, appointment alarm, low battery alert). The icon will be displayed.

Vibrate and • Vibrator and the normal ring ringtone at the same time.

Vibrate then • Vibrator followed by beeps then ring the normal ringtone (increasing

volume).

Beep and • Warning beep followed by the vibrate vibrator.

Silence • No sound or beep except for

alarms. The icon will be displayed.

Some of these modes may be deactivated when using certain accessories (full duplex hands-free car kit, ...).

Surprising melody

In the top of the list of melodies, access the item “Surprising melody”; choose all the melodies you want. Then, at each incoming call, one of the melodies you have choosen will be played randomly.

14.1.2 Themes

Access this feature by selecting “Settings” from the main menu, then “Profiles” and “Themes”. This menu allows you to customise your telephone to suit your own taste. You can modify 7 customisable

items at the same time. A Theme comprises:

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 71

Contrast

Set the contrast of your screen.

14.1.4 Keys

By customising your keys, you can call someone or access a function directly from the main screen (see page

27).

14.1.5 Voice tag

Voice tags allow you to access one of the menu functions by pronouncing the name of that function.

Recording a voice tag

In order to record a voice tag for one of the menu functions, select “Voice tag” and the desired function and then follow the instructions.

The functions for which a voice tag has been recorded are indicated by the icon. There are 10 functions accessible through voice tag.

Using a voice tag

You activate “voice tag” by a long keypress on the key from the main screen. To use a voice tag, follow the instructions on the screen.

After recording, you can “Listen to”, “Replace” or “Delete” a recorded voice tag command.

(1)

Depending on the language.

By selecting the “Pictures” you can customise it by replacing the default image or animation displayed on your telephone. If you receive an event (incoming call, SMS/MMS, notifications, etc.) the icon, type and quantity of events will be displayed on your main screen allowing you to consult them directly.

Screen saver

If you activate this option, the screen saver will be displayed a little while after the main screen. You can choose a picture, an animation, a slideshow, or a videoclip as your screen saver.

In both cases, Main screen or Screen saver, the eco-mode screen will appear after a little while: only the battery and network levels and the time or an envelope (for incoming event) will be displayed.

Colours

This function enables you to customise the skin and the colours of your telephone (menu screens, entry screens, etc.)

ON/OFF screens

You can customise your welcome message, animation, melody or image that appears when you switch on your telephone.

You can also customise your OFF screen with an image or animation.

Zoom

(1)

Two character sizes are available for your telephone screen. Large characters is selected by default. If you wish to display more information select “Zoom”.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 73

14.2.3 Dictionary

Access this feature by selecting “Settings” from the main menu, then “Phone” and “Dictionary”. You have a dictionary to which you can add your own words in addition to those suggested by the predictive

input system. When you consult your dictionary, you can add, modify or erase words by using the options accessed by the key.

14.2.4 Input mode

(1)

Access this feature by selecting “Settings” from the main menu, then “Phone” and “Input mode”. In addition to the specific character table for Arabic, Cyrillic, Chinese, other data input modes are also

available in your phone. This feature allows you to write short messages and enter names into your contact list.

14.2.5 Keypad lock

Access this feature by selecting “Settings” from the main menu, then “Phone” and “Keypad lock”. Activate/deactivate the automatic keypad lock.

If the telephone is plugged in using a car kit accessory or the charger, it will be unlocked automatically.

14.2.6 Extension display

Access this feature by selecting “Settings” from the main menu, then “Phone” and “Extensions”. This function allows you to choose whether to display the file name extensions of your photos, videos and

sounds, files.

(1)

Depending on the language.

14.2 Phone

Access this feature by selecting “Settings” from the main menu, then “Phone”

14.2.1 Clock

Access this feature by selecting “Settings” from the main menu, then “Phone” and “Clock”. You can display two clocks (local and remote) at the same time. Go first to the “Clock type” icon and select the “2 clocks” option. Then go back to the “Clock set

up”, select “Local clock”, choose a city and confirm. The automatic transition to daylight saving time is activated. Repeat the same operation for the “Remote clock”.

Display format

You can display your clock in analogue or digital format and the date in the following formats: day/month/year, month/date/year or year/month/day in digits or using the first three letters for the day and month.

14.2.2 Languages

(1)

Access this feature by selecting “Settings” from the main menu, then “Phone” and “Languages”. Display language for messages (select using ). The “Automatic” option selects the language according to

the subscription network (if available).

(1)

Contact Vodafone to check service availability.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 75

14.3.3 Diverts

Access this feature by selecting “Settings” from the main menu, then “Call settings” and “Diverts”. Outgoing calls Activate/deactivate the call barring. This option is applied as follows:

• Except SIM dir. Outgoing calls to numbers not included in your SIM contact list are barred.

• All All outgoing calls are barred.

• International Outgoing international calls are barred.

• Except->Home Outgoing international calls except those to your country of subscription are barred.

• Except FDN Barring of outgoing calls in accordance with a specific “FDN” directory contained in the

Dir. SIM card.

Activate/ All calls not beginning with one of the numbers recorded in the “FDN” directory are Deactivate barred.

Change If the “Except FDN Dir.” feature has been activated, after entering PIN2, you can

update the “FDN” directory (update “FDN” directory by pressing ).

Incoming calls Activate/deactivate the barring of incoming calls. The following configurations are

possible:

• Except SIM dir. Incoming calls to numbers not included in your SIM contact list are barred.

• All All incoming calls are barred.

• If abroad Incoming calls are barred when you are abroad.

Status List of incoming call barring options activated on this phone.

14.3 Call settings

Access this feature by selecting “Settings” from the main menu, then “Call settings”.

14.3.1 Filtering

Access this feature by selecting “Settings” from the main menu, then “Call settings” and “Filtering”. Inconditional forward of the incoming calls on the voicemail box.

14.3.2 Call forward

(1)

Access this feature by selecting “Settings” from the main menu, then “Call settings” and “Call forward”. Voice Activate/cancel call forwarding to a specified number (type in the number, confirm by

pressing ). The following configurations are possible:

• All calls Systematic forwarding of all your calls. The icon is displayed.

• Conditional If your line is busy, if you don’t answer or if you are outside the network range.

• If busy Only if your line is busy.

• If no reply Only if you don’t answer.

• If unreachable Only if you are outside the range of the network.

Data Your data reception calls are systematically forwarded to a specified number. Fax Your fax reception calls are systematically forwarded to a specified number. Status List of call forwarding options activated on this telephone. Cancel all Cancellation of all activated call forwarding options.

(1)

Contact Vodafone to check service availability.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 77

14.3.7 Billing

Access this feature by selecting “Settings” from the main menu, then “Call settings” and “Billing”.

Amount

(1)

Management of call charges.

Total cost Total cost of charged calls. Available Remaining credit as compared with “Maximum credit” amount.

credit

Maximum Credit limit beyond which any billable call is barred (enter credit, then confirm by credit ).

Reset Reset total cost of charged calls. Cost unit Cost of a Telecom Unit in the currency of your choice (Select the “Other?” option for

a new currency and use the key to enter a decimal point).

Duration Call duration management.

Total duration Total duration of all outgoing calls. Avail. duration Time credit still available in relation to the duration provided by the “Set duration”

(provided for informational purposes only).

Set duration Contract duration (enter the duration then confirm by ). Reset Reset to zero (immediately or periodically) the cumulative duration for outgoing calls.

GPRS Management of the volume of data communications charged for (in kilobytes). counters

Global counter Total charges for data volume exchanged. Access point Charges for data volume exchanged per access point.

14.3.4 Calls

Access this feature by selecting “Settings” from the main menu, then “Call settings” and “Calls”.

Call waiting

(1)

Activate/deactivate the notification of a second incoming call by a beep.

Hide my Activate/deactivate the option making your calls anonymous (your number is no longer

number

(1)

transmitted by the network to the party you are calling).

Caller ID

(1)

Activate/deactivate the display of your caller’s number (or name if found in the contact

(CLIP) list) for each call. Answer mode Choose your answer mode: “Off hook Key” or “Any key”. Phone Enables automatic callback by the network of the last dialled busy number.

autoredial

(1)

• Activate/ Activate/deactivate automatic callback of your party if the first call did not go through.

deactivate

• See list List of numbers for which automatic callback was not successful (10 unsuccessful

attempts).

• Clear list Delete the list.

14.3.5 Network autoredial

Access this feature by selecting “Settings” from the main menu, then “Call settings” and “Network autoredial”.

This function enables automatic callback by the network of the last dialled busy numbers.

14.3.6 Privacy

Access this feature by selecting “Settings” from the main menu, then “Call settings” and “Privacy”. Select “Activate” in this option in order to protect your calendar or contact data. This option is useful if

you use PC synchronisation.

(1)

Contact Vodafone to check service availability.

(1)

Contact Vodafone to check service availability.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 79

14.4.2 Car kit

Choose the answer mode: off hook key, automatic or any key.

14.5 Internet

Choose your access modem and the GPRS settings (see page 58).

14.6 Network

Access this feature by selecting “Settings” from the main menu, then “Network”.

SMS CB

(1)

Messages broadcast over the network (weather forecast, traffic conditions, etc.) are automatically displayed on the main screen.

• Reception Depending on the option selected, the phone displays messages broadcast over the

network.

Partial The phone receives messages intermittently and displays them according to your list (see

“CB list” option).

Complete The phone continually receives messages and displays them according to your list (see

“CB list” option).

None The phone does not receive any messages.

• CB list List of codes for messages to be displayed.

• Access point 1-2 Charges for data volume exchanged through access point 1 or 2.

Cumulated Charges for data volume exchanged through all access points 1 or 2. Last counter Charges for data volume exchanged through last access point 1 or 2. Reset Reset to zero data volume exchanged through all access points 1 or 2.

• Other Charges for data volume exchanged through other access points.

Cumulated Charges for data volume exchanged through all access points. Last counter Charges for data volume exchanged through the last access point. Reset Reset to zero data volume exchanged through all access points.

Delete Reset all counters to zero.

Cost summary

(1)

Last call Duration and cost of the last call. Total cost Duration and cost of all calls.

Beep duration Activate (or cancel) the beep emitted during a call with a specified frequency (enter the

frequency and confirm by ).

14.4 Connectivity

Access this feature by selecting “Settings” from the main menu, then “Connectivity”.

14.4.1 Headset answers

Off hook Key Only by pressing the key. Automatic Automatically without any keypress, after approximately 2 ringtones (this option is

operational only if your mobile phone is connected to an audio kit or handsfree kit). Any key By pressing any key from the keypad (keys 1 to #). Audio mode Choose to ring in headset, or both on telephone and headset.

(1)

Contact Vodafone to check service availability.

(1)

Contact Vodafone to check service availability.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 81

Menu code A protection code for certain MENU options (services, settings, language) will be

requested if accessed while the code is activated.

Activate/ Activate (or cancel) this code.

deactivate

Change Update code (between 4 and 8 digits).

Telephone A telephone protection code will be requested each time the phone is switched on, if code this code is activated.

Activate/ Activate (or cancel) this code.

deactivate

Change Update code (between 4 and 8 digits).

Search Search for a network connection.

• Available List of networks available in your radio environment.

• Mode Depending on the option selected, the network search mode is:

Automatic The first network searched for is the network you used last. Manual The choice of the connection network is left up to the user.

• Preferred list List of networks to which you wish to be connected in order of priority (update this list

using ).

Band Select the frequency band.

14.7 Security

Access this feature by selecting “Settings” from the main menu, then “Security”.

PIN code The SIM card protection code is requested each time the phone is switched on if this

code is activated.

Activate/ Activate/deactivate this code.

deactivate

Change Update code (between 4 and 8 digits).

PIN 2 code Protection code for certain SIM card features (Billing/Cost/FDN, etc.) requested during

their use when this code is activated.

Change Update code (between 4 and 8 digits).

Network Password requested for network “Diverts” options. code

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 83

PC suite ........................................................

Depending on your model, your packaging box may contain a PC suite. Otherwise, you can download it for free from the “Alcatel” Website. The PC suite includes:

- Multimedia Studio:

• customise your mobile with sounds, melodies, images, animations and videos.

• transfer to your PC the photos taken with your camera.

- One Touch Sync:

• synchronise your mobile phone with: MS Outlook 98 / 2000 / 2002 / 2003, Outlook Express 5.0 / 6.0,

Lotus Notes 4.6 / 5.0 / 6.0 / 6.5, Lotus Organiser 5.0 / 6.0

- Data Connection Wizard:

• use your mobile phone to connect your PC to the internet.

Supported Operating Systems

- Windows 2000 with Service Pack 4 (SP4) or later

- Windows XP with Service Pack 1 (SP1) or later

Call logs ........................................................

Access this feature by selecting “Settings” from the main menu, then “Call logs”. You can access your call memory by pressing the key from the main screen. You must first choose the

appropriate icon:

Last dialled calls Missed calls Received calls

The icons that may be displayed to the left of the person’s name show the type of telephone number recorded in the contact list (Home, Office, Mobile Phone).

Available options

From the stored number, you can access the following options using the right softkey:

View • Consult call details (number,

date, time, etc.).

Write • Send an SMS or MMS to message the selected number.

To contact list • Store the selected number in

one of your contact lists.

Delete • Delete the selected number.

number

Clear list • Clear the entire list.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 85

Telephone warranty ....................................

Congratulations on choosing this mobile phone - we hope that you will be totally satisfied with it. Notwithstanding any other applicable statutory warranties, this mobile phone is guaranteed against any manufacturing defect for a period of ONE (1) year from the date of purchase shown on your invoice. Nevertheless if the statutory warranty in force in your country exceeds ONE (1) year, the statutory warranty is not affected by the manufacturer’s warranty. The present warranty terms also apply to the battery and accessories but for a period of SIX (6) months from the date of purchase shown on your invoice. Under the terms of this warranty, you must inform your phone dealer or any maintenance centre approved by Alcatel (see list of maintenance centres at our web site www.alcatel.com) without delay of any defects and present the invoice given to you at the time of purchase. The phone dealer or the maintenance centre will decide, as appropriate, to replace or repair all or part of the telephone or the accessory found to be defective. This warranty covers parts and labour but excludes all other costs. Repair or replacement may be carried out using reconditioned products offering features equivalent to new products. Any operations under this warranty, especially repair, modification or replacement of products, will be covered by a warranty of three months, unless other statutory provisions apply. This warranty shall not apply to damage or defects (to your telephone and/or accessory) caused by:

1) Non-compliance with instructions for use or installation,

2) Non-compliance with technical and safety standards in force in the area where the phone is used,

3) Improper maintenance of power sources and of overall electrical facilities,

4) Accidents or the consequences of theft (of the vehicle), acts of vandalism, lightning, fire, humidity, infiltration of liquids, atmospheric influences,

5) Using the phone in conjunction with or connected to hardware not provided nor recommended by Alcatel, without Alcatel’s explicit consent.

Characters and symbols table....................

To enter a word in normal mode, press the key corresponding to the desired letter several times until the letter appears.

Press the key to display the symbols table; the cursor is positioned in the centre. Use the navigation key to move it.

Displays the symbols table

, , , (see p. 37)

Symbols table

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 87

Accessories

(1)

................................................

The latest generation of Alcatel GSM mobile phones offers a built-in hands-free feature that allows you to use the telephone from a distance, placed on a table for example. For those who prefer to keep their conversations somewhat confidential, an earpiece is also available known as the headset.

Battery

BB08832

Travel charger

C57

Cigar lighter charger

C56

Headset

M13

Basic car kit

MP79

Full duplex handsfree

car kit

MPC-10305

Comfort headset

M16

Removable covers

FPB-10062-A*

(1)

Depending on availability.

Only use your telephone with ALCATEL batteries, chargers and accessories compatible with your model. These are available from Vodafone.

You can buy ALCATEL accessories on www.alcatel.com or from your Vodafone dealer.

6) Any service, modification or repair by persons not authorised by the manufacturer, the phone dealer or an approved maintenance centre,

7) Use for a purpose other than that for which the products were intended,

8) Normal wear,

9) Deterioration caused by external causes (e.g.: RF interference produced by other equipment, fluctuations in mains voltage and/or voltages on telephone lines, etc.),

10)Modifications made, even if unavoidable, due to changes in regulations and/or changes in network parameters,

11)Connection problems resulting from unsatisfactory radio transmission or caused by the absence of radio-relay coverage.

Telephones or accessories from which markings and or serial numbers have been removed or modified, as well as telephones from which the labels are missing or damaged are excluded from this warranty. The above provisions constitute the only claims, which can be made against the manufacturer and dealer on the grounds of equipment defects, this warranty excludes any other explicit or implied warranty except the statutory warranty in force in the user’s country.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 89

Troubleshooting ..........................................

Before contacting the after-sales service, we advise you to perform the following checks:

My mobile phone does not switch on

• Press until the screen comes on

• Check the battery charge level

• Check the battery contacts, remove and reinstall your battery, then turn your telephone back on

My phone has not responded for several minutes

• Press the key

• Remove the battery and re-insert it, then switch the phone back on

My screen is difficult to read

• Clean your screen

• Use your mobile phone in accordance with the recommended conditions of use

My mobile phone turns off by itself

• Check that your keypad is locked when you are not using your mobile phone

• Check the battery charge level

My mobile phone has a short battery life

• Make sure you respected the complete charge timing (minimum 3 hours)

• After a partial charge, the battery level indicator may not be exact. Wait for 20 minutes minimum after you remove the

charger to obtain an exact indication

My mobile phone does not charge properly

• Make sure that your battery is not completely discharged; the battery charge indicator can take several minutes and may

be accompanied by a quiet whistling sound

• Make sure charging is carried out under normal conditions (0°C +40°C)

• Make sure your battery is inserted. It must be inserted before

plugging in the charger

• Make sure you are using an ALCATEL battery and charger

• When abroad, check that the electrical current is compatible

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 91

When I select a number from my contact list, the number is not dialled

• Make sure that you have correctly recorded the number in your file

• Make sure that you have selected the country prefix when calling a foreign country

I am unable to create a file in my contact list

• Make sure that your SIM card list is not full; delete some files or save the files in the product list (i.e. your professional

or personal lists)

• Check the “Diverts” option for “Incoming calls” to be sure that the “Except SIM Dir.” feature is not activated

My callers are unable to leave messages on my voicemail

• Contact Vodafone to check service availability

I can’t access my voicemail

• Make sure Vodafone’s voicemail number is correctly entered in “My Numbers”

• Try later if the network is busy

I am unable to send and receive messages MMS,Vox MMS

• Check your phone memory available as it might be full (see page 41)

• Contact Vodafone to check service availability and check MMS parameters (see page 39)

• Verify the server centre number or your MMS profile with Vodafone

• The server centre may be saturated; try again later

The icon is displayed on my main screen

• You have saved too many short messages on your SIM card; delete some of them or archive them in the product memory

The << - >> icon is displayed

• You are outside of the network coverage area

I have already entered 3 incorrect PIN codes

• Contact Vodafone to obtain the PUK code (Personal Unblocking Key)

I am unable to connect my telephone to my computer

• Install first of all Alcatel’s PC suite

• Use “Install the connection” and perform the installation

• If you use the infrared port, check that it is correctly activated (see page 69)

• If you use infrared often, we advise that you set a quick access to it from the keypad (see page 27).

• Check that your computer meets the requirements for Alcatel’s PC Suite installation

My mobile phone does not connect to a network

• Try connecting in another location

• Verify the network coverage with Vodafone

• Check with Vodafone that your SIM card is valid

• Try selecting the available network(s) manually (see page 83)

• Try connecting at a later time if the network is overloaded

SIM card error

• Make sure the SIM card was correctly inserted (see page 13)

• Verify with Vodafone that your SIM card is 3V compatible; the old 5V SIM cards cannot be used

• Make sure the chip on your SIM card is not damaged or scratched

Unable to make outgoing calls

• Make sure you have dialled a valid number and press the key

• For international calls, check the country and area codes

• Make sure your mobile phone is connected to a network, and that the network is not overloaded or unavailable

• Check your subscription with Vodafone (credit, SIM card valid, etc.)

• Make sure you have not barred outgoing calls (see page 78)

Unable to receive incoming calls

• Make sure your mobile phone is switched on and connected to the network (check for overloaded or unavailable

network)

• Check your subscription with Vodafone (credit, SIM card valid, etc.)

• Make sure you have not forwarded incoming calls (see page 77)

• Make sure that you have not barred certain calls

The caller’s name or number does not appear when a call is received

• Check that you have subscribed to this service with Vodafone

• Your caller has concealed his/her number

The sound quality of the calls is not optimal

• You can adjust the volume during a call by means of the key

• Check the radio reception icon level

I am unable to use the features described in the manual

• Check that your subscription includes this service

• Check to be sure this feature does not require an ALCATEL accessory.

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 93

or technical specification of its products without prior notice.

English - 3DSXXX

TH3VODAFONE_UM_GB/FCC_15-07-04 19/07/04 15:32 Page 95

TCT Mobile 005 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
